7 Renewing B-pillar

r po s e s , i

Protected by copyright . Copying for pivate or commerci al p

p a r t r o r in w ho le, is not permitted unless authorised by Volkswagen AG. Volkswagen AG does notguarantee or accept any liabilit y wi th res pect t o t h e c o r r e c t n e ss o f in format ion in this document. Copyright by Volkswagen AG. RO: 51 41 55 00 7 Renewing B-pillar DANGER! n Observe safety notes! Welding, parting using spark generating machines/tools or tin‐ning in foam treated areas creates gases which are hazardous to health and environment. Therefore, refrain from using these processes. u ⇒ General Information; Body Repairs, General Body Repairs ; Safety instructions Jetta 2005 ➤ Body Repairs - Edition 04.2009

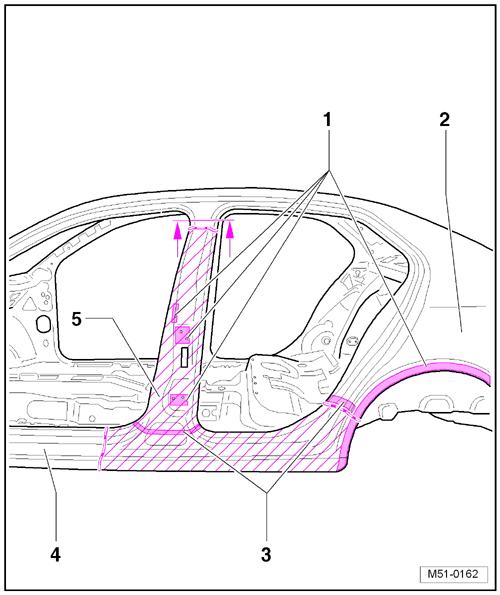

Protected by copyright . Copying for pivate or commerci al pur po s e s , i n p a r t r o r in w ho le, is not permitted unless authorised by Volkswagen AG. Volkswagen AG does notguarantee or accept any liabilit y wi th res pect t o t h e c o r r e c t n e ss o f in format ion in this document. Copyright by Volkswagen AG. 1 - Bonded section 2 - Side panel 3 - Moulded foam element Note 4 - Side member 5 - Outer B-pillar Upper B-pillar cut lines Jetta 2005 ➤ Body Repairs - Edition 04.2009

Protected by copyright . Copying for pivate or commerci al pur po s e s , i n p a r t r o r in w ho le, is not permitted unless authorised by Volkswagen AG. Volkswagen AG does notguarantee or accept any liabilit y wi th res pect t o t h e c o r r e c t n e ss o f in format ion in this document. Copyright by Volkswagen AG. 1 - Outer B-pillar 2 - B-pillar reinforcement 3 - Inner B-pillar Jetta 2005 ➤ Body Repairs - Edition 04.2009
