9.2 Front alignment bracket

Protected by copyright . Copying for pivate or commerci al pur po s e s , i

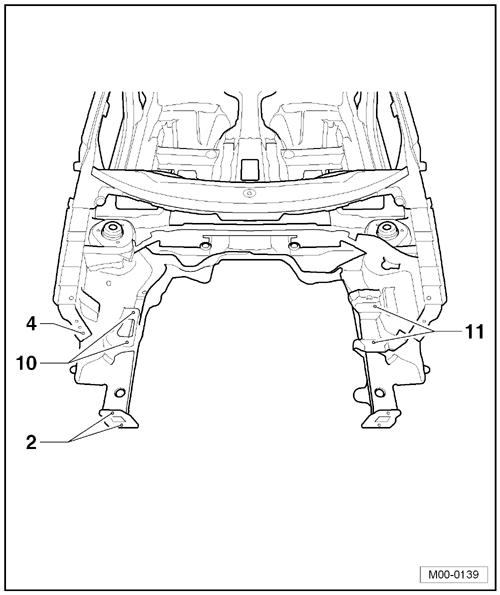

p a r t o r in w ho le, is not permitted unless authorised by Volkswagen AG. Volkswagen AG does notguarantee or accept any liabilit y wi th res pect t o t h e c o r r e c t n e ss o f 9.2 Front alignment bracket n 2 - Mounting point for longitu‐dinal member front part 4 - Mounting point for top of longitudinal member 10 - Mounting point of engine mounting 11 - Mounting point of gearbox suspension r in format ion in this document. Copyright by Volkswagen AG.

Jetta 2005 ➤ Body Repairs - Edition 04.2009

Protected by copyright . Copying for pivate or commerci al pur po s e s , i n p a r t r o r in w ho le, is not permitted unless authorised by Volkswagen AG. Volkswagen AG does notguarantee or accept any liabilit y wi th res pect t o t h e c o r r e c t n e ss o f in format ion in this document. Copyright by Volkswagen AG. 2 - AB mounting for front part of longitudinal member 3 - Distance plate 4 - AB mounting for upper lon‐gitudinal member Jetta 2005 ➤ Body Repairs - Edition 04.2009

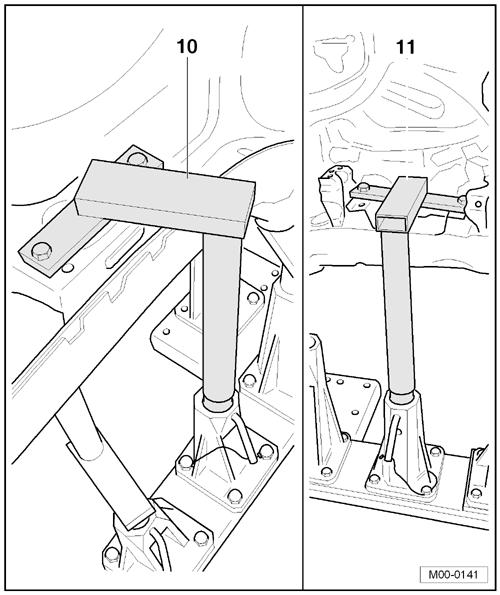

Protected by copyright . Copying for pivate or commerci al pur po s e s , i n p a r t r o r in w ho le, is not permitted unless authorised by Volkswagen AG. Volkswagen AG does notguarantee or accept any liabilit y wi th res pect t o t h e c o r r e c t n e ss o f in format ion in this document. Copyright by Volkswagen AG. 10 - Straightening bracket mounting for engine mounting 11 - Straightening bracket mounting for gearbox mount‐ing

Jetta 2005 ➤ Body Repairs - Edition 04.2009

Protected by copyright . Copying for pivate or commerci al pur po s e s , i n p a r t r o r in w ho le, is not permitted unless authorised by Volkswagen AG. Volkswagen AG does notguarantee or accept any liabilit y wi th res pect t o t h e c o r r e c t n e ss o f in format ion in this document. Copyright by Volkswagen AG. 8 - Mounting point for front lon‐gitudinal member 12 - Mounting point for front locking of engine carrier 16 - Mounting point for front suspension strut 20 - Mounting point for rear locking of engine carrier Jetta 2005 ➤ Body Repairs - Edition 04.2009

Protected by copyright . Copying for pivate or commerci al pur po e s , i n p a r t r o r in w ho le, is not permitted unless authorised by Volkswagen AG. Volkswagen AG does notguarantee or accept any liabilit y wi th res pect t o t h e c o r r e c t n e ss o f in format ion in this document. Copyright by Volkswagen AG. 8 - Straightening bracket mounting point for front longi‐tudinal member 12 - Straightening bracket mounting for front locking of engine carrier 16 - Straightening bracket mounting of front suspension strut s 20 - Straightening bracket mounting for rear locking of en‐gine carrier 22 - Compensation sleeve when assembly is removed
