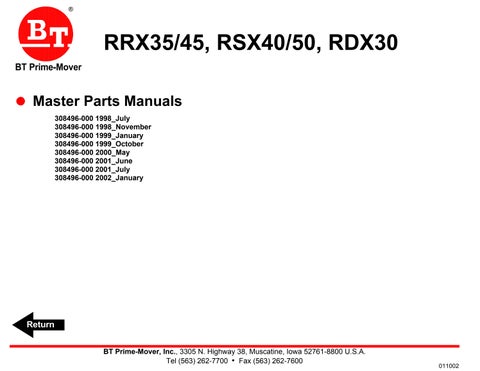

RRX35/45, RDX30, RSX40/50
Electric Stand-Up Rider Truck Effective Serial Number R_X__26347000 - UP
Read and observe all warnings on this unit before operating it.
DO NOT operate this equipment unless all factory installed guards and shields are properly secured in place.
When you order, supply the part number, quantity, model and serial numbers of your machine. Supplying this information will assure prompt, efficient handling of your order. The pictorial reference number is not needed and including it can only add confusion.
Since your dealer carries many parts in stock and maintains up-to-date prices on all parts, he will be able to process your order immediately. If, for some reason, the part is not in stock, he will order it from the factory. In either event, he maintains a current file of service manuals, which give all available parts ordering or technical information.
All prices are FOB factory in Muscatine, Iowa. Shipping charges are added to the price of the part shipping from the factory.
Always order parts from the dealer who sold you your BT. If it is necessary for the dealer to order parts from the factory, he is able to get prompt service for you. Parts are shipped in accordance with shipping instructions given on the order.
Under NO CIRCUMSTANCES will parts be accepted at the factory for credit without prior approval. BT cannot accept responsibility for parts returned without authorization.
If you have some parts which must be returned, contact your dealer. If he believes parts should be returned, he will arrange for authorization to return the parts.
The regulations imposed by OSHA make it mandatory that alteration of industrial trucks be done only as approved in advance and in writing by the manufacturer. Their regulations apply to counter-weighting, changes in masts when such changes affect capacity and any other safety modifications. It is mandatory that nameplate and instructions be changed accordingly (1910.178 (a)(4)).
BT will approve such changes requested as we can properly evaluate and rerate as to capacity. Normally a change will be evaluated upon receipt of a written request with full particulars, including truck and mast serial number, proposed changes, new heights of lift, etc.
If the change is approved, authorization will be sent, as will new nameplates or other labeling where appropriate. The new nameplates should be installed over the earlier nameplate.
The modifier should send confirmation of the change to the factory along with pictures of the revised truck.
Number of unit for that day
of year
This parts manual is arranged for easy identification of parts. The index at the front of the catalog gives l ocation of major groups and assemblies.
NA Not Avai lable
NSS Not Sold Separately
As Req'd Use as required
K Parts of a kit
* Not shown on dra wing
------------ See elsewhere for further break down of parts.
When changes are made to the machine, revised pages for this manual will be issued. These pages must be inserted in your parts manual as soon as they are received. Failure to keep your parts manuals up to date will resul t i n confusion and may cause you to order wrong parts.
EXAMPLE:
The terms right-hand and left-hand used in this parts manu al indicate the right and left side of the machi ne as viewed from the operator's line of sight for proper operation of machine or attachment.
A. Right Side
B. Rear
C. Left Side
D. Forward
The ITEM #, describes th e item on the figure you are looking at. The PART # is a numerical description of the item and the part ordering number. The N AME is a description of the part number in alphabetical form. The # FOR ASSY. is the quantity used on the figure and NOT the q uantity used on the machine. The UNIT describes the type or style of the part used on the figure.
Hose assembly, 89/180
Hose assembly, 95/198
Hose assembly, 108/226
Hose assembly, 111/240
Hose assembly, 119/258
Fit ting, bulkhead
Tube assembly
Fuse Ring Pin Bearing Screw, cap
Cylinder, freelift
Hose (3 feet)
Motor, pump Pump assembly, lift Pump, lift Plug
0000
0341-000 Inspection covers
0342-000 Inspection covers (“EE” electrical box)
0391-000 Battery compartment parts
0451-000 Motor mounting points
0641-000 Driver controls (Mechanical)
0642-000 RRX35 / RSX40 Brake pedal without brake on caster
0642-100 RRX45 / RDX30 / RSX50 Brake pedal with brake on caster
0681-000 Internal fittings
0811-000 Overhead guard
0821-000 Finger / toe guards
0851-000 Signs, warnings
1000
1730-000 Steering motor
1740-000 Fan motor
1750-000 RRX35 / RSX40 Pump motor
1750-100 RRX45 / RDX30 / RSX50 Pump motor
1760-000 Drive motor
2000
TRANSMISION / DRIVE GEAR
2551-000 Mechanical drive gear unit
3000
BRAKE / WHEEL SYSTEM
3361-000 Brake drum/disc assembly
3371-000 Electromagnetic brake
3531-000 Drive wheel Serial Number 27091000 - 27161000
3531-001 Drive wheel Serial Number 27162001 - UP
3541-000 RRX35 / RSX40 Non-Braking caster wheel
3542-000 RRX35 / RSX40 Non-Braking caster assembly
3543-000 RRX45 / RDX30 / RSX50 Braking caster wheel
3544-000 RRX45 / RDX30 / RSX50 Braking caster assembly
3551-000 RRX35 / RRX45 / RDX30 Load wheel (4 in. x 3 in.)
3551-100 RSX40 / RSX50 Load wheel (4 in. x 3 in.)
3552-000 RRX35 / RRX45 / RDX30 Load wheel (5 in. x 4 in.)
3552-100 RSX40 / RSX50 Load wheel (5 in. x 4 in.)
3553-000 RRX35 / RRX45 / RDX30 Load wheel (5 in. x 3 in.)
3555-000 RRX35 / RRX45 / RDX30 Load wheel (10.5 in. x 3.5 in.)
3561-000 Caster wheel
CLICK HERE TO DOWNLOAD THE COMPLETE MANUAL
• Thank you very much for reading the preview of the manual.
• You can download the complete manual from: www.heydownloads.com by clicking the link below
• Please note: If there is no response to CLICKING the link, please download this PDF first and then click on it.
CLICK HERE TO DOWNLOAD THE
4000
4111-000 Steering arm / wheel / lever
4181-000 Steering bearing, radial bearing
5000
5121-000 Lights
5161-000 Horn
5181-000 Static strap
5182-000 Current collector, cable drum (Lift bypass)
5191-000 Battery cut out contactor / plug
5191-001 Battery cut out contactor / plug
5192-000 Battery connector
5201-000 Instrument panel
5281-000 Indicator lamps
5311-000 Start / stop switch
5331-000 Direction and speed controls
5332-000 Speed cut-back control
5361-000 Relay, electrical modules
5391-000 RRX35 / RDX30 / RRX45 Control cable / harness Serial Number 27091000 - 27135000
5391-001 RRX35 / RDX30 / RRX45 Control cable / harness Serial Number 27135001 - UP
5391-100 RSX40 / RSX50 Control cable / harness
5431-000 RRX35 / RDX30 / RRX45 Motor cables / resistors Serial Number 27091000 - 27135000
5431-001 Motor cables / resistors Serial Number 27135001 - UP
5436-000 Contactor panel
5441-000 Direction contactors
5461-000 Transistor panel (drive)
5461-100 Transistor panel (lift
5511-000 Micro switches (lights, fan) Serial Number 27091000 - 27301002
5511-001 Micro switches (lights, fan) Serial Number 27301003 - UP
5711-000 PCBs logic card / box Serial Number 27091000 - 28126000
5711-001 PCBs logic card / box Serial Number 28126001 - UP
5751-000 Safety / position / switches / sensors
5751-100 Safety / position / switches / sensors (Reach and Carraige sensor)
6000
6101-000 RRX35 / RSX40 Hydraulic unit
6111-000 RRX45 / RDX30 Auxiliary Hydraulic tank
6112-000 Hydraulic tank
6121-000 RRX35 / RSX40 Hoses, pipes, connections, mounting points
6121-100 RRX45 / RDX30 / RSX50 Hoses, pipes, connections, mounting points
6124-000 RRX35 Three stage mast Lines Serial Number 27078000 - 27135000
6124-001 RRX35 / RSX40 Three stage mast lines Serial Number 27135001 - UP
6124-100 RRX45 Three stage mast lines Serial Number 27091000 - 27135001
6124-101 RRX45 / RDX30 / RSX50 Three stage mast lines Serial Number 27135001 - UP
6125-000 RRX35 / RSX40 Three stage mast hoses
6125-100 RRX35 Reach supply lines
6125-200 RSX40 Carriage supply lines
6125-300 RSX50 Tilt cylinde hoses
6126-000 RRX45 / RDX30 / RSX50 Three stage mast hoses
6126-100 RRX45 Reach supply lines
6126-200 RDX30 Double reach supply lines
6127-000 RRX35 Reach, tilt cylinde
6127-100 RDX30 Double reach, tilt cylinders
6127-200 RRX45 Reach, tilt cylinde
6127-300 RSX40 Tilt cylinde hoses
6127-400 RSX50 Tilt cylinde hoses
6128-000 RRX35 Reach, sideshifter cylinder hoses
6128-100 RRX45 Reach, sideshifter cylinder hoses Serial Number 27091000 - UP
6128-101 RRX45 Reach, sideshifter cylinder hoses Serial Number 27135001 - UP
6128-200 RDX30 Double reach, sideshift cylinde Serial Number 27135000 - 27239000
6128-201 RDX30 Double reach, sideshift cylinde Serial Number 27135000 - UP
6128-300 RSX40 Sideshifter cylinder hoses
6128-400 RSX50 Sideshifter cylinder hoses
6129-000 RRX35 Reach, reach cylinders hoses
6129-100 RRX45 Reach, reach cylinders hoses Serial Number 27135001 - UP
6129-101 RRX45 Reach, reach cylinders hoses Serial Number 27135001 - UP
6129-200 RDX30 Double reach, reach cylinders hoses
6131-000 RRX35 / RSX40 Filte assembly
6131-100 RRX45 / RDX30 / RSX50 Filter assembly
6141-000 RRX35 Hydraulic pump
6141-001 RRX35 / RSX40 Hydraulic pump
6141-100 RRX45 / RDX30 / RSX50 Hydraulic pump Serial Number 27091000 -28153003
6141-101 RRX45 / RDX30 / RSX50 Hydraulic pump Serial Number 28153004 - UP
6211-000 Control valve assembly (Lift/Auxiliary functions)
6220-000 Control valve (Manifold assembly with No Sideshifter)
6220-100 Control valve (Manifold assembly With Sideshifter)
6220-200 RSX40 / RSX50 Control valve (Manifold assembly)
6610-000 RRX35 / RSX40 Three stage mast staging cylinder
6610-100 RRX45 / RDX30 / RSX50 Three stage mast staging cylinder
6620-000 RRX35 / RSX40 Three stage mast freelift cylinder
6620-100 RRX45 / RDX30 / RSX50 Three stage mast freelift cylinde
6650-000 RRX35 Reach cylinder assembly Serial Number 27091000 - 28112002
6650-001 RRX35 Reach cylinder assembly Serial Number 28112003 - UP
6650-100 RRX45 Reach cylinder assembl Serial Number 27135001 - UP
6650-101 RRX45 Reach cylinder assembl Serial Number 27135001 - UP
6650-200 RDX30 Double Reach Reach Cylinder assembly
6660-000 RRX35 / RSX40 Tilt Cylinder assembly
6660-100 RSX50 Tilt cylinder assembly
6661-000 RDX30 Double reach Tilt cylinder assembly
6662-000 RRX45 Single reach Tilt cylinder assembly
7000
7105-001 Mast pivot
7111-000 RRX35 / RSX40 Three stage mast
7112-000 RRX45 / RDX30 / RSX50 Three stage mast Serial Number 27135000 - 27323000
7112-001 RRX45 / RDX30 / RSX50 Three stage mast Serial Number 27323001 - UP
7170-000 RRX35 / RSX40 Lifting gear (Three stage mast
7170-100 RRX45 / RDX30 / RSX50 Lifting gear (Three stage mast)
7211-000 Sideshifte assembly Serial Number 27091000 - 27239000
7211-001 Sideshifteassembly Serial Number 27135001 - UP
7211-002 Sideshifteassembly Serial Number 27135001 - UP
7241-000 RRX35 3 Stage single reach assembly Serial Number 27091000 - 28163000
7241-001 RRX35 3 Stage single reach assembly Serial Number 28163001 - UP
7242-000 RRX45 3 Stage single reach assembly Serial Number 27135000 - 27328000
7242-001 RRX45 3 Stage single reach assembly Serial Number 27328001 - UP
7242-002 RRX45 3 Stage single reach assembly Serial Number 27328001 - UP
7243-000 RDX30 3 Stage double reach assembly
7411-000 Fork assembly
7421-000 RSX40 Fork carriage unit
7421-100 RSX50 Fork carriage unit
8000
8521-000 Access, safety equipment (Fire extinguisher
9000
9311-000 Load indicator
9311-100 Load indicator
9312-000 Load indicator (Magnet and switch)
9361-000 Extra lights
9371-000 Warning lights / alarm
9501-000 RRX35 / RSX40 Load backrest Serial Number 27135001 - UP
9501-001 RRX35 / RSX40 Load backrest Serial Number 27135001 - UP
9501-100 RRX45 / RDX30 / RSX50 Load backrest
9661-000 Electrical heater
305370-000
305370-001
305370-002
50018-02 21935
305346-000 301827-020
307678-000 307758-000 25536 21035
11813-03 20335 11857-04 305584-000 20348 20130 305343-000 20904-01
307372-000 307372-001
307372-002
50018-02 21935 20081
305326-000
306908-000
301971-002 301990-000
301991-000 301989-000 307413-000 29984 29680 14851-04 305578-000 305578-000 305581-000 301827-020 305478-000
307368-000
Panel, left hand side 14.5 in. Battery Panel, left hand side 16.5 in. Battery Panel, left hand side 21.0 in. Battery Nut, flanged Screw, cap Panel, side
Screw Grill, fan Cover, “EE”
Screw
Washer
Grommet
Screw
Washer
Latch
Washer, flat
Nut
Door
Bumper
Panel, Right hand side 14.5 in. Battery Panel, Right hand side 16.5 in. Battery Panel, Right hand side 21.0 in. Battery Nut, flanged Screw, cap Nut
Dash
Plug, hole
Screw
Washer, wear Receptacle
Bar, mount
Panel, electrical cover
Screw
Screw
Nut, clip
Mount, 45° operator console
Mount, FWD operator console
Mount, Side operator console
Screw
Plate, electrical controller heat sink
RRX35 / RSX40
Plate, electrical controller heat sink
RRX45 / RDX30 / RSX50
CLICK HERE TO DOWNLOAD THE COMPLETE MANUAL
• Thank you very much for reading the preview of the manual.
• You can download the complete manual from: www.heydownloads.com by clicking the link below
• Please note: If there is no response to CLICKING the link, please download this PDF first and then click on it.
CLICK HERE TO DOWNLOAD THE
0342-000 Inspection covers (“EE” electrical box) RRX35 / RRX45 / RDX30 / RSX40 / RSX50
307690-000 11813-18 11813-19 14915-02 29410-05 29410-06 29410-07 29410-08
Screw Lid, box Box
Grammet, bigger inside hole
Grammet, smaller inside hole
Plug, hole
Decal, 355 amp fuse
Decal, 250 amp fuse
Decal, 425 amp fuse
Decal, 500 Amp fuse
Plate, contactor mounting
25204-03
25204-11
25204-12
25203-07
25203-06
25203-08
305591-000
305592-000
305593-000
Bearing
Roller, battery 14.5 in. [368 mm]
Roller, battery 16.5 in. [419 mm]
Roller, battery 21.0 in. [533 mm]
Shaft, battery 14.5 in. [368 mm]
Shaft, battery 16.5 in. [419 mm]
Shaft, battery 21.0 in. [533 mm]
Plate, battery stop 14.5 in. [368 mm]
Plate, battery stop 16.5 in. [419 mm]
Plate, battery stop 21.0 in. [533 mm]
0451-000 Motor mounting points
RRX35 / RRX45 / RDX30 / RSX40 / RSX50
20578 25950-11 11160-11 28519 147633 307075-000 21503 29976 21023 20078 305590-000 49891-00 20306 29975 20420 307703-000 307750-000
Screw, cap
Screw, cap
Fitting, grease
Screw, cap
Isomount
Plate, isolator
Screw
Washer O ring
Screw
Bracket, pump mounting
Shock, mount
Screw
Washer
Screw, “EE”
Plate, “EE”
Gasket, “EE”
joystick (No Sideshifter)
coil (No Sideshifter)
305459-000
305577-000
20904-01
305463-000
305808-000
20904-01
305739-000
301826-016
301827-020
307425-000
301825-010
306654-000
Pedal, brake
Bearing, flanged
Bumper
Bracket, brake
Spring, return
Bumper
Plate
Screw
Screw
Potentiometer, brake (switch)
Screw
Mat, pedal
Nut, twin (See Fig.# 5311-000)
Switch, brake (See Fig.# 5311-000)
Screw (See Fig.# 5311-000)
CLICK HERE TO DOWNLOAD THE COMPLETE MANUAL
• Thank you very much for reading the preview of the manual.
• You can download the complete manual from: www.heydownloads.com by clicking the link below
• Please note: If there is no response to CLICKING the link, please download this PDF first and then click on it.
CLICK HERE TO DOWNLOAD THE
305459-000
305577-000
20904-01
305463-000
307421-000 20904-01
305739-000
301826-016
301827-020
307425-000
301825-010
306654-000
Pedal, brake
Bearing, flanged
Bumper
Bracket, brake
Spring, return
Bumper
Plate
Screw
Screw
Potentiometer, brake (switch)
Screw
Mat, pedal
Nut, twin (See Fig.# 5311-000)
Switch, brake (See Fig.# 5311-000)
Screw (See Fig.# 5311-000)
306709-000 307675-000 13282-00
Cable, brake
Cable, brake (Cold Storage)
Pin with cotter pin
307041-000
307044-000
307047-000
307048-000 21116
306362-000
306654-000
305719-000 20031
306633-000 50003-01
305718-000 301827-020
306576-000 29819-01
50022-14 50001-07 21035 20257
29822-00 29544 14851-04
306604-001
306604-002 306604-002 25332-01
306880-000
301827-020 14851-04
Plate, floor
Pedal, right foot
Bar, hinge mounting
Hinge, spring
Screw, flat head
Mat, floor
Mat, pedal
Cushion, front
Screw, cushion mounting
Plate, front cushion
Screw, plate mounting
Cushion
Screw
Bracket, fan
Shroud, fan
Screw
Lockwasher
Washer, flat Nut
Louver with bezel
Screw
Nut, clip
Console, overhead (Lift indicator only)
Console, overhead (Light and fan package)
Console, overhaed (Light, fan, and lift indicator)
Tie, wire
Plate, filler (no light and fan package)
Screw
306577-000
306577-001
Overhead guard, 14.5 in. [368 mm] Battery box
Overhead guard, 16.5 in. [419 mm] Battery box
Overhead guard, 21.0 in. [533 mm] Battery box
306941-000
306942-000 29544 NA
52-05011-00 307113-000 29544
306941-001 306942-001 301827-020 307174-000 20433 20375 307173-000
Windscreen, 89 in. [2260 mm] Wire
Windscreen, 95 in. [2413 mm] Wire
Screw
Windscreen (Secure this part locally)
Gasket, windshield (6.47 ft [1972 mm])
Retainer, glass
Screw
Windscreen, 89 in. [2260 mm] Glass
Windscreen, 95 in. [2413 mm] Glass
Screw
Shield, OHG
Nut
CLICK HERE TO DOWNLOAD THE COMPLETE MANUAL
• Thank you very much for reading the preview of the manual.
• You can download the complete manual from: www.heydownloads.com by clicking the link below
• Please note: If there is no response to CLICKING the link, please download this PDF first and then click on it.
CLICK HERE TO DOWNLOAD THE
147126 145422 145423 151844 151843 307016-000
307017-000
307418-000
307438-000
307439-000
306106-000
306107-000 NSS NSS
300771-001
306966-000
52-00279-00
52-00257-00
52-00220-00
52-00224-00
52-00237-00
52-00260-00
52-00247-00
52-00276-00
49262-00
306754-000
306755-000
306756-000
Decal, BT
Decal, hydraulic function
Decal, sideshifter
Decal, Left BT LOGO
Decal, Right BT LOGO
Decal, RRX35
Decal, RRX45
Decal, RDX30
Decal, RSX40
Decal, RSX50
Decal, WARNING
Decal, WARNING Plate, DATA Plate, UL Box, Manual
Decal, WARNING
Paint, BT RED Spray, BT RED Paint, BT BLACK Spray, BT BLACK Paint, SAFETY YELLOW Spray, SAFETY YELLOW Paint, SAFETY ORANGE Spray, SAFETY ORANGE
Decal, special oil (Cold Storage) Manual, OPERATOR’S Manual, PARTS Manual, SERVICE
As Req’d. As Req’d. As Req’d. As Req’d. As Req’d. As Req’d. As Req’d.
305793-000
305794-000
306833-000
306834-000
306835-000
306836-000 143230 20666 146585 29976 21503 145266-001 145267-002
Steering assembly, 24 Volt motor
Steering assembly, 36 Volt motor
Brush, motor
Cap, brush
Motor assembly, 24 Volt
Motor assembly, 36 Volt
Gear
Key Wheel, gear
Washer, flat
Screw
contact (2-pole)
307327-000
307328-000
307778-000
307549-000
307550-000
307551-000
307545-000 307548-000
307552-000 307776-000
307539-000 307777-000
307547-000 300193-000
307543-000 307544-000
307542-000 307541-000
307545-000
307546-000
307540-000
307553-000
307554-000
307718-000
Motor assembly, 24 Volt pump
Motor assembly, 36 Volt pump
Retaining ring, 24 Volt
Retaining ring, 36 Volt
Package, retainer & seal
Package, terminal stud
Bearing Head assembly, drive Fan
Armature assembly, 24 Volt
Armature assembly, 36 Volt
Field coil assembly, 24 Volt
Field coil assembly, 36 Volt
Package, pole shoe screw
Set, brush Set, spring
Plate assembly, brush
Lead assembly
Bearing
Spring, washer
Head assembly, C.E.
Package, fan cowl
Headband assembly Band, “EE” cover
CLICK HERE TO DOWNLOAD THE COMPLETE MANUAL
• Thank you very much for reading the preview of the manual.
• You can download the complete manual from: www.heydownloads.com by clicking the link below
• Please note: If there is no response to CLICKING the link, please download this PDF first and then click on it.
CLICK HERE TO DOWNLOAD THE
300413-000
300412-000
307511-000
306267-000
306268-000
306269-000
306270-000
300418-000
301493-000
306271-000
300412-000
306272-000
306273-000
306274-000
307720-000
308118-000
Motor assembly, 36 Volt pump
Ring, retainer
Bearing Endhead, drive Fan
Armature & fan assembly Kit, field coil
Brush Spring, brush
Plate assembly, brush Kit, lead assembly
Bearing
Washer, wave
Endhead, commutator
Band, cover (Optional)
Band, “EE” cover
Indicator kit, brush wear
305789-000 305790-000
307430-000 307397-000
307509-000
307396-000
307406-000 307508-000
307393-000 300193-000
307386-000 307389-000
307390-000 307391-000
307387-000 307388-000
307392-000 307395-000
307513-000 307385-000 307402-000 307394-000
307433-000 29539 21596 73859 25932 20009 20041
Motor assembly, 24 Volt drive
Motor assembly, 36 Volt drive
Screw
Band, head Fan unit, 24 Volt Fan unit, 36 Volt
Guard, fan
Package, field coil 24 Volt
Package, field coil 36 Volt
Package, pole shoe screws
Endhead assembly, commutator
Plate assembly, brush Set, brush Set, spring
Bearing
Retainer
Package, retainer & seal
Package, terminal stud
Armature assembly, 24 Volt
Armature assembly, 36 Volt
Key, woodruff
Endhead assembly, drive
Screw Ring, seal O ring Sleeve Bearing Ring, retainer Ring, retainer
Transmission assembly
Gear, ring Kit, spare parts (Bearing) Kit, spare parts (Sealing) Kit, spare parts (Helicalgear) Kit, spare parts (wheel shaft) Kit, spare parts (Bevel gear) Gear, wheel Gear, wheel Nut
Bearing Kit, shim Kit, shim
Bearing O ring
Screw Axle
Washer, copper
Bearing Kit, shim
Cover ring
Screw
Bearing
Washer
Spacer Ring, sealing Ring, locking Plug Nut
Washer
Washer Screw
bevel
CLICK HERE TO DOWNLOAD THE COMPLETE MANUAL
• Thank you very much for reading the preview of the manual.
• You can download the complete manual from: www.heydownloads.com by clicking the link below
• Please note: If there is no response to CLICKING the link, please download this PDF first and then click on it.
CLICK HERE TO DOWNLOAD THE
305802-000
305802-001
306948-000
306949-000
306950-000
306951-000
306952-000
306953-000
306954-000
306955-000
306956-000
306957-000
306958-000 21141
Brake assembly, 24 Volt
Brake assembly, 36 Volt
Coil, 24 Volt
Coil, 36 Volt
Armature
Hub
Plate, friction
Plate, mounting Spacer
socket head
307749-000
307749-001
307749-002
307749-004
307749-005
307749-007
305622-000
305623-000 305624-000 305626-000 305627-000
306752-000 305621-000 29875
Number 27091000 - 27161000 RRX35 / RRX45 / RDX30 / RSX40 / RSX50
Drive wheel assembly Urethane
Drive wheel assy, Rubber (See Note!)
Drive wheel assy, Non-marking (See Note!)
Drive wheel assy, Wiretex (See Note!)
Drive wheel assy, Walnut shell (See Note!)
Drive wheel assembly, Vulkollan
Tire, Urethane drive
Tire, Rubber drive (See Note!)
Tire, Non-marking drive (See Note!)
Tire, Wiretex drive (See Note!)
Tire, Walnut shell drive (See Note!)
Tire, Vulkollan drive
Wheel, drive Nut
NOTE! Used only on trucks with Battery box depth of 16.5 in. or less and mast height of 270 in. or less.
Shorted drive tire life is expected on heavier trucks.
Walnut shell Vulkollan
307749-000
307749-001
307749-002
307749-004
307749-005
307749-007
309630-000
305622-000 305623-000 305624-000 305626-000 305627-000 306752-000
307714-000 305621-000 20776 158341
Drive wheel assembly, Urethane
Drive wheel assy, Rubber (See Note!)
Drive wheel assy, Non-marking (See Note!)
Drive wheel assy, Wiretex (See Note!)
Drive wheel assy, Walnut shell (See Note!)
Drive wheel assembly, Vulkollan
Drive wheel assembly, Siped Urethane
Tire, Urethane drive
Tire, Rubber drive (See Note!)
Tire, Non-marking drive (See Note!)
Tire, Wiretex drive (See Note!)
Tire, Walnut shell drive (See Note!)
Tire, Vulkollan drive
Tire, Siped Urethane
Wheel, drive Nut
Washer, spherical
NOTE! Used only on trucks with Battery box depth of 16.5 in. or less and mast height of 270 in. or less.
Shorted drive tire life is expected on heavier trucks.
Vulkollan
Siped Urethane
Urethane Rubber Non-marking
Wiretex
Walnut shell
Vulkollan
Siped Urethane
CLICK HERE TO DOWNLOAD THE COMPLETE MANUAL
• Thank you very much for reading the preview of the manual.
• You can download the complete manual from: www.heydownloads.com by clicking the link below
• Please note: If there is no response to CLICKING the link, please download this PDF first and then click on it.
CLICK HERE TO DOWNLOAD THE
49972-10 11205-27 28750 20528 305362-000 306632-000 29963 20170 26618 20170 305355-000 40993-01 -------------------
305455-000 11160-11 307725-000 307606-000 23955
Lock, nut
Lockwasher
Ring, Nilos Bearing
Screw, cap Nut
Guide, spring Spring Screw, set Nut
Screw, cap Nut
Pivot, caster Bearing, thrust Caster assembly (See Fig.# 3542-000)
305350-000 301740-000 305725-000 49972-09 11205-06 20038 20039 11160-09 305806-000
Wheel, caster (See Fig.# 3561-000)
Bracket, caster
Screw, set
Axle, caster
Ring, Nilos
Bearing
22902 22903 49972-10 11205-027 28750 20528 305362-000 306632-000 29963 20170 26618 20170 305355-000 40993-01
305455-000 11160-11 307725-000 307606-000 23955 306700-000 307614-000 306703-000 11695-06 11073-24 306707-000 307611-000 50004-03
Lock, nut
Lockwasher
Ring, Nilos
Bearing
Screw, cap Nut
Guide, spring Spring
Screw, set Nut
Screw, cap Nut
Pivot, caster
Bearing, thrust
Caster assembly (See Fig.# 3544-000)
Block
Fitting, grease
Bushing
Washer
Screw, cap
Shaft
Shaft (Cold Storage/Corrosion)
Bracket
Bearing, flanged Pin, roll
305350-000
301740-000
305725-000 49972-09 11205-06 20038 20039 11160-09
305806-000 13281-03
50003-01
301960-006 20375
306708-000 306695-000 306696-000
Wheel, caster (See Fig.# 3561-000)
Bracket, caster
Screw, set
Axle, caster Ring, Nilos
Bearing
Lockwasher
Locknut
Fitting, grease
Cap, wheel Ring, E
Brake assembly (See Fig.# 3361-000)
Screw, cap Nut Washer Pivot, brake Spring Plunger, brake
CLICK HERE TO DOWNLOAD THE COMPLETE MANUAL
• Thank you very much for reading the preview of the manual.
• You can download the complete manual from: www.heydownloads.com by clicking the link below
• Please note: If there is no response to CLICKING the link, please download this PDF first and then click on it.
CLICK HERE TO DOWNLOAD THE
42129-00 305772-000 42178-00 11898-02 11160-09 11857-14 11857-15 49910-02 42136-00 303716-022 305726-001
Axle
Toe box, 4 in. high Plate, rocker Ring, retainer Fitting, grease Washer, 10 gauge
Washer, 18 gauge
Bearing Wheel, load (4 in. x 3 in.) Nut Bolt, shoulder
42129-00 308212-000 42178-00 11898-02 11160-09 11857-14 11857-15 49910-02 42136-00 303716-022 305726-001
Axle
Toe box, 4 in. high Plate, rocker
Ring, retainer
Fitting, grease
Washer, 10 gauge
Washer, 18 gauge
Bearing Wheel, load (4 in. x 3 in.)
42117-00 305452-000 42176-00 11898-11 11160-09 11857-16 11857-17
49910-03 42125-00 303716-022 305726-000
Axle
Toe box, 5 in. high
Plate, rocker
Ring, retainer Fitting, grease Washer, 10 gauge
Washer, 18 gauge
Bearing Wheel, load (5 in. x 4 in.) Nut Bolt, shoulder
42117-00
308211-000 42176-00 11898-11 11160-09 11857-16 11857-17 49910-03 42125-00 303716-022 305726-000
Axle
Toe box, 5 in. high Plate, rocker
Ring, retainer
Fitting, grease
Washer, 10 gauge
Washer, 18 gauge
Bearing Wheel, load (5 in. x 4 in.)
306886-000 42177-00 11898-11 11160-09 11857-16 11857-17
49910-03 42135-00
308210-000
303716-022
305726-001
Axle
Toe box, 5 in. high
Plate, rocker
Ring, retainer
Fitting, grease
Washer, 10 gauge
Washer, 18 gauge
Bearing Wheel, load (5 in. x 3 in.)
Wheel, “Premium - Cool Wheel” load (5 in. x 3 in.)
CLICK HERE TO DOWNLOAD THE COMPLETE MANUAL
• Thank you very much for reading the preview of the manual.
• You can download the complete manual from: www.heydownloads.com by clicking the link below
• Please note: If there is no response to CLICKING the link, please download this PDF first and then click on it.
CLICK HERE TO DOWNLOAD THE
49910-03
306895-000 42139-00
306891-000 11160-09 303716-022
305726-000 306896-000
143228 143229 21257 21394 20096 135459 20016 20404 141840 306930-000 20009 20620 28300 135461 20008 25536 21317 145287 29379 20404 142422-008 305997-000 305594-000 140808-002 29389 22803 138688 22474 29809 21317 305850-000 20259 306545-000 301951-016 306543-000 29816 306544-000
Panel, lower control pod
Panel, upper control pod
Screw
Washer, spring Nut
Cap, spinner Nut
Washer
Spinner
Steering wheel
Ring, retainer O ring
Bearing, ball
Housing, bearing Ring, retainer
Screw
Washer, wave Motor
Bolt, carriage Washer
Lever assembly Console Arm
Lever O ring
Screw, set
Coupler
Washer
Screw
Washer, wave
Grip, hand
Screw, cap Cushion
Screw
Ring, clamping
Screw
Spacer
CLICK HERE TO DOWNLOAD THE COMPLETE MANUAL
• Thank you very much for reading the preview of the manual.
• You can download the complete manual from: www.heydownloads.com by clicking the link below
• Please note: If there is no response to CLICKING the link, please download this PDF first and then click on it.
CLICK HERE TO DOWNLOAD THE
4181-000 Steering bearing, radial bearing RRX35 / RRX45 / RDX30 / RSX40 / RSX50
CLICK HERE TO DOWNLOAD THE COMPLETE MANUAL
• Thank you very much for reading the preview of the manual.
• You can download the complete manual from: www.heydownloads.com by clicking the link below
• Please note: If there is no response to CLICKING the link, please download this PDF first and then click on it.
CLICK HERE TO DOWNLOAD THE
5182-000 Current collector, cable drum (Lift bypass) RRX45 / RDX30 / RSX50
Connector, SB-350 GRAY housing
Connector, SB-350 RED housing
Connector, SB-350 YELLOW housing
CLICK HERE TO DOWNLOAD THE COMPLETE MANUAL
• Thank you very much for reading the preview of the manual.
• You can download the complete manual from: www.heydownloads.com by clicking the link below
• Please note: If there is no response to CLICKING the link, please download this PDF first and then click on it.
CLICK HERE TO DOWNLOAD THE
5201-000 Instrument panel
/ RRX45 / RDX30 / RSX40 / RSX50
5281-000 Indicator
RRX35 / RRX45 / RDX30 / RSX40 / RSX50
307033-000 307982-000 11880-09 20323-00 14986-03
307618-000
307619-000
307619-000
Key switch assembly Key, set Screw, machine Switch, brake Nut, twin Actuator, emergency stop
Contact block, emergency stop
Contact block, emergency stop (Cold Storage)
Before Serial number 27272000
After Serial number 27272000
CLICK HERE TO DOWNLOAD THE COMPLETE MANUAL
• Thank you very much for reading the preview of the manual.
• You can download the complete manual from: www.heydownloads.com by clicking the link below
• Please note: If there is no response to CLICKING the link, please download this PDF first and then click on it.
CLICK HERE TO DOWNLOAD THE
5361-000 Relay, electrical modules
RRX35 / RRX45 / RDX30 / RSX40 / RSX50
1 * 307437-000 301826-030 Module, block Screw As Req’d. As Req’d.
27091000 - 27135000
Harness, main truck Fuse, 15 Amp control Fuse, 30 Amp Steering
307970-000
25275-11
25275-12
25275-13
308005-000
308004-000
307111-000
307804-000
307037-000
25332-01
Harness, main truck
Fuse, 0.25 Amp control
Fuse, 10 Amp control
Fuse, 30 Amp Steering
Harness, OHG
Harness, Control console
Harness, single reach
Harness, double reach
Resistor, No Sideshifter coil
307970-000
25275-11
25275-12
25275-13
308005-000
308004-000
305221-000
307449-000
308223-000
Harness, main truck
Fuse, 0.25 Amp control
Fuse, 10 Amp control
Fuse, 30 Amp Steering
Harness, OHG
Harness, Control console
Harness, Simulator connection jumper
coil
carriage
Serial Number
27091000 - 27135000
CLICK HERE TO DOWNLOAD THE COMPLETE MANUAL
• Thank you very much for reading the preview of the manual.
• You can download the complete manual from: www.heydownloads.com by clicking the link below
• Please note: If there is no response to CLICKING the link, please download this PDF first and then click on it.
CLICK HERE TO DOWNLOAD THE
307136-000
307132-000
307137-000
305657-000 20031 50001-11 20404
305656-000 21935 50001-11 20404 20081 305656-002
305656-001 305656-000
305656-004 21935 50001-11 20404 20081
306757-000
307135-001
307133-001
307134-001
307134-000
307131-000
307131-001
307135-000
307133-000
305781-000 25332-01
307130-000
Cable, Negative
Cable
Cable, Positive Standoff
Screw Lockwasher
Washer, flat
Fuse, 250 Amp
Screw Lockwasher
Washer, flat Nut
Fuse, 425 Amp Fuse, 355 Amp Fuse, 250 Amp (for 500 AMP)
Fuse, 500 Amp
Screw Lockwasher
Washer, flat Nut
Bar, bus
Cable
bus
wire
307136-000
307132-000
307136-001
307371-000
49547-01 20031
50001-11 20404 20081 20406
305656-000
49547-01 21935
50001-11 20404 20081 20406
305656-002
305656-001
305656-000
305656-004 21935
50001-11 20404 20081
306757-000
307135-001
307133-001
307134-001
307134-000
307131-000
307131-001
307135-000
307133-000
307370-000
25332-01
307130-000
307130-001
307137-000
Cable, Negative
Cable
Cable, Positive Standoff
Standoff, copper
Screw
Lockwasher
Washer, flat
Nut
Screw Fuse, 250 Amp
Standoff, copper
Screw
Lockwasher
Washer, flat Nut
Screw Fuse, 425 Amp Fuse, 355 Amp
Fuse, 250 Amp (for 500AMP) Fuse, 500 Amp
Screw
Lockwasher
Washer, flat Nut
Bar, bus
Bar, bus Tie, wire
Contactor assembly, 24 Volt Forward/Rearward
Contactor assembly, 36 Volt Forward/Rearward Screw
CLICK HERE TO DOWNLOAD THE COMPLETE MANUAL
• Thank you very much for reading the preview of the manual.
• You can download the complete manual from: www.heydownloads.com by clicking the link below
• Please note: If there is no response to CLICKING the link, please download this PDF first and then click on it.
CLICK HERE TO DOWNLOAD THE
Transistor
Transistor
Serial Number
27091000 - 27301003
5511-000 Micro switches (lights, fan) Serial Number 27091000 - 27301002 RRX35 / RRX45 / RDX30
CLICK HERE TO DOWNLOAD THE COMPLETE MANUAL
• Thank you very much for reading the preview of the manual.
• You can download the complete manual from: www.heydownloads.com by clicking the link below
• Please note: If there is no response to CLICKING the link, please download this PDF first and then click on it.
CLICK HERE TO DOWNLOAD THE
