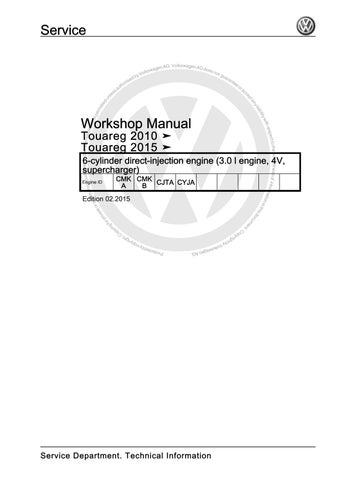

Workshop Manual
Touareg 2010 ➤
Touareg 2015 ➤
6-cylinder direct-injection engine (3.0 l engine, 4V, supercharger)
Engine ID CMK A CMK B CJTA CYJA
Edition 02.2015
thgirypocybdetcetorP . icremmocroetavirprofgniypoCla rup op s e s , i n p a r t o r in w hole, isnotpermittedunlessauthorisedbyVolkswagen AG Volkswagen
AGdoesnotguaranteeoracceptanyliabilitywith respect t o t h e c o r r e c t n e ss o f niGAnegawskloVybthgirypoC.tnemucodsihtninoitamrof
Service Service Department. Technical Information
• Thank you very much for reading the preview of the manual.
• You can download the complete manual from: www.heydownloads.com by clicking the link below
• Please note: If there is no response to CLICKING the link, please download this PDF first and then click on it.
CLICK HERE TO DOWNLOAD THE COMPLETE MANUAL
CLICK HERE TO DOWNLOAD THE COMPLETE MANUAL
List of Workshop Manual Repair Groups
Repair Group
00 - Technical data
10 - Removing and installing engine
13 - Crankshaft group
15 - Cylinder head, valve gear
17 - Lubrication
19 - Cooling
20 - Fuel supply system
21 - Turbocharging/supercharging
24 - Mixture preparation - injection
26 - Exhaust system
28 - Ignition system
.GAnegawskloVybthgirypoC.tnemucodsihtninoitamrof
Technical information should always be available to the foremen and mechanics, because their carefulandconstantadherencetotheinstructionsisessentialtoensurevehicleroad-worthinessand safety. In addition, the normal basic safety precautions for working on motor vehicles must, as a matter of course, be observed.
icremmocroetavirprofgniypoCla rup op s e s , i n p a r t o r in w hole, isnotpermittedunlessauthorisedbyVolkswagen
AGdoesnotguaranteeoracceptanyliabilitywith respect t o t h e c o r r e c t n e ss o f ni
thgirypocybdetcetorP .
AG Volkswagen
Service
reproduction without prior agreement from publisher.
D3E8030E5D6
All rights reserved. No
Copyright © 2015 Volkswagen AG, Wolfsburg
thgirypocybdetcetorP . icremmocroetavirprofgniypoCla rup op s e s , i n p a r t o r in w hole, isnotpermittedunlessauthorisedbyVolkswagen AG Volkswagen AGdoesnotguaranteeoracceptanyliabilitywith respect t o t h e c o r r e c t n e ss o f niGAnegawskloVybthgirypoC.tnemucodsihtninoitamrof Contents 00 - Technical data 1 1 Safety instructions 1 1.1 Safety precautions when working on fuel supply system 1 1.2 Safety precautions when working on vehicles with a Start/Stop system 1 1.3 Safety precautions during road tests in which test and measuring equipment is used 2 1.4 Safety precautions when working on ignition system 2 1.5 Safety precautions when working on cooling system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 2 Identification 3 2.1 Engine number, engine data 3 2.2 Numbering of cylinders 4 3 Repair instructions 5 3.1 Rules for cleanliness 5 3.2 Foreign objects in engine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 3.3 Contact corrosion 5 3.4 Routing and securing lines 5 3.5 Installing coolers, condensers and radiators 6 10 - Removing and installing engine 7 1 Removing and installing engine 7 1.1 Removing engine 7 1.2 Securing engine on engine and gearbox support VAS 6095 19 1.3 Installing engine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23 1.4 Detaching gearbox from engine 25 2 Assembly mountings 31 2.1 Assembly mountings - exploded view 31 2.2 Removing engine mounting (left-side) 32 2.3 Remove engine mounting (right-side) 34 13 - Crankshaft group . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37 1 Cylinder block (pulley end) 37 1.1 Assembly overview - supercharger poly V-belt drive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37 1.2 Removing and installing supercharger poly V-belt 38 1.3 Removing and installing tensioning element for supercharger poly V-belt . . . . . . . . . . . . . . 39 1.4 Assembly overview - poly-V-belt drive for ancillary units 39 1.5 Removing and installing poly V-belt 42 1.6 Removing and installing tensioning element for poly V-belt 44 1.7 Removing and installing vibration damper 45 1.8 Renewing sealing flange with oil seal for crankshaft . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46 2 Cylinder block (gearbox end) 50 2.1 Assembly overview - drive plate 50 2.2 Removing and installing drive plate 50 2.3 Removing and installing sender wheel 51 2.4 Checking sender wheel 52 2.5 Renewing oil seal for crankshaft at gearbox end . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52 3 Crankshaft 55 3.1 Assembly overview - crankshaft 55 3.2 Crankshaft dimensions 58 3.3 Measuring axial clearance of crankshaft 58 3.4 Measuring radial clearance of crankshaft 59 4 Pistons and conrods . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60 4.1 Assembly overview - pistons and conrods . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60 4.2 Piston and cylinder dimensions 63 Touareg 2010 ➤ , Touareg 2015 ➤ 6-cylinder direct-injection engine (3.0 l engine, 4V, supercharger) - Edition 02.2015 Contents i
thgirypocybdetcetorP . icremmocroetavirprofgniypoCla rup op s e s , i n p a r t o r in w hole, isnotpermittedunlessauthorisedbyVolkswagen AG. Volkswagen AGdoesnotguaranteeoracceptanyliabilitywith respect t o t h e c o r r e c t n e ss o f ni.GAnegawskloVybthgirypoC.tnemucodsihtninoitamrof 4.3 Measuring radial clearance of conrods 63 15 - Cylinder head, valve gear . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64 1 Cylinder head . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64 1.1 Assembly overview - cylinder head . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64 1.2 Removing and installing left cylinder head cover 67 1.3 Removing and installing right cylinder head cover 68 1.4 Removing and installing cylinder heads 69 1.5 Checking compression 75 2 Chain drive 78 2.1 Assembly overview - timing chain covers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78 2.2 Removing and installing timing chain cover (left and right) 81 2.3 Removing and installing timing chain cover (bottom) 84 2.4 Assembly overview - camshaft timing chains 88 2.5 Checking valve timing 90 2.6 Removing and installing camshaft adjuster 91 2.7 Removing and installing camshaft timing chain . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 101 2.8 Assembly overview - drive chain for valve gear . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 104 2.9 Removing and installing drive chain for valve gear 106 2.10 Assembly overview - drive chain for auxiliary drives 107 2.11 Removing and installing drive chain for auxiliary drives 108 2.12 Assembly overview - balancer shaft 112 2.13 Removing and installing balancer shaft 113 3 Valve gear . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 115 3.1 Assembly overview - valve gear 115 3.2 Checking axial clearance of camshafts 118 3.3 Measuring radial clearance of camshafts 119 3.4 Removing and installing camshafts 119 3.5 Checking hydraulic compensation elements 126 3.6 Renewing valve stem seals with cylinder head installed . . . . . . . . . . . . . . . . . . . . . . . . . . 128 3.7 Renewing valve stem seals with cylinder head removed . . . . . . . . . . . . . . . . . . . . . . . . . . 131 3.8 Valve dimensions 135 3.9 Checking valve guides 135 3.10 Checking valves 136 17 - Lubrication . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .137 1 Engine oil 137 1.1 Check engine oil level with oil gauge tester T40178 137 2 Lower part of sump, upper part of sump, oil pump, engine oil cooler . . . . . . . . . . . . . . . . . . 139 2.1 Assembly overview - lower part of sump, upper part of sump, oil pump, engine oil cooler 139 2.2 Removing and installing engine oil cooler 142 2.3 Removing and installing oil level and oil temperature sender G266 143 2.4 Removing and installing lower part of sump 144 2.5 Removing and installing oil pump 146 2.6 Removing and installing upper part of sump . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 147 3 Oil filter housing, oil pressure switch 150 3.1 Assembly overview - oil filter housing 150 3.2 Assembly overview - oil pressure switch for reduced oil pressure F378 151 3.3 Removing and installing oil filter housing 151 3.4 Check oil pressure switch F22 / oil pressure switch for reduced oil pressure F378 153 3.5 Removing and installing oil pressure switch F22 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 153 3.6 Removing and installing oil pressure switch for reduced oil pressure F378 . . . . . . . . . . . . 154 3.7 Removing and installing oil pressure regulating valve N428 156 3.8 Checking oil pressure 157 Touareg 2010 ➤ , Touareg 2015 ➤ 6-cylinder direct-injection engine (3.0 l engine, 4V, supercharger) - Edition 02.2015 ii Contents
thgirypocybdetcetorP . icremmocroetavirprofgniypoCla rup op s e s , i n p a r t o r in w hole, isnotpermittedunlessauthorisedbyVolkswagen AG Volkswagen AGdoesnotguaranteeoracceptanyliabilitywith respect t o t h e c o r r e c t n e ss o f niGAnegawskloVybthgirypoC.tnemucodsihtninoitamrof 4 Renewing oil non-return valve, oil separator 158 4.1 Assembly overview - oil non-return valve, oil separator . . . . . . . . . . . . . . . . . . . . . . . . . . . . 158 4.2 Removing and installing pipes for crankcase breather system 159 4.3 Removing and installing cover with oil separator 159 19 - Cooling 161 1 Cooling system 161 1.1 Coolant hose schematic diagram 161 1.2 Cooling system - fitting locations 163 1.3 Assembly overviews - cooling system 164 2 Coolant for high-temperature cooling circuit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 167 2.1 Drain coolant (high-temperature cooling circuit) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 167 2.2 Drain cooling system (high-temperature cooling circuit) 168 2.3 Filling with coolant 169 2.4 Checking coolant quality (high-temperature cooling circuit) 173 2.5 Checking cooling system for leaks 174 3 Coolant for low-temperature cooling circuit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 177 3.1 Draining and filling coolant 177 3.2 Checking cooling system for leaks 183 4 Coolant pump, thermostat 185 4.1 Assembly overview - coolant pump, thermostat, connections 185 4.2 Removing and installing coolant pump 186 4.3 Removing and installing thermostat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 187 4.4 Checking thermostat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 187 5 Coolant pipes, coolant temperature sender G62 and electric coolant pump 188 5.1 Assembly overview - coolant pipes 188 5.2 Removing and installing coolant temperature sender G62 191 5.3 Removing and installing front coolant pipe . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 192 5.4 Removing and installing front left coolant pipes 194 5.5 Removing and installing pipes for engine cooling system . . . . . . . . . . . . . . . . . . . . . . . . . . 196 5.6 Removing and installing rear left coolant pipe on gearbox . . . . . . . . . . . . . . . . . . . . . . . . . . 198 5.7 Removing and installing upper coolant pipe 199 5.8 Removing and installing coolant pipe on supercharger 200 5.9 Removing and installing electric coolant pump 202 6 Radiator and radiator fans 204 6.1 Assembly overview - radiator and radiator fan . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 204 6.2 Removing and installing radiator module 205 6.3 Removing and installing cooler for charge air cooling circuit 209 6.4 Removing and installing radiator cowl 211 6.5 Dismantling radiator module 212 20 - Fuel supply system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .214 1 Parts of fuel supply system 214 1.1 Rules for cleanliness 215 1.2 Assembly overview - fuel tank with attachments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 216 1.3 Assembly overview - fuel delivery unit, fuel gauge sender and suction jet pumps . . . . . . . . 218 1.4 Removing, installing and renewing fuel filter 219 1.5 Emptying fuel tank 221 1.6 Removing and installing fuel gauge sender 2 G169 and suction-jet pump 224 1.7 Removing and installing fuel delivery unit and fuel gauge sender G . . . . . . . . . . . . . . . . . . 228 1.8 Removing and installing fuel tank with attached components 231 2 Checking fuel pump . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 236 2.1 Checking fuel pressure 236 2.2 Checking holding pressure 240 2.3 Checking fuel delivery rate 240 Touareg 2010 ➤ , Touareg 2015 ➤ 6-cylinder direct-injection engine (3.0 l engine, 4V, supercharger) - Edition 02.2015 Contents iii
thgirypocybdetcetorP . icremmocroetavirprofgniypoCla rup op s e s , i n p a r t o r in w hole, isnotpermittedunlessauthorisedbyVolkswagen AG Volkswagen AGdoesnotguaranteeoracceptanyliabilitywith respect t o t h e c o r r e c t n e ss o f niGAnegawskloVybthgirypoC.tnemucodsihtninoitamrof 3 Electronic power control (EPC) 245 3.1 Assembly overview - accelerator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 245 4 Activated charcoal filter system 246 4.1 Assembly overview - activated charcoal filter system 246 4.2 Checking fuel system for leaks 246 21 - Turbocharging/supercharging 249 1 Supercharger 249 1.1 Assembly overview - supercharger 249 1.2 Removing and installing charge pressure sender G31 and G447 . . . . . . . . . . . . . . . . . . . . 252 1.3 Removing and installing compressor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 253 1.4 Assembly overview - charge air cooler 257 1.5 For assembly work, secure supercharger on engine and gearbox support 258 1.6 For leak test, secure supercharger on engine and gearbox support 260 1.7 Removing and installing charge air cooler 261 1.8 Assembly overview - drive unit 265 1.9 Removing and installing drive unit and damper spring . . . . . . . . . . . . . . . . . . . . . . . . . . . . 265 1.10 Checking supercharger for leaks 267 24 - Mixture preparation - injection 270 1 Injection system 270 1.1 Rules for cleanliness 270 1.2 Testing vacuum system 270 1.3 Assembly overview - vacuum system 271 1.4 Technical data 272 2 Injectors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 273 2.1 Removing and installing injectors 273 3 Air filter 277 3.1 Assembly overview - air filter 277 3.2 Removing and installing air filter element 278 3.3 Removing and installing air filter housing 280 4 Intake manifold . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 281 4.1 Assembly overview - intake manifold lower part, fuel rail . . . . . . . . . . . . . . . . . . . . . . . . . . 281 4.2 Removing and installing intake manifold lower part with fuel rail 283 4.3 Removing and installing vacuum servo element for actuating intake manifold flaps 286 4.4 Removing and installing throttle valve module J338 288 4.5 Removing and installing regulating flap control unit J808 289 5 Senders and sensors 291 5.1 RemovingandinstallingintakeairtemperaturesenderG42/intakemanifoldpressuresender G71 291 6 Engine control unit 292 6.1 Removing and installing engine control unit J623 292 7 High-pressure pump 294 7.1 Assembly overview - high-pressure pump 294 7.2 Removing and installing high-pressure pipe . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 295 7.3 Removing and installing high-pressure pump 298 8 Lambda probes 301 8.1 Assembly overview - lambda probes 301 8.2 Removing and installing Lambda probe G39 302 8.3 Removing and installing Lambda probe after catalytic converter G130 304 8.4 Removing and installing lambda probe 2 G108 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 305 8.5 Removing and installing Lambda probe 2 after catalytic converter G131 . . . . . . . . . . . . . . 307 26 - Exhaust system 309 Touareg 2010 ➤ , Touareg 2015 ➤ 6-cylinder direct-injection engine (3.0 l engine, 4V, supercharger)
iv Contents
- Edition 02.2015
thgirypocybdetcetorP . icremmocroetavirprofgniypoCla rup op s e s , i n p a r t o r in w hole, isnotpermittedunlessauthorisedbyVolkswagen AG Volkswagen AGdoesnotguaranteeoracceptanyliabilitywith respect t o t h e c o r r e c t n e ss o f ni.GAnegawskloVybthgirypoC.tnemucodsihtninoitamrof 1 Exhaust manifold 309 1.1 Assembly overview - exhaust manifold . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 309 1.2 Removing and installing left exhaust manifold (bank 2) 310 1.3 Removing and installing right exhaust manifold (bank 1) 312 2 Silencers and catalytic converters 314 2.1 Assembly overview - catalytic converters and front silencers 314 2.2 Assembly overview - catalytic converter mountings 315 2.3 Assembly overview - centre and rear silencers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 316 2.4 Removing and installing left catalytic converter (bank 2) 317 2.5 Removing and installing right catalytic converter (bank 1) 318 2.6 Separating centre and rear silencers 319 2.7 Aligning exhaust system free of stress 320 2.8 Renew and align exhaust pipes 321 2.9 Checking exhaust system for leaks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 322 3 Secondary air system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 323 3.1 Assembly overview - secondary air system 323 3.2 Removing and installing secondary air pump motor V101 325 3.3 Checking combination valves for secondary air system for proper operation and leakage 325 3.4 Removing and installing left combination valve for secondary air system 327 3.5 Removing and installing right combination valve for secondary air system . . . . . . . . . . . . 328 28 - Ignition system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 329 1 General notes and safety precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 329 1.1 General notes on ignition system 329 1.2 Safety precautions 329 2 Repairing ignition system 330 2.1 Assembly overview - ignition system 330 2.2 Removing and installing ignition coils with output stage 331 2.3 Removing and installing knock sensors G61 and G66 . . . . . . . . . . . . . . . . . . . . . . . . . . . . 334 2.4 Removing and installing Hall senders G40 and G163 335 2.5 Removing and installing engine speed sender G28 335 2.6 Test data, spark plugs 336 Touareg 2010 ➤ , Touareg 2015 ➤ 6-cylinder direct-injection engine (3.0 l engine, 4V, supercharger) - Edition 02.2015 Contents v
. icremmocroetavirprofgniypoCla rup op s e s , i n p a r t o r in w hole, isnotpermittedunlessauthorisedbyVolkswagen AG Volkswagen AGdoesnotguaranteeoracceptanyliabilitywith respect t o t h e c o r r e c t n e ss o f niGAnegawskloVybthgirypoC.tnemucodsihtninoitamrof
Touareg 2010 ➤ , Touareg 2015 ➤
6-cylinder direct-injection engine (3.0 l engine, 4V, supercharger) - Edition 02.2015
thgirypocybdetcetorP
vi Contents
00 –Technical data
1Safety instructions
(VRL007791; Edition 02.2015)
⇒ “1.1 Safety precautions when working on fuel supply system”, page 1
⇒ “1.2 Safety precautions when working on vehicles with a Start/ Stop system”, page 1
⇒ “1.3 Safety precautions during road tests in which test and measuring equipment is used”, page 2
⇒“1.4Safetyprecautionswhenworkingonignitionsystem”,page 2
⇒“1.5Safetyprecautionswhenworkingoncoolingsystem”,page 2
1.1Safety precautions when working on fuel supply system
Risk of injury due to highly-pressurised fuel.
The fuel system is pressurised. Risk of injury due to fuel which may spurt out.
–Wear eye protection.
–Wear protective gloves.
–Release pressure: place clean cloth around connection and carefully open connection.
Risk of fire due to escaping fuel
If the battery is connected, the door contact switch will activate the fuel pump when the door is opened. Escaping fuel may ignite and cause a fire.
– Disconnect the fuel pump from the power supply before open‐ing the fuel system.
1.2Safety precautions when working on vehicles with a Start/Stop system
Risk of injury due to unexpected engine start-up
In the case of vehicles with activated Start/Stop system, the en‐gine may start up unexpectedly. A message in the dash panel insert indicates whether the Start/Stop system is activated.
–Deactivate Start/Stop system by switching off the ignition.
thgirypocybdetcetorP . icremmocroetavirprofgniypoCla rup op s e s , i n p a r t o r in w hole, isnotpermittedunlessauthorisedbyVolkswagen AG Volkswagen AGdoesnotguaranteeoracceptanyliabilitywith respect t o t h e c o r r e c t n e ss o f ni.GAnegawskloVybthgirypoC.tnemucodsihtninoitamrof
1. Safety instructions 1
Touareg 2010 ➤ , Touareg 2015 ➤ 6-cylinder direct-injection engine (3.0 l engine, 4V, supercharger) - Edition 02.2015
Touareg 2010 ➤ , Touareg 2015 ➤
6-cylinder direct-injection engine (3.0 l engine, 4V, supercharger) - Edition 02.2015
1.3 Safetyprecautionsduringroadtestsinwhichtestandmeasuringequipment is used
Risk of injury due to unsecured test and measuring equipment
If a front passenger airbag is triggered during an accident, unse‐cured test and measuring equipment can become dangerous projectiles.
–Secure test and measuring equipment with seat belts on the rear seat.
Or
– Haveasecondpersonoperatetestandmeasuringequipment on the rear seat.
1.4Safety precautions when working on ignition system
Risk of injury due to electric shock
The ignition system is under high voltage when the engine is run‐ning.Touchingtheignitionsystemmayresultinanelectricshock.
– Do not touch or disconnect ignition cables when the engine is running or being turned at starter speed.
Risk of damage to components
If the engine is washed or if electric cables are connected or dis‐connectedwhiletheengineisrunning,componentsmaybedam‐aged.
– Switchofftheignitionbeforeconnectingordisconnectingelec‐tric cables.
–Switch off the ignition before washing the engine.
1.5Safety precautions when working on cooling system
Risk of scalding due to hot coolant
.GAnegawskloVybthgirypoC.tnemucodsihtninoitamrof
Thecoolingsystemisunderpressurewhentheengineishot.Hot steam/hot coolant can escape - risk of scalding.
–Wear protective gloves.
–Wear eye protection.
–Release pressure by covering cap of coolant expansion tank with a cloth and opening it carefully.
thgirypocybdetcetorP . icremmocroetavirprofgniypoCla rup op s e s , i n p a r t o r in w hole, isnotpermittedunlessauthorisedbyVolkswagen
AGdoesnotguaranteeoracceptanyliabilitywith respect t o t h e c o r r e c t n e ss o f ni
AG. Volkswagen
2 Rep. gr.00 - Technical data
• Thank you very much for reading the preview of the manual.
• You can download the complete manual from: www.heydownloads.com by clicking the link below
• Please note: If there is no response to CLICKING the link, please download this PDF first and then click on it.
CLICK HERE TO DOWNLOAD THE COMPLETE MANUAL
CLICK HERE TO DOWNLOAD THE COMPLETE MANUAL
Touareg 2010 ➤ , Touareg 2015 ➤ 6-cylinder direct-injection engine (3.0 l engine, 4V, supercharger) - Edition 02.2015
2Identification
⇒ “2.1 Engine number, engine data”, page 3
⇒ “2.2 Numbering of cylinders”, page 4
2.1Engine number, engine data
Engine number
Theenginenumbercanbeseenonlywhentheenginecoveris pulledoffatthefront.
The engine number (“Engine code” and “Serial number”) can be found on the top of the cylinder block at the front -arrow-.
In addition, there is a sticker on the right of the toothed belt guard with “engine code” and “serial number”.
The first 3 digits denote the mechanical design of the engine and are stamped on the engine. The fourth digit denotes the perform‐ance and torque rating of the engine and depends on the engine control unit. The four-digit engine code can be found on the type plate and on the vehicle data sticker. It can also be read from the engine control unit.
Fitting locations of vehicle data sticker ⇒ Maintenance ; Booklet ; Vehicle data sticker .
Engine data
thgirypocybdetcetorP . icremmocroetavirprofgniypoCla rup op s e s , i n p a r t o r in w hole, isnotpermittedunlessauthorisedbyVolkswagen AG Volkswagen AGdoesnotguaranteeora e ss o f niGAnegawskloVybthgirypoC.tnemucodsihtninoitamrof
Note
Engine code CJTA CMKA CYJA Capacity l 2.99 2.99 2.99 Output kW at rpm 213/5500 245/5500 235/6000 Torque Nm at rpm 420/1600 420/1600 440/2900 … 4500 Bore Diameter mm 84.5 84.5 84.5 Stroke mm 89.0 89.0 89.0 Compression ratio 10.5 10.5 10.5 RON min. 98 1) 98 1) 98 1) Ignition and injection systems Simos Simos Simos Emissions fulfil EU 5 EU 5 EU 5 Firing order 1-4-3-6-2-5 1-4-3-6-2-5 1-4-3-6-2-5 Exhaust gas recirculation no no no Turbocharging/supercharging Supercharger Supercharger Supercharger Knock control 2 sensors 2 sensors 2 sensors Lambda control 4 lambda probes 4 lambda probes 4 lambda probes Charge air cooler yes yes yes Camshaft timing control Inlet Inlet Inlet Variable intake manifold no no no Secondary air system yes yes yes Valves per cylinder 4 4 4 1) 95 RON also permitted but with reduced power
2. Identification 3
Touareg 2010 ➤ , Touareg 2015 ➤
6-cylinder direct-injection engine (3.0 l engine, 4V, supercharger) - Edition 02.2015
2.2Numbering of cylinders
Cylindersarenumberedbeginningwiththerightside-A-(cylinder bank 1) from the driver's perspective, not from the power output end -C-. Cylinders are numbered sequentially on each side. -B= cylinder bank 2.
icremmocroetavirprofgniypoCla rup op s e s , i n p a r t o r in w hole, isnotpermittedunlessauthorisedbyVolkswagen
thgirypocybdetcetorP .
AG Volkswagen AGdoesnotguaranteeoracceptan niGAnegawskloVybthgirypoC.tnemucodsihtninoitamrof
4 Rep. gr.00 - Technical data
Touareg 2010 ➤ , Touareg 2015 ➤ 6-cylinder direct-injection engine (3.0 l engine, 4V, supercharger) - Edition 02.2015
3Repair instructions
⇒ “3.1 Rules for cleanliness”, page 5
⇒ “3.2 Foreign objects in engine”, page 5
⇒ “3.3 Contact corrosion”, page 5
⇒ “3.4 Routing and securing lines”, page 5
⇒ “3.5 Installing coolers, condensers and radiators”, page 6
3.1Rules for cleanliness
When working on fuel supply and injection system, pay careful attention to the following “rules” for cleanliness:
♦ Thoroughlycleanallunionsandsurroundingareasbeforedis‐connecting.
♦ Place removed parts on a clean surface and cover. Use only lint-free cloths.
♦ Carefully cover opened components or seal if repairs cannot be carried out immediately.
♦ Install clean components only. Do not remove replacement parts from packing until immediately before installing. Do not use parts that have not been stored in their packing (e.g. in tool boxes etc.).
♦ When the system is open: Do not work with compressed air. Do not move vehicle.
♦ Make sure that no fuel gets onto the fuel hoses. Should this occur, the fuel hoses must be cleaned immediately.
♦ Protect detached electrical connections against dirt and mois‐ture and only connect when they are dry.
3.2Foreign objects in engine
To prevent the ingress of foreign bodies during work on the en‐gine, seal open channels of the intake section and exhaust sec‐tion with suitable bungs, for example from the engine bung setVAS 6122- .
3.3Contact corrosion
Contact corrosion can occur if unsuitable connecting elements (screws, bolts, nuts, washers, etc.) are used.
For this reason, only connecting elements with a special surface coating are fitted in the vehicle.
Moreover, certain rubber or plastic parts as well as adhesives made of electrically non-conductive materials.
If there is any doubt about the suitability of parts, a general rule is to use new parts ⇒ Electronic Parts Catalogue .
3.4Routing and securing lines
♦ Inordertoruleoutmix-upsandensurethatlines/wires/cables/ hoses/pipe are all installed in their original position, the lines for the fuel, hydraulic systems, vacuum systems and the acti‐vated charcoal filter, for example, as well as electrical wires/ cables must be marked appropriately before they are re‐moved. If necessary, take a photo or make a sketch.
♦ Becauseofthelackofspaceintheenginecompartment,make sure that all lines are sufficiently far away from all moving or hot components.
thgirypocybdetcetorP . icremmocroetavirprofgniypoCla rup op s e s , i n p a r t o r in w hole, isnotpermittedunlessauthorisedbyVolkswagen AG Volkswagen AGdoesnotguaranteeoracceptanyliabilitywith respect t o t h e c o r r e c t n e ss o f niGAnegawskloVybthgirypoC.tnemucodsihtninoitamrof
3. Repair instructions 5
Touareg 2010 ➤ , Touareg 2015 ➤
6-cylinder direct-injection engine (3.0 l engine, 4V, supercharger) - Edition 02.2015
3.5Installing coolers, condensers and radi‐ators
Even if installed correctly, the radiator, the condenser and the chargeaircoolermayhavesmalldentsintheirfins.Thisdoesnot mean that these components have been damaged. It is not per‐missibletorenewradiators,condensersorchargeaircoolersonly because of such minor dents.
. icremmocroetavirprofgniypoCla rup op s e s , i n p a r t o r in w hole, isnotpermittedunlessauthorisedbyVolkswagen AG Volkswagen AGdoesnotguaranteeoracceptanyliabilitywith respect t o t h e c o r r e c t n e ss o f ni
thgirypocybdetcetorP
GAnegawskloVybthgirypoC.tnemucodsihtninoitamrof
6 Rep. gr.00 - Technical data
10 –Removing and installing engine
1Removing and installing engine
⇒ “1.1 Removing engine”, page 7
⇒“1.2SecuringengineonengineandgearboxsupportVAS6095
”, page 19
⇒ “1.3 Installing engine”, page 23
⇒ “1.4 Detaching gearbox from engine”, page 25
1.1Removing engine
thgirypocybdetcetorP . icremmocroetavirprofgniypoCla rup op s e s , i n p a r t o r in w hole, isnotpermittedunlessauthorisedbyVolkswagen AG Volkswagen AGdoesnotguaranteeoracceptanyliabilitywith respect t o t h e c o r r e c t n e ss o f niGAnegawskloVybthgirypoC.tnemucodsihtninoitamrof
Touareg 2010 ➤ , Touareg 2015 ➤ 6-cylinder direct-injection engine (3.0 l engine, 4V, supercharger) - Edition 02.2015 1. Removing and installing engine 7
Touareg 2010 ➤ , Touareg 2015 ➤
6-cylinder direct-injection engine (3.0 l engine, 4V, supercharger) - Edition 02.2015
Special tools and workshop equipment required
♦Used oil collection and ex‐traction unit - VAS 6622Aor -V.A.G 1782-
♦Stepladder
♦Engine bung set - VAS 6122-
♦ Drip tray for workshop hoist - VAS 6208-
♦Hose clip pliers - VAS 6362-
♦ Balljointremover-T10187-
. icremmocroetavirprofgniypoC
Not illustrated:
thgirypocybdetcetorP
♦ Basic kit for Touareg - VAS 6131/6-
♦ Support - VAS 6131/8-
♦ Stepladder
♦ Torque wrench (5 … 50 Nm) - V.A.G 1331-
GAnegawskloVybthgiryp
la rup op s e s , i n p a r t o r in w hole, isnotpermittedu c o
8 Rep. gr.10 - Removing and installing engine
Touareg 2010 ➤ , Touareg 2015 ➤
6-cylinder direct-injection engine (3.0 l engine, 4V, supercharger) - Edition 02.2015
The engine is removed downwards with gearbox. Do not open air conditioning system.
Note
♦ Usesuitablematerials,e.g.cableties,toattachalldisconnec‐tedcablesandwirestotheengine/assembly(dependingon »origin«).Fitdummyplugsinallopenconnections.
♦ Movetheselectorlevertothe“N”positionsothatthepropshaft canturnfreely.
♦ Tomakesureyoucanstillmovethefrontwheelswhenthe batteryhasbeendisconnected,onlydisconnectthebattery withtheignitionkeyinserted.
♦ Somecomponentscannotberemoved,orremovedonlywith difficulty,withtheengineinstalled.Therefore,youshouldde‐terminealldefectivecomponentsbeforeremovingengineand renewthemwhileengineisremoved.
♦ Topreventdamagetoremovedcomponents,placethemin thecontainerforremovedparts-V.A.G1698-.
♦ Allcabletiesthatareopenedorcutthroughwhentheengine isremovedmustberenewed/replacedinthesameposition whentheengineisinstalled.
Procedure:
–Connect battery ⇒ Electrical system; Rep. gr. 27 ; Discon‐necting and reconnecting batteries
–Remove front wheels.
–Remove air pipe. To do this, remove hose -1- and hose clips -arrows-.
–Disconnect connectors -1 ... 4- for lambda probes.
– Remove wiper arms ⇒ Electrical system; Rep. gr. 92 ; Wind‐screen wiper system; Removing and installing wiper arms .
– Remove plenum chamber cover ⇒ General body repairs, ex‐terior; Rep. gr. 50 ; Plenum chamber cover .
–Remove anti-theft alarm from engine control unit ⇒ page 292 .
–Pull engine wiring harness off engine control unit.
1. Removing and installing engine 9
thgirypocybdetcetorP . icremmocroetavirprofgniypoCla rup op s e s , i n p a r t o r in w hole, isnotpermittedunlessauthorisedbyVolkswagen
AGdoesnotguaranteeoracceptanyliabilitywith respect t o t h e c o r r e c t n e ss o f GAnegawskloVybthgirypoC.tnemucodsihtninoita
AG Volkswagen
Touareg 2010 ➤ , Touareg 2015 ➤
6-cylinder direct-injection engine (3.0 l engine, 4V, supercharger) - Edition 02.2015
–Unscrew earth wire and connector -arrows-.
–Open cover -A- of central electrical system.
–Detach all connectors whose wires go to the engine.
–Remove engine wiring harness from plenum chamber and place it on the engine.
–Open cover above terminal B+ distribution box -arrow-.
–Unscrew positive cable -2- to starter and alternator and place cable to one side.
WARNING
Thefuellineisunderpressure.
Riskofinjurytoeyesandskinfromfuel.
Weareyeprotectionandprotectiveclothingtoavoideyeinju‐riesandskincontact.Beforelooseninghoseconnections, wrapaclotharoundtheconnection.Thenreleasepressureby carefullyopeningtheconnectionpoint.
–Wrap a cloth around the joint to catch any escaping fuel.
–Detach fuel supply line -arrow-.
thgirypocybdetcetorP
. icremmocroetavirprofgniypoCla rup op s e s , i n p a r t o r in w hole, isnotpermittedunlessauthorisedbyVolkswagen AG Volks ct t o t h e c o r r e GAnegawskloVybthgi
10 Rep. gr.10 - Removing and installing engine
Touareg 2010 ➤ , Touareg 2015 ➤
6-cylinder direct-injection engine (3.0 l engine, 4V, supercharger) - Edition 02.2015
–Remove noise insulation -1- and -2- ⇒ Rep. gr. 50 .
AG. Volkswagen
–Disconnect connector at steering rack.
–Remove heat shield -1- for universal joint -2-.
–Unscrew earth wire -A- at right longitudinal member.
. icremmocroetavirprofgniypoCla rup op s e s , i n p a r t o r in w hole, isnotpermittedunlessauthorisedbyVolkswagen
thgirypocybdetcetorP
th respect t o t h e c o r r e c t n e ss o f ni.GAnegawskloVybthgirypoC.tnemucodsihtninoitamrof
AGdoesnotguaranteeoracceptanyliabilitywi
11
1. Removing and installing engine
• Thank you very much for reading the preview of the manual.
• You can download the complete manual from: www.heydownloads.com by clicking the link below
• Please note: If there is no response to CLICKING the link, please download this PDF first and then click on it.
CLICK HERE TO DOWNLOAD THE COMPLETE MANUAL
CLICK HERE TO DOWNLOAD THE COMPLETE MANUAL
Touareg 2010 ➤ , Touareg 2015 ➤
6-cylinder direct-injection engine (3.0 l engine, 4V, supercharger) - Edition 02.2015
– Unscrewbolt-A-andpullconnectionsoffgearoilcooler.Catch leaking oil with used oil collection and extraction unit - VAS 6622A- .
– Detachpowersteeringhosetogetherwithclampsupto25mm - 3094- . Open clip -A- and pull off hose. Catch leaking oil with used oil collection and extraction unit - VAS 6622A- .
Disconnect connectors on left and right from front speed sen‐sors -arrow-.
–Disconnect connector -arrow- for wear indicator.
icremmocroetavirprofgniypoCla rup op s e s , i n p a r t o r in w hole,
c o r r oVybthgi
thgirypocybdetcetorP .
isnotpermittedunlessauthorisedbyVolkswagen AG. Volkswagen AGdoesnotg
.GAneg
–
12 Rep. gr.10 - Removing and installing engine
–Remove bolts -arrows- for cable retainers.
–Unscrew bolts -1- for brake caliper.
Note
Donotattempttobendbrakelinestoadifferentshape.
–Suspend brake caliper in wheel housing with wire.
Caution
Avoiddamagetobrakepistons.
♦ Donotpressbrakepedalwhenbrakecaliperisremoved.
–Unscrew bolt -arrow- of coupling rod at bottom.
– Unscrew nut -A- from lower transverse link, leave bolt in hole.
. icremmocroetavirprofgniypoC
–Unscrew nut for suspension link at top by several turns and push off articulated joint together with ball joint pullerT10187- .
thgirypocybdetcetorP
–Completely unscrew nut and detach suspension link.
– Repeat work sequence of suspension on opposite side of ve‐hicle.
–Disconnect connector -arrows- at gearbox.
la rup op s e s , i n p a r t o r in w hole,
espe ucod GAnegawskloVy
isnotpermittedunlessauthorisedbyVolkswagen AG Volkswagen AGdoesnotgu
Touareg 2010 ➤ , Touareg 2015 ➤ 6-cylinder direct-injection engine (3.0 l engine, 4V, supercharger) - Edition 02.2015 1. Removing and installing engine 13
Touareg 2010 ➤ , Touareg 2015 ➤ 6-cylinder direct-injection engine (3.0 l engine, 4V, supercharger) - Edition 02.2015
–Release clamps -1 and 2- from front and centre silencers.
– Support exhaust system between centre silencer and front si‐lencerwithengineandgearboxjack-V.A.G1383A-.Unscrew front and centre mountings of exhaust system and lower ex‐haust system by approx. 20 cm. After removing propshaft, secure exhaust system again.
–Remove propshaft ⇒ Transfer box and final drive; Rep. gr. 39 ; Removing and installing propshaft .
– Separateselectorlevercableatballhead-1-andremovelock washer -3-.
Note
♦ Item-2-canbedisregarded.
♦ Donotbendorkinkselectorlevercable.
♦ Alwaysrenewsecuringclip.
–Drain coolant for high-temperature cooling system
⇒ page 167
–Drain coolant for low-temperature cooling system
⇒ page 177 .
–Remove universal joint -1- from steering rack and push up‐wards. Place drip tray for workshop hoist - VAS 6208- under engine and pull off hoses from coolant pipes -2-.
Caution
♦ Disconnectuniversaljointfromsteeringrackonlywhen wheelsareinstraight-aheadposition.
♦ Donotchangepositionofsteeringwheelandsteering rack,securesteeringwheelwithadhesivetapeifneces‐sary.
–Detach coolant hoses -arrows- and remove upper coolant hose -1- from brackets.
thgirypocybdetcetorP . icremmocroetavirprofgniypoCla rup op s e s , i n p a r t o r in w hole, isnotpermittedunlessauthorisedbyVolkswa anyliabilitywith respect t o t h e c o r r e c t n e ss o f niucodsihtninoitamrof GAnegawskloVybthgirypoC.tn
14 Rep. gr.10 - Removing and installing engine
Touareg 2010 ➤ , Touareg 2015 ➤
6-cylinder direct-injection engine (3.0 l engine, 4V, supercharger) - Edition 02.2015
–Pull off coolant hose -1- and disconnect breather pipes -arrows-.
–Pull off secondary air pipe -1- and bottom coolant hose -arrow-.
–Pull off coolant hoses -arrows-.
–Remove poly V-belt from air conditioning compressor.
Useclothtocatchescapinghydraulicfluid.
– Detach power steering hose together with clamp up to 25 mm - 3094- . Detach hose clip -arrow- and pull off hose.
–Remove hydraulic pipe from vane pump. To do this, unscrew bolts -A-.
la rup op s e s , i n p a r t o r in w hole, isnotpermittedunlessauthorisedbyVolkswagen
AGdoesnotguara pect emuc .GAnegawskloVybthg
thgirypocybdetcetorP . icremmocroetavirprofgniypoC
AG Volkswagen
Note
15
1. Removing and installing engine
Touareg 2010 ➤ , Touareg 2015 ➤ 6-cylinder direct-injection engine (3.0 l engine, 4V, supercharger) - Edition 02.2015
–Unscrew one of the rear securing bolts -2- on subframe. –Secure subframe to body using locating pins - T10300- ⇒ Runninggear,axles,steering;Rep.gr. 40;l-Assemblyover‐view - subframe, anti-roll bar, lower suspension links .
–Then proceed with other securing bolt -2- in the same way.
–Unscrew bolts -arrows- and remove bracket for noise insula‐tion.
–Remove bolt -1- at bottom of engine. The mounting - VAS 6131/8-1- will be placed in this hole later.
–If engine and gearbox are to be separated after removal, un‐screw bolts -arrows-.
Preparing scissor-type assembly platform - VAS 6131- for further procedure:
thgirypocybdetcetorP . icremmocroetavirprofgniypoCla rup op s e s , i n p a r t o r in w hole, isnotpermittedunlessauthorisedbyVolkswagen AG ith respect t o t h e c o r r e c t n e ss o f nioitamrof G
16 Rep. gr.10 - Removing and installing engine
Touareg 2010 ➤ , Touareg 2015 ➤
6-cylinder direct-injection engine (3.0 l engine, 4V, supercharger) - Edition 02.2015
1 - VAS 6131/6-1
❑ Boltingpoint:A4;B3;B4
2 - VAS 6131/6-2
❑Bolting point: H4; G3; G4
3 - VAS 6131/6-3
❑Bolting point: A5; C5
❑Use rotating plate with short spindle
4 - VAS 6131/6-4
❑Bolting point: F5; H5
❑Use rotating plate with short spindle
5 - VAS 6131/6-5
❑Bolting point: B7
6 - VAS 6131/8-1
❑Bolting point: D7
7 - VAS 6131/6-5
❑Bolting point: G7
8 - VAS 6131/6-6
❑Bolting point: B14
9 - VAS 6131/6-6
❑Bolting point: G14
♦ Allsupportsmustonlybetightenbyhandsothattheirposition canstillbeadjusted.
♦ ForrunninggearsupportsVAS6131/6-3andVAS6131/6-4, userotatingplatewithshortspindle.Rotatingplateswithlong spindleareusedtosupportthegearbox.
–Position horizontal scissor-type assembly platform under en‐gine/gearbox assembly. Supports -1- must be guided into corresponding receptacles on left and right -arrow-.
la rup op s e s , i n p a r t o r in w hole, isnotpermittedunlessauthorisedbyVolkswagen
thgirypocybdetcetorP . icremmocroetavirprofgniypoC
AG Volkswagen AGdoesnotguaranteeorac
Note
1. Removing and installing engine 17
Touareg 2010 ➤ , Touareg 2015 ➤
6-cylinder direct-injection engine (3.0 l engine, 4V, supercharger) - Edition 02.2015
–At the same time, guide right and left mountings for gearbox bracket into corresponding holes -arrow-.
When all 4 mountings are in the receptacle holes without pres‐sure:
–Turn turntables of running gear supports with a slight preload under the suspension link.
–Guide supports -2- into their respective receptacles in sub‐frame, correcting support height as necessary with knurled nuts.
–Tighten all supports on scissor-type assembly platform.
–Support also engine with mounting - VAS 6131/8-1- . To do this, insert hook from below into free bolt hole on engine. Ad‐just height with spindle and tighten mounting on scissor-type assembly platform.
–Remove bolts -A- for right and left suspension struts.
thgirypocybdetcetorP . icremmocroetavirprofgniypoCla rup op s e s , i n p a r t o r in w hole, isnotpermittedunlessauthorisedbyVolkswagen AG Volkswagen AGdoesnotguaran o t h poC.tn GAnegawskloVybthg
18 Rep. gr.10 - Removing and installing engine
Touareg 2010 ➤ , Touareg 2015 ➤
6-cylinder direct-injection engine (3.0 l engine, 4V, supercharger) - Edition 02.2015
– Remove bolts for gearbox transverse support -1- and for sub‐frame -3 and 4-.
Caution
Beverycarefulwhenlowering.Makesurethatallconnections tothebodyhavebeendetached.Wherenecessary,dothis now.
– Lower engine/gearbox assembly using scissor-type assembly platform - VAS 6131 A- initially only as far as distance -a-.
• Dimension -a- = maximum 180 mm.
–Disconnect electrical connector -1- to air conditioning com‐pressor regulating valve - N280- .
–Remove bolts -arrows- for air conditioner compressor.
–Now slowly lower engine/gearbox assembly, constantly ob‐serving the clearance. The compressor must be guided by a second mechanic.
–On left and right sides, insert one securing bolt with nut -arrow-andtighten.Thispreventsenginecarrierfromslipping.
Note
Todothis,usetheboltsfromthesubframemountings.
1.2Securing
. icremmocroetavirprofgniypoCla rup op s e s , i n p a r t o r in w hole,
c t n e GAnegawskl
thgirypocybdetcetorP
isnotpermittedunlessauthorisedbyVolkswagen AG Volks guarante
engine on engine and gearbox support - VAS 6095-
19
1. Removing and installing engine
Touareg 2010 ➤ , Touareg 2015 ➤
6-cylinder direct-injection engine (3.0 l engine, 4V, supercharger) - Edition 02.2015
Special tools and workshop equipment required
♦Lifting tackle - 2024 A-
♦Engine and gearbox sup‐port - VAS 6095- with sup‐port bracket for V6 FSI engine -VAS 6095/1-5-
♦Workshop hoistVAS 6100-
♦Lift arm extension (work‐shop crane) - VAS 6101-
Prerequisites:
• Gearbox is separated from engine.
.GAnegawskloVybthgirypoC.tnemucodsihtninoitamrof
thgirypocybdetcetorP . icremmocroetavirprofgniypoCla rup op s e s , i n p a r t o r in w hole, isnotpermittedunlessauthorisedbyVo otguaranteeoracceptanyliabilitywith respect t o t h e c o r r e c t n e ss o f ni
20 Rep. gr.10 - Removing and installing engine
Procedure:
direct-injection engine (3.0 l engine, 4V, supercharger) - Edition 02.2015
– Attach lifting tackle - 2024 A- to engine lifting eye and to work‐shop crane as shown in the illustration.
Note
Toadjusttothecentreofgravityoftheassembly,theperforated railsofthesupporthooksmustbepositionedasshown.
WARNING
Riskofaccidents.
♦ Theenginemustonlybetransportedwithoutgearboxas described.
♦ Thesupporthooksandretainingpinsontheliftingtackle mustbesecuredwithlockingpins-arrows-.
–Take up some of the weight of the engine with the workshop crane, but do not raise the engine.
–Unscrew nuts for engine mounting on left and right sides -arrow-.
–Remove support -VAS 6131/13-7- from engine. –Lift engine from engine carrier.
thgirypocybdetcetorP . icremmocroetavirprofgniypoCla rup op s e s , i n p a r t o r in w hole, isnotpermittedunlessauthorisedbyVolkswagen
Volkswagen AGdoesnotguaranteeoracce ywith GAnegawskloVybthgirypoC.tnemucodsihtnin
AG
Touareg
➤
1.
and
21
2010 ➤ , Touareg 2015
6-cylinder
Removing
installing engine
• Thank you very much for reading the preview of the manual.
• You can download the complete manual from: www.heydownloads.com by clicking the link below
• Please note: If there is no response to CLICKING the link, please download this PDF first and then click on it.
CLICK HERE TO DOWNLOAD THE COMPLETE MANUAL
CLICK HERE TO DOWNLOAD THE COMPLETE MANUAL
Touareg 2010 ➤ , Touareg 2015 ➤
6-cylinder direct-injection engine (3.0 l engine, 4V, supercharger) - Edition 02.2015
–Unscrew bolts -arrows- and remove engine support on right.
–Unscrew bolts -arrows- and remove engine support on left.
–Secure engine with support bracket for V6 FSI engine -VAS 6095/1-5- to engine and gearbox support - VAS 6095- as shown and tighten to 40 Nm.
thgirypocybdetcetorP . icremmocroetavirprofgniypoCla rup op s e s , i n p a r t o r in w hole, isnotpermittedunlessauthorisedbyVolkswagen AG h respect t o t h e c o r r e c t n e ss o f niamrof
22 Rep. gr.10 - Removing and installing engine
Touareg 2010 ➤ , Touareg 2015 ➤ 6-cylinder direct-injection engine (3.0 l engine, 4V, supercharger) - Edition 02.2015
1.3Installing engine
Caution
Whendoinganyrepairwork,especiallyintheenginecompart‐ment,payattentiontothefollowingduetothecrampedcondi‐tions:
♦ Routeallthevariouslines(e.g.forfuel,hydraulics,acti‐vatedcharcoalfiltersystem,coolantandrefrigerant,brake fluidandvacuum)andelectricalwiringintheiroriginalpo‐sitions.
♦ Toavoiddamagetolines,ensuresufficientclearanceto allmovingorhotcomponents.
Note
♦ Whenfittingengineandgearboxtobody,itisessentialtopo‐sitionenginecarrieragainstbodywiththeaidofscissor-type assemblyplatform-VAS6131-.»Pullingup«enginecarrier withsecuringboltswilldamagethreads.
♦ Thecompressormustbeguidedbyasecondmechanic.
Procedure:
–Before installing assembly, fit exhaust manifold with catalytic converter.
Aligning scissor-type assembly platform
Special tools and workshop equipment required
♦ Positioning tool - VAS 6131/17-
Individual parts of positioning tool:
♦ Dot lasers - VAS 6131/17-1-
♦ Adapters M14x1.5 - VAS 6131/17-2-
♦ Adapters M12x1.5 - VAS 6131/17-3-
♦ Adapters M10 - VAS 6131/17-4-
1. Removing and installing engine
thgirypocybdetcetorP . icremmocroetavirprofgniypoCla rup op s e s , i n p a r t o r in w hole,
th respect t o t h e c o r r e c t n e ss o GAnegawskloVybthgirypoC.tnemucod
isnotpermittedunlessauthorisedbyVolkswagen AG. Volkswagen AGdoesnotguaranteeoracceptanyliabilitywi
23
Touareg 2010 ➤ , Touareg 2015 ➤
6-cylinder direct-injection engine (3.0 l engine, 4V, supercharger) - Edition 02.2015
Note
Theillustrationshowsanexample.Othercontactpointsofthe subframemayalsobeused.
– Screw appropriate adapters -A- into threaded holes for secur‐ing subframe to longitudinal member on left and right.
–Screw dot lasers - VAS 6131/17-1- -B- into adapters -A-.
–Insert securing bolts -C-, centred with bolt heads upwards in appropriate securing points of subframe.
– Switch on dot lasers and align scissor-type assembly platform so that the laser beams on left and right strike the bolt heads. After completing alignment, remove dot lasers and adapters.
Installing engine
–Raise engine until it contacts the body using scissor-type as‐sembly platform - VAS 6131- . Observe the inserted locating pins - T10300- in the process.
– Boltsubframetovehicle⇒ Runninggear,axles,steering;Rep. gr. 40
–Reconnect all electrical connections, lines, hoses and con‐nectors which were separated during removal.
–Install plenum chamber cover ⇒ General body repairs, exte‐rior; Rep. gr. 50 ; Plenum chamber cover .
–Install wiper arms on left and right ⇒ Electrical system; Rep. gr. 92 ; Windscreen wiper system; Removing and installing wiper arms .
thgirypocybdetcetorP
–Replenish oil in power-assisted steering ⇒ Running gear, axles, steering, front and four-wheel drive; Rep. gr. 48 ; Checking power-assisted steering oil level .
–Replenish coolant for high-temperature cooling circuit
⇒ page 169 .
–Replenish coolant for low-temperature cooling circuit
⇒ page 177 .
–Replenish engine oil if necessary.
–Connect battery ⇒ Electrical system; Rep. gr. 27 ; Discon‐necting and reconnecting batteries .
–Adjust selector lever cable ⇒ Automatic gearbox 0C8 - 8speed; Rep. gr. 37 ; Selector mechanism .
–Top up ATF level ⇒ Automatic gearbox 0C8 - 8-speed; Rep. gr. 37 ; Checking ATF level and topping-up
–Connect vehicle diagnostic tester .
–Perform vehicle system test ⇒ Vehicle diagnostic tester “Gui‐ded fault finding”.
– Finish the vehicle system test so that any event entries stored during assembly can be cleared automatically.
–Generate the readiness code in combination with a road test. Observe applicable safety measures when carrying out a road test.
– Then carry out vehicle system test again and rectify any faults which may have occurred.
. icremmocroetavirprofgniypoCla rup op s e s , i n p a r t o r in w hole,
th respect t o t h e c o r r e c t n e ss o f ni
isnotpermittedunlessauthorisedbyVolkswagen AG Volkswagen AGdoesnotguaranteeoracceptanyliabilitywi
.GAnegawskloVybthgirypoC.tnemucodsihtninoitamrof
24 Rep. gr.10 - Removing and installing engine
Note
Touareg 2010 ➤ , Touareg 2015 ➤ 6-cylinder direct-injection engine (3.0 l engine, 4V, supercharger) - Edition 02.2015
Checkwheelalignmentifduringtheroadtestitisdeterminedthat thesteeringwheelisnotinthestraight-aheadpositionwhenmov‐ingstraight-ahead⇒ Runninggear,axles,steering,frontand four-wheeldrive;Rep.gr. 44;Wheelalignment.
Specified torques
Threaded connection Specified torque
Deviations
Assembly mountings ⇒ page 31
Drive shafts to gearbox ⇒ Runninggear,axles,steer‐ing, front and four-wheel drive; Rep. gr. 40 ; Repairing drive shaft .
Gearbox carrier to body ⇒ Differential and final drive; Rep. gr. 34 ; Installing gear‐box carrier and console .
1.4Detaching gearbox from engine
• Engine/gearbox assembly removed and placed on scissortype assembly platform - VAS 6131 A- .
Note
Duringinstallation,attachallcabletiesandprotectivesleeves againinsameplace.
Special tools and workshop equipment required
♦ Support bridge - 30 - 211 A-
♦ Support - VAS 6131/13-7-
1. Removing and installing engine
thgirypocybdetcetorP . icremmocroetavirprofgniypoCla rup op n p a r t o r in w hole, isnotpermittedunlessauthorisedbyVolkswagen
Volkswagen AGdoesnotguaranteeoracceptanyliabilitywith respect t o t h e c o r r e c t n e ss o f nininoitamrof .GAnegawskloVybthgirypoC.tnemuc
AG
nuts M6 10 Nm M7 15 Nm M8 25 Nm M10 40 Nm M12 60 Nm
Bolts,
25
Touareg 2010 ➤ , Touareg 2015 ➤
6-cylinder direct-injection engine (3.0 l engine, 4V, supercharger) - Edition 02.2015
Separating engine and gearbox:
–Unscrew bolt -1- and nuts -arrows- for left catalytic converter.
– Unscrewbolt-1-andnuts-arrows-forrightcatalyticconverter.
–Remove bolts -1- and -3-. Remove catalytic converters with front silencers.
– Unscrew front right earth wire on engine and tighten supportVAS 6131/13-7- in threaded hole.
–Secure support -VAS 6131/13-7- to scissor-type assembly platform and tighten to 20 Nm.
GAnegawskloVybthgirypoC.tnemuco
icremmocroetavirprofgniypoCla rup op s e s , i n p a r t o r in w hole,
s o f i
thgirypocybdetcetorP .
isnotpermittedunlessauthorisedbyVolkswagen AG Volkswagen AGdoesnotguaranteeoracceptany
26 Rep. gr.10 - Removing and installing engine
Touareg 2010 ➤ , Touareg 2015 ➤
6-cylinder direct-injection engine (3.0 l engine, 4V, supercharger) - Edition 02.2015
– Removenut-1-andbolts-arrows-fromrightenginemounting.
isnotpermittedunlessauthorisedbyVolkswagen AG Volkswagen AGdoesnotguaranteeoracceptanyliabilityw
– Raise engine with pivot mounting -VAS 6131/13-7- enough so that right engine mounting can be removed.
–Undo and remove bolts -arrows- and remove engine support on right -1-.
–Remove starter ⇒ Electrical system; Rep. gr. 27 ; Starter, vehicles with automatic gearbox
–Reinstall engine support and engine mounting to continue work procedure ⇒ page 32 .
GAnegawskloVybthgirypoC.tnemucodsihtnin
–Insert guide pin of adapter -T40058- as follows:
• The larger diameter -arrow 1- points towards the engine.
• The smaller diameter -arrow 2- faces the adapter.
icremmocroetavirprofgniypoCla rup op s e s , i n p a r t o r in w hole,
amr
thgirypocybdetcetorP .
27
1. Removing and installing engine
Touareg 2010 ➤ , Touareg 2015 ➤
6-cylinder direct-injection engine (3.0 l engine, 4V, supercharger) - Edition 02.2015
–Counterhold crankshaft with adapter - T40058- and offset head ring spanner to loosen torque converter bolts.
Note
Onlyturncrankshaftinenginedirectionofrotation-arrow-for subsequentturns.
–Remove cover -1- towards the front.
– Unscrew6bolts-arrows-fortorqueconverterthroughopening of removed starter. To do this, turn crankshaft 120° in engine direction of rotation for each instance.
–Place breather hose -1- to one side.
– Remove bolts-arrows-. Open hose clip-2- and pull off coolant pipe from engine.
–Unscrew securing bolt -1- for coolant pipe and ATF pipes.
thgirypocyb . icremmocroetavirprofgniypoCla rup op s e s , i n p a r t o r in w hole, isnotpermittedunlessauthorisedbyVo racceptanyliabilitywith respect t o t h e c o r r e c t n e ss o f niC.tnemucodsihtninoitamrof
28 Rep. gr.10 - Removing and installing engine
Touareg 2010 ➤ , Touareg 2015 ➤
6-cylinder direct-injection engine (3.0 l engine, 4V, supercharger) - Edition 02.2015
–Unscrew bolts -1 and 2-, pull off ATF lines from gearbox.
– Seal open lines and unions with clean plugs from engine seal‐ing plug set - VAS 6122- .
–Unscrew coolant pipe -arrows- and lay to side.
– Pressofffrontpropshaftfromtransferbox⇒ Transferboxand final drive; Rep. gr. 39 ; Removing and installing front prop‐shaft .
–Tighten supports - VAS 6131/6-7- as shown on scissor-type assembly and support gearbox stress free under sump. For this, use turntables with long spindle.
–Unscrew bolts -3 … 11- from engine/gearbox connection.
Caution
Whenseparatingtheengineandgearbox,pressofftorque converterfromdriveplatethroughopeningofremovedstarter motor.
la
isnotpermittedunlessauthorisedbyVolkswagen AG Volkswagen AGdoesnotguaranteeor n e ss
thgirypocybdetcetorP . icremmocroetavirprofgniypoC
rup op s e s , i n p a r t o r in w hole,
GAneg
1. Removing and installing engine 29
• Thank you very much for reading the preview of the manual.
• You can download the complete manual from: www.heydownloads.com by clicking the link below
• Please note: If there is no response to CLICKING the link, please download this PDF first and then click on it.
CLICK HERE TO DOWNLOAD THE COMPLETE MANUAL
CLICK HERE TO DOWNLOAD THE COMPLETE MANUAL
Touareg 2010 ➤ , Touareg 2015 ➤ 6-cylinder direct-injection engine (3.0 l engine, 4V, supercharger) - Edition 02.2015
–Loosen clamping bolts -1- on sides of scissor-type assembly platform - VAS 6131 A- and pull rear section of platform to‐gether with the gearbox towards rear -arrow- slightly.
–Press torque converter off drive plate through opening of re‐moved starter.
– Use the support bridge - 30 - 211 A- to secure the torque con‐verter in the gearbox to prevent the converter falling out.
Assembling:
–For assembly, observe work steps for “installing gearbox” ⇒ Automatic gearbox 0C8 - 8-speed; Rep. gr. 37 ; Removing gearbox - vehicles with V6 TFSI engine .
thgirypocybdetcetorP . icremmocroetavirprofgniypoCla rup op s e s , i n p a r t o r in w hole, isnotpermittedunlessauthorisedbyVolkswagen AG V espect t o t h e c o r r e c t n e ss o f ni f GAnegawskloVybthgirypoC.tnemucod
30 Rep. gr.10 - Removing and installing engine
Touareg 2010 ➤ , Touareg 2015 ➤
6-cylinder direct-injection engine (3.0 l engine, 4V, supercharger) - Edition 02.2015
2Assembly mountings
⇒ “2.1 Assembly mountings - exploded view”, page 31
⇒ “2.2 Removing engine mounting (left-side)”, page 32
⇒ “2.3 Remove engine mounting (right-side)”, page 34
AG. Volkswagen
2.1Assembly mountings - exploded view
1 - Bolt
❑Renew.
❑120 Nm +180°
2 - Right engine mounting
❑ Removing and installing
⇒ page 34
3 - Bolt
❑60 Nm
4 - Bolt
❑40 Nm
5 - Nut
❑75 Nm
6 - Right engine support
7 - Left engine support
8 - Bolt
❑40 Nm
9 - Bolt
❑60 Nm
10 - Left engine mounting
❑ Removing and installing
⇒ page 32
11 - Engine carrier
AGdoesnotguaranteeor
icremmocroetavirla rup op s e s , i n p a r t o r in w hole,
isnotpermitt authorisedbyVolkswagen
31
2. Assembly mountings
Touareg 2010 ➤ , Touareg 2015 ➤
6-cylinder direct-injection engine (3.0 l engine, 4V, supercharger) - Edition 02.2015
2.2Removing engine mounting (left-side)
Special tools and workshop equipment required
♦ Bracingdevice-10-222Awith adapter - 10 - 222 A / 29-
♦Hook - 10 - 222 A /10-
♦Adapter - 10 - 222 A /3-
♦Adapter - 10 - 222 A /28-
♦ 2xsquarepipe-T40091/1-
♦Perforated rail - T40091/2-
♦ 2 x turning joint - T40091/3-
♦Mounting - T40093/5-
♦ 2 x turning joint - T40093/4-
Removing:
–Remove power assisted steering reservoir and lay to side.
–Remove engine mounting nut -arrow-.
tcetorP t h e c o r r e c t n e .GAnega
32 Rep. gr.10 - Removing and installing engine
Touareg 2010 ➤ , Touareg 2015 ➤
6-cylinder direct-injection engine (3.0 l engine, 4V, supercharger) - Edition 02.2015
–Push turning joints - T40091/3- and adapters - 10 - 222 A /3onto square pipe of bracing device - 10 - 222 A- .
–»Raise« plenum chamber cover on right and left.
–Fit adapter - 10 - 222 A /29- onto square pipe.
–Fit bracing device as shown.
Caution
Itmustbeensuredthatthebracingdeviceisnotplacedonthe metallugs-arrows-!
–Slide turning joint - T40093/4- and adapter - 10 - 222 A /28onto square pipe - T40091/1- .
– Place adapter - 10 - 222 A /28- onto vehicle longitudinal mem‐ber and insert square tube - T40091/1- into rotary jointT40091/3- .
–Repeat procedure on opposite side of vehicle.
– Push perforated rail - T40091/2- through one side of the turn‐ing joint - T40093/4- .
–Push mounting - T40093/5- onto the perforated railT40091/2- then slide perforated rail onto other side of turning joint.
–Fit locking bolts and secure with splints.
–Hand-tighten all bolted connections of the bracing device.
–Secure both threaded spindles on the left lifting eyes as shown.
–Lift engine evenly with both spindles until threaded engine mounting stud is »free«.
thgirypocybdetcetorP . icremmocroetavirprofgniypoCla rup op s e s , i n p a r t o r in w hole, isnotpermittedunlessauthorisedbyVolkswagen
Volkswagen AGdoesnotguaranteeoraccept
noita
AG
bility
GAnegawskloVybthgirypoC.tnem
2. Assembly mountings 33
Touareg 2010 ➤ , Touareg 2015 ➤
6-cylinder direct-injection engine (3.0 l engine, 4V, supercharger) - Edition 02.2015
– Remove securing bolts of engine mounting -arrows-. Remove engine mounting.
Installing:
• Specified torques ⇒ page 31
–Insert and tighten engine mounting.
–Slowly lower engine and guide stud into engine support. Further assembly is carried out in the reverse order of removal.
2.3Remove engine mounting (right-side)
Special tools and workshop equipment required
♦ Bracingdevice-10-222Awith adapter - 10 - 222 A / 29-
♦Hook - 10 - 222 A /10-
♦Adapter - 10 - 222 A /3-
♦Adapter - 10 - 222 A /28-
♦ 2xsquarepipe-T40091/1-
♦Perforated rail - T40091/2-
♦ 2 x turning joint - T40091/3-
♦Mounting - T40093/5-
♦ 2 x turning joint - T40093/4-
Removing:
–Remove air filter housing completely ⇒ page 280
GAnegawskloVybthgirypoC.tnem
. icremmocroetavirprofgniypoCla rup op s e s , i n p a r t o r in w hole,
AG
thgirypocybdetcetorP
isnotpermittedunlessauthorisedbyVolkswagen
34 Rep. gr.10 - Removing and installing engine
Touareg 2010 ➤ , Touareg 2015 ➤
6-cylinder direct-injection engine (3.0 l engine, 4V, supercharger) - Edition 02.2015
–Remove engine mounting nut -arrow-.
–Push turning joints - T40091/3- and adapters - 10 - 222 A /3onto square pipe of bracing device - 10 - 222 A- .
–»Raise« plenum chamber cover on right and left.
–Fit adapter - 10 - 222 A /29- onto square pipe.
–Fit bracing device as shown.
Caution
Itmustbeensuredthatthebracingdeviceisnotplacedonthe metallugs-arrow-!
GAnegawskloVybthgirypoC.tnemucodsihtninoitamro
–Slide turning joint - T40093/4- and adapter - 10 - 222 A /28onto square pipe - T40091/1- .
– Place adapter - 10 - 222 A /28- onto vehicle longitudinal mem‐ber and insert square tube - T40091/1- into rotary jointT40091/3- .
–Repeat procedure on opposite side of vehicle.
Push perforated rail - T40091/2- through one side of the turn‐ing joint - T40093/4- .
–Push mounting - T40093/5- onto the perforated railT40091/2- then slide perforated rail onto other side of turning joint.
–Fit locking bolts and secure with splints.
–Hand-tighten all bolted connections of the bracing device.
. icremmocroetavirprofgniypoCla rup op s e s , i n p a r t o r in w hole, isnotpermittedunlessauthorisedbyVolkswagen AG Volkswagen AGdoesnotguaranteeoracceptanyliabilitywith resp
thgirypocybdetcetorP
–
2. Assembly mountings 35
Touareg 2010 ➤ , Touareg 2015 ➤
6-cylinder direct-injection engine (3.0 l engine, 4V, supercharger) - Edition 02.2015
–Secure both threaded spindles on the right lifting eyes as shown.
–Lift engine evenly with both spindles until threaded engine mounting stud is »free«.
–Remove securing bolts of engine mounting -arrows-.
Installing:
• Specified torques ⇒ page 31
–Insert and tighten engine mounting.
–Slowly lower engine and guide stud into engine support. Further assembly is carried out in the reverse order of removal.
. icremmocroetavirprofgniypoCla rup op s e s , i n p a r t o r in w hole, isnotpermittedunlessauthorisedbyVolkswagen AG Volkswagen AGdoesnotguaranteeoracceptanyliabilitywith respect t o t h e c o r r e c t n e ss o f ni
thgirypocybdetcetorP
.GAnegawskloVybthgirypoC.tnemucodsihtninoitamrof
36 Rep. gr.10 - Removing and installing engine
13 –Crankshaft group
1Cylinder block (pulley end)
⇒“1.1Assemblyoverview-superchargerpolyV-beltdrive”,page 37
⇒ “1.2 Removing and installing supercharger poly V-belt”, page 38
⇒ “1.3 Removing and installing tensioning element for super‐charger poly V-belt”, page 39
⇒ “1.4 Assembly overview - poly-V-belt drive for ancillary units”, page 39
⇒ “1.5 Removing and installing poly V-belt”, page 42
⇒ “1.6 Removing and installing tensioning element for poly Vbelt”, page 44
⇒ “1.7 Removing and installing vibration damper”, page 45
⇒ “1.8 Renewing sealing flange with oil seal for crankshaft”, page 46
1.1Assembly overview - supercharger poly V-belt drive
1 - Supercharger poly V-belt.
❑Check for wear.
❑ Removing and installing
⇒ page 42
❑When installing, make sureitisproperlyseated on poly V-belt pulleys.
2 - Bolt
❑42 Nm
3 - Washer
4 - Cover
5 - Supercharger
❑ Removing and installing
⇒ page 253
6 - Idler pulley for poly V-belt
7 - Vibration damper
❑With poly V-belt pulley
❑ Assemblythroughoffset holes only possible in one position
❑ Removing and installing
⇒ page 45
8 - Bolt
❑Renew.
❑20 Nm + 90°
9 - Poly V-belt tensioning ele‐ment
❑ Removing and installing
⇒ page 39
thgirypocybdetcetorP . icremmocroetavirprofgniypoCla rup op s e s , i n p a r t o r in w hole,
isnotpermittedunlessauthorisedbyVolkswagen
AG Volkswagen
AGdoesnotguaranteeoracceptan
Touareg 2010 ➤ , Touareg 2015 ➤ 6-cylinder direct-injection engine (3.0 l engine, 4V, supercharger) - Edition 02.2015
37
1. Cylinder block (pulley end)
• Thank you very much for reading the preview of the manual.
• You can download the complete manual from: www.heydownloads.com by clicking the link below
• Please note: If there is no response to CLICKING the link, please download this PDF first and then click on it.
CLICK HERE TO DOWNLOAD THE COMPLETE MANUAL
CLICK HERE TO DOWNLOAD THE COMPLETE MANUAL
