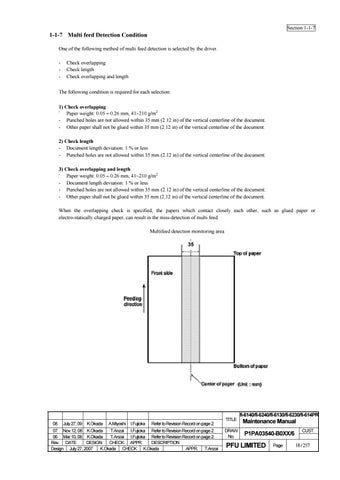

Section 1-1-7
1-1-7 Multi feed Detection Condition One of the following method of multi feed detection is selected by the driver. -
Check overlapping Check length Check overlapping and length
The following condition is required for each selection: 1) Check overlapping Paper weight: 0.05 – 0.26 mm, 41~210 g/m2 - Punched holes are not allowed within 35 mm (2.12 in) of the vertical centerline of the document. - Other paper shall not be glued within 35 mm (2.12 in) of the vertical centerline of the document. 2) Check length - Document length deviation: 1 % or less - Punched holes are not allowed within 35 mm (2.12 in) of the vertical centerline of the document. 3) Check overlapping and length Paper weight: 0.05 – 0.26 mm, 41~210 g/m2 - Document length deviation: 1 % or less - Punched holes are not allowed within 35 mm (2.12 in) of the vertical centerline of the document. - Other paper shall not be glued within 35 mm (2.12 in) of the vertical centerline of the document. When the overlapping check is specified, the papers which contact closely each other, such as glued paper or electro-statically charged paper, can result in the miss-detection of multi feed. Multifeed detection monitoring area 35
fi-6140/fi-6240/fi-6130/fi-6230/fi-614PR 08
July 27, 09
K.Okada
A.Miyoshi
I.Fujioka
Refer to Revision Record on page 2.
07 Nov.12, 08 K.Okada T.Anzai I.Fujioka Refer to Revision Record on page 2. 06 Mar.10, 08 K.Okada T.Anzai I.Fujioka Refer to Revision Record on page 2. Rev. DATE DESIGN CHECK APPR. DESCRIPTION Design July 27, 2007 K.Okada CHECK K.Okada APPR. T.Anzai
TITLE
Maintenance Manual
DRAW No.
P1PA03540-B0XX/6
PFU LIMITED
Page
CUST.
18 / 257
