1-1-1 Features

Chapter 1 Overview

1-1 Specification

1-1-1 Features

The fi-6140/fi-6240/fi-6130/fi-6230 (hereinafter called “the scanner”) offers high-speed color/gray/monochrome scanning with 600 dpi of optical resolution, up to A4 size (Legal size for ADF). It supports two interfaces, SCSI interface and USB interface, either of which can be used at a time.

The following points have been improved for the scanner compared to the previous type (fi-5120C/fi-5220C). (1) Improvement of color scanning speed By changing the CCD, color scanning speed (A4 Portrait 300dpi) is improved from 30 ppm to 40 ppm.

(2) Ultrasonic multi feed sensor As with the previous model, the scanner introduces ultrasonic sensor in order to perform very reliable multi feed detection.

(3) Prevention of image chipping at overscan

Increasing the number of CCD pixels enables to extend overscan width, so that the image will not be chipped even when the document is skewed.

(4) Thicker card transportation Feeding thick cards up to 1.4mm thick (including emboss) is available by improving the ADF transportation path.

(5) Specified number of scanned pages ejected to the stacker Pre-pick is operable when the number of documents to be scanned is specified.

fi-6140/fi-6130

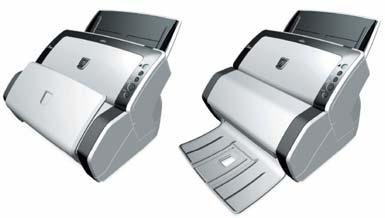

An exclusive imprinter (fi-614PR, option) can be installed under fi-6140/fi-6130 as shown in the photo below. See Chapter 8 for the details of the imprinter.

Scanner

Imprinter
