1992 Cadillac Brougham Service And Repair Manual

Page 8

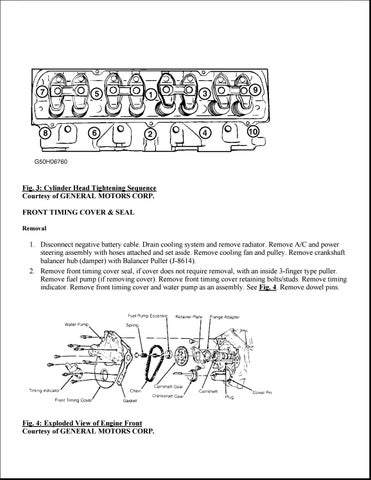

Fig. 3: Cylinder Head Tightening Sequence Courtesy of GENERAL MOTORS CORP. FRONT TIMING COVER & SEAL Removal

1. Disconnect negative battery cable. Drain cooling system and remove radiator. Remove A/C and power steering assembly with hoses attached and set aside. Remove cooling fan and pulley. Remove crankshaft balancer hub (damper) with Balancer Puller (J-8614). 2. Remove front timing cover seal, if cover does not require removal, with an inside 3-finger type puller. Remove fuel pump (if removing cover). Remove front timing cover retaining bolts/studs. Remove timing indicator. Remove front timing cover and water pump as an assembly. See Fig. 4. Remove dowel pins.

Fig. 4: Exploded View of Engine Front Courtesy of GENERAL MOTORS CORP.
