1992 Cadillac Brougham Service And Repair Manual

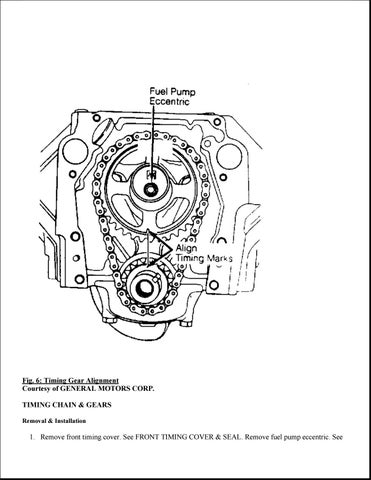

Fig. 6: Timing Gear Alignment Courtesy of GENERAL MOTORS CORP. TIMING CHAIN & GEARS Removal & Installation

1. Remove front timing cover. See FRONT TIMING COVER & SEAL. Remove fuel pump eccentric. See

Turn static files into dynamic content formats.

Create a flipbook

Articles inside

If front timing cover was not removed, install seal with Seal Installer (BT-6405 or J-25264) until proper

Oil timing cover retaining bolts and install 2 bolts finger tight. Install dowel pins, chamfer end first. To complete installation, reverse removal procedure

Apply Sealer (1052915) to joining corners of engine block, oil pan and saddle seal. Glue oil pan saddle seals in place on timing cover. Position bottom of cover with saddle seal to oil pan. Press down to compress saddle seal. Using a small screwdriver, guide saddle seal edges into cavity while installing timing cover

If front timing cover was removed, trim protruding oil pan gasket material flush with engine. Apply Sealer (1050026) around coolant holes in new cover gasket and place gasket on block. Trim 1/8" from each end of cover-to-oil pan saddle seal
