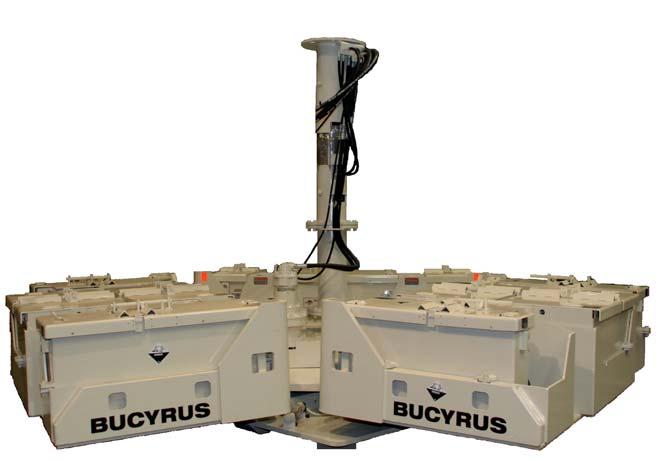

This manual is intended to provide GENERAL product information for the Bucyrus Battery Carousel. The illustrations, descriptions and procedures contained in this publication apply only to THIS machine. Bucyrus America, Inc. reserves the right to revise models and designs without prior notice.
Any change to the design or structure of this unit, without the consent of Bucyrus America, Inc. and these regulatory agencies, or any repair or replacement of parts contrary to Bucyrus America, Inc.’s instructions, may invalidate these approvals and render this unit unsafe to operate.
Strict compliance with all Federal and State Mining laws, regulations and practices regarding the safe operation and maintenance of underground mining equipment and strict adherence to the instructions in this manual is necessary for the personal safety of those working on or around this unit.
While this manual attempts to anticipate the most important operations and maintenance needs for this unit, unforeseen circumstances may arise that have not been addressed in this manual. If any concerns or questions arise, please contact your Bucyrus America, Inc. Service Representative immediately
This work contains information protected under trade secret and other intellectual property laws, and is protected under the U. S. Copyright Act of 1976, as amended. This work is provided under license and the license is non-transferable. Distribution and access is limited only to authorized personnel. Disclosure, reproduction, distribution or unauthorized use may be a violation of federal and state laws and may subject the unauthorized user to criminal liability.
Table of contents
1.
applicable operating manual
machine type
About this manual
This chapter provides important information making it easier for you to use this manual. You will also be given information on the structure of the manual and the symbols and characters used.
Before starting to work
Take care to ensure that the operating manual available to you is applicable for the type of equipment or machine used.
This operating manual is intended for:
Bucyrus America, Inc. – Battery Carousel
and is only permitted to be used for equipment of this type.
new operation manual
The operating manual must be accessible at all times to all persons working on or with the machine. It should, if possible, always be available at the place of operation.
Send for a new operation manual immediately if the present manual is no longer complete or has become illegible.
Who is this operating manual intended for?
This operating manual is intended for those persons who work with or on the machine. Every person working on the face or in the intersection between face and entry or in the entry must read this operating manual.
This includes persons who:
■ are in charge of transport
■ prepare the rise heading
■ perform assembly / disassembly work
■ operate the machine
■ eliminate faults
■ perform daily routine work on the face or in the entry
■ perform maintenance work
■ perform repair work
supervisory personnel who:
■ initiate and/or
■ supervise the activities just indicated.
cost-effectiveness
What is the purpose of this operating manual?
This operating manual is intended to help you work efficiently and safely with our product. It contains important information on all the activities related to the machine.
Read this operating manual completely and at ease. Pay special attention to the safety instructions. Try to memorize the appearance and the meaning of the safety and instruction symbols.
service safety
If any details are not clearly understood, please contact our service department. Our service address is given in the chapter titled “For your information”.
Read the chapter “For your safety” with special attention. The chapter contains important information indicating possible hazards. Observe the information given and follow the procedural instructions.
Characters and symbols used
The following characters and symbols are used for safety instructions and important information in the operating manual.
Try to memorize the symbols and their meanings.
DANGER!
Points in the text marked with this symbol draw your attention to immediately impending danger. Possible consequences are: very serious injury or even death.
WARNING!
These points contain information on dangerous situations. Possible consequences are: very serious injury or even death.
CAUTION!
This symbol draws attention to dangerous situations. Possible consequences are: light to moderately serious injuries and machine damage.
NOTICE!
Points in the text marked with this symbol draw attention to harmful situations. Possible consequences are: damage to the machine or damage in the immediate vicinity.
IMPORTANT!
Points in the text marked with this symbol contain useful tips and information intended to facilitate work for you. They do not warn about harmful or dangerous situations.
■ Items in lists are marked with bullets.
– Points in sub-lists are marked with a long dash at the start of the line.
Points in text marked in this way describe individual operations. Follow these instructions step by step. They will help you carry out your work faster and more importantly, safer.
further operating manuals
Your safety
This chapter provides vital information for your safety. Pay special attention to this chapter. The safety instructions and rules of procedure will help you to avoid hazardous situations and to perform the necessary work as safely as possible.
The machine has been manufactured in accordance with the state of the art and generally recognized safety standards and regulations. You and others can nevertheless be exposed to dangerous situations e.g. as a result of environmental influences, machine damage or operator errors.
Do not make any alterations or modifications which could impair the safety of the machine. All modifications and changes must be approved by Bucyrus America, Inc.
Use only original spare parts from Bucyrus America, Inc. Note that the use of parts from other manufacturers will void the guarantee.
In addition to this operating manual be sure to also observe the respective legal provisions and regulations in your country.
Observe the safety and accident prevention regulations:
■ of the mine.
■ of the Mines Inspector and
■ of the mining supervisory authorities
Please read also the operating manuals of the components required for operation, e.g. of gearboxes, electric motors, etc., carefully and thoroughly. Clarify any questions before starting work.
training
Personnel Operation
The machine may only be operated by qualified, trained personnel.
The machine is only allowed to be operated by qualified personnel who can provide proof of having been trained on this unit. Reading of the operation manual, especially the chapter on safety, shall constitute a part of this training.
You must have adequate knowledge of the
■ mechanics,
■ hydraulics,
■ electrics and
■ operation
and must be able to prove this knowledge.
Installation and repair
As a fundamental rule, installation and repair work may only be carried out by personnel who have been adequately trained for these particular requirements.
Installation and repair work on:
■ safety components
■ the electrics
■ the hydraulics may only be carried out by service engineers from Bucyrus America, Inc. or by specially qualified personnel of the mine.
Operating conditions
Intended use
The Battery Carousel has been designed and manufactured purely for the purpose of changing out and charging machine batteries.
Intended uses include:
■ the exchange of batteries from the machine to the carousel.
■ the recharging of machine batteries.
Unauthorized use
Applications not expressly listed as intended uses are unauthorized uses and are not allowed to be performed with the machine.
■ the recharging of any battery other than specified.
Bucyrus America, Inc. accepts no liability for any damage resulting from any such unauthorized use.
cordon
Safety instructions
General rules:
general
Always work with full concentration.
Familiarize yourself with your working environment.
Always wear your personal protective equipment. This also includes ear protectors as the noise emitted by other equipment in the area may at times exceed 85 db(A).
Inform your colleagues of:
■ your exact location.
■ the work you are performing.
■ the time that you will probably require.
Start the machine only when it is in a good and safe operating condition and all protective devices, e.g. EMERGENCY STOP devices, cover plates, etc. are correctly installed.
Observe the symbol plates on the machine.
Press the STOP switch immediately in the event of fault or irregularities in operation. Report any peculiarity to your superior so that necessary measures can be taken immediately.
Disconnect the power supply while performing:
■ maintenance work
■ inspection work
■ repair work
Cordon off your working area widely for the machine.
Never allow parts of your body to come between parts which could move, such as e.g.:
■ stabilizer cylinder
■ carousel when rotating
Refer to the Battery Charger operation manual, battery maintenance manual, and the battery charging chart for specific safety information regarding battery charging.
Storage and transport
Maintain the prescribed storage periods and observe the instructions for storage.
Do not store materials or parts in the travel way or in your working area.
Inform the persons involved about the intended transport route and the anticipated duration of the transport.
Ensure that the transport safety devices are correctly fitted.
Fix all moving parts with transport locks.
Never stand under unsupported parts or suspended loads.
Connect the lifting equipment only to the points of attachment provided for that purpose. Observe the different load limits of the attachment points. Also observe the instructions on the transport sheet.
Only use means of attachment which are in good condition and have been designed for the loads to be handled.
For round components use transport straps, only. Never use chains or steel cables for this purpose.
Do not damage the treated or polished surfaces of shafts, sealing surfaces, etc.
When using mobile handling systems for transport make sure that the center of gravity is as low as possible.
Pre-start inspection
Read this entire guide before attempting to operate this unit. Inspect the unit and have any malfunctioning, broken or missing parts corrected or replaced before use.
Verify that all maintenance has been performed.
Verify that all instruction and safety tags are in place and readable. Clean any foreign material from the work area.
