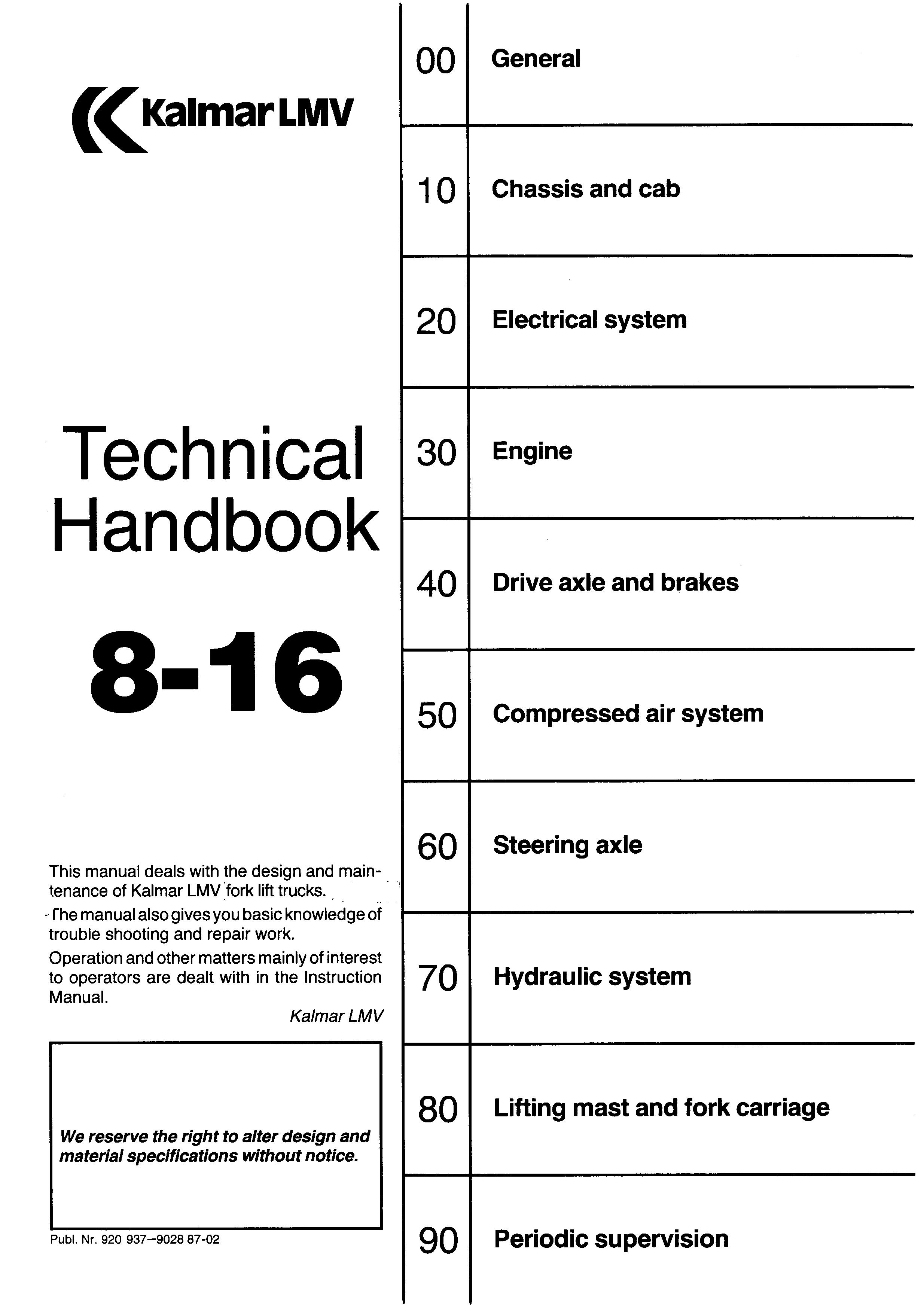

Technical Handbook 8-16
This manual deals with the design and maintenance of Kalmar LMV 'fork lift trucks. - rhe manual also gives you basic knowledge of trouble shooting and repair work.
Operation and other matters mainly of interest to operators are dealt with in the Instruction Manual.
KalmarLMV
General
We reserve the right to alter design and material specifications without notice.
10 20 30 40 50 60 70 80 90
Chassis and cab
Electrical system Engine
Drive axle and brakes
Compressed air system
Steering axle
Hydraulic system
Lifting mast and fork carriage
Periodic supervision
• Thank you very much for reading the preview of the manual.
• You can download the complete manual from: www.heydownloads.com by clicking the link below
• Please note: If there is no response to CLICKING the link, please download this PDF first and then click on it.

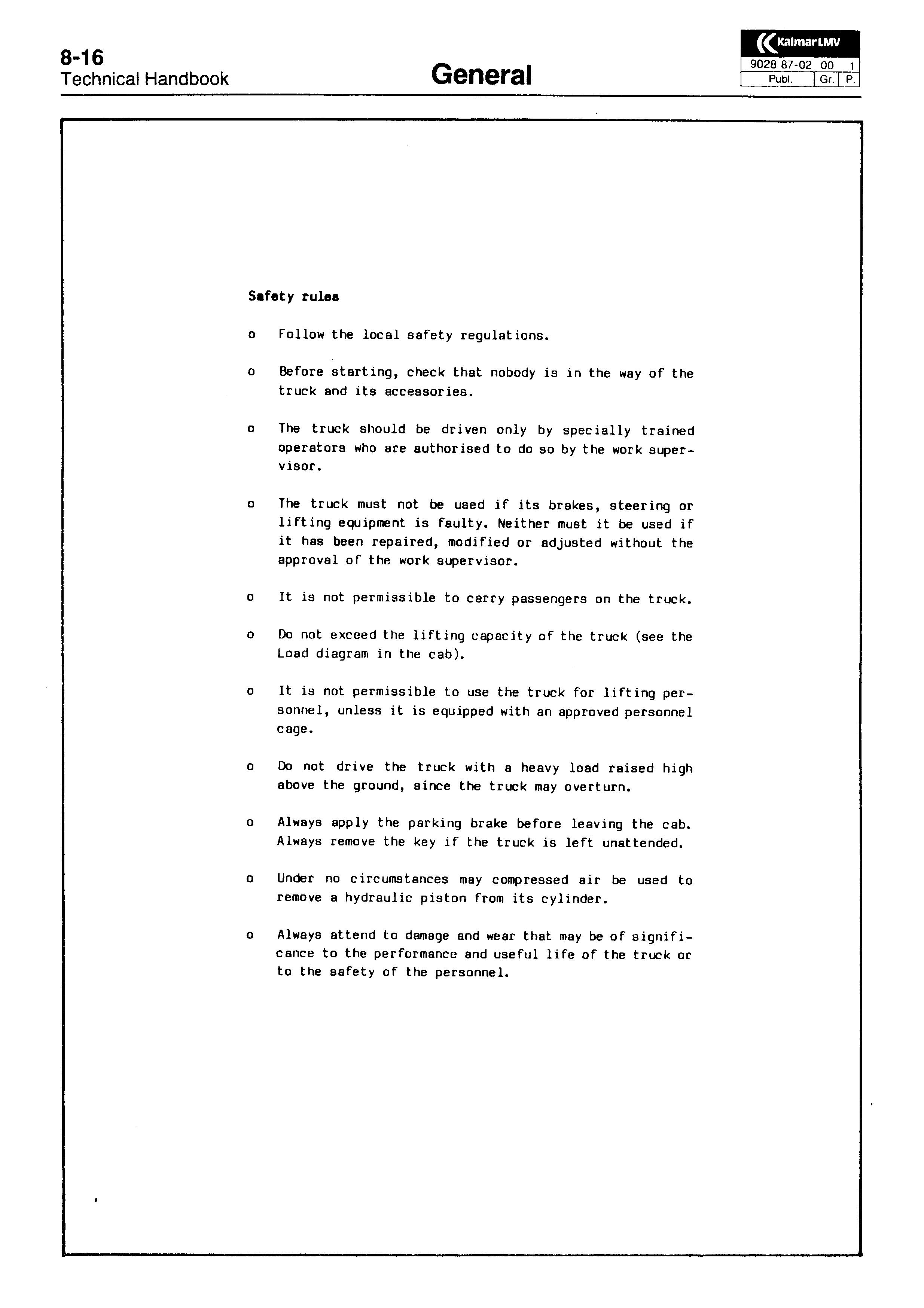

Safety rules
o Follow the local safety regulations.
o Before starting, check that nobody is in the way of the truck and its accessories.
o The truck should be driven only by specially trained operators who are authorised to do so by the work supervisor.
o The truck must not be used if its brakes, steering or lifting equipment is faulty. Neither must it be used if it has been repaired, modified or adjusted without the approval of the work supervisor.
o It is not permissible to carry passengers on the truck.
o Do not exceed the lift j ng capacity of the truck (see the Load diagram in the cab).
o It is not permissible to use the truck for l.ift ing personnel, unless it is equipped with an approved personnel cage.
o Do not drive the truck with a heavy load raised high above the ground, since the truck may overturn.
o Always apply the parking brake before leaving the cab. Always remove the key if the truck is left unattended.
o Under no circumstances may compressed air be used to remove a hydraulic piston from its cylinder.
o Always attend to damage and wear that may be of significance to the performance and useful life of the truck or to the safety of the personnel.
