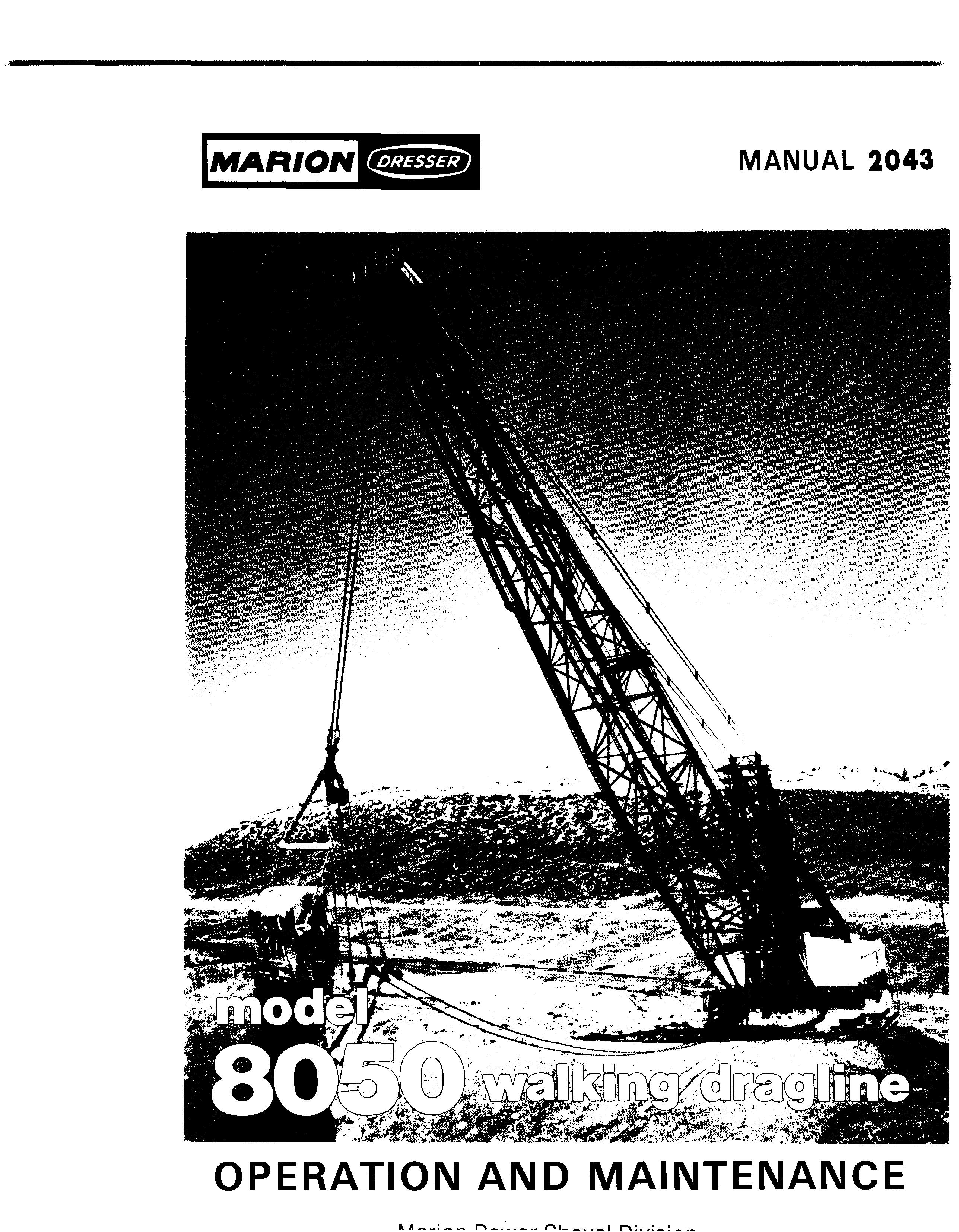

8050 WALKING DRAGLINE
WARD LEONARD - STATIC CONTROL - INDEPENDENT PROPEL
TABLE OF CONTENTS

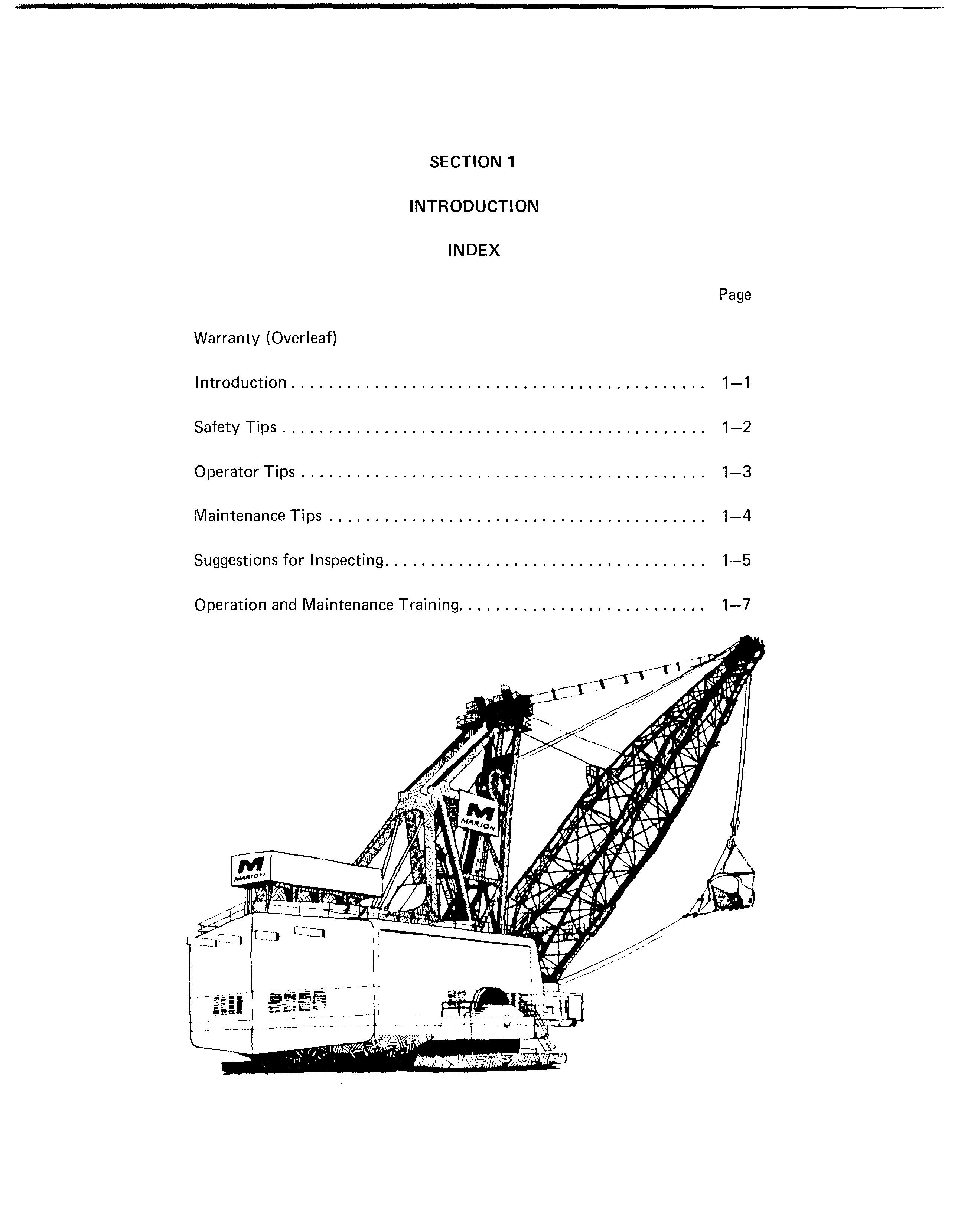

Introduction '. Section 1
Operation (Gold) " Section 2
Lubrication (Green) " Section 3
Mechanical Adjustments (Orange). ...................... .. Section 4
Electrical Maintenance (Lt. Blue) Section 5
Compressed Air Systems (Yellow)
Engineering Data (Red)
I nspection Reports (White)
" Section 6
" Section 7
" Section 8
WARNING
DUE TO THE DANGERS INHERENT IN THE OPERATION OF ANY HIGH VOLTAGE ELECTRICAL EQUIPMENT, A SAFE GROUNDING SYSTEM SHOULD INCLUDE GROUND CONDUCTORS IN THE CABLE, A NEUTRAL GROUNDING RESISTOR AND RELATED RELAYS AND SWITCHGEAR. A GROUND CONTINUITY CHECK SYSTEM IS ALSO RECOMMENDED.
In the event you doubt, for any REASON, your ability to safely perform any of the enclosed maintenance and operational procedures as they refer to your machine; please contact your Local Service Representative or Service Department at Marion, Ohio 43302.
READ AND OSSE RVE ALL warning signs, they're placed for your health and safety.
This manual has been prepared for the standard production machine. Any deviation due to advanced engineering design, optional equipment or the particular requirements of this machine may not be covered.
Additional information that is required will be furnished as soon as such information is available.

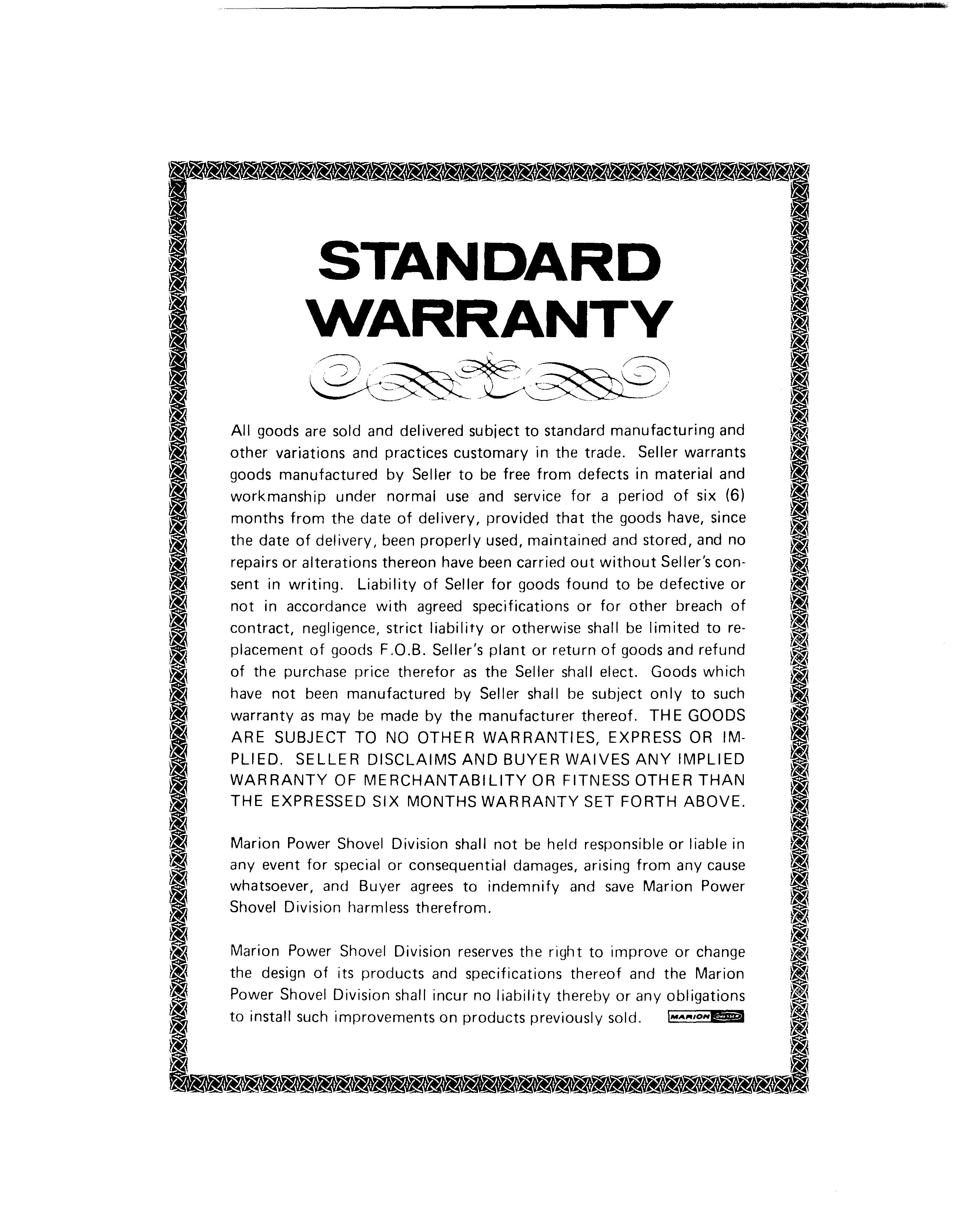

All goods are sold and delivered subject to standard manufacturing and other variations and practices customary in the trade. Seller warrants goods manufactured by Seller to be free from defects in material and workmanship under normal use and service for a period of six (6) months from the date of delivery, provided that the goods have, since the date of delivery, been properly used, maintained and stored, and no repairs or alterations thereon have been carried out without Seller's consent in writing. Liability of Seller for goods found to be defective or not in accordance with agreed specifications or for other breach of contract, negligence, strict liability or otherwise shall be limited to replacement of goods F .O.B. Seller's plant or return of goods and refund of the purchase price therefor as the Seller shall elect. Goods which have not been manufactured by Seller shall be subject only to such warranty as may be made by the manufacturer thereof. TH E GOODS ARE SUBJECT TO NO OTHER WARRANTIES, EXPRESS OR IMPLIED. SELLER DISCLAIMS AND BUYER WAIVES ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS OTHER THAN THE EXPRESSED SIX MONTHS WARRANTY SET FORTH ABOVE.
Marion Power Shovel Division shall not be held responsible or liable in any event for special or consequential damages, arising from any cause whatsoever, and Buyer agrees to indemnify and save Marion Power Shovel Division harmless therefrom.
Marion Power Shovel Division reserves the right to improve or change the design of its products and specifications thereof and the Marion Power Shovel Division shall incur no liability thereby or any obligations to install such improvements on products previously sold. !MAIO,OHPUi!ii+
