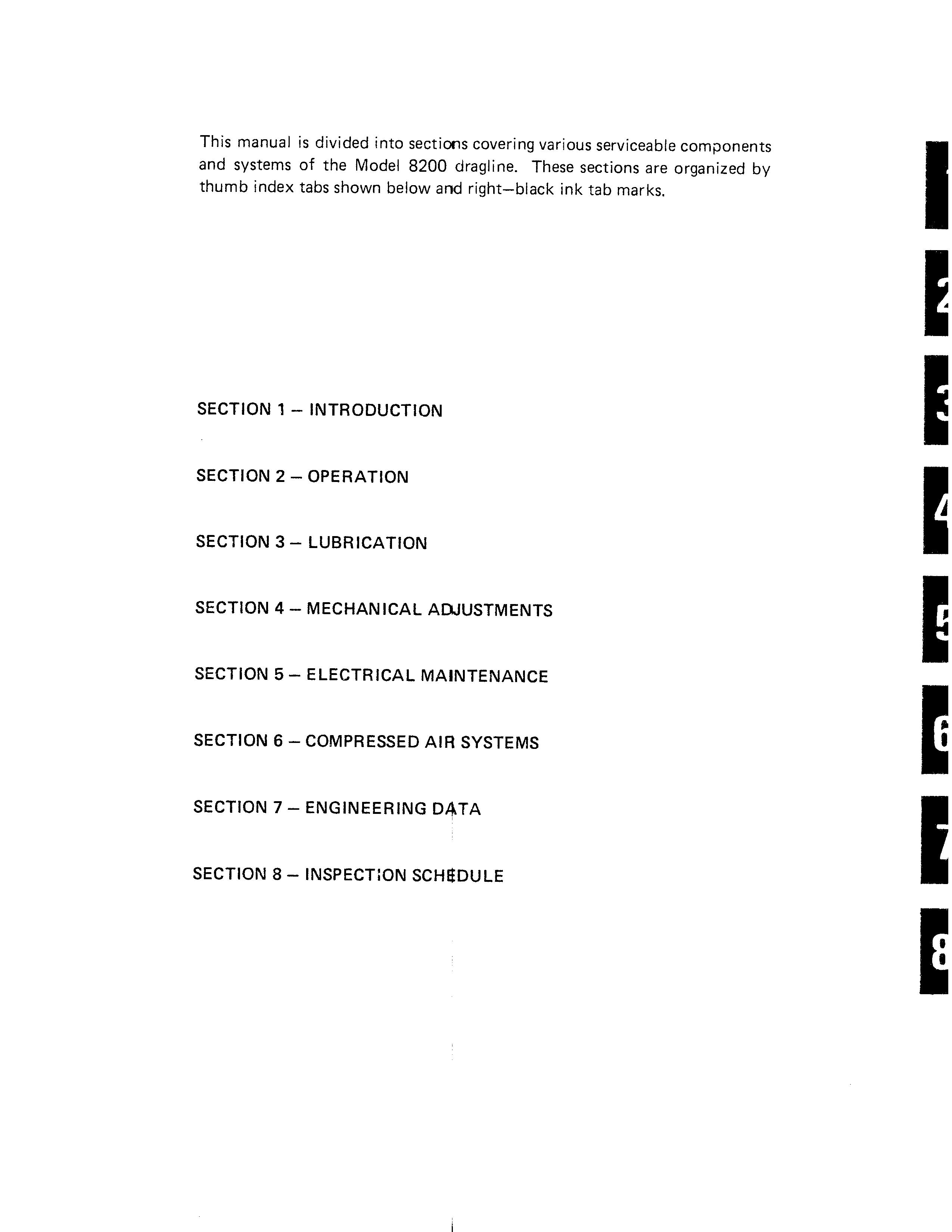

This manual is divided into sections covering various serviceable components and systems of the Model 8200 dragline. These sections are organized by thumb index tabs shown below and right-black ink tab marks.
SECTION 1 - INTRODUCTION
SECTION 2 - OPERATION
SECTION 3 - LUBRICATION
SECTION 4 - MECHANICAL ADJUSTMENTS
SECTION 5 - ELECTRICAL MAINTENANCE
SECTION 6 - COMPRESSED AIR SYSTEMS
SECTION 7 - ENGINEERING D4TA
SECTION 8 - INSPECTiON SCHliDULE
I I I I m m I E
