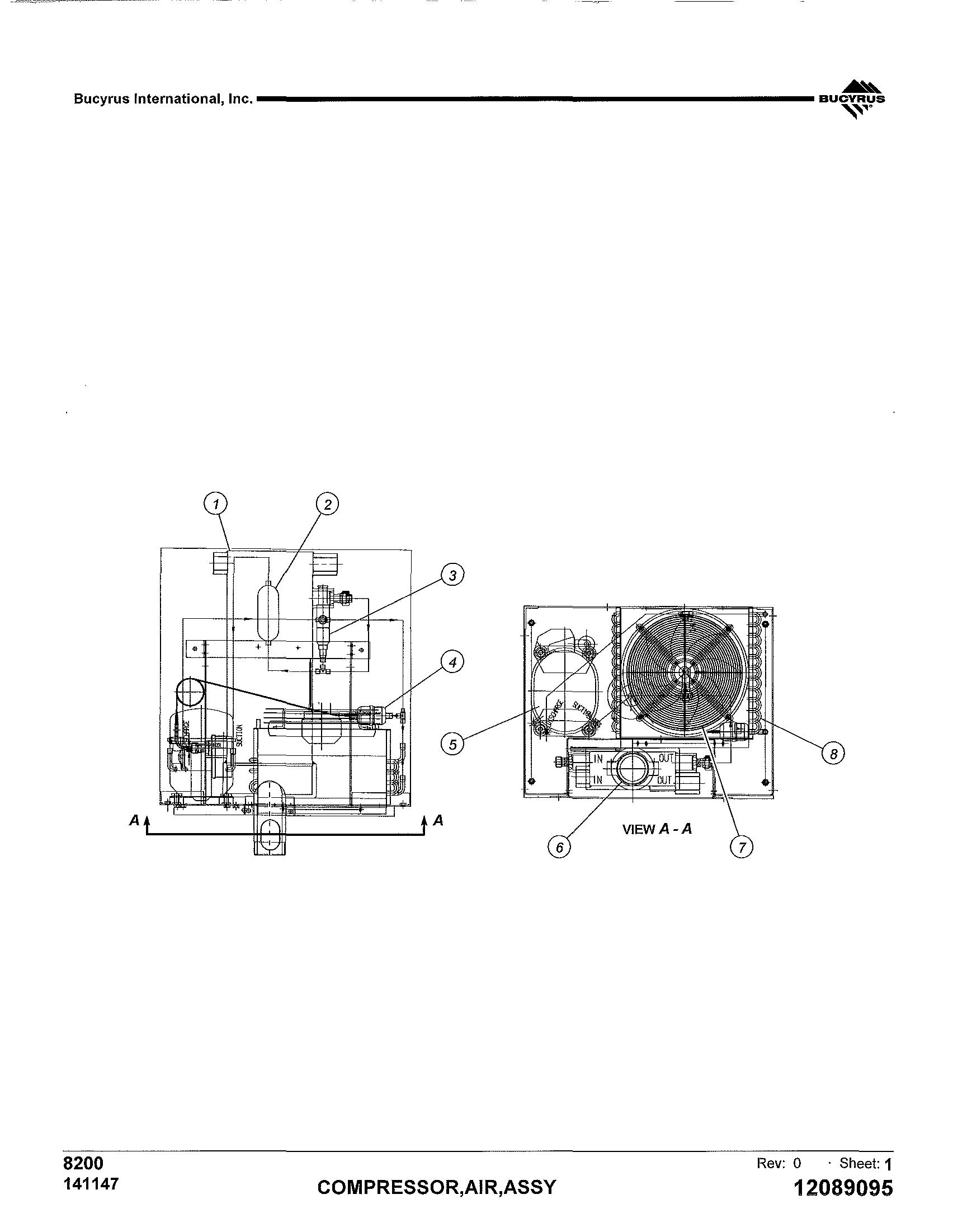

COMPRESSOR,200-220Vl60Hz

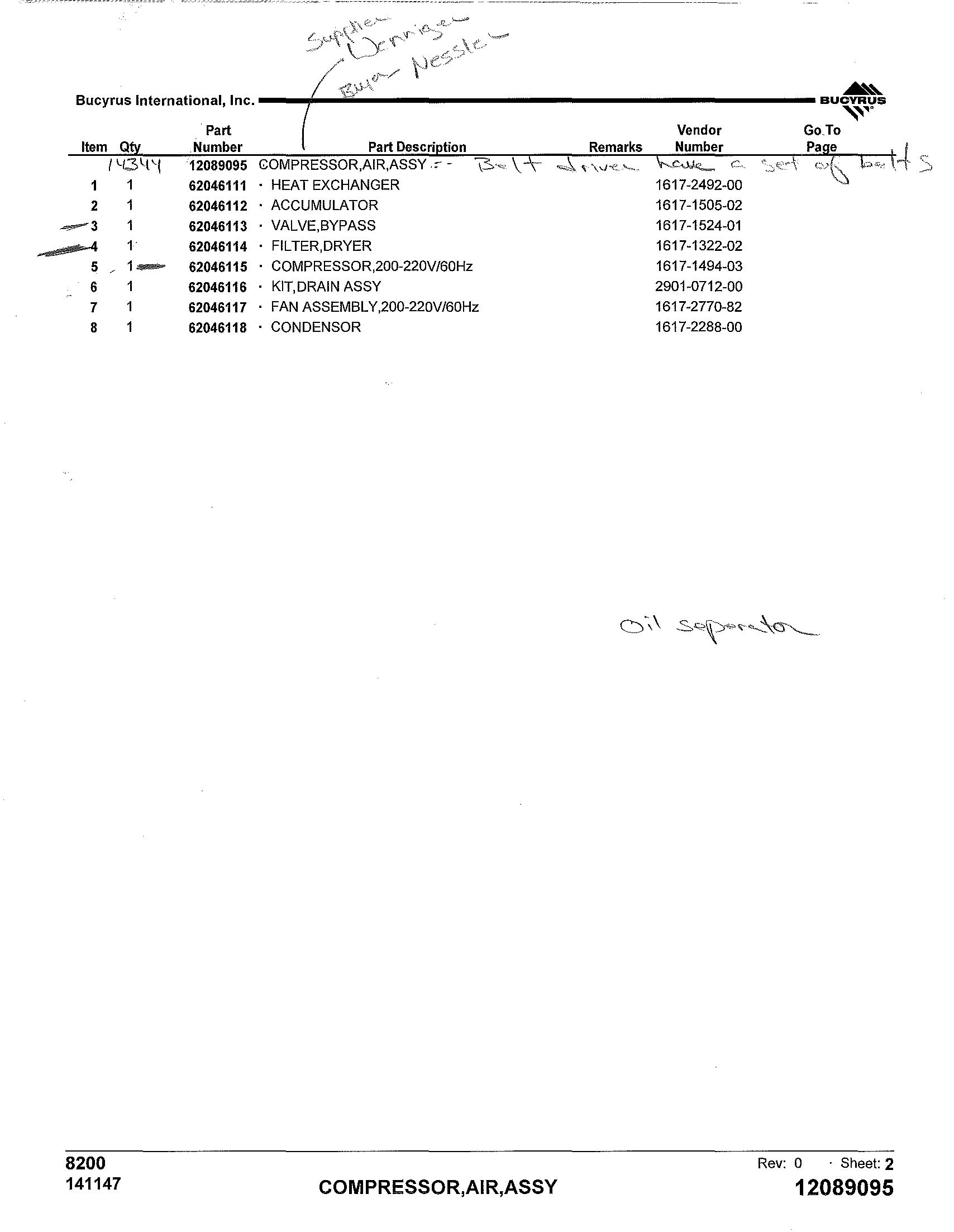

KIT, DRAIN ASSY
FAN ASSEMBL Y,200-220V/60Hz
CONDENSOR
1617-1494-03
2901-0712-00
1617-2770-82
1617-2288-00
8200 Walking Dragline
8200 Walking Dragline
Maintenance and Operation Manual
Manual No. 10237
sn: 141147 Lot 38

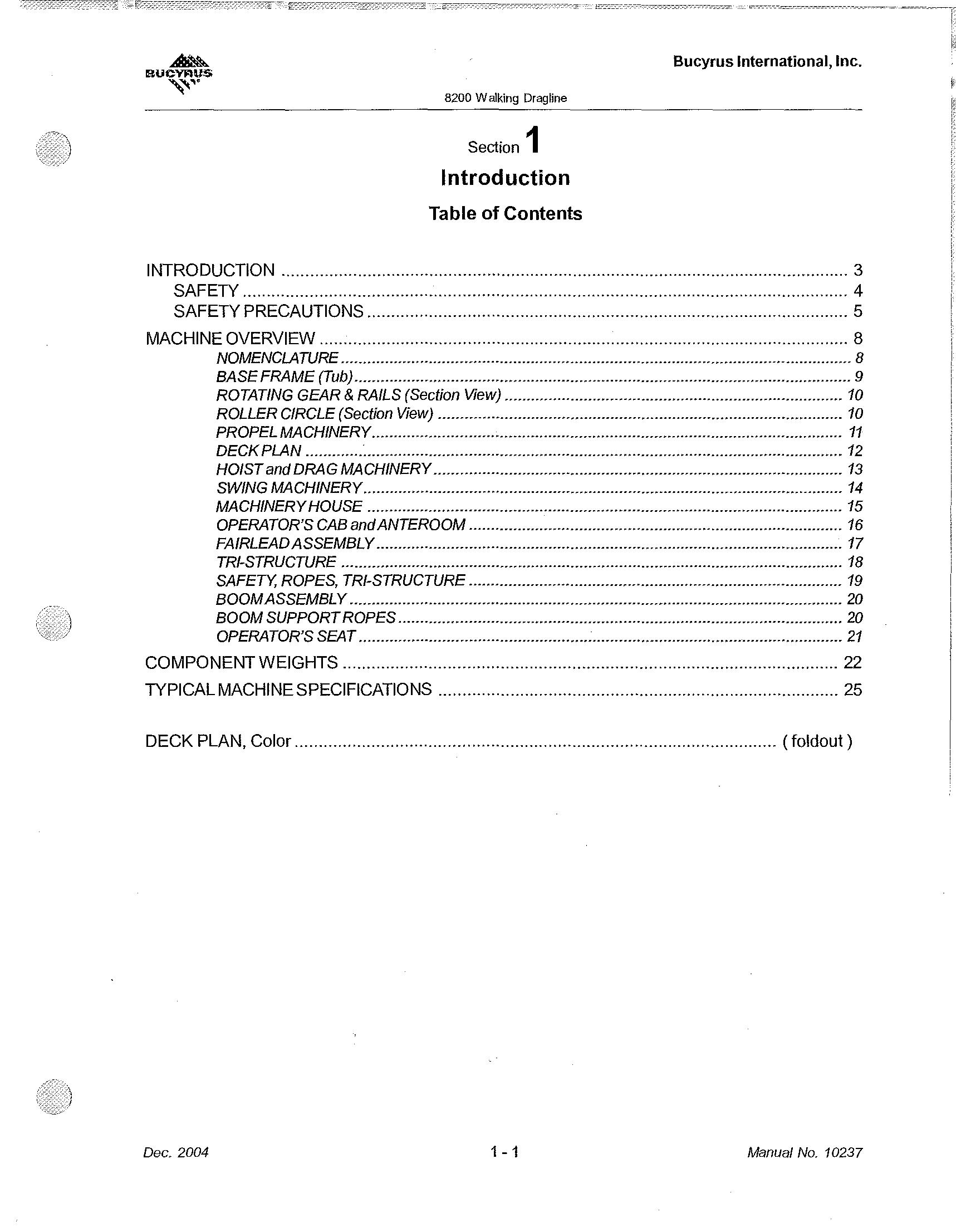

-Table of Contents-
This manual is divided into major sections covering the various serviceable components and systems of the 8200 Walking Dragline. These sections and their contents are organized as shown below.
Section 1- INTRODUCTION
Section 2- OPERATION
Section 3- LUBRICATION
Section 4- PREVENTIVE MAINTENANCE
Section 5- SERVICE PROCEDURES
Section 6- BRAKES AND COUPLINGS
Section 7- COMPRESSED AIR SYSTEM
Section 8- AIR FILTRATION
Section 9- ENGINEERING DATA
8200 Walking Dragline

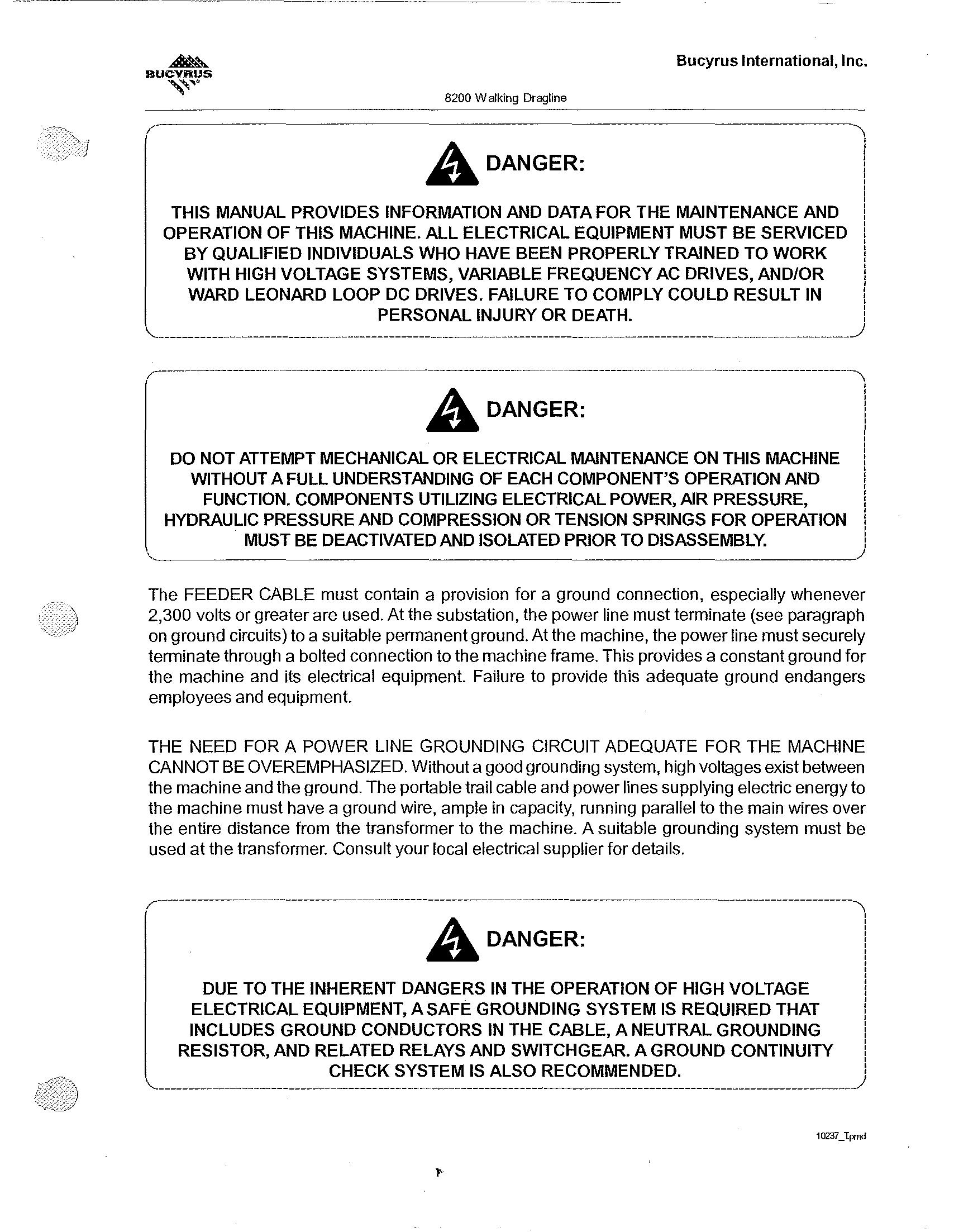

DANGER:
THIS MANUAL PROVIDES INFORMATION AND DATA FOR THE MAINTENANCE AND OPERATION OF THIS MACHINE. ALL ELECTRICAL EQUIPMENT MUST BE SERVICED BY QUALIFIED INDIVIDUALS WHO HAVE BEEN PROPERLY TRAINED TO WORK WITH HIGH VOLTAGE SYSTEMS, VARIABLE FREQUENCY AC DRIVES, AND/OR WARD LEONARD LOOP DC DRIVES. FAILURE TO COMPLY COULD RESULT IN PERSONAL INJURY OR DEATH.
ADANGER:
DO NOT ATTEMPT MECHANICAL OR ELECTRICAL MAINTENANCE ON THIS MACHINE i WITHOUT A FULL UNDERSTANDING OF EACH COMPONENT'S OPERATION AND i FUNCTION. COMPONENTS UTILIZING ELECTRICAL POWER, AIR PRESSURE,
HYDRAULIC PRESSURE AND COMPRESSION OR TENSION SPRINGS FOR OPERATION
MUST BE DEACTIVATED AND ISOLATED PRIOR TO DISASSEMBLY.
The FEEDER CABLE must contain a provision for a ground connection, especially whenever 2,300 volts or greater are used. At the substation, the power line must terminate (see paragraph on ground circuits) to a suitable permanent ground. At the machine, the power line must securely terminate through a bolted connection to the machine frame. This provides a constant ground for the machine and its electrical equipment. Failure to proVide this adequate ground endangers employees and equipment.
THE NEED FOR A POWER LINE GROUNDING CIRCUIT ADEQUATE FOR THE MACHINE CANNOT BE OVEREMPHASIZED. Without a good grounding system, high voltages exist between the machine and the ground. The portable trail cable and power lines supplying electric energy to the machine must have a ground wire, ample in capacity, running parallel to the main wires over the entire distance from the transformer to the machine. A suitable grounding system must be used at the transformer. Consult your local electrical supplier for details.
DANGER:
DUE TO THE INHERENT DANGERS IN THE OPERATION OF HIGH VOLTAGE i ELECTRICAL EQUIPMENT, A SAFE GROUNDING SYSTEM IS REQUIRED THAT ! INCLUDES GROUND CONDUCTORS IN THE CABLE, A NEUTRAL GROUNDING : RESISTOR, AND RELATED RELAYS AND SWITCHGEAR. A GROUND CONTINUITY
CHECK SYSTEM IS ALSO RECOMMENDED.
8200 Walking Dragtine

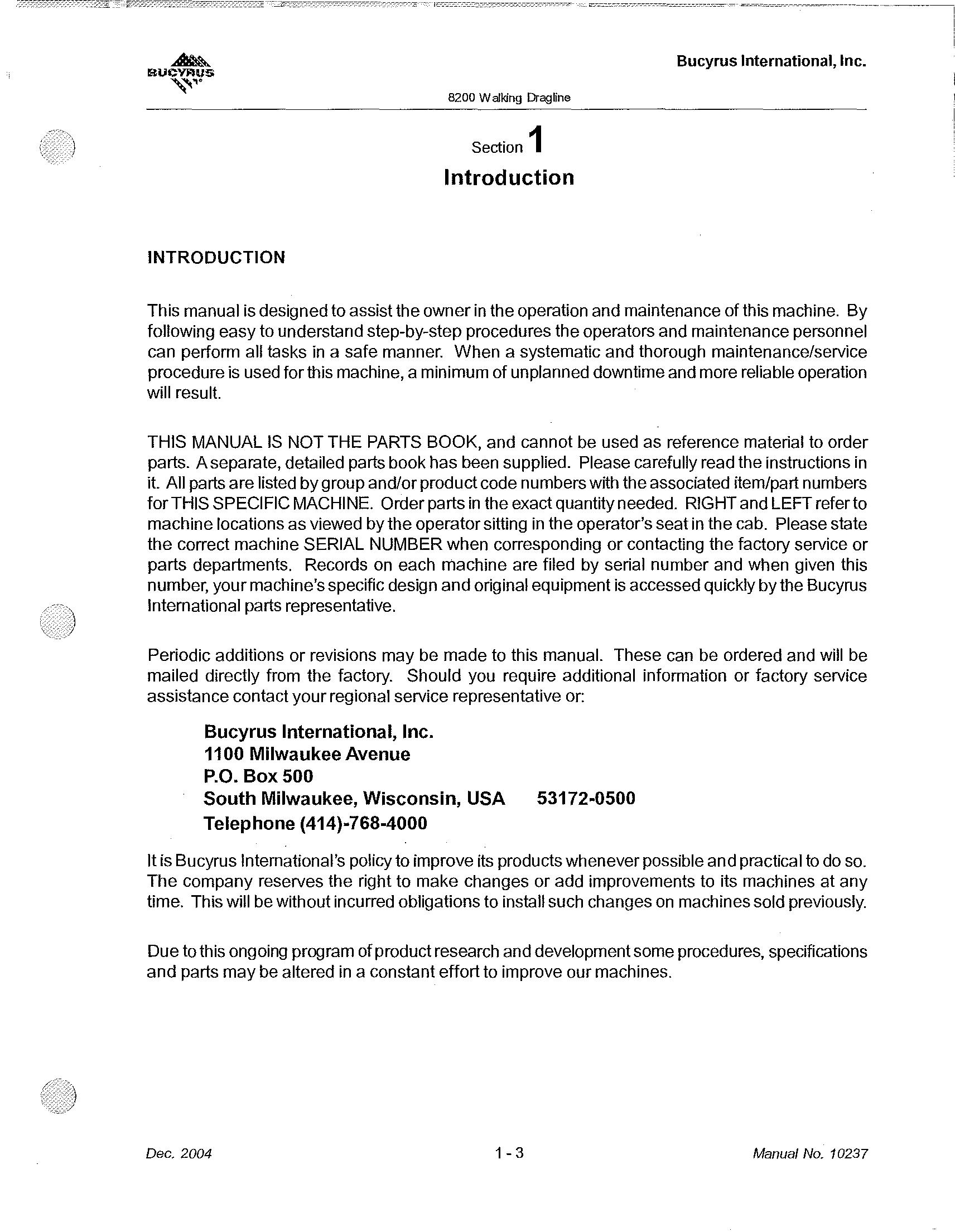

Section 1 Introduction
INTRODUCTION
This manual is designed to assist the owner in the operation and maintenance of this machine. By following easy to understand step-by-step procedures the operators and maintenance personnel can perform all tasks in a safe manner. When a systematic and thorough maintenance/service procedure is used for this machine, a minimum of unplanned downtime and more reliable operation will result.
THIS MANUAL IS NOT THE PARTS BOOK, and cannot be used as reference material to order parts. A separate, detailed parts book has been supplied. Please carefully read the instructions in it. All parts are listed by group and/or product code numbers with the associated item/part numbers forTHIS SPECIFIC MACHINE. Order parts in the exact quantity needed. RIGHT and LEFT refer to machine locations as viewed by the operator sitting in the operator's seat in the cab. Please state the correct machine SERIAL NUMBER when corresponding or contacting the factory service or parts departments. Records On each machine are filed by serial number and when given this number, your machine's specific design and original equipment is accessed qUickly by the Bucyrus International parts representative.
Periodic additions or revisions may be made to this manual. These can be orderedand will be mailed directly from the factory. Should you require additional information or factory service assistance contact your regional service representative or:
Bucyrus International, Inc.
1100 Milwaukee Avenue
P.O. Box 500
South Milwaukee, Wisconsin, USA
Telephone (414)-768-4000
53172-0500
It is Bucyrus International's policy to improve its products whenever possible and practical to do so. The company reserves the right to make changes or add improvements to its machines at any time. This will be Without incurred obligations to install such changes On machines sold previously.
Due to this ongoing program of product research and development some procedures, specifications and parts may be altered in a Constant effort to improve our machines.

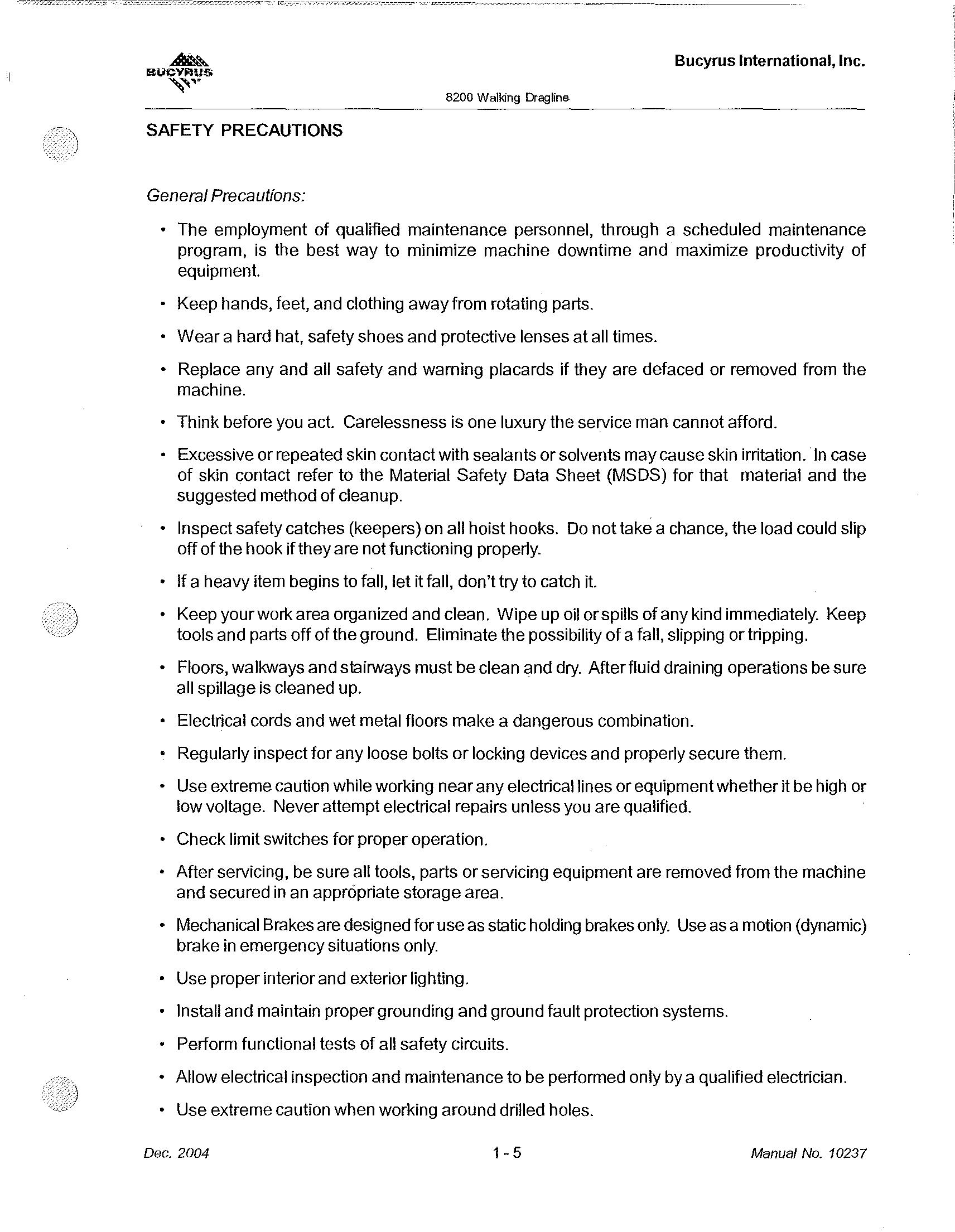

SAFETY PRECAUTIONS
General Precautions:
The employment of qualified maintenance personnel, through a scheduled maintenance program, is the best way to minimize machine downtime and maximize productivity of equipment.
Keep hands, feet, and clothing away from rotating parts. Wear a hard hat, safety shoes and protective lenses at all times.
Replace any and all safety and warning placards if they are defaced or removed from the machine.
Think before you act. Carelessness is one luxury the service man cannot afford.
Excessive or repeated skin contact with sealants or solvents may cause skin irritation. In case of skin contact refer to the Material Safety Data Sheet (MSDS) for that material and the suggested method of cleanup.
Inspect safety catches (keepers) on all hoist hooks. Do not take a chance, the load could slip off of the hook if they are not functioning properly.
If a heavy item begins to fall,let it fall, don't tryto catch it.
Keep your work area organized and clean. Wipe up oil or spills of any kind immediately. Keep tools and parts off of the ground. Eliminate the possibility of a fall, slipping or tripping.
Floors, walkways and stairways must be clean and dry. Afterfluid draining operations be sure all spillage is cleaned up.
Electrical cords and wet metal floors make a dangerous combination.
Regularly inspect for any loose bolts or locking devices and properly secure them.
Use extreme caution while working near any electrical lines or equipment whether it be high or low voltage. Never attempt electrical repairs unless you are qualified.
Check limit switches for proper operation.
After servicing, be sure all tools, parts or servicing equipment are removed from the machine and secured in an appropriate storage area.
Mechanical Brakes are designed for use as static holding brakes only. Use as a motion (dynamic) brake in emergency situations only.
Use proper interior and exterior lighting.
Install and maintain proper grounding and ground fault protection systems.
Perform functional tests of all safety circuits.
Allow electrical inspection and maintenance to be performed only by a qualified electrician.
Use extreme caution when working around drilled holes.
8200 Walking Dragline

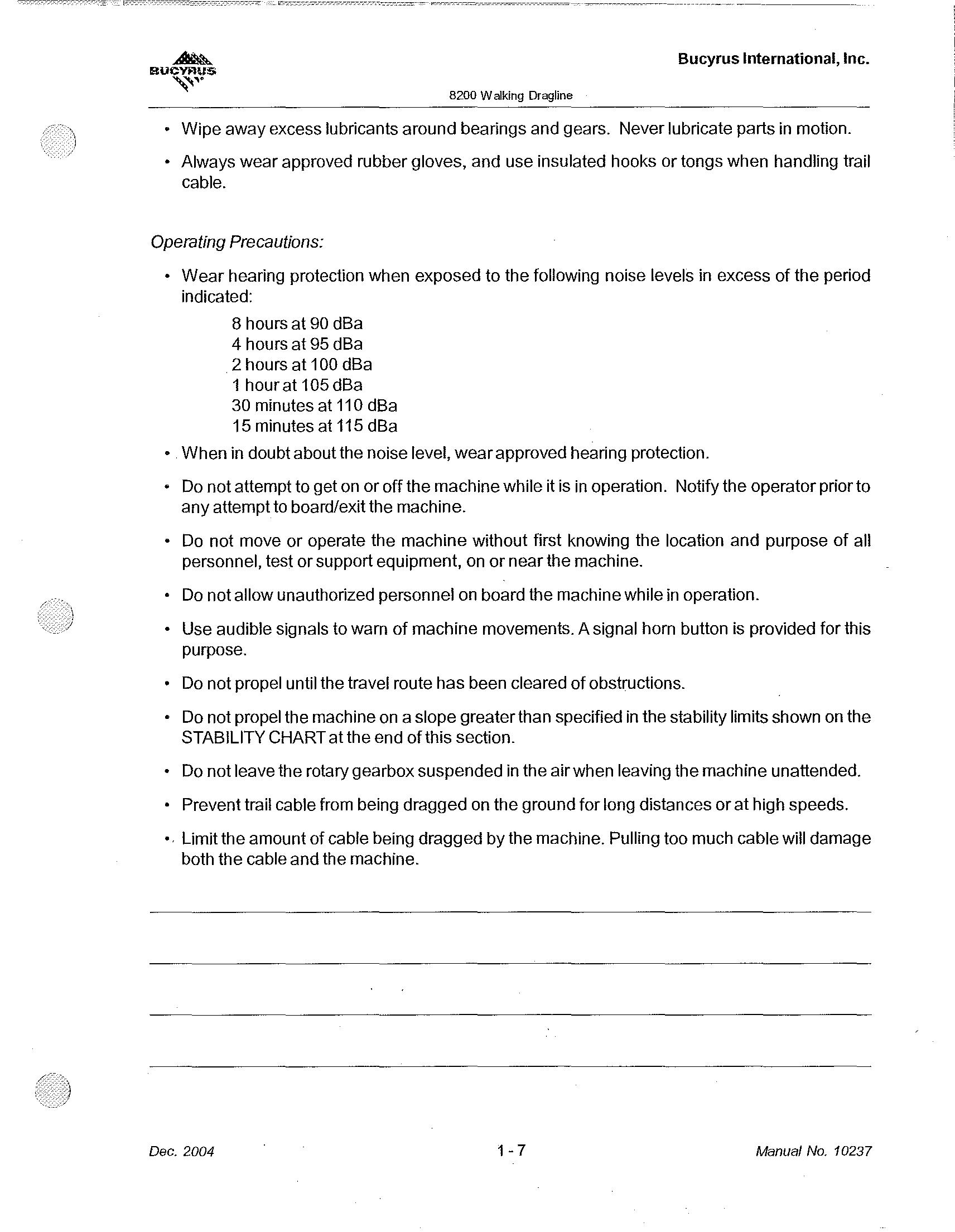

Wipe away excess lubricants around bearings and gears. Never lubricate parts in motion.
Always wear approved rubber gloves, and use insulated hooks or tongs when handling trail cable.
Operating Precautions:
Wear hearing protection when exposed to the following noise levels in excess of the period indicated:
8 hours at 90 dBa
4 hours at 95 dBa
2 hours at 100 dBa
1 hour at 105 dBa
30 minutes at 110 dBa
15 minutes at 115 dBa
When in doubt about the noise level, wear approved hearing protection.
Do not attempt to get on or off the machine while it is in operation. Notify the operator prior to any attempt to board/exit the machine.
Do not move or operate the machine without first knowing the location and purpose of all personnel, test or support equipment, on or near the machine.
Do not allow unauthorized personnel on board the machine while in operation.
Use audible signals to warn of machine movements. A signal horn button is provided for this purpose.
Do not propel until the travel route has been cleared of obstructions.
Do not propel the machine on a slope greater than specified in the stability limits shown on the STABILITY CHART at the end of this section.
Do not leave the rotary gearbox suspended in the air when leaVing the machine unattended.
Prevent trail cable from being dragged on the ground for long distances or at high speeds
•. Limit the amount of cable being dragged by the machine. Pulling too much cable will damage both the cable and the machine.
Walking Dragline

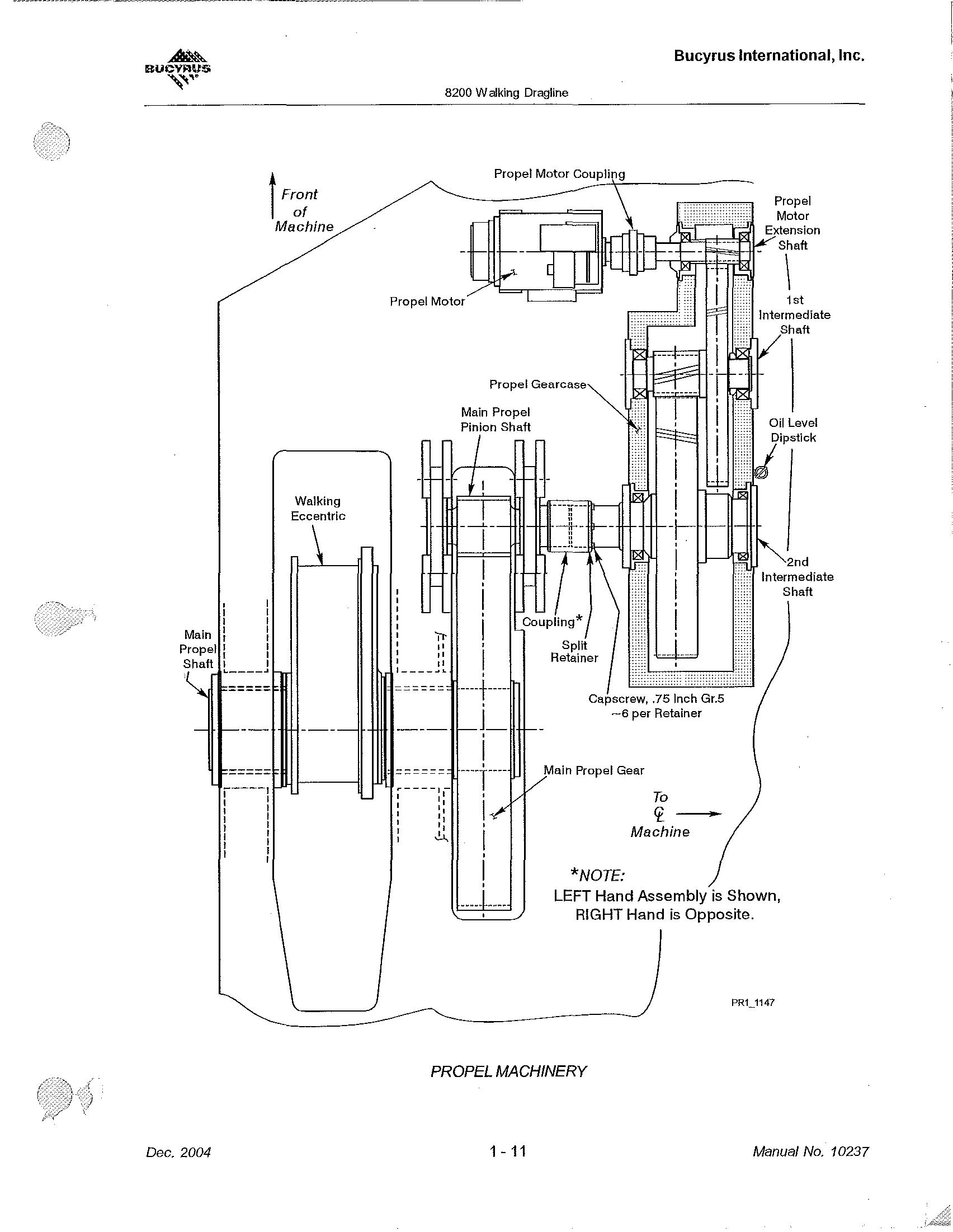

Capscrew, ,75 Inch Gr.5 -6 per Retainer
*NOTE: LEFT Hand Assembly is Shown, RIGHT Hand is Opposite.
