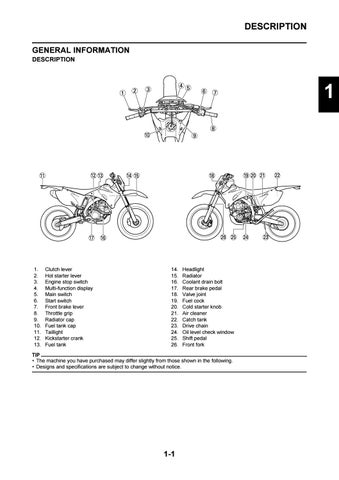

DESCRIPTION GENERAL INFORMATION DESCRIPTION
1
1. 2. 3. 4. 5. 6. 7. 8. 9. 10. 11. 12. 13.
Clutch lever Hot starter lever Engine stop switch Multi-function display Main switch Start switch Front brake lever Throttle grip Radiator cap Fuel tank cap Taillight Kickstarter crank Fuel tank
14. 15. 16. 17. 18. 19. 20. 21. 22. 23. 24. 25. 26.
Headlight Radiator Coolant drain bolt Rear brake pedal Valve joint Fuel cock Cold starter knob Air cleaner Catch tank Drive chain Oil level check window Shift pedal Front fork
• The machine you have purchased may differ slightly from those shown in the following. • Designs and specifications are subject to change without notice.
