PORTFOLIO

SELECTED DESIGN WORK 2019 - 2022

ENTRY - LEVEL DESIGNER

ACADEMIC & COMPETITION

IVY GUO

CO N T E N T

1

2

3

4

5

6

OAK Sensory Park Year: 2022 Company: threshold design

NEW CENTURY GRAND HOTEL Year: 2021 Company: PTW, CCDI

AI - PARK Year: 2021 Company: PTW, CCDI

Museum of Bluestone Thesis 2020 SEM 2 Individual Work Tutor: Virginia Mannering

NGV_C Studio E 2020 SEM 1 Individual Work Tutor: Anna Nervegna

APPENDIX

1 oak Sensory park chengdu, china OAK Sensory Park is a renovation project located at the edge of Chengdu's downtown district. Initially serving as a food-hub sunken retail square for surrounding residential towers, the new client purchased the property and aimed to create a "One of A Kind" modern shopping centre that combines food, entertainment and city-pop sports, such as surf skating.

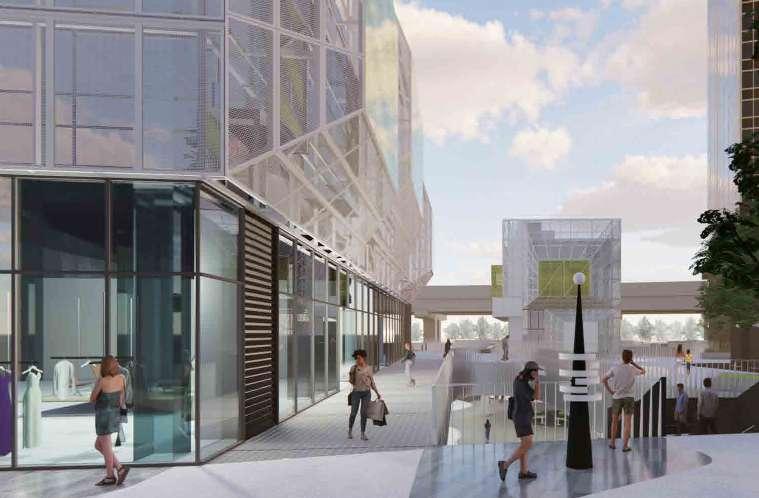

The design scope of this project includes the underground retail plaza, the street-level plaza, and two existing buildings's facade.

Project Site: Chengdu, China Project Area: 16,000 m ² Project Type: Commercial Renovation Design Date: 2022 Company: threshold design

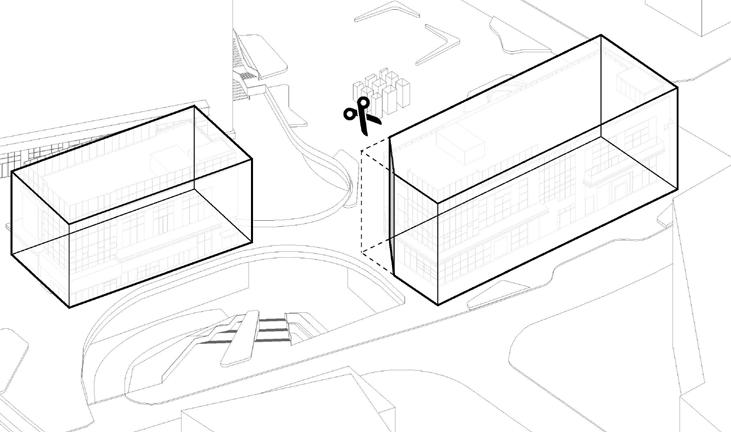

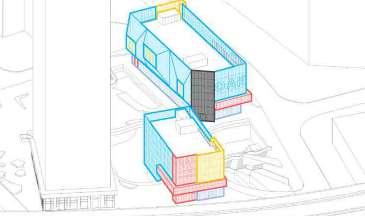

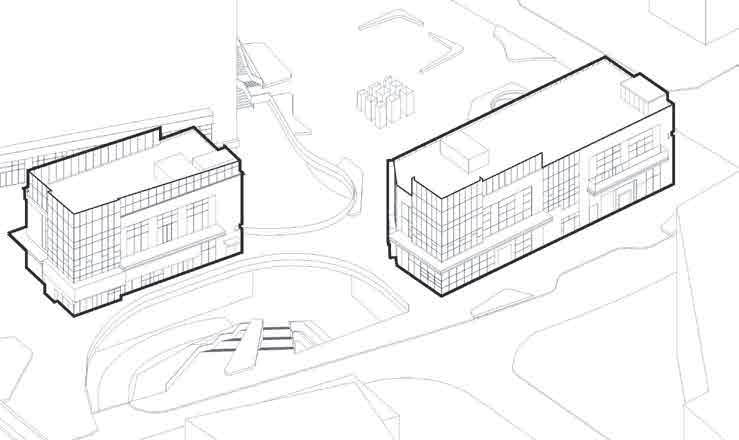

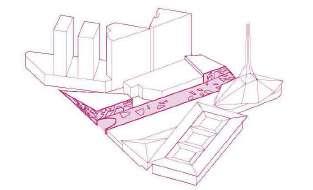

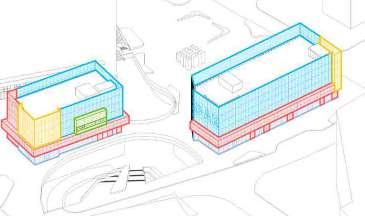

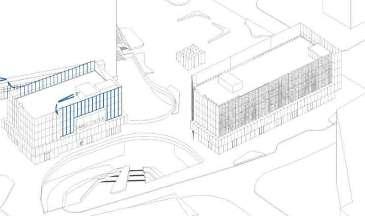

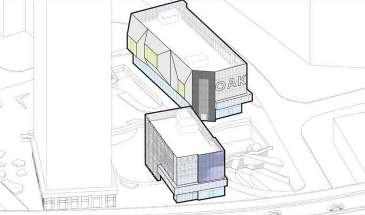

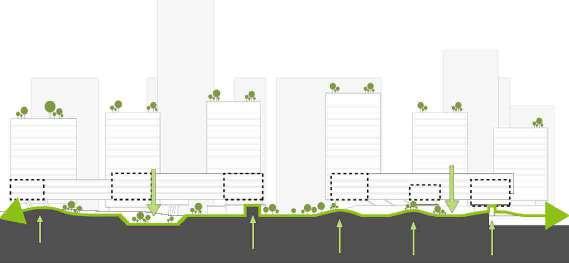

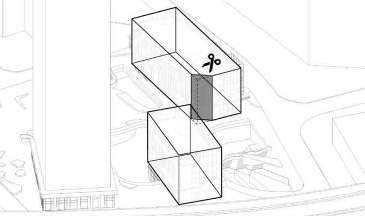

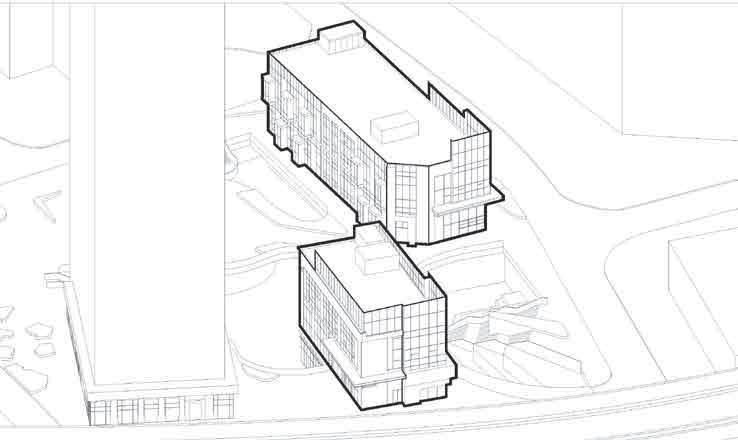

Process Diagram

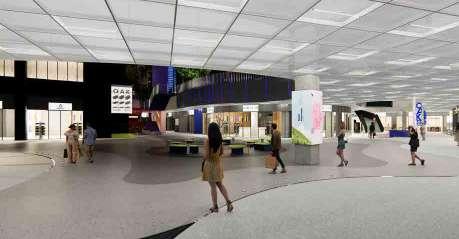

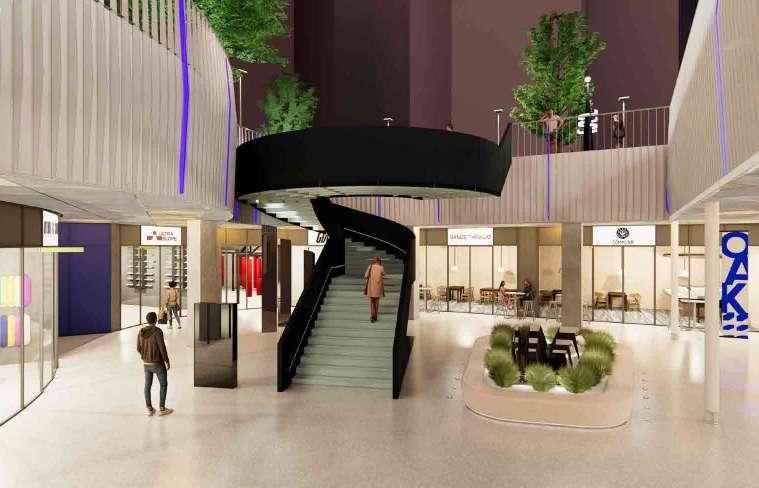

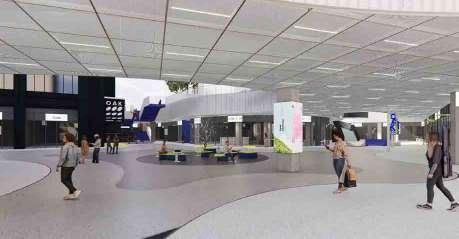

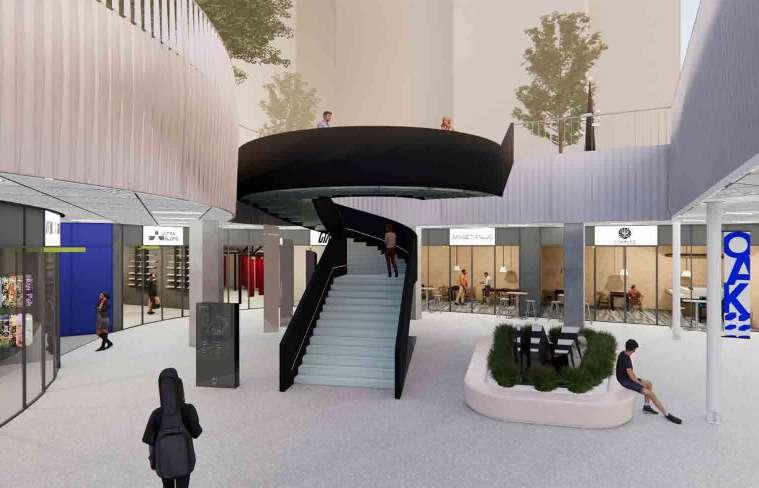

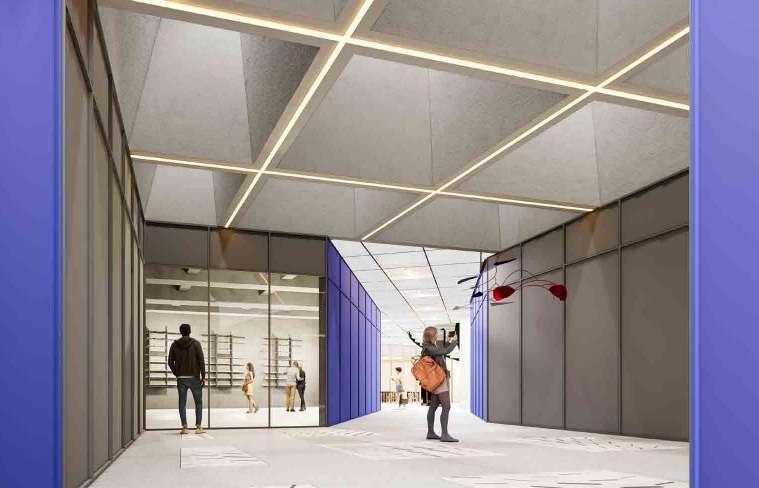

UNDERGROUND RETAIL PLAZA

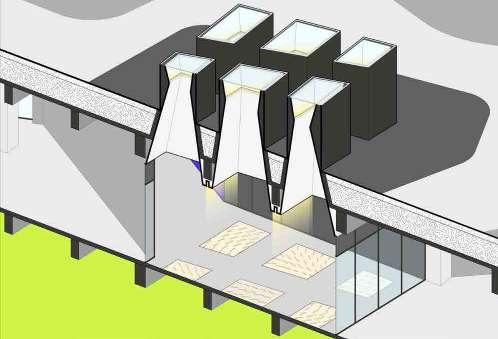

the oak monolith A sculptural skylight cover and a new circulation path curved out from existing retail areas with a central skylight.

Buildings' skins and the open ceiling beneath the roof of the first floor to the sunken plaza are constructed with modern white perforated metal panels.

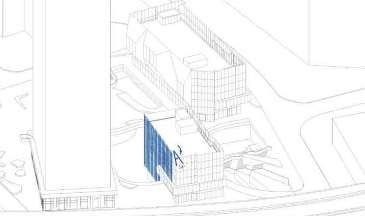

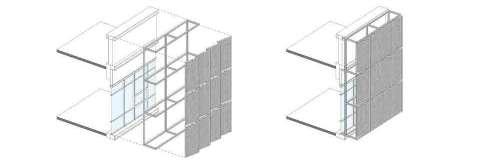

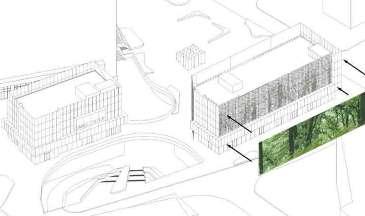

facade details

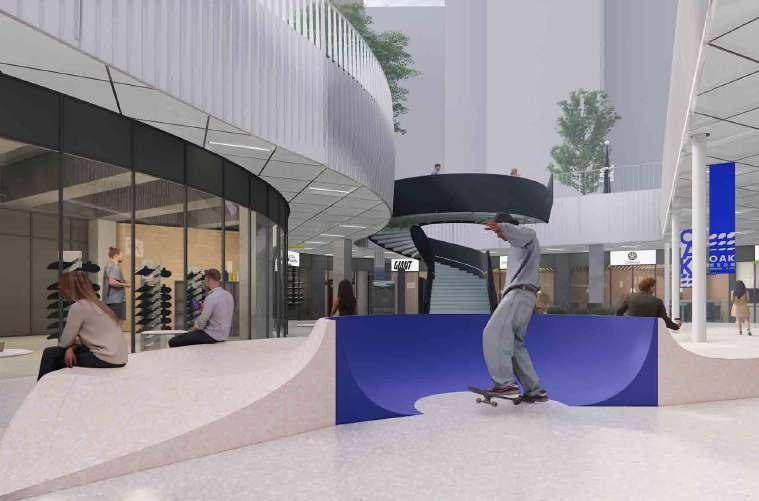

Amenities for surf skating users.

2

SITE scale ANALYSIS

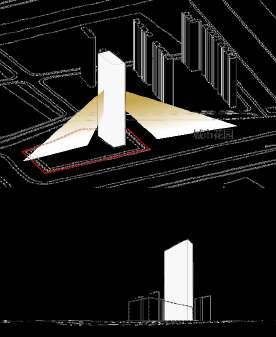

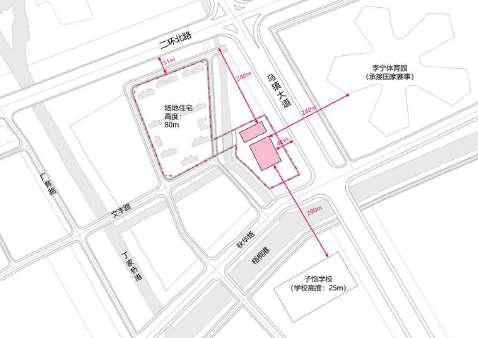

TOWER LOCATION ANALYSIS

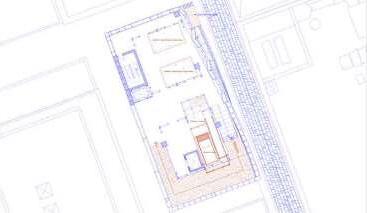

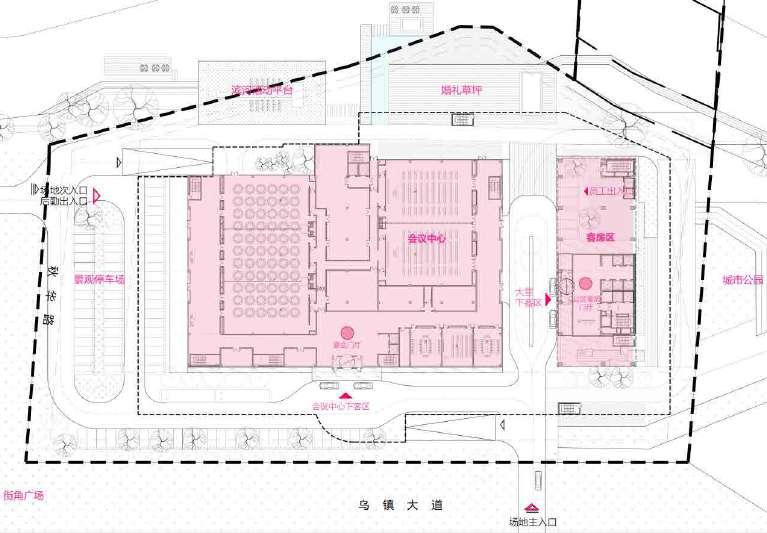

site plan - entries & circulations

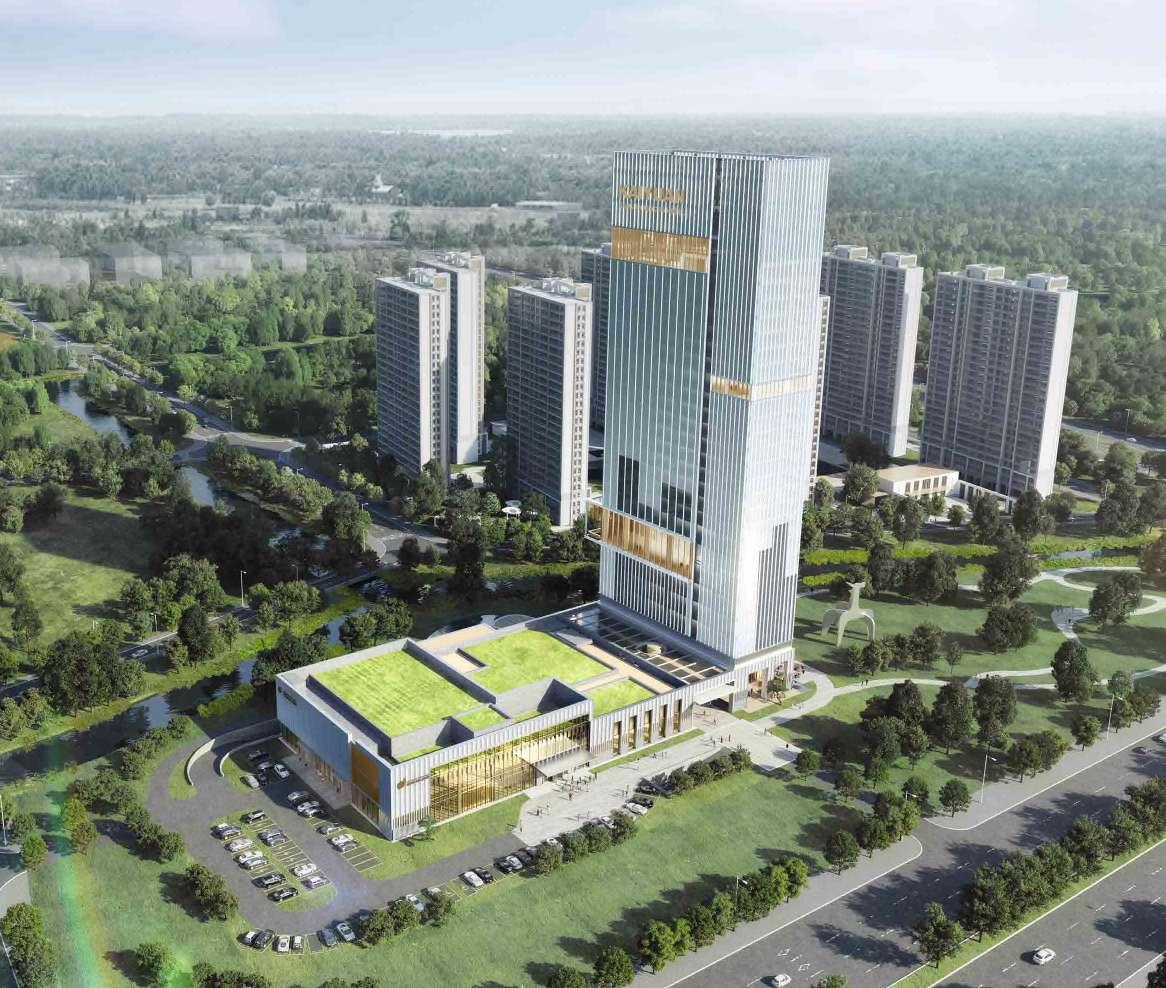

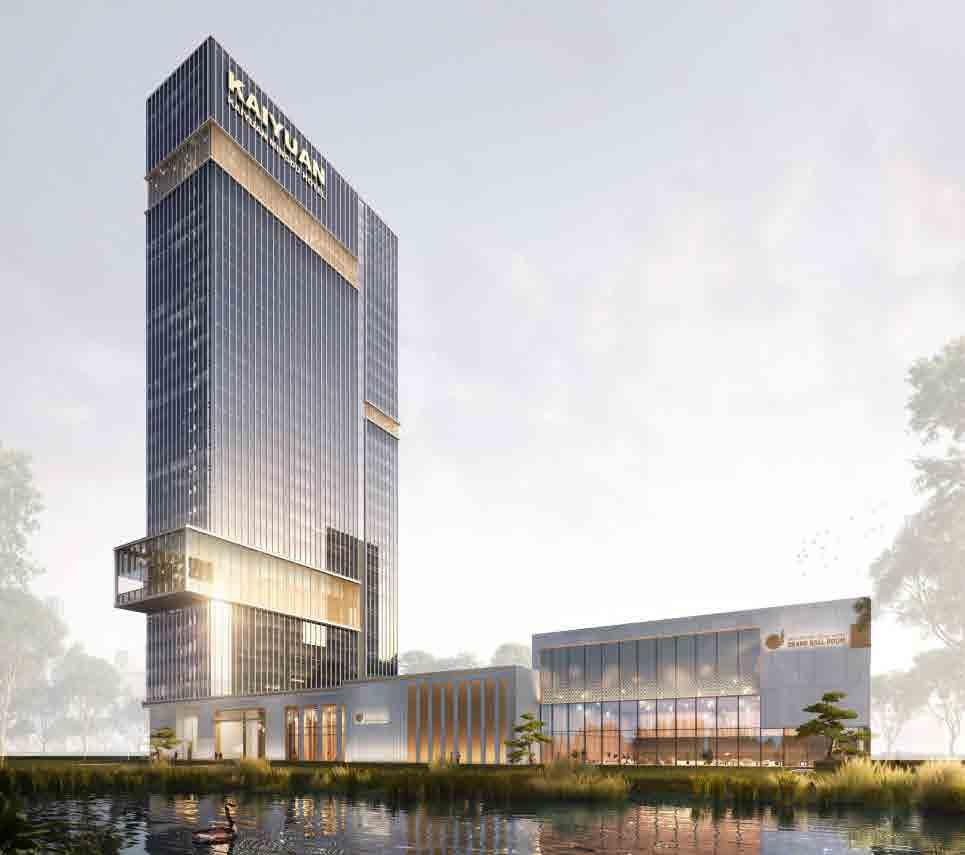

New century grand hotel tongxiang, china

riverside platform

WEDDING LAWN

city park

qiuhua road

staff lift

This hospitality project to is located on one side of Wuzhen Avenue, which is the main axis of urban planning. Its hotel tower on the site's northern side integrates more harmoniously with the urban environment and benefits from superior landscape orientation.

guest area

CITY PARK

PARKING area lobby drop-off area

ballroom drop-off area

CITY square

wuzhen avenue

staff circulation guest circulation

site main entry

SECTION 135.00m roof garden 23m 107.00m guest room 3X4+3X3.8=23.4m 76.40m

refuge floor 7.2m

guest room 9X3.8=34.2m 37.20m

refuge floor 5m public areas 7.2+4X5=27.2m

Project Site: Tongxiang, Zhejiang Province, China Total Site Area: 17, 683 m ² Total Building Area: 39, 200 m ² Project Type: Hospitality Design Date: 2021 Company: PTW, CCDI

12.00m 0.00m

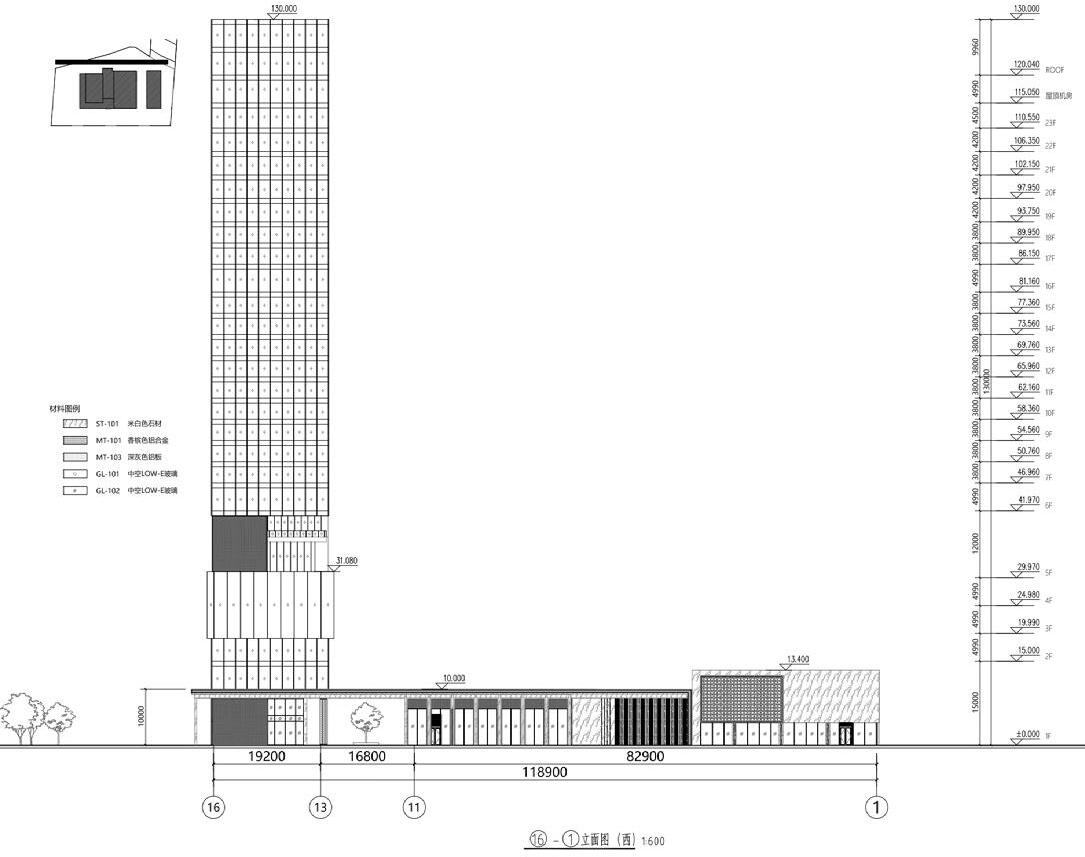

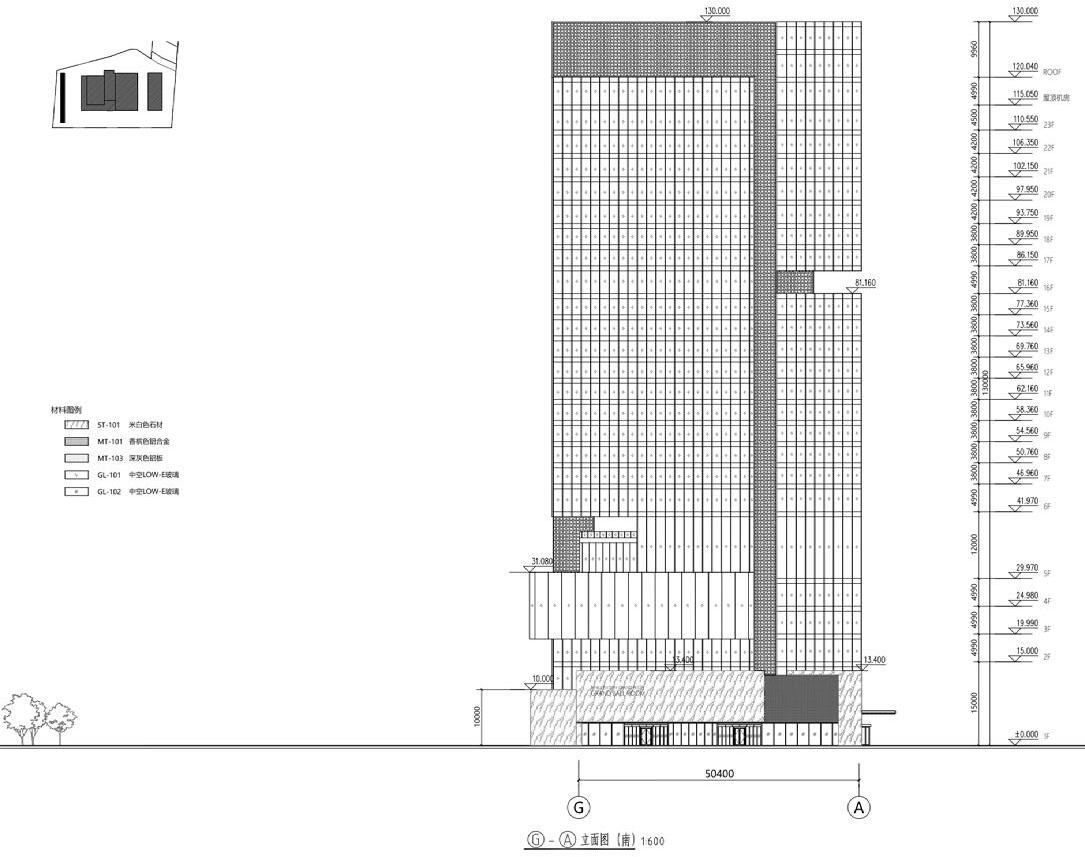

WEST ELEVATION

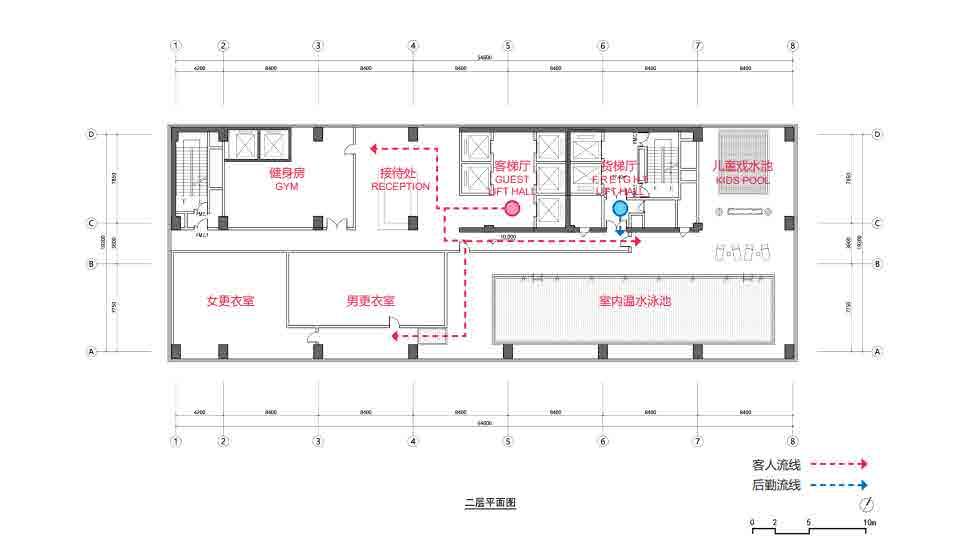

2nd floor plan | indoor swimming pool

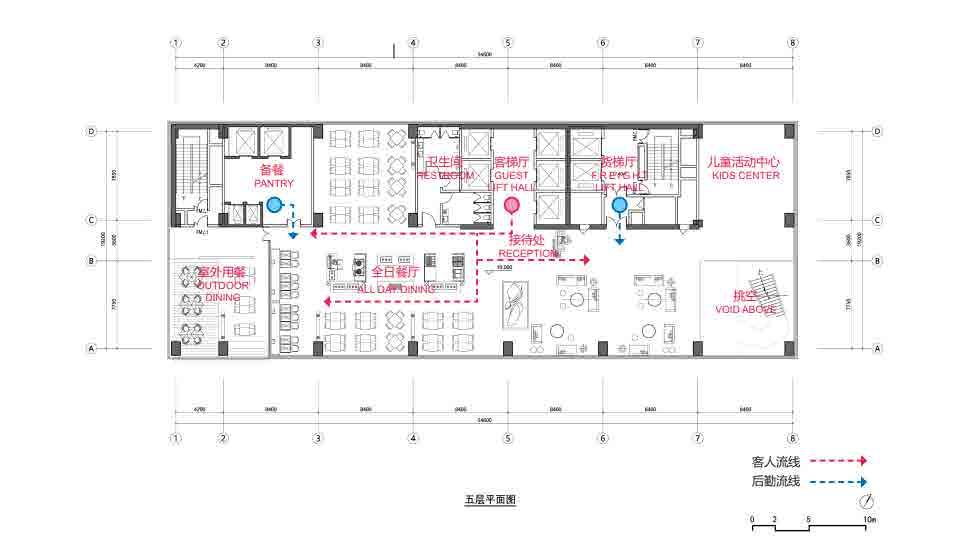

5TH FLOOR PLAN - HOTEL LOBBY

SOUTH ELEVATION

4th floor plan

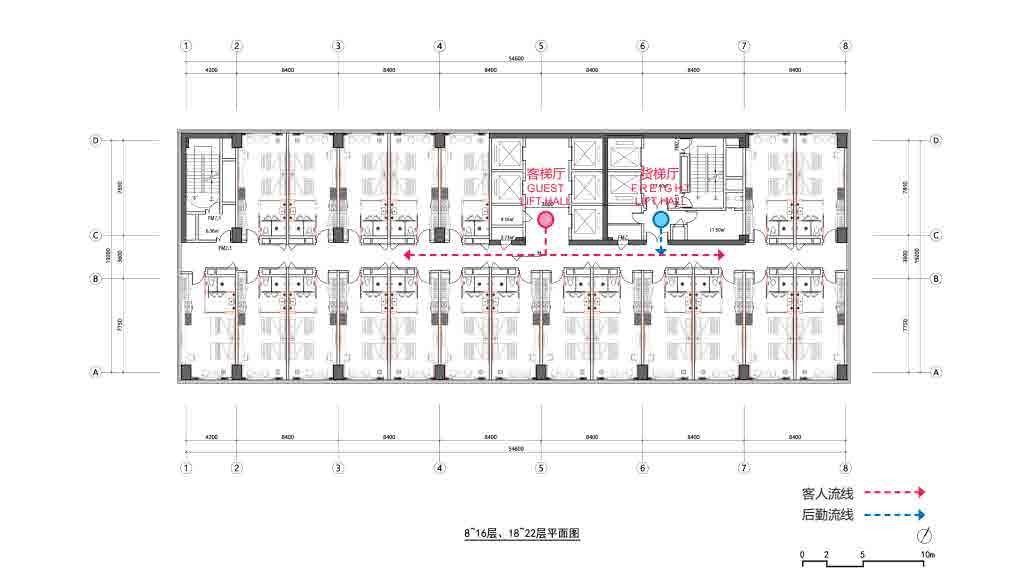

7TH -15TH FLOOR, 17TH - 21ST FLOOR | TYPICAL GUEST ROOM FLOOR PLAN

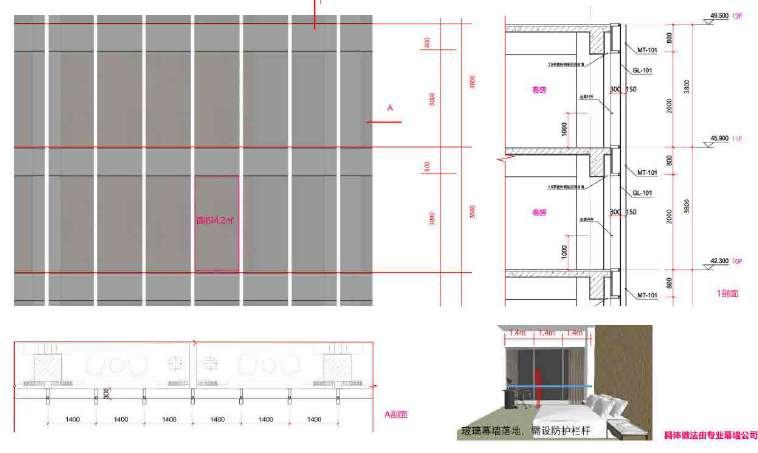

CURTAIN WALL DETAILS

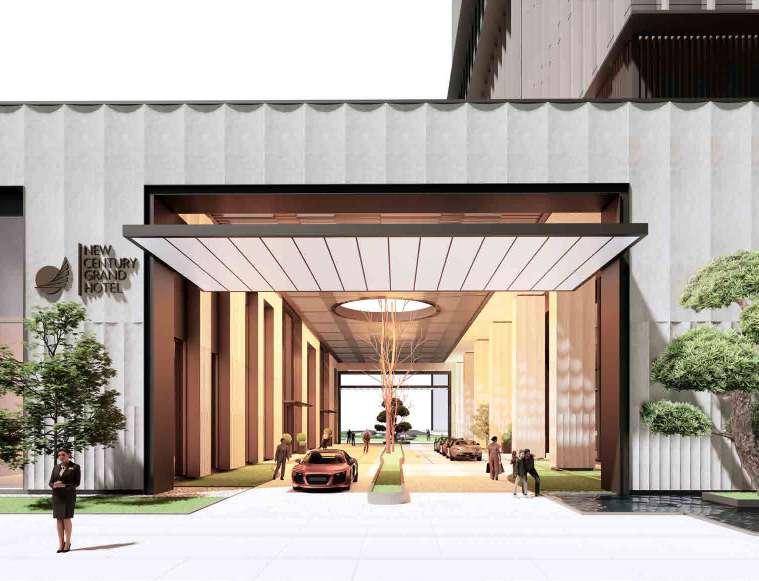

hotel’s main entry

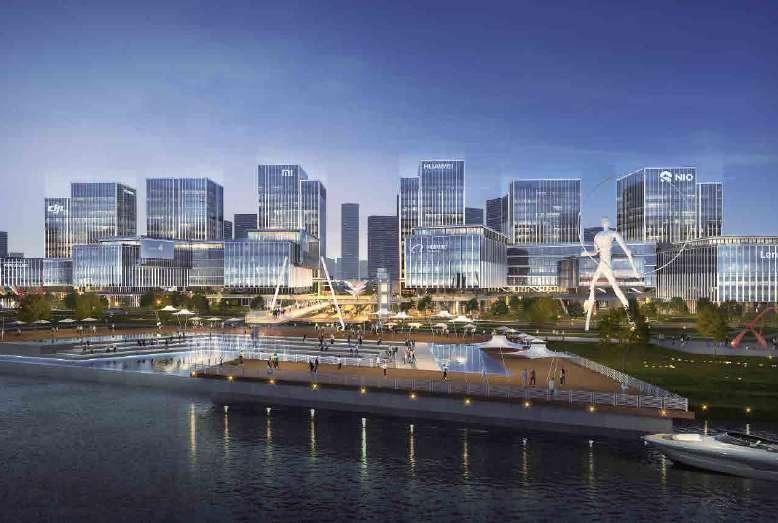

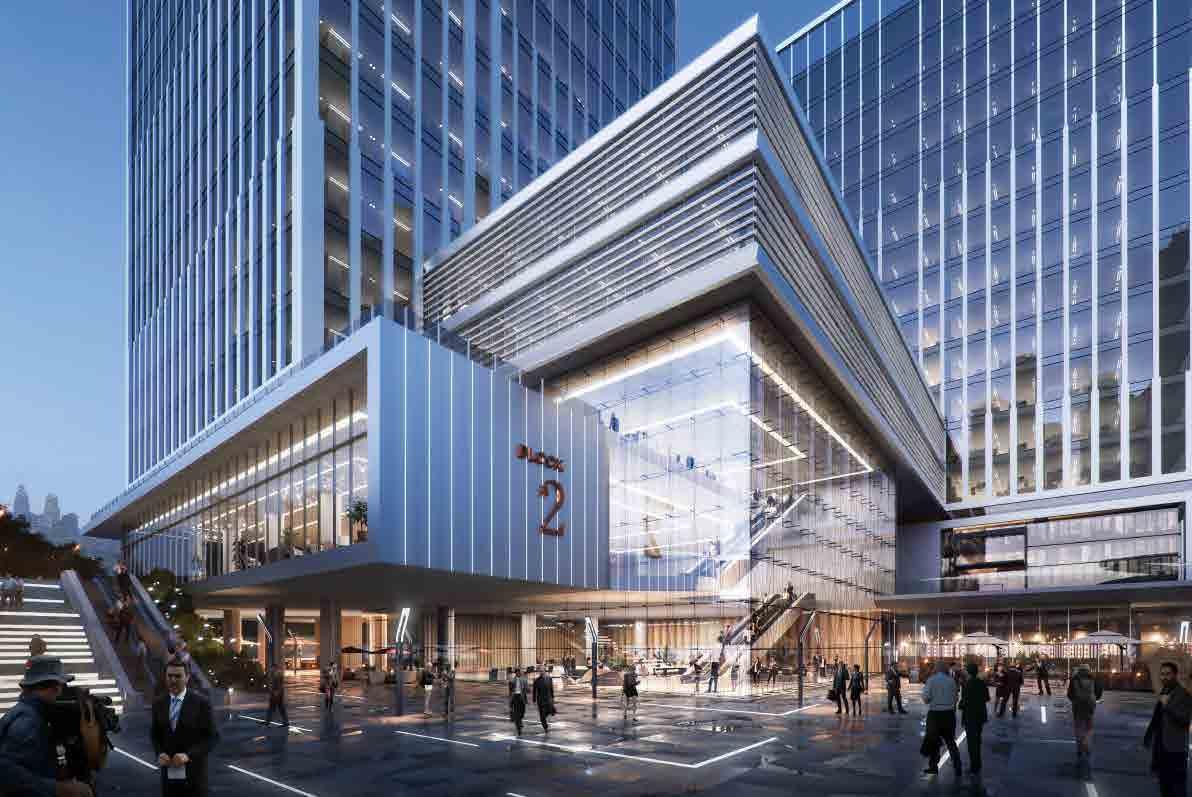

3 AI - PARK suzhou, china

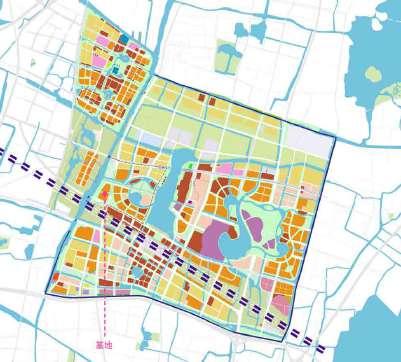

REGIONAL PLANNING

site analysis RETAIL research & education residential culture HI-TECH industrial retail & residential

It is a government-led office park project to attract more enterprises and foster local economic growth. Our design concept derives from Suzhou’s urban design philosophy - ‘city within a garden,’ integrating green spaces and sustainable practices into the urban fabric. The project provides flexible office modules to accommodate various businesses and company sizes, promoting a dynamic and collaborative business environment.

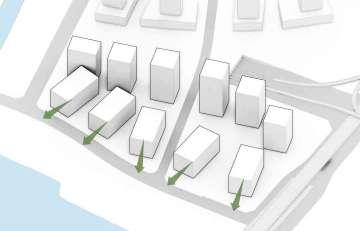

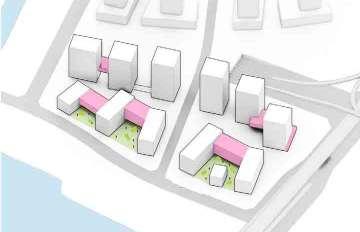

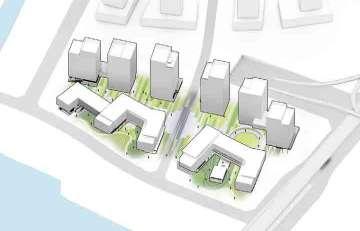

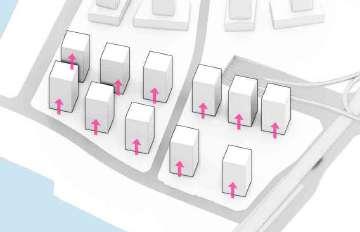

MASSING MODEL

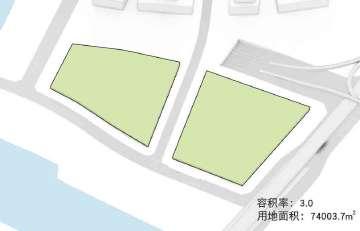

1 The site’s total area is 74,003.7 m 2 and its floor area ratio is 3.

2 According to the site area and floor area ratio, generating eleven tower on this site.

Project Site: Suzhou, China Project Area: 74,003.7 m ² Project Type: Office Park Design Date: 2021 Company: PTW, CCDI

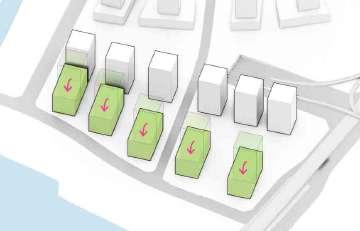

3 The front five massings will be placed horizontally along the riverside to generate broader view for those six towers at their back.

4 Adjusting all the massings’ position and height while adjusting angle of front five massings to embrace more nature and enjoy comfortable riverside view.

5 Creating corridors between massings while continuing to adjust volumes of front massings, to make three groups of massings open to the riverside.

6 Elevating riverside massings’ ground floors to embracing more greenery space, creating courtyards throughout massings to generate eco forest environment for the office.

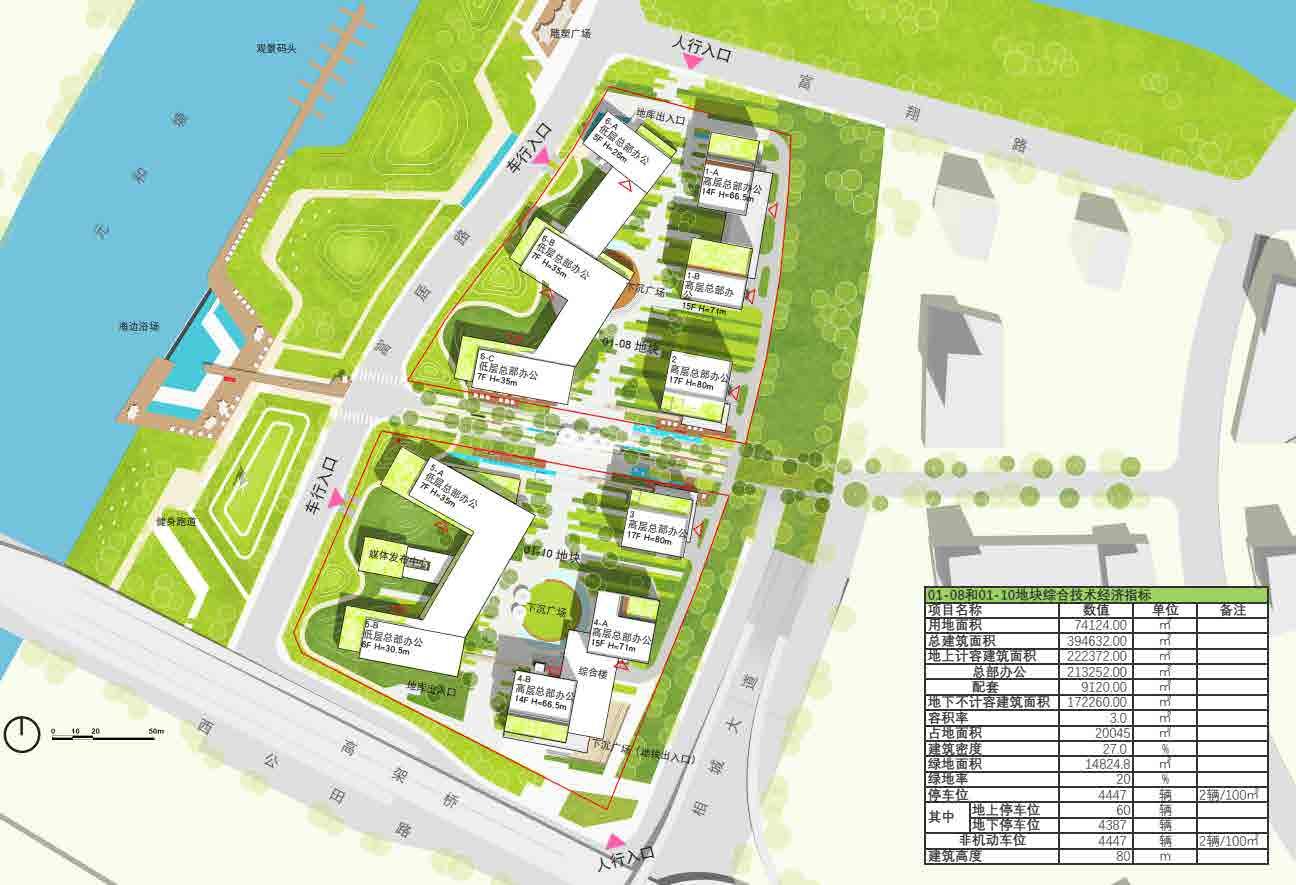

MASTER plan

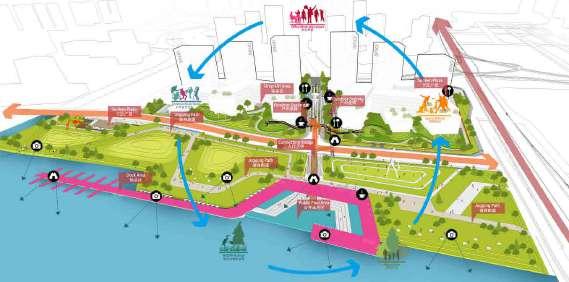

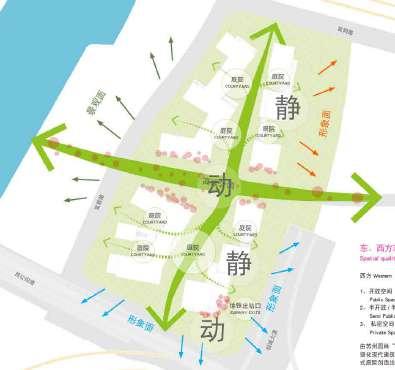

DESIGN STRATEGY NATURE + COMMUNITY + TECHNOLOGY = NEW LIFESTYLE

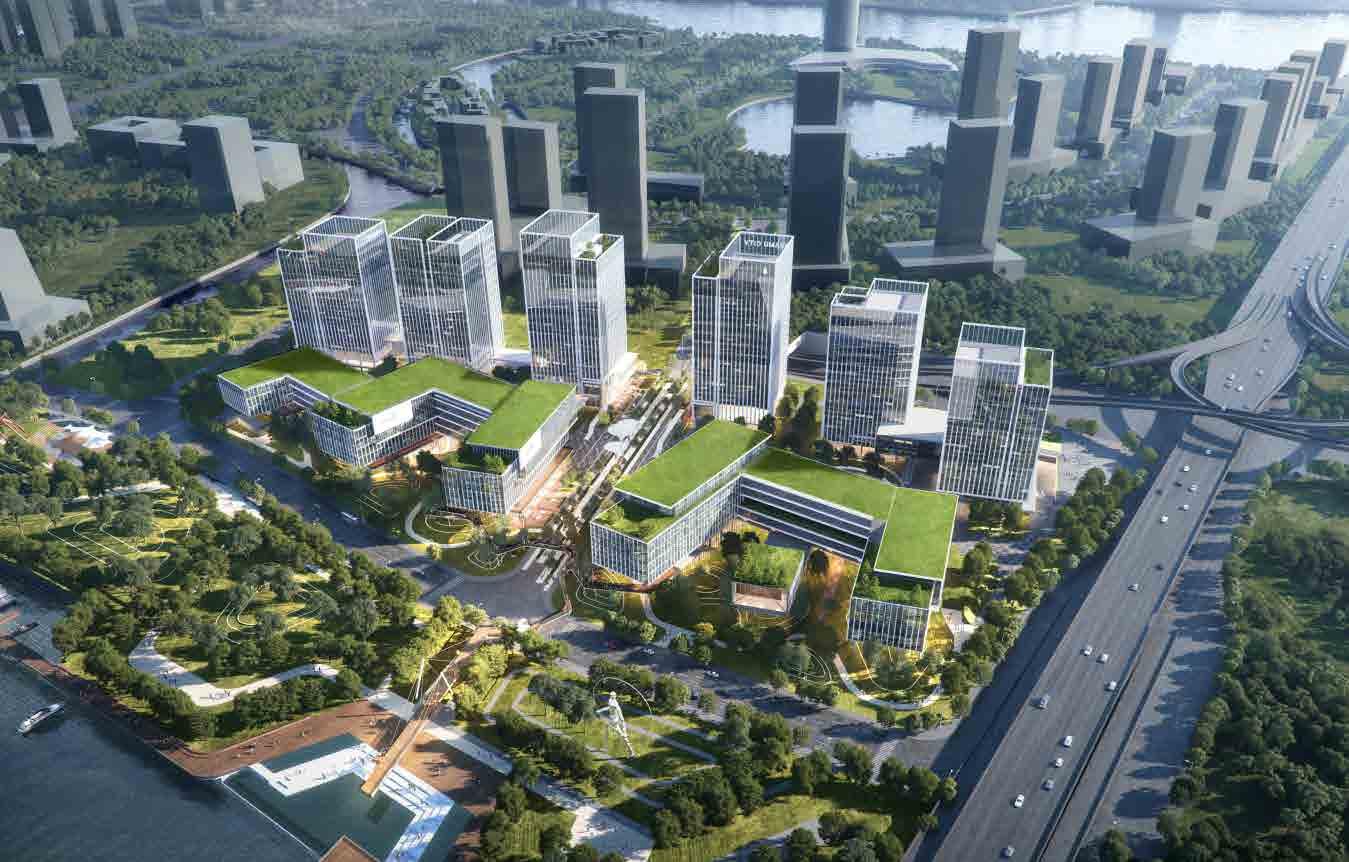

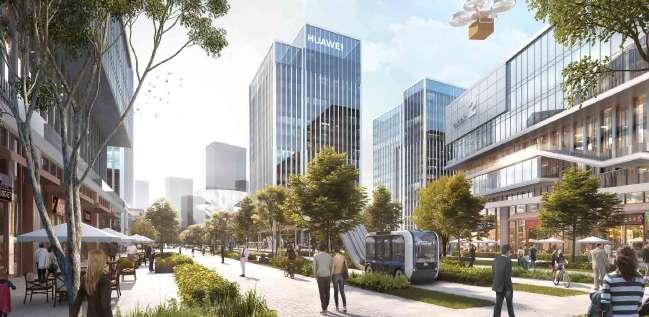

AI - PARK Office in the eco forest

POD | PARK ORIENTED DEVELOPMENT

VOD | VITALITY ORIENTED DEVELOPMENT

The city park will guide the plan, which aims to promote the site’s green space ratio and foster an environment where living and working coexist harmoniously within an ecological forest setting.

Design distinctive spaces to attract guests, fostering a variety of activities that enhance the whole site’s vibrancy and cohesion.

TOD | TRANSIT ORIENTED DEVELOPMENT The city park will guide the plan, which aims to enhance the in-site green space ratio and develop urban oxygen forests. The project incorporates the intelligent transportation and a strategic network of corridors to ensure connectivity and accessibility for all of the users in the site.

FOD | FUNCTION ORIENTED DEVELOPMENT Starting with functional and programmatic needs, allocate 48% of the areas for sale, 48% for leasing, and 4% for commercial retail. A flexible modular design provides a variety of office types to approach the diverse requirements of different enterprises.

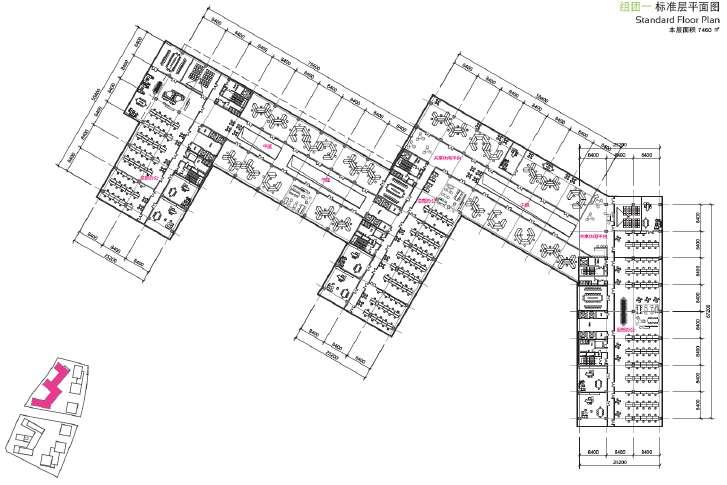

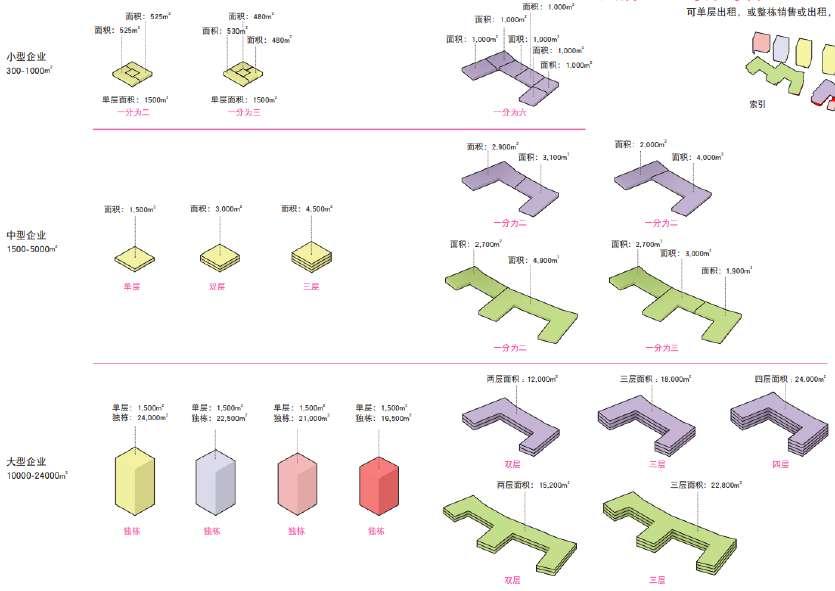

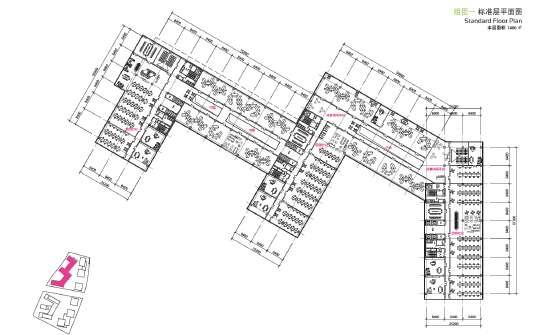

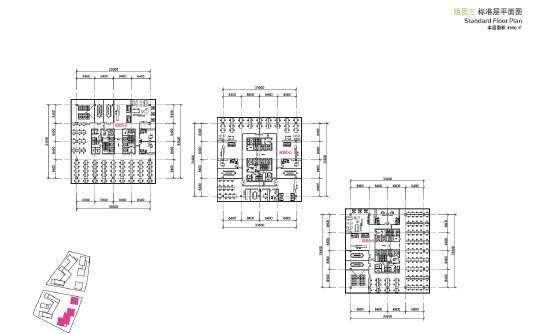

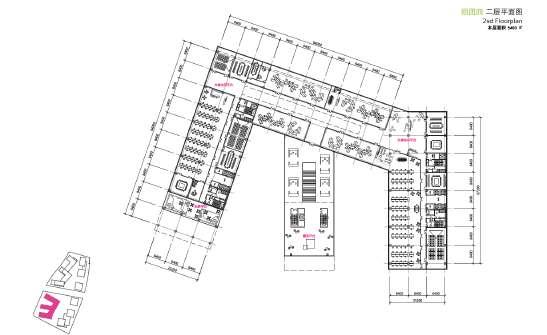

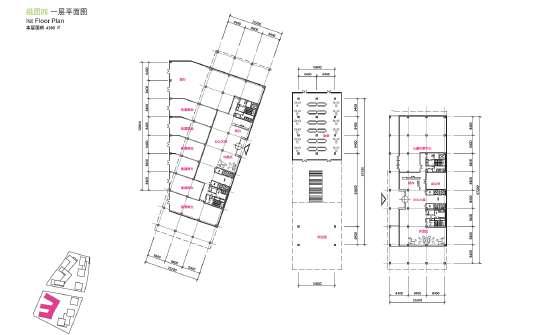

product design sTANDARD FLOOR PLAN GROUP 1 total FLOOR AREA: 7,460M 2

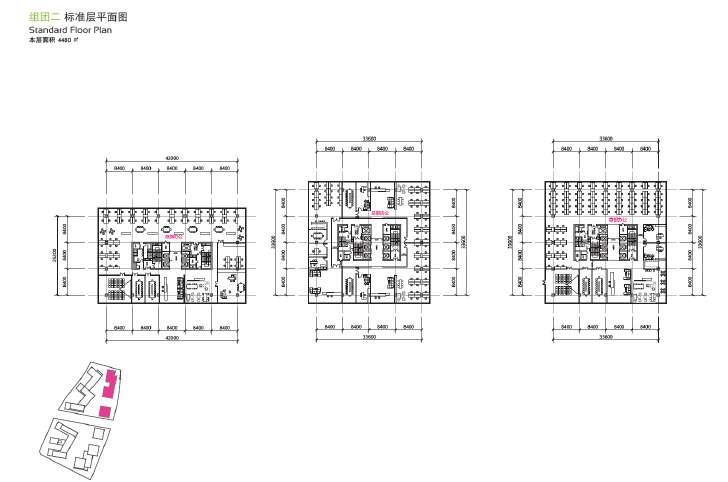

GROUP 2 total FLOOR AREA: 4,480M 2

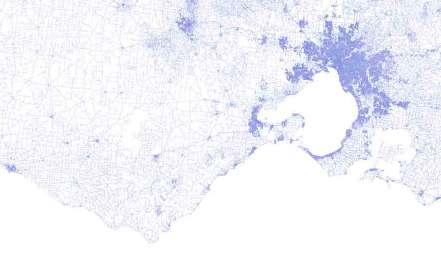

4 MUSEUM OF BLUESTONE Volcanos distribution in VIC

Timeline Around 4.5 million years ago, volcanic explosions forced lava flows from Victoria’s western plains to where the Merri Creek and Yarra River now lie. The lava cooled and formed varieties of bluestone – a thick plate of material that underlays the current city. This project, a Museum of Bluestone, tells the story of one of Melbourne’s essential, characteristic building materials – and illuminates the relationship between deep-time and deep structures and current urban and cultural manifestations.

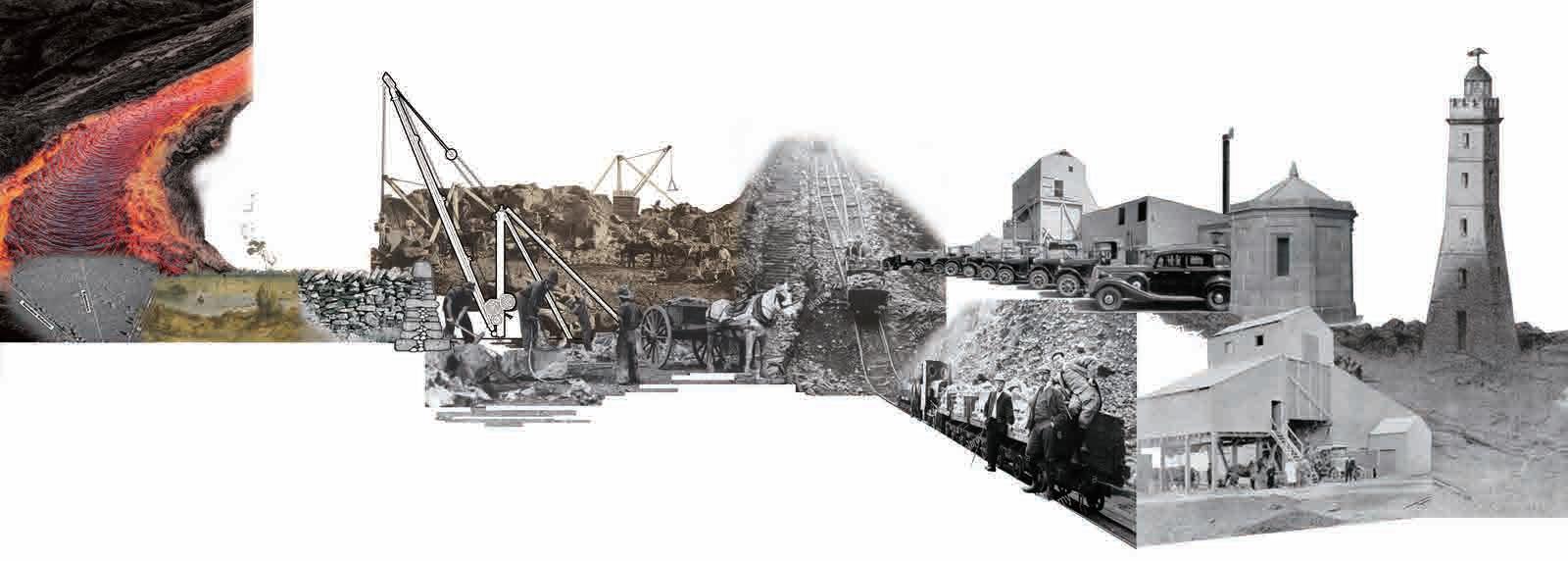

Timeline of bluestone with essential events

Project Name: Museum of Bluestone

Project Name: Museum of Bluestone

Thesis 03_DIG

Tutor Name: Virginia

Student Name: Yuling Guo

Student Number: 717222

Melbourne

Geelong Camperdown

Colac Warmambool

Thesis 03_DIG

Tutor Name: Virginia

Student Name: Yuling Guo

Student Number: 717222

North point Nested or buried maar

Maar

Roads

Volcano with scoria

Volcano with mainly lava

0

10km

20km

40km

Vital Device NO.1 - Crane

Vital Device NO.3 - Hopper

Museum collection diagram

Lava flowed from the west and south-west of the state more or less to the point where the Merri Creek meets the Yarra River in Melbourne through the volcanic activity.

Wurdi Youang: These basalt stones were set in that area as astronomical markers.

From indigenous culture, bluestone was used for an eel trap system.

Museum Collection

During this period of time, pastoralists applied traditional dry wall technique to build stone boundaries that kept rabbits out of the farm.

Melbourne and bluestone are inextricable. From the start of Melbourne’s Goldrush, bluestone became one of the city’s critical building materials; it was plentiful and, cheap, durable. The stone was used for some houses and infrastructures - pavements, walls, gutters, and culverts. We can see and touch the bluestone in Melbourne daily; however, its very ‘ordinariness’ conceals the complexity and richness of its extractive histories.

Many small quarries

were opened up in Geological Heritage Melbourne’s Western Suburbs, people extracted the stone by hand with gunpowder, simple wood cranes and horse drays.

Project Name: Museum of Bluestone

Thesis 03_DIG

People used cable-hauled

for deliverBluestoneincline for tramway Traditional tools & device ing the bluestone blocks. infrastructure used in the quarry

1852 - 1926s

1930s

1920s

1917s

1920s

1850s

1850s-1870s

6,600 years ago

11,000 years ago

4.5 million years ago

Vital Device NO.2 - Horse Dray

Tutor Name: Virginia

Student Name: Yuling Guo

Student Number: 717222

Highfield quarry F o o t s c r a y The example of the Tide The time ball tower opened around C o u n c i l ’ s gauge house shows how built with Machines used in manufacturing Strategieswas for originally architecture 1917s, and stone crusher. precisely bluestone could be timber structure, its bluestone located between Those crushed worked.

Because the timber structure was Kororoit Creek rocks replaced by the square were development of the stonemaand Jones Road. sent into one sons skills and techniques bluestone lighthouse tower later. It become tall hopper made the buildings more an earlier instance of from the truck adaptable and precise. the stonemasions skill. below, and then crushed rocks would be discharged for s o m e road-making sites.

Raw Basalt Section

Ballast

Timber Derrick Crane

Stone crusher - Jaw crusher

Stone crusher - Vertical Impact Crusher

Gabion Bluestone

Casting Basalt Tiles

Raw Basalt

Ballast could be crushed into smaller dimension for extra functions

Pick

Feeder

Vibrating Screen

Bluestone Shingle

Bluestone Pavement

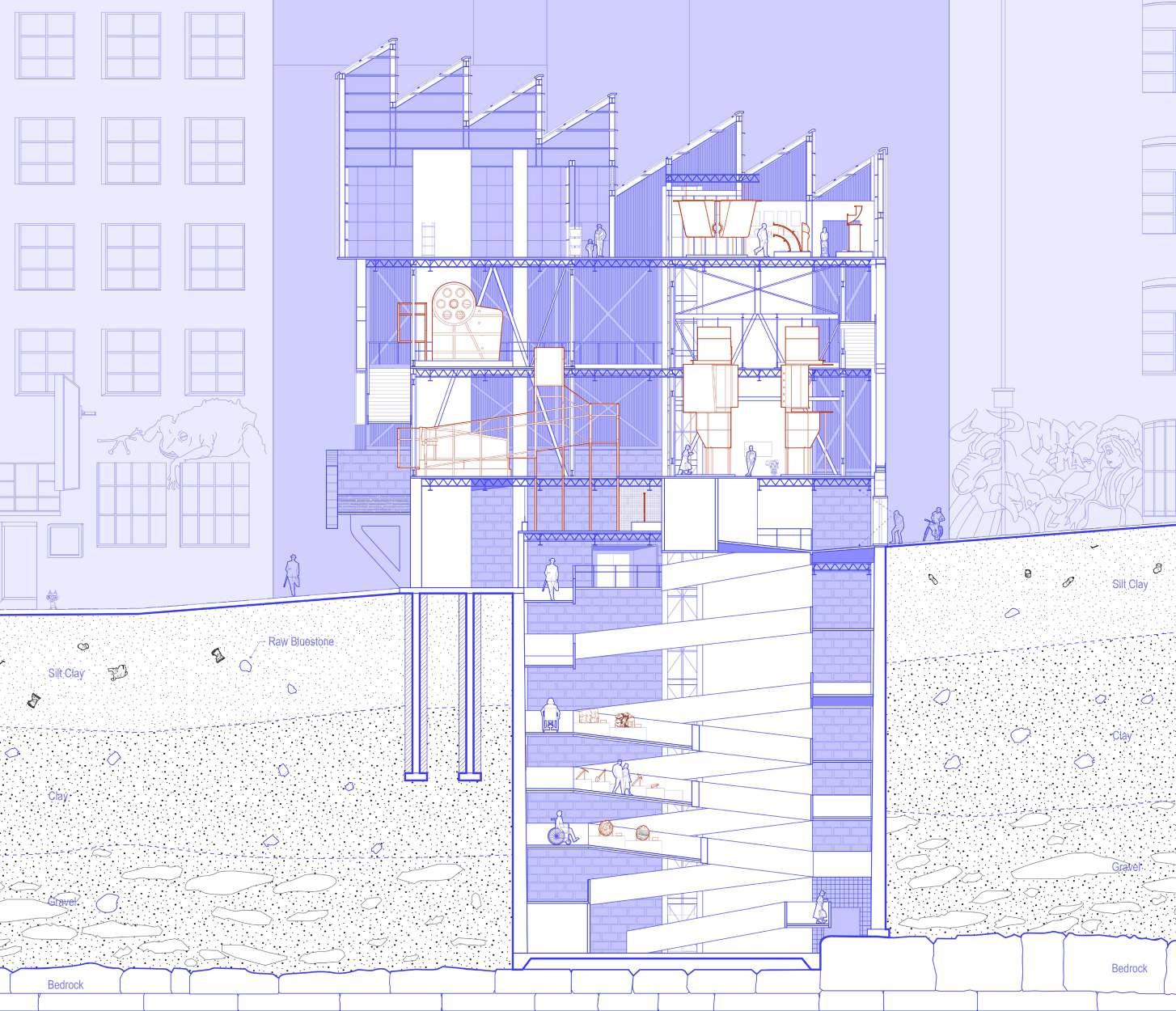

Soil Profile: volcanic basalt exists at the site location

Existing Bluestone infrastructure surrounds the museum

Shovel

Structure under conveyor

Circular Vibrating Screen

Bluestone Cladding

Longer equipment life with casting basalt

Dry Bluestone Wall

Horse Dray for delivering bluestone

Hammer

Splitting Wedge

Long Steel Drills

Terrazzo with basalt

Casting Basalt Pipe

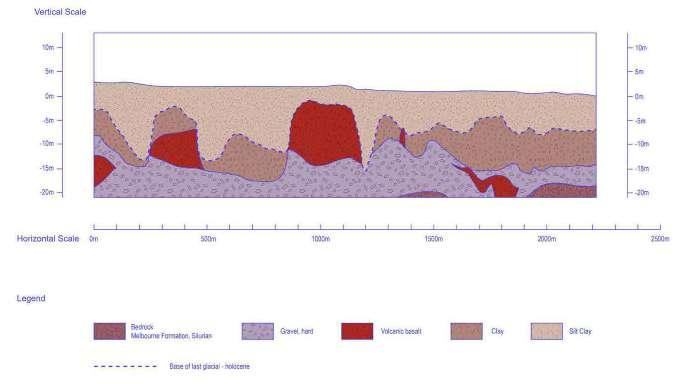

Soil Profile Diagram

exploded diagram

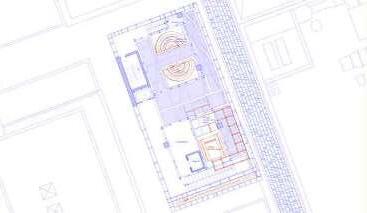

plan

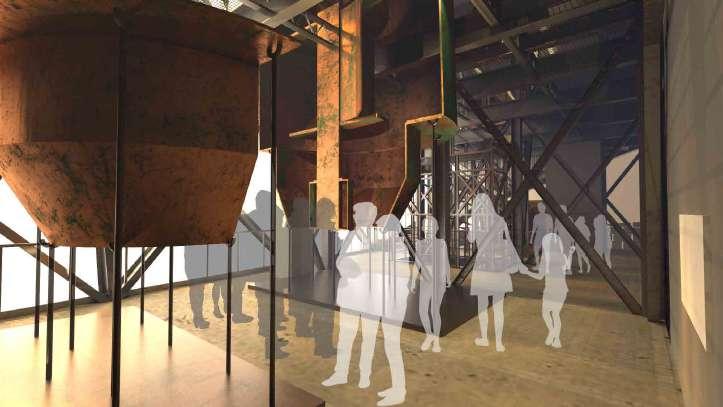

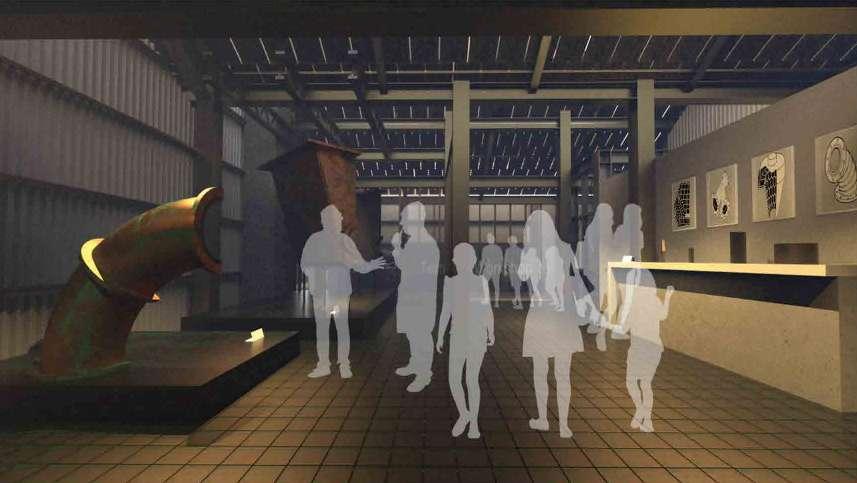

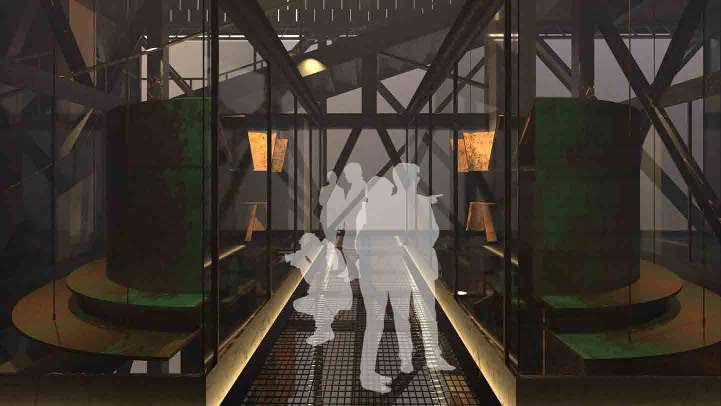

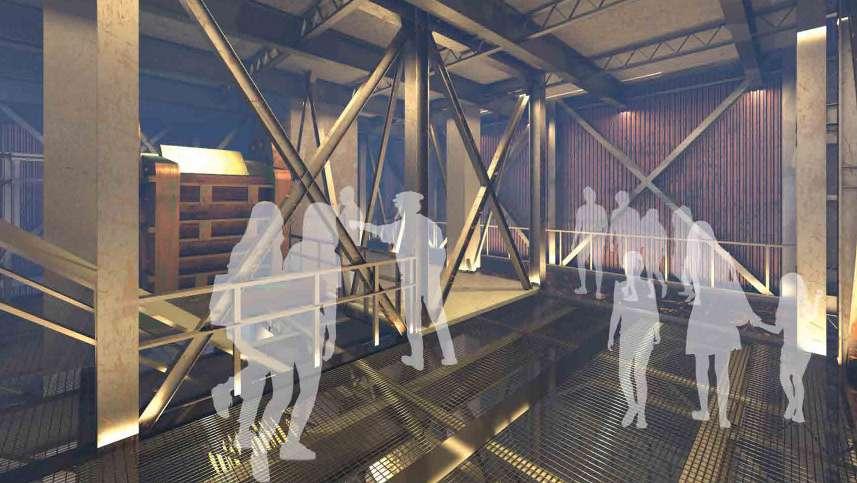

interior exhibition space

third floor plan

second floor plan

first floor plan

ground floor plan

lower ground floor plan

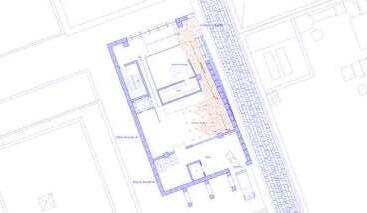

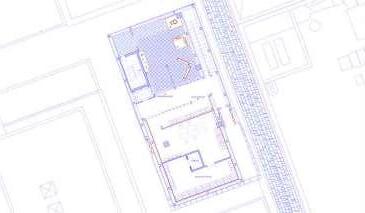

Underground Floor Plan

Project Name: Museum of Bluestone

Thesis 03_DIG

Tutor Name: Virginia

Student Name: Yuling Guo

Student Number: 717222

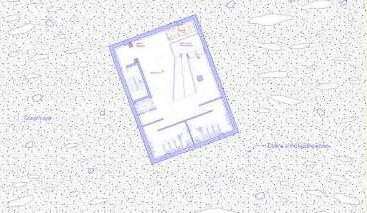

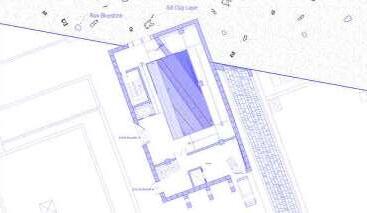

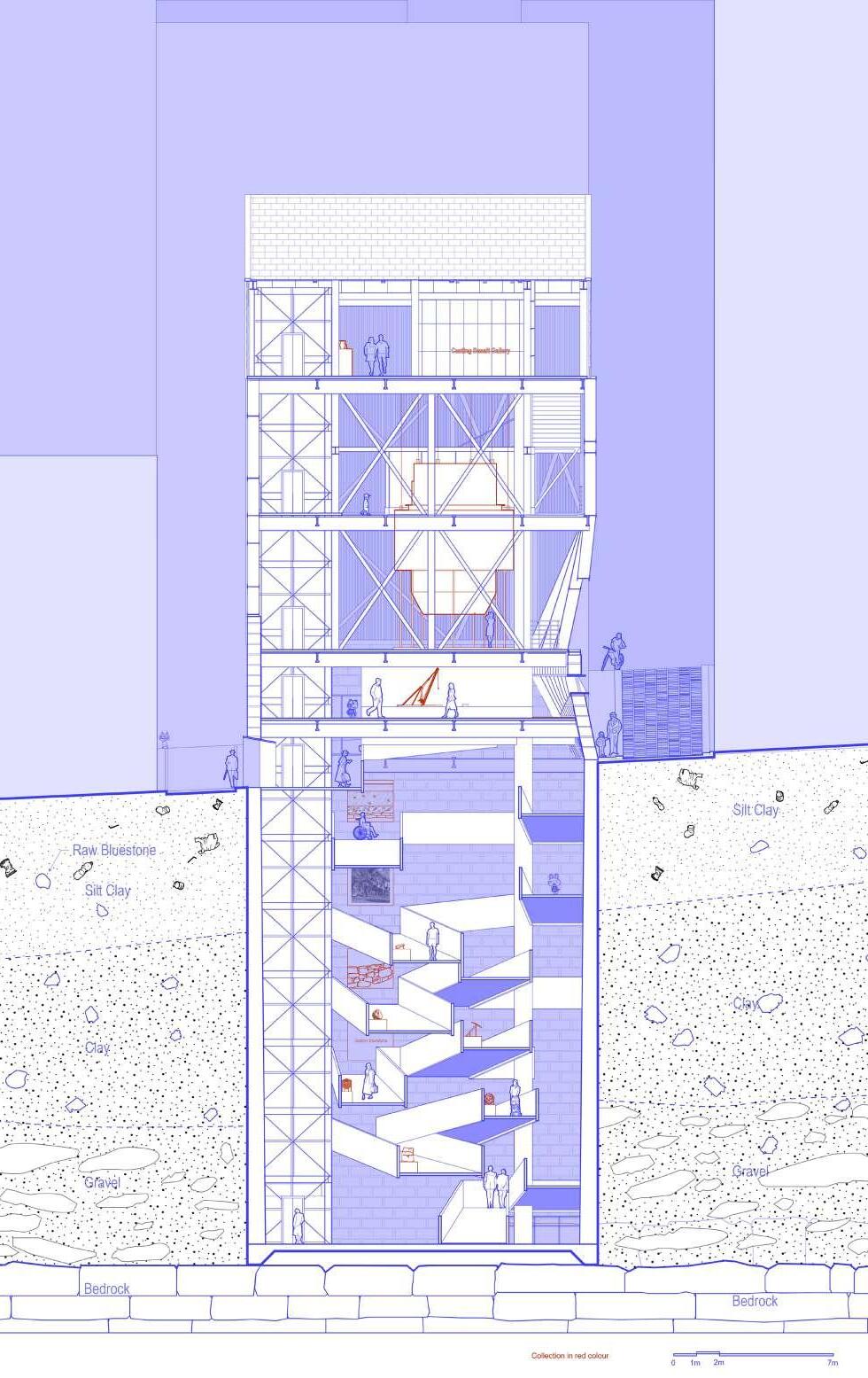

underground floor plan Bedrock

Platform used to view raw bedrock

Gabion Bluestone

Up

Up

Ramp Above

Up

Gravel Layer

The situation of bluestone excavation become much better because people keep improving the strategies for excavating. At the beginning of the excavation history, working at quarries caused prisoners' negative emotions through limited tools, strict management and heavy workload. Nowadays, the working environment has become much better since machines can complete a lot of work safely and efficiently; for example, the stone crusher can crush stones and categorize them precisely into several groups.

Outline of the building above

Collection in red colour

North Point 0

1m 2m

7m

This museum's program will include geological heritage, excavation and manufacture history, and innovative architectural components.

Bluestone is a good material since it varies in form for different purposes. Foundations of some buildings in Melbourne use bluestone before concrete; basalt was used as the ballast on ships during Victoria's early days; bluestone drywall helped pastoralists to protect their farm in the 1860s and 1870s. In contemporary buildings, bluestone is widely used for roof and exterior walls in shingle and cladding, and many laneway pavements are bluestone in Melbourne.

Applying cast basalt to the interior surface of the equipment to resist rust and make their life longer.

East elevation

The Museum of Bluestone asks visitors to contemplate the materials city builders use. Bluestone takes millions of years to form but is destroyed in an instant. As the city grows with their use, the surface is mined and destroyed through its extraction.

Fortunately, people started to use recycled Bluestone and build some abandoned quarries into parks, gardens and reserves because they realized this issue. As a result, we can believe Bluestone can do more for the city in the future.

Issuu url: https://issuu.com/guoyuling2/docs/yuling_guo_14.11.2020.a5_ booklet

5 NGV - C Process Diagram

1. This form has been generated by the surrounding context.

2. Refer to the brief, each building block is divided into 3 floors, and the average height of floor is 8 meters.

3. Created an atrium by twisting floors and the exhibition space will approch the natural light.

4. The exterior form twisted as well, which is following the floors' twisting direction.

5. Decided the facade's location and this facade didn't need to cover whole buildings.

6. Inspired from Sol LeWitt's wall painting #260 and drew arcs. Decided the negative and positive space.

7. Reverse negative and positive parts to achieve more iterations.

8. Projected patterns onto the facade and promenade.

9. After applying the arcs iterations for the facade and promenade, adjusted patterns' scale and form to achieve a comfortable combination.

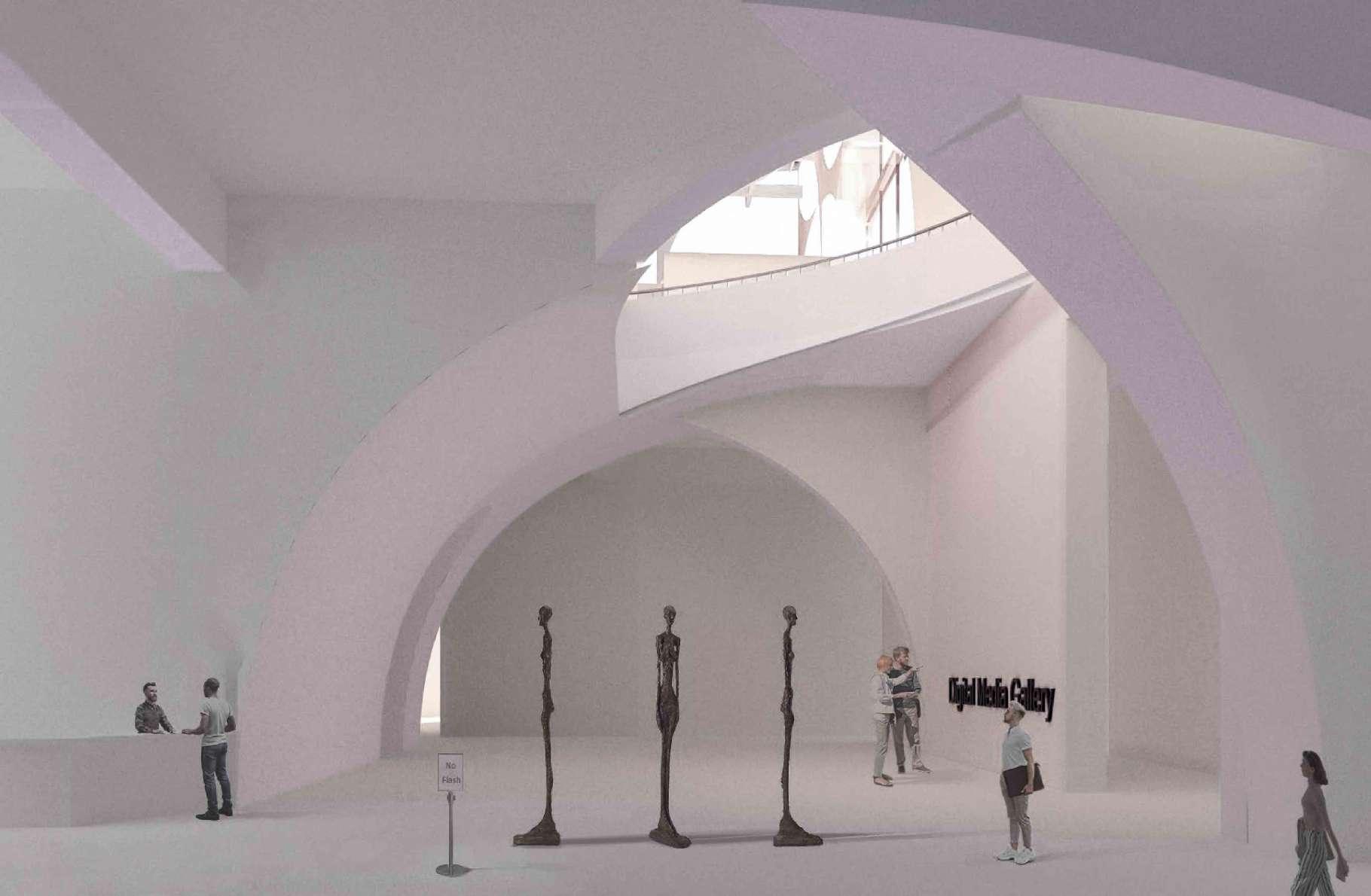

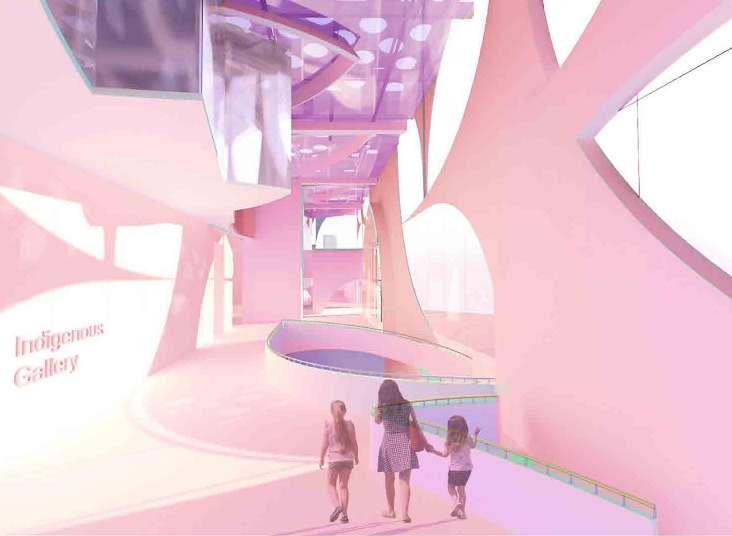

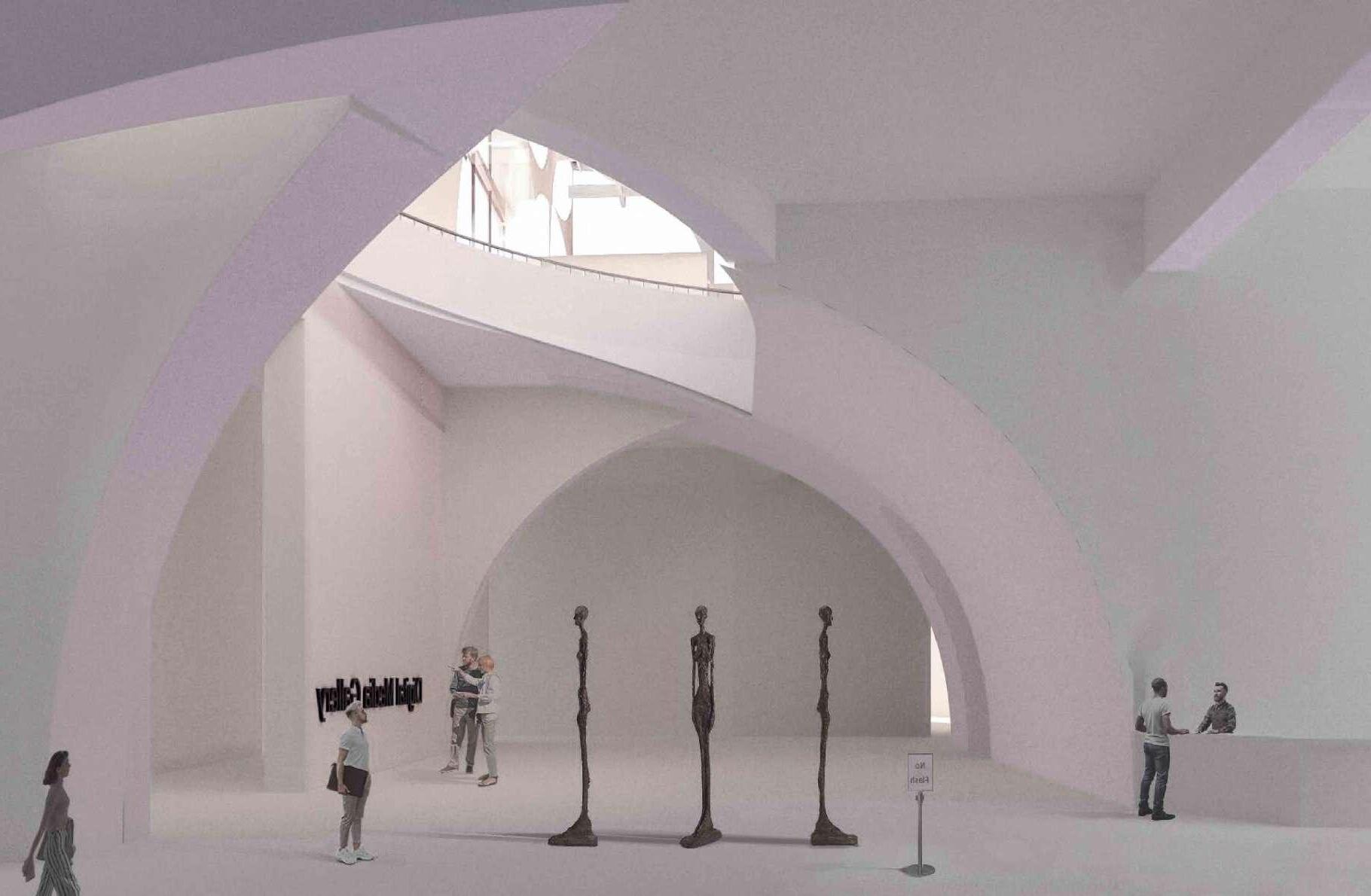

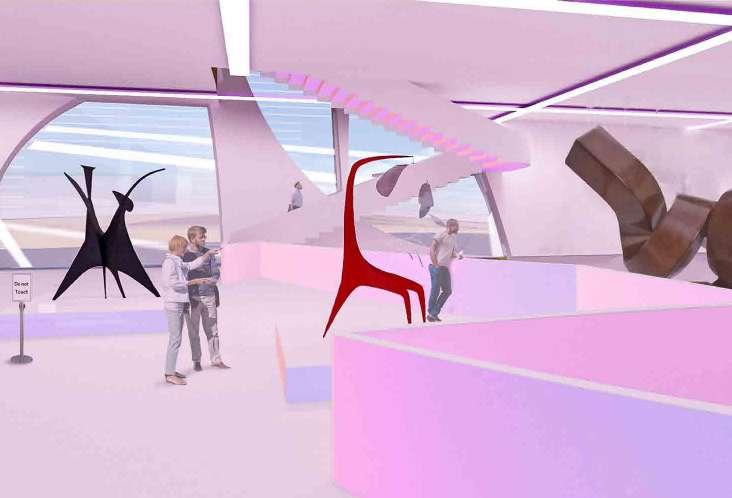

INTERIOR EXHIBITION SPACE

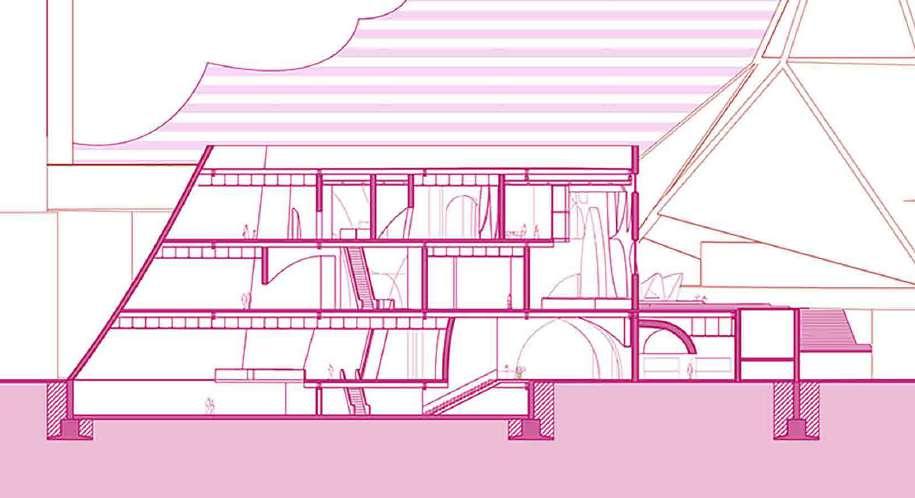

SECTION

Atrium rendering

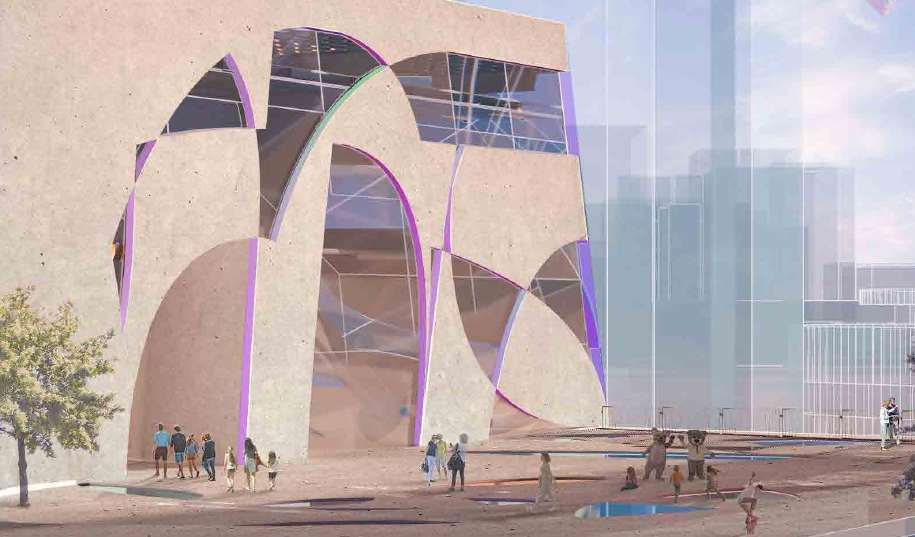

EXTERIOR rendering

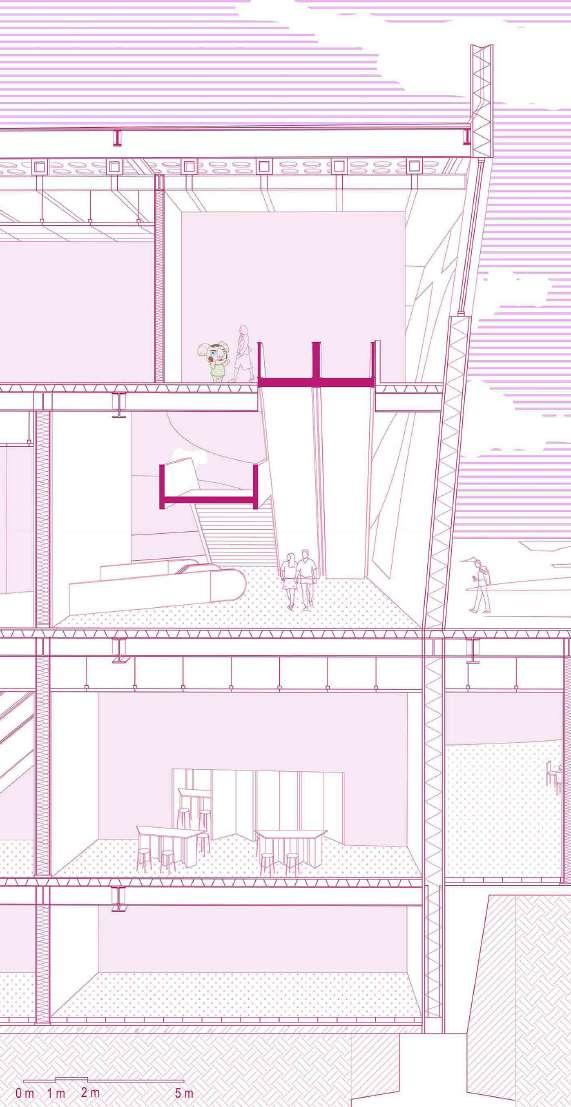

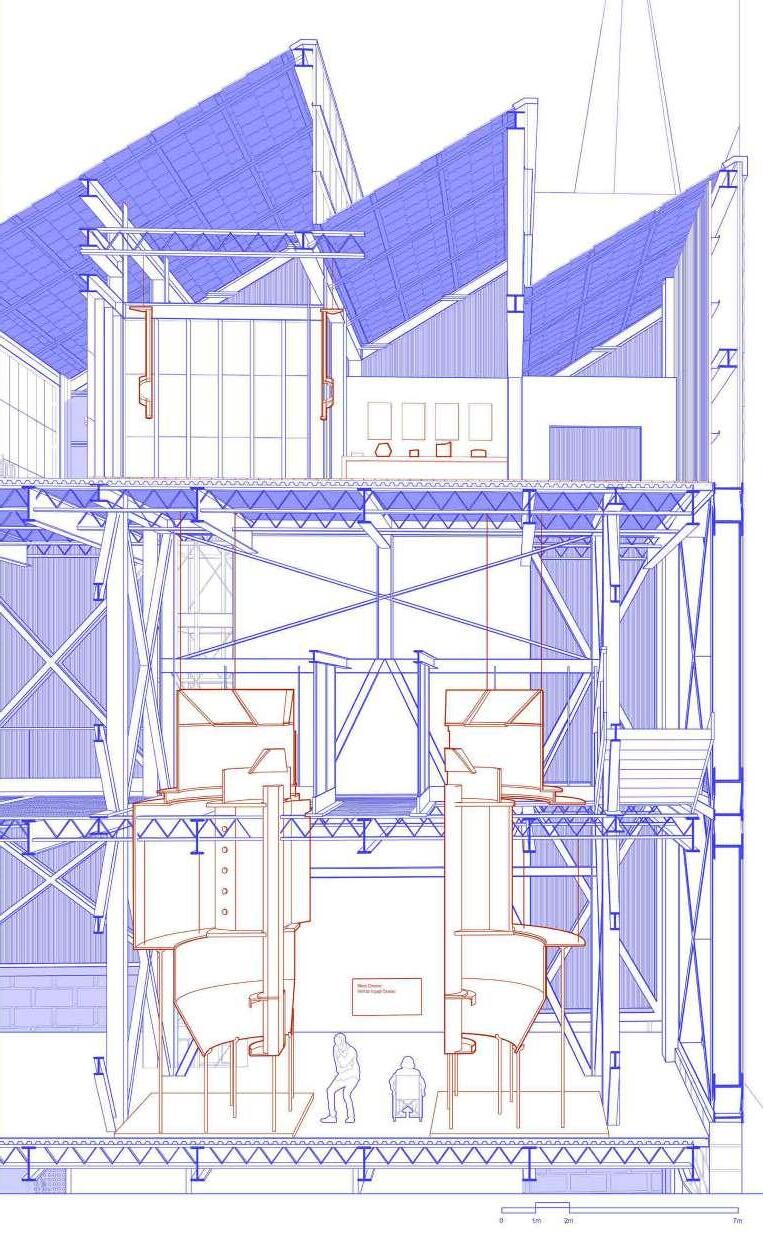

Detail Section

APPENDIX - New century grand hotel tongxiang, china

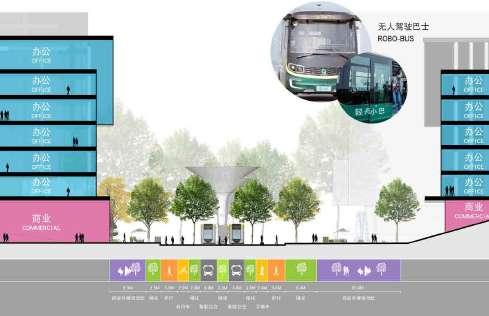

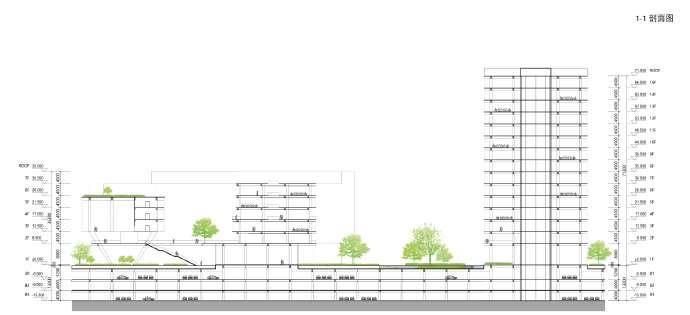

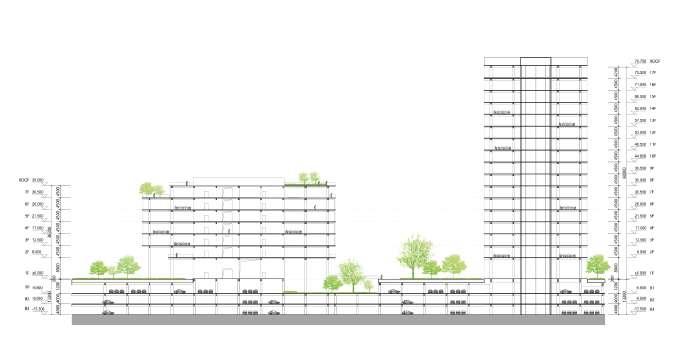

Appendix - AI - PARK Office park in suzhou, china Section 1-1

Section 2-2

Handdrawing

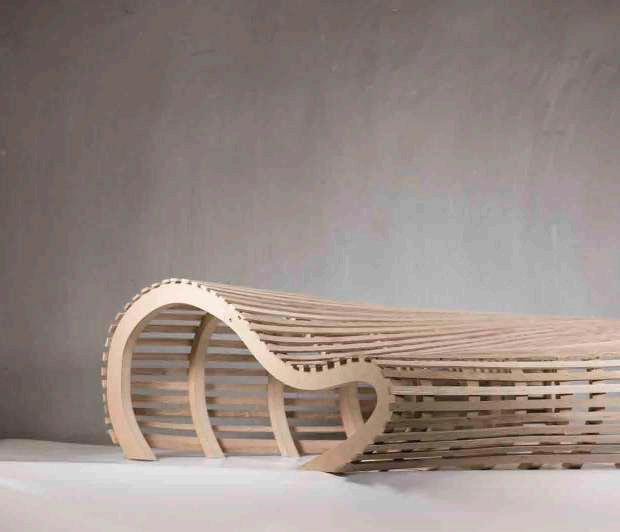

APPENDIX AA VISITING SCHOOL 2017 WIN

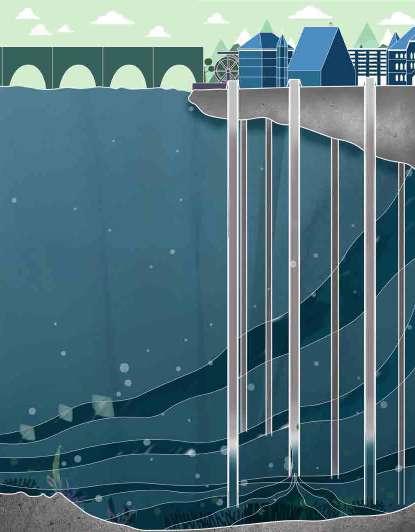

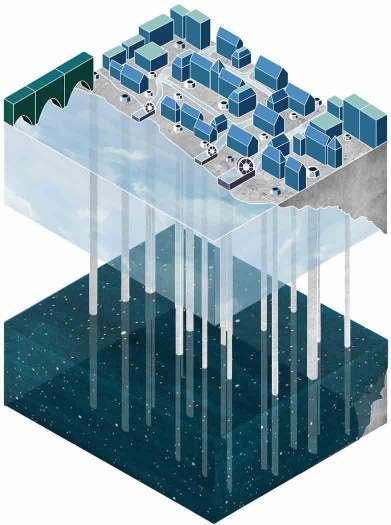

eVOLO 2021 Group Work Narrative digital drawing Inspired from the chaper 'Thin city - Isaura - City of the thousand wells' in the book named 'Invisible city'.

Studio C 2019 SEM1 Group Work Tutor: Darcy Zelenko
