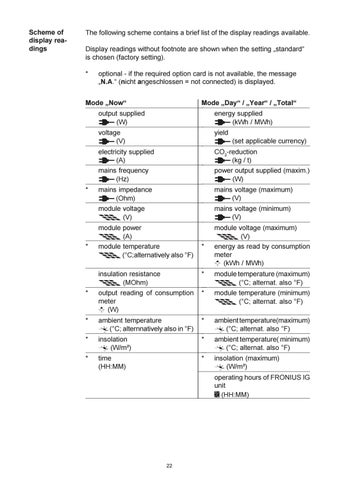

Scheme of display readings
The following scheme contains a brief list of the display readings available. Display readings without footnote are shown when the setting „standard“ is chosen (factory setting). *
optional - if the required option card is not available, the message „N.A.“ (nicht angeschlossen = not connected) is displayed.
Mode „Now“
*
*
Mode „Day“ / „Year“ / „Total“
output supplied (W)
energy supplied (kWh / MWh)
voltage (V)
yield
electricity supplied (A)
CO2-reduction (kg / t)
mains frequency (Hz)
power output supplied (maxim.) (W)
mains impedance (Ohm)
mains voltage (maximum) (V)
module voltage (V)
mains voltage (minimum) (V)
module power (A) module temperature (°C;alternatively also °F)
module voltage (maximum) (V) energy as read by consumption meter (kWh / MWh)
(set applicable currency)
*
insulation resistance (MOhm)
*
module temperature (maximum) (°C; alternat. also °F)
*
output reading of consumption meter (W)
*
module temperature (minimum) (°C; alternat. also °F)
*
ambient temperature (°C; alternnatively also in °F)
*
ambient temperature(maximum) (°C; alternat. also °F)
*
insolation (W/m²)
*
ambient temperature( minimum) (°C; alternat. also °F)
*
time (HH:MM)
*
insolation (maximum) (W/m²) operating hours of FRONIUS IG unit (HH:MM)
