Type: LIBRARY

Time: April 2022

Software: Rhino, Enscape, Illustrator, Photoshop, InDesign Advisor: Isabel Ochoa, Sifei Mo

Project completed alone.

Located in Corktown, Toronto, the Commuter Hub Library is a key destination for people commuting to and from work. This public building is a union between a traditional library, bike repair and commuter centre. The Commuter Hub promotes sustainable transit - is located next to TTC street car lines, Bike Share Toronto stations, and prioritizes bikers.

As a building designed for the everyday commuter, this library includes bathrooms, showers, a cafe, and a bike parking garage - all on the first floor. The remaining programs can be reached with a completely accessible ramp that wraps around the floors.

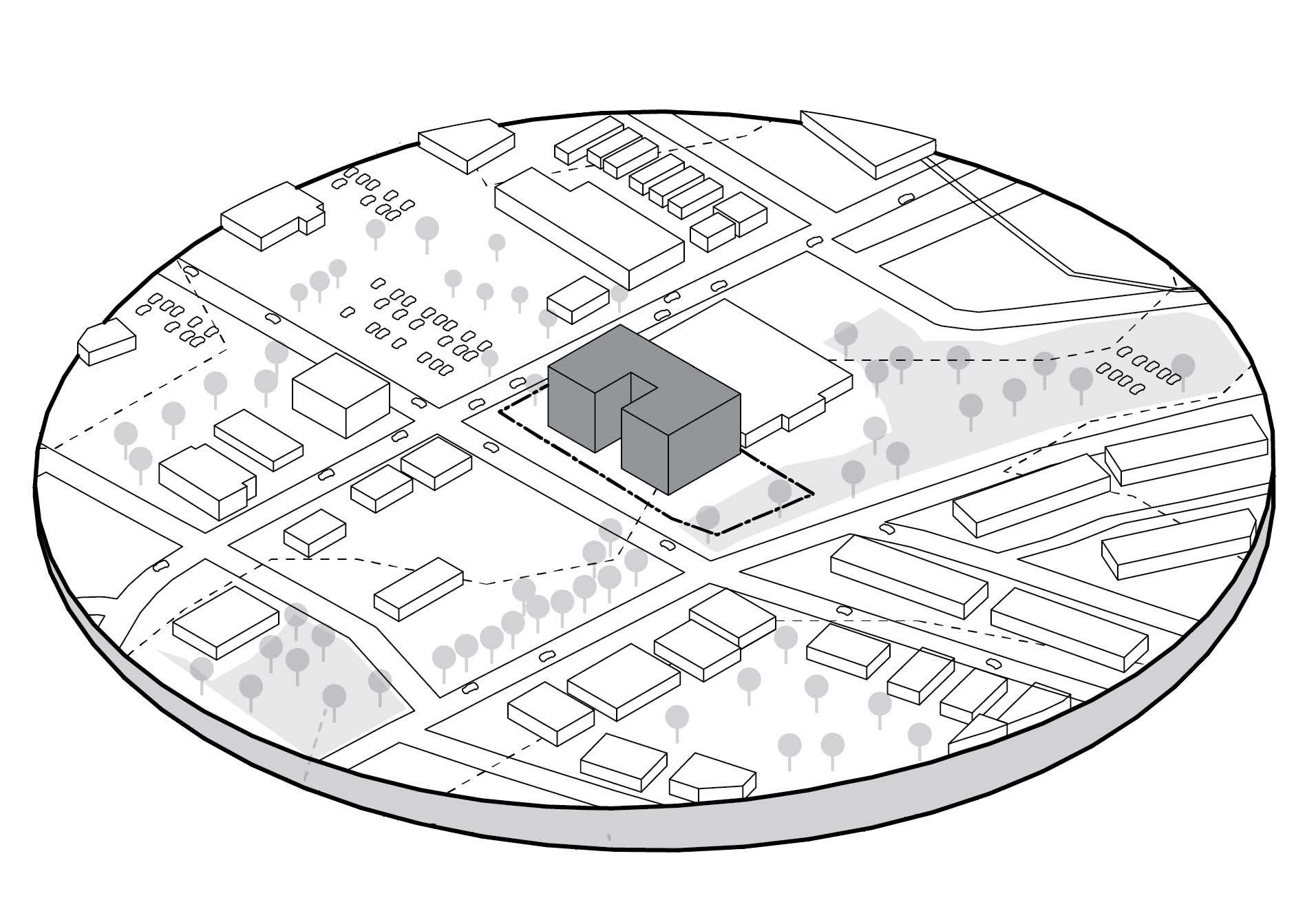

The exterior landscaping involves car parking, exterior bike racks, and a ramp that leads to the underground bike parking garage as well as the original bike path that is under the street.

The Commuter Hub Library is the perfect place to repair a bike, study, and even shower.

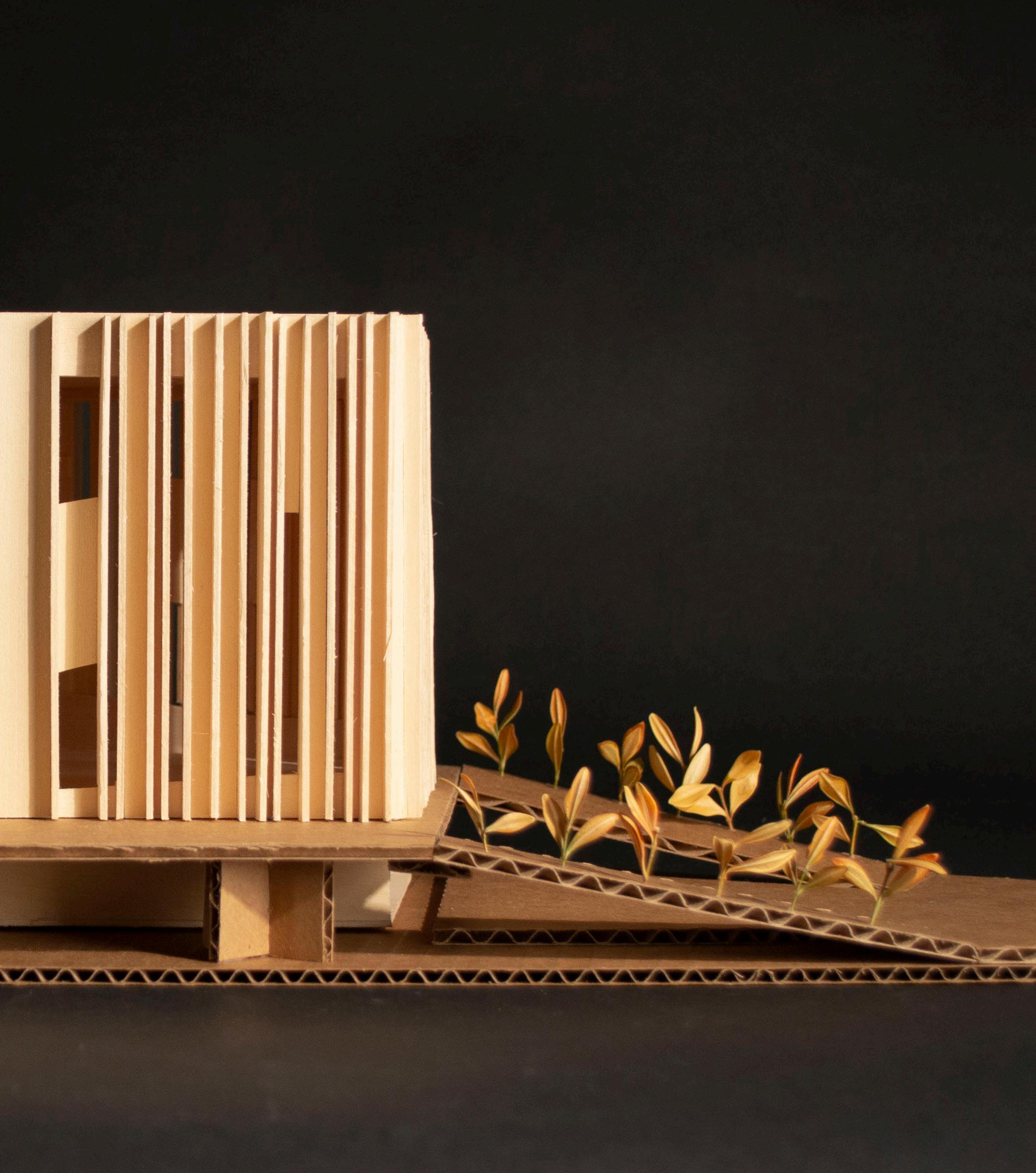

FORM FOLLOWS RAMP

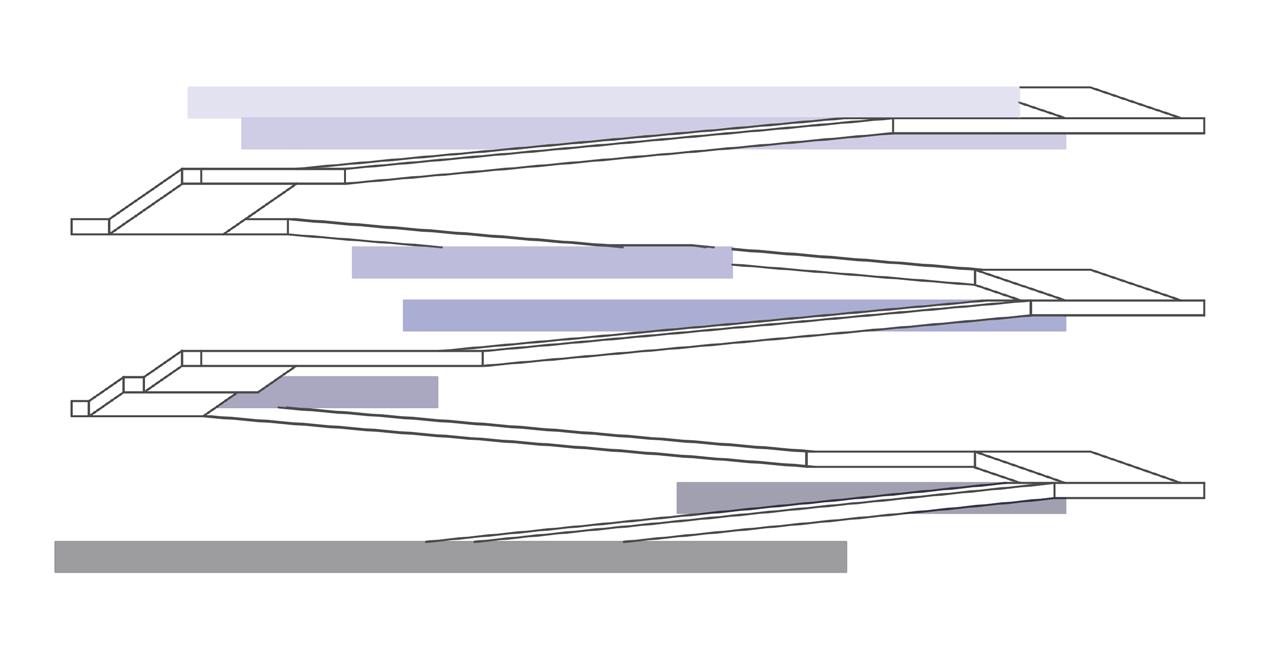

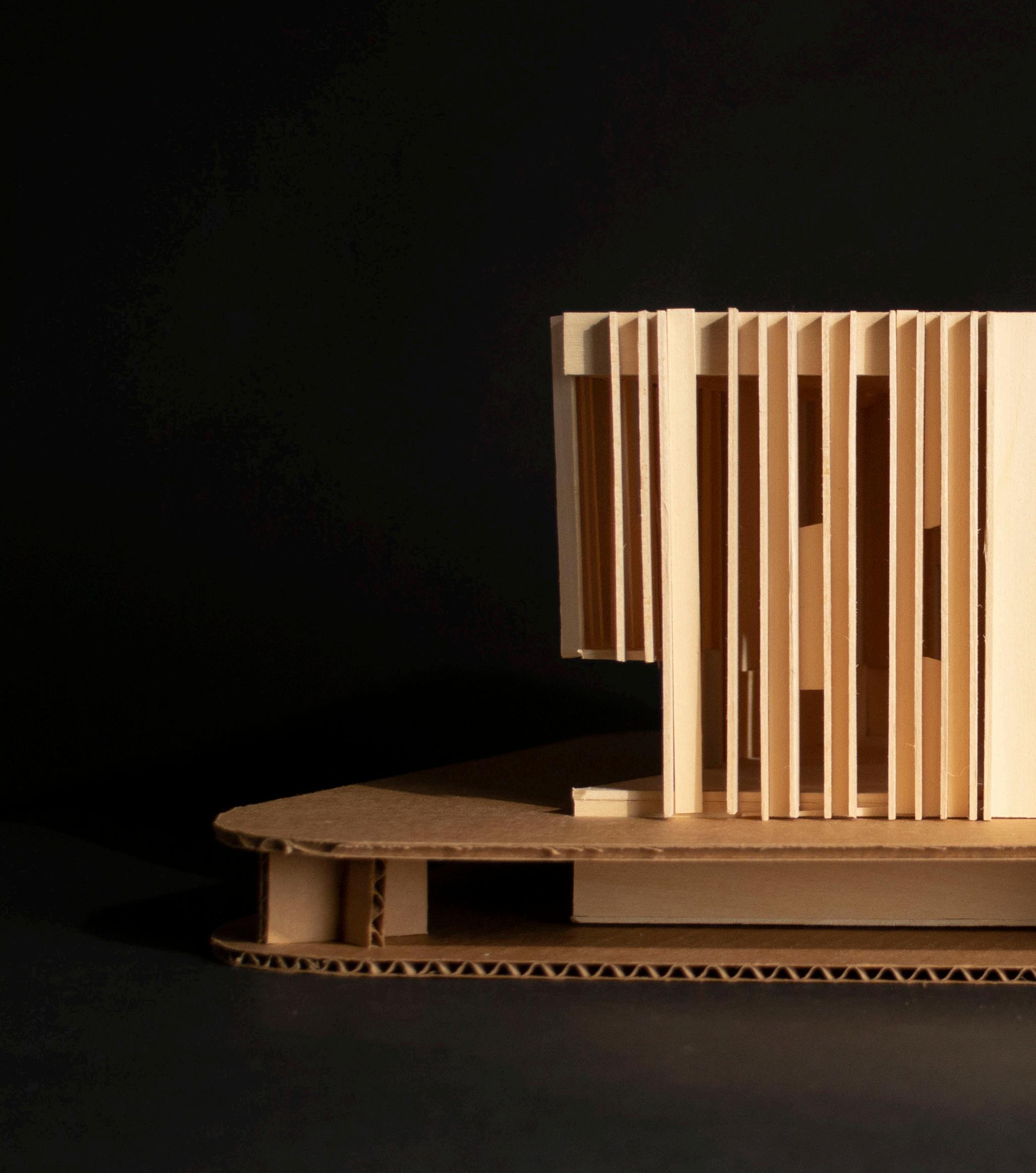

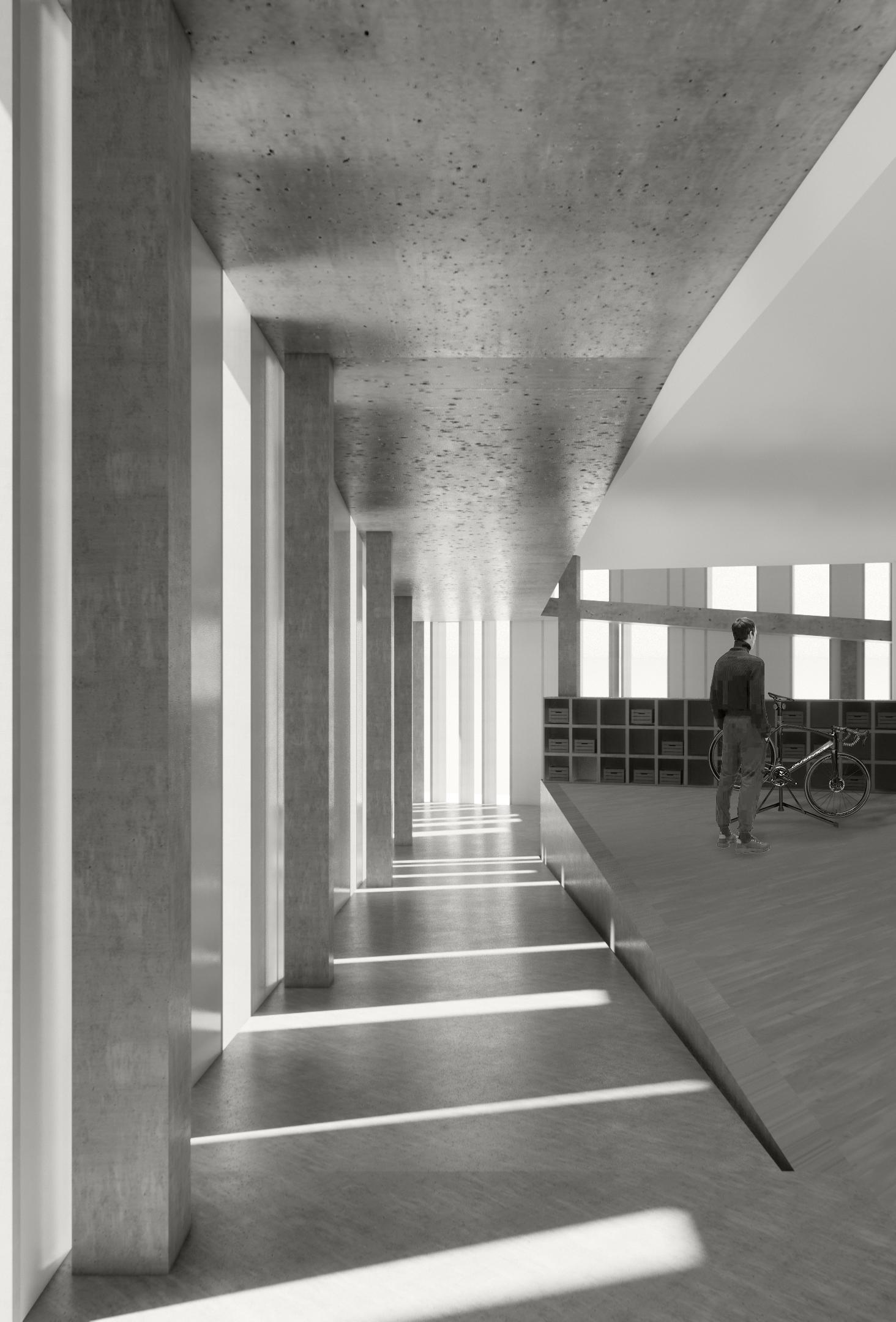

The Commuter Hub Library is accessible to all demographics. The parti is a ramp that encircles all of the building’s programs. This creates a public building that is entirely accessible to everyonefrom bikes, to strollers and wheelchairs.

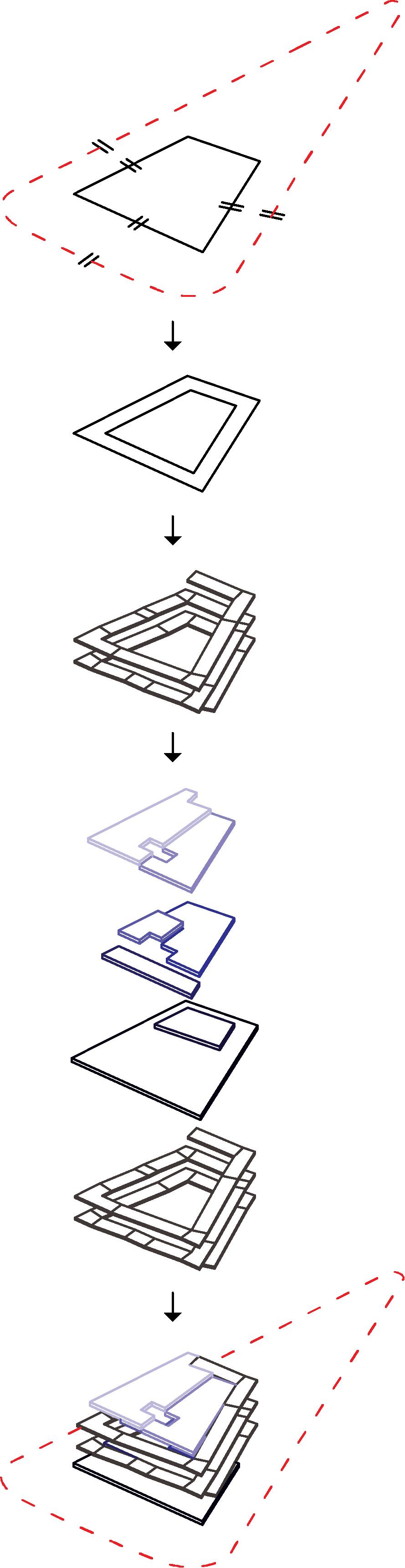

The floors shift and align to the ramp to prevent or create privacy without the use of walls. The Commuter Hub is open to all demographics - the commuter facilities are also open to the homeless population, so visibility is key.

VITRUVIAN BIKE

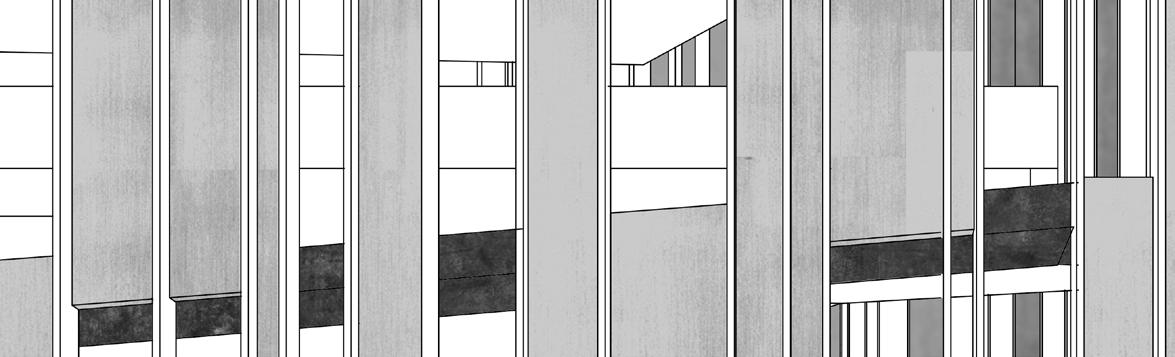

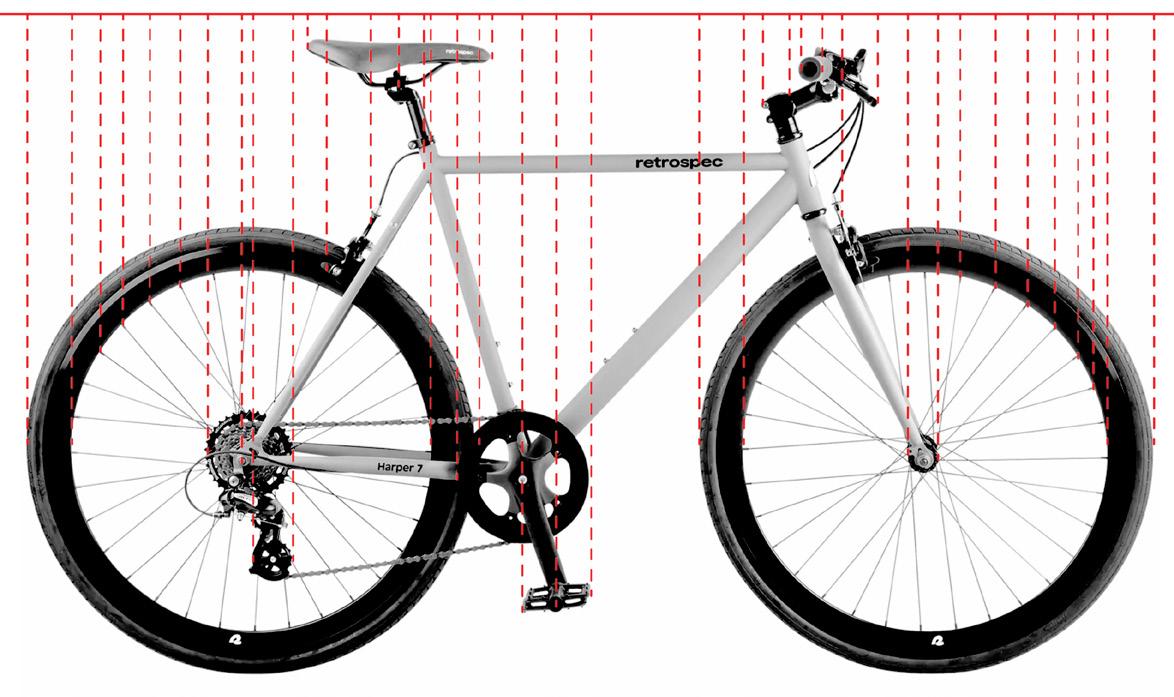

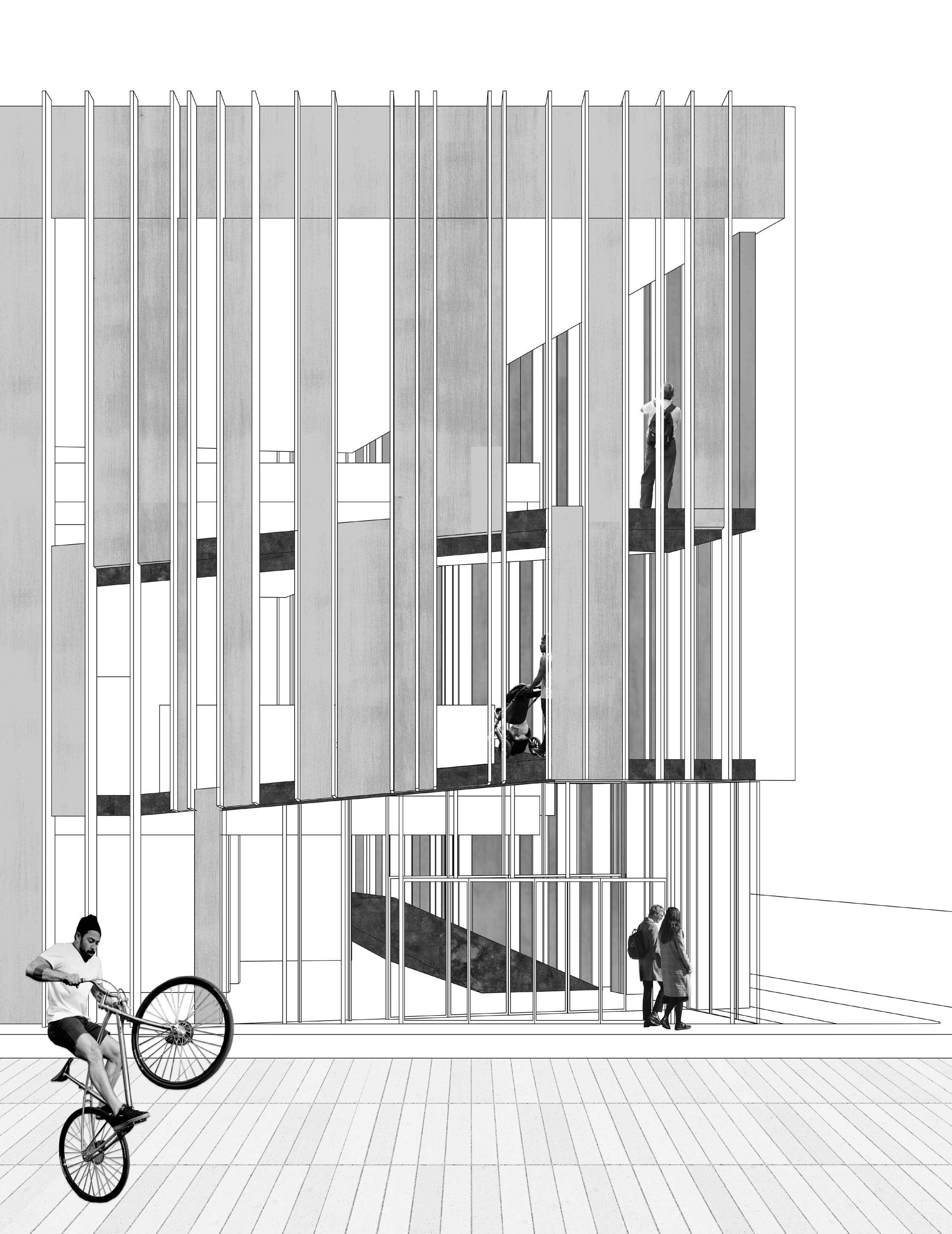

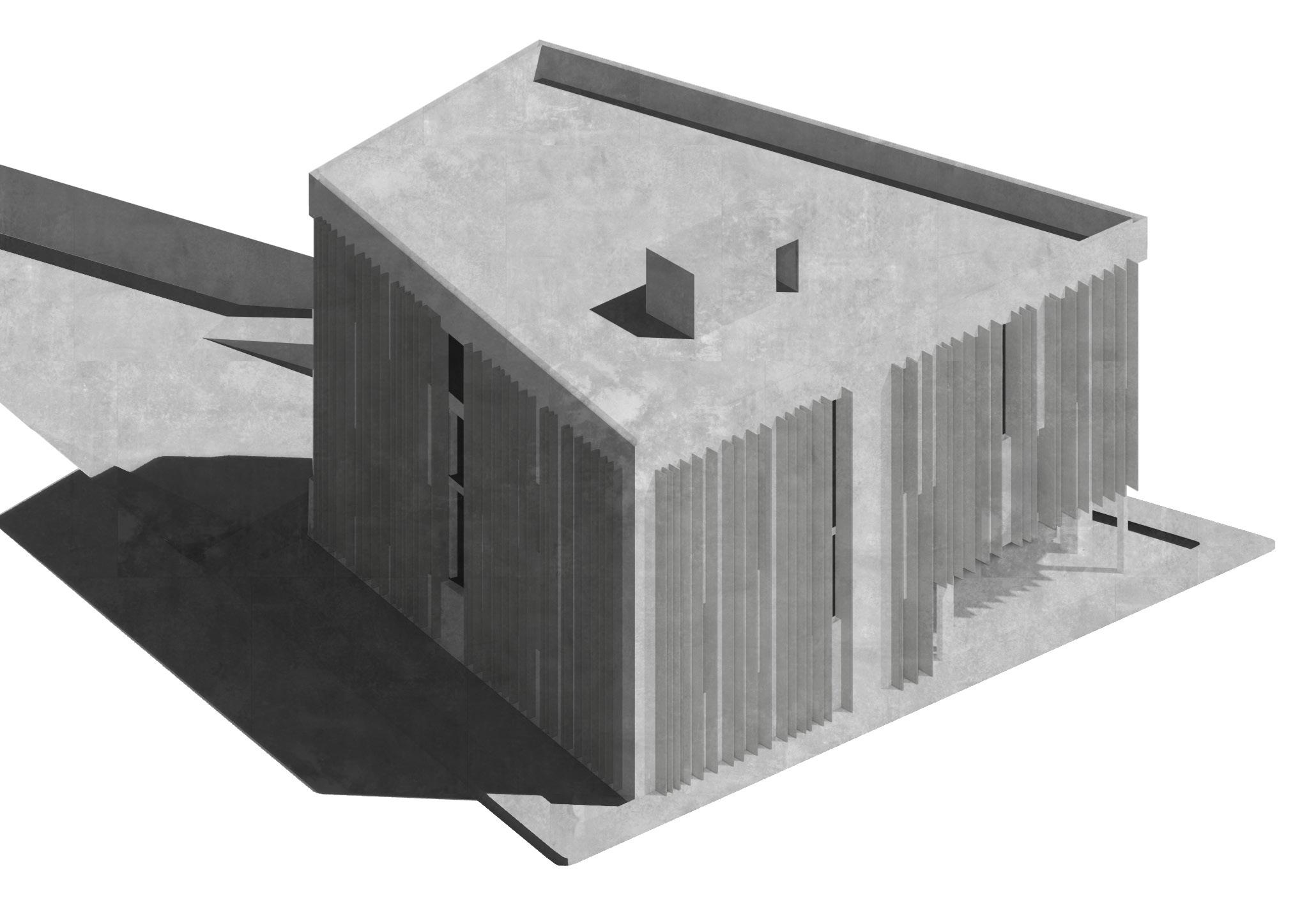

The facade detail is based on a ‘vitruvian bike’ in which the vertical fin arrangement is based on the proportions of a standard bike.

The fin depth varies for each side of the building, changing for different orientations to maximize passive heating and diffuse lighting. The spaces between vertical fins are filled to depending on the program of each floor and sun exposure.

1F PLAN (1.1, 1.2)

BASEMENT PLAN (0.1, 0.2)

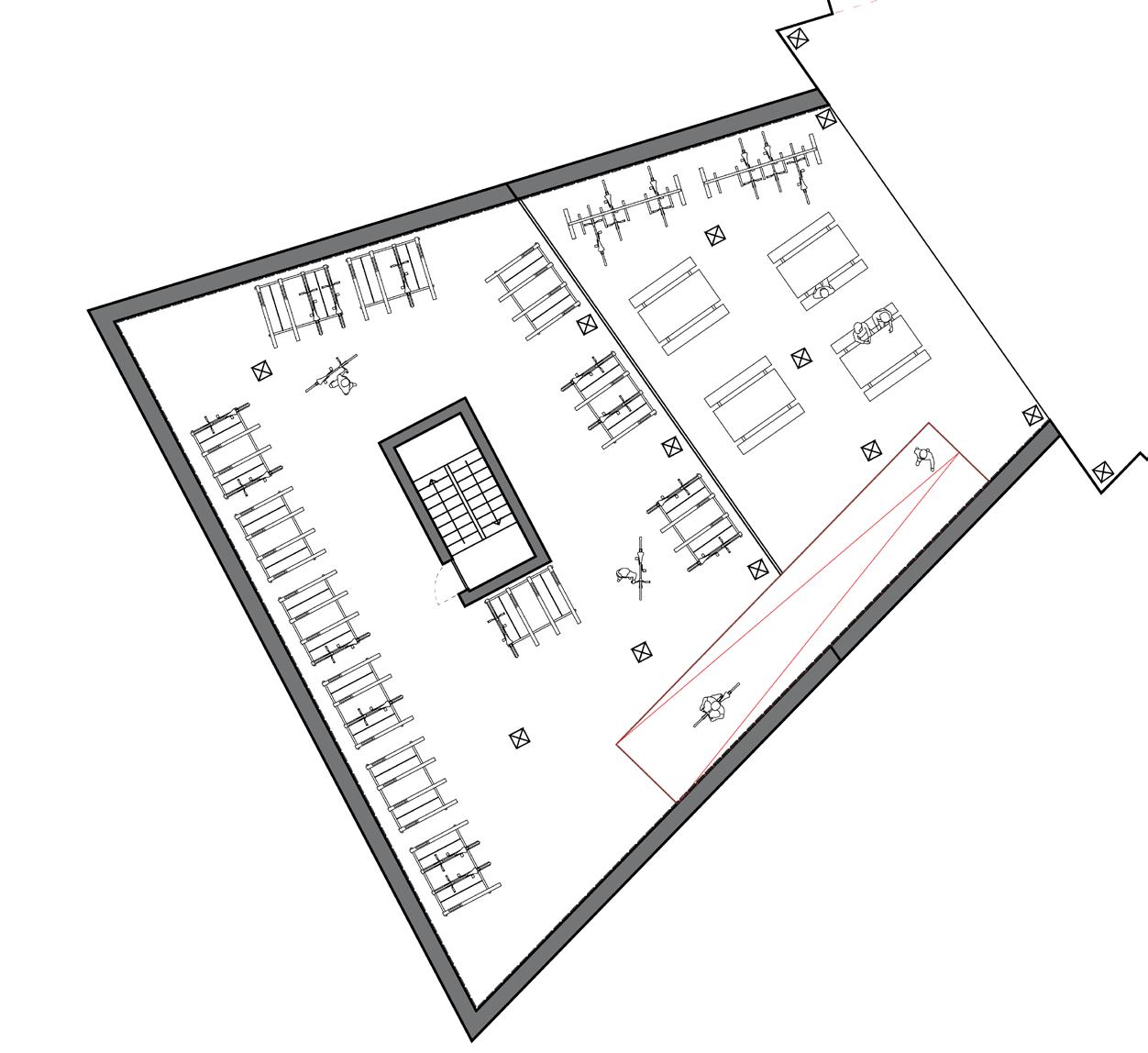

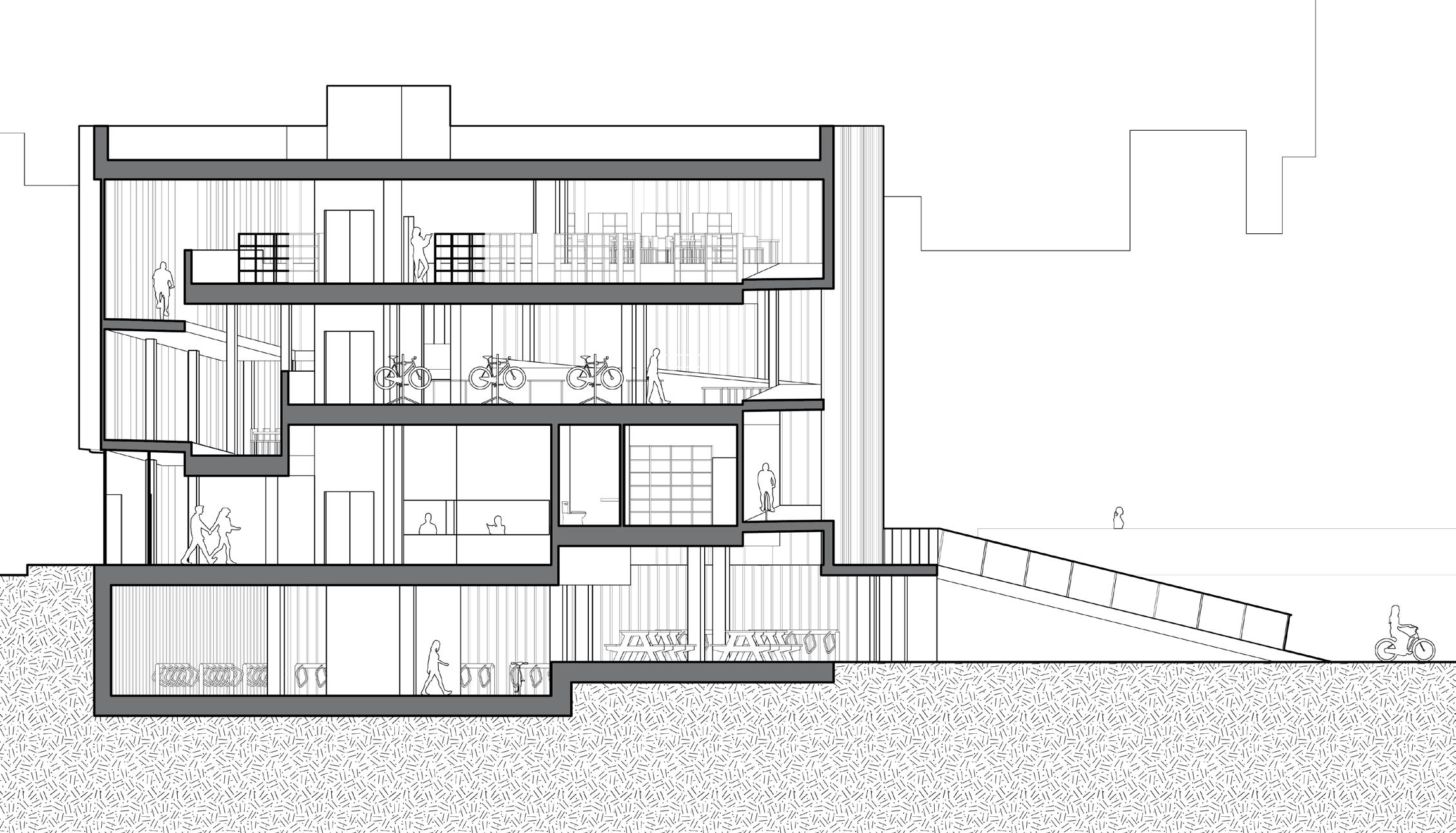

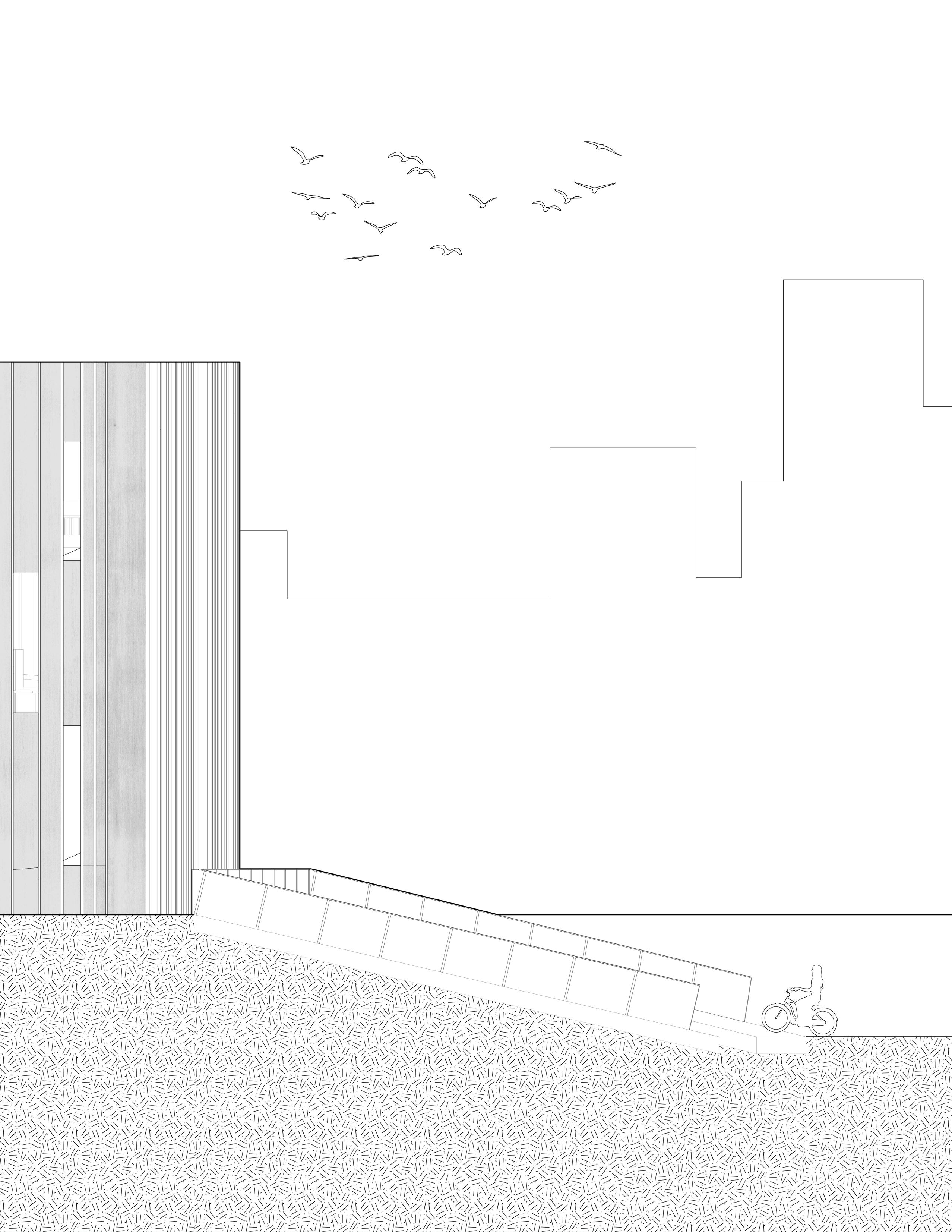

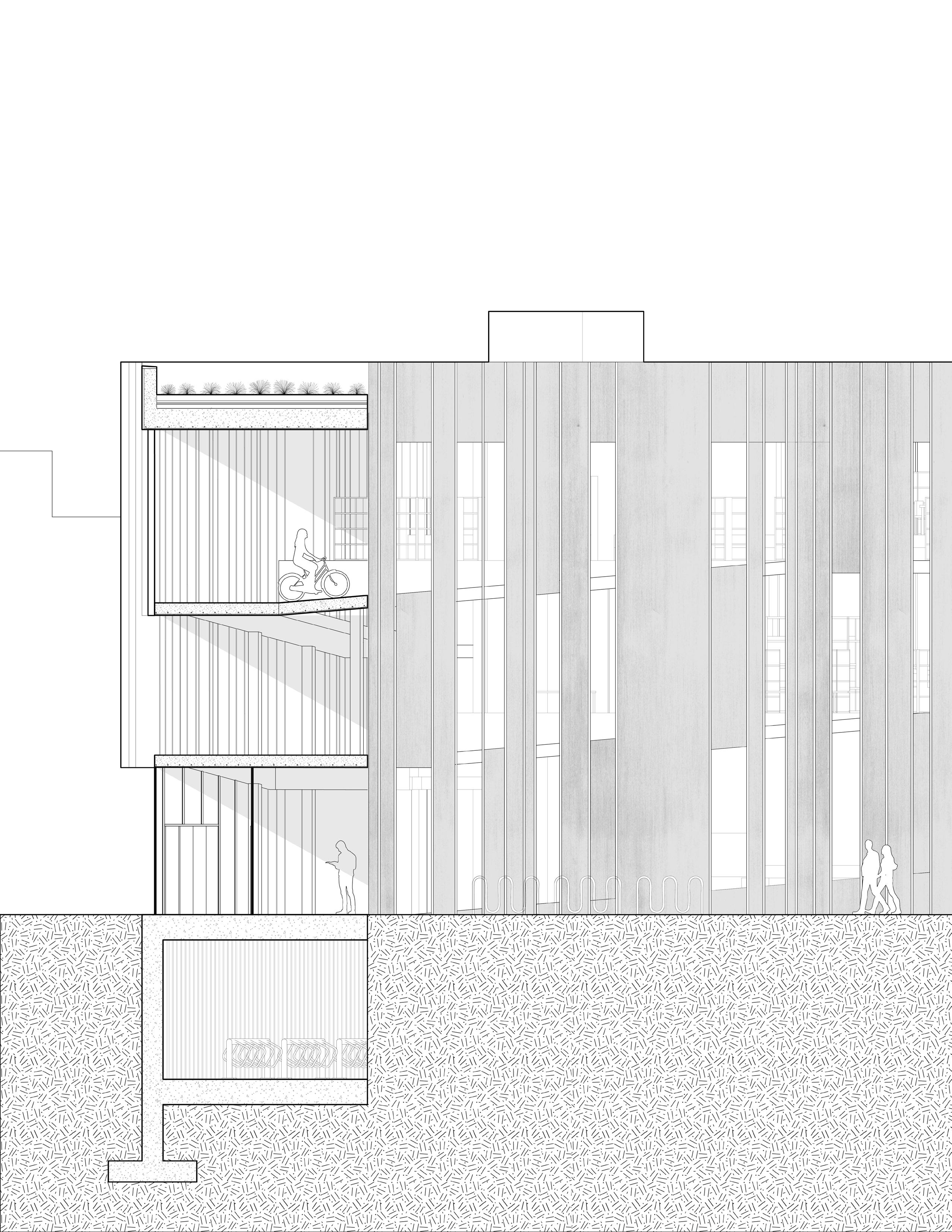

The sloped site is excavated to create an underground bike parking garage that is accesible from the site’s existing bike path. This floor contains a sheltered sitting area, bike parking and a ramp that maintains the building’s form parti.

The programs were determined based on need and accessibility. Bike repair is prioritized in this library, and is therefore on the 3rd floor whereas the media and stufy spaces on the the top floor.

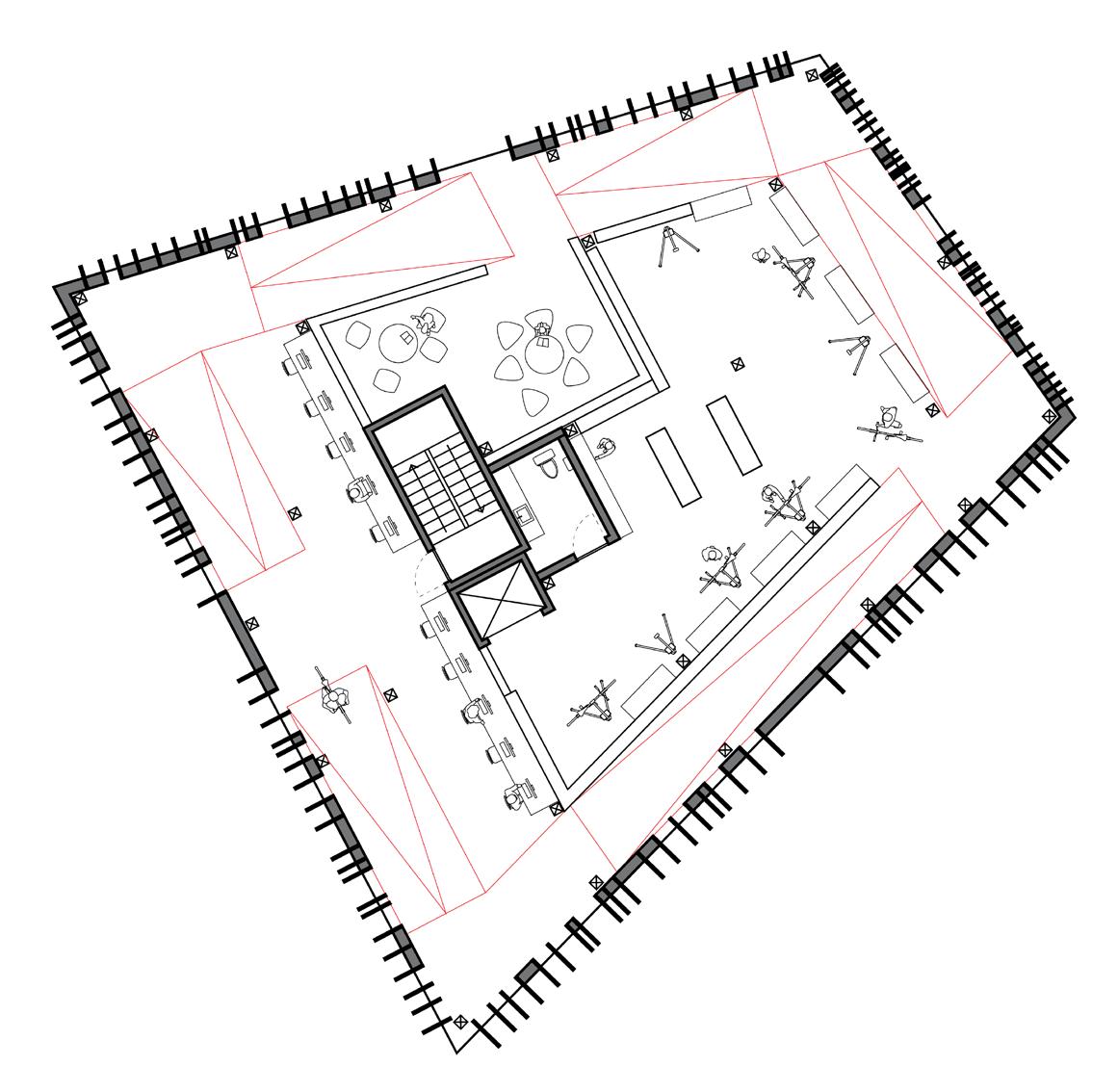

4F PLAN (2.1, 2.2, 2.3)

3F PLAN (3.1, 3.2)

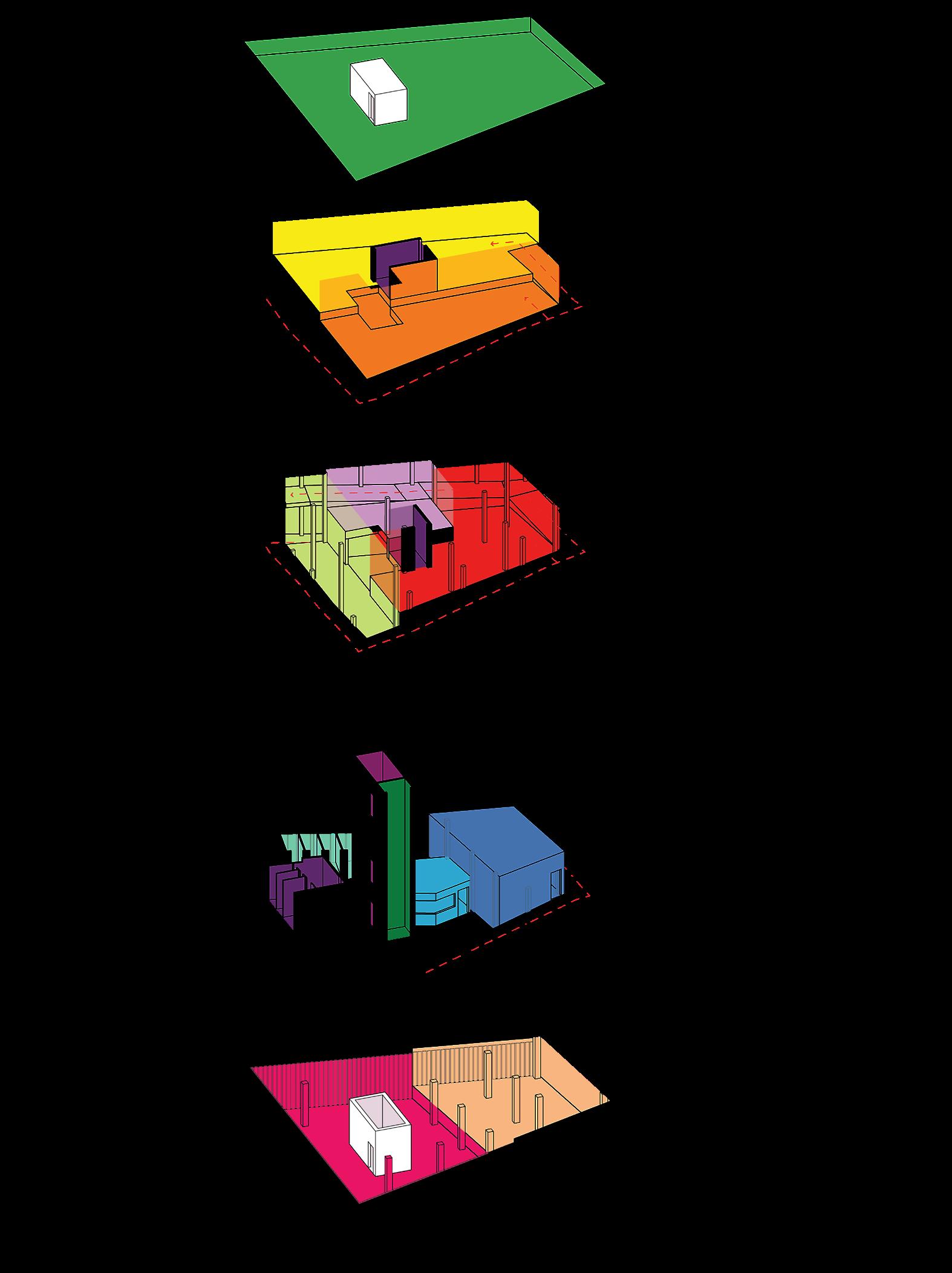

Greenroof

Study space (3.2)

Media (3.1)

Children’s area (2.3)

Bike repair (2.2)

Computer lab (2.1)

Info/Checkout

Staff area (1.2)

Bathroom (1.1)

Showers (1.1)

Outdoor shelter (0.1)

Sheltered bike parking (0.2)

Ramp Stairs

Elevator

RAMP TO 3RD FLOOR BIKE REPAIR

MONTMORENCY FOOTBRIDGE

Type: BRIDGE

Time: April 2022

Software: Rhino, Illustrator, Photoshop, InDesign

Course: Arch 173 Building Construction 2

Instructor: Terri Boake

Project completed in collaboration with Kyra Hiltz.

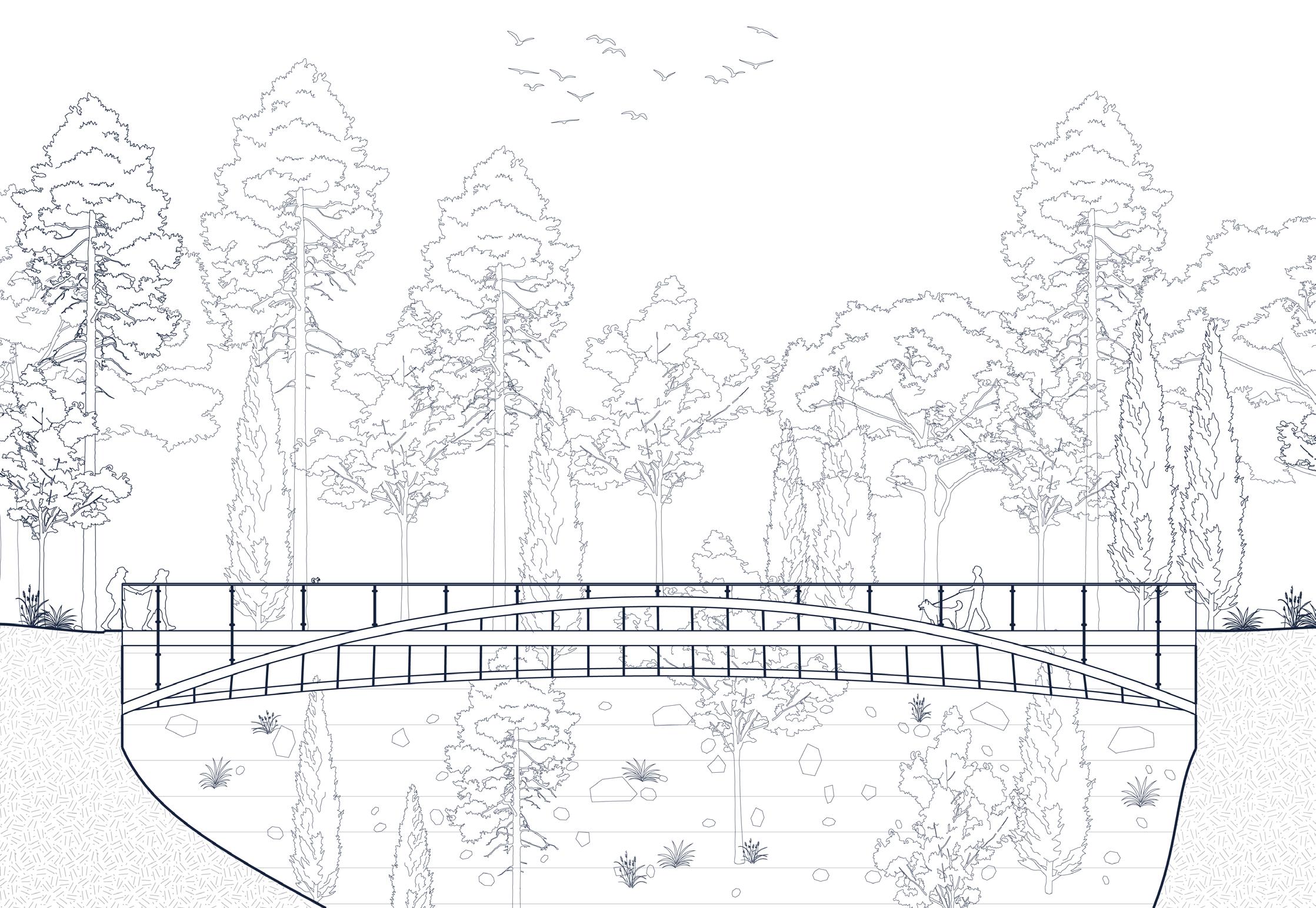

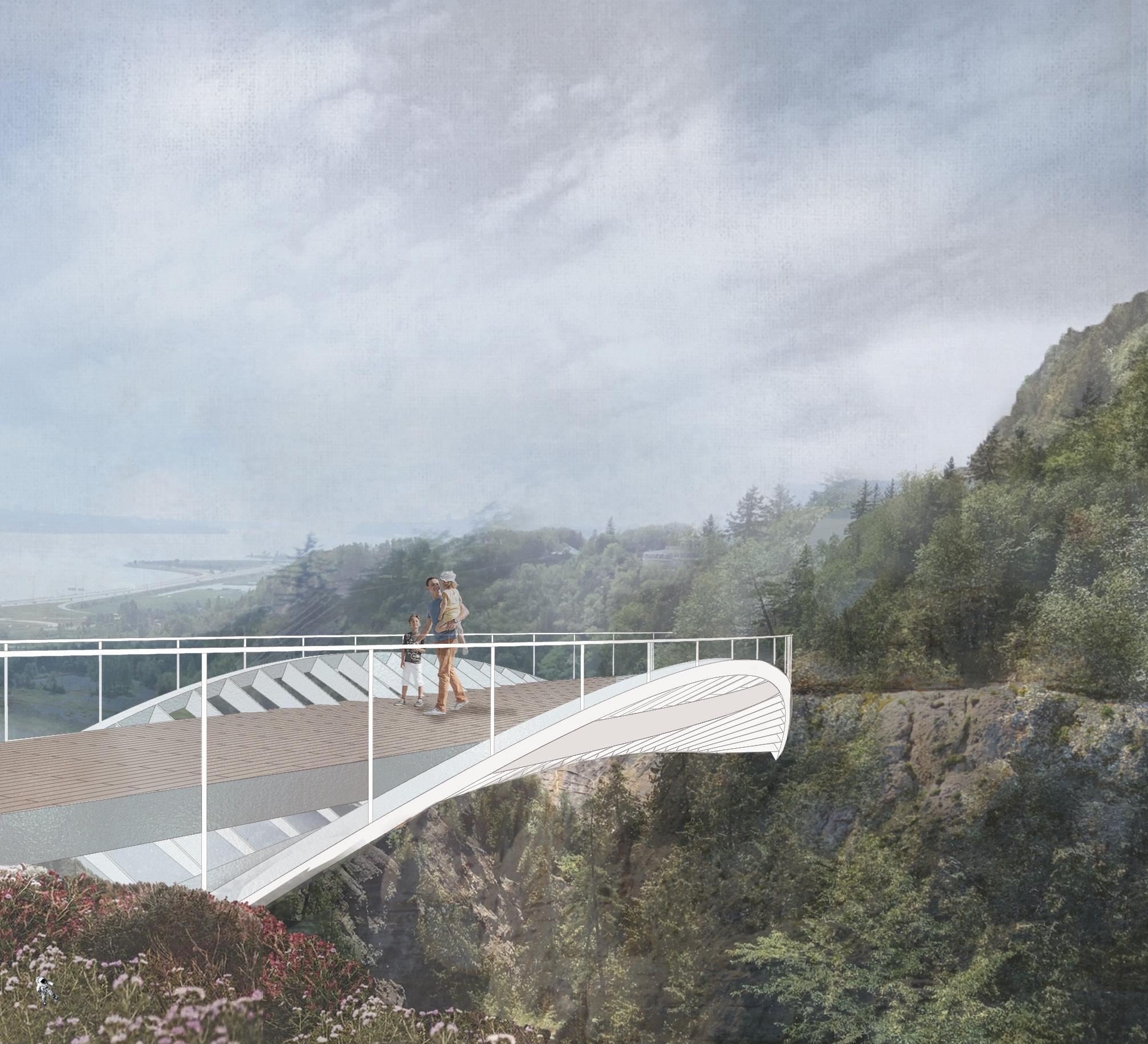

Located on a scenic foot trail in Quebec, the Montmorency Footbridge mimics the form of a White Ash tree native to Quebec. It is an arch compression bridge made up of concrete footings, stainless steel structural members, and a steel deck finished with a wood deck. Safety is ensured with a stainless steel railing with glass inserts held by stainless steel doc and pin fasteners. The steel connections are held together by pin connections, hidden inside the structural members for an elegant, clean finish.

STAINLESS STEEL MAIN STRUCTURAL MEMBER

GUSSET WASHERS

CLEVIS PIN

CAP

STAINLESS STEEL SECONDARY STRUCTURAL MEMBERS

CLEVIS

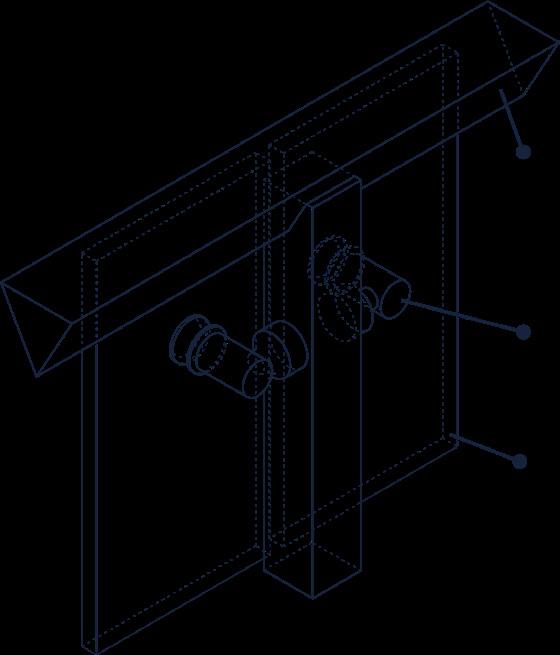

DETAIL AA

Connections between the steel main and secondary members are hidden inside the main structural member to create an elegant finish.

STAINLESS STEEL RAILING

STAINLESS STEEL DOC AND PIN FITTING GLASS

DETAIL BB

STEEL DECK

STAINLESS STEEL STRUCTURAL MEMBERS

STAINLESS STEEL RAILING WITH GLASS INSERTS

OFF GRID OASIS

Type: HOUSING

Time: April 2022 Software: Rhino, Enscape, Illustrator, Photoshop, InDesign Course: Arch 126 Environmental Design Instructor: Anna Beznogova

Project completed in collaboration with Jinhong Rioux.

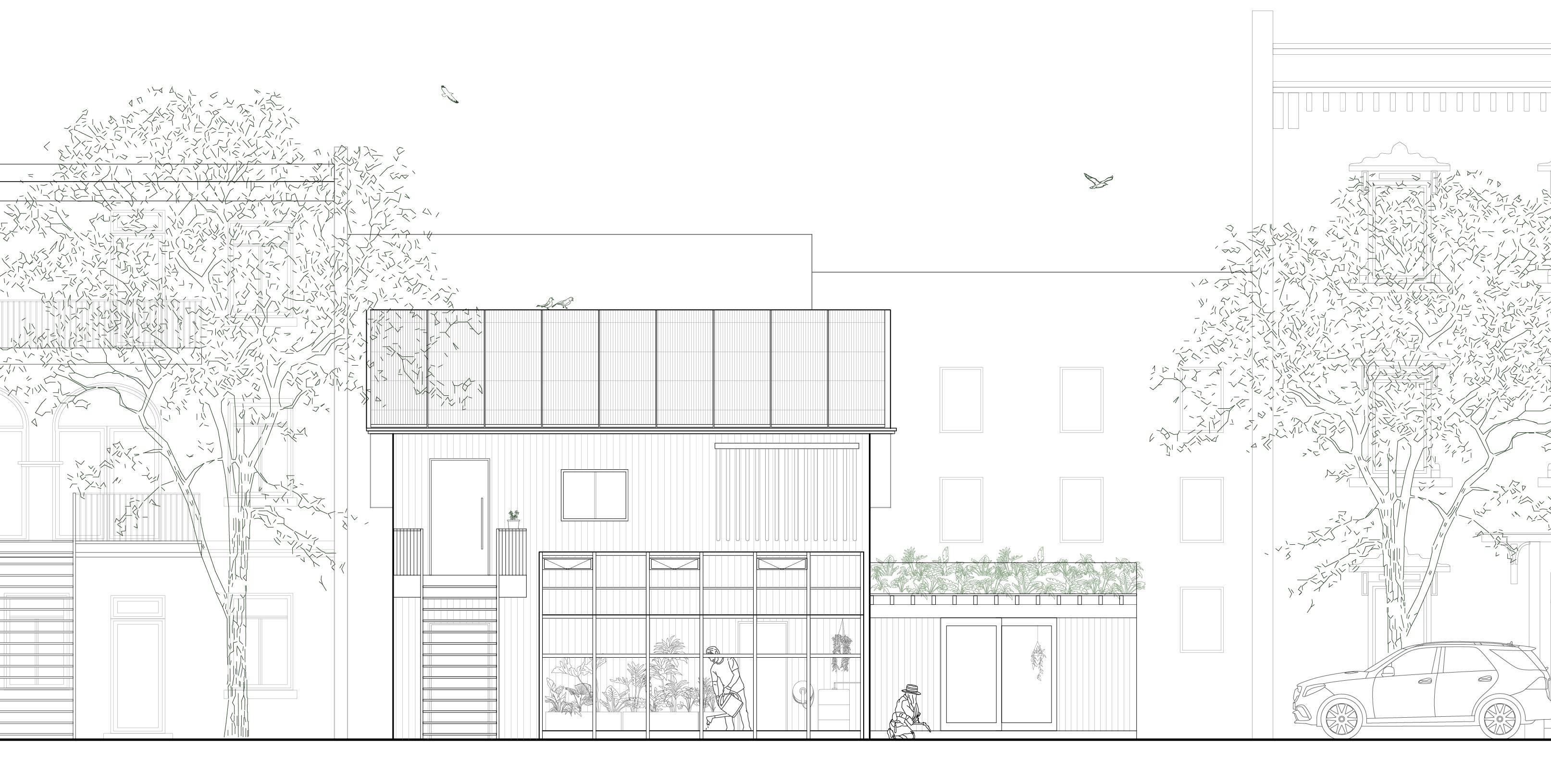

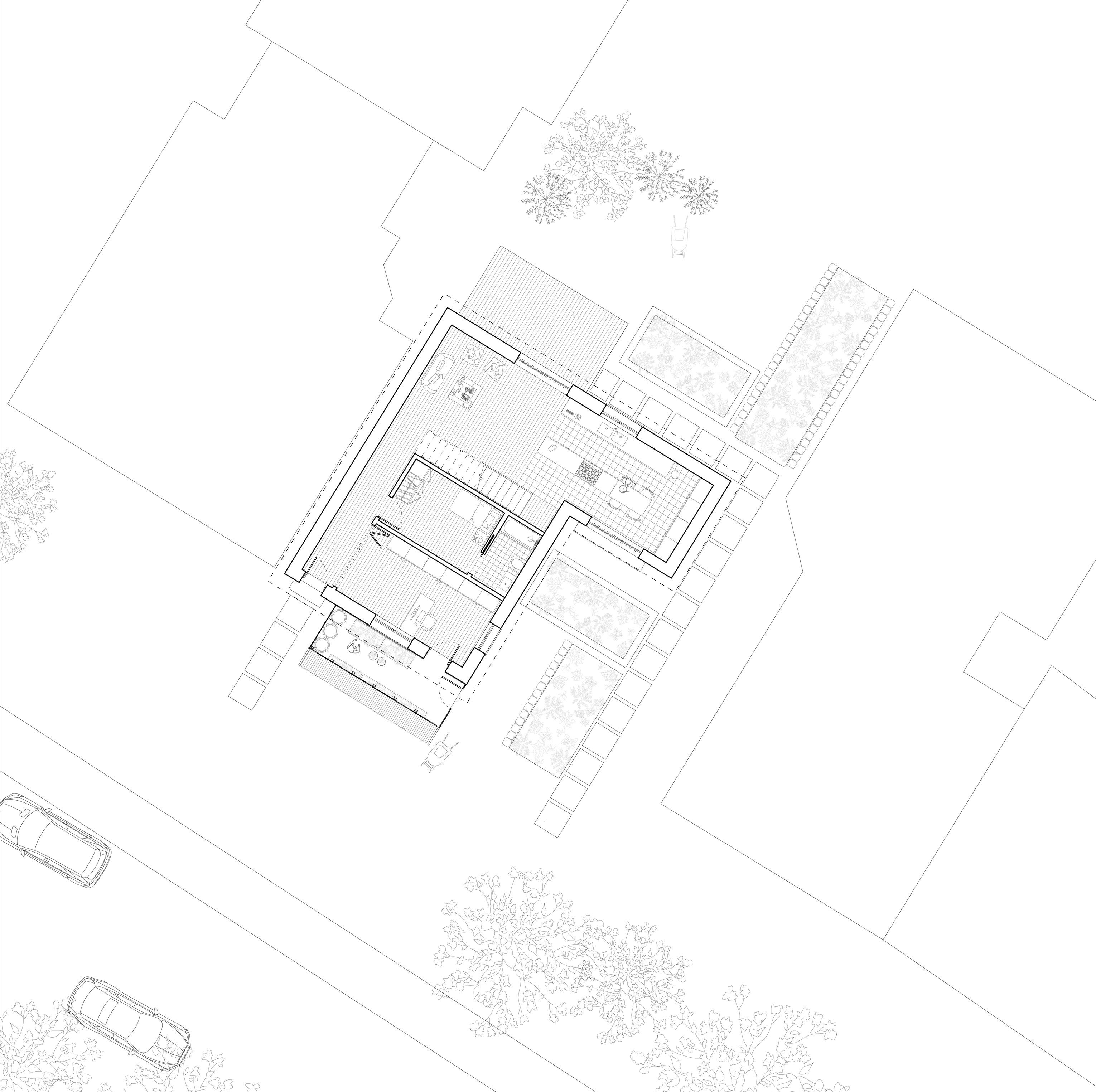

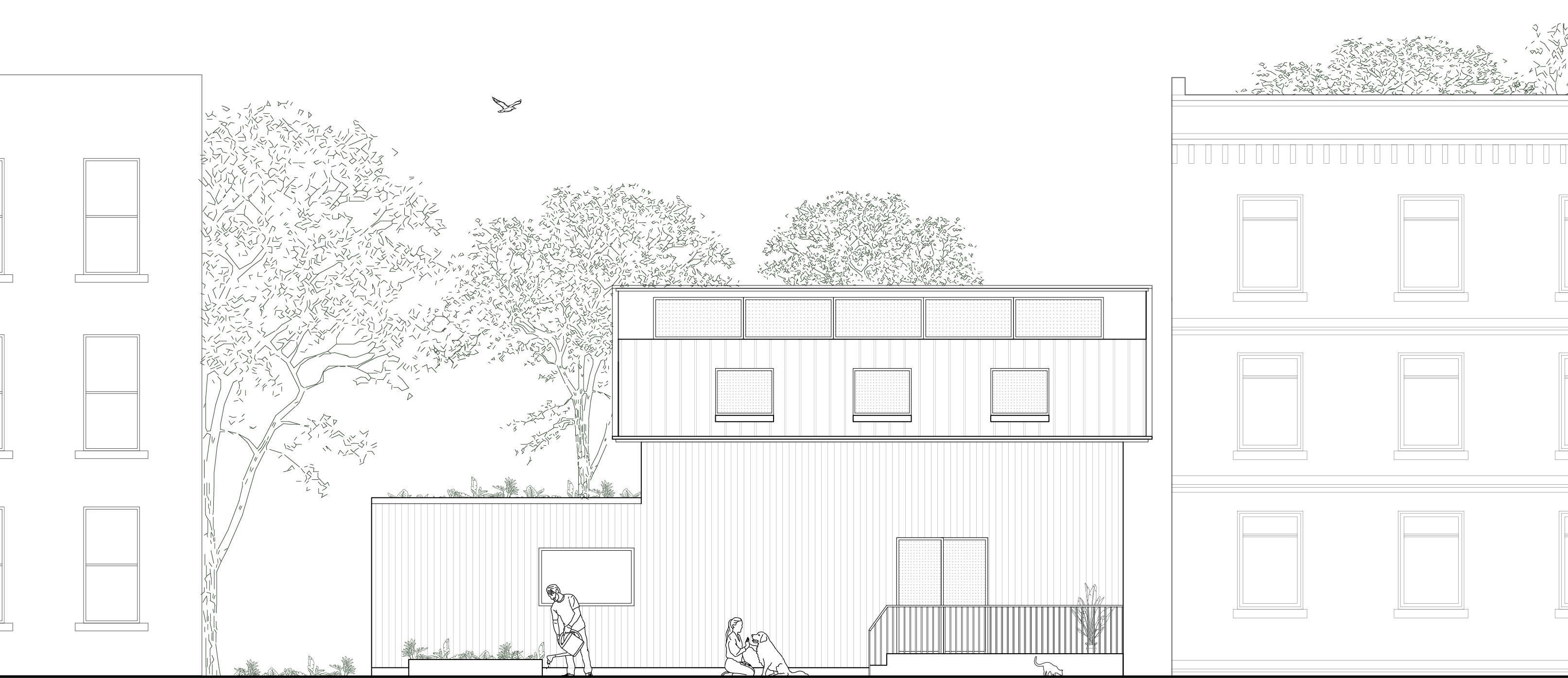

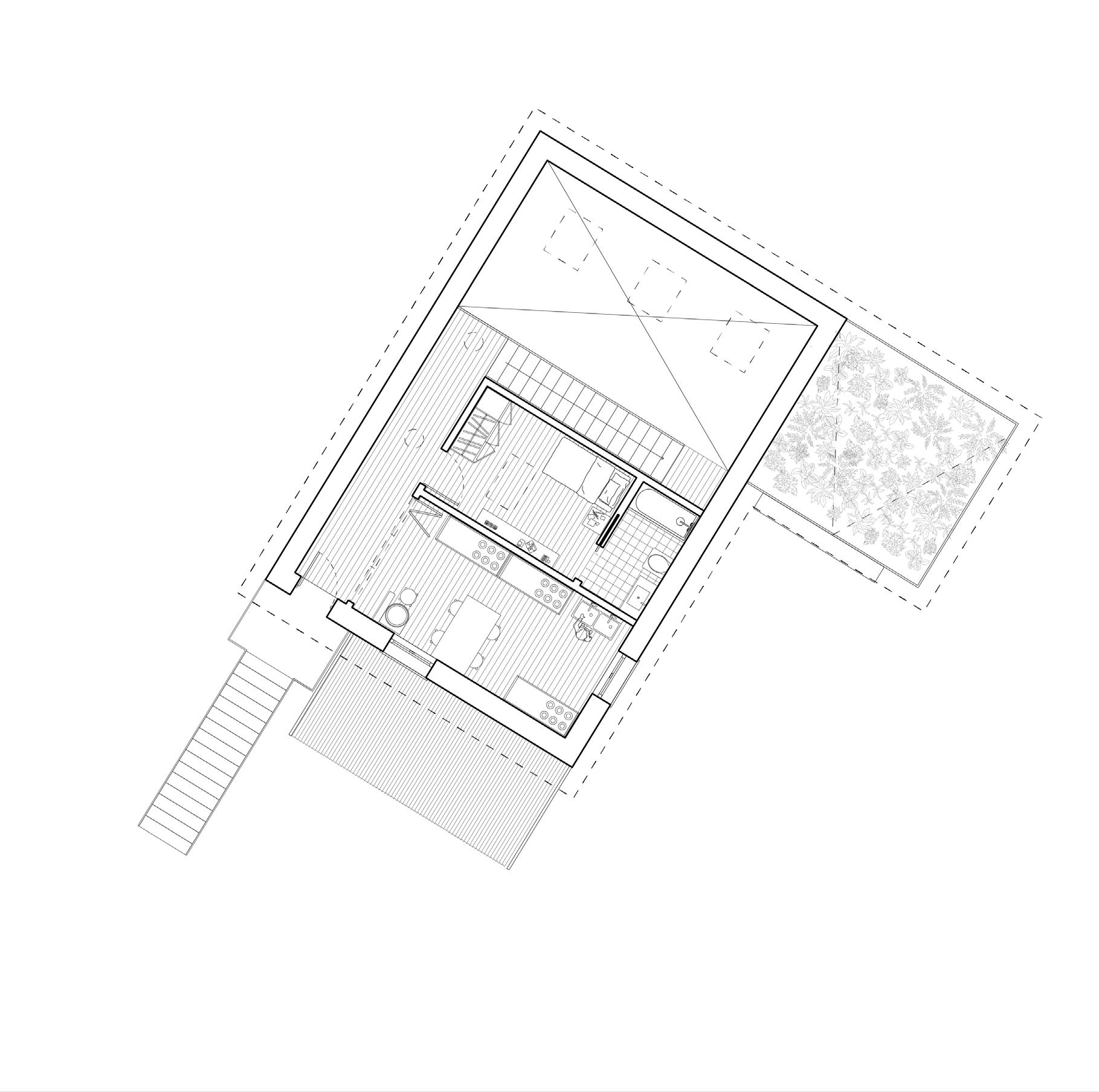

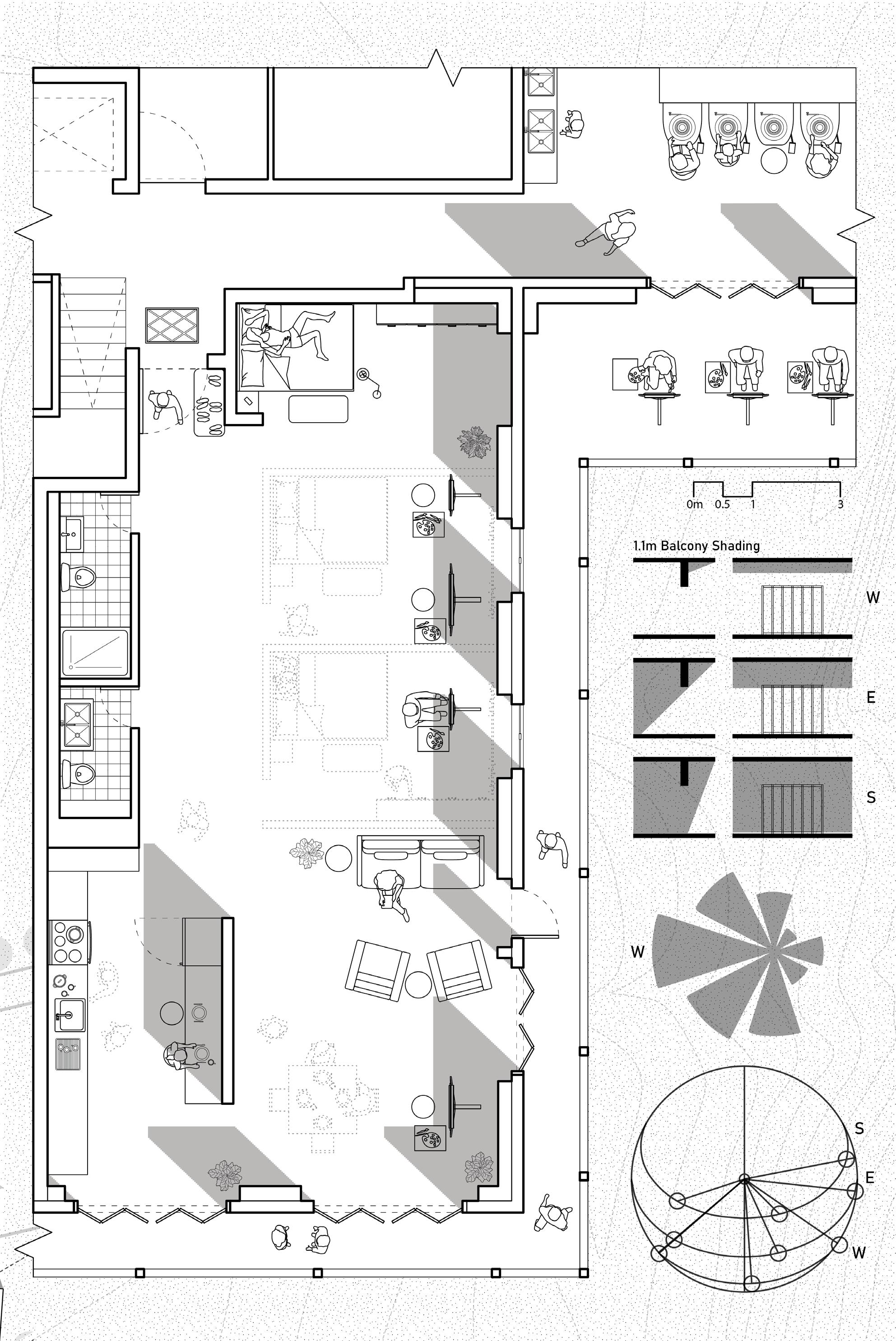

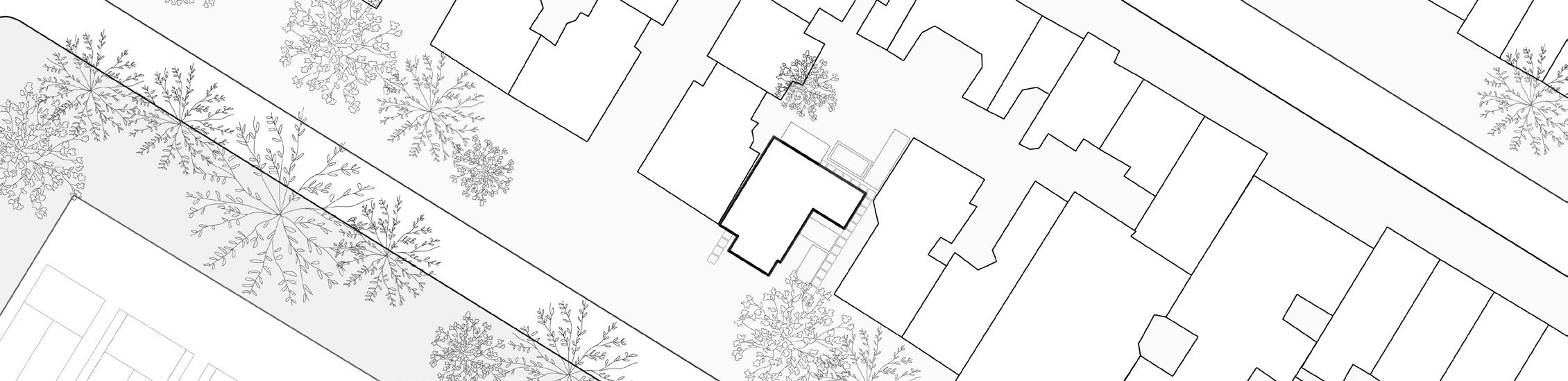

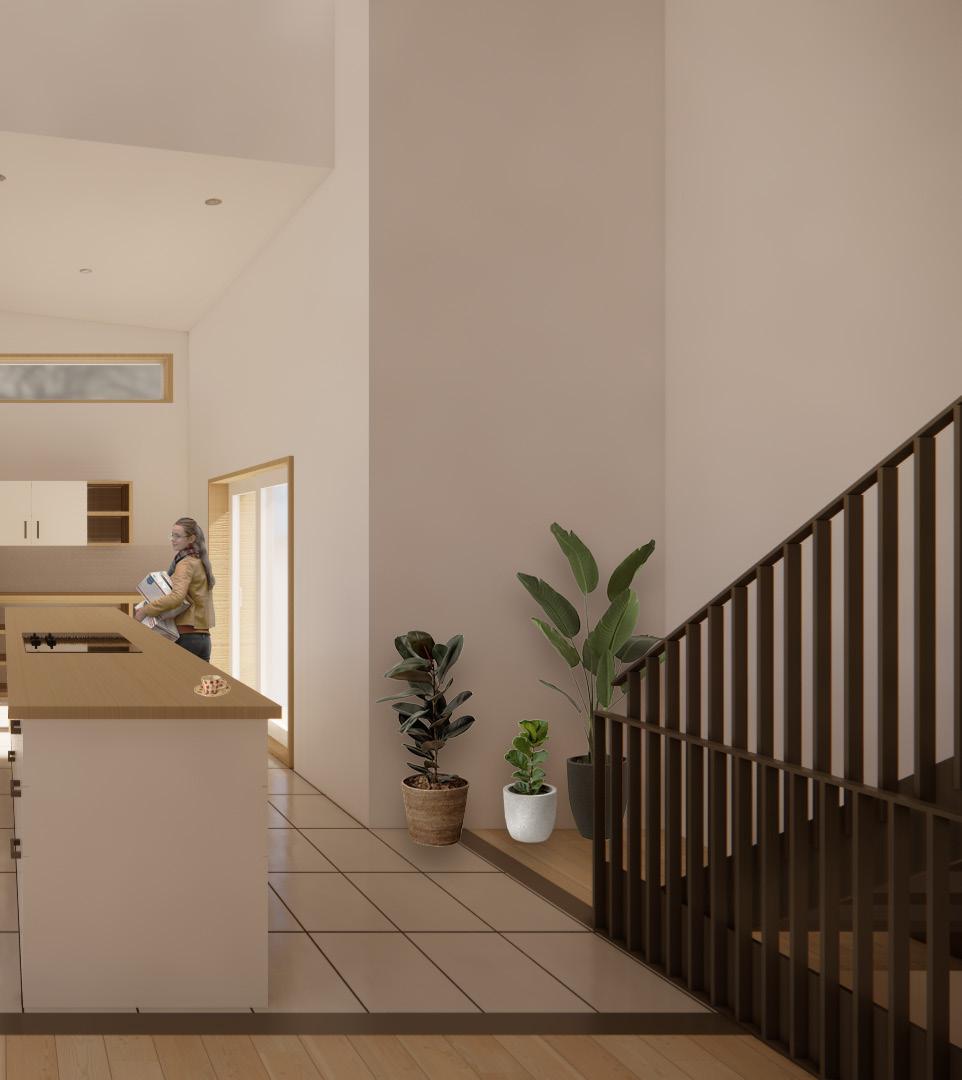

Located in Montréal’s Plateau MontRoyal, the Off-Grid Oasis creates a comfortable space to work and relax. This residence provides basic needs with the use of innovative energy and water systems, as well as a pottery studio and greenhouse for researchers / artists in residence.

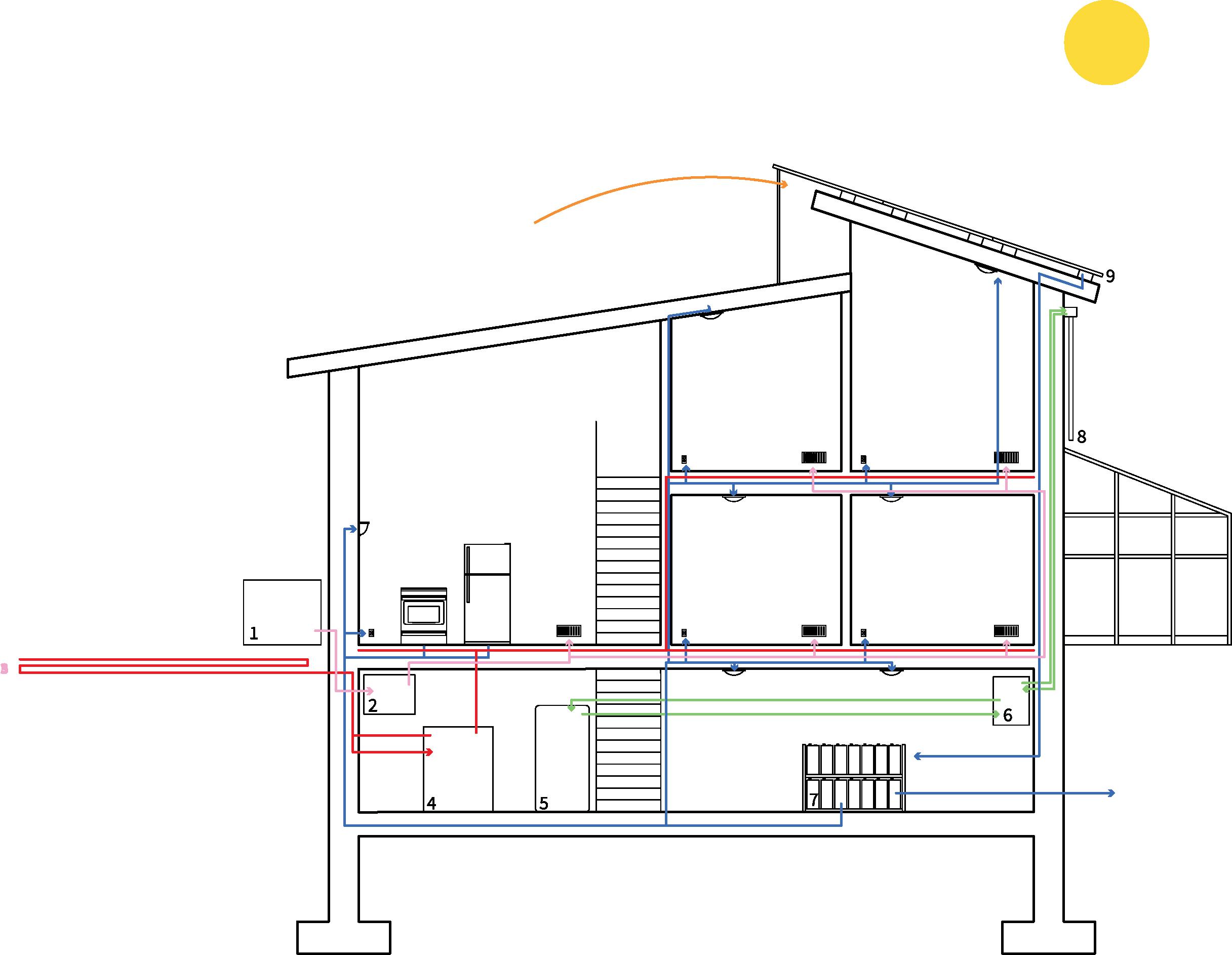

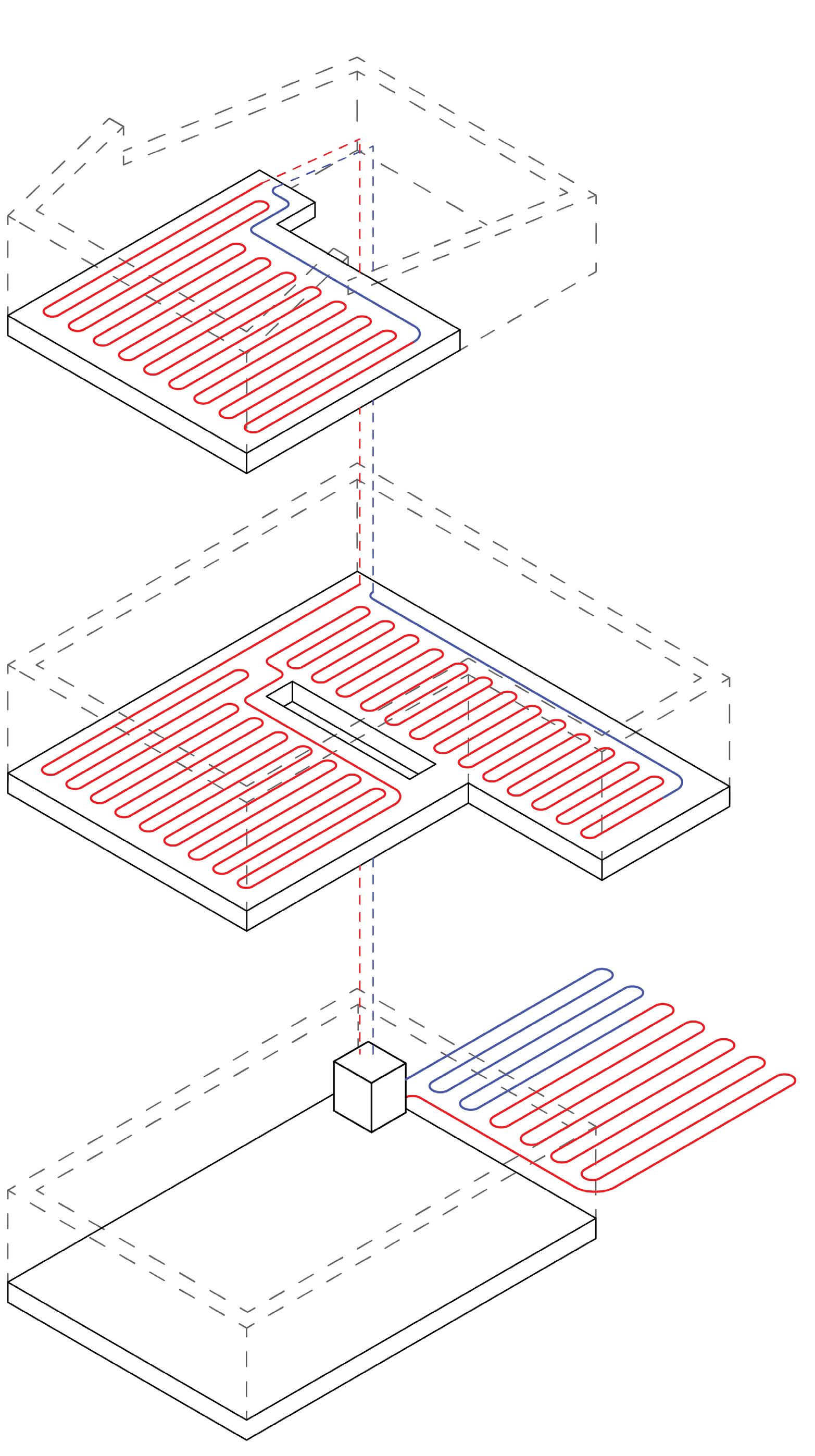

The energy system uses photovoltaics, geothermal radiant floor system and heat pump to create a comfortable atmosphere in Montreal’s humid continental climate.

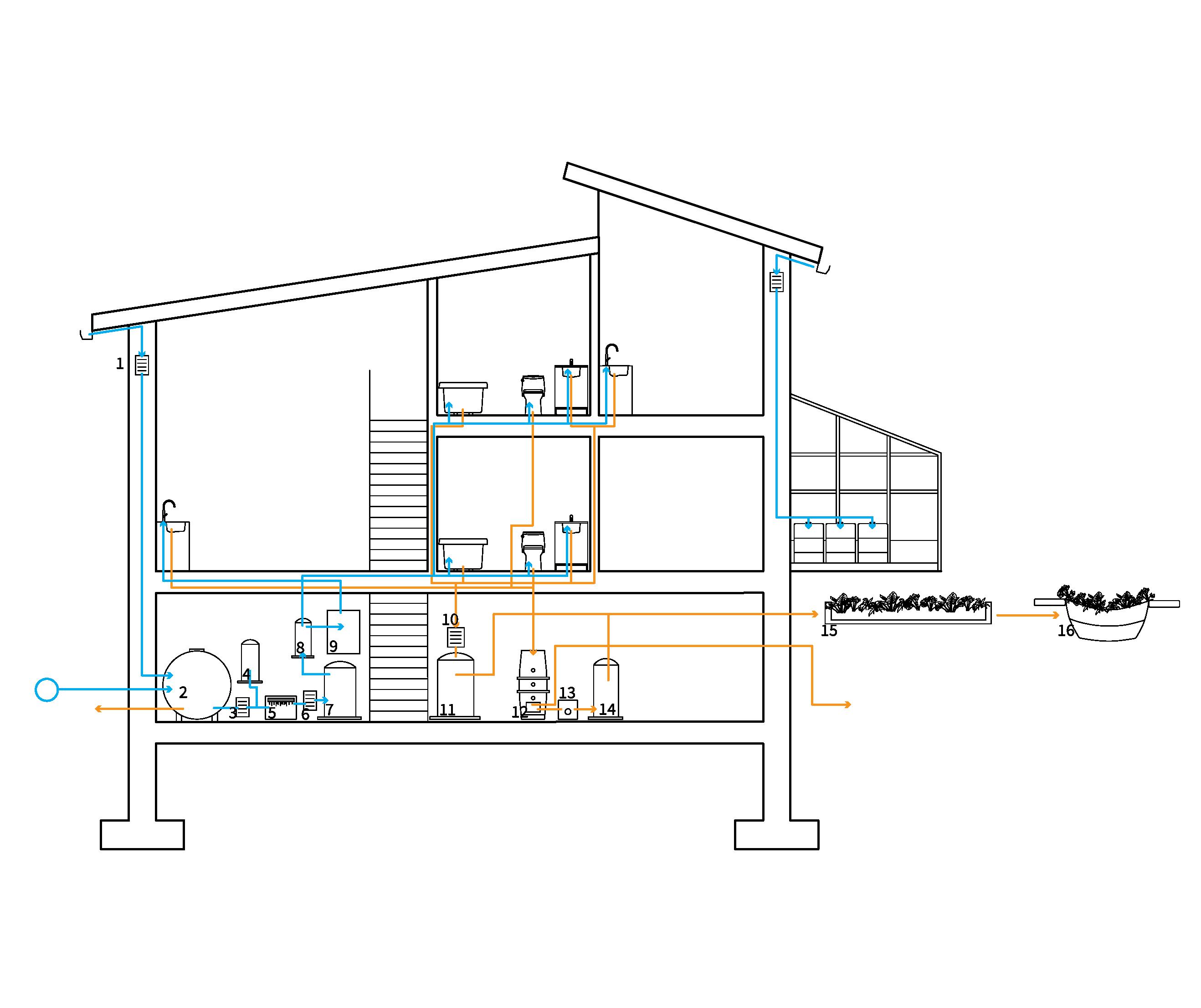

The water system involves rainwater cisterns, compost units, constructed wetland and bioswale to create a completely off grid system.

LIGHTWEIGHT VERTICAL PINE CLADDING ROCKWOOL COMFORTBOARD INSULATION VAPOUR PERMEABLE MEMBRANE OSB SHEATHING ROCKWOOL COMFORTBATT INSULATION VAPOUR CONTROL LAYER GYPSUM BOARD

PHOTOVOLTAICS

STANDING SEAM ALUMINUM ROOFING EAVE PROTECTION MEMBRANE OSB SHEATHING

RAFTERS

ROCKWOOL COMFORTBOARD INSULATION

VAPOUR PERMEABLE MEMBRANE OSB SHEATHING

ROCKWOOL COMFORTBATT INSULATION

VAPOUR CONTROL LAYER GYPSUM BOARD

LAMINATED WOOD FLOORING OSB SHEATHING

LIME CONCRETE SLAB

RADIANT FLOORING EMBEDDED TUBES STEEL REINFORCING XPS INSULATION GYPSUM BOARD

LEAN-TO GREENHOSUE WOOD FRAME

CLOSED CELL SPRAY FOAM

EDGE INSULATION

Photovoltaic ventilation

To electrical grid

1

Air Source heat pump ext. 2 Air Source heat pump int. 3 Geothermal wells 4 Geothermal pump 5 Solar exchange heat tank 6 Solar Pump & controls

Saltwater batteries

Vacuum tube collector

Fill inlet with cap

Compost Units

Leachate sump

Leachate tank

IMPOSING FOOTBRIDGE

Type: BRIDGE

Time: January 2022

Software: Rhino, Enscape, Illustrator, Photoshop, InDesign Course: Arch 193 Design Studio

Advisor: Jaliya Fonseka, David Correa

Project completed alone.

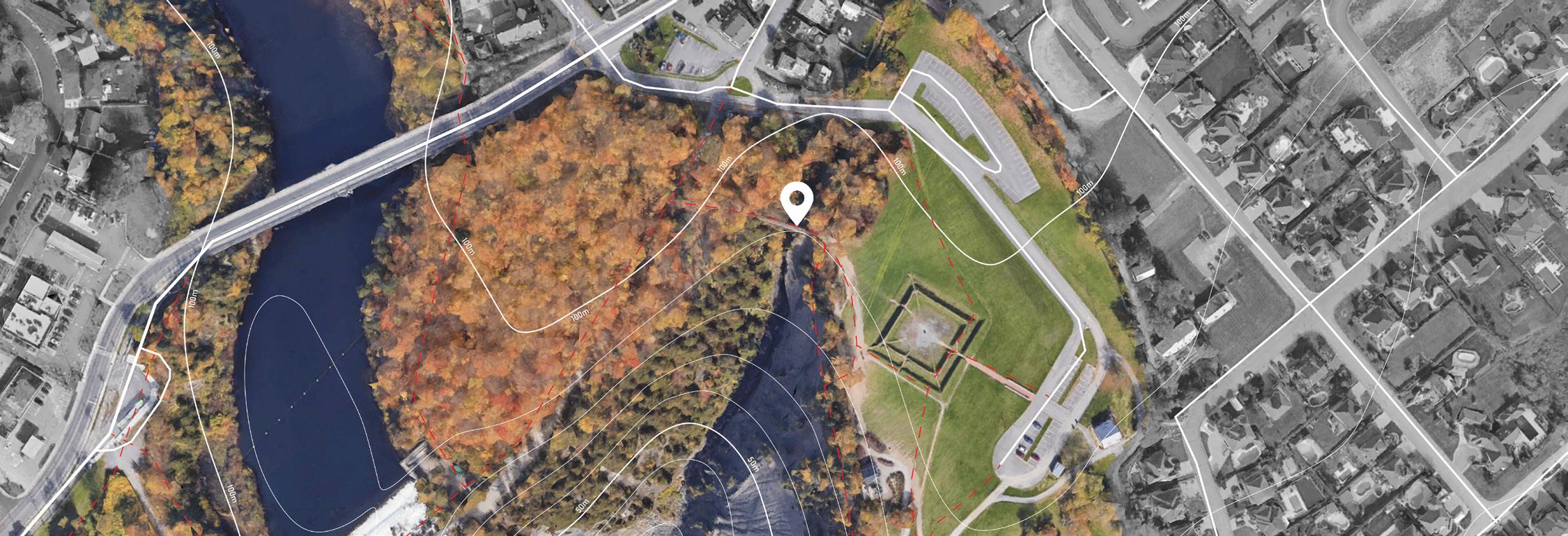

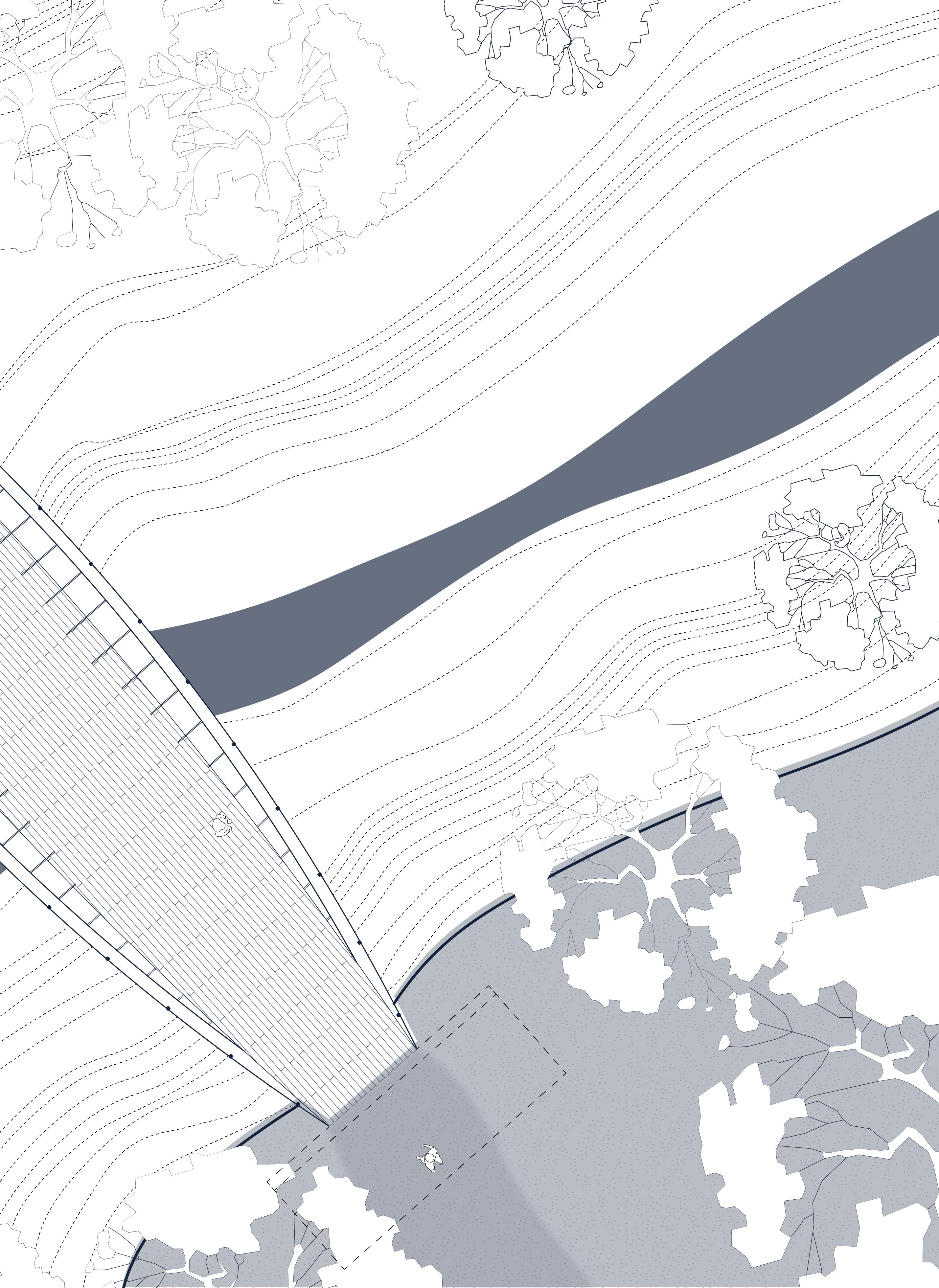

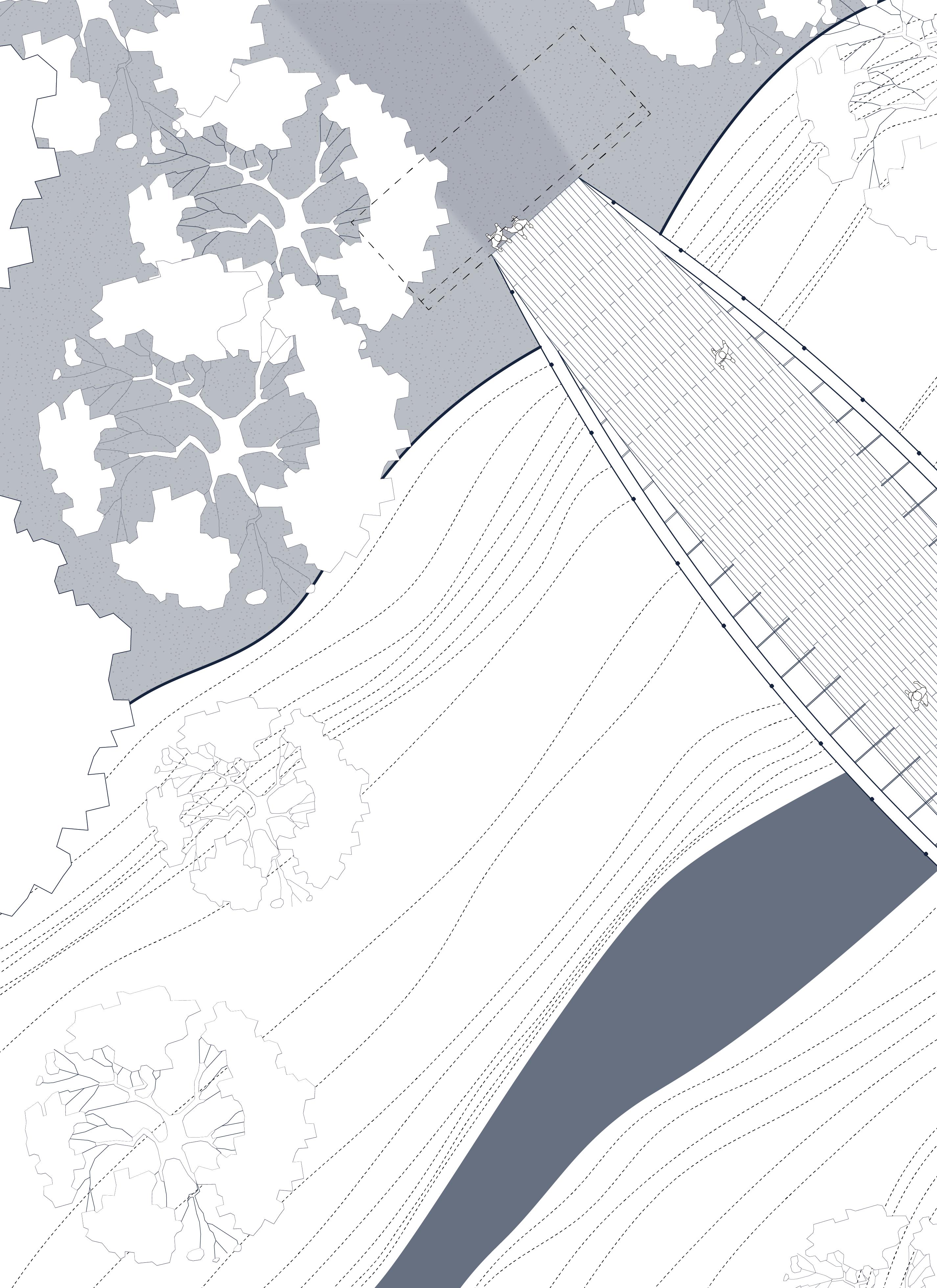

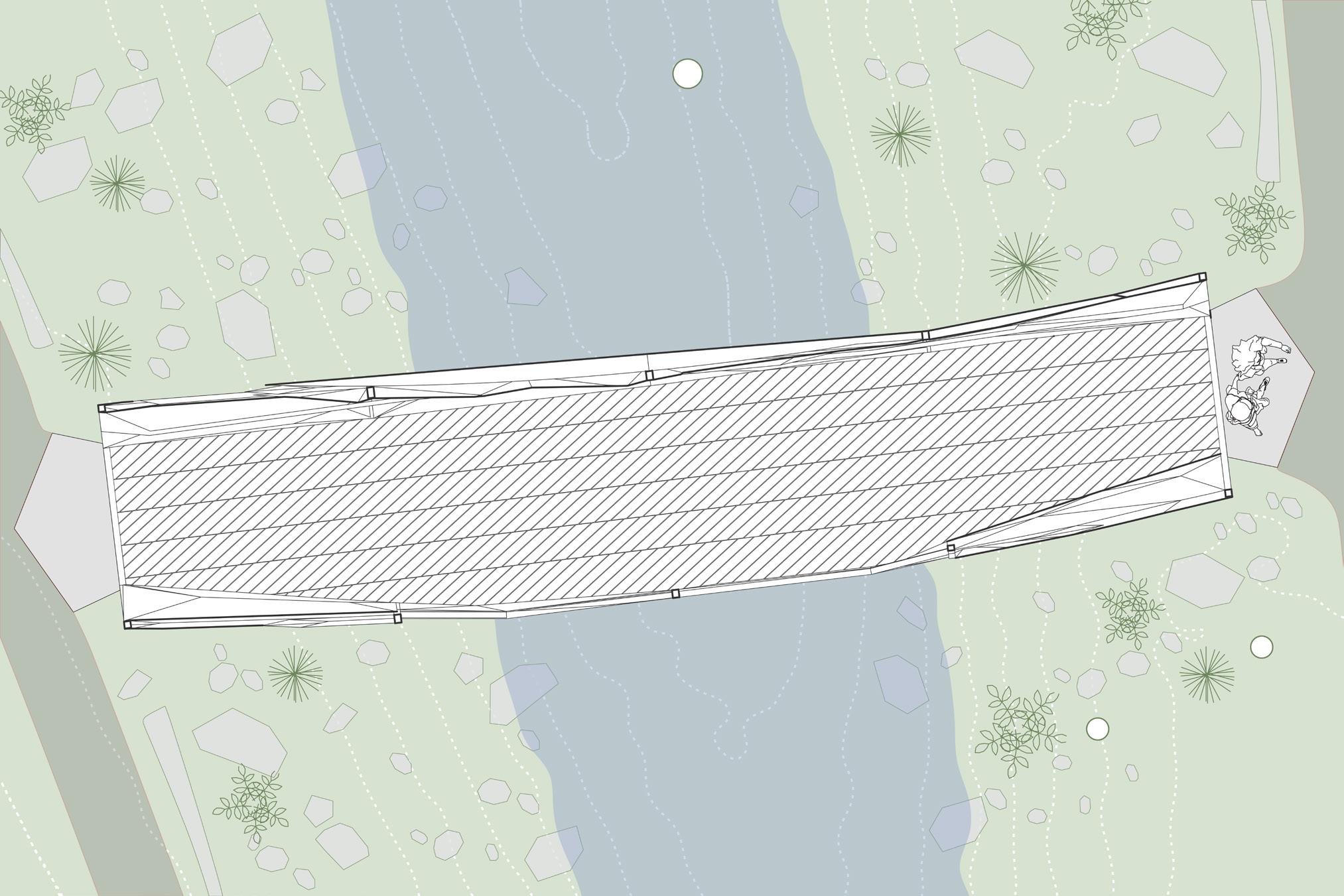

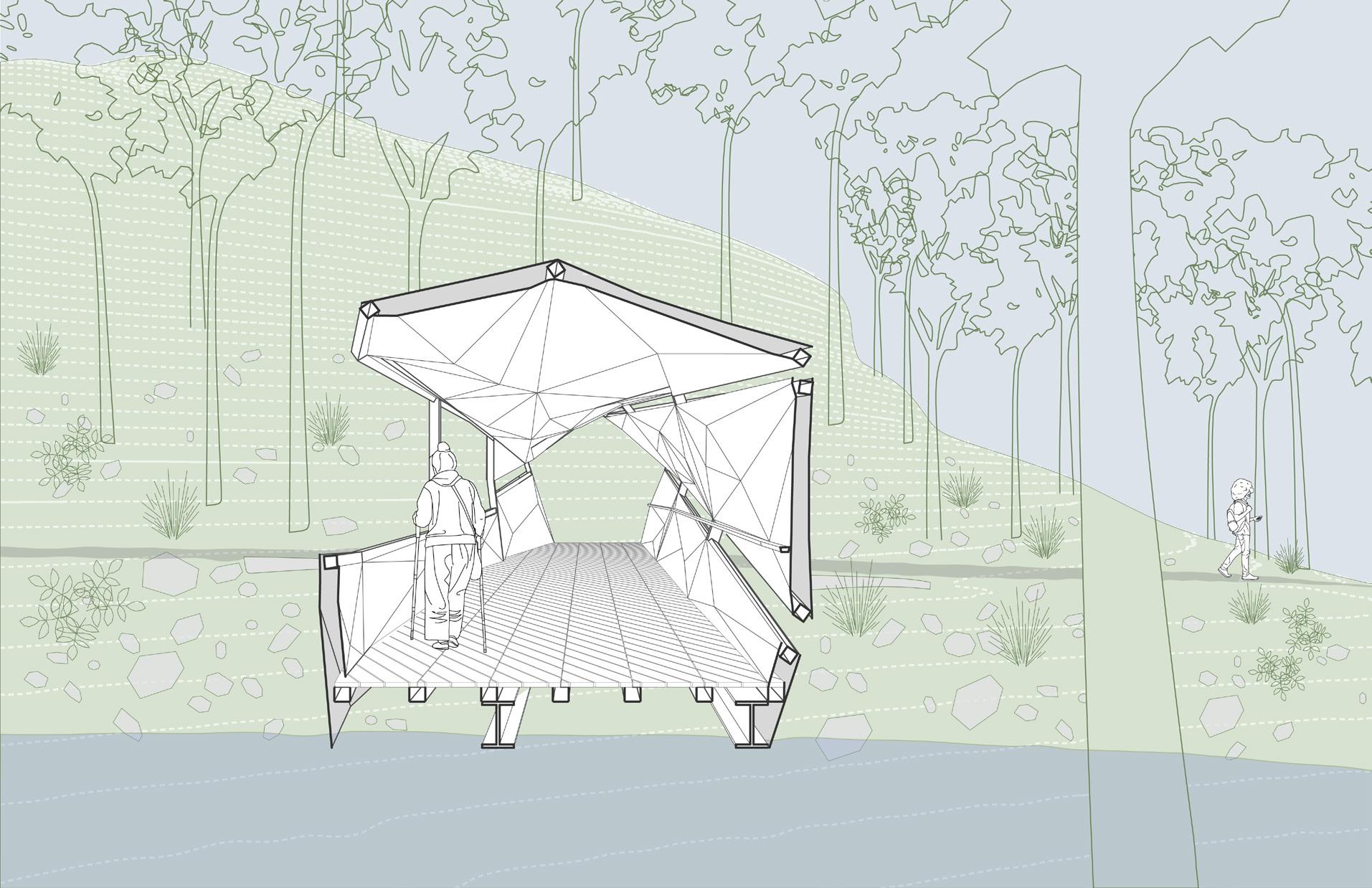

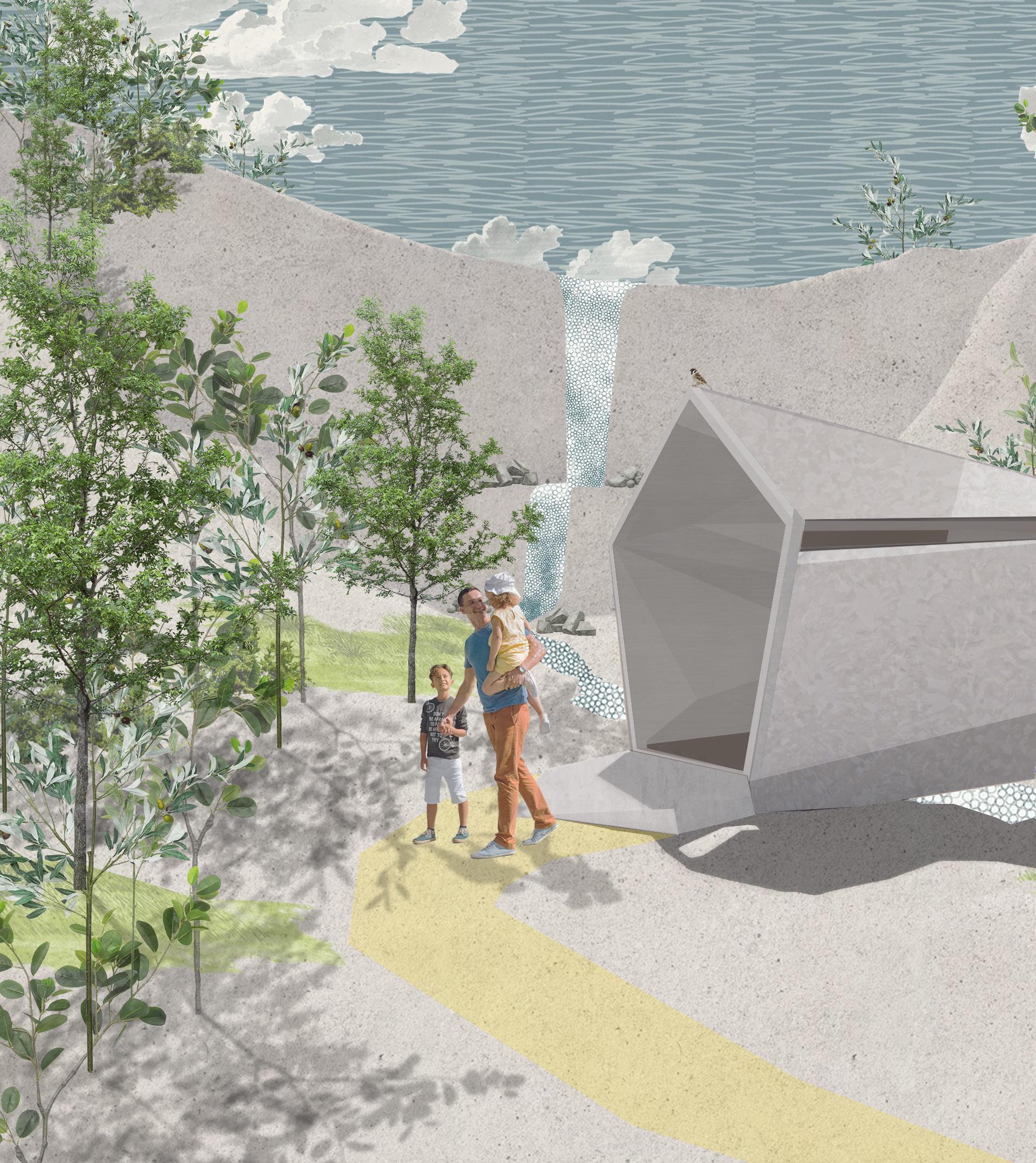

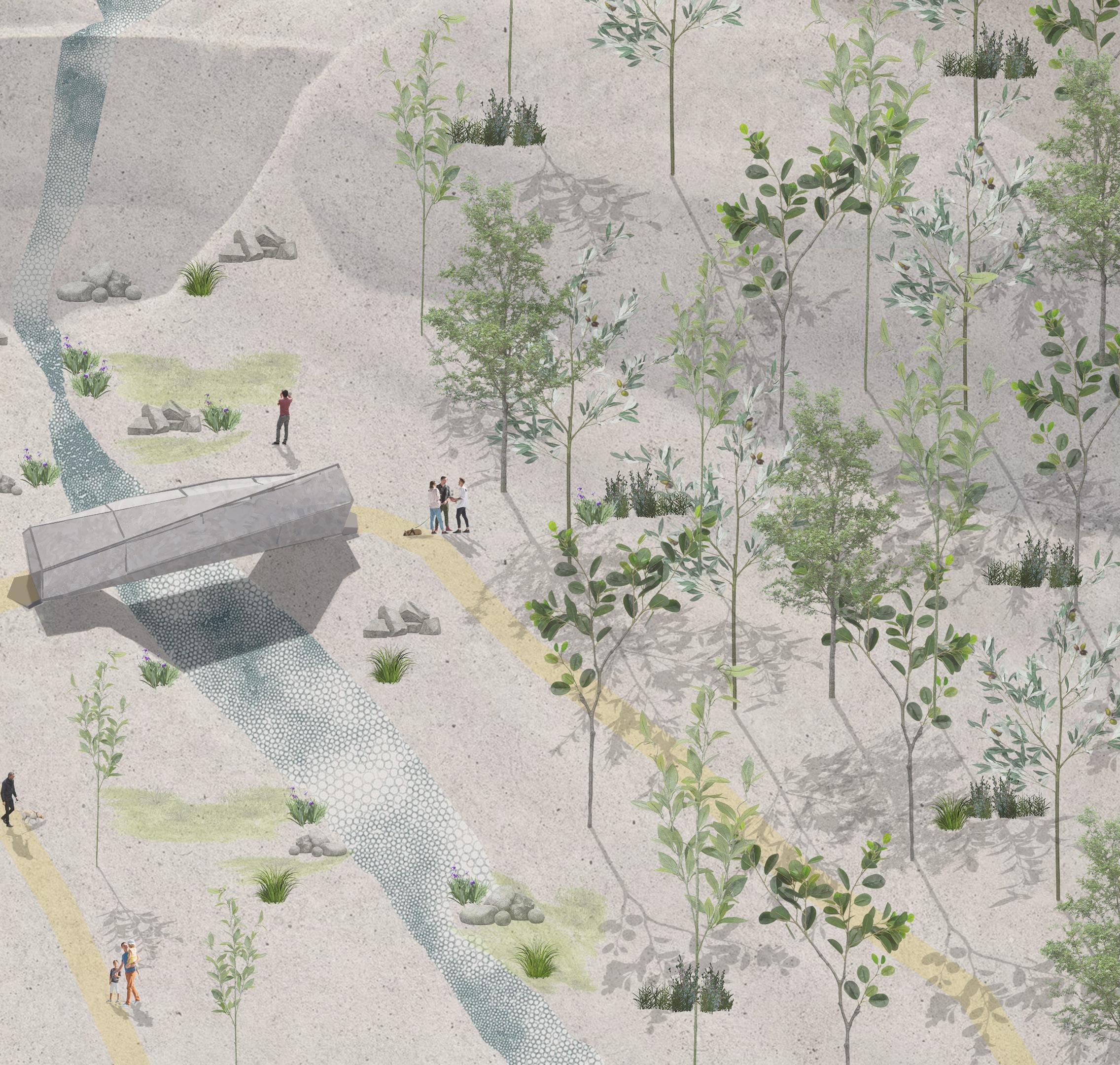

Sitting on the Bruce Trail beside beautiful Sherman Falls, the Imposing Footbridge is its own experience in and of itself. Instead attempting to blend with the surrounding nature, this footbridge is a blantantly manmade structure within the forest. The parti was created with a focus on the experience of the bridge. As a person hikes the path, the Imposing Bridge appears as a small speck of grey. In contrast, a hiker sees small flashes of the forest when as the cross the bridge.

The structure uses (non-mirrored) stainless steel panels to be bird friendly, and has space between panels to relieve wind load.

The interior fragments were arranged so all panels would have a direct connection to the HSS.

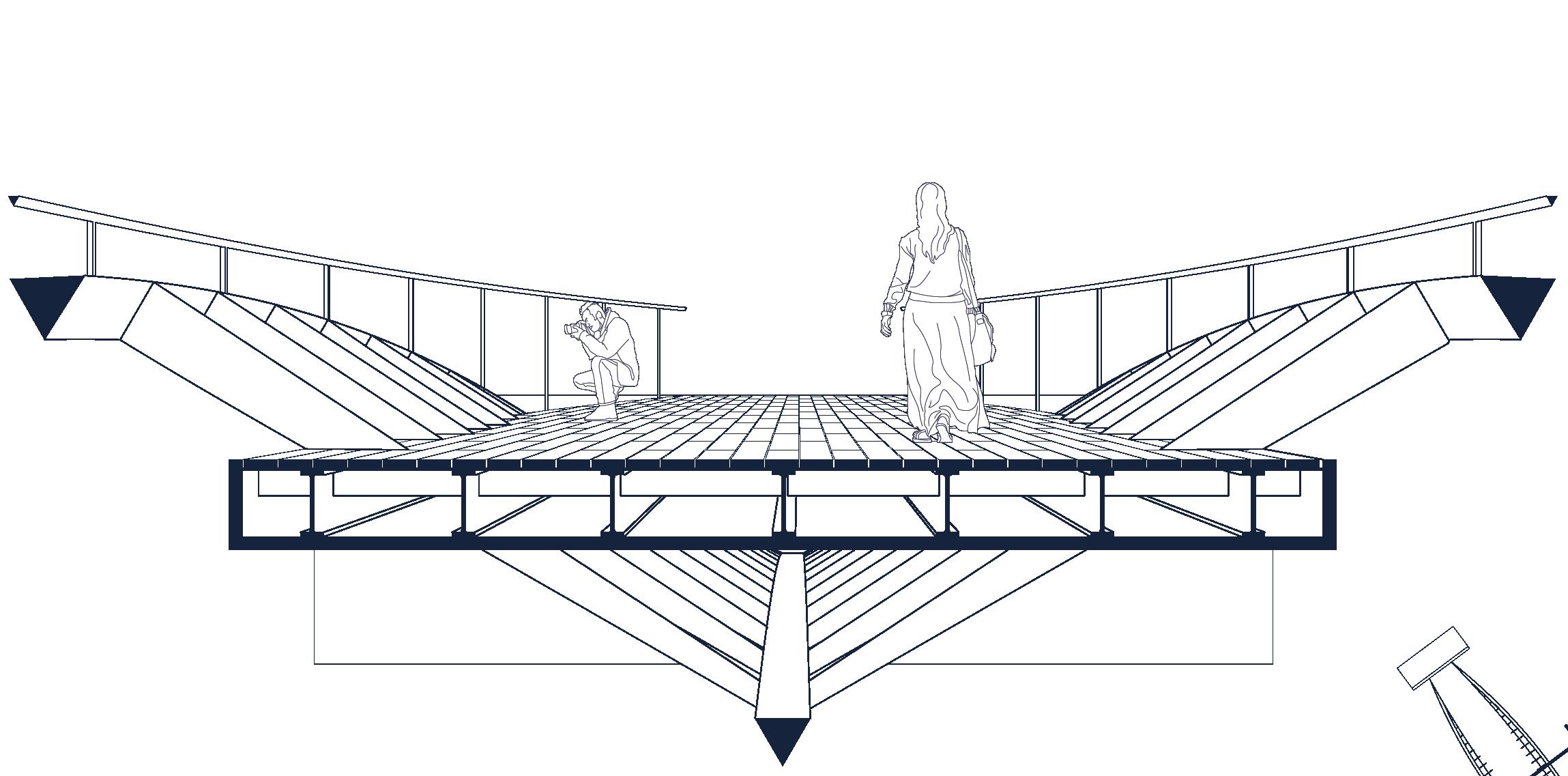

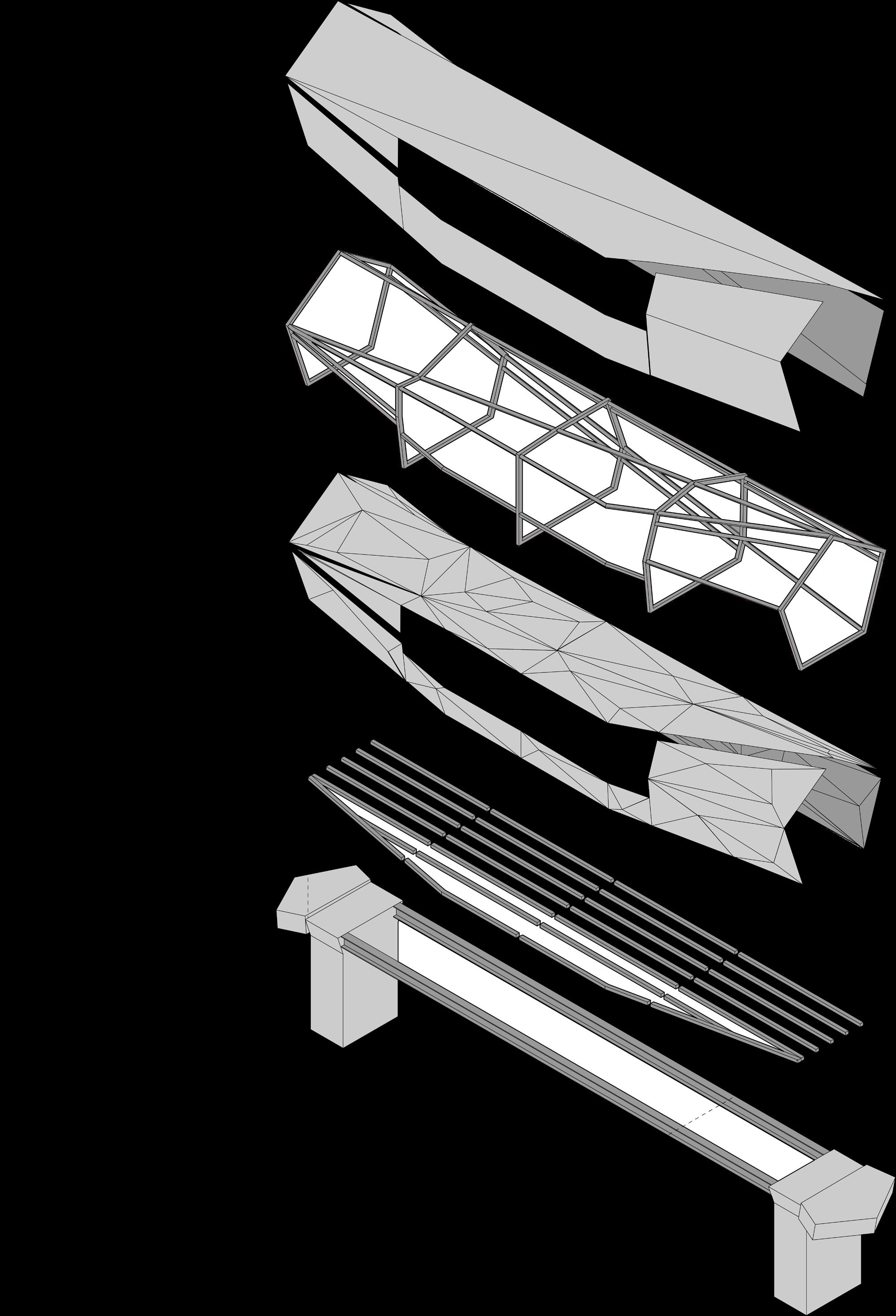

1 Stainless Steel

2 8 x 9 cm Welded HSS

3 Mirrored Stainless Steel

4 8 x 10 cm HSS

5 12 x 2.6 cm Wood Planks

6 Foundation/Ramp

7 20 x 20 cm I-beams

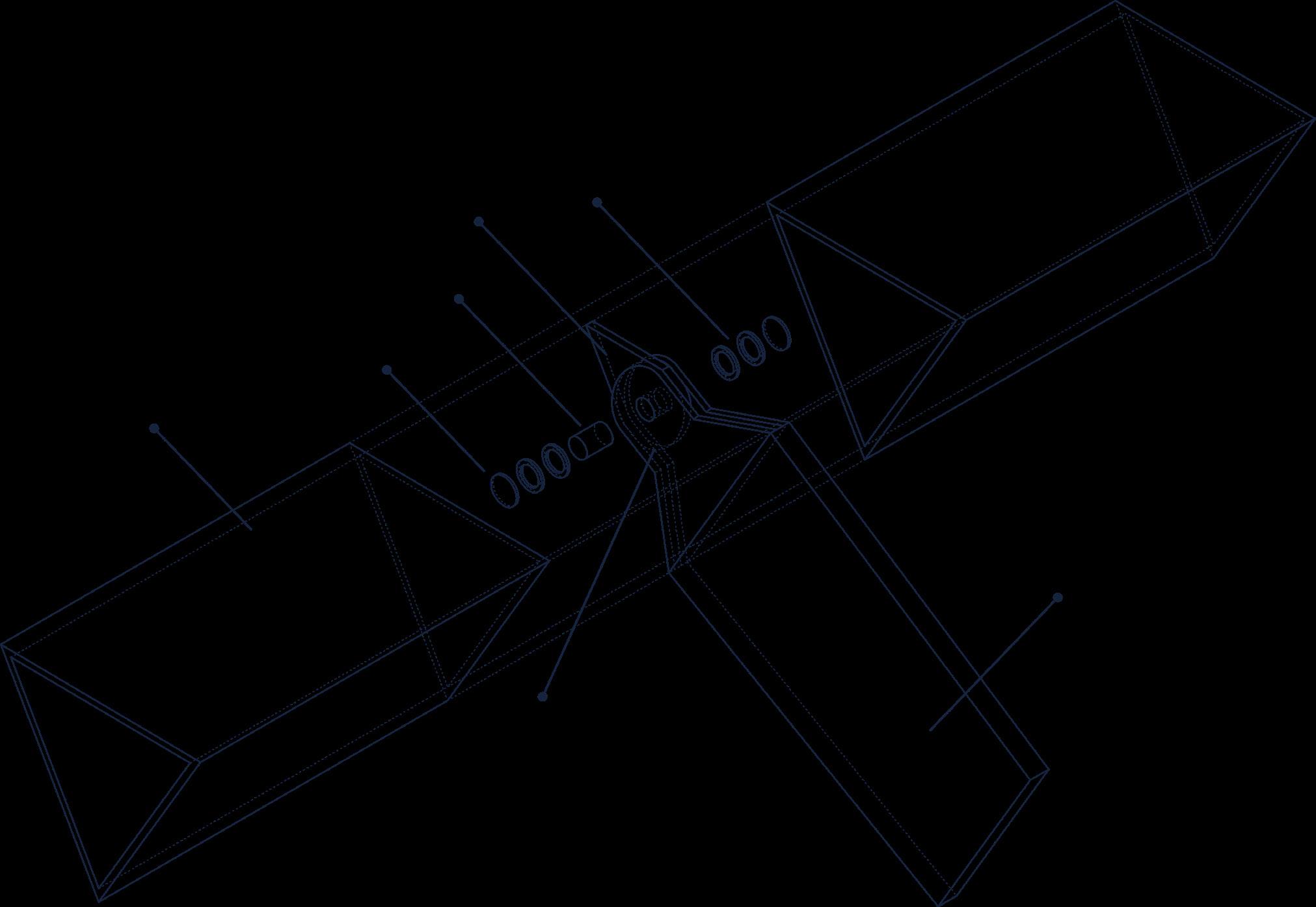

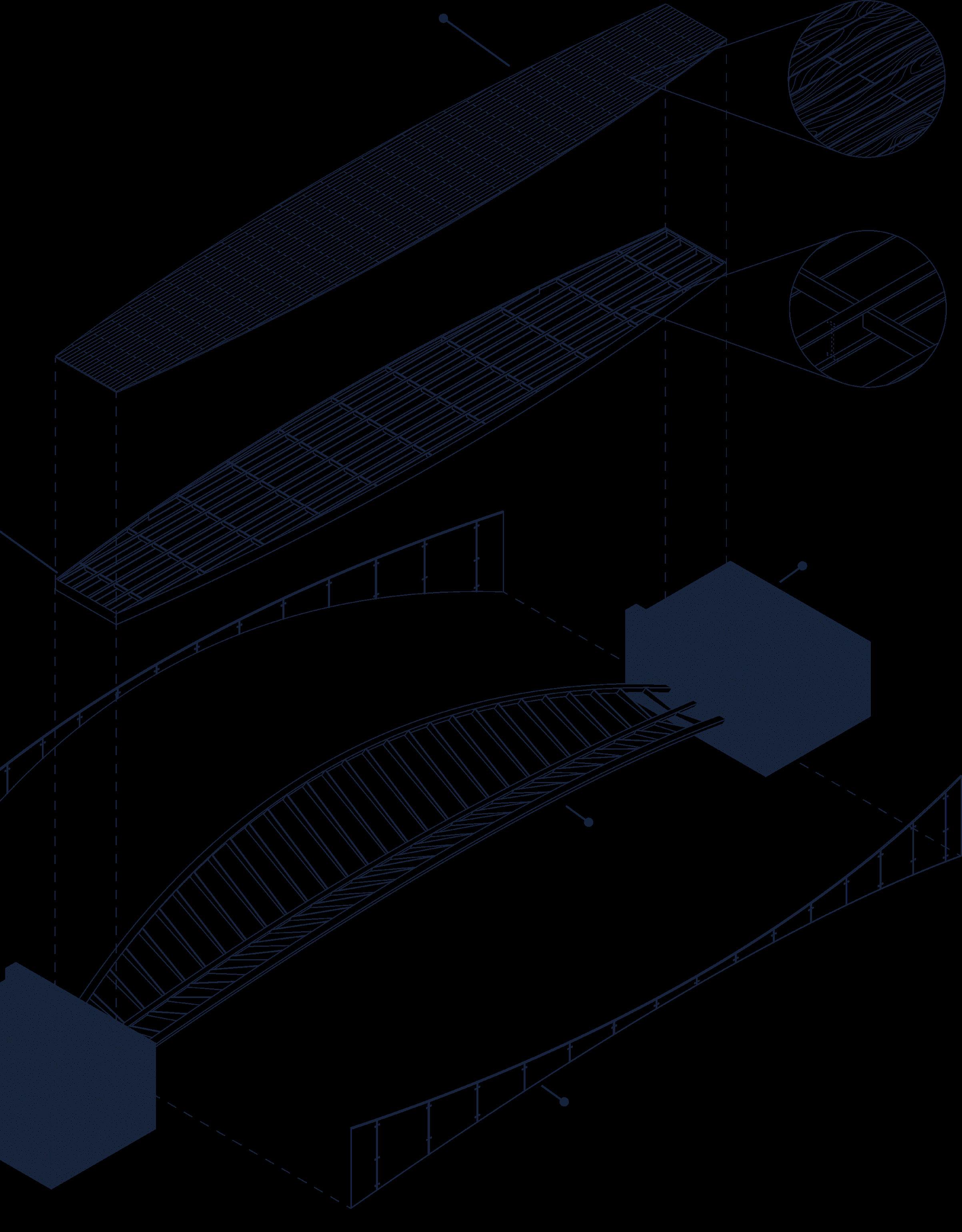

8 5 x 3 cm Wood Railing EXPLODED ISO MATERIAL DIAGRAM

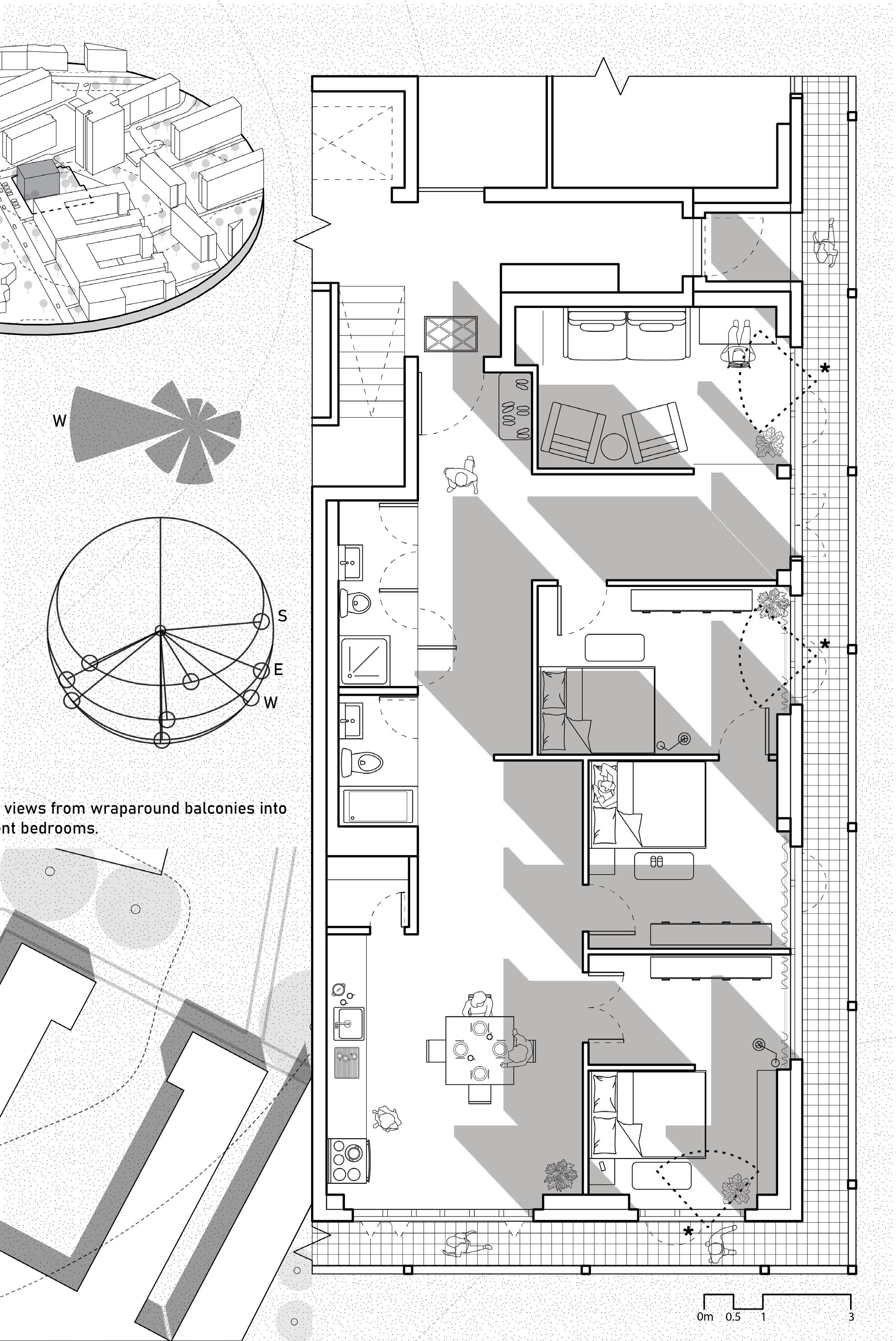

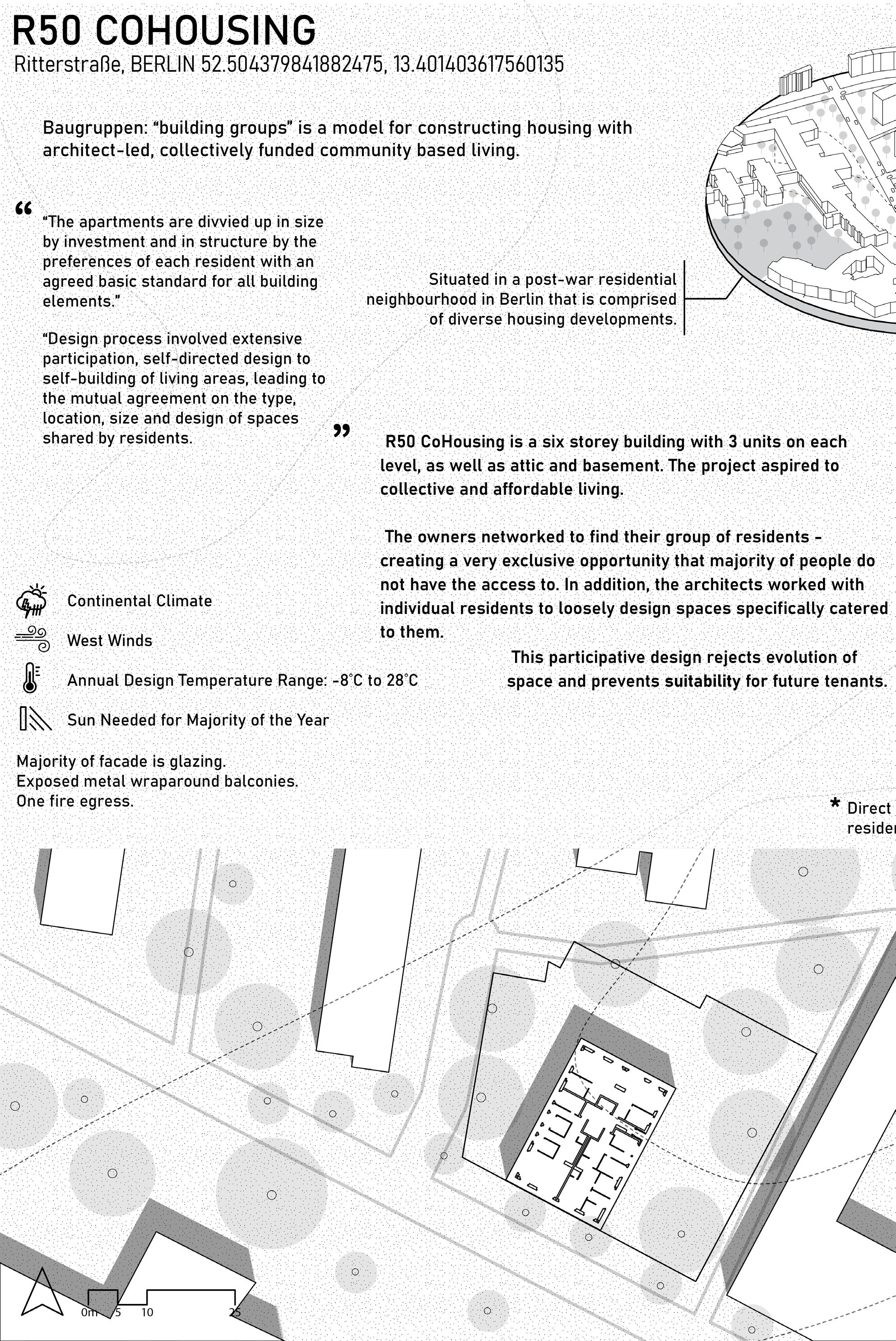

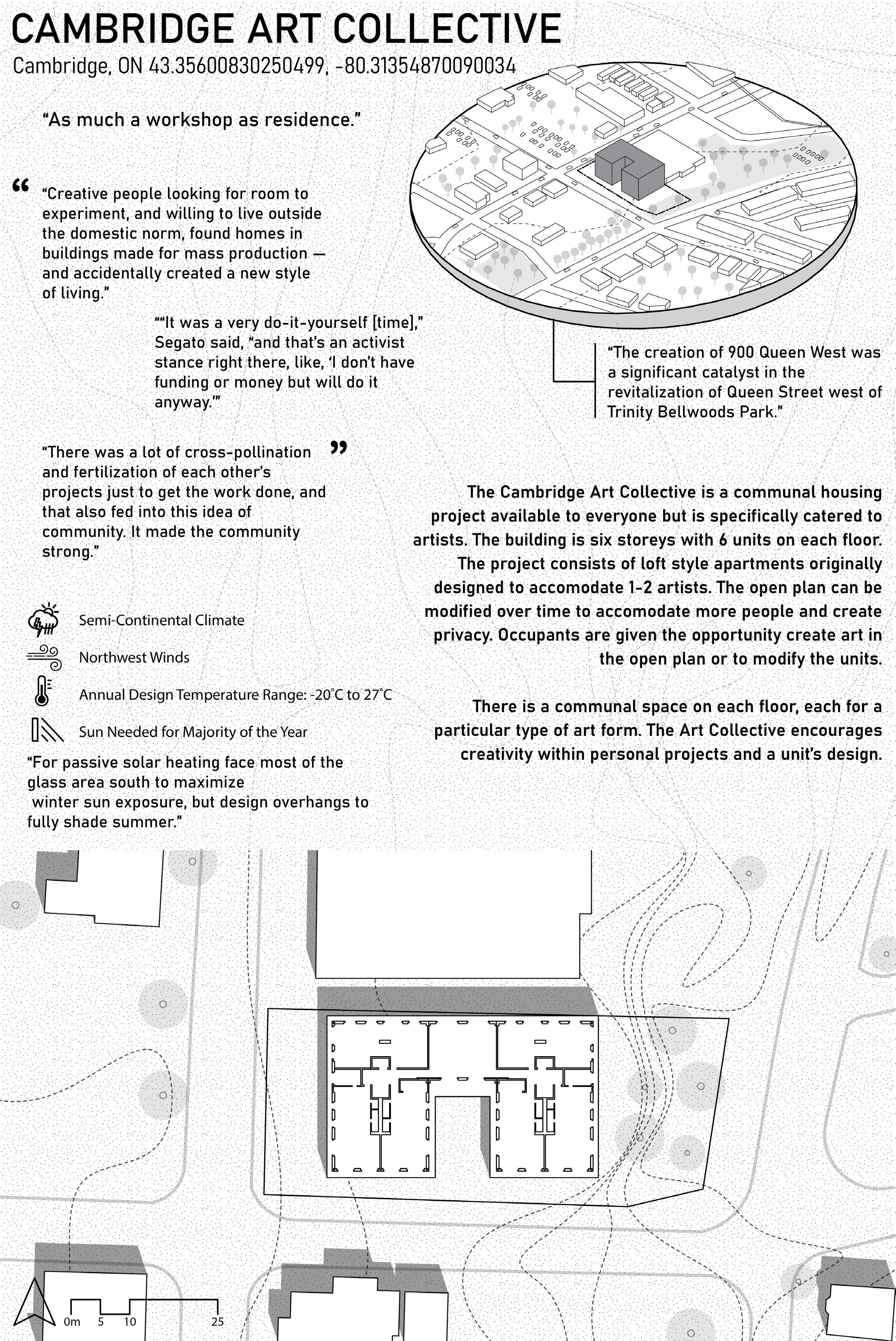

CASE STUDY

Time: September 2022

Precedent modified for site in Cambridge, ON.
