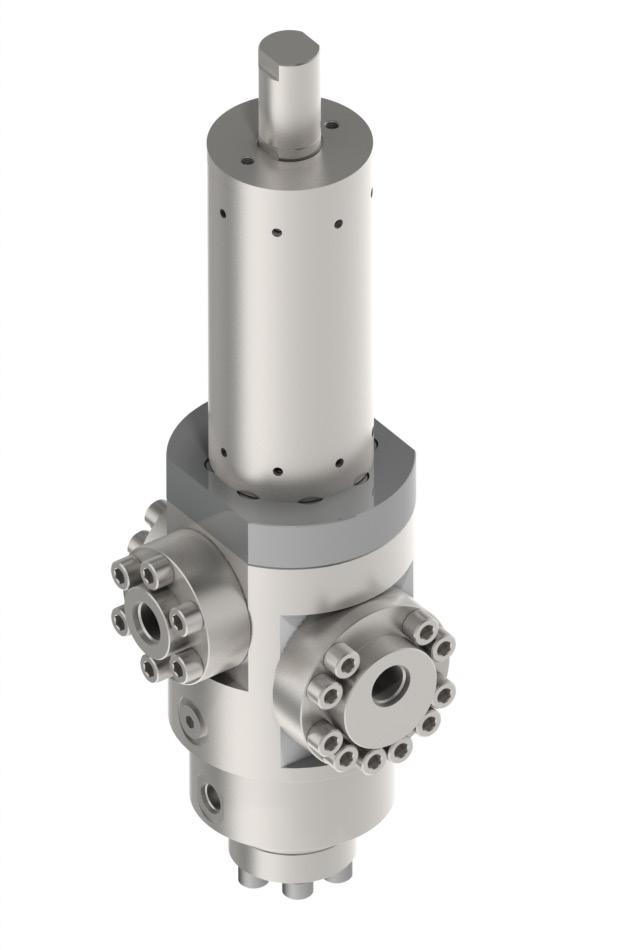

Gilmore GEN2 10 ksi Damping Pressure Regulator

Gilmore GEN2 10 ksi Damping Pressure Regulator

Provides stable system pressure with built-in damping for critical hydraulic systems.

Gilmore’s GEN2 10 ksi Damping Pressure Regulator’s patented design reduces chattering, vibrations, and overcorrection. This eliminates the need for additional damping circuits, reducing leak paths and failure points.

Tungsten Carbide seal trim provides benchmark reliability and debris tolerance. Improved deadband performance assures a precise response.

INFO@Gilmore.com www.gilmore.com GEN2DAMPINGPRESSUREREGULATOR-03142024

Gilmore GEN2 10 ksi Damping Pressure Regulator

GEN2 10 ksi Damping Pressure Regulator

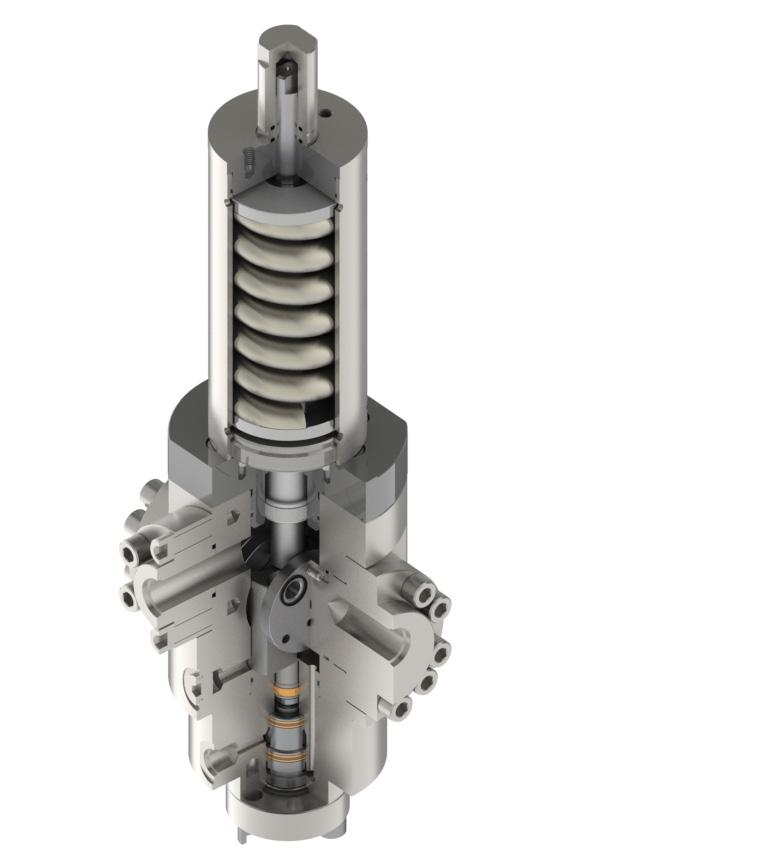

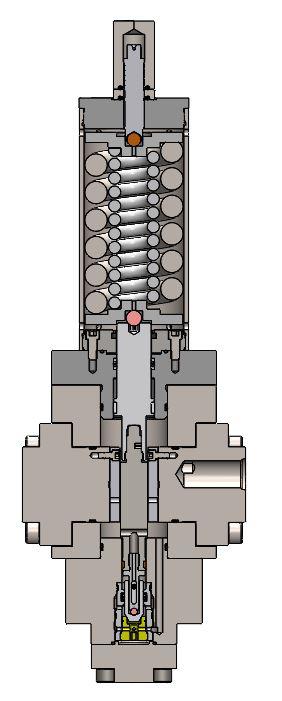

Upgraded dynamic plunger T-seal

Improved bolted plunger guide Guided hydraulic damping technology Refined Tungsten Carbide seal trim

Features and Benefits Patented guided hydraulic damping technology: Reduces oscillation, hunting, chattering and vibration Allows for quicker system hydrostatic testing Low deadband performance optimizes reaction time Tungsten Carbide seal trim for debris tolerance Bolted plunger guide for ease of maintenance Dynamic Plunger T-Seal

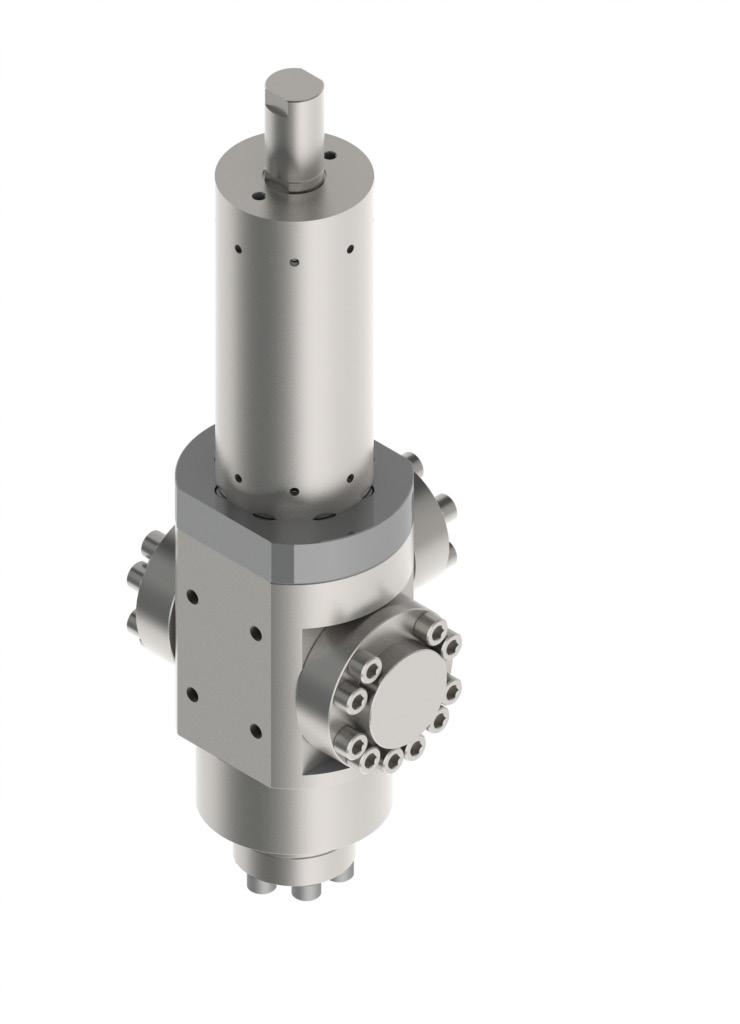

• Single and dual inlet styles • SAE and MP connection options • Up to 10,000 psi supply pressure • Various regulated set pressure range options from 2,000 psi up to 5,500 psi

PRODUCTION INFO@Gilmore.com www.gilmore.com GEN2DAMPINGPRESSUREREGULATOR-03142024

Improved Materials: • 17-4PH 1150D Body & T316 Flanges • Nitronic 60 Seal Carrier • T316 Spring Housing Qualification exceeds API 16D requirements Two endurance qualification tests at 10,000 cycles Available configurations 3/4” and 1” SAE and MP connections
