Gilmore AgilitiTM Relief Valve

Meeting the demand for operational efficiency with extended service life.

The Gilmore AgilitiTM Relief Valve provides industry safe, reliable, repeatable, and accurate mechanical pressure relief that is suitable for sand slurry and high viscosity flow control applications.

INFO@gilmore.com www.gilmore.com GILMORE AGILITITM RELIEF VALVE -REV. 8.26.24

| Agiliti

TM

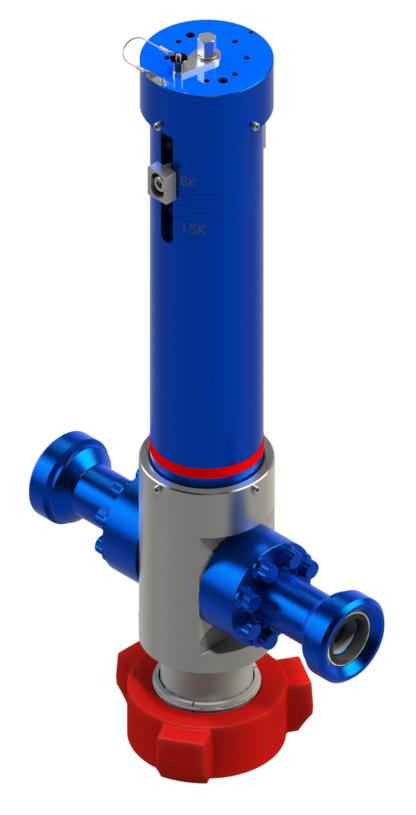

Gilmore AgilitiTM Relief Valve Gilmore AgilitiTM Relief Valve

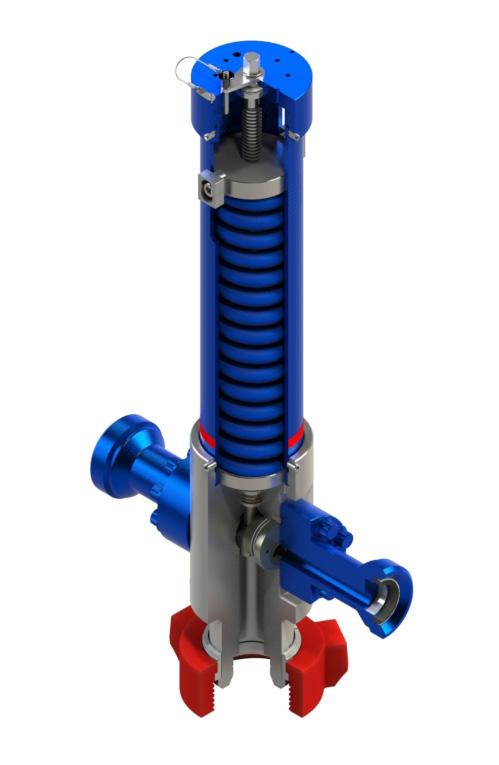

Locking Pin with Adjustment Hex/Screw to adjust crack-open pressure

(39.75”)

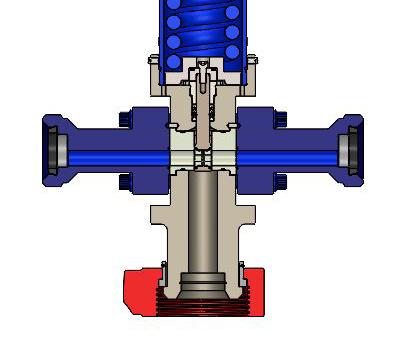

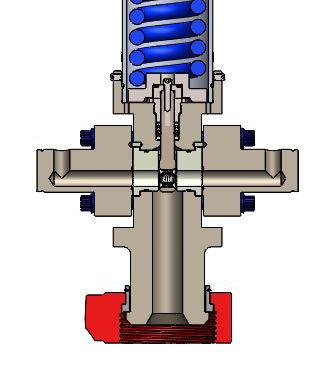

Stem Seal Shear Seal Ring & Seal Plate

Vertical discharge

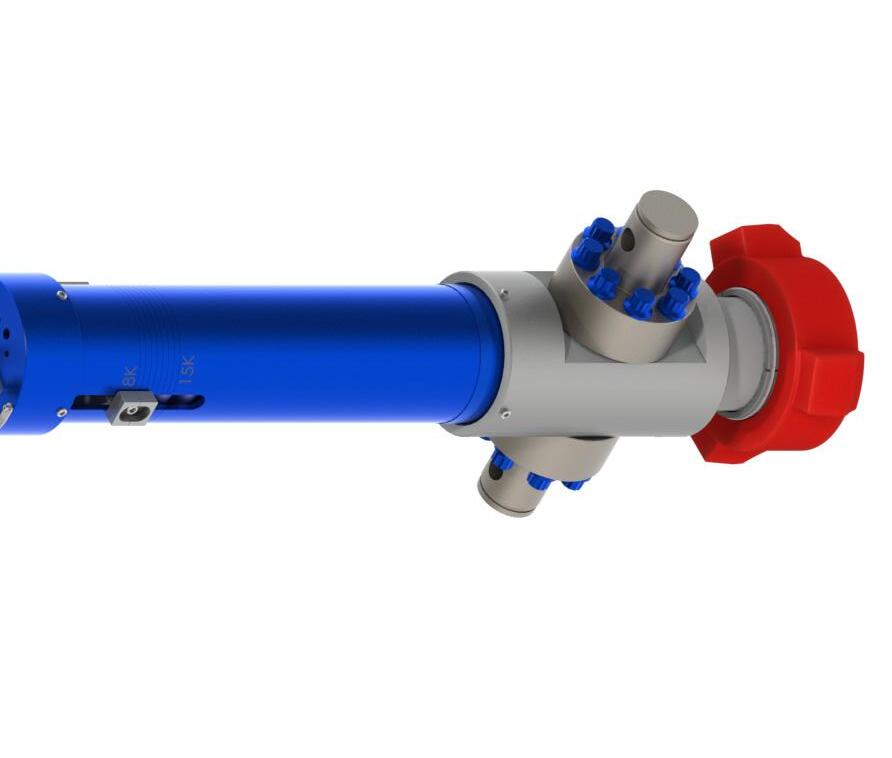

Dual Exhaust ports

Inlet

2” fig 1502 female discharge • Inlet: 3” fig 1502 male • Working pressure 15,000 psi • Available with vertical discharge or 2” fig 1502 female exhaust • Weight: 151 lbs (Vertical discharge) • Weight: 162 lbs (23” fig 1502 female discharge)

Features and Benefits • Designed to API 6A requirements • Qualified to 1,000 cycles • Maximum flow rate +22.5 BPM • Manually adjustable relief points: 8,000 – 15,000 psi • Automatic mechanical reset • Severe flow control rated • Shear seal technology sweeps away debris during closing • Stem seal, multiple machined elements, provides high reliability sealing • Dual Exhaust ports, reduce wear • Flexible exhausting for vertical or captured discharge • ESG compliant * Contact us for any custom requirements
