PORTFOLIO George Kantsler
TABLE OF CONTENTS COMMERCIAL BUILDING PROJECT..1-2 ENGINEERING CLAMP PROJECT......3 ENGINEERING SIDE-BRACKET.........4 REVIT OFFICE BUILDING..................5-6 RESIDENTIAL PROJECT....................7-8
COMMERCIAL BUILDING PROJECT
87'-8" 10'-8" 6'-8" 15' 13'-8" 17' 2'-8" 14'-4" 19'-4" 22' 85' 2'-8" 34'-4" 39'-8" 14'-8" 21' 12'-4" 87'-8" 4" 1'-8" 15'-4" 9'-4" 4' 8'-8" 3'-8" 1'-8" 9'-8" CONTROL AND/OR CONSTRUCTION JOIN 9TYP 1 8" SAWED JOINT WITHIN 24 HOURS OF SLAB POUR EXTENT OF SHEAR WALL FOOTING 24" WD x12" DP. SHEAR WALL FOOTING W/(3) #4'S BOTTOM TOP @ -2'-8" 16"x8" CONC. FOOTING (1) #4 BAR 36' LONG CENTERED IN SLAB (1) #4 BAR 36' LONG CENTERED IN SLAB (1) #4 BAR 36' LONG CENTERED IN SLAB (1) #4 BAR 36' LONG CENTERED IN SLAB RECESSED MOP BASIN SEE DETAIL A/3 COOLER/FREEZER SLAB AREA UNEXCAVATED 100.00' SLAB ELEVATION 4" CONCRETE SLAB w/6x6 - W1. 4 WWF. OVER 6 MIL. VAPORBARRIER OVER 4" GRANULAR FILL 1 1 4" DIA. x24" LG. ANCHOR BOLT BETWEEN TWO #5 HOOKED DOWELS IN EACH END OF SHEAR WALL. SEE DETAIL B/3 (1) #4 BAR 36' LONG CENTERED IN SLAB D 7A B 7A CCBC Instructor:
1
THE DRAWINGS SHOW A PLAN OF THE FOUNDATION AND A SECTION OF THE WINDOW IN A COMMERCIAL BUILDING. DRAWN AS COURSE PROJECT IN CAD TRAINING
PRE- FINISHED ALUMINUM TRIM, SUPPLIED BY OWNER AND INSTALLED BY G.C.
AIR SPACE
4" BRICK VENEER
6" x 3 1 2" x 5 16" STEEL ANGLE
THRU WALL FLASHING W/ WEEPS @ 24" O.C.
15'-4"
PRE- FINISHED ALUMINUM TRIM, SUPPLIED BY OWNER AND INSTALLED BY G.C.
SPLIT-FACED BLOCK
1 2" PLYWOOD SHEATHING W/ 10d NAILS @ 6" O.C. AT PANEL EDGES TYP. UNLESS NOTED
THRU WALL FLASHING W/ WEEPS @ 24" O.C.
5" x 3 1 2" x 5 16" STEEL ANGLE
NO FELT BEHIND TILE
8X8 WALL TILE
DRIP TO MATCH WINDOW
FRAME
SEALANT
AUTOMATIC PICK-UP WINDOW
4'-4"
FIRE STOP
5 8" DRYWALL
FRP
2x10 JOIST @ A6" O.C. CUT TOP TO PROVIDE SLOPE TO SCUPPER
STAINLESS STEEL ANGLE AROUND OPENING OF PICK-UP WINDOW (BY G.C.)
11'-0
HOLD WINDOW 1" BEYOND PLYWOOD SHEATHING
CUT BRK. ROWLOCK SEALANT
PROVIDE THRU WALL FLASHING W/ MORTAR SCREEN AND WEEP HOLES @ 24" O.C.
SPLIT-FACED BLOCK
5 8" PLYWOOD SHEATHING
2X6 FRAMING 16" O.C.
R-19 FULL WALLPACK INSULATION
PROVIDE THRU WALL FLASHING W/ MORTAR SCREEN AND WEEP HOLES @ 24" O.C.
FRP
5 8" DRYWALL VAPOR BARRIERS (LOCATION VARIES WITH LOCAL CLIMATES)
8'-10" 3'
5 8" MOISTURE RESISTANT PLYWOOD OR DURDOCK
4" CONC. SLAB QUARRY TILE FLOORING
6" CONC. BLOCK 12" CONC. BLOCK
3 8" EXPANSION JOINT
8" CONC. BLOCK 2'-8" 8"
1 2" DIA. X 18" A.B. W/3" HOOKS @ 32" O.C. TYPICAL IN STUDE WALLS, GROUT BLOCK SOLD
1" x24" STYROFOAM INSULATION (R-5)
CCBC Engineering & Drawing II
Instructor: Lloyd Davis
Drafter:
Notes:
Scale:
1'-8"
3' 4' 32'-8"
2'-8" 1'-8" 8'
CCBC Engineering & Drawing II
2'-8"
38'
x 8'-0" LG. FOOTING BOTTOM
W/2-#4
W/2-#4
Notes: 20" x8" CONC. FOOTING
BARS CONT. 20" x8" CONC. FOOTING
BARS CONT.
4'-8" 1'
1 2 " 4'-3"
2
Gosha D. Kantsler 3/4":1'
ENGINEERING CLAMP PROJECT
C-CLAMP MODELED IN 3D AUTOCAD IN SEPERATE PIECES AND ESSEMBLED FOR FINAL MODEL. COMPLETED FOR CERTIFICATE PROGRAM OF DRAFTING
CCBC Engineering & Drawing II Project: Scale: Instructor: Lloyd Davis Notes: Project Name: Drafter: Gosha D. Kantsler Lab-#3 1:16 C- Clamp PART LIST ITEM QTY NAME MATERIAL 1 1 PIN CRMS 2 1 BODY SAE 4320 3 1 SCREW SAE 4320 4 1 SWIVEL SAE 1020 1 2 3 4 3
ENGINEERING SIDE-BRACKET
ISOMETRIC AND 3 ELEVATIONS OF A SIDE-BRACKET MODELED IN AUTOCAD. COMPLETED FOR CERTIFICATE PROGRAM.
2.50 3.00 CCBC Engineering & Drawing II FRONT RIGHT TOP ISOMETRIC 4

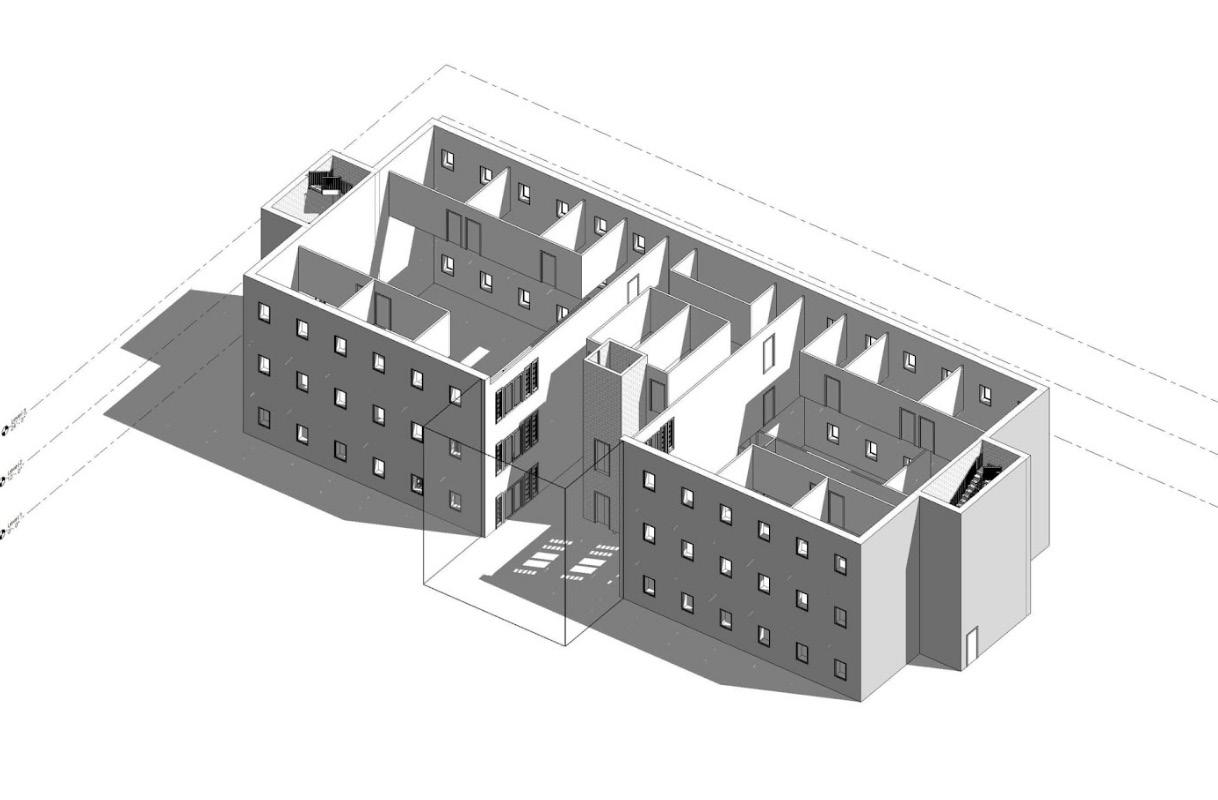

REVIT OFFICE BUILDING
3 STORY OFFICE BUILDING MODELED IN REVIT. MODELING CONSISTED OF INITIAL PLAN DESIGN AND HEIGHT, RENDERED TO SHOW LIGHT PATH AND TRANSPARENCY OF ENTRANCE.
5
5 6
RESIDENTIAL PROJECT
RESIDENTIAL PROJECT DONE DURING TRAING FOR CERTIFICATE. INCLUDED 2 FLOORS, GARAGE AND FOUNDATION LEVEL. ELEVATIONS SHOW TEXTURE OF FACADE. MAIN GOAL WAS TO FOLLOW RESIDENTIAL CODE IN THE DESIGN
7
8
