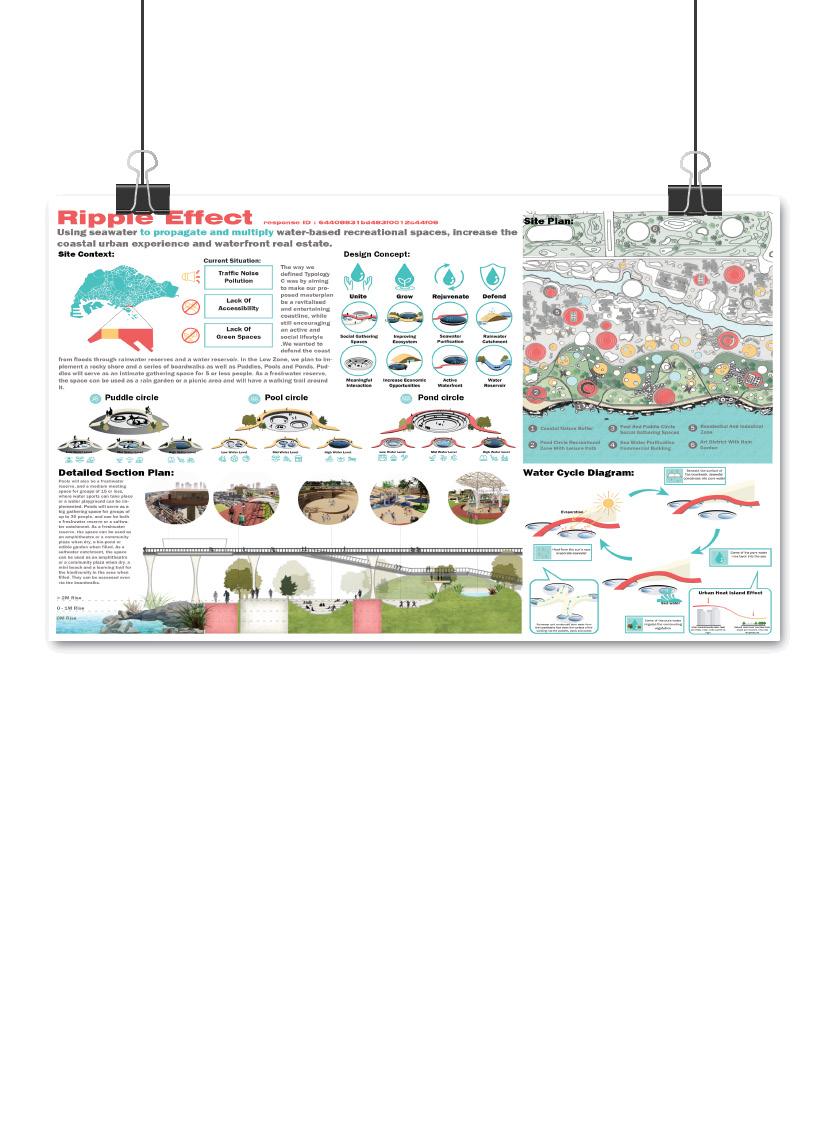

ripple effect
‘Propagate and multiply water-based recreational spaces ’
team :
Chu Xin , Rachel , Gabe
year :
2023
type :
Masterplanning / Urban landscaping
05
Using seawater to propagate and multiply water-based recratioalspaces, increase the coastal urban experience and waterfront real estate.
Masterplan be a revitalised and entertaining coastline, while still encouraging an active and social lifestyle for all users. We wanted to target 4 areas - Unite, Grow, Rejuvenate and Defend.
06
07

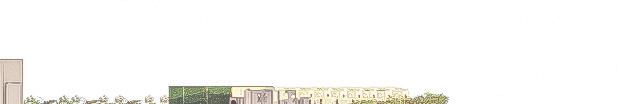

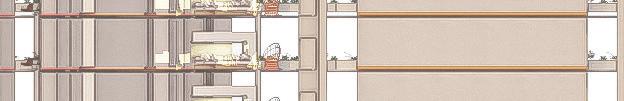

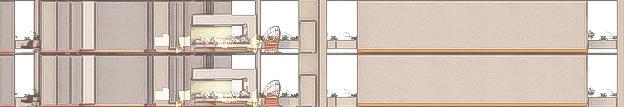

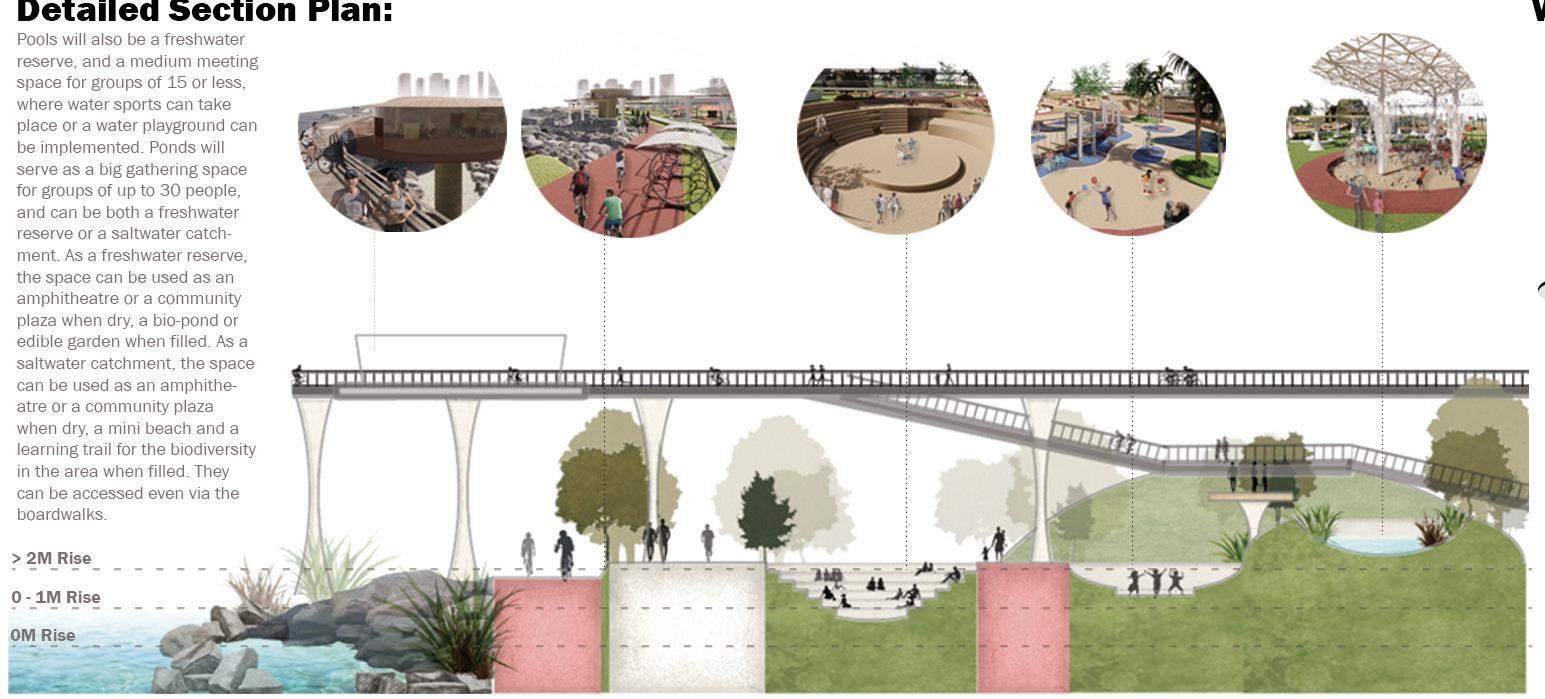

Section
Concept & Solution

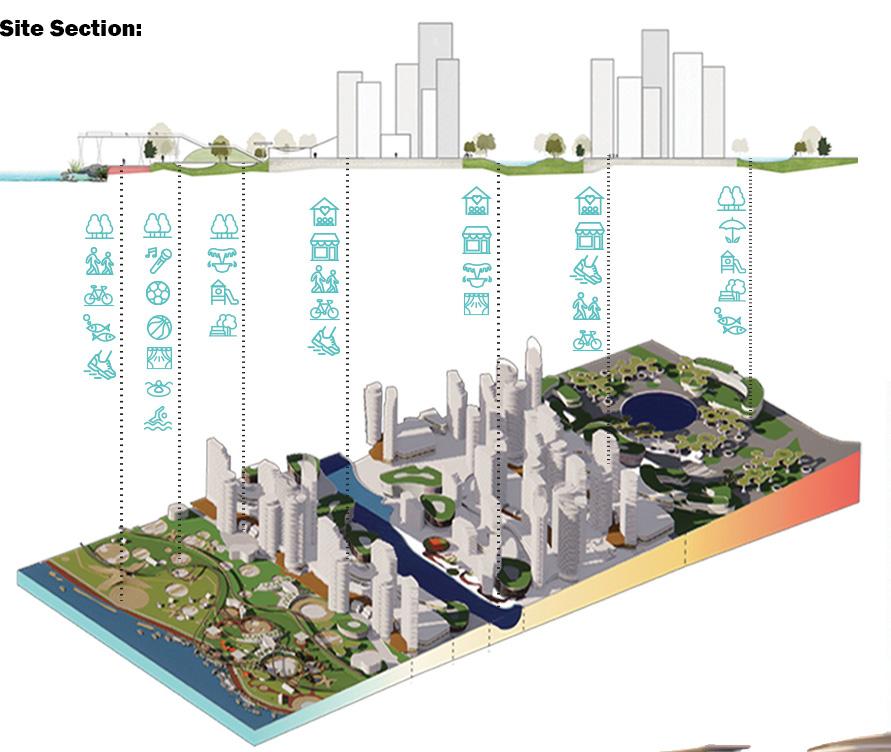

Urban Section & 3D City View

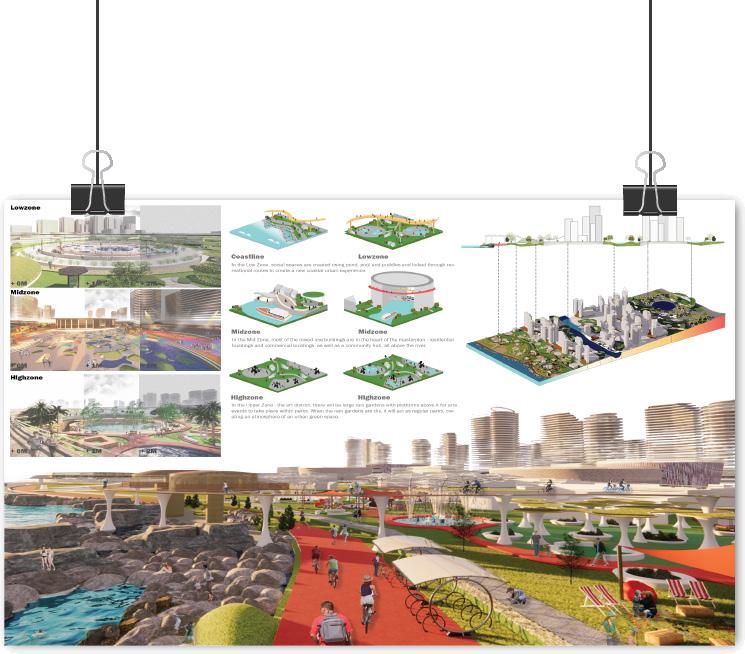

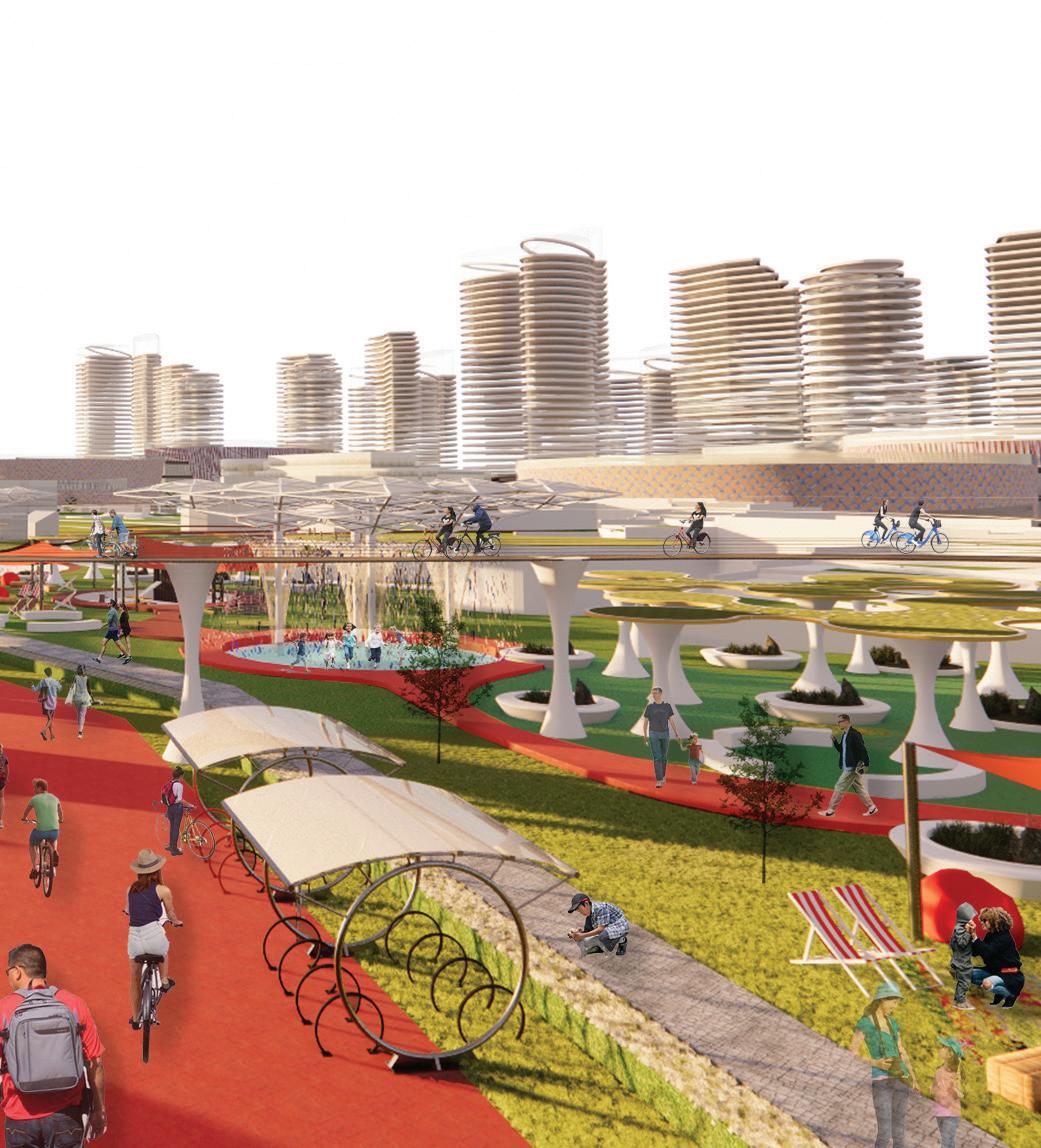

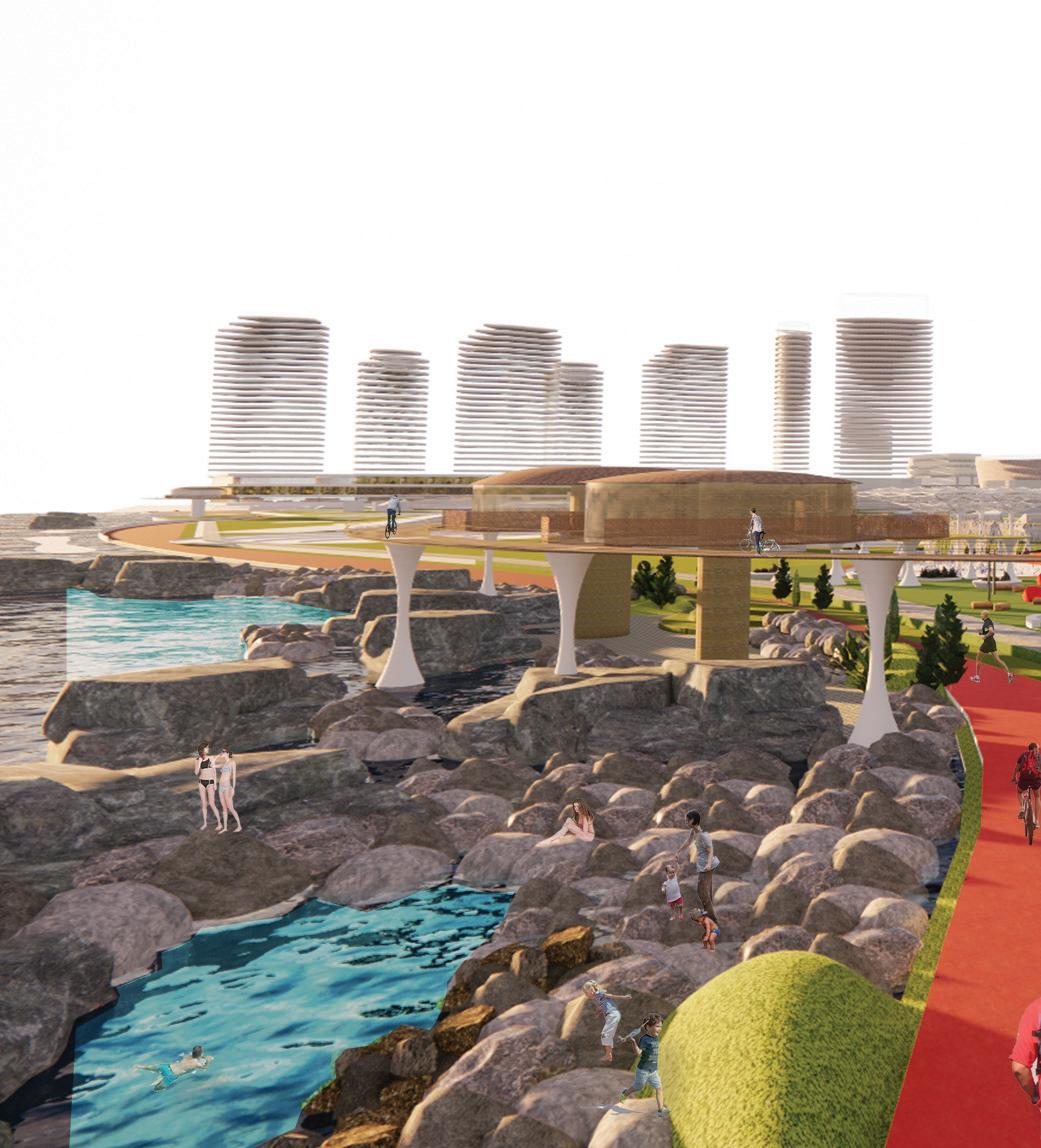

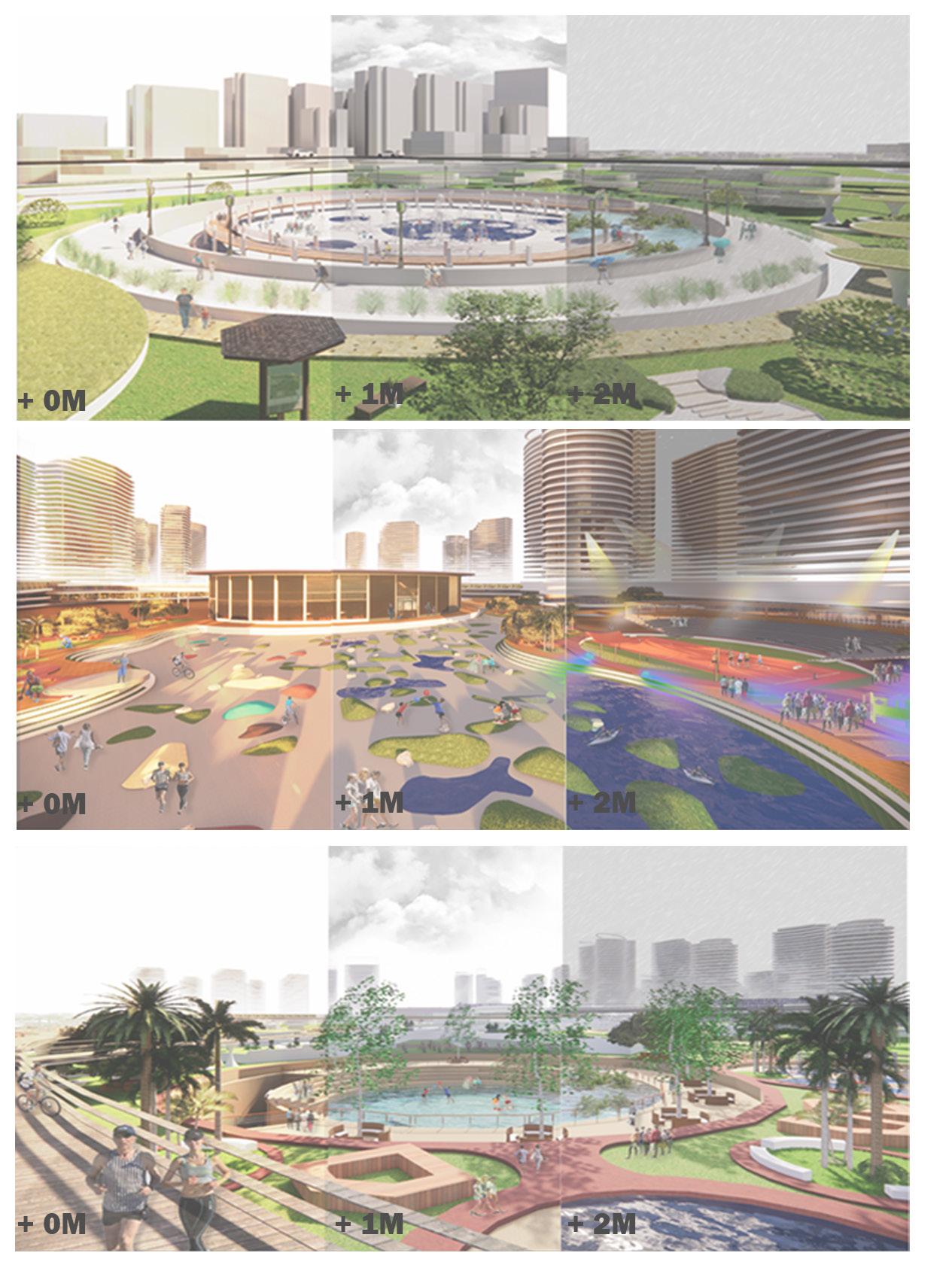

08 Renders Low Zone Mid Zone High Zone
09
10
Sustainable Construction
3 Layer of Bricks
Mortar
1.Concrete screed
2.Concrete
3.insulator
4.Damp-proof mem.
5. Sand filling
“
Reinforment Concrete
Rubber Soling
6.HardCore Bricks

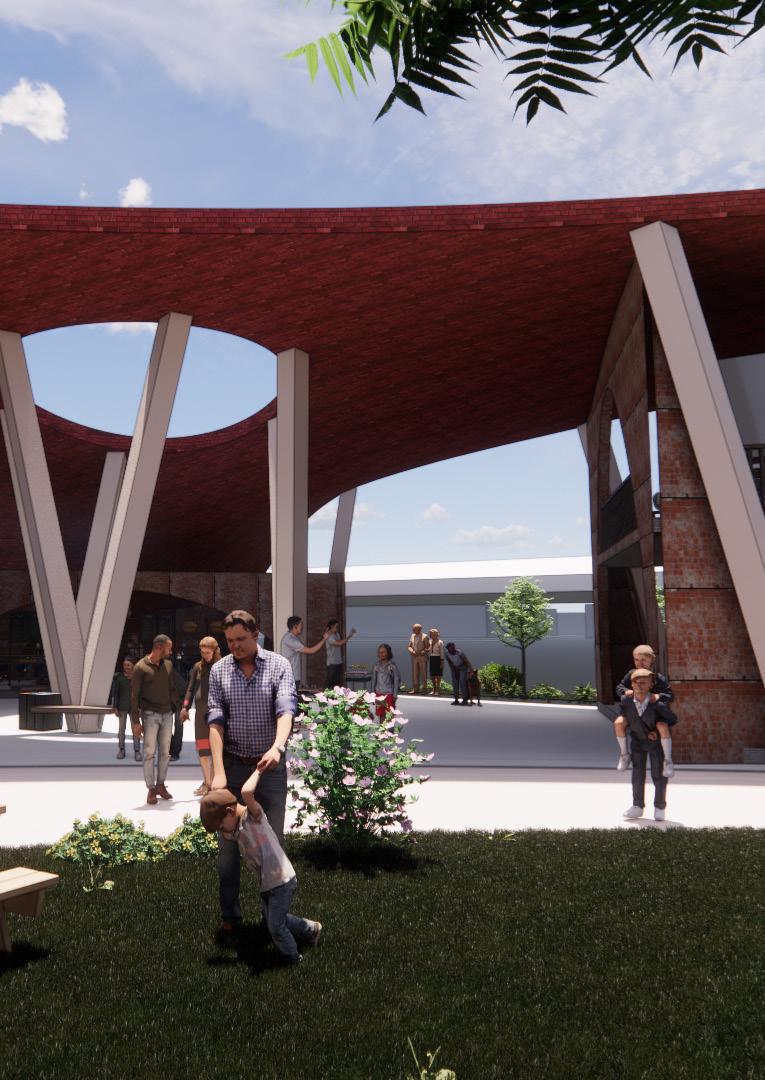

Walkable and playable roof “
From this idea the roof plays a role as a structure that protects and allows movement above while using sustainable materials
The use of brick is due to its unmatched characteristics in terms of tactility, availability, and performance, especially as protection and insulation against the harsh sun.
14

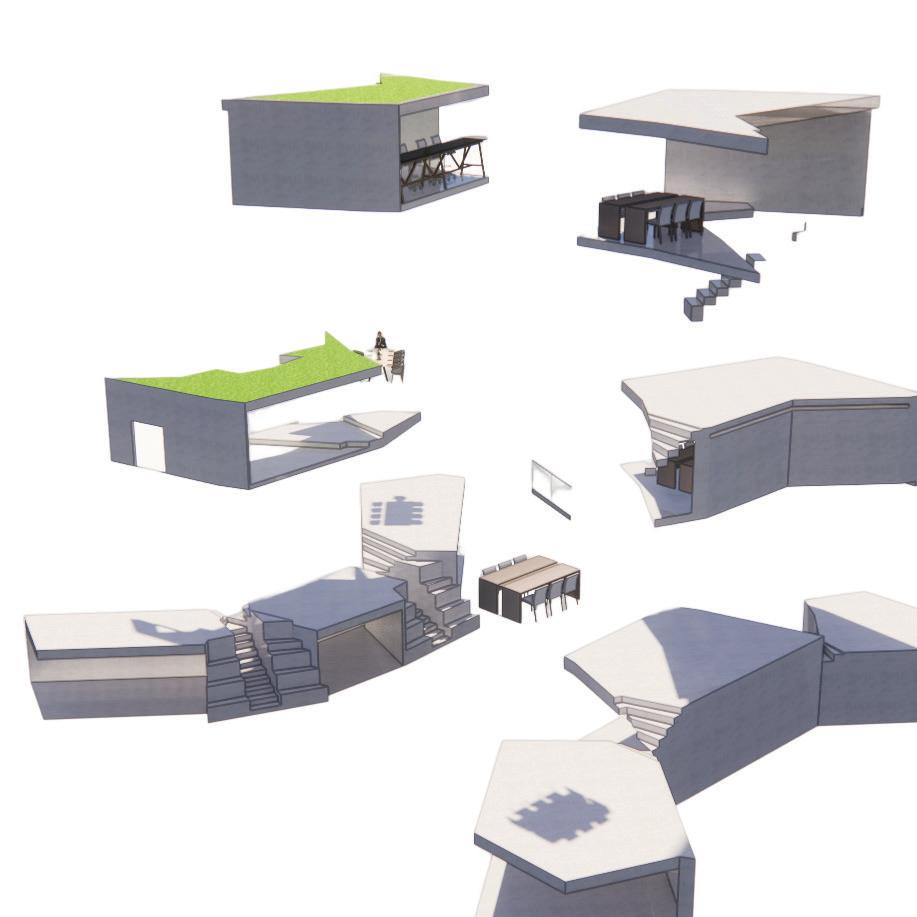

Axonometric Diagram
Roof Force Diagram

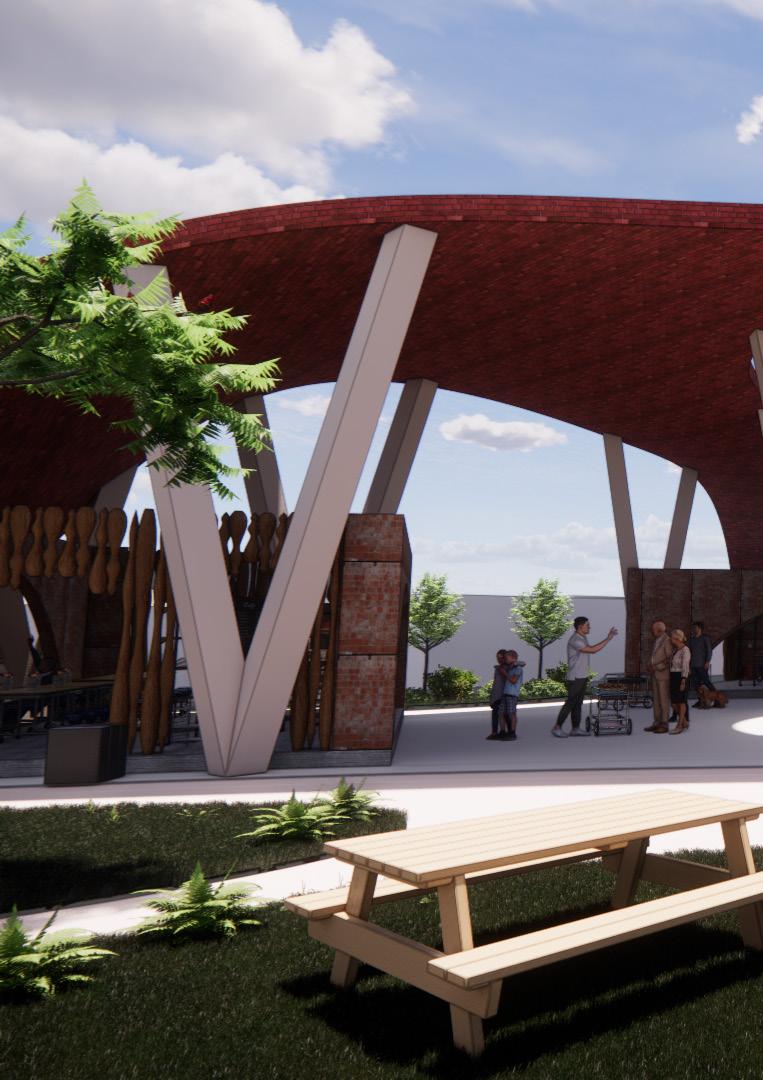

Event Space with Atrium
With a focus on creating a social space where a community can not bond with one another through food and hands on activities such as farming and crafting. Replacing windows with openings to create an open experience.
Designing spaces with the intension and form of organic and open to create vibrant and cooling spaces.
15
16

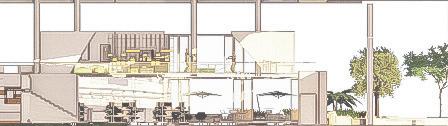

Retail & Workshop Interior
Office Space Interior
Walkable Roof
‘A bonded Campus Life’
2022
year : type :
Residential Architecture Project / Mix Residential
A mix residential building housing 3 Genertion families and dormitories for university students. Solving the issue of stress for both students and adults in Singapore by creating a building where both students and adults can not only collaborate with one another but mentor and help one another.
17 u - Cloud
18

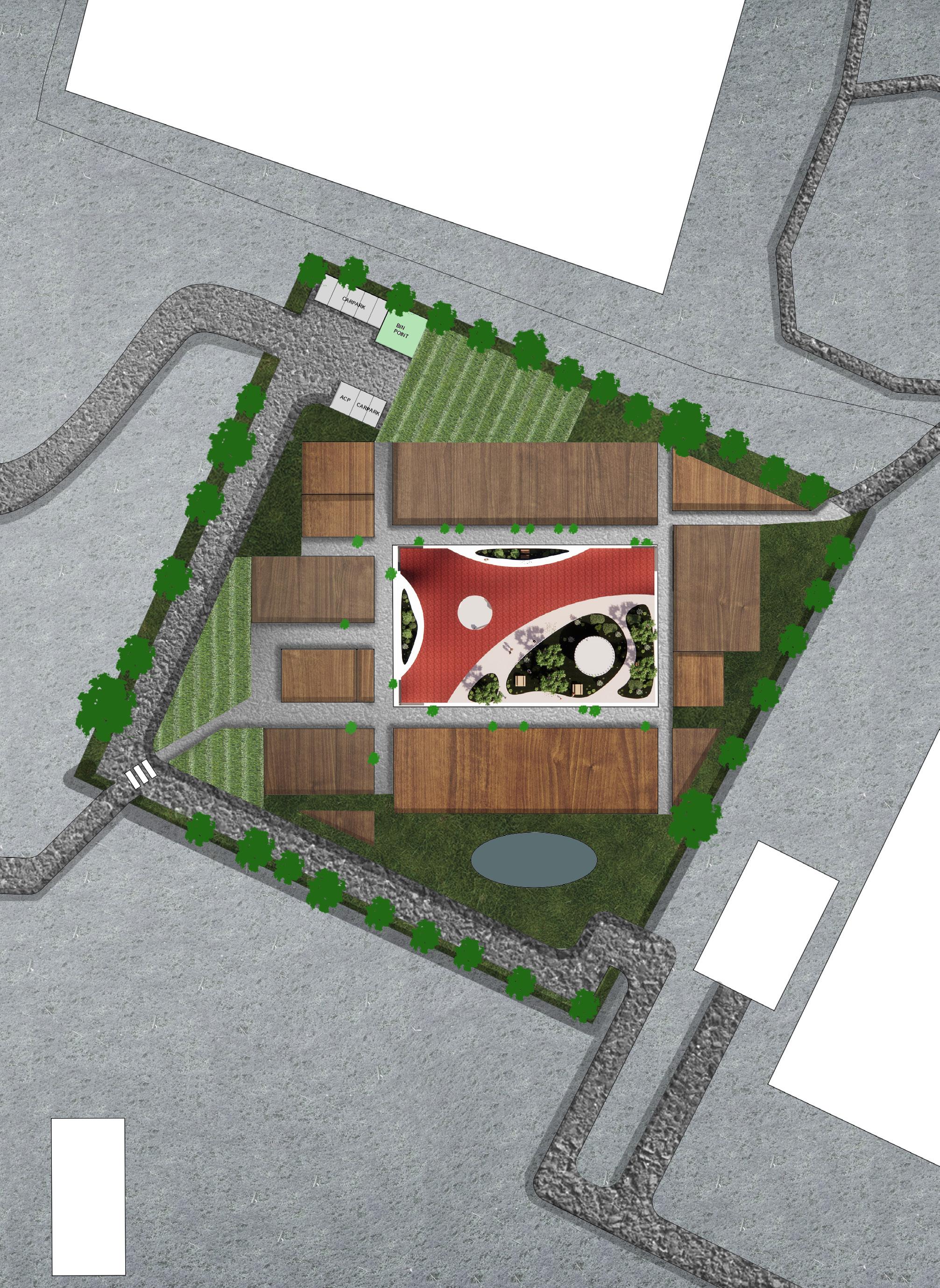

Site Plan
19
Creating a deeper connection with the river and my building through step like typography that connects to the river. Implementing more trees and nature to provide shading and communal spots.
20
Located in Jalan Besar, Singapore
Located in the city center beside rochor river and direct access to the MRT. The site is surrounded with near by schools and universities such as Laselle, Nafa, SMU, etc.
Roof storey plan
Community graden & centralised aircon system
Collaborative space
Centralised space for meetings & self studying
Residential storey plan
Dorms & Communal spaces
Single Unit
Buddy Unit
3 Gen Unit
Double Buddy Unit
21

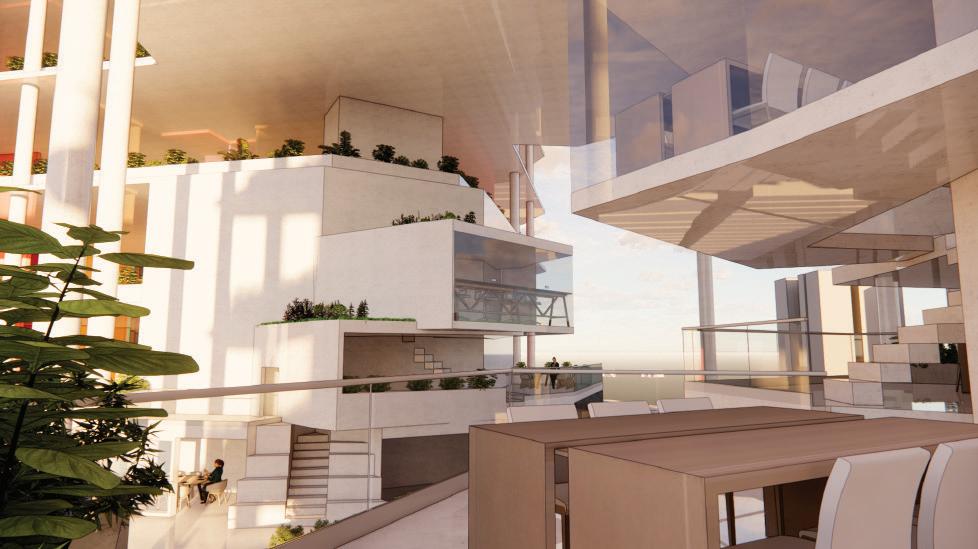

Roof Garden Perspectives

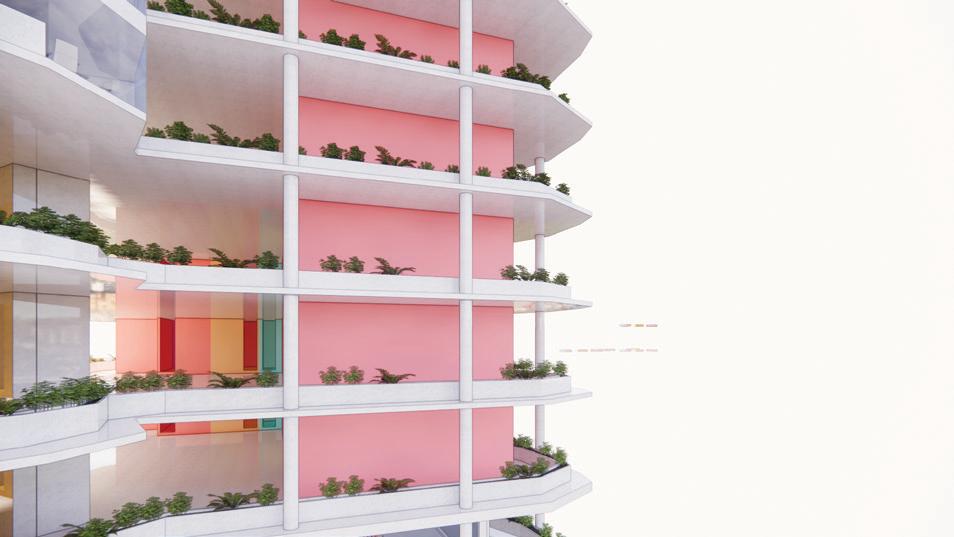

Residential Perspectives
22
Interior View. Communal Living Room
Interior View. Shared Balcony Space
Interior View. Communal Kitchen
23 Podium storey plan 2 storey Commercial & public Area
Podium Perspectives
24
Interior View. Cafe
Interior View. Public Library
Interior View. Public Gym
Interior View. Social Lounge
Interior View. Study Pods
Interior View. Convinence Store
Sustainable Design Features

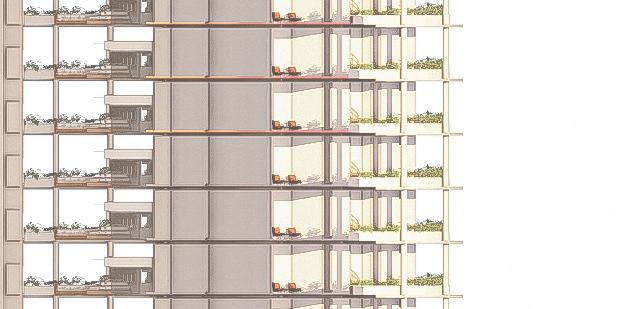

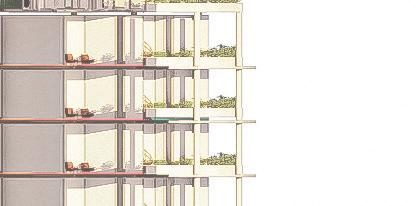

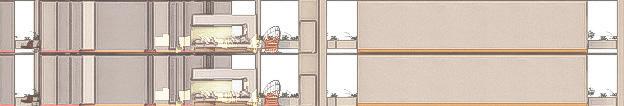

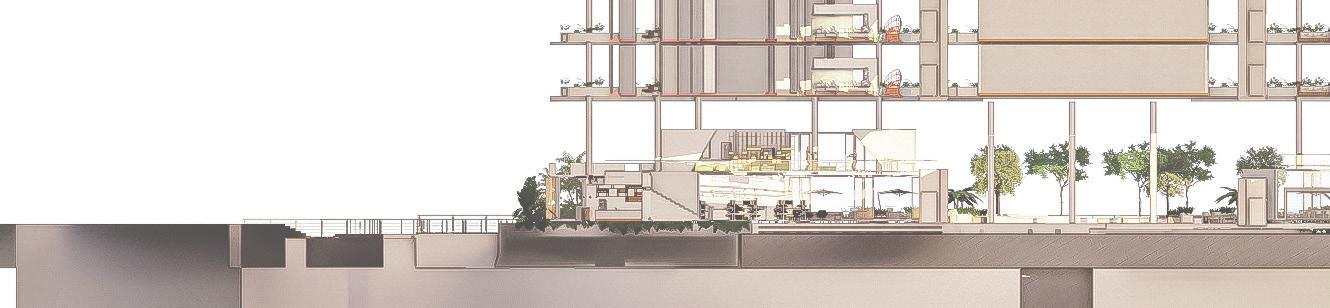

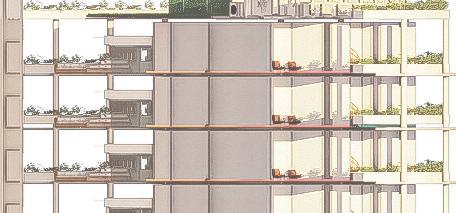

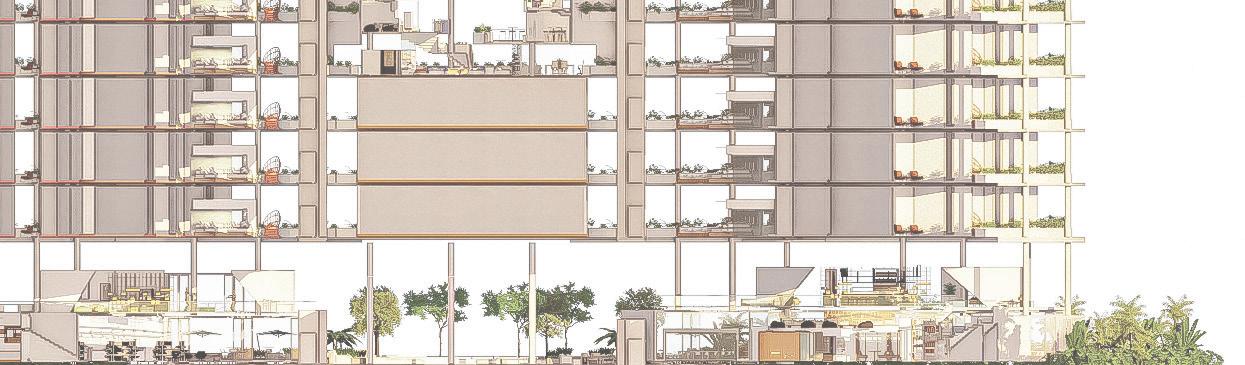

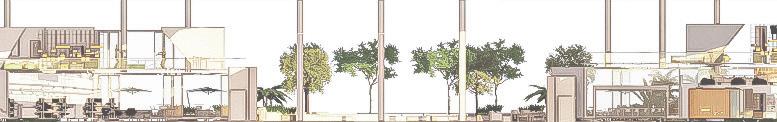

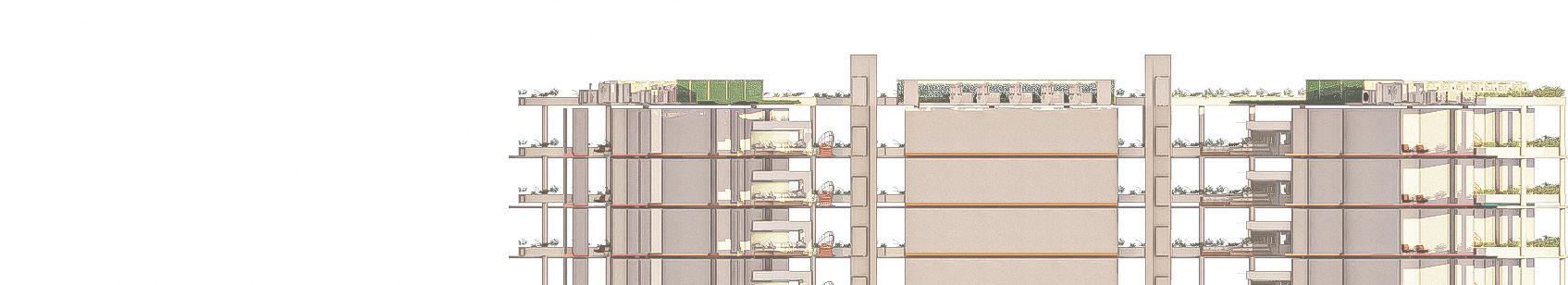

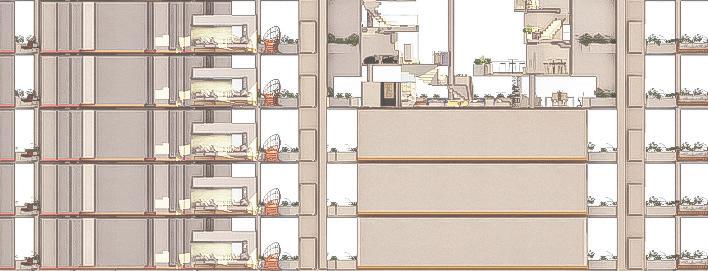

Section

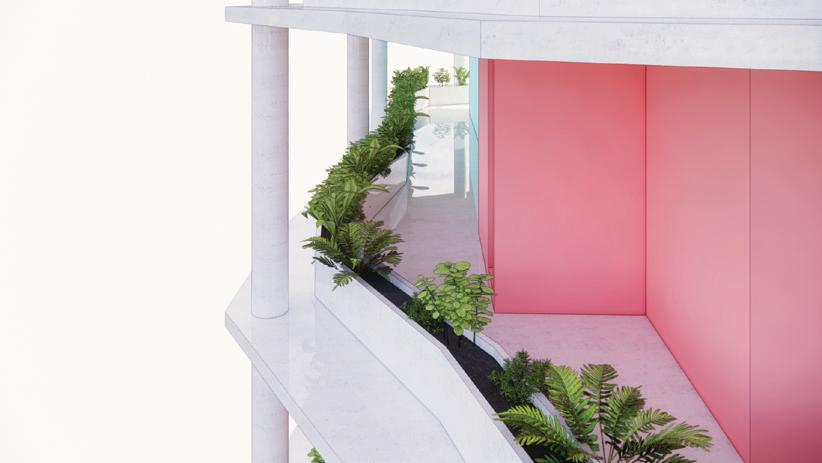

facade depth for solar protection
allow wind better flow
25
The experience of not only being surrounded by nature but being able to cleanse and freshen the air with the help of nature.
Designing this building I intended to replace railings with tall planted greenery that creates a facade depth for solar protction, better air quality and helps reduce outdoor tempertaures.
plants help reduce outdoor temperature
26
AIR QUALITY
IMPROVE
green roof roof GARDEN
27

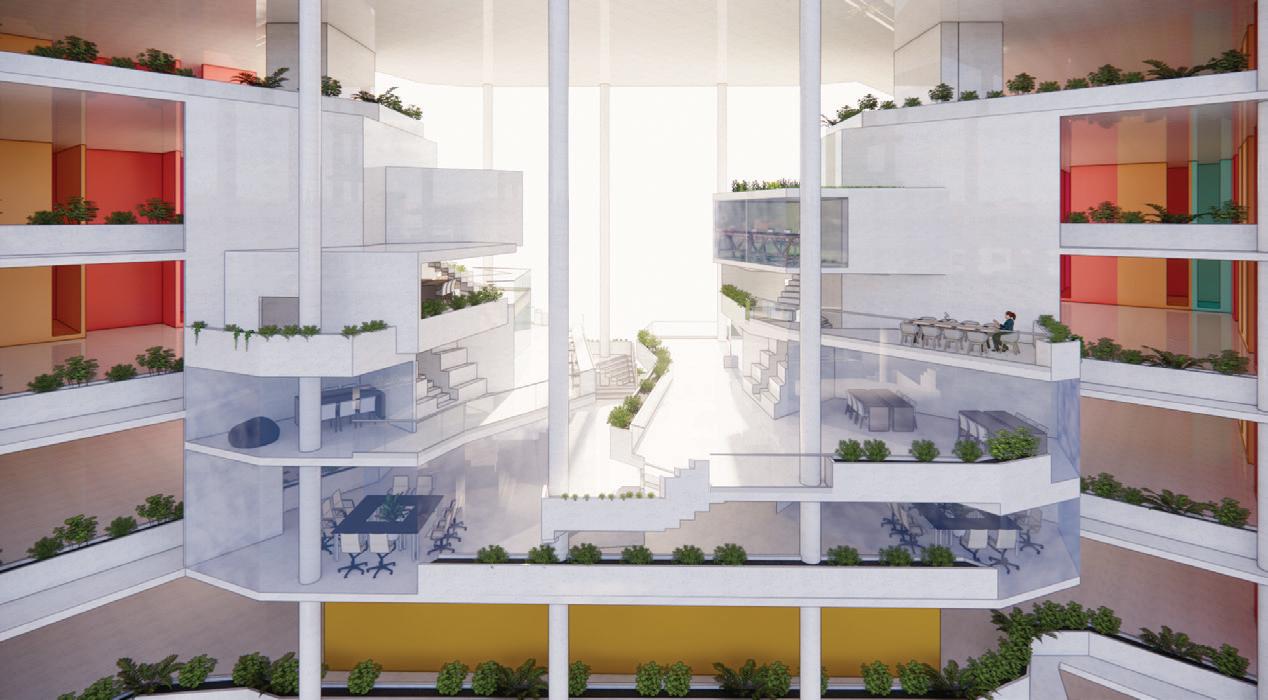

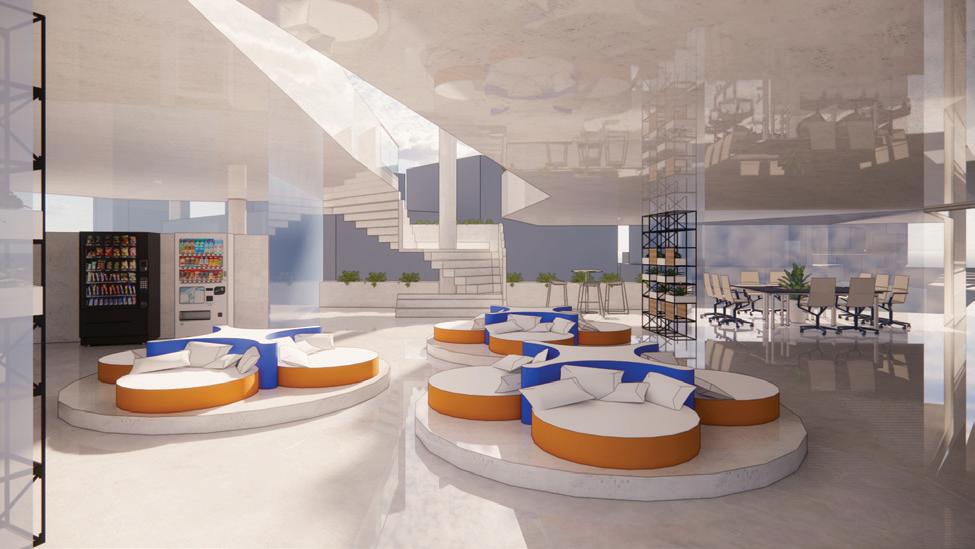

Perspective View. Collaborative Space

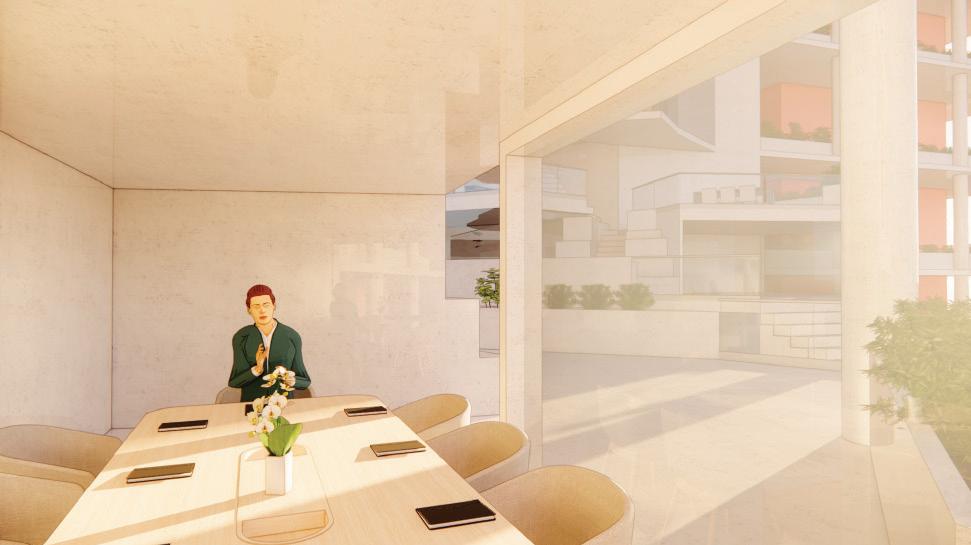

Perspective View. Meeting Rooms & lounge Area

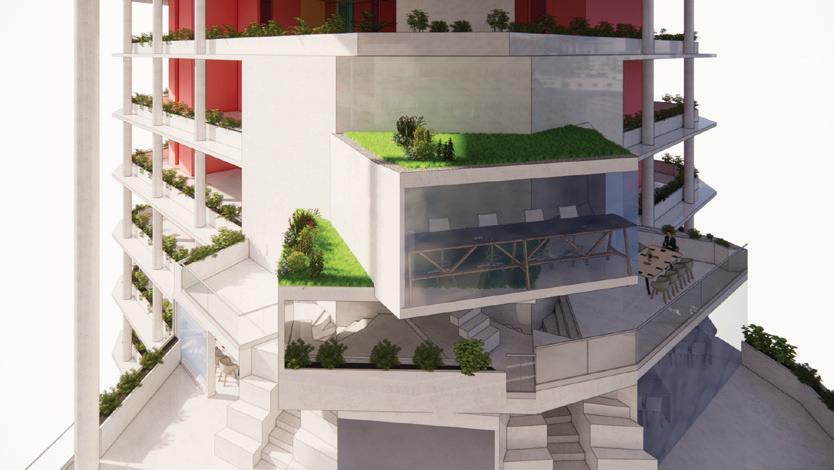

Axometric Diagram of Collaborative Space

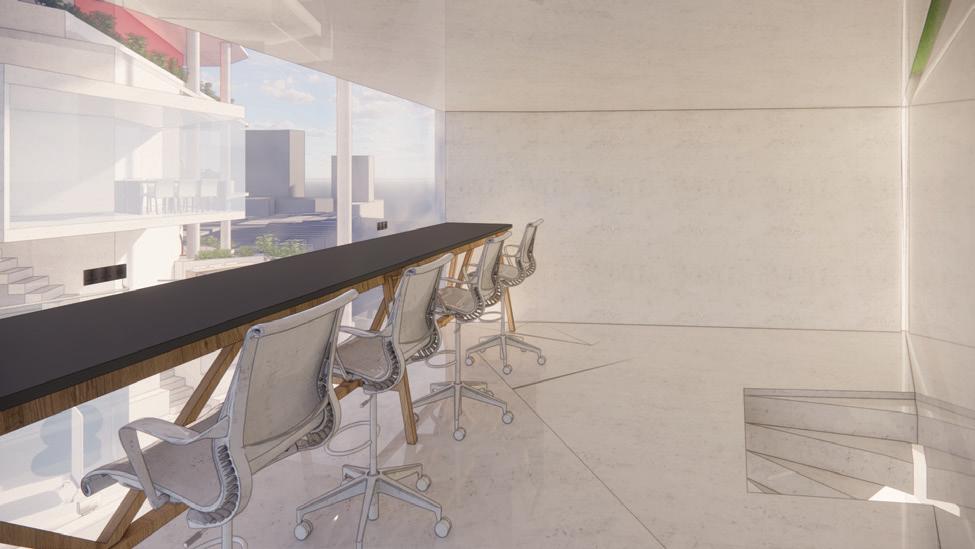

Interior View. Self Study Spaces
Interior View. Collaborative Space

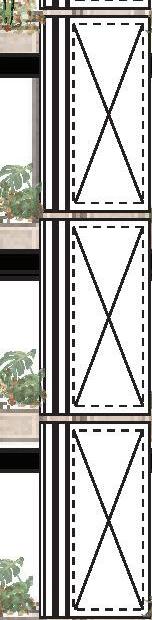

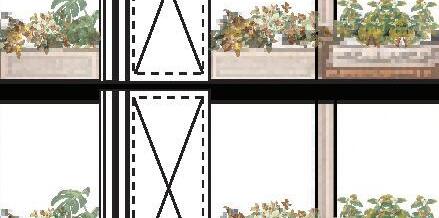

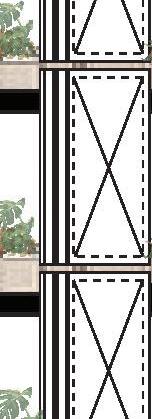

Facade Detailing
28
14 12 11 10 9 8 13 7 6 5 4 3 2 1
Legend :
1 ) Aluminium Railing
2 ) Door Drame
3 ) Laminated Glass
4 ) Rainfall Chain
5 ) Mixed Soil
6 ) Metalic Bar
7 ) Gravel
8 ) Waterproofing
9 ) Cladding
10 ) Concrete
11 ) Insulation 12 ) Wood Bark 13 ) Connected Tube
14 ) Floor Tile
