The museum honors the legacy of The Royal Bungalow that once graced ‘Iolani Grounds and represents the cultural fusion of Hawaii.

Being located near Chinatown, it symbolically bridges past, present, and diverse cultures.

Through interactive exhibits and workshops, we aim to create a dynamic and passionate environment where visitors of all ages and skill levels can immerse themselves in the rich tapestry that is the world of the ukulele.

We strive to serve as a vibrant cultural hub, illuminating not only the ukulele’s rich history but also create a sense of community and shared appreciation for this beloved instrument, its history, and its legacy.

© 2024 G70. All rights reserved.

1

2

3

4

5

6

RESEARCH

SITE ANALYSIS

OVERVIEW

DETAILS

DESIGN ITERATIONS

APPENDIX

© 2024 G70. All rights reserved.

1 RESEARCH

Figure 1.1

© 2024 G70. All rights reserved.

Architectural Legacy Reimagined: The Royal Bungalow

The Vision of the Ukulele Foundation of Hawaii

Our museum draws inspiration from the elegance and historical significance of The Royal Bungalow, offering visitors a glimpse into Hawaii’s royal past through the timeless beauty and cultural heritage that once graced the ‘Iolani grounds.

To honor the legacy of the ukulele, support its continued relevance in music and education, and inspire future generations to embrace this iconic instrument by establishing the world’s first Ukulele Museum in Hawaii, celebrating its history, cultural significance, and impact on music and community

© 2024 G70. All rights reserved.

2 SITE ANALYSIS

Figure 2.1

© 2024 G70. All rights reserved.

Vicinity Map A. B. C. D. E.

IOLANI PALACE HAWAII STATE CAPITOL OLD ARCHIVE KANA’INA BUILDING HAWAII STATE LIBRARY IOLANI BARRACKS

A.

et

tre sS

E.

rd ha

B.

c

A.

C. et

D.

St re

ng

St re

C.

ik e

Ki

et

ke L

S

D.

Li

Ri

B.

et

tre lS

w

bo

h nc

Pu

1” = 300’

E.

© 2024 G70. All rights reserved.

Site Analysis

Figure 2.2

scale

© 2024 G70. All rights reserved.

Sun & Shadow Study

7:00am Maximum Shadow

9:00am Opening Time

THIS PAGE INTENTIONALLY LEFT BLANK

11:00am

1:00pm Minimum Shadows

3:00pm

5:00pm Closing + Performance Time

© 2024 G70. All rights reserved.

3 OVERVIEW

Figure 3.1

© 2024 G70. All rights reserved.

Site Plan STATE CAPITOL

IOLANI BARRACKS

HAWAII STATE LIBRARY OLD ARCHIVES BUILDING

IOLANI PALACE

1/32” = 1’ 0”

© 2024 G70. All rights reserved.

Exterior Facade Figure 3.2

The exterior facade is a tribute to the original Royal Bungalow. The facade incorporates mashrabiya screens and stained glass to allow people from inside to see out while still providing protection from the sun. © 2024 G70. All rights reserved.

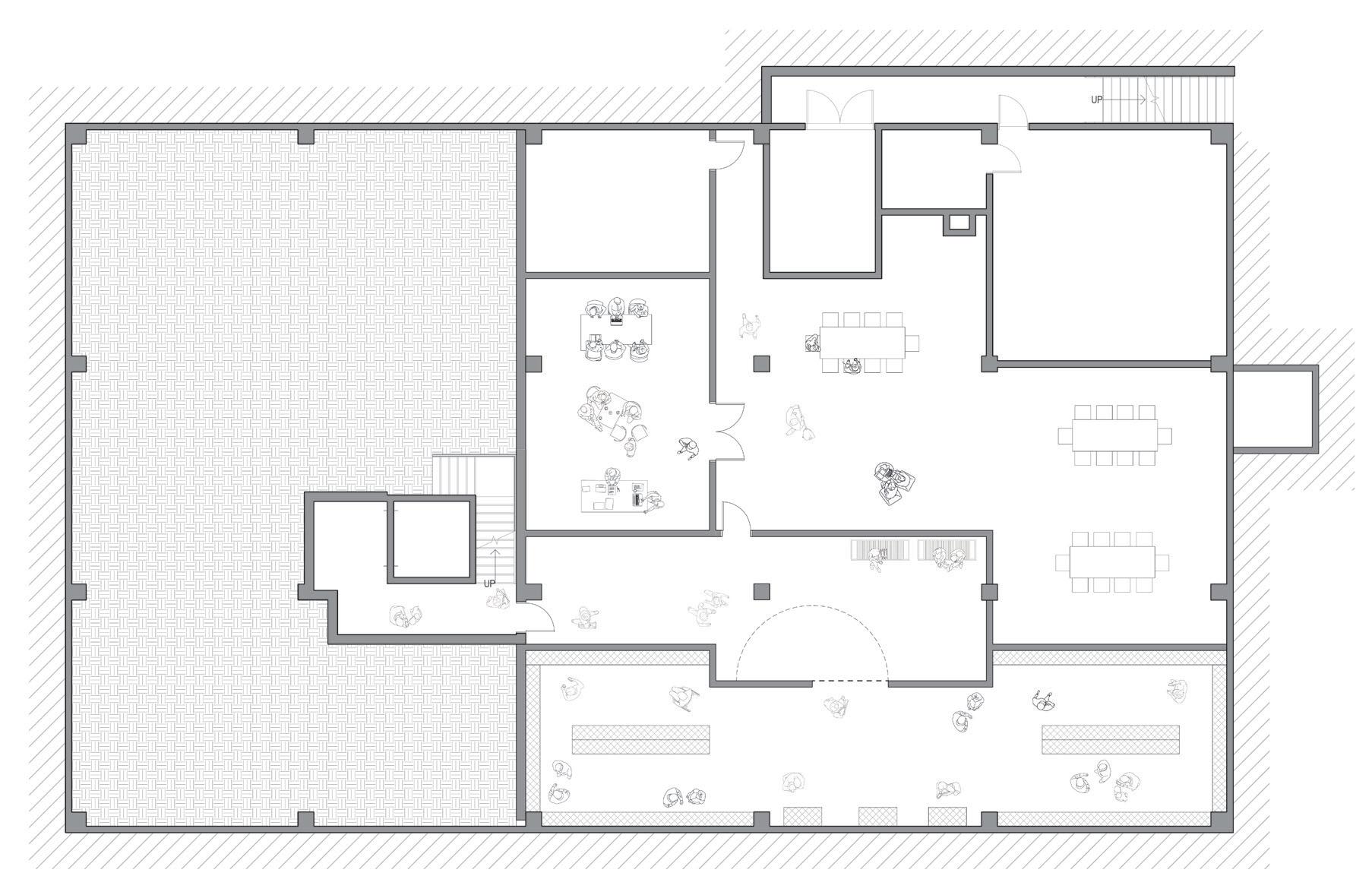

Basement Level The basement level invites visitors into a captivating journey through time, with vignettes on the walls depicting scenes from old Chinatown, celebrating the birthplace of the first ukulele makers. These historical murals set the stage as visitors make their way to the vault, a secure and revered space housing the museum’s most valued and rare collection of ukuleles.

A. B. C. D. E.

THE VAULT OLD CHINATOWN VIGNETTE OFFICE AREA MEETINGS ROOMS MECHANICAL ROOMS E.

D. C.

B.

A.

1/16” = 1’ 0”

8’

4’

0’

8’

16’

© 2024 G70. All rights reserved.

A. THE VAULT

B. CHINATOWN WALL VIGNETTE

The vault establishes a secretive and valuable collection of artifacts safely secured in the underground exhibition.

Figure 3.3

Vignettes of old Chinatown reminisce of the birthplace of the ukulele while leading visitors to the vault.

Figure 3.4

© 2024 G70. All rights reserved.

Ground Level This floor welcomes visitors into the heart of the exhibit, signalled by the Donor’s tree, a tribute to those who have supported the museum. On this floor, guests can explore the the luthier lab, archives room, interactive displays, and endless showcases of historical music pieces.

A. B. C. D. E. F. G. H. I. J. K.

ENTRY DONOR’S TREE INTERACTIVE AREA DISPLAY AREA EXHIBIT ROOMS ARCHIVE ROOM LUTHIER’S LAB BATHROOMS STAFF ROOM GIFT SHOP AMPHITHEATER

D. E.

E.

G.

C.

B.

I.

F. K. H.

H. A.

1/16” = 1’ 0”

8’

4’

0’

8’

16’

© 2024 G70. All rights reserved.

A. ENTRY

B. DONOR’S TREE

The view as visitors enter into the grand double-height ceiling space of the museum.

The donor tree is decorated with leftover ukulele hole cutouts that are repurposed as plaques to show thanks.

Figure 3.5

Figure 3.6

© 2024 G70. All rights reserved.

C. INTERACTIVE AREA

D. DISPLAYS

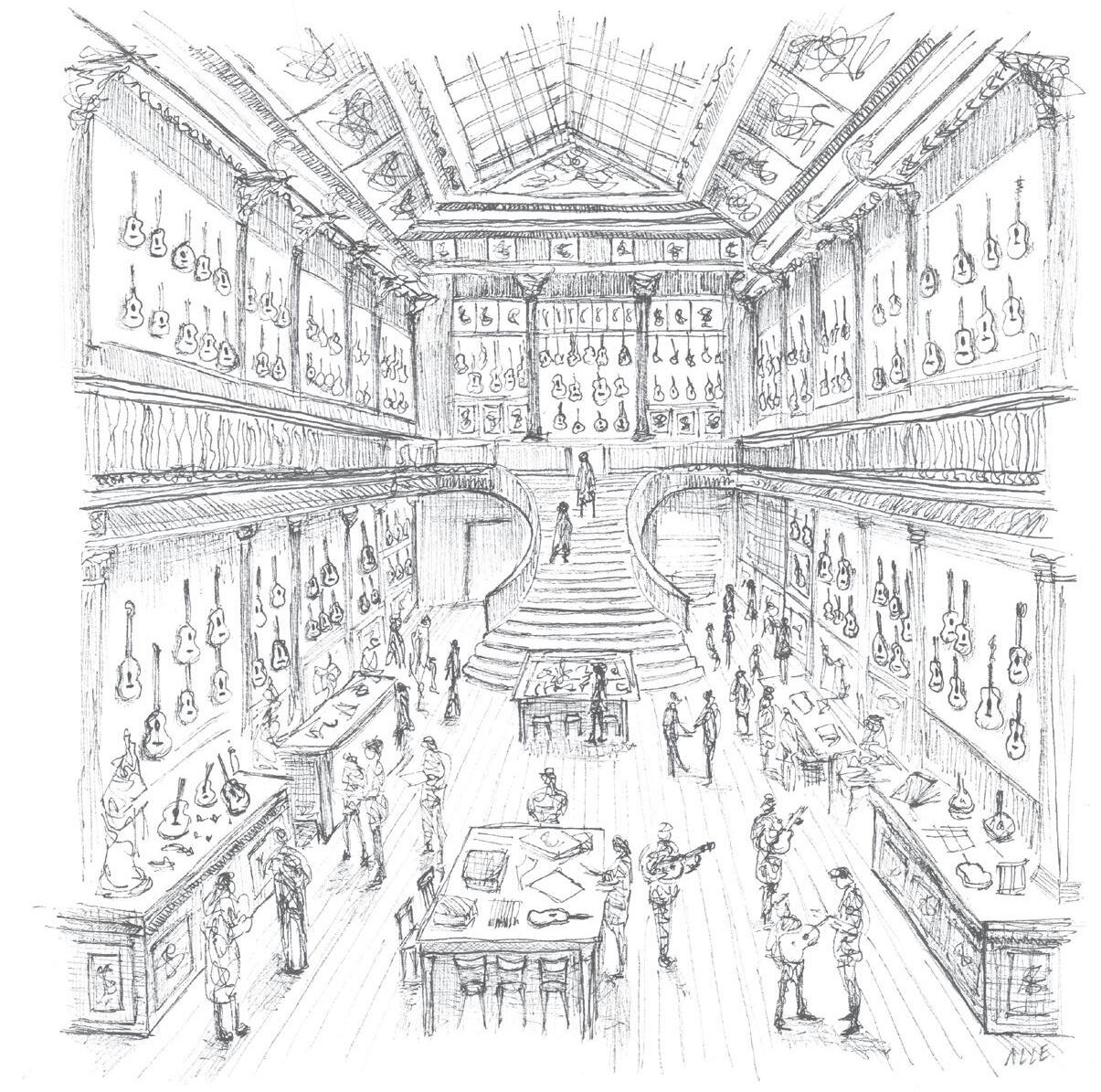

An interactive display at the heart of the museum completes the Ukulele shape.
