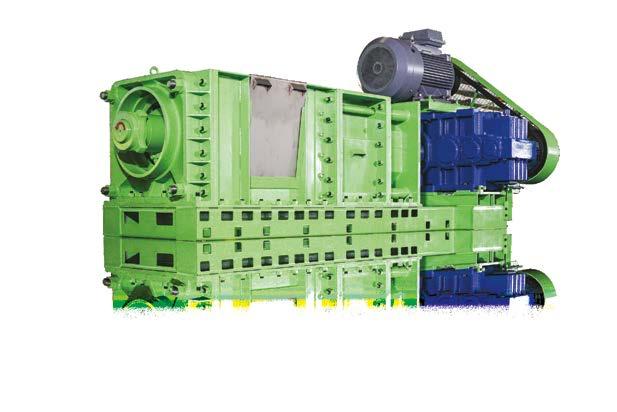

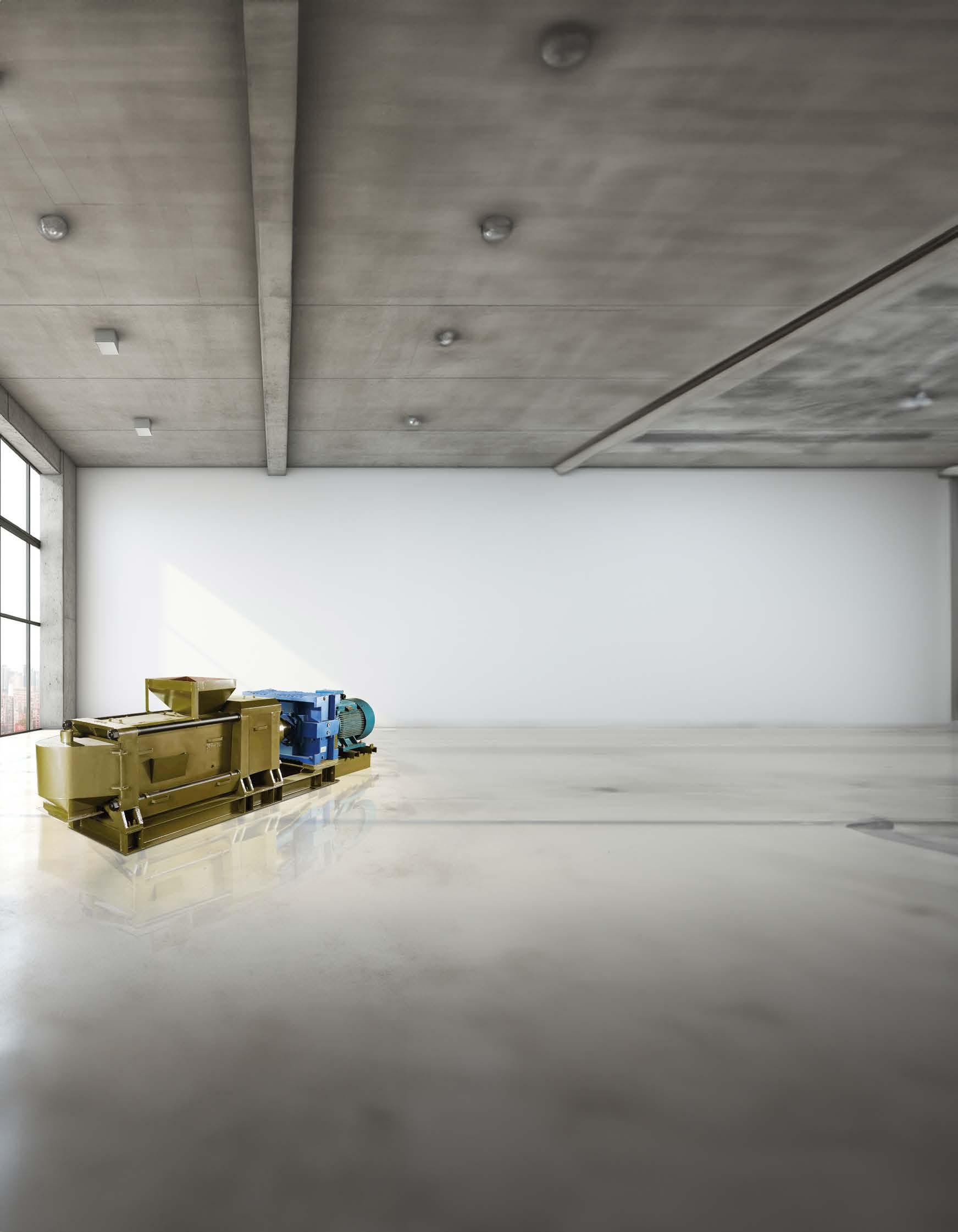

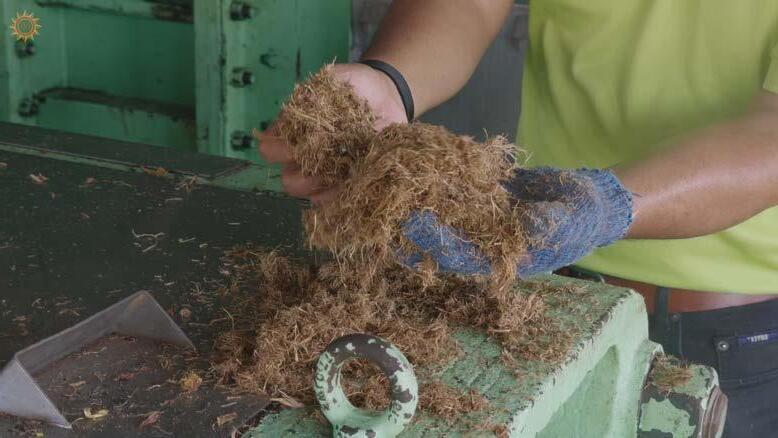

MULTi-USE BiOMASS FUEL FiBRE PRESS
YKL OTHER PRODUCTS :
Unlock the future of palm oil with ABS Global Our solutions revolutionize estate and mill operations, driving quantum improvements in efficiency, sustainability, and profitability

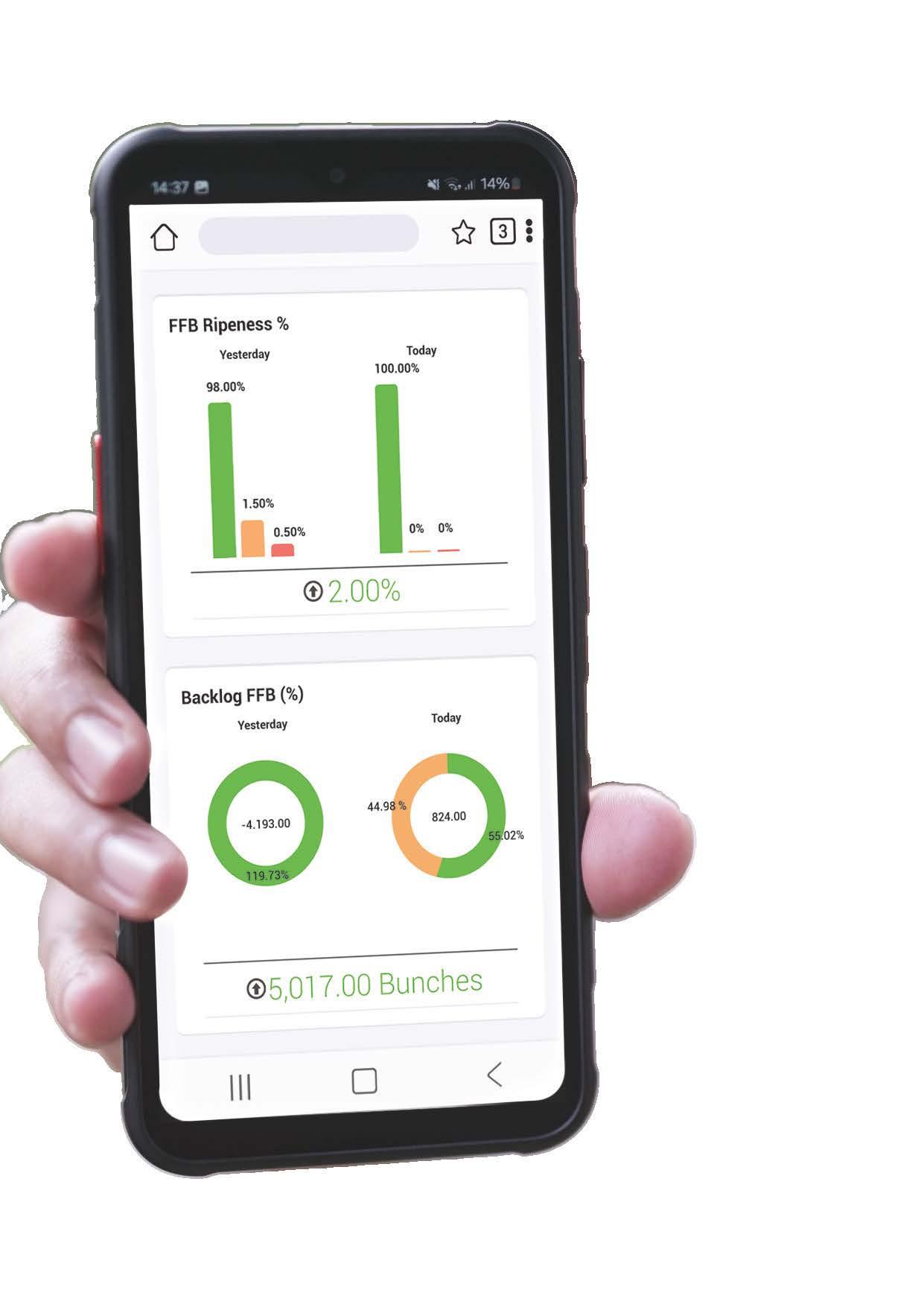

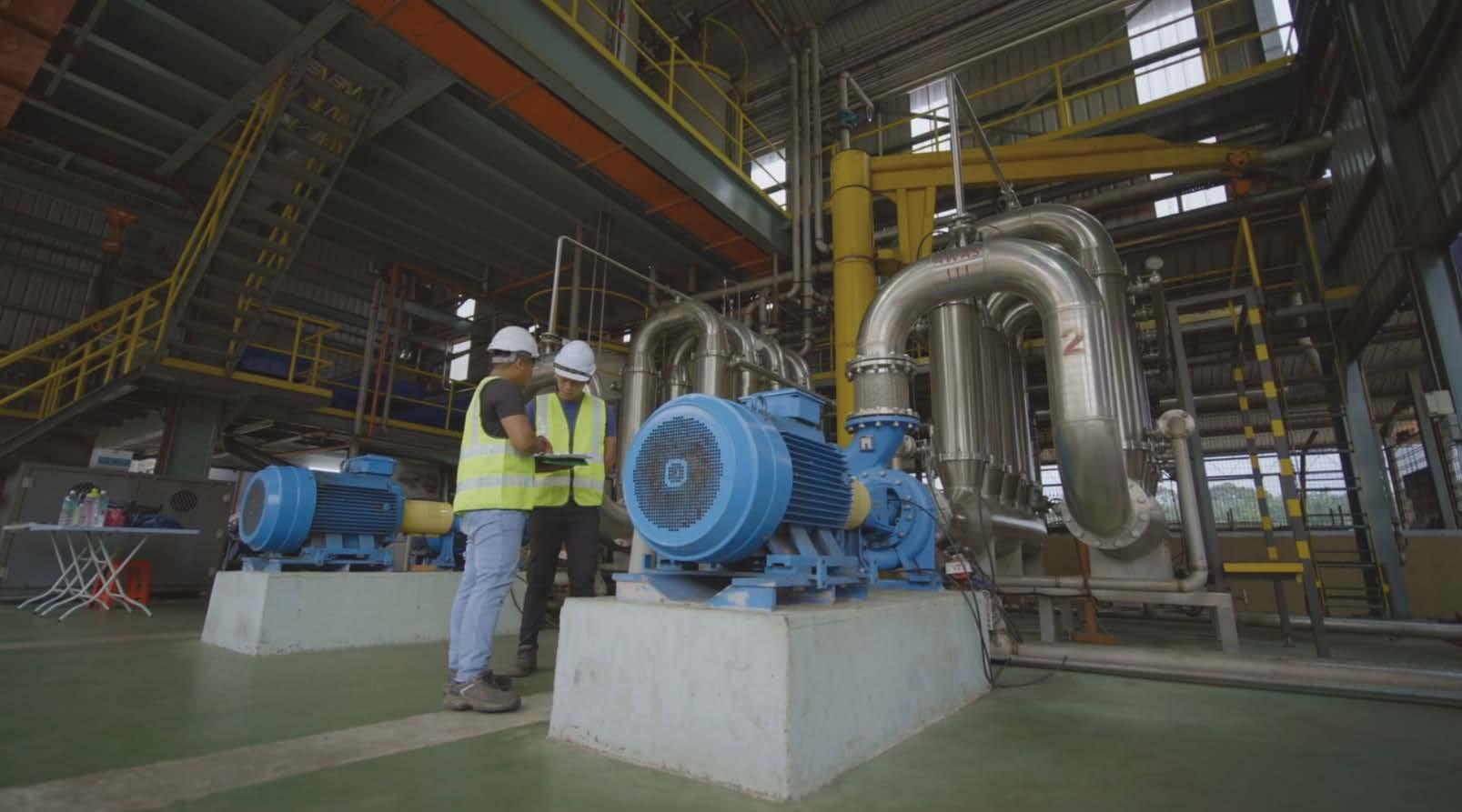

From real-time data to advanced analytics, empower your operations for the future
Rastam believes that with a strong collaboration, Malaysia’s palm oil sector will continue to thrive alongside the empowerment of smallholders. —
ONG SOON HIN/The Star
PARAMAX® Y SERIES Leading the Palm Oil Gearbox Development
Our dedicated lineup of Gearbox series - Paramax Y Series, developed over years and experience in the Palm Oil Industry for all applications suitable in the extraction mill and kernel process. Each new addition to the series only gets better and better with improved unmatched features, anticipating customer needs in advance.
Full Range
Paramax Y Series Commonly Used applications
(New) Paramax® YHD065 Digester* Drive 5000L-6500L
Paramax® YHD090
High capacity KCP & EFB Machines
Paramax® YHD080P3 Kernel Press, EFB Press, P20-25 Screw Press
Paramax® YHD070 Kernel Press, EFB Press, P20-25 Screw Press
Paramax® YVD060 Digester Drive 3000L/6000L
Paramax® 9000 Thresher Drive
*Digesters for low MOSH-MOAH requirement

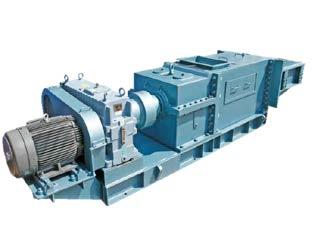

YHD070P3-RL-55.438, Kernel Press
All range has 25° pressure angles with thicker gears and are AGMA12 certified standard to increase gear strength. Vacuum degassed alloy steel and Carburising maintains consistent quality to prevent stress concentration due to impurities as well as protubence hobbing modification. All these adds up to its durability to withstand the harsh conditions expected in POM industry applications.
Newest addition Zero Oil Leak Digester Gearbox
Malaysia (HQ) +603-5121-0455
Launched in late 2023 with quick adoption by many major Palm Oil groups, this unit has a torque rating of 38,000Nm, 20% higher than other units in the market. YHD065P3DG allows full load start with both 45kW and 55kW motor, allowing direct motor to gearbox connection, removing the maintenance issue of belt and pulley, user can expect long life operation without interruption. The integrated mechanical pump system reduced the lubricant oil fill from 100L to 35L, a whooping 65% save of annual oil consumption and a further saving if the mill is practicing food grade oil to address MOSH & MOAH concern.
100% Leak Proof - Drywell
0% Palm Oil contamination from digester gearbox
55kW Full Load Start
The highest rated torque (Nm) - SF:1.66 at 55kW in the industry for 4000L-6500L Digester Tank
Long
Lasting Operation
Increased 20% torque with estimated 10 years bearing life at 55kW operation (365 days x 12hrs)*
Lower Maintenance Cost
Cooler gearbox, longer oil life with 59L oil savings per oil change, ~USD1700 per gearbox over 10 years!
Indonesia (HQ) +62-21-29612100 Thailand (HQ) +66-38-454-230

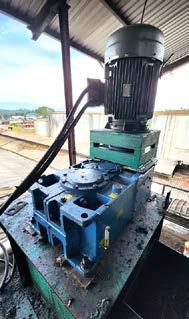

YHD065P3DG, Digester Drywell
Regency, Jersey City, United States

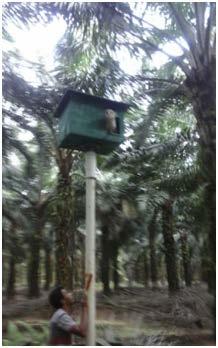

Barn owls are used in the biological control of destructive rodents on plantation. The use of barn owl house not only is an economical and effective non-toxic way to control gophers in the wildlife ecosystem, but also helps to comply with RSPO’s principles as oppose other alternative common method of rodent control on plantations using pesticides and fires pose a risk to non-target wildfire.
PRODUCT FEATURES
Product dimension : 600mm(L) x 430mm(W) x 550mm(H)
Product weight : 6kg
Good thermal insulation using thermoset material and venting holes in the house provides air circulation in and around the house keeping the entire house temperature consistent and cool
Door on rear panel of the house facilitates easy cleaning.
Moulded steel sheet on the inner wall of the base panel prevents scratch by owl claw.
2 compartments inside owl house is designed for reproduction of barn owl
A 4" flange is moulded on the outer wall of the base panel to attach to pole or post.
The outer wall coloured in green is in harmony with the environment in the plantation
The inner wall coloured in black enables the owl to rest during the day and hunt at night.
BENEFITS
Optimise yield by reducing incidence of damage inflicted by rodents.
RSPO compliance in controlling rodents in plantations
Savings in labour cost due to easy installation (DIY method with installation manual provided). Light weight enables better mobility and wider coverage in plantations.
Barn owl house's consistent temperature provides conducive living environment for the owl. Harmonious with environment lures barn owl to the owl house. It is durable and weather resistant (3 years life span).

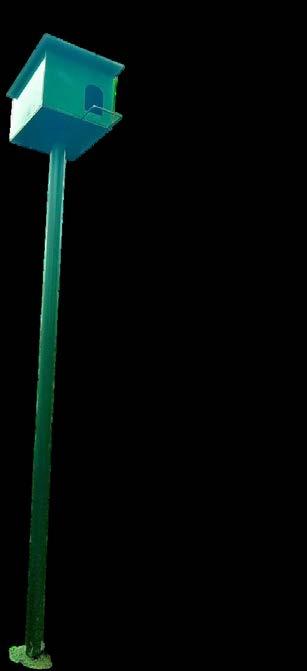

Barn Owl House complete assembly

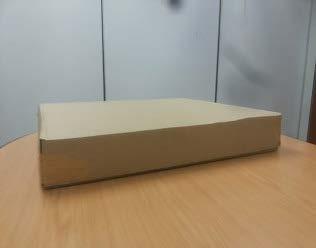

Carton box packaging size : 770mm(L) x 650mm(W) x 120mm(H) Packaging for Pre-assembled unit in carton box
MASTER APPROACH SDN BHD (226209 V)
Lot 2755, Jalan Raja Nong, 41200 Klang Selangor Darul Ehsan, Malaysia
Handphone : 019-840 0072 (Liana) / 012 - 348 2088 (BK Lim)
Email : sales@masterapproach.com.my
