TEAM Group 10
Sara Eslamieh (SE)
Visual Artist
Architectural Engineering
Flora Azarpeyvand (FA)
Researcher
Civil Engineering
Mohammad Nikfarjam (MN)
Technical Drafter
Civil Engineering
Farnoosh Rostami (FR)
Technical Drafter
Architectural engineering
Apurva Rairikar Pradeep (AR)
Technical Drafter
Architecture
Assanali Kaidarov (AK) Programmer
Civil Engineering
Researcher
Civil Engineering
Helia Jalali (HJ)
ROAD MAP Group 10
Naming and Logo
ACADE
LLUMINANCE (SUNLIGHT)
IAMOND
SLAND
(KISH)
OGGLEABLE (OPENABLE AND CLOSEABLE) NNOVATION
F.I.D.I.T.I. on FACADE
Project Overview – Site
KĪSH, HORMOZGAN, IRAN
KEY FEATURES
BUILDING ORIENTATION: NORTH THE FAÇ
FACING SEA AND HAVE BEST LIGHT DURING DAY
HIGH HUMIDITY: ENHANCE BY PERSIAN GULF
VISIUAL: PERSIAN GULF VIEW
HIGH TEMPERATURE: HIGH DURING THE WHOLE YEAR AND NEED SHADING CONTROL
COMMERCIAL AREA
AVERAGE TEMPERATURE:
24°C TO 42°C – SUMMER
13°C TO 31°C - WINTER
ATMOSPHERE: HOT AND HUMID CLIMATE
LOCATION: (26.5718055, 53.9583096)
AREA :385 M2
Project Overview – Climate Analysis
DATA
AVERAGE TEMPERATURE 24°C TO 45°C - SUMMER 13°C TO 31°C - WINTER
ATMOSPHERE HOT AND HUMID CLIMATE
WIND MODERATE TO STRONG WINDS
SEASONALITY HIGH SUMMER TEMPERATURES, MILD WINTERS
DATA
SOLAR RADIATION HIGH, AVERAGING AROUND 6 TO 7 KWH/M² PER DAY IN SUMMERS UV INDEX VERY HIGH (8 TO 10 DURING SUMMER MONTHS)
SUNSHINE HOURS 10 TO 12 HOURS – SUMMERS 7 TO 8 HOURS - WINTERS
SEASONAL VARIATION DISTINCT SEASONAL VARIATIONS IN TERMS OF TEMPERATURE AND WEATHER PATTERNS
Inspirations, Statements and Aims
SUN PROTECTION AND SHADE FOR OFFICE
BUILDING
QUICK CONSTRUCTION
• LIGHTWEIGHT STRUCTURE
• STABILITY • ADAPTABILITY WITH
Project Overview - Building
SURROUNDING TOPOGRAPHY
OUTER CURTAIN WALL SYSTEM
Materials - Issues and Choices
Materials - Exploded Detail
BEARING: HTB
SHAFT:PLEXI TUBE TRANSPARENT
FABRIC: I-MESH (BASALT AND GLASS FIBER )
PULLEY: DEEP
GROOVE BALL
BEARINGS
THREAD: BRAIDED
FISHING LURES
Materials and Processes
1. STRUCTURAL LAYER: BASALT FIBER
2. SECONDARY LAYER: GLASS FIBER LAST LOOK
F.I.D.I.T.I. on FACADE
Materials - Issues and Choices
FABRIC:
I-MESH: GLASS FIBER
• STEADY OVER TIME,
• CAPACITY OF RESISTANCE TO SUNLIGHT EXPOSURE
• EXCELLENT IN THE MATTER OF REFLECTANCE TO LIGHT AND HEAT.
I-MESH: BASALT FIBER
• BASALT FIBERS HAS SIMILAR CHARACTERISTICS TO FIBREGLASS BUT HAS BETTER PHYSICO-MECHANICAL PROPERTIES.
FIBRE PROPERTIES
MATERIAL
I-MESH TECHNOLOGY
MATERIAL TENSILE STRENGHT NPA
FIBERS GLASS, BASALT
FIBERS - 40% THERMOPLASTICS
COMPOSITION
F.I.D.I.T.I. on FACADE
Materials - Technical characteristics
SHAFT: PLEXI TUBE TRANSPARENT
40/36X 2000MM
TECHNICAL CHARACTERISTICS:
MATERIAL: POLYMETHYL METHACRYLATE (PMMA)
PRODUCT DIMENSIONS:
EXTERNAL DIAMETER: 40 MM
INTERNAL DIAMETER: 36 MM
ITEM LENGTH: 1200 MM
PRODUCER: LEROY MERLIN NET WEIGHT (IN KG): 0.66
COLOR: TRANSPARENT

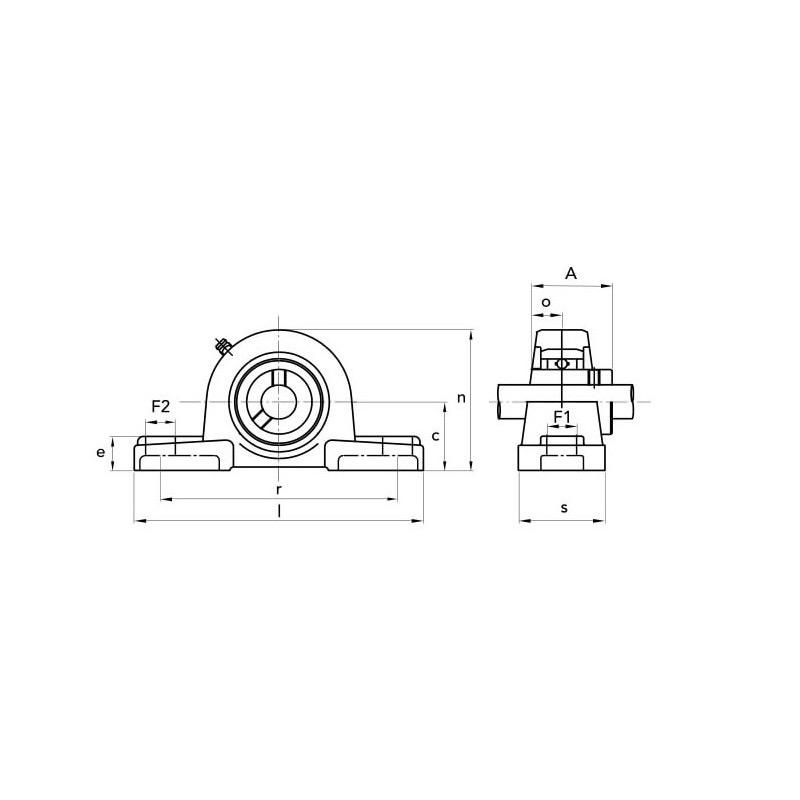

HIGH TECNOLOGY BEARING (HTB):
GOPART UCP 204 UCP204 BRACKET DIAMETER 20
MM SELF-ALIGNING WITH BEARINGS CAST IRON
TECHNICAL FEATURES:
MATERIAL: CAST IRON
DIAMETER: 20MM
Materials - Technical Characteristics
THREAD: BRAIDED FISHING LURES TX4 300M
TECHNICAL CHARACTERISTICS
DEEP GROOVE BALL BEARINGS:
TECHNICAL SPECIFICATIONS:
THE 4 MASS DYED UHMPE (VERY HIGH DENSITY POLYETHYLENE) FIBERS ENSURE LONG LASTING
COLOR RETENTION MATERIAL
R ITEM LENGTH
DIAMETER: 0.25 MM
BRAND: CAPERLAN
WEIGHT (IN KG):
COLOR:
MATERIAL: CARBON STEEL
MODEL: V624ZZ
INTERNAL DIAMETER: 4MM
EXTERNAL DIAMETER: 13MM
THICKNESS: 6MM
PRODUCER: WALFRONT WEIGHT :30G

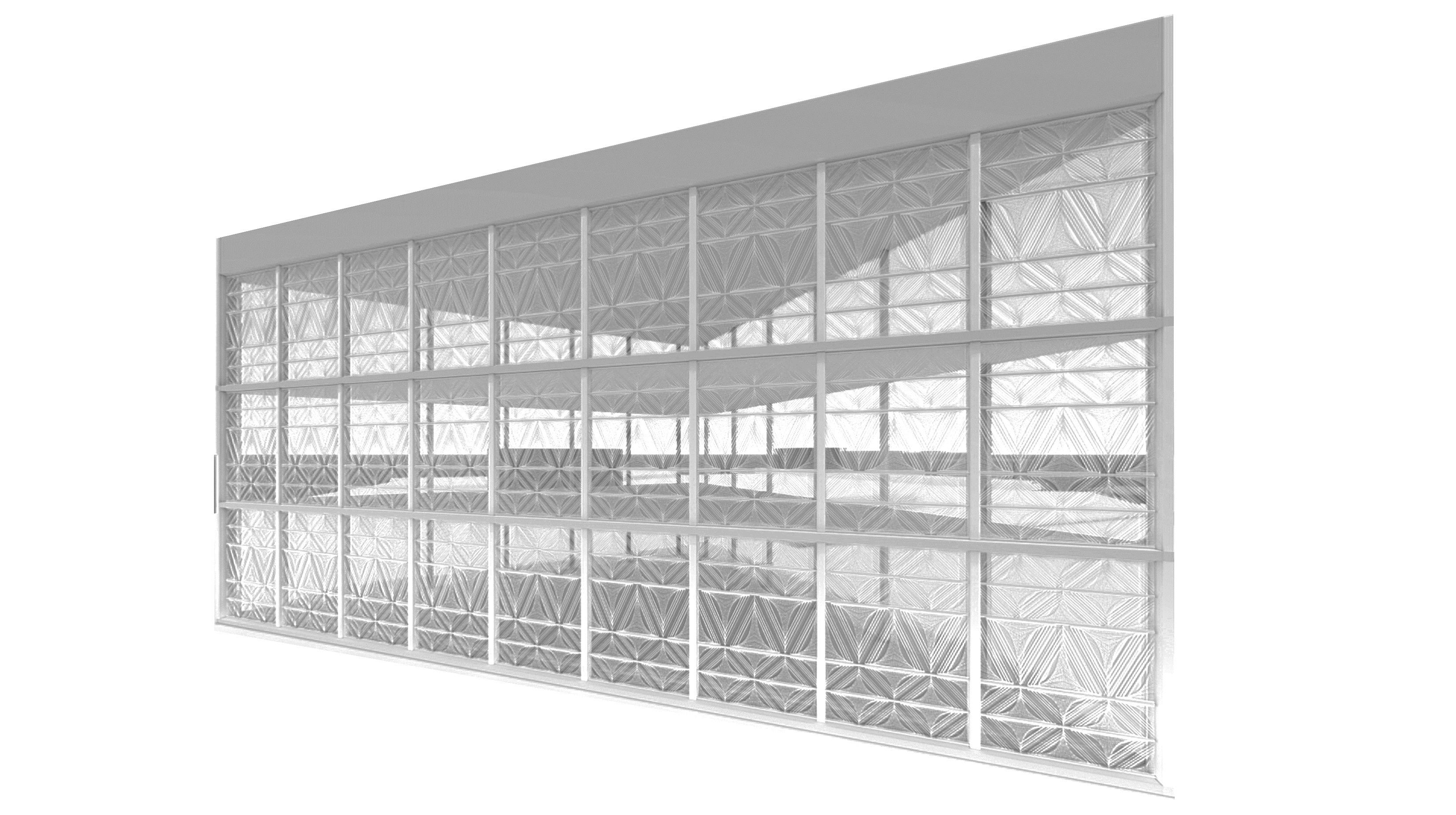

Elevation of the Facade

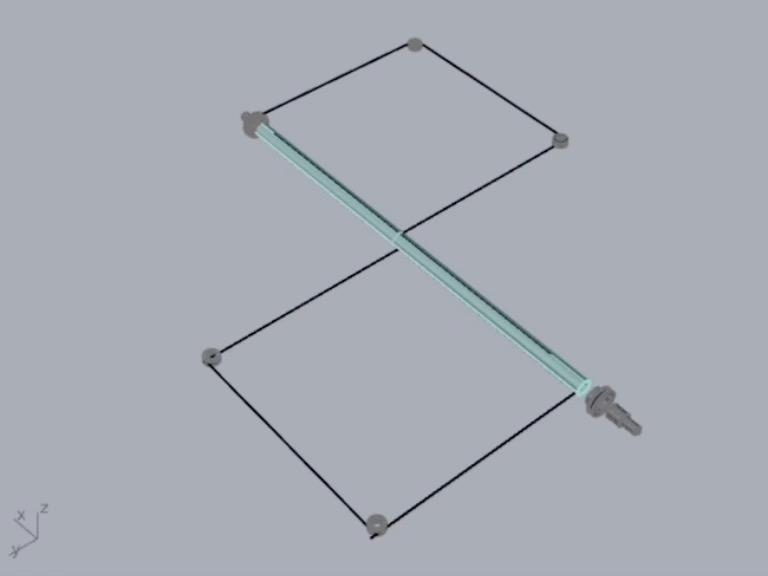

Digital Prototype - Magnification Detail
F.I.D.I.T.I. on FACADE
Digital Prototype
HELIA JALALI, FLORA AZARPEYVAND, ASSANALI KAIDAROV
Panel Detail
x 200 mm Aluminum box section 40 mm Plexitube Transparent 2 mm thick I- mesh Fabric 1.5 mm dia steel cable Thread
150 x 200 mm Aluminum box section
40 mm Plexitube Transparent 2 mm thick I- mesh Fabric
1.5 mm dia steel cable
F.I.D.I.T.I. on FACADE
Section + Detail
150 x 200 mm
Aluminum box section
2 mm thick I- mesh Fabric
40mm Plexitube
Transparent
Section + Detail
F.I.D.I.T.I. on FACADE
Users Interaction
F.I.D.I.T.I. on FACADE
Physical Prototype - Frame
FRAME:
TECHNICAL CARACTERISTICS:
MATERIAL: WOOD
DIMENTIONS: 150*120 CM
COLOR: GRAY
THICKNESS: 12CM
NUMBER OF SCREWS: 16
TYPE OF SCREWS: FRAME LONG SCREW
HEX HEAD SCREW BOLT
COUNTERSINKER 3

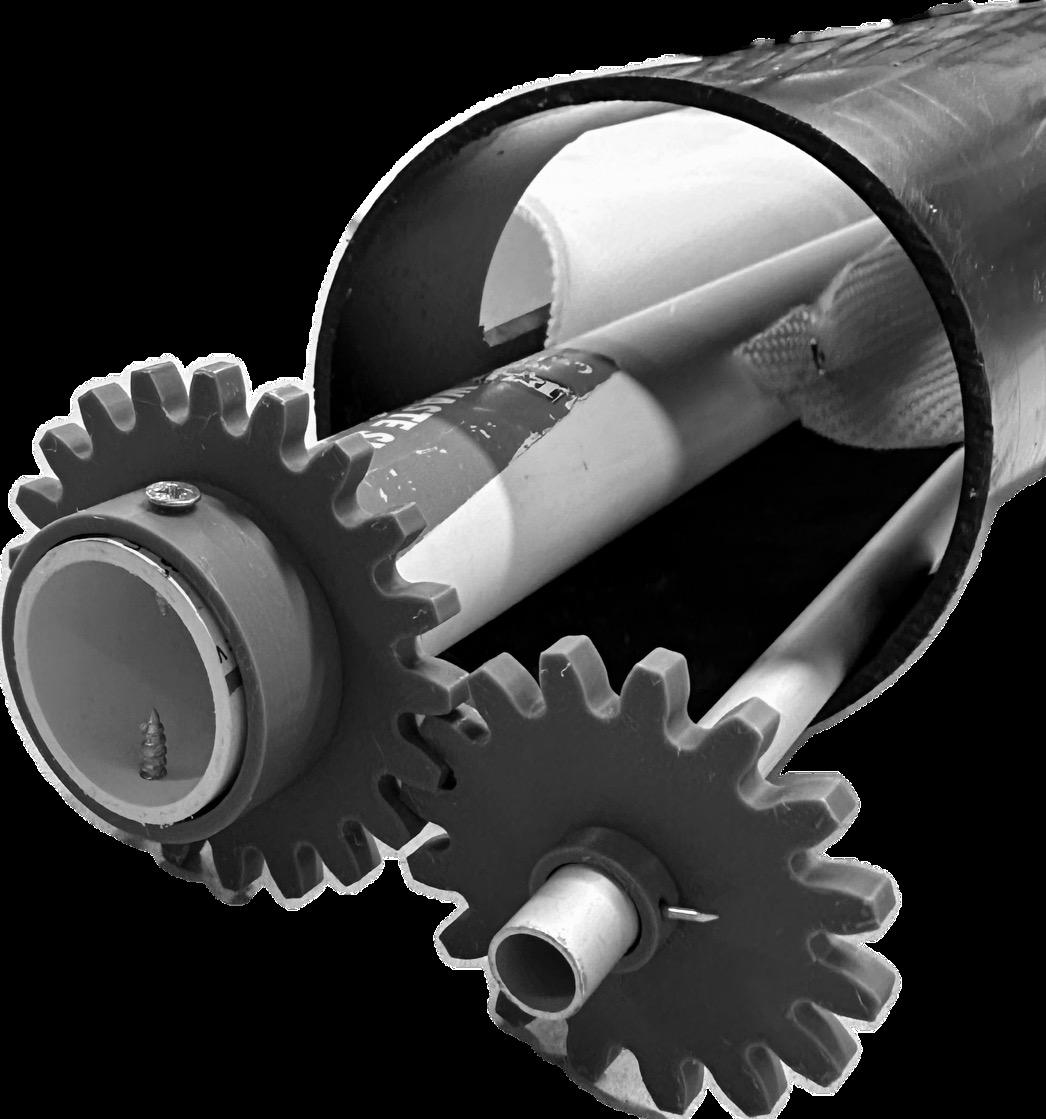

Physical Prototype
CLOSING SHADER
OPENING SHADER
Physical Prototype- Process Comparison
INITIAL PROTOTYPE FINAL PROTOTYPE

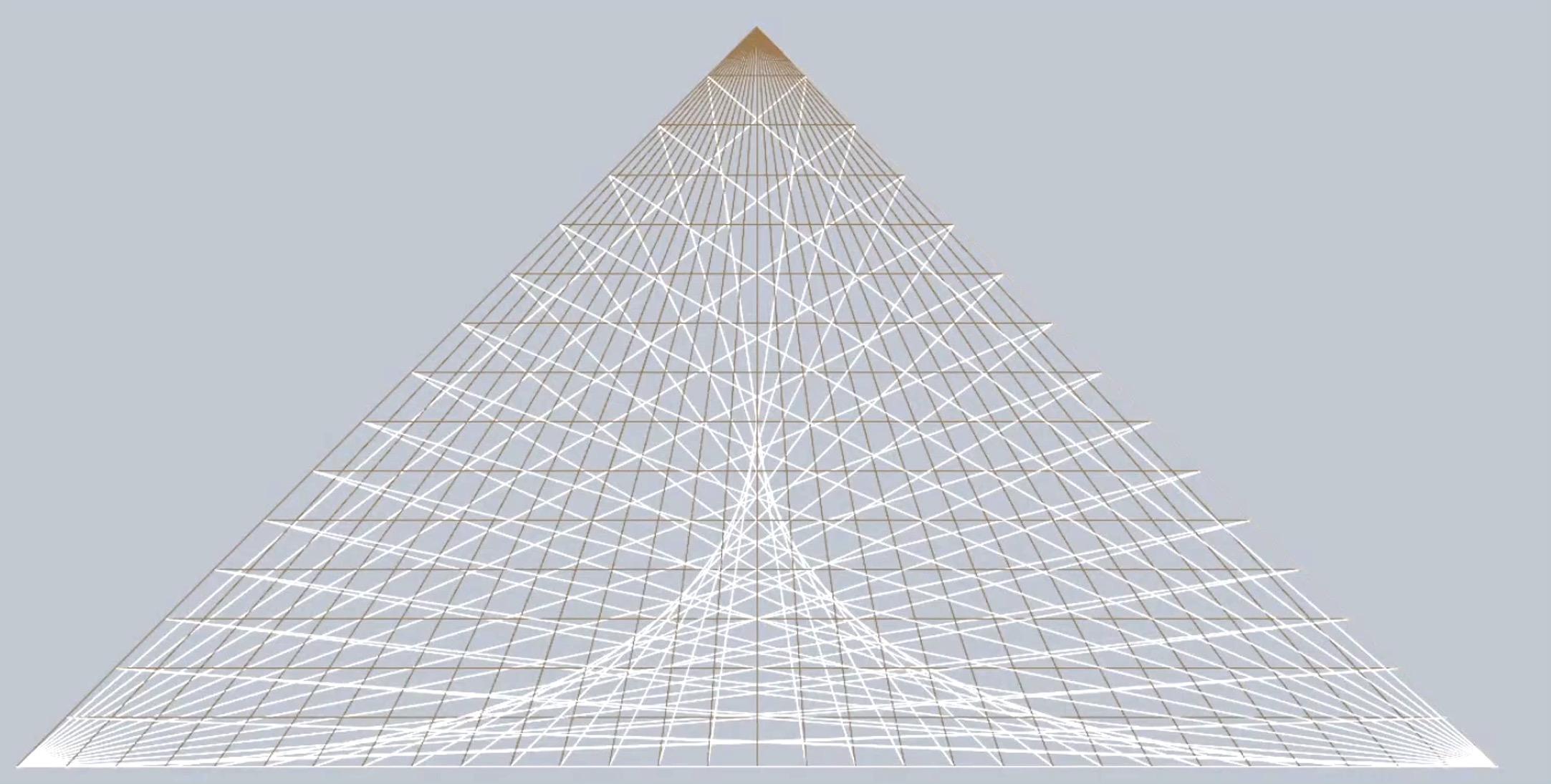

Computational Design Process
INITIAL PROTOTYPE MODELLING
PUFFERFISH
PLANTHOPPER
PARAMETRIZATION OF A MAIN GEAR
PARAMETRIZATION OF A CHILD GEAR
TRIGGER AND DATA RECORDER ANIMATION BLOCK
Computational Design Process
ADJUSTING MASS ADDITION AND SUBTRACTION TO HAVE DIFFERENT DIRECTIONS OF ANIMATIONS
PLANTHOPPER
Physical prototype- Motor
Sunlight analysis - Annual rotation profile
ANNUAL TEMPERATURE ANALYSIS
ANNUAL SOLAR RADIATION ANALYSIS WITHOUT
Sunlight
analysis - Monthly rotation profile
2163.74 KWH/M2 TO 1029 KWH/M2, 47.556% OF THE INITIAL NORMAL RADIATION PEAK VALUES SURFACE INPUTS TO ANALYZE
Key results
Weight of one module: 1.7 kg
% Recyclable
References
• MATERIALS
• FABRIC FOR FAÇADE: https://www.i-mesh.eu/
• https://www.i-mesh.eu/technical
• https://www.profall.com/en/italian-aluminum
• MOTOR: LINK
• SHAFT: LINK
• PULLEYS: LINK
• BEARING: LINK
• SITE
• https://www.accuweather.com/en/ir/kish/208797/weather-forecast/208797
• https://cadmapper.com/pro/extracts/22f5bceb-133a-42d1-a13c-80dcd4ffcdc7/copy
• DAYLIGHT ANALYSIS
• SOFTWARE: Rhinoceros, Grasshopper (LadyBug)
• ASSEMBLING OF ELECTRONIC HARDWARE
• SOFTWARE: TinkerCAD, Arduino IDE; Grasshopper (PlantHopper, Pufferfish)
