SPIRAL IN CONTRAST
CARRIAGE HALL DRUG & ALCOHOL REHAB CENTRE
Esin Celebi
Student ID: 19027837
University of Hertfordshire
Interior Architecture & Design
6CTA1101-0905-2022- Final Project (IAD)
DRAWING SCHEDULE
CONSTRUCTION DETAILS
FLOOR FINISHES PLANS
FURNITURE PLANS
DIO AXONOMETRIC DRAWING
FLORAL STREET
Existing walls New walls
Existing walls to be demolished
SLATS STEEL BARS WOODSHEEN VARNISH
SUPPORT STEEL LEG TO SIT UNDER SLATS
THICK TIMBER TOP CHORD THICK SLATS FOR BACK REST
SUPPORT STEEL LEG TO SIT UNDER SLATS
STEEL FLAT BAR FRAME BELOW SLATS
SUPPORT STEEL LEG TO SIT UNDER SLATS (EVERY 4 SLATS)
FLAT BAR FRAME FOR SLATS
mm TIMBER SLAT FIXED TO STEEL STRUCTURE, SLATS TO MATCH SEAT SLATS
FLAT BAR FOR SLATS
THICK TIMBER SLATS
SECTON A DETAIL 1:10
SUPPORT FRAME FOR BACK REST SLATS
18 mm TIMBER SLAT
FLAT BAR ON LEG TO SUPPORT BACK REST
FLAT BAR FRAME FOR SLATS SPACERS
50 x 50 x 3mm SHS WELDED TO FORM BENCH LEG, PAINTED
10mm SLAT WOOD PANELS
1 LAYER 12mm PLASTERBOARD EACH FACE
1 LAYER 12mm PLASTERBOARD EACH FACE FASTENER
TIMBER STUD
1 LAYER 12mm PLASTERBOARD EACH FACE
TIMBER STUD
ACOUSTIC INSULATION (ACOUSTIC MINERAL WOOL)
10mm SLAT WOOD PANELS TIMBER STUD SLAT WOOD PANEL
& SURFACE FINISHES
PLYWOOD FINISHING PAINT CUSHIONS CURTAIN WALLING GLASS
PLYWOOD TO BE CUT FOR NO GAP BETWEEN CURTAIN WALL AND SEATING
DECK - 18mm BIRCH PLYWOOD
FASCIA - 18mm BIRCH PLYWOOD 40 x 40 x 2.5 R.H.S (FRAMES @ 610mm MAX.)
CURTAIN WALL WINDOW (see DWG. CHALL/22/FD1 for details).
TIERED SEATING MADE FROM PLYWOOD
C/S S/TAPPING SCREWS ( 5 off PER FRAME)
Brimham Aged
Brimham
Natural Herringbone Wood Effect Vinyl Flooring
LIGHTING SCHEDULE
https://www.houzz.co.uk/products/gilwell-black-steelpendant-light-prvw-vr~126812559
Floors https://www.nationallighting.co.uk/nitro-8-5w-dimmable-ledfire-rated-downlight-750lm-ip65-3000k-mattwhite?vat=1&gclid=CjwKCAjwl6OiBhA2EiwAuUwWZdZS6Ud5j6 O_BVawvzGFdtpnKPBQZGThde4erSa4y81GQM3foxhRBoCYAsQAv
LIGHTING SCHEDULE
STL149 Suspended LED Linear Lighting - Black 1F & 2F
Dusklights.co.uk Aquaria Single Cone E14 Wall Light in Brass & Green GF & 1F
https://www.seratechnologies.com/shop/suspended-led-linear-pendant-lightingstl149/?attribute_pa_length=1200mm&attribute_pa_finish=black&attribute_pa_options =standard&ppc_keyword=&gclid=Cj0KCQjw27mhBhC9ARIsAIFsETHlUie4_PHpJlBg8lPHu MwTKx23xA7thz1f9oGk3ayecrYRym h_kaAjsTEALw_wcB
https://www.dusklights.co.uk/houseof-aquaria-single-cone-e14-wall-light-in-brassgreen-p22293/s23377?utm_medium=ppc&utm_term=houseof-aquaria-single-cone-e14wall-light-in-brass-amp-green-ho93&utm_campaign=froogle&cid=GBP&glCurrency=GBP&glCountry=GB
https://www.dunelm.com/product/marsden-antique-brass-industrial-wall-light1000158761
Industville.co.uk Chelsea Opal Glass Globe Pendant Light - 7 Inch - White
First floor, yoga area.
https://www.industville.co.uk/products/chelsea-opal-glass-globe-pendant-7-inchwhite?variant=39964138012746&gclid=Cj0KCQjw_r6hBhDdARIsAMIDhV_3_TxtpmMTM0 tXPSGMFwtwXODj7q8jxznADW9bm2S-9Zi1ZX73O2IaApyNEALw_wcB

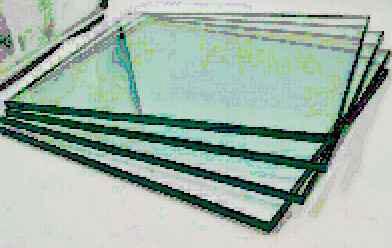

TEMPERED GLASS FINISH 25MM
WOOD VENEER PANEL E 25MM
WOOD VENEER PANEL C SPACED AND ADHERED 75M
WOOD VENEER PANEL B
MATERIALS & SURFACE FINISHES
DRAWER CABINET FRAMEWORK
OVERHANG
TEMPERED GLASS WOOD VENEER PANEL PLYWOOD
PLYWOOD 15MM
PLYWOOD 25MM
DRAWER CABINET BACKINGPLYWOOD 15MM
LIGHTING - LED POWER SUPPLY
DRAWER HANDLES
DRAWERS
DRAWER CABINET BASE THICK KICKPLATE
STUDS HANDLES WOODSHEEN VARNISH RENDER
LIGHT FIXTURE FIXATION DETAIL 1:5
PANEL
LED STRIP TO BE FASTENED ABOVE KICKPLATE THROUGH BOTTOM OF WOOD PANEL B AND BOTTOM OF 25MM PLYWOOD
PLYWOOD
VENEER
LIGHTING
& SURFACE FINISHES HANDRAIL LAMINATED AND TOUGHENED GLASS
Curved
FIRST FLOOR
SECOND FLOOR
GROUND FLOOR
