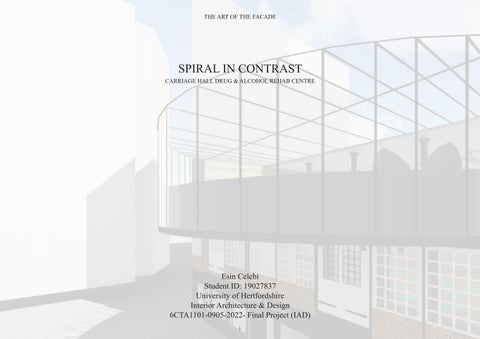

SPIRAL IN CONTRAST
CARRIAGE HALL DRUG & ALCOHOL REHAB CENTRE
Esin Celebi
Student ID: 19027837
University of Hertfordshire
Interior Architecture & Design
6CTA1101-0905-2022- Final Project (IAD)
Bespoke
Final
03
PROJECT SCHEDULE 2022-23
PROJECT BRIEF
Introduction
Design Statement
Justification
Client
Project Brief
Programme
INTRODUCTION
Alcohol and drug related deaths are on a rise in the UK, since lockdown drug misuse has increased. Substance abuse as a teenager is more damaging than as an adult as childhood habits/addictions are harder to break later in life. Substance abuse not only causes physical health problems such as strokes and heart disease, but it can also cause mental health issues as well as troubles with friends and families.
There are not many rehab facilities that offer the flexibility and friendliness that this project does whilst also protecting patients as many rehab centres in the UK are often described as isolating and scary, this is why this project will ensure that users have a sense of freedom and independence.
In the United Kingdom, the rate of drug poisoning deaths was 81.1% higher in 2021 than it was in 2012. Among males, there were 115.1 drug poisoning deaths registered per million in 2021, compared with 54.1 deaths per million among females. UK Government research also shows that alcohol misuse is now the biggest killer in England with 7,565 alcohol-specific deaths in 2019.
DESIGN STATEMENT
London is seeing the highest cases of drug & alcohol related deaths, especially in men; which is why it is important to prevent this by creating a rehab centre in London for teens and adult men. Teens will suffer the most later in life from addiction as their teenage years are their crucial developing years. I will be using therapeutic architecture design strategies to create a safe and healing environment for patients to recover, meet others in the same situation as them and create a better life for themselves.
The concept design will be a representation of the users old lives before recovery and their new, better life and future after recovering. I will be using contrast and spiralling up as my concept to show how recovery will change the users life’s massively.
JUSTIFICATION
Childhood habits & addictions are much harder to break later in life than starting them as an adult. Teens are also much more easily peer pressured by friends. This is why the target users will start as young as 15 year olds. The rate of drug poisoning deaths was 81.1% higher in 2021 than 2012 which shows a rapid increase in drug related deaths.
My proposed rehab centre will be a place where people from different backgrounds In the same situation will come together as a community and create themselves a better life by saving their own life by choosing recovery.
CLIENT
Action on Addiction Is a charity in the UK that works with people who are affected by drug and alcohol addiction. This charity works in areas of research, prevention, treatment and aftercare of addiction also offering professional education and support to families. Action on Addiction has stated it is a campaign to improve the understanding of addiction and end the judgement about it.
“Welcome to the Taking Action on Addiction, a campaign that exists to build awareness, celebrate recovery, improve understanding and reduce the myths that surround addiction, so that more people can ask for and receive help”.
Mike Trace CEO, The Forward Trust
PROJECT BRIEF
This project aims to provide a Rehab centre which prioritises users well-being and sense of self worth whilst also supporting their recovery. The most significant aspect of this project is having specialised psychical activities in the centre which will aid in the recovery process. It is also critical to create a safe and welcoming environment which encourages users to return back to the centre.
This projects concept revolves around the journey users will take as soon as they arrive as the centre. Spiral in contrast is the concept name as the spiral represents the path that users follow from the minute they step into the centre, spiralling upwards into a better life after recovery. Users will be introduced to physical activities which will improve their well-being in recovery such as cooking courses, yoga, art workshops and even job opportunities in the ground floor restaurant which is open to locals. Activities like this have been shown to aid patients’ recovery as they learn new healthy coping mechanisms with others who are also wanting to recover which allows them not to feel alone.
The main objective is to provide a welcoming and friendly environment for those suffering from substance abuse. This project aims for the building to create a safe environment for users to be in and begin their recovery path with positive outcomes in not only their lives but their friends and families.
Site information
Building analysis
Existing layout plans
Existing sections & elevations
Covent Garden. Covent Garden is most well known for its shopping and entertainment in London's West End, Covent Garden is in the centre of the car-free Piazza, with fashion stores, craft stalls and the Royal Opera House. Street entertainers perform by St. Paul’s Church, and the London Transport Museum houses vintage vehicles.
Map of London.
London is the capital of the UK and consists of the countries most famous attractions and landmarks. London has also seen the highest death rates from substance abuse than the rest of the country.
City of Westminster is a city and borough in inner London and is the site of the UK’s house of Parliament. It occupies a large area of central Greater London.
Chosen site
Carriage Hall, Covent Garden, 29 Floral Street, London WC2E 9DP
Carriage Hall, (grade II listed), is one of a trio of developments that have transformed Floral Street into a premium retail and residential address. The site comprises three adjacent interconnected buildings of different eras, all set around the Grade II-listed building known as ‘The Carriage Hall’. The buildings structure consists of a framed structure of cast iron and timber with painted brick infill, slate roofs. It is built around a central courtyard and is 3 storeys.This building is part of the 56 conservation areas in Westminster. It is one of the first buildings to have elevations which consist of an exposed iron frame with lightweight infill panels.
Map of City of Westminster.
BUILDING ANALYSIS
Existing structure
The building lets in lots of natural light and sunlight due to its huge windows around the front of the building and the lightwell atrium which lights up the courtyard.
The sustainable materials in the building is brickwork, cast iron beam and columns.
Brickwork
• Sustainable.
• Long lasting.
• Uses abundant natural resources, can be reused and is produced efficiently as possible.
• Durable and low maintenance.
Steel columns & beams
• Eco-friendly, recyclable and reliable.
• Longevity and durability.
• Steel products do not emit any toxic chemicals.
Timber beams
• Strong and durable.
Glass roof
• Good for retaining heat & energy efficiency.
• Unsustainable aspects of building
Timber frame
• Possibility of wood cracks or checks however this does not affect the structural integrity, it only affects the look.
Existing materials and surfaces
Existing brickwork panels between beam & columns.
Exterior
Existing shopfront timber windows and doors.
Central timber entrance doors. Timber glazed shopfront windows in between cast-iron columns.
Interior
Blockwork wall. Existing cast iron columns.
Existing timber frame doors. Steel & glass roof
FLORAL STREET
03 DESIGN CONCEPT
Design Concept Application Sketches
Conceptual Sketches
spiral in contrast
The concept for this project was inspired by the success and recovery of this centre because when you recover, you act in the exact opposite way to spiralling downwards.
This project’s concept revolves around the spiral. The spiral represents the users journey throughout. The spiral begins on the bottom level through a spiral staircase and gradually grows larger as you ascend to the first and second floors, signifying users’ experiences as they spiral higher, towards a better existence. Starting their journey small but then become bigger and more opened up. The ‘spiral’ is apparent through the buildings structural interior walls, furniture and facade.
The Spiral of Life represents the physical, mental, and spiritual growth of a human existence as it winds its way through the years. As users become increasingly involved with each activity in the centre and progress up the building, the spiral grows larger on each story; representing their mental and physical growth since entering the building.
concept application to building
starting the spiral small through the spiral staircase expanding through the three storiers of the building through structural elements and furniture.
spiral throughout interior building sketches
spiral throughout exterior building sketches
glass
curved interior partitions forming expanding spiral shape.
spiral begins with the spiral staircase on ground floor.
spiral throughout the whole building section view.
top view of spiral.
curved glass extension expands the spiral to the facade of building.
extension also contrasts buildings original structure.
04
DESIGN STRATEGIES
Sun Path
Design Strategies
Bespoke Features
SUNPATH
Based on the diagram, the sites front façade is faxing the south-east which has direct natural lighting throughout the year. The rear side the building has the least amount of natural lighting
The building has 16 windows which are facing south-east which receive sunlight and skylight on the roof which allows plenty of sun and a natural daylight strategy into the central courtyard in the building.
The proposed glass extensions allows there be more sunlight and natural daylight coming in through the front façade.
I have used this diagram to determine the zoning of the functions within the building.
sunpath diagram showing summer and winter sun throughout the year.
skylight and new glass extensions allows for sunlight to enter the second floor.
most important functions have been placed on the second floor for sunlight to be maximized in those important areas.
DESIGN STRATEGIES
the design strategies used are to promote the healing process for patients through the design of colour, furniture and finishings.
All the building functions are created as important components in the recovery process of patients.
cafe
The cafe is open to the public and users have the oppurtunity to work in the cafe as working after recovery is a constructive way to mantain sobriety and recovery.
SF art therapy
By art therapy; mental health, relationships, and the ability to express oneself more freely can all be improved. The foundation of art therapy is built on the notion that through artistic expression, users may heal and feel better.
FF yoga studio
Yoga practice can help address users unique physical, emotional, or mental concerns. Yoga therapy can help with: mind-body connection. overall well-being
SF art gallery
The art gallery will allow users to feel a sense of accomplishent as they will be praised for their artwork.
FF kitchen
Users can learn to cook in the kitchen in the hopes of discovering a new hobby and healthy coping mechanism.
SF social area
Forming communties is important, this social area will allow users to interact with one and another.
SF meeting area
Recovery meetings are essential in recovery.
GF
05
DESIGN DEELOPMENT
Precedent Studies
Spatial Planning Sketches
Final Plans
Final Sections
Material & Mood board
MORITZBURG MUSEUM EXTENSION / NIETO SOBEJANO ARQUITECTOS
Contrast is represented through the ancient castle of Moritzburg in the city of Halle. The buildings' original structure is Gothic military architecture. During the building's renovations, the building has kept its original structure of its main architectural features: the surrounding wall, three of the four round towers at the corners and the central courtyard. The old original architectural feature contrast with its new modern roof which allows natural light to enter.
REHABILITATION CENTRE GROOT KLIMMENDAAL BY ARCHITECTENBUREAU KOEN VAN VELSEN
Rehabilitation Centre Groot Klimmendaal, is in a forest outside In the Netherlands. The three-storey building is clad in brown anodised aluminium and accommodates offices, a clinic, sports facilities, a pool, a restaurant and a theatre. Facilities are used by patients and the local community. A shallow wooden staircase connects all floors of the building while atria and lightwells visually connect spaces and allow natural light to enter. The design ensures that the residents of the building are not feeling enclosed as they are connected with nature whilst being indoors.
2nd level
1st level
G level
A natural colour scheme will be implemented into the design to complement the biophilic inspired design strategies.
06
FACADE DESIGN
Details
Visuals
MULIONS FLOOR SLAB 6mm CURVED LAMINATED GLASS PANELS MULIONS MATERIALS EXTRUDED ALUMINUM COMPONENTS CURVED LAMINATE 8mm GLASS PANELS
6mm LAMINATED GLASS PANELS
Curtain
CHALL/22/FD3
DESIGN OUT-
COME
Detail Elevations
Axonometric Views
Interior Visuals
Exteror Visuals
& SURFACE FINISHES
SLATS STEEL BARS WOODSHEEN VARNISH
SUPPORT STEEL LEG TO SIT UNDER SLATS
THICK TIMBER TOP CHORD THICK SLATS FOR BACK REST
SUPPORT STEEL LEG TO SIT UNDER SLATS
STEEL FLAT BAR FRAME BELOW SLATS
SUPPORT STEEL LEG TO SIT UNDER SLATS (EVERY 4 SLATS)
FLAT BAR FRAME FOR SLATS
18 mm TIMBER SLAT FIXED TO STEEL STRUCTURE, SLATS TO MATCH SEAT SLATS
FLAT BAR FOR SLATS
THICK TIMBER SLATS
SECTON A DETAIL 1:10
SUPPORT FRAME FOR BACK REST SLATS
18 mm TIMBER SLAT
FLAT BAR ON LEG TO SUPPORT BACK REST
FLAT BAR FRAME FOR SLATS SPACERS
50 x 50 x 3mm SHS WELDED TO FORM BENCH LEG, PAINTED
10mm SLAT WOOD PANELS
1 LAYER 12mm PLASTERBOARD EACH FACE
MATERIALS & SURFACE FINISHES
1 LAYER 12mm PLASTERBOARD EACH FACE
TIMBER STUD
ACOUSTIC INSULATION (ACOUSTIC MINERAL WOOL)
1 LAYER 12mm PLASTERBOARD EACH FACE FASTENER
TIMBER STUD
10mm SLAT WOOD PANELS TIMBER STUD SLAT WOOD PANEL
& SURFACE FINISHES
PLYWOOD FINISHING PAINT CUSHIONS CURTAIN WALLING GLASS
PLYWOOD TO BE CUT FOR NO GAP BETWEEN CURTAIN WALL AND SEATING
DECK - 18mm BIRCH PLYWOOD
FASCIA - 18mm BIRCH PLYWOOD 40 x 40 x 2.5 R.H.S (FRAMES @ 610mm MAX.)
CURTAIN WALL WINDOW (see DWG. CHALL/22/FD1 for details).
TIERED SEATING MADE FROM PLYWOOD
C/S S/TAPPING SCREWS ( 5 off PER FRAME)
TEMPERED GLASS FINISH 25MM
WOOD VENEER PANEL E 25MM
WOOD VENEER PANEL C SPACED AND ADHERED 75M
WOOD VENEER PANEL B
MATERIALS & SURFACE FINISHES
DRAWER CABINET FRAMEWORK
OVERHANG
TEMPERED GLASS WOOD VENEER PANEL PLYWOOD
PLYWOOD 15MM
PLYWOOD 25MM
DRAWER CABINET BACKINGPLYWOOD 15MM
LIGHTING - LED POWER SUPPLY
DRAWERS DRAWER HANDLES
DRAWER CABINET BASE THICK KICKPLATE
LIGHTING STUDS HANDLES WOODSHEEN VARNISH RENDER
LIGHT FIXTURE FIXATION DETAIL 1:5
PANEL
LED STRIP TO BE FASTENED ABOVE KICKPLATE THROUGH BOTTOM OF WOOD PANEL B AND BOTTOM OF 25MM PLYWOOD
PLYWOOD
VENEER
HANDRAIL LAMINATED AND TOUGHENED GLASS
Curved
SECOND FLOOR
FIRST FLOOR
GROUND FLOOR
G1 Round Light Oak Dining Table
GROUND FLOOR FURNITURE SCHEDULE
furniture123.co.uk
https://furniture123.co.uk/p/roundoak-dining-table-seats-4-jareljar012?refsource=fuadwords&mkwi d=s_dc&pcrid=633743863320&pkw =&pmt=&slid=&pgrid=14377462055 2&ptaid=pla296297883562&cpgnid=179447047 09&channel=googlesearch&gclid=Cj 0KCQjwk7ugBhDIARIsAGuvgPaIZuO qpw0SRuNG7PVBqcCzKH3bdOcXRF GRJp71mD38QyUdTs_y85saAnXlEAL w_wcB
G2 Oakley Set of 2 Dark Green Velvet Upholstered Dining Chairs with Contrast Piping
Daals.co.uk
Slender 2 Seater Sofa SLF24.co.uk
https://www.daals.co.uk/products/ oakley-set-of-2-dark-green-velvetupholstered-dining-chairs-withcontrast-piping
https://slf24.co.uk/slender-2seatersofa.html?gclid=Cj0KCQjw_r6hBhDd ARIsAMIDhVsJkJtsZBid0HTOI785FvIBSlVASadOs7ZlYY0nat31azI4373SUaAtvjEALw_wc B#141=256
G4 Gracie Accent Chair in Velvet Green Daals.co.uk
4 Seater Solid Oak Table FEETT.co.uk
https://www.daals.co.uk/products/ gracie-velvet-armchair-tub-chairwith-cushion-metal-framegreen?variant=31683356688435&cu rrency=GBP&gclid=CjwKCAjwl6OiBh A2EiwAuUwWZRptlI3LQwzTgIsMND WAOqJKI2l3o9QaYQRWNsJK9WASx wQOMsEb0hoCjroQAvD_BwE
https://feett.co.uk/products/4seater-solid-oaktable?variant=44692598194468&cu rrency=GBP&utm_source=google&u tm_medium=cpc&utm_campaign=g oogle+shopping&gclid=CjwKCAjwl6 OiBhA2EiwAuUwWZba3huOo5s5o2 bp_cYL18ZO8uyUH_ucVobWwa2iih 7vdJ_W1YQWGkBoC2a4QAvD_BwE
G3
G5
G6
GROUND FLOOR FURNITURE SCHEDULE
Code Image Description Manufacturer Link
G8
Maestro 25 d ergonomic desk 1400mm with silver cantilever frame and desk high pedestal Officemonster.co.uk
G9
Habitat Orion Faux Leather Office Chair - Black Argos
Artificial Forest Fern Green Wall Foliage Evergreendirect.co.uk
https://www.officemonster.co.uk/of fice-desks/maestro-25-sl-right-handergonomic-desk-1400mm-withsilver-cantilever-frame-and-deskhigh-pedestalbeech?gclid=CjwKCAjw0N6hBhAUEi wAXabTcpiNvkoC8CC5lFdyuU0Ra_y8UXsyE AGhKh027n8nNyNNovxL9_30RoCczc QAvD_BwE#fo_c=3748&fo_k=1e76b defeffc5bb75bcf36debc19035e&fo_ s=gplauk
https://www.argos.co.uk/product/3 127179?clickPR=plp:3:45
https://www.evergreendirect.co.uk/ green-wall-c25/artificial-forest-ferngreen-wall-foliage-p128
Oak Wood Slat Wall Panel FWDirect
https://flooringwarehousedirect.co. uk/product/acoosti-oak-wood-slatacoustic-wallpanel/?attribute_pa_panelsize=240cm-x60cm&gclid=Cj0KCQjwuLShBhC_ARIs AFod4fLQY4MCVOcQWYwrI9VO5GC 9b2i7qQhrT7yHfooc6DzEPN6tDJd1RwaAsJgEA Lw_wcB
G12 Dark Stone Beige Matt paint Coatpaints.com
https://coatpaints.com/products/we ll-grounded-flatmatt?variant=39552561053876&gad =1&gclid=Cj0KCQjwgLOiBhC7ARIsAIe etVDei67-jUTWD91LHJLUmkdubo7t7k6nF0Fhu U3SXlG9rSVkuofAkcaAghHEALw_wc B
G10
G11
FIRST FLOOR FURNITURE SCHEDULE
Corebalance.co.uk
F1 Yoga Matt 6mm Thick
F2
F3
F4
F5
F6
Professional Electric Range
oven 4 plates 9.2kW Electric oven 4.8kW | Adexa THE7P4MEO
Adexa.co.uk
Commercial Sink Stainless steel 1700x600x900mm 2
bowls left Splashback | Adexa ST245BL
Adexa.co.uk
Professional Work table
Stainless steel Bottom shelf
1000x700x900mm | Adexa VT107SL
Commercial Refrigerator
Upright cabinet 1476 litres
Stainless steel Twin door GN2/1 Ventilated cooling
Adexa.co.uk
https://www.corebalancefitness.co. uk/yoga-mat-6mm-thick+colorteal?gclid=CjwKCAjw6IiiBhAOEiwAL NqnceeTVxSEi_5nFkGagNRCTBXOYg EnTgc22sM5kWHcLv61QJ0J9i71kRoC fdgQAvD_BwE
https://adexa.co.uk/ProfessionalElectric-Cooker-6-plates-13-8kWCabinet-base-AdexaTHE7P6M?language=en¤cy=G BP&gclid=CjwKCAjwl6OiBhA2EiwAu UwWZRFhGiOaM0ewXi_wn85s4oy_ ymeWX7aCEbLrjWqCnD7uL-bDJoWxRoCcNMQAvD_BwE
https://adexa.co.uk/CommercialSink-Stainless-steel1700x600x900mm-2-bowls-leftSplashback-AdexaST245BL?language=en¤cy=GB P&gclid=CjwKCAjwl6OiBhA2EiwAuU wWZeqYQwzmVhXUu1lDa2IAqJkV33 t26RB83dZXqGI0I6jcUSPMSVpphoCKywQAvD_BwE
https://adexa.co.uk/Stainless-SteelFurniture-20/Work-Tables-63/WorkTables-Central-700mm85/Professional-Work-tableStainless-steel-Bottom-shelf1000x700x900mm-Adexa-VT107SL
Adexa.co.uk
https://adexa.co.uk/CommercialRefrigerator-Upright-cabinet-1476litres-Stainless-steel-Twin-doorGN2-1-Ventilated-cooling-AdexaTHL1410TN?language=en¤cy =GBP&gclid=CjwKCAjw6IiiBhAOEiwA LNqncerruMfmL4gVuIM3_Qq9BBDP df2hQbdepcBWzQ3DVMGB41ts3BT BMxoCkoAQAvD_BwE
Artificial grass bush in trough Justartificial.co.uk https://www.justartificial.co.uk/pro duct/artificial-grass-bushes-intrough?gclid=CjwKCAjw6IiiBhAOEiw ALNqncbrIq8pMYEANVXfylhcnSeLbB YDUjo4Zi879pEFj358sonsCWzWWhoCIXIQAvD_BwE
SECOND FLOOR FURNITURE SCHEDULE
S1 Forward Style Easel Hobby craft
https://www.hobbycraft.co.uk/forw ard-style-easel-65.5cm-x160cm/6326461000.html?glCountry =GB&gclid=CjwKCAjw6IiiBhAOEiwAL Nqnce3hi45on96oMvvJ2P4f0YLp84x dX5tzlkeCIwLYcsK1r4qBbYEChxoCUd wQAvD_BwE&gclsrc=aw.ds
S2 Black Barstool with Upholstered Swivel seat | Adexa GS6P08
Adexa Caring Equipment Direct
https://adexa.co.uk/Black-Barstoolwith-Upholstered-Swivel-seatAdexaGS6P08a?language=en¤cy=G BP&gclid=CjwKCAjw6IiiBhAOEiwALN qncWHmmer4bK6zJY2kfJhy_ehlwP6SwXun7OTSOCG0X Tg8TDtz8OmZRoCqxwQAvD_BwE
S3 Axis Table Curved Ajproducts.co.uk https://www.nortekgroup.co.uk/pro duct/axis-table/
S4 Bolero Square Steel and Acacia Table Nisbets.co.uk Bolero Square Steel and Acacia Table
S7 6 Drawer Plan Chest Furniture-work.co.uk https://www.furniturework.co.uk/6-drawer-planchest.html#1171=1049?984=133&gc lid=CjwKCAjwl6OiBhA2EiwAuUwWZ aFU8Xf0pi1DpEjxRev2AfrqDwLox8h9X6rPlLBD hw9XxBZDQHHvxoC_vEQAvD_BwE
S8 Rectangular Deep Edge Canvas Cowlingandwilcox.com
https://www.cowlingandwilcox.com /stretched-cotton-canvas/309558224-cowling-wilcox-great-valuerectangular-deep-edgecanvas?gclid=CjwKCAjw6IiiBhAOEiw ALNqncYACu50RHFfxLkM25vF0tzoq 6Rs8lRZtzuODgFojDpI1XhJUzh9s_Bo CyPIQAvD_BwE#/canvas_sizes60_x_48_150_x_120cm
LIGHTING SCHEDULE
- Restaurant https://www.houzz.co.uk/products/gilwell-black-steelpendant-light-prvw-vr~126812559
- Restauarnt https://www.houzz.co.uk/products/industrial-islandchandelier-western-bronze-prvw-vr~115108535
Floors https://www.nationallighting.co.uk/nitro-8-5w-dimmable-ledfire-rated-downlight-750lm-ip65-3000k-mattwhite?vat=1&gclid=CjwKCAjwl6OiBhA2EiwAuUwWZdZS6Ud5j6
BVawvzGFdtpnKPBQZGThde4erSa4y81GQM3foxhRBoCYAsQAv
LIGHTING SCHEDULE
STL149 Suspended LED Linear Lighting - Black 1F & 2F
https://www.seratechnologies.com/shop/suspended-led-linear-pendant-lightingstl149/?attribute_pa_length=1200mm&attribute_pa_finish=black&attribute_pa_options =standard&ppc_keyword=&gclid=Cj0KCQjw27mhBhC9ARIsAIFsETHlUie4_PHpJlBg8lPHu MwTKx23xA7thz1f9oGk3ayecrYRym h_kaAjsTEALw_wcB
Dusklights.co.uk Aquaria Single Cone E14 Wall Light in Brass & Green GF & 1F
Dunelm Marsden Antique Brass Industrial Wall Light Yoga area walls
Industville.co.uk Chelsea Opal Glass Globe Pendant Light - 7 Inch - White
https://www.dusklights.co.uk/houseof-aquaria-single-cone-e14-wall-light-in-brassgreen-p22293/s23377?utm_medium=ppc&utm_term=houseof-aquaria-single-cone-e14wall-light-in-brass-amp-green-ho93&utm_campaign=froogle&cid=GBP&glCurrency=GBP&glCountry=GB
https://www.dunelm.com/product/marsden-antique-brass-industrial-wall-light1000158761
First floor, yoga area.
https://www.industville.co.uk/products/chelsea-opal-glass-globe-pendant-7-inchwhite?variant=39964138012746&gclid=Cj0KCQjw_r6hBhDdARIsAMIDhV_3_TxtpmMTM0 tXPSGMFwtwXODj7q8jxznADW9bm2S-9Zi1ZX73O2IaApyNEALw_wcB
EMERGENCY LIGHTING SCHEDULE
FIREANGEL SCB10-R BATTERY STANDALONE COMBINED SMOKE & CARBON MONOXIDE ALARM (425GV)
FIREANGEL HW1-R MAINS STANDALONE HEAT ALARM
Screwfix
https://www.screwfix.com/p/fireangelscb10-r-battery-standalone-combinedsmoke-carbon-monoxide-alarm/425gv
Screwfix
https://www.screwfix.com/p/fireangelhw1-r-mains-standalone-heatalarm/477cc
ESP MagDuo Fire Alarm Sounder with Visual Indicator - DomedWhite/Red
Electrical Direct
https://www.electricaldirect.co.uk/produ ct/esp-magduo-fire-alarm-sounder-withvisual-indicator-domed-whitered657468?vat=1&pr=1&gclid=CjwKCAjw3P OhBhBQEiwAqTCuBmMyY54XCgjiE5roRU afz0W2Hf90-7xzVPWqo-9BcrPH1NyFnfXZhoC7yIQAvD_BwE
3w LED Non Maintained Emergency Downlight
TLC-direct.co.uk
https://www.tlcdirect.co.uk/Products/LTDL3NM.html?so urce=adwords&ad_position=&ad_id=&pl acement=&kw=&network=x&matchtype= &ad_type=pla&product_id=LTDL3NM&pr oduct_partition_id=&campaign=shopping _lighting&version=finalurl_v3&gclid=Cjw KCAjwl6OiBhA2EiwAuUwWZaOIIvXtOaPluA1s4vDemf5LnDbutxqbGU13w3C5ODTByWOCx xmxoC2jQQAvD_BwE
LIGHT SWITCHES AND BULB SCHEDULE
Screwfix MK LOGIC PLUS 10AX 1-GANG 1-WAY LIGHT SWITCH WHITE SF, 1F, GF
Screwfix MK LOGIC PLUS 10AX 2-GANG 2-WAY LIGHT SWITCH WHITE
Victorianplumbing. co.uk Revive 3 Gang 2 Way Light Switch - White
https://www.screwfix.com/p/mk-logic-plus-10ax-1-gang-1-way-light-switchwhite/13930?kpid=13930&ds_rl=1249401&gclid=CjwKCAjwl6OiBhA2EiwAuUwWZatfKIb9 Qoy2mpVzx2ViteN6hHSvbd0VzXwAr2cjwejugnv0H5lz3RoCM7gQAvD_BwE&gclsrc=aw.ds
https://www.screwfix.com/p/mk-logic-plus-10ax-2-gang-2-way-light-switchwhite/16201?kpid=16201&ds_rl=1249401&gclid=CjwKCAjwl6OiBhA2EiwAuUwWZfHf6Hs3 fWzVwUkmhOMZIh8Jzkpe_xrVXu9lqauCnaR3o1f_dMPHmhoCcGAQAvD_BwE&gclsrc=aw.
https://www.victorianplumbing.co.uk/revive-3-gang-2-way-light-switchwhite?campaign=googlebase&gclid=CjwKCAjw3POhBhBQEiwAqTCuBikFKj1lxClJNwHeIkb0 vGv_JVIKqNKYQfN3bPIvsl-GauItuncLCxoCz1IQAvD_BwE&gclsrc=aw.ds
https://www.elesi.com/8w-b22-opal-gls-led-light-bulb-3000k-warm-white-dimmable
WINDOW SCHEDULE
French window AWMWindowsanddoors https://www.awmwindowsanddo ors.co.uk/product/frenchwindow/
DOOR SCHEDULE
D1 Existing building entrance door N/A N/A 3220mm height x 2320mm width 1 -GF
D2
D3
Fire Exit Door with Panic Bar
Doorsforsecurity.co.uk
Fire Exit Door with Panic BarSingle
Regency Oak 6 PanelPrefinished Internal Doors
Doorsforsecurity.co.uk
https://doorsforsecurity.co.uk/doublefire-exitdoors?gclid=CjwKCAjw586hBhBrEiwAQ YEnHbwvH9oQF4G2v_UIkTtGTuGF5_b WS0QMoqKM4QvFrWYD66njJj6WGxoC YEQQAvD_BwE
https://doorsforsecurity.co.uk/singlesteel-fire-exit-door?gclid=CjwKCAjw8OhBhB5EiwADyoY1aqH1LinJ3bUpLgKix uKqnQQnhDqRUTmh2_YqX25PwhZzle9 c0PMexoCxMYQAvD_BwE
Vibrant doors.co.uk
Radar Lock Toilet Door
Doorsforsecurity
https://www.vibrantdoors.co.uk/intern al-doors/oak-doors/regency-6p-oak/813x2032x35mm-32andquot-regencyoak-6-panel-prefinisheddoor?gclid=CjwKCAjw8OhBhB5EiwADyoY1Qu4xs2RCPesXP7EB EZlTIBRagQAtV5MmpwRkCHIR1Hxa18DODtgRoCtbkQAvD_BwE
https://doorsforsecurity.co.uk/radarlock-toilet-door?gclid=CjwKCAjw8OhBhB5EiwADyoY1b8gPMYiao4i869DRIhzbBvZ4cBV1ZB0v9G64wvBrKpC_ZtwXdThoCp2gQA vD_BwE
https://www.plumbware.co.uk/produc t/pendle-stone-grey-toilet-cubicledoor-pack-with-plain-grey-pilasters/
width x 2075mm
Premier fire doors
https://www.premierfiredoors.com/pr oducts/internal-oak-veneer-16gglazed-fd30-firedoor?variant=32145872650305¤ cy=GBP&campaign=18858959730&con tent=&keyword=&gclid=CjwKCAjw8OhBhB5EiwADyoY1ePG3nqm9gJYSXZH bjqNrCjMI03Lz5b2GF5iWK55R31c4nXF eJ7hFRoC3wYQAvD_BwE
1981mm h x 838mm w 3- All floors
D4
D5
D6
Pendle stone grey toilet cubicle door pack with plain grey pilasters Plumbware.co.uk
D7
Premier internal oak veneer 16G Glazed FD30 fire door
FLOORING SCHEDULE
Symbol Image Description Manufacturer Link
Brimham Aged Sunshine Solid Oak Luxury Flooring & Furnishings https://www.luxuryflooringandfurnishings.co.uk/br imham-aged-sunshine-oak-203-x-18mm.html
Natural Oak Herringbone Flooring Superstore
https://www.flooringsuperstore.com/victorianatural-oakherringbone.html?utm_source=google_shopping&g clid=CjwKCAjwrpOiBhBVEiwA_473dOVAWELafc38O rQkSFsIItGmPVZpBQ5sFZjWu0AwpaftZ2giRmGz9xo CVuUQAvD_BwE
Gray Porcelain Floor
Tile mountain
Oak Laminate Floor Direct Wood Flooring
Linear Grey Mosaic Tile – Slip Resistant CTD Tiles Limited
https://www.tilemountain.co.uk/p/dunsen-greyanti-slip-floortile.html?gclid=CjwKCAjw6IiiBhAOEiwALNqncdCDqlj U5cVSvPOtHqFJN0276pRT4a7dTiocdvYUBbTnaYpOJ ngpehoCGEkQAvD_BwE#fo_c=3990&fo_k=ba7e8d1 ca04ce88a858099073ae558b7&fo_s=gplauk?mkwid =s_dc&pcrid=649940137146&pkw=&pmt=&produc t=439385&campaign=&group=
https://www.directwoodflooring.co.uk/villapeterson-oak-laminateflooring.html?utm_source=google_shopping&gclid =CjwKCAjw6IiiBhAOEiwALNqncdSXKI2i8MecBu_Z8YmWVfvPhXyA3eGsEpomJsc7fAbDy_yzSBKhoCOIsQAvD_BwE
https://www.ctdtiles.co.uk/gemini-tiles/linear/p7326-linear-grey-mosaic-tile-50x50mm-sheetsize300x300mm.aspx?catid=2824
Concrete Flooring CFS Concrete Flooring
https://concreteflooringsolutions.co.uk/ 158m² m²
Dunsen
Tiles
Peterson
S4
Round Light Oak Dining Table
Oakley Set of 2 Dark Green Velvet Upholstered Dining Chairs with Contrast Piping
Slender 2 Seater Sofa
Gracie Accent Chair in Velvet Green
4 Seater Solid Oak Table
Bespoke circular seating bench
Bespoke reception desk counter
Maestro 25 d ergonomic desk 1400mm with silver cantilever frame and desk high pedestal
Habitat Orion Faux Leather Office Chair - Black
Artificial Forest Fern Green Wall Foliage
Oak Wood Slat Wall Panel
Professional Electric Range oven 4 plates 9.2kW Electric oven 4.8kW | Adexa THE7P4MEO
Commercial Sink Stainless steel 1700x600x900mm 2 bowls left Splashback | Adexa ST245BL
Professional Work table Stainless steel Bottom shelf 1000x700x900mm | Adexa VT107SL Yoga Matt 6mm Thick
Commercial Refrigerator Upright cabinet 1476 litres Stainless steel Twin door GN2/1 Ventilated cooling
Artificial grass bush in trough Forward Style Easel
Black Barstool with Upholstered Swivel seat | Adexa GS6P08
Axis Table Curved
Bolero Square Steel and Acacia Table
Round Twill Cushions
6 Drawer Plan Chest
Rectangular Deep Edge Canvas
Gilwell Black Steel Pendant Light
Industrial Island Chandelier, Western Bronze W 96.5 cm / D 30.5 cm / H 24.1 cm
Seamless10 Adjustable White CCT LED Strip | 24v | 14w
Revive Satin Black IP65 LED Fire-Rated Tiltable Downlight
Mantra SAL 3 light LED ceiling spotlight bar in black finish
Four-flame ceiling spot Sean with rotating and swivelling spots
44100 Eye 6 Light Spotlight Plate - Black
NITRO 8.5W - 8.5W LED Fixed Fire Rated Downlight | IP65 | 750LM | 3000K | Matt White
STL149 Suspended LED Linear Lighting - Black
Aquaria Single Cone E14 Wall Light in Brass & Green
Marsden Antique Brass Industrial Wall Light
Chelsea Opal Glass Globe Pendant Light - 7 Inch - White
FIREANGEL SCB10-R BATTERY STANDALONE COMBINED
SMOKE & CARBON MONOXIDE ALARM (425GV)
FIREANGEL HW1-R MAINS STANDALONE HEAT ALARM
ESP MagDuo Fire Alarm Sounder with Visual Indicator - DomedWhite/Red
3w LED Non Maintained Emergency Downlight
MK LOGIC PLUS 10AX 1-GANG 1-WAY LIGHT SWITCH WHITE
MK LOGIC PLUS 10AX 2-GANG 2-WAY LIGHT SWITCH WHITE
Revive 3 Gang 2 Way Light Switch - White
8w B22 Opal GLS LED Light Bulb 3000K Warm White
Brimham Aged Sunshine Solid Oak
Natural Oak Herringbone
Dunsen Gray Porcelain Floor Tiles
Peterson Oak Laminate Floor
Linear Grey Mosaic Tile – Slip Resistant
Concrete Flooring
From creating this Design Report, I am able to see the long journey of designing ‘spiral in contrast’ rehab centre. I’ve always known that I wanted the concept name to relate to the healing and success of the center’s clients. I initially considered the ‘spiraling’ concept and contrast separately before deciding to integrate the two ideas. The major goal of this project was to design a rehab centre that is different from other rehab facilities. I wanted the centre to not look like a typical rehab facility so that clients wouldn’t feel pressured to enter therapy and instead could really enjoy the facility. I made it a priority to employ therapeutic design techniques and make an effort to produce an enjoyable and cheerful setting to aid in the healing process of users. I achieved this across the entire structure by utilising certain types of materials, furnishings, and finishings, as well as by constructing open, transparent spaces and the use of new windows. To maintain a sense of nature throughout the structure, green and brown are the primary hues used. I am happy with the exploration. I am pleased with the many investigations I conducted to make sure the concept was perceived visually in three dimensions throughout the structure. One of the most important aspects of how the concept is represented is by the curving partitions, which also serve other purposes like dividing up the various activity zones. The curving partition walls that separate the kitchen from the yoga studio—a loud area—contain acoustic insulation, so I took into account each zone of the structure.
Although the building is grade 2 listed, I think the facade design was a bold and courageous choice because it contrasts with the existing structure and also fits into my concept
https://en.wikipedia.org/wiki/City_of_Westminster
https://idoxpa.westminster.gov.uk/online-applications/files/A7FF99C26131B9C461A024D65C507BFD/pdf/18_00522_LBC-HERITAGE_REPORT_190118_-_CARRIAGE_HALL_29_FLORAL_ST_ WC2E_9TD-5293942.pdf
https://www.pinterest.co.uk/pin/368873025727685233/
https://www.archdaily.com/132838/moritzburg-museum-extension-nieto-sobejano-arquitectos
https://www.re-thinkingthefuture.com/rtf-fresh-perspectives/a1059-10-examples-of-innovative-use-of-natural-light-in-architecture/
https://i.pinimg.com/originals/9c/c2/c5/9cc2c50c34a926302017cce869ea6b0d.jpg
https://flooringwarehousedirect.co.uk/product/acoosti-oak-wood-slat-acoustic-wall-panel/?attribute_pa_panel-size=240cm-x-60cm&gclid=Cj0KCQjw0tKiBhC6ARIsAAOXutlex-ISCGR8lOq_aaXkeBTX1Ur0NxFh7ruSrL7SfTBC6ieXKjc-B4MaAnxIEALw_wcB
https://www.archdaily.com/963271/concave-and-convex-designing-with-curved-wood
https://uk.images.search.yahoo.com/search/images;_ylt=AwrFbIwC91Rky5gdwrlNBQx.;_ylu=c2VjA3NlYXJjaARzbGsDYnV0dG9u;_ylc=X1MDMjExNDcxNzAwNQRfcgMyBGZyA21jYWZlZQRmcjIDcDpzLHY6aSxtOnNiLXRvcARncHJpZANrdW1jRGR4YVN4U3lmUFRGWEo5c3JBBG5fcnNsdAMwBG5fc3VnZwMxMARvcmlnaW4DdWsuaW1hZ2VzLnNlYXJjaC55YWhvby5jb20EcG9zAzAEcHFzdHIDBHBxc3RybAMwBHFzdHJsAzE5BHF1ZXJ5A2FjdGlvbiUyMG9uJTIwYWRkaWN0aW9uBHRfc3RtcAMxNjgzMjg5ODg5?p=action+on+addiction&fr=mcafee&fr2=p%3As%2Cv%3Ai%2Cm%3Asb-top&ei=UTF-8&x=wrt&type=E211GB1289G0#id=1&iurl=https%3A%2F%2Fwww.actiononaddiction.org.uk%2Fmedia%2F664%2Ftaking-action-on-addiction-1480x820.png&action=click
https://furniture123.co.uk/p/round-oak-dining-table-seats-4-jarel-jar012?refsource=fuadwords&mkwid=s_dc&pcrid=633743863320&pkw=&pmt=&slid=&pgrid=143774620552&ptaid=pla-296297883562&cpgnid=17 944704709&channel=googlesearch&gclid=Cj0KCQjwk7ugBhDIARIsAGuvgPaIZuOqpw0SRuNG7PVBqcCzKH3bdOcXRFGRJp71mD38QyUdTs_y85saAnXlEALw_wcB
https://www.evergreendirect.co.uk/green-wall-c25
https://www.pantone.com/uk/en/
https://urbanevolutions.com/product/curved-slat-wood-wall-panel/
https://www.luxuryflooringandfurnishings.co.uk/brimham-aged-sunshine-oak-203-x-18mm.html
https://www.flooringsuperstore.com/victoria-natural-oak-herringbone.html
https://www.daals.co.uk/products/oakley-set-of-2-dark-green-velvet-upholstered-dining-chairs-with-contrast-piping
