A winning combination EROWA Robot and EMCO MAXXMILL 630

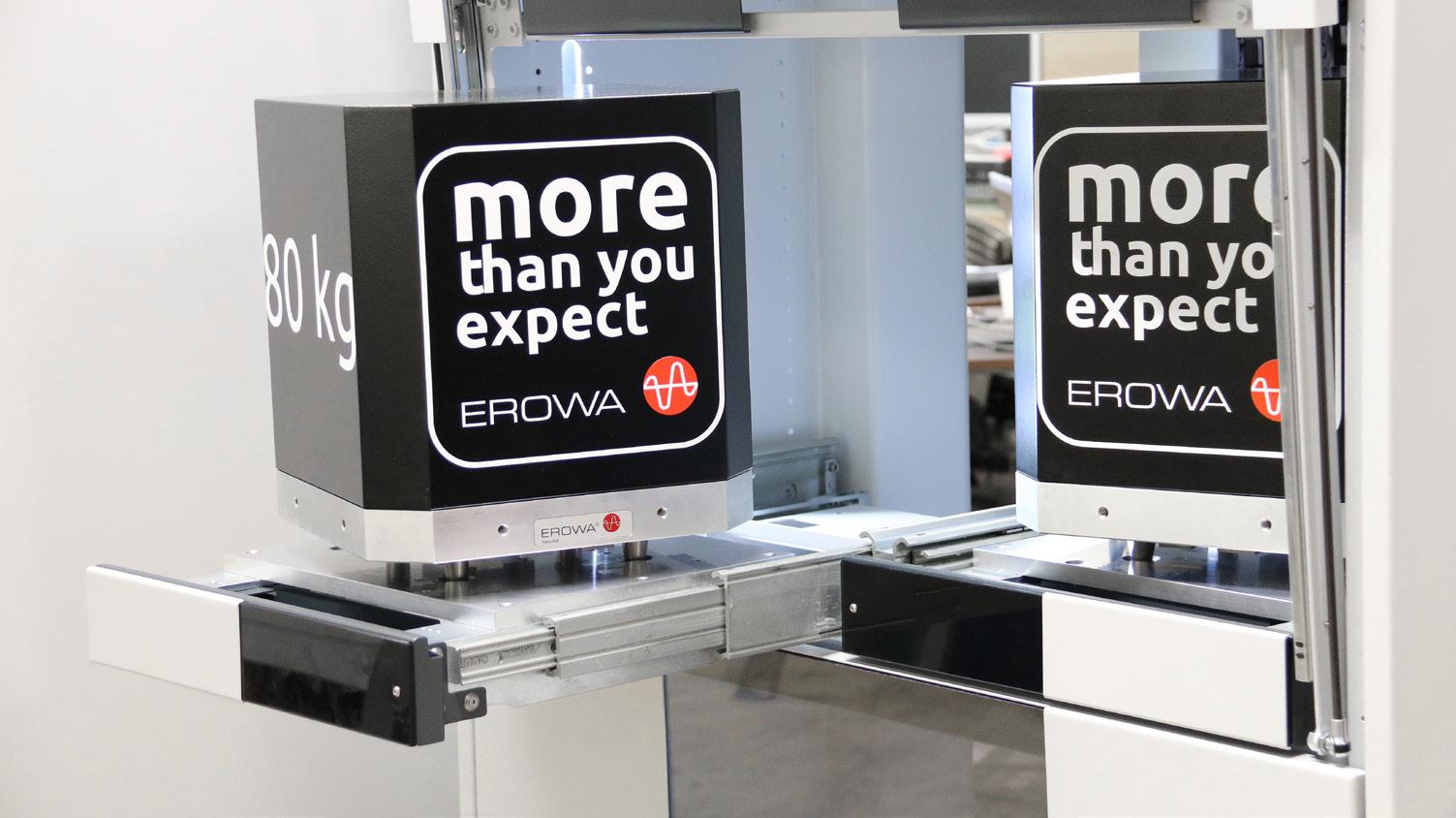

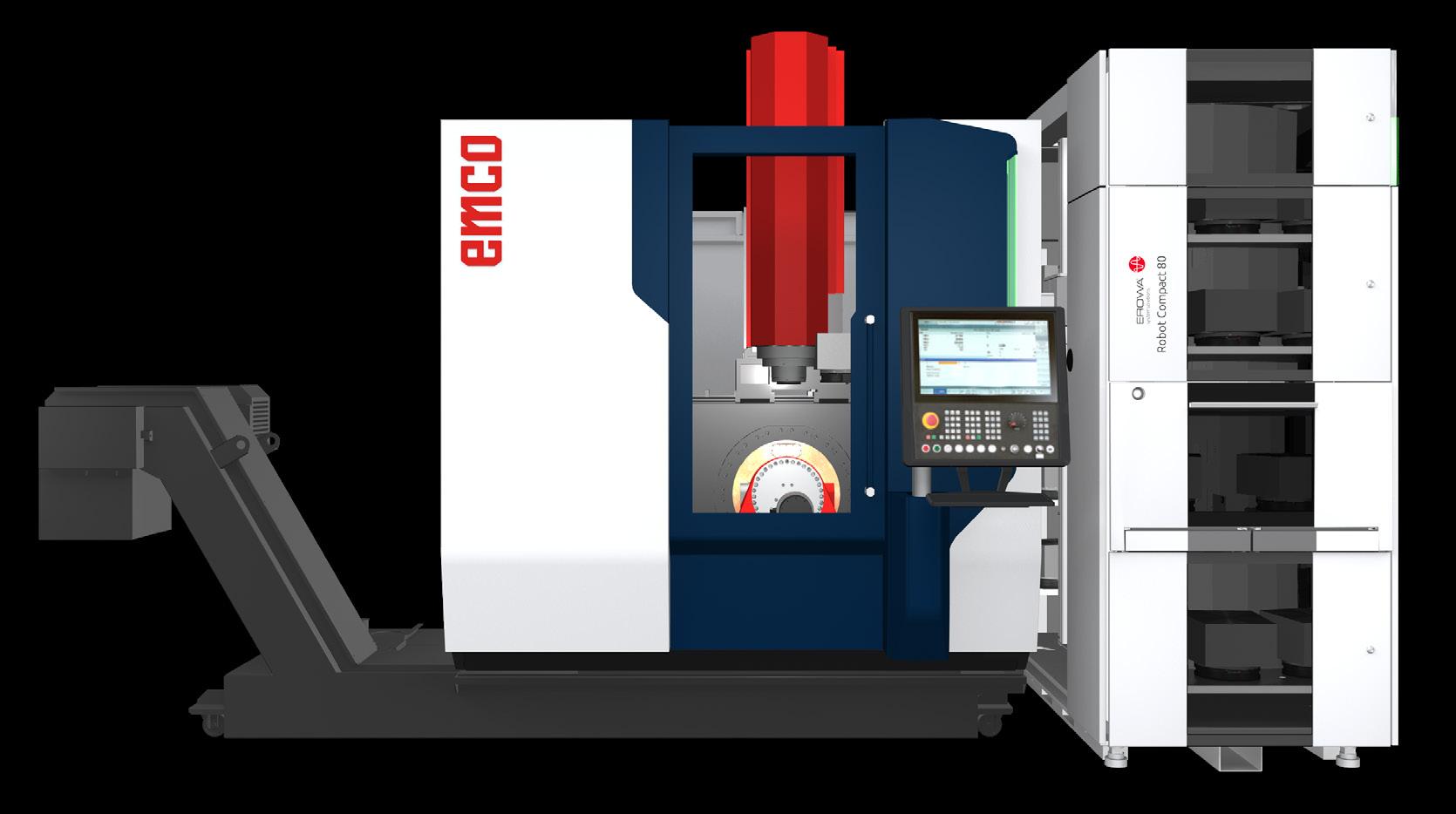

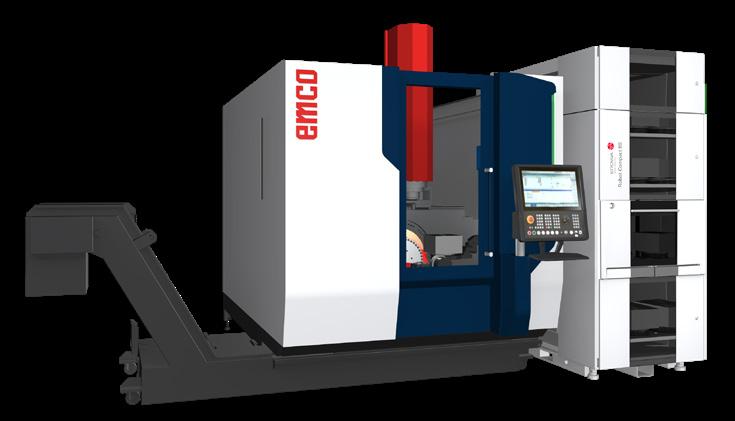

EROWA Robot Compact 80 with EMCO MAXXMILL 630
EXTENSION OPTIONS
• Requires only 2 m2 footprint
• Large and flexible magazine capacity, from small ITS holders to large UPC 320 pallets
• Fast start-up
2
EROWA Tooling System PowerChuck P ProductionChuck 210 Modular Tooling System Pallet type ITS 148 PC 210 MTS 320 Transfer weight ERC 80 40 kg 80 kg 80 kg Number of pallets 50 24 14 Workpiece dimension square 150 x 150 x 200 mm 200 x 200 x 200 mm 350 x 350 x 220 mm Workpiece dimension round ø 160 x 200 mm ø 230 x 200 mm ø 350 x 220 mm Technical data subject to change. Technical details EROWA Robot Compact 80 depending pallet size
Layout shows standard type conveyor.
3D picture shows drum type conveyor.
EROWA ROBOT ON EMCO 3 ITS 148

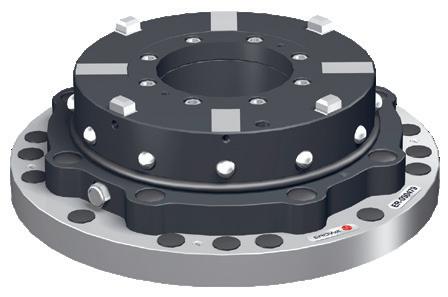

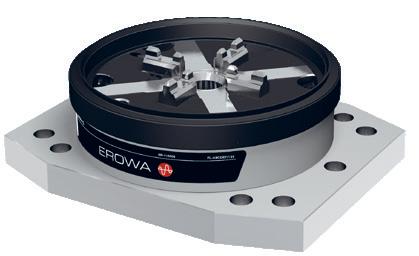

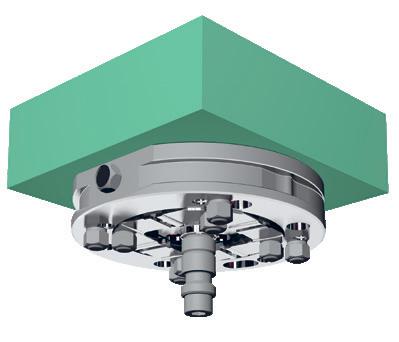

Magazine configuration ERC 80 Pallet size ø 148 mm Repeatability 0.002 mm Clamping force 10‘000 N Clamping Spring force Technical details EROWA PowerChuck P Pallet size ø 210 mm Repeatability < 0.002 mm Clamping force 20‘000 N Clamping Spring force Technical details EROWA Production Chuck 210
PC 210 EROWA Tooling systems
4 MTS 320

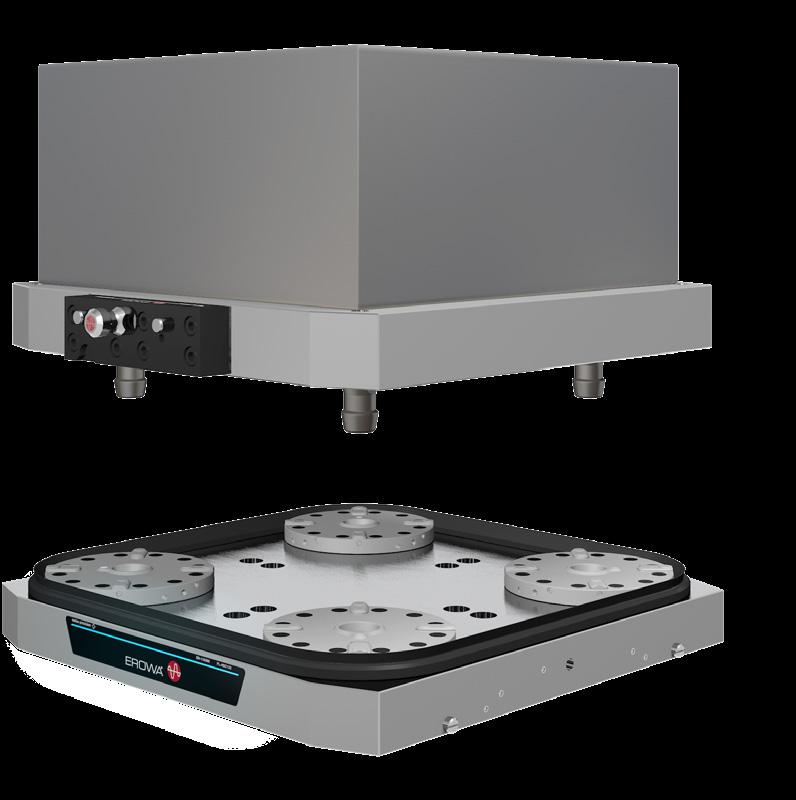

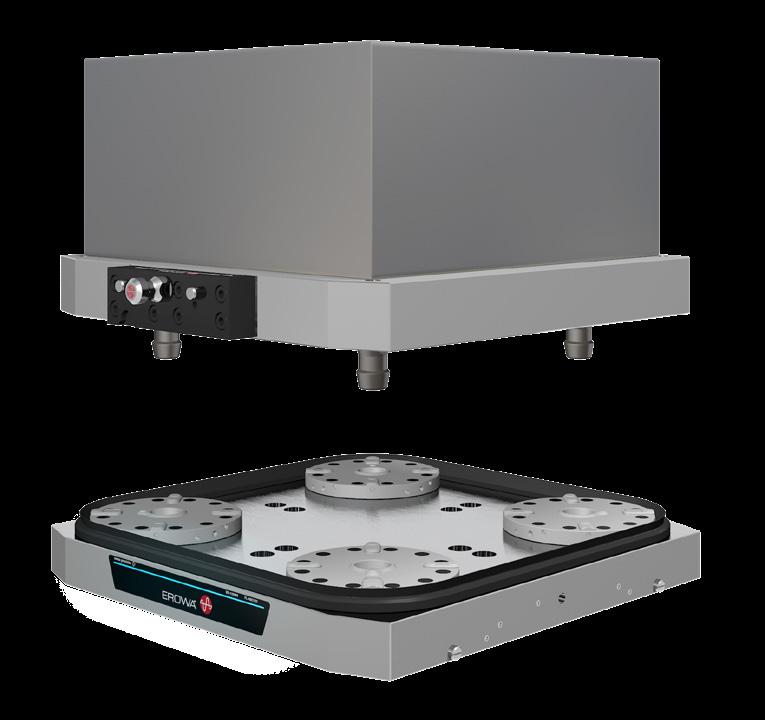

Magazine configuration ERC 80 Pallet size 320 x 320 mm Repeatability 0.003 mm Clamping force 4 x 12‘000 N Clamping Spring force Technical details EROWA MTS 320
EROWA Tooling systems

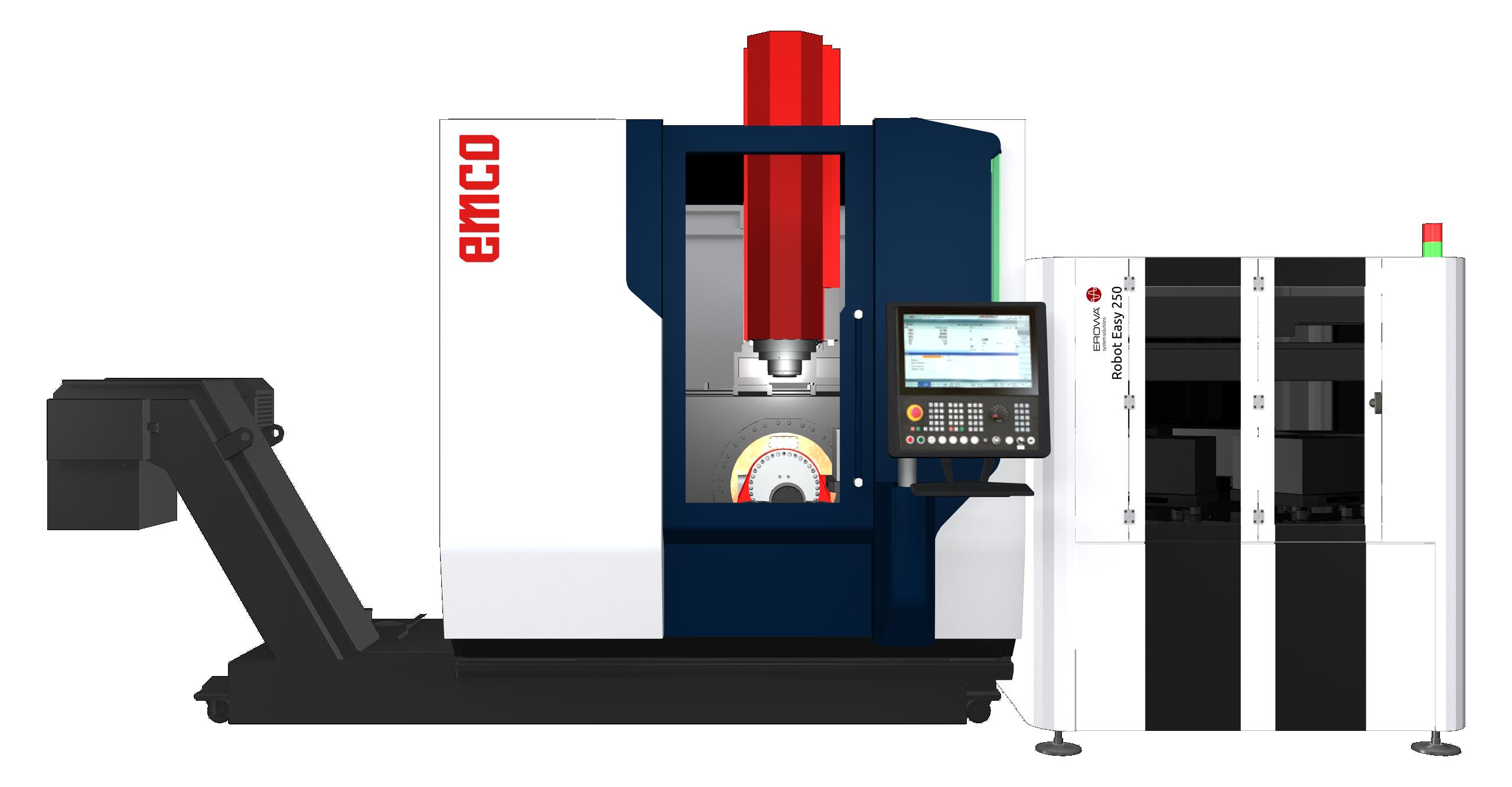

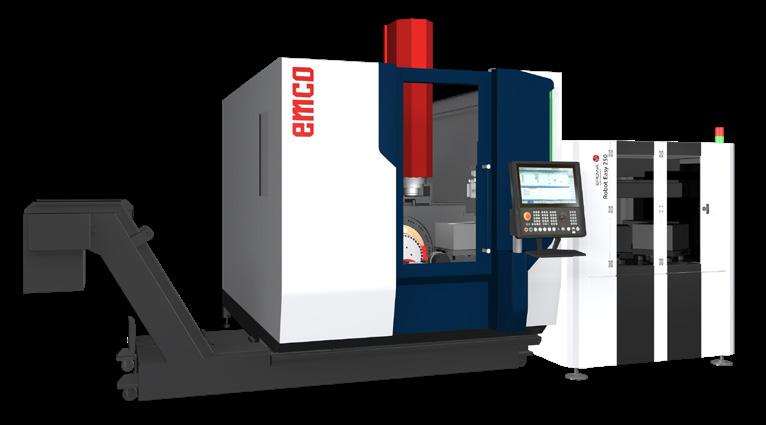

EROWA Robot Easy 250 with
EXTENSION OPTIONS
• For
•
• Choice
• Choice of magazine
configuration
EROWA ROBOT ON EMCO 5
milling, drilling and grinding

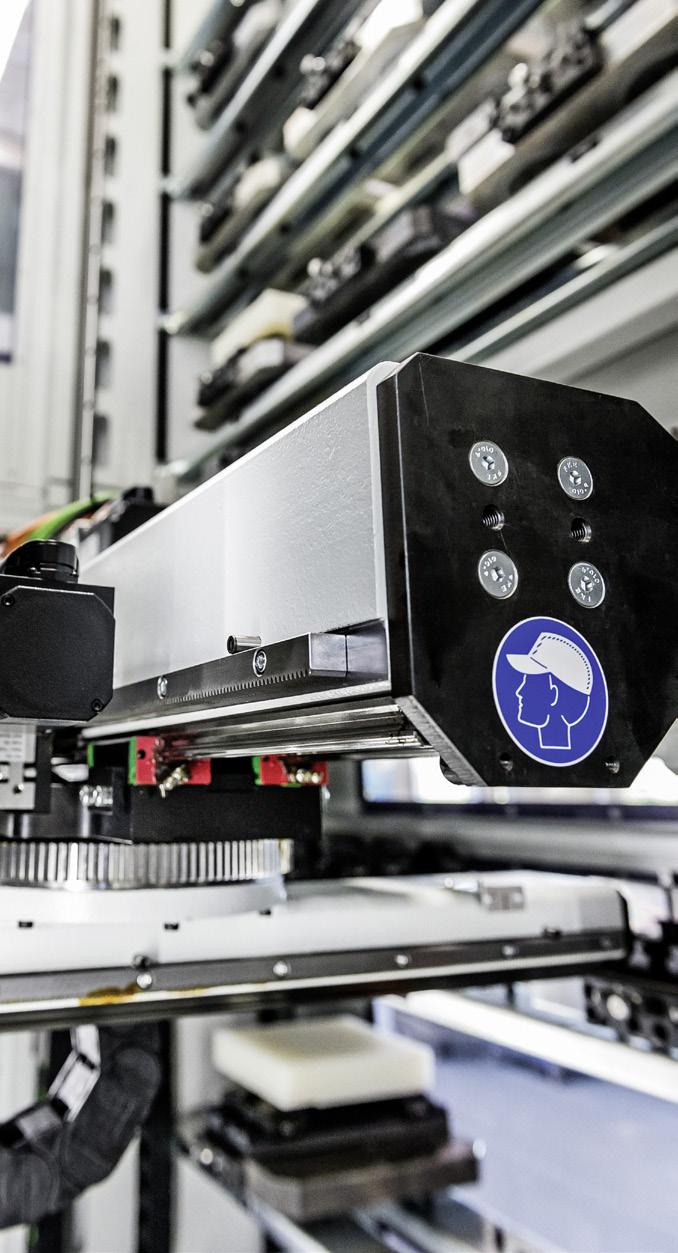

Integrated height adjustment
of transfer
axis
EROWA Tooling System Modular Tooling System Modular Tooling System Modular Tooling System Pallet type MTS 320 MTS 400 MTS 500 Transfer weight Robot Easy 250 kg 250 kg 250 kg Number of UPC pallets 6 6 4 Workpiece dimension square 310 x 310 x 390 mm 380 x 380 x 390 mm 510 x 510 x 390 mm Workpiece dimension round ø 355 x 390 mm ø 455 x 390 mm ø 600 x 390 mm Technical data subject to change. Technical details EROWA Robot Easy 250 depending pallet size
MAXXMILL 630 3D picture shows drum type conveyor. Layout shows drum type conveyor.
EMCO
6 MTS 320 MTS
400
Pallet size 320 x 320 mm Repeatability 0.003 mm Clamping force 4 x 12‘000 N Clamping Spring force Pallet size 398 x 398 mm Repeatability 0.003 mm Clamping force 4 x 12‘000 N Clamping Spring force Technical details EROWA MTS 320 Technical details EROWA MTS 400
EROWA Tooling systems Magazine configuration ERE 250
EROWA ROBOT ON EMCO 7 MTS 500 Pallet size 498 x 498 mm Repeatability 0.003 mm Clamping force 4 x 12‘000 N Clamping Spring force Technical details EROWA MTS 500

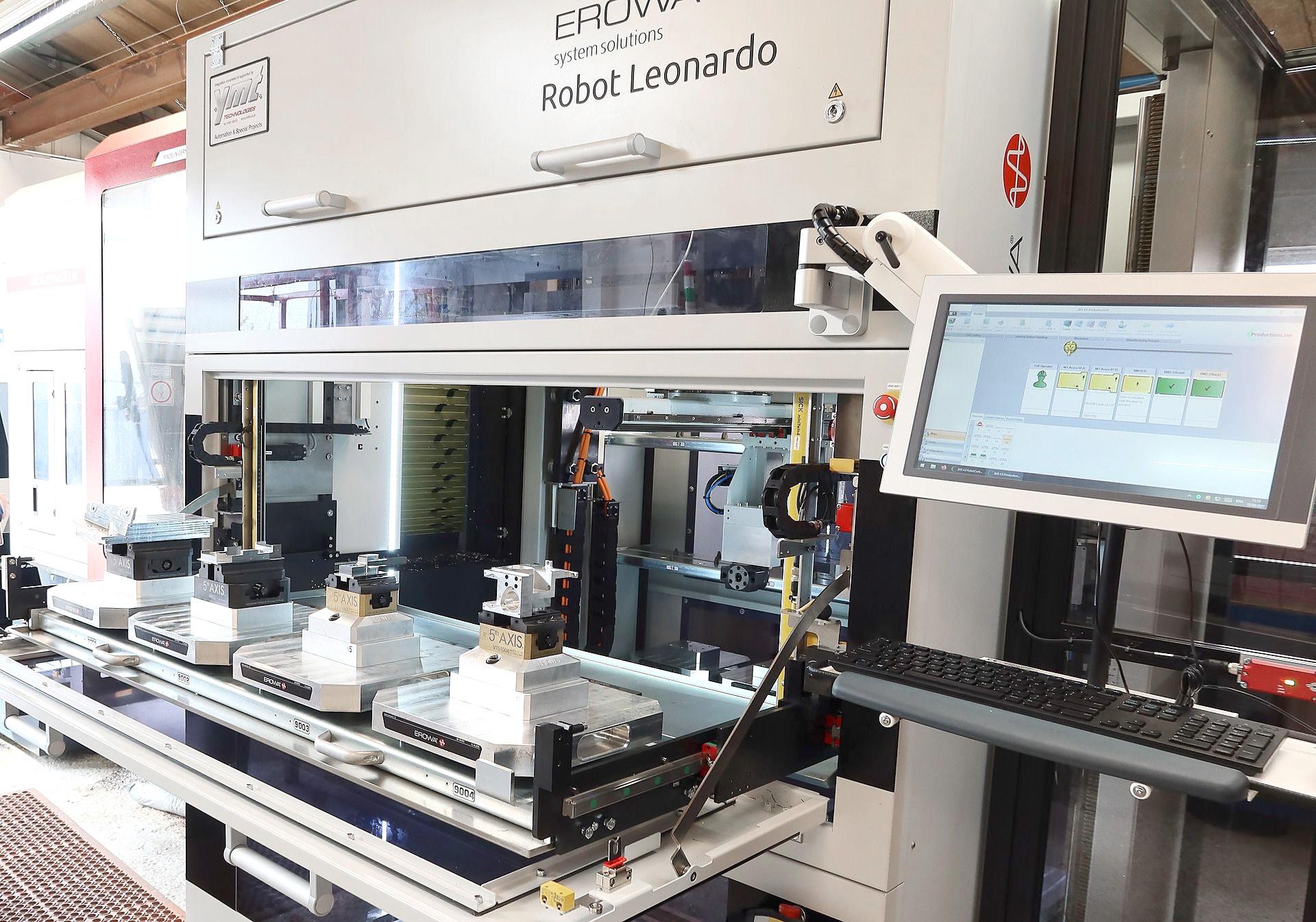

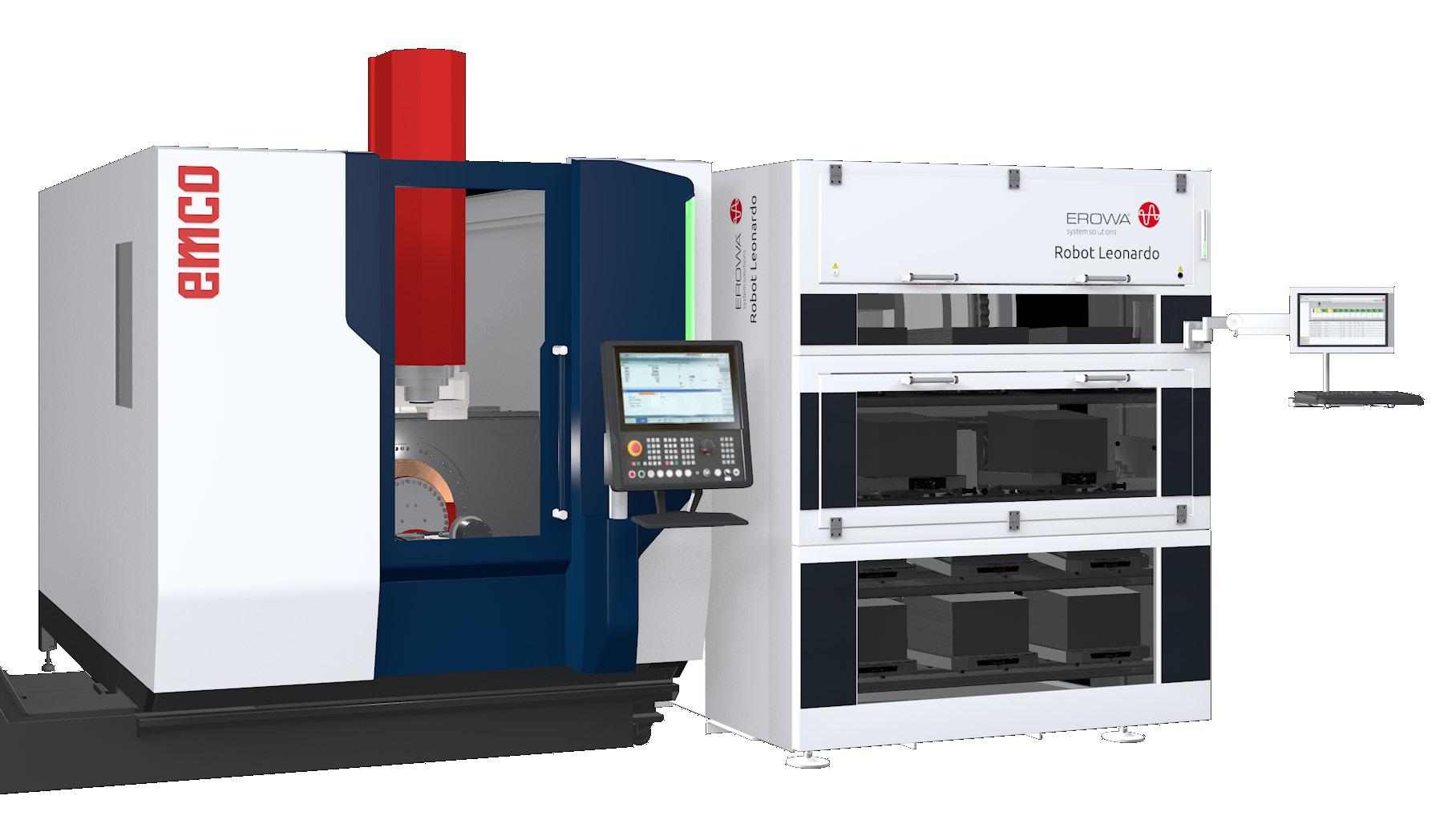

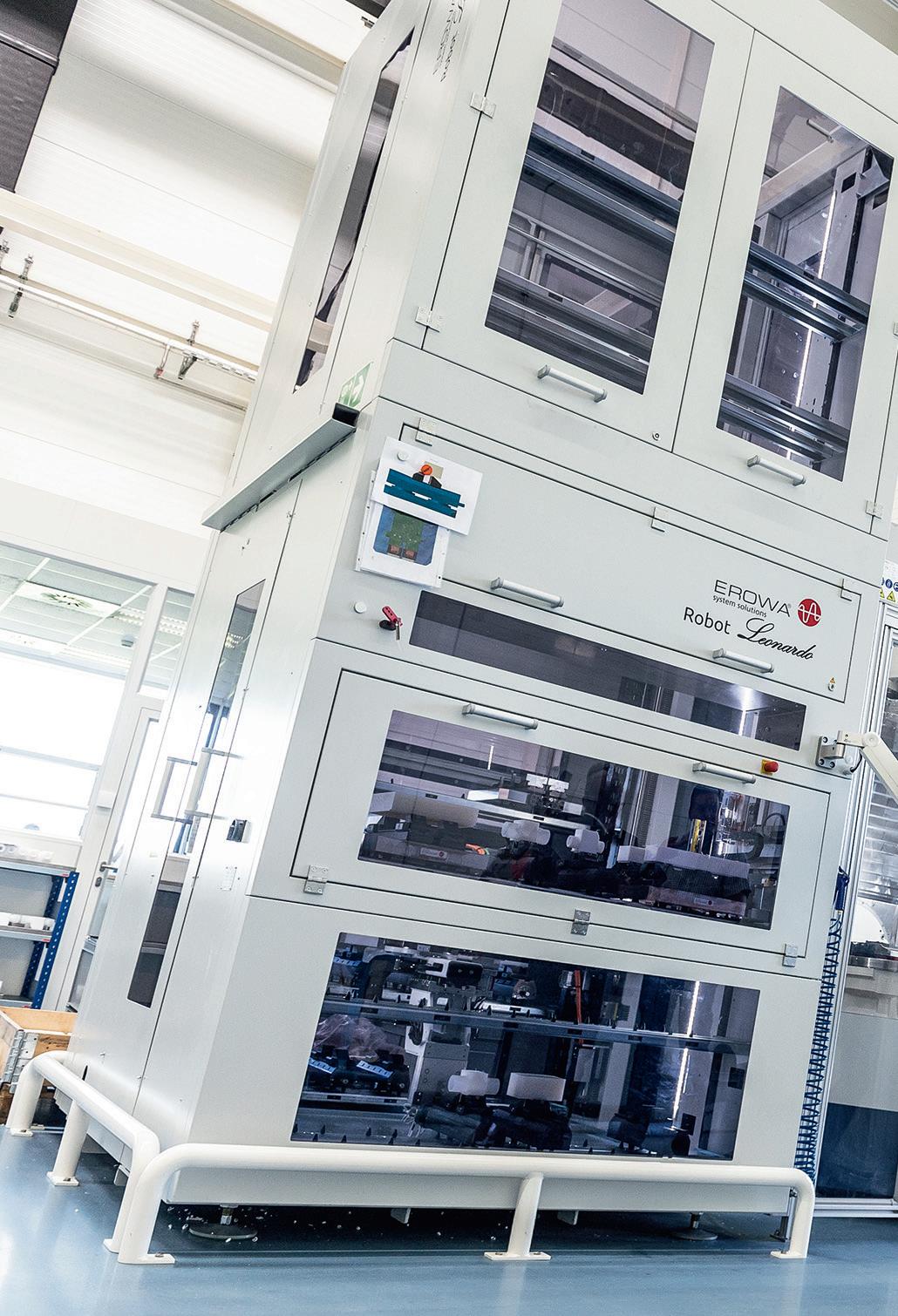

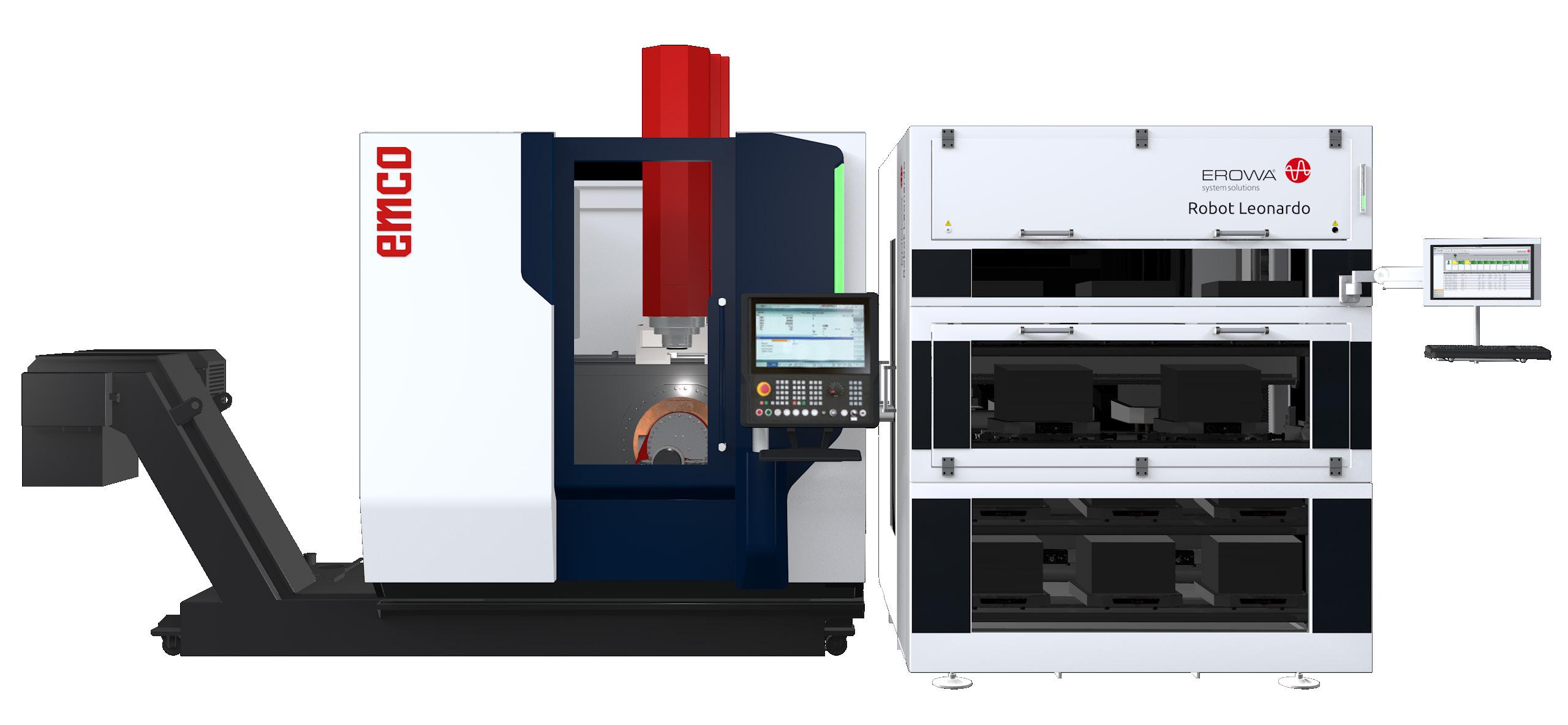

EROWA Robot Leonardo 120 with EMCO MAXXMILL 630
EXTENSION OPTIONS
•
• Flexible
•
•
• Automatic
•
depending on pallet size
8
magazine configuration
machine operation
Twin
pallet
identification
Automatic
gripper change
EROWA Tooling System ProductionChuck 210 Modular Tooling System Modular Tooling System Pallet type PC 210 MTS 320 MTS 400 Transfer weight ERL 120 80 kg 120 kg 120 kg Number of pallets 33 30 23 Workpiece dimension square 260 x 350 x 250/200 mm 350 x 350 x 250 mm 450 x 450 x 250 mm Workpiece dimension round ø 260 x 250/200 mm ø 350 x 250 mm ø 450 x 250 mm Technical data subject to change. Technical details EROWA Leonardo 120 depending pallet size
MonoBlock design
concept
Scalable
Integrated loading station
robot – various pallets 3D picture shows drum type conveyor. Layout shows standard type conveyor.
One
EROWA ROBOT ON EMCO 9 PC 210 MTS 320
ERL 120 Pallet size ø 210 mm Repeatability < 0.002 mm Clamping force 20‘000 N Clamping Spring force Technical details EROWA Production Chuck 210 Pallet size 320 x 320 mm Repeatability 0.003 mm Clamping force 4 x 12‘000 N Clamping Spring force Technical details EROWA MTS 320
EROWA Tooling systems to cell Magazine configuration
10 MTS 400
Magazine configuration ERL 120 Pallet size 398 x 398 mm Repeatability 0.003 mm Clamping force 4 x 12‘000 N Clamping Spring force Technical details EROWA MTS 400
EROWA Tooling systems to cell
EROWA ROBOT ON EMCO 11

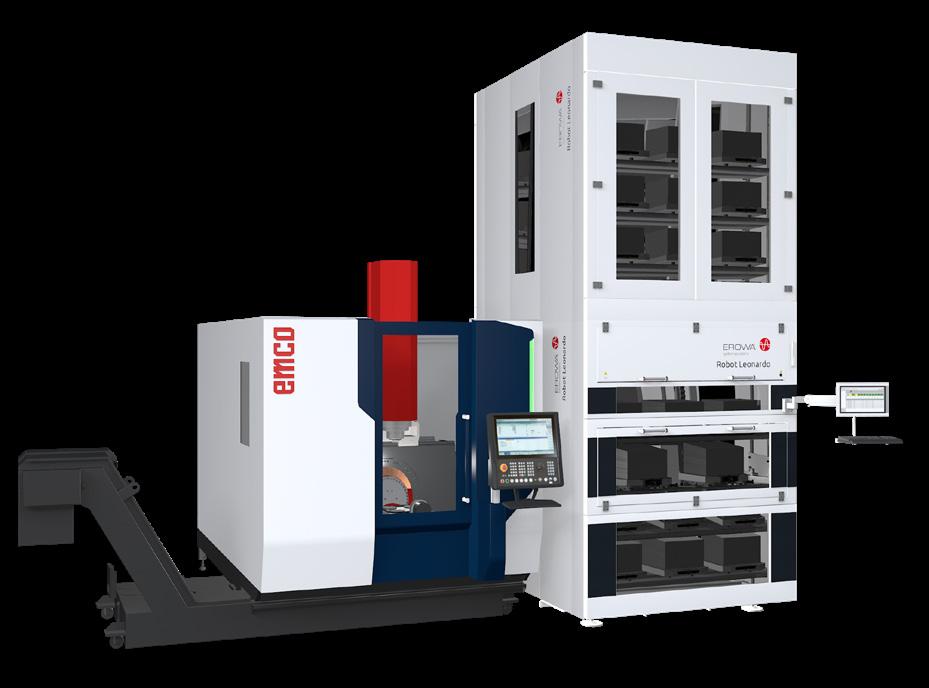

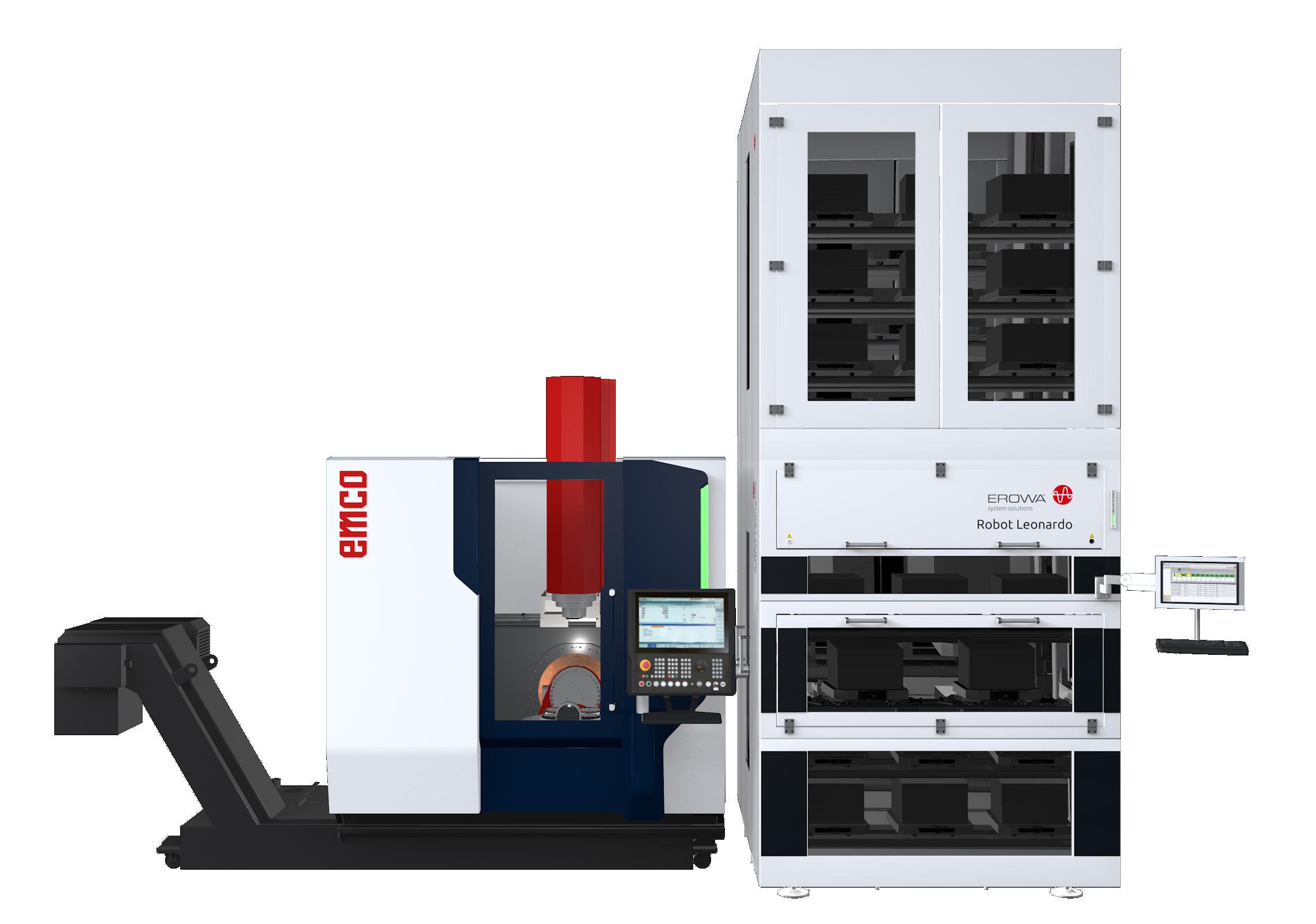

EROWA Robot Leonardo 120 high with EMCO MAXXMILL 630
EXTENSION OPTIONS
•
• Flexible
•
• RFID
•
• Automatic
•
12
magazine configuration
Twin machine operation
pallet identification
Automatic gripper
change
depending on pallet size
EROWA Tooling System ProductionChuck 210 Modular Tooling System Modular Tooling System Pallet type PC 210 MTS 320 MTS 400 Transfer weight ERL 120 80 kg 120 kg 120 kg Number of pallets 73 66 50 Workpiece dimension square 260 x 350 x 250/200 mm 350 x 350 x 250 mm 450 x 450 x 250 mm Workpiece dimension round ø 260 x 250/200 mm ø 350 x 250 mm ø 450 x 250 mm Technical data subject to change.
details EROWA Leonardo 120 high depending pallet size
Technical
Safe monitoring
pallet identification
Two-machine loading
panel with control system
Control
EROWA ROBOT ON EMCO 13 PC 210 EROWA Tooling
Magazine configuration ERL 120 high Pallet size ø 210 mm Repeatability < 0.002 mm Clamping force 20‘000 N Clamping Spring force Technical details EROWA Production Chuck 210
systems
14 MTS 320
Magazine configuration ERL 120 high Pallet size 320 x 320 mm Repeatability 0.003 mm Clamping force 4 x 12‘000 N Clamping Spring force Technical details EROWA MTS 320
EROWA Tooling systems
EROWA ROBOT ON EMCO 15 MTS 400 Pallet size 398 x 398 mm Repeatability 0.003 mm Clamping force 4 x 12‘000 N Clamping Spring force Technical details EROWA MTS 400

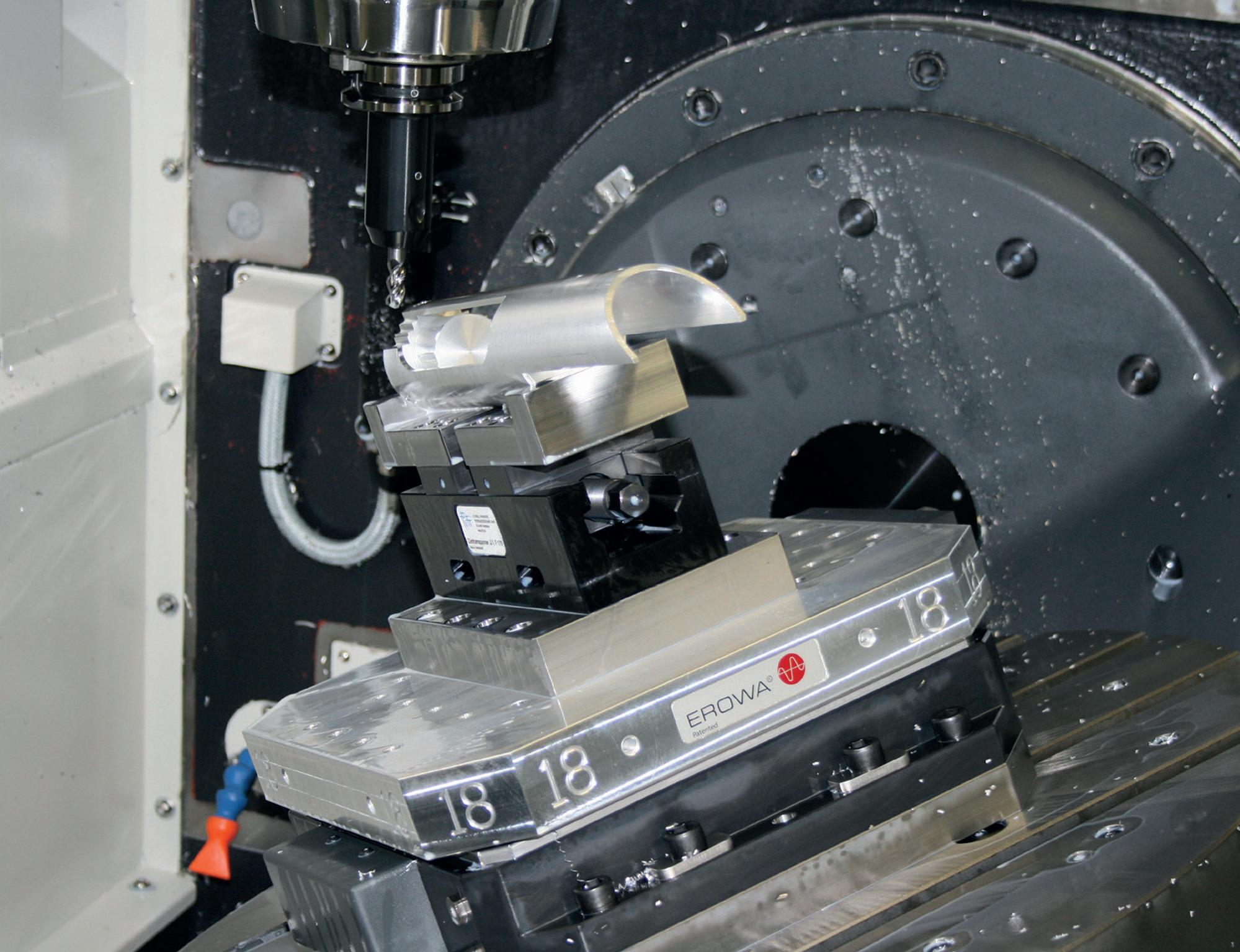

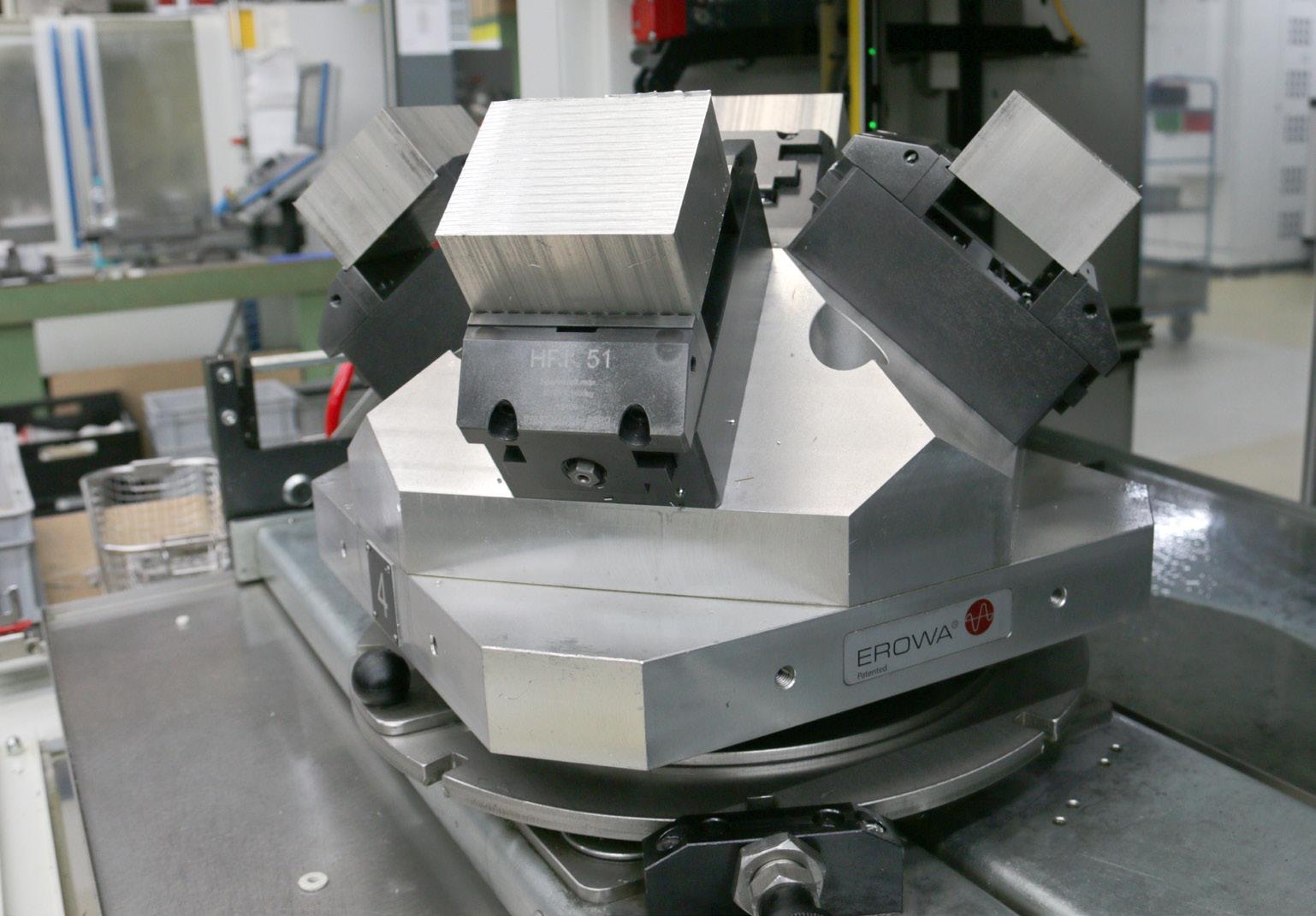

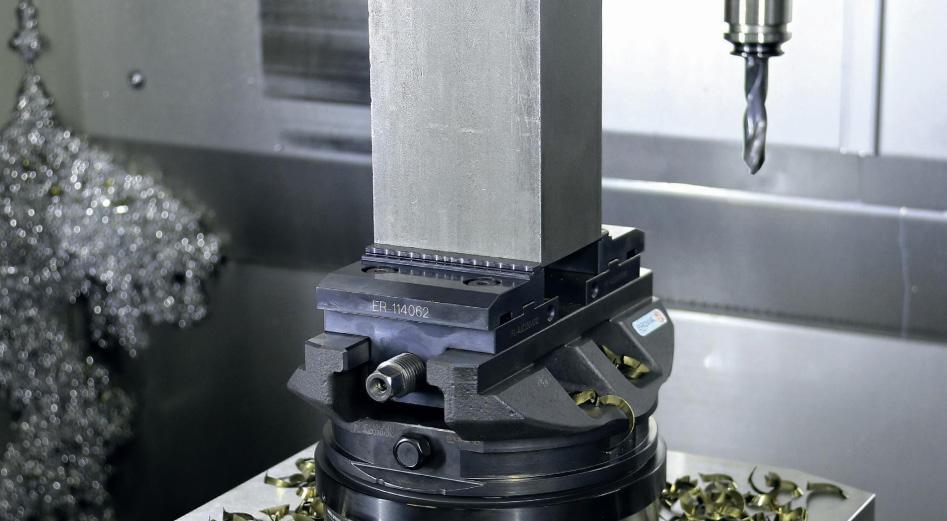

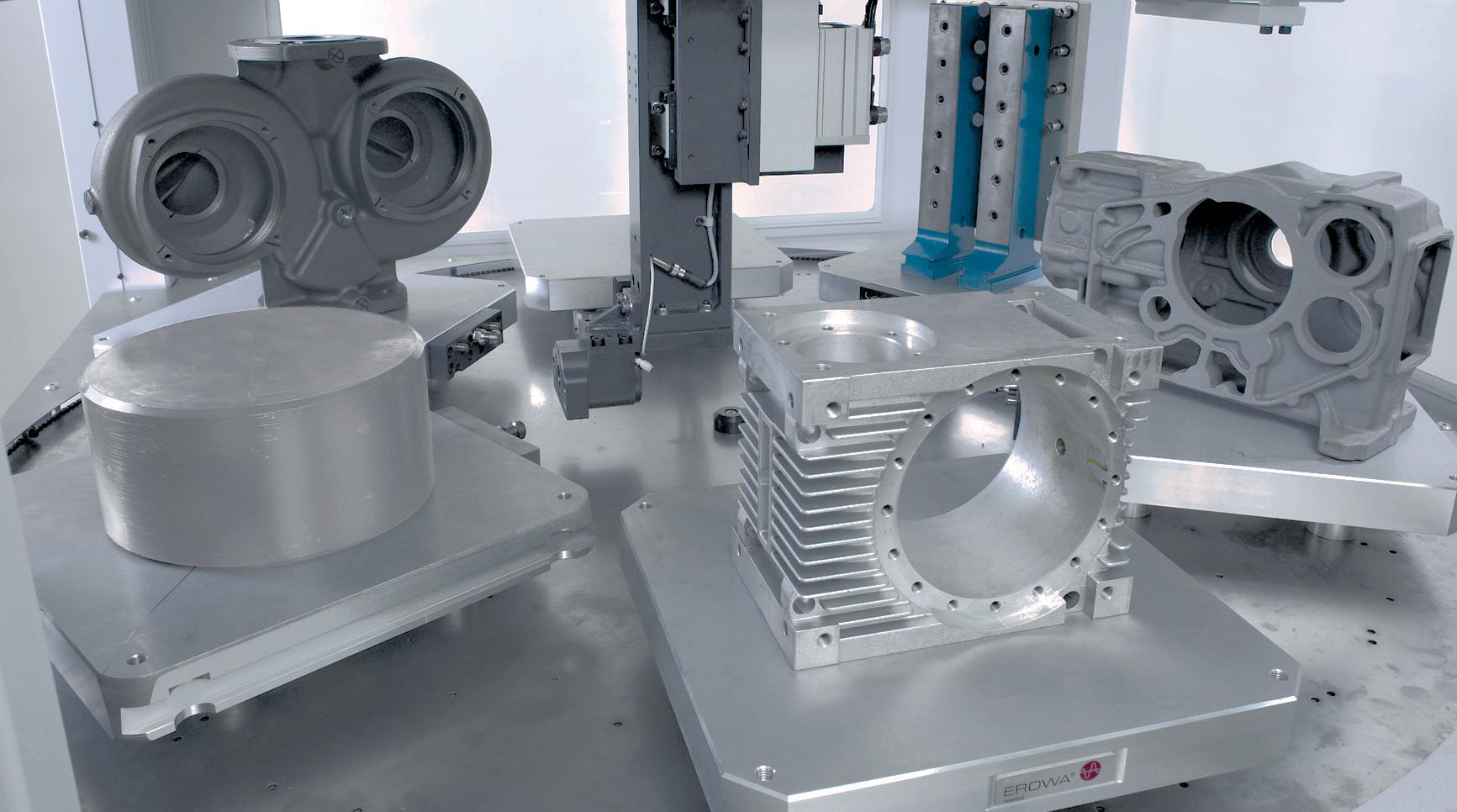

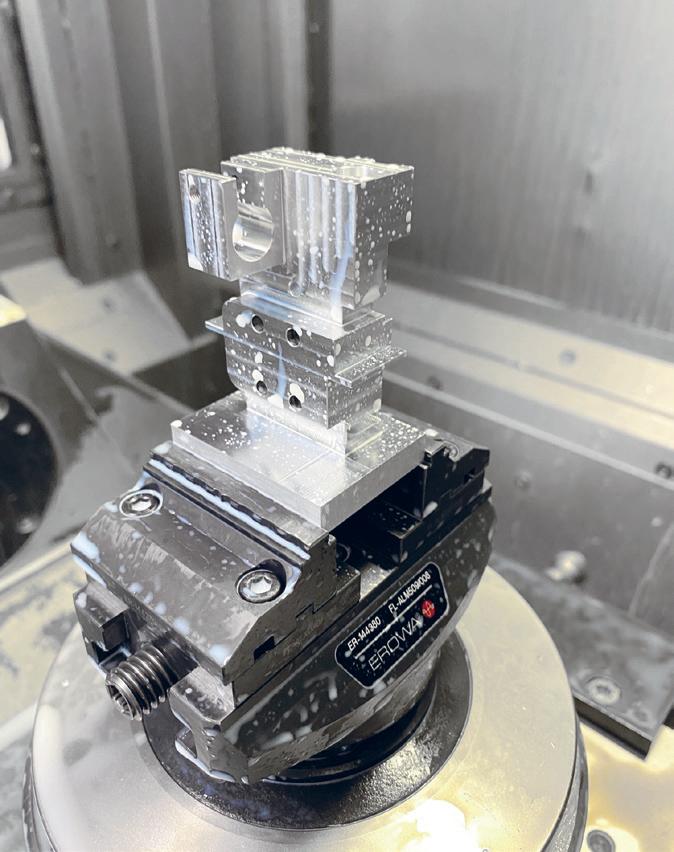

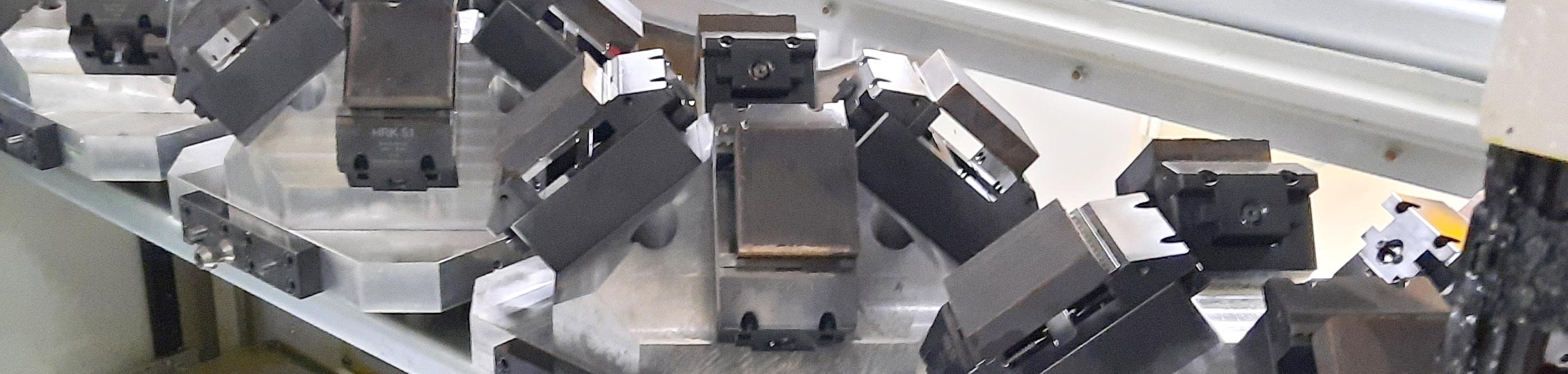

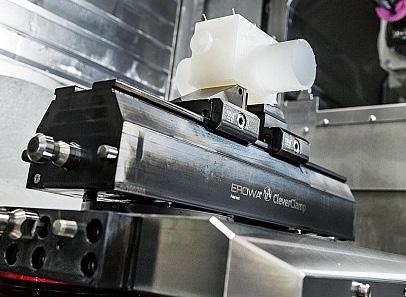

Examples
16
EROWA ROBOT ON EMCO 17
The process control system
EROWA robots open up previously unused production hours. Autonomous production takes place in the third shift and at weekends. This requires precise, yet flexible planning. JMS® 4.0 provides a clear overview. The order list, the priorities, the CNC programmes, the tool management and the current status messages show at a glance what is going on.
User-friendly and easy to operate
JMS 4.0 ensures a clear overview of current jobs. All the data that is relevant to production are represented in a user-friendly fashion. Current status messages assist the operator.
Controlled data flow
The process control system controls and monitors production cells. The complete universality of the data with all systems allows for genuinely comprehensive monitoring and process security.
FACTS
• Easy-to-view representation of the entire production process
• Import/export interfaces
• 24/7 live machine status via monitoring app
• Transparent analysis of all production data
• Modular software components
• Intuitive user interface
Transparency about productivity

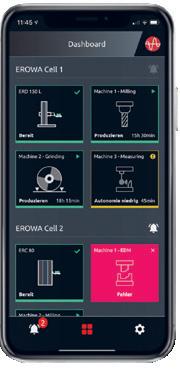

Dashboard and supervision applications show the efficiency parameters in real time, as well as the current status of the production cells in the system.
18
The success factors
With competent advice to the right decision
At EROWA, we have listened to the wishes of our customers from a wide variety of corporate sizes. Thus we provide tailormade solutions that fit your production process and degree of digitalization.
Degree of automation to meet your requirements
Thus workpieces can be loaded and unloaded in a fully automated process with tailor-made EROWA robots, which, is not an indispensable requirement for an efficient production cell. This starts with the automation of the data, and the automatic loading process can happen in a second step on request.
Reporting
Job or machine reports can be generated with a few clicks. A user-friendly interface and its availability in the entire network make this application an indispensable tool for process optimization.
A solution to meet any requirement
We accompany you on the way to the right choice. Our specialists will be glad to advise you and show you what your perfect solutions can look like and be implemented step by step.
EROWA ROBOT ON EMCO 19 ProductionLine
4.0
JMS®
The next step
Important things need to be planned. And your next step is certainly among the important things. It is your start into a new, efficient era. We are pleased to be with you on the way. As consultants, in practice. For you to know at all times what you’re engaging in. The next EROWA branch office is not far – take the step.
