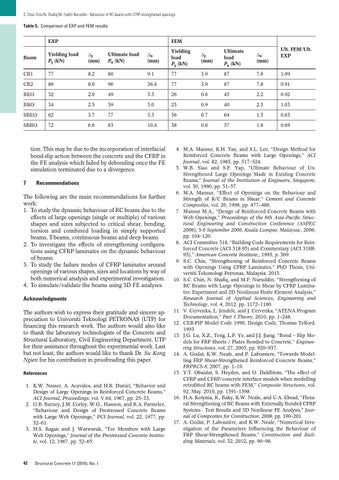

S. Choo Chin/N. Shafiq/M. Fadhil Nuruddin · Behaviour of RC beams with CFRP-strengthened openings
Table 5. Comparison of EXP and FEM results
EXP
FEM Ult. FEM/Ult. EXP
Beam
Yielding load Py (kN)
∆y (mm)
Ultimate load Pu (kN)
∆u (mm)
Yielding load Py (kN)
∆y (mm)
Ultimate load Pu (kN)
∆u (mm)
CB1
77
8.2
80
9.1
77
3.9
87
7.8
1.09
CB2
86
8.0
96
36.4
77
3.9
87
7.8
0.91
BEO
32
2.0
49
3.3
26
0.8
45
2.2
0.92
BRO
34
2.5
39
3.0
23
0.9
40
2.3
1.03
SBEO
62
3.7
77
5.3
36
0.7
64
1.5
0.83
SBRO
72
6.6
83
10.4
38
0.8
57
1.8
0.69
tion. This may be due to the incorporation of interfacial bond-slip action between the concrete and the CFRP in the FE analysis which failed by debonding once the FE simulation terminated due to a divergence.
7 Recommendations The following are the main recommendations for further work: 1. To study the dynamic behaviour of RC beams due to the effects of large openings (single or multiple) of various shapes and sizes subjected to critical shear, bending, torsion and combined loading in simply supported beams, T-beams, continuous beams and deep beams. 2. To investigate the effects of strengthening configurations using CFRP laminates on the dynamic behaviour of beams. 3. To study the failure modes of CFRP laminates around openings of various shapes, sizes and locations by way of both numerical analysis and experimental investigation. 4. To simulate/validate the beams using 3D FE analyses.
Acknowledgments The authors wish to express their gratitude and sincere appreciation to Universiti Teknologi PETRONAS (UTP) for financing this research work. The authors would also like to thank the laboratory technologists of the Concrete and Structural Laboratory, Civil Engineering Department, UTP for their assistance throughout the experimental work. Last but not least, the authors would like to thank Dr. Su Kong Ngien for his contribution in proofreading this paper. References 1. K.W. Nasser, A. Acavalos, and H.R. Daniel, “Behavior and Design of Large Openings in Reinforced Concrete Beams,” ACI Journal, Proceedings, vol. V.64, 1967, pp. 25–33. 2. G.B. Barney, J.M. Corley, W.G., Hanson, and R.A. Parmelee, “Behaviour and Design of Prestressed Concrete Beams with Large Web Openings,” PCI Journal, vol. 22, 1977, pp. 32–61. 3. H.S. Ragan and J. Warwaruk, “Tee Members with Large Web Openings,” Journal of the Prestressed Concrete Institute, vol. 12, 1967, pp. 52–65.
42
Structural Concrete 17 (2016), No. 1
4. M.A. Mansur, K.H. Tan, and S.L. Lee, “Design Method for Reinforced Concrete Beams with Large Openings,” ACI Journal, vol. 82, 1985, pp. 517–524. 5. W.B. Siao and S.F. Yap, “Ultimate Behaviour of UnStrengthened Large Openings Made in Existing Concrete Beams,” Journal of the Institution of Engineers, Singapore, vol. 30, 1990, pp. 51–57. 6. M.A. Mansur, “Effect of Openings on the Behaviour and Strength of R/C Beams in Shear,” Cement and Concrete Composites, vol. 20, 1998, pp. 477–486. 7. Mansur M.A., “Design of Reinforced Concrete Beams with Web Openings,” Proceedings of the 6th Asia-Pacific Structural Engineering and Construction Conference (ASPEC 2006), 5-6 September 2006, Kuala Lumpur, Malaysia., 2006, pp. 104–120. 8. ACI Committee 318, “Building Code Requirements for Reinforced Concrete (ACI 318-95) and Commentary (ACI 318R95),” American Concrete Institute,, 1995, p. 369. 9. S.C. Chin, “Strengthening of Reinforced Concrete Beams with Openings Using CFRP Laminates,” PhD Thesis, Universiti Tekonologi Petronas, Malaysia. 2013. 10. S.C. Chin, N. Shafiq, and M.F. Nuruddin, “Strengthening of RC Beams with Large Openings in Shear by CFRP Laminates: Experiment and 2D Nonlinear Finite Element Analysis,” Research Journal of Applied Sciences, Engineering and Technology, vol. 4, 2012, pp. 1172–1180. 11. V. Cervenka, L. Jendele, and J. Cervenka, “ATENA Program Documentation,” Part 1 Theory, 2010, pp. 1–248. 12. CEB-FIP Model Code 1990, Design Code, Thomas Telford, 1993. 13. J.G. Lu, X.Z., Teng, L.P. Ye, and J.J. Jiang, “Bond – Slip Models for FRP Sheets / Plates Bonded to Concrete,” Engineering Structures, vol. 27, 2005, pp. 920–937. 14. A. Godat, K.W. Neale, and P. Labossiere, “Towards Modelling FRP Shear-Strengthened Reinforced Concrete Beams,” FRPRCS-8, 2007, pp. 1–10. 15. Y.T. Obaidat, S. Heyden, and O. Dahlblom, “The effect of CFRP and CFRP/concrete interface models when modelling retrofitted RC beams with FEM,” Composite Structures, vol. 92, May. 2010, pp. 1391–1398. 16. H.A. Kotynia, R., Baky, K.W. Neale, and U.A. Ebead, “Flexural Strengthening of RC Beams with Externally Bonded CFRP Systems : Test Results and 3D Nonlinear FE Analysis,” Journal of Composites for Construction, 2008, pp. 190–201. 17. A. Godat, P. Labossière, and K.W. Neale, “Numerical Investigation of the Parameters Influencing the Behaviour of FRP Shear-Strengthened Beams,” Construction and Building Materials, vol. 32, 2012, pp. 90–98.
