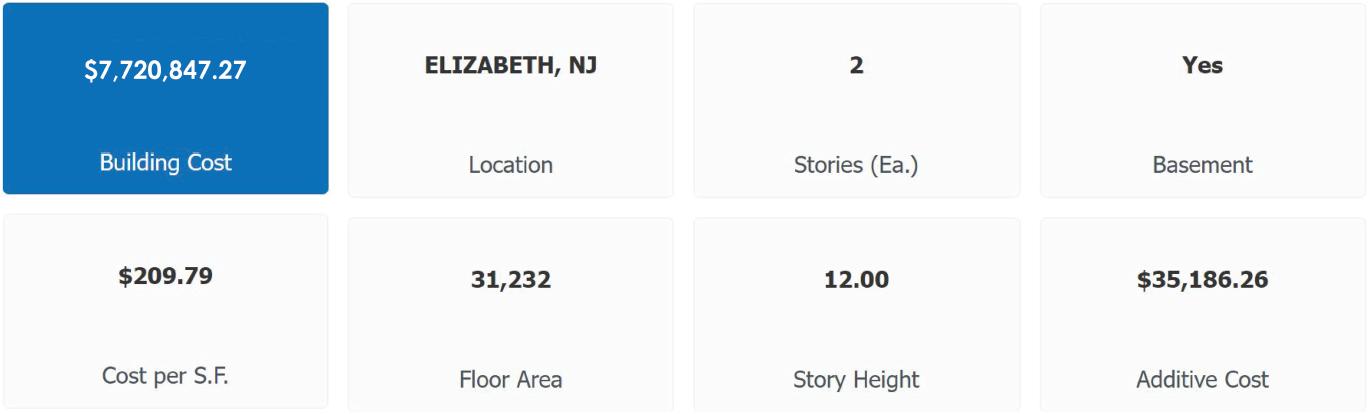

Environmental Analysis

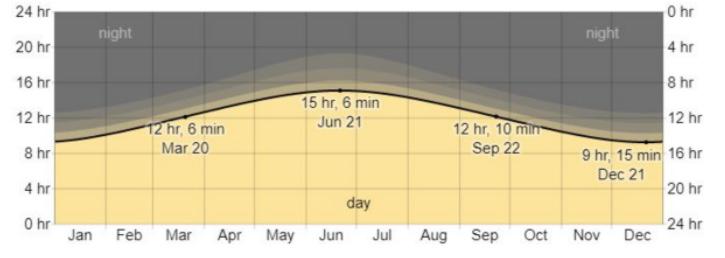

Winter Solstice: Solar Time: 12:04 Day Length: 9:15 Hrs
Solar Equinox:
Solar Time: 12:10 Day Length: 12:10 Hrs
Summer Solstice: Solar Time: 12:00 Day Length: 15:05 Hrs
Vegetation found on site
Average Temperatures:
High temp. can reach to 87 degrees around July
Low temp. can drop to 22 degrees around January

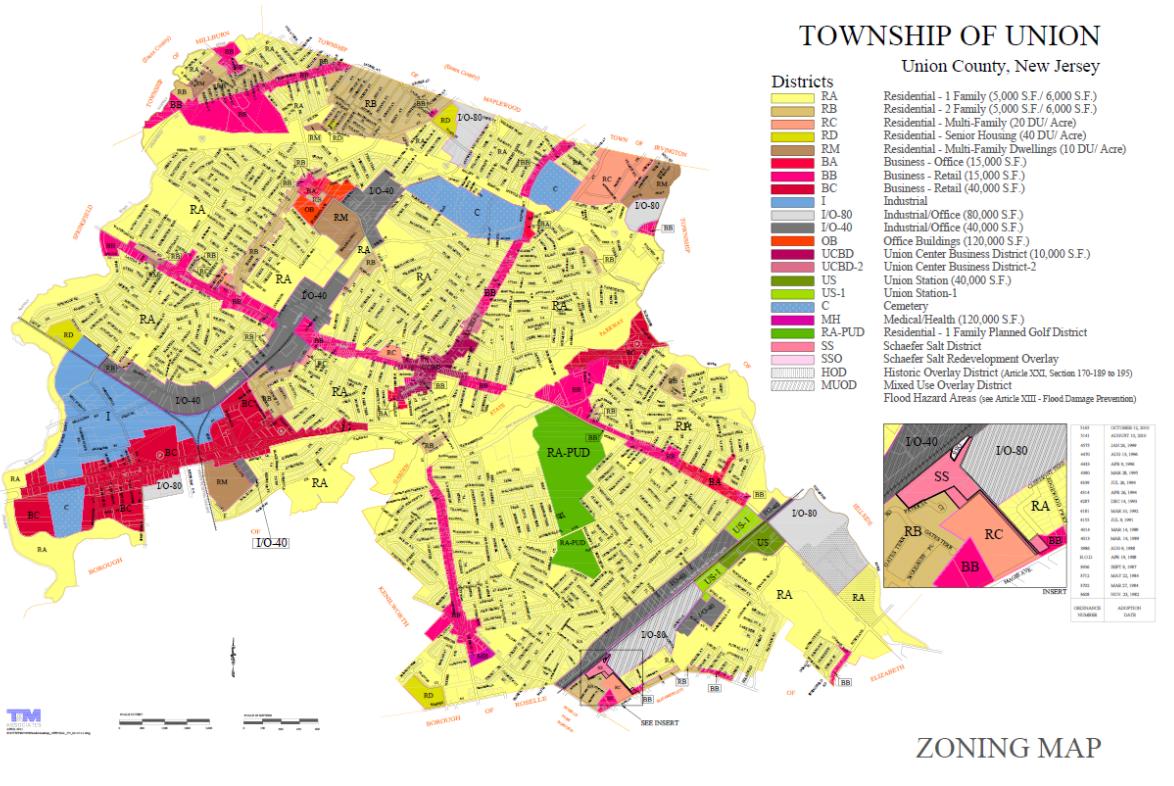

PAGE: UNLESS A PROFESSIONAL SEAL WITH SIGNATURE AND DATE IS AFFIXED, THIS DOCUMENT IS PRELIMINARY AND IS NOT INTENDED FOR CONSTRUCTION, RECORDING PURPOSES OR IMPLEMENTATION SCALE: UNIT SYSTEM: NOT FOR CONSTRUCTION CODE: Z-101 ZONING AND CODES Architect: Eric Tapia Date : 2/22/2022 Feet & Inches N/A 3.2.1.- THE NET FLOOR AREA PERMITS EXCLUSION OF CERTAIN SPACES THAT WOULD BE INCLUDED IN THE GROSS FLOOR AREA. PER CBC 202, FLOOR AREA, NET, IS THE ACTUAL OCCUPIED AREA NOT INCLUDING UNOCCUPIED ACCESSORY AREAS SUCH AS CORRIDORS, STAIRWAYS, RAMPS, TOILET ROOMS, MECHANICAL ROOMS AND CLOSETS. CBC SECTION 1004 EXCEPTION "WHERE APPROVED BY THE BUILDING OFFICIAL, THE ACTUAL NUMBER OF OCCUPANTS FOR WHOM EACH OCCUPIED SPACE, FLOOR OR BUILDING IS DESIGNED, ALTHOUGH LESS THAN THE CALCULATION, SHALL BE PERMITTED TO BE USED IN DETERMINATION OF THE DESIGN OCCUPANT LOAD." A SIGN WILL BE PROVIDED IN ASSEMBLY OCCUPANCIES. THE SIGN SHALL BE POSTED IN A CONSPICUOUS PLACE, NEAR EXITS FROM THE SPACE, PER CBC 1004.3. C.R.O.P. Factory Studios Playtime PROJECT : 546 Green Lane CLIENT: ARCHITECT: STRUCTURAL ENGINEER: MEP ENGINEER: CIVIL ENGINEER: LANDSCAPE ARCHITECT: LOCATION: Union, NJ 07083 Jacques Tati Eric Tapia Eric Tapia Erica Freeman John Doe Jane Doe N O T E S SITE
Yew Shrubs Bur Oak Silver Maple Northern Red Oak

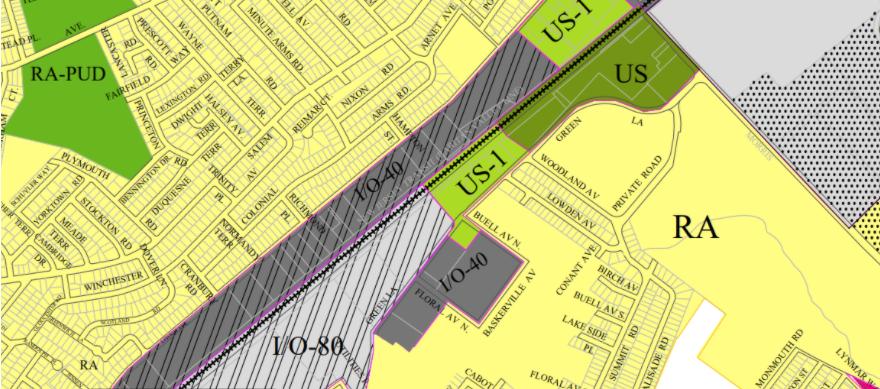

Soil Map - Union County, New Jersey
Soil Type: Boonton (Coarse Loamy)

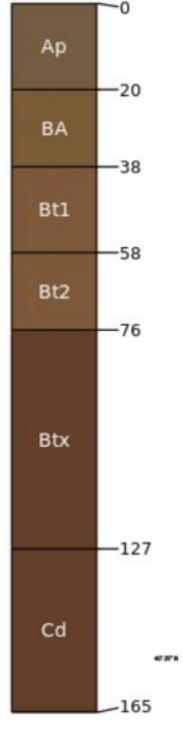

Soil Taxonomy
Order: Alfisols
Suborder: Udalfs
Greatgroup: Fragiudalfs
Subgroup: Typic Fragiudalfs
Family: Coarse-loamy
Soil Series: Boonton
Bearing Capacity
Clay: 2,000 psf
Sandy Clay: 2,000 psf
Silt Clay: 2,000 psf
PAGE: UNLESS A PROFESSIONAL SEAL WITH SIGNATURE AND DATE IS AFFIXED, THIS DOCUMENT IS PRELIMINARY AND IS NOT INTENDED FOR CONSTRUCTION, RECORDING PURPOSES OR IMPLEMENTATION SCALE: UNIT SYSTEM: NOT FOR CONSTRUCTION CODE: Z-102 ZONING AND CODES Architect: Eric Tapia Date : 2/22/2022 Feet & Inches N/A 3.2.1.- THE NET FLOOR AREA PERMITS EXCLUSION OF CERTAIN SPACES THAT WOULD BE INCLUDED IN THE GROSS FLOOR AREA. PER CBC 202, FLOOR AREA, NET, IS THE ACTUAL OCCUPIED AREA NOT INCLUDING UNOCCUPIED ACCESSORY AREAS SUCH AS CORRIDORS, STAIRWAYS, RAMPS, TOILET ROOMS, MECHANICAL ROOMS AND CLOSETS. CBC SECTION 1004 EXCEPTION "WHERE APPROVED BY THE BUILDING OFFICIAL, THE ACTUAL NUMBER OF OCCUPANTS FOR WHOM EACH OCCUPIED SPACE, FLOOR OR BUILDING IS DESIGNED, ALTHOUGH LESS THAN THE CALCULATION, SHALL BE PERMITTED TO BE USED IN DETERMINATION OF THE DESIGN OCCUPANT LOAD." A SIGN WILL BE PROVIDED IN ASSEMBLY OCCUPANCIES. THE SIGN SHALL BE POSTED IN A CONSPICUOUS PLACE, NEAR EXITS FROM THE SPACE, PER CBC 1004.3. C.R.O.P. Factory Studios Playtime PROJECT : 546 Green Lane CLIENT: ARCHITECT: STRUCTURAL ENGINEER: MEP ENGINEER: CIVIL ENGINEER: LANDSCAPE ARCHITECT: LOCATION: Union, NJ 07083 Jacques Tati Eric Tapia Eric Tapia Erica Freeman John Doe Jane Doe N O T E S SITE

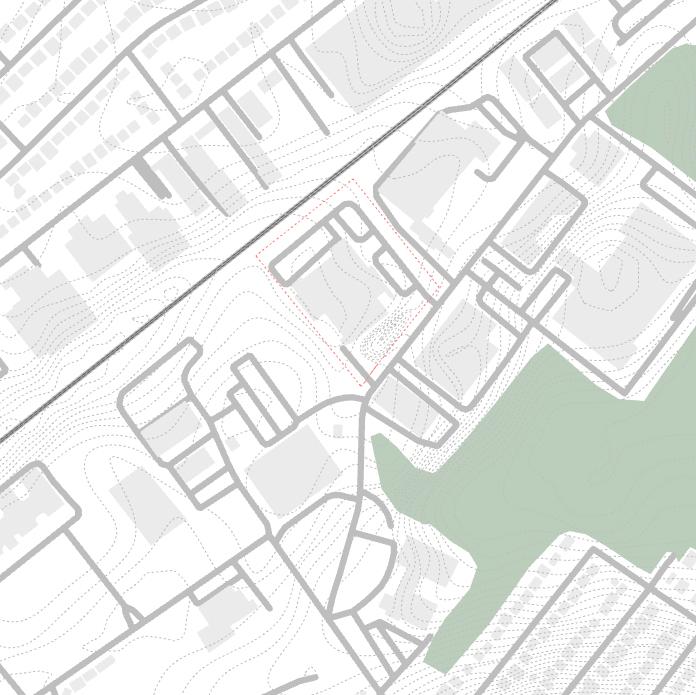

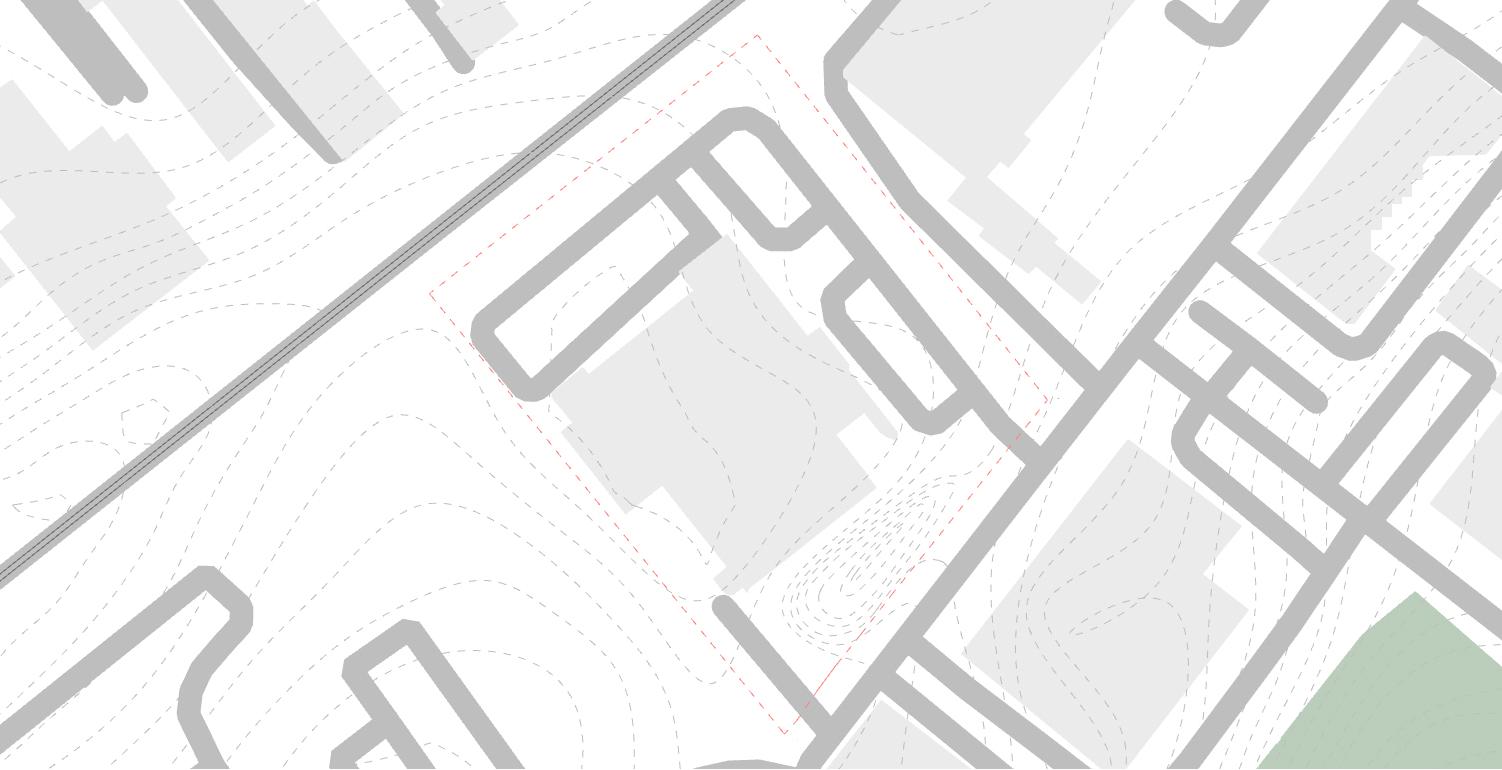

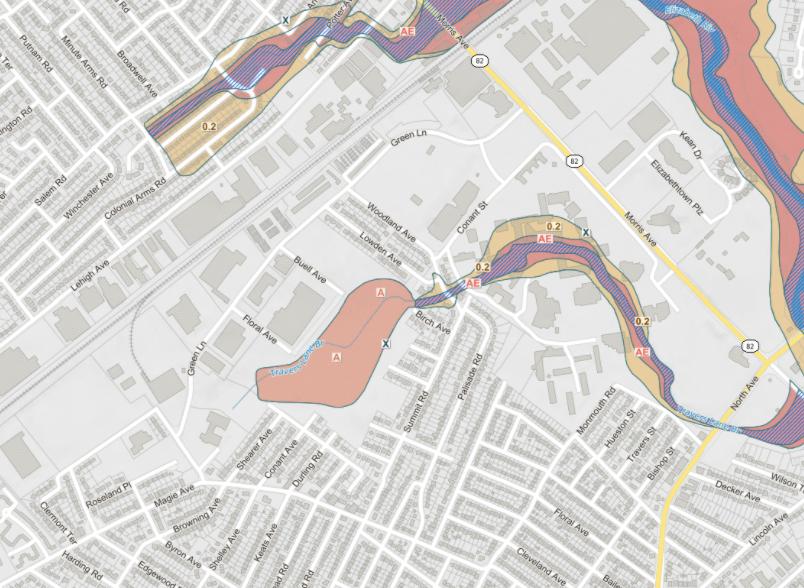

Topographic Map
Contour lines every 1’
High point is 71’ Low Point is 61’
PAGE: UNLESS A PROFESSIONAL SEAL WITH SIGNATURE AND DATE IS AFFIXED, THIS DOCUMENT IS PRELIMINARY AND IS NOT INTENDED FOR CONSTRUCTION, RECORDING PURPOSES OR IMPLEMENTATION SCALE: UNIT SYSTEM: NOT FOR CONSTRUCTION CODE: Z-103 ZONING AND CODES Architect: Eric Tapia Date : 2/22/2022 Feet & Inches N/A 3.2.1.- THE NET FLOOR AREA PERMITS EXCLUSION OF CERTAIN SPACES THAT WOULD BE INCLUDED IN THE GROSS FLOOR AREA. PER CBC 202, FLOOR AREA, NET, IS THE ACTUAL OCCUPIED AREA NOT INCLUDING UNOCCUPIED ACCESSORY AREAS SUCH AS CORRIDORS, STAIRWAYS, RAMPS, TOILET ROOMS, MECHANICAL ROOMS AND CLOSETS. CBC SECTION 1004 EXCEPTION "WHERE APPROVED BY THE BUILDING OFFICIAL, THE ACTUAL NUMBER OF OCCUPANTS FOR WHOM EACH OCCUPIED SPACE, FLOOR OR BUILDING IS DESIGNED, ALTHOUGH LESS THAN THE CALCULATION, SHALL BE PERMITTED TO BE USED IN DETERMINATION OF THE DESIGN OCCUPANT LOAD." A SIGN WILL BE PROVIDED IN ASSEMBLY OCCUPANCIES. THE SIGN SHALL BE POSTED IN A CONSPICUOUS PLACE, NEAR EXITS FROM THE SPACE, PER CBC 1004.3. C.R.O.P. Factory Studios Playtime PROJECT : 546 Green Lane CLIENT: ARCHITECT: STRUCTURAL ENGINEER: MEP ENGINEER: CIVIL ENGINEER: LANDSCAPE ARCHITECT: LOCATION: Union, NJ 07083 Jacques Tati Eric Tapia Eric Tapia Erica Freeman John Doe Jane Doe N O T E S SITE
Transit Line Roads 71’ 70’ 69’ 68’ 67’ 66’ 65’ 64’ 63’ 62’ 61’
Raritan Valley

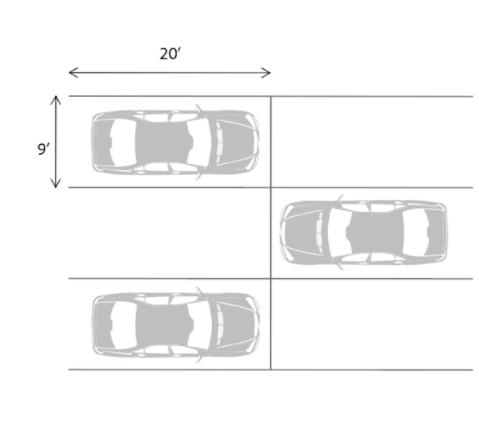

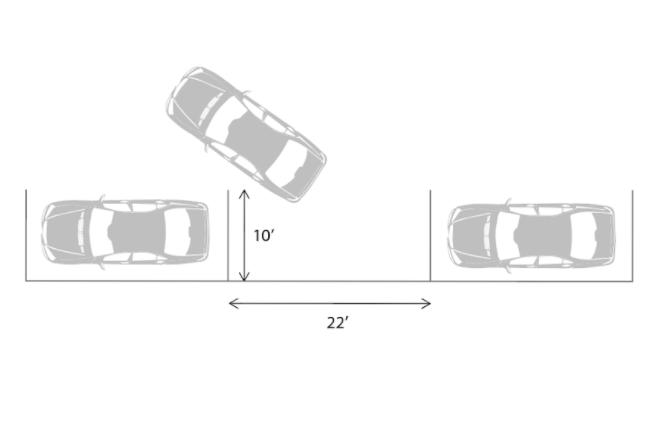

Parking Requirements
Type of Use: Manufacturing, Assembly, Processing Etc.
Angle of Parking
degrees
Required Parking Spaces: 1 for each 500 sq ft of gross floor area
Parking shall be located in the side or rear yards only

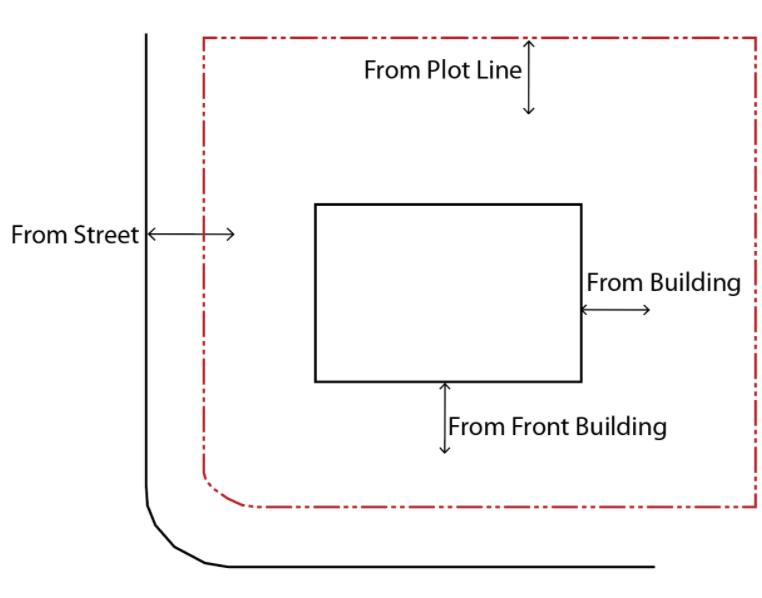

Parking Setbacks
Minimum Distances for Location of Parking and Loading Areas
From Building: 10 feet
From Streets: 10 feet
From Property Line: 10 feet
PAGE: UNLESS A PROFESSIONAL SEAL WITH SIGNATURE AND DATE IS AFFIXED, THIS DOCUMENT IS PRELIMINARY AND IS NOT INTENDED FOR CONSTRUCTION, RECORDING PURPOSES OR IMPLEMENTATION SCALE: UNIT SYSTEM: NOT FOR CONSTRUCTION CODE: Z-104 ZONING AND CODES Architect: Eric Tapia Date : 2/22/2022 Feet & Inches N/A 3.2.1.- THE NET FLOOR AREA PERMITS EXCLUSION OF CERTAIN SPACES THAT WOULD BE INCLUDED IN THE GROSS FLOOR AREA. PER CBC 202, FLOOR AREA, NET, IS THE ACTUAL OCCUPIED AREA NOT INCLUDING UNOCCUPIED ACCESSORY AREAS SUCH AS CORRIDORS, STAIRWAYS, RAMPS, TOILET ROOMS, MECHANICAL ROOMS AND CLOSETS. CBC SECTION 1004 EXCEPTION "WHERE APPROVED BY THE BUILDING OFFICIAL, THE ACTUAL NUMBER OF OCCUPANTS FOR WHOM EACH OCCUPIED SPACE, FLOOR OR BUILDING IS DESIGNED, ALTHOUGH LESS THAN THE CALCULATION, SHALL BE PERMITTED TO BE USED IN DETERMINATION OF THE DESIGN OCCUPANT LOAD." A SIGN WILL BE PROVIDED IN ASSEMBLY OCCUPANCIES. THE SIGN SHALL BE POSTED IN A CONSPICUOUS PLACE, NEAR EXITS FROM THE SPACE, PER CBC 1004.3. C.R.O.P. Factory Studios Playtime PROJECT : 546 Green Lane CLIENT: ARCHITECT: STRUCTURAL ENGINEER: MEP ENGINEER: CIVIL ENGINEER: LANDSCAPE ARCHITECT: LOCATION: Union, NJ 07083 Jacques Tati Eric Tapia Eric Tapia Erica Freeman John Doe Jane Doe N O T E S SITE

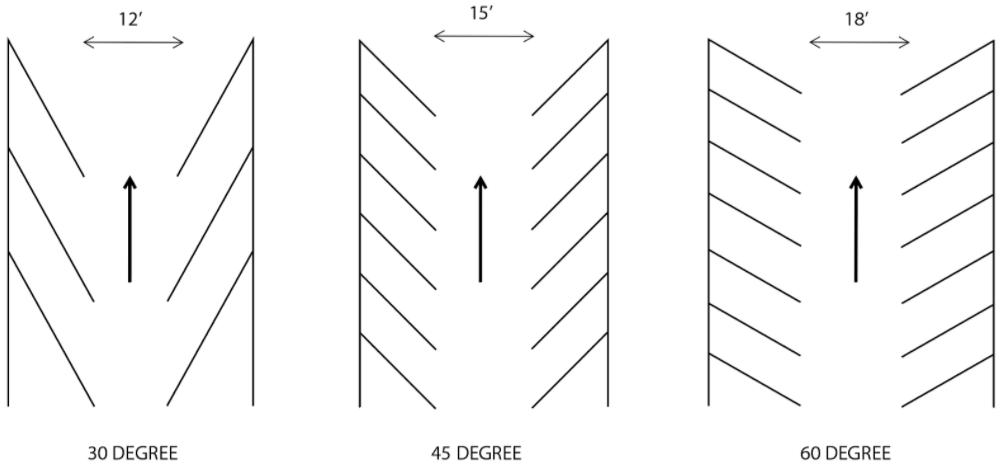

45
60
12 feet 15 feet 18 feet
30 degrees
degrees Aisle Width
Off-Street Loading

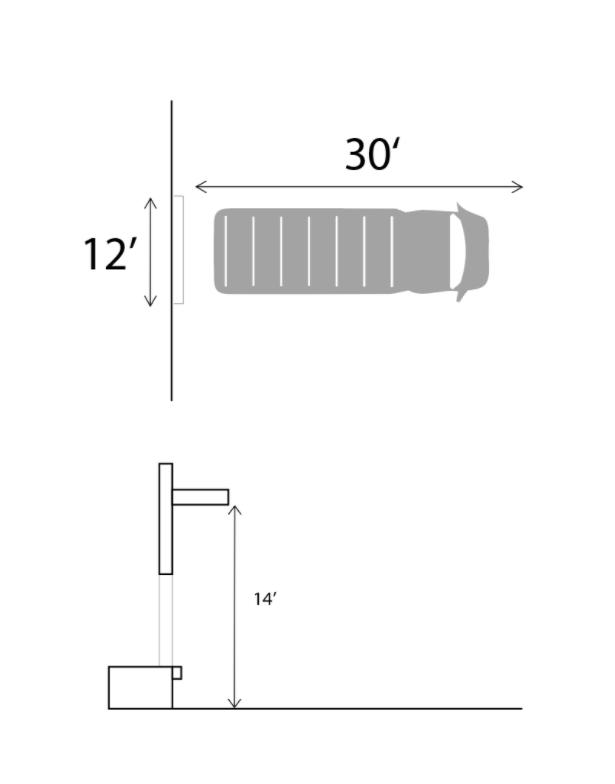

Each loading space shall be at least 12 feet in width and 30 feet in length, with a 14 foot clearance above grade.
The Planning Board may require additional length of up to 55 feet depending on the length of vehicle using space.
Such space shall be located in the side or rear yard only, but in no case a side adjoining a street.

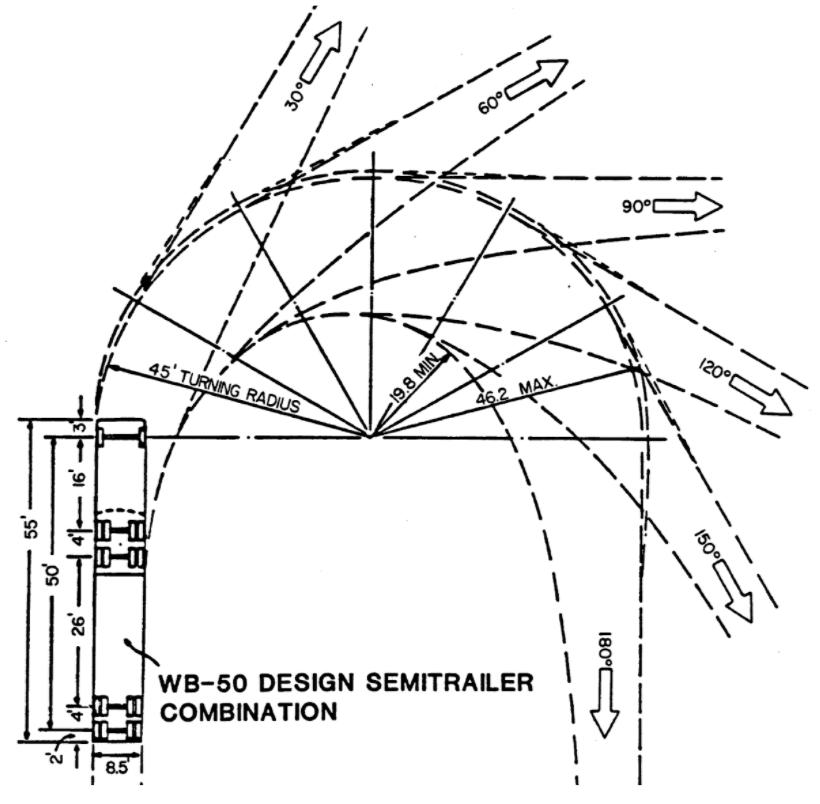

WB-50 Design Semitrailer Combination
Loading areas involving on-site maneuvering of trucks shall have provision for a minimum turning path for a WB-50 design vehicle.
PAGE: UNLESS A PROFESSIONAL SEAL WITH SIGNATURE AND DATE IS AFFIXED, THIS DOCUMENT IS PRELIMINARY AND IS NOT INTENDED FOR CONSTRUCTION, RECORDING PURPOSES OR IMPLEMENTATION SCALE: UNIT SYSTEM: NOT FOR CONSTRUCTION CODE: Z-105 ZONING AND CODES Architect: Eric Tapia Date : 2/22/2022 Feet & Inches N/A 3.2.1.- THE NET FLOOR AREA PERMITS EXCLUSION OF CERTAIN SPACES THAT WOULD BE INCLUDED IN THE GROSS FLOOR AREA. PER CBC 202, FLOOR AREA, NET, IS THE ACTUAL OCCUPIED AREA NOT INCLUDING UNOCCUPIED ACCESSORY AREAS SUCH AS CORRIDORS, STAIRWAYS, RAMPS, TOILET ROOMS, MECHANICAL ROOMS AND CLOSETS. CBC SECTION 1004 EXCEPTION "WHERE APPROVED BY THE BUILDING OFFICIAL, THE ACTUAL NUMBER OF OCCUPANTS FOR WHOM EACH OCCUPIED SPACE, FLOOR OR BUILDING IS DESIGNED, ALTHOUGH LESS THAN THE CALCULATION, SHALL BE PERMITTED TO BE USED IN DETERMINATION OF THE DESIGN OCCUPANT LOAD." A SIGN WILL BE PROVIDED IN ASSEMBLY OCCUPANCIES. THE SIGN SHALL BE POSTED IN A CONSPICUOUS PLACE, NEAR EXITS FROM THE SPACE, PER CBC 1004.3. C.R.O.P. Factory Studios Playtime PROJECT : 546 Green Lane CLIENT: ARCHITECT: STRUCTURAL ENGINEER: MEP ENGINEER: CIVIL ENGINEER: LANDSCAPE ARCHITECT: LOCATION: Union, NJ 07083 Jacques Tati Eric Tapia Eric Tapia Erica Freeman John Doe Jane Doe N O T E S SITE
PAGE: UNLESS A PROFESSIONAL SEAL WITH SIGNATURE AND DATE IS AFFIXED, THIS DOCUMENT IS PRELIMINARY AND IS NOT INTENDED FOR CONSTRUCTION, RECORDING PURPOSES OR IMPLEMENTATION SCALE: UNIT SYSTEM: NOT FOR CONSTRUCTION CODE: C-100 SITE PLAN Architect: Eric Tapia Date : 2/22/2022 Feet & Inches 1/64” = 1’ 3.2.1.- THE NET FLOOR AREA PERMITS EXCLUSION OF CERTAIN SPACES THAT WOULD BE INCLUDED IN THE GROSS FLOOR AREA. PER CBC 202, FLOOR AREA, NET, IS THE ACTUAL OCCUPIED AREA NOT INCLUDING UNOCCUPIED ACCESSORY AREAS SUCH AS CORRIDORS, STAIRWAYS, RAMPS, TOILET ROOMS, MECHANICAL ROOMS AND CLOSETS. CBC SECTION 1004 EXCEPTION "WHERE APPROVED BY THE BUILDING OFFICIAL, THE ACTUAL NUMBER OF OCCUPANTS FOR WHOM EACH OCCUPIED SPACE, FLOOR OR BUILDING IS DESIGNED, ALTHOUGH LESS THAN THE CALCULATION, SHALL BE PERMITTED TO BE USED IN DETERMINATION OF THE DESIGN OCCUPANT LOAD." A SIGN WILL BE PROVIDED IN ASSEMBLY OCCUPANCIES. THE SIGN SHALL BE POSTED IN A CONSPICUOUS PLACE, NEAR EXITS FROM THE SPACE, PER CBC 1004.3. C.R.O.P. Factory C 100 SITE PLAN SIDE SETBACK 10’-0” SIDE SETBACK 10’-0” FRONT SETBACK 15’-0” 1/64” = 1’ Studios Playtime PROJECT : 546 Green Lane CLIENT: ARCHITECT: STRUCTURAL ENGINEER: MEP ENGINEER: CIVIL ENGINEER: LANDSCAPE ARCHITECT: LOCATION: Union, NJ 07083 Jacques Tati Eric Tapia Eric Tapia Erica Freeman John Doe Jane Doe N O T E S SITE
PAGE: UNLESS A PROFESSIONAL SEAL WITH SIGNATURE AND DATE IS AFFIXED, THIS DOCUMENT IS PRELIMINARY AND IS NOT INTENDED FOR CONSTRUCTION, RECORDING PURPOSES OR IMPLEMENTATION SCALE: UNIT SYSTEM: NOT FOR CONSTRUCTION CODE: U-100 USAGE GROUND LVL Architect: Eric Tapia Date : 2/22/2022 Feet & Inches 1/16” = 1’ 3.2.1.- THE NET FLOOR AREA PERMITS EXCLUSION OF CERTAIN SPACES THAT WOULD BE INCLUDED IN THE GROSS FLOOR AREA. PER CBC 202, FLOOR AREA, NET, IS THE ACTUAL OCCUPIED AREA NOT INCLUDING UNOCCUPIED ACCESSORY AREAS SUCH AS CORRIDORS, STAIRWAYS, RAMPS, TOILET ROOMS, MECHANICAL ROOMS AND CLOSETS. CBC SECTION 1004 EXCEPTION "WHERE APPROVED BY THE BUILDING OFFICIAL, THE ACTUAL NUMBER OF OCCUPANTS FOR WHOM EACH OCCUPIED SPACE, FLOOR OR BUILDING IS DESIGNED, ALTHOUGH LESS THAN THE CALCULATION, SHALL BE PERMITTED TO BE USED IN DETERMINATION OF THE DESIGN OCCUPANT LOAD." A SIGN WILL BE PROVIDED IN ASSEMBLY OCCUPANCIES. THE SIGN SHALL BE POSTED IN A CONSPICUOUS PLACE, NEAR EXITS FROM THE SPACE, PER CBC 1004.3. C.R.O.P. Factory Studios Playtime PROJECT : 546 Green Lane CLIENT: ARCHITECT: STRUCTURAL ENGINEER: MEP ENGINEER: CIVIL ENGINEER: LANDSCAPE ARCHITECT: LOCATION: Union, NJ 07083 Jacques Tati Eric Tapia Eric Tapia Erica Freeman John Doe Jane Doe N O T E S SITE U 100 I 100 I 200 USAGE GROUND LVL PROGRAMS 1) visitor lobby (632 sqft) 2) store (318 sqft) 3) public eatery (167 sqft) 4) exit discharge / directory (99 sqft) 5) salad bar (127 sqft) 6) storage (174 sqft) 7) exposed mep [water collection tanks] (676 sqft) 8) custodian closet (33 sqft) 9) female visitor restroom (180 sqft) 10) male visitor restroom (213 sqft) 11) visitor decontamination (410 sqft) 12) egress one (151 sqft) 13) visitor ramp around cultivation space (1,623 sqft) 14) elevator (48 sqft) 15) staff ramp to subterranean level (1,066 sqft) 16) staff lobby (450 sqft) 17) four staff offices (996 sqft) 18) electrical storage (114 sqft) 19) staff kitchen (564 sqft) 20) egress two (151 sqft) 21) female staff restroom (180 sqft) 22) male staff restroom (183 sqft) 23) freight elevator (156 sqft) 24) staff debrief (226 sqft) 25) conference room (372 sqft) 26) staff decontamination (274 sqft) 27) packaging (713 sqft) 28) staff decontamination (124 sqft) 29) storage (513 sqft) 30) two loading dock space (272 sqft) 31) warehouse office (83 sqft) 32) warehouse lobby (216 sqft) 33) locker space (98 sqft) 34) open flea market (1,931 sqft) 1 2 3 5 6 8 7 9 10 11 13 18 17 17 17 17 19 20 21 23 24 25 26 29 33 32 31 30 27 28 22 16 34 15 14 12 4 1/16” = 1’
12 PAGE: UNLESS A PROFESSIONAL SEAL WITH SIGNATURE AND DATE IS AFFIXED, THIS DOCUMENT IS PRELIMINARY AND IS NOT INTENDED FOR CONSTRUCTION, RECORDING PURPOSES OR IMPLEMENTATION SCALE: UNIT SYSTEM: NOT FOR CONSTRUCTION CODE: U-101 USAGE MEZZ LVL Architect: Eric Tapia Date : 2/22/2022 Feet & Inches 1/16” = 1’ 3.2.1.- THE NET FLOOR AREA PERMITS EXCLUSION OF CERTAIN SPACES THAT WOULD BE INCLUDED IN THE GROSS FLOOR AREA. PER CBC 202, FLOOR AREA, NET, IS THE ACTUAL OCCUPIED AREA NOT INCLUDING UNOCCUPIED ACCESSORY AREAS SUCH AS CORRIDORS, STAIRWAYS, RAMPS, TOILET ROOMS, MECHANICAL ROOMS AND CLOSETS. CBC SECTION 1004 EXCEPTION "WHERE APPROVED BY THE BUILDING OFFICIAL, THE ACTUAL NUMBER OF OCCUPANTS FOR WHOM EACH OCCUPIED SPACE, FLOOR OR BUILDING IS DESIGNED, ALTHOUGH LESS THAN THE CALCULATION, SHALL BE PERMITTED TO BE USED IN DETERMINATION OF THE DESIGN OCCUPANT LOAD." A SIGN WILL BE PROVIDED IN ASSEMBLY OCCUPANCIES. THE SIGN SHALL BE POSTED IN A CONSPICUOUS PLACE, NEAR EXITS FROM THE SPACE, PER CBC 1004.3. C.R.O.P. Factory Studios Playtime PROJECT : 546 Green Lane CLIENT: ARCHITECT: STRUCTURAL ENGINEER: MEP ENGINEER: CIVIL ENGINEER: LANDSCAPE ARCHITECT: LOCATION: Union, NJ 07083 Jacques Tati Eric Tapia Eric Tapia Erica Freeman John Doe Jane Doe N O T E S SITE U 101 MEZZ LVL 1/16” = 1’ I 101 PROGRAMS 1) female visitor restroom (180 sqft) 2) male visitor restroom (213 sqft) 3) space for air handling unit and chimney (340 sqft) 4) exposed mep [water heater tanks] (676 sqft) 5) custodian closet (33 sqft) 6) visitor decontamination (410 sqft) 7) viewing steps area (606 sqft) 8) two gallery and tasting rooms (280 sqft) 9) storage (72 sqft) 10) three visitor workshop classrooms (301 sqft) 11) ramp to open flea market and reflecting pond (1,708 sqft) 12) ramp to composting gardens (1,634 sqft) 13) ramp to visitor parking lot and reflecting pond (1,355 sqft) 1 2 5 4 3 6 7 7 8 8 9 10 10 13 11 10 E 300
PAGE: UNLESS A PROFESSIONAL SEAL WITH SIGNATURE AND DATE IS AFFIXED, THIS DOCUMENT IS PRELIMINARY AND IS NOT INTENDED FOR CONSTRUCTION, RECORDING PURPOSES OR IMPLEMENTATION SCALE: UNIT SYSTEM: NOT FOR CONSTRUCTION CODE: U-102 USAGE BSMT LVL Architect: Eric Tapia Date : 2/22/2022 Feet & Inches 1/16” = 1’ 3.2.1.- THE NET FLOOR AREA PERMITS EXCLUSION OF CERTAIN SPACES THAT WOULD BE INCLUDED IN THE GROSS FLOOR AREA. PER CBC 202, FLOOR AREA, NET, IS THE ACTUAL OCCUPIED AREA NOT INCLUDING UNOCCUPIED ACCESSORY AREAS SUCH AS CORRIDORS, STAIRWAYS, RAMPS, TOILET ROOMS, MECHANICAL ROOMS AND CLOSETS. CBC SECTION 1004 EXCEPTION "WHERE APPROVED BY THE BUILDING OFFICIAL, THE ACTUAL NUMBER OF OCCUPANTS FOR WHOM EACH OCCUPIED SPACE, FLOOR OR BUILDING IS DESIGNED, ALTHOUGH LESS THAN THE CALCULATION, SHALL BE PERMITTED TO BE USED IN DETERMINATION OF THE DESIGN OCCUPANT LOAD." A SIGN WILL BE PROVIDED IN ASSEMBLY OCCUPANCIES. THE SIGN SHALL BE POSTED IN A CONSPICUOUS PLACE, NEAR EXITS FROM THE SPACE, PER CBC 1004.3. C.R.O.P. Factory Studios Playtime PROJECT : 546 Green Lane CLIENT: ARCHITECT: STRUCTURAL ENGINEER: MEP ENGINEER: CIVIL ENGINEER: LANDSCAPE ARCHITECT: LOCATION: Union, NJ 07083 Jacques Tati Eric Tapia Eric Tapia Erica Freeman John Doe Jane Doe N O T E S SITE U 102 BSMT LVL 1/16” = 1’ PROGRAMS 1) mep [boiler, chillers, calorifier tanks and auxiliary equipment] (1,156 sqft) 2) two staff locker rooms (358 sqft) 3) staff restroom (103 sqft) 4) first staff decontamination (254 sqft) 5) sowing seeds room (235 sqft) 6) germination chamber (255 sqft)
cultivation space (2,844 sqft) 8) second staff decontamination (381 sqft) 9) emergency exit discharge (217 sqft) 10) storage (129 sqft) 1 2 2 3 4 5 6 7 8 9 10 E 300
7)
PAGE: UNLESS A PROFESSIONAL SEAL WITH SIGNATURE AND DATE IS AFFIXED, THIS DOCUMENT IS PRELIMINARY AND IS NOT INTENDED FOR CONSTRUCTION, RECORDING PURPOSES OR IMPLEMENTATION SCALE: UNIT SYSTEM: NOT FOR CONSTRUCTION CODE: W-100 CIRCULATION GROUND LVL Architect: Eric Tapia Date : 2/22/2022 Feet & Inches 1/16” = 1’ 3.2.1.- THE NET FLOOR AREA PERMITS EXCLUSION OF CERTAIN SPACES THAT WOULD BE INCLUDED IN THE GROSS FLOOR AREA. PER CBC 202, FLOOR AREA, NET, IS THE ACTUAL OCCUPIED AREA NOT INCLUDING UNOCCUPIED ACCESSORY AREAS SUCH AS CORRIDORS, STAIRWAYS, RAMPS, TOILET ROOMS, MECHANICAL ROOMS AND CLOSETS. CBC SECTION 1004 EXCEPTION "WHERE APPROVED BY THE BUILDING OFFICIAL, THE ACTUAL NUMBER OF OCCUPANTS FOR WHOM EACH OCCUPIED SPACE, FLOOR OR BUILDING IS DESIGNED, ALTHOUGH LESS THAN THE CALCULATION, SHALL BE PERMITTED TO BE USED IN DETERMINATION OF THE DESIGN OCCUPANT LOAD." A SIGN WILL BE PROVIDED IN ASSEMBLY OCCUPANCIES. THE SIGN SHALL BE POSTED IN A CONSPICUOUS PLACE, NEAR EXITS FROM THE SPACE, PER CBC 1004.3. C.R.O.P. Factory Studios Playtime PROJECT : 546 Green Lane CLIENT: ARCHITECT: STRUCTURAL ENGINEER: MEP ENGINEER: CIVIL ENGINEER: LANDSCAPE ARCHITECT: LOCATION: Union, NJ 07083 Jacques Tati Eric Tapia Eric Tapia Erica Freeman John Doe Jane Doe N O T E S SITE I 100 I 200 CIRCULATION staff visitor shared warehouse W 100 CIRCULATION GROUND LVL 1/16” = 1’
PAGE: UNLESS A PROFESSIONAL SEAL WITH SIGNATURE AND DATE IS AFFIXED, THIS DOCUMENT IS PRELIMINARY AND IS NOT INTENDED FOR CONSTRUCTION, RECORDING PURPOSES OR IMPLEMENTATION SCALE: UNIT SYSTEM: NOT FOR CONSTRUCTION CODE: W-101 CIRCULATION MEZZ LVL Architect: Eric Tapia Date : 2/22/2022 Feet & Inches 1/16” = 1’ 3.2.1.- THE NET FLOOR AREA PERMITS EXCLUSION OF CERTAIN SPACES THAT WOULD BE INCLUDED IN THE GROSS FLOOR AREA. PER CBC 202, FLOOR AREA, NET, IS THE ACTUAL OCCUPIED AREA NOT INCLUDING UNOCCUPIED ACCESSORY AREAS SUCH AS CORRIDORS, STAIRWAYS, RAMPS, TOILET ROOMS, MECHANICAL ROOMS AND CLOSETS. CBC SECTION 1004 EXCEPTION "WHERE APPROVED BY THE BUILDING OFFICIAL, THE ACTUAL NUMBER OF OCCUPANTS FOR WHOM EACH OCCUPIED SPACE, FLOOR OR BUILDING IS DESIGNED, ALTHOUGH LESS THAN THE CALCULATION, SHALL BE PERMITTED TO BE USED IN DETERMINATION OF THE DESIGN OCCUPANT LOAD." A SIGN WILL BE PROVIDED IN ASSEMBLY OCCUPANCIES. THE SIGN SHALL BE POSTED IN A CONSPICUOUS PLACE, NEAR EXITS FROM THE SPACE, PER CBC 1004.3. C.R.O.P. Factory Studios Playtime PROJECT : 546 Green Lane CLIENT: ARCHITECT: STRUCTURAL ENGINEER: MEP ENGINEER: CIVIL ENGINEER: LANDSCAPE ARCHITECT: LOCATION: Union, NJ 07083 Jacques Tati Eric Tapia Eric Tapia Erica Freeman John Doe Jane Doe N O T E S SITE I 101 1 E 300 W 101 MEZZ LVL 1/16” = 1’ CIRCULATION staff visitor shared
PAGE: UNLESS A PROFESSIONAL SEAL WITH SIGNATURE AND DATE IS AFFIXED, THIS DOCUMENT IS PRELIMINARY AND IS NOT INTENDED FOR CONSTRUCTION, RECORDING PURPOSES OR IMPLEMENTATION SCALE: UNIT SYSTEM: NOT FOR CONSTRUCTION CODE: W-102 CIRCULATION BSMT LVL Architect: Eric Tapia Date : 2/22/2022 Feet & Inches 1/16” = 1’ 3.2.1.- THE NET FLOOR AREA PERMITS EXCLUSION OF CERTAIN SPACES THAT WOULD BE INCLUDED IN THE GROSS FLOOR AREA. PER CBC 202, FLOOR AREA, NET, IS THE ACTUAL OCCUPIED AREA NOT INCLUDING UNOCCUPIED ACCESSORY AREAS SUCH AS CORRIDORS, STAIRWAYS, RAMPS, TOILET ROOMS, MECHANICAL ROOMS AND CLOSETS. CBC SECTION 1004 EXCEPTION "WHERE APPROVED BY THE BUILDING OFFICIAL, THE ACTUAL NUMBER OF OCCUPANTS FOR WHOM EACH OCCUPIED SPACE, FLOOR OR BUILDING IS DESIGNED, ALTHOUGH LESS THAN THE CALCULATION, SHALL BE PERMITTED TO BE USED IN DETERMINATION OF THE DESIGN OCCUPANT LOAD." A SIGN WILL BE PROVIDED IN ASSEMBLY OCCUPANCIES. THE SIGN SHALL BE POSTED IN A CONSPICUOUS PLACE, NEAR EXITS FROM THE SPACE, PER CBC 1004.3. C.R.O.P. Factory Studios Playtime PROJECT : 546 Green Lane CLIENT: ARCHITECT: STRUCTURAL ENGINEER: MEP ENGINEER: CIVIL ENGINEER: LANDSCAPE ARCHITECT: LOCATION: Union, NJ 07083 Jacques Tati Eric Tapia Eric Tapia Erica Freeman John Doe Jane Doe N O T E S SITE W 102 BSMT LVL 1/16” = 1’ E 300 CIRCULATION staff

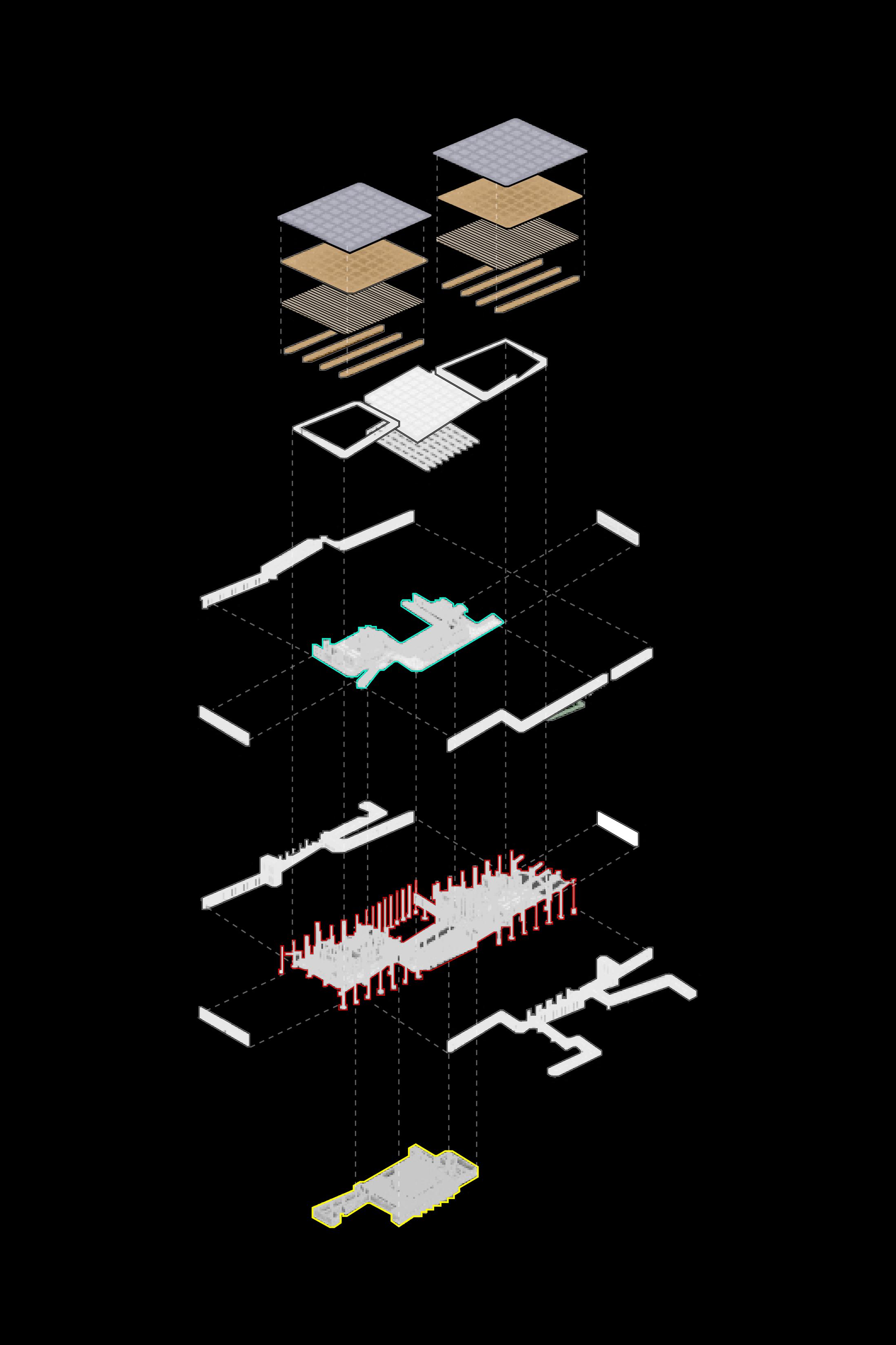

PAGE: UNLESS A PROFESSIONAL SEAL WITH SIGNATURE AND DATE IS AFFIXED, THIS DOCUMENT IS PRELIMINARY AND IS NOT INTENDED FOR CONSTRUCTION, RECORDING PURPOSES OR IMPLEMENTATION SCALE: UNIT SYSTEM: NOT FOR CONSTRUCTION CODE: A-100 GROUND LVL Architect: Eric Tapia Date : 2/22/2022 Feet & Inches 1/32” = 1’ 3.2.1.- THE NET FLOOR AREA PERMITS EXCLUSION OF CERTAIN SPACES THAT WOULD BE INCLUDED IN THE GROSS FLOOR AREA. PER CBC 202, FLOOR AREA, NET, IS THE ACTUAL OCCUPIED AREA NOT INCLUDING UNOCCUPIED ACCESSORY AREAS SUCH AS CORRIDORS, STAIRWAYS, RAMPS, TOILET ROOMS, MECHANICAL ROOMS AND CLOSETS. CBC SECTION 1004 EXCEPTION "WHERE APPROVED BY THE BUILDING OFFICIAL, THE ACTUAL NUMBER OF OCCUPANTS FOR WHOM EACH OCCUPIED SPACE, FLOOR OR BUILDING IS DESIGNED, ALTHOUGH LESS THAN THE CALCULATION, SHALL BE PERMITTED TO BE USED IN DETERMINATION OF THE DESIGN OCCUPANT LOAD." A SIGN WILL BE PROVIDED IN ASSEMBLY OCCUPANCIES. THE SIGN SHALL BE POSTED IN A CONSPICUOUS PLACE, NEAR EXITS FROM THE SPACE, PER CBC 1004.3. C.R.O.P. Factory Studios Playtime PROJECT : 546 Green Lane CLIENT: ARCHITECT: STRUCTURAL ENGINEER: MEP ENGINEER: CIVIL ENGINEER: LANDSCAPE ARCHITECT: LOCATION: Union, NJ 07083 Jacques Tati Eric Tapia Eric Tapia Erica Freeman John Doe Jane Doe N O T E S SITE A 100 GROUND LVL 1/32” = 1’
PAGE: UNLESS A PROFESSIONAL SEAL WITH SIGNATURE AND DATE IS AFFIXED, THIS DOCUMENT IS PRELIMINARY AND IS NOT INTENDED FOR CONSTRUCTION, RECORDING PURPOSES OR IMPLEMENTATION SCALE: UNIT SYSTEM: NOT FOR CONSTRUCTION CODE: A-101 MEZZ LVL Architect: Eric Tapia Date : 2/22/2022 Feet & Inches 1/32” = 1’ 3.2.1.- THE NET FLOOR AREA PERMITS EXCLUSION OF CERTAIN SPACES THAT WOULD BE INCLUDED IN THE GROSS FLOOR AREA. PER CBC 202, FLOOR AREA, NET, IS THE ACTUAL OCCUPIED AREA NOT INCLUDING UNOCCUPIED ACCESSORY AREAS SUCH AS CORRIDORS, STAIRWAYS, RAMPS, TOILET ROOMS, MECHANICAL ROOMS AND CLOSETS. CBC SECTION 1004 EXCEPTION "WHERE APPROVED BY THE BUILDING OFFICIAL, THE ACTUAL NUMBER OF OCCUPANTS FOR WHOM EACH OCCUPIED SPACE, FLOOR OR BUILDING IS DESIGNED, ALTHOUGH LESS THAN THE CALCULATION, SHALL BE PERMITTED TO BE USED IN DETERMINATION OF THE DESIGN OCCUPANT LOAD." A SIGN WILL BE PROVIDED IN ASSEMBLY OCCUPANCIES. THE SIGN SHALL BE POSTED IN A CONSPICUOUS PLACE, NEAR EXITS FROM THE SPACE, PER CBC 1004.3. C.R.O.P. Factory Studios Playtime PROJECT : 546 Green Lane CLIENT: ARCHITECT: STRUCTURAL ENGINEER: MEP ENGINEER: CIVIL ENGINEER: LANDSCAPE ARCHITECT: LOCATION: Union, NJ 07083 Jacques Tati Eric Tapia Eric Tapia Erica Freeman John Doe Jane Doe N O T E S SITE A 101 MEZZ LVL 1/32” = 1’
PAGE: UNLESS A PROFESSIONAL SEAL WITH SIGNATURE AND DATE IS AFFIXED, THIS DOCUMENT IS PRELIMINARY AND IS NOT INTENDED FOR CONSTRUCTION, RECORDING PURPOSES OR IMPLEMENTATION SCALE: UNIT SYSTEM: NOT FOR CONSTRUCTION CODE: A-102 BSMT LVL Architect: Eric Tapia Date : 2/22/2022 Feet & Inches 1/32” = 1’ 3.2.1.- THE NET FLOOR AREA PERMITS EXCLUSION OF CERTAIN SPACES THAT WOULD BE INCLUDED IN THE GROSS FLOOR AREA. PER CBC 202, FLOOR AREA, NET, IS THE ACTUAL OCCUPIED AREA NOT INCLUDING UNOCCUPIED ACCESSORY AREAS SUCH AS CORRIDORS, STAIRWAYS, RAMPS, TOILET ROOMS, MECHANICAL ROOMS AND CLOSETS. CBC SECTION 1004 EXCEPTION "WHERE APPROVED BY THE BUILDING OFFICIAL, THE ACTUAL NUMBER OF OCCUPANTS FOR WHOM EACH OCCUPIED SPACE, FLOOR OR BUILDING IS DESIGNED, ALTHOUGH LESS THAN THE CALCULATION, SHALL BE PERMITTED TO BE USED IN DETERMINATION OF THE DESIGN OCCUPANT LOAD." A SIGN WILL BE PROVIDED IN ASSEMBLY OCCUPANCIES. THE SIGN SHALL BE POSTED IN A CONSPICUOUS PLACE, NEAR EXITS FROM THE SPACE, PER CBC 1004.3. C.R.O.P. Factory Studios Playtime PROJECT : 546 Green Lane CLIENT: ARCHITECT: STRUCTURAL ENGINEER: MEP ENGINEER: CIVIL ENGINEER: LANDSCAPE ARCHITECT: LOCATION: Union, NJ 07083 Jacques Tati Eric Tapia Eric Tapia Erica Freeman John Doe Jane Doe N O T E S SITE A 102 BSMT LVL 1/32” = 1’

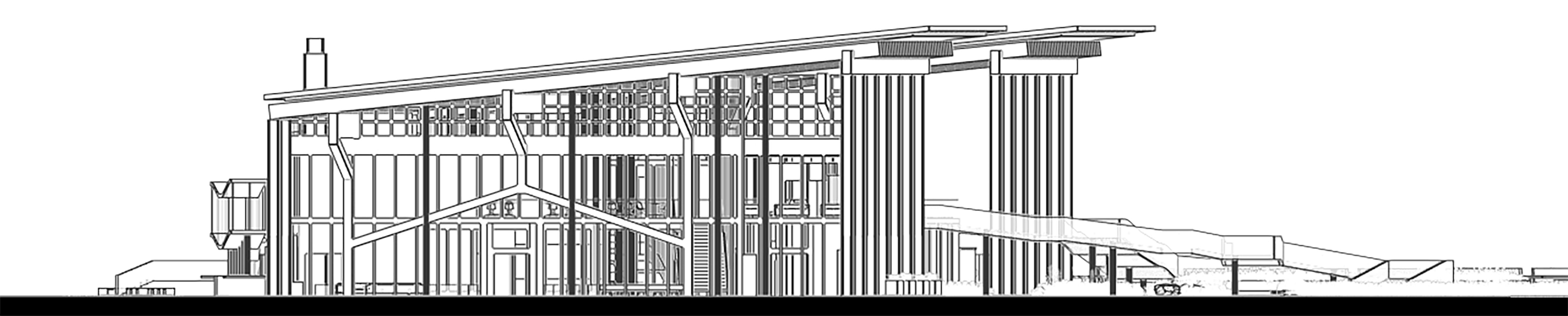

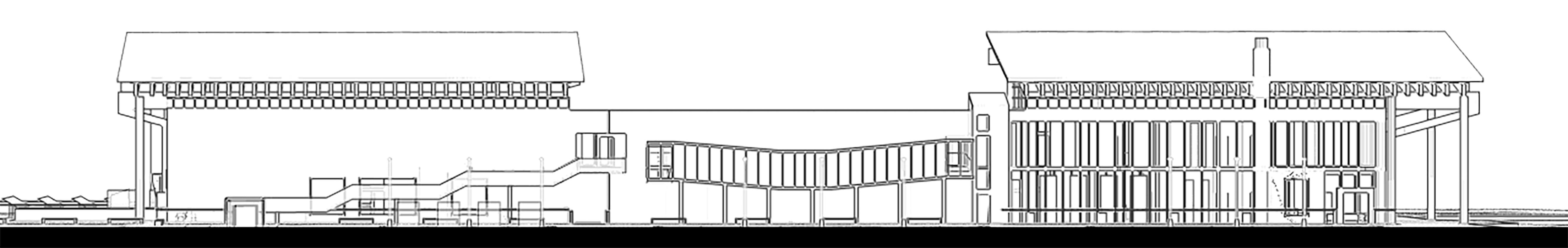

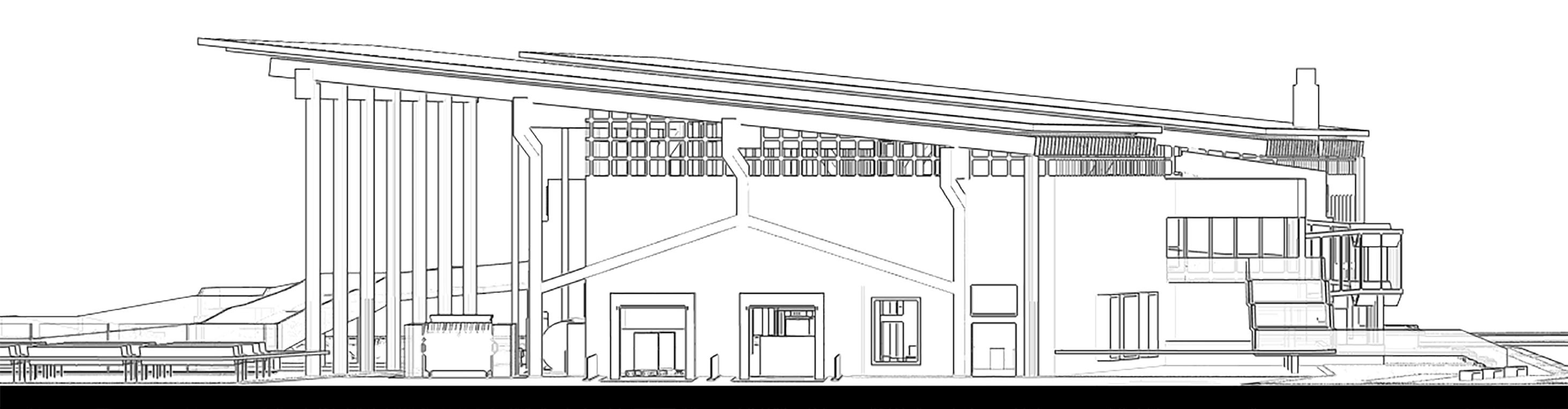

PAGE: UNLESS A PROFESSIONAL SEAL WITH SIGNATURE AND DATE IS AFFIXED, THIS DOCUMENT IS PRELIMINARY AND IS NOT INTENDED FOR CONSTRUCTION, RECORDING PURPOSES OR IMPLEMENTATION SCALE: UNIT SYSTEM: NOT FOR CONSTRUCTION CODE: A-300 ELEVATION Architect: Eric Tapia Date : 2/22/2022 Feet & Inches 1/20” = 1’ 3.2.1.- THE NET FLOOR AREA PERMITS EXCLUSION OF CERTAIN SPACES THAT WOULD BE INCLUDED IN THE GROSS FLOOR AREA. PER CBC 202, FLOOR AREA, NET, IS THE ACTUAL OCCUPIED AREA NOT INCLUDING UNOCCUPIED ACCESSORY AREAS SUCH AS CORRIDORS, STAIRWAYS, RAMPS, TOILET ROOMS, MECHANICAL ROOMS AND CLOSETS. CBC SECTION 1004 EXCEPTION "WHERE APPROVED BY THE BUILDING OFFICIAL, THE ACTUAL NUMBER OF OCCUPANTS FOR WHOM EACH OCCUPIED SPACE, FLOOR OR BUILDING IS DESIGNED, ALTHOUGH LESS THAN THE CALCULATION, SHALL BE PERMITTED TO BE USED IN DETERMINATION OF THE DESIGN OCCUPANT LOAD." A SIGN WILL BE PROVIDED IN ASSEMBLY OCCUPANCIES. THE SIGN SHALL BE POSTED IN A CONSPICUOUS PLACE, NEAR EXITS FROM THE SPACE, PER CBC 1004.3. C.R.O.P. Factory Studios Playtime PROJECT : 546 Green Lane CLIENT: ARCHITECT: STRUCTURAL ENGINEER: MEP ENGINEER: CIVIL ENGINEER: LANDSCAPE ARCHITECT: LOCATION: Union, NJ 07083 Jacques Tati Eric Tapia Eric Tapia Erica Freeman John Doe Jane Doe N O T E S SITE 1 A300 EAST ELEVATION 1/20” = 1’ 2 A300 SOUTHEAST ELEVATION 1/20” = 1’ roof lvl 45’ - 5” mezzanine lvl 13’ - 0” NOT FOR CONSTRUCTION
PAGE: UNLESS A PROFESSIONAL SEAL WITH SIGNATURE AND DATE IS AFFIXED, THIS DOCUMENT IS PRELIMINARY AND IS NOT INTENDED FOR CONSTRUCTION, RECORDING PURPOSES OR IMPLEMENTATION SCALE: UNIT SYSTEM: NOT FOR CONSTRUCTION CODE: A-301 ELEVATION Architect: Eric Tapia Date : 2/22/2022 Feet & Inches 1/20” = 1’ 3.2.1.- THE NET FLOOR AREA PERMITS EXCLUSION OF CERTAIN SPACES THAT WOULD BE INCLUDED IN THE GROSS FLOOR AREA. PER CBC 202, FLOOR AREA, NET, IS THE ACTUAL OCCUPIED AREA NOT INCLUDING UNOCCUPIED ACCESSORY AREAS SUCH AS CORRIDORS, STAIRWAYS, RAMPS, TOILET ROOMS, MECHANICAL ROOMS AND CLOSETS. CBC SECTION 1004 EXCEPTION "WHERE APPROVED BY THE BUILDING OFFICIAL, THE ACTUAL NUMBER OF OCCUPANTS FOR WHOM EACH OCCUPIED SPACE, FLOOR OR BUILDING IS DESIGNED, ALTHOUGH LESS THAN THE CALCULATION, SHALL BE PERMITTED TO BE USED IN DETERMINATION OF THE DESIGN OCCUPANT LOAD." A SIGN WILL BE PROVIDED IN ASSEMBLY OCCUPANCIES. THE SIGN SHALL BE POSTED IN A CONSPICUOUS PLACE, NEAR EXITS FROM THE SPACE, PER CBC 1004.3. C.R.O.P. Factory Studios Playtime PROJECT : 546 Green Lane CLIENT: ARCHITECT: STRUCTURAL ENGINEER: MEP ENGINEER: CIVIL ENGINEER: LANDSCAPE ARCHITECT: LOCATION: Union, NJ 07083 Jacques Tati Eric Tapia Eric Tapia Erica Freeman John Doe Jane Doe N O T E S SITE 3 A301 WEST ELEVATION 1/20” = 1’ 4 A301 NORTHEAST ELEVATION 1/20” = 1’ mezzanine lvl 13’ - 0” roof lvl 45’ - 5” NOT FOR CONSTRUCTION

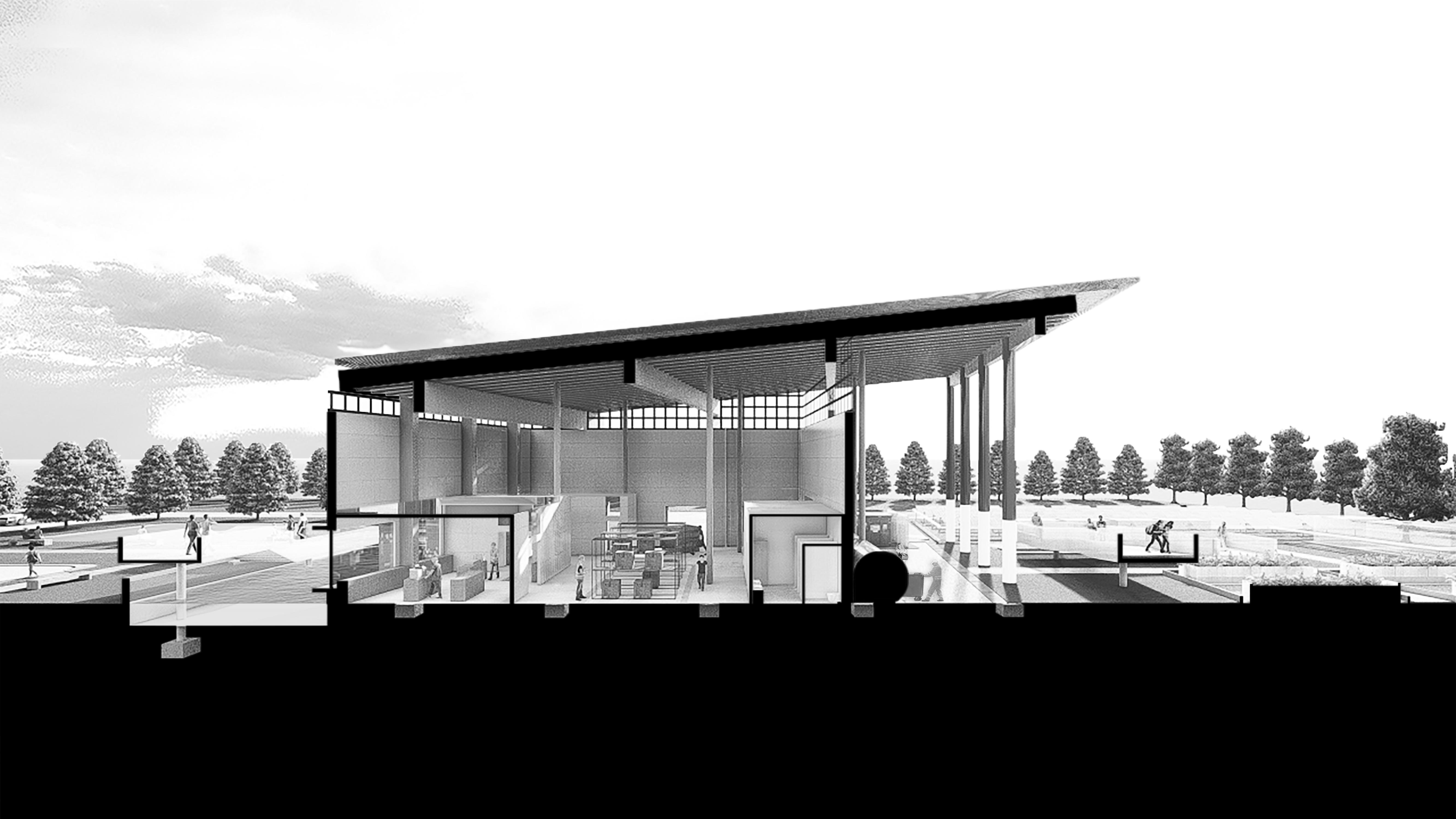

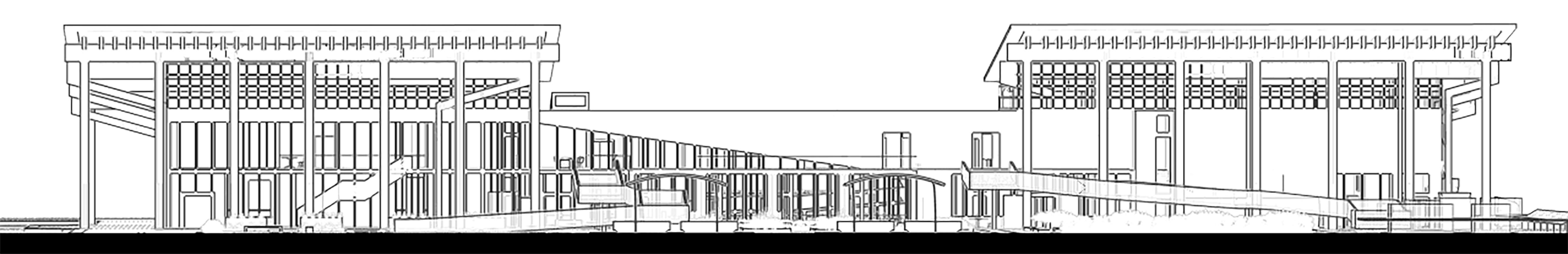

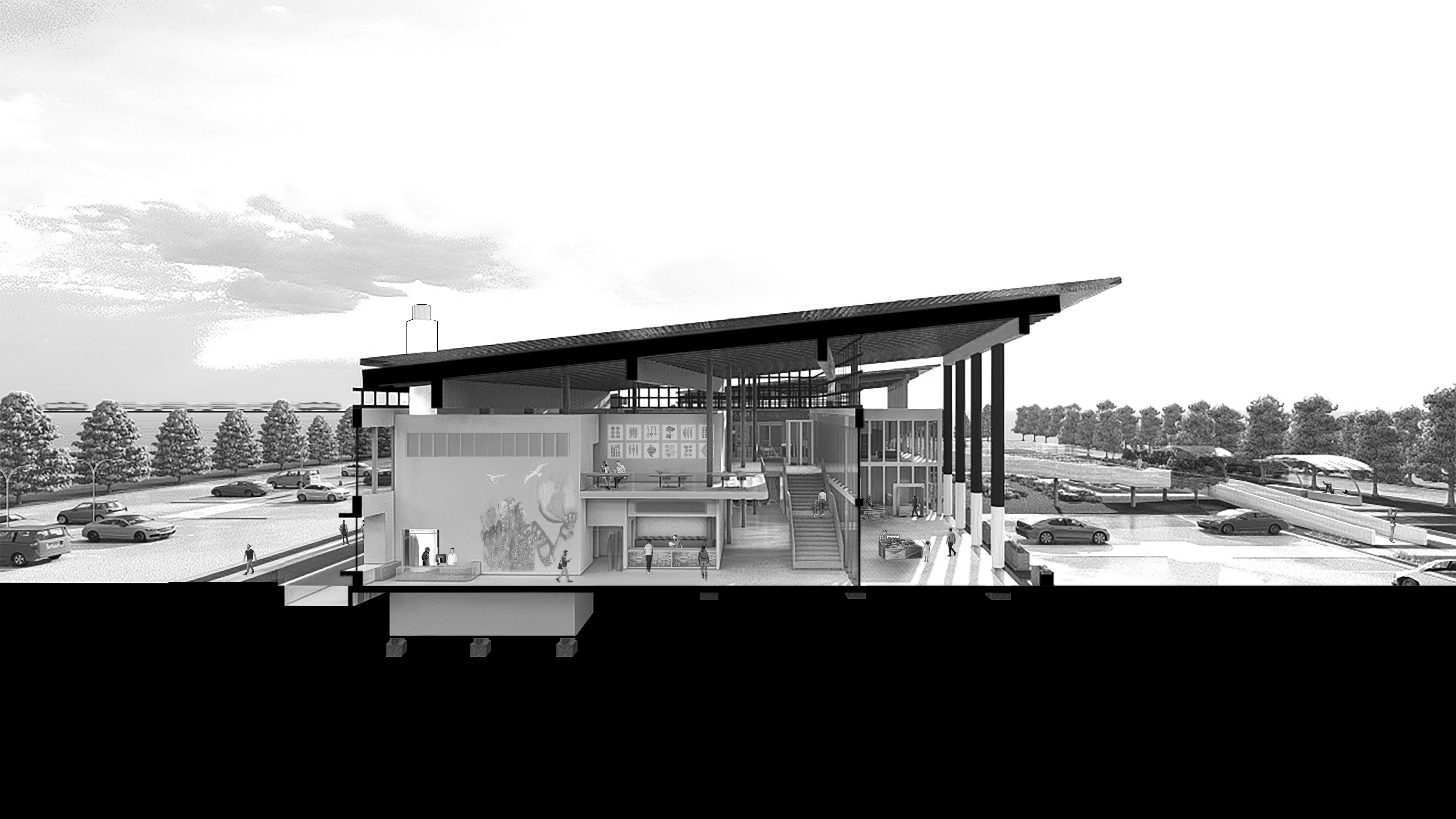

PAGE: UNLESS A PROFESSIONAL SEAL WITH SIGNATURE AND DATE IS AFFIXED, THIS DOCUMENT IS PRELIMINARY AND IS NOT INTENDED FOR CONSTRUCTION, RECORDING PURPOSES OR IMPLEMENTATION SCALE: UNIT SYSTEM: NOT FOR CONSTRUCTION CODE: A-400 SECTIONS Architect: Eric Tapia Date : 2/22/2022 Feet & Inches 1/16” = 1’ 3.2.1.- THE NET FLOOR AREA PERMITS EXCLUSION OF CERTAIN SPACES THAT WOULD BE INCLUDED IN THE GROSS FLOOR AREA. PER CBC 202, FLOOR AREA, NET, IS THE ACTUAL OCCUPIED AREA NOT INCLUDING UNOCCUPIED ACCESSORY AREAS SUCH AS CORRIDORS, STAIRWAYS, RAMPS, TOILET ROOMS, MECHANICAL ROOMS AND CLOSETS. CBC SECTION 1004 EXCEPTION "WHERE APPROVED BY THE BUILDING OFFICIAL, THE ACTUAL NUMBER OF OCCUPANTS FOR WHOM EACH OCCUPIED SPACE, FLOOR OR BUILDING IS DESIGNED, ALTHOUGH LESS THAN THE CALCULATION, SHALL BE PERMITTED TO BE USED IN DETERMINATION OF THE DESIGN OCCUPANT LOAD." A SIGN WILL BE PROVIDED IN ASSEMBLY OCCUPANCIES. THE SIGN SHALL BE POSTED IN A CONSPICUOUS PLACE, NEAR EXITS FROM THE SPACE, PER CBC 1004.3. C.R.O.P. Factory Studios Playtime PROJECT : 546 Green Lane CLIENT: ARCHITECT: STRUCTURAL ENGINEER: MEP ENGINEER: CIVIL ENGINEER: LANDSCAPE ARCHITECT: LOCATION: Union, NJ 07083 Jacques Tati Eric Tapia Eric Tapia Erica Freeman John Doe Jane Doe N O T E S SITE A 400 TRANSVERSE SECTION 1/16” = 1’
PAGE: UNLESS A PROFESSIONAL SEAL WITH SIGNATURE AND DATE IS AFFIXED, THIS DOCUMENT IS PRELIMINARY AND IS NOT INTENDED FOR CONSTRUCTION, RECORDING PURPOSES OR IMPLEMENTATION SCALE: UNIT SYSTEM: NOT FOR CONSTRUCTION CODE: A-401 SECTIONS Architect: Eric Tapia Date : 2/22/2022 Feet & Inches 1/16” = 1’ 3.2.1.- THE NET FLOOR AREA PERMITS EXCLUSION OF CERTAIN SPACES THAT WOULD BE INCLUDED IN THE GROSS FLOOR AREA. PER CBC 202, FLOOR AREA, NET, IS THE ACTUAL OCCUPIED AREA NOT INCLUDING UNOCCUPIED ACCESSORY AREAS SUCH AS CORRIDORS, STAIRWAYS, RAMPS, TOILET ROOMS, MECHANICAL ROOMS AND CLOSETS. CBC SECTION 1004 EXCEPTION "WHERE APPROVED BY THE BUILDING OFFICIAL, THE ACTUAL NUMBER OF OCCUPANTS FOR WHOM EACH OCCUPIED SPACE, FLOOR OR BUILDING IS DESIGNED, ALTHOUGH LESS THAN THE CALCULATION, SHALL BE PERMITTED TO BE USED IN DETERMINATION OF THE DESIGN OCCUPANT LOAD." A SIGN WILL BE PROVIDED IN ASSEMBLY OCCUPANCIES. THE SIGN SHALL BE POSTED IN A CONSPICUOUS PLACE, NEAR EXITS FROM THE SPACE, PER CBC 1004.3. C.R.O.P. Factory Studios Playtime PROJECT : 546 Green Lane CLIENT: ARCHITECT: STRUCTURAL ENGINEER: MEP ENGINEER: CIVIL ENGINEER: LANDSCAPE ARCHITECT: LOCATION: Union, NJ 07083 Jacques Tati Eric Tapia Eric Tapia Erica Freeman John Doe Jane Doe N O T E S SITE A 401 TRANSVERSE SECTION 1/16” = 1’
PAGE: UNLESS A PROFESSIONAL SEAL WITH SIGNATURE AND DATE IS AFFIXED, THIS DOCUMENT IS PRELIMINARY AND IS NOT INTENDED FOR CONSTRUCTION, RECORDING PURPOSES OR IMPLEMENTATION SCALE: UNIT SYSTEM: NOT FOR CONSTRUCTION CODE: A-402 SECTIONS Architect: Eric Tapia Date : 2/22/2022 Feet & Inches 1/16” = 1’ 3.2.1.- THE NET FLOOR AREA PERMITS EXCLUSION OF CERTAIN SPACES THAT WOULD BE INCLUDED IN THE GROSS FLOOR AREA. PER CBC 202, FLOOR AREA, NET, IS THE ACTUAL OCCUPIED AREA NOT INCLUDING UNOCCUPIED ACCESSORY AREAS SUCH AS CORRIDORS, STAIRWAYS, RAMPS, TOILET ROOMS, MECHANICAL ROOMS AND CLOSETS. CBC SECTION 1004 EXCEPTION "WHERE APPROVED BY THE BUILDING OFFICIAL, THE ACTUAL NUMBER OF OCCUPANTS FOR WHOM EACH OCCUPIED SPACE, FLOOR OR BUILDING IS DESIGNED, ALTHOUGH LESS THAN THE CALCULATION, SHALL BE PERMITTED TO BE USED IN DETERMINATION OF THE DESIGN OCCUPANT LOAD." A SIGN WILL BE PROVIDED IN ASSEMBLY OCCUPANCIES. THE SIGN SHALL BE POSTED IN A CONSPICUOUS PLACE, NEAR EXITS FROM THE SPACE, PER CBC 1004.3. C.R.O.P. Factory Studios Playtime PROJECT : 546 Green Lane CLIENT: ARCHITECT: STRUCTURAL ENGINEER: MEP ENGINEER: CIVIL ENGINEER: LANDSCAPE ARCHITECT: LOCATION: Union, NJ 07083 Jacques Tati Eric Tapia Eric Tapia Erica Freeman John Doe Jane Doe N O T E S SITE A 402 TRANSVERSE SECTION 1/16” = 1’
MULLION AND ELECTRIC ROLL SCREEN AWNING
PAGE: UNLESS A PROFESSIONAL SEAL WITH SIGNATURE AND DATE IS AFFIXED, THIS DOCUMENT IS PRELIMINARY AND IS NOT INTENDED FOR CONSTRUCTION, RECORDING PURPOSES OR IMPLEMENTATION SCALE: UNIT SYSTEM: NOT FOR CONSTRUCTION CODE: A-500 WALL SECTION Architect: Eric Tapia Date : 2/22/2022 Feet & Inches 1/6” = 1’ 3.2.1.- THE NET FLOOR AREA PERMITS EXCLUSION OF CERTAIN SPACES THAT WOULD BE INCLUDED IN THE GROSS FLOOR AREA. PER CBC 202, FLOOR AREA, NET, IS THE ACTUAL OCCUPIED AREA NOT INCLUDING UNOCCUPIED ACCESSORY AREAS SUCH AS CORRIDORS, STAIRWAYS, RAMPS, TOILET ROOMS, MECHANICAL ROOMS AND CLOSETS. CBC SECTION 1004 EXCEPTION "WHERE APPROVED BY THE BUILDING OFFICIAL, THE ACTUAL NUMBER OF OCCUPANTS FOR WHOM EACH OCCUPIED SPACE, FLOOR OR BUILDING IS DESIGNED, ALTHOUGH LESS THAN THE CALCULATION, SHALL BE PERMITTED TO BE USED IN DETERMINATION OF THE DESIGN OCCUPANT LOAD." A SIGN WILL BE PROVIDED IN ASSEMBLY OCCUPANCIES. THE SIGN SHALL BE POSTED IN A CONSPICUOUS PLACE, NEAR EXITS FROM THE SPACE, PER CBC 1004.3. C.R.O.P. Factory Studios Playtime PROJECT : 546 Green Lane CLIENT: ARCHITECT: STRUCTURAL ENGINEER: MEP ENGINEER: CIVIL ENGINEER: LANDSCAPE ARCHITECT: LOCATION: Union, NJ 07083 Jacques Tati Eric Tapia Eric Tapia Erica Freeman John Doe Jane Doe N O T E S SITE A 500 WALL SECTION 0’ - 0” 13’ - 0” 30’ - 1” 1/6” = 1’ 1
1/2” = 1’
1/2” = 1’ 1 A500 2 A500
2 CONCRETE FOOTING AND DRAINAGE
PAGE: UNLESS A PROFESSIONAL SEAL WITH SIGNATURE AND DATE IS AFFIXED, THIS DOCUMENT IS PRELIMINARY AND IS NOT INTENDED FOR CONSTRUCTION, RECORDING PURPOSES OR IMPLEMENTATION SCALE: UNIT SYSTEM: NOT FOR CONSTRUCTION CODE: A-501 WALL SECTION Architect: Eric Tapia Date : 2/22/2022 Feet & Inches 1/6” = 1’ 3.2.1.- THE NET FLOOR AREA PERMITS EXCLUSION OF CERTAIN SPACES THAT WOULD BE INCLUDED IN THE GROSS FLOOR AREA. PER CBC 202, FLOOR AREA, NET, IS THE ACTUAL OCCUPIED AREA NOT INCLUDING UNOCCUPIED ACCESSORY AREAS SUCH AS CORRIDORS, STAIRWAYS, RAMPS, TOILET ROOMS, MECHANICAL ROOMS AND CLOSETS. CBC SECTION 1004 EXCEPTION "WHERE APPROVED BY THE BUILDING OFFICIAL, THE ACTUAL NUMBER OF OCCUPANTS FOR WHOM EACH OCCUPIED SPACE, FLOOR OR BUILDING IS DESIGNED, ALTHOUGH LESS THAN THE CALCULATION, SHALL BE PERMITTED TO BE USED IN DETERMINATION OF THE DESIGN OCCUPANT LOAD." A SIGN WILL BE PROVIDED IN ASSEMBLY OCCUPANCIES. THE SIGN SHALL BE POSTED IN A CONSPICUOUS PLACE, NEAR EXITS FROM THE SPACE, PER CBC 1004.3. C.R.O.P. Factory Studios Playtime PROJECT : 546 Green Lane CLIENT: ARCHITECT: STRUCTURAL ENGINEER: MEP ENGINEER: CIVIL ENGINEER: LANDSCAPE ARCHITECT: LOCATION: Union, NJ 07083 Jacques Tati Eric Tapia Eric Tapia Erica Freeman John Doe Jane Doe N O T E S SITE A 501 WALL SECTION -10’ - 0” 0’ - 0” 13’ - 0” 30’ - 1” 1/6” = 1’ 1 DRAINAGE AND STEEL STRUCTURE CONNECTIONS 1/4” = 1’ 2 INSULATED, ENCLOSED BRIDGE 1/2” = 1’ 3 CONCRETE FOOTING AND DRAINAGE 1/2” = 1’ 1 A501 2 A501 3 A501
THERMAL RESISTANCE OF WALL COMPONENTS
1/2 in. (13mm)
PAGE: UNLESS A PROFESSIONAL SEAL WITH SIGNATURE AND DATE IS AFFIXED, THIS DOCUMENT IS PRELIMINARY AND IS NOT INTENDED FOR CONSTRUCTION, RECORDING PURPOSES OR IMPLEMENTATION SCALE: UNIT SYSTEM: NOT FOR CONSTRUCTION CODE: A-502 WALL SECTION Architect: Eric Tapia Date : 2/22/2022 Feet & Inches 1/6” = 1’ 3.2.1.- THE NET FLOOR AREA PERMITS EXCLUSION OF CERTAIN SPACES THAT WOULD BE INCLUDED IN THE GROSS FLOOR AREA. PER CBC 202, FLOOR AREA, NET, IS THE ACTUAL OCCUPIED AREA NOT INCLUDING UNOCCUPIED ACCESSORY AREAS SUCH AS CORRIDORS, STAIRWAYS, RAMPS, TOILET ROOMS, MECHANICAL ROOMS AND CLOSETS. CBC SECTION 1004 EXCEPTION "WHERE APPROVED BY THE BUILDING OFFICIAL, THE ACTUAL NUMBER OF OCCUPANTS FOR WHOM EACH OCCUPIED SPACE, FLOOR OR BUILDING IS DESIGNED, ALTHOUGH LESS THAN THE CALCULATION, SHALL BE PERMITTED TO BE USED IN DETERMINATION OF THE DESIGN OCCUPANT LOAD." A SIGN WILL BE PROVIDED IN ASSEMBLY OCCUPANCIES. THE SIGN SHALL BE POSTED IN A CONSPICUOUS PLACE, NEAR EXITS FROM THE SPACE, PER CBC 1004.3. C.R.O.P. Factory Studios Playtime PROJECT : 546 Green Lane CLIENT: ARCHITECT: STRUCTURAL ENGINEER: MEP ENGINEER: CIVIL ENGINEER: LANDSCAPE ARCHITECT: LOCATION: Union, NJ 07083 Jacques Tati Eric Tapia Eric Tapia Erica Freeman John Doe Jane Doe N O T E S SITE WALL SECTION 1/6” = 1’
outside air film 0.17 inside air film 0.68 Total Thermal Resistance excluding components in italics 4.31 31/2 in. (89mm) of concrete panel @ R - 0.20/in. (R-25/25mm) 0.70 2 in. (51mm) cavity 0.90 8 in. (203mm) lightweight CMUs 2.00 1 in. (25mm) furring space 1.01 1/2 in. (13mm) plaster of gypsum 0.45 R (ft2 - hr - oF/BTU-in) outside air film 1.18 inside air film 4.72 Total Thermal Resistance excluding components in italics 29.97 31/2 in. (89mm) of concrete panel @ R - 0.20/in. (R-25/25mm) 4.85 2 in. (51mm) cavity 6.24
in. (203mm) lightweight CMUs 13.87
in.
furring space 7.06
8
1
(25mm)
plaster of
3.14 R (m2-oC/W)
gypsum
PAGE: UNLESS A PROFESSIONAL SEAL WITH SIGNATURE AND DATE IS AFFIXED, THIS DOCUMENT IS PRELIMINARY AND IS NOT INTENDED FOR CONSTRUCTION, RECORDING PURPOSES OR IMPLEMENTATION SCALE: UNIT SYSTEM: NOT FOR CONSTRUCTION CODE: S-100 FOOTING AND FOUNDATION Architect: Eric Tapia Date : 2/22/2022 Feet & Inches 1/32” = 1’ 3.2.1.- THE NET FLOOR AREA PERMITS EXCLUSION OF CERTAIN SPACES THAT WOULD BE INCLUDED IN THE GROSS FLOOR AREA. PER CBC 202, FLOOR AREA, NET, IS THE ACTUAL OCCUPIED AREA NOT INCLUDING UNOCCUPIED ACCESSORY AREAS SUCH AS CORRIDORS, STAIRWAYS, RAMPS, TOILET ROOMS, MECHANICAL ROOMS AND CLOSETS. CBC SECTION 1004 EXCEPTION "WHERE APPROVED BY THE BUILDING OFFICIAL, THE ACTUAL NUMBER OF OCCUPANTS FOR WHOM EACH OCCUPIED SPACE, FLOOR OR BUILDING IS DESIGNED, ALTHOUGH LESS THAN THE CALCULATION, SHALL BE PERMITTED TO BE USED IN DETERMINATION OF THE DESIGN OCCUPANT LOAD." A SIGN WILL BE PROVIDED IN ASSEMBLY OCCUPANCIES. THE SIGN SHALL BE POSTED IN A CONSPICUOUS PLACE, NEAR EXITS FROM THE SPACE, PER CBC 1004.3. C.R.O.P. Factory Studios Playtime PROJECT : 546 Green Lane CLIENT: ARCHITECT: STRUCTURAL ENGINEER: MEP ENGINEER: CIVIL ENGINEER: LANDSCAPE ARCHITECT: LOCATION: Union, NJ 07083 Jacques Tati Eric Tapia Eric Tapia Erica Freeman John Doe Jane Doe N O T E S SITE S 100 FOOTING AND FOUNDATION 1/32” = 1’
PAGE: UNLESS A PROFESSIONAL SEAL WITH SIGNATURE AND DATE IS AFFIXED, THIS DOCUMENT IS PRELIMINARY AND IS NOT INTENDED FOR CONSTRUCTION, RECORDING PURPOSES OR IMPLEMENTATION SCALE: UNIT SYSTEM: NOT FOR CONSTRUCTION CODE: S-101 REFLECTED ROOF FRAME Architect: Eric Tapia Date : 2/22/2022 Feet & Inches 1/32” = 1’ 3.2.1.- THE NET FLOOR AREA PERMITS EXCLUSION OF CERTAIN SPACES THAT WOULD BE INCLUDED IN THE GROSS FLOOR AREA. PER CBC 202, FLOOR AREA, NET, IS THE ACTUAL OCCUPIED AREA NOT INCLUDING UNOCCUPIED ACCESSORY AREAS SUCH AS CORRIDORS, STAIRWAYS, RAMPS, TOILET ROOMS, MECHANICAL ROOMS AND CLOSETS. CBC SECTION 1004 EXCEPTION "WHERE APPROVED BY THE BUILDING OFFICIAL, THE ACTUAL NUMBER OF OCCUPANTS FOR WHOM EACH OCCUPIED SPACE, FLOOR OR BUILDING IS DESIGNED, ALTHOUGH LESS THAN THE CALCULATION, SHALL BE PERMITTED TO BE USED IN DETERMINATION OF THE DESIGN OCCUPANT LOAD." A SIGN WILL BE PROVIDED IN ASSEMBLY OCCUPANCIES. THE SIGN SHALL BE POSTED IN A CONSPICUOUS PLACE, NEAR EXITS FROM THE SPACE, PER CBC 1004.3. C.R.O.P. Factory Studios Playtime PROJECT : 546 Green Lane CLIENT: ARCHITECT: STRUCTURAL ENGINEER: MEP ENGINEER: CIVIL ENGINEER: LANDSCAPE ARCHITECT: LOCATION: Union, NJ 07083 Jacques Tati Eric Tapia Eric Tapia Erica Freeman John Doe Jane Doe N O T E S SITE S 101 REFLECTED ROOF FRAME 1/32” = 1’
PAGE: UNLESS A PROFESSIONAL SEAL WITH SIGNATURE AND DATE IS AFFIXED, THIS DOCUMENT IS PRELIMINARY AND IS NOT INTENDED FOR CONSTRUCTION, RECORDING PURPOSES OR IMPLEMENTATION SCALE: UNIT SYSTEM: NOT FOR CONSTRUCTION CODE: S-200 EGRESS STAIRS Architect: Eric Tapia Date : 2/22/2022 Feet & Inches 1/5” = 1’ 3.2.1.- THE NET FLOOR AREA PERMITS EXCLUSION OF CERTAIN SPACES THAT WOULD BE INCLUDED IN THE GROSS FLOOR AREA. PER CBC 202, FLOOR AREA, NET, IS THE ACTUAL OCCUPIED AREA NOT INCLUDING UNOCCUPIED ACCESSORY AREAS SUCH AS CORRIDORS, STAIRWAYS, RAMPS, TOILET ROOMS, MECHANICAL ROOMS AND CLOSETS. CBC SECTION 1004 EXCEPTION "WHERE APPROVED BY THE BUILDING OFFICIAL, THE ACTUAL NUMBER OF OCCUPANTS FOR WHOM EACH OCCUPIED SPACE, FLOOR OR BUILDING IS DESIGNED, ALTHOUGH LESS THAN THE CALCULATION, SHALL BE PERMITTED TO BE USED IN DETERMINATION OF THE DESIGN OCCUPANT LOAD." A SIGN WILL BE PROVIDED IN ASSEMBLY OCCUPANCIES. THE SIGN SHALL BE POSTED IN A CONSPICUOUS PLACE, NEAR EXITS FROM THE SPACE, PER CBC 1004.3. C.R.O.P. Factory Studios Playtime PROJECT : 546 Green Lane CLIENT: ARCHITECT: STRUCTURAL ENGINEER: MEP ENGINEER: CIVIL ENGINEER: LANDSCAPE ARCHITECT: LOCATION: Union, NJ 07083 Jacques Tati Eric Tapia Eric Tapia Erica Freeman John Doe Jane Doe N O T E S SITE S 200 EGRESS STAIRS 1/5” = 1’ 3 EGRESS STAIRS SECTION 1/5” = 1’ 1 2 STAIR STRUCTURE 1” = 1’ CIRCULAR HANDRAIL TYPE I 1” = 1’ 2 S200 1 S200 3 S200 3’-0” 11’-9” 1’-0” 13’-1” 6’-4” 3’-5” 0’-11” 0’-1-1/4” 0’-6-17/20” 0’-1-1/4” 0’-1-1/2” 0’-4” 21’-2” 3’-1” 3’-8” 7’-6”
PAGE: UNLESS A PROFESSIONAL SEAL WITH SIGNATURE AND DATE IS AFFIXED, THIS DOCUMENT IS PRELIMINARY AND IS NOT INTENDED FOR CONSTRUCTION, RECORDING PURPOSES OR IMPLEMENTATION SCALE: UNIT SYSTEM: NOT FOR CONSTRUCTION CODE: S-201 ELEVATOR Architect: Eric Tapia Date : 2/22/2022 Feet & Inches 1/3” = 1’ 3.2.1.- THE NET FLOOR AREA PERMITS EXCLUSION OF CERTAIN SPACES THAT WOULD BE INCLUDED IN THE GROSS FLOOR AREA. PER CBC 202, FLOOR AREA, NET, IS THE ACTUAL OCCUPIED AREA NOT INCLUDING UNOCCUPIED ACCESSORY AREAS SUCH AS CORRIDORS, STAIRWAYS, RAMPS, TOILET ROOMS, MECHANICAL ROOMS AND CLOSETS. CBC SECTION 1004 EXCEPTION "WHERE APPROVED BY THE BUILDING OFFICIAL, THE ACTUAL NUMBER OF OCCUPANTS FOR WHOM EACH OCCUPIED SPACE, FLOOR OR BUILDING IS DESIGNED, ALTHOUGH LESS THAN THE CALCULATION, SHALL BE PERMITTED TO BE USED IN DETERMINATION OF THE DESIGN OCCUPANT LOAD." A SIGN WILL BE PROVIDED IN ASSEMBLY OCCUPANCIES. THE SIGN SHALL BE POSTED IN A CONSPICUOUS PLACE, NEAR EXITS FROM THE SPACE, PER CBC 1004.3. C.R.O.P. Factory Studios Playtime PROJECT : 546 Green Lane CLIENT: ARCHITECT: STRUCTURAL ENGINEER: MEP ENGINEER: CIVIL ENGINEER: LANDSCAPE ARCHITECT: LOCATION: Union, NJ 07083 Jacques Tati Eric Tapia Eric Tapia Erica Freeman John Doe Jane Doe N O T E S SITE 1 ELEVATOR SECTION 1/5” = 1’ 1 S201 4’-3” 6’-0” 10’-10” 7’-0” 6’-10” 4’-0” 6’-6” 8’-6” 5’-9” 8’-6” S 201 ELEVATOR 1/3” = 1’
PAGE: UNLESS A PROFESSIONAL SEAL WITH SIGNATURE AND DATE IS AFFIXED, THIS DOCUMENT IS PRELIMINARY AND IS NOT INTENDED FOR CONSTRUCTION, RECORDING PURPOSES OR IMPLEMENTATION SCALE: UNIT SYSTEM: NOT FOR CONSTRUCTION CODE: S-202 PUBLIC STAIR Architect: Eric Tapia Date : 2/22/2022 Feet & Inches 1/4” = 1’ 3.2.1.- THE NET FLOOR AREA PERMITS EXCLUSION OF CERTAIN SPACES THAT WOULD BE INCLUDED IN THE GROSS FLOOR AREA. PER CBC 202, FLOOR AREA, NET, IS THE ACTUAL OCCUPIED AREA NOT INCLUDING UNOCCUPIED ACCESSORY AREAS SUCH AS CORRIDORS, STAIRWAYS, RAMPS, TOILET ROOMS, MECHANICAL ROOMS AND CLOSETS. CBC SECTION 1004 EXCEPTION "WHERE APPROVED BY THE BUILDING OFFICIAL, THE ACTUAL NUMBER OF OCCUPANTS FOR WHOM EACH OCCUPIED SPACE, FLOOR OR BUILDING IS DESIGNED, ALTHOUGH LESS THAN THE CALCULATION, SHALL BE PERMITTED TO BE USED IN DETERMINATION OF THE DESIGN OCCUPANT LOAD." A SIGN WILL BE PROVIDED IN ASSEMBLY OCCUPANCIES. THE SIGN SHALL BE POSTED IN A CONSPICUOUS PLACE, NEAR EXITS FROM THE SPACE, PER CBC 1004.3. C.R.O.P. Factory Studios Playtime PROJECT : 546 Green Lane CLIENT: ARCHITECT: STRUCTURAL ENGINEER: MEP ENGINEER: CIVIL ENGINEER: LANDSCAPE ARCHITECT: LOCATION: Union, NJ 07083 Jacques Tati Eric Tapia Eric Tapia Erica Freeman John Doe Jane Doe N O T E S SITE PUBLIC STAIR SECTION 1/4” = 1’ 1 S202 3’-6” 0’-7” 12’-0” 7’-6” 0’-11” 5’-11” 1’-0” 0’-4” 1 S 202 PUBLIC STAIR 1/4” = 1’
PAGE: UNLESS A PROFESSIONAL SEAL WITH SIGNATURE AND DATE IS AFFIXED, THIS DOCUMENT IS PRELIMINARY AND IS NOT INTENDED FOR CONSTRUCTION, RECORDING PURPOSES OR IMPLEMENTATION SCALE: UNIT SYSTEM: NOT FOR CONSTRUCTION CODE: S-203 VIEWING STEPS Architect: Eric Tapia Date : 2/22/2022 Feet & Inches 1/4” = 1’ 3.2.1.- THE NET FLOOR AREA PERMITS EXCLUSION OF CERTAIN SPACES THAT WOULD BE INCLUDED IN THE GROSS FLOOR AREA. PER CBC 202, FLOOR AREA, NET, IS THE ACTUAL OCCUPIED AREA NOT INCLUDING UNOCCUPIED ACCESSORY AREAS SUCH AS CORRIDORS, STAIRWAYS, RAMPS, TOILET ROOMS, MECHANICAL ROOMS AND CLOSETS. CBC SECTION 1004 EXCEPTION "WHERE APPROVED BY THE BUILDING OFFICIAL, THE ACTUAL NUMBER OF OCCUPANTS FOR WHOM EACH OCCUPIED SPACE, FLOOR OR BUILDING IS DESIGNED, ALTHOUGH LESS THAN THE CALCULATION, SHALL BE PERMITTED TO BE USED IN DETERMINATION OF THE DESIGN OCCUPANT LOAD." A SIGN WILL BE PROVIDED IN ASSEMBLY OCCUPANCIES. THE SIGN SHALL BE POSTED IN A CONSPICUOUS PLACE, NEAR EXITS FROM THE SPACE, PER CBC 1004.3. C.R.O.P. Factory Studios Playtime PROJECT : 546 Green Lane CLIENT: ARCHITECT: STRUCTURAL ENGINEER: MEP ENGINEER: CIVIL ENGINEER: LANDSCAPE ARCHITECT: LOCATION: Union, NJ 07083 Jacques Tati Eric Tapia Eric Tapia Erica Freeman John Doe Jane Doe N O T E S SITE VIEWING STEPS SECTION 1/2” = 1’ 1 S203 15’-0” 1’-0” 3’-6” 0’-6” 1’-0” 2’-4” 0’-2” 0’-6” 0’-2” 3’-9” 0’-2” 1 S 203 VIEWING STEPS 1/4” = 1’
PAGE: UNLESS A PROFESSIONAL SEAL WITH SIGNATURE AND DATE IS AFFIXED, THIS DOCUMENT IS PRELIMINARY AND IS NOT INTENDED FOR CONSTRUCTION, RECORDING PURPOSES OR IMPLEMENTATION SCALE: UNIT SYSTEM: NOT FOR CONSTRUCTION CODE: M-100 GROUND LVL MECH Architect: Eric Tapia Date : 2/22/2022 Feet & Inches 1/32” = 1’ 3.2.1.- THE NET FLOOR AREA PERMITS EXCLUSION OF CERTAIN SPACES THAT WOULD BE INCLUDED IN THE GROSS FLOOR AREA. PER CBC 202, FLOOR AREA, NET, IS THE ACTUAL OCCUPIED AREA NOT INCLUDING UNOCCUPIED ACCESSORY AREAS SUCH AS CORRIDORS, STAIRWAYS, RAMPS, TOILET ROOMS, MECHANICAL ROOMS AND CLOSETS. CBC SECTION 1004 EXCEPTION "WHERE APPROVED BY THE BUILDING OFFICIAL, THE ACTUAL NUMBER OF OCCUPANTS FOR WHOM EACH OCCUPIED SPACE, FLOOR OR BUILDING IS DESIGNED, ALTHOUGH LESS THAN THE CALCULATION, SHALL BE PERMITTED TO BE USED IN DETERMINATION OF THE DESIGN OCCUPANT LOAD." A SIGN WILL BE PROVIDED IN ASSEMBLY OCCUPANCIES. THE SIGN SHALL BE POSTED IN A CONSPICUOUS PLACE, NEAR EXITS FROM THE SPACE, PER CBC 1004.3. C.R.O.P. Factory Studios Playtime PROJECT : 546 Green Lane CLIENT: ARCHITECT: STRUCTURAL ENGINEER: MEP ENGINEER: CIVIL ENGINEER: LANDSCAPE ARCHITECT: LOCATION: Union, NJ 07083 Jacques Tati Eric Tapia Eric Tapia Erica Freeman John Doe Jane Doe N O T E S SITE M 100 GROUND LVL MECH 1/32” = 1’
PAGE: UNLESS A PROFESSIONAL SEAL WITH SIGNATURE AND DATE IS AFFIXED, THIS DOCUMENT IS PRELIMINARY AND IS NOT INTENDED FOR CONSTRUCTION, RECORDING PURPOSES OR IMPLEMENTATION SCALE: UNIT SYSTEM: NOT FOR CONSTRUCTION CODE: M-101 MEZZ LVL MECH Architect: Eric Tapia Date : 2/22/2022 Feet & Inches 1/32” = 1’ 3.2.1.- THE NET FLOOR AREA PERMITS EXCLUSION OF CERTAIN SPACES THAT WOULD BE INCLUDED IN THE GROSS FLOOR AREA. PER CBC 202, FLOOR AREA, NET, IS THE ACTUAL OCCUPIED AREA NOT INCLUDING UNOCCUPIED ACCESSORY AREAS SUCH AS CORRIDORS, STAIRWAYS, RAMPS, TOILET ROOMS, MECHANICAL ROOMS AND CLOSETS. CBC SECTION 1004 EXCEPTION "WHERE APPROVED BY THE BUILDING OFFICIAL, THE ACTUAL NUMBER OF OCCUPANTS FOR WHOM EACH OCCUPIED SPACE, FLOOR OR BUILDING IS DESIGNED, ALTHOUGH LESS THAN THE CALCULATION, SHALL BE PERMITTED TO BE USED IN DETERMINATION OF THE DESIGN OCCUPANT LOAD." A SIGN WILL BE PROVIDED IN ASSEMBLY OCCUPANCIES. THE SIGN SHALL BE POSTED IN A CONSPICUOUS PLACE, NEAR EXITS FROM THE SPACE, PER CBC 1004.3. C.R.O.P. Factory Studios Playtime PROJECT : 546 Green Lane CLIENT: ARCHITECT: STRUCTURAL ENGINEER: MEP ENGINEER: CIVIL ENGINEER: LANDSCAPE ARCHITECT: LOCATION: Union, NJ 07083 Jacques Tati Eric Tapia Eric Tapia Erica Freeman John Doe Jane Doe N O T E S SITE M 101 MEZZ LVL MECH 1/32” = 1’
PAGE: UNLESS A PROFESSIONAL SEAL WITH SIGNATURE AND DATE IS AFFIXED, THIS DOCUMENT IS PRELIMINARY AND IS NOT INTENDED FOR CONSTRUCTION, RECORDING PURPOSES OR IMPLEMENTATION SCALE: UNIT SYSTEM: NOT FOR CONSTRUCTION CODE: M-102 BSMT LVL MECH Architect: Eric Tapia Date : 2/22/2022 Feet & Inches 1/32” = 1’ 3.2.1.- THE NET FLOOR AREA PERMITS EXCLUSION OF CERTAIN SPACES THAT WOULD BE INCLUDED IN THE GROSS FLOOR AREA. PER CBC 202, FLOOR AREA, NET, IS THE ACTUAL OCCUPIED AREA NOT INCLUDING UNOCCUPIED ACCESSORY AREAS SUCH AS CORRIDORS, STAIRWAYS, RAMPS, TOILET ROOMS, MECHANICAL ROOMS AND CLOSETS. CBC SECTION 1004 EXCEPTION "WHERE APPROVED BY THE BUILDING OFFICIAL, THE ACTUAL NUMBER OF OCCUPANTS FOR WHOM EACH OCCUPIED SPACE, FLOOR OR BUILDING IS DESIGNED, ALTHOUGH LESS THAN THE CALCULATION, SHALL BE PERMITTED TO BE USED IN DETERMINATION OF THE DESIGN OCCUPANT LOAD." A SIGN WILL BE PROVIDED IN ASSEMBLY OCCUPANCIES. THE SIGN SHALL BE POSTED IN A CONSPICUOUS PLACE, NEAR EXITS FROM THE SPACE, PER CBC 1004.3. C.R.O.P. Factory Studios Playtime PROJECT : 546 Green Lane CLIENT: ARCHITECT: STRUCTURAL ENGINEER: MEP ENGINEER: CIVIL ENGINEER: LANDSCAPE ARCHITECT: LOCATION: Union, NJ 07083 Jacques Tati Eric Tapia Eric Tapia Erica Freeman John Doe Jane Doe N O T E S SITE M 102 BSMT LVL MECH 1/32” = 1’

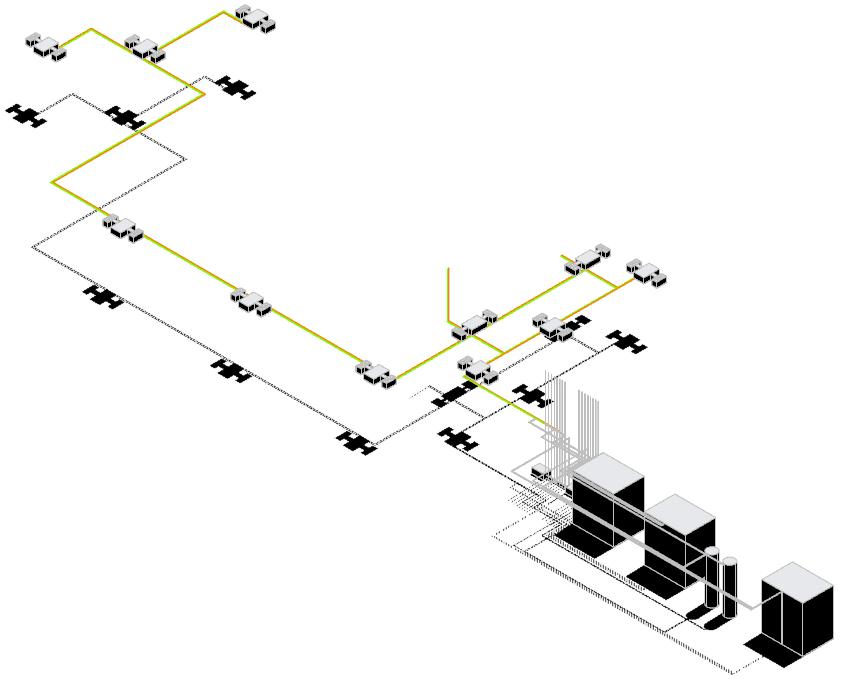

PAGE: UNLESS A PROFESSIONAL SEAL WITH SIGNATURE AND DATE IS AFFIXED, THIS DOCUMENT IS PRELIMINARY AND IS NOT INTENDED FOR CONSTRUCTION, RECORDING PURPOSES OR IMPLEMENTATION SCALE: UNIT SYSTEM: NOT FOR CONSTRUCTION CODE: M-200 MECH DETAIL BSMT LVL Architect: Eric Tapia Date : 2/22/2022 Feet & Inches NTS 3.2.1.- THE NET FLOOR AREA PERMITS EXCLUSION OF CERTAIN SPACES THAT WOULD BE INCLUDED IN THE GROSS FLOOR AREA. PER CBC 202, FLOOR AREA, NET, IS THE ACTUAL OCCUPIED AREA NOT INCLUDING UNOCCUPIED ACCESSORY AREAS SUCH AS CORRIDORS, STAIRWAYS, RAMPS, TOILET ROOMS, MECHANICAL ROOMS AND CLOSETS. CBC SECTION 1004 EXCEPTION "WHERE APPROVED BY THE BUILDING OFFICIAL, THE ACTUAL NUMBER OF OCCUPANTS FOR WHOM EACH OCCUPIED SPACE, FLOOR OR BUILDING IS DESIGNED, ALTHOUGH LESS THAN THE CALCULATION, SHALL BE PERMITTED TO BE USED IN DETERMINATION OF THE DESIGN OCCUPANT LOAD." A SIGN WILL BE PROVIDED IN ASSEMBLY OCCUPANCIES. THE SIGN SHALL BE POSTED IN A CONSPICUOUS PLACE, NEAR EXITS FROM THE SPACE, PER CBC 1004.3. C.R.O.P. Factory Studios Playtime PROJECT : 546 Green Lane CLIENT: ARCHITECT: STRUCTURAL ENGINEER: MEP ENGINEER: CIVIL ENGINEER: LANDSCAPE ARCHITECT: LOCATION: Union, NJ 07083 Jacques Tati Eric Tapia Eric Tapia Erica Freeman John Doe Jane Doe N O T E S SITE M 200 MECH DETAIL BSMT LVL 9’ DEDICATED CHILLER NTS HYDRONIC FOUR PIPE HVAC SYSTEM 9’ DEDICATED CHILLER 9’ CALORIFIER TANK 9’ BOILER 1’ PRIMARY PUMP SET BOILER SUPPLY DIFFUSER 1’ FAN COIL UNIT RETURN DIFFUSER 1’ PRIMARY PUMP SET BOILER 9’ CALORIFIER TANK
PAGE: UNLESS A PROFESSIONAL SEAL WITH SIGNATURE AND DATE IS AFFIXED, THIS DOCUMENT IS PRELIMINARY AND IS NOT INTENDED FOR CONSTRUCTION, RECORDING PURPOSES OR IMPLEMENTATION SCALE: UNIT SYSTEM: NOT FOR CONSTRUCTION CODE: E-100 GROUND LVL ELEC Architect: Eric Tapia Date : 2/22/2022 Feet & Inches 1/32” = 1’ 3.2.1.- THE NET FLOOR AREA PERMITS EXCLUSION OF CERTAIN SPACES THAT WOULD BE INCLUDED IN THE GROSS FLOOR AREA. PER CBC 202, FLOOR AREA, NET, IS THE ACTUAL OCCUPIED AREA NOT INCLUDING UNOCCUPIED ACCESSORY AREAS SUCH AS CORRIDORS, STAIRWAYS, RAMPS, TOILET ROOMS, MECHANICAL ROOMS AND CLOSETS. CBC SECTION 1004 EXCEPTION "WHERE APPROVED BY THE BUILDING OFFICIAL, THE ACTUAL NUMBER OF OCCUPANTS FOR WHOM EACH OCCUPIED SPACE, FLOOR OR BUILDING IS DESIGNED, ALTHOUGH LESS THAN THE CALCULATION, SHALL BE PERMITTED TO BE USED IN DETERMINATION OF THE DESIGN OCCUPANT LOAD." A SIGN WILL BE PROVIDED IN ASSEMBLY OCCUPANCIES. THE SIGN SHALL BE POSTED IN A CONSPICUOUS PLACE, NEAR EXITS FROM THE SPACE, PER CBC 1004.3. C.R.O.P. Factory Studios Playtime PROJECT : 546 Green Lane CLIENT: ARCHITECT: STRUCTURAL ENGINEER: MEP ENGINEER: CIVIL ENGINEER: LANDSCAPE ARCHITECT: LOCATION: Union, NJ 07083 Jacques Tati Eric Tapia Eric Tapia Erica Freeman John Doe Jane Doe N O T E S SITE E 100 GROUND LVL ELEC 1/32” = 1’
PAGE: UNLESS A PROFESSIONAL SEAL WITH SIGNATURE AND DATE IS AFFIXED, THIS DOCUMENT IS PRELIMINARY AND IS NOT INTENDED FOR CONSTRUCTION, RECORDING PURPOSES OR IMPLEMENTATION SCALE: UNIT SYSTEM: NOT FOR CONSTRUCTION CODE: E-101 MEZZ LVL ELEC Architect: Eric Tapia Date : 2/22/2022 Feet & Inches 1/32” = 1’ 3.2.1.- THE NET FLOOR AREA PERMITS EXCLUSION OF CERTAIN SPACES THAT WOULD BE INCLUDED IN THE GROSS FLOOR AREA. PER CBC 202, FLOOR AREA, NET, IS THE ACTUAL OCCUPIED AREA NOT INCLUDING UNOCCUPIED ACCESSORY AREAS SUCH AS CORRIDORS, STAIRWAYS, RAMPS, TOILET ROOMS, MECHANICAL ROOMS AND CLOSETS. CBC SECTION 1004 EXCEPTION "WHERE APPROVED BY THE BUILDING OFFICIAL, THE ACTUAL NUMBER OF OCCUPANTS FOR WHOM EACH OCCUPIED SPACE, FLOOR OR BUILDING IS DESIGNED, ALTHOUGH LESS THAN THE CALCULATION, SHALL BE PERMITTED TO BE USED IN DETERMINATION OF THE DESIGN OCCUPANT LOAD." A SIGN WILL BE PROVIDED IN ASSEMBLY OCCUPANCIES. THE SIGN SHALL BE POSTED IN A CONSPICUOUS PLACE, NEAR EXITS FROM THE SPACE, PER CBC 1004.3. C.R.O.P. Factory Studios Playtime PROJECT : 546 Green Lane CLIENT: ARCHITECT: STRUCTURAL ENGINEER: MEP ENGINEER: CIVIL ENGINEER: LANDSCAPE ARCHITECT: LOCATION: Union, NJ 07083 Jacques Tati Eric Tapia Eric Tapia Erica Freeman John Doe Jane Doe N O T E S SITE E 101 MEZZ LVL ELEC 1/32” = 1’
PAGE: UNLESS A PROFESSIONAL SEAL WITH SIGNATURE AND DATE IS AFFIXED, THIS DOCUMENT IS PRELIMINARY AND IS NOT INTENDED FOR CONSTRUCTION, RECORDING PURPOSES OR IMPLEMENTATION SCALE: UNIT SYSTEM: NOT FOR CONSTRUCTION CODE: E-102 BSMT LVL ELEC Architect: Eric Tapia Date : 2/22/2022 Feet & Inches 1/32” = 1’ 3.2.1.- THE NET FLOOR AREA PERMITS EXCLUSION OF CERTAIN SPACES THAT WOULD BE INCLUDED IN THE GROSS FLOOR AREA. PER CBC 202, FLOOR AREA, NET, IS THE ACTUAL OCCUPIED AREA NOT INCLUDING UNOCCUPIED ACCESSORY AREAS SUCH AS CORRIDORS, STAIRWAYS, RAMPS, TOILET ROOMS, MECHANICAL ROOMS AND CLOSETS. CBC SECTION 1004 EXCEPTION "WHERE APPROVED BY THE BUILDING OFFICIAL, THE ACTUAL NUMBER OF OCCUPANTS FOR WHOM EACH OCCUPIED SPACE, FLOOR OR BUILDING IS DESIGNED, ALTHOUGH LESS THAN THE CALCULATION, SHALL BE PERMITTED TO BE USED IN DETERMINATION OF THE DESIGN OCCUPANT LOAD." A SIGN WILL BE PROVIDED IN ASSEMBLY OCCUPANCIES. THE SIGN SHALL BE POSTED IN A CONSPICUOUS PLACE, NEAR EXITS FROM THE SPACE, PER CBC 1004.3. C.R.O.P. Factory Studios Playtime PROJECT : 546 Green Lane CLIENT: ARCHITECT: STRUCTURAL ENGINEER: MEP ENGINEER: CIVIL ENGINEER: LANDSCAPE ARCHITECT: LOCATION: Union, NJ 07083 Jacques Tati Eric Tapia Eric Tapia Erica Freeman John Doe Jane Doe N O T E S SITE E 102 BSMT LVL ELEC 1/32” = 1’
PAGE: UNLESS A PROFESSIONAL SEAL WITH SIGNATURE AND DATE IS AFFIXED, THIS DOCUMENT IS PRELIMINARY AND IS NOT INTENDED FOR CONSTRUCTION, RECORDING PURPOSES OR IMPLEMENTATION SCALE: UNIT SYSTEM: NOT FOR CONSTRUCTION CODE: E-200 ENERGY PLAN Architect: Eric Tapia Date : 2/22/2022 Feet & Inches 1/64” = 1’ 3.2.1.- THE NET FLOOR AREA PERMITS EXCLUSION OF CERTAIN SPACES THAT WOULD BE INCLUDED IN THE GROSS FLOOR AREA. PER CBC 202, FLOOR AREA, NET, IS THE ACTUAL OCCUPIED AREA NOT INCLUDING UNOCCUPIED ACCESSORY AREAS SUCH AS CORRIDORS, STAIRWAYS, RAMPS, TOILET ROOMS, MECHANICAL ROOMS AND CLOSETS. CBC SECTION 1004 EXCEPTION "WHERE APPROVED BY THE BUILDING OFFICIAL, THE ACTUAL NUMBER OF OCCUPANTS FOR WHOM EACH OCCUPIED SPACE, FLOOR OR BUILDING IS DESIGNED, ALTHOUGH LESS THAN THE CALCULATION, SHALL BE PERMITTED TO BE USED IN DETERMINATION OF THE DESIGN OCCUPANT LOAD." A SIGN WILL BE PROVIDED IN ASSEMBLY OCCUPANCIES. THE SIGN SHALL BE POSTED IN A CONSPICUOUS PLACE, NEAR EXITS FROM THE SPACE, PER CBC 1004.3. C.R.O.P. Factory E 200 ENERGY PLAN, LEED: 92 REFLECTING POND RETENTION POND 1/64” = 1’ Studios Playtime PROJECT : 546 Green Lane CLIENT: ARCHITECT: STRUCTURAL ENGINEER: MEP ENGINEER: CIVIL ENGINEER: LANDSCAPE ARCHITECT: LOCATION: Union, NJ 07083 Jacques Tati Eric Tapia Eric Tapia Erica Freeman John Doe Jane Doe N O T E S SITE EV CHARGING RETENTION POND RETENTION BASIN REFLECTING POND OPEN, GREEN TERRACE IN-VESSEL COMPOSTER PHOTOVOLTAICS
1 Troffer Recessed Lighting Fixtures
Staff Locker
Room Cavity (RCR):
5 * 11 * (17.87+10) / 17.87 * 10
RCR: 9
Room Cavity Height: 11’
PW: medium value colors dark gray
Dark Gray 20 - 25 (walls)
PCC: white 80 - 85 (ceiling)
Coefficient of Utilization: 0.19
2 1
2
Troffer Recessed Lighting Fixtures
Public Restroom
Room Cavity (RCR):
5 * 9 * (15+12) / 15 * 12
RCR: 7
Room Cavity Height: 9’
PW: medium value colors dark gray
Dark Gray 20 - 25 (walls)
PCC: white 80 - 85 (ceiling)
Coefficient of Utilization: 0.25
PAGE: UNLESS A PROFESSIONAL SEAL WITH SIGNATURE AND DATE IS AFFIXED, THIS DOCUMENT IS PRELIMINARY AND IS NOT INTENDED FOR CONSTRUCTION, RECORDING PURPOSES OR IMPLEMENTATION SCALE: UNIT SYSTEM: NOT FOR CONSTRUCTION CODE: E-300 LIGHTING Architect: Eric Tapia Date : 2/22/2022 Feet & Inches 1/4” = 1’ 3.2.1.- THE NET FLOOR AREA PERMITS EXCLUSION OF CERTAIN SPACES THAT WOULD BE INCLUDED IN THE GROSS FLOOR AREA. PER CBC 202, FLOOR AREA, NET, IS THE ACTUAL OCCUPIED AREA NOT INCLUDING UNOCCUPIED ACCESSORY AREAS SUCH AS CORRIDORS, STAIRWAYS, RAMPS, TOILET ROOMS, MECHANICAL ROOMS AND CLOSETS. CBC SECTION 1004 EXCEPTION "WHERE APPROVED BY THE BUILDING OFFICIAL, THE ACTUAL NUMBER OF OCCUPANTS FOR WHOM EACH OCCUPIED SPACE, FLOOR OR BUILDING IS DESIGNED, ALTHOUGH LESS THAN THE CALCULATION, SHALL BE PERMITTED TO BE USED IN DETERMINATION OF THE DESIGN OCCUPANT LOAD." A SIGN WILL BE PROVIDED IN ASSEMBLY OCCUPANCIES. THE SIGN SHALL BE POSTED IN A CONSPICUOUS PLACE, NEAR EXITS FROM THE SPACE, PER CBC 1004.3. C.R.O.P. Factory Studios Playtime PROJECT : 546 Green Lane CLIENT: ARCHITECT: STRUCTURAL ENGINEER: MEP ENGINEER: CIVIL ENGINEER: LANDSCAPE ARCHITECT: LOCATION: Union, NJ 07083 Jacques Tati Eric Tapia Eric Tapia Erica Freeman John Doe Jane Doe N O T E S SITE
PAGE: UNLESS A PROFESSIONAL SEAL WITH SIGNATURE AND DATE IS AFFIXED, THIS DOCUMENT IS PRELIMINARY AND IS NOT INTENDED FOR CONSTRUCTION, RECORDING PURPOSES OR IMPLEMENTATION SCALE: UNIT SYSTEM: NOT FOR CONSTRUCTION CODE: P-100 PLUMBING Architect: Eric Tapia Date : 2/22/2022 Feet & Inches 1/4” = 1’ 3.2.1.- THE NET FLOOR AREA PERMITS EXCLUSION OF CERTAIN SPACES THAT WOULD BE INCLUDED IN THE GROSS FLOOR AREA. PER CBC 202, FLOOR AREA, NET, IS THE ACTUAL OCCUPIED AREA NOT INCLUDING UNOCCUPIED ACCESSORY AREAS SUCH AS CORRIDORS, STAIRWAYS, RAMPS, TOILET ROOMS, MECHANICAL ROOMS AND CLOSETS. CBC SECTION 1004 EXCEPTION "WHERE APPROVED BY THE BUILDING OFFICIAL, THE ACTUAL NUMBER OF OCCUPANTS FOR WHOM EACH OCCUPIED SPACE, FLOOR OR BUILDING IS DESIGNED, ALTHOUGH LESS THAN THE CALCULATION, SHALL BE PERMITTED TO BE USED IN DETERMINATION OF THE DESIGN OCCUPANT LOAD." A SIGN WILL BE PROVIDED IN ASSEMBLY OCCUPANCIES. THE SIGN SHALL BE POSTED IN A CONSPICUOUS PLACE, NEAR EXITS FROM THE SPACE, PER CBC 1004.3. C.R.O.P. Factory Studios Playtime PROJECT : 546 Green Lane CLIENT: ARCHITECT: STRUCTURAL ENGINEER: MEP ENGINEER: CIVIL ENGINEER: LANDSCAPE ARCHITECT: LOCATION: Union, NJ 07083 Jacques Tati Eric Tapia Eric Tapia Erica Freeman John Doe Jane Doe N O T E S SITE 1
P100 2 P100
P100 1’-0” 3’-0” 5’-1” 5’-0” 12’-0” 2’-7” 0’-11” 6’-0” 1’-0” 2’-0” 2’-0” 12’-0” 7’-0” 2’-0” 0’-5” 3’-6” 2’-5” 12’-0” 17’-8”
1 3
1 3 2
1 1 3 3 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 3 3 3 3 3 3 3 3 3 3 3 3 3 3 1 1 1 1 1 1 1 1 1 1 1 1 1 1 mezzanine ground 1 HW CW CW ground mezzanine 1 1 1 1 1 1 1 1 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 1 1 1 1 1 1 1 PAGE: UNLESS A PROFESSIONAL SEAL WITH SIGNATURE AND DATE IS AFFIXED, THIS DOCUMENT IS PRELIMINARY AND IS NOT INTENDED FOR CONSTRUCTION, RECORDING PURPOSES OR IMPLEMENTATION SCALE: UNIT SYSTEM: NOT FOR CONSTRUCTION CODE: P-101 RISERS DETAIL Architect: Eric Tapia Date : 2/22/2022 Feet & Inches NTS 3.2.1.- THE NET FLOOR AREA PERMITS EXCLUSION OF CERTAIN SPACES THAT WOULD BE INCLUDED IN THE GROSS FLOOR AREA. PER CBC 202, FLOOR AREA, NET, IS THE ACTUAL OCCUPIED AREA NOT INCLUDING UNOCCUPIED ACCESSORY AREAS SUCH AS CORRIDORS, STAIRWAYS, RAMPS, TOILET ROOMS, MECHANICAL ROOMS AND CLOSETS. CBC SECTION 1004 EXCEPTION "WHERE APPROVED BY THE BUILDING OFFICIAL, THE ACTUAL NUMBER OF OCCUPANTS FOR WHOM EACH OCCUPIED SPACE, FLOOR OR BUILDING IS DESIGNED, ALTHOUGH LESS THAN THE CALCULATION, SHALL BE PERMITTED TO BE USED IN DETERMINATION OF THE DESIGN OCCUPANT LOAD." A SIGN WILL BE PROVIDED IN ASSEMBLY OCCUPANCIES. THE SIGN SHALL BE POSTED IN A CONSPICUOUS PLACE, NEAR EXITS FROM THE SPACE, PER CBC 1004.3. C.R.O.P. Factory Studios Playtime PROJECT : 546 Green Lane CLIENT: ARCHITECT: STRUCTURAL ENGINEER: MEP ENGINEER: CIVIL ENGINEER: LANDSCAPE ARCHITECT: LOCATION: Union, NJ 07083 Jacques Tati Eric Tapia Eric Tapia Erica Freeman John Doe Jane Doe N O T E S SITE P 102 SUPPLY RISERS NTS P 1 LAV 1 Vent Stacks 2 WC 2 LAV 3 WC 102 WASTE RISERS NTS
PAGE: UNLESS A PROFESSIONAL SEAL WITH SIGNATURE AND DATE IS AFFIXED, THIS DOCUMENT IS PRELIMINARY AND IS NOT INTENDED FOR CONSTRUCTION, RECORDING PURPOSES OR IMPLEMENTATION SCALE: UNIT SYSTEM: NOT FOR CONSTRUCTION CODE: P-200 GROUND LVL SPRINKLER Architect: Eric Tapia Date : 2/22/2022 Feet & Inches 1/32” = 1’ 3.2.1.- THE NET FLOOR AREA PERMITS EXCLUSION OF CERTAIN SPACES THAT WOULD BE INCLUDED IN THE GROSS FLOOR AREA. PER CBC 202, FLOOR AREA, NET, IS THE ACTUAL OCCUPIED AREA NOT INCLUDING UNOCCUPIED ACCESSORY AREAS SUCH AS CORRIDORS, STAIRWAYS, RAMPS, TOILET ROOMS, MECHANICAL ROOMS AND CLOSETS. CBC SECTION 1004 EXCEPTION "WHERE APPROVED BY THE BUILDING OFFICIAL, THE ACTUAL NUMBER OF OCCUPANTS FOR WHOM EACH OCCUPIED SPACE, FLOOR OR BUILDING IS DESIGNED, ALTHOUGH LESS THAN THE CALCULATION, SHALL BE PERMITTED TO BE USED IN DETERMINATION OF THE DESIGN OCCUPANT LOAD." A SIGN WILL BE PROVIDED IN ASSEMBLY OCCUPANCIES. THE SIGN SHALL BE POSTED IN A CONSPICUOUS PLACE, NEAR EXITS FROM THE SPACE, PER CBC 1004.3. C.R.O.P. Factory Studios Playtime PROJECT : 546 Green Lane CLIENT: ARCHITECT: STRUCTURAL ENGINEER: MEP ENGINEER: CIVIL ENGINEER: LANDSCAPE ARCHITECT: LOCATION: Union, NJ 07083 Jacques Tati Eric Tapia Eric Tapia Erica Freeman John Doe Jane Doe N O T E S SITE P 200 GROUND LVL SPRINKLER 1/32” = 1’
PAGE: UNLESS A PROFESSIONAL SEAL WITH SIGNATURE AND DATE IS AFFIXED, THIS DOCUMENT IS PRELIMINARY AND IS NOT INTENDED FOR CONSTRUCTION, RECORDING PURPOSES OR IMPLEMENTATION SCALE: UNIT SYSTEM: NOT FOR CONSTRUCTION CODE: P-201 MEZZ LVL SPRINKLER Architect: Eric Tapia Date : 2/22/2022 Feet & Inches 1/32” = 1’ 3.2.1.- THE NET FLOOR AREA PERMITS EXCLUSION OF CERTAIN SPACES THAT WOULD BE INCLUDED IN THE GROSS FLOOR AREA. PER CBC 202, FLOOR AREA, NET, IS THE ACTUAL OCCUPIED AREA NOT INCLUDING UNOCCUPIED ACCESSORY AREAS SUCH AS CORRIDORS, STAIRWAYS, RAMPS, TOILET ROOMS, MECHANICAL ROOMS AND CLOSETS. CBC SECTION 1004 EXCEPTION "WHERE APPROVED BY THE BUILDING OFFICIAL, THE ACTUAL NUMBER OF OCCUPANTS FOR WHOM EACH OCCUPIED SPACE, FLOOR OR BUILDING IS DESIGNED, ALTHOUGH LESS THAN THE CALCULATION, SHALL BE PERMITTED TO BE USED IN DETERMINATION OF THE DESIGN OCCUPANT LOAD." A SIGN WILL BE PROVIDED IN ASSEMBLY OCCUPANCIES. THE SIGN SHALL BE POSTED IN A CONSPICUOUS PLACE, NEAR EXITS FROM THE SPACE, PER CBC 1004.3. C.R.O.P. Factory Studios Playtime PROJECT : 546 Green Lane CLIENT: ARCHITECT: STRUCTURAL ENGINEER: MEP ENGINEER: CIVIL ENGINEER: LANDSCAPE ARCHITECT: LOCATION: Union, NJ 07083 Jacques Tati Eric Tapia Eric Tapia Erica Freeman John Doe Jane Doe N O T E S SITE P 201 MEZZ LVL SPRINKLER 1/32” = 1’
PAGE: UNLESS A PROFESSIONAL SEAL WITH SIGNATURE AND DATE IS AFFIXED, THIS DOCUMENT IS PRELIMINARY AND IS NOT INTENDED FOR CONSTRUCTION, RECORDING PURPOSES OR IMPLEMENTATION SCALE: UNIT SYSTEM: NOT FOR CONSTRUCTION CODE: P-202 BSMT LVL SPRINKLER Architect: Eric Tapia Date : 2/22/2022 Feet & Inches 1/32” = 1’ 3.2.1.- THE NET FLOOR AREA PERMITS EXCLUSION OF CERTAIN SPACES THAT WOULD BE INCLUDED IN THE GROSS FLOOR AREA. PER CBC 202, FLOOR AREA, NET, IS THE ACTUAL OCCUPIED AREA NOT INCLUDING UNOCCUPIED ACCESSORY AREAS SUCH AS CORRIDORS, STAIRWAYS, RAMPS, TOILET ROOMS, MECHANICAL ROOMS AND CLOSETS. CBC SECTION 1004 EXCEPTION "WHERE APPROVED BY THE BUILDING OFFICIAL, THE ACTUAL NUMBER OF OCCUPANTS FOR WHOM EACH OCCUPIED SPACE, FLOOR OR BUILDING IS DESIGNED, ALTHOUGH LESS THAN THE CALCULATION, SHALL BE PERMITTED TO BE USED IN DETERMINATION OF THE DESIGN OCCUPANT LOAD." A SIGN WILL BE PROVIDED IN ASSEMBLY OCCUPANCIES. THE SIGN SHALL BE POSTED IN A CONSPICUOUS PLACE, NEAR EXITS FROM THE SPACE, PER CBC 1004.3. C.R.O.P. Factory Studios Playtime PROJECT : 546 Green Lane CLIENT: ARCHITECT: STRUCTURAL ENGINEER: MEP ENGINEER: CIVIL ENGINEER: LANDSCAPE ARCHITECT: LOCATION: Union, NJ 07083 Jacques Tati Eric Tapia Eric Tapia Erica Freeman John Doe Jane Doe N O T E S SITE P 202 BSMT LVL SPRINKLER 1/32” = 1’

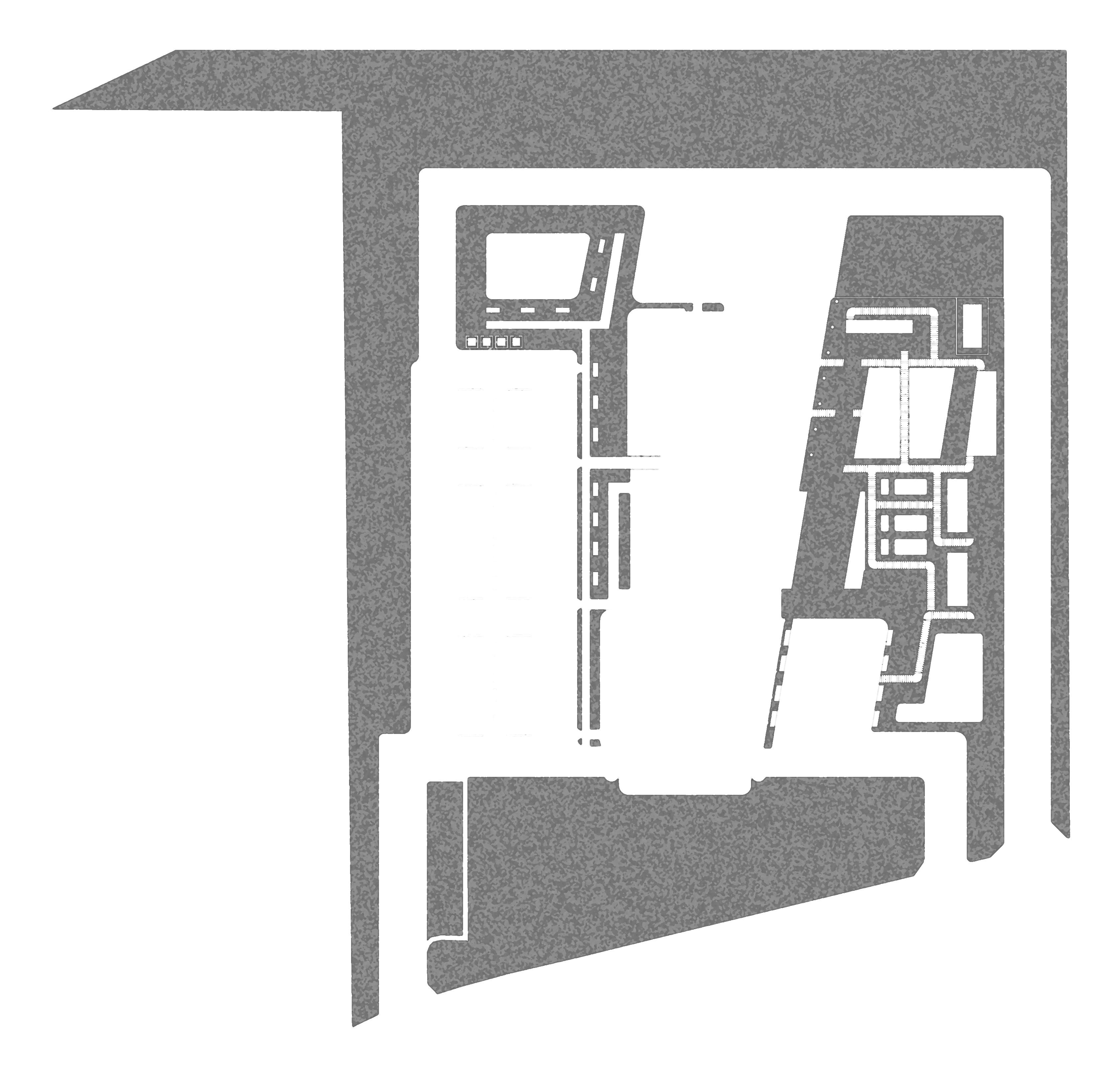

PROGRAMS AND FLOOR FINISHES
1) visitor lobby (632 sqft) [treated concrete]
2) store (318 sqft) [solid surface]
3) public eatery (167 sqft) [treated concrete]
4) exit discharge / directory (99 sqft) [treated concrete]
5) salad bar (127 sqft) [treated concrete]
6) storage (174 sqft) [solid surface]
7) exposed mep [chimney] (676 sqft) [solid surface]
PAGE: UNLESS A PROFESSIONAL SEAL WITH SIGNATURE AND DATE IS AFFIXED, THIS DOCUMENT IS PRELIMINARY AND IS NOT INTENDED FOR CONSTRUCTION, RECORDING PURPOSES OR IMPLEMENTATION SCALE: UNIT SYSTEM: NOT FOR CONSTRUCTION CODE: I-100 ENLARGED GROUND LVL Architect: Eric Tapia Date : 2/22/2022 Feet & Inches 1/8” = 1’ 3.2.1.- THE NET FLOOR AREA PERMITS EXCLUSION OF CERTAIN SPACES THAT WOULD BE INCLUDED IN THE GROSS FLOOR AREA. PER CBC 202, FLOOR AREA, NET, IS THE ACTUAL OCCUPIED AREA NOT INCLUDING UNOCCUPIED ACCESSORY AREAS SUCH AS CORRIDORS, STAIRWAYS, RAMPS, TOILET ROOMS, MECHANICAL ROOMS AND CLOSETS. CBC SECTION 1004 EXCEPTION "WHERE APPROVED BY THE BUILDING OFFICIAL, THE ACTUAL NUMBER OF OCCUPANTS FOR WHOM EACH OCCUPIED SPACE, FLOOR OR BUILDING IS DESIGNED, ALTHOUGH LESS THAN THE CALCULATION, SHALL BE PERMITTED TO BE USED IN DETERMINATION OF THE DESIGN OCCUPANT LOAD." A SIGN WILL BE PROVIDED IN ASSEMBLY OCCUPANCIES. THE SIGN SHALL BE POSTED IN A CONSPICUOUS PLACE, NEAR EXITS FROM THE SPACE, PER CBC 1004.3. C.R.O.P. Factory I 100 ENLARGED GROUND LVL 1/8” = 1’ Studios Playtime PROJECT : 546 Green Lane CLIENT: ARCHITECT: STRUCTURAL ENGINEER: MEP ENGINEER: CIVIL ENGINEER: LANDSCAPE ARCHITECT: LOCATION: Union, NJ 07083 Jacques Tati Eric Tapia Eric Tapia Erica Freeman John Doe Jane Doe N O T E S SITE
1 2 6 7 5 3 4
PROGRAMS AND FLOOR FINISHES 7) two gallery and tasting rooms (280 sqft) [solid surface] 8) viewing steps area (606 sqft) [solid surface] 9) storage (72 sqft) [solid surface] 7 7 8 8 9 outdoor, green terrace open to below, cultivation space
