Water Pavilion - Plans

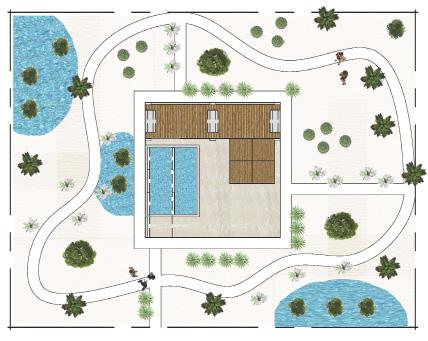

Landscape Plan

Caribbean Pine

Black Mangrove

Lignum Vitae

Agave Nashi

Cactus Harrisia Brookii

Orchids Encyclia Androsiana

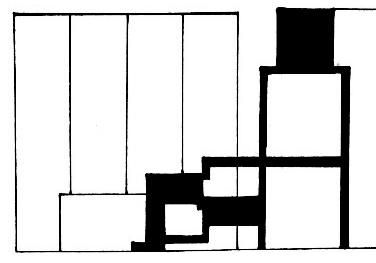

Section A Section B

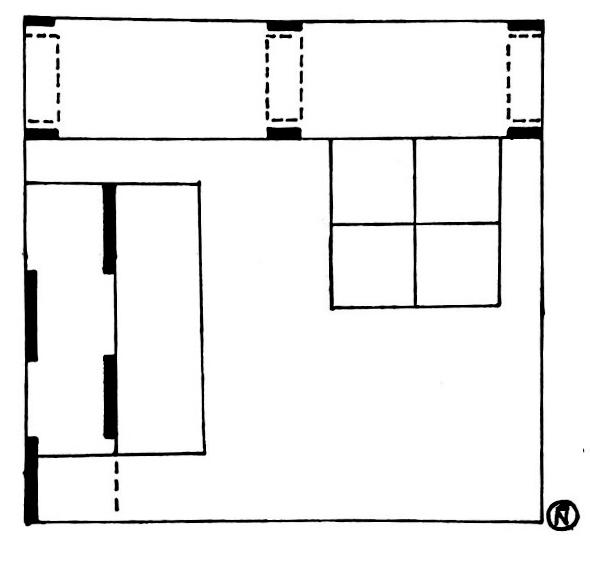

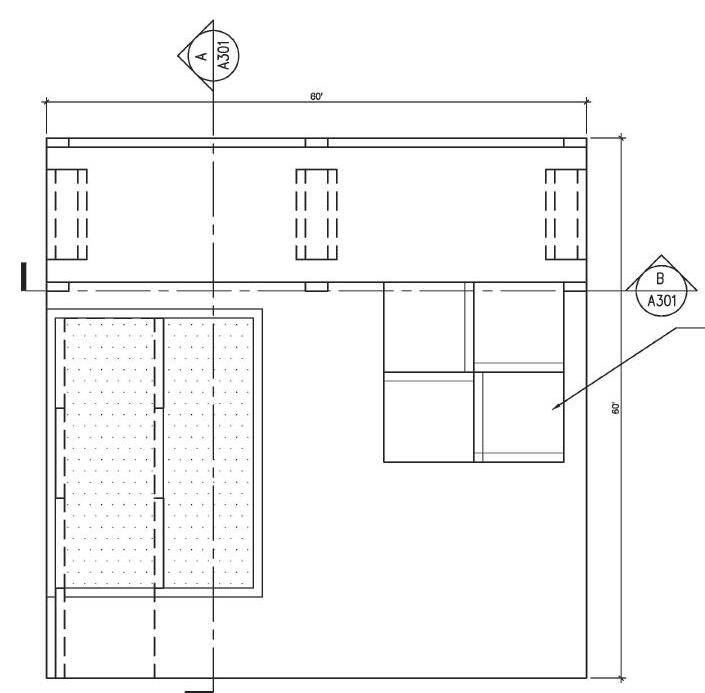

Floor Plan Section Plan

Project Description

The goal was to draft a plan of my model in a software, then bring in vegetation, and eventually export and render post-digitally. I achieved this by exporting the model into AutoCad, touching it up, choosing line weights, importing vegetation, and exporting into Photoshop to render. The floor plans were created by drafting a plan of my model in a software, then exporting the model into AutoCad and touching it up then choosing line weights as well as symbols. The sections of my model were drafted in a software. I achieved this by exporting the model into layout and arranging the views as well as creating title blocks.
