PRODUCT CATALOGUE 2025 ENG

Hello Cześć Bonjour Hallo Hola Ciao

CHARGING SOLUTIONS 2025 PRODUCT CATALOG

D O W N L O A D C ATA L O G U E

HELLO CZEŚĆ BONJOUR HALLO HOLA CIAO

EKOENERGETYKA - POLSKA SA We never wanted to be just a passive manufacturer of energy devices. Our mission is to develop emobility in Poland, Europe and in the world.

Bartosz Kubik CEO and Co-founder of Ekoenergetyka

TABLE OF CONTENTS

01

INTRODUCTION Who we are

6

Service

10

Training Center

14

R&D

18

Software

22

02 ALL IN ONES AXON EASY 180

28

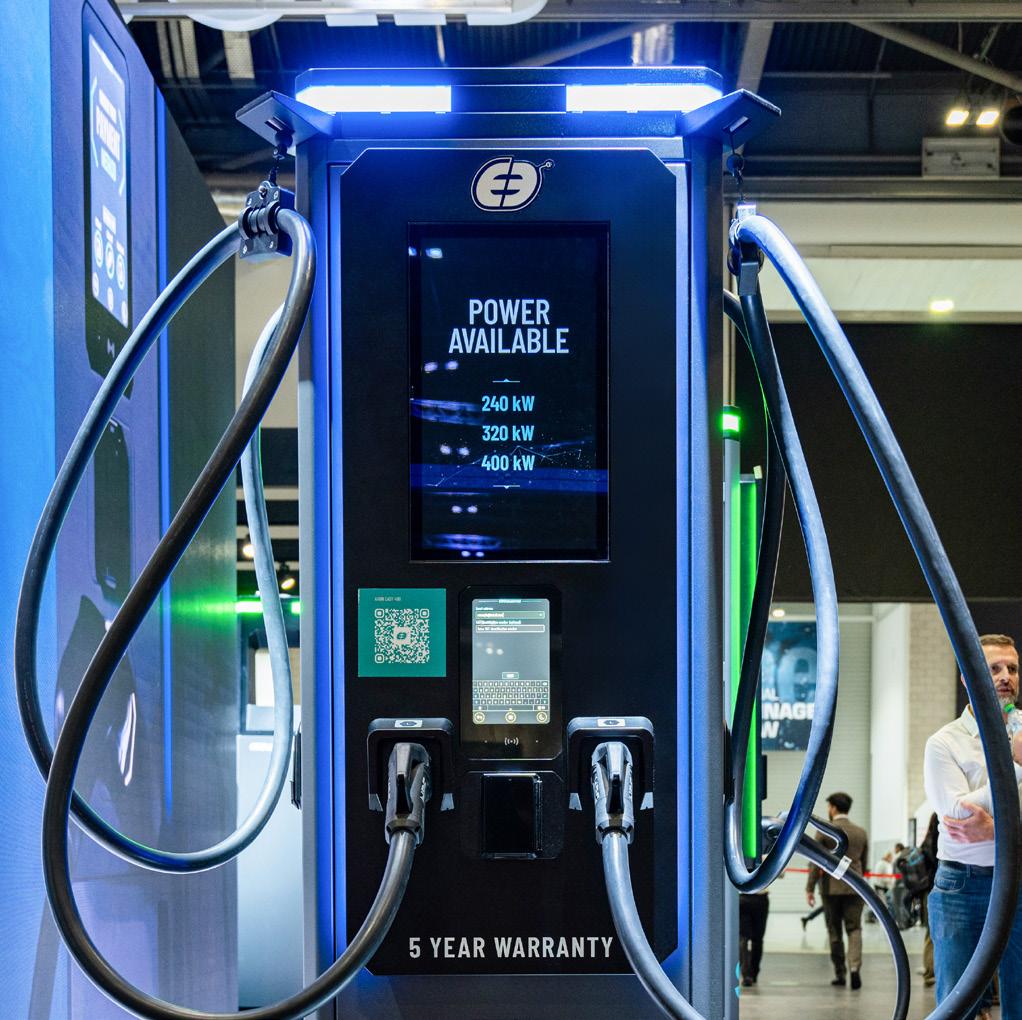

AXON EASY 400

34

4 | PRODUCT CATALOG EKOENERGETYKA-POLSKA S.A.

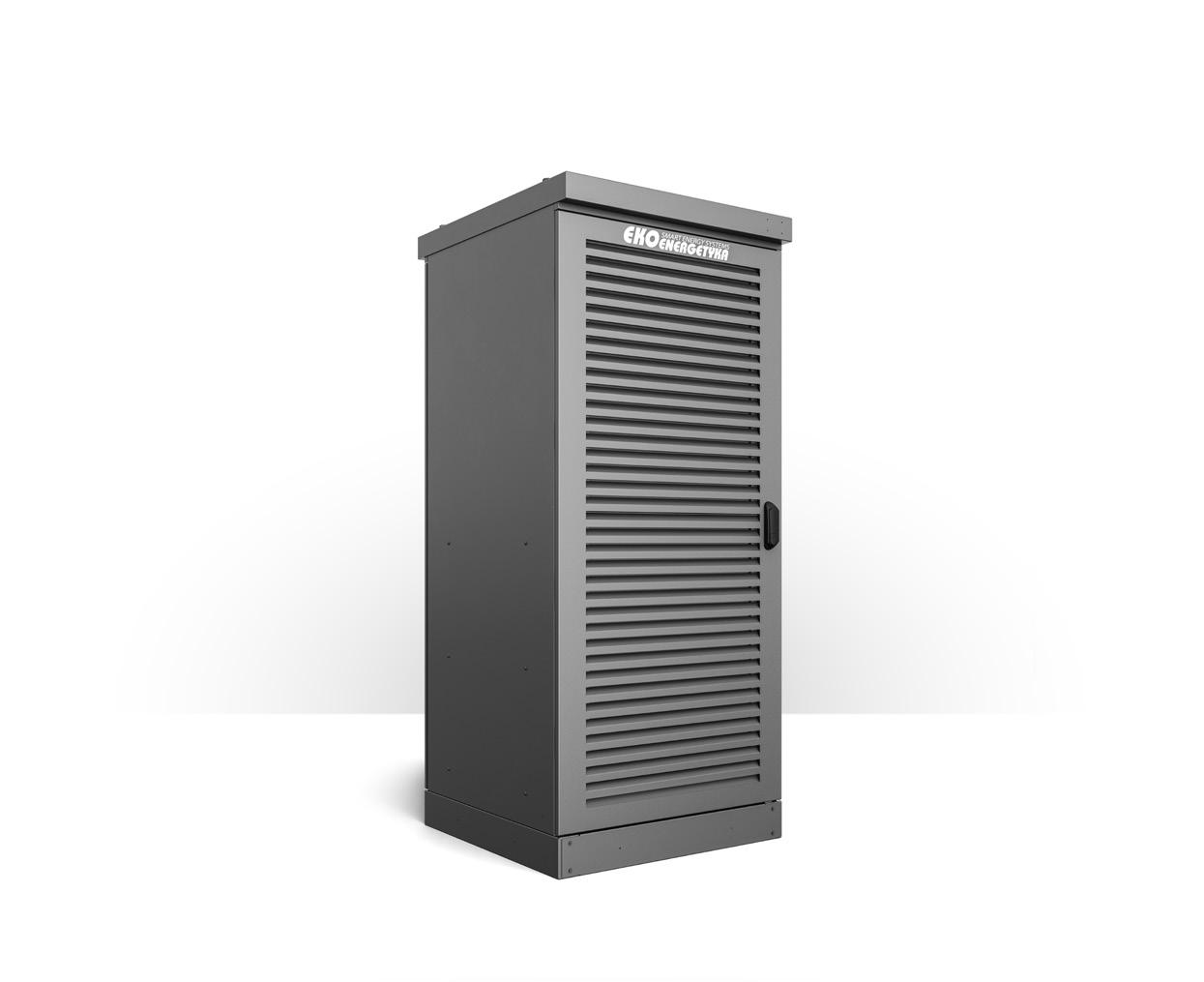

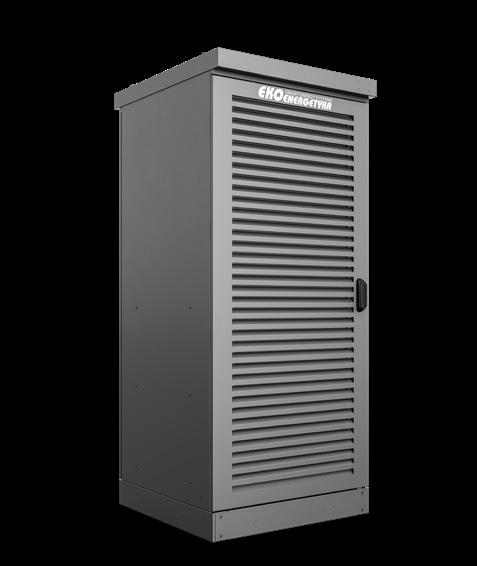

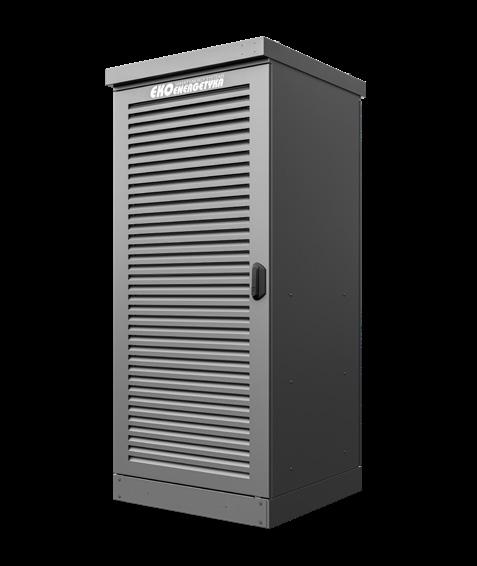

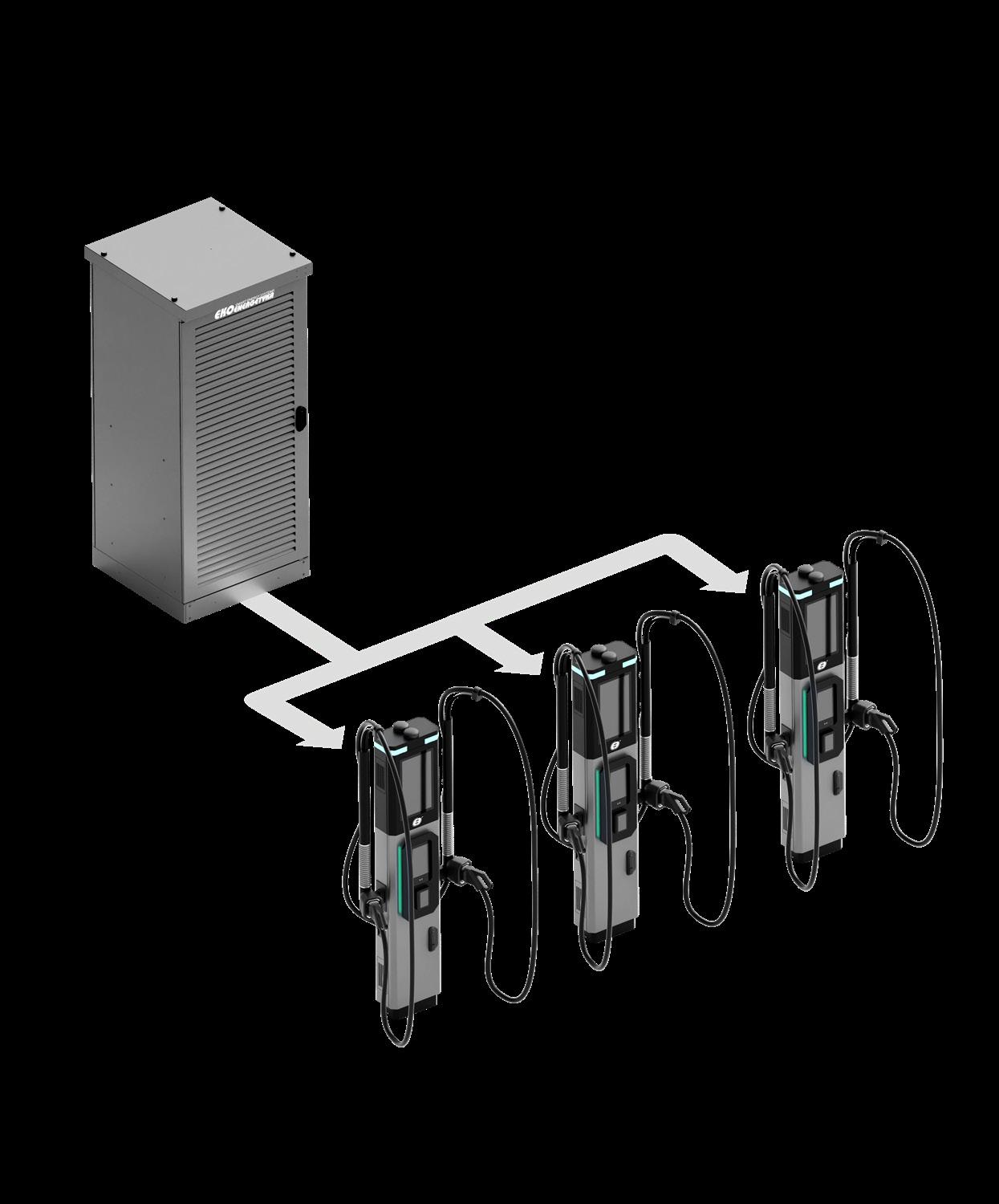

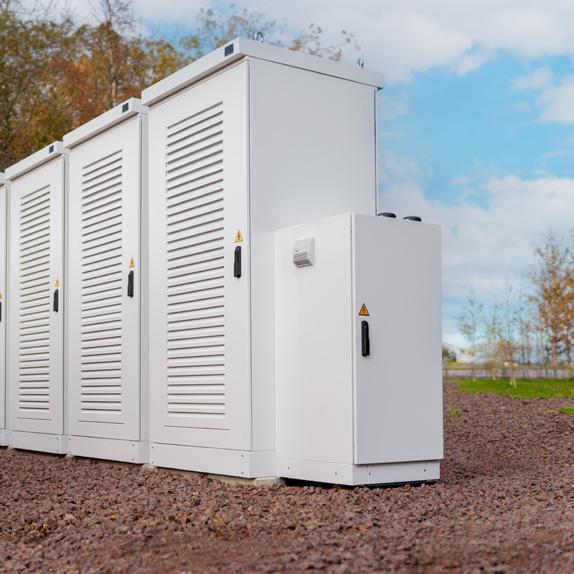

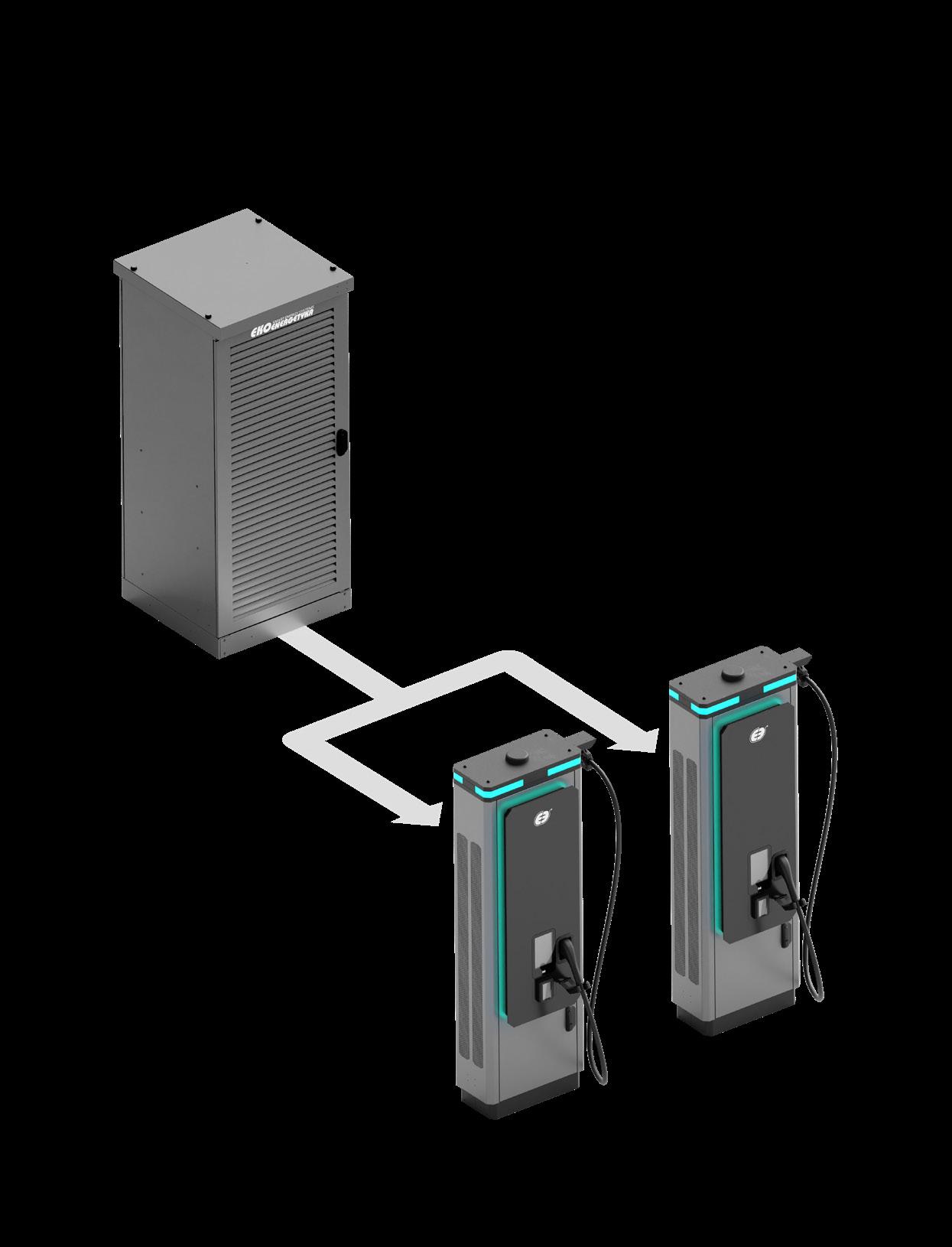

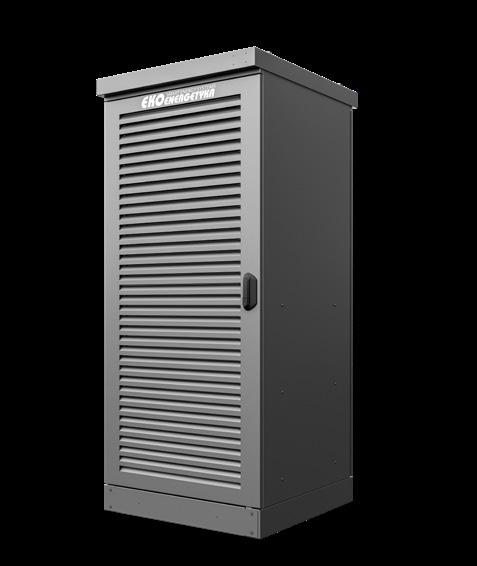

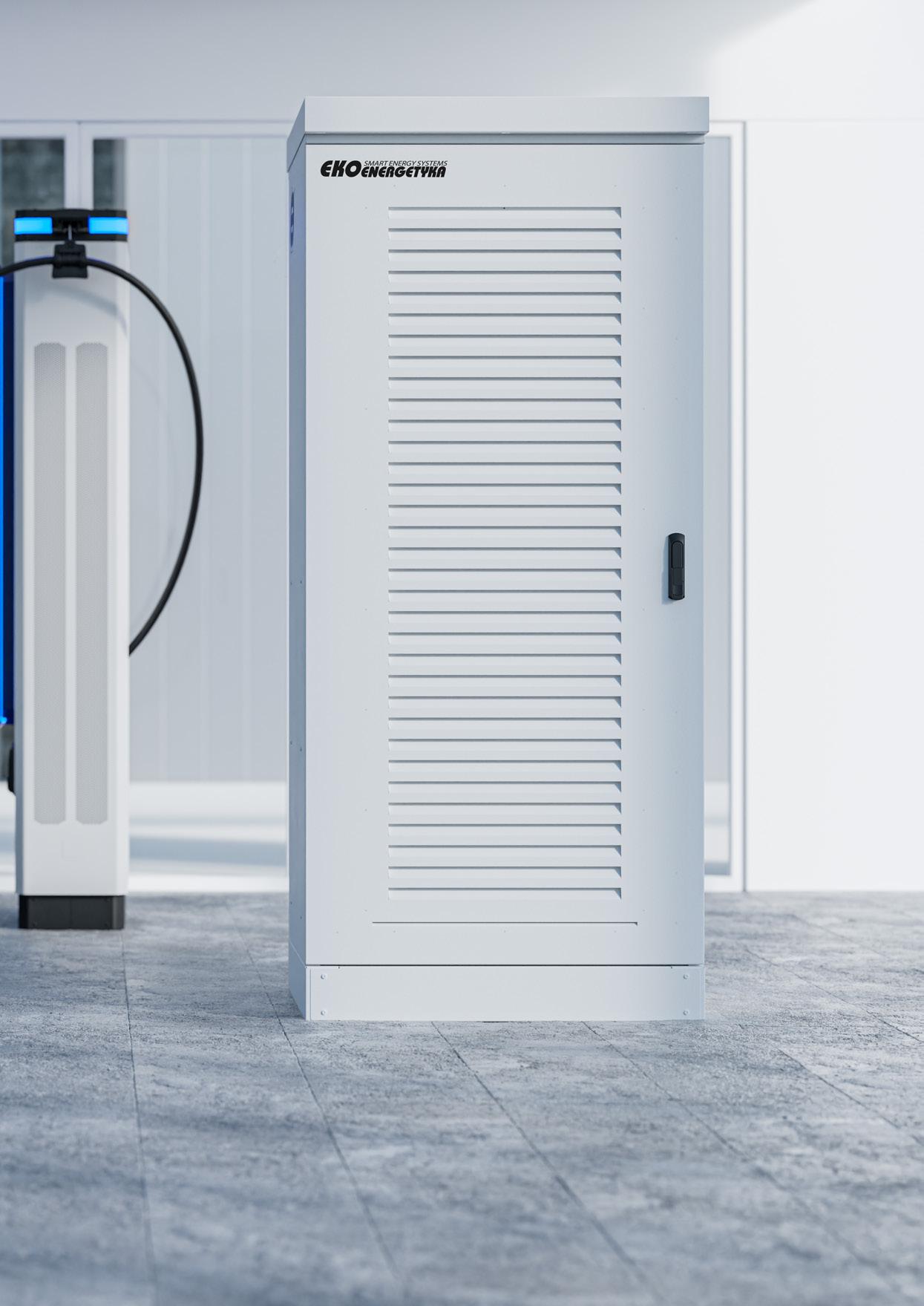

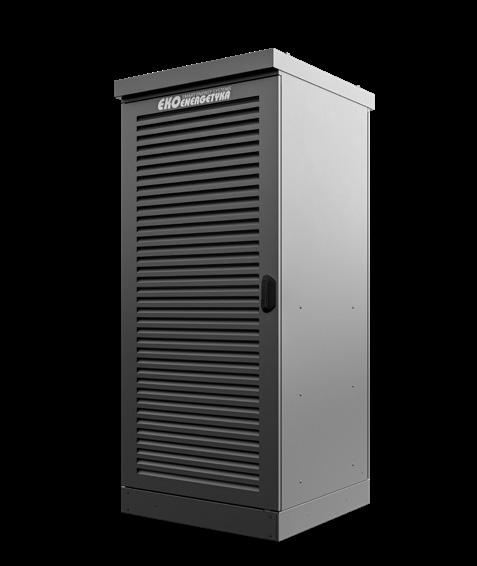

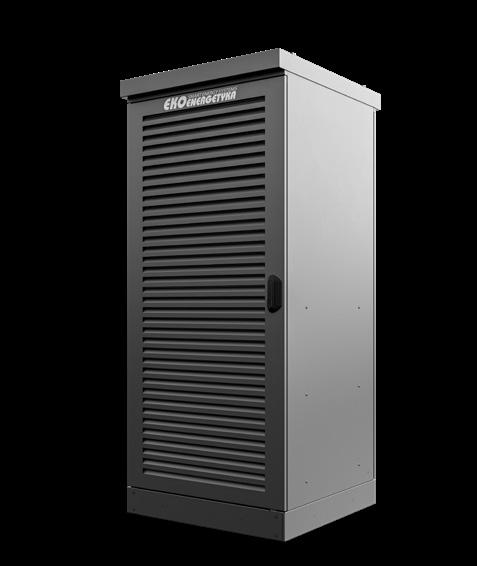

03 POWER UNITS AXON SIDE 360 DLBS

42

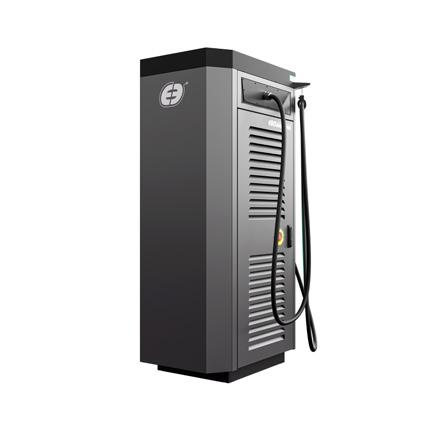

AXON SIDE 400

48

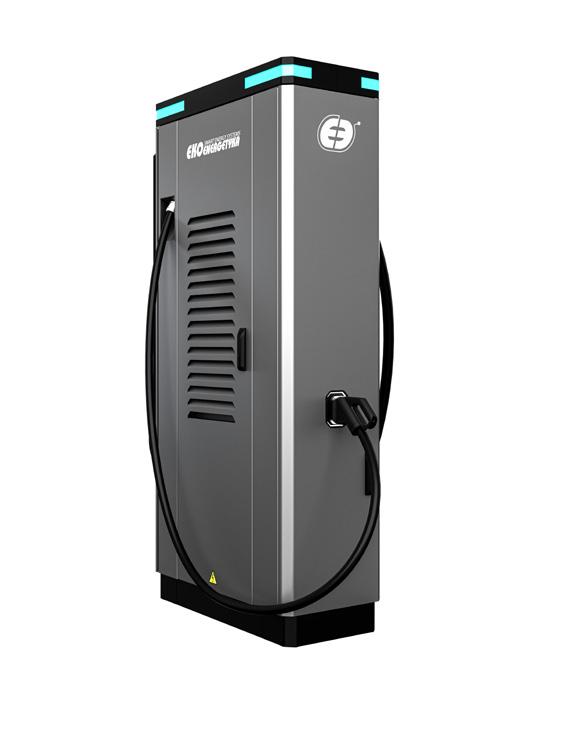

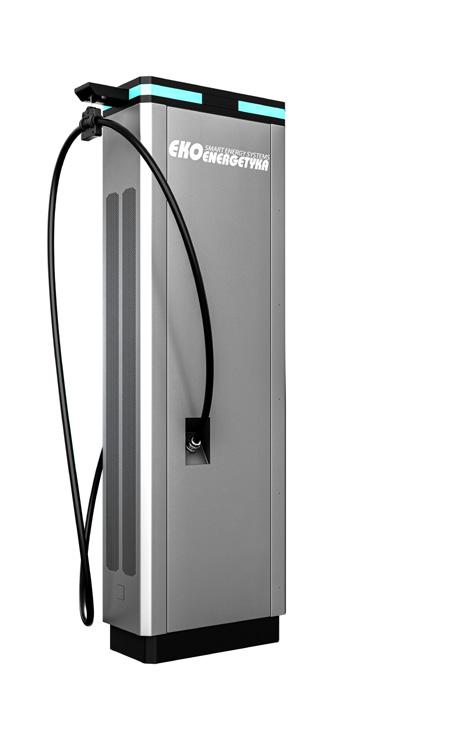

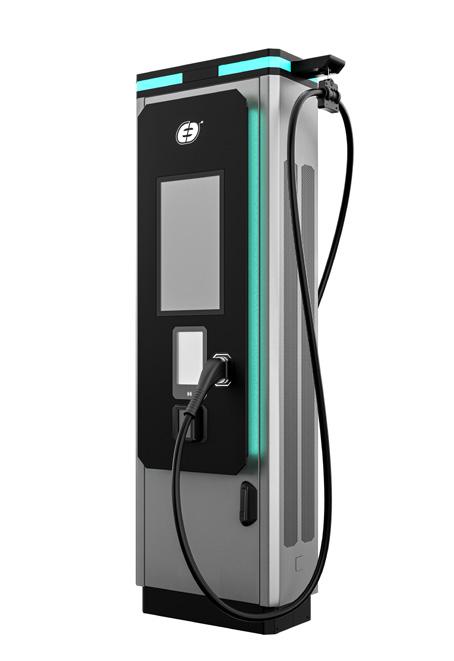

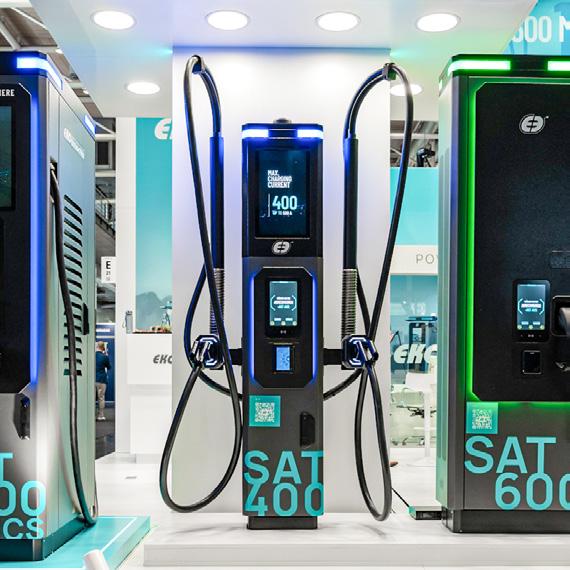

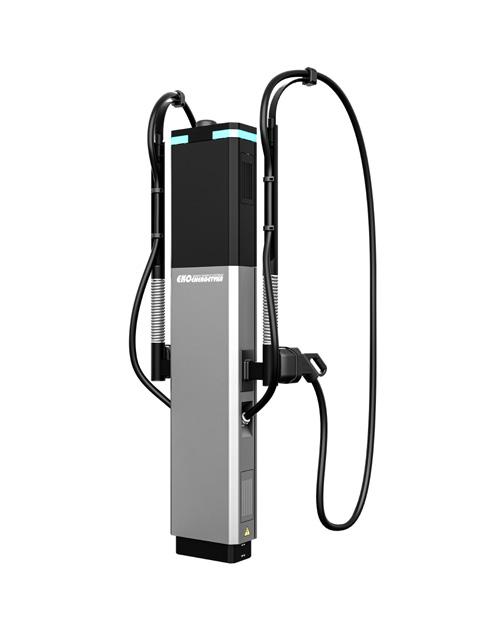

04 SATELLITES SAT 400

56

SAT 600

62

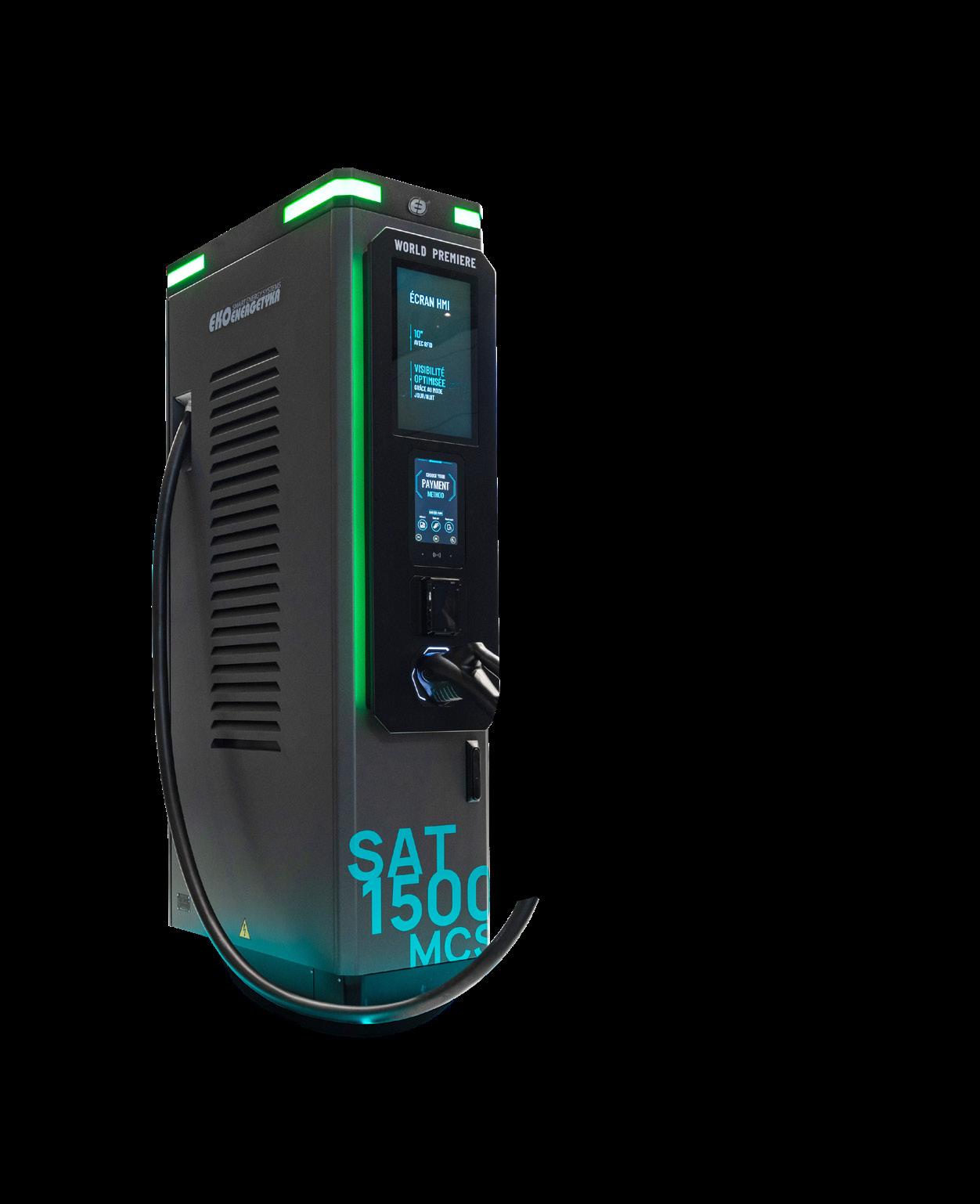

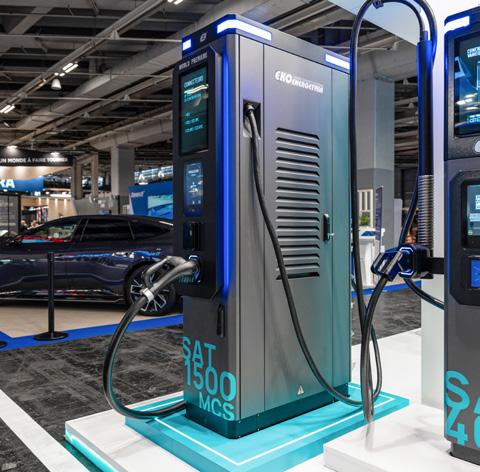

SAT 1500 MCS

68

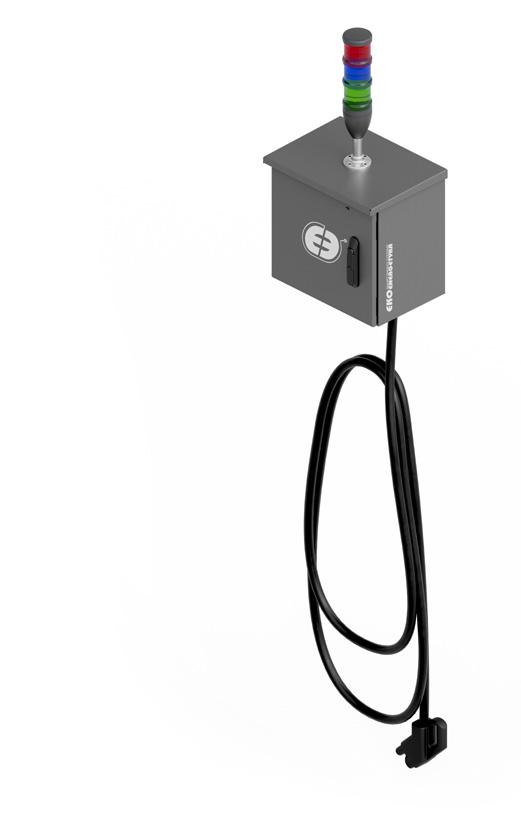

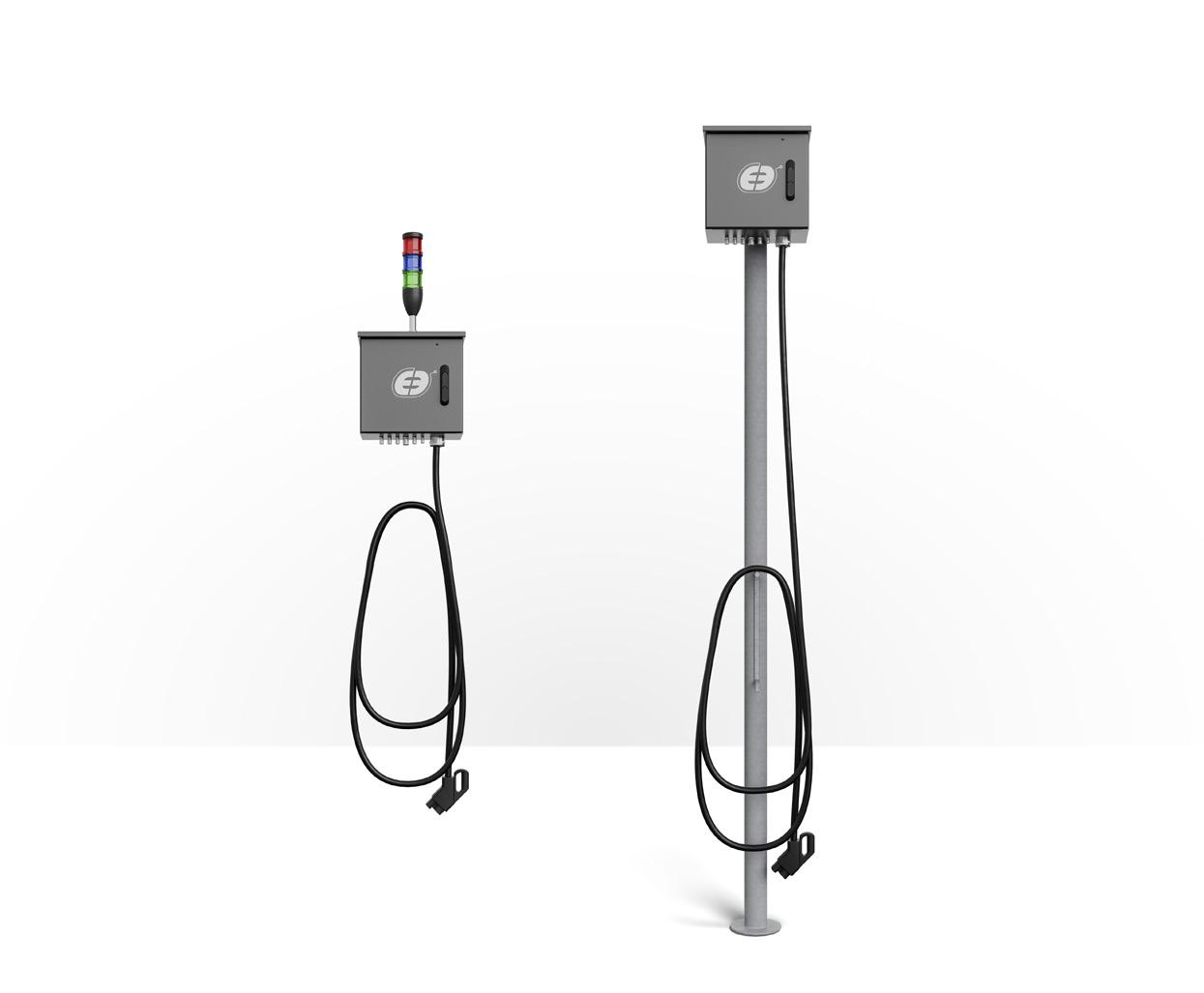

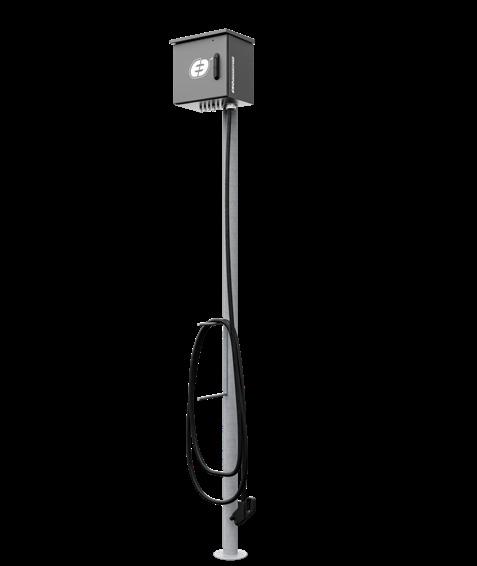

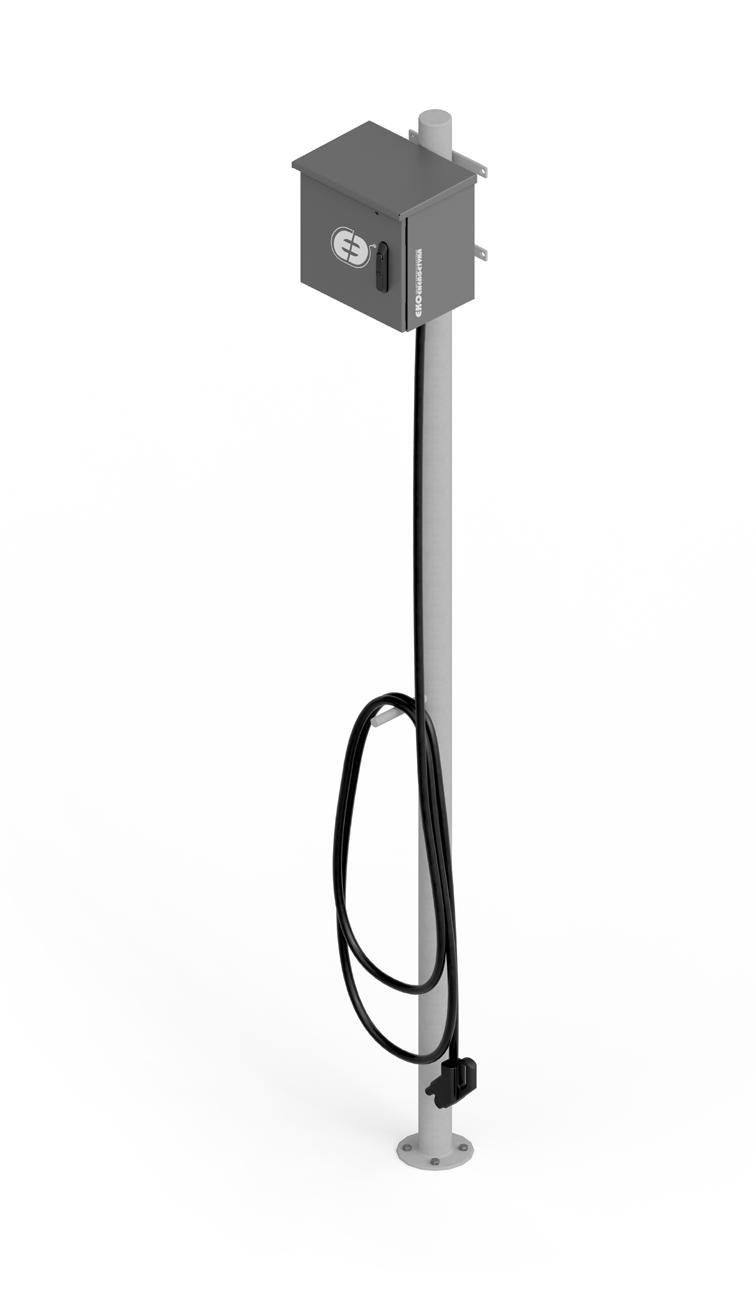

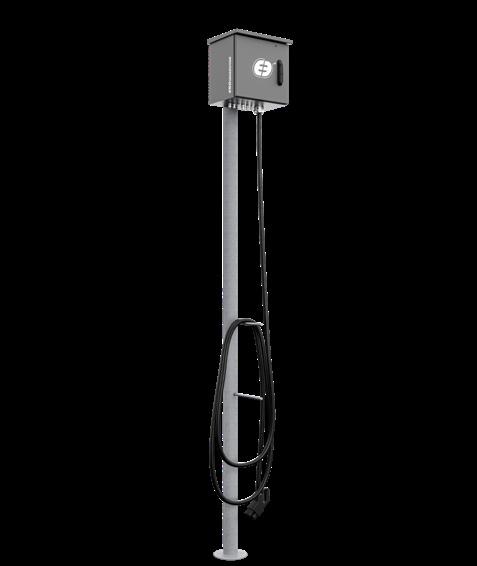

SAT BOX

74

PRODUCT CATALOG EKOENERGETYKA-POLSKA S.A. | 5

01

6 | PRODUCT CATALOG EKOENERGETYKA-POLSKA S.A.

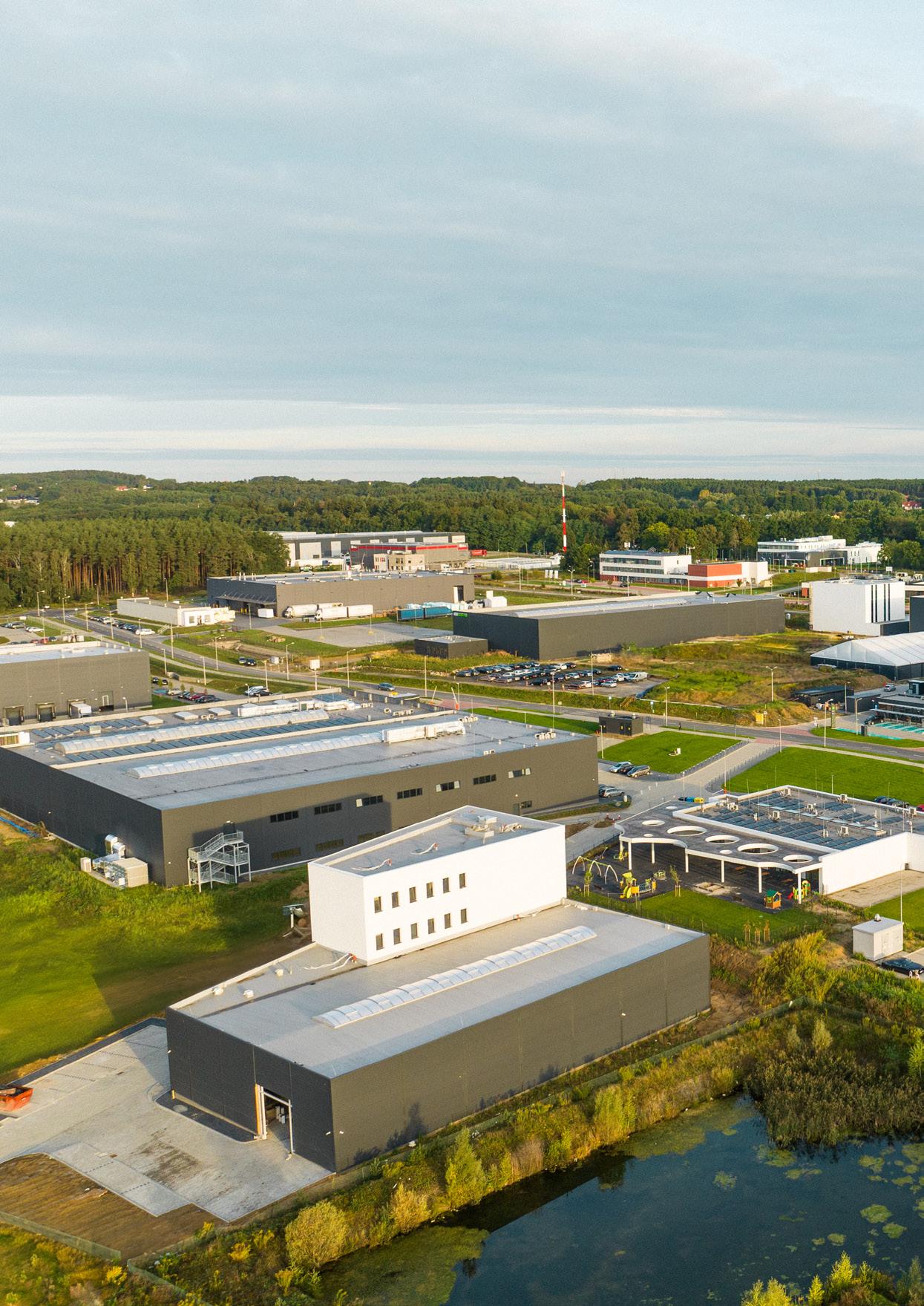

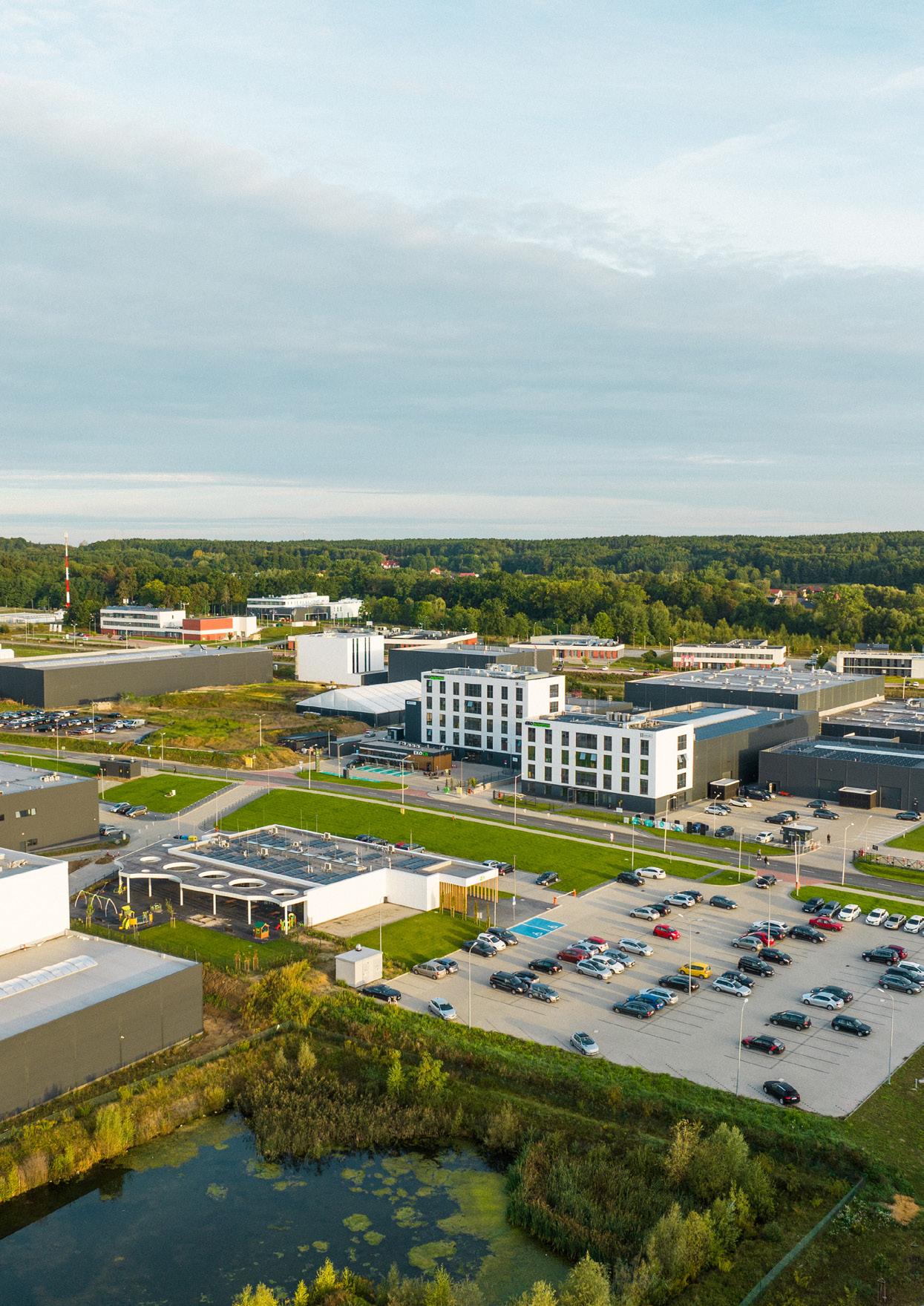

WHO WE ARE At the heart of our mission is a vision to create innovative technology that seamlessly integrates into everyday life, driving a global transformation towards sustainable development.

We are committed to being a part of this environmental and energy revolution, supporting initiatives that promote sustainability in all aspects of society.

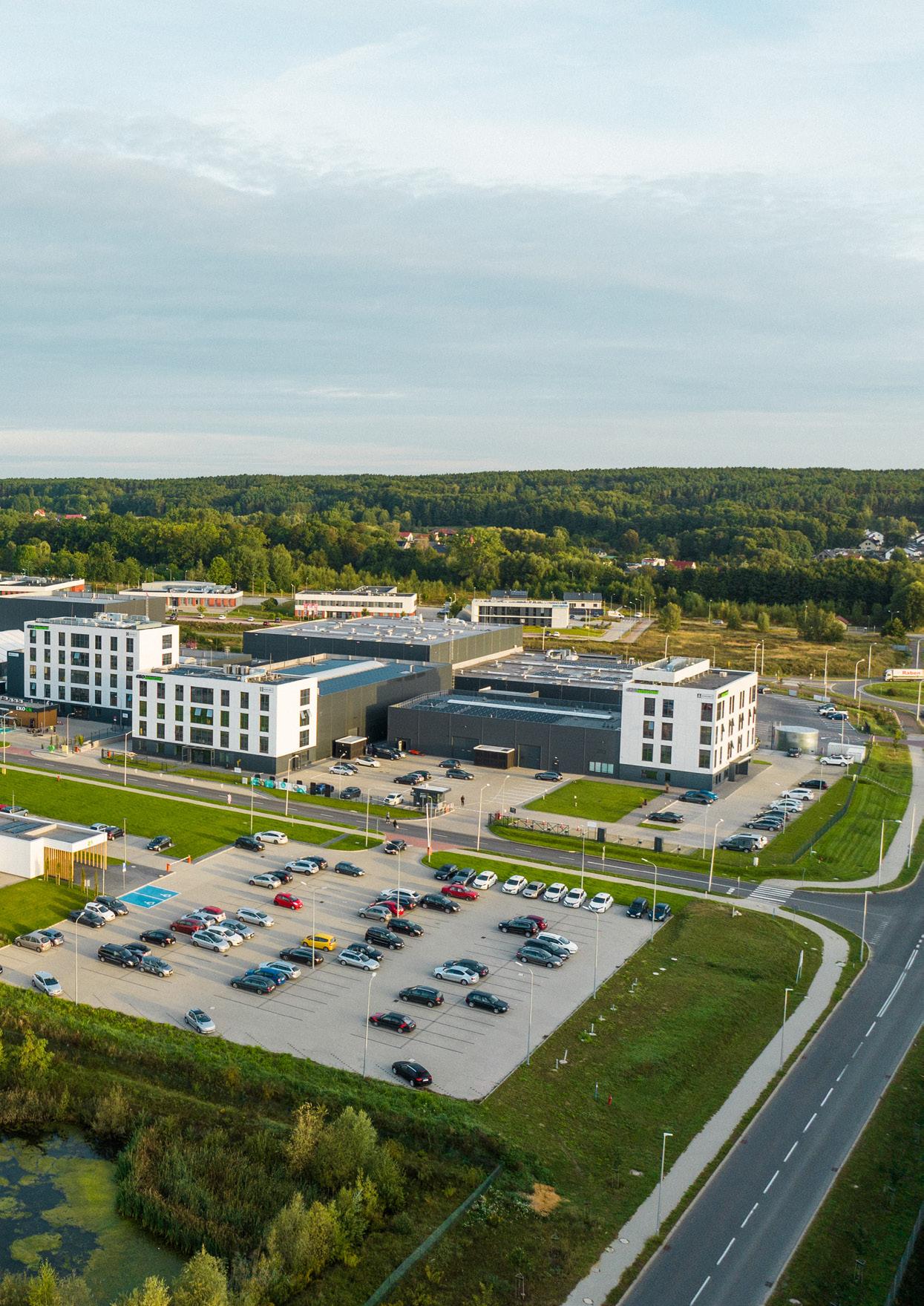

Based in Poland, we design and manufacture our products, ensuring that they meet the highest standards of quality and innovation. Our comprehensive maintenance services accompany our offerings, enabling us to serve customers around the world effectively.

Our success is built on the foundation of our people—their experience, expertise, and unwavering commitment to quality and mutual trust. We employ a diverse team of highly skilled specialists in design, engineering, power electronics, software development, IT solutions, and many other fields. This wealth of talent allows us to continuously advance our technology and increase our participation in the global e-mobility revolution.

With over 12,000 chargers deployed across 40 countries, we are proud to lead the charge in this transformative movement.

Our product development is guided by a keen awareness of global trends and the evolving needs of our customers. This focus shapes our strategic initiatives, ensuring that we deliver technology that effectively meets individual needs while providing increasingly advanced and practical solutions for the future.

At the same time, we are dedicated to enhancing the profitability, attractiveness, and efficiency of our partners’ businesses, including charging station operators and public transport providers.

We prioritize the highest uptime and the lowest total cost of ownership for our customers, reinforcing our commitment to sustainable and effective mobility solutions.

OUR VALUES We strive for progress by continuously developing our technical and intellectual potential. We are dedicated to educating the public on solutions that promote efficiency and environmental responsibility. Guided by the principles of ethics, we contribute to a development model that balances economic, social, and environmental considerations.

Together, we are shaping a sustainable future for all.

PRODUCT CATALOG EKOENERGETYKA-POLSKA S.A. | 7

IN NUMBERS We are pioneers and industry leaders in e-mobility, delivering cutting-edge DC charging solutions for zero-emission passenger cars, eco-friendly heavy transport, and efficient urban buses since 2009.

Our reliable and efficient charging solutions are present in cities like Warsaw, Berlin, Stockholm, Paris, Barcelona, and Munich, underscoring our commitment to making a meaningful global impact.

+12.000 CHARGERS WORLDWIDE

40 COUNTRIES

+10.000 CHARGING CYCLES EVERYDAY

99.7% CHARGING STATIONS AVAILABILITY

8 | PRODUCT CATALOG EKOENERGETYKA-POLSKA S.A.

WE ARE HERE Albania, Andorra, Austria, Belgium, Brazil, Bulgaria, Croatia, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Ireland, Iceland, Israel, Italy, Kosovo, Latvia, Lithuania, Luxembourg, Moldova, Netherlands, New Caledonia, North Macedonia, Norway, Poland, Portugal, Romania, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey, United Kingdom, Uruguay

Offices

Sales Force

Service Teams

MEMBERSHIP IN ORGANISATIONS:

PRODUCT CATALOG EKOENERGETYKA-POLSKA S.A. | 9

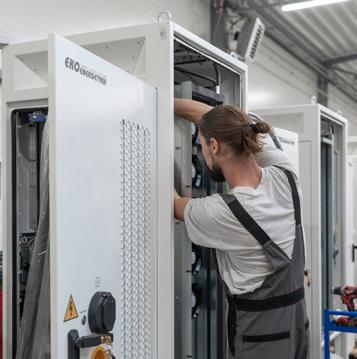

SERVICE THAT MOVES EMOBILITY The key issue in providing fast charging infrastructure is its high availability, which is why at Ekoenergetyka we focus on proven solutions and an efficient technical support network.

We are pioneers of electromobility and one of the leaders among producers of high-power charging infrastructure in Europe.

We believe in the energy transformation and the need for changes towards zero-emission transport. Our goal is to provide durable and reliable fast charging stations and ensure the safe operation of chargers.

We provide: Thanks to our experts and an extensive network of service partners, we provide full service support from regular inspections to quick service.

Comprehensive installation of chargers, required acceptance and commissioning

Inspection and maintenance programs

Active monitoring of charging stations

On-site service

Online support from a multilingual Helpdesk

Technical trainings

Remote diagnosis and repairs

Charging station upgrades

Spare parts

10 | PRODUCT CATALOG EKOENERGETYKA-POLSKA S.A.

PRODUCT CATALOG EKOENERGETYKA-POLSKA S.A. | 11

SERVICES 1 2 3

Comprehensive installation Qualified staff carries out the complete installation of chargers.

During commissioning, our technicians perform the required electrical measurements, conduct a final test and, together with the client, confirm the correct operation of the installed infrastructure.

Active monitoring Supervision of the proper operation of an individual charging station allows you to immediately detect irregularities in its operation and take steps to eliminate disruptions. Active monitoring provides constant access to current loader operating parameters and operation reports, maximizing the charger’s operating time and its availability.

Online support from a multilingual Helpdesk The remote service support center works 24/7, ensuring the assistance to customers in situations that requires support.

We can communicate directly from the headquarters in Poland in many languages, and thanks to local service partners, we can increasingly redirect the request to service points that speak the local language.

4

Remote diagnosis and repairs Our chargers are equipped with remote diagnosis and repair systems as a standard. More than a half of the requests are successfully handled without the need for intervention on-site, which significantly shortens the response time and increases the availability of charging points.

12 | PRODUCT CATALOG EKOENERGETYKA-POLSKA S.A.

5 6 7 8 9

Spare parts We manage the stock of spare parts in our warehouse in Poland and a network of consignment warehouses abroad. We want to be sure that in a critical situations the customer can count on our effective help. In the area of ​​logistics, we cooparate with the renowned international carrier to shorten the shipping time to a minimum.

Inspection and maintenance programs Based on several years of experience, we have developed comprehensive inspection and maintenance programs, successfully protecting the chargers for many years of operation. As a part of the inspections, the technical condition of equipment is verified, and consumable parts are replaced.

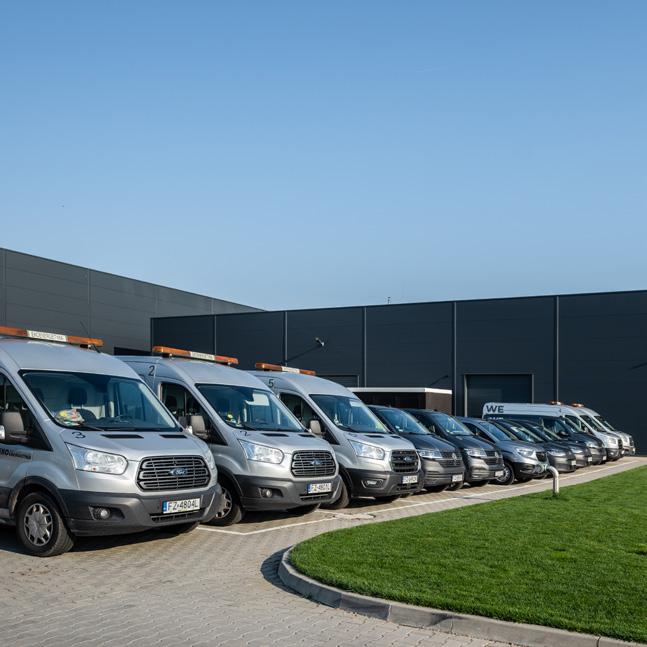

On-site service Ekoenergetyka Service is a company employing over 100 people dealing exclusively with service and after-sales services.

With the development of our network of service partners, we are present in nearly every country in Europe. Thanks to this, we come when called, if the situation requires it. By remaining in constant contact with the charging station owner, we take care of the infrastructure.

Technical training A professional Training Center provides multiple training programs for partners and customers which contains both lectures and practical workshops with the use of charging stations. Each training program ends with a certificate for participants.

Charging station upgrade Selected charging station models have been designed to allow later upgrades. We offer the possibility to increase the output power for selected chargers, software updates and extensions of the control system with additional functions not selected at the initial stage. The scope of the offer also includes intelligent energy management tools and advanced analytical diagnostic tools.

PRODUCT CATALOG EKOENERGETYKA-POLSKA S.A. | 13

14 | PRODUCT CATALOG EKOENERGETYKA-POLSKA S.A.

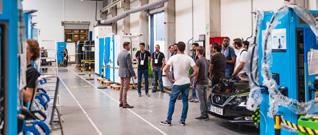

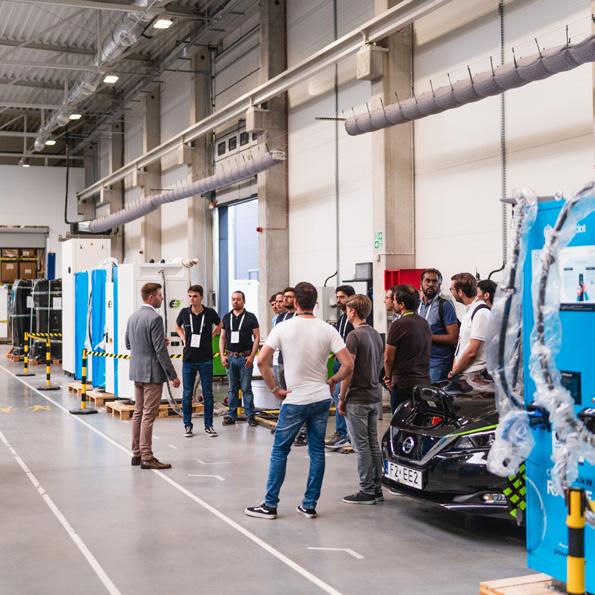

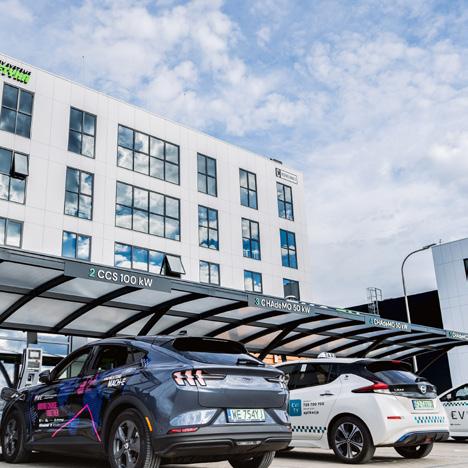

TRAINING CENTER TRAINING FOR OUR PARTNERS AND CUSTOMERS As part of our co-operation with Ekoenergetyka-Polska S.A., we provide our partners and customers with access to comprehensive authorisation and development training courses. These consist of on-site training in our laboratories, practical classes and online workshops. All training courses are conducted by qualified trainers who are experienced in the e-mobility industry.

Training programmes are designed specifically for our business partners. In the case of service co-operation, an authorisation training course, ending with an online test, is required and entitles you to carry out installation, service and repair works on your own. This certificate confirms your authority to represent Ekoenergetyka in the area covered by the training programme.

Our training courses provide our partners' employees with the necessary knowledge of EV charging stations. Upon the completion of the selected programme, participants will have a comprehensive understanding of our products, their characteristics and benefits.

We also support our partners and customers in the development of internal e-mobility teams from the ground up, starting with basic knowledge of the industry, the principles of EV operation, up to the technical issues of how EV charging infrastructure works in practice.

We are helping to shape the future of the industry not only in the area of technology, but also in securing key competencies and talent.

– Bartosz Kubik, The President of EPP S.A.

PRODUCT CATALOG EKOENERGETYKA-POLSKA S.A. | 15

7 TECHNICAL LABORATORIES

3 TRAINING ROOMS SHOWROOM WITH CHARGERS

A LECTURE HALL FOR 100 PERSONS

16 | PRODUCT CATALOG EKOENERGETYKA-POLSKA S.A.

Training courses focused on building practical skills to authorise independent service and installation.

Technical trainers with many years of hands-on experience in the e-mobility industry.

A comfortable lobby and a coffee bar, delicious lunches.

EV charging station available for free to the training participants.

Practical exercises and tests using an electric car.

Online evaluation meetings after the training with the ETC trainers.

PRODUCT CATALOG EKOENERGETYKA-POLSKA S.A. | 17

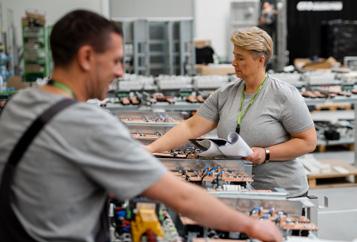

RESEARCH AND DEVELOPMENT Our goal is to provide reliable products of the highest quality. As a technology company, we implement it through our commitment to research projects, unique know-how and perfect workmanship.

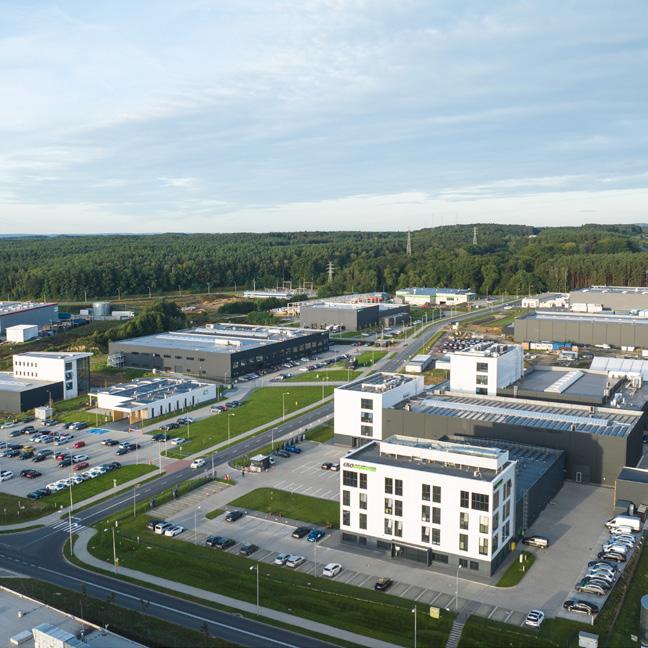

We create our own process lines, new halls and the Centre for Strategic Innovative Solutions for the development of electromobility. Although the main focus of our business operation remains the charging infrastructure for battery-powered electric vehicles.

Ekoenergetyka’s world-class EV charger testing facility includes an electromagnetic compatibility (EMC) test chamber, a thermal chamber for testing equipment at extreme temperatures, and an anechoic chamber for testing noise and electromagnetic radiation emitted by chargers. These facilities enable Ekoenergetyka to accelerate the testing, prototyping, compliance and certification of its equipment.

We operate 4 R&D Centres.

We have the most extensive R&D experience in the emobility industry

We conduct a number of research projects focused on current market needs.

Over 50% of our staff are engineers 18 | PRODUCT CATALOG EKOENERGETYKA-POLSKA S.A.

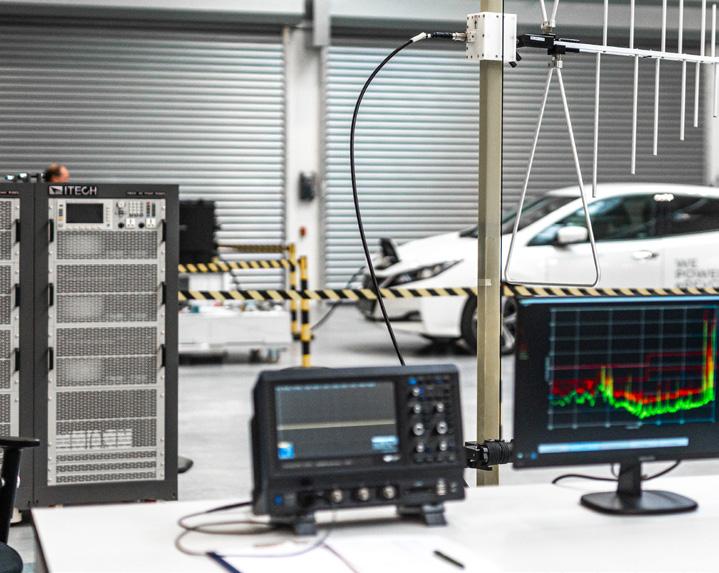

R&D TESTING CAPABILITIES AT EKOENERGETYKA Every charger we develop undergoes a full-cycle testing process to ensure quality, safety, and durability.

Our in-house laboratories simulate real-world conditions and comply with the highest international standards—shortening certification times and delivering proven performance to our customers.

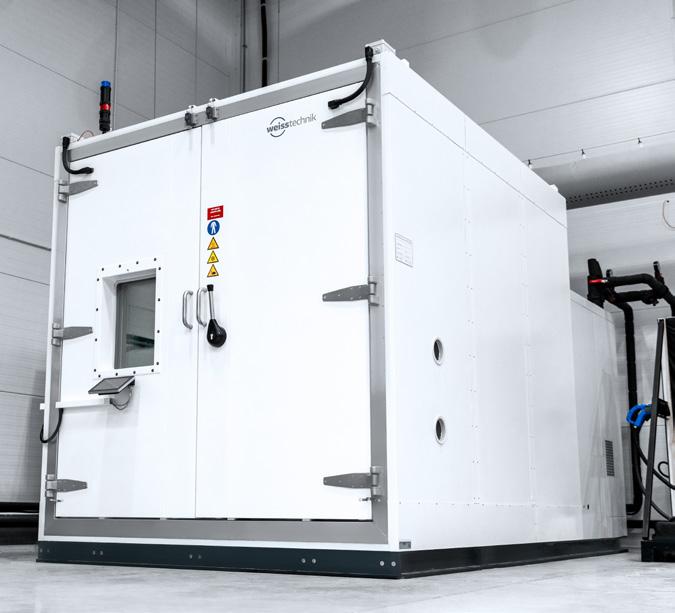

Environmental testing Extreme temperature and humidity resistance Conditions: -35°C to +55°C, high humidity, 24-hour to 24-day test cycles Application: Long-term station operation in harsh climates Proven in: Axon Easy – reliable in all weather conditions

Safety testing User and device protection Scope: Electrical insulation, surge resistance, protective conductor continuity Compliance: Current and upcoming EU safety regulations Focus: Risk prevention and regulatory readiness

IP & IK protection testing Protection against water, dust, and physical impact Method: IP (Ingress Protection) and IK (Impact Protection) tests using pendulum hammers and water jets Results: High resilience in outdoor public environments

Accelerated aging testing Long-term material durability Simulated exposure: UV radiation, heat, and humidity Outcome: Only components meeting lifetime quality standards are approved Result: Extended product life and reliability

20 | PRODUCT CATALOG EKOENERGETYKA-POLSKA S.A.

Functional & electrical testing Noise level assessment for public and residential spaces Facility: Dedicated acoustic chamber Result: Axon Easy: below 60 dBA Benefit: Quiet, unobtrusive operation

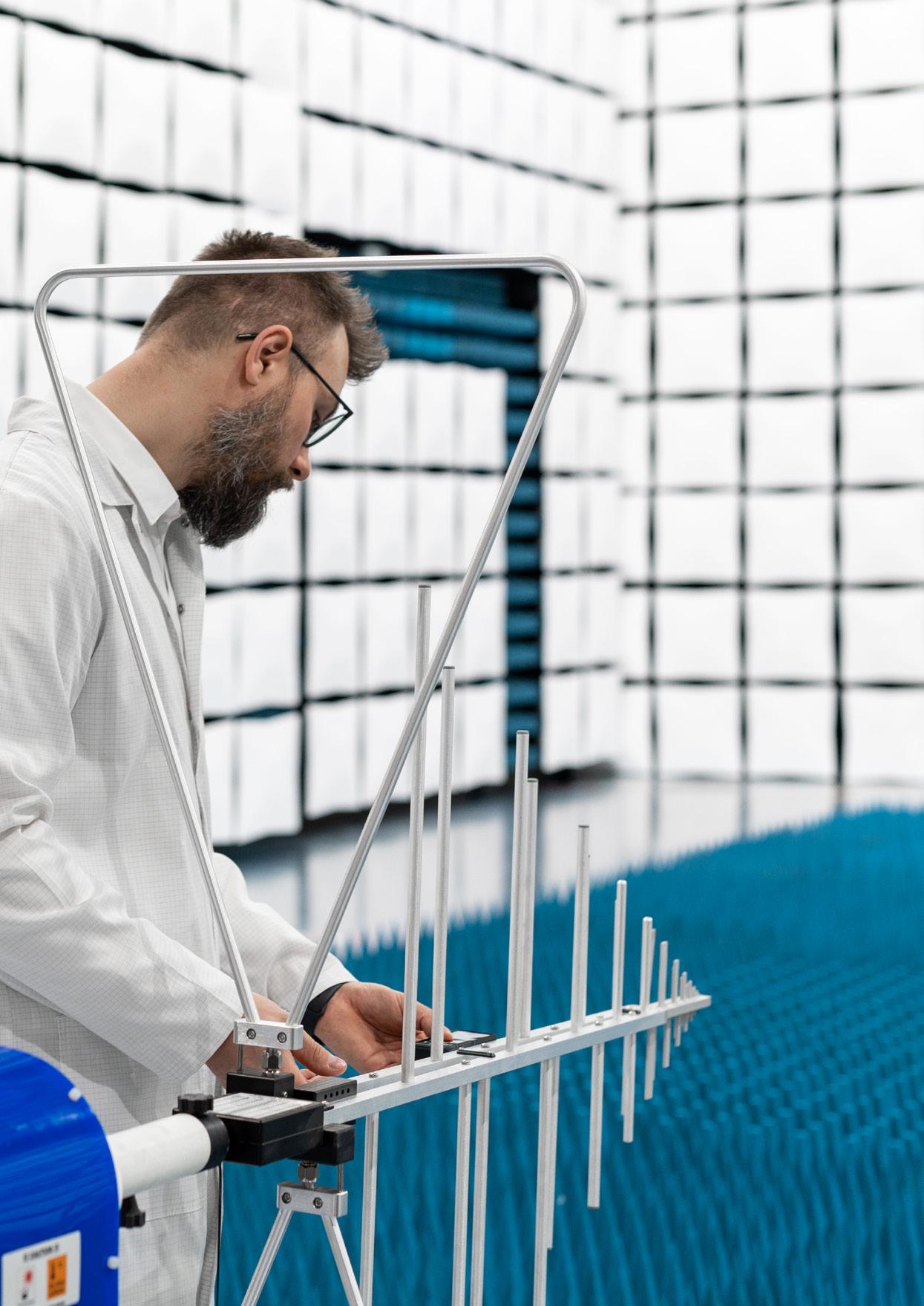

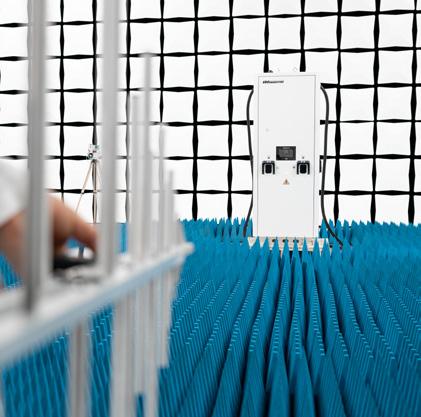

Electromagnetic compatibility (EMC) testing Ensure stable operation in high-interference environments Facility: Largest standard EMC chamber in Europe Scope: Up to 800 A and beyond Goal: No interference, full compliance Standards achieved: Class A (Axon Easy 180/400 kW, SAT 400, SAT 600), selected models reach Class B

Corrosion resistance testing Longevity in corrosive environments Method: Salt fog chambers simulating coastal exposure Goal: Durability of external materials under extreme conditions

Acoustic testing Noise level assessment for public and residential spaces Facility: Dedicated acoustic chamber Result: Axon Easy: below 60 dBA Benefit: Quiet, unobtrusive operation

PRODUCT CATALOG EKOENERGETYKA-POLSKA S.A. | 21

SOFTWARE THAT MOVES EMOBILITY Empowering charging stations with software intelligence.

At the core of Ekoenergetyka’s cutting-edge electric vehicle charging stations lies advanced software, designed and implemented by our expert teams. We develop both embedded software, which is an integral part of our charging stations, and sophisticated systems for monitoring and managing charging infrastructure, as well as solutions enabling payment process management for eMSPs (e-Mobility Service Providers).

Our proprietary software gives us full control over every stage of the process – from design and implementation to deployment – ensuring the highest quality and compliance with international standards.

Ekoenergetyka’s solutions – both our charging stations and backend systems – fully comply with international industry standards such as ISO 15118, DIN 70121, and OCPP. This ensures the highest level of interoperability with various vehicle manufacturers, allowing our charging stations to be seamlessly integrated with systems and infrastructure, including solutions provided by other manufacturers, guaranteeing maximum flexibility and universal applicability.

22 | PRODUCT CATALOG EKOENERGETYKA-POLSKA S.A.

Our commitment to software excellence.

Security & Cybersecurity Our charging station software meets the highest standards for data and system protection.We implement advanced cybersecurity mechanisms such as encryption, multi-level authorization, and continuous threat monitoring to ensure the complete security of users and infrastructure.

Reliability We understand that operational stability is a key element in effectively managing charging infrastructure.

Our solutions undergo rigorous testing, and with intelligent monitoring algorithms and remote diagnostics, we minimize the risk of failures and maximize system availability.

Interoperability We ensure that our products and software solutions comply with the dynamically evolving international standards. Our in-house software engineering team enables us to respond quickly to changes. Our charging stations are tested using advanced, dedicated testing devices and modern vehicles through our partnerships.

We actively participate in CharIN Testivals, OCA PlugFests, and other industry events worldwide, where we test compatibility and exchange knowledge with global technology leaders to ensure our solutions always align with the latest e-mobility standards.

Continuous Innovation We develop cutting-edge solutions by integrating the latest technologies to deliver advanced, efficient, and future-ready systems.

Flexibility & Optimization We prioritize flexibility and continuous improvements, striving for perfection in our products. Our charging stations offer extensive configuration options, allowing them to be tailored to diverse needs and applications.

NORMS AND STANDARDS Our software meets international industry requirements, ensuring full compliance with applicable regulations and protocols. As a result, we guarantee interoperability, safety and reliability of charging systems.

ISO 15118-2, ISO 15118-20 (soon)

Plug & Charge compliant with ISO 15118-2

DIN 70121

OCPP 1.6-J and 2.0.1

CCS1 and CCS2

VDV 261

OppCharge

Eichrecht

NACS

MCS

IEC 61851 PRODUCT CATALOG EKOENERGETYKA-POLSKA S.A. | 23

COOPERATION AND PARTNERSHIPS As an active member of CharIN and OCA, we play a key role in shaping global electric vehicle charging standards.

Our involvement in organizations such as PKN - IEC further strengthens our ability to drive the future of e-mobility.

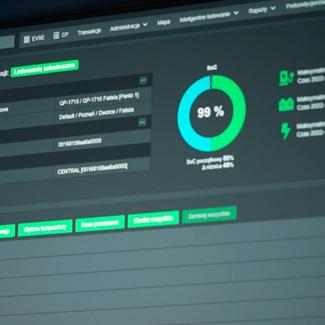

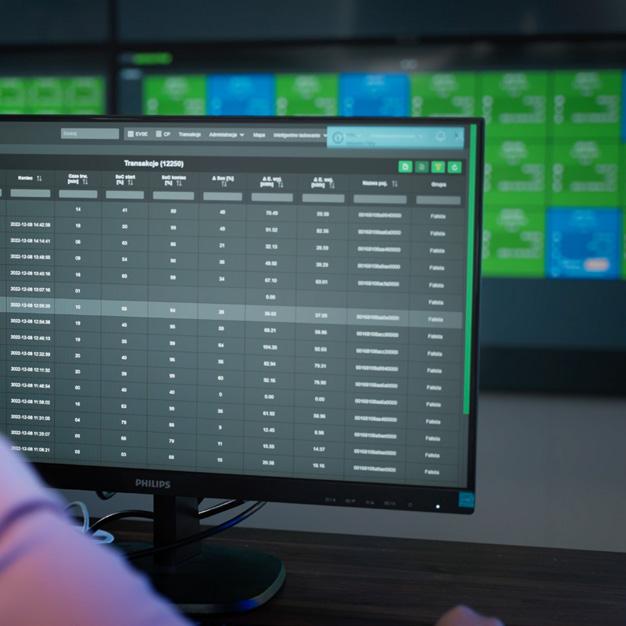

CPO BECKEND SYSTEM The dedicated backend system for Charge Point Operators(CPOs) forms the foundation for effective electric vehicle charging infrastructure management.

We offer it in two packages: EOS Access, a basic tool for monitoring charging stations, and EOS Essential, which provides operators with full control over charging stations, from access management to advanced data analytics.

Within the EOS Essential package, the following modules are available: EPG (Ekoenergetyka Power Guard) EVC (Ekoenergetyka Vehicle Comfort) Our solutions enable cost optimization, enhanceduser experience, and business growth in the rapidly expanding e-mobility sector. By choosing oursolutions, you gain reliable tools that support your company in achieving both business and environmental goals.

24 | PRODUCT CATALOG EKOENERGETYKA-POLSKA S.A.

EMSP BACKEND SYSTEM Ekoenergetyka’s backend system for Electric Mobility Service Providers (eMSP) is a comprehensive solution designed to enhance the efficiency of managing electric vehicle charging networks.

We offer a core backend system for eMSPs – Eko.charge, along with optional extensions such as EPG (Ekoenergetyka Power Guard), Eko.fleet, Eko.driver, and ECS, which provide full control over the charging process, user interactions, and fleet management.

Our technologies enable operators to optimize their operations, improving service quality and reducing operational costs. With flexible solutions like Eko.fleet and Eko.driver, drivers can enjoy a seamless charging experience, while businesses maintain full control over their fleet and billing processes. In this way, our solution supports the growth of electromobility, making it more accessible and efficient.

ADDITIONAL SOFTWARE SOLUTIONS FOR ENHANCED PERFORMANCE Ekoenergetyka offers advanced software solutions designed to optimize the performance of electric vehicle charging infrastructure.

The Local Smart Charging Controller (LSCC) Manages power distribution across multiple charging stations, ensuring optimal energy use, preventing overloads, and improving overall efficiency.

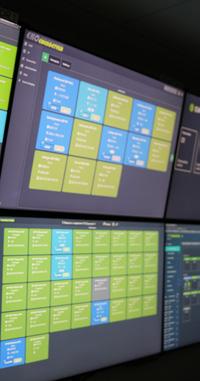

The Charger Management Console (CMC) Provides a reliable, intuitive tool for diagnostics and configuration of Ekoenergetyka’s charging stations. Ideal for both single-station users and operators of large-scale CSMS systems, CMC offers easy access to station management features.

PRODUCT CATALOG EKOENERGETYKA-POLSKA S.A. | 25

02

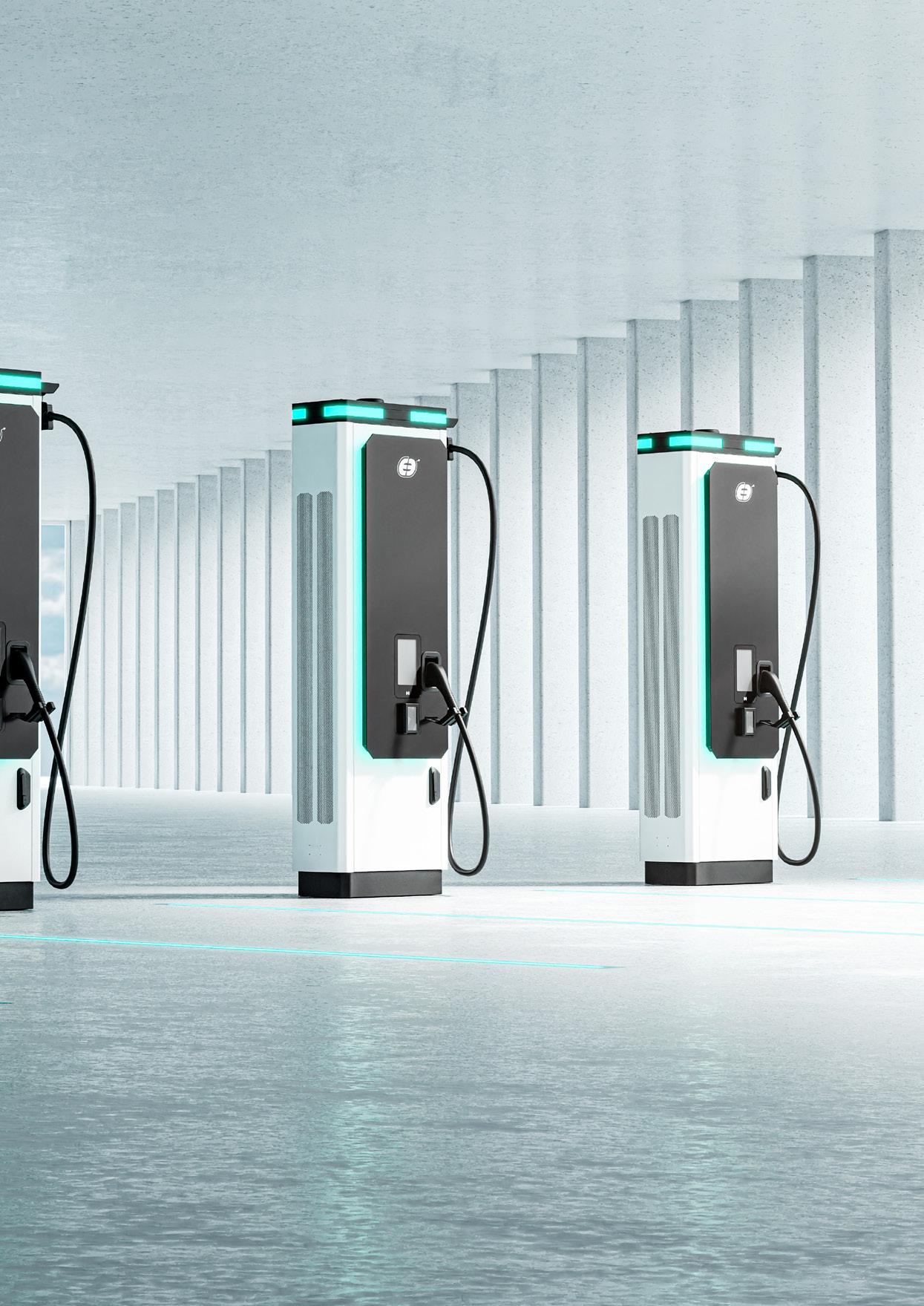

ALL IN ONE AXON EASY 180 AXON EASY 400 Charging stations (DC), supporting all electric vehicles, providing fast and friendly charging. These versatile and innovative devices are suitable for integration with all charging service providers. Great for many demanding locations. Stationary chargers, ready for use.

26 | PRODUCT CATALOG EKOENERGETYKA-POLSKA S.A.

PRODUCT CATALOG EKOENERGETYKA-POLSKA S.A. | 27

ALL IN ONE

EV

E-VAN

E-BUS

E-TRUCK

PRODUCT APPLICATION

Expressways

Parkings

Airports

Charging stations

City centers

Commercial areas

28 | PRODUCT CATALOG EKOENERGETYKA-POLSKA S.A.

VISIT OUR WEBSITE

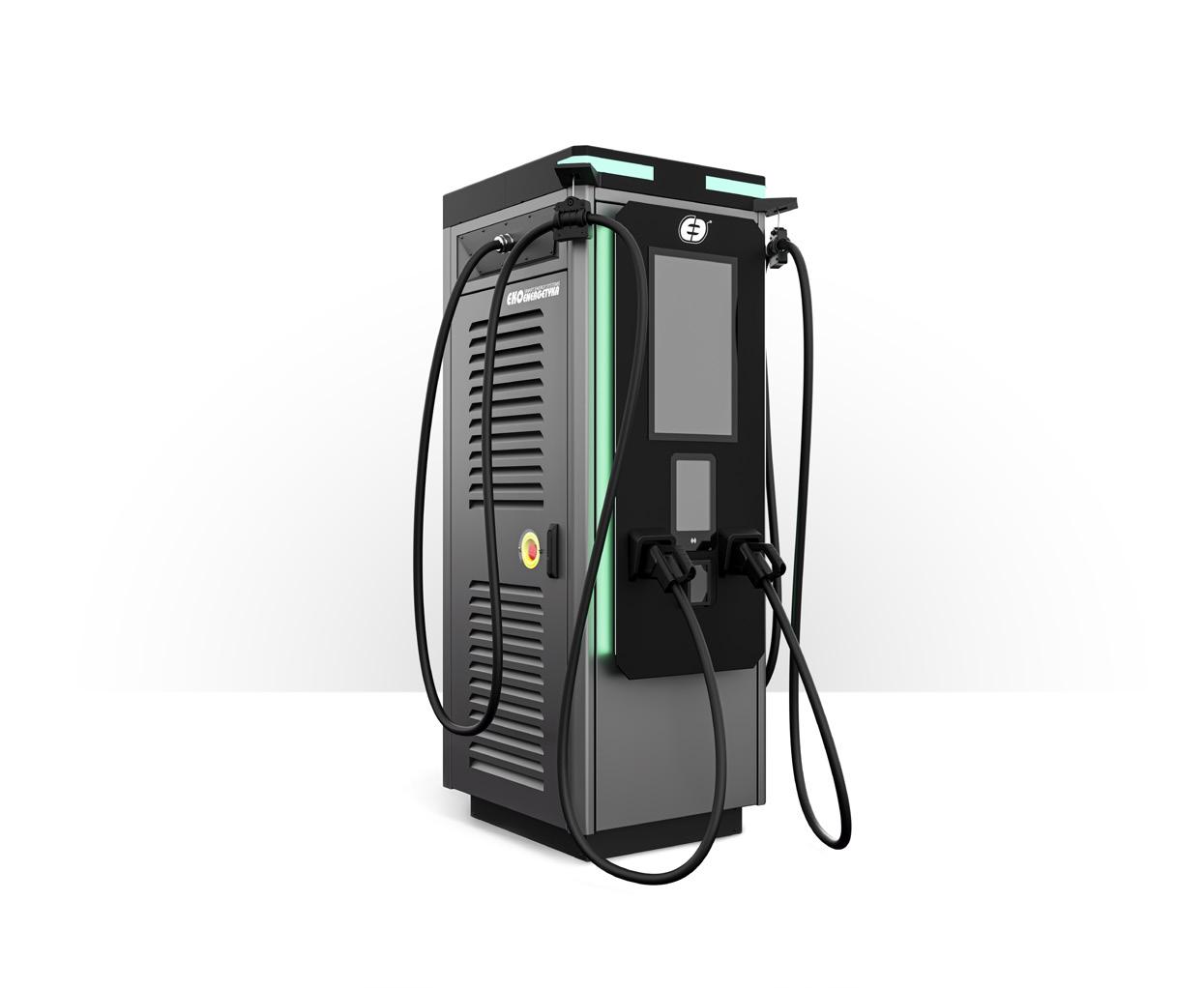

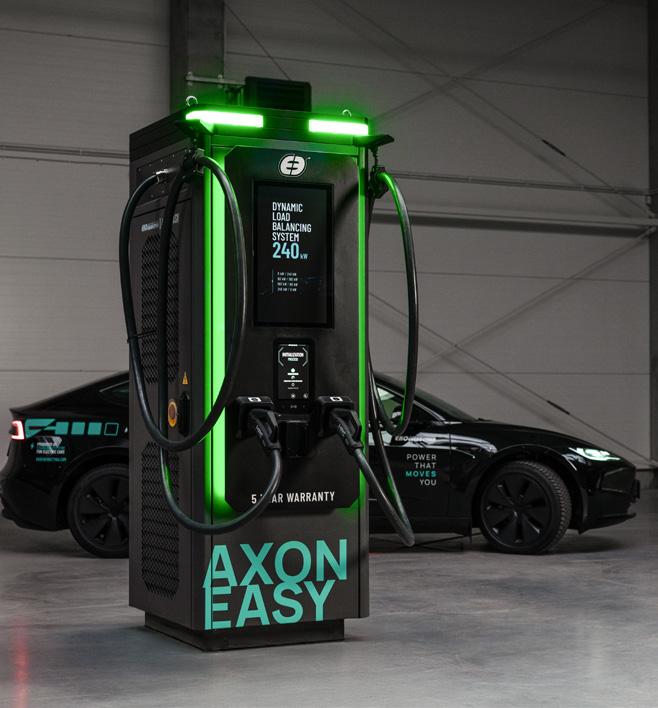

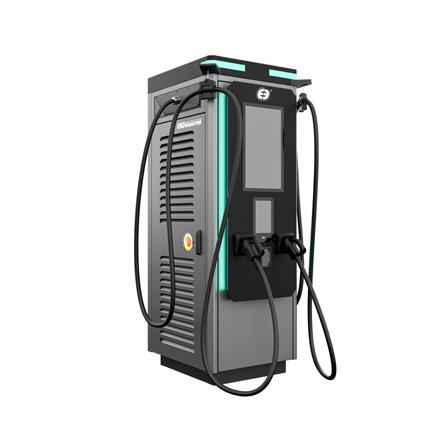

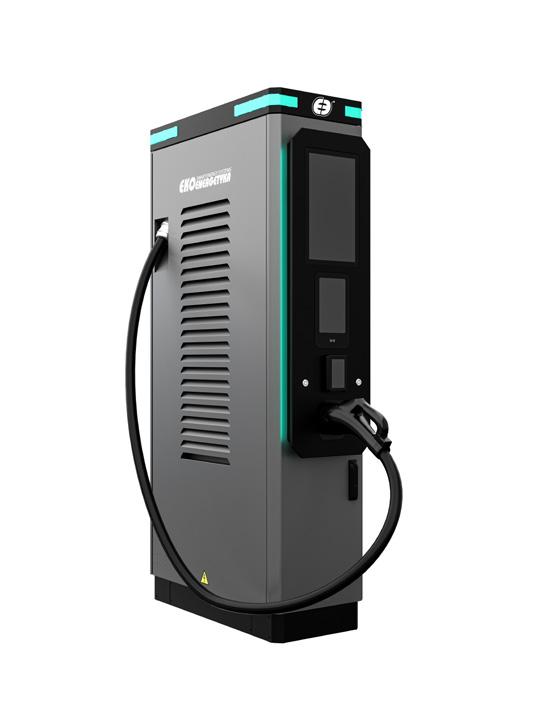

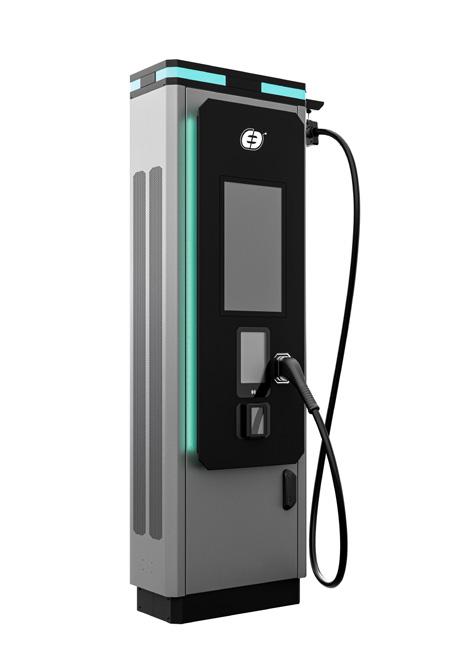

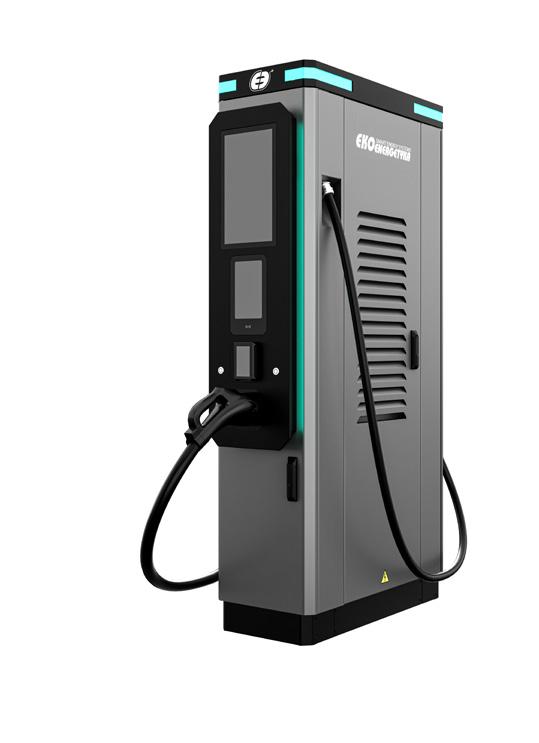

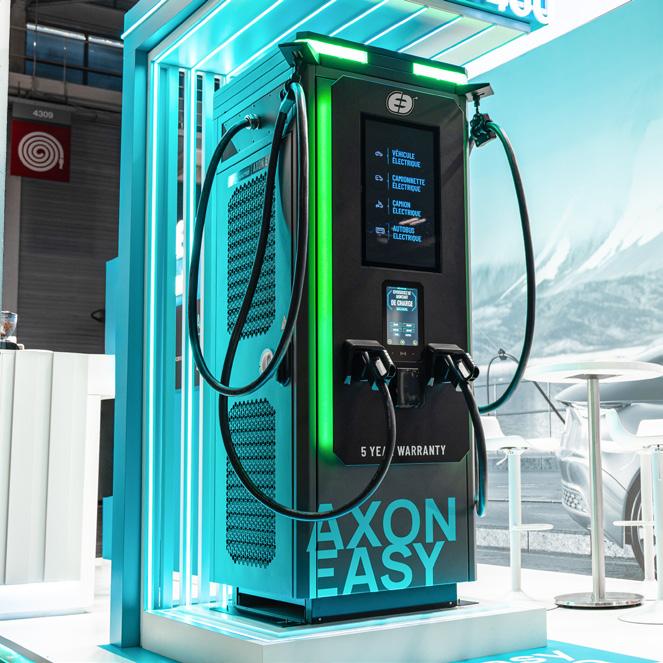

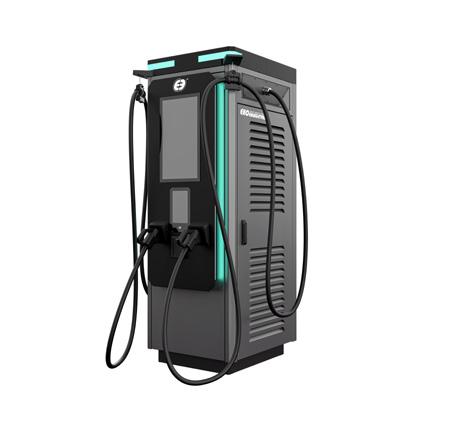

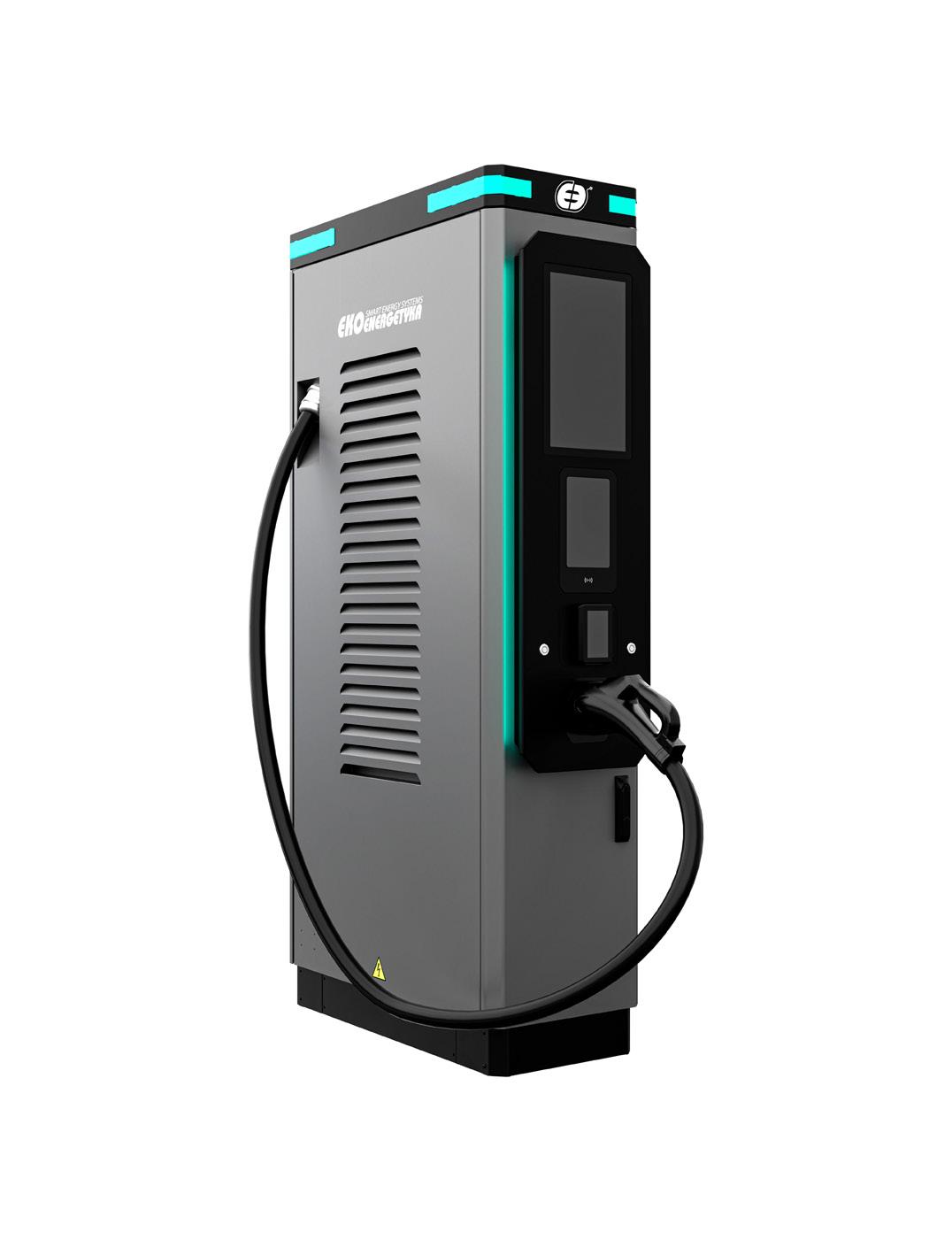

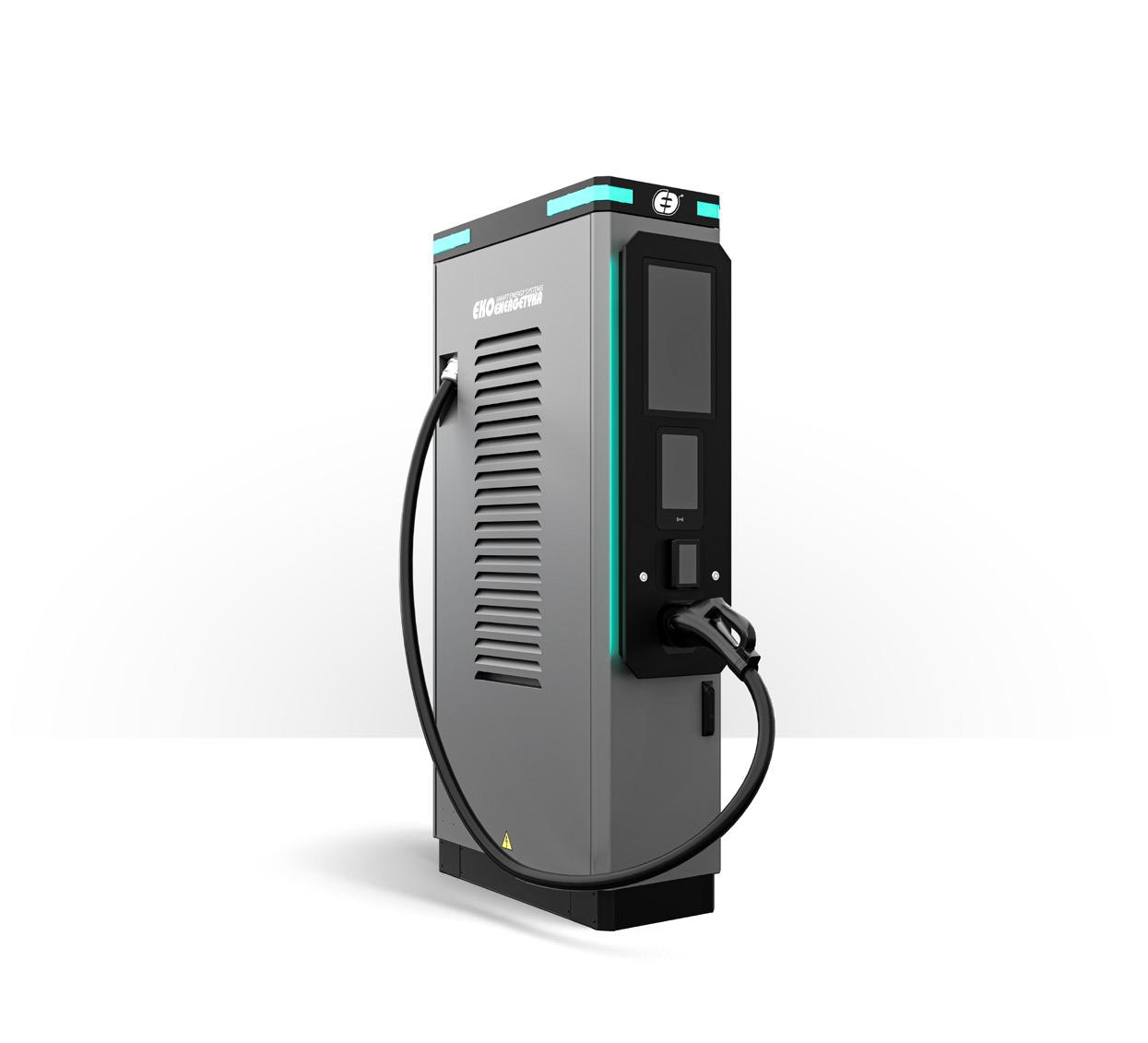

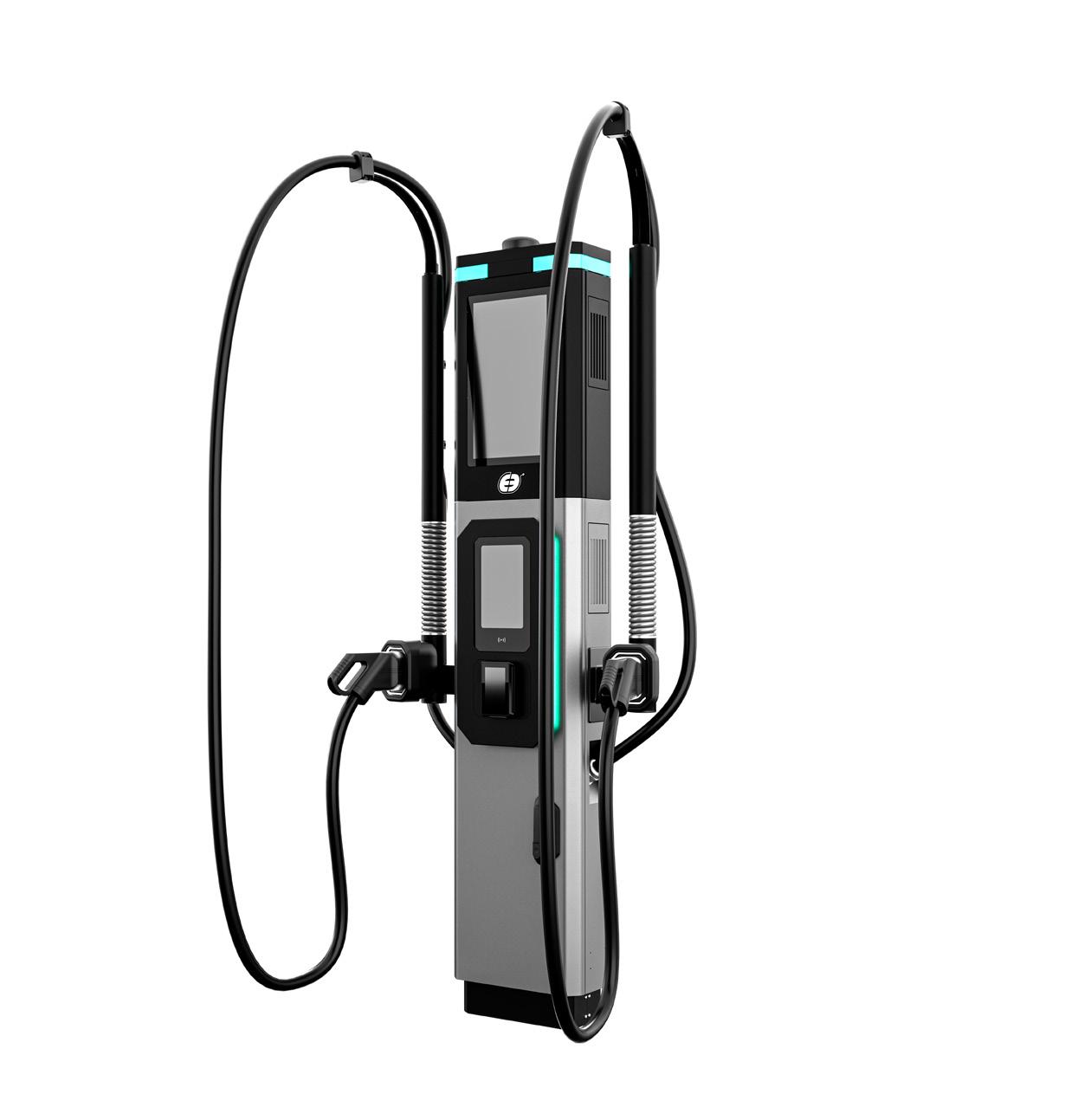

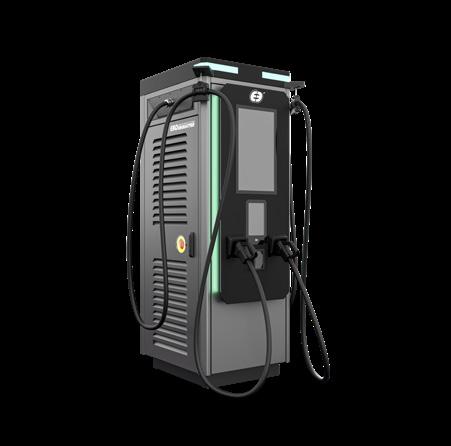

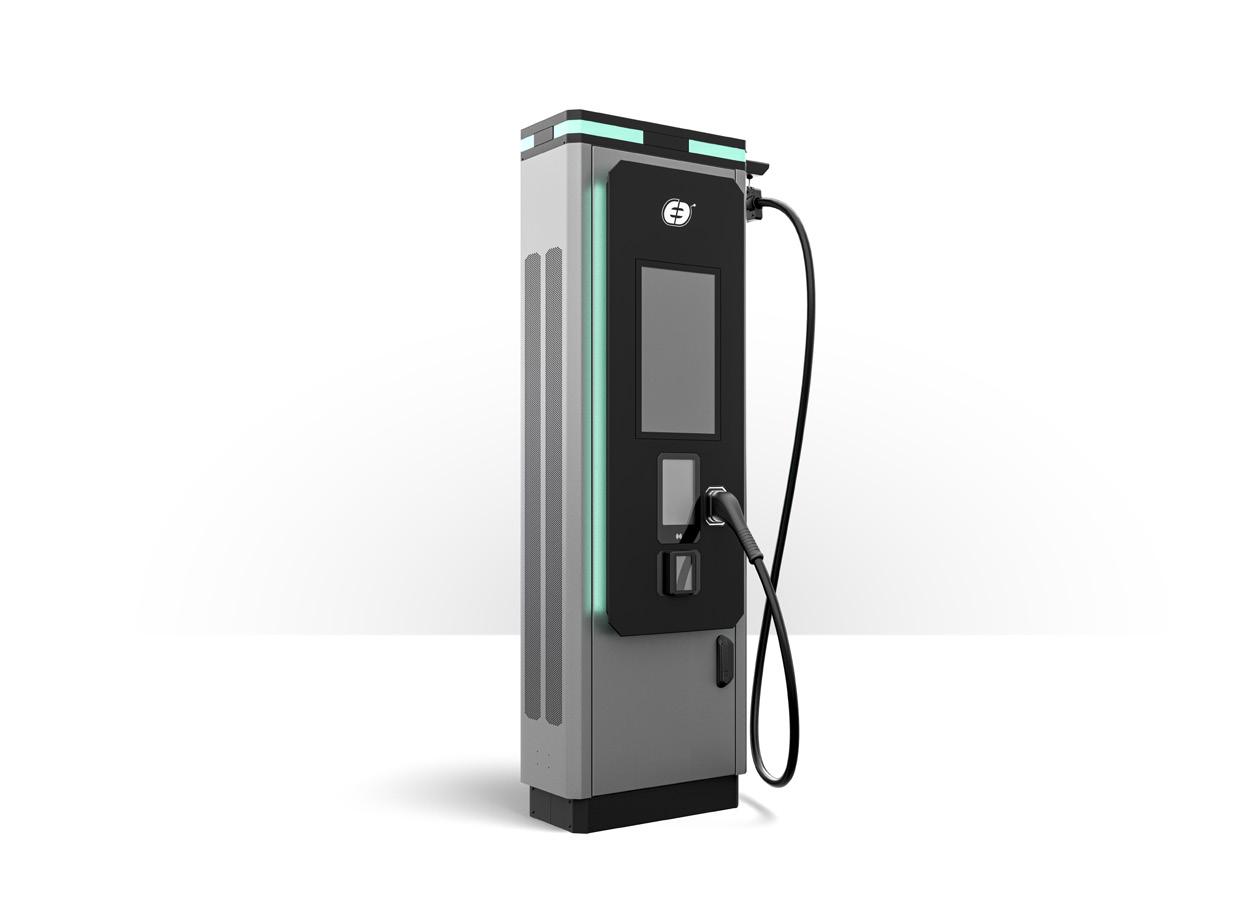

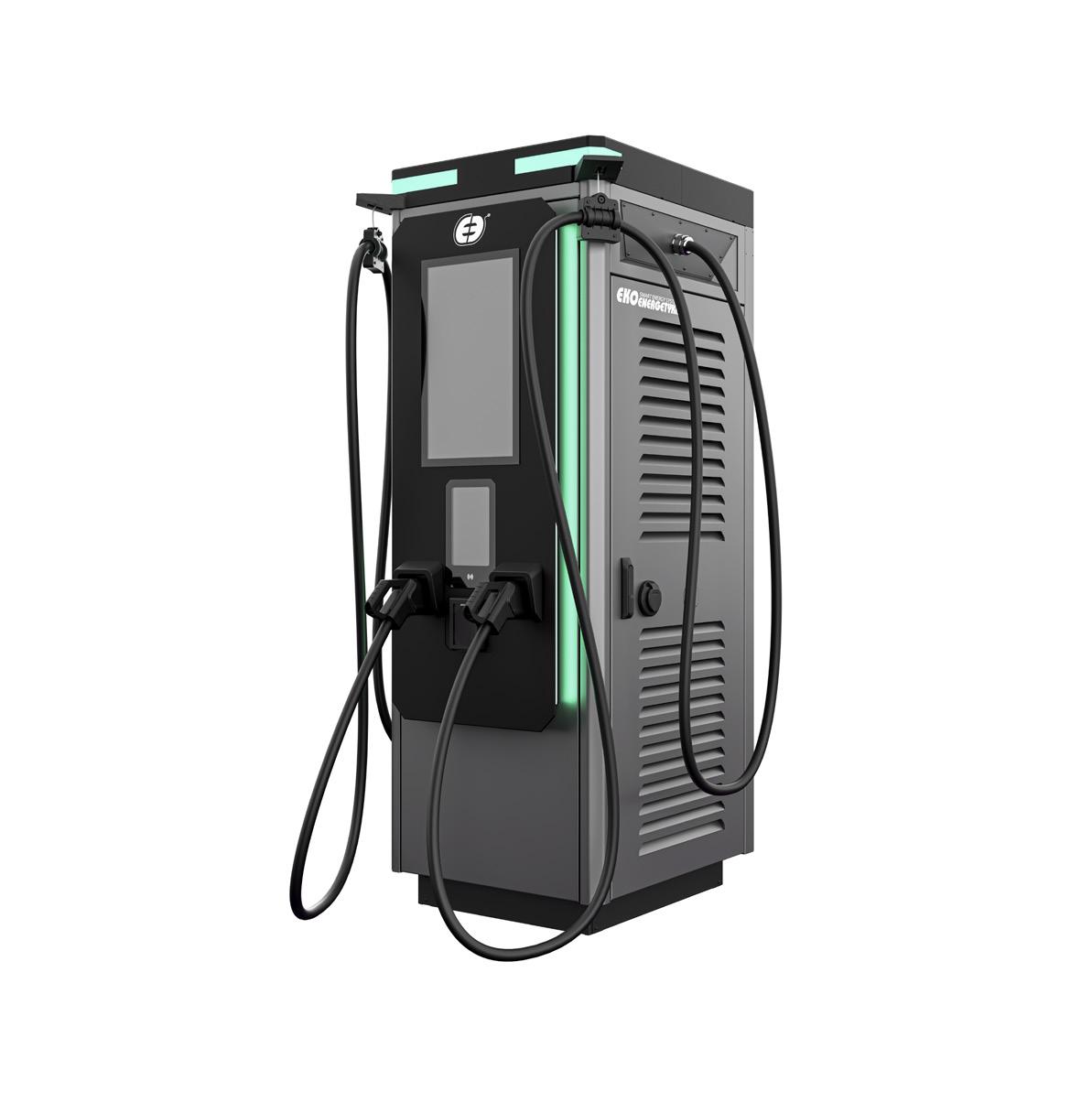

AXON EASY 180 DC charging station suitable for all electric vehicles, for fast and friendly charging. This versatile and innovative device is designed to integrate with all charging service providers.

The charging station is of modular design so its power can be increased even after installation. It will work in all weather

Power Device type Power upgrade

conditions, is easy to install and operate, and is a perfect solution in many demanding locations. Device is equipped with a range of comfortable and helpful innovations that make car charging easier, smarter and more intuitive.

120, 180 kW All In One Charging Station 120 >180

Connectors

120, 180 kW - CCS/ CCS

Max. charging current

120 kW - 400 A 180 kW - 400 A (to 500)

Voltage range

Selection of options

Metering standard Plug & Charge

150 – 1000 V DC Meters AC Socket AD Display Branding Cables lenght Payment terminals Eichrecht, MID compliant ready

PRODUCT CATALOG EKOENERGETYKA-POLSKA S.A. | 29

ALL IN ONE

AXON EASY 180 Cable Management System (CMS) with flat arm and braking mechanism

Advertising screen (24") for independent management of advertising content

Operation via intuitive 10" screen integrated with RFID

LED lighting to indicate the occupied status of the charging point (wide visibility)

Panel illumination and functional lightning integrated, indicating charging level status (SOC)

Comfortable screen visibility with day/night mode High efficiency of ventilation system while maintaining low noise emissions <60 dBA

Different variants of terminals and payment operators

AC Socket

Weatherproof and vandal resistant housing -35°C+55°C Four-side service access

Comfort of use for people with limited mobility Remote diagnostics and software updates

POWER SPLIT Axon Easy 120 kW

Axon Easy 180 kW

1 x 120 kW / AC

1 x 180 kW / AC

2 x 60 kW / AC

2 x 90 kW / AC

AC - AC Socket 30 | PRODUCT CATALOG EKOENERGETYKA-POLSKA S.A.

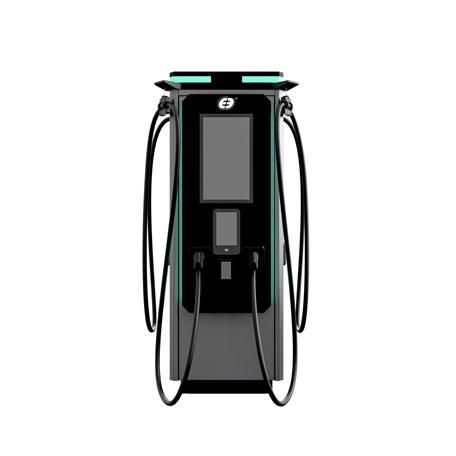

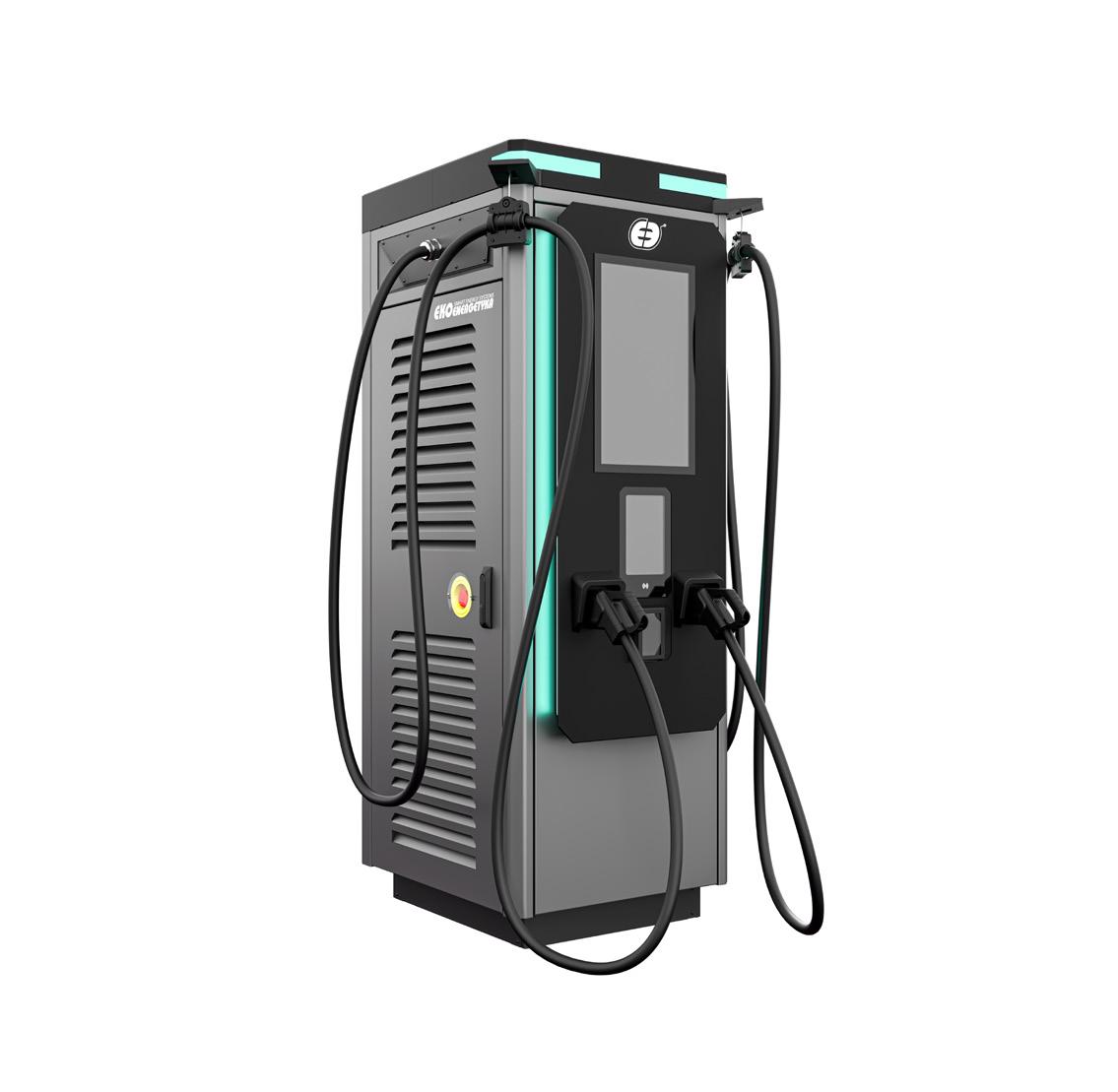

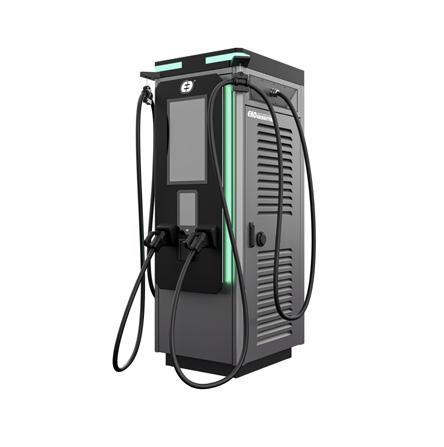

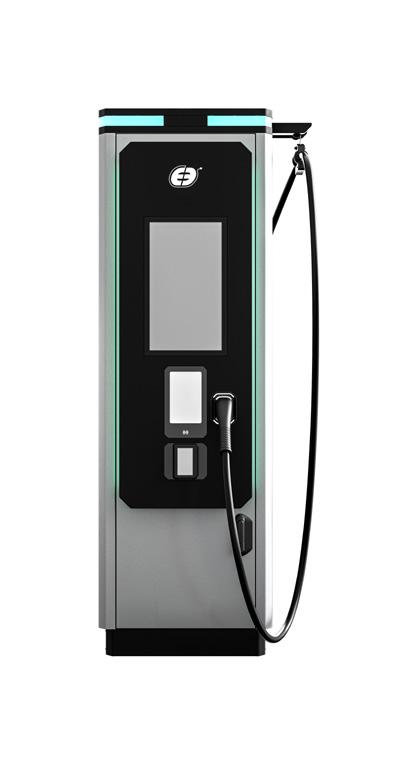

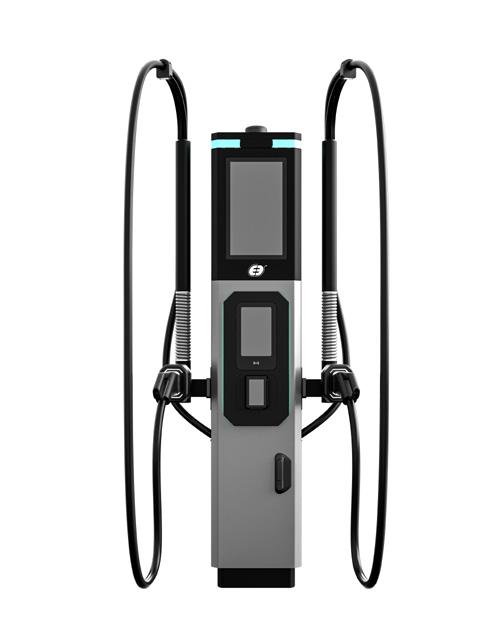

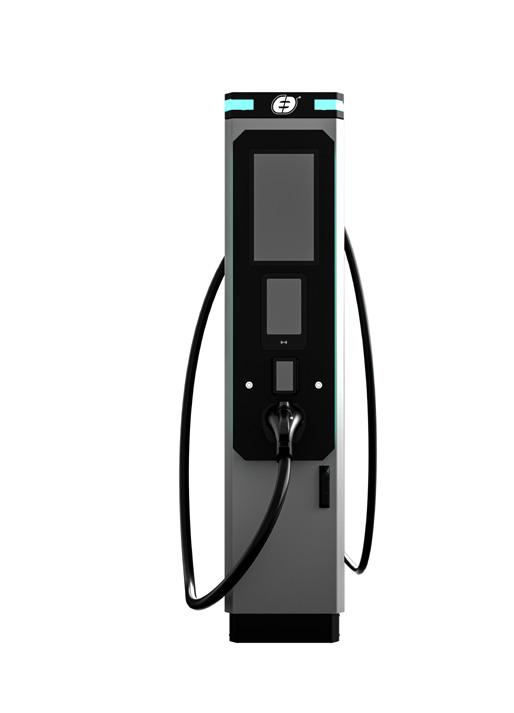

PRODUCT VIEW FRONT VIEW

LEFT VIEW

RIGHT VIEW

BACK VIEW

SELECT OPTIONS TO DESIGN YOUR PERFECT AXON EASY

Branding (Mini, Midi)

Connector extension (DC uncooled up to 7 or 9 m)

Meters (Eichrecht, MID)

AD Display (individual or public advertising use)

Power upgrade (120 > 180 kW)

AC Socket

Payment terminals and operators (Pax IM30 -CCV/ EService, Payter Apollo - Cloud Solution, Valina- Worldline)

PRODUCT CATALOG EKOENERGETYKA-POLSKA S.A. | 31

AXON EASY 180 TECHNICAL SPECIFICATIONS CONFIGURATION

CCS CCS

CCS CCS

POWER

120

180

POWER UPGRADE

[kW]

-

INPUT AC, 3x400 / 50

Power supply [V / Hz] Connection power [kVA] Connection to mains Power factor

132

198 Cable connector in TNS system

> 0,98 (for output power above 25 %)

OUTPUT Efficiency [%]

> 96,5 (under optimal operating conditions)

Maximum charging current [A]

CCS 400

CCS 400 (to 500) 150 - 1000

Output voltage range [V]

COMMUNICATION

Charging mode

IEC 61851-1 IEC 61851-23 IEC 61851-24 ISO 15118 DIN 70121

Protocol

OCPP 1.6-J OCPP 2.0.1

GENERAL Housing

Steel with galvanised coating

Colour - housing

DB 703

Colour - front panel

RAL 9005

Color - housing - option

RAL palette

Protection rating

IP 54 IK 10

Overall dimemsions [H x W x D] (mm)

2130 x 750 x 980 (housing) 2130 x 980 x 1075 (with CMS)

Weight [kg] Noise [dBA] Operating temperature range [°C]

~600

~700 < 60

- 35 +55 > 40 possible output power limitation

Operating altitude [m.a.s.l.]

≤ 2000

Compliance with standards

CE LVD 2014/35/UE EMC 2014/30/UE RED 2014/53/UE

32 | PRODUCT CATALOG EKOENERGETYKA-POLSKA S.A.

AXON EASY 180 STANDARD VERSIONS | EQUIPMENT Product code

Power

Connectors

Lenght

DC Meter

AXE-S1G5-114438021A010D703-510010XXX0

120 U

CCS / CCS

5m / 5m

MID

AXE-S1B0-114438021A010D703-510010XXX0

180

CCS / CCS

5m / 5m

Payment terminal

Branding

AD Display

-

-

-

Power split

AC Socket

50/50 -

MID

50/50

CONFIGURABLE OPTIONS Options Categories

Selection Of options

Code Fragment

Power

180kW

B0

120kW U -> 180kW

G5

5/5

44

7/7 9/9

88 CC

DC Meter

Eichrecht MID

2 3

Payment terminal

-

8

PAX IM 30 - CCV PAX IM 30 - eService Payter Apollo - Cloud Solutions Valina - Worldine

1 2 3 4

Branding

Mini Midi Maxi

0 1 2 3

AD Display

23,8”

2 1

AC Socket

T2S socket

A 8

Cable lenght [m] **

AXE-O1

- 11

1-

010D703-510010XXX0

PRODUCT CATALOG EKOENERGETYKA-POLSKA S.A. | 33

ALL IN ONE

EV

E-VAN

E-BUS

E-TRUCK

PRODUCT APPLICATION

Highways

Parkings

Service areas

Charging stations

City centers

Commercial areas

34 | PRODUCT CATALOG EKOENERGETYKA-POLSKA S.A.

VISIT OUR WEBSITE

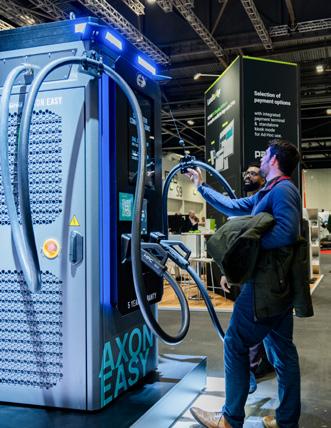

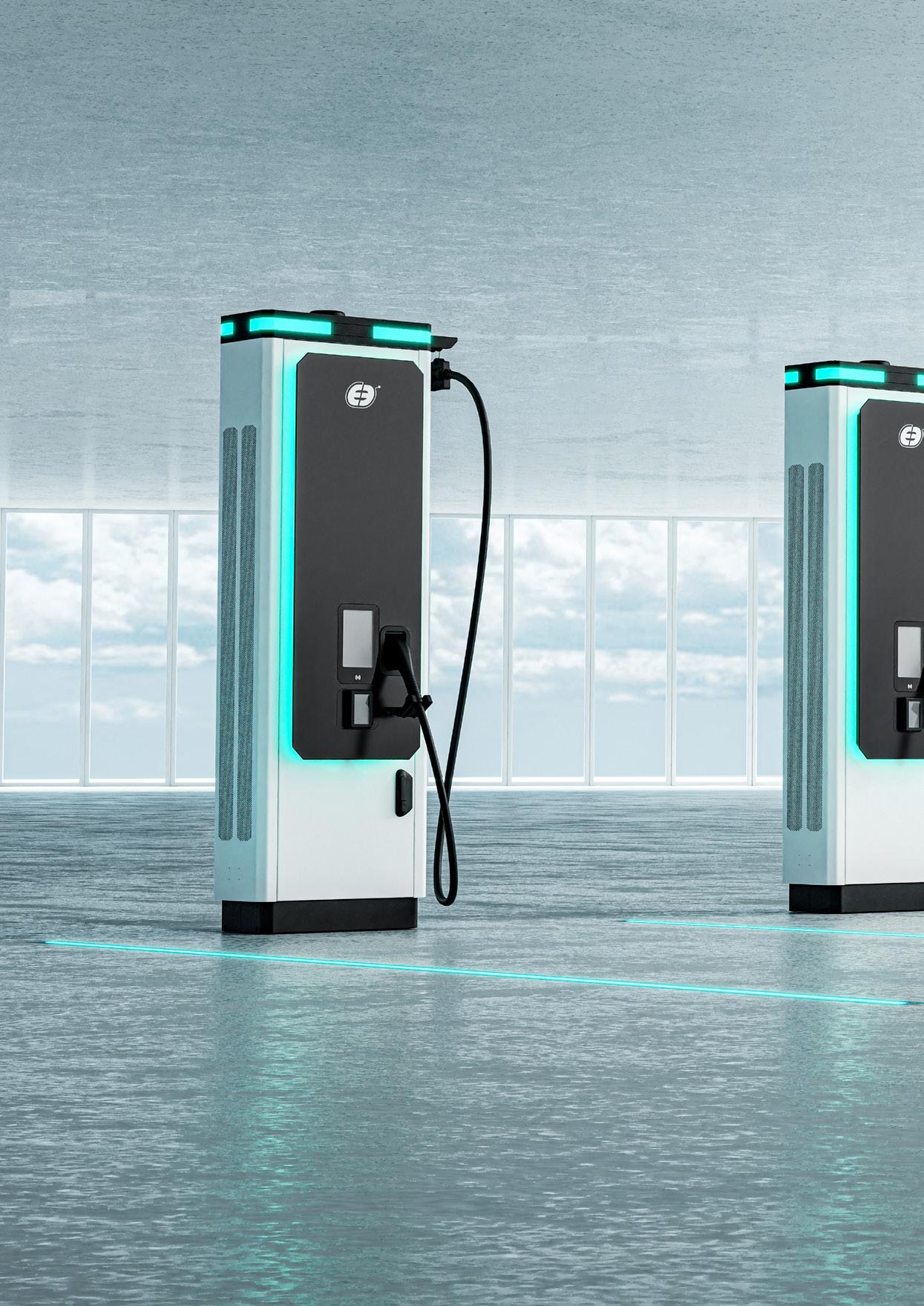

AXON EASY 400 DC charging station that provides ultra-fast and friendly high-power charging. It is available in multiple power and connector configurations. The charger’s new ease-of-use features respond to drivers’ growing need for convenient, fast charging and intuitive operation. The device is adaptable

Power

to different weather conditions and is easy to install and use. The charger’s modern design complements the urban architecture of today’s city centers. This versatile and innovative device is suitable for integration with all charging service providers.

240, 320, 400 kW

Device type

All-In-One Charging Station

Power Split

Dynamic Load Balancing System (DLBS)

Power upgrade Connectors Voltage range

240 > 400 320 > 400 240, 320, 400 kW CCS / CCS, CCS HPC / CCS HPC 150 – 1000 V

Max. charging current

CCS - 400 A (up to 500 A) CCS HPC - 500 A

Selection of options

Connectors & cables lenght Meters AD Display Branding Power split Payment terminals Reactive power compensation

Metering standard Plug & Charge

Eichrecht, MID compliant ready

PRODUCT CATALOG EKOENERGETYKA-POLSKA S.A. | 35

ALL IN ONE

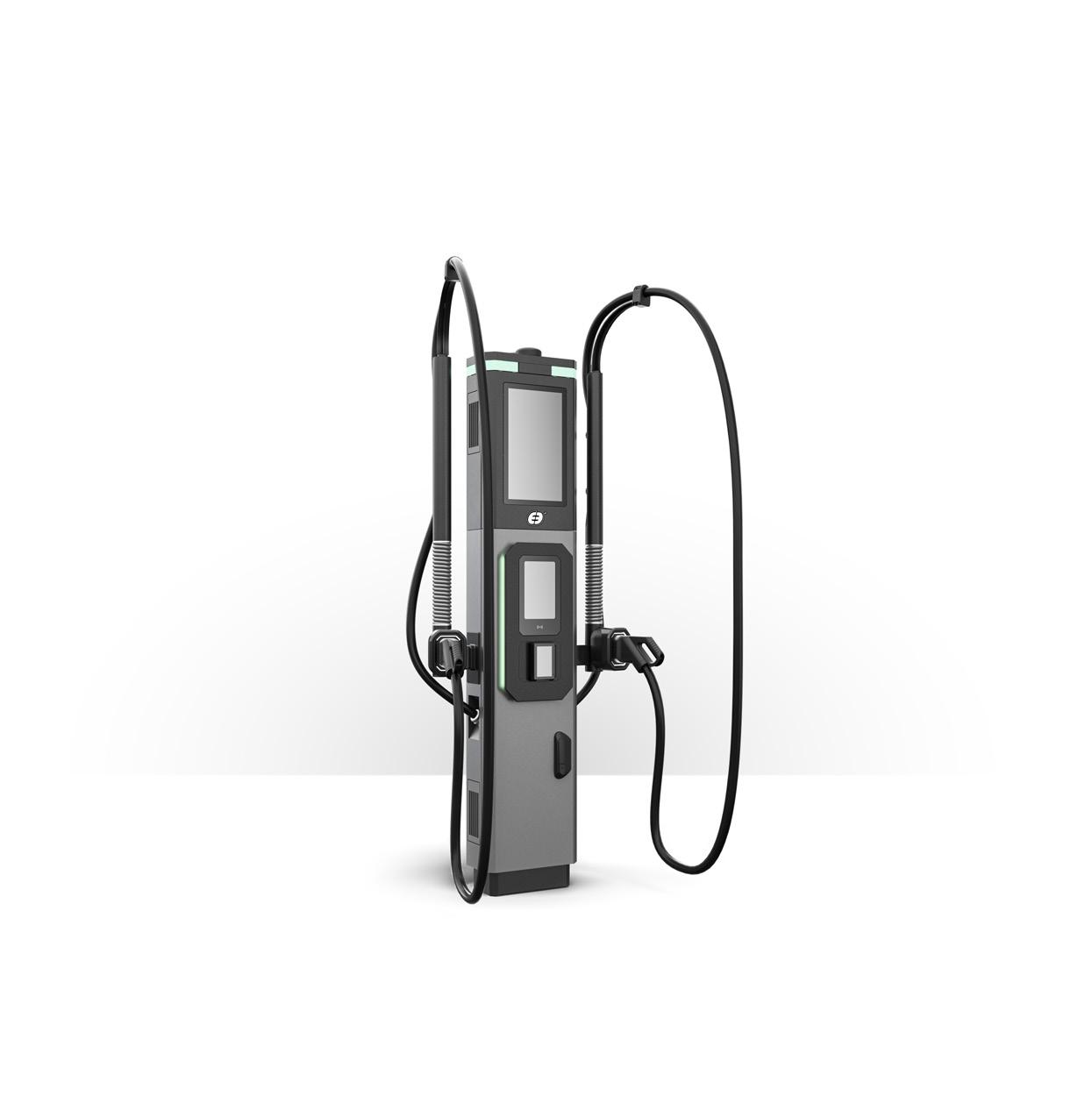

AXON EASY 400

Advertising screen (24") for independent management of advertising content

Cable Management System (CMS) with flat arm and braking mechanism

Operation via intuitive 10" screen integrated with RFID

LED lighting to indicate the occupied status of the charging point (wide visibility)

Comfortable screen visibility with day/night mode

Panel illumination and functional lightning integrated, indicating charging level status (SOC)

Different variants of terminals and payment operators

High efficiency of ventilation system while maintaining low noise emissions <60 dBA

Four-side service access Weatherproof and vandal resistant housing -35°C +55°C

Remote diagnostics and software updates Comfort of use for people with limited mobility

DYNAMIC LOAD BALANCING SYSTEM Axon Easy 400 kW 0 kW / 400 kW

280 kW / 120 kW

40 kW / 360 kW

360 kW / 40 kW

120 kW / 280 kW

400 kW / 0 kW

200 kW / 200 kW

36 | PRODUCT CATALOG EKOENERGETYKA-POLSKA S.A.

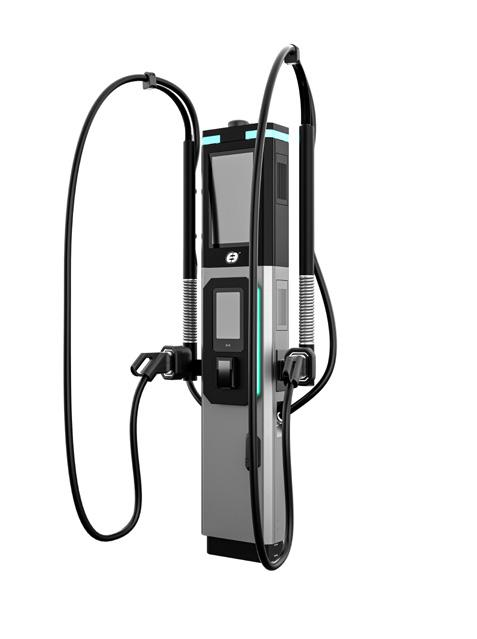

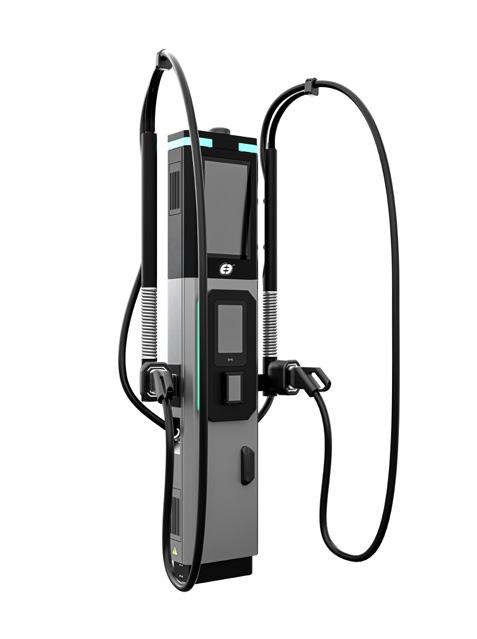

PRODUCT VIEW FRONT VIEW

LEFT VIEW

RIGHT VIEW

BACK VIEW

SELECT OPTIONS TO DESIGN YOUR PERFECT AXON EASY

Branding (Mini, Midi, Maxi)

Connector extension (DC uncooled up to 7 or 9 m)

Meters (Eichrecht, MID)

AD Display (individual or public advertising use)

Power upgrade (240 > 400kW, 320 > 400 kW)

Reactive power compensation (Active reactive power compensation)

Payment terminals and operators (PAX IM30 - CCV / eService, Payter Apollo - Cloud Solutions, Valina -Worldline)

PRODUCT CATALOG EKOENERGETYKA-POLSKA S.A. | 37

AXON EASY 400 TECHNICAL SPECIFICATIONS CONFIGURATION

CCS CCS

CCS HPC CCS HPC

CCS CCS

CCS HPC CCS HPC

CCS CCS

CCS HPC CCS HPC

POWER

240

240

320

320

400

400

-

-

428

428

POWER UPGRADE DYNAMIC LOAD BALANCING SYSTEM

INPUT AC, 3x400 / 50

Power supply [V / Hz] Connection power [kVA]

264

264

352

Connection to mains

352

Cable connector in TNS system

Power factor

> 0,98 (for output power above 25 %)

OUTPUT Efficiency [%] Maximum charging current [A]

> 96,5 (under optimal operating conditions) CCS 400 (up to 500)

CCS HPC 500

CCS 400 (up to 500)

CCS HPC 500

CCS 400 (up to 500)

CCS HPC 500

~700

~750

150 - 1000

Output voltage range [V]

COMMUNICATION

Charging mode

IEC 61851-1 IEC 61851-23 IEC 61851-24 ISO 15118 DIN 70121

Protocol

OCPP 1.6-J OCPP 2.0.1

GENERAL Housing

Steel with galvanised coating

Colour - housing

DB 703

Colour - front panel

RAL 9005

Color - housing - option

RAL palette

Protection rating

IP 54 IK 10

Overall dimemsions [H x W x D] (mm)

2130 x 750 x 980 (housing) 2130 x 980 x 1075 (with CMS)

Weight [kg]

~500

Noise [dBA] Operating temperature range [°C] Operating altitude [m.a.s.l.]

Compliance with standards

38 | PRODUCT CATALOG EKOENERGETYKA-POLSKA S.A.

~550

~600

~650 < 60

- 35 +55 > 40 possible output power limitation ≤ 2000 CE LVD 2014/35/UE EMC 2014/30/UE RED 2014/53/UE

[kW]

AXON EASY 400 STANDARD VERSIONS | EQUIPMENT Product code

Power

Connectors

Lenght

DC Meter

Payment terminal

AXE-S1G7-1144380022-0010D703510010XXX0

240 U

CCS / CCS

5m / 5m

MID

DLBS

AXE-S1G7-224438022-0010D703510010XXX0

240 U

CCS HPC / CCS HPC

5m / 5m

MID

DLBS

AXE-S1G8-114438022-0010D703510010XXX0

320 U

CCS / CCS

5m / 5m

MID

AXE-S1G8-224438022-0010D703510010XXX0

320 U

CCS HPC / CCS HPC

5m / 5m

MID

DLBS

AXE-S1C2-114438022-0010D703510010XXX0

400

CCS / CCS

5m / 5m

MID

DLBS

AXE-S1C2-224438022-0010D703510010XXX0

400

CCS HPC / CCS HPC

5m / 5m

MID

DLBS

AXE-O1

Branding

AD Display

Power split

Active reactive power compensation

DLBS -

-

-

-

CONFIGURABLE OPTIONS Options Categories

Selection Of options

Code Fragment

Power

400 kW

C2

240 kW U > 400 kW

G7

320 kW U > 400 kW

G8

CCS / CCS

11

CCS HPC / CCS HPC

22

5/5

44

7/7*

88

9 / 9*

CC

Eichrecht

2

MID

3

-

8

PAX IM 30 - CCV

1

PAX IM 30 - eService

2

Payter Apollo - Cloud Solutions

3

Valina - Worldine

4

-

0

Mini

1

Midi

2

Maxi

3

-

2

23,8”

1

Connectors #1, #2

Cable lenght [m]

DC Meter

Payment terminal

Branding

AD Display

Reactive power com- pensation ** Active reactive power compensation

-

2-001

D703-510010XXX0

0 2

* Only uncooled connectors ** Option available upon request

PRODUCT CATALOG EKOENERGETYKA-POLSKA S.A. | 39

03

POWER UNITS AXON SIDE 360 DLBS AXON SIDE 400 Power Units provide ultrafast high-power (DC) charging. The units are a ready-made concept for connecting satellites or pantographs and creating and expanding charging hubs. They support all electric vehicles. They are suitable for integration with all charging service providers.

40 | PRODUCT CATALOG EKOENERGETYKA-POLSKA S.A.

PRODUCT CATALOG EKOENERGETYKA-POLSKA S.A. | 41

POWER UNITS

EV

E-VAN

E-BUS

E-TRUCK

PRODUCT APPLICATION

Expressways

Logistics parks

Commercial fleet parking lots

Petrol stations

Charging hubs

Bus depots

42 | PRODUCT CATALOG EKOENERGETYKA-POLSKA S.A.

VISIT OUR WEBSITE

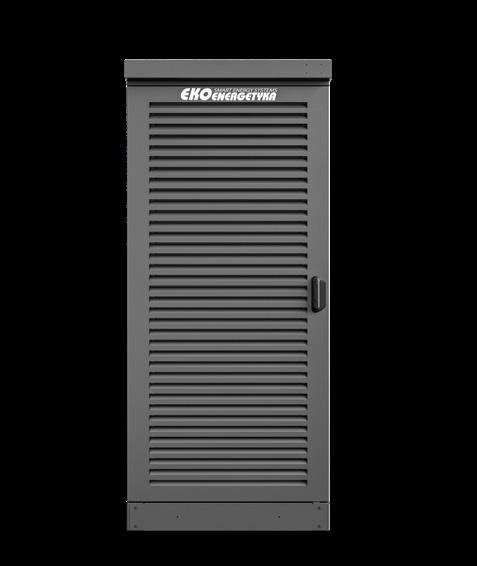

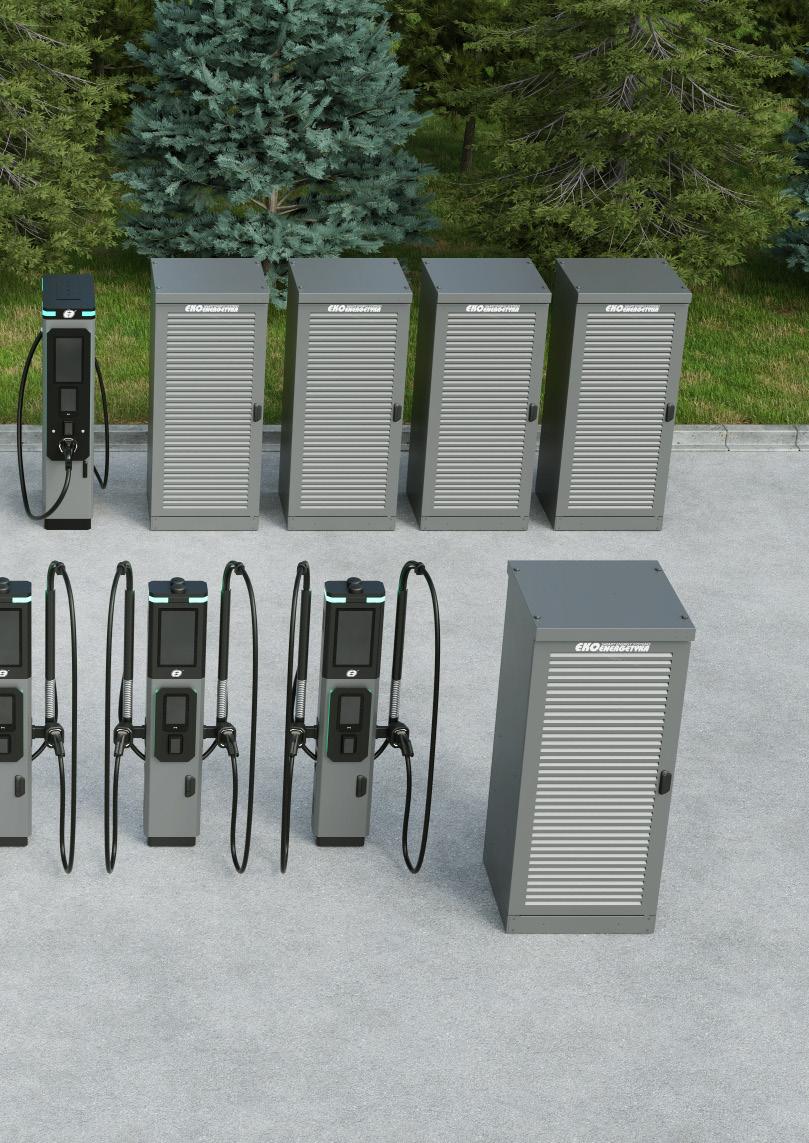

AXON SIDE 360 DLBS Power Unit providing high-speed, high-power direct current (DC) charging. The unit is a ready-made concept for connecting satellites and creating and expanding charging hubs. Up to 6 outputs can be connected. This allows the

Power

charging HUB to be optimally configured to meet the needs of the site. It supports a full range of electric vehicles. It is suitable for integration with all charging service providers.

180, 360 kW

Device type

Power Unit

Power Split

Dynamic Load Balancing System (DLBS)

Granularity of output power

60 kW

Number of outputs

up to 6

Voltage range

150 - 1000 V

Max. charging current

180, 360 kW - 500 A for a single output 180 kW - 600 A for all outputs 360 kW - 1200 A for all outputs

Hub charging variants

SAT 400 SAT 600 SAT Box

Plug & Charge

ready

PRODUCT CATALOG EKOENERGETYKA-POLSKA S.A. | 43

POWER UNITS

AXON SIDE 360 DLBS AXON SIDE 360 DLBS Dynamic Load Balancing System (DLBS) that takes full advantage of on-demand power distribution while optimizing the charging process.

The capability to connect up to 6 outputs to configure the optimal charging hub depending on the needs of the location.

Remote diagnostics and software updates

High performance ventilation system while maintaining extremely low noise emissions < 70 dBA Vandal proof housing inert to weather conditions -35°C +55°C Two side service access

44 | PRODUCT CATALOG EKOENERGETYKA-POLSKA S.A.

PRODUCT VIEW FRONT VIEW

LEFT VIEW

RIGHT VIEW

BACK VIEW

High Power Charging

HUB creation & expansion

Compatibility with vehicles

6 charging points

PRODUCT CATALOG EKOENERGETYKA-POLSKA S.A. | 45

AXON SIDE 360 DLBS TECHNICAL SPECIFICATIONS CONFIGURATION MAXIMUM CHARGING POWER

1- 6 x satellite 180**

360

DYNAMIC LOAD BALANCING SYSTEM POWER SUPPLY PARAMETERS Power supply [V / Hz] Connection power [kVA]

AC, 3 x 400 / 50 198

Connection to mains

396 Cable connector in TNS system

Power factor

> 0,99 (inductive)

Differential-current protection

Type A Type B (option)

OUTPUT Efficiency [%]

> 95

Maximum charging current per output [A]

500*

Maximum charging current per all outputs [A]

600*

Output voltage range [V] Granularity of output power [kW]

1200* 150 - 1000

30

60

COMMUNICATION

Charging mode

IEC 61851-1 IEC 61851-23 IEC 61851-24 ISO 15118 DIN 70121

Protocol

OCPP 1.6-J OCPP 2.0.1

GENERAL Housing

Steel with galvanised coating IP 54 IK 10

Protection rating Overall dimensions [H x W x D] [mm] Weight [kg] Noise [dBA] Operating temperature range [°C]

2300 x 1000 x 1050 ~1100

~1300 < 65 (at a distance 1 m)

- 35 +55 > 40 possible output power limitation

Operating altitude [m.a.s.l.]

≤ 2000

Compliance with standards

CE LVD 2014/35/UE EMC 2014/30/UE RED 2014/53/UE

Preeliminary data sheet

46 | PRODUCT CATALOG EKOENERGETYKA-POLSKA S.A.

[kW]

AXON SIDE 360 DLBS EQUIPMENT CONFIGURATION MAXIMUM CHARGING POWER

1- 6 x satellite 180**

360

[kW]

CONNECTORS 1 - 6 x CCS (satellite)

DC Connectors

HOUSING Colour

DB 703

RAL Colour (Other)

Option

Branding

Option

Anti-graffiti coating

Option

INTERFACE Display

Depending on satellite model

RFID card reader

Depending on satellite model

Signal column

Depending on satellite model

DC METERS Eichrecht

Depending on satellite model

MID

Depending on satellite model

PAYMENT SYSTEM PAX IM 30 - CCV

Depending on satellite model

PAX IM 30 - eService

Depending on satellite model

Payter Apollo - Cloud Solutions

Depending on satellite model

Valina - Worldline

Depending on satellite model

COMMUNICATION GSM (LTE) EEP GSM (LTE) Client Optical fiber

Data transfer

Catalog code

AXS -S1B0-0621D703 -01017100XXX0

AXS -S1C0-0621D703 -01017100XXX0

*For the number of outputs greater than 2, the available charging current depends on the DLBS system and the type of satellite connected. ** 180kW version does not have power upgrade capability to 360kW. Preeliminary data sheet

PRODUCT CATALOG EKOENERGETYKA-POLSKA S.A. | 47

POWER UNITS

EV

E-VAN

E-BUS

E-TRUCK

PRODUCT APPLICATION

Expressways

Logistics parks

Commercial fleet parking lots

Petrol stations

Charging hubs

Bus depots

48 | PRODUCT CATALOG EKOENERGETYKA-POLSKA S.A.

VISIT OUR WEBSITE

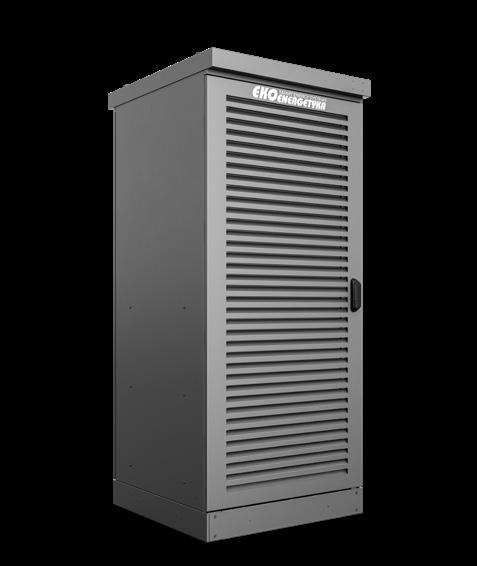

AXON SIDE 400 Power Unit providing high-speed, high-power direct current (DC) charging. The unit is a ready-made concept for connecting satellites or pantographs and creating and

Power

expanding charging hubs. It supports a full range of electric vehicles. It is suitable for integration with all charging service providers.

400 kW

Device type

Power Unit

Power class

High Power Charging

Number of outputs Voltage range

1 x CCS (satellite) 2 x CCS (satellites) 150 - 1000 V

Max. charging current

1 x 750 A 2 x 600 A

Hub charging variants

SAT 600 SAT 400

Axon Side 400 Set Plug & Charge

Additional optional equipment - Control Unit for 2 x Axon Side ready

PRODUCT CATALOG EKOENERGETYKA-POLSKA S.A. | 49

POWER UNITS

AXON SIDE 400 AXON SIDE 400 Two side service access

Remote diagnostics and software updates

High performance ventilation system while maintaining extremely low noise emissions <65 dBA Vandal proof housing inert to weather conditions -35°C +55°C

50 | PRODUCT CATALOG EKOENERGETYKA-POLSKA S.A.

PRODUCT VIEW FRONT VIEW

LEFT VIEW

RIGHT VIEW

BACK VIEW

High Power Charging

HUB creation & expansion

Compatibility with vehicles

2 charging points

PRODUCT CATALOG EKOENERGETYKA-POLSKA S.A. | 51

AXON SIDE 400 TECHNICAL SPECIFICATIONS CONFIGURATION MAXIMUM CHARGING POWER

1 x satellite

2 x satellite

400

1 x 400 (2 x 200)

INPUT Power supply [V / Hz]

AC, 3x400 / 50

Connection power [kVA] Connection to mains

435 Cable connector in TNS system > 0,99 (inductive)

Power factor

Type A Type B (option)

Differential-current protection

OUTPUT Efficiency [%] Maximum charging current [A] Output voltage range [V]

> 95 1 x 750

1 x 750 (2 x 600) 150 - 1000

COMMUNICATION

Charging mode

IEC 61851-1 IEC 61851-23 IEC 61851-24 ISO 15118 DIN 70121

Protocol

OCPP 1.6-J OCPP 2.0.1

GENERAL Housing Protection rating Overall dimensions [H x W x D] [mm]

Steel with galvanised coating IP 54 IK 10 2300 x 1000 x 1050

Weight [kg]

~1300

Noise [dBA]

< 65 (at the distance of 1 m)

Operating temperature range [°C]

-35 +55 > 40 possible output power limitation

Operating altitude [m.a.s.l.]

≤ 2000

Compliance with standards

CE LVD 2014/35/UE EMC 2014/30/UE RED 2014/53/UE

52 | PRODUCT CATALOG EKOENERGETYKA-POLSKA S.A.

[kW]

AXON SIDE 400 EQUIPMENT CONFIGURATION MAXIMUM CHARGING POWER

1 x satellite

2 x satellite

400

1 x 400 (2 x 200)

1 x CCS (satellite)

2 x CCS (satellite)

[kW]

CONNECTORS DC Connectors

HOUSING Colour

DB 703

RAL Colour (Other)

Option

Branding

Option

Anti-graffiti coating

Option

INTERFACE Display

Depending on satellite model

RFID card reader

Depending on satellite model

Signal column

Depending on satellite model

DC METERS Eichrecht

Depending on satellite model

MID

Depending on satellite model

PAYMENT SYSTEM PAX IM 30 - CCV

Depending on satellite model

PAX IM 30 - eService

Depending on satellite model

Payter Apollo - Cloud Solutions

Depending on satellite model

Valina - Worldline

Depending on satellite model

COMMUNICATION Data transfer

GSM (LTE) EEP GSM (LTE) Client Fiber optics

Catalog code

AXS -S1C2-0211D703 -01017100XXX0

PRODUCT CATALOG EKOENERGETYKA-POLSKA S.A. | 53

04

SATELLITES SAT 400 SAT 600 SAT 1500 MCS SAT BOX Designed to serve all electric vehicles. Space-efficient, easy to deploy, connected to a power unit provides smart and intuitive high power charging.

54 | PRODUCT CATALOG EKOENERGETYKA-POLSKA S.A.

PRODUCT CATALOG EKOENERGETYKA-POLSKA S.A. | 55

SATELLITES

EV

E-VAN

E-BUS

E-TRUCK

PRODUCT APPLICATION

Urban space

Petrol stations

Commercial fleet parking facilities

Charging hubs

Commercial Parking

Airports

56 | PRODUCT CATALOG EKOENERGETYKA-POLSKA S.A.

VISIT OUR WEBSITE

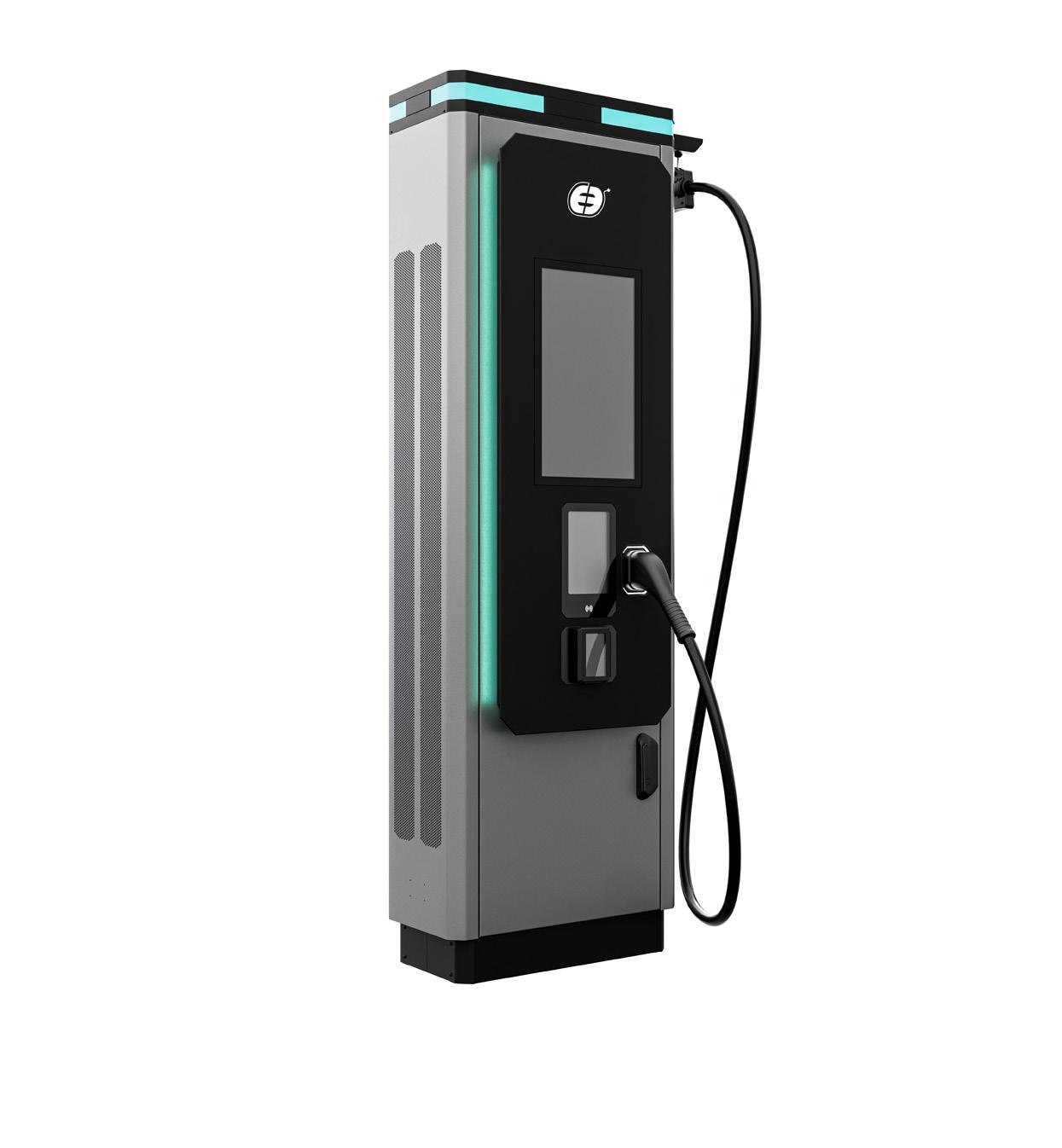

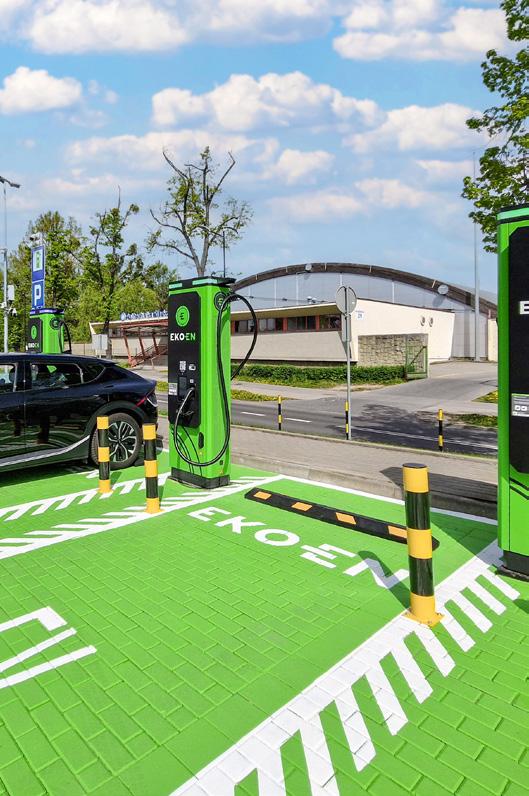

SAT 400 A satellite that provides ultra-fast direct current (DC) charging. It is part of a concept in which, combined with the Power Unit, it is a ready-made electric vehicle charging system with which multi-station charging hubs can be created. The design of the device ensures space and

Connectors

Number of outputs CMS type

Max. charging current

Charging Hubs - variants with Power Unit

Cable Management System (CMS)

Metering standard

utility efficiency through the use of a proprietary Cable Management System. The satellite is available in a number of configurations to fit perfectly into the potential of a given urban location. It is suitable for integration with all charging service providers.

CCS

1 x CCS (left / right side - front version) 2 x CCS (versions: front, pass-through)

400 A (to 500) Axon Side 360 (to 6 x satellite, 1 x CCS) Axon Side 400 (to 2 x satellite, 1 x CCS) Proprietary system Patent pending Eichrecht, MID compliant

PRODUCT CATALOG EKOENERGETYKA-POLSKA S.A. | 57

SAT 400

SATELLITES

Sufficient cable to allow unobstructed access to the vehicle CCS 5,5m

Proprietary CMS with rotating arm providing a wide 270-degree radius and 4.5-meter reach.

LED charging point status (full 360-degree visibility)

Intuitive 10"" screen integrated with RFID (optional screen and payment terminal on both sides of the satellite)

Advertising screen (19") for independent management of advertising content

Ergonomically designed connector with a built-in hanging slot and a utility lighting port

Comfortable screen visibility with day/night mode lightining

Different variants of terminals and payment operators

Lightweight and stable construction

Remote diagnostics and software updates Comfort of use for people with limited mobility Convenient service access Vandal-proof and inert to atmospheric conditions -35 +55°C device

SAT 400 CABLE MANAGEMENT SYSTEM CONFIGURATION OPTIONS

Front version, left side

Front version, right side

58 | PRODUCT CATALOG EKOENERGETYKA-POLSKA S.A.

Front version, left & right side

Pass through version, left & right side

PRODUCT VIEW FRONT VIEW

LEFT VIEW

RIGHT VIEW

BACK VIEW

PRODUCT CATALOG EKOENERGETYKA-POLSKA S.A. | 59

SAT 400 TECHNICAL SPECIFICATIONS CONFIGURATION MAXIMUM CHARGING CURRENT [A]

CCS

CCS CCS

400 (up to 500)

400 (up to 500)

COMMUNICATION

Charging mode

IEC 61851-1 IEC 61851-23 IEC 61851-24 ISO 15118 DIN 70121

Protocol

OCPP 1.6-J OCPP 2.0.1

GENERAL Housing

Steel with galvanised coating

Colour - Housing

DB 703

Colour - Front Panel

RAL 9005

Color - Housing - optional

RAL palette

Branding

Option

Anti-graffiti coating

Option

Protection rating

IP 54 IK 10

Overall dimensions [H x W x D] (mm)

2000 x 400 x 250 (housing) 2300 x 610 x 250 (with CMS)

2000 x 400 x 290 (housing) 2300 x 845 x 290 (with CMS)

~150

~180

Weight [kg] Operating temperature range [°C] Operating altitude [m.a.s.l.]

Compliance with standards

Communication

60 | PRODUCT CATALOG EKOENERGETYKA-POLSKA S.A.

- 35 +55 > 40 possible output power limitation ≤ 2000 CE LVD 2014/35/UE EMC 2014/30/UE RED 2014/53/UE Optical fiber

[A]

SAT 400 STANDARD VERSIONS | EQUIPMENT Product Code

Current

Connectors

Lenght

DC Meter

Front Panel

Payment Terminal

AD Display

CMS

Branding

SA4-S10-105030800900D703-11001000

250 A

CCS / -

5,5 m

MID

1

-

-

x1

-

SA4-S10-010530800900D703-11001000

250 A

- / CCS

5,5 m

MID

1

-

-

x1

-

SA4-S10-115530800A00D703-11001000

250 A

CCS / CCS

5,5 m / 5,5 m

MID

1

-

-

x2

-

SA4-S11-105030800900D703-11001000

up to 500 A

CCS / -

5,5 m

MID

1

-

-

x1

-

SA4-S11-010530800900D703-11001000

up to 500 A

- / CCS

5,5 m

MID

1

-

-

x1

-

SA4-S11-115530800A00D703-11001000

up to 500 A

CCS / CCS

5,5 m / 5,5 m

MID

1

-

-

x2

-

SA4-01

-

CONFIGURABLE OPTIONS Options Categories

Selection Of options

Code Fragment

Current

up to 250 A up to 500 A

0 1

Connectors #1, #2

CCS / - / CCS CCS CCS

10 01 11

Cable lenght [m]

5,5 / - / 5,5 5,5 / 5,5

50 05 55

DC Meter

Eichrecht MID

2 3

Front panel

x1

0

x2*

1

Payment terminal

PAX IM 30 - CCV PAX IM 30 - eService Payter Apollo - Cloud Solutions Valina - Worldline

8 1 2 3 4

Number of terminals

x1 x2*

0 1 2

AD Display

x 1 ("19) x 2 ("19) *

0 2 3

Cable Management System (CMS)

x1 x2

9 A

Branding

Mini Midi Maxi

0 1 2 3

0

9016-11001000

* option available upon request

PRODUCT CATALOG EKOENERGETYKA-POLSKA S.A. | 61

SATELLITES

EV

E-VAN

E-TRUCK

PRODUCT APPLICATION

Expressways

Logistics parks

Commercial fleet parking lots

Petrol stations

Charging hubs

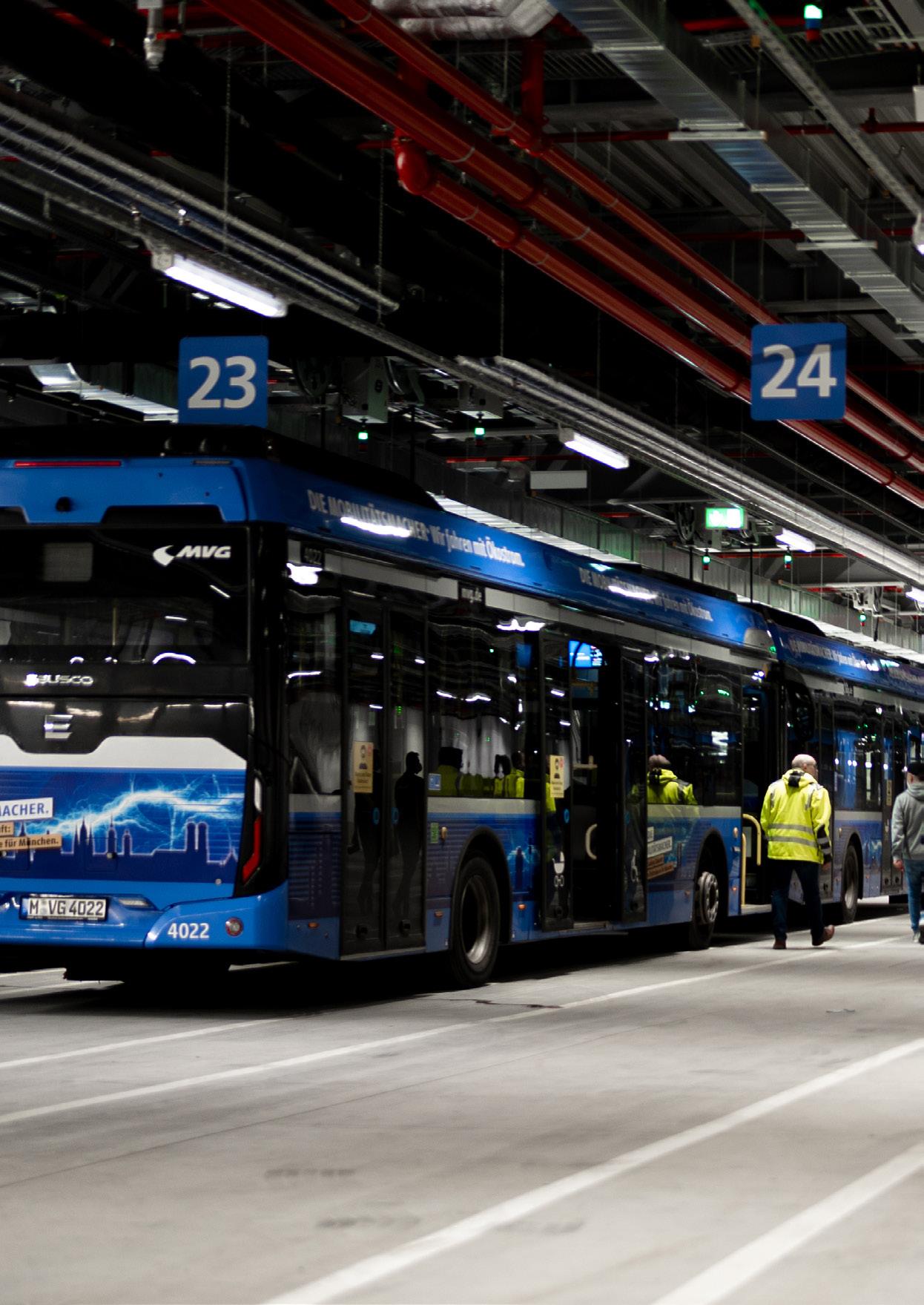

Bus depots

62 | PRODUCT CATALOG EKOENERGETYKA-POLSKA S.A.

VISIT OUR WEBSITE

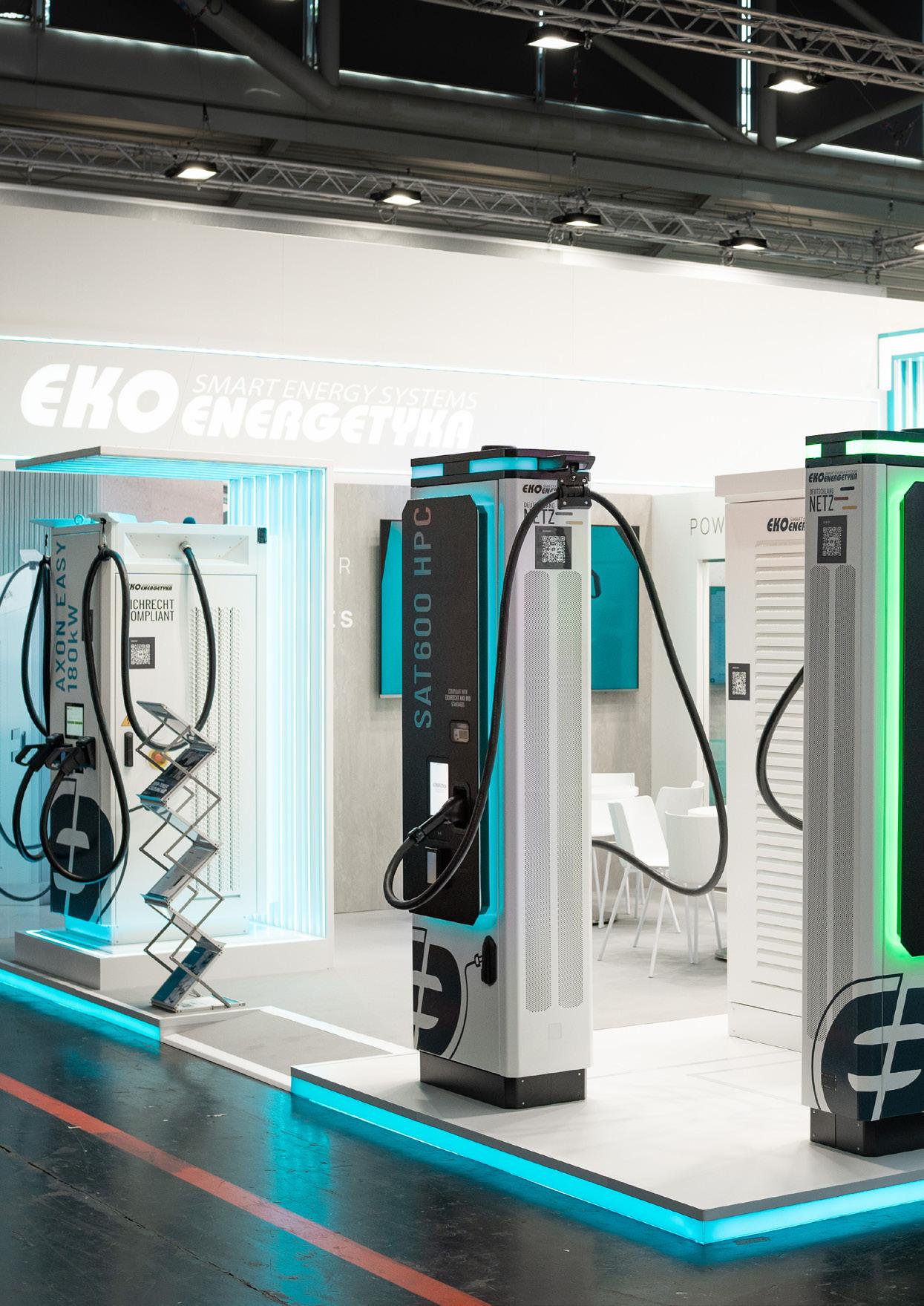

SAT 600 A satellite that provides ultra-fast direct current (DC)

system that can be used to create multi-station charging hubs.

charging. It is part of a concept where it is combined with the

The design of the unit ensures space efficiency and usability.

Power Unit to form a ready-to-use electric vehicle charging

It is suitable for integration with all charging service providers.

Connectors Number of outputs Max. charging current

Selection of options

Charging Hubs - variants with Power Unit Metering standard

CCS HPC x1 CCS HPC - 500 A (to 600) DC Meters Cables lenght Payment terminals AD Display Parking space occupancy sensor Axon Side 400 Axon Side 360 DLBS Eichrecht, MID compliant

PRODUCT CATALOG EKOENERGETYKA-POLSKA S.A. | 63

SAT 600

SATELLITES

Cable Management System with flat arm LED lighting to indicate the charging point status (full 360° visibility)

Sufficient cable to allow unobstructed access to the vehicle CCS 4,5m (even up to 8 m)

Panel illumination integrated with functional lighting

Advertising screen (24") for independent management of advertising content

Modern front panel integrating multi functions of the satellite Operation via intuitive 10'' screen integrated with RFID

Ergonomically designed connector with a built-in hanging slot and a utility lighting port

Comfortable screen visibility with day/night mode

Remote diagnostics and software updates

Different variants of terminals and payment operators Weatherproof and vandal resistant housing -35°C+55°C Convenient service access

SELECT OPTIONS TO DESIGN YOUR PERFECT SAT 600 Branding (Mini, Midi, Maxi)

Connector extension to 8 m

Meters (Eichrecht, MID)

AD Display (individual or public advertising use)

Parking space occupancy sensor

64 | PRODUCT CATALOG EKOENERGETYKA-POLSKA S.A.

Payment terminals and operators (Pax IM30 - CCV / eService, Payter Apollo - Cloud Solutions, Valina - Worldline)

PRODUCT VIEW FRONT VIEW

LEFT VIEW

RIGHT VIEW

BACK VIEW

PRODUCT CATALOG EKOENERGETYKA-POLSKA S.A. | 65

SAT 600 TECHNICAL SPECIFICATIONS CONFIGURATION Maximum charging current [A]

CCS HPC 500 (up to 600)

COMMUNICATION

Charging mode

IEC 61851-1 IEC 61851-23 IEC 61851-24 ISO 15118 DIN 70121

Protocol

OCPP 1.6-J OCPP 2.0.1

GENERAL Housing

Steel with galvanised coating

Colour - Housing

DB 703

Colour - Front Panel

RAL 9005

RAL Colour (other)

Option

Branding

Option

Anti-graffiti coating

Option

Protection rating

IP 54 IK 10

Overall dimensions [H x W x D] [mm]

Weight [kg]

Operating temperature range [°C]

2300 x 735 x 425 2300 x 910 x 430 (with CMS) ~ 330 -35 +55 > 40 possible output power limitation

Operating altitude [m.a.s.l.]

≤ 2000

Compliance with standards

CE LVD 2014/35/UE EMC 2014/30/UE RED 2014/53/UE

Communication

66 | PRODUCT CATALOG EKOENERGETYKA-POLSKA S.A.

Optical fiber

SAT 600 STANDARD VERSIONS | EQUIPMENT Product Code

Current

Connectors

Lenght

DC Meter

Payment Terminal

AD Display

Branding

SA6-S12-203030804200D703-11001000

up to 600 A

CCS HPC

4,5 m

MID

-

-

-

Occupancy sensor

CONFIGURABLE OPTIONS Options Categories

Selection Of options

Code Fragment

Current

up to 600 A

2

Connector

CCS HPC

20

Cable lenght [m]

4,5

30

8*

A0

Eichrecht

2

MID

3

-

0

PAX IM 30 - CCV

1

PAX IM 30 - eService

2

Payter Apollo - Cloud Solutions

3

Valina - Worldline

4

-

4

23,8"

1

-

0

Mini

1

Midi

2

Maxi

3

-

0

Occupancy sensor

1

DC Meter

Payment terminal

AD Display

Branding

Parking space occupancy sensor

SA6-01

-

0

0

20

D703-11001

00

* option available upon request

PRODUCT CATALOG EKOENERGETYKA-POLSKA S.A. | 67

SATELLITES

E-TRUCK

PRODUCT APPLICATION

Expressways

Service areas

Production facilities

Petrol stations

Charging hubs

Airports

68 | PRODUCT CATALOG EKOENERGETYKA-POLSKA S.A.

VISIT OUR WEBSITE

SAT 1500 MCS The SAT 1500 MCS is part of an advanced megawatt charging system that supports high voltages and currents up to 1,500 A. The satellite allows heavy-duty electric vehicles to be charged with more than 1 MW of power. It is available in three configurations with MCS and CCS HPC liquidcooled connectors that ensure fast and safe charging.

Its compact design and ability to charge two vehicles

Connectors

Number of outputs

Max. charging current

Charging Hubs - variants with Power Unit

simultaneously make it ideal for locations with limited space, such as passageways along major transportation routes and logistics hubs. The unit is equipped with a number of innovative features to support user convenience. The satellite connected to the Power Unit provides a ready-made EV charging system for creating multi-station charging hubs. It is suitable for integration with all charging service providers.

MCS MCS / CCS HPC CCS HPC / CCS HPC x1/x2 MCS - 1500 A MCS / CCS HPC - 1500 A / 600 A CCS HPC / CCS HPC - 600 A / 600 A Axon Side 400 Axon Side 360 DLBS

PRODUCT CATALOG EKOENERGETYKA-POLSKA S.A. | 69

SAT 1500

SATELLITES LED lighting to indicate the charging point status (full 360° visibility)

Advertising screen (19") for independent management of advertising content Cable for unobstructed access to the vehicle 3.5 / 4.5 m Comfortable screen visibility with day/night mode Operation via intuitive 10'' screen integrated with RFID Different variants of terminals and payment operators LED lighting to indicate the state of charge (SOC) - good visibility from a distance

MCS connector

Remote diagnostics and software updates

Weatherproof and vandal resistant housing -35°C+55°C

Convenient three-sides service access

Compact satellite dimensions of 2150 x 1000 x 470 mm allow installation in tight spaces

SELECT OPTIONS TO DESIGN YOUR PERFECT SAT 1500 MCS Branding (Mini, Midi, Maxi)

Length of CCS HPC connectors 3.4 or 4.5 m

Meters (Standard, Eichrecht, MID)

AD Display (individual or public advertising use)

Configuration of connectors (MCS, MCS / CCS HPC,

Payment terminals and operators (Pax IM30 - CCV / eService,

CCS HPC / CCS HPC).

Payter Apollo - Cloud Solutions, Valina - Worldline)

70 | PRODUCT CATALOG EKOENERGETYKA-POLSKA S.A.

PRODUCT VIEW FRONT VIEW

LEFT VIEW

RIGHT VIEW

BACK VIEW

PRODUCT CATALOG EKOENERGETYKA-POLSKA S.A. | 71

SAT 1500 MCS TECHNICAL SPECIFICATIONS CONFIGURATION

MCS

MCS / CCS HPC

CCS HPC / CCS HPC

MAXIMUM CHARGING CURRENT [A]

1500

1500 / 600

600 / 600

COMMUNICATION

Charging mode

IEC 61851-1 IEC 61851-23 IEC 61851-24 ISO 15118-20 DIN 70121

Protocol

OCPP 1.6-J OCPP 2.0.1

GENERAL Housing

Steel with galvanised coating

Colour - Housing

DB 703

Colour - Front Panel

RAL 9005

Color - housing - option

RAL palette

Additional branding

Option

Anti-graffiti coating

Option

Protection rating

IP 54 IK 10

Overall dimensions [H x W x D] (mm)

2150 x 1000 x 470

Weight [kg]

~400

Operating temperature range [°C]

- 35 +55

Operating altitude [m.a.s.l.]

≤ 2000

Compliance with standards

TBA

Internal communication Communication with vehicle

72 | PRODUCT CATALOG EKOENERGETYKA-POLSKA S.A.

Optical fiber Single-pair Ethernet

[A]

SAT 1500 MCS STANDARD VERSIONS | EQUIPMENT Current

Connectors

Lenght

DC Meter

Payment Terminal

AD Display

Branding

S15-S13-401010200000D703-11001000

up to 1500 A

MCS

3,5 m

Standard

Pax IM30 e-Service

-

-

S15-S13-421110200000D703-11001000

up to 1500 A

MCS / CCS HPC

3,5 m

Standard

Pax IM30 e-Service

-

-

S15-S12-221110200000D703-11001000

up to 600 A

CCS HPC / CCS HPC

3,5 m

Standard

Pax IM30 e-Service

-

-

Product Code

CONFIGURABLE OPTIONS Options Categories

Selection Of options

Code Fragment

Current

up to 600 A up to 1500 A*

1 2

Connectors

MCS / MCS / CCS HPC CCS HPC / CCS HPC

40 42 22

Cable lenght [m]

3,5 / 4,5 / 3,5 / 3,5 3,5 / 4,5 4,5 / 4,5

10 30 11 13 33

DC Meter

Standard Eichrecht MID

1 2 3

Payment terminal

PAX IM 30 - CCV PAX IM 30 - eService Payter Apollo - Cloud Solutions Valina - Worldline

0 1 2 3 4

AD Display

"19

0 2

Branding

Mini Midi Maxi

0 1 2 3

S15-01

-

0

0

00

D703-11001000

Preeliminary data sheet * - only for MCS version

PRODUCT CATALOG EKOENERGETYKA-POLSKA S.A. | 73

SATELLITES

E-VAN

E-BUS

E-TRUCK

PRODUCT APPLICATION

Industrial facilities

Logistics bases

Commercial fleet parking facilities

Intermodal ports and terminals

Charging hubs

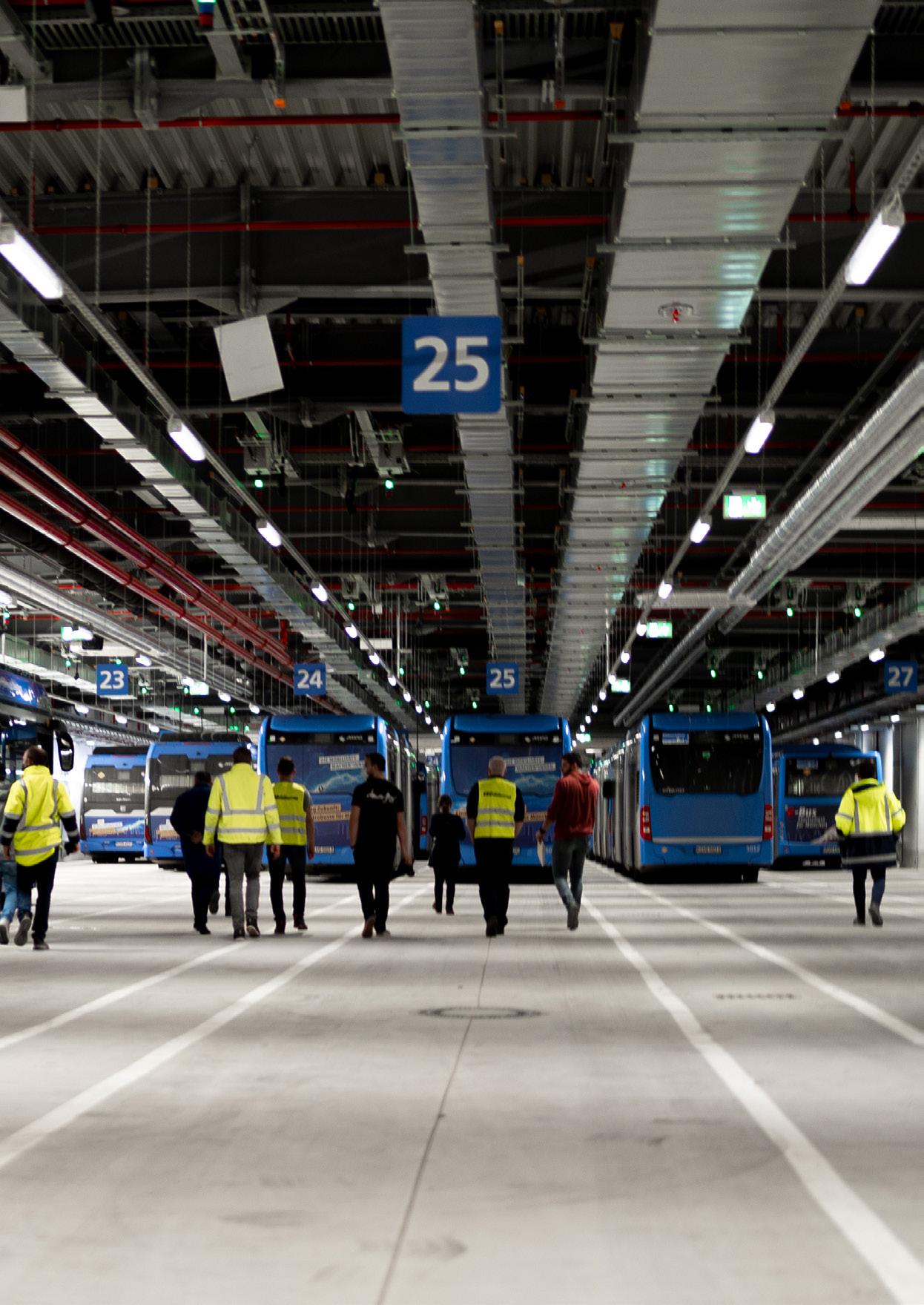

Bus depots

74 | PRODUCT CATALOG EKOENERGETYKA-POLSKA S.A.

VISIT OUR WEBSITE

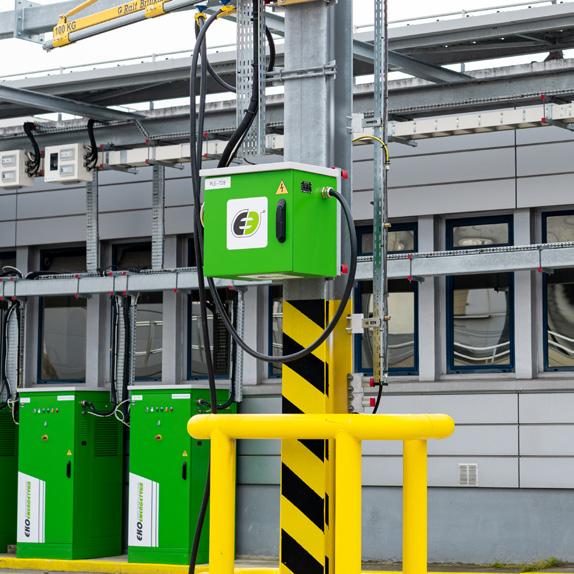

SAT BOX The satellites provide fast direct current (DC) charging. They are part of a concept in which they are combined with the Power Unit to form a ready-made vehicle charging system that can be used to create multi-station charging hubs. The

Connectors

Maximum charging current

Number of outputs

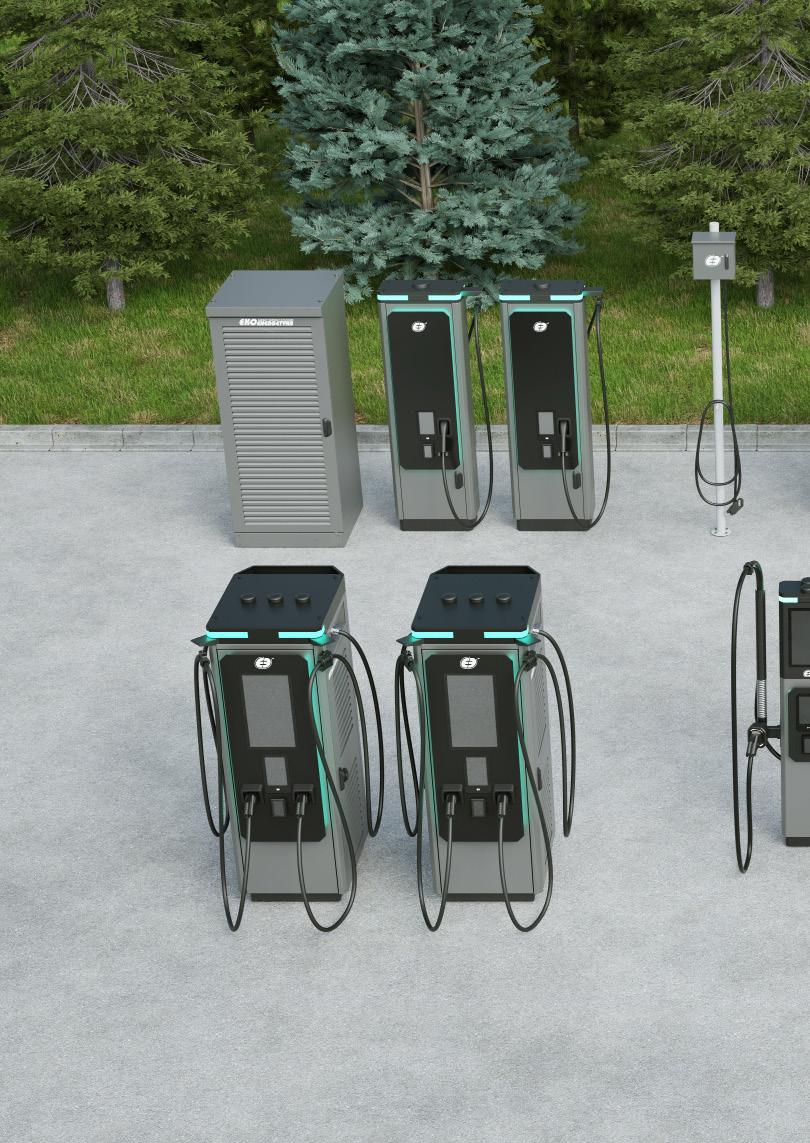

Charging hub - variants with Power Unit

design of the units ensures space efficiency, important in large cities. Easy to install and use. Supports E-Buses and E-Trucks.

Suitable for integration with all charging service providers.

CCS (9,5 m)

250 A

x1

Axon Side 360 DLBS, Axon Side 400

PRODUCT CATALOG EKOENERGETYKA-POLSKA S.A. | 75

SATELLITES FEATURES CCS connector (9,5m) Signal column (option) Mounting pole (option) Cable reel (option) Communication with Power Unit (fiber optic) Vandal-proof housing inert to weather conditions -25°C+45°C

76 | PRODUCT CATALOG EKOENERGETYKA-POLSKA S.A.

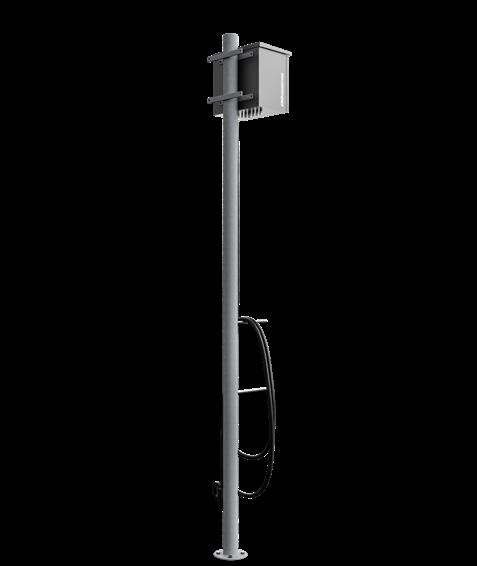

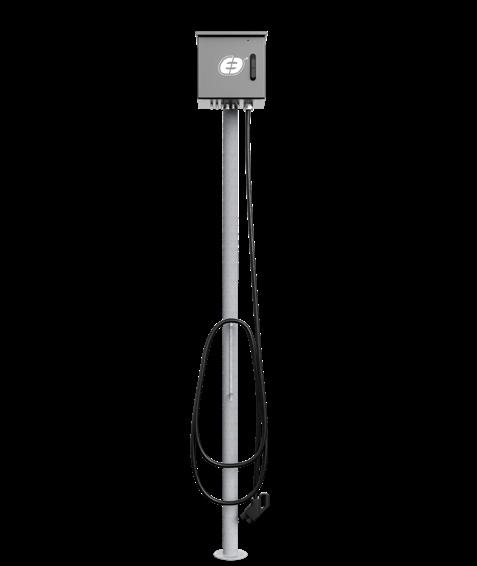

SAT BOX

PRODUCT VIEW FRONT VIEW

LEFT VIEW

RIGHT VIEW

BACK VIEW

High-powered Power Units cooperation

Saving urban space

Interoperability

PRODUCT CATALOG EKOENERGETYKA-POLSKA S.A. | 77

SAT BOX TECHNICAL SPECIFICATIONS CONFIGURATION

CCS

CCS CABLE REEL

250

200

OUTPUT Maximum charging current [A]

COMMUNICATION

Charging mode

IEC 61851-1 IEC 61851-23 IEC 61851-24 ISO 15118 DIN 70121

Protocol

OCPP 1.6-J OCPP 2.0.1

GENERAL Housing

Steel with galvanised coating IP 54 IK 10

Protection rating

502 x 519 x 378 (housing) 807 x 519 x 435 (with signal column)

Overall dimensions [H x W x D] [mm] Weight [kg]

~60

~120

Operating temperature range [°C]

- 25 +45

Operating altitude [m.a.s.l.]

≤ 2000

Compliance with standards

CE LVD 2014/35/UE EMC 2014/30/UE RED 2014/53/UE

78 | PRODUCT CATALOG EKOENERGETYKA-POLSKA S.A.

SAT BOX EQUIPMENT CONFIGURATION

CCS

CCS CABLE REEL

CCS 9,5 m

CCS CABLE REEL 5 m

CONNECTORS DC Connectors

HOUSING Colour

DB 703

Colour - option

RAL palette

Branding

Option

Anti-graffiti coating

Option

Universal assembly kit Mounting pole

Option

External safety switch

Option

Signal column

COMMUNICATION Fiber optics Ethernet

Catalog code

Option

SBX -S10-010D02000000D703 -01020003

SBX -S14-010402000B00D703 -01020003

PRODUCT CATALOG EKOENERGETYKA-POLSKA S.A. | 79

D O W N L O A D C ATA L O G U E

Ekoenergetyka - Polska S.A. ul. Nowy Kisielin - Rozwojowa 7A, 66 - 002 Zielona Góra KRS: 0000846229 NIP: 9731013938 REGON: 081115853 www.ekoenergetyka.com
