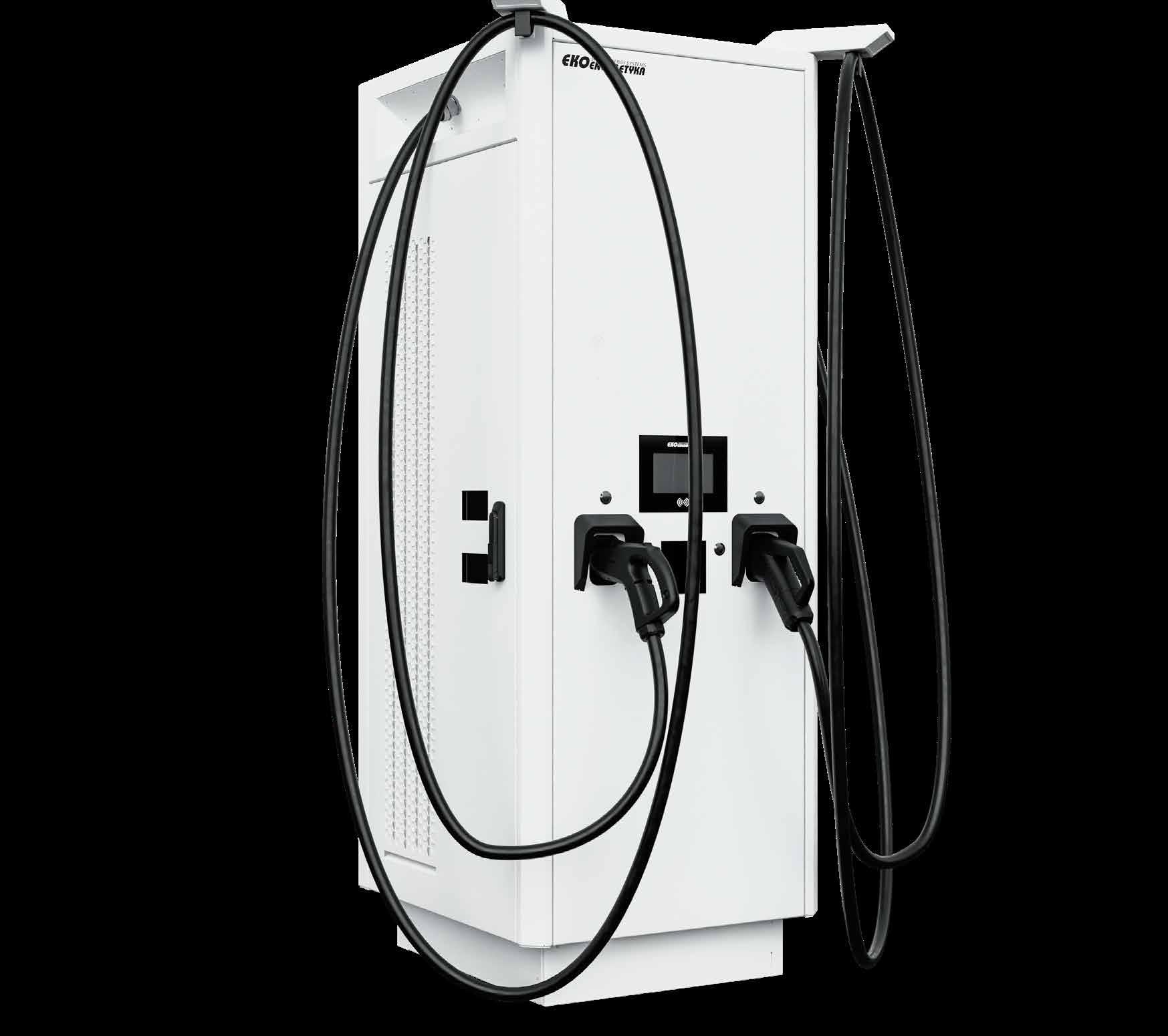

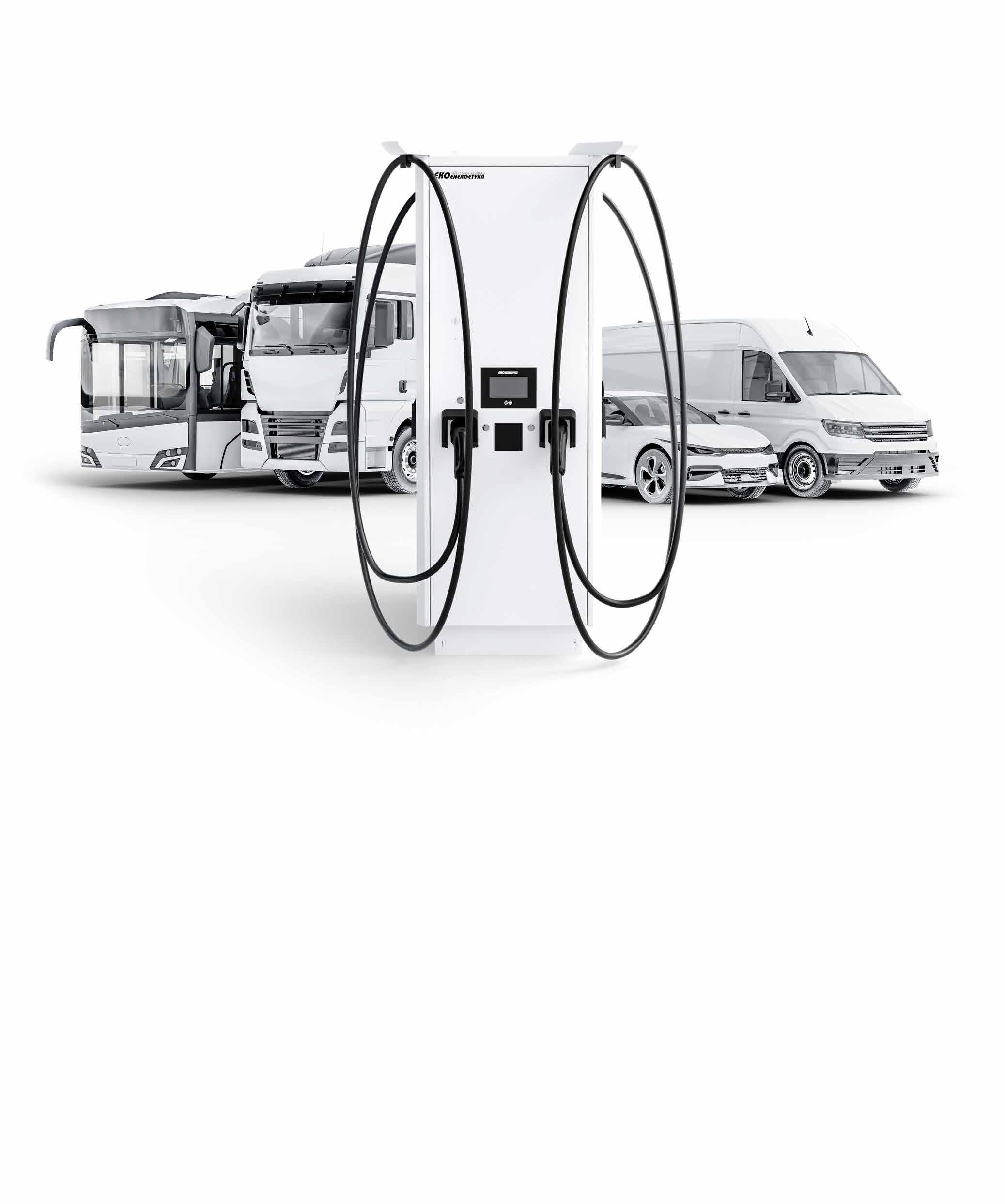

AXON EASY
DC charging station suitable for all electric vehicles, for fast and friendly charging. This versatile and innovative device is designed to integrate with all charging service providers. The charger is of modular design so its power can be increased even after installation. It will work in all weather conditions, is easy to install and operate, and is a perfect solution in many demanding locations.
E-TRUCK E-BUS E-VAN EV
Parking lot Airport Commercial spaces Expressways Charging stations Rest areas 60, 120, 180 kW All In One Charging Station 60, 120, 180 kW - CCS / CCS, CCS / CCS/ AC 60, 120 kW - CCS / CHAdeMO / AC 180 kW - CCS HPC / CCS HPC, CCS HPC / CCS HPC / AC 150 – 1000 V High Power Charging up to 500 A 60, 120, 180 kW - CCS / CCS; 180 kW - CCS HPC / CCS HPC 60 >120 60 >180 120 >180 Power Device type Connectors Voltage range Power class Max. charging current Metering standard Eichrecht compliant Power upgrade
Ergonomic Cable Management System (CMS)
High efficiency of the ventilation system while maintaining low noise emissions <60 dBA
Housing resistant to vandalism and temperatures between -25°C and +55 °C
Rear wall of the charger can be built in
POWER SPLIT AND MANAGEMENT SYSTEM
Branding (Mini, Midi, Maxi)
Charging up to 3 vehicles simultaneously
Remote access, diagnostics and software updates
Operation via an intuitive 7” display
RFID card reader
Payment system as optional CCV / Payter / Polskie ePłatności
Service access on three sides of the charger
Comfort of use for people with limited mobility
1
60 kW / AC socket 2 x 30 kW / AC socket 1 x 120 kW / AC socket 2 x 60 kW / AC socket
2
easy acces
x
1 x 180 kW / AC socket
x 90 kW / AC socket
AXON EASY
Technical specifications Configuration CCS CHAdeMO AC CCS CCS AC CCS CCS CCS CHAdeMO AC CCS CCS AC CCS CCS CCS CCS AC CCS CCS CCS HPC CCS HPC AC CCS HPC CCS HPC Maximum charging power 60 60 60 120 120 120 180 180 180 180 [kW] Input Power supply [ V / Hz ] AC, 3x400 / 50 Connection power [kVA] 88 88 66 154 154 132 220 198 220 198 Connection to mains Cable connector in TNS system Power factor > 0,98 (for output power above 25 %) Output Efficiency [%] > 95 (under optimal operating conditions) Maximum charging current [A] CCS 200 CHAdeMO 125 AC 32 CCS 200 AC 32 CCS 200 CCS 250 CHAdeMO 125 AC 32 CCS 300 AC 32 CCS 300 CCS 400 (to 500) AC 32 CCS 400 (to 500) CCS HPC 500 AC 32 CCS HPC 500 Output voltage range [V] 150 - 1000 Communication Charging mode IEC 61851-1 IEC 61851-23 IEC 61851-24 ISO 15118 DIN 70121 CHAdeMO rev. 1.2 Applies to CHAdeMO connector configurations only Protocol OCPP 1.6-J OCPP 2.0.1 General Housing Steel with galvanised coating Protection rating IP 54 IK 10 IK8 - Touchscreen Overall dimensions [ H x W x D ] 2040 x 750 x 980 Weight [ Kg ] ~450 ~500 ~550 Noise [ dBA ] < 60 Operating temperature range [ °C ] - 25 - +55 > 40 possible output power limitation Operating altitude [m.a.s.l.] ≤ 2000 Compliance with standards CE LVD 2014/35/UE EMC 2014/30/UE RED 2014/53/UE
AXON EASY
Equipment Configuration CCS CHAdeMO AC CCS CCS AC CCS CCS CCS CHAdeMO AC CCS CCS AC CCS CCS CCS CCS AC CCS CCS CCS HPC CCS HPC AC CCS HPC CCS HPC Maximum charging power 60 60 60 120 120 120 180 180 180 180 [kW] Connectors DC Connectors CCS 5,5m CHAdeMO 4m CCS 5,5m CCS 5,5m CCS 5m CCS 5m CCS 5m CHAdeMO 4m CCS 5,5m CCS 5,5m CCS 5m CCS 5m CCS 5,5m CCS 5,5m CCS 5m CCS 5m CCS HPC 3,5m CCS HPC 3,5m CCS HPC 5m CCS HPC 5m AC socket 32 A 32 A 32 A 32 A 32 A 32 A Cable Management System Housing Colour RAL 9016 RAL Colour (Other) Option Additional branding Option Anti-graffiti Option Interface 7'' Touchscreen display with integrated RFID card reader 10'' Touchscreen display with integrated RFID card reader Option Emergency button Intercom Option Meters Output energy meter Input energy meter Eichrecht compliant Payment system CCV Option Payter Option Polskie ePłatności Option Communication Data transfer GSM (LTE) EEP GSM (LTE) Client Ethernet Catalog code AXE -A541S1000H -9016 AXE -H131V1000H -9016 AXE -A530T1010H -9016 AXE -B241S1000H -9016 AXE -M731V1000H -9016 AXE -B230T1010H -9016 AXE -B831V1000H -9016 AXE -B830T1010H -9016 AXE -B861N1000H -9016 AXE -B860T1010H -9016

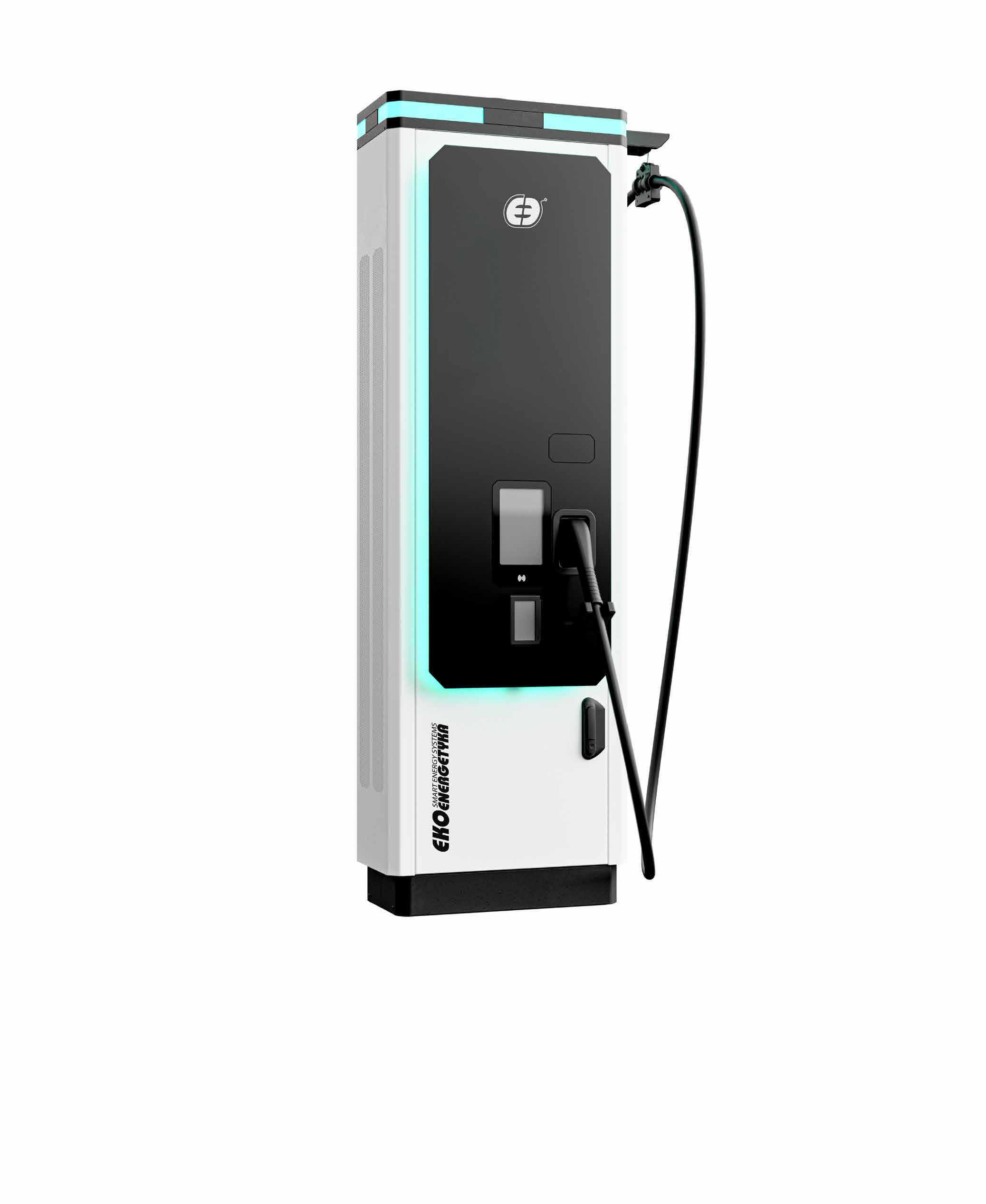

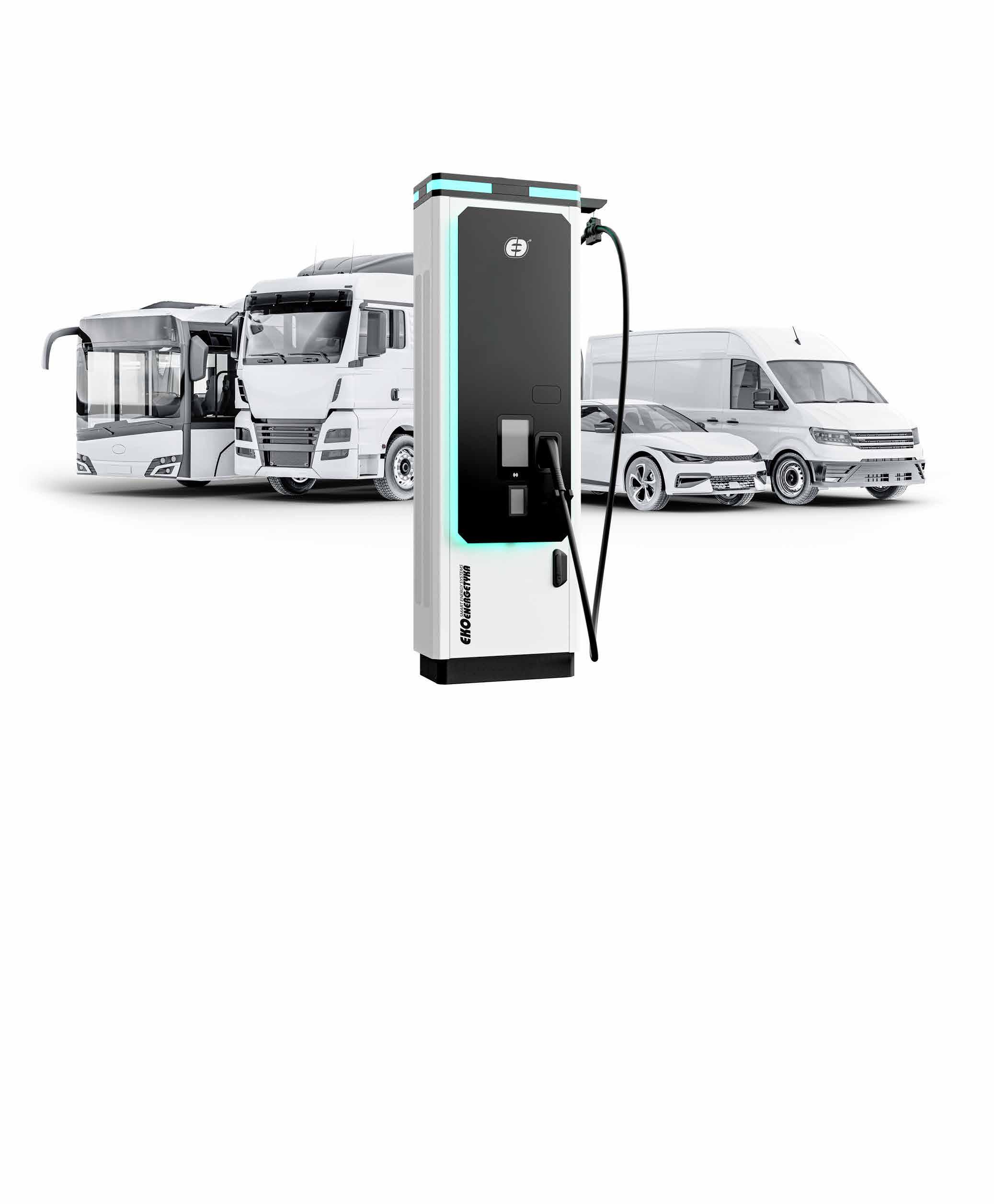

SAT 600 HPC
A satellite that provides ultra-fast direct current (DC) charging. It is part of a concept where it is combined with the Power Unit to form a ready-to-use electric vehicle charging system that can be used to create multi-station charging hubs. The design of the unit ensures space efficiency and usability. It is suitable for integration with all charging service providers.
Expressways Charging hubs Petrol stations Commercial fleet parking lots Logistics parks Bus depots EV E-VAN E-BUS E-TRUCK Connectors CCS Number of outputs x1 Max. charging current 500 A Charging Hubs - variants with Power Unit Axon Side 400 Metering standard Eichrecht compliant
LED lighting to indicate the charging point status
Cable Management System with flat arm, space efficient
Panel illumination integrated with functional lighting
Operation via intuitive 10’’ screen integrated with RFID
Sufficient cable to allow unobstructed access to the vehicle CCS 4,5 m (even up to 10 m)
Modern front panel integrating multi functions of the satellite
Remote access, diagnostics and software updates
Low noise emissions < 60 dBA
CCV payment system (Payter is optional)
Weatherproof housing -25 +55°C
Convenient service access
Modern design
HUB creation & expansion
Multi-purpose functions easy acces
Comfort of use for people with limited mobility
SAT 600 HPC
Technical specifications Configuration CCS Communication Maximum charging current [A] 500 Charging mode IEC 61851-1 IEC 61851-23 IEC 61851-24 ISO 15118 DIN 70121 Protocol OCPP 1.6-J OCPP 2.0.1 General Housing Steel with galvanised coating Protection rating IP 54 IK 10 IK 8 - Touchscreen Overall dimensions (H x W x D) [mm] 2300 x 800 x 365 Weight [ Kg ] ~ 200 Operating temperature range [ °C ] - 25 - +55 > 40 possible output power limitation Operating altitude [m.a.s.l.] ≤ 2000 Compliance with standards CE LVD 2014/35/UE EMC 2014/30/UE RED 2014/53/UE
SAT 600 HPC
Equipment Configuration CCS Connectors DC Connectors CCS 4,5m (up to 10m) Uncooled DC connector Option Cable Management System Housing Colour RAL 9016 - Housing RAL 9004 - Front panel Additional branding Option Anty graffiti Option Meters Output energy meter Input energy meter Eichrecht compliant Interface Display 10" with integrated RFiD card reader LED charging status indication Payment system CCV Payter Option Communication Data transfer GSM (LTE) EEP GSM (LTE) Client Ethernet Catalog code AVAILABLE ON Q3/2023 Preliminary data sheet

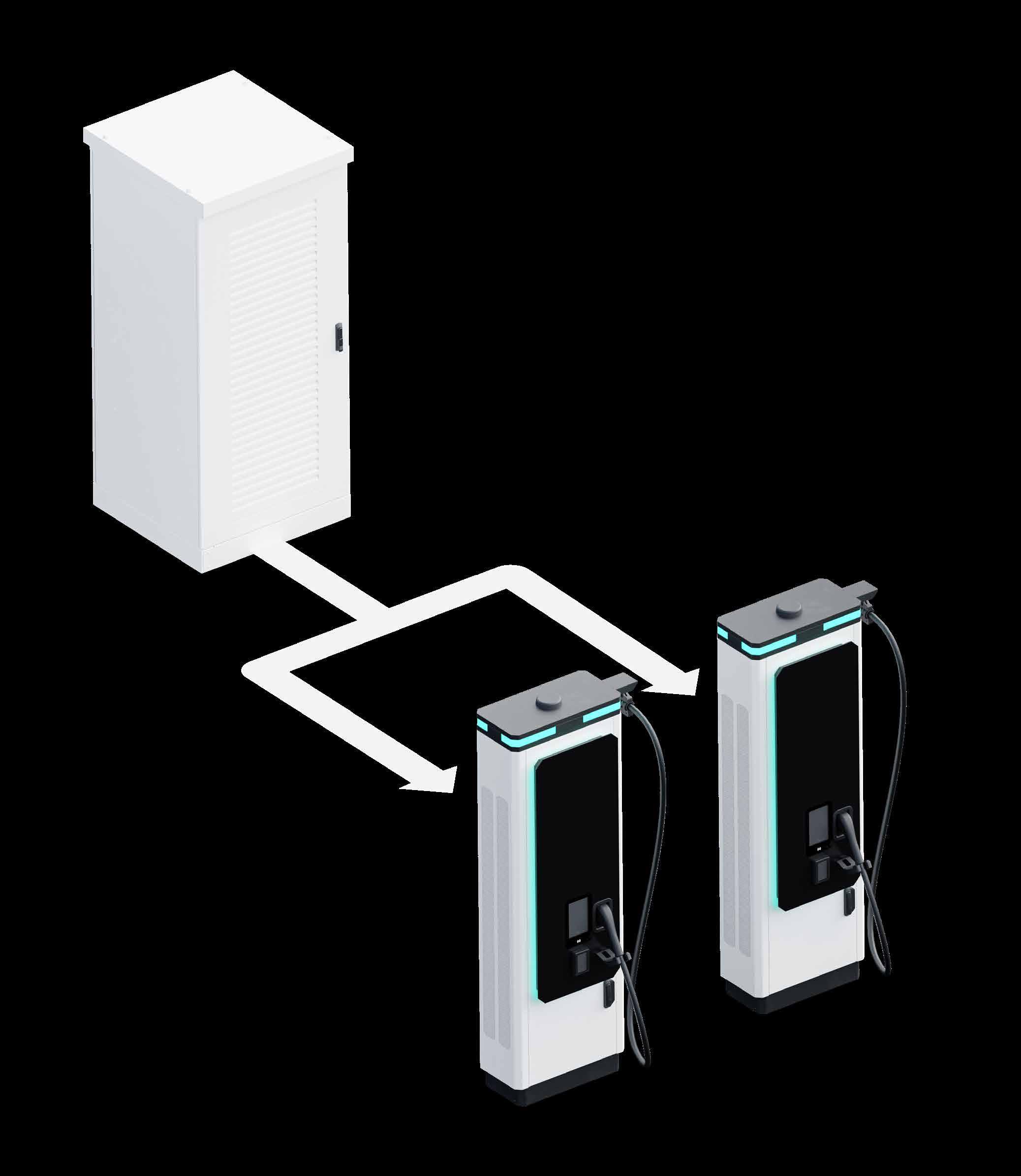

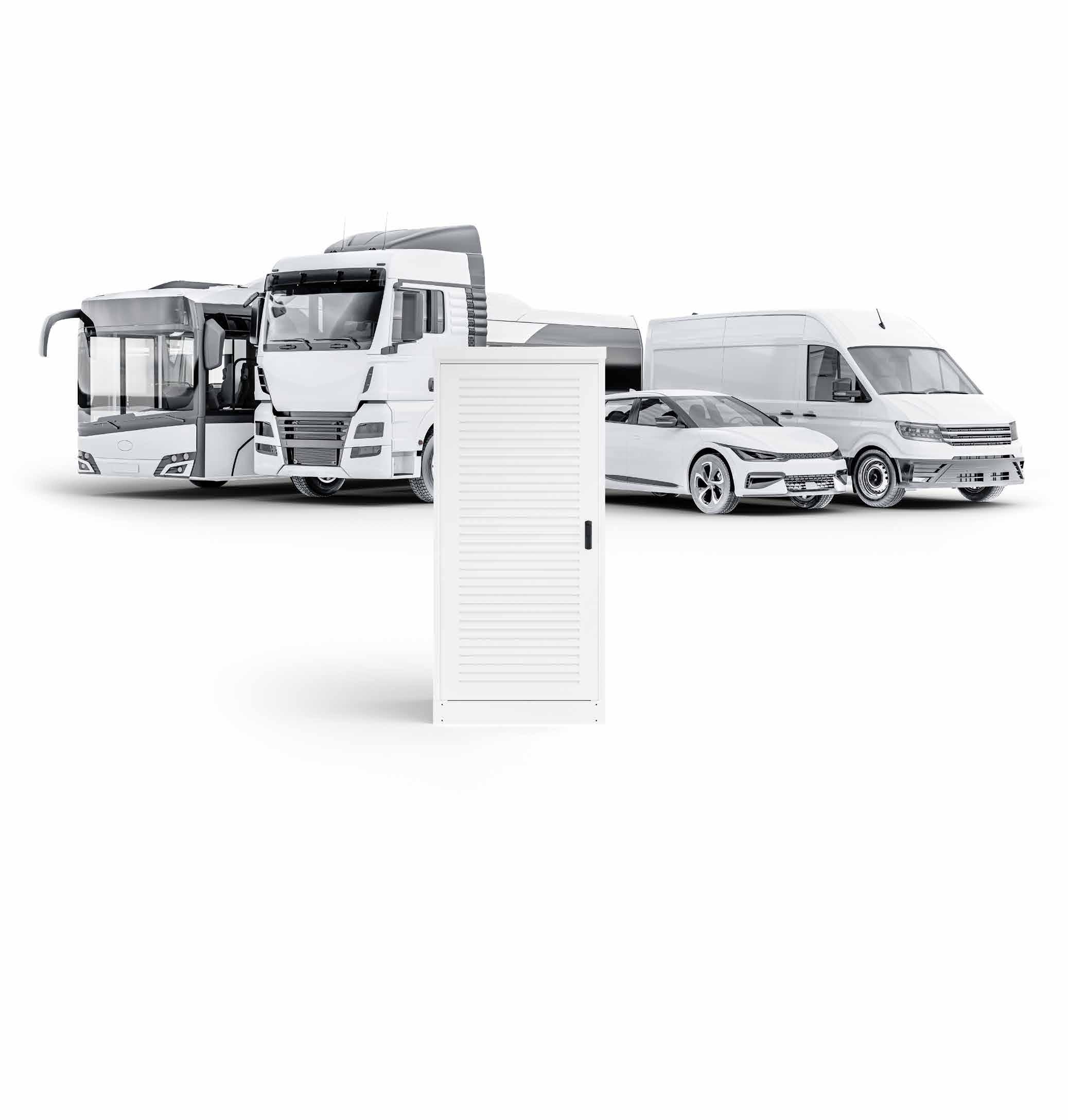

AXON SIDE 400
Power Unit providing high-speed, high-power direct current (DC) charging. The unit is a ready-made concept for connecting satellites or pantographs and creating and expanding charging hubs. It supports a full range of electric vehicles. It is suitable for integration with all charging service providers.
Expressways Charging
Petrol stations Commercial fleet parking lots Logistics parks Bus depots EV E-VAN E-BUS E-TRUCK Power 400 kW Device type Power Unit Power class High Power Charging Number of outputs 1 x CCS (satellite) 2 x CCS (satellite) Voltage range 150-1000 V Max. charging current 550 A Hub charging variants SAT 600 HPC Plug & Charge ready Eichrecht compliance ready
hubs
AXON SIDE 400
Two side service access
Remote access, diagnostics and software updates
High performance ventilation system while maintaining extremely low noise emissions
<65 dBA
Vandal proof housing inert to weather conditions
-35 +55°C
Ability to increase the power of the charging station by combining modules in a side-by-side setting, without losing ventilation capacity
high power HUB creation & expansion compatibility with vehicles 2 charging points
AXON SIDE 400
Technical specifications Configuration 1xCCS 2 x CCS Maximum charging power 400 400 [kW] Input Power supply [ V / Hz ] AC, 3x400 / 50 Connection power [kVA] 440 Connection to mains Cable connector in TNC system Power factor > 0,98 Output Efficiency [%] > 94 Maximum charging current [A] 550 Output voltage range [V] 150 - 1000 Communication Charging mode IEC 61851-1 IEC 61851-23 IEC 61851-24 ISO 15118 DIN 70121 Protocol OCPP 1.6-J OCPP 2.0.1 General Housing Steel with galvanised coating Protection rating IP 54 IK 10 Overall dimensions [ H x W x D ] 2300 x 1000 x 1000 Weight [ Kg ] ~880 Noise [ dBA ] < 65 Operating temperature range [ °C ] -35 - +55 > 40 possible output power limitation Operating altitude [m.a.s.l.] ≤ 2000 Compliance with standards CE LVD 2014/35/UE EMC 2014/30/UE RED 2014/53/UE
AXON SIDE 400
Signal
CCV
Payter
Equipment Configuration 1xCCS 2 x CCS Maximum charging power 400 400 [kW] Connectors DC Connectors 1xCCS (satellite) 2 x CCS (Satellite) Housing Colour RAL 9016 RAL Colour (Other) Option Additional branding Option Anti-graffiti Option Interface Display Depending on satellite model Emergency button
reader Depending on satellite model
RFID card
column Depending on satellite model
energy
Depending on satellite model
Meters Output
meter
Input energy meter Eichrecht compliant Payment system
Depending on
satellite model
Depending on
Communication
transfer GSM (LTE) EEP GSM (LTE) Client Ethernet
code Available on 2024
satellite model
Data
Catalog

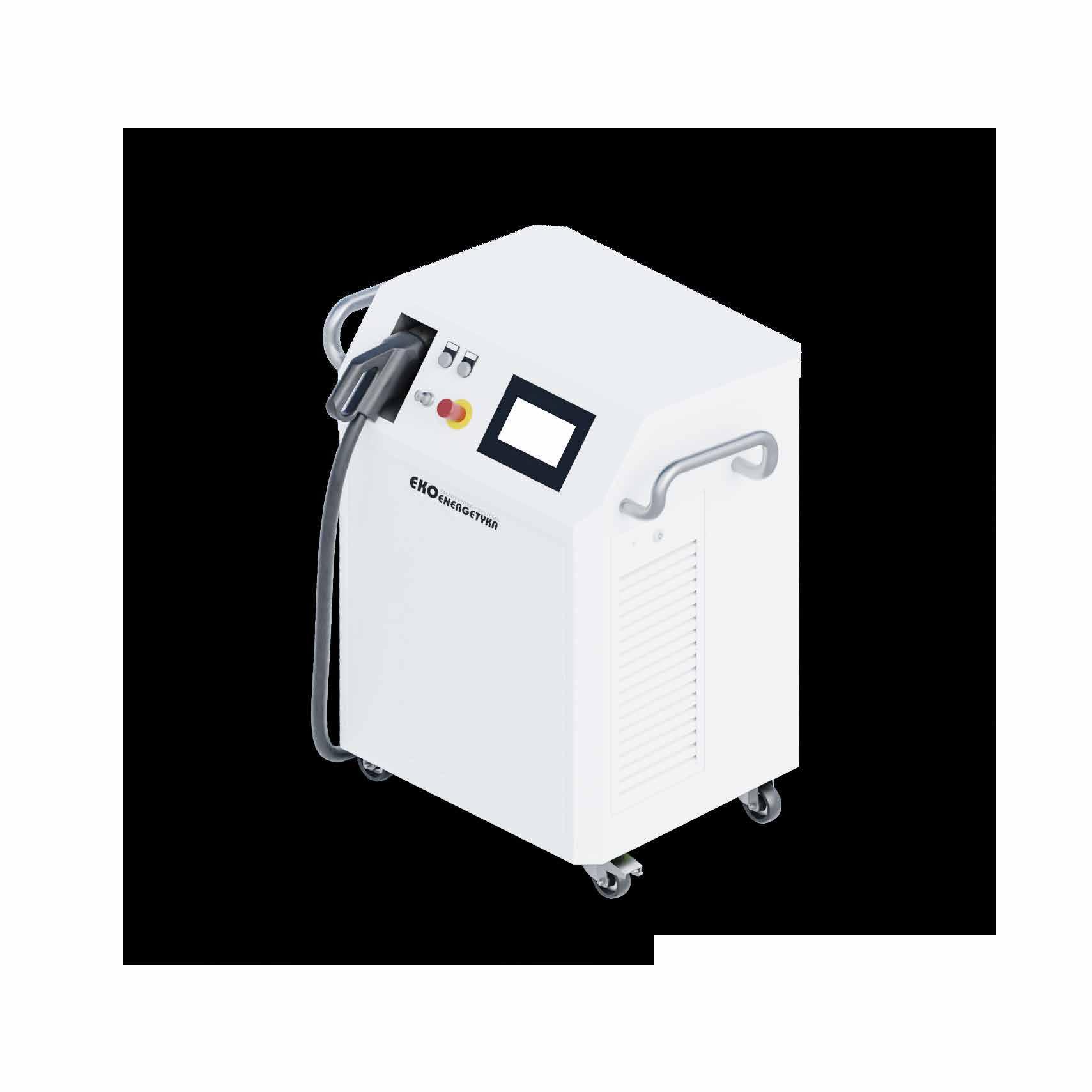

PLUG CHARGER GO
Mobile charging station for fast direct current (DC) charging. This handy and portable device is a charging support in emergency situations, but can be also used for charging a vehicle in any situation and location. Suitable for all electric vehicles. The charger operates independently and no integration with charging service providers is necessary. It is ideal as an accessory for an electric vehicle.
Car repair shops Motor Sport Events Bus depots Logistics parks Vehicle equipment Car washes EV E-VAN E-BUS E-TRUCK Power 30 kW Device type MOBILE charging station Power class Fast Charging Connector Connector Voltage range 150-1000 V Max. charging current 80 A Plug & Charge ready
Remote access, diagnostics and software updates
Operation via an intuitive 7” display
Selection of charging power in the range of 1-30 kW from the display
RFID card reader integrated with the display
Housing resistant to temperatures between -25°C and +55 °C
Low noise emissions < 60 dBA
Sufficient 4m cable to allow unobstructed access to the vehicle
Casters for easy movement of the device
PLUG CHARGER GO
Branding (Mini, Midi, Maxi) No
Mobile
Vehicle
operator needed
charger
equipment
PLUG CHARGER GO 30
Technical specifications Maximum charging power 30 [kW] Input Power supply [ V / Hz ] AC, 3x400 / 50 Connection power [kVA] 33 Connection to mains CEE 63A socket 3P+N+PE Power factor > 0,98 Output Efficiency [%] > 94 Maximum charging current [A] 80 Output voltage range [V] 150 - 1000 Communication Charging mode IEC 61851-1 IEC 61851-23 IEC 61851-24 ISO 15118 DIN 70121 Protocol OCPP 1.6-J OCPP 2.0.1 General Housing Aluminium Protection rating IP 54 IK 10 IK8 - Touchscreen Overall dimensions [ H x W x D ] 1000 x 630 x 450 Weight [ Kg ] ~ 50 Noise [ dBA ] < 60 Operating temperature range [ °C ] - 25 - +55 > 40 possible output power limitation Operating altitude [m.a.s.l.] ≤ 2000 Compliance with standards CE LVD 2014/35/UE EMC 2014/30/UE RED 2014/53/UE
PLUG CHARGER GO 30
Equipment Maximum charging power 30 [kW] Connectors DC Connectors CCS 4m Housing Colour RAL 9016 RAL Colour (Other) Option Additional branding Option Anti-graffiti Option Interface Display 7'' Touchscreen display with integrated RFID card reader Power switch Option Adjustable output power of 1kW Emergency button Meters Output energy meter Communication Data transfer GSM (LTE) EEP GSM (LTE) Client Ethernet Option Catalog code PCG -A210B0000K -9016

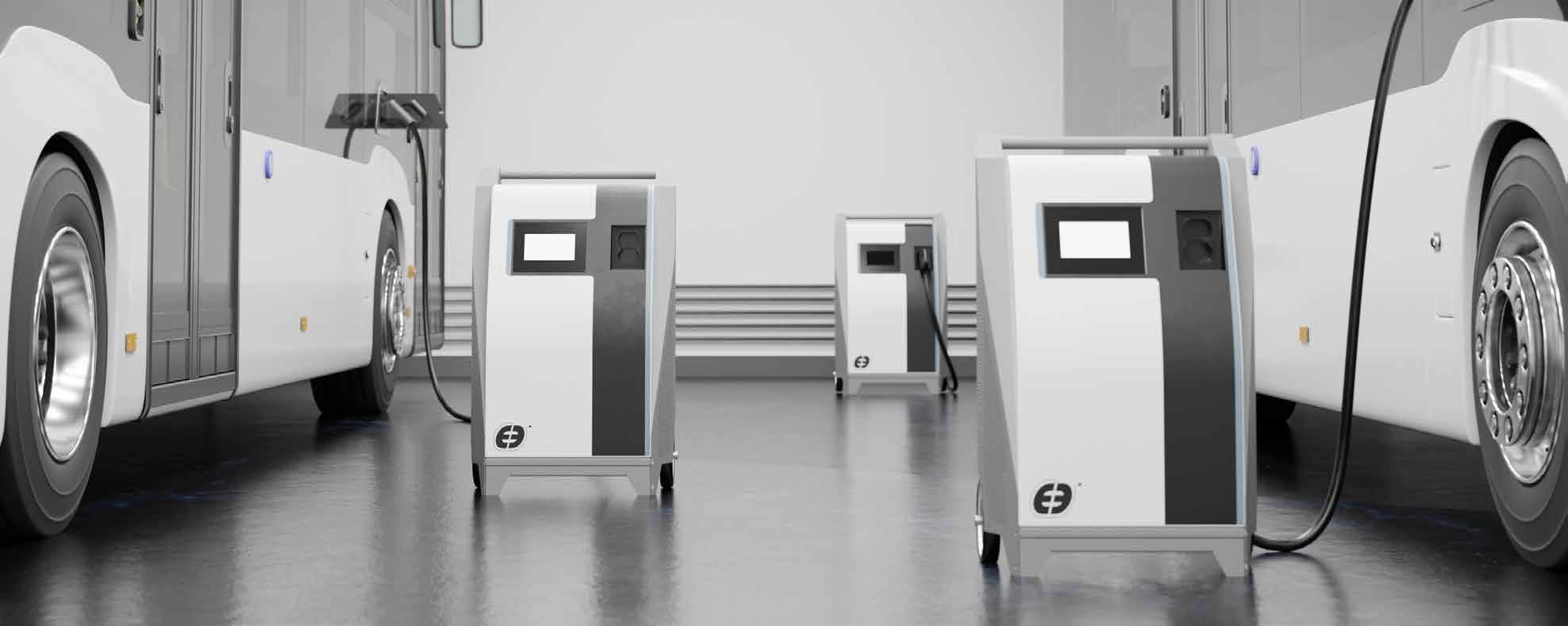

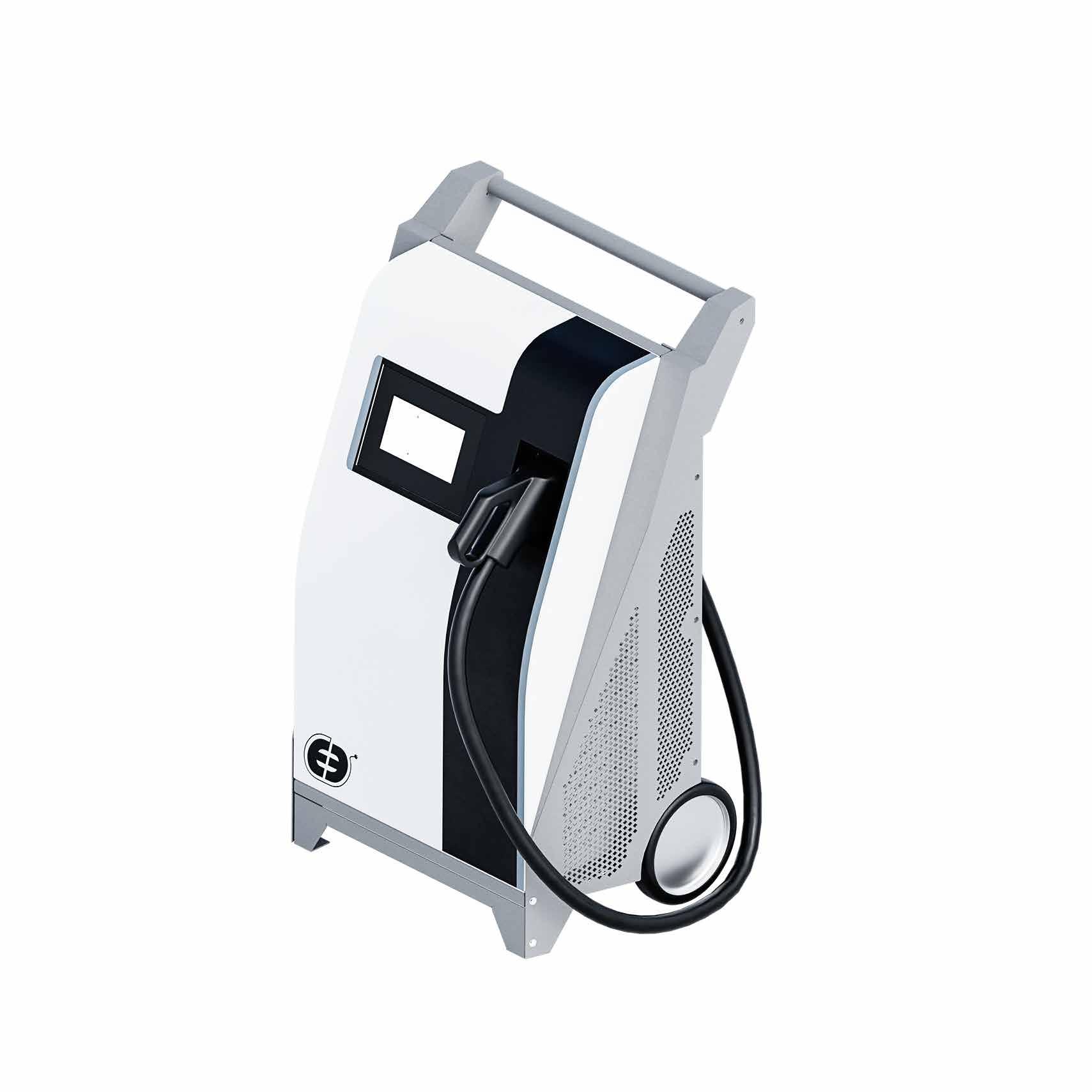

PLUG CHARGER
Mobile charging stations for high-speed direct current (DC) charging. Available in few power options, these handy and portable devices can be a charging support in emergency situations, but can be also used for charging a vehicle in any situation and location. Flexibly operating in locations with reduced power availability (power outlets with lower rating). Suitable for heavier electric vehicles. The chargers operate independently and no integration with charging service providers is necessary. Bus
Power 40, 60 kW Device type MOBILE charging station
class Fast Charging Connectors 40, 60 kW: 1 x CCS Voltage range 150 – 950V
charging current 150 A
& Charge ready E-VAN E-BUS E-TRUCK
Power
Max.
Plug
depots Car washes
repair shops Commercial fleet parking lots Logistics parks Car dealerships
Car
PLUG CHARGER 40 60
Operation via an intuitive 7’’ touchscreen display
Sufficient cable to allow unobstructed access to the vehicle CCS - 5,5 m
Casters for easy movement of the device
For charging station power supply in locations with 32 A power socket
Remote access, diagnostics and software updates
Housing resistant to vandalism and temperatures between -25+55 °C
Low noise emissions < 65 dBA
RFID card reader integrated with display
40 kW > 20 kW 60 kW > 40 kW
POWER LIMITER Branding (Mini, Midi, Maxi) No
Mobile
the
operator needed
version of
housing Power Limiter
Technical specifications Configuration CCS CCS Maximum charging power 40 60 [kW] Input Power supply [ V / Hz ] AC, 3x400 / 50 Connection power [kVA] 44 66 Connection to mains CEE 63 A 3P+N+PE socket CEE 125 A 3P+N+PE socket Power factor > 0,98 (for output power above 25 %) Output Efficiency [%] > 95 (under optimal operating conditions) Maximum charging current [A] 150 Output voltage range [V] 150 - 950 Communication Charging mode IEC 61851-1 IEC 61851-23 IEC 61851-24 ISO 15118 DIN 70121 Protocol OCPP 1.6-J OCPP 2.0.1 General Housing Steel with galvanised coating Protection rating IP 54 IK 10 IK8 - Touchscreen Overall dimensions [ H x W x D ] 1045 x 705 x 605 Weight [ Kg ] ~190 ~210 Noise [ dBA ] < 65 Operating temperature range [ °C ] - 25 - +55 > 40 possible output power limitation Operating altitude [m.a.s.l.] ≤ 2000 Compliance with standards CE LVD 2014/35/UE EMC 2014/30/UE RED 2014/53/UE
PLUG CHARGER 40 60
Equipment Configuration CCS CCS Maximum charging power 40 60 [kW] Connectors DC Connectors CCS 5,5,m CCS 5,5m Housing Mobile housing version Colour RAL 9016 RAL Colour (Other) Option Additional branding Option Anti-graffiti Option Interface Display 7'' Touchscreen display with integrated RFID card reader Output power limit switch up to 20 kW up to 40 kW Emergency button Meters Output energy meter Input energy meter Communication Data transfer GSM (LTE) EEP GSM (LTE) Client Ethernet Catalog code PCH -A310F0000H -9016 PCH -A510F0000H -9016
PLUG CHARGER 40 60
