HIGH-POWER CHARGING HUB ekoenergetyka.com
NEVI HPC HUB
HIGH POWER FAST CHARGING EXPERIENCE
EEP has been manufacturing reliable DC fast charging solutions for all electric vehicles since the beginning of the eRevolution. We are present in 30 countries with charging solutions in everyday use.
Our NEVI HPC HUB represents a compliant system that proves our premises - usability, scalability, an innovative approach to be easy to install, own, and use.
Most importantly, it is designed to meet the requirements of the NEVI program.
EEP has a perfect answer for the National Electric Vehicle Infrastructure Program (NEVI).

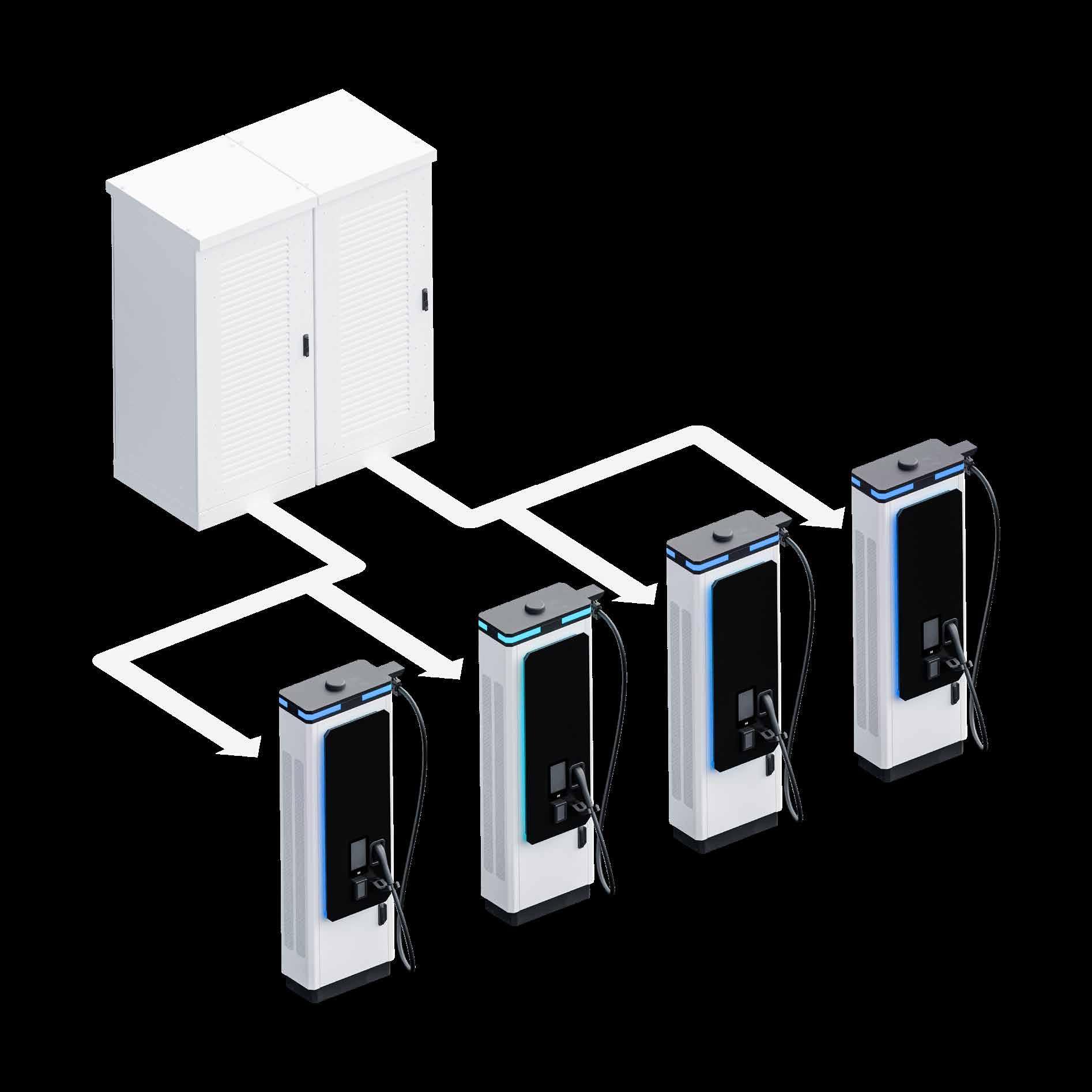

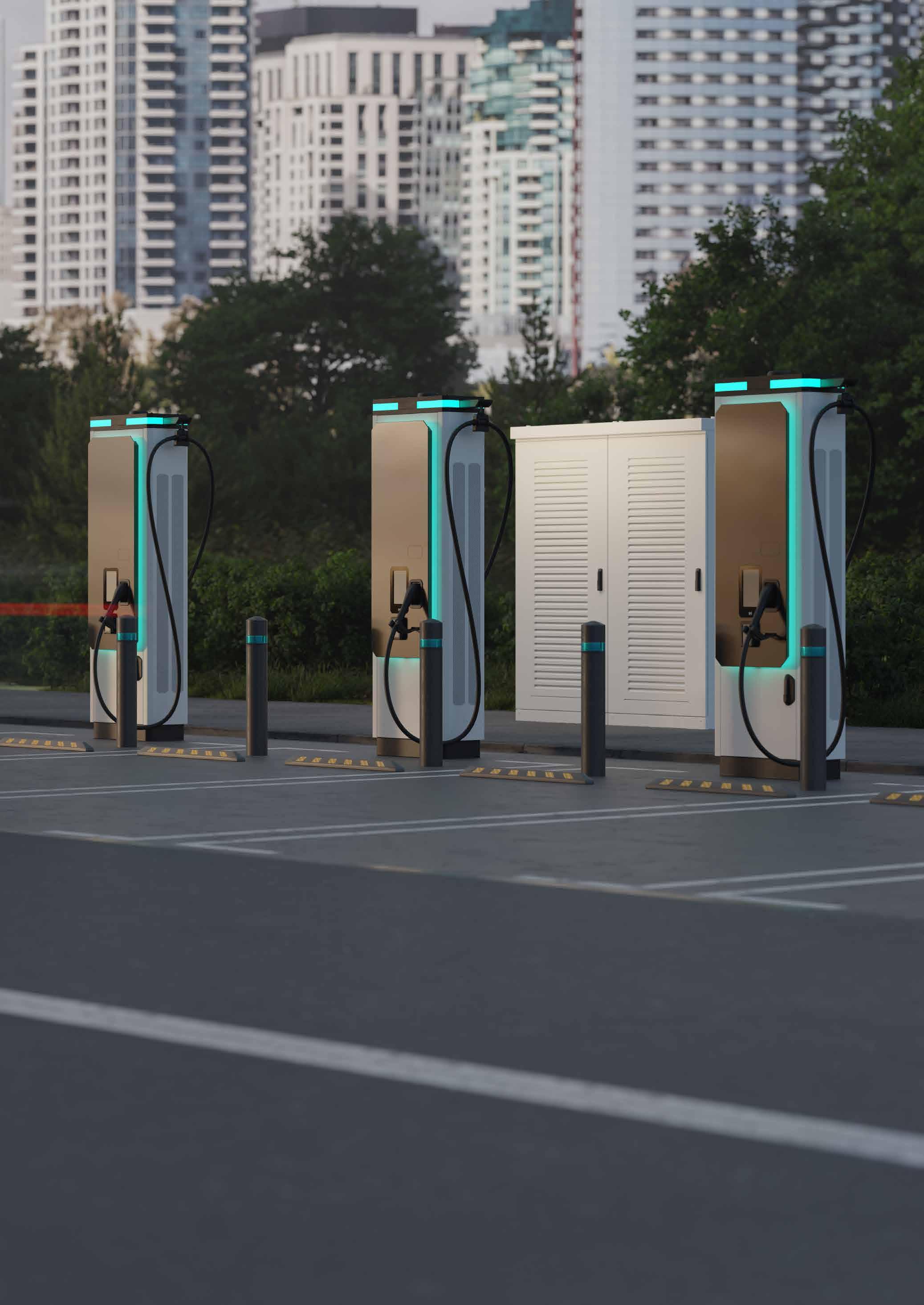

EEP’s NEVI HPC HUB uses two power units and four user units in its basic configuration to provide backup charging power for increased reliability and site uptime.
NEVI HPC HUB
ALL-IN-ONE DC Fast Charger
2 x HPC HUBs provides 4 CCS1 parts with 200 kW each of charging power
2x HPC HUBs provides 800kW of power (in configuration with 4x200kW or 2x400kW)
SAT 600 HPC – part of HPC HUB by EEP maitain a max output of 200 kW when power sharing
>98 % at the individual station level
Supports payment methods: RFID, CCV, Payter
Highly visible illuminationPanel illumination integrated with functional lighting
Withstands extreme weather conditions
Satisfies Buy America requirements
Meets Americans with Disabilities Act (ADA)
Real-Time data sharing protocols –LTE wireless comunication and wired Ethernet
Expansion possible due to the modular architecture
Remote diagnostics & problem resolution
Open source network connectivity – OCPP 1.6 & 2.0.1.
Visibility through industry leading mapping services –software supports OCPI for roaming & data sharing
Real time status – Illuminated state of charge indicators
Detailed pricing transparency and display requirements by touchscreen interface
Multiply language support – english, spanish, french
This is a powerful opportunity to accelerate the adoption of electric vehicles, and EEP is partnering to help you get started from the ground up with the appropriate charging infrastructure.
NEVI REQUIREMENTS
The NEVI program provides funding for up to 80% of eligible project costs to deploy fast chargers along major transit corridors to support the growing adoption of electric vehicles.
ekoenergetyka.com
SAT 600 HPC

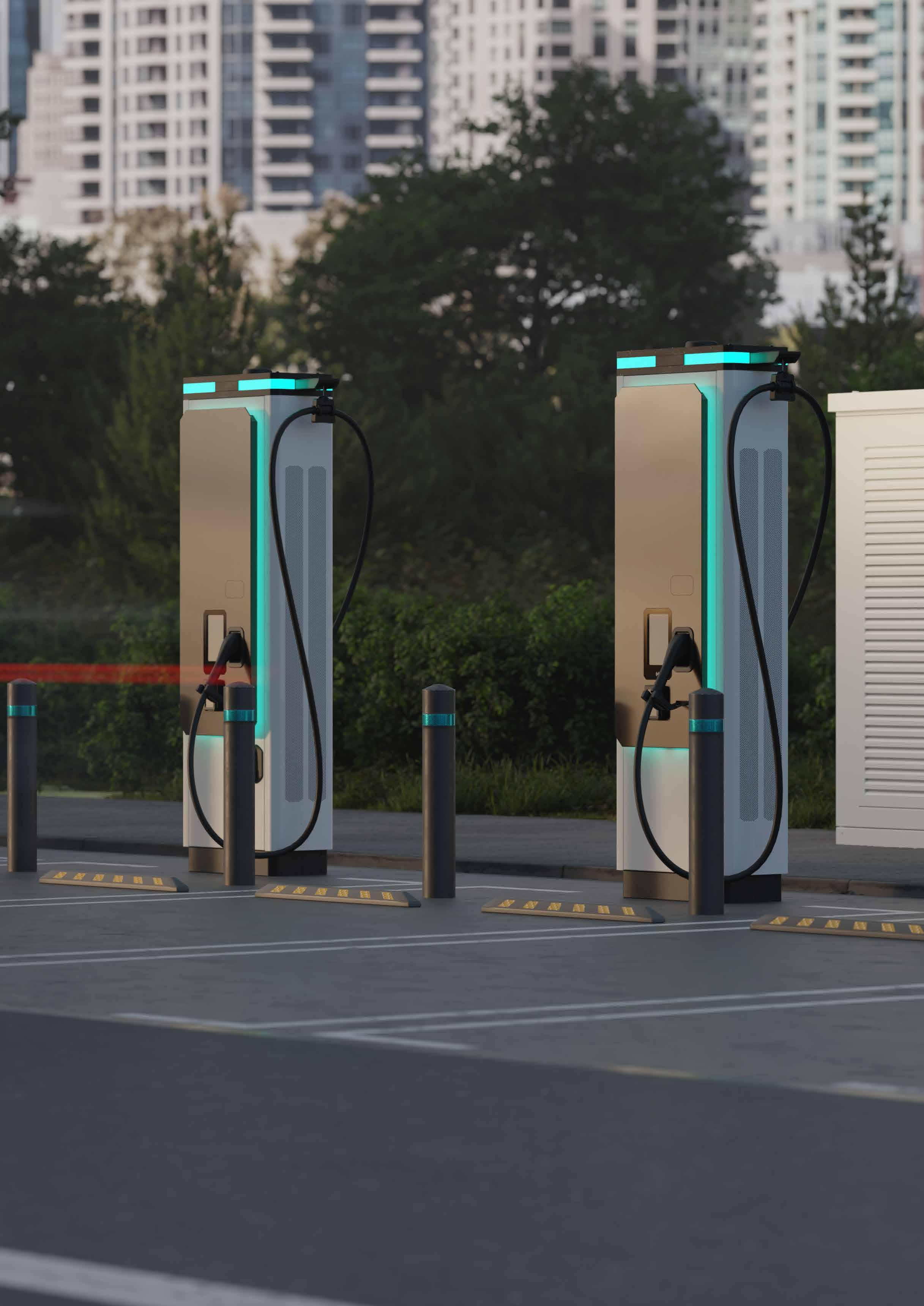

A satellite that provides ultra-fast direct current (DC) charging. It is part of a concept where it is combined with the Power Unit to form a ready-to-use electric vehicle charging system that can be used to create multi-station charging hubs. The design of the unit ensures space efficiency and usability. It is suitable for integration with all charging service providers.
Expressways Charging hubs Petrol stations Commercial fleet parking lots Logistics parks Bus depots Connectors CCS1 Number of outputs x1 Max. charging current 550 A Charging Hubs - variants with Power Unit Axon Side 400 Compliance with standards Worldwide Compliance with standards North America Available in 2024 EV E-VAN E-BUS E-TRUCK
LED lighting to indicate the charging point status
Panel illumination integrated with functional lighting
Cable Management System with flat arm, space efficient
Sufficient cable to allow unobstructed access to the vehicle
CCS1 - 4,5 m / 14 ft
Modern front panel integrating multi functions of the satellite
Operation via intuitive 10’’ screen integrated with RFID
Remote access, diagnostics and software updates
Low noise emissions < 60 dBA
CCV payment system (Payter is optional)
Housing resistant to temperatures between -35 +55 °C / -31 +131 °F
Convenient service access
HUB creation & expansion Modern design Multi-purpose functions easy acces
Comfort of use for people with limited mobility
ekoenergetyka.com
SAT 600 HPC
2305_Rev.1 Technical specifications Configuration CCS 1 HPC Communication Maximum charging current [A] 550 Charging mode IEC 61851-1 IEC 61851-23 IEC 61851-24 ISO 15118 DIN 70121 Protocol OCPP 1.6-J OCPP 2.0.1 General Housing Steel with galvanised coating Protection rating IP 54 IK 10 (except touchscreen - IK8) Overall dimensions (H x W x D) 2300 x 800 x 365 mm 90.6 x 31.5 x 14.4 in Weight [kg] [lb] ~ 200 ~440 Operating temperature range [°C] [°F] -35+55 °C / -31+131 °F > 40 °C possible output power limitation > 104 °F possible output power limitation Operating altitude [m.a.s.l.] [f.a.s.l.] ≤ 2000 ≤ 6560 Compliance with standards World Wide CE LVD 2014/35/UE EMC 2014/30/UE RED 2014/53/UE Compliance with standards North America Available in 2024
ekoenergetyka.com Equipment Configuration CCS 1 HPC Connectors DC Connectors (cable lenght in metres/ ft) CCS 1 - 4,5 m / 14 ft Cable Management System Housing Colour RAL 9016 - Housing RAL 9004 - Front panel Additional branding Option Anty graffiti Option Meters DC energy meter Interface Display 10" with integrated RFiD card reader LED charging status indication Payment system CCV Payter Option Communication Data transfer GSM (LTE) EEP GSM (LTE) Client Ethernet Preliminary data sheet
SAT 600 HPC
AXON SIDE 400

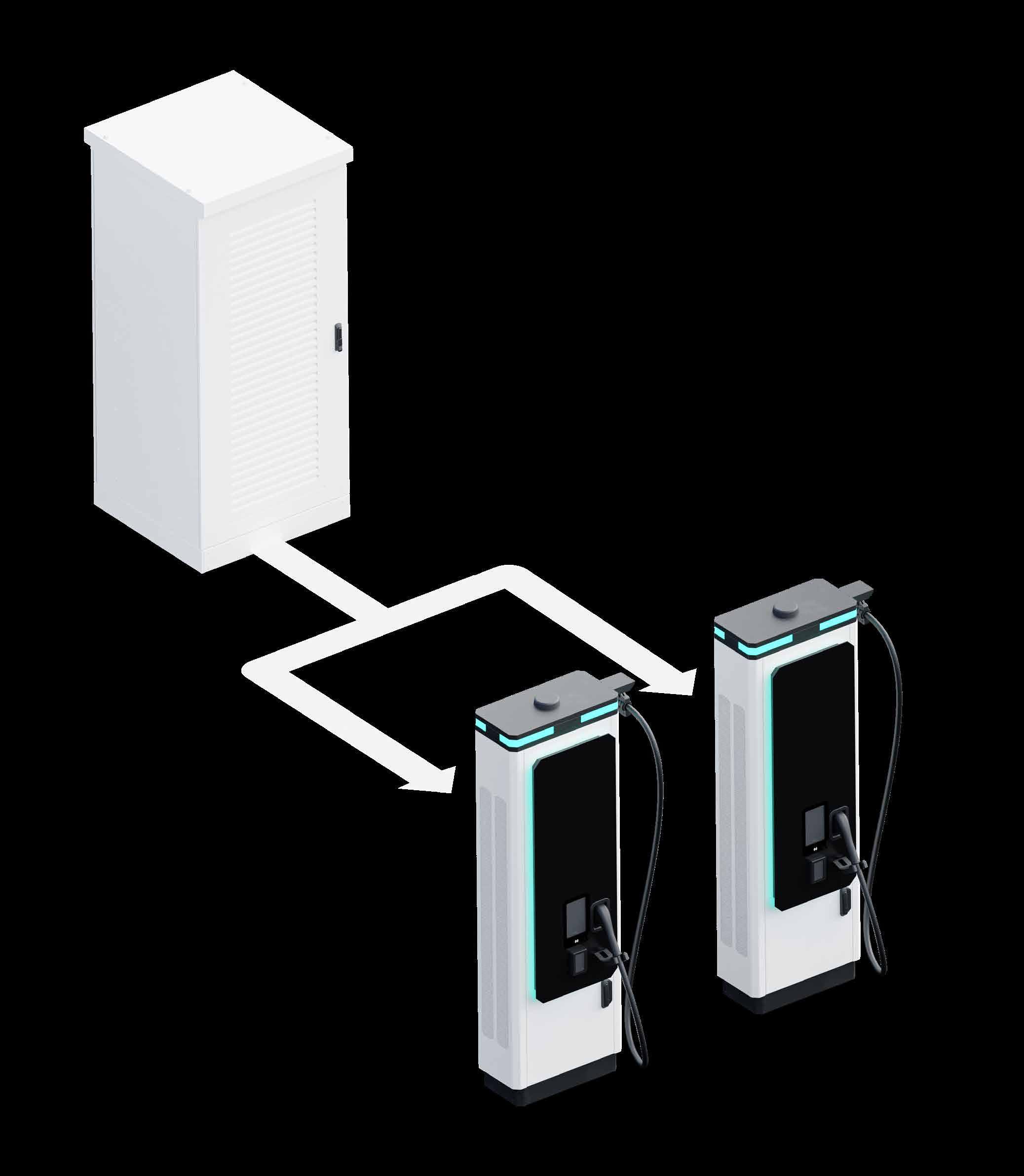

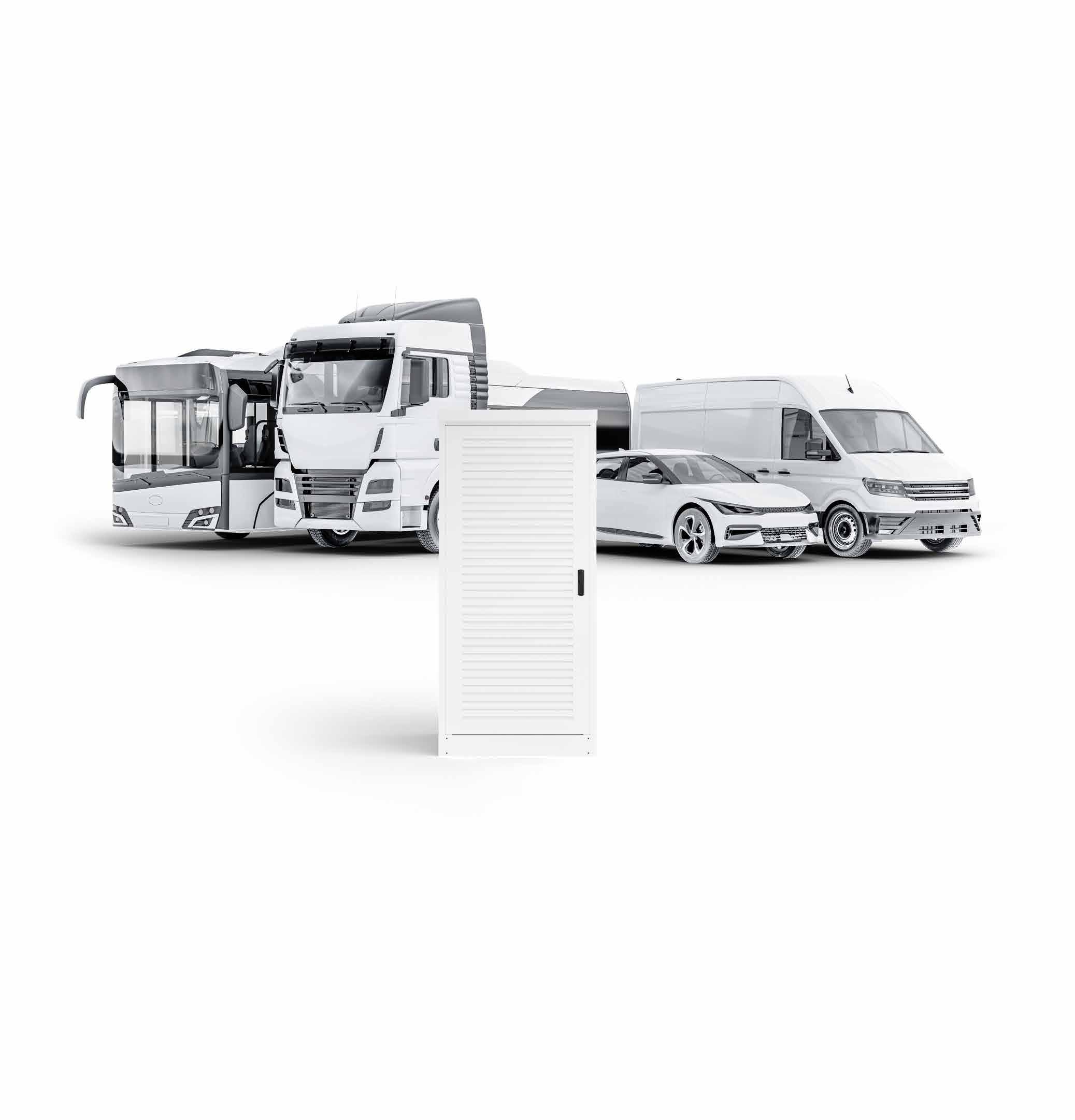

Power Unit providing high-speed, high-power direct current (DC) charging. The unit is a ready-made concept for connecting satellites or pantographs and creating and expanding charging hubs. It supports a full range of electric vehicles. It is suitable for integration with all charging service providers.
Expressways Charging hubs Petrol stations Commercial fleet parking lots Logistics parks Bus depots Power 400 kW Device type Power Unit Power class Fast Charging for High Power Charging Number of outputs x2 Voltage range 150-1000 V Max. charging current 550 A Hub charging variants SAT 600 HPC Plug & Charge ready Compliance with standards Worldwide Compliance with standards North America Available in 2024
EV E-VAN E-BUS E-TRUCK
AXON SIDE 400
Two side service access
Remote access, diagnostics and software updates
High performance ventilation system while maintaining extremely low noise emissions <70 dBA
Vandal proof housing inert to weather conditions -35 +55°C / -31 +131°F
Ability to increase the power of the charging station by combining modules in a side-by-side setting, without losing ventilation capacity
ekoenergetyka.com
HUB creation & expansion high power compatibility with vehicles 2 charging points
AXON SIDE 400
2305_Rev.1 Technical specifications Configuration 1 x CCS 2 x CCS Maximum Charging Power 400 400 [kW] Input Power supply [ V / Hz ] AC, 3x480 / 60 Connection power [kVA] 440 Power factor > 0,98 (inductive) Output Efficiency [%] > 94 Maximum charging current [A] 550 Output voltage range [V] 150 - 1000 Communication Charging mode IEC 61851-1 IEC 61851-23 IEC 61851-24 ISO 15118 DIN 70121 Protocol OCPP 1.6-J OCPP 2.0.1 General Housing Steel with galvanised coating Protection rating IP 54 IK 10 Overall dimensions [ H x W x D ] 2300 x 1000 x 1000 mm 90.6 x 39.4 x 39.4 in Weight [Kg] [lb] ~880 ~1940 Noise [ dBA ] <70 (at a distance of 1 m) Operating temperature range [ °C ] [°F] -35+55°C / -31+131°F > 40 °C possible output power limitation > 104 °F possible output power limitation Operating altitude [m.a.s.l.] [f.a.s.l.] ≤ 2000 ≤6560 Compliance with standards World Wide CE LVD 2014/35/UE EMC 2014/30/UE RED 2014/53/UE Compliance with standards North America Available in 2024
ekoenergetyka.com Equipment Configuration 1 x CCS 2 x CCS Maximum Charging Power 400 400 [kW] Connectors DC Connectors 1 x CCS 1 (satellite) 2 x CCS 1 (satellite) Housing Colour RAL 9016 RAL Colour (Other) Option Additional branding Option Anti-graffiti Option Interface Display Depending on satellite model Emergency button RFID card reader Depending on satellite model Signal column Depending on satellite model Meters DC energy meter Depending on satellite model Input energy meter Payment system CCV Depending on satellite model Payter Depending on satellite model Communication Data transfer GSM (LTE) EEP GSM (LTE) Client Ethernet
AXON SIDE 400
RESEARCH AND DEVELOPMENT DESIGN PRODUCTION DEPLOYMENT AND COMMISSIONING SERVICE AND MAINTENANCE REMOTE CONTROL 24/7 ekoenergetyka.com POWER THAT MOVES YOU
