Heroes Row, Fire & Rescue- DRAFT

Page 1

FIRE & RESCUE

Enjoy visitng these fire & resque vehicles along

Heroes Row

SouthMetroFleetVehicles

Brush 155

2018 Freightliner 4x4

Type 3: Structure and wildland firefighting operations

500 GPM pump w/ 100 GPM auxiliary high-pressure pump; 500 gallon tank; 20 gallons Class A foam; 1,200 ft. structural firefighting hose; 3,000 ft. wildfire hose.

This Type 3 brush truck is ideal for performing wildfire operations and protecting structures, as well as any other emergency. It can drive off road while spraying water at the same time and supply water to the firefighters thousands of feet away.

Engine 19

2022 Pierce Velocity

Type 1: Structural firefighting operations

1,500 GPM pump; 750 gallon tank; 20 gallons class A foam; 1,000 ft 5-inch hose; 1,000 ft. 2.5-inch hose; 550 ft. 1.75-inch hose; 28-foot ladder

The Type 1 fire engine is the standard apparatus that responds to all types of emergencies and hazards It has the water capacity, hose and tools for structural firefighting or structure defense during a wildfire A wide array of tools and equipment are carried, including extrication tools to remove patients from vehicles and EMS equipment Two firefighters, an engineer, and an officer staff the engine Some engines have advanced life support (ALS) capabilities and are staffed by a paramedic

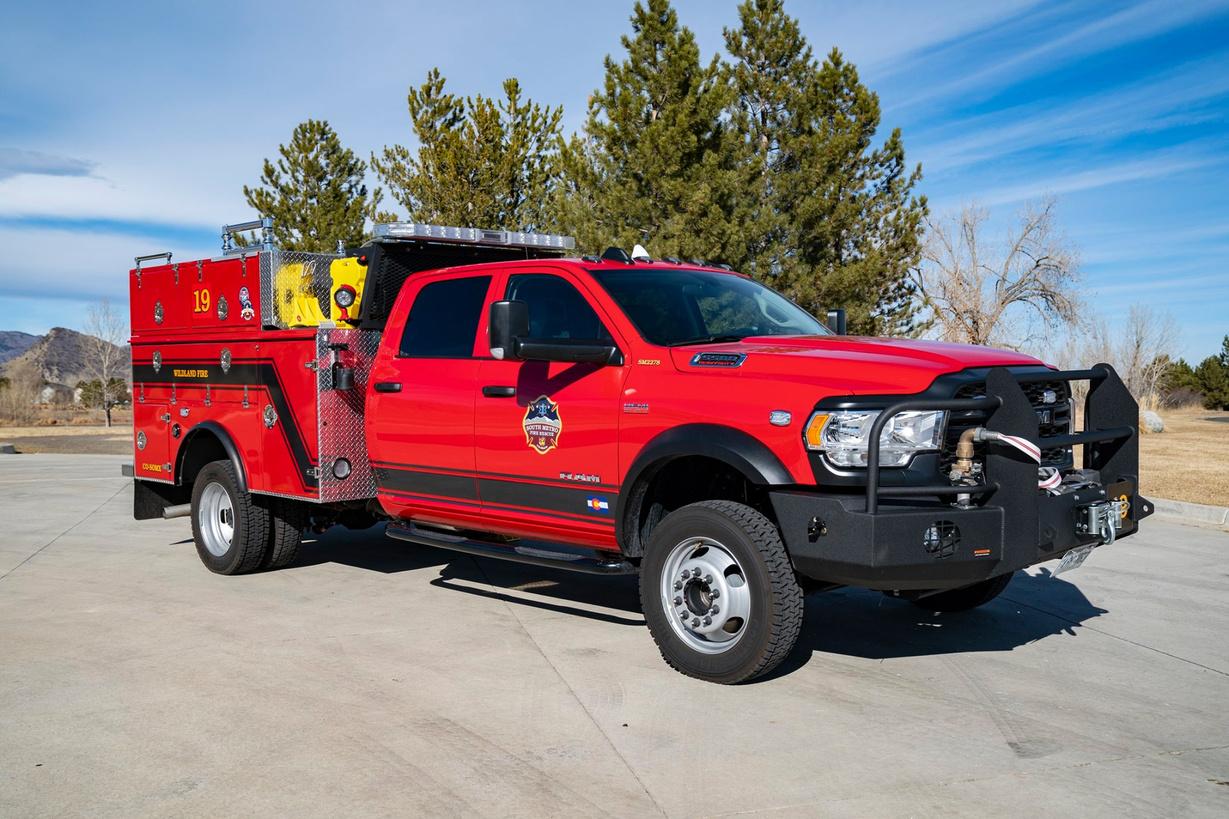

Brush 19

2020 Ram 5500 4x4

Type 6: Off-road wildland fire and recovery operations

100 GPM pump; 300 gallon tank; 10 gallons class A foam; 3,000 ft wildlfire hose

The Type 6 brush truck is designed for off-road rough terrain to perform primarily wildland firefighting operations. It has the pumping capacity to deliver water about a half mile away. It also has "pump and roll" capabilities to spray water while driving. It carries a variety of wildland firefighting tools, a drip torch for igniting strategic fires to burn fuel ahead of the main fire, and saws that will cut a tree up to 20 inches in diameter.

SouthMetroFleetVehicles

Incident Dispatch Team "IDT 2"

2018 RAM 2500

The Incident Dispatch Team responds to large incidents to support communications, planning, interoperability, connectivity, radios, weather, patient tracking, mapping, and drone support

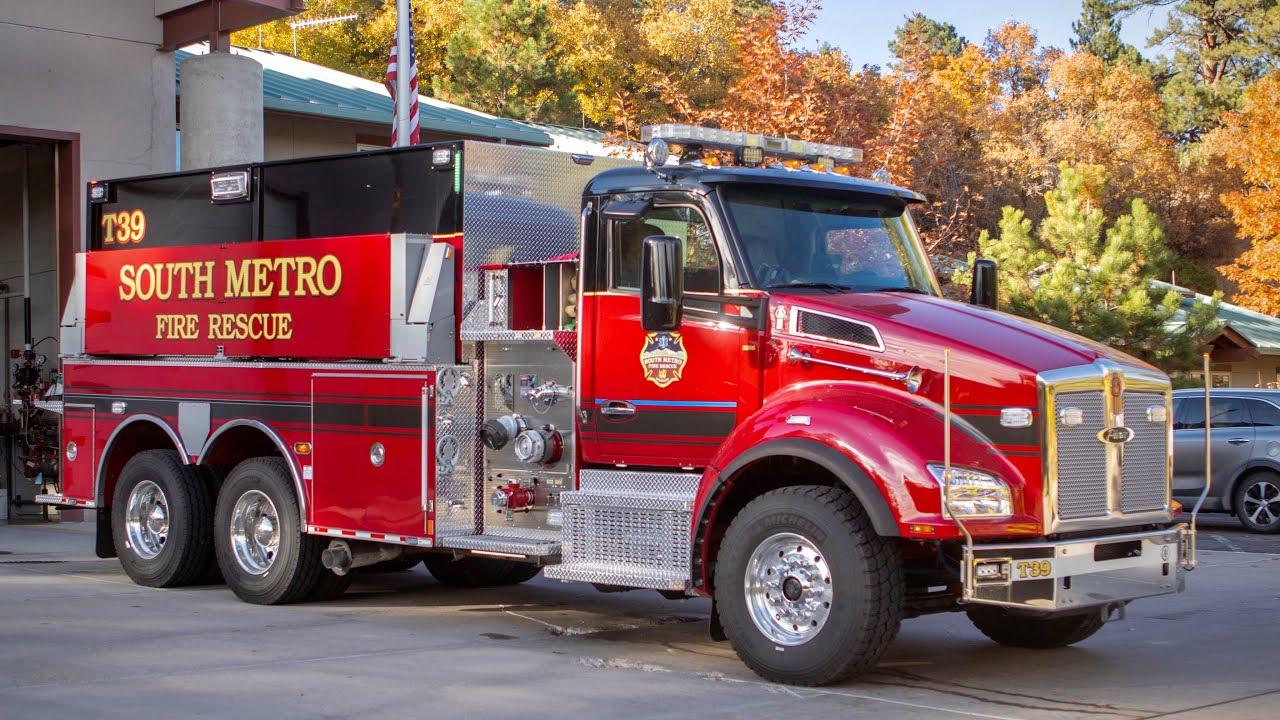

ender 39

2021 Kenworth/Pierce

1,000 GPM pump; 3,000 gallon tank; 3,500 gallon portable drop tank

The water tender is designed to carry large amounts of water to areas without a water source (such as a fire hydrant) in order to supply fire engines and brush trucks with the water they need for firefighting operations It can also empty its water into a portable drop tank which allows the fire apparatus to draft the water out of the portable tank while the water tender goes back to fill up again

Medic 14

2014 RAM 5500, 4x4

The ambulance, or medic unit, is staffed by an emergency medical technician (EMT) and a paramedic. Some are staffed with 2 paramedics. The medic unit is the vehicle used to transport patients to the hospital. Its paramedics deliver advanced life support (ALS) care, including advanced cardiac life support, and even carries ultrasound equipment to improve diagnostics on scene so specialized care is ready at the hospital. The paramedics are also cross-trained in firefighting so they can immediately engage in fire suppression and search-and-rescue operations when not involved in medical care.

SouthMetroFleetVehicles

WM Truck 14

2019 Pierce Arrow XT

107-ft Ascendant, rear-mounted, heavy-duty aerial ladder

1,500 GPM pump; 500 gallon tank; 20 gallons Class A foam

The ladder truck can reach the upper floors of a building to rescue victims or spray water at high elevations. This truck is referred to as a "straight stick" meaning there is no bucket or other platform to stand on at the end of the ladder. During a structure fire, the ladder company is often assigned to ventilation operations where tools are used to cut holes in roofs. During rescue operations, the truck carries extrication equipment and other cutting tools. Vehicles and heavy objects can be lifted with air bags or other hyraulic equipment Wood and bracing equipment is used to stabilize a building that is collapsing or rescue a victim from a trench

Battalion 1

Battalion 151

The Battalion Chief is the commander of a battalion of 5 or 6 fire stations. During a fire or other major emergency, the Battalion Chief takes command of the incident to provide strategy and tactics, track all resources and personnel, communicate with dispatchers, order more resources, and coordinate with other agencies. These command vehicles include Mobile Dispatch Terminals (MDT), extra radios, rehabilitation supplies, decontamination equipment, and firefighting gear so the Battalion Chief can support the firefighters and be in the "hot zone" safely.

SouthMetroFleetVehicles

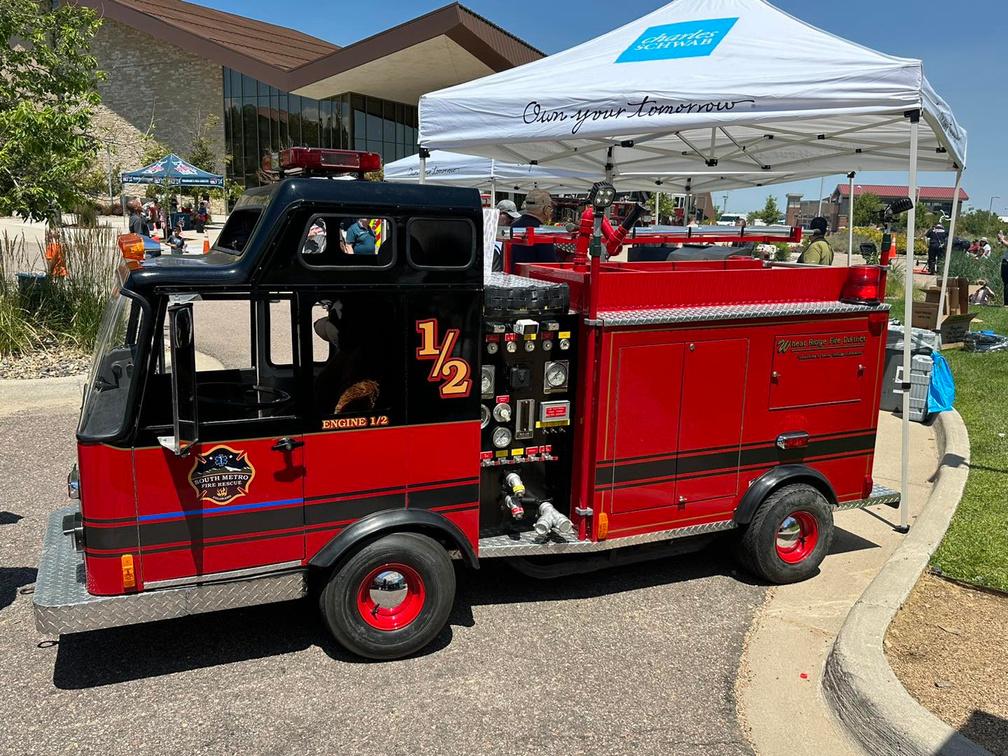

Engine 1/2

The water tank holds 20 gallons of water that feeds a functional deck gun.

Engine 1/2 started life as a Halloween costume for Ricky Marques, who always dreamed of being a Firefighter Ricky suffers from Cerebral Palsy and has spent most of his childhood confined to a wheelchair His uncle, a talented metal worker, constructed Engine 1/2 around Ricky’s wheelchair, helping him achieve his dream! With Engine 1/2 Ricky was able to participate in many parades in the Wheat Ridge area alongside the full-sized fire engines Eventually Engine ½’s body was adapted to a golf cart chassis

Now, Engine 1/2 continues to inspire aspiring Firefighters of all ages though Community Outreach programs hosted by the South Metro Safety Foundation Sponsorship for Engine 1/2 is provided by South Metro Fire Rescue along with other charitable donations from our community partners

SouthMetroFireRescue heroes!

Thankyouto
