Hello,

I am in my 4th year of study of my Bachelor’s degree in Architecture at International University of Catalunya, Barcelona, Spain.

In this portfolio I have selected some projects that reflect my experience during these years in the field of architecture and I would be glad to show them to you.

CONTACT

Universitat Internacional de Catalunya, Carrer de la Immaculada 22, Barcelona, Spain

Phone +34 711 022 847 jovanasto22@gmail.com

RESUME

EDUCATION

Highschool

Highschool

BA in Architecture and Engineering

Universitat Internacional de Catalunya

College preparatory school

Rabun Gap Nacoochee school, Georgia, USA

LANGUAGE

Cacak Gimnasium, Serbia ENGLISH

SOFTWARE

WORK EXPRERIENCES

Internship student

SDV 030 d.o.o., Serbia

June 2021- Aug 2021

Observation and instruction of the project site

Works closely with architects and construction workers.

Internship student

Bauhaus, Serbia

June 2023- Aug 2023

Design and construction company

Master class Catedra Ceramica

Jan 2023- May 2023

Professional comprehensive exploration of designing, building, and implementing ceramic pieces for facades .

Unlimited city

Workshop

Designing inclusive and accessible furniture for Barcelona

Itinerant Architects

Workshop

Systems for architectural exhibitions

Living the facade

Workshop

Focus on design and construction of sustainable facades using eco-friendly practices, material inovation and energy efficient design strategies

PERSONAL SKILLS HOBBIES

Throughout my upbringing and academic education, I have shaped my personality through consistent self-improvement efforts. I possess the ability to actively listen to others, whether they are conversation partners or team members, and collaboratively formulate the best possible response based on available facts. While I am content with my accomplishments thus far, I find true fulfillment in progressing within my environment and contributing to the achievement of team goals. I have successfully adapted to new environments and place great importance on fostering good interpersonal relationships, which I believe are essential for the successful completion of projects.

I am deeply committed to my professional calling and academic pursuits. However, in my free time, I mostly enjoy socializing with family and friends, traveling, painting, and engaging in dance, particularly salsa and Latin dances. Additionally, my life journey is dedicated to finding ways to utilize natural resources while raising ecological awareness in the modern world.

ANDORRA TOWER

Andorra la Vella, Andorra Barcelona, Spain

THOUSAND WINDOWS

Granja d’Escarp - fruit processing plant

La Granja d’Escarp, Catalunya

Italy

Italy

London, United Kingdom

Genova,

Genova,

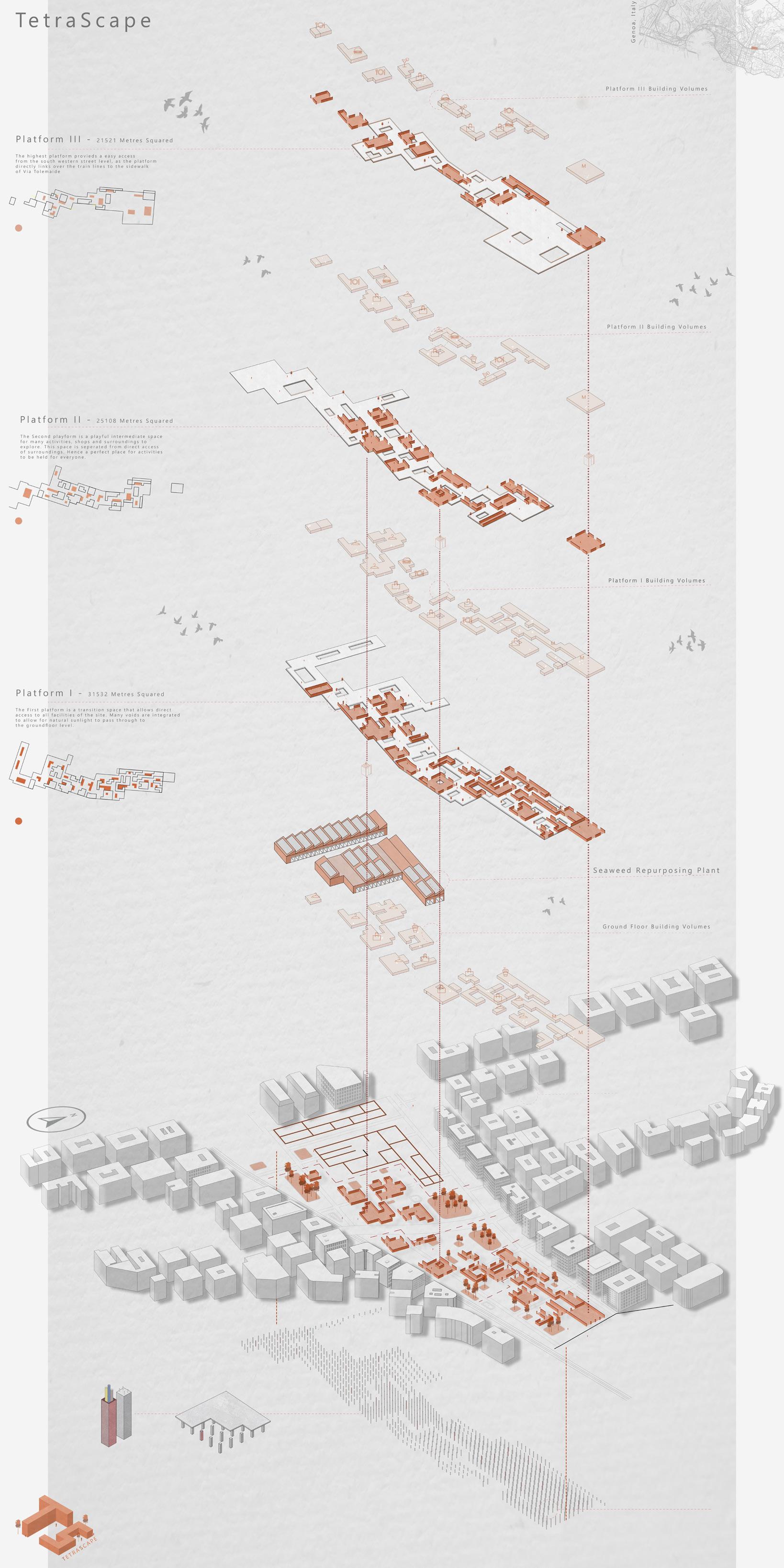

TETRASCAPE

FOCE MARKET

SHELL PAVILION

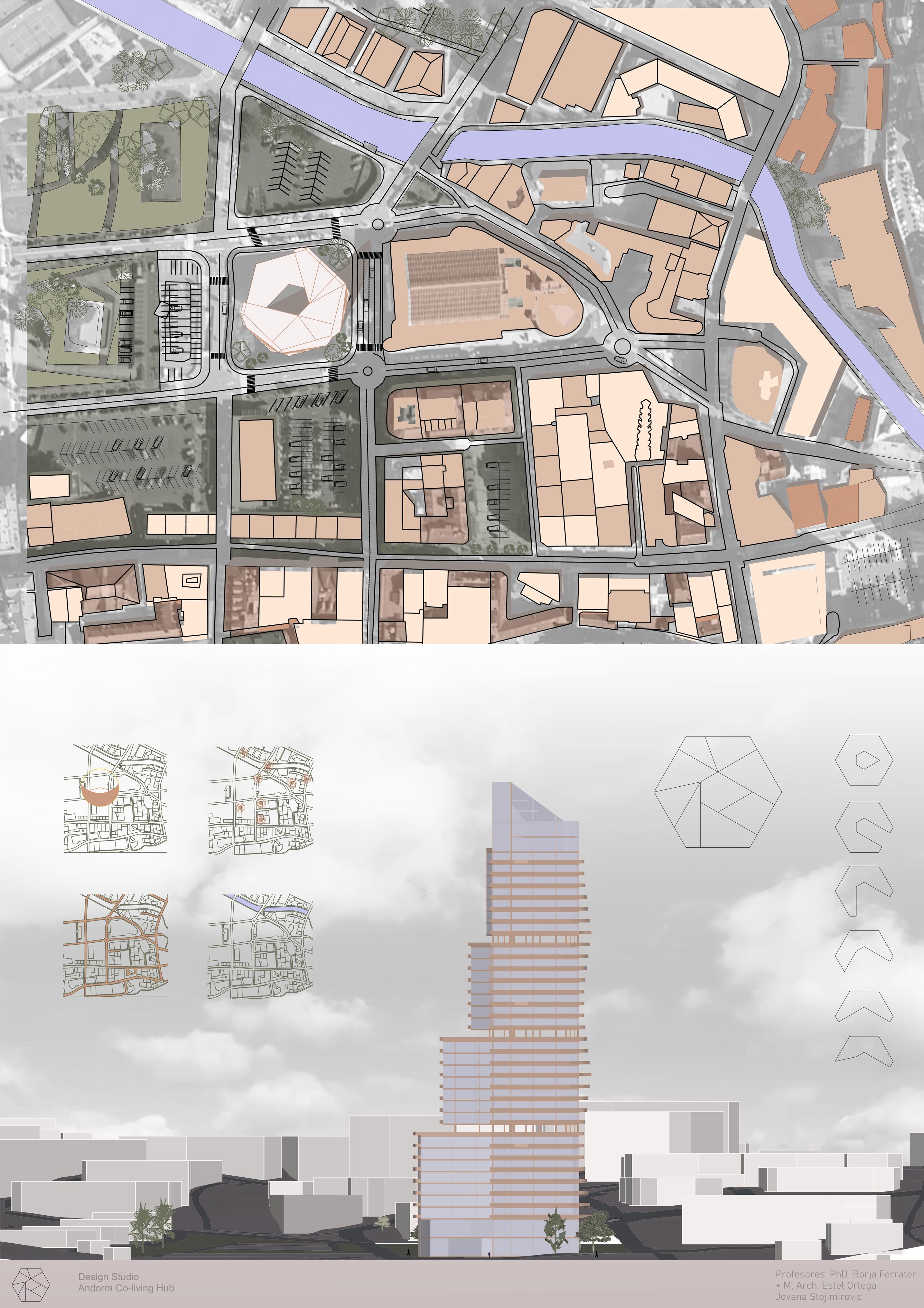

Avinguda Carlemany, renowned for its shopping allure, and in close proximity to the esteemed Caldea thermal baths and the majestic Gran Valira River, our proposed site offers a prime location for a dynamic co-living and co-working hub.

The start of my project was rooted in the aspiration to introduce an inviting space into the city’s mountain terrain. Early concepts centered on a building characterized by circular movements, fostering a sense of community while paying homage to the architectural motifs of the iconic Caldea spa, designed by Jean-Michel Ruols. The culmination of my design process resulted in a hexagonal structure that transitions vertically, gradually tapering to create terraced levels. This architectural configuration facilitates the creation of open spaces, while strategically responding to environmental factors by optimizing sunlight, shading, and panoramic views.

Functionally, the building accommodates residential units with versatile ground-floor spaces catering to commercial, co-working, and office activities. The emphasis lies in providing comprehensive amenities to fulfil the diverse needs of occupants and visitors alike. With a focus on integration and community cohesion, project aims to seamlessly blend with its surroundings while establishing a central hub that fosters connectivity and a sense of belonging in Andorra la Vella.

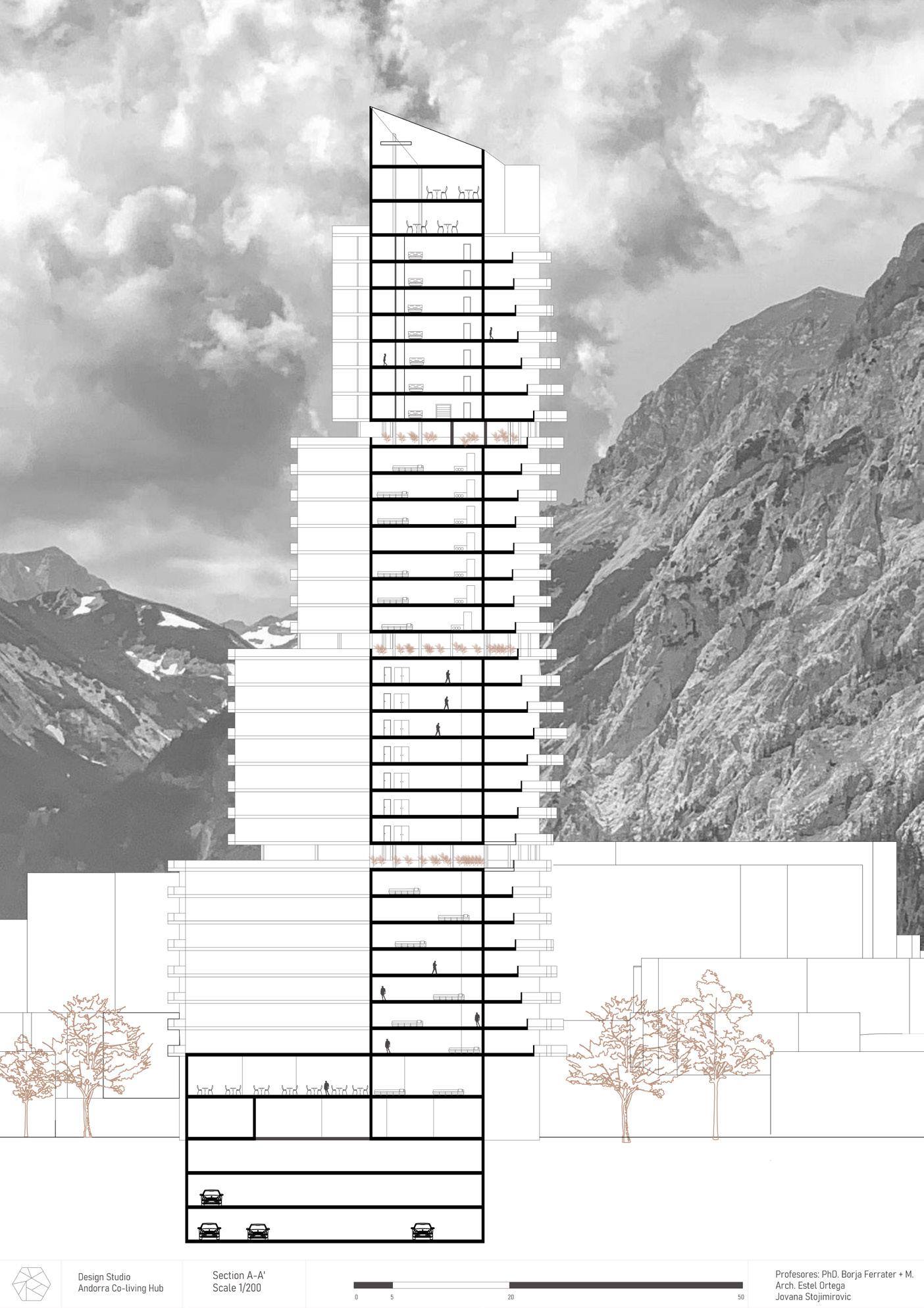

South Section

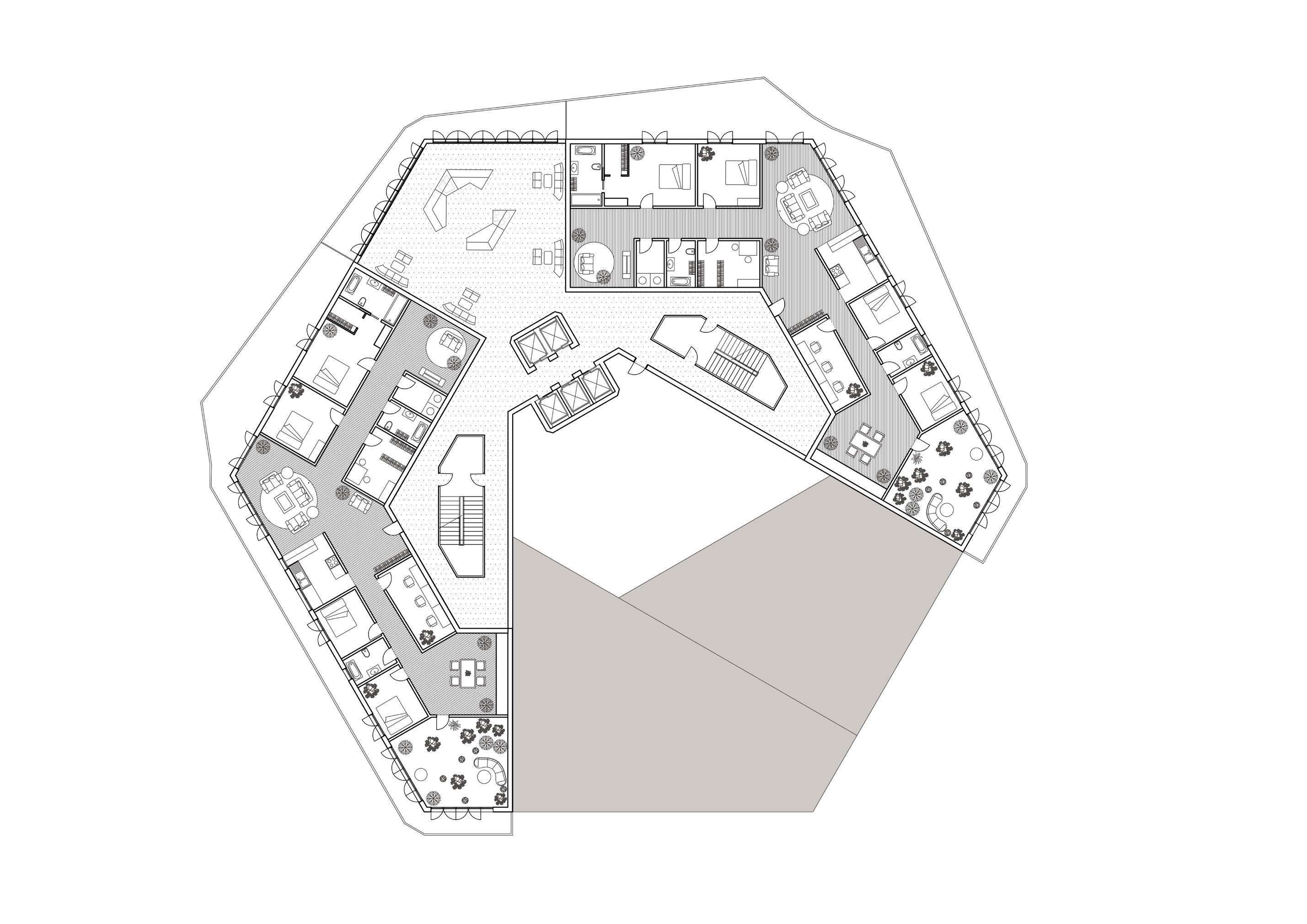

Residences/ Co-living plan

02

THOUSAND WINDOWS

Location - Barcelona, Spain

This project involved the reconstruction of an old building nestled within the historic Gotico district of Barcelona, situated adjacent to the ancient Roman wall, holding significant local heritage. Originally an office space, the site underwent a transformation to accommodate a blend of residential living and productive co-working areas.

The decision to create this hybrid space stemmed from the evolving work landscape, particularly the rise of digital nomads who work remotely while traveling. This trend has led to increased demand for housing in Barcelona, particularly in Gotico. Thus, the project aimed to enhance the daily routines of residents by offering a space that balances privacy and communal interaction, while preserving the district’s urban fabric and historical significance.

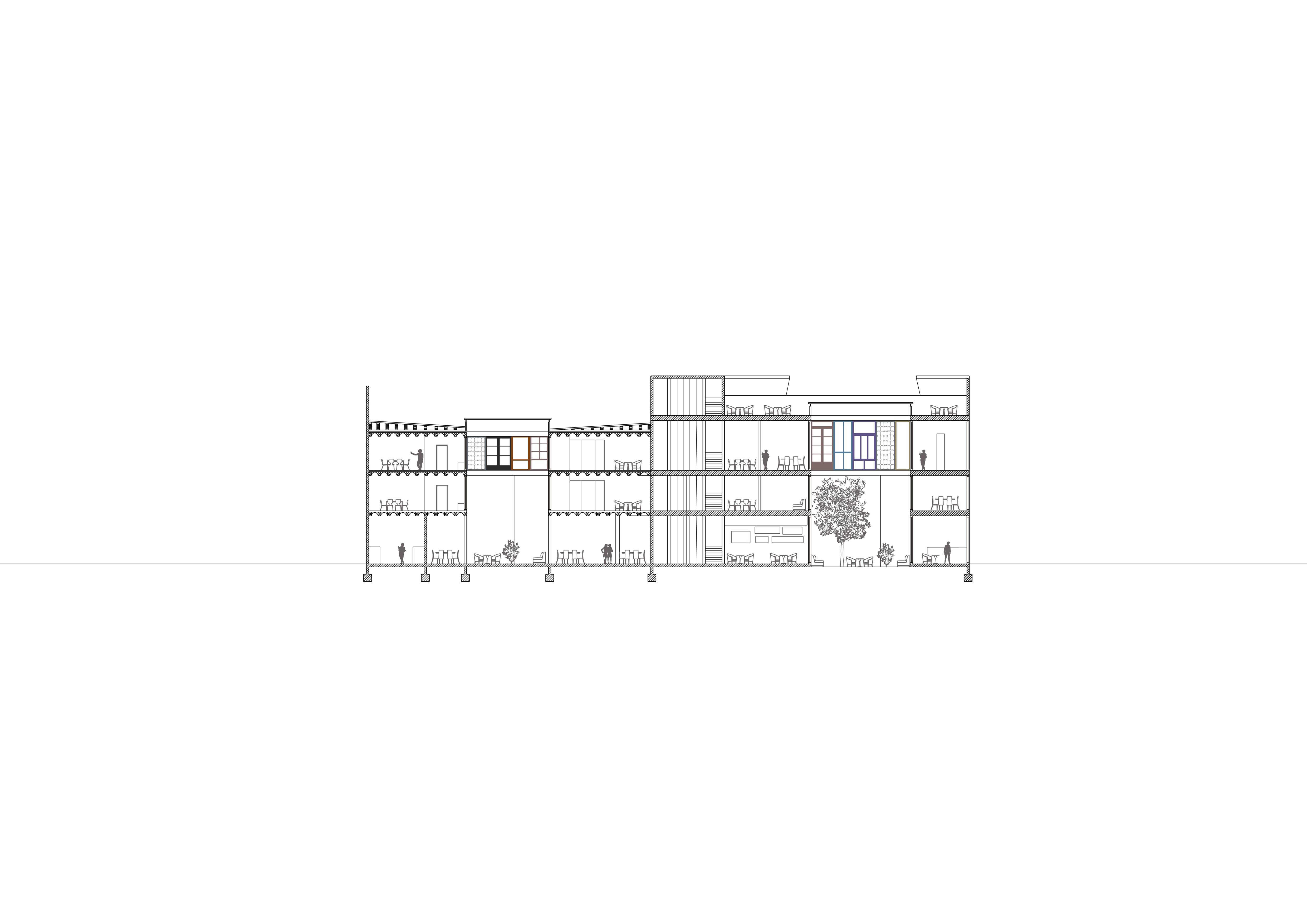

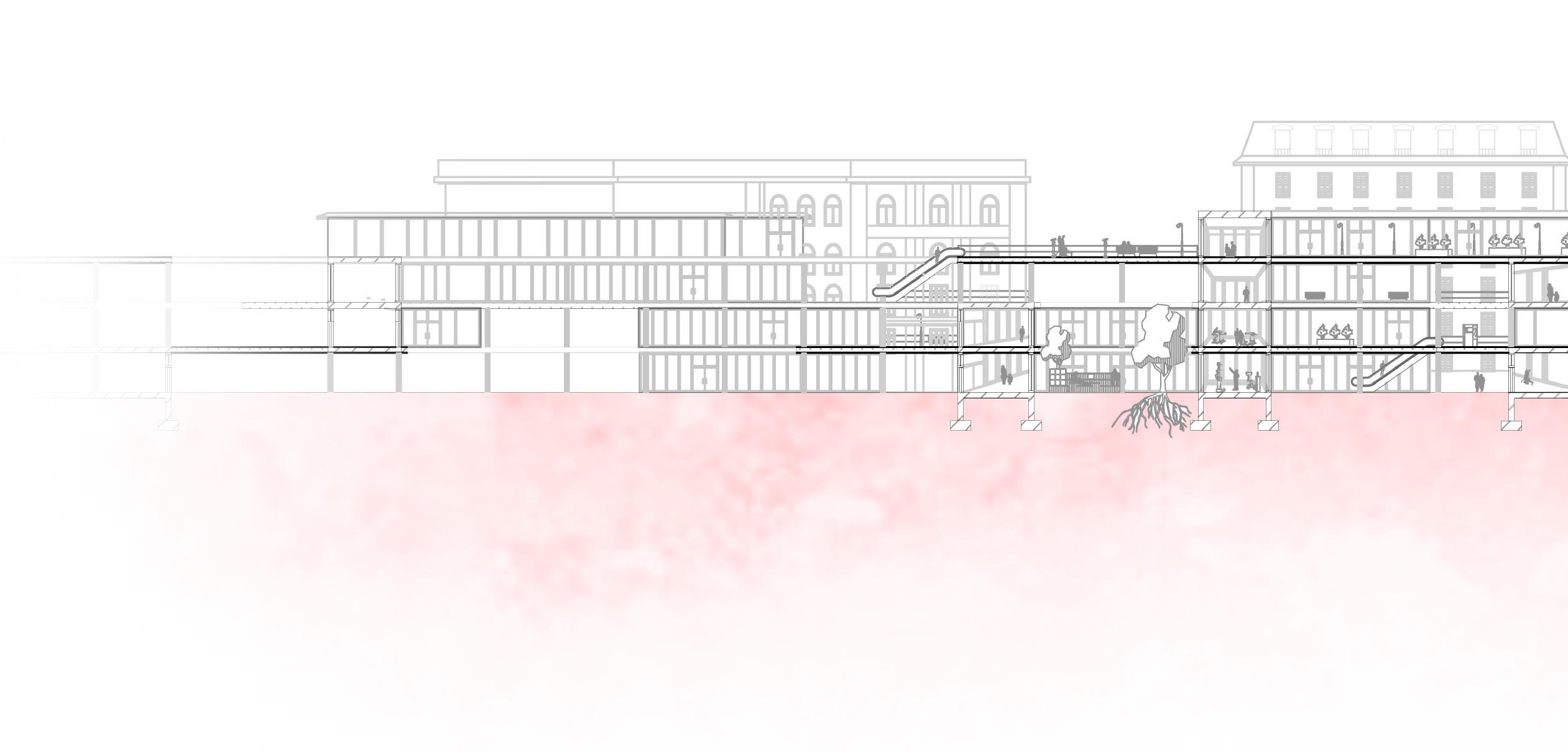

Longitudinal section

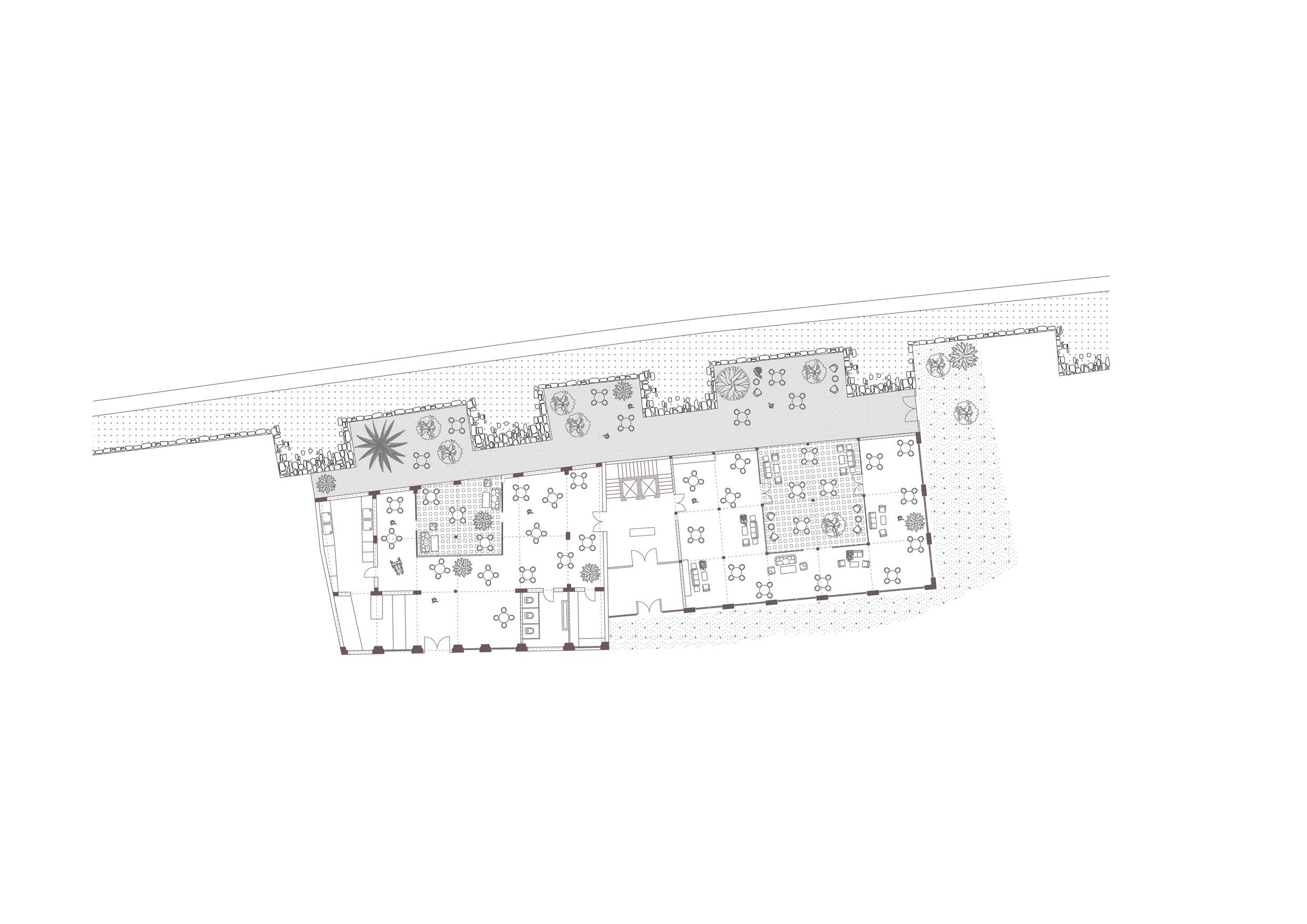

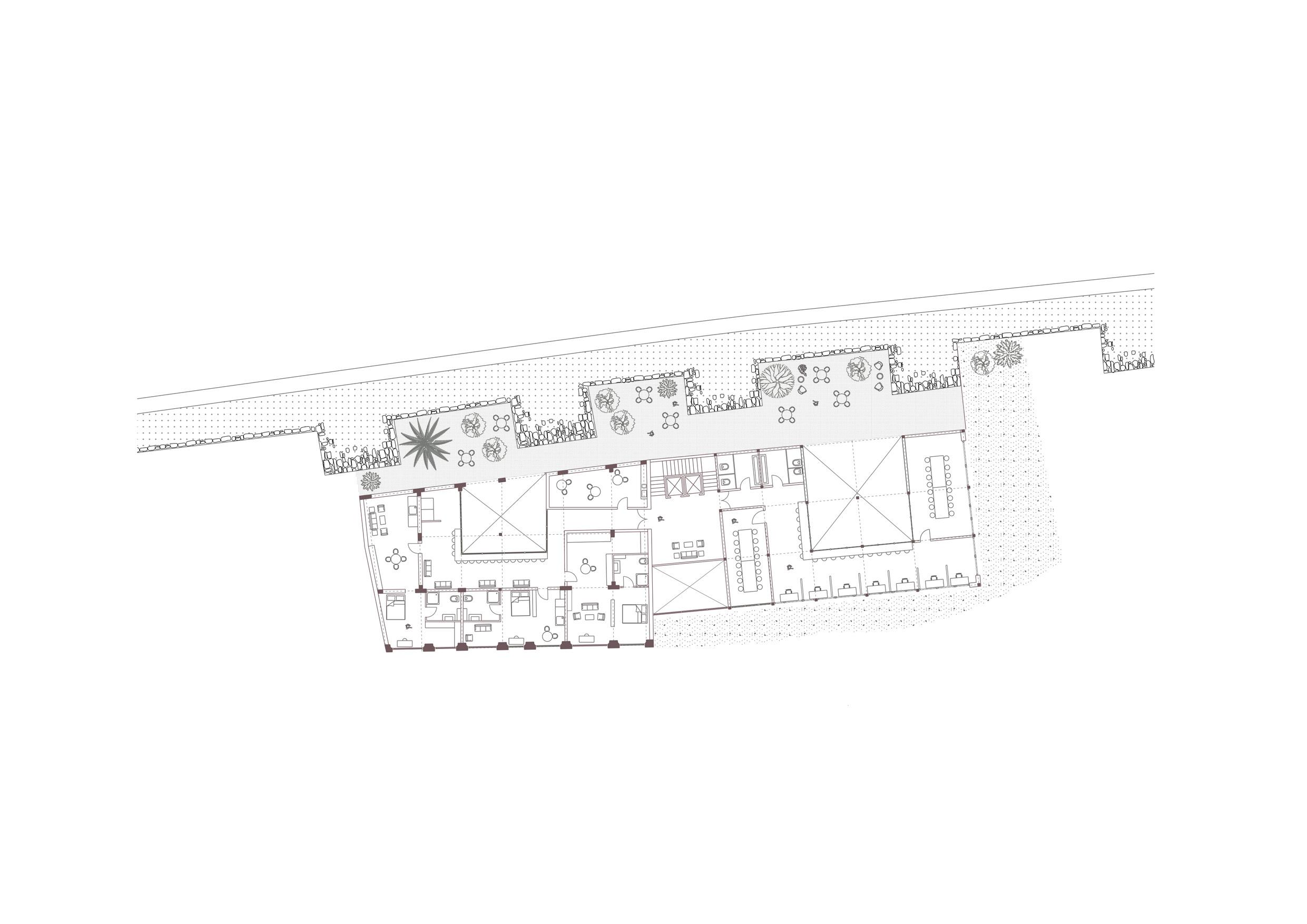

Groundfloor plan

First floor plan

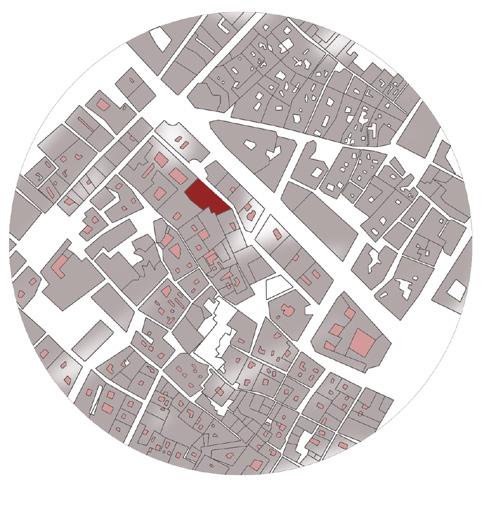

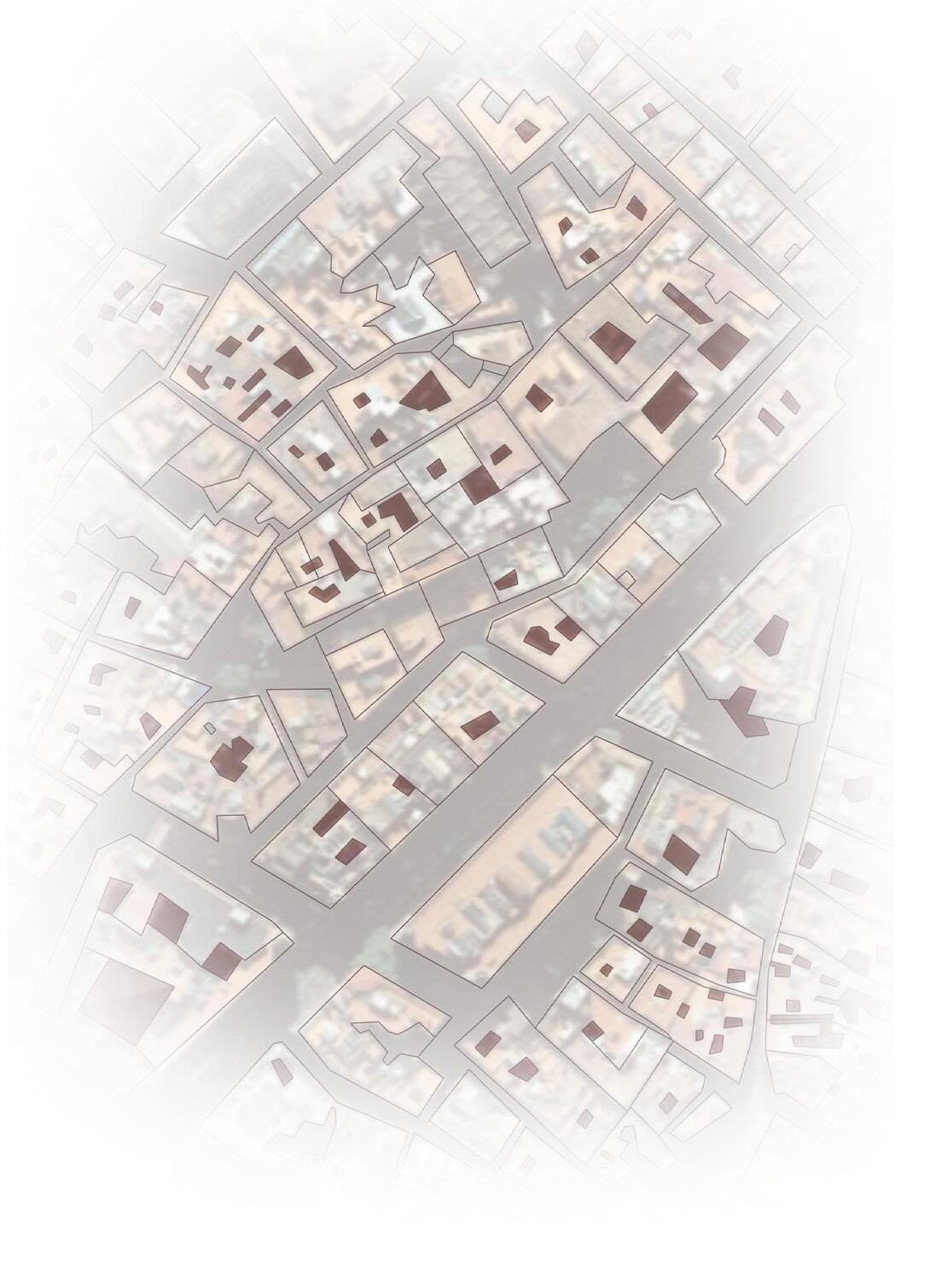

Void analysis in Gotico, Barcelona

Central to the design concept was the integration of voids, mirroring the architectural patterns of the Gotico district. This not only maintains the area’s visual continuity but also introduces natural light into the interior spaces, creating a vibrant atmosphere throughout the day.

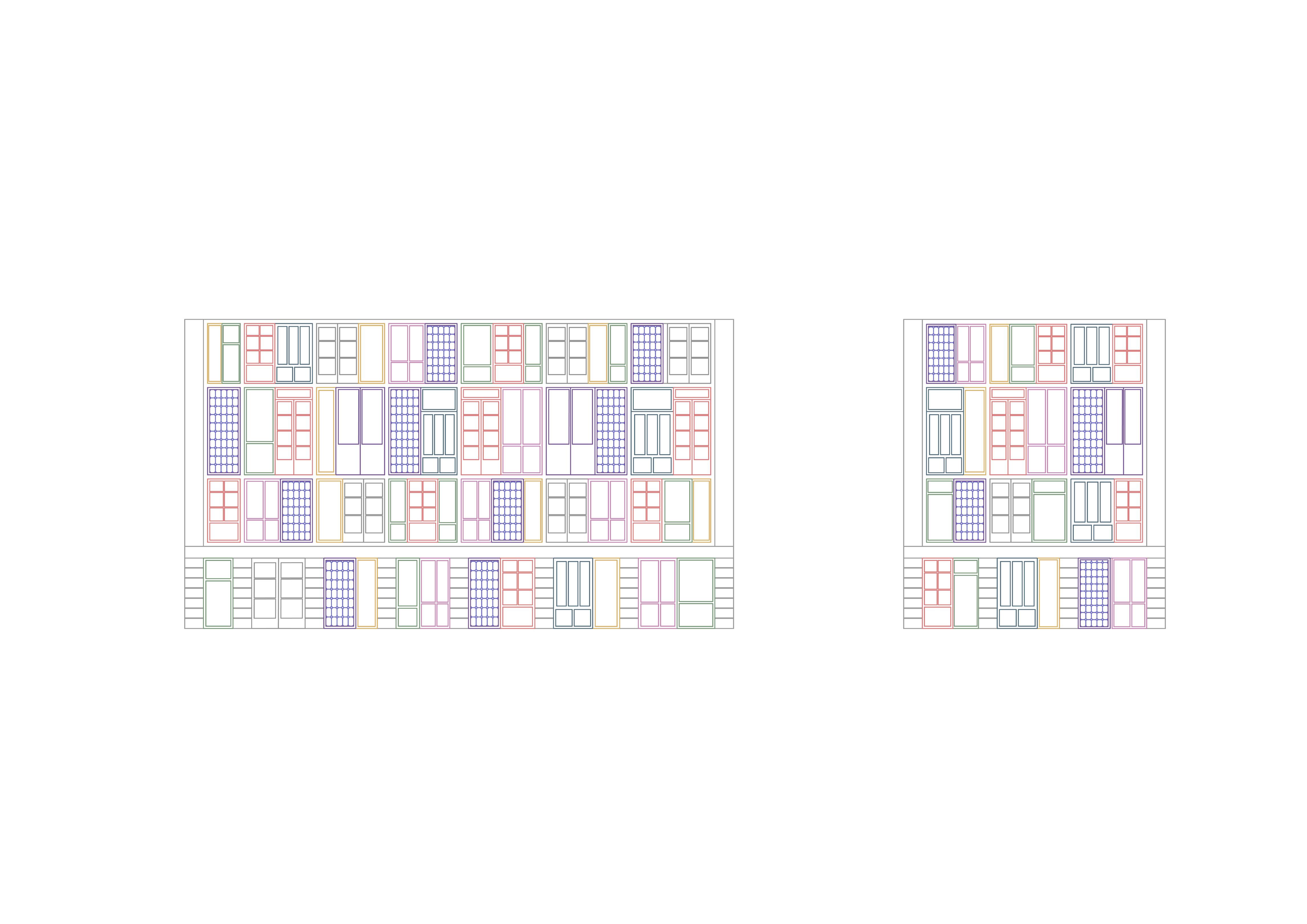

FACADE DESIGN

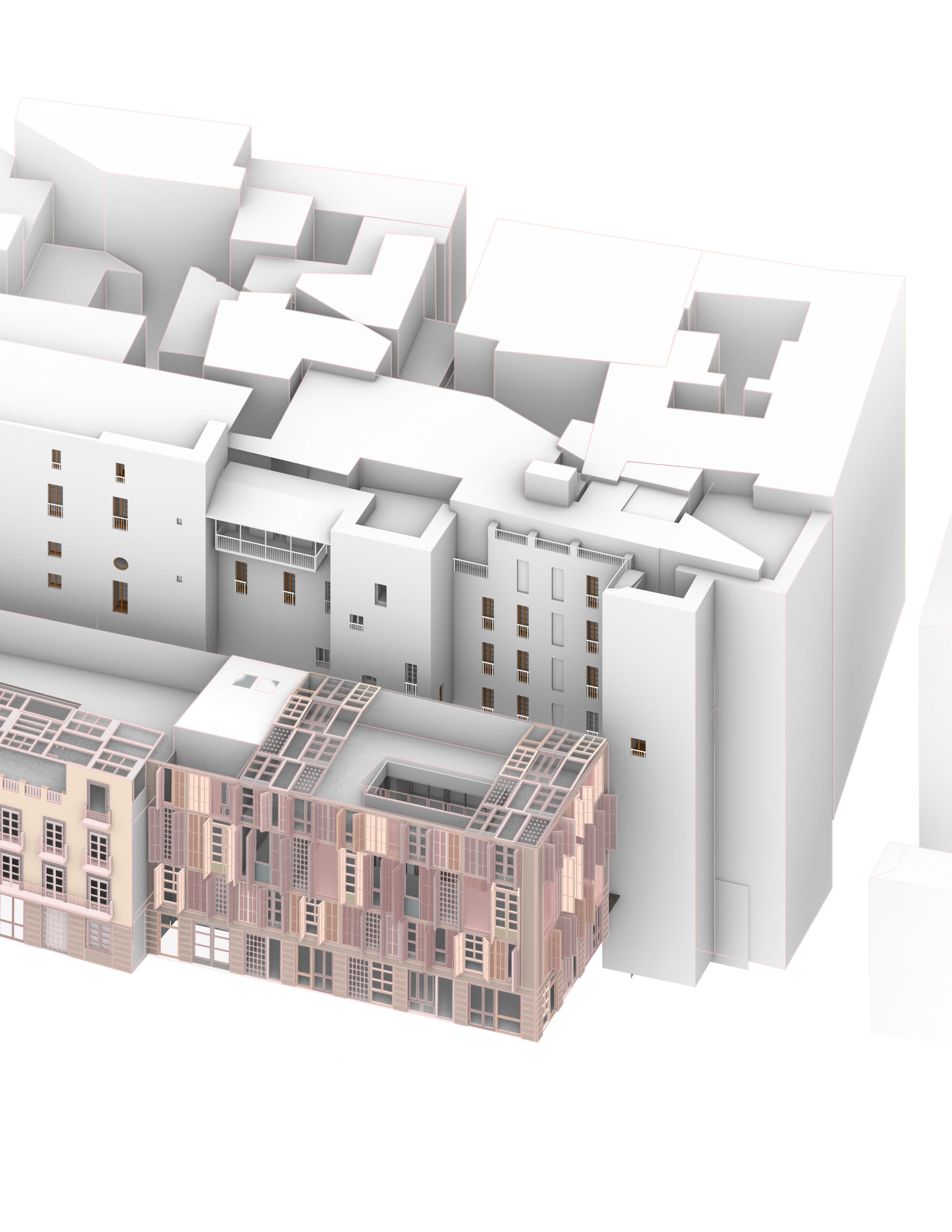

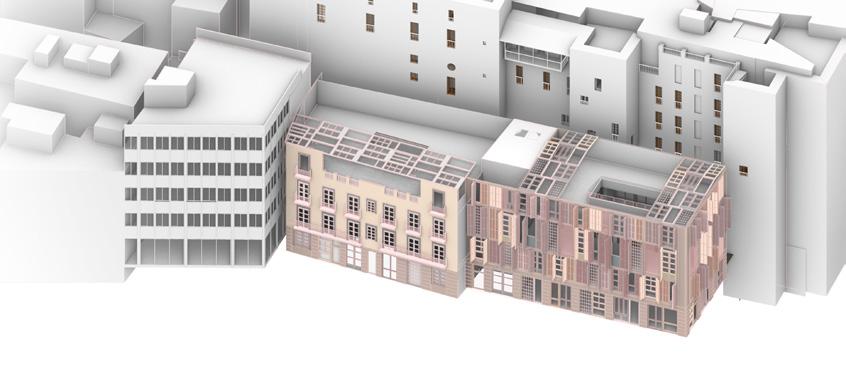

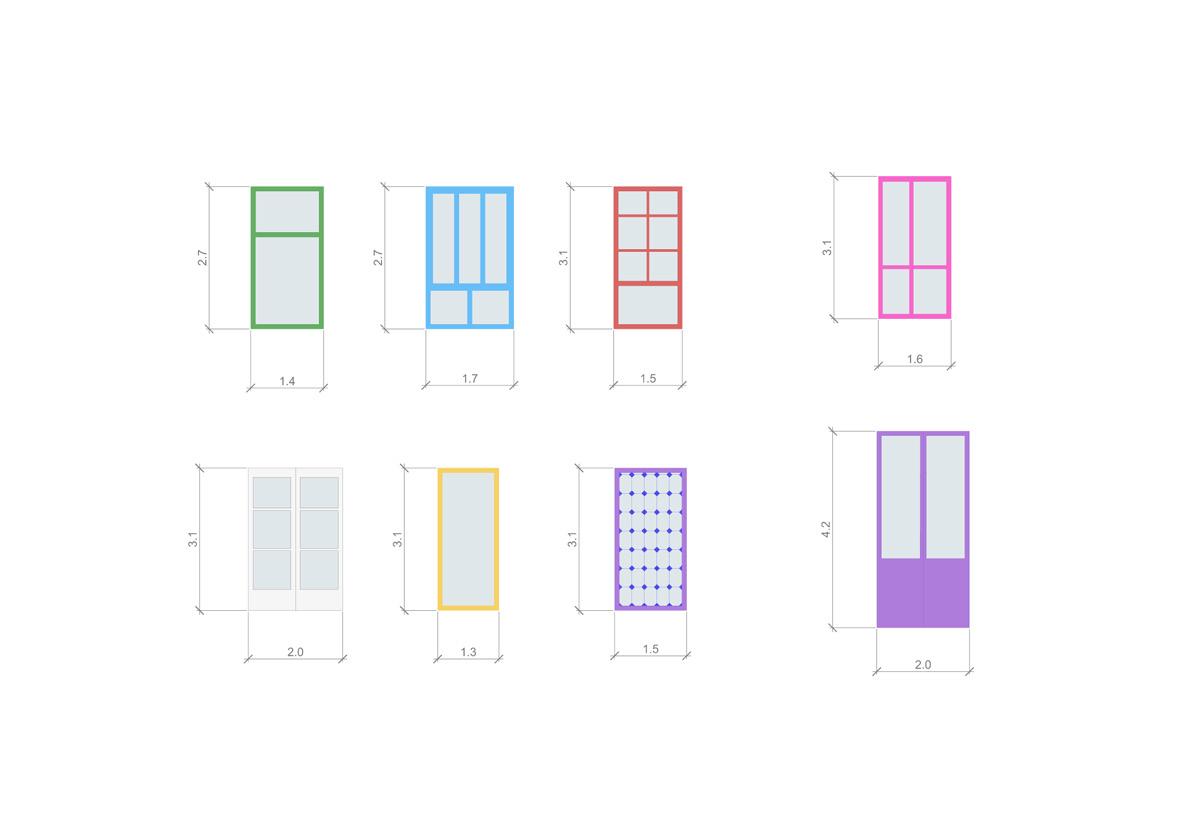

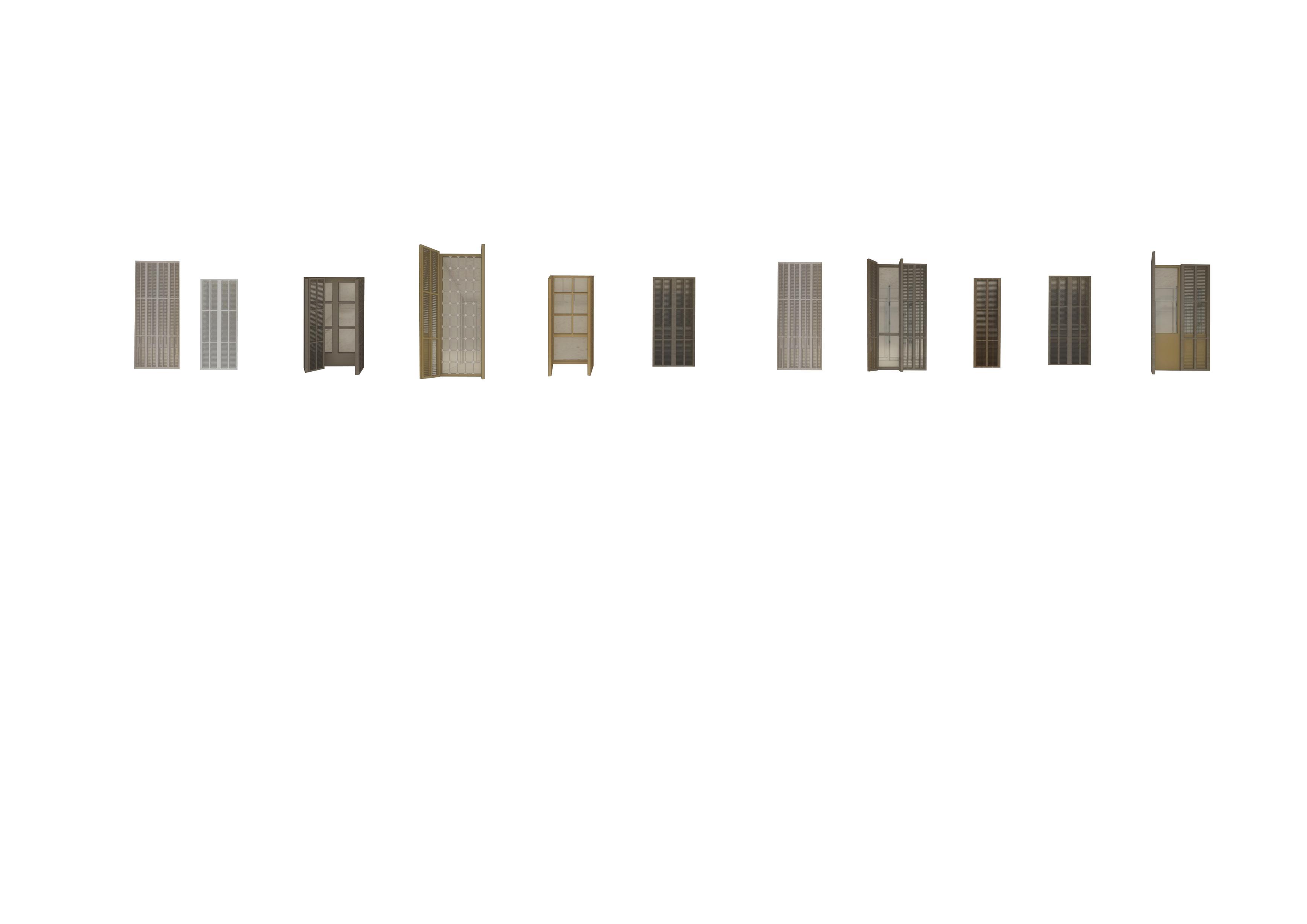

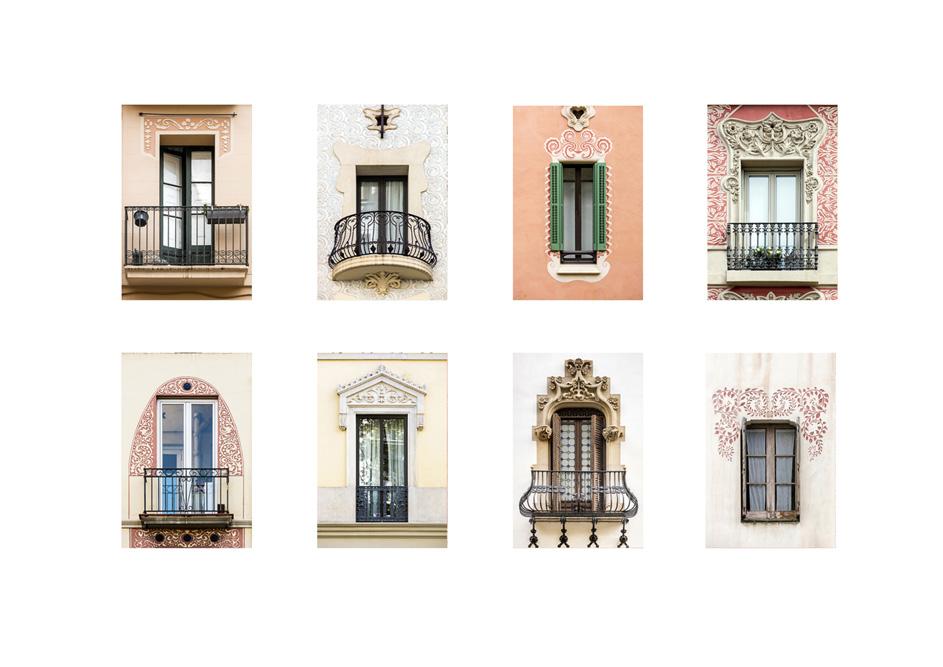

The facade was constructed using fully recycled windows sourced from demolished buildings, industrial sites, and local second-hand stores, reflecting the distinctive character of Barcelona’s architectural landscape. This approach not only promotes sustainability but also contributes to the circular economy by giving used materials a second life. Complemented by concrete columns that mimic the neighborhood’s building patterns, the facade strikes a delicate balance between aesthetic appeal and structural stability.

03

La Granja d’Escarp - fruit processing plant

Location - La Granja d’Escarp, Catalunya

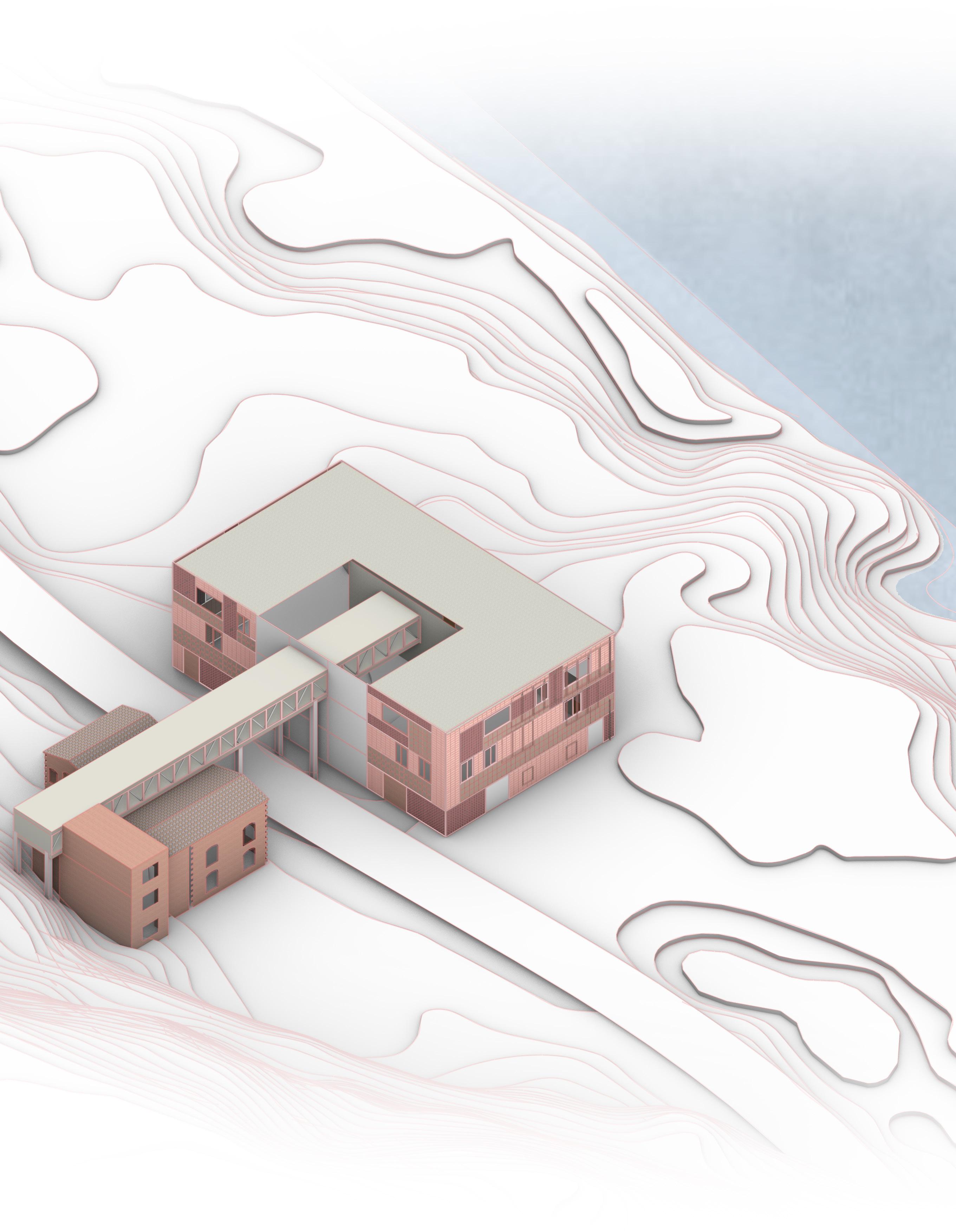

This project involved the revitalization of an old mine in La Granja d’Escarp, Catalonia. Once a thriving hub vital to the city’s economy, the site had fallen into disuse, its historic buildings standing as silent witnesses to its past significance. Recognizing the untapped potential of the area, the project aimed to repurpose the space to address two key challenges facing La Granja d’Escarp: the underutilization of its rich agricultural resources and the need for additional residents and workers.

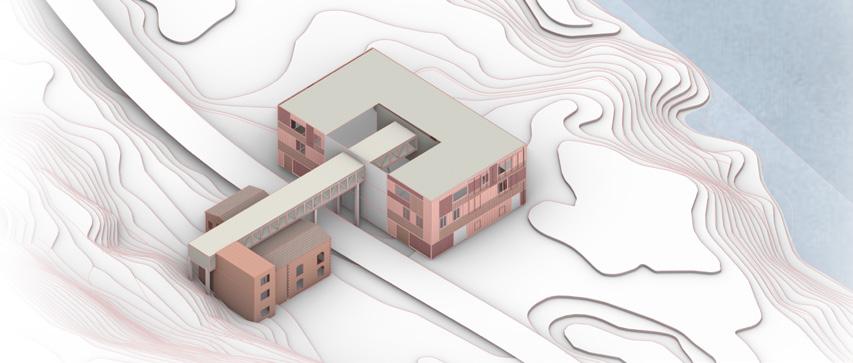

The proposed solution is a fruit processing plant that uses locally grown fruits, the main agricultural product in the area, to make juices, jams, and aromas. The process involves sourcing seasonal produce from local suppliers, which immediately involves the community in the business and boosts the local economy. The raw fruits go through various processes to create the final products, which are either exported or sold in an onsite store. The reconstruction plan involves preserving and reinforcing the existing structures on the site while adding additional steel structures to those buildings that are beyond repair. These steel structures can be prefabricated off-site for easy installation. To address the issue of the street dividing the two areas, a bridge connection is proposed to improve circulation. Other necessary buildings on the site include offices, control rooms, storage, a laboratory for testing, and spaces for workers or lounge areas. Overall, the goal of this project is to create a sustainable and profitable business that benefits the local community while making use of the region’s abundant agriculture resources.

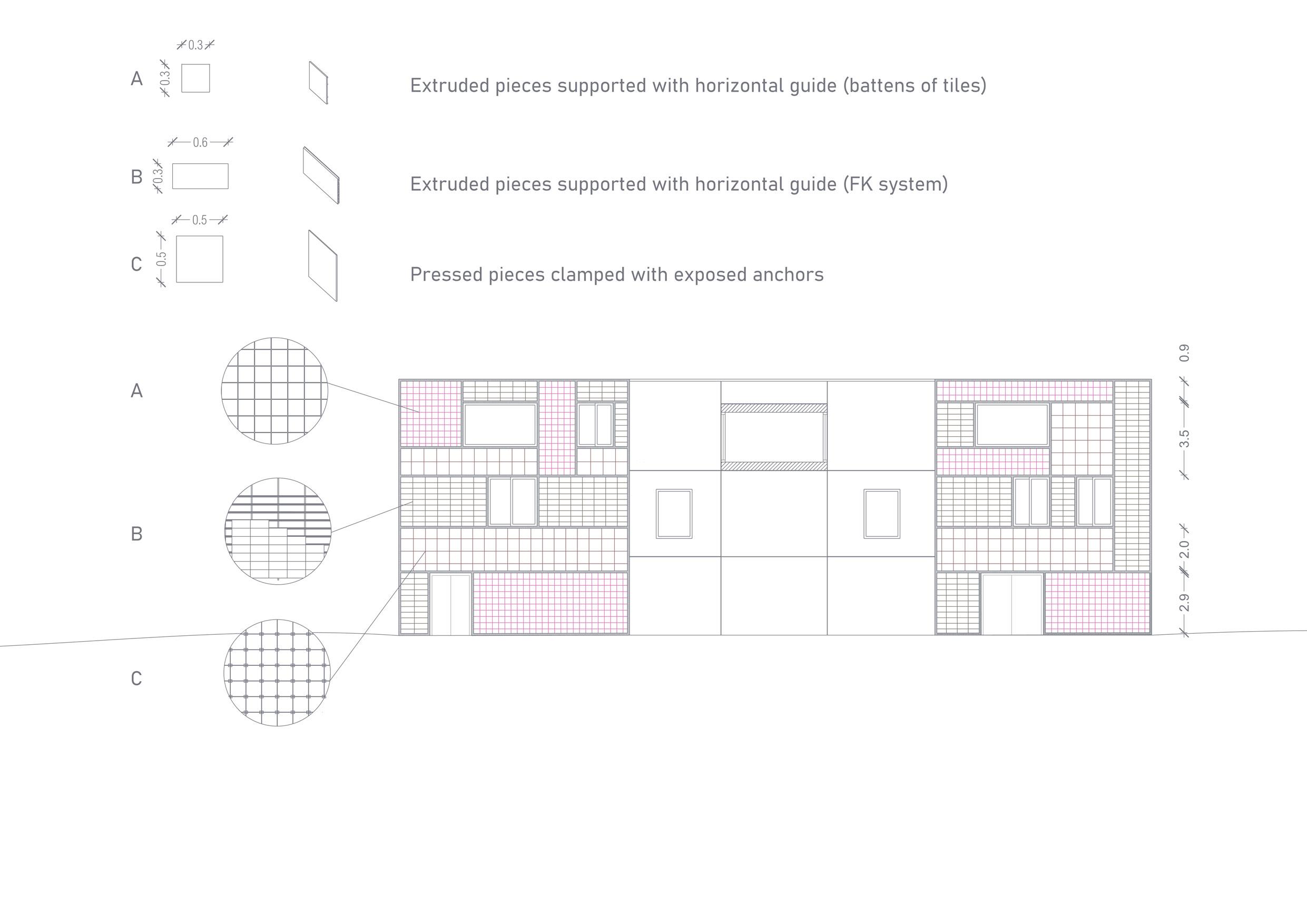

Design- diverse materials for a cladding facade

East Elevation

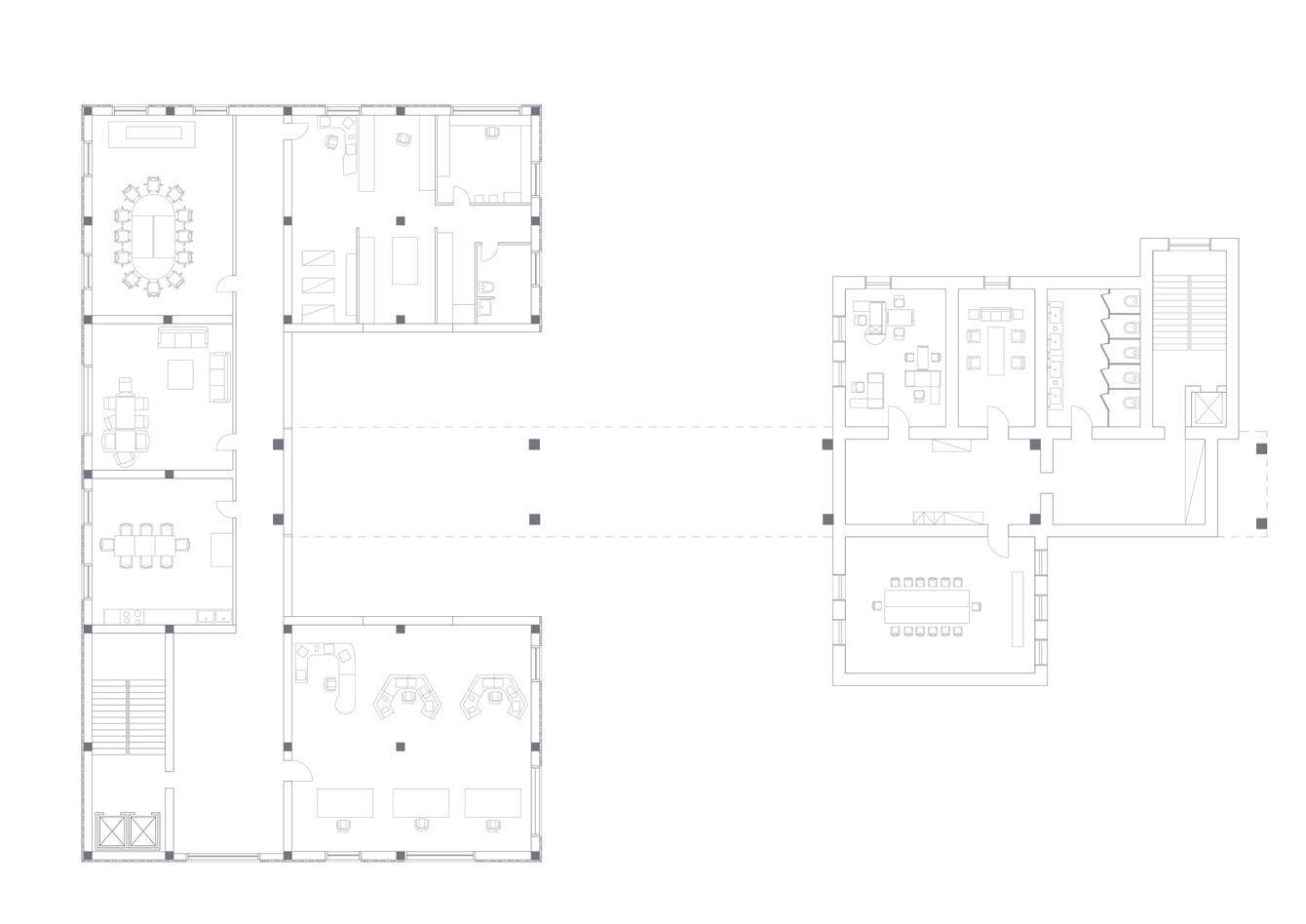

First floor plan

Groundfloor plan

South Elevation

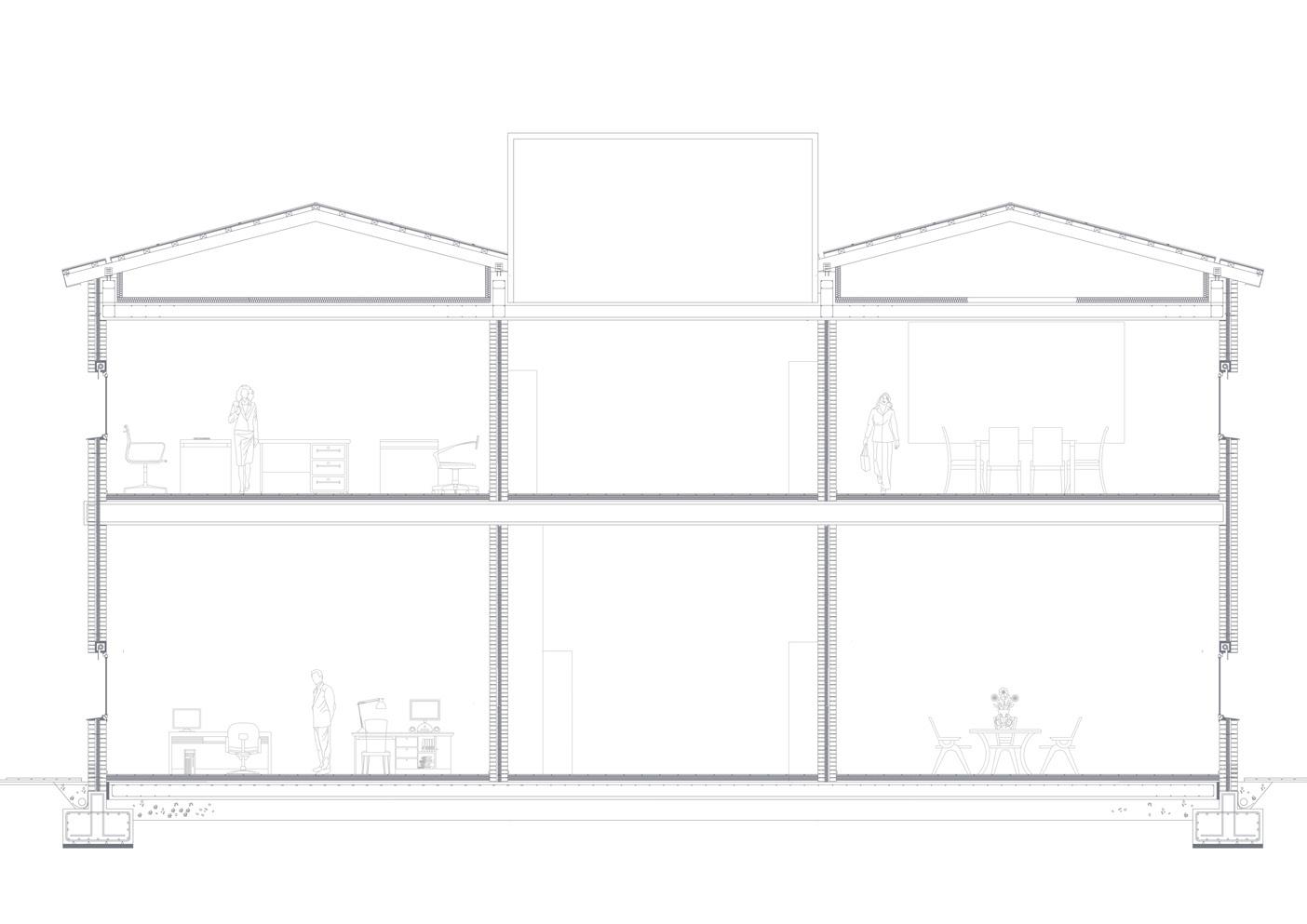

Section

Scale

22-

23-

24-

Section and plan 3- Cladding facade Scale 1/5

12-

13-

1- concrete wall 20 cm

2- fibreglass insulation 10 cm

3- pressed pieces clamped with exposed anchors

4- steel frame- ledge formed of L and C profiles

5- window sills

6- horizontal anchors- battens of tiles

7- extruded pieces supported by horizontal guide (battens of tiles)

8- insulated blindbox

9- horizontal anchor (FK system)

10- preframe 11- frame

window sash

double glazed glass

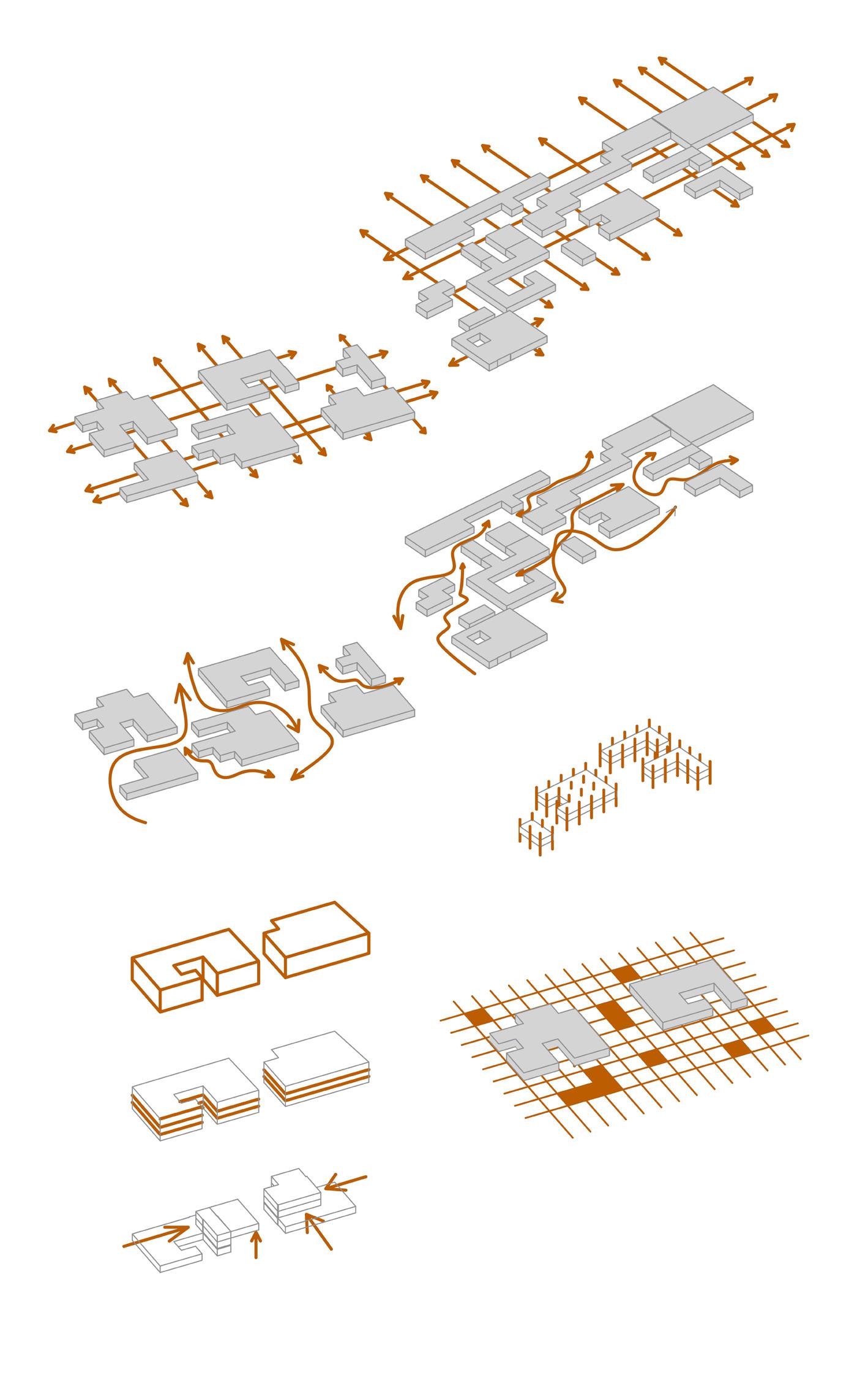

Concept Diagrams

Top view plan

South Section

05

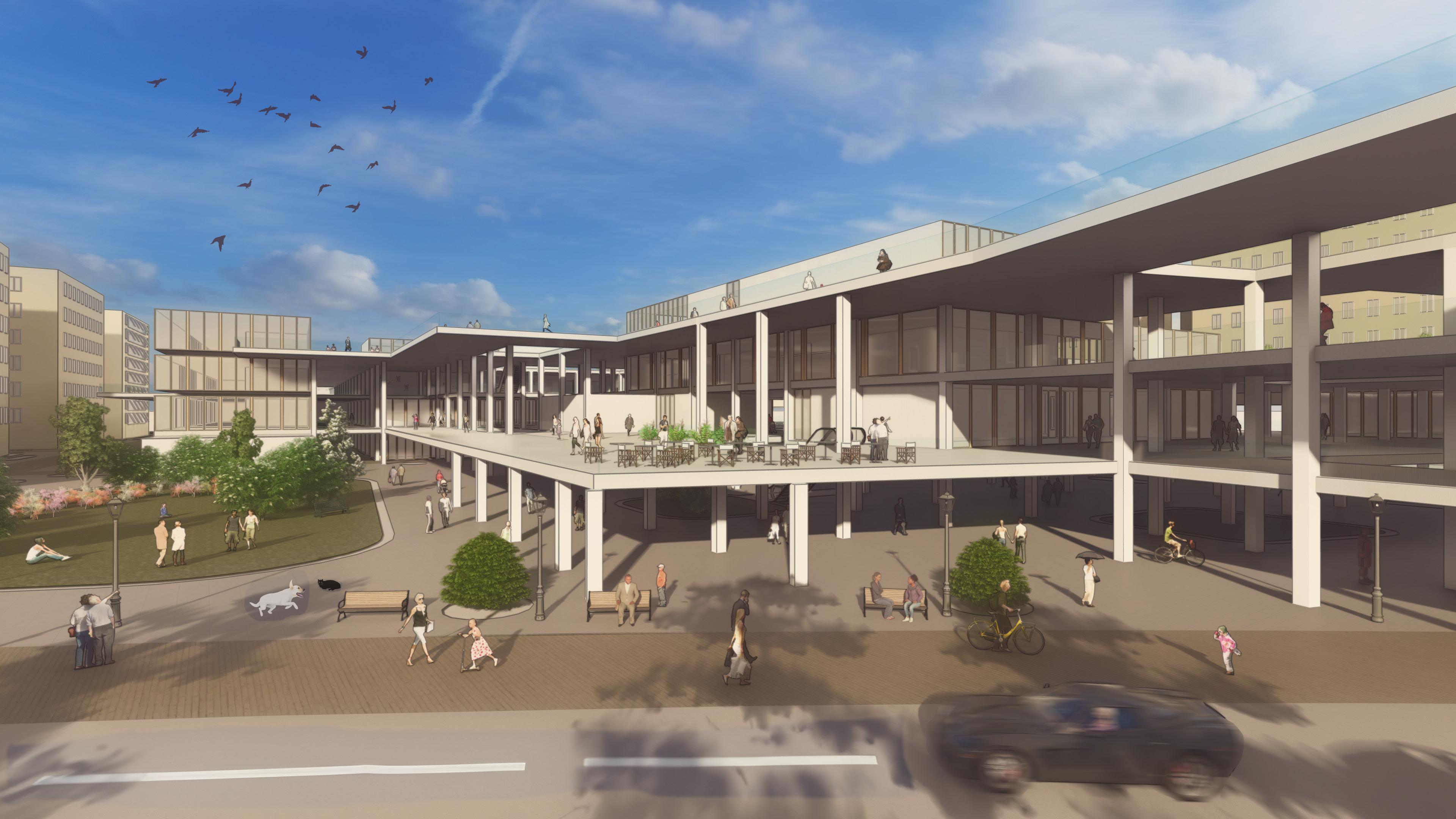

FOCE MARKET

Location - Genova, Italy

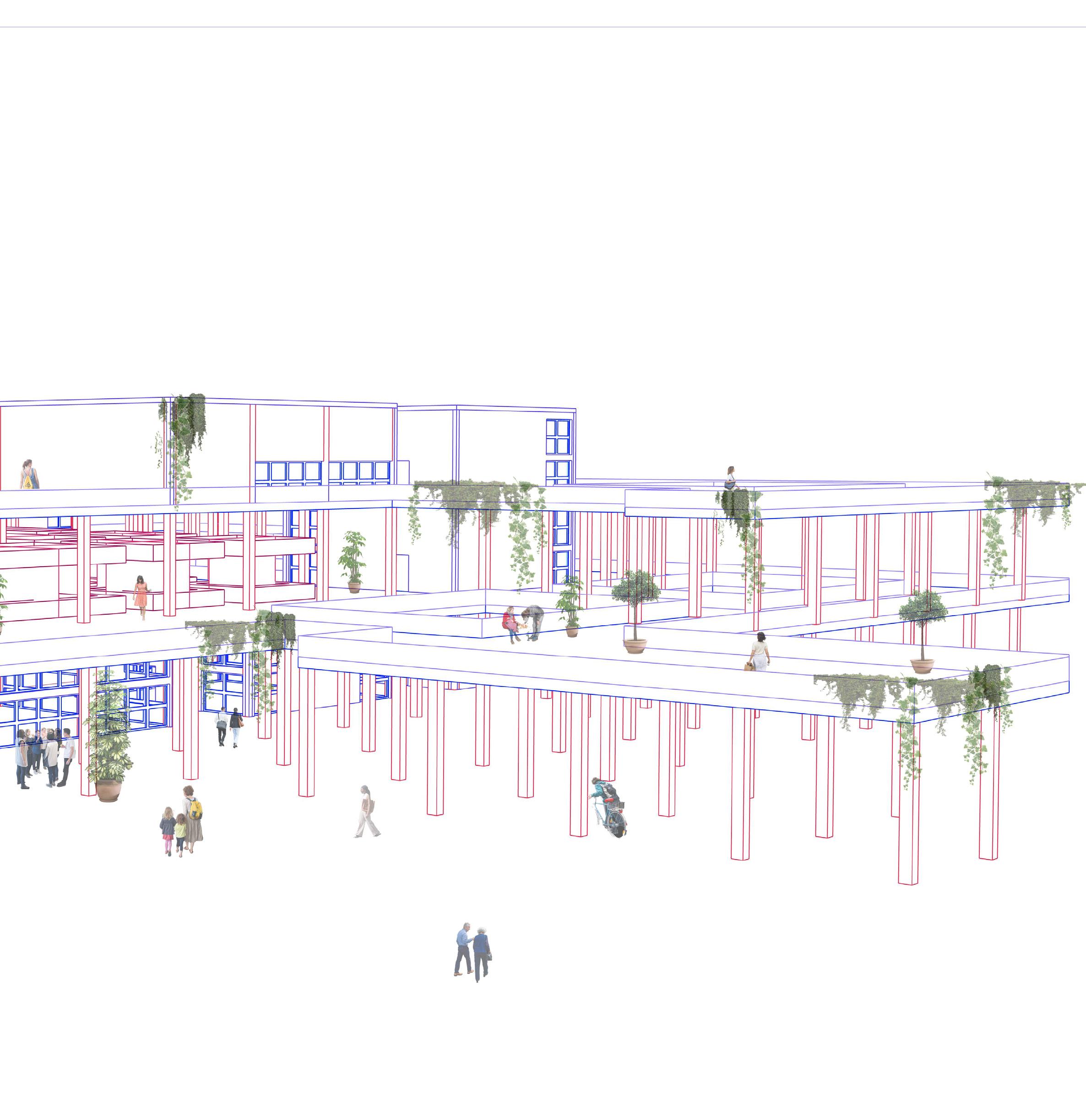

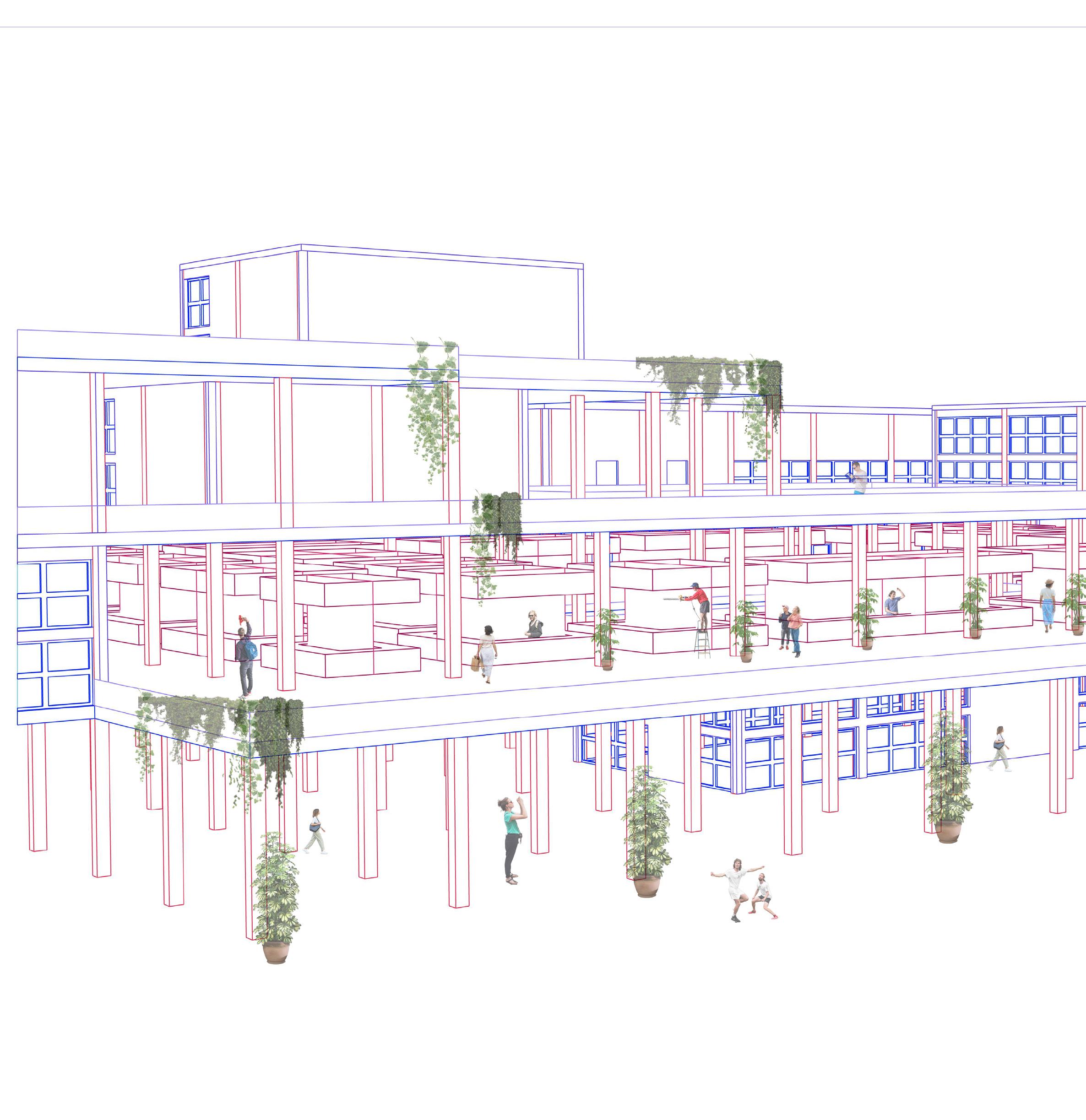

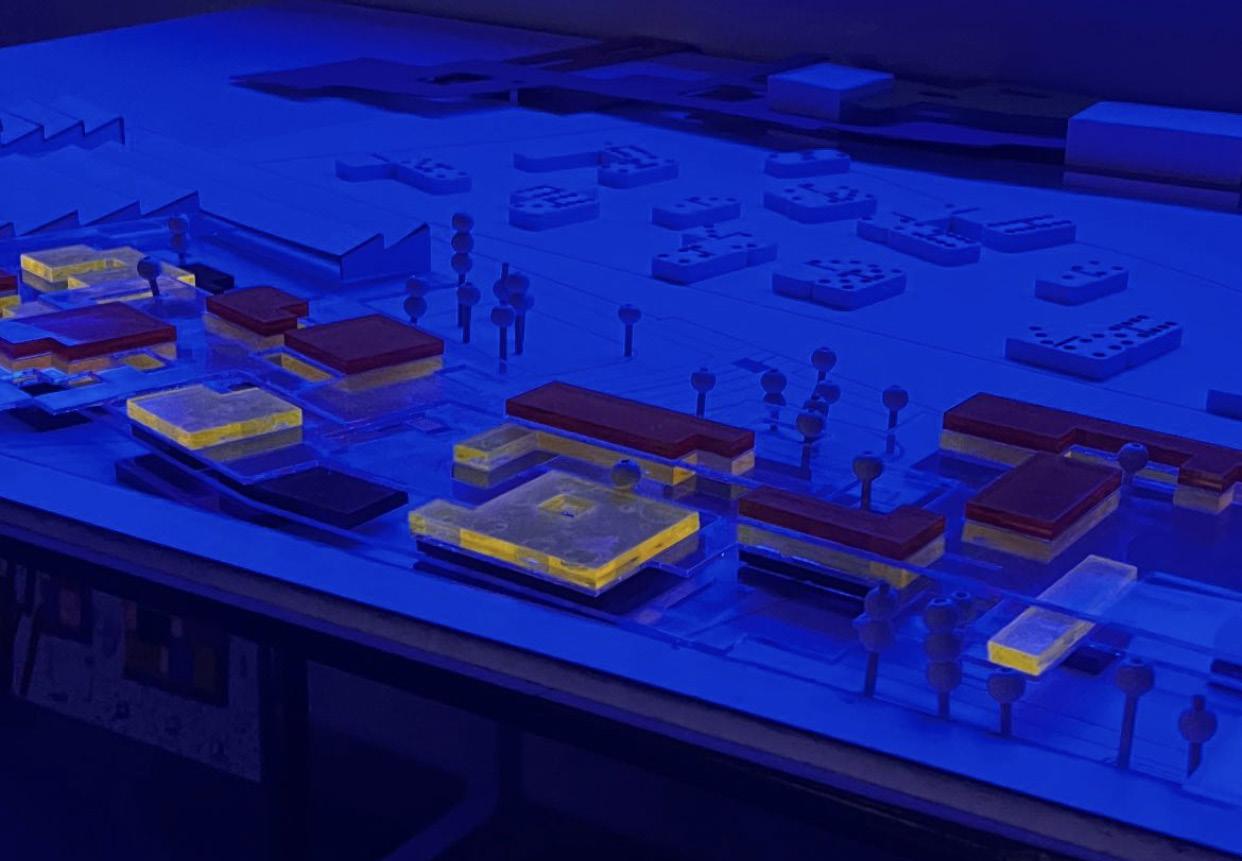

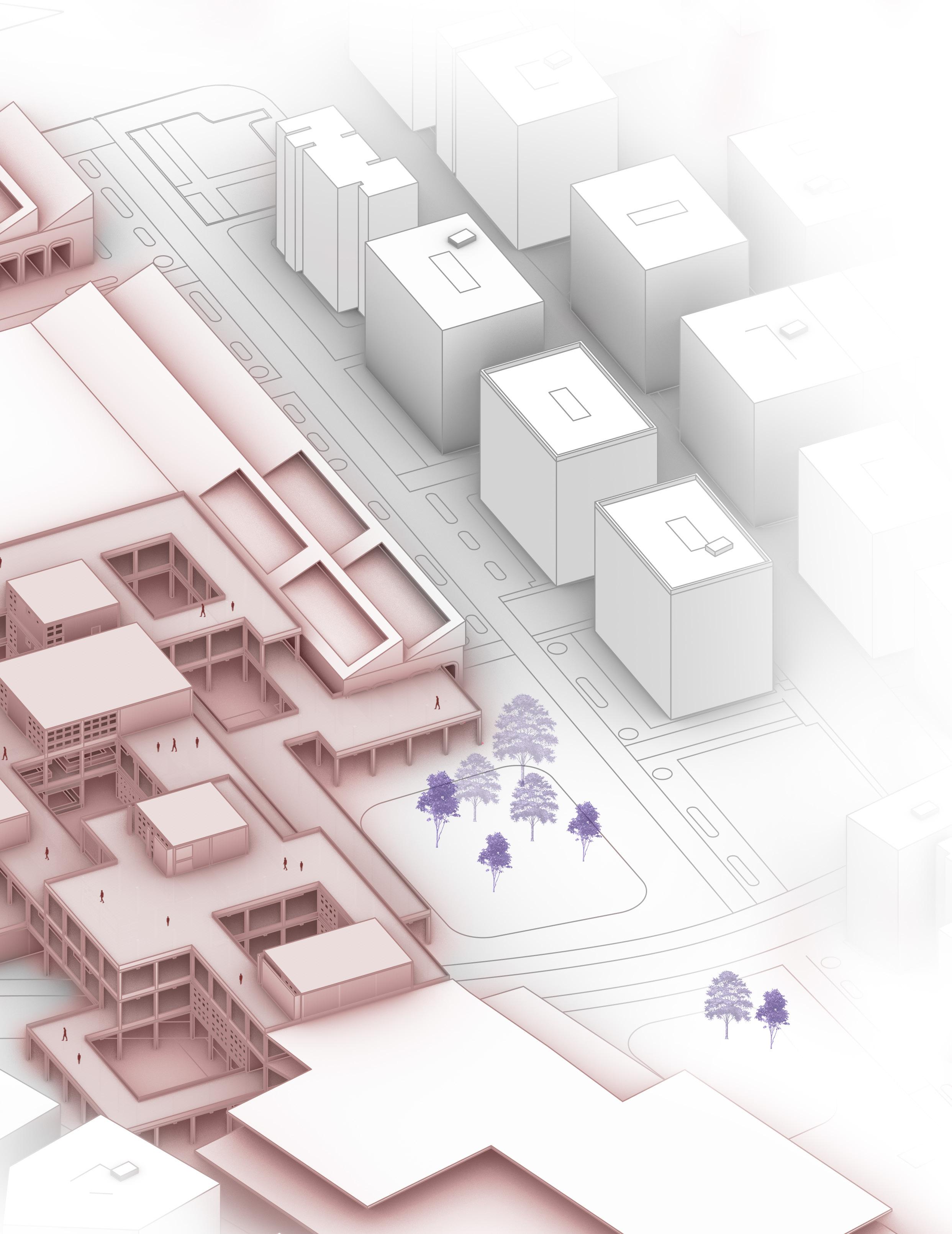

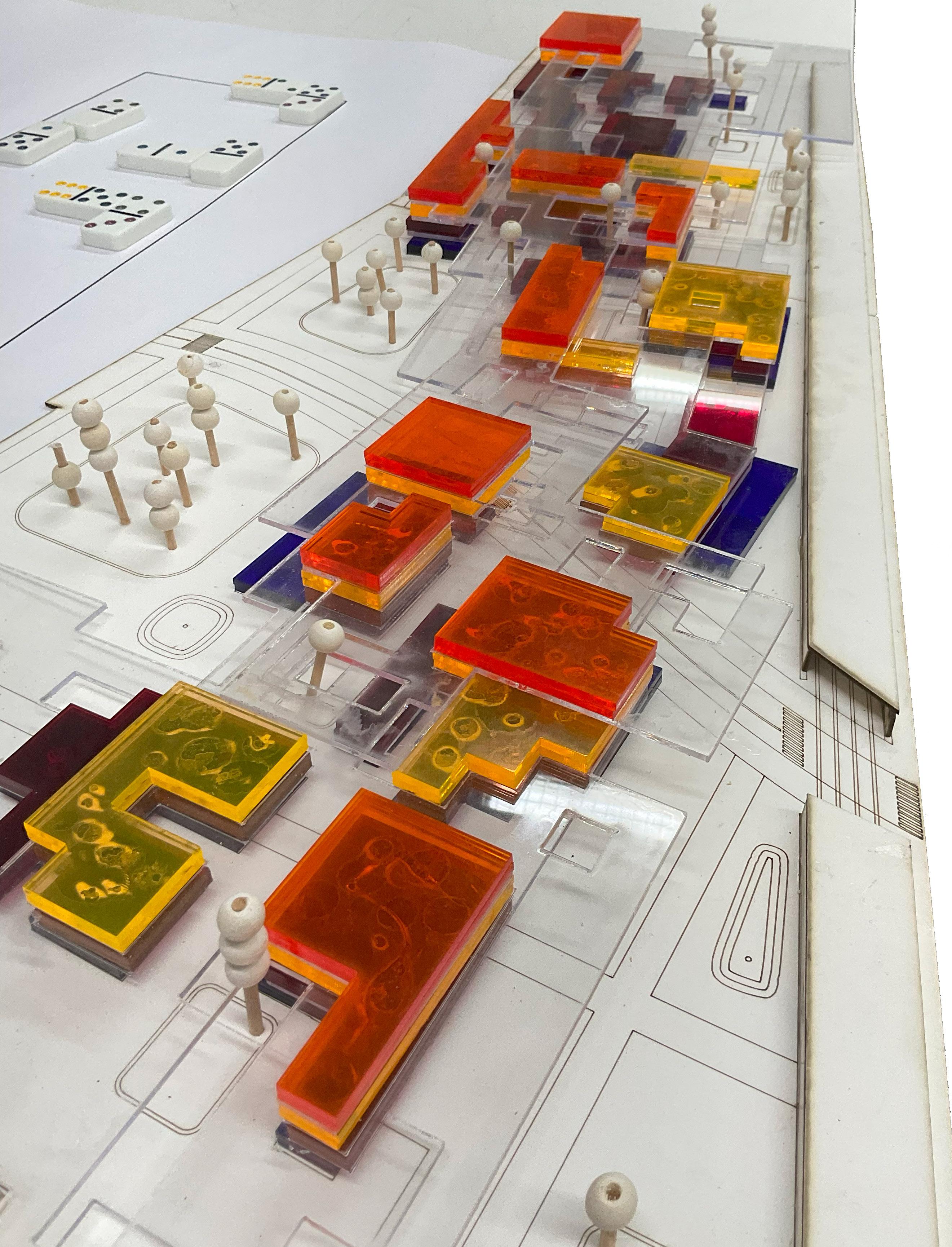

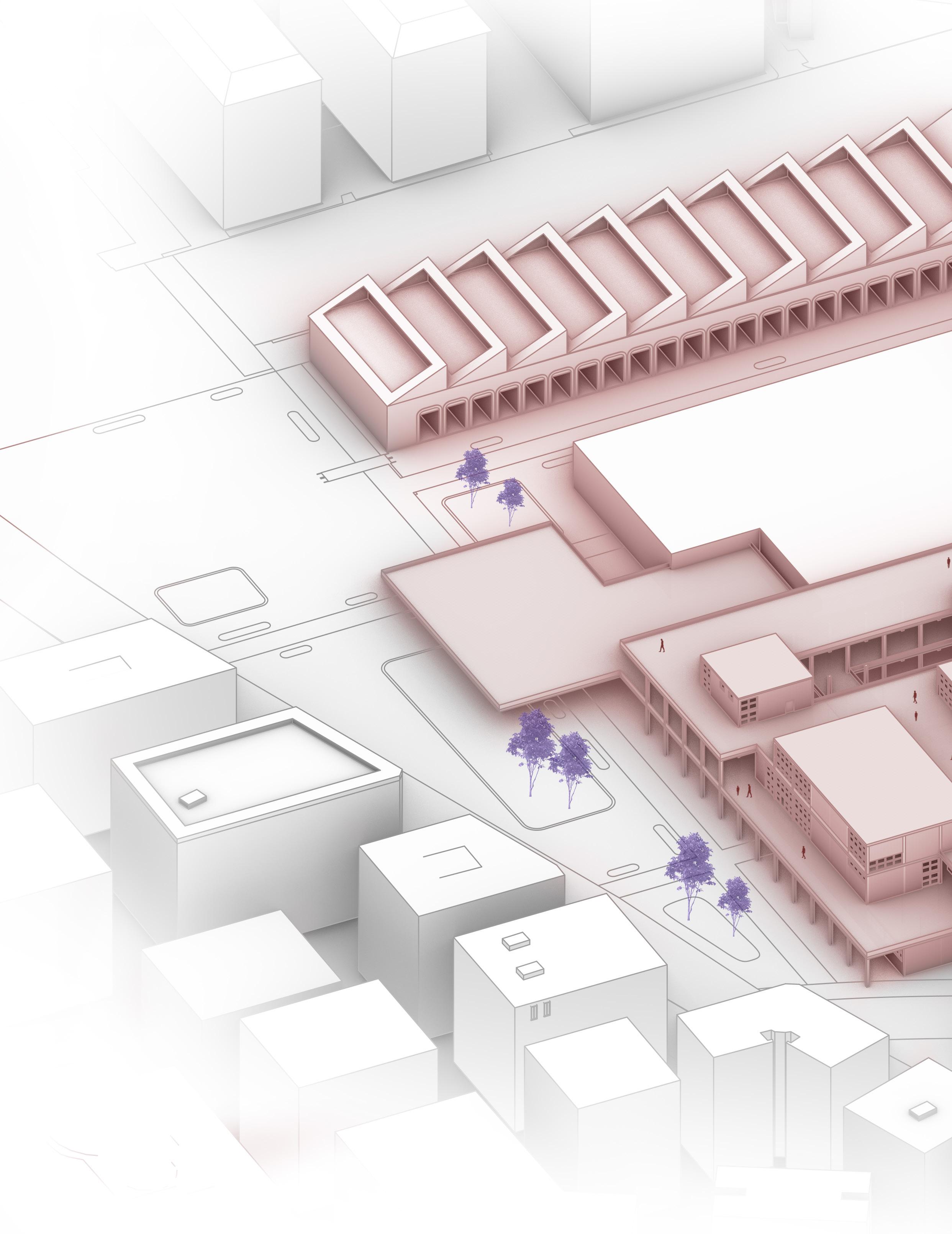

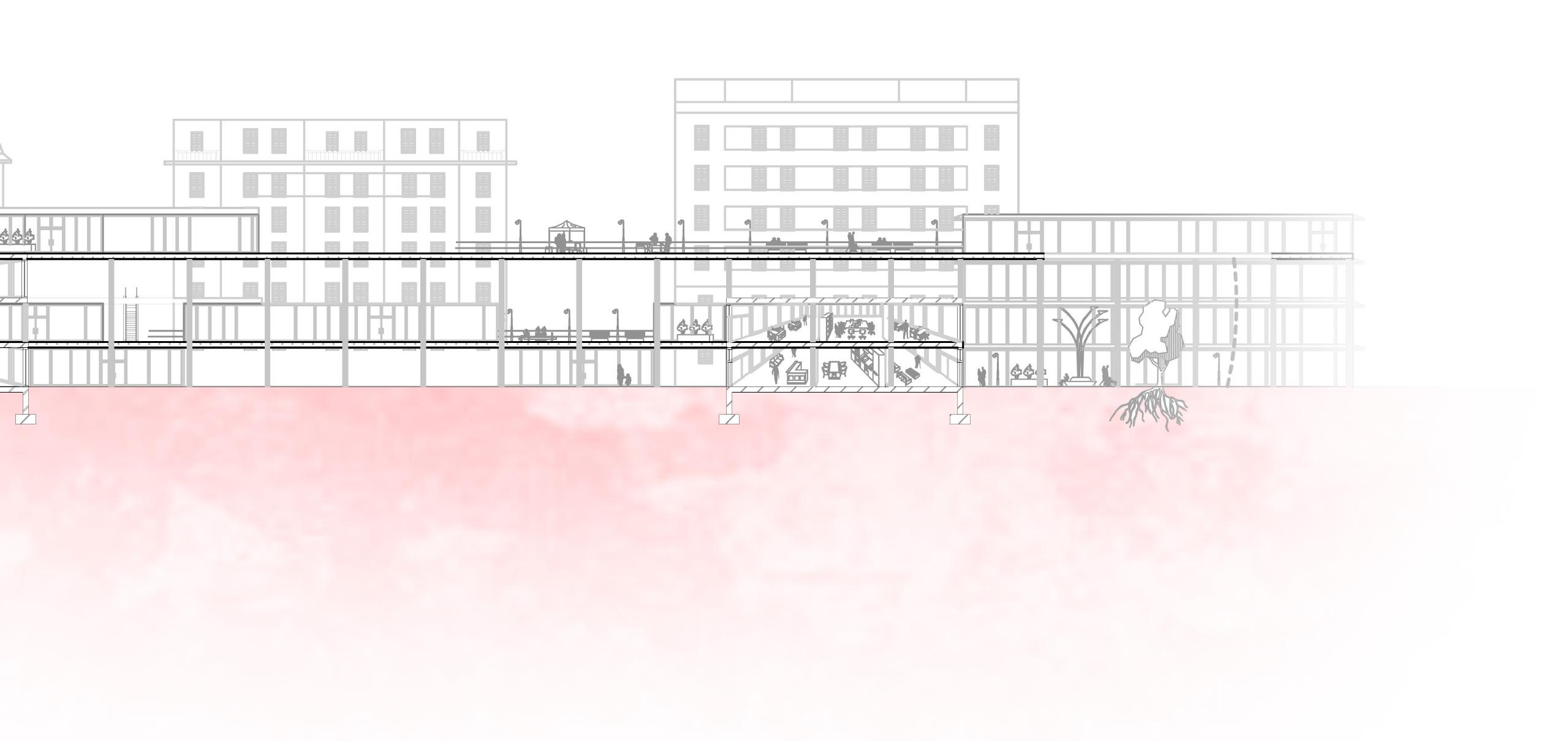

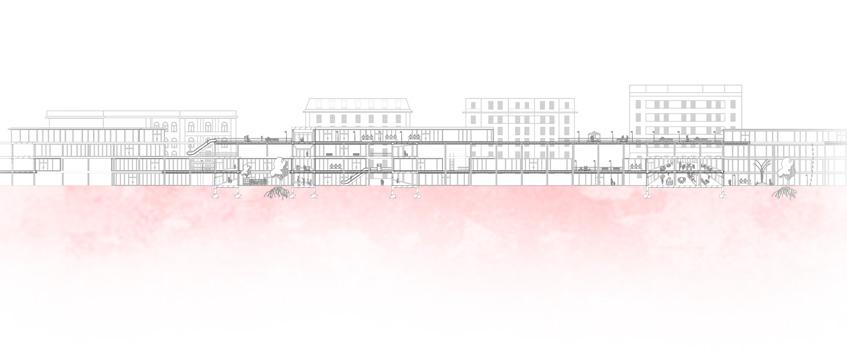

I’ve transitioned from a conceptual phase to developing specific spaces and functionalities for the project. In Genova’s Foce neighborhood, the project entails constructing multi-level platforms to connect the site with its surroundings, creating a vibrant public space. Additionally, the focus has shifted towards implementing a comprehensive program and detailed design. The primary aspect of the project is the community market, chosen after thorough research and considering nearby institutions like universities, schools, residences, and public spaces. This market serves as a central hub for urban continuity, particularly due to its proximity to the train and metro stations. Design considerations encompass environmental integration, space permeability, mixeduse development, and adaptable space utilization. The market program was selected for its capacity to benefit both locals and tourists, enhance public spaces, stimulate economic activity, and foster connections between rural and urban economies.

Caffee/Commercial

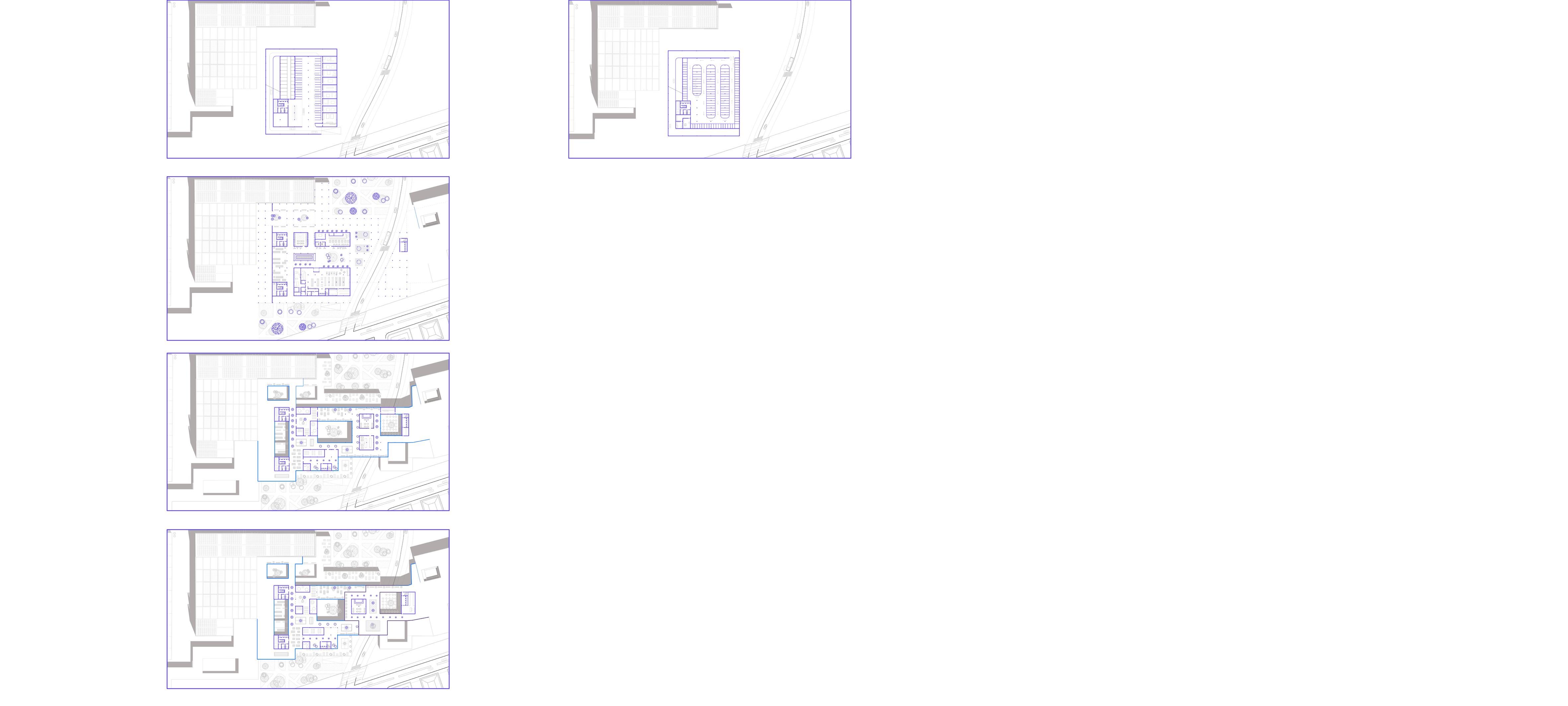

3rd floor plan

floor plan

Market/Leisure

floor plan

Supermarket/Commercial

plan

2nd

Flea market/Leisure

1st

Groundfloor

2nd floorplan Scale 1/800

3rd floorplan Scale 1/800

SHELL PAVILION

Location - London, United Kingdom

BAMBOO TILE

WATERPROOF MATERIAL

REED MAT PMMA

CROSSING GRID BAMBOO

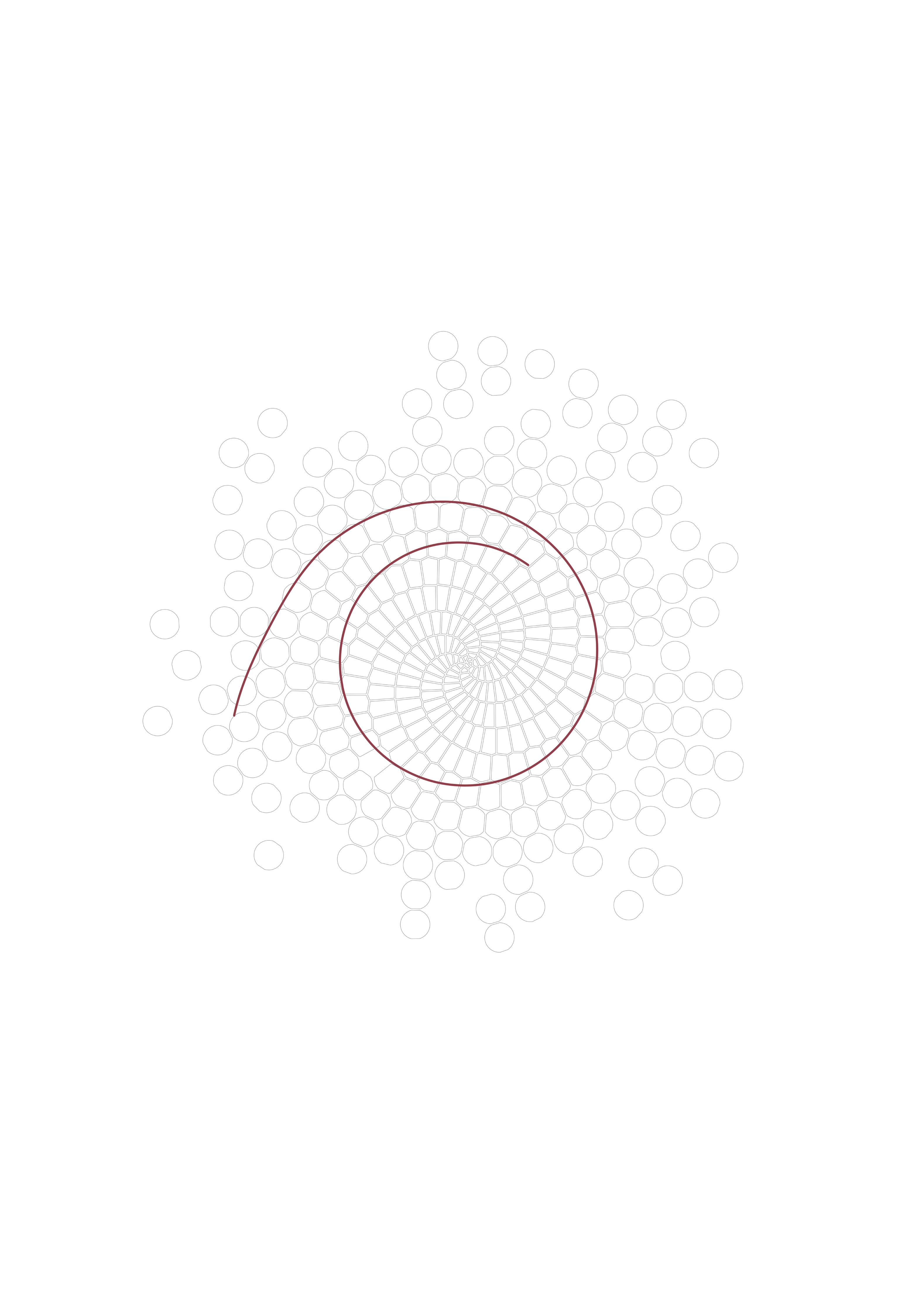

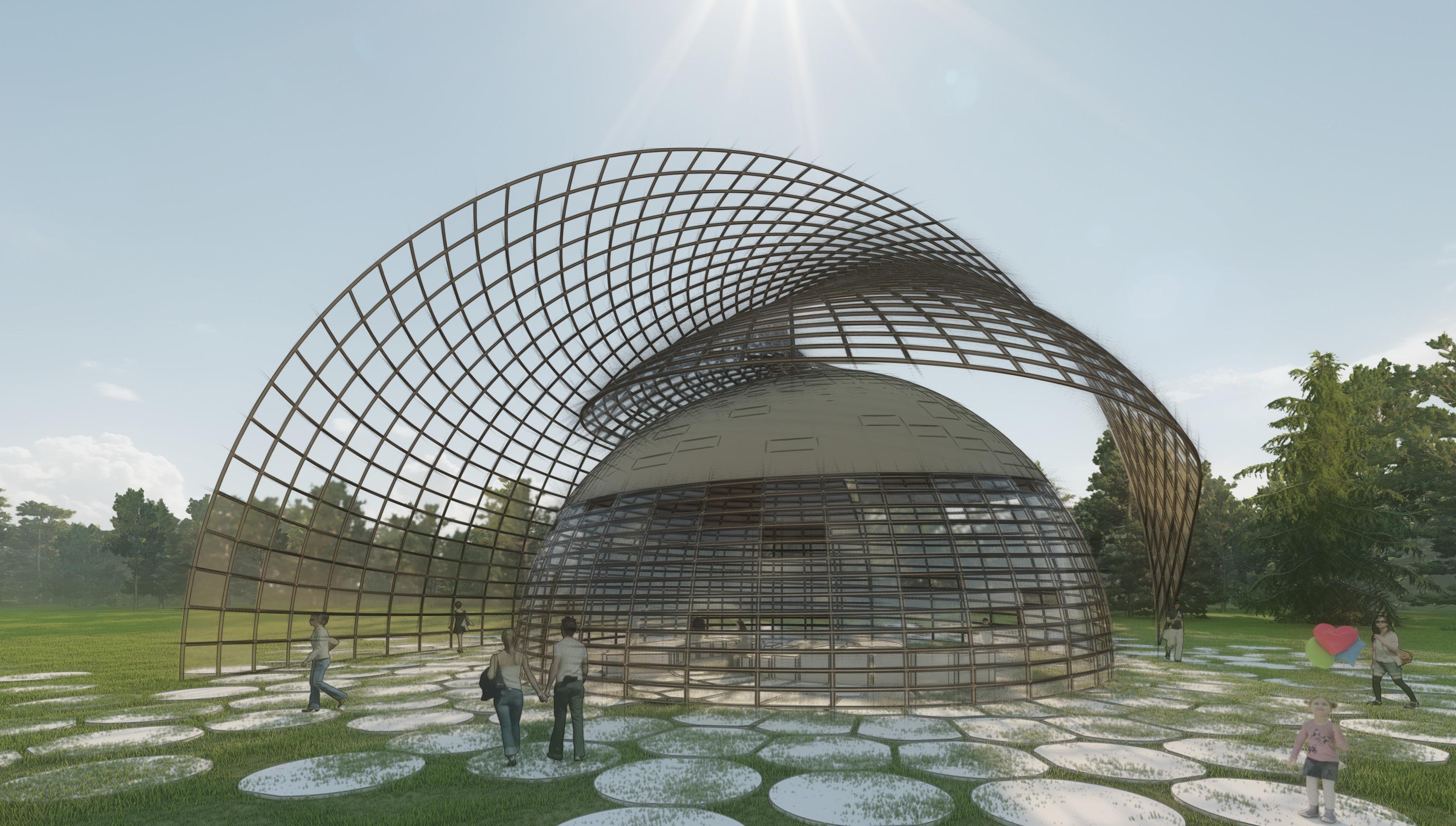

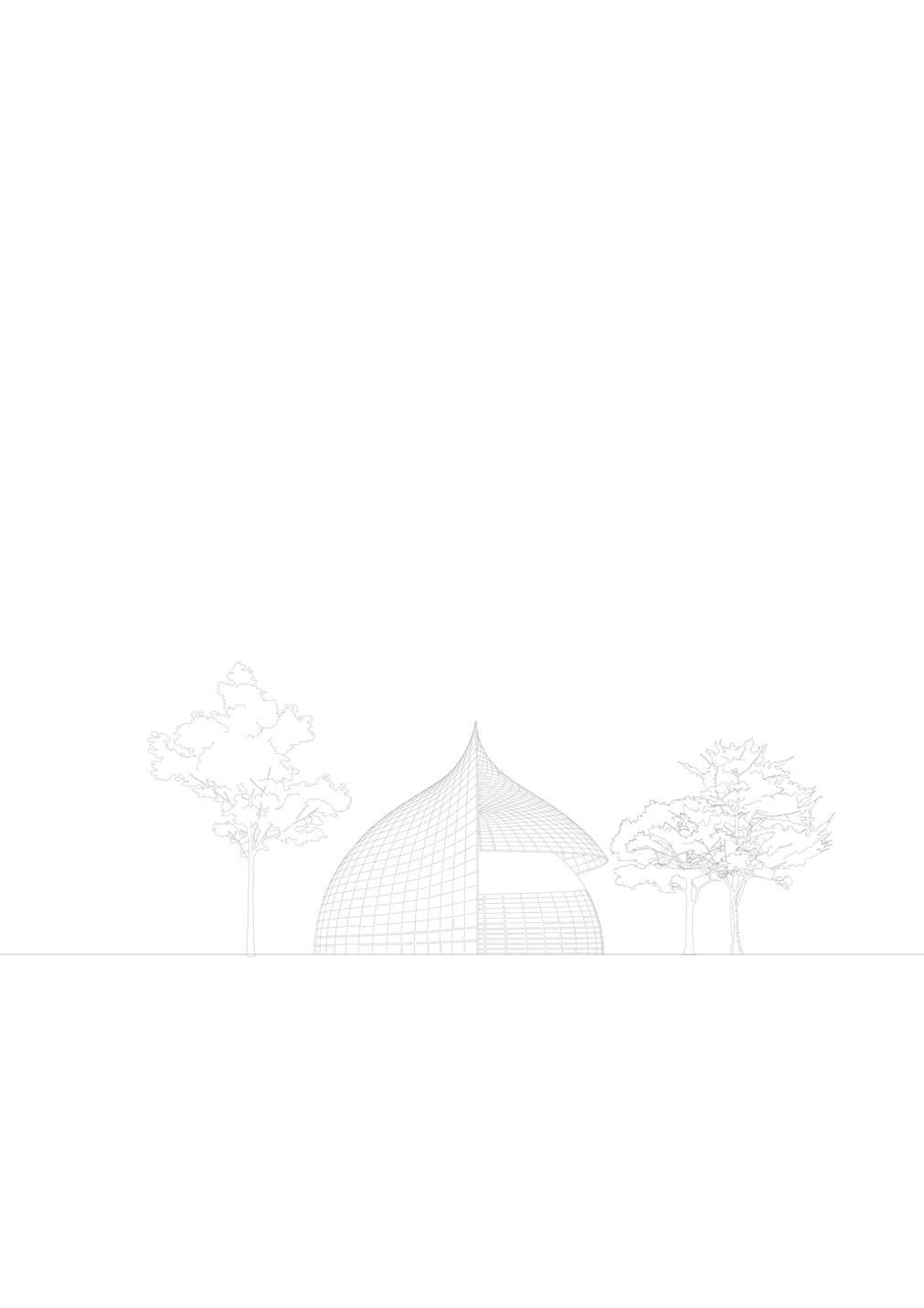

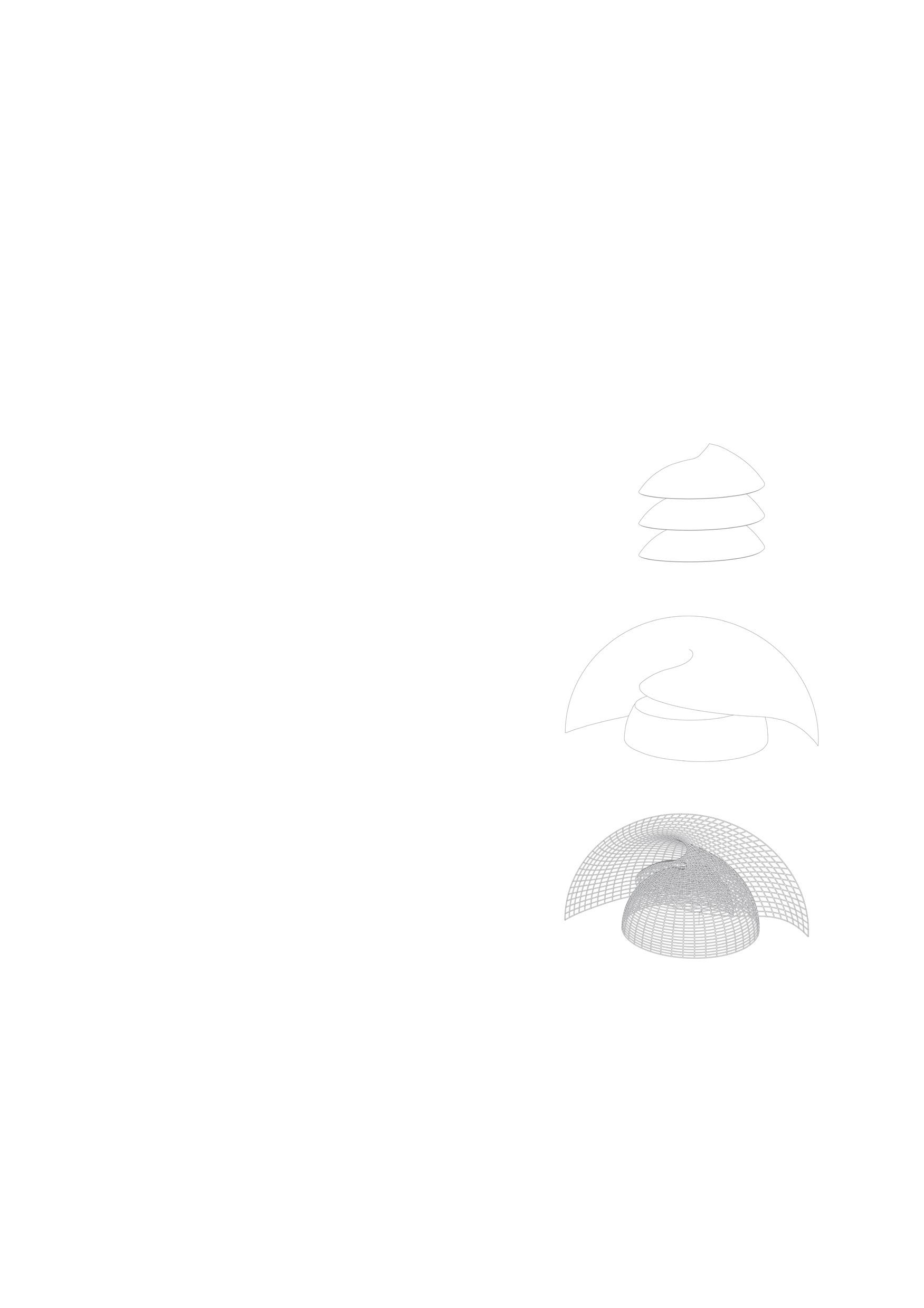

This project involves a commission in contemporary architecture: the Serpentine Gallery Pavilion. The task was to design a space providing areas for relaxation, potential auditoriums, or conference venues. With freedom and openness to contemporary pavilion design, I incorporated Grasshopper into the process, experimenting with organic shapes inspired by nature and marine forms. The pavilion comprises three layers: a bamboo grid for structural support, PMMA for transparency, and a combination of reed mats, waterproofing layers, and bamboo tiles for the third layer.

Pavilion plan
