Dextall Retrofit Completed Projects

DEXTALL RETROFIT PROJECTS

Table Of Content

03 The Heritage

Project

00

RETROFITING THE

HERITAGE: LANDMARK OF SUSTAINABLE LIVING Market Repositioning Minimal tenant disruption Completed in 2024

Cost Efficiency

Introduction

001

PARTNERSHIP

L+M Development Partners and Dextall leading the modernization with a $2.2 million budget.

GOAL

Aiming for carbon neutrality by 2030 with a comprehensive retrofit including energy-efficient enhancements for a concervative budget.

002 Recognized as an EMPIRE BUILDING CHALLENGE WINNER, The Heritage demonstrates a commitment to decarbonization and energy efficiency, setting a precedent for future retrofit projects.

“The Heritage project is a shining example of how sustainable building practices can dramatically improve tenant well-being.

Seeing the joy and comfort our work has brought to the tenants reinforces our commitment to innovation and sustainability.”

AURIMAS SABULIS

Founder of Dextall

003

Project Overview

LOCATION

The Heritage, 1660 Madison Avenue, New York, NY

DEVELOPER

L+M Development Partners

CONTRACTOR

L+M Builders

ARCHITECT

Inglese Architecture + Engineering

RETROFIT FOCUS

Eastern flank of The Heritage with Dextall prefabricated panels

PROJECT BUDGET

$2.2 million partnership for exterior refurbishment

SCOPE

Comprehensive retrofit of the entire complex, including major envelope improvements and full electrification of 1660 Madison Ave

INVESTMENT

$5 million from NYSERDA, nearly $14 million in private investments

TIMELINE

Aiming for carbon neutrality by 2030

004

Project Goals 001 Sustainability and

Efficiency

002 Tenant Comfort

54% reduction in site energy use intensity, targeting R22 effective exterior values.

Enhanced living conditions with superior thermal and acoustic performance.

004

Minimal Disruption

005 Conservative

Budget

Retrofitting with tenants in place, ensuring quality of life is maintained.

A long term solution that proves to be cost effective in the short term as well.

003 Market

Repositioning Updating aesthetics to meet contemporary design standards.

001

“Once we sat down and started talking about pricing, that’s when 004the particular advantages of DEXTALL started to come into focus —it’s very appealing from that standpoint... We wanted not just to repurpose the building but to reposition it in the market.”

RICHARD WEINSTOCK

Vice Chairman and Senior Parnter at L+M, on choosing Dextall

The retrofit project was driven

005

by several core objectives:

Sustainability and Efficiency To significantly reduce energy consumption and the building's carbon footprint through the implementation of Dextall’s all-in-one insulation and cladding package. Implementing building envelope improvements to dramatically cut heating and cooling needs.

Committing to a 54% reduction in site energy use intensity and targeting carbon neutrality by 2030.

Tenant Comfort To enhance the living conditions for current tenants through superior acoustic and thermal performance of the new exteriors, and to improve access to natural light. Electrifying all loads in one building, transitioning from inefficient baseboard electric resistance heating to modern heat pump solutions.

006

Market Repositioning To transform the building’s aesthetic appeal, aligning The Heritage with contemporary design standards and repositioning it in New York’s competitive real estate market.

Minimal Disruption To ensure that the retrofitting process causes minimal inconvenience to the existing tenants, maintaining their quality of life during the construction phase.

007

The Retrofit Strategy 001 Approach

002 Design and

Materials

003 Construction

Approach

001 Empire Building Challenge

Hybrid retrofit with Dextall’s D-Wall 1500 and EIFS for structural and aesthetic improvements.

Vertical installation strategy for Dextall prefabricated panels to minimize tenant disruption.

inspired, focusing on envelope improvements and full electrification.

Empire Building Challenge Approach The Heritage's retrofit strategy incorporates the Empire Building Challenge's holistic approach to decarbonization, focusing on phased, strategic roadmaps tailored to the complex's specific needs. This includes major envelope improvements, the installation of packaged terminal heat pumps, and full electrification of one building within the complex.

008 Design and Materials A "hybrid" retrofit approach was selected, combining Dextall’s D-Wall 1500 product with an Exterior Insulation Finishing System (EIFS) to address the 001 structural challenges of the aging facade. This solution aims to eliminate fossil fuel usage, leveraging state-of-the-art heat pump water heaters and electric laundry dryers. This hybrid approach was tailored to overcome the structural challenges of the aging facade while adhering to strict budget constraints.

Construction Approach with Tenants in Mind

009

001

1

Planning: Meticulous preparation to minimize impact on tenants.

2

Installation of Temporary Walls: Ensuring safety, noise reduction, and environmental control.

3

Panel Installation: Efficient strategy allowing for the installation of approximately 10 panels per day.

Given the logistical challenges of executing a major retrofit with tenants in place, the project utilized a vertical installation strategy for the new unitized wall panels. This method minimized disruption and ensured that the building remained secure and weatherproof throughout the renovation.

010

Planning and Preparation The first step in the retrofit process involved meticulous planning to ensure that the daily lives of the hundreds of tenants at The Heritage were minimally disrupted. This planning phase included logistical strategies for installing temporary walls inside apartments, ensuring safety protocols, and scheduling construction to minimize noise and other disturbances.

011

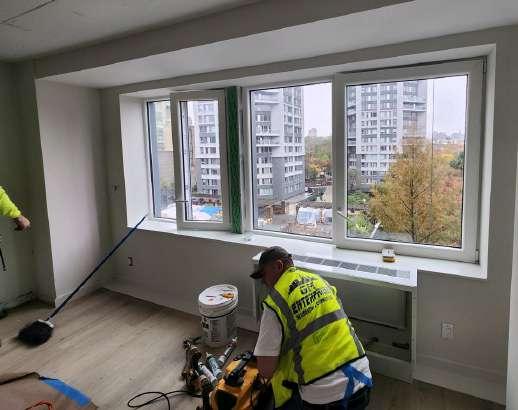

Installation of Temporary Walls 001

A key feature of the construction process at The Heritage was the installation of temporary walls within the apartments. These walls were erected as a physical barrier between the tenants' living spaces and the construction zones. Designed to be sturdy yet easily removable, these temporary structures served multiple purposes:

001

002

003

Safety

Noise Reduction

Environmental

Control They maintained the integrity of the

They acted as a shield, protecting residents from debris

The walls helped dampen the

apartment's heating, cooling, and

and dust generated during the

sound of construction, maintaining

ventilation systems, ensuring that

facade demolition and panel

a relatively peaceful living

residents remained comfortable

installation.

environment.

throughout the retrofitting process.

012

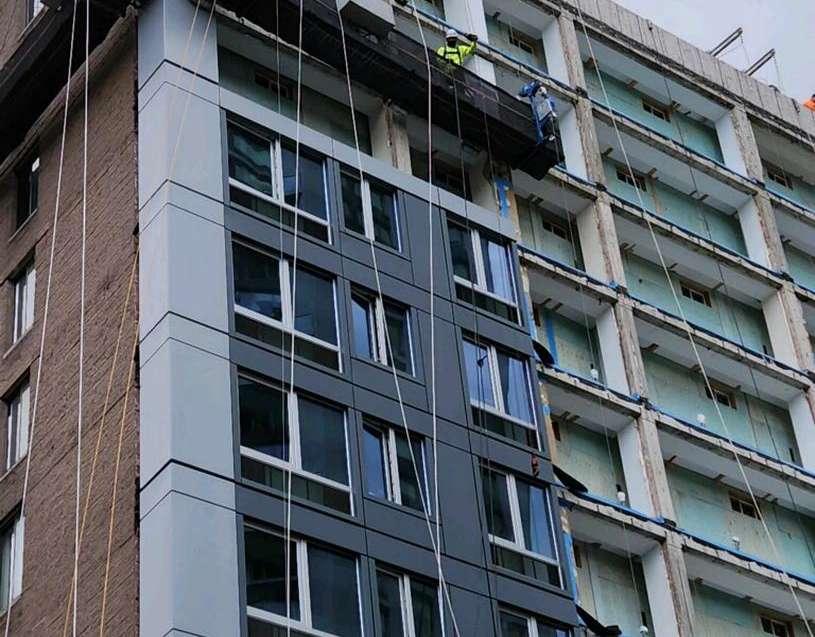

Demolition and Panel Installation

With the temporary walls in place, the construction team began the careful demolition of the existing facade. This phase was carried out with precision to avoid damaging the building's structural integrity and to prepare the exterior for the new prefabricated panels.

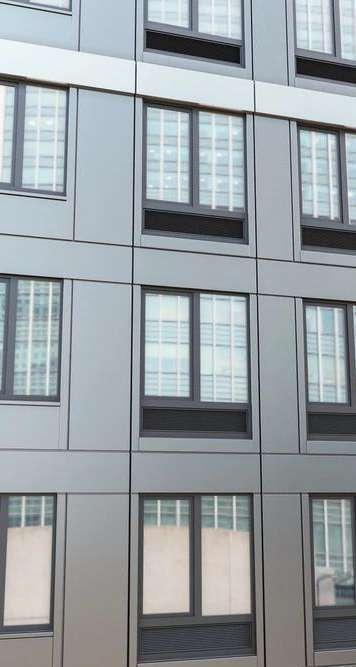

The installation of Dextall’s prefabricated panels was a critical phase of the construction process. Designed for efficiency and minimal on-site labor, these panels were brought to the site ready to be installed, equipped with all necessary insulation, windows, and cladding. The construction team utilized vertical runs for the installation, a strategy that allowed for the methodical replacement of the facade, one apartment at a time. This approach was particularly advantageous for a few reasons:

001

002

003

Efficiency

Minimazed Disruption

Quality Control This method allowed for close monitoring of the installation process, ensuring that each panel

It enabled a quick installation process, with the team able to

By focusing on one apartment per

was properly sealed and integrated

install approximately 10 panels

floor at a time, the impact on

into the building's existing

per day.

tenants was significantly reduced.

structure.

Challenges and Solutions

013

Maintaining water and air tightness with temporary vertical closures Logistical planning for material delivery to support the vertical 001 installation strategy.

“Integrating modern aesthetics with advanced energy-efficient technologies was a challenging yet rewarding task. The results speak for themselves in the improved quality of life for the tenants.”

DAVID ASH

L+M Developers

014 To address this, Dextall designed temporary vertical closures that could be quickly installed and removed as the work progressed, ensuring that the building remained protected against the elements.

Another challenge was the logistical complexity of delivering materials in a specific sequence to accommodate the vertical installation strategy. The project team developed a detailed logistics plan that included precise timing for material delivery and storage solutions to keep the construction site organized and efficient.

Key Achievements

015

and Numerical Data

Energy Efficency Exceeding energy code standards by 40%, with a 54% reduction in site

001

energy use.

Installation Efficency 10 panels installed per day, with the entire process expected to complete in 4-5 months.

Cost Effectivness Retrofit within a $2.2 million budget, showcasing a model for affordable housing preservation.

Carbon Neutrality Goal to achieve carbon neutrality by 2030, setting a benchmark for urban retrofit projects.

016

BEFORE

TENANT’S

TESTIMONIAL

AFTER

017 Living at The Heritage after the renovation has been truly transformative. The difference is staggering – from the gloomy, outdated feel to the stunning new look of the building, it’s like night and day. Before, the old windows barely allowed any light in, and the narrow bedroom windows felt like something out of a prison cell. Now, everything has changed. The apartment feels cozy and warm, with no more pesky drafts to contend with. This entire transformation has uplifted not just my living space, but my spirits as well.

BRENDA McGIRT

Shared her experience

Impact and Future Outlook

018

The Heritage retrofit project is more than just a building renovation; it is a step towards redefining sustainable urban living. By prioritizing energy efficiency, tenant comfort, and minimal disruption, L+M Development Partners and Dextall have set a new benchmark for retrofit projects in dense urban environments.

“The field is very slow to adapt to change. We’re hoping this starts to move the needle.”

RICHARD WEINSTOCK

Reflects on the broader implications
