Ventilation includes an extensive range of 4” and 6” extractor fans and accessories that are designed to seamlessly blend into the environment and are suitable for various applications, including kitchens, bathrooms and utility rooms.
Slim profile fans are designed to be highly energy efficient and quiet to meet ventilation requirements. User adjustable timer and humidistat options provide an extra level of automation and effectiveness.
The new Zone One Axial and Flat Fascia fans offer even more efficient bathroom extraction due to their closer proximity to bath or shower trays.
Hand Dryers
Improve hygiene and reduce energy consumption with Vimark Hand Dryers. High speeds ensure faster hand drying than conventional models.
Useful Information
Why is Ventilation Important?
Efficient bathroom ventilation is crucial as it helps remove excess moisture, steam, and smells from your home, while reducing the risk of mould growing in your home. Bathrooms will see varying levels of moisture and humidity on a daily basis due to their typical usage, such as bathing or showering. Unlike other rooms, a bathroom will often release water vapor into the rest of the home.
Why is Poor Ventilation a Problem?
Odours remaining in the bathroom combined with an overall lack of efficient ventilation in a house can contribute to a generally damp atmosphere. This can create stale air in the building, which can cause discomfort and a risk of respiratory problems.
Condensation is a contributing factor towards damp and mouldy conditions. Created when steam from a room meets a cooler surface – like a window for example. Without good ventilation, condensation can cause considerable damage to a home like peeling wallpaper or the growth of black mould.
How to Stop Poor Ventilation
The Building Regulations Document F1 (2006 Edition) highlights the importance of ventilation in a home, and requires ventilation to be installed in kitchens and bathrooms.
All Vimark extraction fans comply with BS EN 60335-2-80, making them the perfect choice for removing humidity in key locations before it makes its way throughout a house.
Minimum Requirements
There are some specific requirements for ventilation within The Building Regulations Document F1 (2006) that need to be adhered to for different areas of a house.
Bathrooms/Shower Rooms require an intermittent fan capable of a minimum extract capacity of 15 litres/second or 8 litres per second for a continuous fan. For rooms without an openable window, the fan needs to be fitted with a 15 minute over-run timer.
Toilets (separate from a bathroom) require an intermittent and continuous fan to be capable of a minimum extract capacity of 6 litres/second. Just like a normal bathroom/ shower room, the fan needs to have a 15 minute over-run timer if there is no openable window in the room.
Utility Rooms require intermittent fans to be capable of a minimum extract capacity of 30 litres/second, while continuous running fans must have a minimum high rate of 8 litres/second.
Vimark’s wide range of intermittent extraction fans have a minimum extraction rate of 24 litres/second, making them all able to be used in bathrooms, shower rooms, and toilets that are separate from a bathroom.
For utility rooms, the Vimark 150m Axial Fan (6”) features a 71 litre/second extraction rate, making them the perfect choice for installation.
IEE Wiring Regulation 18th Edition
Much like the required minimum extraction rates for in The Building Regulations Document F1 (2006), there is specific guidance provided on bathroom zoning and ingress protection to ensure fans are installed correctly. Bathrooms are divided into zones, with the boundaries being drawn by the bath or shower basin, and the height above the floor.
Most Vimark fans are Zone 2, which extends to a height of 2.25 metres above the floor. These fans need to be at least an IPX4-rated fan, unless the area is in the splash zone.
Zone 1 is the exterior of the bath or shower tray up to a height of 2.25 metres. The new Vimark Zone 1 Fan products feature an improved IPX5 rating, allowing them to be placed closer to the humidity source.

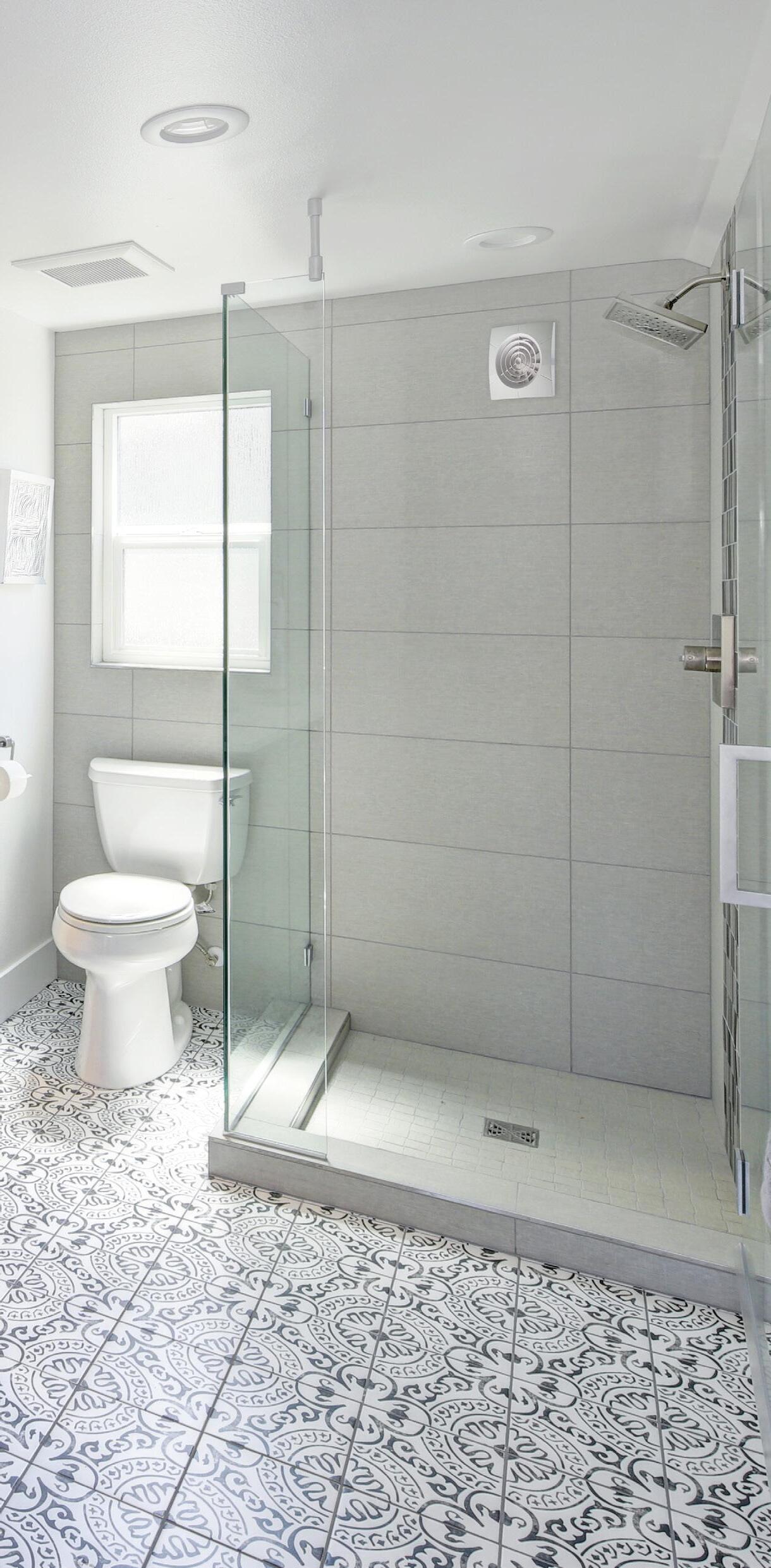

Bathroom Zones
Zone 0 Inside of the bath or shower tray that physically holds or contains water.
Zone 1 The SPLASH ZONE – directly above Zone 0, limited to a height of 2.25m from floor. Minimum IPX5 rated.
Zone 2 Area beyond Zones 0 & 1, continuing 0.6m horizontally and up to 2.25m vertically. Minimum IPX4 rated.

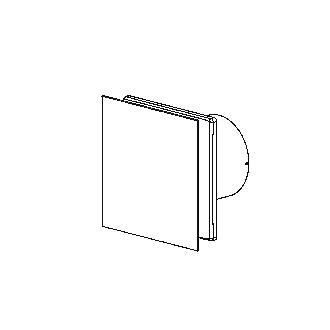

Axial Fans
• Overrun time delay, user settable between 2 and 30 mins
• Overrun time delay, user settable between 2 and 30 mins
• Ideal for through wall applications or with ducting lengths under 2m
• Supplied with a one shot thermal fuse
• In compliance with BS EN 60335-2-80
100mm (4”)
4720Z Standard 4720ZT Timer
*Special order product, minimum order quantity and lead time applies.
Low Voltage Axial Fans 100mm (4”)
• Overrun time delay, user settable between 2 and 30 mins
• Humidistat
100mm (4”)
4616 12V Low Voltage Fan and Timer 4617 12V Low Voltage Fan and Timer & Humidistat
Shower Fans 100mm (4”)
• Overrun time delay user settable between 2 and 30 minutes (timer versions)
• 3m (extended) flexible ducting
• Internal/external fixed louvres grilles
• In
100mm (4”)
4640
Zone 1 Axial Fans 100mm (4”)
• Overrun time delay, user settable between 2 and 30 mins
• Humidistat user settable between 60-90% RH
• Supplied with a one shot thermal fuse
• Ideal for through wall applications or with ducting lengths under 2m
• In compliance with BS EN 60335-2-80
100mm (4”)
4700ZT Timer
4700ZTH Timer & Humidistat
Zone 1 Fans
Zone 1 Fans require a minimum IPX5 rating or higher to be considered suitable for this area. The additional water protection means they can be placed in Zone 1 areas closer to bathtubs, shower trays, and wetroom drains for more efficient extraction.
Bathroom Zones Explained
Zone 0 - Inside of the bath or shower tray that physically holds or contains water.
Zone 1 - The SPLASH ZONE – directly above Zone 0, limited to a height of 2.25m from floor. Minimum IPX5 rated.
Zone 2 - Area beyond Zones 0 & 1, continuing 0.6m horizontally and up to 2.25m vertically. Minimum IPX4 rated.
Inline Fans
Inline fans are installed in the ducting of bathrooms, kitchens or any rooms that are susceptible to moisture. Inline fans are designed to bring air from inside to the outside of homes in an efficient fashion, which provides discrete results at a cost-effective price.
• Powerful yet discreet for superior ventilation
• Easy installation into ducting
• Cost-effective solution
Inline Fans Explained
Inline Axial Flow Fans are designed for supply and exhaust ventilation of premises requiring high pressure, powerful air flow and low noise level.
Inline Mixed Flow Fans are the best solution for ventilation of bathrooms and kitchens and other humid premises as well as ventilation of flats, cottages, shops, cafes, etc.
Inline Axial Fans 100mm (4”)
• Overrun time delay, user settable between 2 and 30 mins
• Equipped with a fixing bracket for flat or horizontal surface mounting
• Designed for PVC ducting systems or flexible ducts
• In compliance with BS EN 60335-2-80
100mm (4")
4750S Standard
Inline Mixed Flow Fans 100mm (4”)
• Overrun time delay, user settable between 2 and 30 mins
• Suitable for mounting at any angle and point of the ventilation system
• Designed for PVC ducting systems or flexible ducts
• In compliance with BS EN 60335-2-80
100mm (4”)
4755MF Standard 4755MFT Timer
4750S
4755MF
Flexible Ducting
• PVC reinforced with spiral-wound steel wire
100mm (4”)
150mm (6”)
4820 100mm (4”) 3m Length
4827 100mm (4”) 6m Length
4828 100mm (4”) 10m Length
Wall Fixing Kits
• For through wall applications, includes gravity grille to prevent back draughts
• Rigid ducting extendable from 20cm to 50cm
100mm (4’) and 150mm (6”)
4824 100mm (4”) Wall Fixing Kit
4884 150mm (6”) Wall Fixing Kit

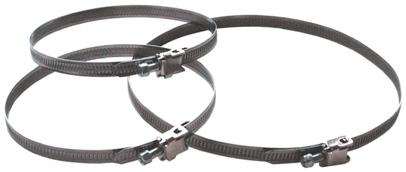

Quick Lock Clamp
• Provides for quick and reliable mounting and connection of round ducting
• Facilitates the installation and removal of fans for maintenance and cleaning
• Clamp and swing screw manufactured from stainless steel
100-150mm (4-6”)
4846 100-150mm (4-6") Quick Lock Clamp
4880 150mm (6”) 3m Length
4887 150mm (6”) 6m Length
Back Draught Shutter
• Inline back draught shutter to prevent cold air entering the duct system and room without pressure loss
• Casing manufactured from ABS plastic and membrane manufactured from special light polymer
• Does not disturb passive indoor ventilation
100mm (4’)
4845 100mm (4") Back Draught Shutter
Installation Tape
• Insulating material for construction, repair and mounting operations associated with ventilation and air conditioning systems
• To support the insulation and protection of pipeline butt joints, air ducts, casings and assembly units
• Reliable protection of equipment components against vapour, dirt and dust penetration
Flexi Duct Tape
4849 Aluminum+PET 10m
External Grilles
• Fixed grilles - may be installed in horizontal or vertical planes and in exposed locations where gravity grilles may be affected by turbulent wind conditions
• Gravity grilles - for horizontal mounting only, to prevent back draughts.
• Should not be installed in exposed locations
100mm (4’)
4821WH 100mm (4”) Gravity Grille - White
4821BR 100mm (4”) Gravity Grille - Brown
4822WH 100mm (4”) Fixed Grille - White
4822BR 100mm (4”) Fixed Grille - Brown
External Hoods
150mm (6”)
4881WH 150mm (6”) Gravity Grille - White
4881BR 150mm (6”) Gravity Grille - Brown
4882WH 150mm (6”) Fixed Grille - White
4882BR 150mm (6”) Fixed Grille - Brown
• Suitable for decoration of supply and exhaust vents used in public, residential and industrial ventilation systems
• Provides additional protection against wind and rain as well as birds and rodents
• Manufactured from high-quality, durable plastic
• Two-element structure for easy maintenance
100mm (4”)
4831WH 100mm (4”) External Hood - White
4831BR 100mm (4”) External Hood - Brown
150mm (6”)
4891WH 150mm (6”) External Hood - White
4891BR 150mm (6”) External Hood - Brown
4821WH 4821BR
4822WH 4822BR
4881WH 4881BR
4882WH 4882BR
4831WH 4831BR
4891WH 4891BR
Ventilation

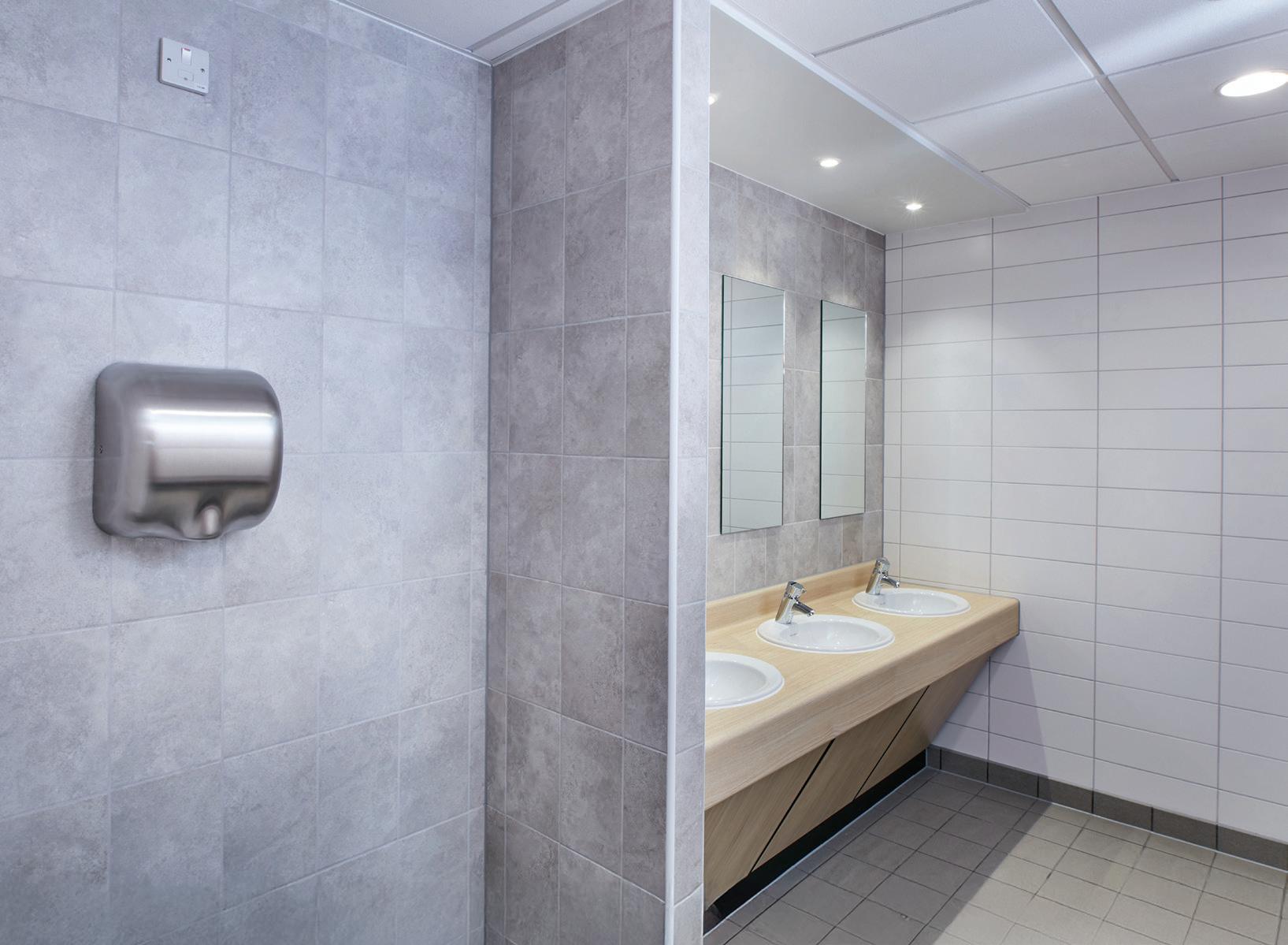

Kestrel Compact Dryer
• High-quality, low maintenance hand dryer for commercial applications, e.g. offices and shops
• Constructed with sound and vibration reducing blocks to reduce noise level
• Automatic shut-off after 60 seconds when in use
• Self-resetting overheat thermostat provides protection from overheating if hand dryer becomes blocked
1001WH 2.3kW Compact Automatic
Hawk Low Energy Dryer
• For use in schools, kitchens, restaurants and places where high levels of hygiene are required
• A high-speed, low power motor dries hands quickly to reduce energy consumption
• Changeable heat settings to suit environment
• Standby/Power-On LED indicator
• Provides 10 to 15 seconds drying time
Harrier Compact Low Energy Dryer
• Tough and compact model ideal for use in washrooms with limited wall space
• Manufactured from 1.2mm grade 304 stainless steel to protect against corrosion and vandalism
• Features a High-Efficiency Particulate Air (HEPA) filter for enhanced hygiene
• Thermometer detects ambient temperature and auto-adjusts airflow temperature to reduce running costs
• Automatic shut off after 60 seconds to avoid wasted energy
• Self-resetting overheat thermostat provides protection from overheating if hand dryer becomes blocked
White/Stainless Steel
1012WH 1.5kW High-speed - White
1012SS 1.5kW High-speed - Stainless Steel
Eagle Heavy Duty Dryer
• For use in schools, kitchens, restaurants and places where high levels of hygiene are required
• Standby/Power-On LED indicator
• Manufactured from grade 304 stainless steel
• Durable, vandal-resistant casing with tamper proof fixings included
• A high-speed, low power motor dries hands quickly to reduce energy consumption
• Adjustable heat settings to suit environment
White/Chrome
1019WH 1.8kW High-speed Heavy Duty - White
1019CH 1.8kW High-speed Heavy Duty - Chrome
AUTOMATIC 10-12 SECONDS DRYING TIME
IP Ratings
The IP (international protection) rating given to an enclosure states the degree of protection it offers by means of two digits. A summary of these is shown below; for a more detailed definition, see IEC 529: 1989, BS EN 60529: 1992.
FIRST DIGIT
Protection against solid foreign objects and access to hazardous parts
The first digit covers protection against penetration by solid objects, which includes hands and tools such as screwdrivers. At the lowest of seven levels, 0, no protection is offered, either of the equipment itself from damage by intrusion or of a person contacting live or moving parts. At the highest, 6, there shall be no entry of dust.
IP
0 No protection
1 Protected against solid objects up to 50mm, e.g. accidental touch by hands
2 Protected against solid objects up to 12mm, e.g. fingers
3 Protected against solid objects over 2.5mm, e.g. tools and wires
4 Protected against solid objects over 1mm, e.g. tools, wires and small wires
5 Protected against dust - limited ingress, no harmful deposits
6 Totally protected against dust
SECOND DIGIT
Protection against ingress of water
The second digit covers the degree of protection against the entry of water, on a progressive scale. For example, number 1 indicates that dripping water shall have no harmful effect. Alternatively, number 6 indicates water projected in powerful jets against the enclosure from any direction shall have no harmful effects.
IP
0 No protection
1 Protected against vertical falling drops of water, e.g. condensation
2 Protected against direct sprays of water up to 15º from the vertical
3 Protected against sprays of water up to 60º from the vertical
4 Protected against water splashed from all directions - limited ingress permitted
5 Protected against low pressure jets of water from all directions - limited ingress permitted
6 Protected against strong jets of water, e.g. for use on ship decks - limited ingress permitted
The letter X can be used in place of the first or second digit to indicate that tests have either not been made or are not applicable.
NOTE: In the event of additional holes being drilled/pierced or knockouts removed, suitable measures should be taken to restore the products to the original ratings.
IEC 529, BS EN 60529 does not apply to protection against the risk of explosion or conditions such as humidity, corrosive gases, fungi or vermin. In certain cases equipment designed to be mounted in an enclosure will contribute towards the stated IP rating (e.g. pushbuttons mounted in an enclosure). Different parts of enclosures can have different degrees of protection and still conform to the standard (e.g. enclosures with pre-drilled conduit entry).
Bathroom Zones
Bathroom zones are areas where electrical equipment must offer a certain degree of protection against water. The bathroom zone number refers to the amount of water likely to be present. The lower the zone number, the higher the IP rating needs to be.
ZONE 0
Zone 0 is anywhere inside a bathtub or shower tray itself that can hold water. For a shower without a basin, zone 0 extends to a height of 0.10 m to the full extent of the horizontal footprint of zone 1. Any current-using equipment used within zone 0 must be:
• protected by SELV at a voltage not exceeding 12 V AC, with its source outside of zones 0, 1 and 2
• protected against both partial and total immersion in water (minimum ingress protection rating of IPX7)
• be declared suitable for use in that zone by the manufacturer
• be installed fixed and permanently connected
ZONE 1
Zone 1 in simple terms, is the area directly above Zone 0 to the highest fixed shower head or a height of 2.25m from the finished floor level whichever is higher. Any fitting or appliance in Zone 1 must:
• have a minimum ingress protection rating of IPX4 (splash-proof) or IPX5 if equipment is likely to be exposed to water jets, for example, during cleaning
• be protected by SELV at a voltage not exceeding 25 V AC, with its source outside of zones 0, 1 and 2
• be declared suitable for use in that zone by the manufacturer
• fixed and permanently connected. Zone 1 does not include Zone 0
ZONE 2
Zone 2 is the area stretching to 600mm outside of the boundary of zone 1 to the highest fixed shower head or a height of 2.25m from the finished floor level whichever is higher. Any current-using equipment within Zone 2 must:
• have an ingress protection rating of at least IPX4 (splash-proof) or IPX5 if equipment is likely to be exposed to water jets, for example, during cleaning
• be protected by SELV at a voltage not exceeding 50 V AC, with its source outside of zones 0, 1 and 2
• Shaver supply units conforming to BS 61558-2-5 may be installed
ZONE 3
Zone 3 is anywhere outside zones 0, 1, and 2 (subject to specific limits) and where no water jet is likely to be used. No IP rating is required. However, if there is a likelihood of water jets being used for cleaning purposes in zones 1, 2 and 3, a fitting rated a minimum IP65 must be used.
Low voltage socket-outlets and fused connection units (fused spurs) may be installed at a distance exceeding 2.5 m horizontally from the boundary of zone 1.
Ventilation Recommended Stock Profile Guide
Free Standing Display Unit
Your Local Sales Manager
Alan Frazer
+44 (0)7508 019 788 alan.frazer@deta.co.uk
Sarah Gilford
+44 (0)7939 921 153 sarah.gilford@deta.co.uk
Stefan Smith
+44 (0)7816 194 616 stefan.smith@deta.co.uk
David Shrimpton
+44 (0)7741 601 182 david.shrimpton@deta.co.uk
Mike Careless
+44 (0)7386 687 440 mike.careless@deta.co.uk
Pete Smith
+44 (0)7984 118 778 pete.smith@deta.co.uk
John Ward
+44 (0)7976 523 218 john.ward@deta.co.uk
Jamie Key
+44 (0)7984 118 772 jamie.key@deta.co.uk
Rob Fitzpatrick
+353 (0)87 6958950 rob.fitzpatrick@deta.co.uk
Scan to learn more about Vimark
Deta Electrical Company Limited Panattoni Park, Luton Road, Chalton, Bedfordshire, LU4 9TT
