Introducing the New Standard in Electrical Safety
At Timeguard, safety has always been at the heart of what we do. With more than 25 years of trusted expertise in the UK electrical industry, we’ve built a reputation for delivering high-quality, innovative solutions across time control, lighting, Wi-Fi, climate, and – critically – safety.
Now, we’re proud to expand our Safety category with the launch of our brand new Circuit Protection range. Designed with the same attention to detail, installer-friendly features, and energy-saving benefits that define every Timeguard product, this range brings a new level of protection to homes and businesses alike.
The new Timeguard Circuit Protection range has been engineered with the installer in mind—combining intuitive design with the safety features and reliability you’ve come to expect from a trusted British electrical brand.
As always, we remain committed to supporting your success on every project, and whether you’re a professional installer or property owner, you can count on Timeguard to deliver peace of mind – through products that are as reliable as they are easy to use.
Warm regards,
Neil Chapman Sales Director

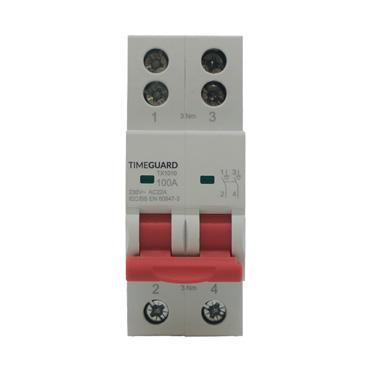

Twin Terminal Main Switch
100A DP main switch incorporates twin screws on each incoming terminal ensuring main tails are securely clamped.
TRUSTED PROTECTION FOR UNCOMPROMISED SAFETY
Timeguard’s new Circuit Protection range provides maximum protection against short circuits, circuit overloads and residual earth leakage.
Designed with a pressed cover and visor, the stylish enclosures offer flexibility to occupants whilst meeting the requirements of the 18th Edition IET Wiring Regulations (BS 7671:2018+A3:2024). Incorporating multiple knockout cable entry points and clip-in grommets, the enclosures can be easily configured and are suitable for property upgrades or refurbishments.
All enclosures come with a factory fitted Type 2 SPD to protect electronic equipment connected within the property from transient overvoltages. Main Switch enclosures fitted with RCBOs and AFDDs on individual circuits provide superior protection, convenience and flexibility for occupants.
Features
Maximum
Torque Settings

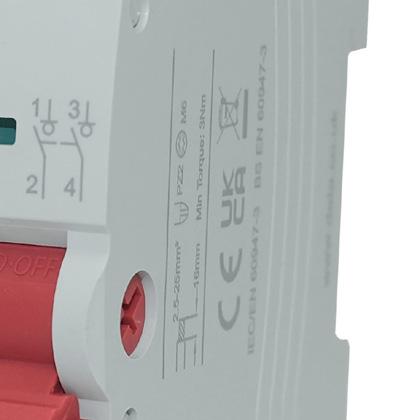

Devices have cable strip lengths and recommended torque settings conveniently marked on the side of each device.

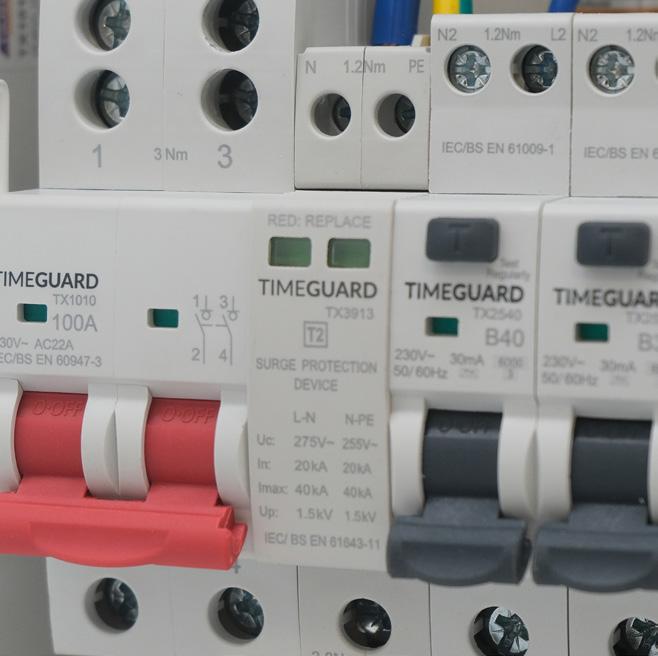

Assembled with Pre-wired Twin Terminal Main Switch, and SPD
Neutral & Earth Terminal Bars Clearly Labelled
SPD Factory Fitted with Earth & Neutral Cables
Surge Protection Devices (SPDs) redirect transient overvoltages, protecting valuable electronic devices and appliances from premature aging, damage or destruction. The SPD is factory fitted after the main switch and fed with a standard busbar with Neutral and Earth cables connected. Each device is rated at 100A and incorporates a visual indication window for normal operation or fault status. Taking up only one module, the SPD does not require a separate MCB for protection, relying on the upstream DNO fuse.
Combi-head Style Terminal Screws

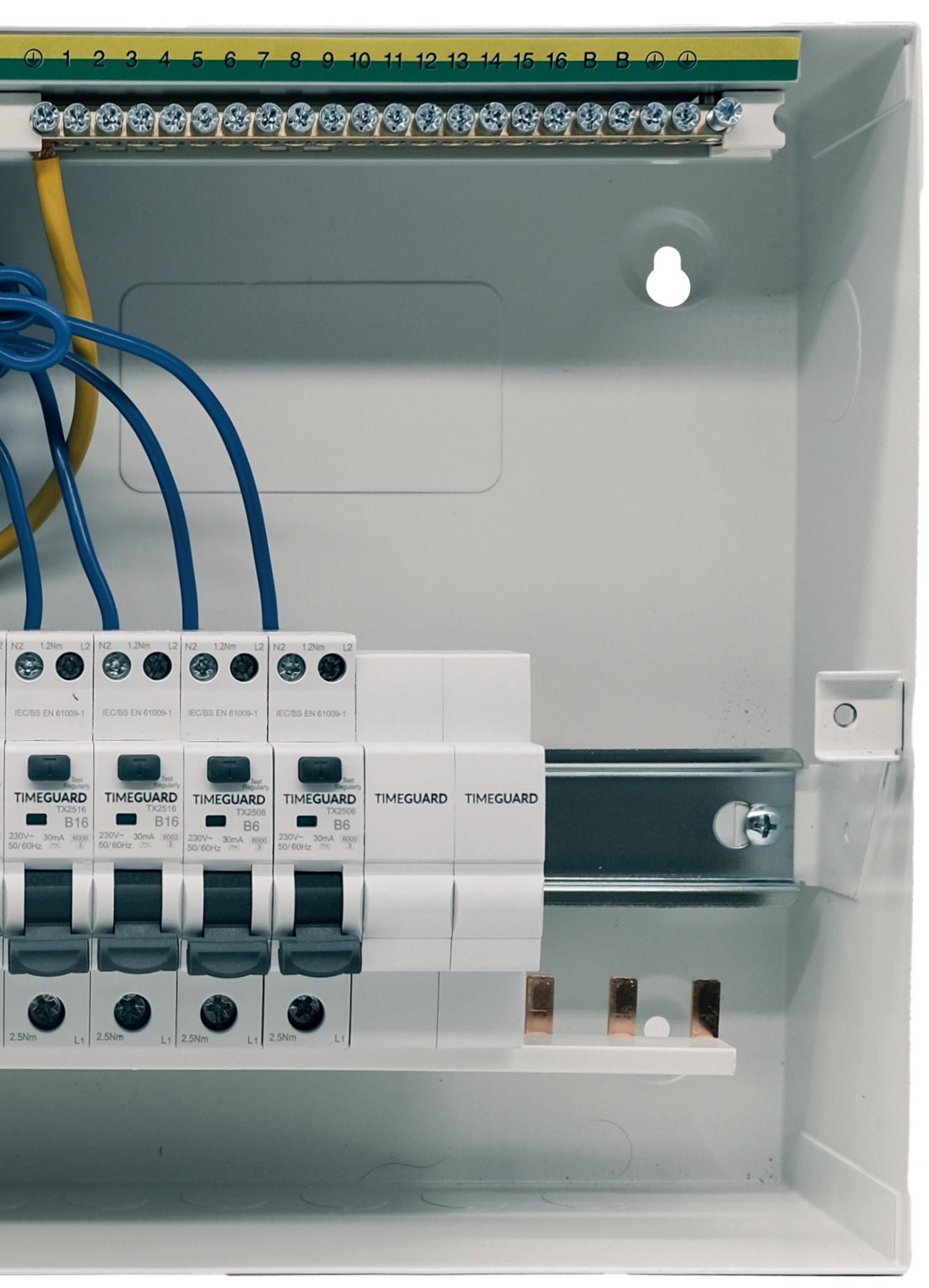

Floating Busbar for Greater Installation Flexibility
Keyhole Mounting Slots
Taller Enclosure Provides Generous Wiring Space

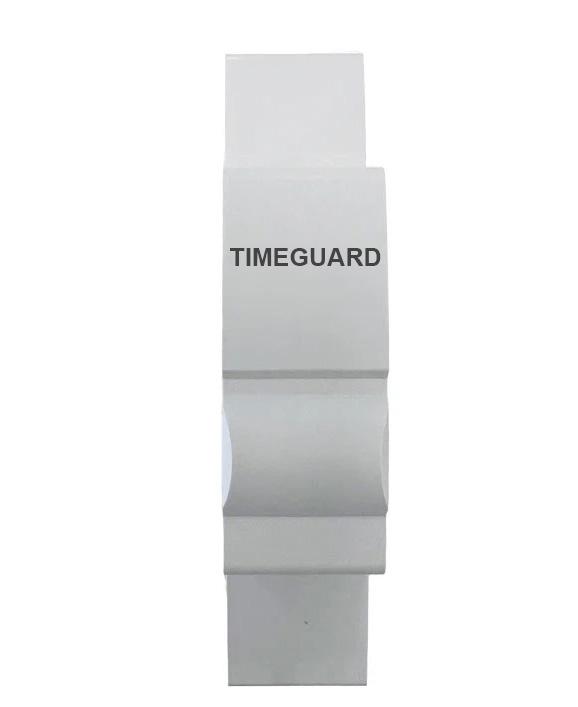

Full Size Blank Module Shrouds Live Busbar & Prevents Access to Live Parts
Raised Removable DIN Rail Allows Cables to Pass Underneath
Knockouts
Round knockouts are positioned around the enclosure with 32mm knockouts aligned with the main switch position to aid installation of incoming tails.

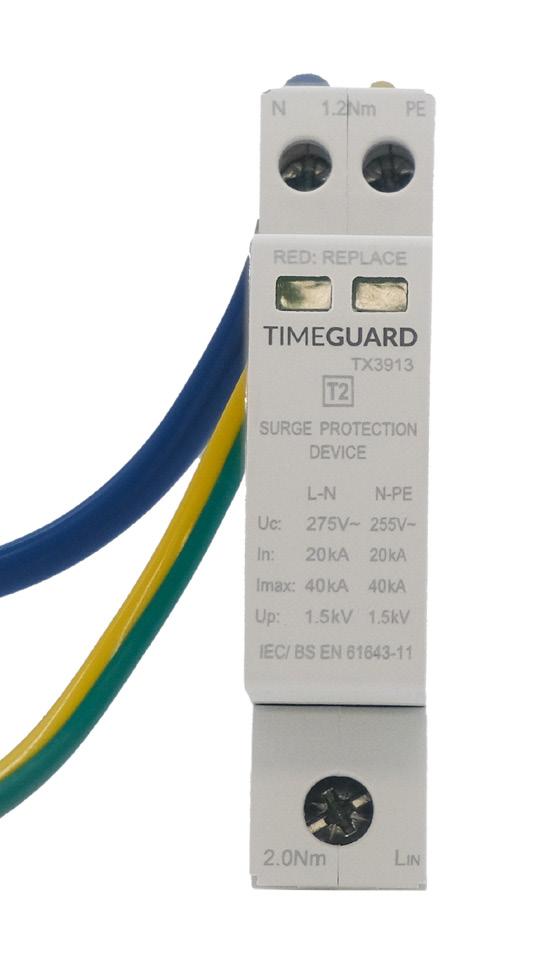

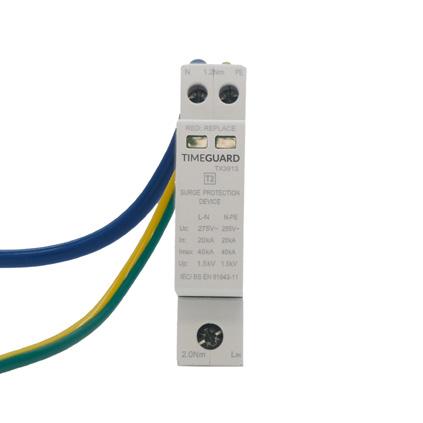

SPD
Factory fitted type 2 SPD provides protection against transient overvoltages that can damage or destruct valuable electronic devices and appliances.

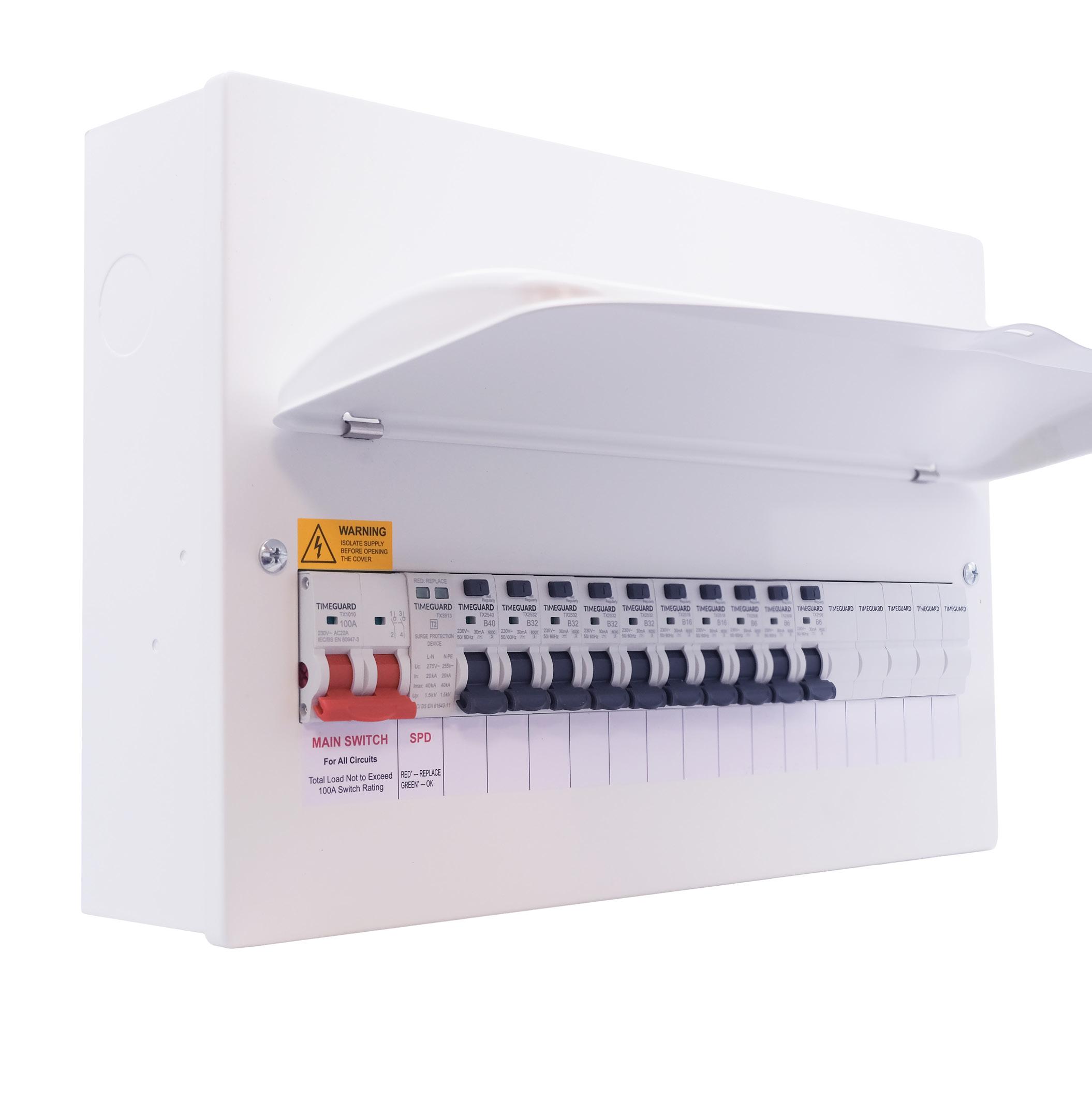

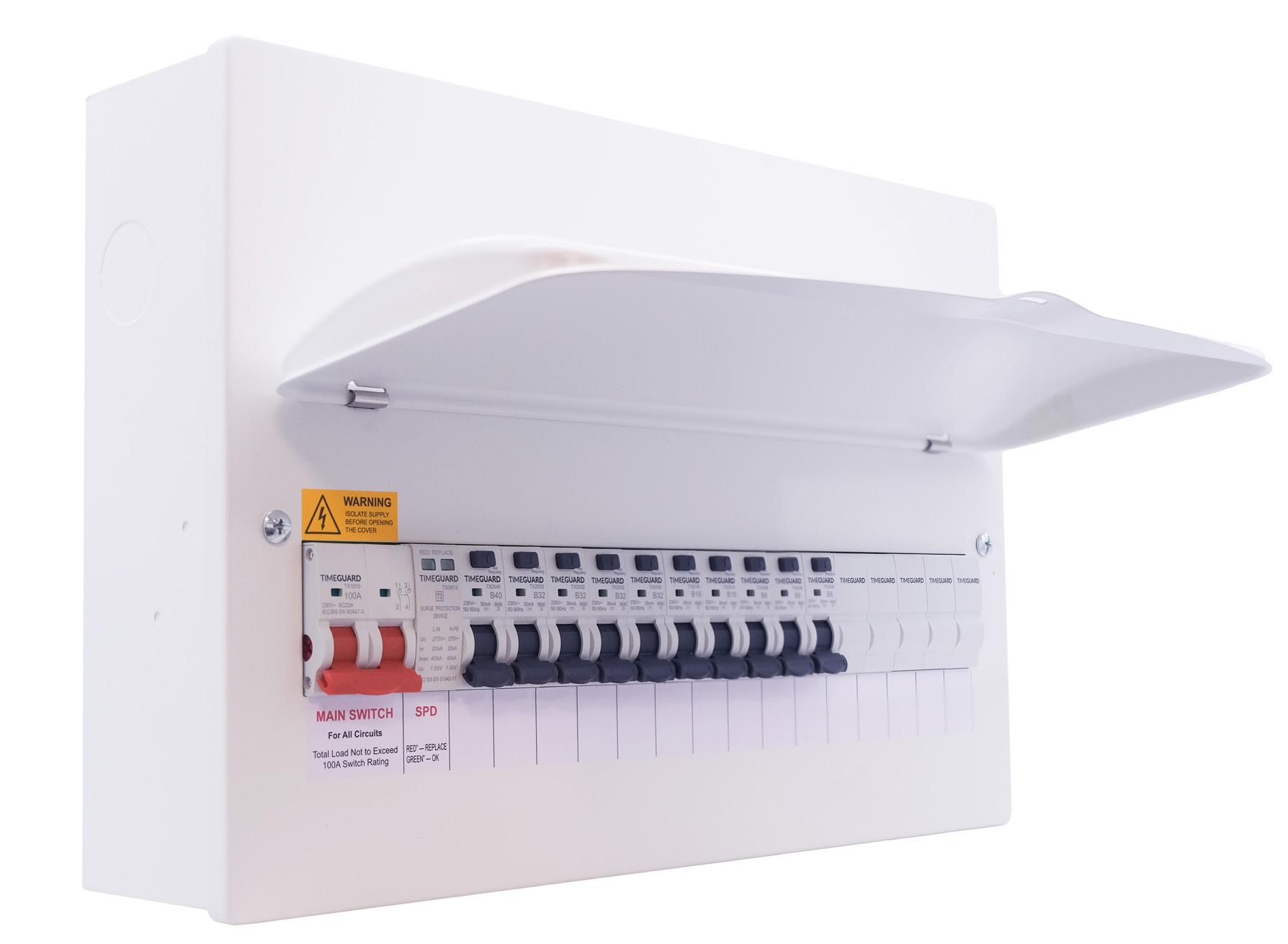

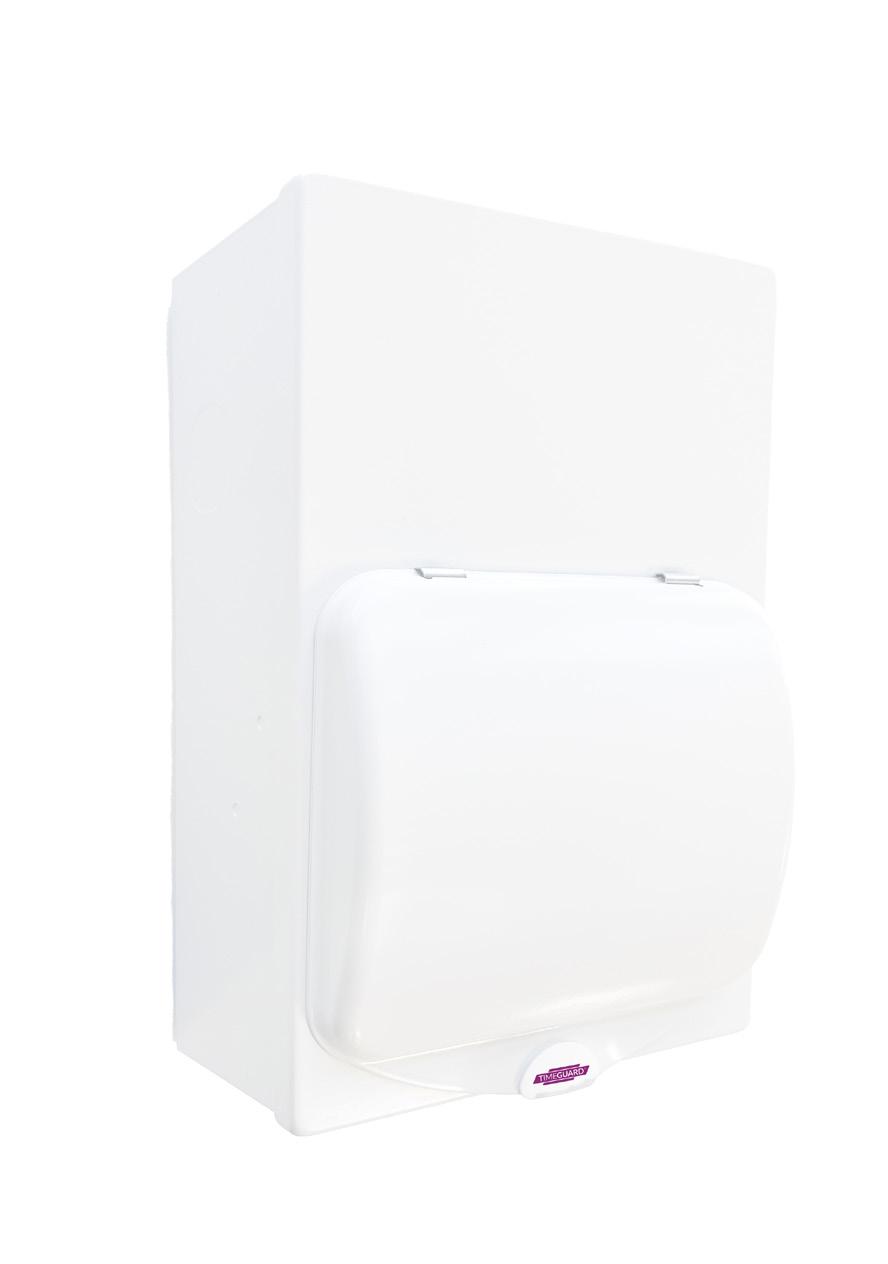

CONSUMER UNITS
• 100A DP Main Switch
• 100A rated Type 2 SPD
• Steel enclosure with stylish curved visor
• Round knockouts to four sides, oval knockouts on rear
• Internal wiring 25mm2 tri-rated cable
• Lockable visor with optional “visor locking kit” where required.
NB: Best practice recommends the visor is not locked in normal residential use without separate provision to isolate the power in the event of an emergency
• Supplied with circuit identification sheet, installation instructions, blank modules, busbar(s)
TX1108
TX1118
TX1122
TX1228
TX1232
TX1014
TX1018
TX1910
TX1928EV
TX1921HP

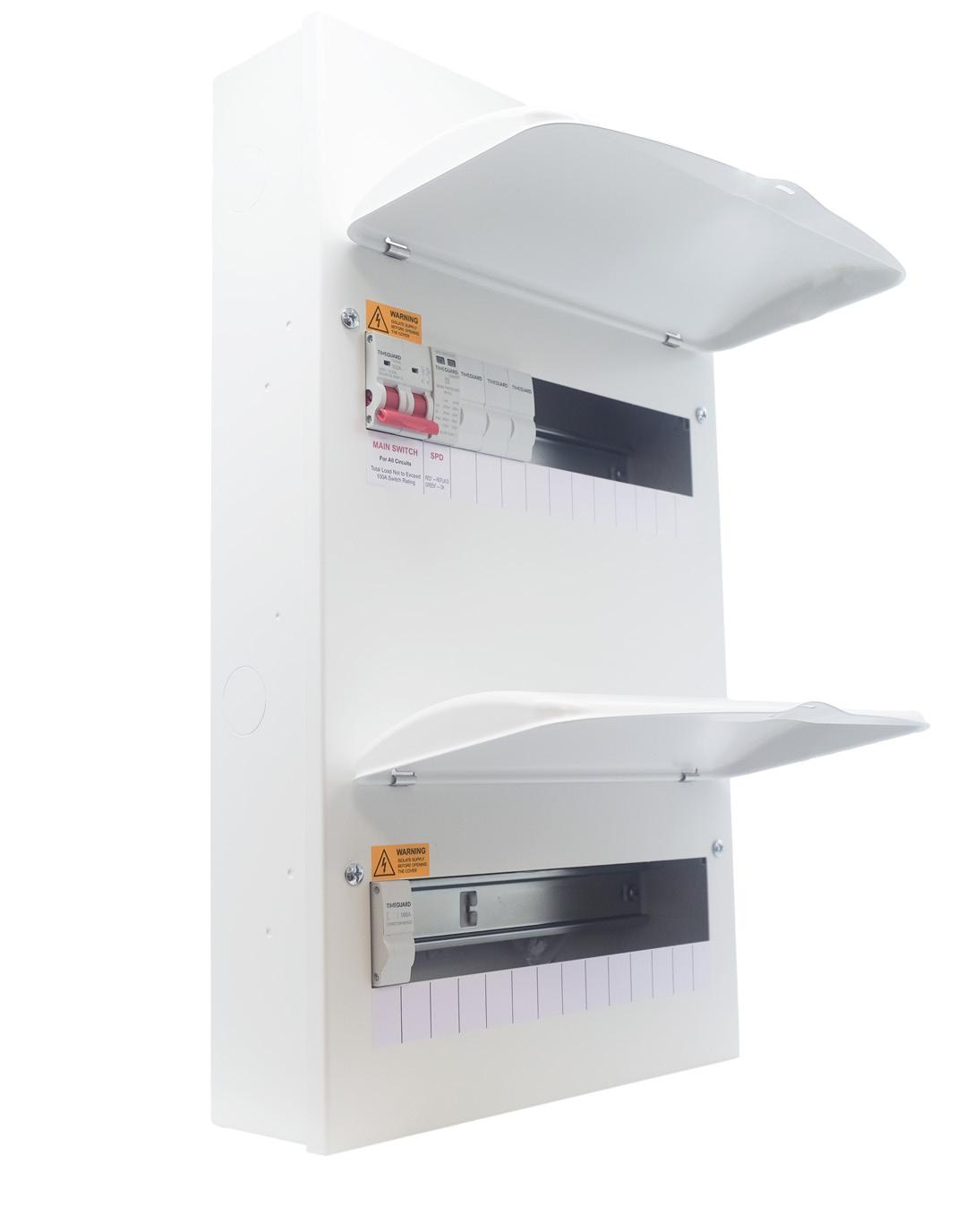

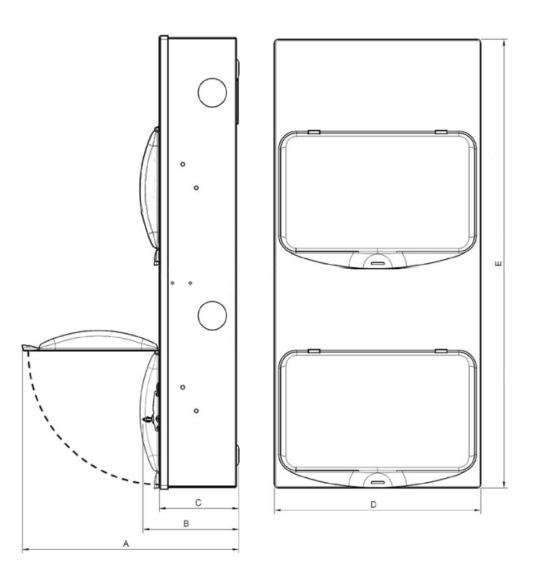

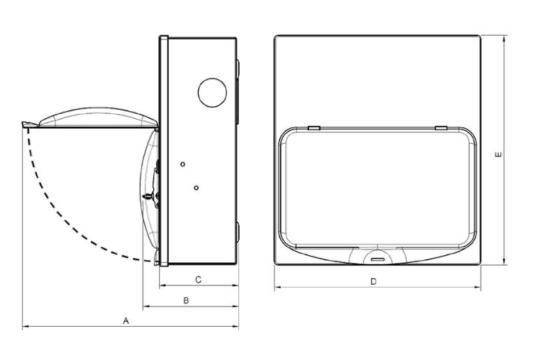

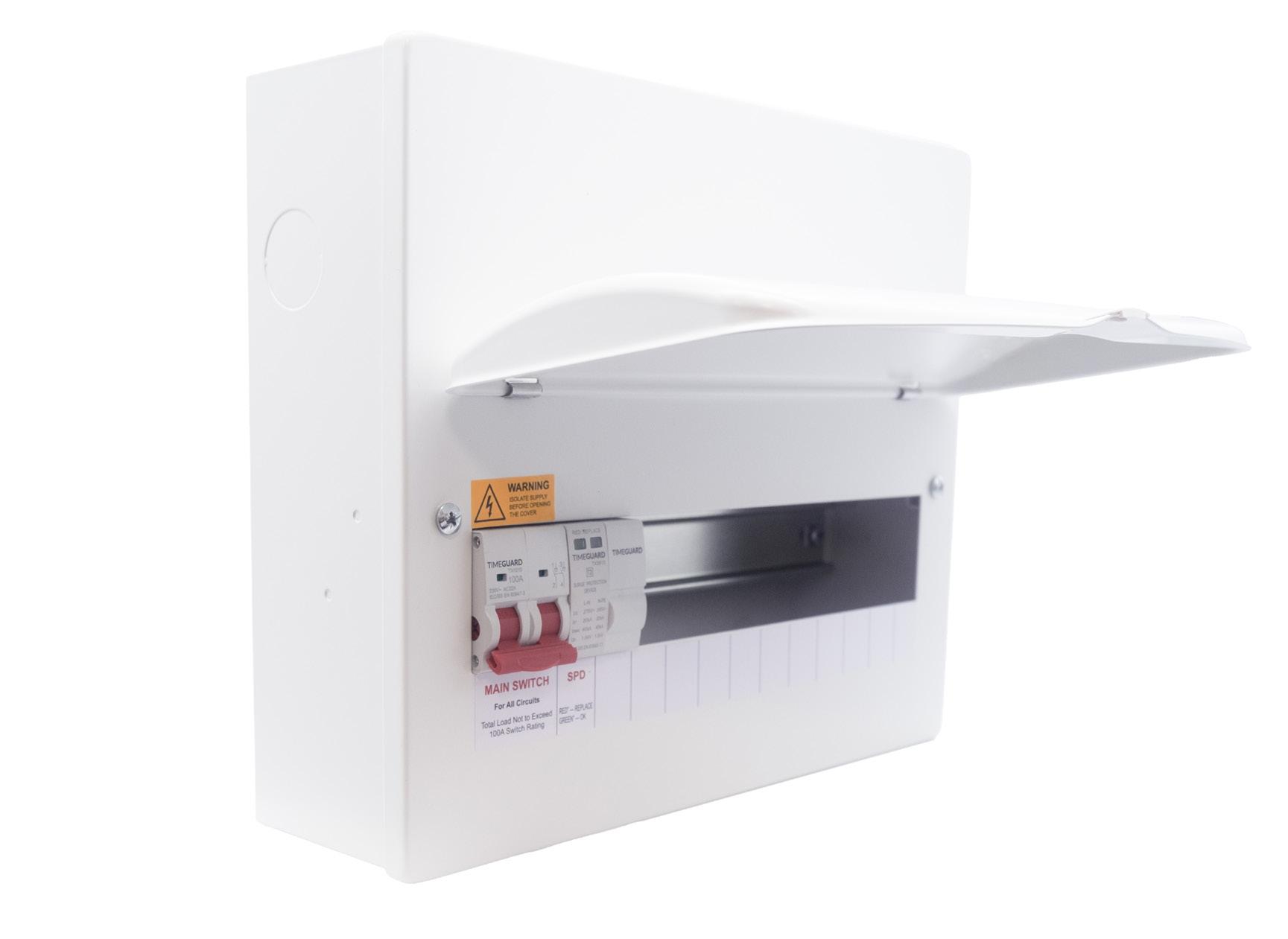

Main Switch Enclosure Configuration
Depending on the size chosen, enclosures allow from 2 up to a maximum of 28 independent circuits to be connected. Intended for use with RCBOs and/or AFDD/RCBOs, each circuit is individually protected against both overload and earth leakage to prevent nuisance tripping originating from other circuits, providing the safest circuit protection solution. A 100A rated Type 2 SPD is factory fitted and utilises the standard busbar terminal connection as all other devices.
CONSUMER UNITS

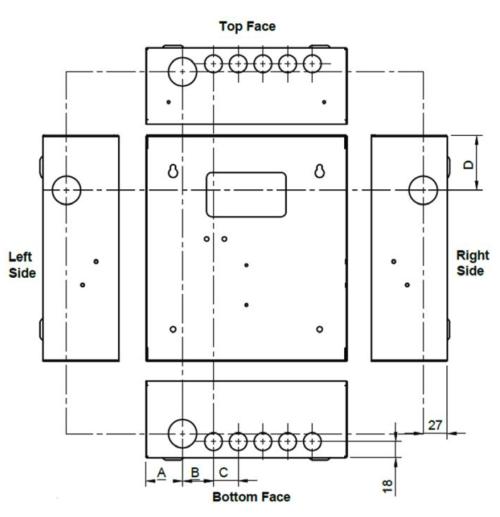

Knockout Positions

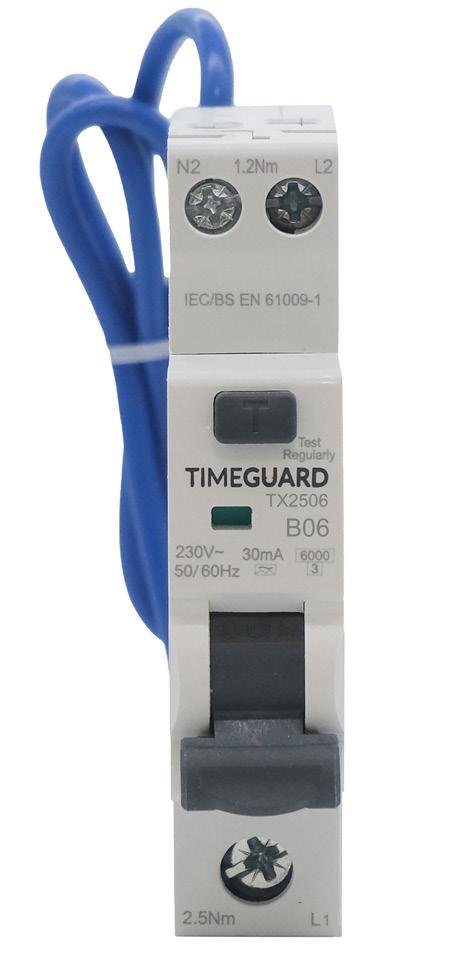

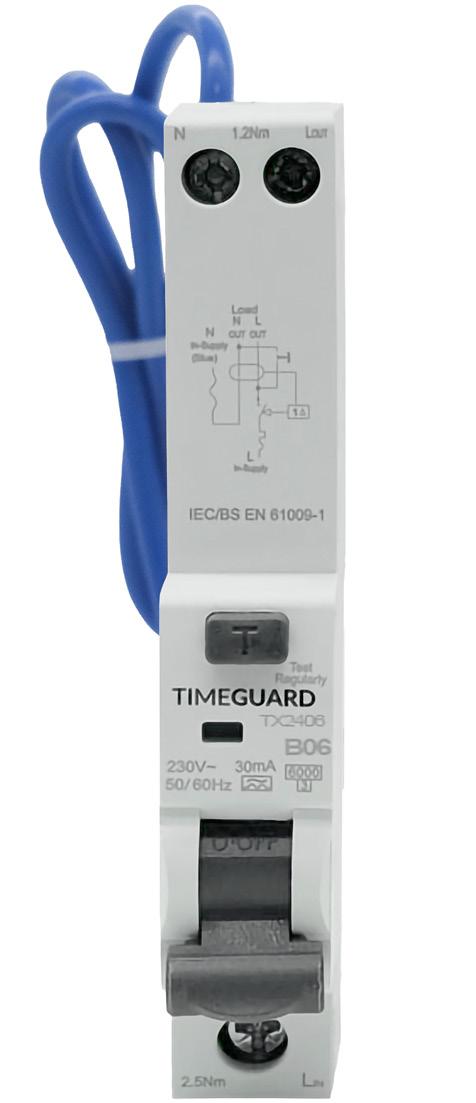

DEVICES - RCBOs
A Residual Current Circuit Breaker with overcurrent protection provides protection against overcurrents (overload of the cable and short circuit) and earth leakage currents (which pose a risk to people and animals or can result in fires). RCBOs will sense the fault and trip the circuit. In the case of the solid neutral RCBO only the Live conductor is isolated, whilst with the switched neutral RCBO both the Live and Neutral conductors are isolated, ensuring complete protection of people, animals, and connected equipment.
Technical Information
• Provides protection against earth fault/ leakage current, short circuit and overload
• Rated at 30mA for protection of humans and animals
• Provides protection to individual circuits offering the best technical solution within the household
• Single module width in compact format
• Switched Neutral RCBO isolates both Live & Neutral conductors when tripped
• Bidirectional RCBOs are suitable for Solar PV installations and EV charging installations where the vehicle & charger are V2G compatible
Technical Information

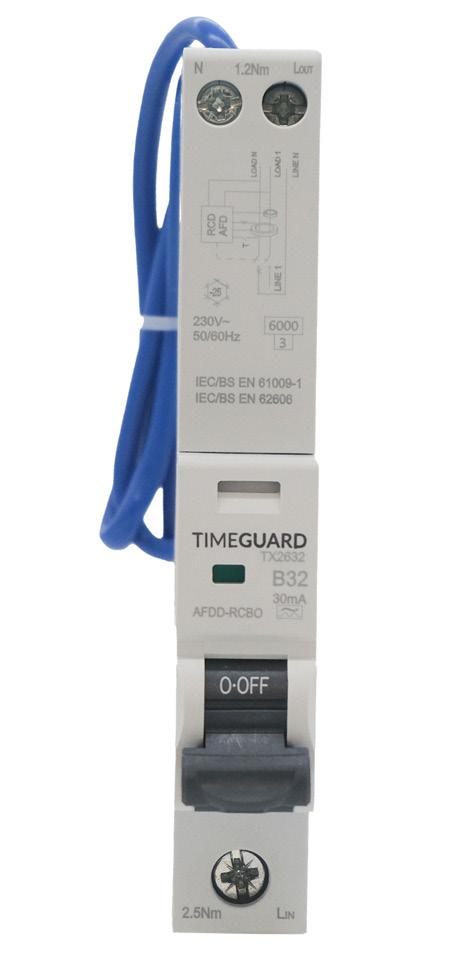

DEVICES - AFDD/RCBOs
Arc Fault Detection Devices, integrated with an RCBO, are the latest technology providing all the attributes afforded by an RCBO. They provide added detection of dangerous serial and parallel arc faults that can develop within installations. Previously, arc faults occurring as a result of damaged insulation/conductors or loose connections have not always been detected so can develop over time, eventually resulting in a fire and damage to property, risking the lives of people and animals.
TX2610
TX2616
TX2640 40A 1+Switched Neutral AFDD/RCBO B Curve 6kA 30mA Type A
TX2606C 6A 1+Switched Neutral AFDD/RCBO C Curve 6kA 30mA TypeA
TX2610C 10A 1+Switched Neutral AFDD/RCBO C Curve 6kA 30mA TypeA
TX2616C 16A 1+Switched Neutral AFDD/RCBO C Curve 6kA 30mA TypeA
TX2620C 20A 1+Switched Neutral AFDD/RCBO C Curve 6kA 30mA TypeA
TX2625C 25A 1+Switched Neutral AFDD/RCBO C Curve 6kA 30mA TypeA
TX2632C 32A 1+Switched Neutral AFDD/RCBO C Curve 6kA 30mA TypeA
TX2640C 40A 1+Switched Neutral AFDD/RCBO C Curve 6kA 30mA TypeA
Technical Information
ACCESSORIES
Accessories
Code Description
TX3913 SPD 1 Module
TX3901 Door Lock & 2 Keys
TX3902 Oval Knockout Grommet (Pack of 5)

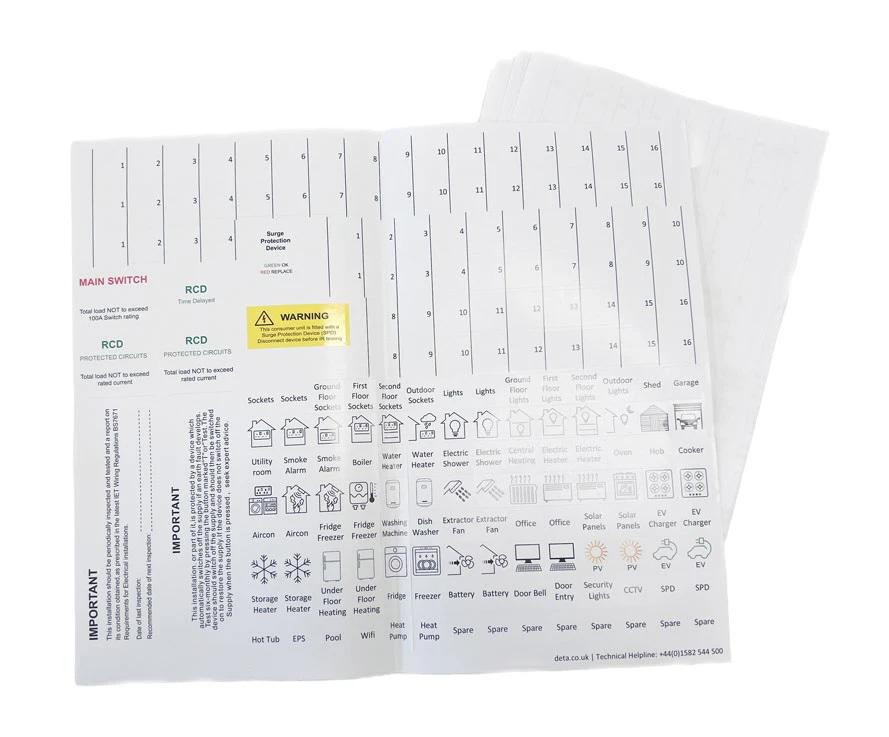

TX3903 Label Sheet (Pack of 10)
TX3904 MCB Lock (Pack of 5)
TX3906 Consumer Unit Branded Visor (Pack of 10)

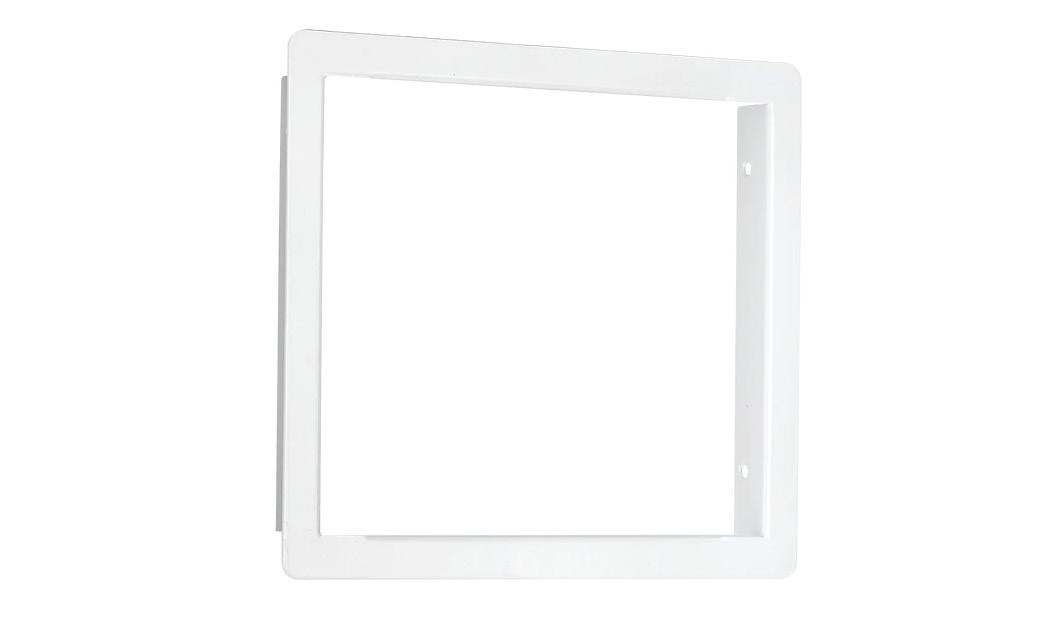

TX3910 Flush Frame 14m
TX3911 Flush Frame 18m
TX3912 Flush Frame 22m
TX3010 1 Module Blank Plastic Din Rail
TX3905 Meter Tail Clamp
TX3009 9 Mod Busbar (Pack of 5)
TX3021 21 Mod Busbar

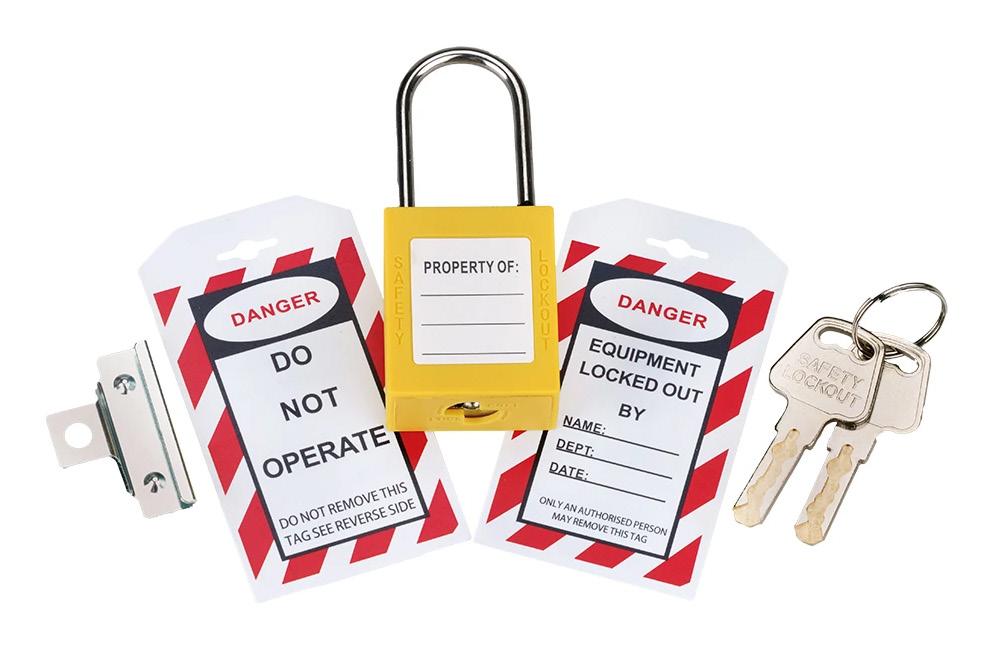

DOOR LOCK

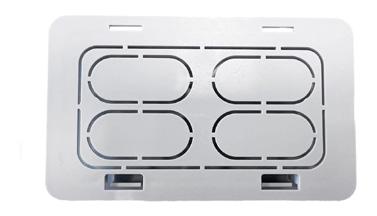

OVAL KNOCKOUT GROMMET
LABEL SHEET FLUSH FRAME
BLANK DIN RAIL

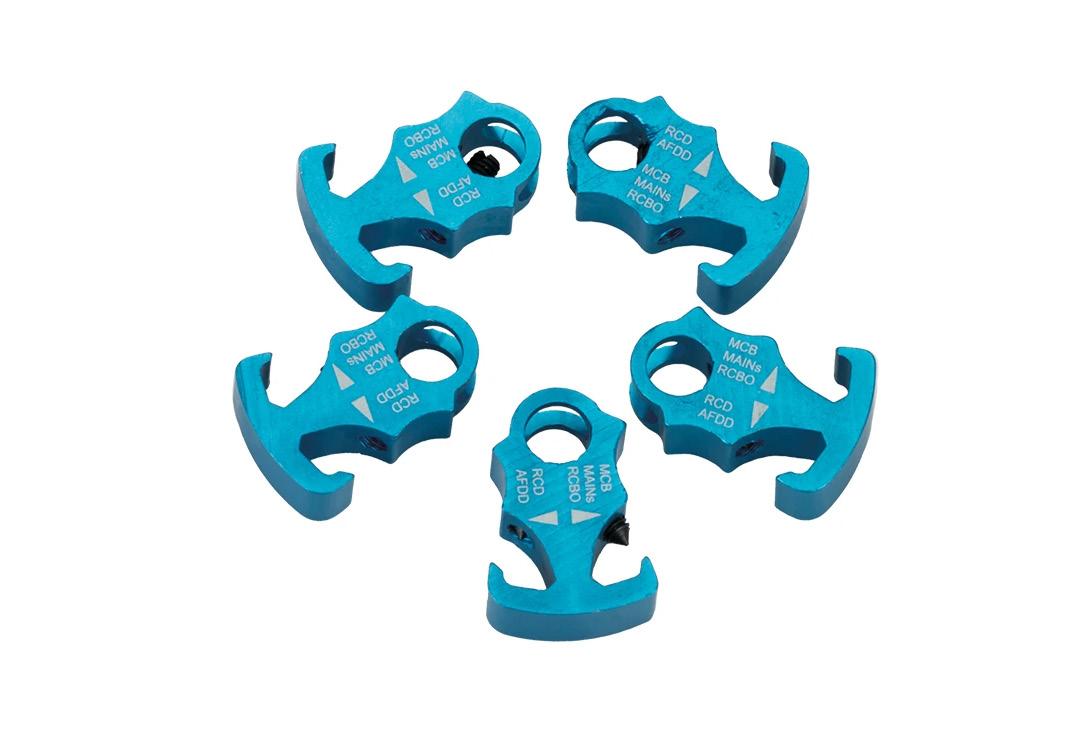

MCB LOCK
18TH EDITION WIRING
REGULATIONS
(BS 7671:2018+A1: 2020, A2: 2022, A3: 2024)
Surge Protected Devices
Reg 443.4.1
Protection against transient overvoltages shall be provided where the consequence caused by the over voltage could result in:
• Serious injury to, or loss of human life
• Significant financial or data loss
For all other cases, SPDs shall be provided unless the owner of the installation declares it is not required due to any loss or damage being tolerable, and they accept the risk of damage to equipment and any consequential loss.
RCD & RCBO Selection
Reg 531.3.2/3
UNWANTED TRIPPING
Residual current protective devices shall be selected and erected such as to limit the risk of unwanted tripping.
The following should be considered:
1. The use of RCBOs for individual final circuits in residential premises.
2. In order to avoid unwanted tripping by protective conductor currents and/or earth leakage currents, the accumulation of such currents downstream of the RCD shall not be more than 30% of the rated residual operating current.
RCD TYPE
RCD type AC shall only be used to serve fixed equipment, where it is known that the load current contains no DC components.
NOTE: Examples of fixed equipment with a load current containing no DC components include, but not limited to, electric heating appliances, and/or simple filament lighting neither containing electronic components.
Bidirectional Devices
Reg 530.3.201
To address the issue of current flowing in two directions Amendment 3 of BS 7671 (BS 7671: 2018+A3:2024) was issued on 31st July 2024 and is to be implemented immediately. The amendment introduced one new requirement (Regulation 530.3.201) and two new definitions.
BIDIRECTIONAL PROTECTIVE DEVICE
A protective device where it is intended by the manufacturer that a source of supply is connected to either or both sets of connection terminals.
UNIDIRECTIONAL PROTECTIVE DEVICE
A protective device where it is intended by the manufacturer that a source of supply is only connected to one defined set of connection terminals.
Regulation 530.3.201 requires that due account is taken by the designer and installer of the likely direction of current flow and select protective equipment accordingly.
Arc Fault Detection Devices
Reg 421.1.7
Arc fault detection devices (AFDD) conforming to BS EN 62606 shall be provided for single-phase AC final circuits supplying socket-outlets with a rated current not exceeding 32A in:
• Higher Risk Residential Buildings (HRRB)
• Houses in Multiple Occupation (HMO)
• Purpose-built Student Accomodation
• Care Homes
For all other premises, the use of AFDDs conforming to BS EN 62606 is recommended for single-phase AC final circuits supplying socket-outlets not exceeding 32A. Where used, AFDDs shall be placed at the origin of the circuit to be protected. The use of AFDDs does not obviate the need to apply one or more measures provided in other clauses in BS 7671.
RCD Testing
Reg 531.3.2/3
Previously, effectiveness under 643.7 and 643.8 was verified where the RCD disconnects within 40ms when tested at a current equal to or higher than five times its rated residual operating current.
This has now been aligned with 643.7 and 643.8 and the new regulations are as follows:
The verification of the effectiveness of the measures applied for additional protection is fulfilled by visual inspection and testing. Where RCDs are required for additional protection, the effectiveness of automatic disconnection of supply by RCDs shall be verified using suitable test equipment according to BS EN 61557-6 (see Regulations 643.1) to confirm that the relevant requirements of Chapter 41 are met.
RCD Protection
Reg 411.3.3/4
Exceptions are now detailed requiring a risk assessment so certain socket circuits can be excluded, i.e. freezers, IT server rooms and control rooms. Outdoor lighting accessible by the public should have RCD protection.
Reference is now made to where ‘ordinary persons’ having access to sockets, these shall be RCD protected.
Where ‘competent/trained personnel’ are the only people accessing an area, i.e. control room, then RCDs can be omitted.
NET ZERO SOLUTIONS

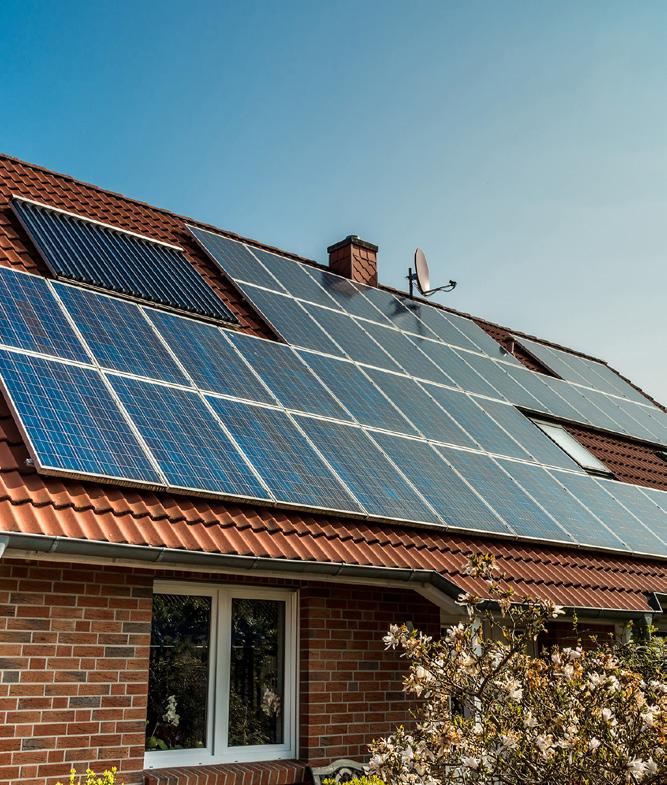

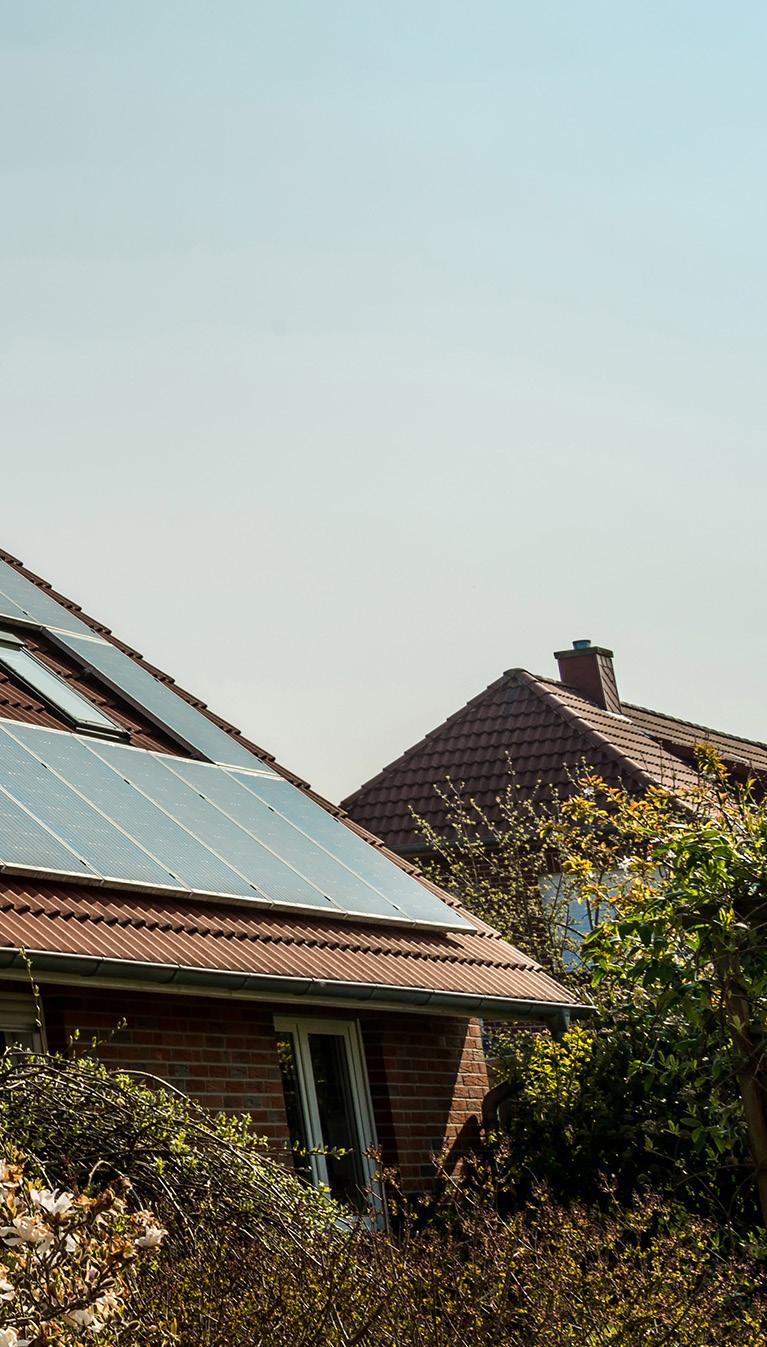

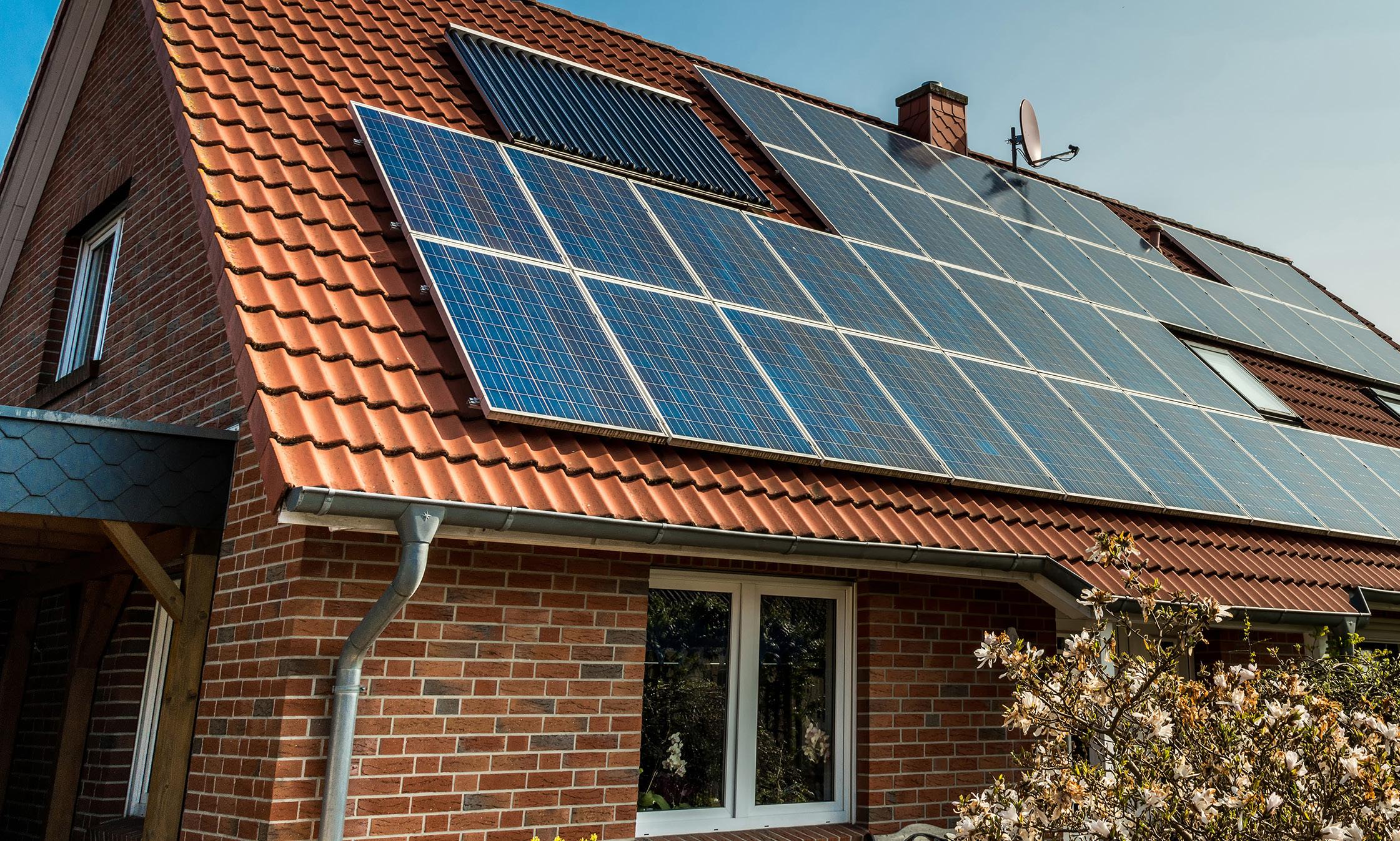

Solar PV & Battery Storage
Bidirectional RCBOs are required when connecting the AC supply from an inverter battery to the main residential consumer unit. The bidirectional RCBO allows electricity to flow from the grid to the inverter battery. They also allow electricity generated by the PV panels, or stored in a battery, to flow back through the consumer unit either to the grid or to supply other circuits within the property.
Timeguard offer a comprehensive range of bidirectional 30mA Type A RCBOs in both B & C Curve.
To compliment solar installations, Timeguard also offer a PV Immersion Controller and a comprehensive range of IP66 AC & DC rotary isolator switches.

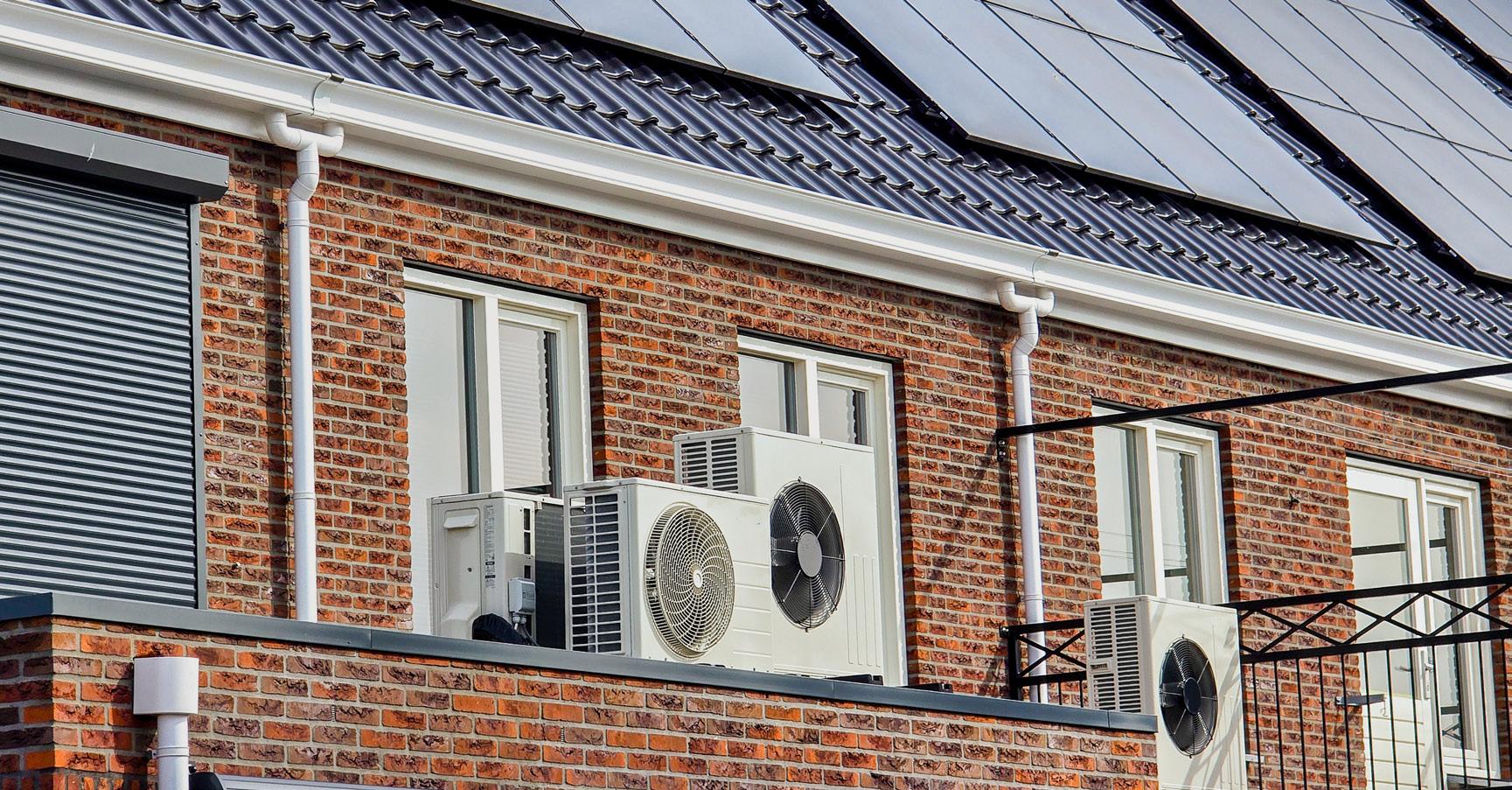

Air Source Heat Pumps
We are seeing a significant increase in the adoption of air source heat pumps to comply with the latest Building Regulations and Net Zero targets.
Modern heat pump inverters operate with switching frequencies in the region of 2kHz –16kHz, often outside of the scope of the existing Type B RCCB standard (BS EN 62423).
Air source heat pumps should be installed in accordance with BS 7671 and take account of manufacturer’s instructions.
BS EN IEC 60335-2-40:2023+A11:2023 (Household and similar electrical appliances. Safety - Particular requirements for electrical heat pumps, air-conditioners, and dehumidifier) requires the installation instructions to specify the RCD to be installed. Generally, for heat pumps intended to be installed in residential buildings, the installation should include an RCD with a rated residual operating current of no more than 30 mA.
Some manufacturers specify a Type B RCD suitable for 1KHz frequency whilst others specify a Type B with enhanced characteristics of 20 kHz or greater with a minimum tripping point of 150 mA above 1 kHz frequencies.
Contact Timeguard’s technical department for a consumer unit solution to accommodate an air source heat pump.

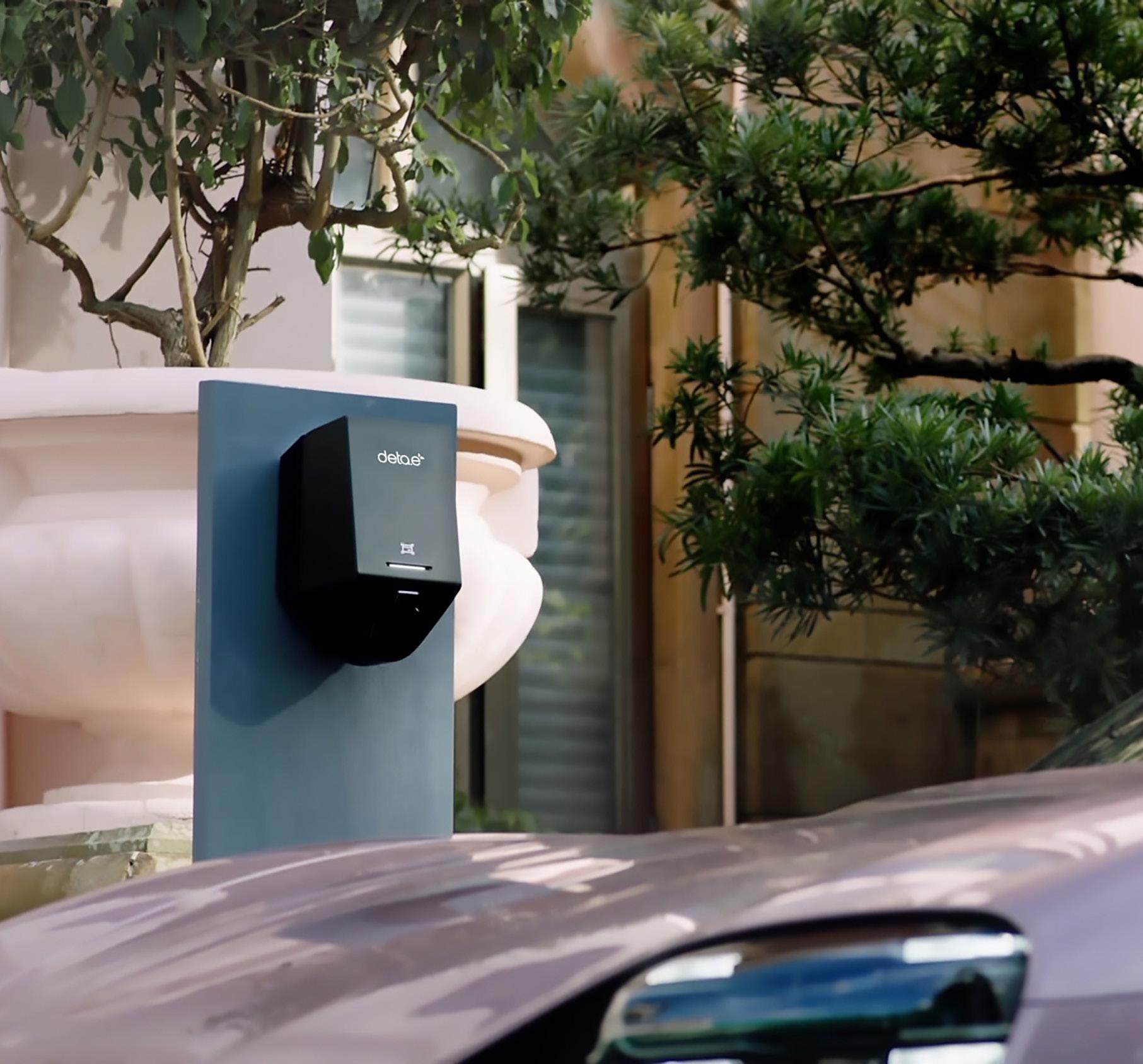

EV Charging
With the increase in popularity of electric vehicles, choosing the correct consumer unit to supply the charging point is very important.
Most EV charge points will incorporate RCD protection within them, but with the potential for DC earth leakage to be present within the circuit it is key that the correct upstream protection is provided.
Wiring Regs state that an EV should be on a dedicated circuit and protected by an RCD device that switches both Live & Neutral conductors in the event of a fault (Reg 722.531.3).
Utilising a Timeguard bidirectional Switched Neutral RCBO also allows V2H (vehicle to home) distribution of electricity between the vehicle and the home (requires compatible V2H vehicle and V2H EV charger).

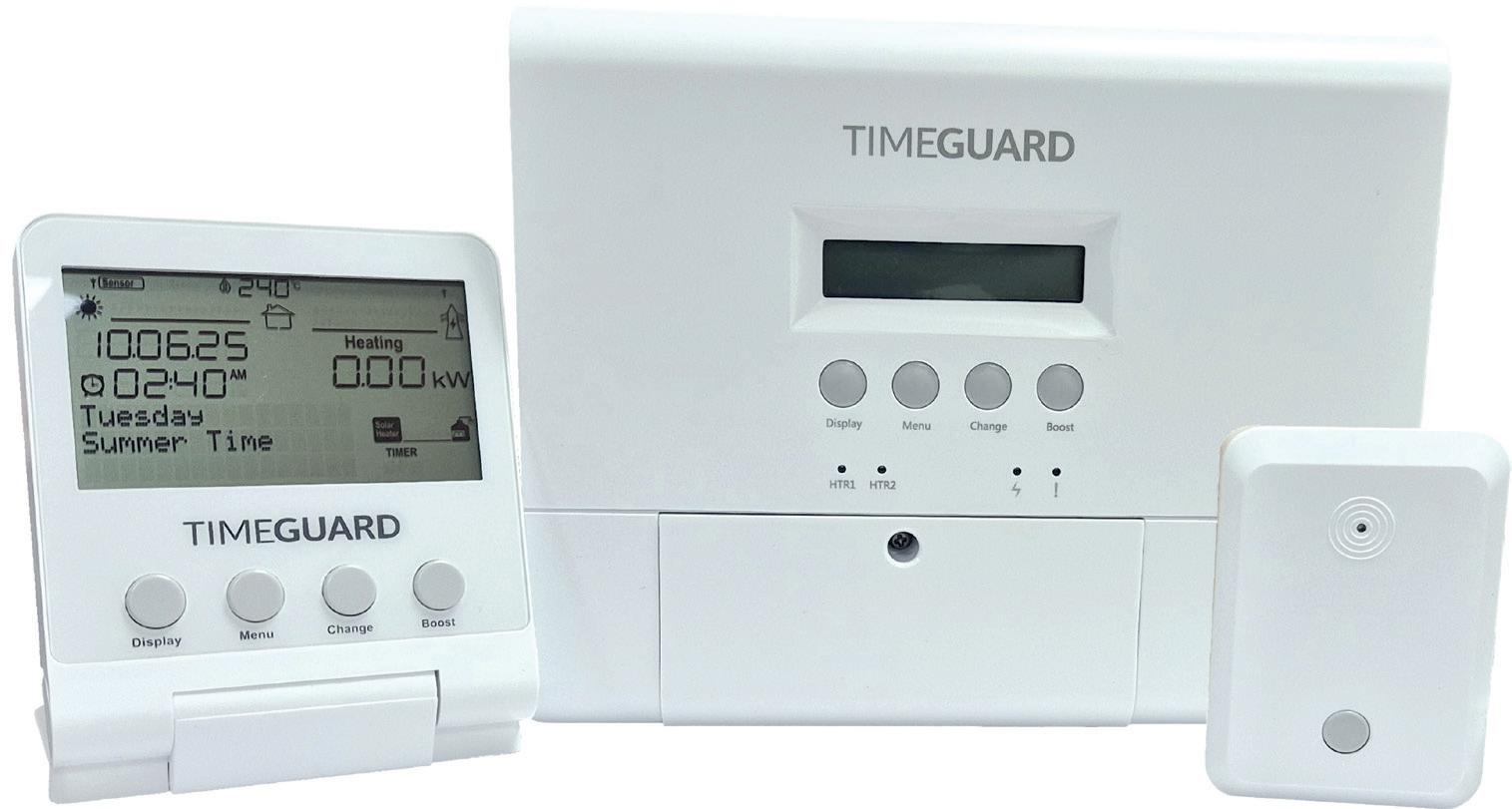

SMARTER SOLAR LIVING WITH TIMEGUARD’S NEW PV IMMERSION CONTROLLER
Cut water heating costs
Key Features
• Backlit LCD display
• Supports dual immersion systems
Reduce boiler useage
• Boost of 15-minute timed increments, up to 2 hours
• Cut-in threshold of 100W of excess current before switching on (100W default, selectable 100W-500W)
• Total kWh saved today, yesterday, 7 days, 28 days, total days
• Portable display unit included (weather station)
