What's New? – Pages 3 MORE THAN JUST A FLOODLIGHT...
Meet the LEDPRO II – Pages 4-5 BIG SAVINGS WITH SOLAR SOLUTIONS…
Solar Products in the Spotlight – Pages 6-7
PREVENT FIRE, ENHANCE SAFETY
Hello Hobguard! – Page 8 TOTAL COLOUR & POWER CONTROL
NEW Colour & Wattage
Changeable Bulkhead – Page 9 WHAT’S
Best Sellers – Pages 10-11
I’m excited to bring back another edition of SwitchedOn! — your go-to guide for the latest and most popular products from Timeguard.
In this edition, we’re excited to introduce some of our latest and most innovative products — designed with you in mind to help you stay ahead by offering best-in-class products and solutions.
We’re proud to unveil the LEDPro II Floodlight with PIR, offering powerful illumination with smart motion detection, the HobGuard — a smart safety solution for modern kitchens, and our latest Bulkhead design, combining durability with sleek aesthetics.
We’re also shining a spotlight on our best-selling products — trusted by professionals for their reliability and performance. And with sustainability more important than ever, we’re bringing our full solar product range to the forefront, helping you offer energy-efficient, eco-friendly solutions to your customers.
At Timeguard, we remain committed to innovation, quality, and supporting your success. Thank you for your continued partnership — we look forward to growing together.
Warm regards,
Neil Chapman Sales Director
Rewireable Floodlights with Combined Plug & Play PIR/Photocell
Page 4
4kV
SLB2301 & SLW2301
Standalone PIR & Photocell 2kW Page 5
PV1000
Solar PV Controller Page 6
MLB3001
Scanning PIR & Photocell 3kW Page 5

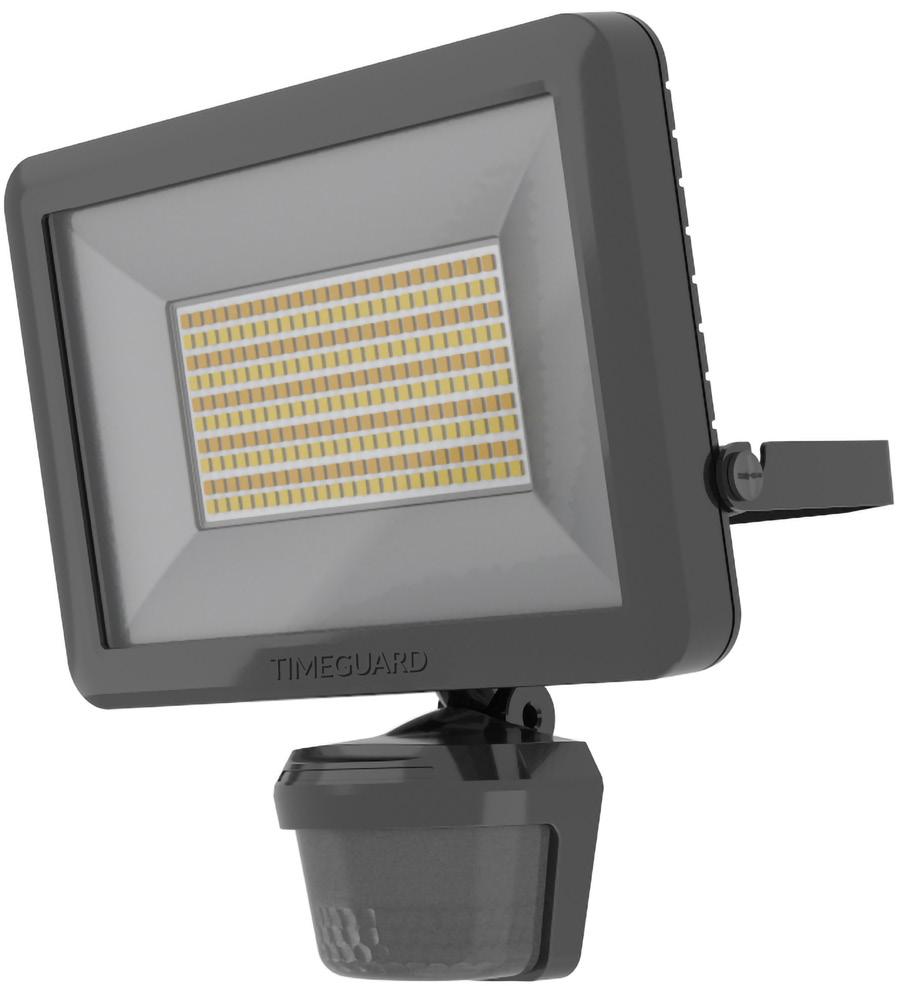

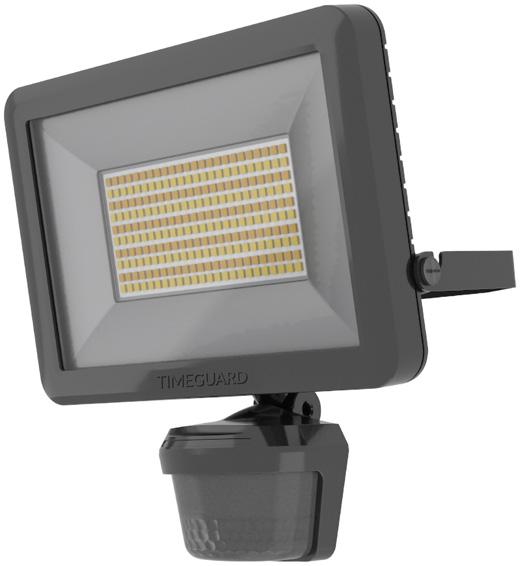

The new LEDPRO II floodlight range is available in 10W, 20W, 30W, 50W, and 100W versions, with a choice of sleek black or white finishes. Each unit is built to last, featuring a toughened glass diffuser, durable aluminium housing, and an IP65 rating for full protection against dust and water. With integrated CCT3 technology, users can easily select between 3000K, 4000K, or 5000K colour temperatures, offering flexibility for a wide range of applications.
Installation is fast and straightforward thanks to a quick-fit adjustable bracket with internal corner mounting, push-fit loop-in/loop-out terminals, and captive screws for secure access. Every unit includes 4kV surge protection as standard, ensuring long-term reliability.
Designed for performance and durability, the LEDPRO II range features a clear-centre lens for bright, focused illumination. The aluminium housing is finished with a polycarbonate powder coating, enhancing safety, hygiene, and longevity — making it ideal for both commercial and specialist environments.
CODE DESCRIPTION
LEDPRO11B 10W CCT3 IP65 LEDPRO Floodlight - Black
LEDPRO11WH 10W CCT3 IP65 LEDPRO Floodlight - White
LEDPRO21B 20W CCT3 IP65 LEDPRO Floodlight - Black
LEDPRO21WH 20W CCT3 IP65 LEDPRO Floodlight - White
LEDPRO31B 30W CCT3 IP65 LEDPRO Floodlight - Black
LEDPRO31WH 30W CCT3 IP65 LEDPRO Floodlight - White
LEDPRO51B 50W CCT3 IP65 LEDPRO Floodlight - Black
LEDPRO51WH 50W CCT3 IP65 LEDPRO Floodlight - White
LEDPRO101B 100W CCT3 IP65 LEDPRO Floodlight - Black
LEDPRO101WH 100W CCT3 IP65 LEDPRO Floodlight - White
LEDPROSL2B PIR & Photocell LEDPRO Floodlight - Black
LEDPROSL2WH PIR & Photocell LEDPRO Floodlight - White
Rewireable Floodlight
n Curved slim design
n Cooling fins prevent heat build-up for long product life
n Glass front lens with clear centre for enhanced light control
n Built-in CCT switch (3000K, 4000K & 5000K)
n Quick install with push-fit loop-in & loop-out terminal connection
n 10W, 20W, 30W, 50W & 100W options, in black or white
n Plug & Play PIR option with linkable control (sold separately)
n Simple & quick push-fit terminal block connection
n Easy adjustment of ‘light ON’ & ‘Dusk’ controls
n Installer friendly captive terminal cover screws
n Black and white options
SLB2301 & SLW2301
Standalone PIR & Photocell 2kW
n Powerful PIR controller for new & existing installations
n Dusk to Dawn enabled
n Pan & tilt feature
n Manual ON/OFF switching override
n Adjustable sensitivity
4kV

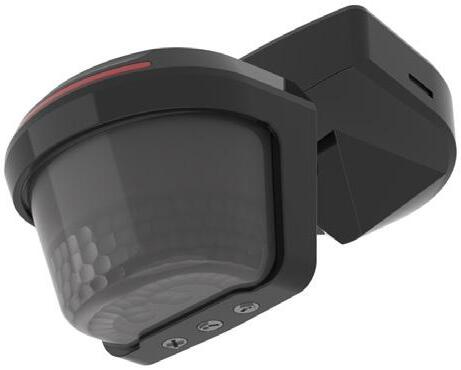

MLB3001
Scanning PIR & Photocell 3kW
n Powerful PIR controller for new & existing installations
n Optional scanning LEDs
n Pan & tilt feature
n Manual ON/OFF switching override
n Adjustable sensitivity

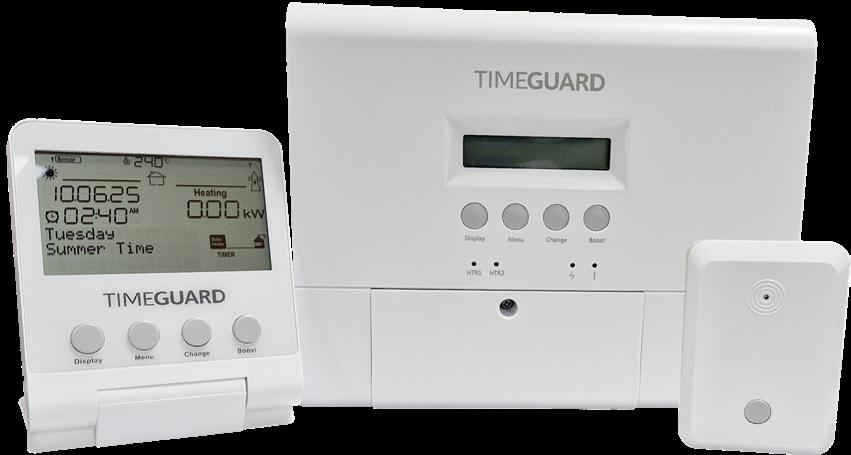

PV1000 captures energy based on the power generated by the Solar PV System. Cut the cost of water heating at home by reducing reliance on the boiler and make the most of free solar energy the property generates. It’s a smart, sustainable way to lower energy bills and boost efficiency.
PV1000
Solar PV Controller
n Backlit LCD display
n Supports dual immersion systems
n Boost of 15-minute timed increments, up to 2 hours
n Cut-in threshold of 100W of excess current before switching on (100W default, selectable 100W-500W)
n Total kWh saved today, yesterday, 7 days, 28 days, total days
n Portable display unit included (weather station)
1. Smart Energy Monitoring
A single clamp installed at the household meter detects excess solar energy. The PV1000 Sender wirelessly transmits real time export energy data to the PV1000 control unit.
2. Intelligent Energy Diversion
When surplus energy is available, PV1000 automatically adjusts and directs the excess power to the immersion heater. It dynamically regulates the energy flow to match the changing export levels, ensuring efficient use of solar power.
3. Optimised Water Heating
Water is heated throughout the day using only surplus solar energy, up to the immersion thermostat’s set temperature. If additional heating is needed, it can be supplemented using traditional heating systems or manually adjusted via PV1000 controls.
Example of Captured Energy Data:
• Generation: 2700W
• Energy Consumed: 1400W
• Potential Export: 1300W
• Energy Diverted: 1200W
• Energy Exported: 100W
Can the PV1000 be used on products other than immersion heaters?
ü Yes, but since most solar panels generate less than 3kW, the available converted power may not be sufficient for high-consumption appliances.
Does PV1000 work through the night?
No, the PV1000 only operates when the solar PV system is generating power. However, you can store energy in a battery system during the day to use for appliances at night.
Timeguard’s AC and DC isolators are built for safe, reliable disconnection in solar PV systems. Designed to handle high-voltage DC from panels and AC from the inverter, they ensure protection during installation, maintenance or emergencies. Compact, compliant and built to last — ideal for any solar setup.

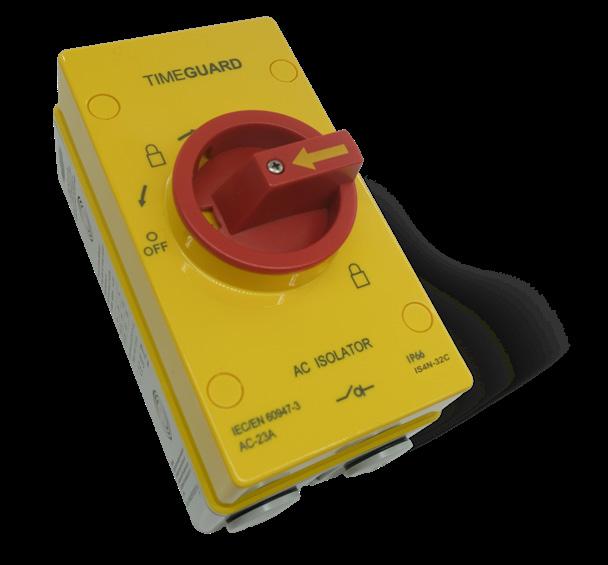

IP66 AC Rotary Isolator Switches
3 Pole
IS3N-20AC - 20A
IS3N-32AC - 32A
4 Pole
IS4N-20AC - 20A
IS4N-32AC - 32A
IS4N-40AC - 40A
IS4N-63AC - 63A
IS4N-100AC - 100A

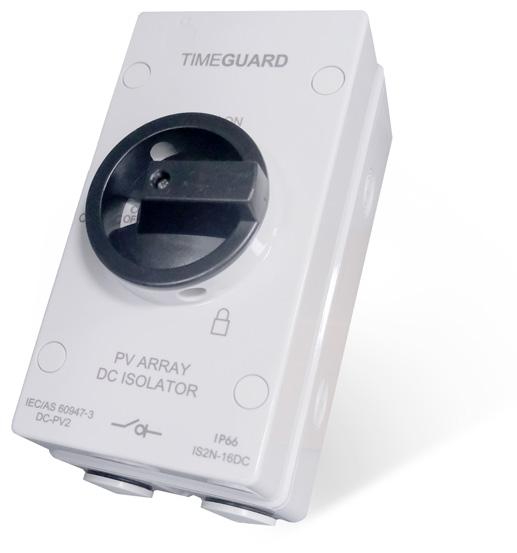

IP66 DC Rotary Isolator Switches
2 Pole
IS2N-16DC - 20A
IS2N-25DC - 25A
IS2N-32DC - 32A
4 Pole
n Solid Neutral
n On load switch disconnectors
n Switch can be removed from DIN rail assembly allowing quick & easy first fix
n Interlocked front cover can only be removed when in OFF position
n Lockable switch prevents tampering
n IP66 weatherproof rating
n Tough durable thermoplastic construction
n Cable entry knockouts on enclosures
IS4N-16DC - 20A
IS4N-25DC - 25A
IS4N-32DC - 32A
n Interlocked front cover can only be removed from the OFF position
n Tough thermoplastic construction with multiple M25 cable entry knockouts
n Can be easily removed from the housing, allowing for quick and easy installation
n Lockable switch to prevent tampering
n Guaranteed arc suppression time of under 5mS
n Rising clamp terminals with 16mm2 max. cable support
n Complies with DC-PV2, DC-PV1 PV utilisation categories

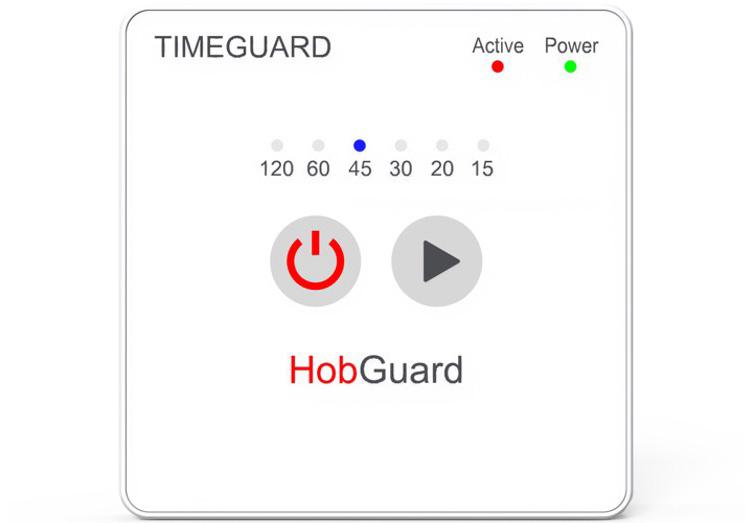

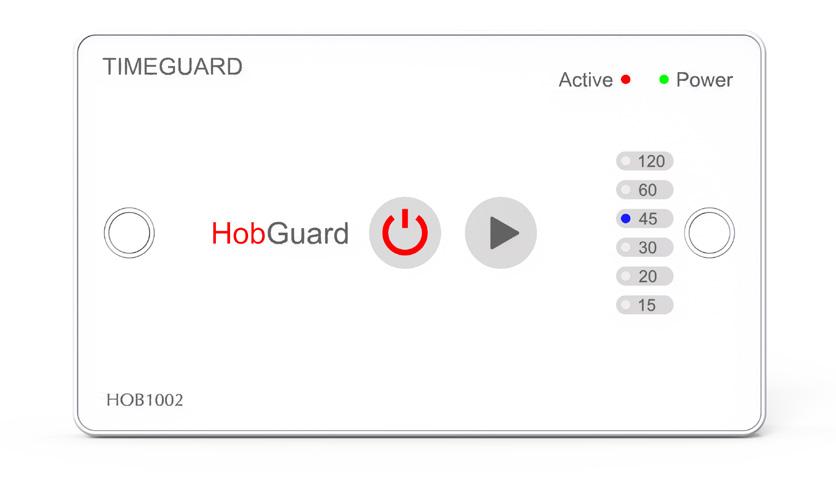

Safety’s a Priority with NEW Hob Timer Switch
HobGuard are Timeguard’s new 1 gang (30A) and 2 gang (40A) hob timer switches, which offer a safe, efficient way to control electric hobs and cookers. Designed to automatically switch off after a set time, they help prevent overheating and energy waste – ideal for residential, student and commercial kitchens.
HobGuard 1 Gang 30A Hob Timer Switch
n 30A resistive load
n Ideal for housing associations, student accommodation, landlords & family homes
n Automatic cut off after a pre-set run time between 15 & 120 minutes
n Touch screen controls
n Countdown LED & power indicators
n Heat resistant material
n Toughened glass front plate
n Detachable back case & fixing accessories included
HobGuard 2 Gang 40A Hob Timer Switch
n 40A resistive load
n Ideal for housing associations, student accommodation, landlords & family homes
n Automatic cut off after a pre-set run time between 15 & 120 minutes
n Touch screen controls
n Countdown LED & power indicators
n Heat resistant material
n Toughened glass front plate
n Detachable back case & fixing accessories included

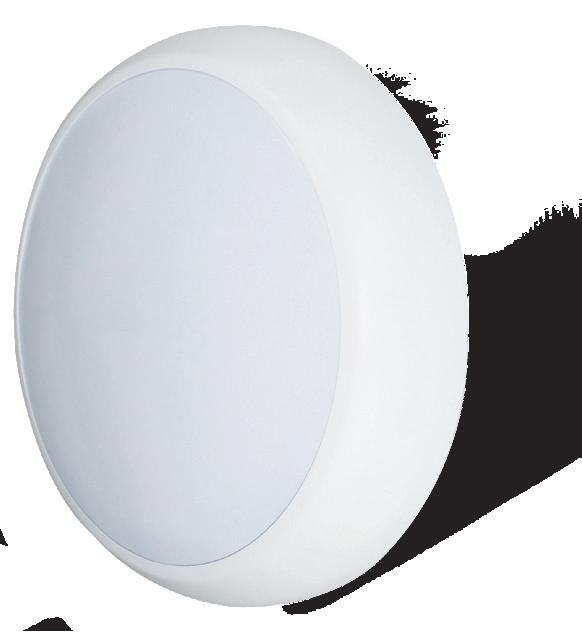

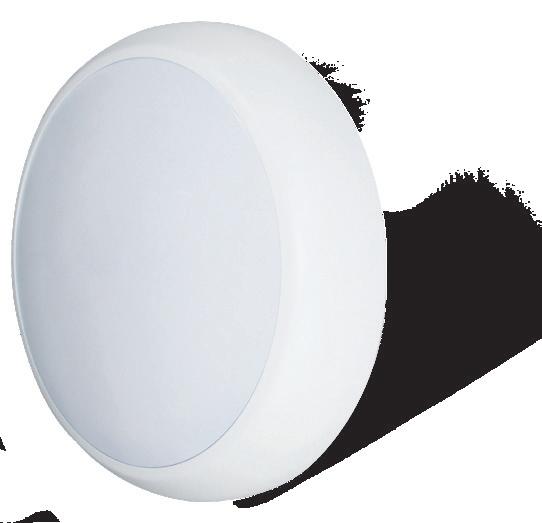

Introducing our new colour and wattage changeable bulkhead — designed for ultimate flexibility across both residential and commercial spaces. With selectable wattage settings and switchable colour temperatures, this bulkhead allows tailored light output and ambience to suit any environment. Easy to install and energy-efficient, it’s the perfect all-in-one lighting solution for corridors, stairwells, communal areas and more.
n LED lighting solution for a range of commercial and residential applications
n 10, 15, 20W wattage and colour adjustable (3000K/4000K/6000K) via switches on LED Tray

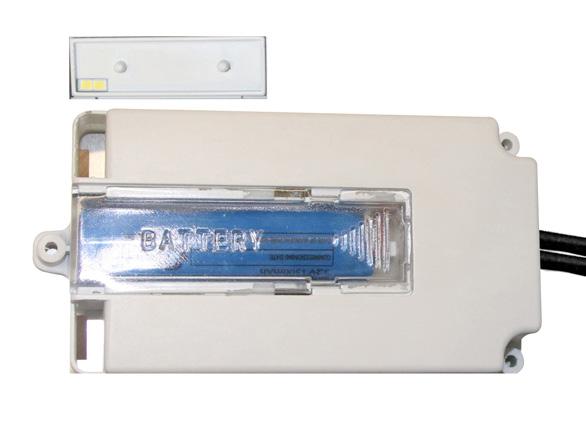

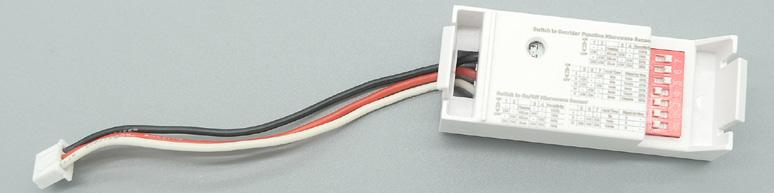

n True plug-in microwave sensor & emergency options
n Manufactured from flame retardant polycarbonate with high impact resistance (IK10) & tamper proof screws
n IP65 rating for total protection against dust & low-pressure jets of water from any direction
n Only compatible with TG8000
n Only compatible with TG8000 Bulkhead
Timeguard’s top-selling products have earned their reputation through consistent performance, reliability and value. Trusted by electricians and customers alike, these favourites combine smart design with proven durability, making them the go-to choice for a wide range of residential and commercial projects.

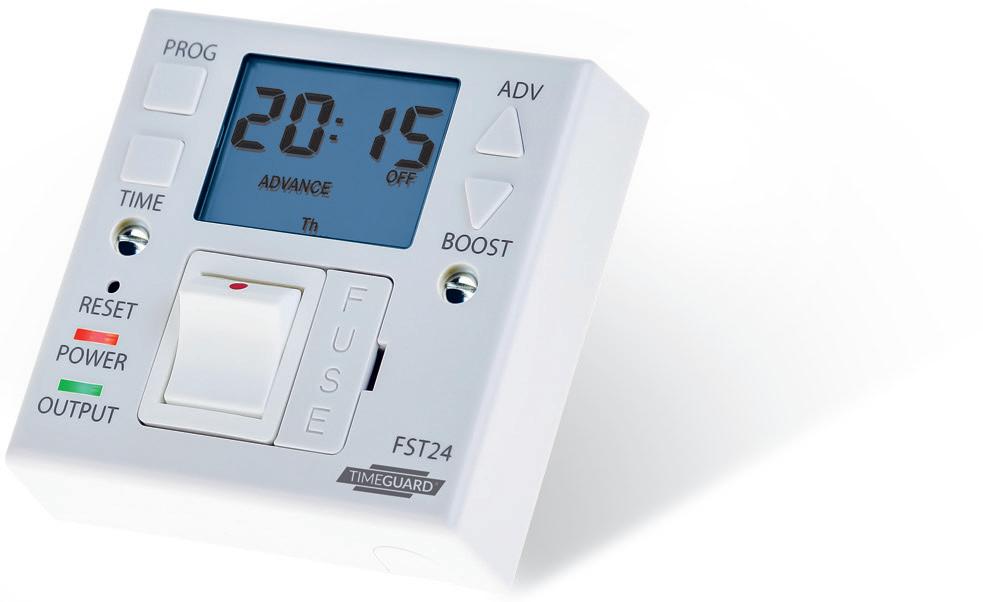

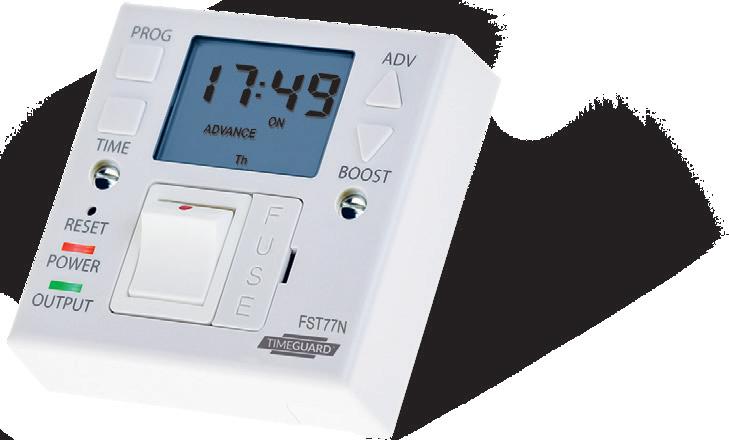

FST24 & FST77N
24 Hour & 7 Day
Fused Spur Timeswitches
n Up to 4 ON & OFF programmes (up to 8 on the FST77N, 5 day plus 2 or 7 day, giving up to 56 programmes per week)
n Suitable for use with up to 3kW immersion heaters
n Permanent OFF & timed outputs available
n Easy view 24 hour digital clock/timer display
n Optional 1 or 2 hour boost facility (FST77N also has 30, 60, 90 and 120 minute enhanced boost facility)
n Automatic summer/winter time changeover
n Self-cancelling override
n Shortest switching time 1 minute
n Programme advance & review options
n BS1362 fuse replaceable from front
n Double pole switch for ease of control
n Integral memory back up battery retains programmes in event of power failure
PIR Presence Detector (Flush Mount)
Slimline sensor head design
360° detection zone
IP44 weatherproof rating (internal use only)
Manual override for extended light on times
Adjustable time & lux settings
n Besa box mountable

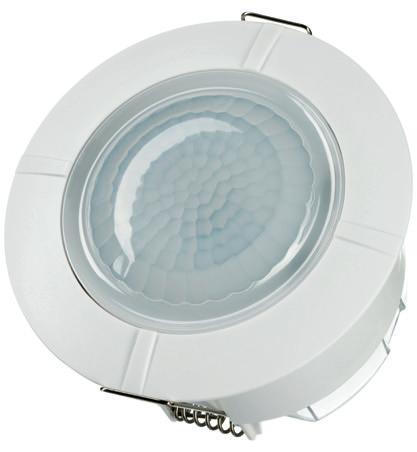

PIR Presence Detector (Flush Mount)
n Slimline sensor head design
n 360° detection zone
n IP44 weatherproof rating (internal use only)
n Manual override for extended light on times
n Adjustable time & lux settings
n 75mm diameter ceiling cut-out

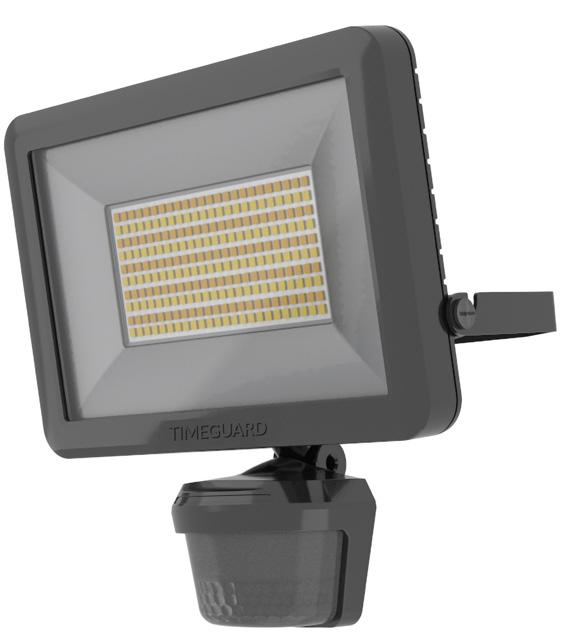

Rewireable Floodlight
n Glass front lens with clear centre for enhanced light control
n Built-in CCT switch (3000K, 4000K & 5000K)
n Quick install with push-fit loop-in & loop-out terminal connection
n 10W, 20W, 30W, 50W & 100W options, in black or white
n Plug & Play PIR option with linkable control (sold separately)
n Simple & quick push-fit terminal block connection
n Easy adjustment of ‘light ON’ & ‘Dusk’ controls
n Installer friendly captive terminal cover screws
n Black and white options
Scanning PIR & Photocell 3kW
n Powerful PIR controller for new & existing installations
n Optional scanning LEDs
n Pan & tilt feature
n Manual ON/OFF switching override
n Adjustable sensitivity
Standalone PIR & Photocell 2kW
n Powerful PIR controller for new & existing installations
n Dusk to Dawn enabled
n Pan & tilt feature
n Manual ON/OFF switching override
n Adjustable sensitivity
Solar PV Controller
n Supports dual immersion systems
n Boost of 15-minute timed increments, up to 2 hours
n Cut-in threshold of 100W of excess current before switching on (100W default, selectable 100W-500W)
n Total kWh saved today, yesterday, 7 days, 28 days, total days
n Portable display unit included (weather station)
We continue to deliver the energy savings that owners and occupiers are looking for, combined with easy-installation that makes us an installers’ favourite and of course, high quality, and reliability are always top of the list.
You can access our latest catalogue, newsletter and all of our product information at any time via timeguard.com. Here you will also find our latest information, press releases and downloading facilities for product operating instructions. Log onto Timeguard online now for simple selection of the right products for your needs.
