Vimark WeatherPRO Brochure

WEATHERPRO The Weatherproof Range for All

Wired For Perfection

Scan to view the range

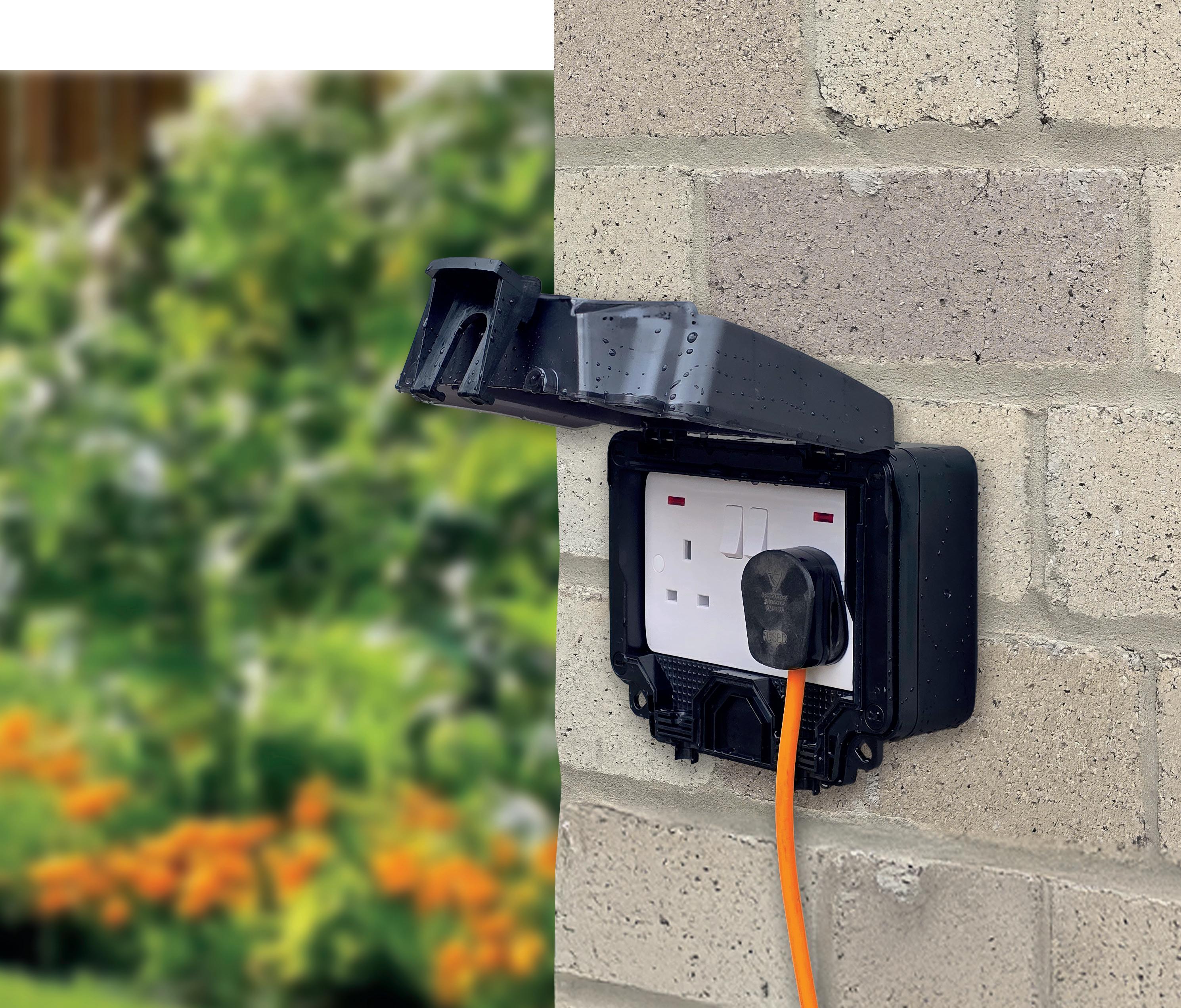

Built for Every Forecast...

WeatherPRO means business, built to withstand the elements.

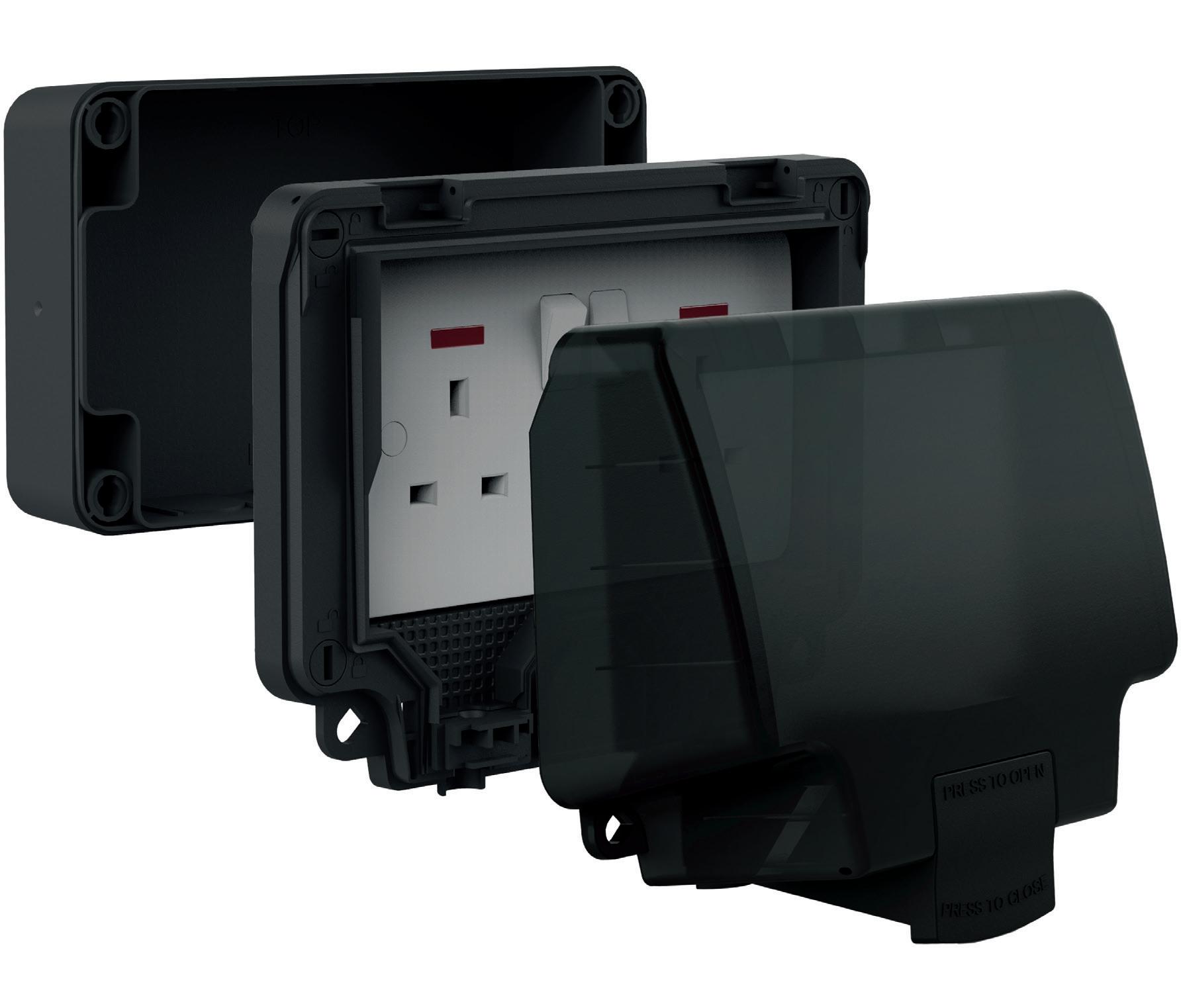

Designed for everyday use, the IP66 rated range resists water and dust in tough outdoor conditions. A detachable back box speeds up installation, making WeatherPRO the smart choice for outdoor projects.

One Clip is all it Takes

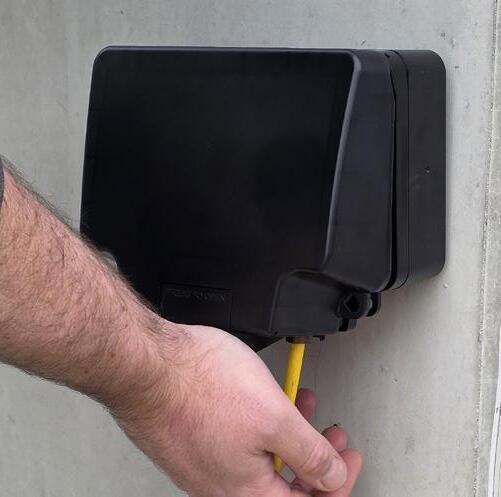

Easy Installation The user-friendly design features a single-clip mechanism for quick access, with integrated locking points to allow secure padlock use.

2

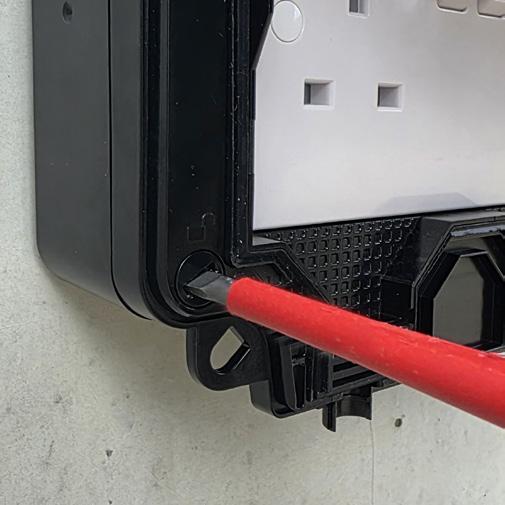

Fast-fix captive quarter-turn screws allow the accessory frame to be quickly mounted or removed, while separate back box points preserve the IP66 rating.

Wired For Perfection

Universal Enclosures

IP66 Rated Protection Compatible with Vimark Square and Pro ranges, as well as standard 1-gang and 2-gang wiring accessories for versatile installation.

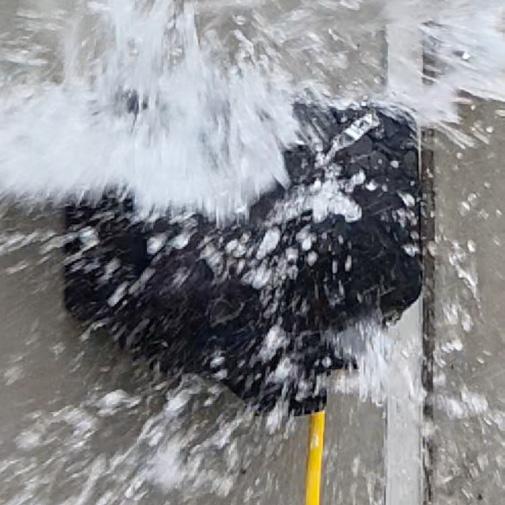

When closed, the enclosure shields electrical accessories from dust and highpressure water jets, ensuring outdoor installations stay safe and dry.​ vimark.uk

3

Robust. Secure. Accessible.

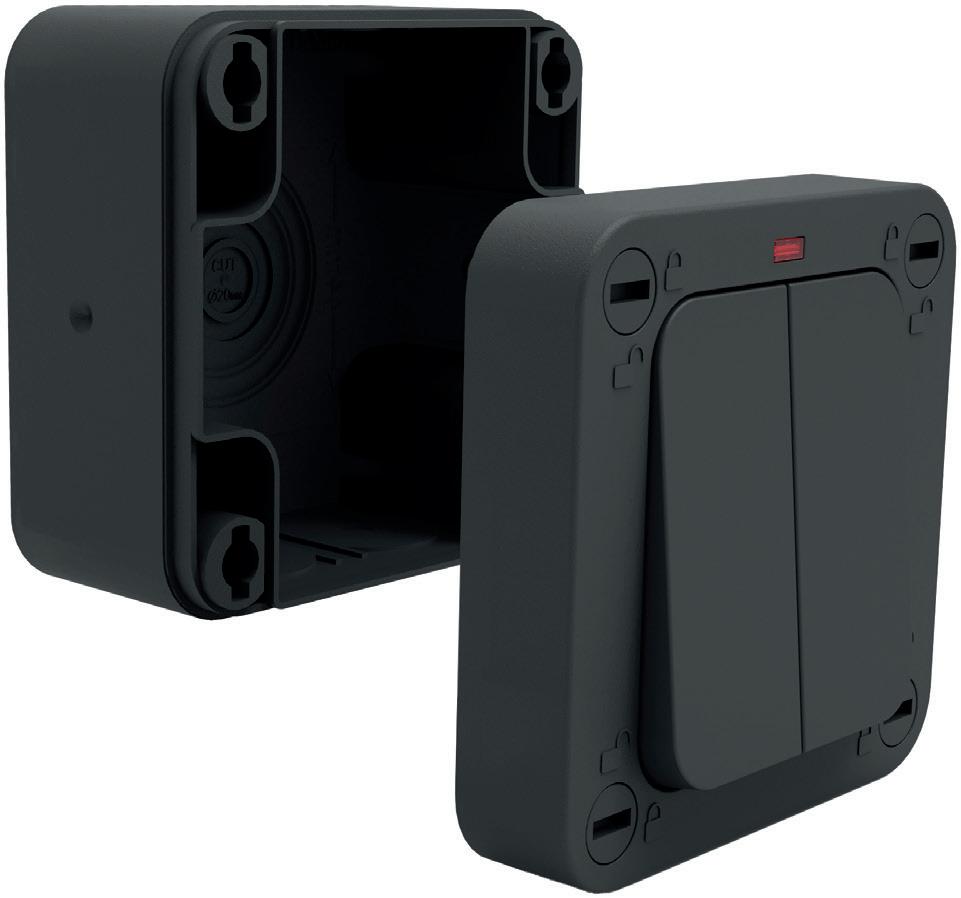

Multiple drill-out cable entry points on all sides and rear of back box

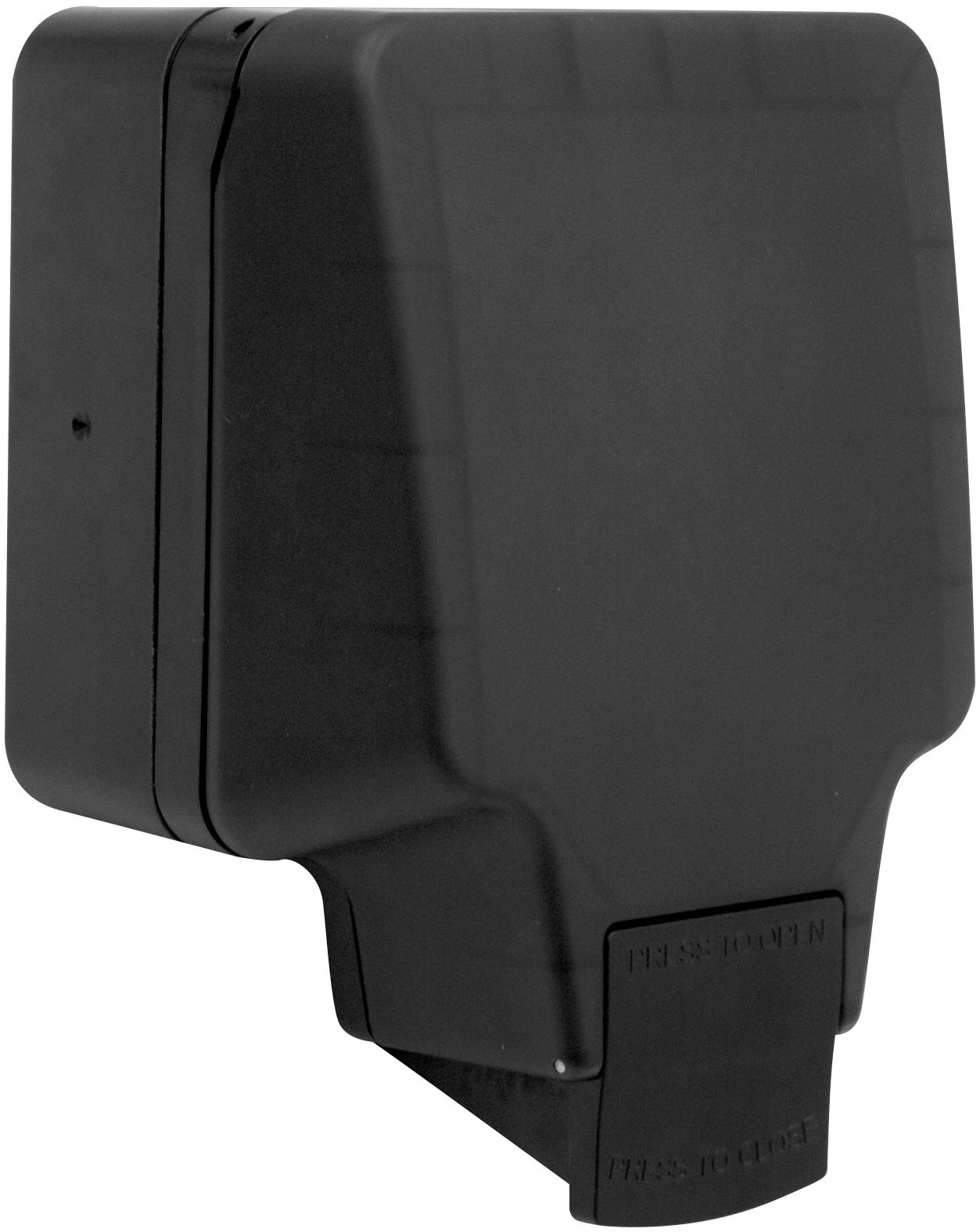

Robust cover with reinforced steel hinge

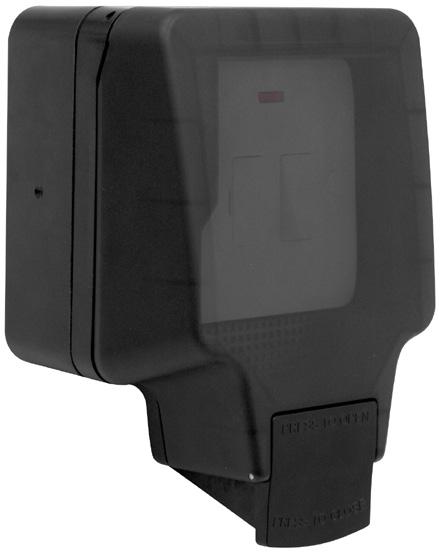

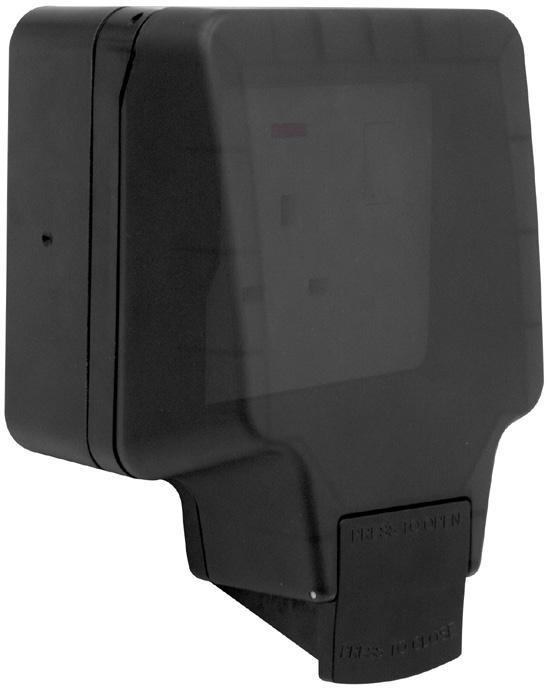

Locking points allow use of a padlock to restrict access Translucent cover allows neon indicators to be seen Back box mounting points separated from main wiring space to maintain IP rating

Large switches for easy operation

4

13A

IP66

EASY INSTALL

LOCKABLE

Wired For Perfection

Socket Outlets

10-YEAR GUARANTEE

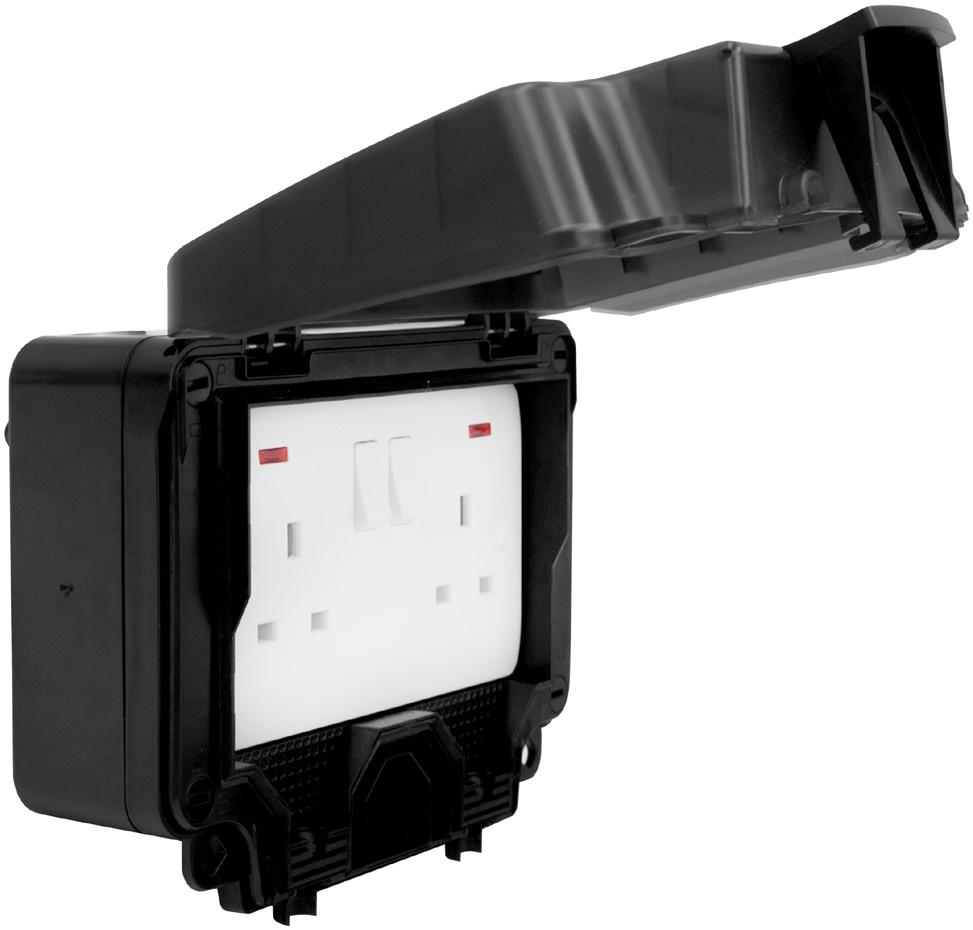

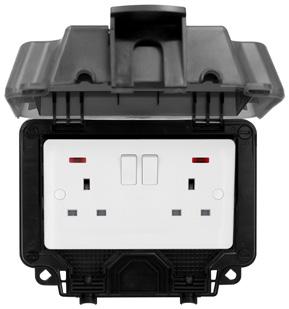

• Captive, backed out and top facing terminals with large cable lead-ins and clear embossed markings • In compliance with BS 1363-2 & BS EN 60529 1 Gang VWP1207DPN 13A Switched Double Pole with Neon 2 Gang VWP1209DPN 13A Switched Double Pole with Neon

VWP1209DPN

VWP1207DPN

RCD Socket Outlets

3-YEAR GUARANTEE

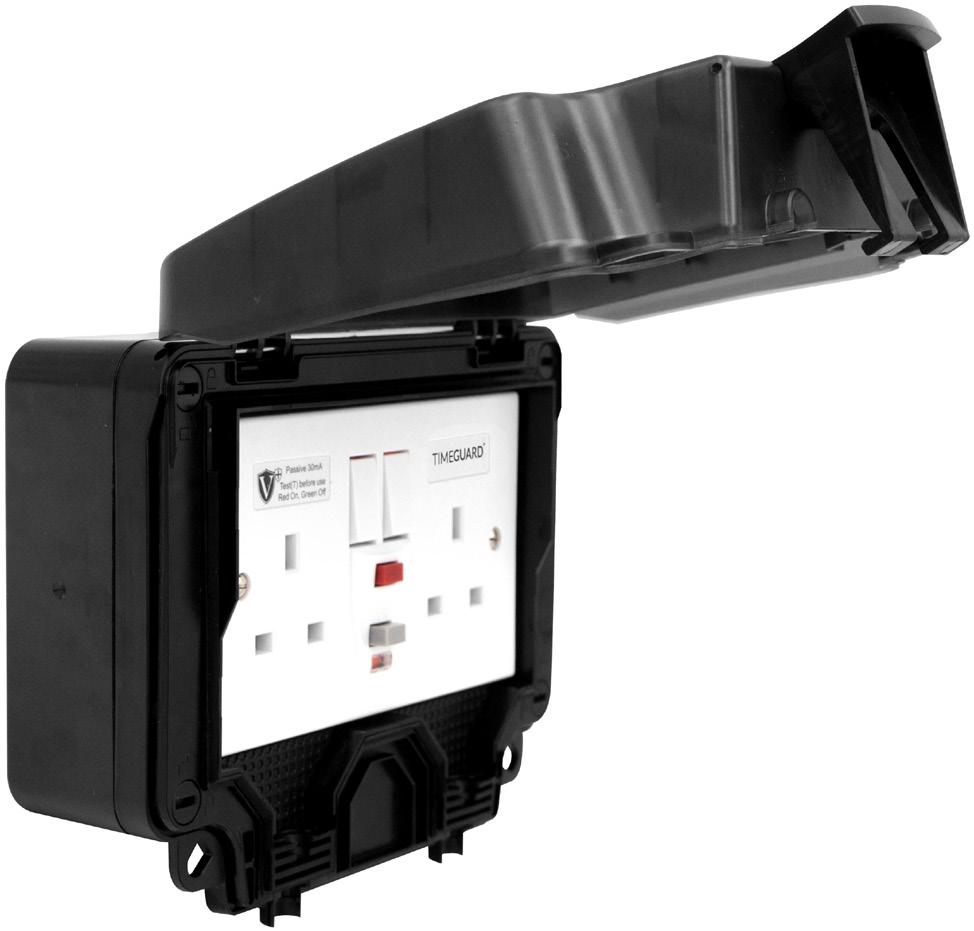

• Captive, backed out and top facing terminals with large cable lead-ins and clear embossed markings • In compliance with BS 1363-2 & BS EN 60529 2 Gang with RCD VWP1409DPA 13A Switched Double Pole with Active RCD VWP1409DPP 13A Switched Double Pole with Passive RCD

VWP1409DPA

Active RCD VWP1409DPP

Manual reset after power cut.

Ideal for power/garden tools.

Passive RCD Auto reset after power cut.

Ideal for fridges, freezers and use in inaccessible areas. vimark.uk

5

20A Switches

20A Double Pole Switch

• All plate switches are X-rated and can be used for switching inductive or fluorescent loads without de-rating

• Captive and backed out terminals with large cable lead-ins and clear markings

• In compliance with BS EN 60669-1 & BS EN 60529

VWP1221

VWP1222

GUARANTEE

• Dual-function neon indicator for use as a status indicator or a locating light.

• In compliance with BS EN 60669-1 & BS EN 60529

VWP1226

VWP1391

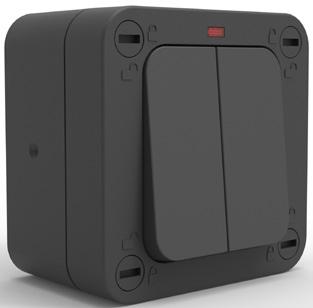

20 Amp Plate Switches VWP1221 1 Gang 2-way with Neon VWP1222 2 Gang 2-way with Neon VWP1226 1 Gang 2-way Press with Neon

Connection Unit

10-YEAR

20 Amp Double Pole Switch VWP1391 Double Pole Switch with Neon

10-YEAR GUARANTEE

RCD Connection Unit

3-YEAR

• Lockable, captive fuse carrier for safety isolation • Cover locking points for a padlock to restrict access • In compliance with BS 1363-4 & BS EN 60529

VWP1371

VWP1460P

Switched

Unswitched

VWP1371

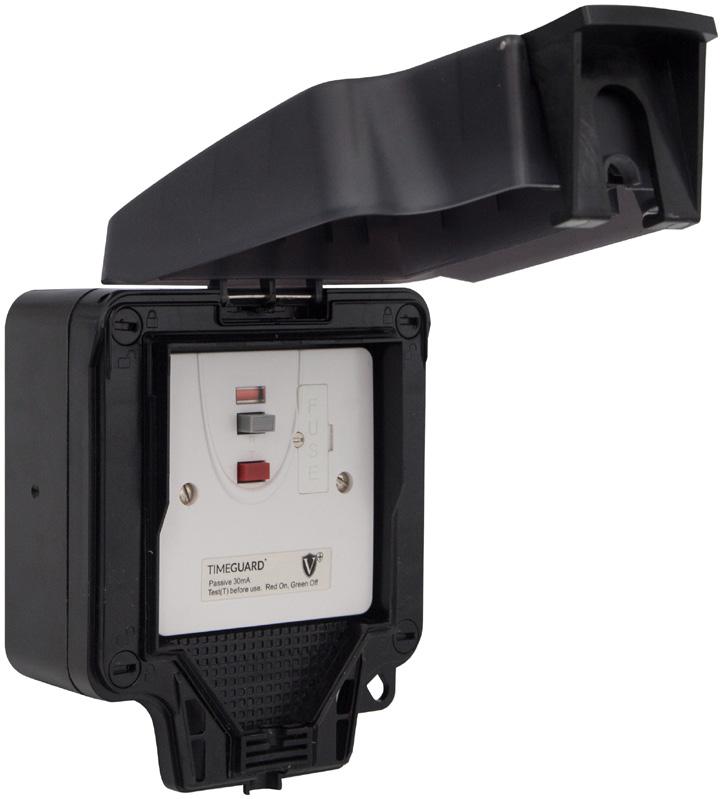

13A Switched Spur with Neon

VWP1460P

13A Unswitched with Passive RCD

Passive RCD Auto reset after power cut.

Ideal for fridges, freezers and use in inaccessible areas.

6

GUARANTEE

Wired For Perfection

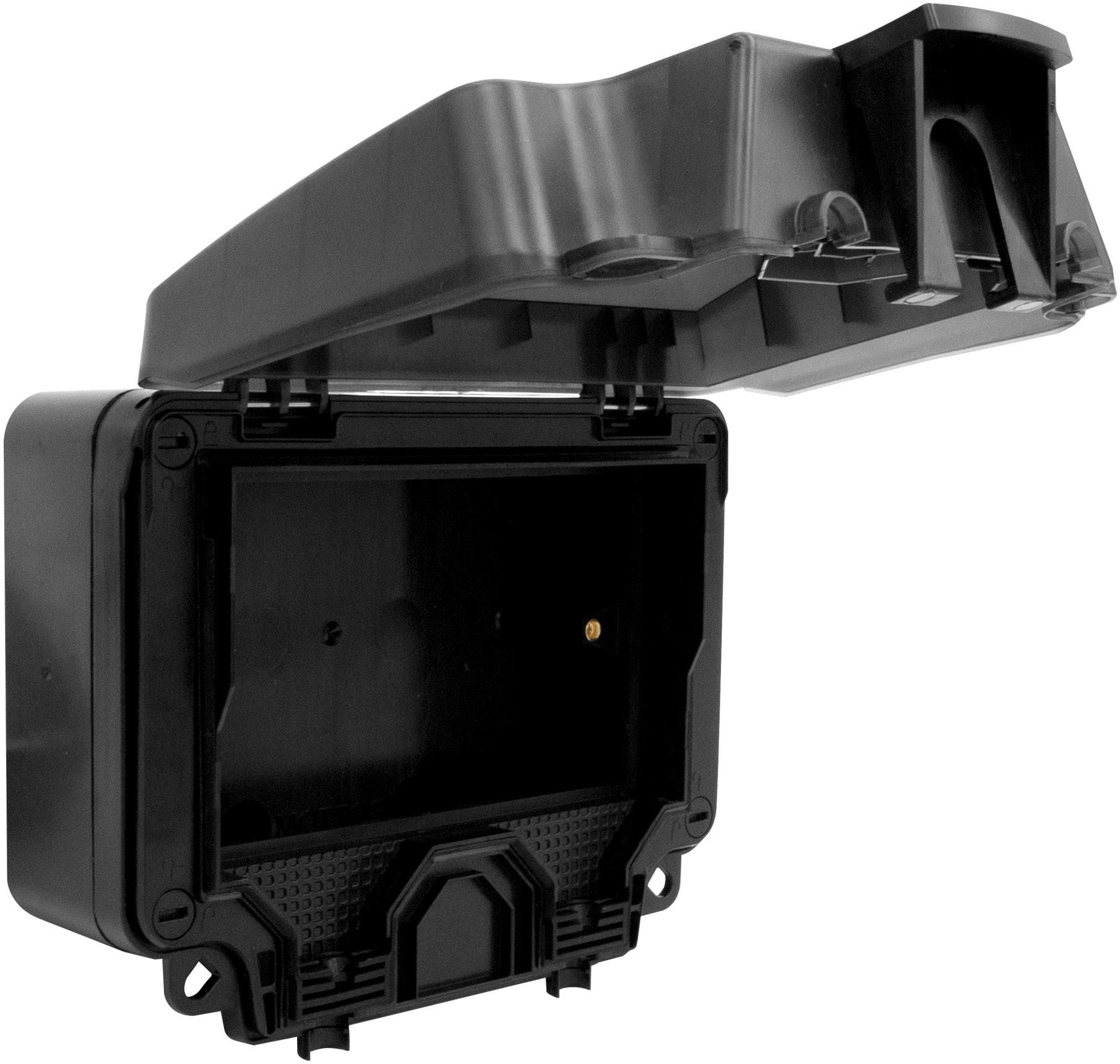

Universal Enclosures • Universal compatibility with standard sized 1 gang and 2 gang accessories including: ° Square edge profiles such Vimark Square ° Curve edge profiles such as Vimark Pro or Deta Slimline • In compliance with BS EN 60529 1 Gang VWP1200

1 Gang Universal Enclosure

2 Gang VWP1201

2 Gang Universal Enclosure

VWP1200

UNIVERSAL

IP66

EASY INSTALL

LOCKABLE

VWP1201

10-YEAR GUARANTEE

vimark.uk

7

Deta Electrical Company Limited Panattoni Park, Luton Road, Chalton, Bedfordshire, LU4 9TT 01582 544 500 sales.ce@deta.co.uk deta.co.uk Follow Vimark on Social Media
