JUNLONG FOLIO

04 THEATRE OF VITALITY ARCHITECTURE IN TRANSFORMATION

05 Bamboo;Rattan Pavilion

06 Tactile Journey In Ocean inspired by glass sponge

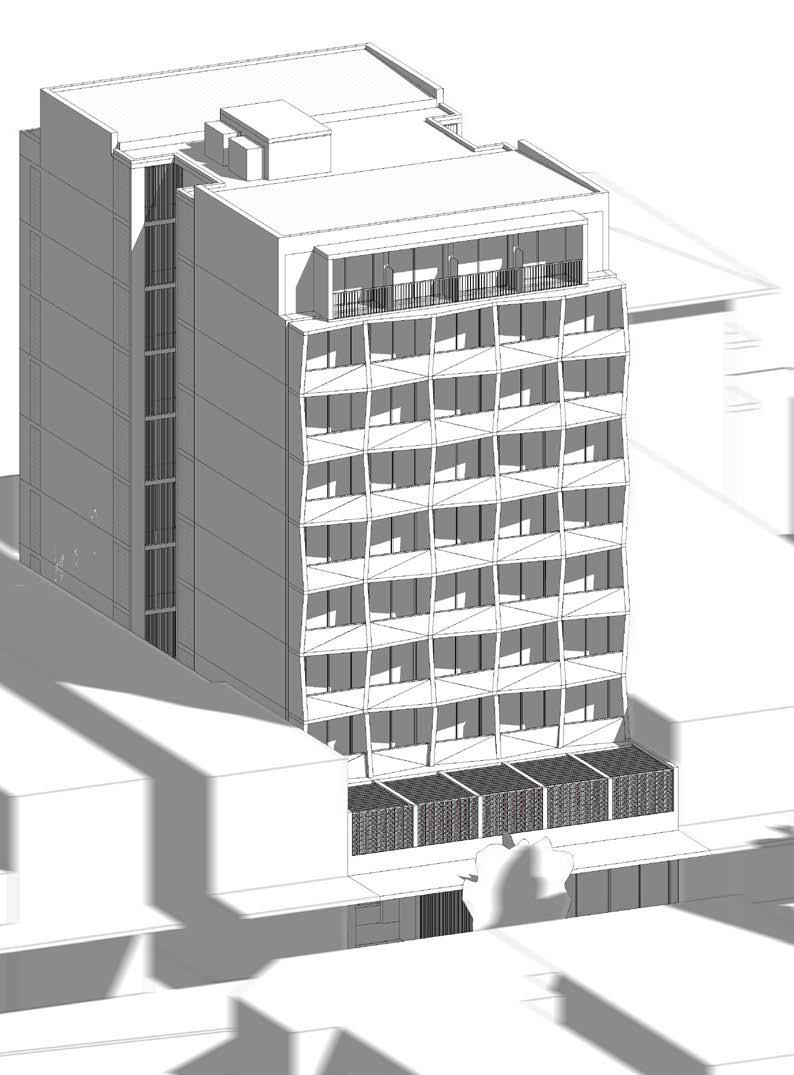

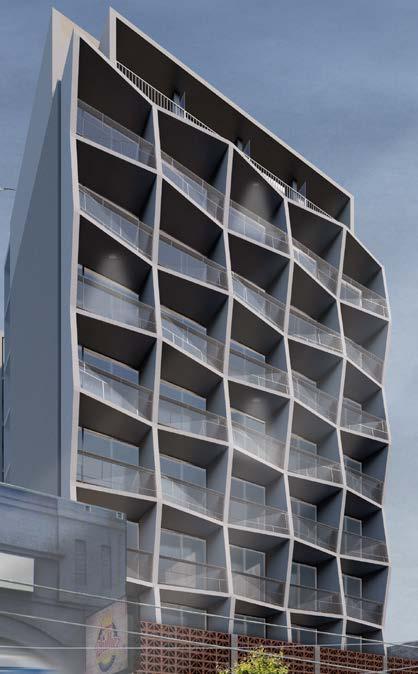

Boarding House

Combined Grasshopper with Revit

For this Boarding house project I was responsible for the preliminary site up in revit and was also involved in the facade design for the north side of the student housing. I used Grasshopper to do iterations to meet the client's request to have some concave and convex design on the north side of the building.

The project process: currently submitted DA document.

JSA Studio / 2023- Revit

Paramateric Design, 3D model, DA Documentation (assist with Senior architect)

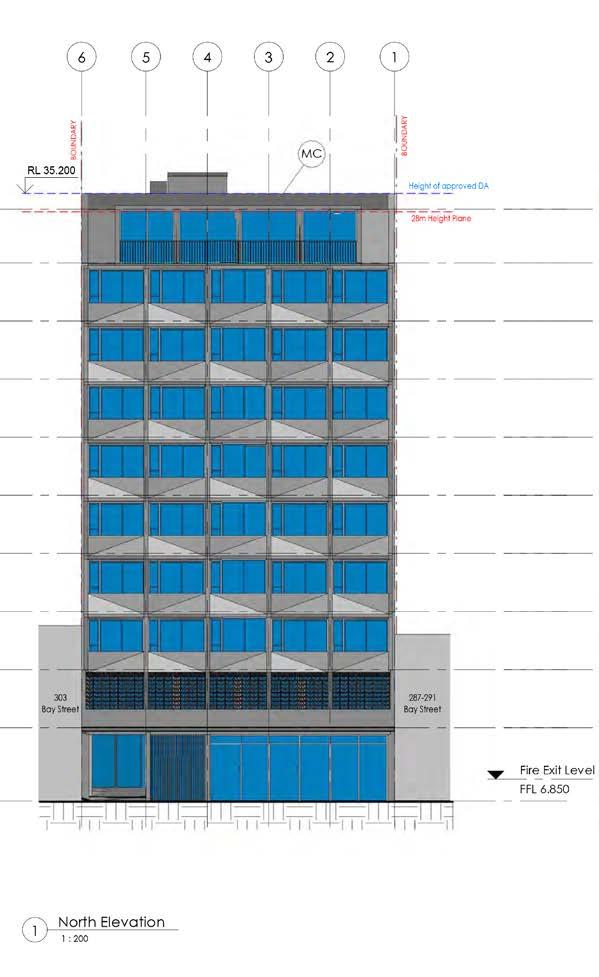

Site: 295 Bay Street, Brighton. North facade

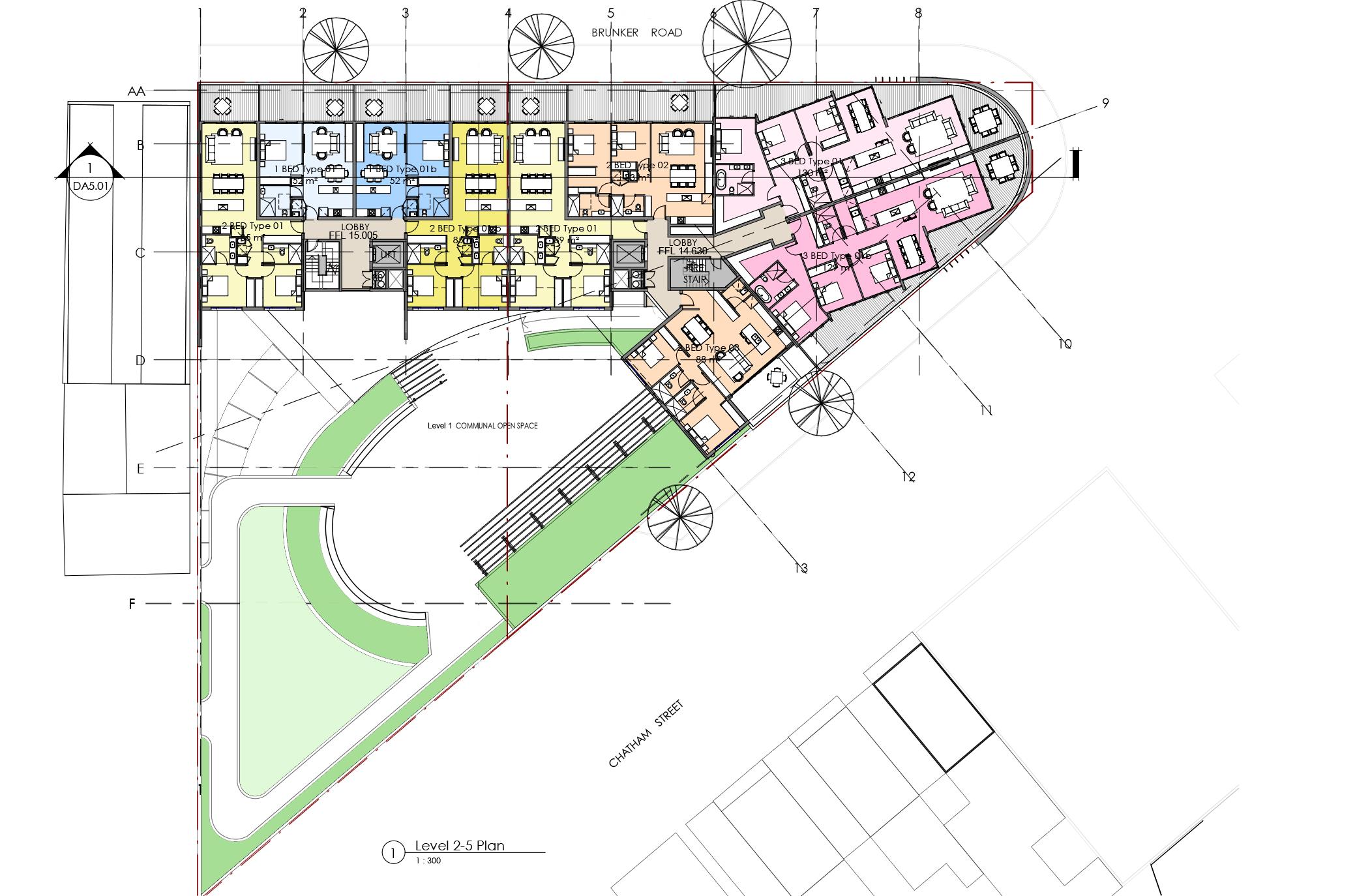

Old Tavern Renovation

Re-introduction of the prominent corner

Reinstating a prominent corner element to address Nine Ways and form a gateway to Brunker Road. The corner element could be either a faithful re-construction of the original building or a modern interpretation of it, although we recommend the latter. The new building at the rear of the site forms a backdrop to the corner element, which retains the original tavern function of the building, adds hotels and residential facilities.

The project process: currently in the process of preparing DA documents.

3D Modeling , Plan Drawings(assist with Senior architect)，Renderings

JSA Studio / 2022- Revit

-Sustainability

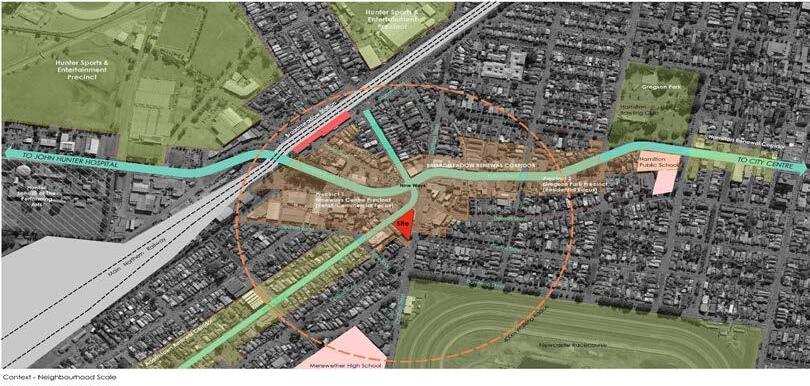

Context - neighbourhood scale

Proposal - Sustainability

combines positive environmental, social and economic outcomes. Good sustainable design natural cross ventilation and sunlight for the amenity and liveability of residents and passive for ventilation, heating and cooling reducing reliance on technology and operation costs. Other include recycling and reuse of materials and waste, use of sustainable materials, and deep soil zones groundwater recharge and vegetation.

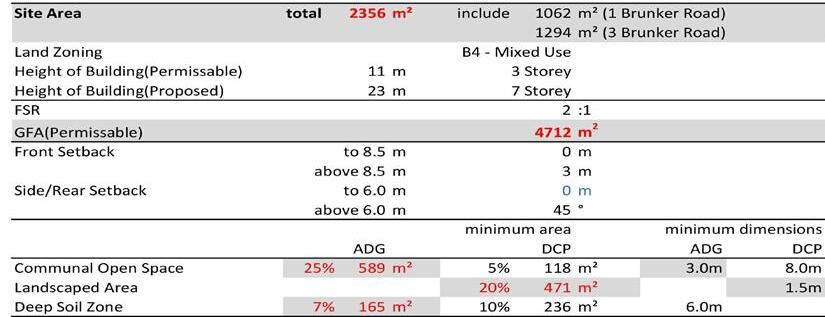

Table 1: Development Data

provides an array of enviable sustainable features which when combined provide outcome for users and the environment. The design is a synergy of strategic overlay of technological, landscape and designed elements to provide an ecologically sound proposal.

The building was oriented in a North facing direction to ensure 35 out of the 39 living spaces receive the minimum required direct sunlight for apartments, with the majority receiving above the 2 hours mandated by the ADG. Furthermore, all units at this present tie have views around the site. Whilst not a requirement for ADG, bedrooms will also have views. Aside from the Café unit, all retail, hotel rooms and food and beverage receive daylight, reducing the demand for artificial lighting and in turn improving the health and well visitors to the development.

Context -neighbourhood scale

VENTILATION: The design and positioning of the residential units allows the 27 of the 39 units in the achieve natural cross ventilation, which is 69% of the total units which will help significantly artificial cooling required in summer. This is achieved with apartments that have windows on facades of the units into the open courtyard.

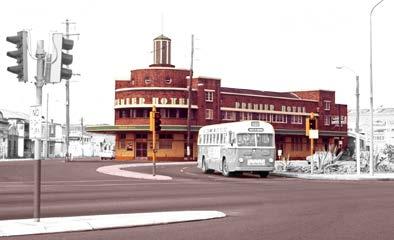

The building constructed during the 1930s addressed Nine Ways with a prominent building form and height greater than current height plane. The built form created an identity for the hotel.

SELECTION: Projecting balconies made of cast in place concrete balconies help to regulate temperature fluctuations. Projecting retail canopies include integrated PV panels to allow natural light to the interiors whilst protecting from solar heat gain. Strategically placed horizontal fins, shade devices and mesh provide additional protection from direct sunlight as well as design that promotes bio diversity, cooling, polution filtering and overall well being of

The proposal with its mix of uses will be an enhancement to this popular destination. The expanded facility with new retail unit, hotel rooms, apartments, green scapes and inviting public areas will make this a more outward facing place, adding to the hotel’s modern community contribution .One of the few facilities of its kind in the area, the expansion will add value to the area and be an urban catalyst.

The existing building will be demolished in accordance with the waste management best materials recycled on or off site where possible.

EFFICIENCY: An energy efficient assessment of the units has been undertaken under the BASIX/ system by AENEC, with the development achieving an average rating of 5.7 stars, with 100% accomplishing at least a 4 star rating.

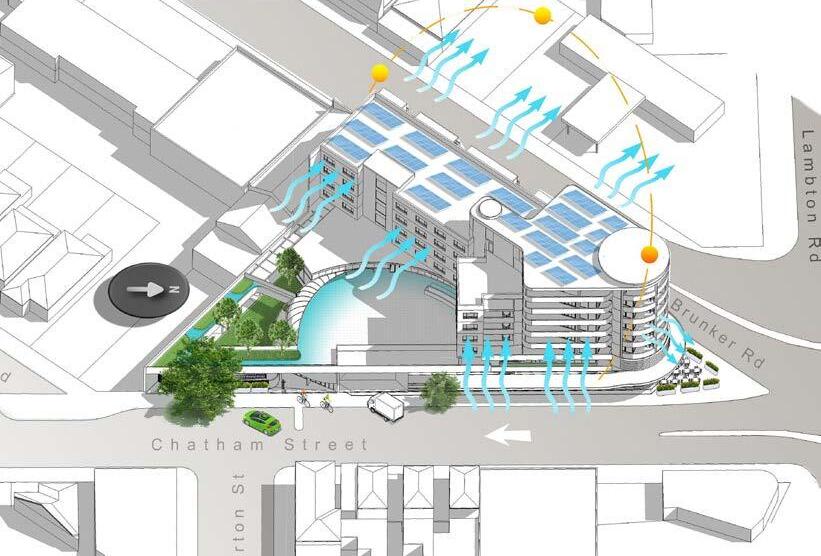

annotated diagram on the right illustrates the many sustainable initiatives integrated into the design.

Good sustainable design includes use of natural cross ventilation and sunlight for the amenity and liveability of residents and passive thermal design for ventilation, heating and cooling reducing reliance on technology and operation costs.

1. LED lighting inside and out with movement activated lighting to hotel corridors.

2. Majority of units are North Facing and have cross ventilation clear views.

1. LED lighting inside and out with movement activated lighting to hotel corridors.

3. Integrated fixed external louvers to shade glass attrium

2. Majority of units are North Facing and have cross ventilation clear views.

3. Integrated fixed external louvers to shade glass attrium

4. All units with dual flush toilets and water saving fittings and rain water re-use

5. Electric reverse heat pump to increase energy efficiency

4. All units with dual flush toilets and water saving fittings and rain water re-use

6. Insulation provided over high albido roof finish with roof mounted pv panels

5. Electric reverse heat pump to increase energy efficiency

7. End of journey facilities for residents or visitors with secure bike store under cover

6. Insulation provided over high albido roof finish with roof mounted pv panels

8. Secure basement car park with e-charge enabled facilities for future capacity

7. End of journey facilities for residents or visitors with secure bike store under cover

9. Awning to public realm below commercial, retail and pub with inset pv panels

8. Secure basement car park with e-charge enabled facilities for future capacity

10. Retention of existing street trees and supplemental planting to public areas

11. On site recycle faciliites to encourage user participation

9. Awning to public realm below commercial, retail and pub with inset pv panels

12. Native or low water species are used for the landscape design where possible.

10. Retention of existing street trees and supplemental planting to public areas

11. On site recycle faciliites to encourage user participation

12. Native or low water species are used for the landscape design where possible.

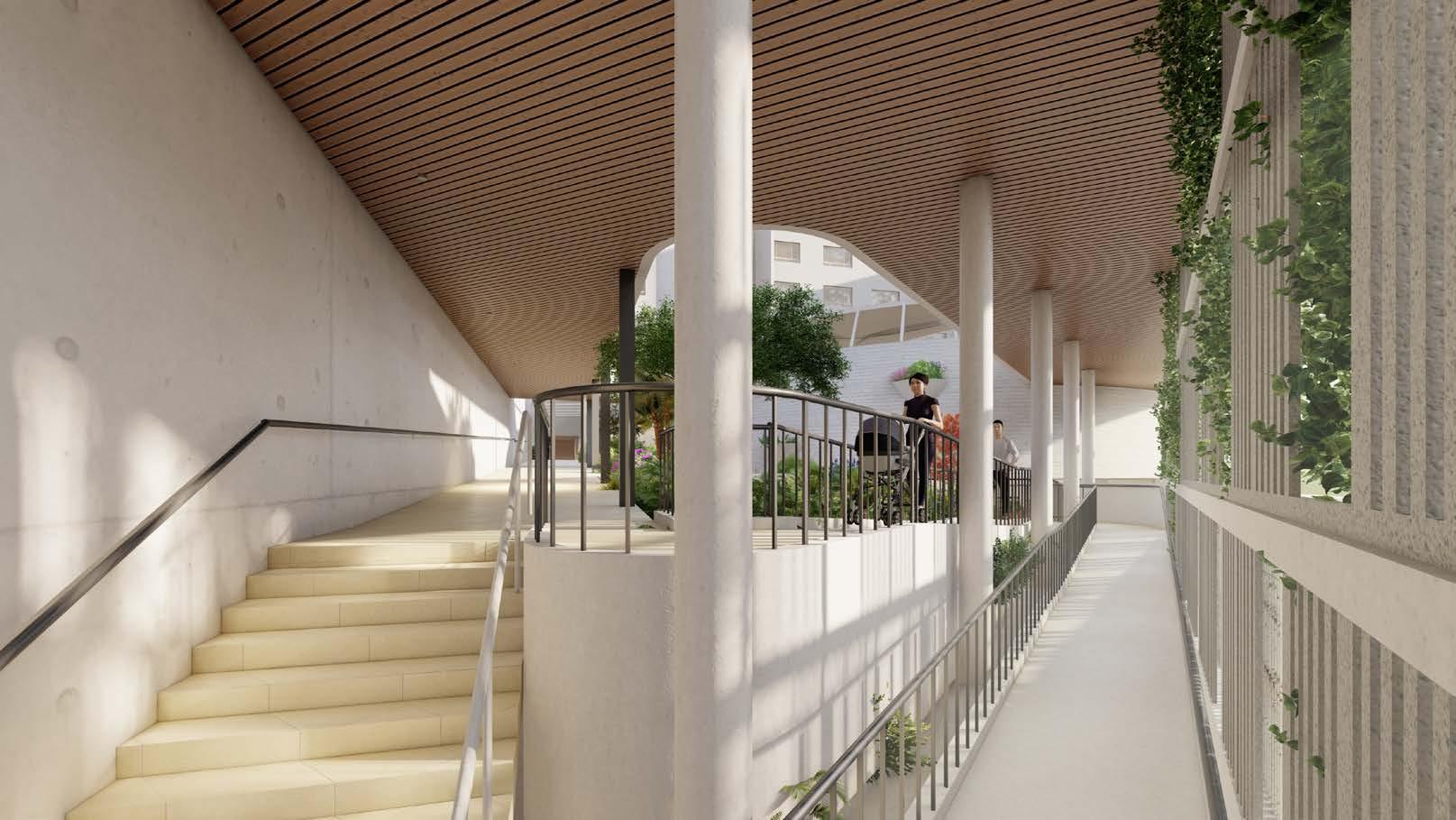

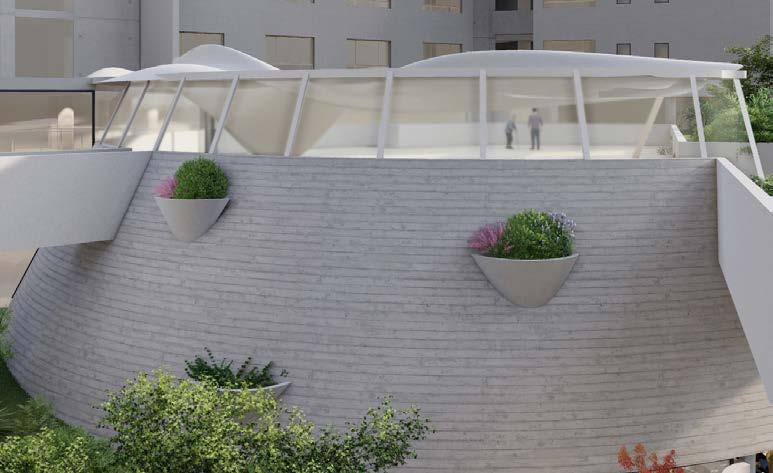

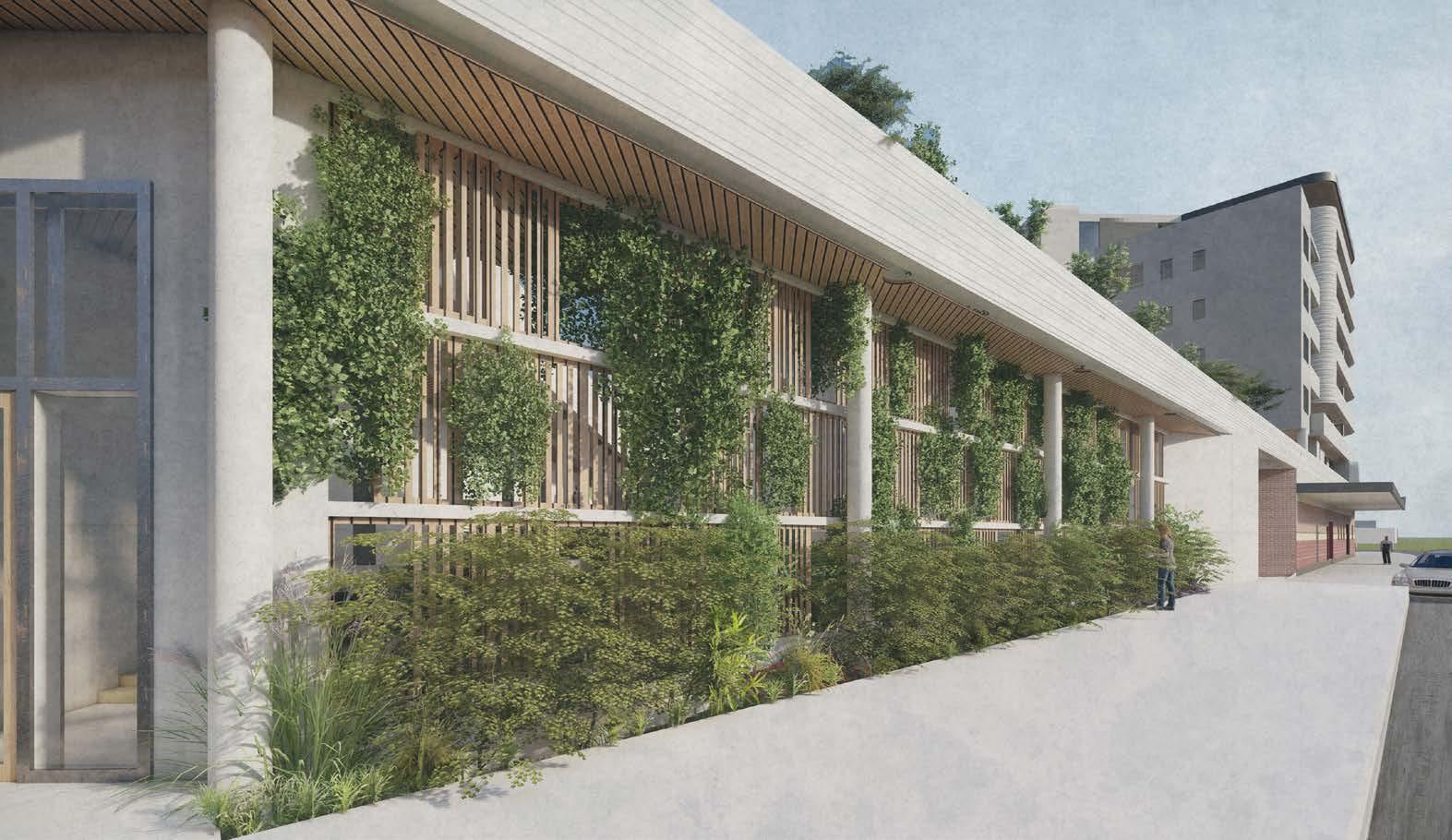

No.1 Building entry landscape designed by Junlong

Behind the building, a solid form with an open garden is used to alleviate the "corner" form of the whole building.

No.2 Entrance Fence Rendering and Design by Junlong

No green areas exist within the existing site curtilage. A street tree is located on Chatham Road and will be retained and protected, with additional trees on the proposed podium landscape area will add more street shade.The lattice fence both ensures sufficient sunlight and privacy inside the residence. At the same time, the Beer garden on the first floor has visual communication with the Chatham street.

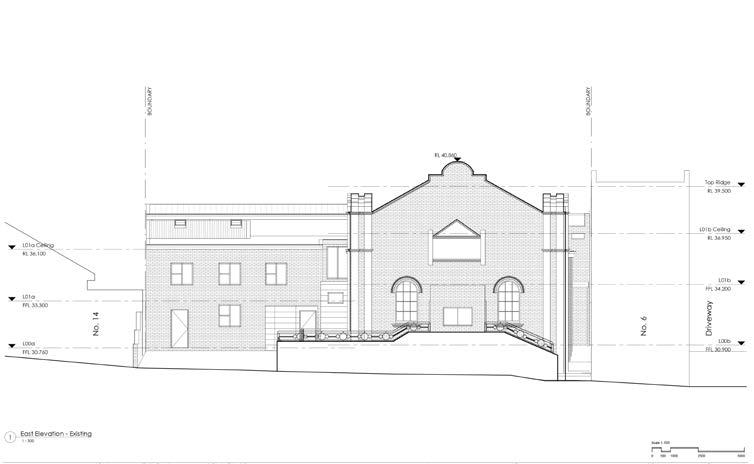

Historic Building Surveying and Reconstruction

Church to Co-living house (Boarding house)

The project is a surveying and renovation of a historic building, converting a church into a co-living (proposed student accommodation) by preserving the façade and demolishing the interior of the building wall.

The project process: currently in the process of preparing DA documents.

Surveying ,3D Modeling , Plan Drawings

JSA Studio / 2022- 2023 Revit

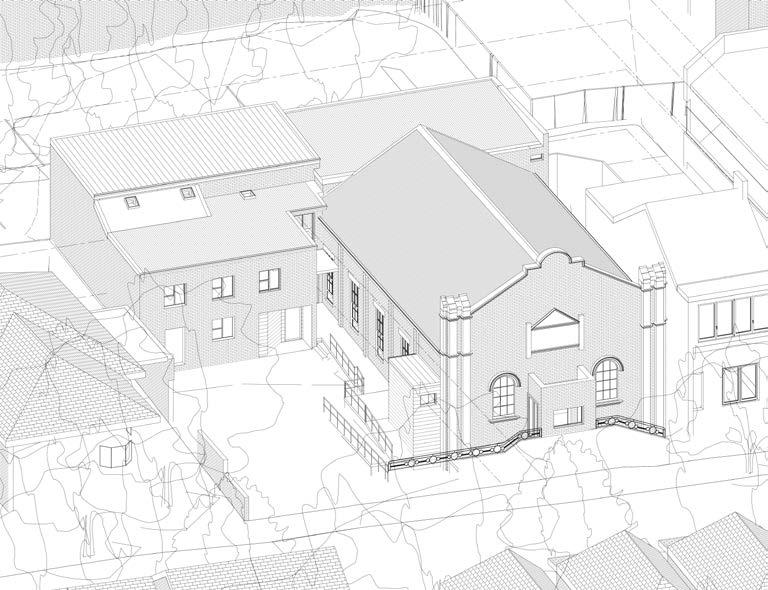

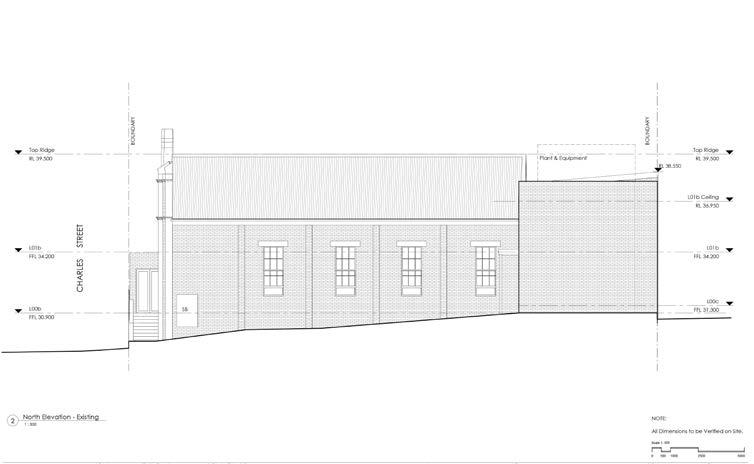

Exsiting Perspective View. Site: 10 Charles St, Petersham NSW 2049

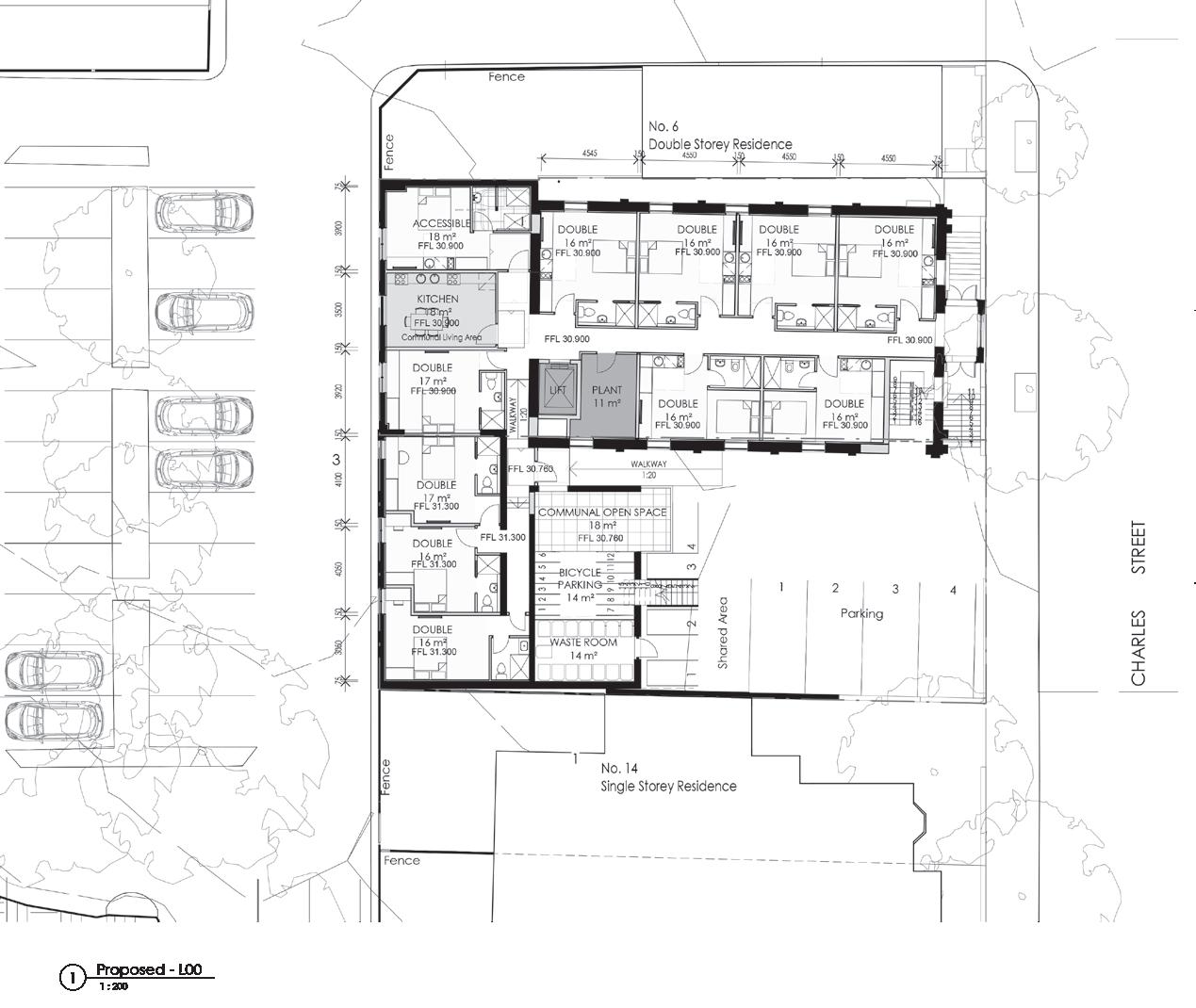

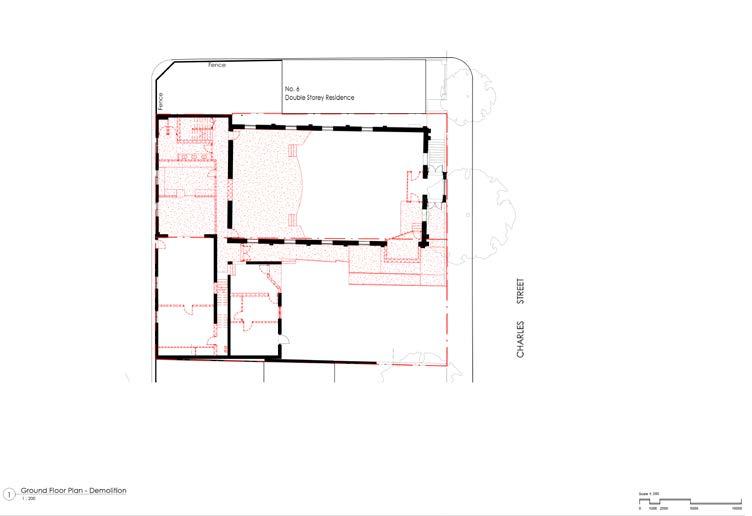

New Constructed Co-living House Ground Plan

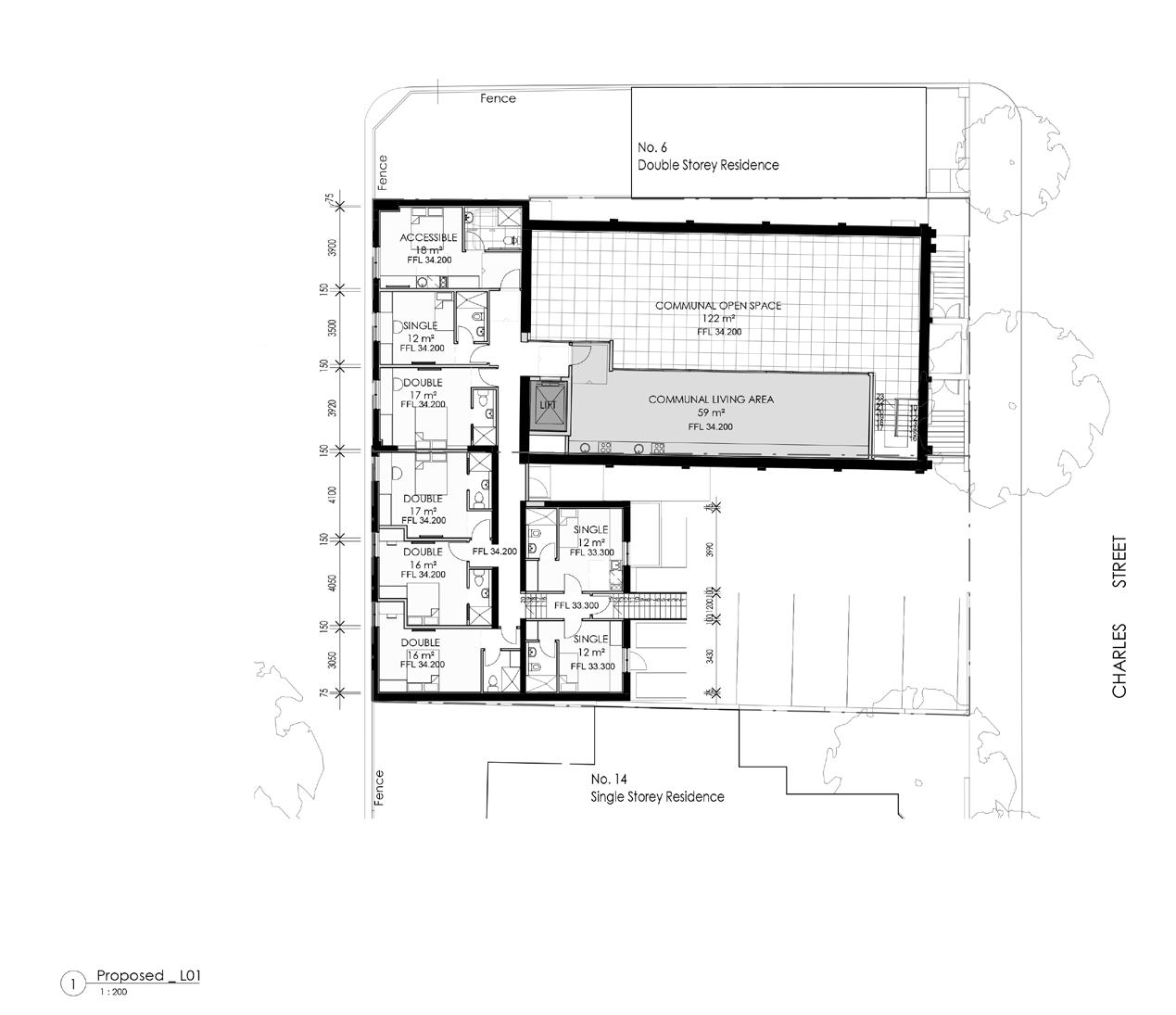

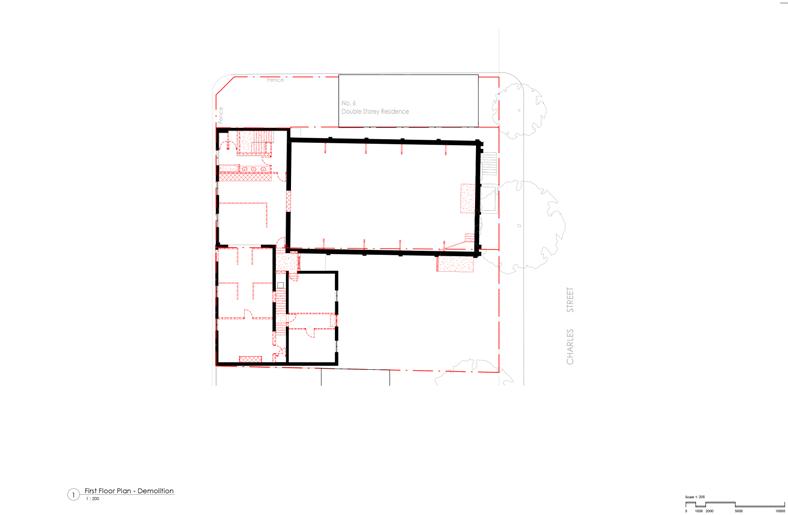

New Constructed Co-living House First Floor Plan

THEATRE OF VITALITY ARCHITECTURE

IN TRANSFORMATION

The theme of the competition is that due to failed planning or lack of planning on the urban fringe, parts of satellite cities as well as suburbs these areas are often fragmented and in urgent need of reconstruction.We design theme is how to revitalize a satellite city that was previously a heavy industry.

After the industrial boom of the late 20th century in China, left behind many abandoned factories in suburb. These factories are facing a difficult situation - transformation. How do we deal with these abandoned factories? My solution was to build buildings on the abandoned sites and transform the abandoned factories into public cultural buildings to give new vitality to the suburb. All the new buildings there are done in a new way, no longer as factories, but as cultural longevity.

UIA-HYP CUP 2019 International Student Competition in Architectural Design- Rhino

Modeling, Renderings,Diagrams

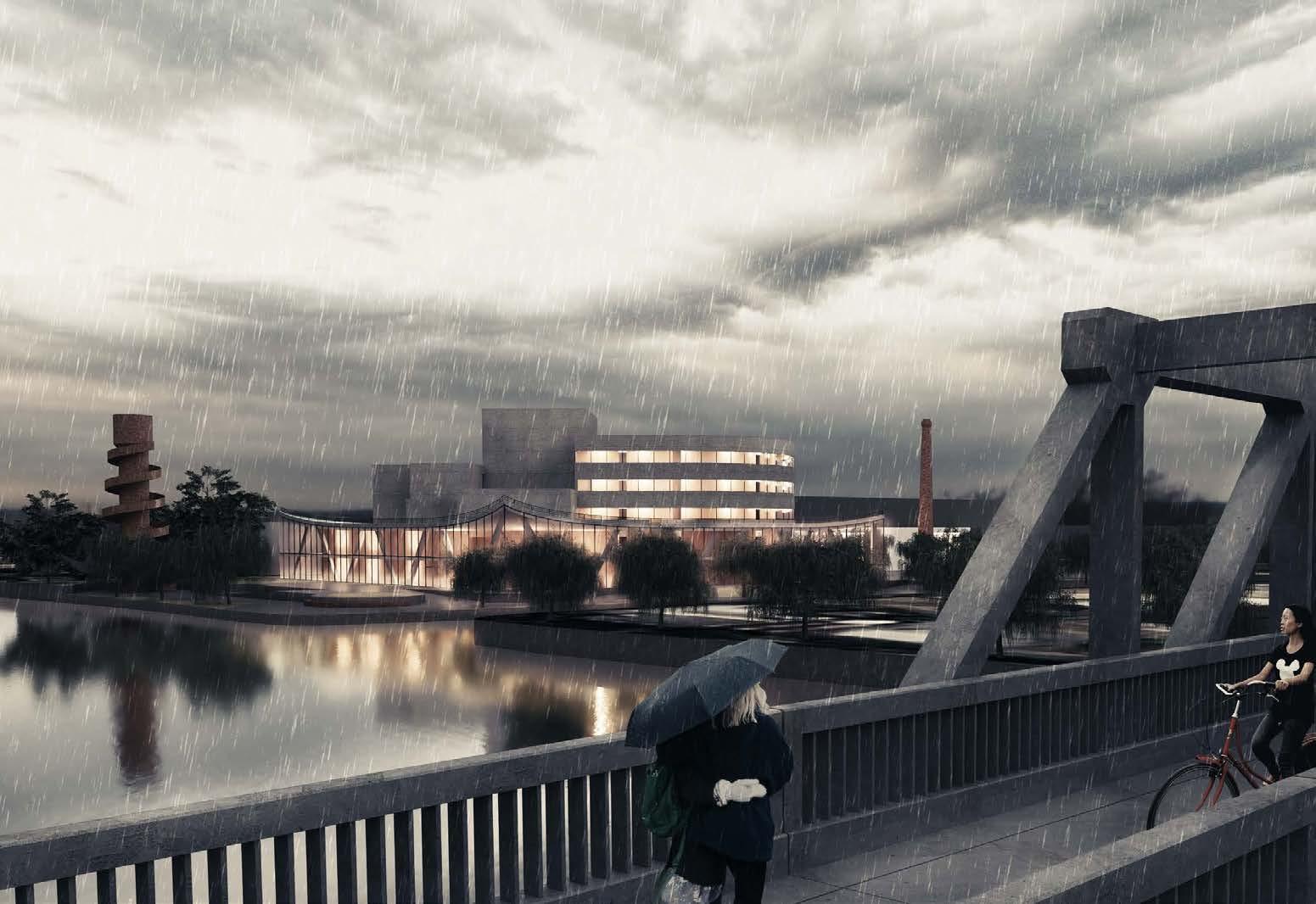

Location: TongXiang China Bank View

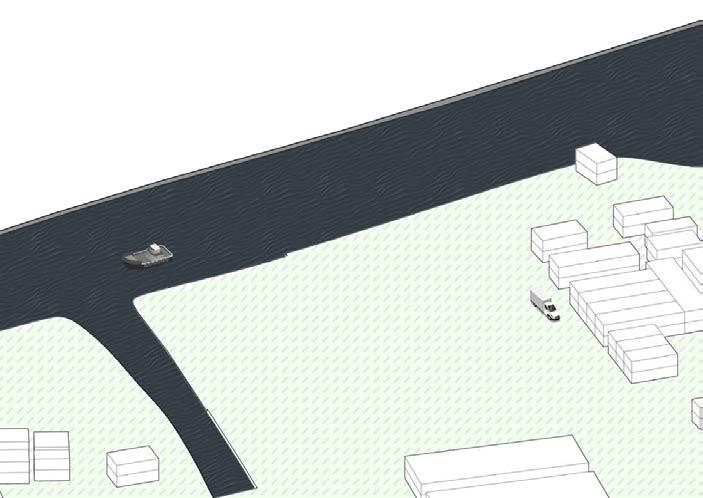

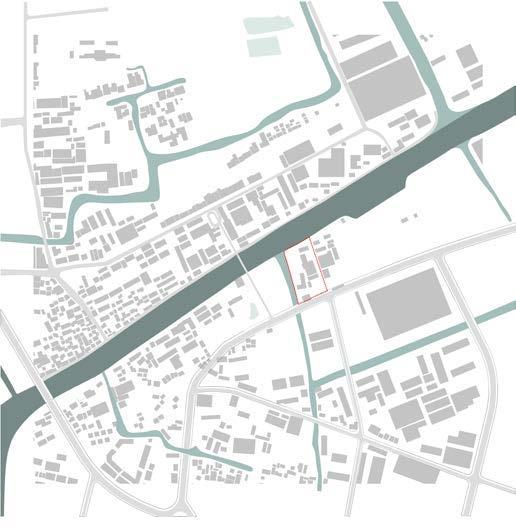

The road network in the selected area is precise. It is accurate and allows easy identification of entrances and exits.The entire site is surrounded by town main roads and collector street.

Inside the selected area, are old or abandoned factories.The location is also near the residantial and agricultural district.

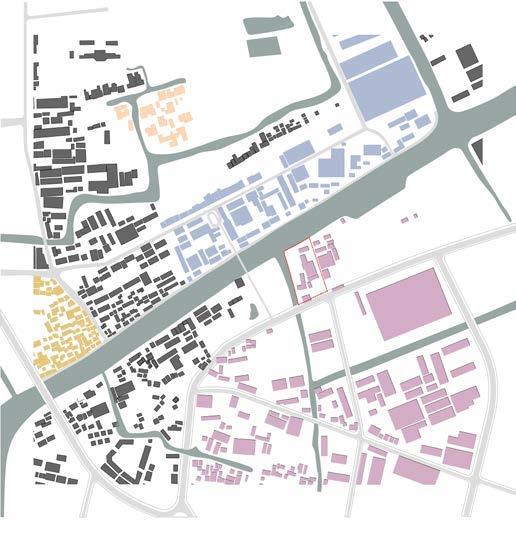

The analysis diagram shows that there are almost no public buildings in the entire town of Tongxiang.The area includes 20% agricultural land, 65% of industrial land and 15% of residential land.

An important mode of transportation in this rural industrial town.The industry in this village is the canal.The back of the building is what was once the largest canal in Chinese history, so incorporating a water-friendly landscape is also important to consider, as well as flood control.

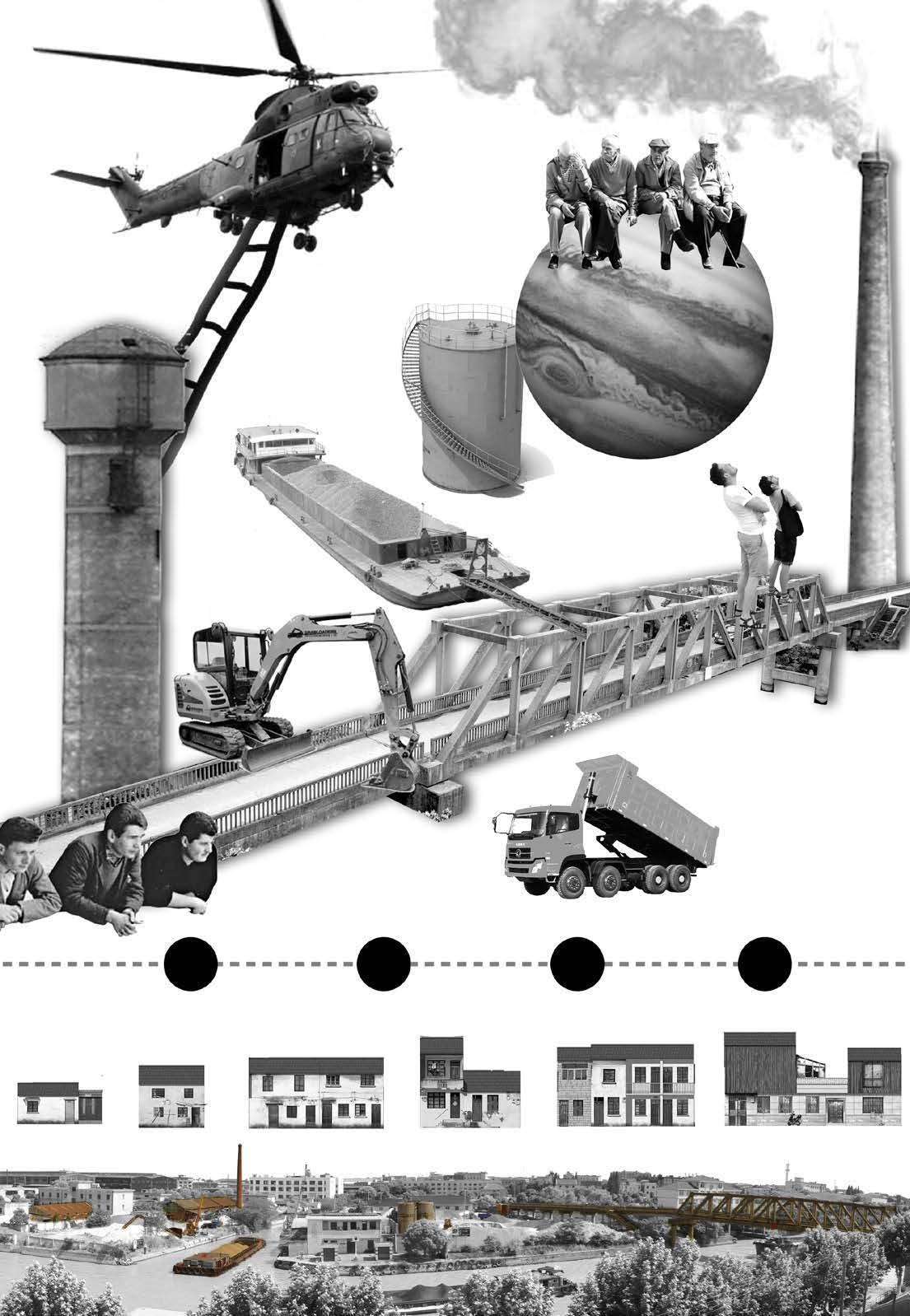

1: Abandoned Wachtower

2: Chimney

3: Old Concret Steel Bridge

4: Excavator

5: Sand Carrier

6: Drum (Storage bucket)

7: Truck

1978s 2003s

1860s

Westernization Movement The Third Industrial Revolution Reform and Opening-up Full Industrialization

Timeline of Modern Chinese Industry

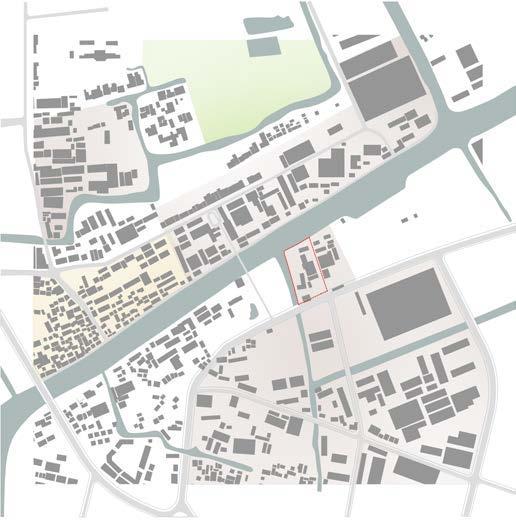

Main Road Collector Street Metalwork Factories Factory Zone Agriculture

Old Dwelling New Residential

Agricultural Land

Branches of canal

BeiJing-HangZhouCanal

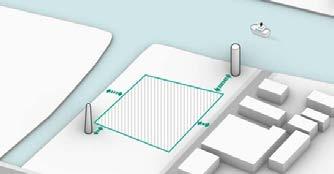

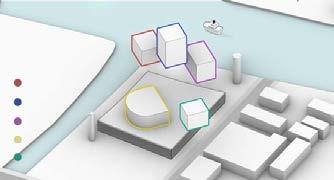

The main building block has been designated be bounded by a old industrial building line .

In consideration of the height of the surrounding buildings, biggest building block will be created the on the ground floor.

The main theatre structure be positioned on the bottom block, and maintained a volume that was not too enormous.

Arranging the pedestrian flow arround the building onto the platform by using an L-from ladder.

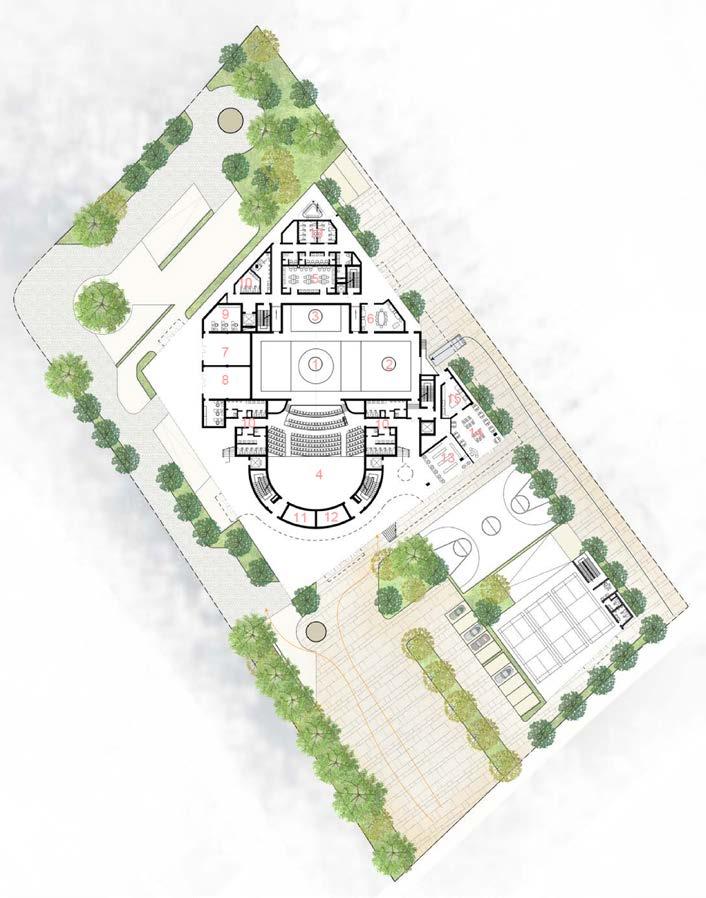

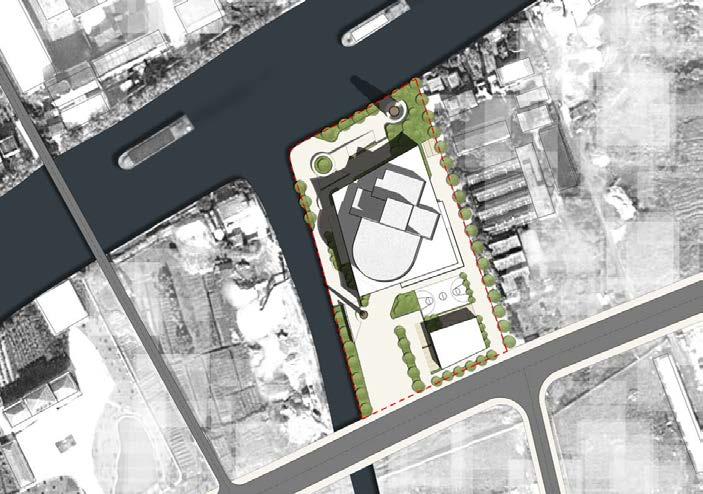

Site Plan

ShiWanRoad

DongGao Bridge

Auditorium

Main stage

Classroom

Rehearsal room

Secondary stage

Ground Floor

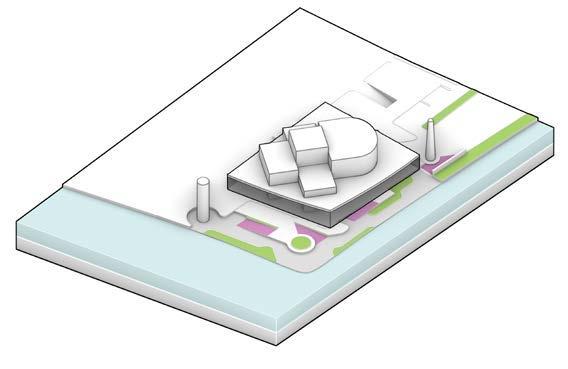

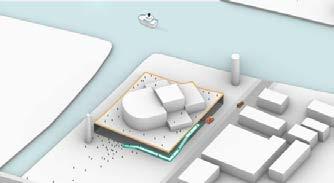

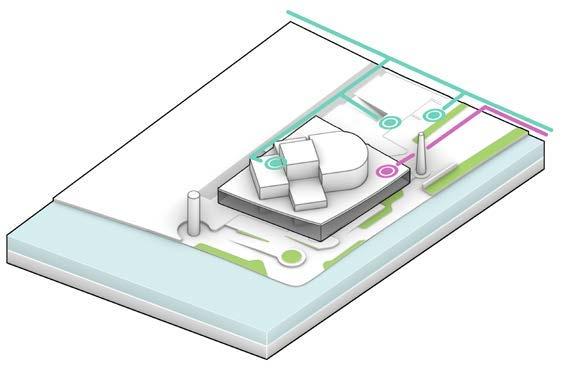

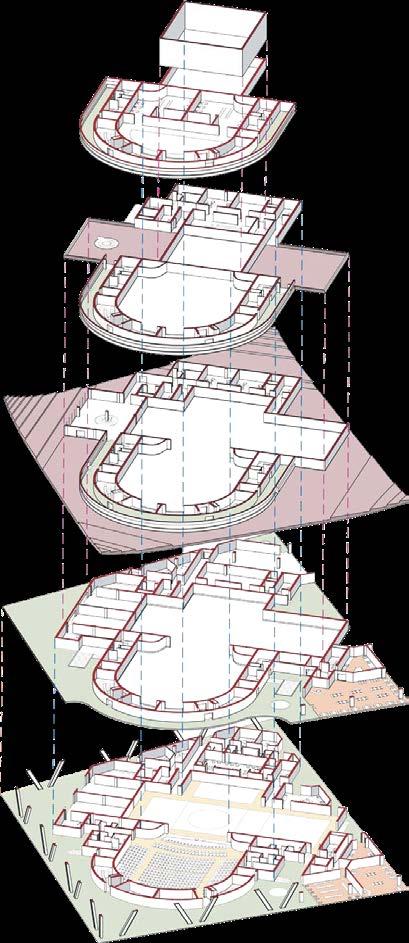

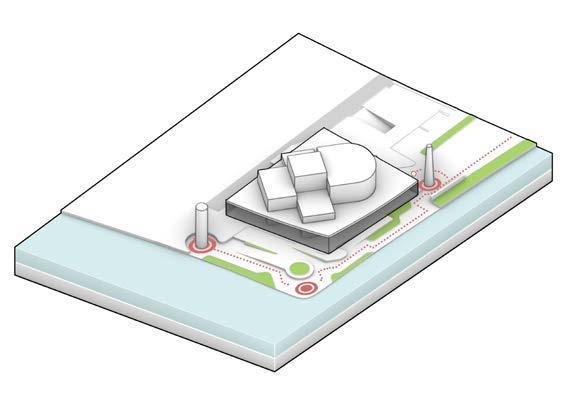

Axonometic Diagram

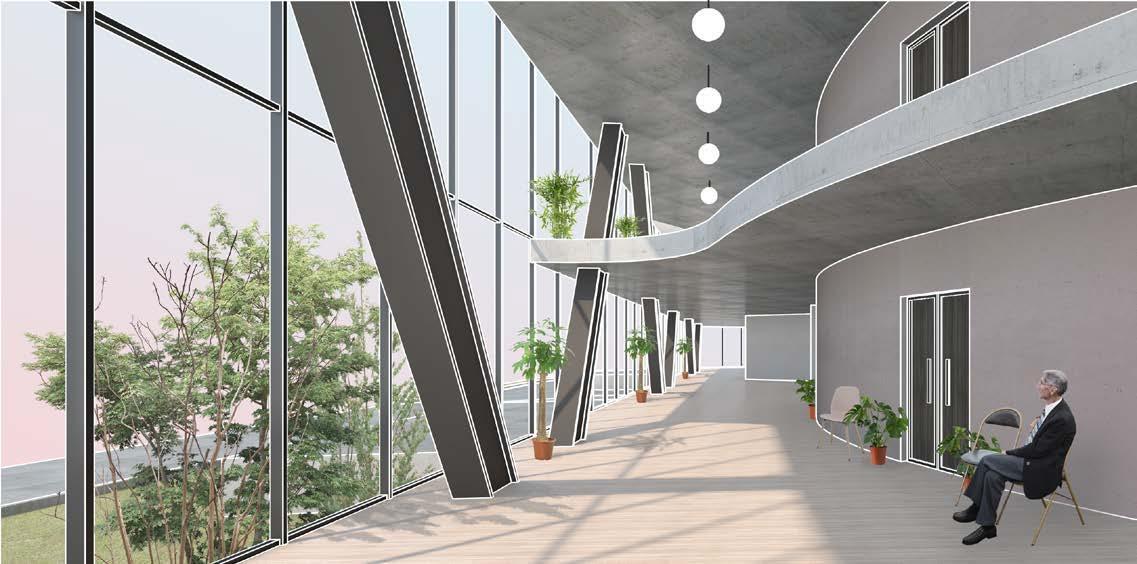

The staggered blocks form several outdoor spaces that provide good views, similar to the watchtowers of the north.These amazing spaces create more opportunities for people to interact with the environment and to better understand the history of the Beijing-Hangzhou Grand Canal next to the theater.

Along the red line (pedestrian line), there are landscapes providing abundant space for space for pedestrian traffic. The area also offers a variety of event spaces to visitors.and connects the chimneys maintained by the original factory and watchtower.

Vehicle

Pedestrian

Guideline Diagram Flood Protection Diagram

The pedestrian system is separated from the vehicle system by a parking lot with a car entrance. There is also an entrance to the south and a pedestrian entrance to the east.

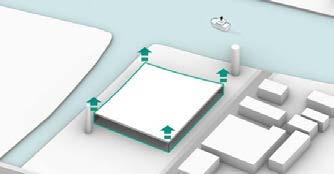

In consideration of the low water line in the location, an altitude structure has been built to connect the bank closer to water. In addition, several slopes around the building connect to the high levels of that structure.

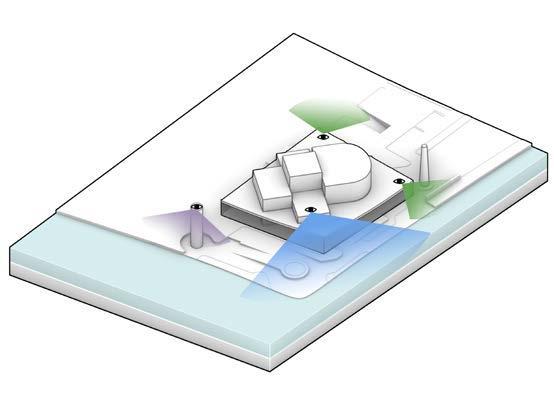

View Diagram Surrounding Spaces Diagram

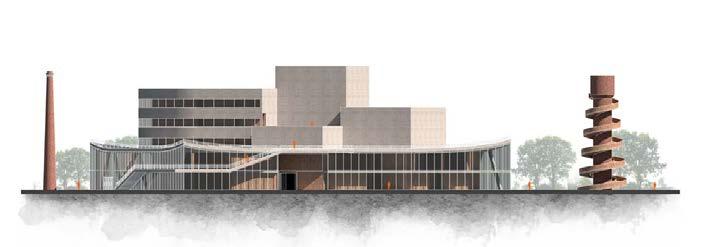

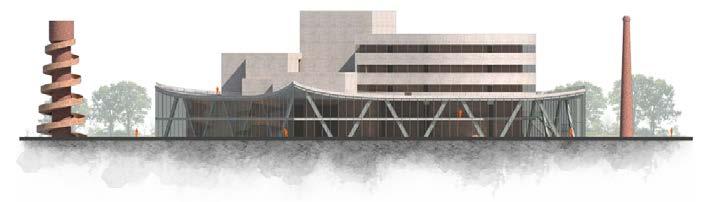

East Elevation

West Elevation

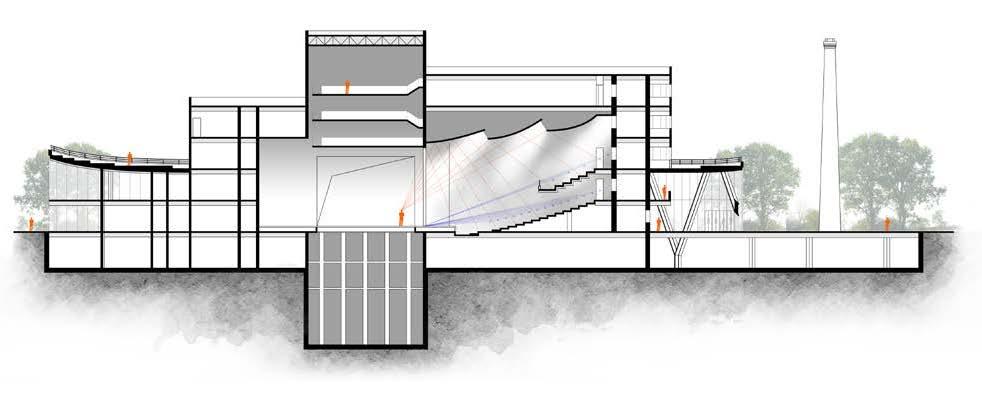

1-1 Section Lobby

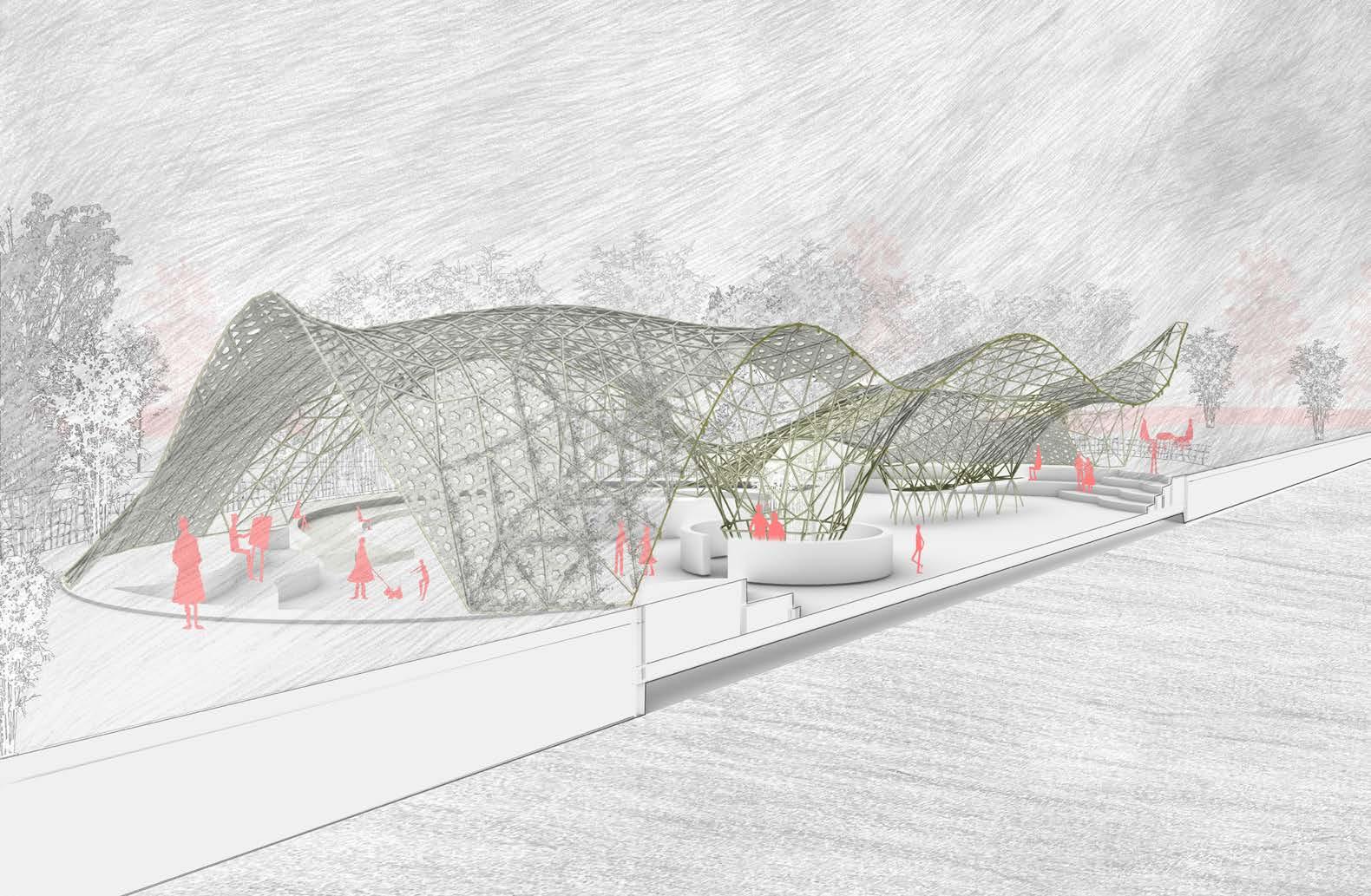

BAMBOO; RATTAN PAVILION

Bamboo has been used in people planting and using bamboo for thousands of years, from the raft to construction to indoor potted plants. In addition, the sustainability of bamboo can reduce the pollution of traditional building materials.

Furthermore, the bamboo structure cover with local rattan plants, twining is the characteristic of this vegetation. Because the rattan can be firmly wound to the bamboo structure, and even after the bamboo structure is corroded or destroyed, the original space can bestill maintained by rattan. Therefore, the purpose of our pavilion is to use bamboo as the initial material of the pavilion, then rattan can replace the original bamboo structure after the bamboo structure has been deconstructed for several years to design a sustainable pavilion.

Parametric Modeling, Renderings , Animation,Analysis Diagrams,Skteches

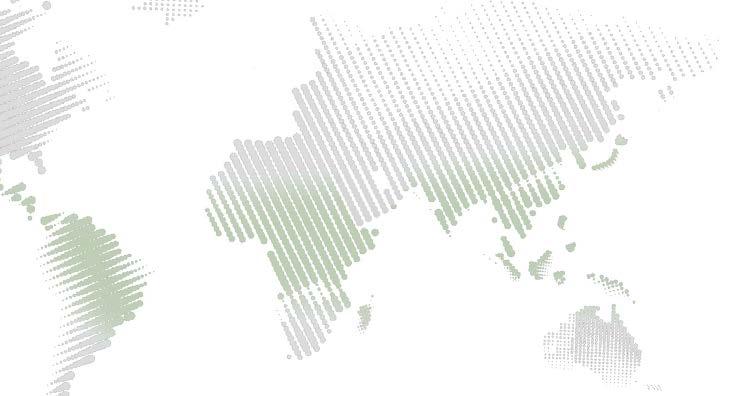

The dot size represents the growth conditions of the bamboo. The smaller the spot represents the local environment is the less sutiable for bamboo growth. Conversely , the larger spot,means that the environment is more suitable for growth. Green represents the distribution of bamboo in the world. Rattan native from blue circle .Consequently, we consider the overlap area can be pavilion location.

MARC5020 Architecture Studio 2 /2021- Grasshopper

The University of Sydney

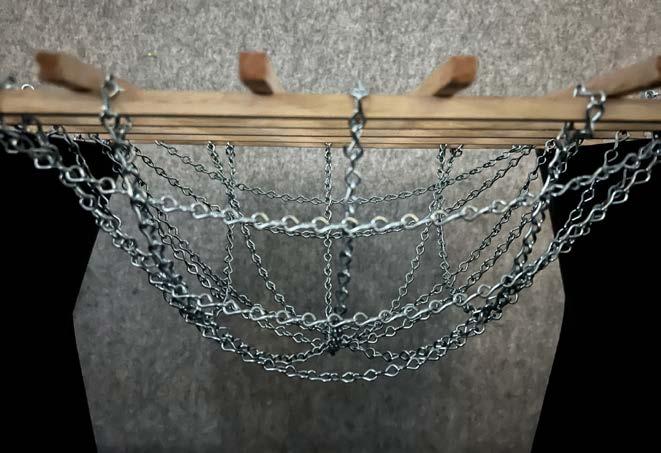

Pavilion Form Finding - Hanging Chain Gravity Experiment Anti-gravity

Parameters of Pavilion Form

According to Funicular-Hanging Chain Experiment which we did, we have interpreted this parameter into Grasshopper. We recognise that most of parameters are in the plan. This is because lath size will be likely to contribute our pavilion form. Then we plan to vary these parameters to create a good internal spaces for public.

1 Perimeter Shape(Pavilion Plan)

2 Perimeter Anchor Point Position

3 Perimeter Lath Length(Red circle: Entrance)

4 Vertical Force(Create Arch Form)

5 Internal Anchor Points (Anchor Point= Gravity)

6 Internal Anchor Point Position (Load Direction)

Pavilion Ground Plan 1-1

Ground Plan 1:150

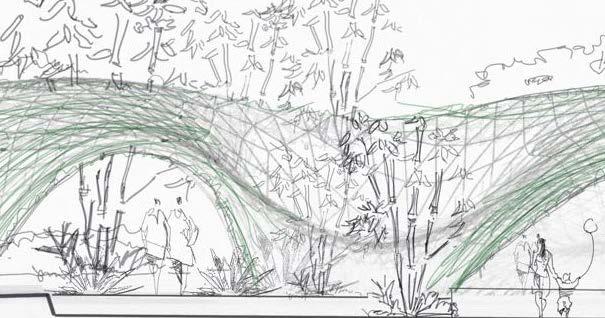

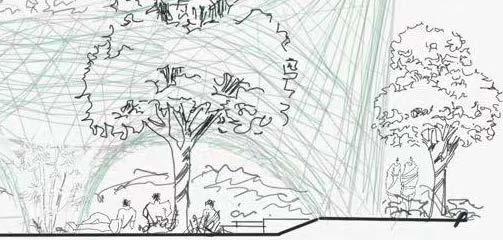

Interior Sketches

North Entrance

Outside stage

Rest area

Cortile

Woven Bamboo Structure

Stone foundation

Interior Woven Bamboo Structure

The interior of the pavilion provides enough public rest space for local residents.And The entire Canopy built by larger span Bamboo. On the other hands, rattan covered the entire canopy to create a shelter space.

Bamboo pavilion can accommodate about 20 people at same time. In addition, an outdoor stage provides for local residents on the west side of the pavilion to celebrate the local cultural festivals.

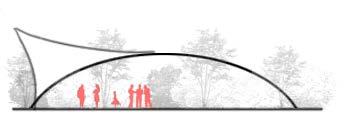

Pavilion Section

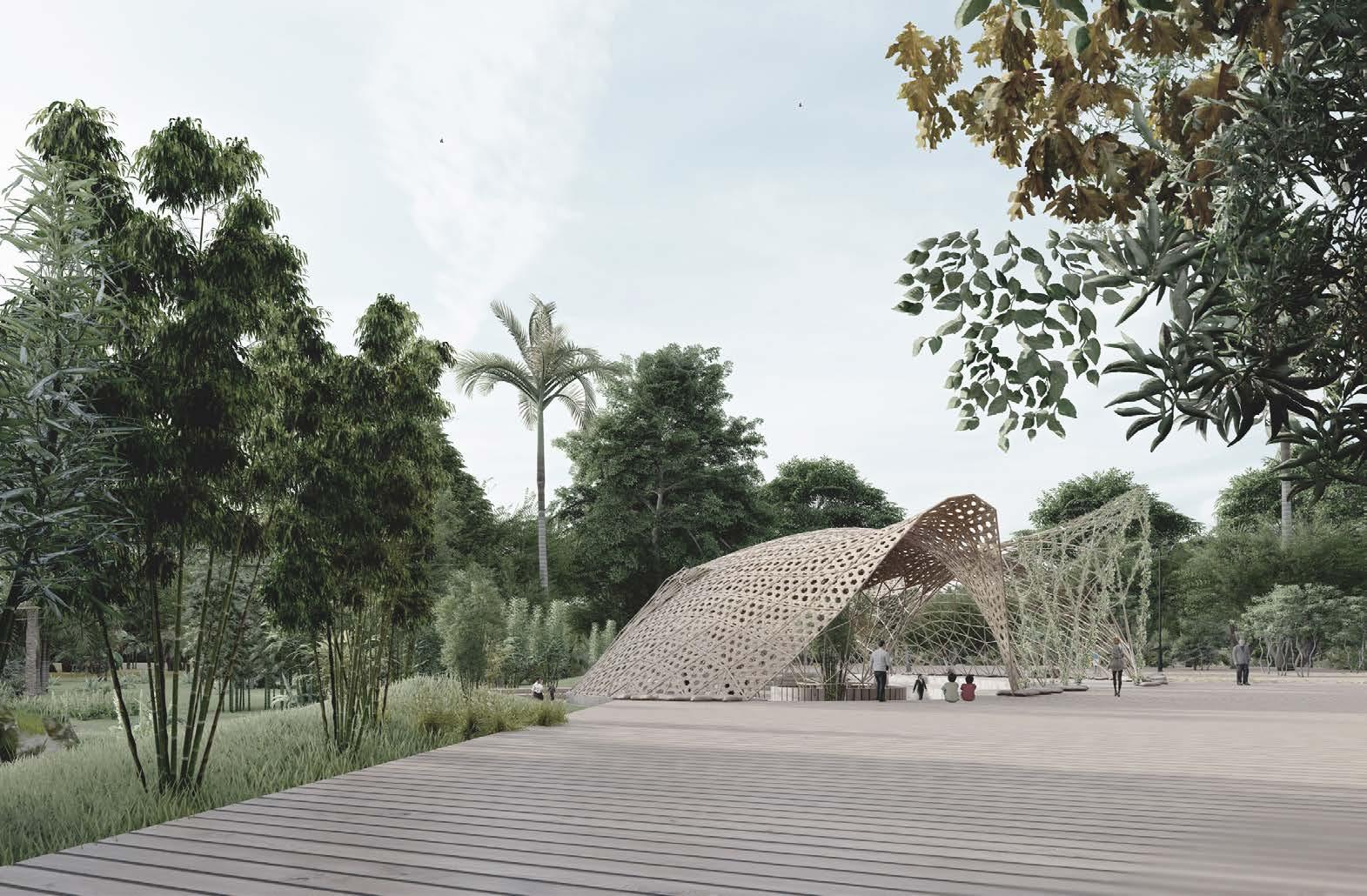

Renderings

Different height of roof can create more spatial experiences.

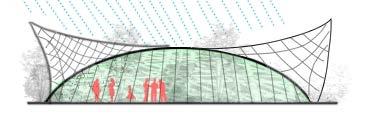

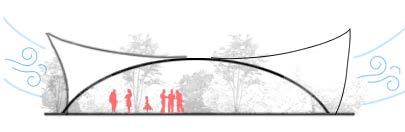

The sultry environment in Southeast Asia requires a good ventilation system for the pavilion space.

Climbing Rattan cover on the weaved bamboo structure can proof small stormrain.

An outside stage build up for providing an entertainment place for local residents.

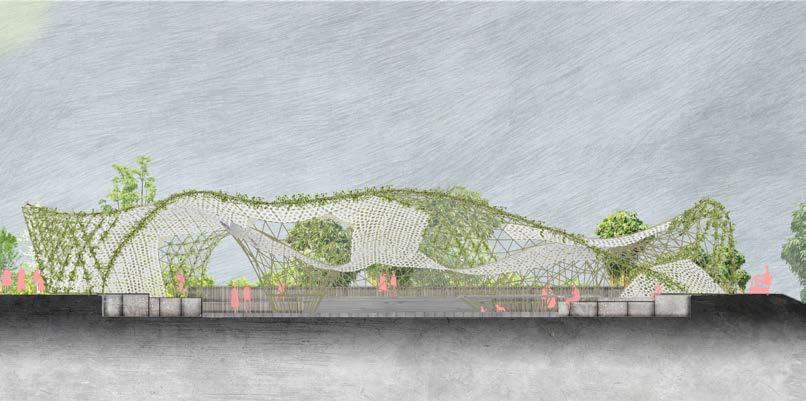

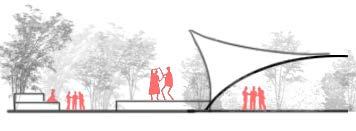

East Section1-1 1:100

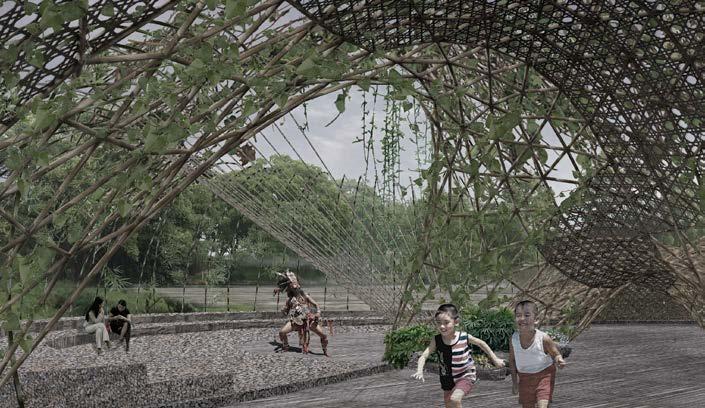

Pavilion Interior (rattan started growing)

Pavilion Interior (After 1 years, rattan gradually covered the entire pavilion)

Animation Link: https://www.youtube.com/watch?v=lUiycXzCKA4

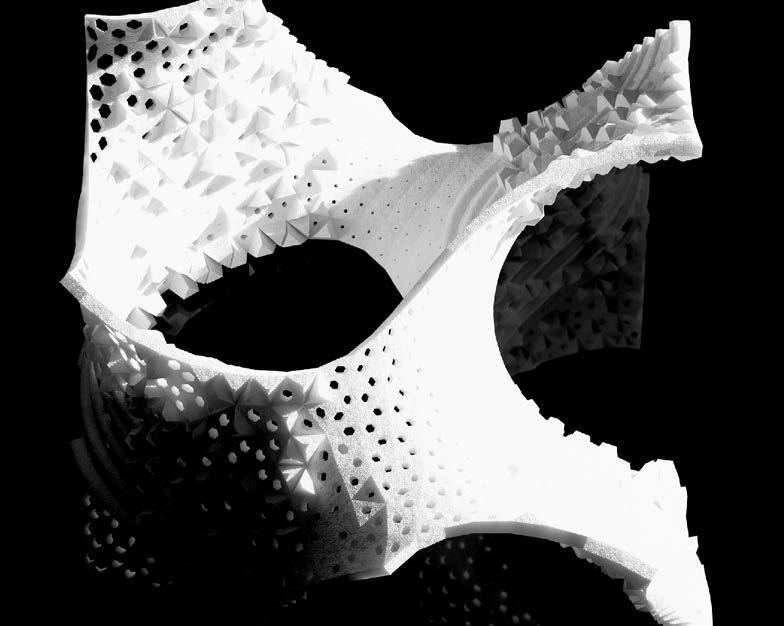

Tactile Journey In Ocean

The ocean is more mysterious to those who are visually impaired,and their perception of the world mostly comes from the senses of hearing and touch. This project investigates how to help people with low vision and the blind to perceive the ocean by touch.

The beautiful creatures of the ocean depths, with their particular patterns, can be perceived by sighted humans through photographs and images of these wonderful structures. At the same time, blind people cannot reach them. This project aims to present these beautiful creatures from the depths of the sea in their breath, their strength and their natural seeds to these visually impaired people.

inspired by glass sponge

MARC 5010 Architecture Studio 2 / 2021- Grasshopper

The University of Sydney

Renderings , Analysis Diagrams,Skteches, Digital print

The majority of low-vision individuals have a low ability to distinguish color and live in a black and white world. Hence the work will be presented mostly in black and white.

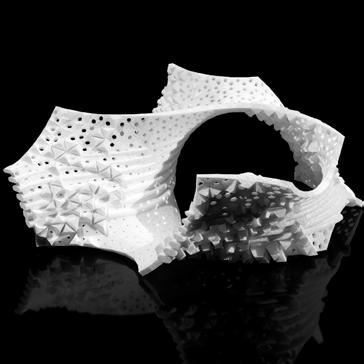

Iteration of Ocean Geometry

Sponges are among the strangest and oldest animals on Earth.And glass sponges are probably the most mysterious and oldest sponges.The oldest sponges. Strictly speaking, they are animals; they lack many of the basic features and have no structured organization. They have no organs. and no respiratory system, digestive system, or nervous system either. Therefore, in order to help blind people better understand marine life, we scanned a sponge model and then matched it to a more regular digital model (gyroid) for trimming to get the final one.

The result of triming

Scanning model

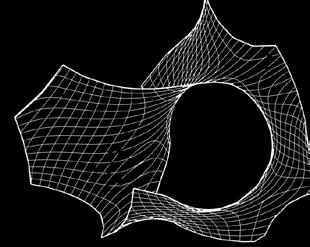

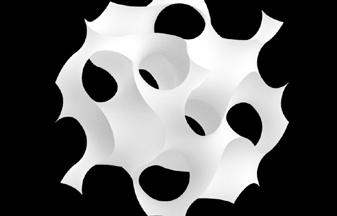

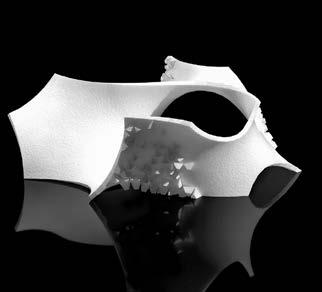

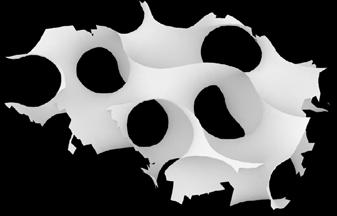

Digital model(gyroid surface)

Glass sponge Glass sponge

Trim the sponge geometry

These figures show fragments in different sizes are trimed in different depths.

depth of interception

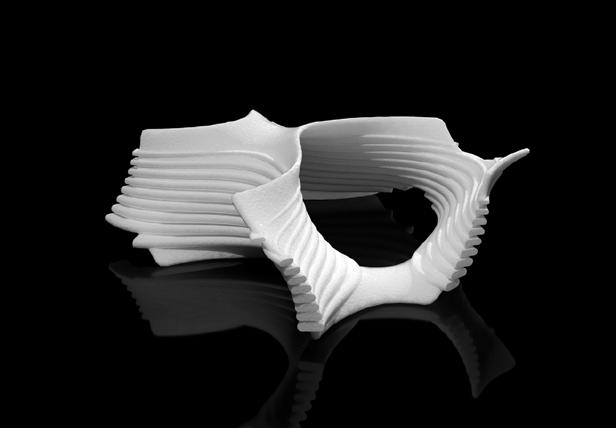

Ocean Creature- Whale

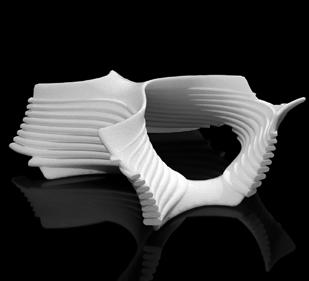

This stripe pattern concept comes from the geometric lines characteristic of whale skin, allowing the blind to touch the regular stripes to understand the large creatures of the ocean and the vitality of the ocean.

Whale's skin pattern Fur-Development—Stripe pattern（Vitality） Digital Model

1. Select the area which generates the line shape.

2. Divide surface to generate the edges as reference of final geometries.

3. Divide curves to points

4. Calculate the distance of points to reference points as basic data.

5. Offset points according to the previous data

6. Create interpolate curves through the set of points

7. Curves to surfaces 8. Surfaces to geometries.

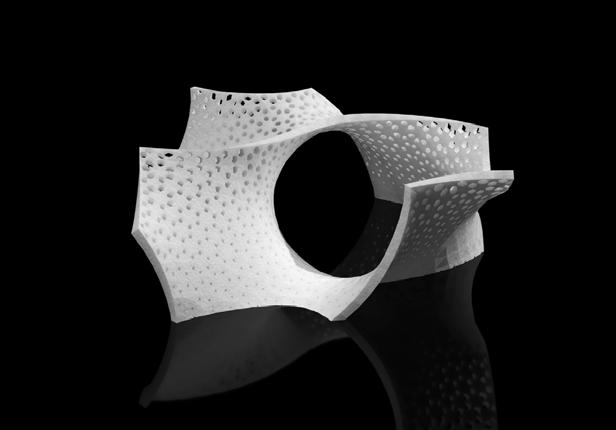

Ocean Creature- Sponge

This hole pattern concept is to simulate the geometric lines characteristic of Sponge. At the same time the hole size in the pattern is randomized to more authentically simulate the characteristics of marine creatures.

Sponge

Fur-Development—Hole pattern（Breath）

Digital Model

1.Divide the basic surface of geometries by triangle shapes.

2. Select every triangle surface center. 3. Calculate the distances of centers to reference points as basic data.

4. Offset the nake edges of every triangle surface

5. Create a line between the corners of the each offset triangle and the each centers.

6. Create middle point of this lines.

7. Generate the hole according to the lines

Ocean Creature- Barnacle

The parasitic relationship in the ocean is demonstrated by representing the barnacles growing on the surface of the whale's skin through the raised geometry on the prototype.

Barnacles

Fur-Development—Rising pattern （Parasitism/Symbiosis）

Digital Model

1.Divide the basic surface of geometries by triangle shapes.

2. Filter these triangles and choose the areas close to boundaries.

3. Randomly pick some triangles.

4. Create centers of these triangles.

5. Calculate the distances of centers to reference points as basic data.

6. Offset the nake edges of every triangle surface through the basic data.

7. Loft these triangle curves to create geometries.

Combination

Whale-Stripe

Sponge-Hole

Barnacle- Rising

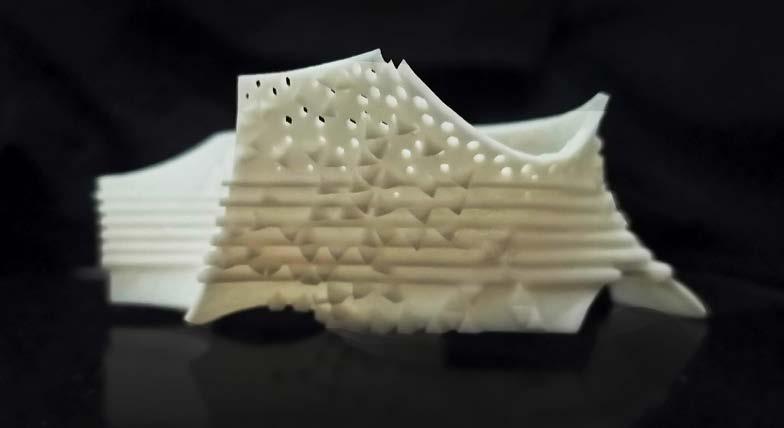

Work Process of Robotic

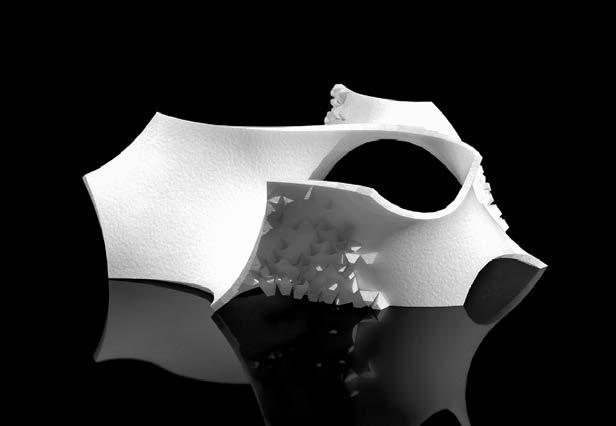

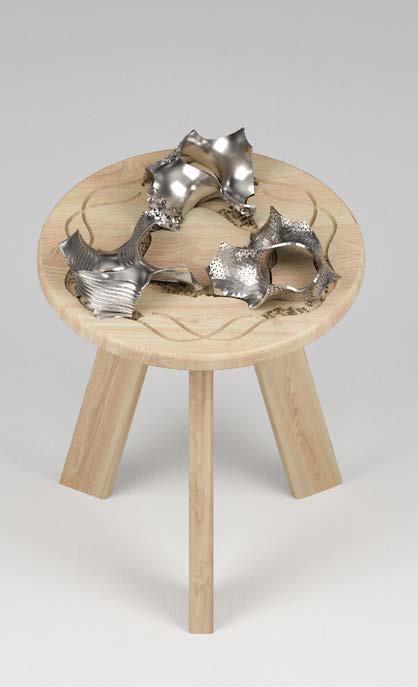

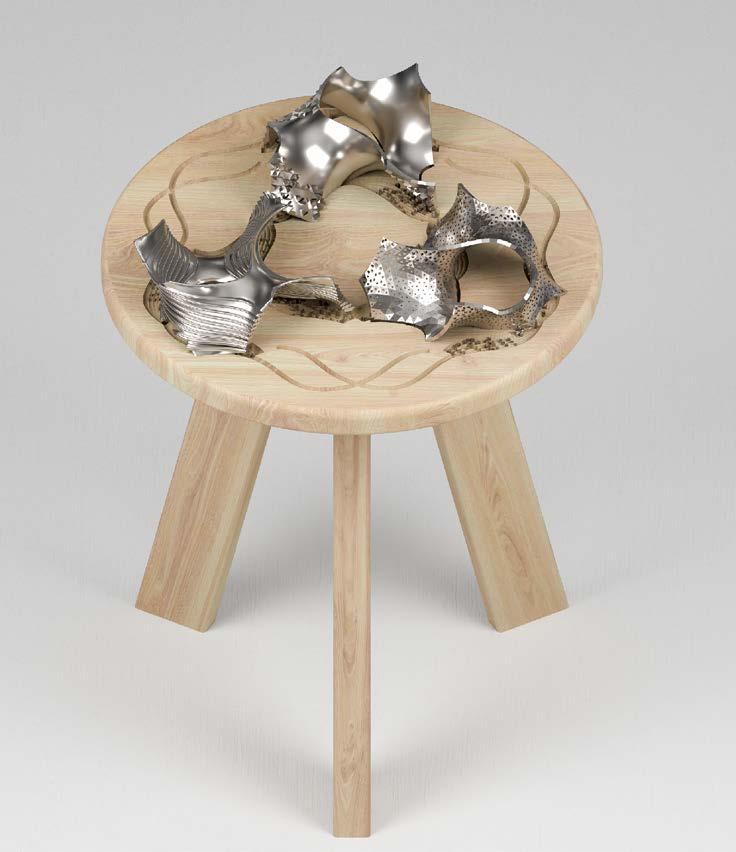

Tactile Chair

The final project we would like to present is a chair that combines 3D printing and wood working. In order to give a good tactile sensation to the blind, we carved the pattern "WAVES"characteristic of marine life by means of a robotic arm KUKA prc, facilitating their perception of the ocean through touch.

The visitors can also access the different ocean-creature skins by the 3d print model on the top of chairs. Additionally, Brailes used to explain the topic are implemented on this chair by inserting some metal protrusions.

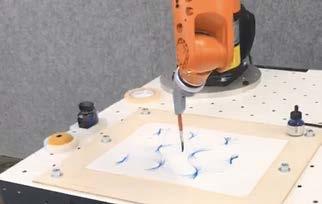

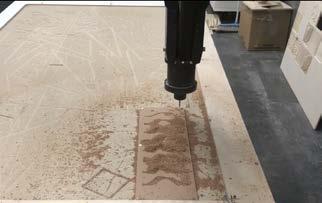

Draw Pattern with robotic arm Carved Pattern with robotic arm

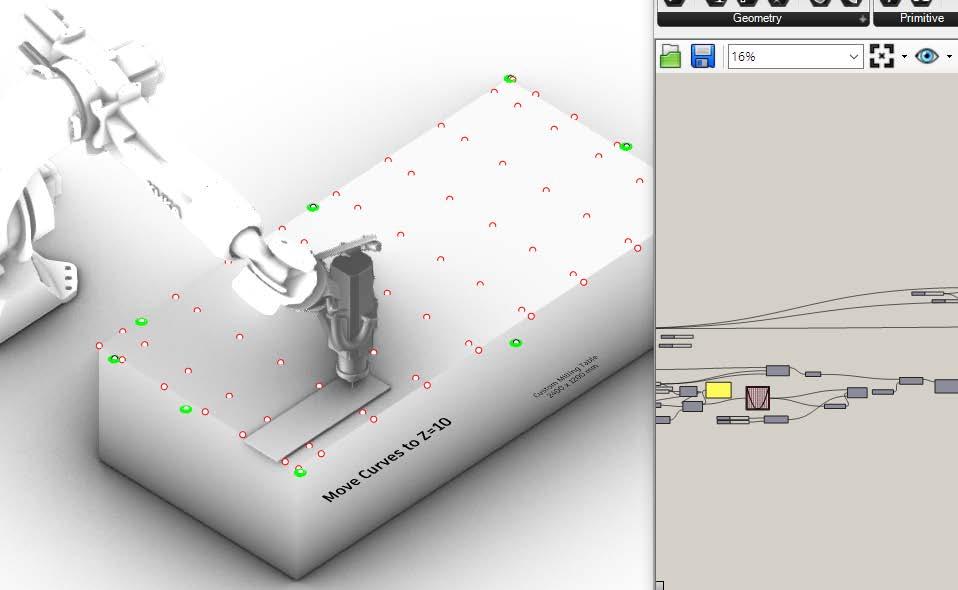

Robotic arm operation simulation

Select some features of the prototype and pre-formulate the pattern by the Robotic.

Robotic milling 3D print Adding Braille pattern in plan Tactile plan with 3d print

Barnacle Sponge

Whale

ARCHITECTURAL CAPABILITY

3D Communication/ Parametric Design/ Documentation

JSA STUDIO ARCHITECTS

In addition to assisting the senior architects in drafting, he is also responsible for all the rendering and parametric design parts of the STUDIO. To better express the relationship with the surrounding buildings, the models are often combined with the site to show the building materials and the surrounding architectural style in a montage expression.

JSA Studio / 2022-2023

Rendering Software: V-ray, Enscape, Lumion,D5 Render CAD: Revit, Rhino, Grasshopper, AutoCAD

The rendering is for reporting to client, using the software V-ray.

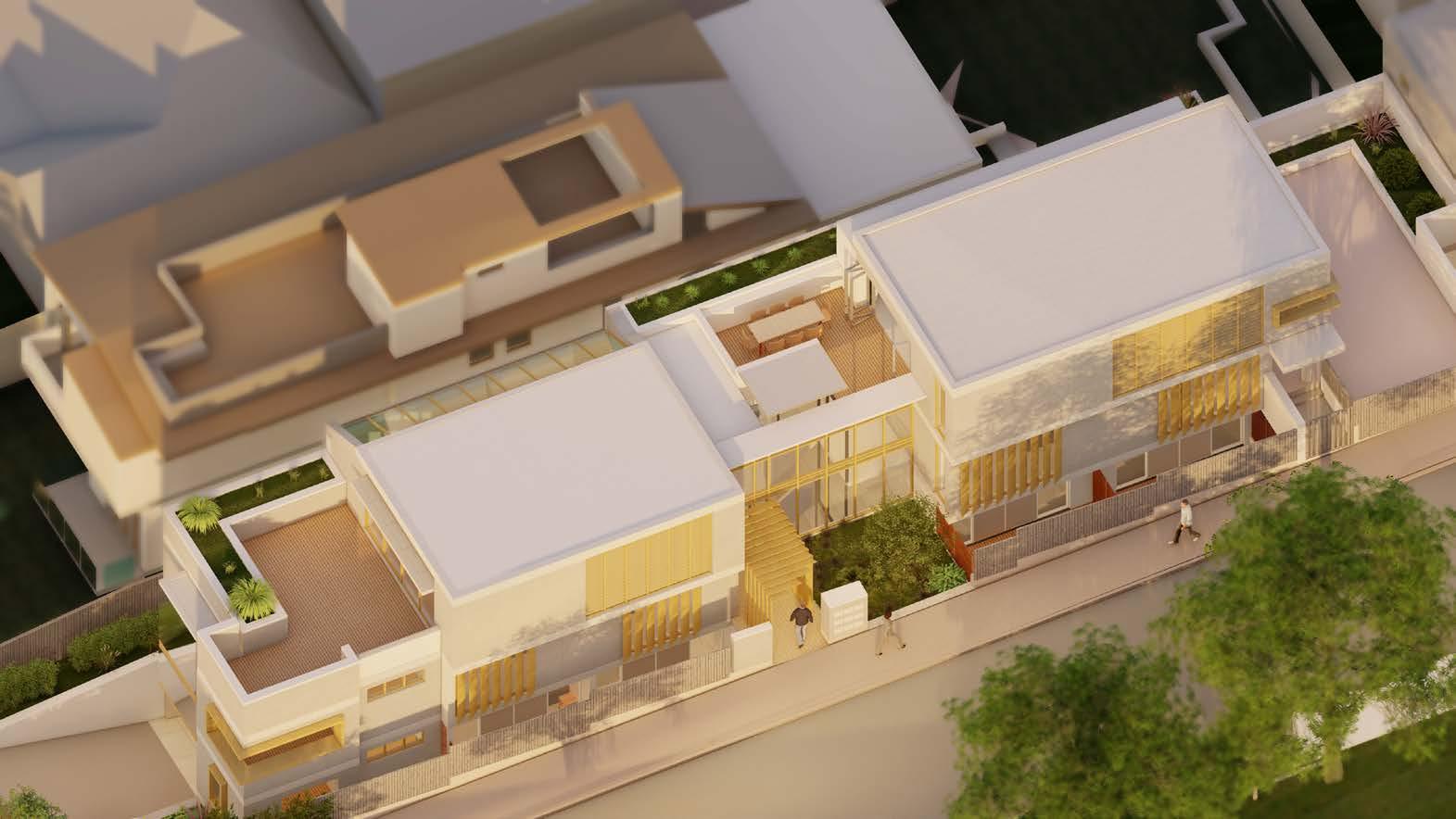

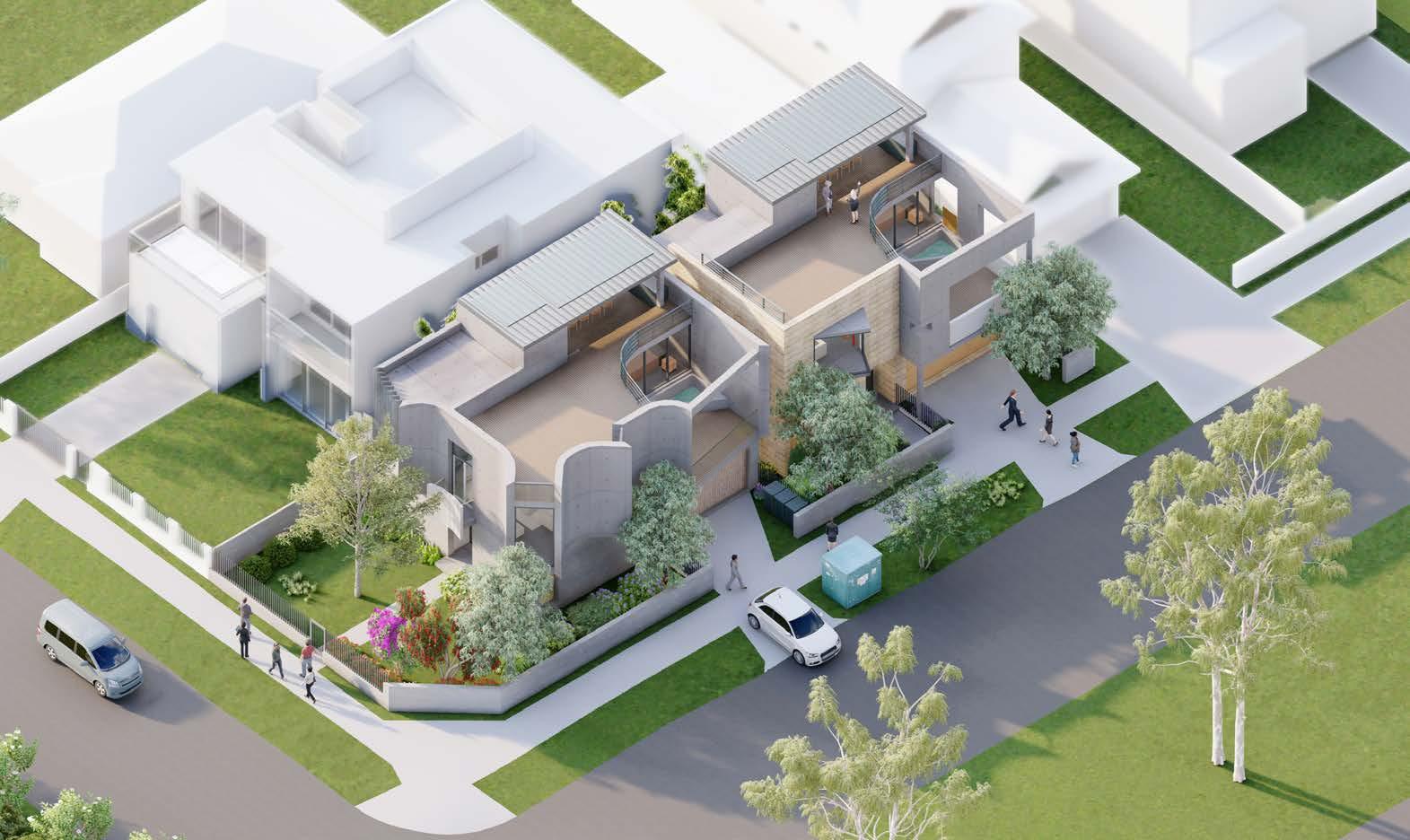

Project: Gladesville Dual Occupancy

Project: Gladesville Dual Occupancy

The rendering is for DA, using the software Lumion.

Project: Gladesville Dual Occupancy

The rendering is for DA, using the software Lumion.(montage expressions)

The rendering is for DA, using the software Enscape.

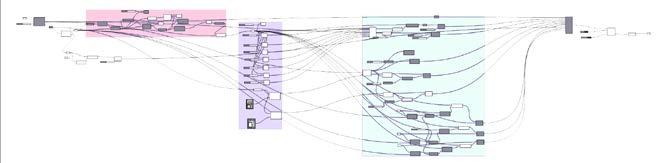

Parametric Design

Modeled By Junlong (express of interesting) - Weekly parameterization exercises

Designed; Modeled By Junlong (Broadmeadow -Roof Garden)

In my professional work(JSA), sometimes the project leader will have some interesting competition designs that require me to do conceptual design with parameterization

THANK YOU

My heart is full of thank for my parents for supporting me in completing my postgraduate degree in architecture. Also grateful to my friends and JSA for helping me with my studies and learning work, it was overwhelming to have your guys support, sincerely.
