CODA AUDIO SPACE HUB Immersive Processor

Preliminary Information

Explore SPACE SPACE is the next-generation object based immersive audio, where sound objects can be placed and moved in 3D space to enable new emotional experiences unlike anything heard before. Hearing all fine details with incredible clarity, exactly as they are, you are now not only watching, you are inside of what happens around you.

True Immersive Experience means Perfect Timing in the complete audio chain. Basically immersive sound means positioning and moving of audio objects in 3D space and this happens in the time domain.

Humans perceive the direction of sound by comparing the arrival time of transients at the two ears, therefore perfect timing in the entire audio chain is the most essential part for creating a true immersive experience.

While electronics usually provides precise transient response the time-domain characteristics of the loudspeakers are the most critical part. CODA Audio phase-linear loudspeakers are an essential part of the SPACE Immersive System Solution. The principal advantages of phase linear loudspeakers become even more important in multichannel 3D audio. Ensuring phase accuracy with no differences in timing between the various loudspeakers the essential timing information is transmitted to the listener with perfect phase coherency and transient accuracy.

N-APS / N-RAY with DS-FIR preset and linear phase response.

Frequency response summation (with DS-FIR filters - purple): N-RAY + N-APS complete coupling - white

Linear phase response (with DS-FIR filters) purple: N-RAY, white: N-APS

Conventional, minimal–phase loudspeakers have principally nonlinear phase response.

That means that even if they all have linear frequency response they will not match together in the time domain when used in a multichannel set up (especially with different loudspeaker types). The phase error related to the lack of time coherence will destroy the perceived localisation providing a lot of blur and smearing and be unable to produce accurate spatial image.

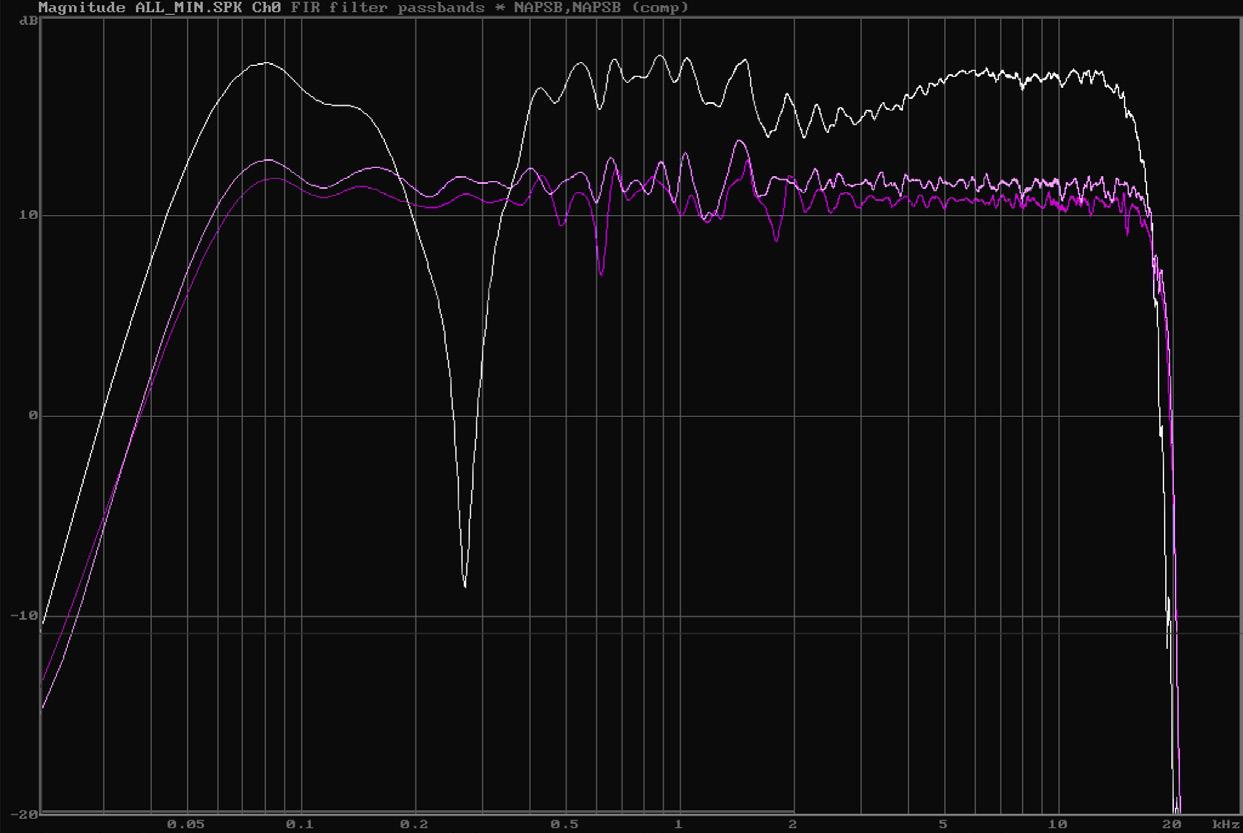

N-APS / N-RAY minimal phase response without phase correction.

Down (purple): Nearby identical, linear frequency responses of N-RAY and N-APS without phase correction (using IIR filters).

Up (white): The summation of N-APS + N-RAY in minimal-phase mode without phase correction providing irregular summation with deep cancelations caused by their uneven phase responses.

Even if N-RAY and N-APS are the same family loudspeakers with similar size, identical cone drivers, and tuning their phase responses are different and require time correction to be able to work together.

White: N-APS Minimal-Phase response without time correction – typical phase behaviour of a 2-way loudspeaker. purple: N-RAY Minimal-Phase response without time correction – typical phase behaviour of a 3-way loudspeaker.

Conclusion. In a multi-channel immersive system the phase response of every loudspeaker must be 0° to ensure time coherence, improved localisation of sound sources and spatial stability. That enchanted immersive impression is not achievable with conventional speakers.

VST3, AU, AAX and AAX-DSP plugins for automation and control

3D panning algorithms selectable per object

Flexible system design within the System Optimi

iser

Next Dimension Space The True Immersive Experience SPACE HUB is a 19”/3U state of the art immersive processor that features highly advanced spatial audio algorithms for positioning and movement of sound objects. Up to 128 audio sources can be rendered into 128 outputs to create an ultimate 3D immersive listening experience in theaters, musicals, HOW, live venues, concerts and production studios. SPACE HUB is an integral part of SPACE Immersive System Solution.

The SPACE HUB Control application provides a reliable control and monitoring of the SPACE HUB processor. It is optimised for both MacOS and Windows, for both tablet and native interfaces. Available plugins (VST3, AU, AAX and AAX-DSP) for automation and control improve the production workflow.

The dreams come true.

For artists, producers and engineers SPACE opens up new possibilities to take the audience inside their story in the most authentic and emotional way.

Loudspeaker set up.

Object based audio production is not limited to a specific speaker setup, it can be reproduced using diverse configurations from 9 up to 128 loudspeakers to allow great flexibility.

Loudspeaker setups up to 128 objects and 128 output channels SPACE HUB C Powerful processing, simple interface C Low latency for instant audio reproduction C Up to 128 objects x 128 output channels C Upgradeable, incremental licence. Start with 24, 48, or 72 outputs (or the full 128) and upgrade your licence as required C 3D panningalgorithms, selectable for each object C Build effects using Advanced Reverb Engine C Simplified downmixes for subwoofers and fills (stereo, mono and aux) C Redundant Dante™ interface, MADI optional C SPACE HUB Control Software optimised for Windows and Mac OS C System Optimiser compatible, accurate sound reproduction in any space C Snapshots with adjustable fade time C Flexible automation and precise control using VST3, AU, AAX and AAX-DSP plugins C Open Sound Control (OSC) C PosiStageNet compatible (stage tracker) for audio that follows a subject C Ultra-silent cooling C Redundant power supply (optional)

System Design System Optimiser Design all sizes of audio system from the smallest of gatherings right up to the largest of stadium productions with incredible ease.

Creating proposals for clients. SPL Pressure mapping is presented to you in incredible detail, with a strong sense of reality. Pushed for time.

Workflow is tantamount to accuracy and with this in mind, bespoke tools are provided to fully enable the system designer.

Accuracy Computationally intensive operations have been highly optimised to deliver results in seconds, not minutes – call it ‘mathemagic’…

Predictions are wholly based on real-world electro-acoustic measurements, heavily utilising multifaceted multipole expansions. A highly complex atmospheric model is employed; taking temperature, dewpoint, humidity and altitude into account. Complex response functions are morphed using cutting edge continuous phase techniques, the end result being authentic free-field predictions indistinguishable from reality.

Power Clever tools are included to create complex designs effortlessly.

Use the layout tool to place loudspeakers in a multitude of shapes and arrangements. The template engine is an incredibly powerful way of managing entities within the layout system.

Measurement microphones can be placed anywhere within the 3D scene. Probes are a smart extension of the measurement microphones that make choosing line array angles stress-free.

Link Groups define how line arrays are connected, and allow electronic filters to be applied to correct for distance and splay angle.

Immersive 3D loudspeaker arrangement in System Optimiser application

SPACE HUB Data Sheet

Product type:

Immersive Processor

DSP Inputs

128x

Outputs

128x

Processor

Multi-core CPU

Sampling Rate

48kHz / 96kHz 32bit floating point

Audio Protocol

Dante™, AES67, redundant, Gigabit Ethernet, more TBA

Processing

Several panning algorithms selectable per object, Reverb Engine

Control Network

Gigabit Ethernet

Protocols

OSC (Open Sound Control), MIDI

Control Plugins

VST3, AU, AAX, AAX-DSP (Avid Venue Consoles)

Stage Trackers

PosiStageNet Protocol

Power Supply Input

100 – 240 Vac, 50-60 Hz, 7-3.5 A

Max Output

500 W

Efficiency

80+ Gold, ENERGY STAR® compliant

Option

Redundant PSU 2x 500W, 100-240Vac, 50-60Hz, 8A max, 80+ Gold

Option

Lockable IEC connector

Physical Dimensions (WxHxD):

483.5 x 132 x 455.5 mm / 19 x 5.20 x 17.93” 3U

Net weight:

10.4 kg / 22.9 lbs

Indicators:

Power and Hard Disk Drive LEDs

132.00 mm 5.20”

10.00 mm 0.393”

HDD

USB

465.50 mm 18.33”

455.50 mm 17.93”

447.03 mm 17.60”

7.00 mm 0.28”

57.15 mm / 2.25”

444.00 mm 17.48”

SPACE HUB

I M M E R S I V E P R O C E S S O R

440.00 mm 17.32”

483.50 mm 19.00”

E&OE
