SPACE by CODA Quick Reference Guide (Edition 2025)

Quick Reference Guide

SPACE by CODA integrates high-end immersive audio, ambient lighting and advanced acoustical treatment within a 4K projector screen or the artwork of your choice. An elegant, unified system solution to transform any space with discreet yet powerful audio.

Redefining How Audio Looks This is what innovation looks like.

SPACE by CODA is a revolutionary new way to incorporate stunning sound in ways that were previously impossible, through innovative modules cleverly positioned within art and projection screens. At just 70mm deep, ultra-flat modules deliver crystal clear audio with performance equalling, or even surpassing that of conventionally-designed loudspeakers.

Transform spaces to feature discreet and invisible audio, enabling full-range sound in even the most challenging environments. No more ugly black boxes.

Concert Grade Audio Anywhere You Like Hear the entire sonic spectrum, with clarity and unbelievable power. Our innovative driver technology means power and faithful audio reproduction previously unattainable in such compact spaces.

Unique ‘instafit’ magnetic waveguides native to the SPACE audio modules facilitate production of directable sound with capability for immersive audio – all from within the panel.

At just 70mm deep, you can deliver mind-blowing audio in places never before possible.

Project onto SPACE Unlimited Visual Potential The Space Screen provides a state of the art 4K projection surface. Display a wide range of visual content, while keeping the sound technology hidden. Audio is to be heard, and not seen.

space.codaaudio.com

A New Canvas For The Creative Mind Audio-Enabled Art Display artwork, photographs, and more, made to measure. SPACE Art can be arranged in any preferred ratio, size, or custom orientation to create borderless visuals which keep the speakers hidden.

The SPACE Art variant panels can be supplied with high-resolution digital canvas prints instead of projection fabric, overlaying the same revolutionary loudspeaker technologies integrated in SPACE.

Modular and Flexible Made to Measure Space consists of a variety of modules for you to build your system to your exact requirements. Space Panels vary in size within a fixed format, whereas Space Art is available in a totally customisable format.

Made perfectly to measure using three sizes of loudspeaker modules and optional directional waveguides.

Sound diffusers and acoustic treatments can be interleaved between loudspeaker modules for better control over sound in the room.

space.codaaudio.com

Amplifiers

The LINUS6.4 is a four-channel DSP networkable installation amplifier delivering 4 x 1500 W of clean power in a convenient and lightweight 19”/1U package.

Advanced Class D-IC discrete power stages with DC-coupled DACs, together with a high-efficiency SMPS with PFC to provide unrivalled power density and minimal thermal dissipation.

The innovative PCB layout design integrates DSP, four amplifiers, and SMPS on a single PCB for enhanced sound quality, pinpoint control, and rugged protection.

The audio inputs are selectable, you can choose between analog, LiNET, Dante digital audio network and simply and easily route to any of the four outputs via the input matrix.

The advanced DSP processor enables the integration of sophisticated audio algorithms including phase linear DS-FIR filters, these provide perfect linearity and superior sound performance, plus advanced look-ahead and frequency-dependent limiters. The end result is increased system headroom and sonic fidelity, even under heavy use conditions.

LINUS6.4 Features C 4x 1500 W @ 2Ω or 2x 3000 W@ 4Ω or 1x 3000 W@ 4Ω + 2x 1500 W@ 2Ω C Powers either 70/100V and low impedance loudspeakers C 4 balanced analogue inputs C LiNET – 8x freely configurable digital audio signals over CAT5e C Dante redundant (LINUS 6.4-iD only) C PoE on the control port, in case of mains power loss, the control section still functions C Phoenix inputs and outputs C Configurable GPIO C Front panel IPS display (240×240 pixels) C LINUS Control – full network control and monitoring of amplifiers over Ethernet C Optimised factory presets for CODA Audio loudspeaker systems C 5-year warranty

The LINUS14/D is a four channel DSP networkable amplifier and comparator delivering 4x 3500 W of clean power in a light weight 19”/2U package. The four audio inputs are selectable from analog, AES3, LiNET digital audio and are routable to any of the four outputs.

The immense power of the LINUS14/D class D-IC output stage topology ensures maximum headroom and sonic accuracy. This amplifier technology is combined with SHARC floating-point processing that features vast processing power which enables the integration of sophisticated audio algorithms. The advanced signal processing includes IIR and phase-linear FIR filters for perfect linearity and superior sound performance as well as look-ahead and various protection limiters for increased system headroom and secure system performace.

The LINUS14/D contains four comparator inputs for use with CODA Audio Sensor Controlled subwoofers and bass extension modules. Receiving a real-time measurement of diaphragm movement from the loudspeaker’s integrated velocity sensor, LINUS14/D compares it with the input audio signal and adjusts the amplifier driving voltage and/or current, correcting any driver inaccuracy. This comparator functionality creates a self­-optimising, closed feedback loop in which the LINUS14/D provides the precise amount of power required by the driver to accurately reproduce the original audio signal.

LINUS14/D Features C Very high output power 4x 3500 W @ 4 Ω C Integrated DSP, network and amplifier solution C Advanced IIR and linear phase FIR filters C LINUS Control - network control and monitoring of amplifiers over Ethernet C Efficient Class D-IC design for superior sound performance C LiNET – 8x freely configurable digital audio signals over CAT5 cables C 4 dynamic comparators for use with CODA Audio Sensor Controlled subwoofers C SMPS with automatic selection 115 V/230 V C Optimised factory presets for CODA Audio loudspeaker systems C 5-year warranty

DESIGNER Build rich, high-end immersive audio panels, ambient lighting and advanced acoustical treatment within a 4K projector screen or the artwork of your choice. https://codaspacedesigner.com/

System Examples - Stereo 2.1 Our state-of-the-art Stereo 2.1 system examples include left and right loudspeakers as well as powerful subwoofers, ensuring an unforgettable sound experience that brings your music, movies, and games to life.

System Examples - 7.1 Our Surround 7.1 advanced audio system examples feature seven surround loudspeakers and powerful subwoofers, providing an exclusive sound for your innovative entertainment experience.

Stereo 2.1 – Small

Surround 7.1 – Small

M1-Art x2 SB12 x1 LINUS6.4 x1

Projection screen SP0502 M1 x3 M1-Art x4 SB12 x1 LINUS6.4 x2 Ratio 2.40:1 Screen Size 132.2” / 3357.88mm

Stereo 2.1 – Medium

Surround 7.1 – Medium

M2-Art x2 SB12 x2 LINUS6.4 x1

Projection screen SP0704 M2 x3 M1-Art x4 SB12 x2 LINUS6.4 x2 Ratio 16:9 Screen Size 194.3” / 4935.22mm

Stereo 2.1 – Large

Surround 7.1 – Large

M4-Art x2 SB12 x4 LINUS6.4 x1

Projection screen SP1205 M4 x3 M2-Art x4 SCX x2 LINUS6.4 x1 LINUS14 x1 Ratio 2.40:1 Screen Size 311.4” / 7909.56mm

System Examples - 7.1.4 Experience the ultimate in audio excellence with our Surround 7.1.4 system examples, which include seven surround loudspeakers, four overhead loudspeakers, and powerful subwoofers. This comprehensive setup ensures a truly immersive and dynamic sound experience for all your entertainment needs.

System Examples - Immersive 3D 9.1.6 Immerse yourself in unparalleled audio precision with our cutting-edge Immersive 3D 9.1.6 examples, featuring nine surround loudspeakers, six overhead loudspeakers, and powerful subwoofers. This exceptional setup delivers a breathtaking, three-dimensional sound experience.

Immersive 3D 9.1.6 – Small

Surround 7.1.4 – Small Projection Screen SP0502 M1 x3 M1-Art x8 SB12 x1 LINUS6.4 x3 Ratio 2.40:1

Projection Screen SP0502 M1 x3 M1-Art x12 SB12 x1 LINUS6.4D x4 Ratio 2.40:1 Screen Size 132.2” / 3357.88mm

Screen Size 132.2” / 3357.88mm

Immersive 3D 9.1.6 – Medium Surround 7.1.4 – Medium Projection Screen SP0704 M2 x3 M1-Art x8 SB12 x2 LINUS6.4 x3 Ratio 16:9

Projection Screen SP0704 M2 x3 M1-Art x12 SB12 x2 LINUS6.4D x4 Ratio 16:9 Screen Size 194.3” / 4935.22mm

Screen Size 194.3” / 4935.22mm

Surround 7.1.4 – Large M4 Projection Screen SP1205 – M4 x3 M1-Art x4 + M2-Art x4 + SCX x2 + LINUS6.4 x2 + LINUS14 x1 Ratio 2.40:1 Screen Size 311.4” / 7909.56mm

Immersive 3D 9.1.6 – Large Projection Screen SP1205 M4 x3 M1-Art x6 M2-Art x6 SCX x2 LINUS6.4D x3 LINUS14D x1 Ratio 2.40:1 Screen Size 311.4” / 7909.56mm

Product

M1

M2

M4

SCX Sub

SB12 Sub

Compact three way high performance loudspeaker with options for changing dispersion characteristics

High performancethree way loudspeaker with options for changing dispersion characteristics

Extremely high performance three way loudspeaker with options for changing dispersion characteristics

Pedestal Subwoofer

Compact Pedestal Subwoofer

Dimensions (WxHxD):

598 x 598 x 70 mm / 23.55 x 23.55 x 2.76 ”

1198 x 598 x 70 mm / 47.2 x 23.55 x 2.76 ”

1198 x 1198 x 70 mm / 47.2 x 47.2 x 2.76 ”

470 x 1050 x 470 mm / 18.5 x 41.34 x 18.5”

330 x 700 x 330 mm / 13 x 27.56 x 13”

Net weight:

10.95 kg / 24.15 lbs

19.3 kg / 42.55 lbs

33.9 kg / 74.74 lbs

41 kg / 90.39 lbs

16.3 kg / 35.94 lbs

Frequency response (-6 dB):

45 Hz – 20 kHz

45 Hz – 20 kHz

45 Hz – 20 kHz

25 - 150 Hz

30 Hz – 150 Hz

Power handling AES / peak (passive):

500 W / 2000 W

900 W / 3600 W

1700 W / 6800 W

1500 W / 6000 W

800 W / 3200 W

Max. peak SPL (with LINUS14):*

121 dB

127 dB

137 dB

136 dB (half space)/141 dB (quarter space)

130 dB (half space)/136 dB (quarter space)

Dispersion Horizontal:

110°

110°

110°

Omni

Omni

Dispersion Vertical:

60°

60°

60°

Hemispherical

Hemispherical

Components Low frequency:

10” double suspension passive radiator, 6.5” neodymium ring radiator, water resistant cone, 2” (50.8 mm) VC, 400 W (AES)

2x10” double suspension passive radiators, 2x6.5” neodymium ring radiators, water resistant cones, 2” (50.8 mm) VC, 400 W (AES) each

4x10” double suspension passive radiators, 4x6.5” neodymium ring radiators, water resistant cones, 2” (50.8 mm) VC, 400 W (AES) each

18” neodymium ultra low distortion woofer, 4” (101.6 mm) VC

12” neodymium ultra low distortion woofer, 3” (77 mm) VC

Components Mid/High frequency:

1.75” (44.4 mm) VC annular diaphragm neodymium driver, 80 W (AES)

1.75” (44.4 mm) VC annular diaphragm neodymium driver, 80 W (AES)

1.75” (44.4 mm) VC annular diaphragm neodymium driver, 80 W (AES)

-

-

1350 Hz

1350 Hz

1300 Hz

-

Input: Phoenix FKICS 2,5/ 5-STD-5,08RN, 1808750 Link: Phoenix FKICS 2,5/ 2-STD-5,08-RN, 1808721

Type

Crossover point: Input Connectors:

Nominal impedance LF / MF+HF: Enclosure material: Suspension

MOLEX Mega-Fit Plug Housing, Single Row, 2 Circuit, 213815-0102

MOLEX Mega-Fit Plug Housing, Single Row, 2 Circuit, 213815-0102

MOLEX Mega-Fit Plug Housing, Single Row, 2 Circuit, 213815-0102

Input: Phoenix FKICS 2,5/ 5-STD-5,08-RN, 1808750 Link: Phoenix FKICS 2,5/ 2-STD-5,08-RN, 1808721

6 Ohm

3 Ohm

3 Ohm

8 Ohm

4 Ohm

Birch Plywood

Birch Plywood

Birch Plywood

Birch Plywood

Birch Plywood

8x M6 Threaded points

16x M6 Threaded points

24x M6 Threaded points

-

-

* Measured with pink noise 6 dB Crest Factor. Half-space loading.

space.codaaudio.com

Product

AB1

AB2

AB4

AB6

AB8

Acoustic absorber panel

Acoustic absorber panel

Acoustic absorber panel

Acoustic absorber panel

Acoustic absorber panel

598 x 598 x 70 mm / 23.55 x 23.55 x 2.76 ”

1198 x 598 x 70 mm / 47.2 x 23.55 x 2.76 ”

1198 x 1198 x 70 mm / 47.2 x 47.2 x 2.76 ”

1198 x 1798 x 68 mm / 47.2 x 70.79 x 2.68 ”

1198 x 2398 x 68 mm / 47.2 x 94.5 x 2.68 ”

Absorption

16 kPa*s/m²

16 kPa*s/m²

16 kPa*s/m²

16 kPa*s/m²

16 kPa*s/m²

Purpose

Absorbing sound energy within the room

Absorbing sound energy within the room

Absorbing sound energy within the room

Absorbing sound energy within the room

Absorbing sound energy within the room

Net weight:

3 kg / 6.62 lbs

6 kg / 13.23 lbs

11.5 kg / 25.36 lbs

16 kg / 35.28 lbs

20 kg / 44.1 lbs

Birch plywood construction with black finish

Birch plywood construction with black finish

Birch plywood construction with black finish

Birch plywood construction with black finish

Birch plywood construction with black finish

8x M6 Threaded points

16x M6 Threaded points

24x M6 Threaded points

32x M6 Threaded points

40x M6 Threaded points

Type Dimensions (WxHxD):

Enclosure material: Suspension

space.codaaudio.com

Product

D1

Type

Acoustic diffusor panel

Dimensions (WxHxD):

598 x 598 x 70 mm / 23.55 x 23.55 x 2.76 ”

Purpose

To fill in gaps between loudspeaker modules and improve room acoustics

Product

Type Dimensions (WxHxD): Net weight: Number of output channels

Scatter central frequency:

1053 Hz

Diffuse centre fequency:

2107 Hz

Cutoff frequency:

2205 Hz

Minimum listening distance:

Frequency response (8 Ω load, with CLEAR preset)

0.48 m

THD+N & IMD (4 Ω load @ 1/2 output power)

Output stage

Enclosure material: Suspension

4-Channel DSP Amplifier with Loudspeaker Management with Comparator for SC-Subs

483 x 44 x 345 mm / 19” x 1.73” x 13.58” (1U) (size including back mounting ears)

483.5x88x454mm / 19x3.4x17.8”

5.75 kg / 12.68 lbs.

14.75 kg / 32.5 lbs

4

4 Class D-IC 96 kHz / 24 bit

Analogue LiNET and Dante™

Analogue LiNET and Dante™

20 Hz – 20 kHz = (+0.3 dB /-0.2 dB)

20 Hz–20 kHz = (+0.0 dB / -1.0 dB)

20 Hz – 20 kHz = < 0.05%

20 Hz–20 kHz = < 0.005%

RMS output power

500 W @ 8 Ω 800 W @ 4 Ω 1500 W @ 2 Ω 1600 W @ 8 Ω bridged 3000 W @ 4 Ω bridged (2ch BTL, 2ch SE)

1800 W @ 8 Ω / 3500 W @ 4 Ω 4400 W @ 2.7 Ω / 4500 W @ 2 Ω

Peak output power

1000 W @ 8 Ω / 1600 W @ 4 Ω 3000 W @ 2 Ω 3200 W @ 8 Ω bridged 6000 W @ 4 Ω brided (2ch BTL, 2ch SE)

3600 Wpk @ 8 Ω / 7000 Wpk @ 4 Ω 6500 Wpk @ 2.7 Ω / 5200 Wpk @ 2 Ω

Mute status Limit Signal Protection Ethernet connected Power on

Mute status Limit Signal Protection Ethernet control active Digital signal locked

1 x 100 Mbps RJ45 Control 2 x 1000Mbps RJ45 Dante™

2x 100 Mbps RJ45 Control

8x M6 Threaded points

LED indicators

Ethernet connection

space.codaaudio.com

Integrated DSP, 6000 W @ 2Ω, 4 channel networkable installation amplifier

Class D-IC

6 kg / 13.23 lbs Birch plywood construction with black finish

LINUS14D

48 kHz / 64 bit

Internal samplerate / bit-depth Input Sources

Net weight:

LINUS6.4

Frame Trails FR trail 600

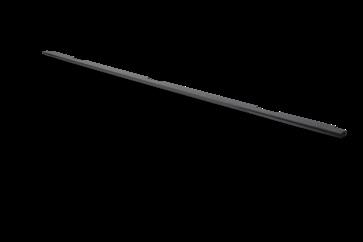

FR trail 1200

FR trail 1800

FR trail 2400

CORNER 350

Frame trail 600mm

Frame trail 1200mm

Frame trail 1800mm

Frame trail 2400mm

Frame trail corner 350mm x 350mm

HF Magnetic Waveguides SWG-C

SWG-CH

SWG-LR

SWG-LH

SWG-RH

H = 110° x V = 60°

H =110° x V = 85° (+30°-55°)

H = 95° (30°+ 65°) x V = 60° / H = 95° (65°+30°) x V = 60°

H = 95° (30°+65°) x V = 85° (+30°-55°)

H = 95° (65°+30°) x V = 85° (+30°-55°)

Wall Hangers WH 600

WH 1200

WH 1800

WH 2400

Wall Hanger 600mm

Wall Hanger 1200mm

Wall Hanger 1800mm

Wall Hanger 2400mm

Mounting RH

WM

SFF

SMM

SMM Half

SMF

SMC

Rail hanger for Wall rail

Wall mount for single module

SPACE Frame to Frame adapter

Space Module to Module adapter

Space Module to Module – half adapter

SPACE Module to Frame adapter

SPACE Module to Corner adapter

Ceiling & Fly Mounting FFA

FCA1

FCA1-C

FCA2

FCA2-C

FMF1

FMF2

FME

Flying Frame Adapter

Flying Ceiling Adapter for vertical or horizontal flying of panels with 1 side fabric / single Frame. Incl. Ringscrew

Flying Ceiling Adapter Corner for vertical or horizontal flying of panels with 1 side fabric / single Frame.

Incl. Ringscrew

Flying Ceiling Adapter for vertical flying of panels with 2 side fabric / double Frame.

Incl. Ringscrew

Flying Ceiling Adapter Corner for vertical flying of panels with 2 side fabric / double Frame.

Incl. Ringscrew

Floor Mount Foot with wall support

Floor Mount Foot freestanding

Floor Mount Foot extender

https://space.codaaudio.com CODA Audio International – Boulevard der EU 6, 30539 Hannover (Expo-Park) Germany +49 (0) 511 866 55 888 space@codaaudio.com
