Magnetic Universal Crawler Reach the Unreachable
Use the robot for anything: simply attach your own tool to clean, paint, weld, or repair. The Magnetic Universal Crawler boasts an operational lifting capacity of up to 250 kg and can crawl reliably on any steel surface, making it an incredibly versatile platform.
Unrivaled Magnetic Agility & Access
:
Effortless navigation on all ferromagnetic surfaces, including vertical and inverted.
• Compact design for accessing confined and hard-to-reach areas.
• Eliminates the need for scaffolding and traditional access methods.
Extreme Adaptability & Versatility:
• Simple click-click technology for rapid, on-site tool changes.
• Significant payload capacity (up to 250 kg) for diverse applications.
• Customizable magnetic force for varied surface conditions.
• Open platform for integrating tailored user-specific tools.
Enhanced Safety & Operational Efficiency:
• Ground-controlled operation minimizes risks for personnel.
• Robust and durable construction for longevity in harsh environments.
• Proven performance and reliability in demanding industrial settings.
Built for Demanding Industrial Use:
• Constructed with advanced, non-corrosive materials (duplex stainless steel, titanium).
• Extensively tested for submersion, impact, extreme temperatures, and continuous stress.

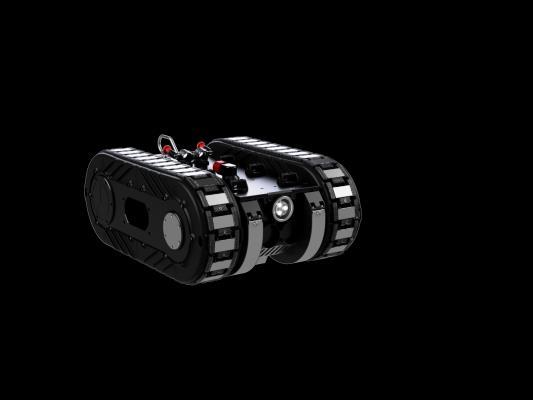

Magnetic Universal Crawler
Technical Details
• Speed: up to 800 m²/h (configurable)
• Weight: 89 kg
• Size: 747 x 562 x 310 mm
• Power: 220-240 V, 13 A+, 50-60 Hz
• Submersion: Tested to 60+ m, IP69K
• Underwater Endurance: 4,000+ hours
• Vertical Lift Capability: up to 250 kg operational payload
• Peak Torque: +1,800 Nm
• Materials: Non-corrosive (Duplex SS, Ti, Carbon Glass, Polymers)
• Impact Rating: IK10
• Temp Resistance: -25°C to +80°C
• System Test: 5,000+ hrs continuous stress
"For us at Brabo Cleaning Company, investing in the CLIIN Robotics Magnetic Universal Crawler has revolutionized our oil spill removal operations in ports. The robots strong magnetic grip allows the robot to crawl along the bow and the bulb of the ship without any problem. The ability to access tight spaces – address the significant challenges of working at heights on vessels. The simple click technology enables easy customization for oil spill removal, which has streamlined our processes and reduced the need for extensive manpower. This robot has significantly enhanced both the safety and operational flexibility of our team. As a fun fact this robot gives us the speed and agility of a raptor and the power of Thor; therefore, we call it R.A.P.T.H.O.R".
Tim Buyle, Technical/Operational Superintendent at BRABO Cleaning Company NV
