TABLEOFCONTENTS
Safety-AlertSymbol
SAFETYSIGNS
Readandrecognizesafetyinformation.Bealerttothe potentialforpersonalinjurywhenyouseethissafetyalertsymbol.
Onyourvehiclesafetylabels,thewordsDANGER, WARNING,andCAUTIONareusedwiththissafetyalertsymbol.DANGERidentifiesthemostserious hazards.Inthismanual,thewordCAUTIONandthis symbolcallattentiontosafetymessages.

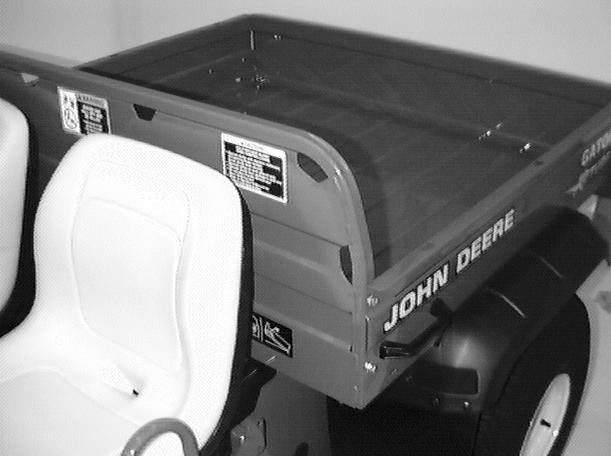

MachineSafetyLabels

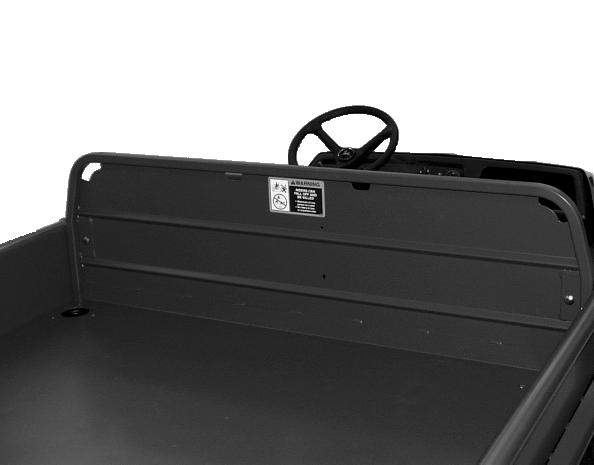

WARNING
RIDERSCANFALLOFFANDBEKILLED
•Maximumofonepersontoaseat
•Noridersinboxoranywhereelse
CAUTION
Toavoidinjury,stopengineandsetparkingbrakebefore leavingvehicle.
WARNING
ROLLOVERORFALLINGOFFMAYCAUSEDEATH
•Readoperator’smanual.
•Driveveryslowlywhenturning.
•Alwaysusebrakesgoingdownaslope.Vehiclecan take-off(freewheel)downhill.
•Noloadsheavierthan500lbs(227kg)in4x2,800lbs (363kg)in6x4and1000lbs(454kg)in6x4DIESEL. Spreadloadevenly.Tieloadsdown.
•Reducespeedandloadonroughorhillyground.
SAFETYSIGNS
DANGER
EXPLOSIVEGASES
Cigarettes,flamesorsparkscouldcausebatteryto explode.Alwaysshieldeyesandfacefrombattery.Do notchargeoruseboostercablesoradjustpost connectionswithoutproperinstructionandtraining. Keepventcapstightandlevel.
POISON
CAUSESSEVEREBURNS
Containssulfuricacid.Avoidcontactwithskin,eyesor clothing.Ineventofaccident,flushwithwaterandcalla physicianimmediately.Keepoutofreachofchildren.
CAUTION
HELPPREVENTINJURYWHENDUMPINGLOADS
• Operatedumpwithmachinestationaryandparking brakelocked: Neverdumpwhilemoving
• Operatedumponlevelgroundonly
• Operatedumpfromoperator’sseatonly
• Donotplacehandsbehindseatwhenloweringbox
• RefertoOperator’sManualforcorrectload distribution
CAUTION

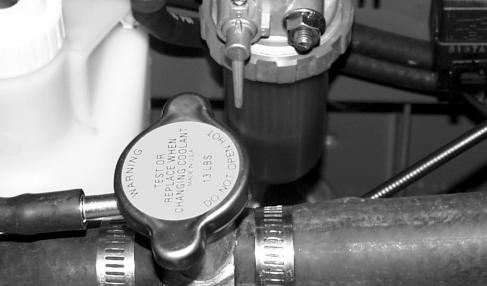

HELPPREVENTINJURYWHENOPENINGCOOLANT CAP WARNING
Testorreplacewhenchangingcoolant.13lbs.DONOT OPENHOT.
M78539

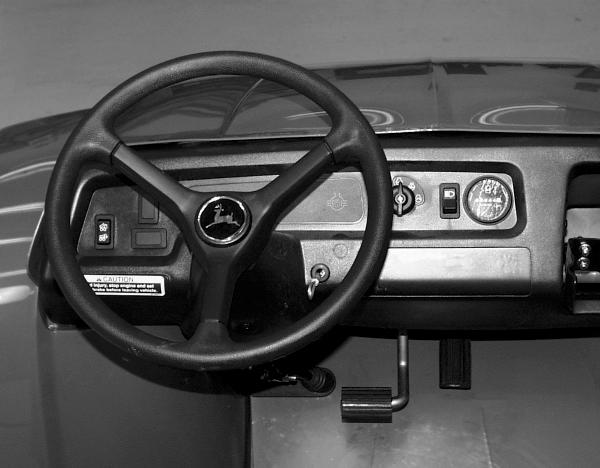

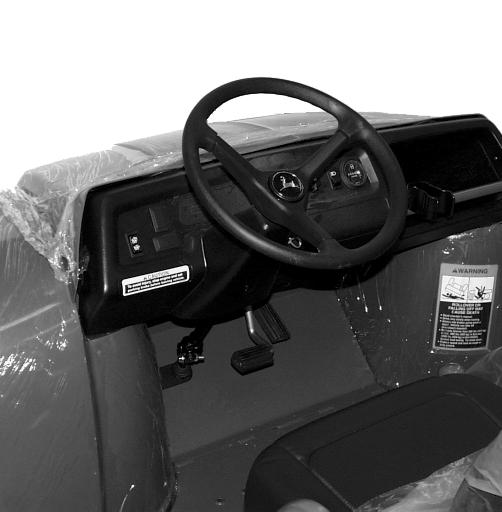

OperatorControls

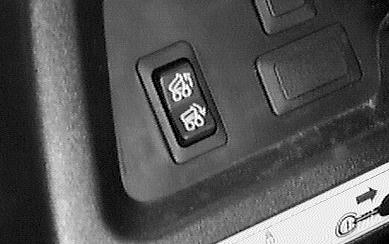

A-CargoBoxDumpSwitch
B-IndicatorPanel
C-IgnitionSwitch
D-HeadlightSwitch
E-Hourmeter
F-SteeringWheelLockCable
G-Accelerator
H-BrakePedal
I-DifferentialLockLever

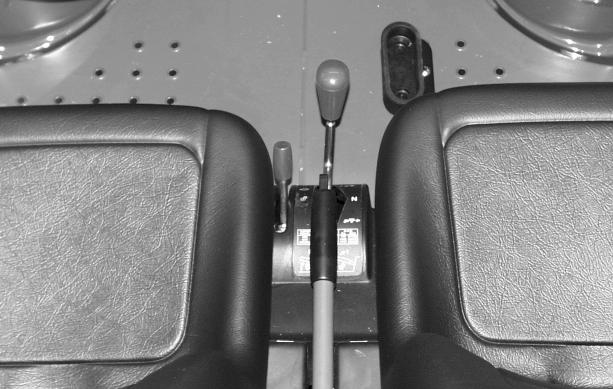

J-TransaxleShiftLever
K-ParkingBrakeLever

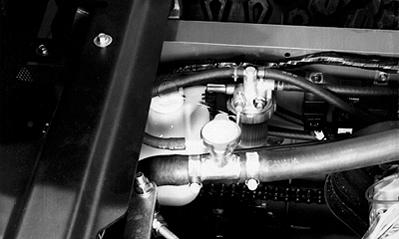

L-FuelShutoffValve
M-FuelShutOffValve-FuelFilter
CONTROLS
CONTROLS

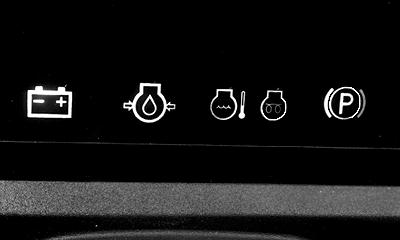

IndicatorPanel
A-Battery
B-OilPressure
C-CoolantTemperature
D-EnginePreheat
E-ParkingBrake
F-DifferentialLock
NOTE:Onlyoneindicatorbulbilluminatesboth CoolantTemperature(C)andEnginePreheat(D) Indicatorsatthesametime.
W02256
OPERATINGMACHINE
OperateSafely
• Viewthevideotapeprovidedwiththevehicleforsafe operatingpractices.
• DONOTmisusetheM-GATOR™,itisautilityvehicle NOTarecreationvehicle.
• Sitonthecenteroftheseatandkeepbothfeetwithin thefootplatformperimeter.Cleanfootplatformifdirty, andremoveanydebrisfromaroundfootcontrols.

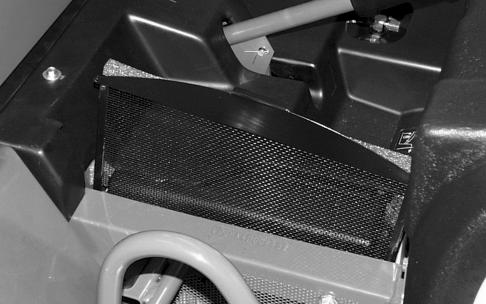

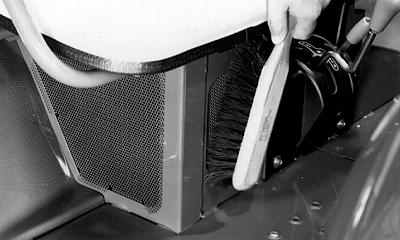

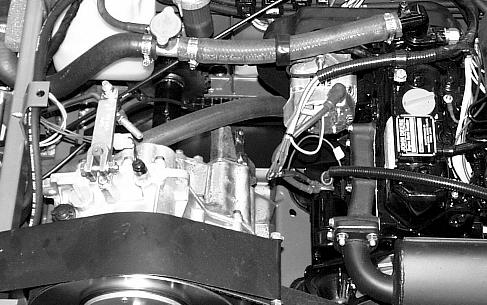

• Checkfordebrisinenginecompartment,especially aroundbrakelinkageoneachsideofthetransaxle.
• Alwaysusebothhandsforsteering.
• Knowlocationofcontrolsandhowandwhatthey operate.
• Neveroperateutilityvehiclewhilestanding.
• Neveroperateutilityvehiclewiththecargoboxraised.
• Checkbrakeactionbeforebeginningvehicle operation.Adjustorservicethebrakesasnecessary.
• Toprovideadequatebrakingabilityandtraction,DO NOTtowanyattachmentorloadedtrailerunlessthe utilityvehiclecargoboxisloaded.
• Inspectvehiclebeforeoperating.Besurehardwareis tight.Repairorreplacedamaged,badlyworn,or missingparts.Besureguardsandshieldsareingood conditionandfastenedinplace.Makeanynecessary adjustmentsbeforeoperating.
• Keeppeopleandpetsoutoftheworkarea.Stopthe vehicleifanyoneentersthearea.Ifanobjectishit,stop andinspectthevehiclefordamage.Makerepairsbefore operating.
• Keepheadlightlensesclean.
• DONOTleavevehicleunattendedwhenitisrunning.
• Onlyoperateduringdaylightorwithgoodartificial light.
• Becarefuloftrafficwhenoperatingnearorcrossing roadways.
• ThisvehicleisNOTintendedforuseonhighwaysor publicroadways.Itistobeusedforoff-roaduseonly.
• Avoidsuddenstarts,stops,orturns.
• Alwaysusealevelturnaroundarea.
• DONOTwearheadphoneswhileoperating.
BeforeDriving
CAUTION:Helppreventseverebodilyinjury ordeathtoyourselfandothersduetorollovercausedbylossofcontroland/orstability. ThisvehicleisNOTintendedforuseon highwaysorpublicroadways.Itistobeused foroff-roaduseonly.
Besurethevideotapeonsafeoperationof vehicleisviewedbyanyoneoperatingthe vehicleforthefirsttime.
Keepchildrenandothersawaywhenyou operatethevehicle.Nevercarrychildrenin thecargoarea.DONOTletchildrenrideon theutilityvehicleoranyattachment. Seatingisprovidedfortheoperatorandone passenger.Noridersareallowedinthecargo boxoranywhereelseonthevehicle.
1.Cleanfootplatformifdirty,andremoveanydebris fromaroundfootcontrols.Sitonthecenterofseatand keepbothfeetinsidefootplatformperimeter.
2.Knowlocationofcontrolsandhowandwhatthey operate.
3.Inspectutilityvehicleforsignsofwearordamage.
4.Allsafetyequipmentmustbeingoodconditionand fastenedinplace:
• Loadguard
• Lights
• Shields
• Safetystartdevices
5.Beforemoving,checkaroundutilityvehicle,besure nooneisnearit.
6.Securelyanchorallloads.
OPERATINGMACHINE
ProtectChildrenandPreventAccidents
PROTECTCHILDREN:
• Neverassumethatchildrenwillremainwhereyoulast sawthem.Stayalerttothepresenceofchildren.
• Nevercarrychildreninthecargoboxarea.DONOT letchildrenrideinthecargoboxoftheutilityvehicleor anyattachment.DONOTtowchildreninacartortrailer.
• Useextracarewhencomingtoblindcorners,shrubs, trees,orotherobjectsthatmayblockvision.
• DONOTletchildrenoranuntrainedpersonoperate thevehicle.
• Beforebackingorturning,lookbehindandaroundthe utilityvehicleforchildren.
HELPPREVENTSERIOUSORFATALACCIDENTS:
• Bealertatalltimes,driveforwardandinreverse carefully.People,especiallychildren,canmovequickly intoanareaofoperation.
• Backcarefully.Lookbehindthevehicle,especiallyfor children,beforebackingup.
• DONOToperatevehicleifundertheinfluenceof alcoholorotherdrugs.
• Misuseandrecreationalridingcanleadtoaccidents, severebodilyinjuryordeath.
OperatorTrainingRequired
Studyoperationsectionofthismanualbeforeoperating thevehicle.
• Operatevehicleinanopen,unobstructedareaunder thedirectionofanexperiencedoperator.
• Learntheuseofallcontrols.
• Operatorexperienceisrequiredtolearnthemoving, stopping,turningandotheroperatingcharacteristicsof thevehicle.
• Youngdriversmaynothavethestrengthor experiencetocontroltheutilityvehicle.Thisincreases thechancesofrollingthevehicleoverresultinginsevere bodilyinjuryordeath.
• TheutilityvehicleshouldNOTbeoperatedbyanyone undertheageof16years.
W00910
W00900
W00909
OPERATINGMACHINE
ParkSafely
1.Stopthevehicleonalevelsurface,notonaslope.
2.Engageparkbrake.
3.STOPengine.
4.Turnoffignitionswitchtostopposition.
5.Beforeyouleavetheoperator’sseat,waitforengine andallmovingpartstoSTOP.

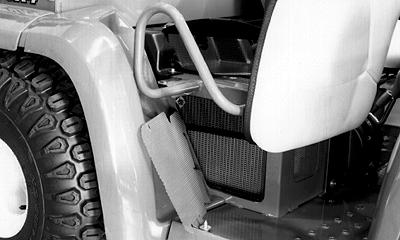

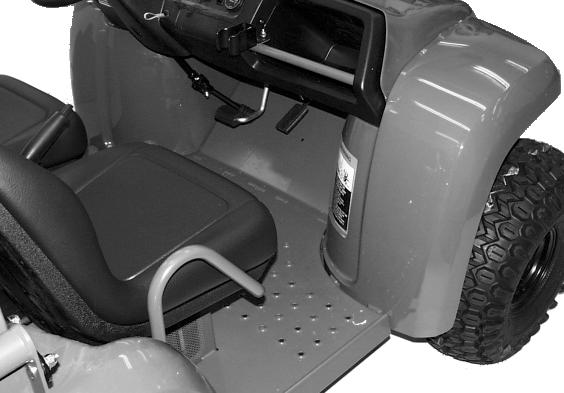

UseHandHolds
Handholds(A)areprovidedforpassengerbalance whendrivingoverroughterrain.Usedashbarandside railsonseatsforstability.
NoDrivingOnPublicRoads
CAUTION:ThisvehicleisNOTintendedfor useonhighwaysorpublicroadways.Itisto beusedforoff-roadutilityuseonly.
Donotoperateutilityvehicleonapublic roadwayorhighwaywhereUtilityVehiclemay beahazardtofastermovingtraffic.
Beforeyoudriveutilityvehicle,besure:
• Headlight,taillight,brakelightlensesarecleanand operate.
KeepRidersOffVehicle
• Seatingisprovidedforoperatorandonepassenger. Noridersareallowedincargoboxoranywhereelseon vehicle.
• Ridersonvehiclearesubjecttoinjurysuchasbeing struckbyforeignobjectsorbeingthrownoffofthe vehicleandseverelyinjuredorkilled.
• Ridersaffecttheoperator’sabilitytocontrolthe vehicleaswellasitscenterofgravity.Also,riderscould obstructtheoperator’sviewresultinginthevehicle beingoperatedinanunsafemanner.
OPERATINGMACHINE
AvoidTipping
Accidentsresultinginseriousinjuryordeathcanoccur fromtippingtheUtilityVehicle.Observethefollowing practicestohelppreventaccidents:
• DONOTmisusetheUtilityVehicle.TheUtilityVehicle isnotdesignedforrecreationalriding.
• Neverallowridersinthecargoboxorotherareas whereseatsarenotprovided.
• Driveveryslowlywhenturning.Sharpturnscould causetheutilityvehicletotipover.
• Reducespeedandexerciseextremecautionon slopesoronroughground.
• DONOToverloadvehicleandavoidshiftingloads. Reduceloadwhenoperatingoverroughorhillyterrain.
• DONOTstoporstartsuddenlywhengoinguphillor downhill.Beespeciallycautiouswhenchanging directiononslopes.
• Stayalertforholes,rocks,andotherhiddenhazards intheterrain.
• Keepfrontwheelsstraightatcrestofhillorgoingover bumps.
• Whendescendingahill,removefootfromaccelerator andapplybrakestoreducespeedandmaintaincontrol.
• DONOTmakechangesormodificationstotheUtility Vehicle.
• Useofahelmetand/orprotectivegearis recommendedforcertainoperatingconditions.
WearAppropriateClothing
• Wearclosefittingclothingandsafetyequipment appropriateforthejob.
• Loudnoisecancauseimpairmentorlossofhearing, wearasuitableprotectivedevicesuchasearplugs.
W15212
OPERATINGMACHINE
DrivingOnRoughOrHillyTerrain
CAUTION:Helppreventseverebodilyinjury ordeathduetolossofcontrol.Reduceload whenoperatingoverroughorhillyterrain. Reducespeedwhenturningorwhen operatingaroundobstaclesorroughterrain. Checktheterrainandknowtheoperational capabilityofthevehicle.Chooseplacesto operatecarefully.
• Horseplayorrecreationalridingcanleadtoaccidents, severebodilyinjuryordeath.
• Alwaysusethebrakeswhengoingdownslopes.The utilityvehiclecanspeedup(freewheel)goingdowna slope.Whencarryingaload,besuretheloadisevenly distributedandsecured.Brakingcouldshifttheloadand affectvehiclestability.Duetobeltdrive,engineand/or clutch,brakingeffectcanbeminimal.
• Useexistingtrails.Avoidterrainsuchasdangerous slopesandimpassableswamps.Watchcarefullyfor sharpbumps,holes,ruts,orobstacles.
• Lookaheadatterrain.Knowwhatiscomingandbe preparedtoreact.Bealertforhazards.
• Keepfrontwheelsstraightatcrestofhillorgoingover bumps.
• Adjustspeedaccordingtotrail,terrain,andvisibility conditions.
• Useofahelmetandorprotectivegearis recommendedforcertainoperatingconditions.
CheckWheelBolts
IMPORTANT:Overtighteningoffrontwheelhub mountingboltsmayresultinbearingdamage.
• Aseriousaccidentcouldoccurcausingseriousinjury ifwheelboltsarenottight.
• Checkwheelbolttightnessafterfirst10hoursof vehicleoperationandevery200hoursthereafter.
PictureNote:Tighteninorderoflettersonphoto.
• Tightenfrontwheelboltsto90N•m(65lb-ft.).
• Tightenboltsonthedrivewheelsto90N•m (65lb-ft.)
OPERATINGMACHINE
ClimbingOrDescendingAHill
CAUTION:Helppreventseverebodilyinjury ordeathduetolossofcontrol.Reduceload whenoperatingoverroughterrain.Duetobelt drivethereisminimalenginebrakingeffect, utilityvehiclewillfreewheelgoingdown slopes.
Reducespeedwhenturningorwhen operatingaroundobstaclesoronrough ground.
• Alwaysusethebrakeswhengoingdownslopes.The utilityvehiclecanspeedup(freewheel)goingdowna slope.Whencarryingaload,besuretheyareloaded evenlyandsecured.Brakingcouldshifttheloadand affectvehiclestability.Duetobeltdrive,engineand/or clutchbrakingeffectisminimal.
• Sitoncenterofseatandkeepbothfeetwithinfoot platform.
• Neverdrivepastthelimitofvisibility.Slowdownnear crestofhilluntilgettingaclearviewoftheotherside.
• Keepfrontwheelsstraightatcrestofhillorgoingover bumps.
• DONOTstoporstartsuddenlywhengoinguphillor downhill.Beespeciallycautiouswhenchanging directiononslopes.
• Ifvehiclestopsorlosespowergoingupahill,apply parkbraketoholdvehicleonslope.Maintaindirectionof travelandreleasebrakeslowly.Backstraightdownhill slowlywhilemaintainingcontrol.DONOTturnvehicle sideways.Vehicleismorestableinastraightforwardor rearwardposition.
• Whendescendingahill,removefootfromaccelerator andapplybrakestoreducespeedandmaintaincontrol.
• Useofahelmetand/orprotectivegearis recommendedforcertainoperatingconditions.
W00903
W15212
OPERATINGMACHINE
DrivingAcrossSlopes
CAUTION:Helppreventseverebodilyinjury ordeathduetotippingorlossofcontrol. Reducespeedandexerciseextremecaution onslopesandinsharpturns.Beespecially cautiouswhenchangingdirectiononslopes.
• Sitoncenterofseatandkeepbothfeetwithinfoot platformperimeter.
• Stayalertforholes,rocksandotherhiddenhazards intheterrain.
• Whenridingonsoftterrain,turnfrontwheelsslightly uphilltokeeputilityvehicleonastraightlineacrossthe hill.
• Ifutilityvehiclebeginstotip,turnfrontwheeldownhill togaincontrolbeforeproceeding.
• Useofahelmetorprotectivegearisrecommended forcertainoperatingconditions.
RidingThroughWater
CAUTION:Helppreventseverebodilyinjury ordeathduetolossofvehiclecontrol.
• Avoidwaterwheneverpossible.Ifdrivebeltbecomes wet,slippagewilloccurandvehiclewilllosepower
• Sitoncenterofseatandkeepbothfeetwithinfoot platformperimeter.
• Reducespeedwhiledrivingthroughwater. Nevercrossanybodyofwaterwheredepthmaybe unknowntotheoperator.Asanoperationalguideline, deepwaterisconsideredanythinginexcessof152mm (6in.)indepth.Tiresmayfloat,makingitdifficultto maintaincontrol.
• Chooseacoursewithinthewaterwaywhereboth bankshaveagradualincline.Crossatapointknownto besafe.
• Proceedataslowsteadyspeedtoavoidsubmerged obstaclesandslipperyrocks.
• Avoidwatercrossingswheretheoperationofautility vehiclemaycausedamagetowaterwaybedsorerode waterwayshoreline.
W00903
W15212
OPERATINGMACHINE

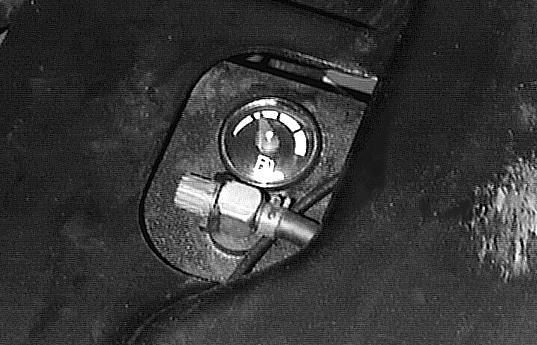

UsingFuelShut-OffValve

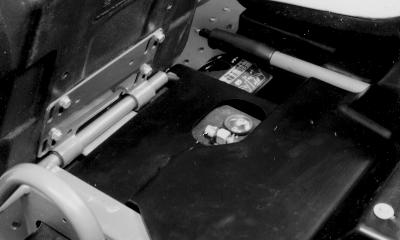

1.Liftandtipoperatorseatforward.
2.Turnknob(A)toshutOFForturnONfuelflow.Arrow onknobshouldfaceupwardforfuelflowtobeON.
NOTE:Thefuelshut-offvalveshouldbeclosedif thevehicleistobetransportedorplacedin extendedstorage.
UsingSteeringWheelLockCable
NOTE:Thissteeringwheellockcablehelpsprevent vehicletheft.

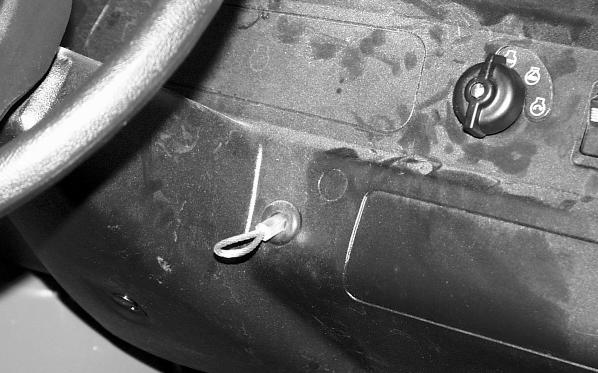

1.Pullcable(A)outofitsstoragehole.

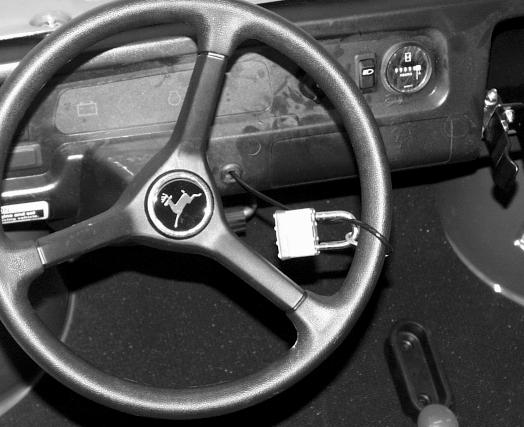

2.Loopcablearoundsteeringwheel.
3.Padlockcabletosteeringwheel.
M78466
MX3423
MX3424
OPERATINGMACHINE

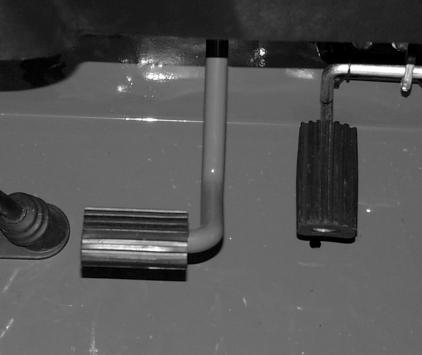

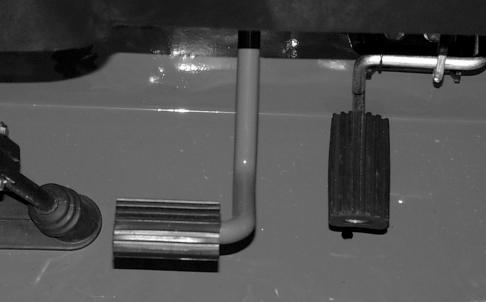

OperatingBrakeandAcceleratorPedals
CAUTION:Helppreventbodilyinjurydueto lossofcontrol,loadshiftingand/ortipping. Reducespeedbeforebraking,whenturning, whenhaulingloadsathigherspeeds,when operatingaroundobstacles,andwhen operatingonanyhazardousoff-road conditions.
Releaseaccelerator(A)andapplybrakepedal(B) evenlyandfirmlytoslowdownorstop. Avoidhardbrakingapplications.
Pushdownacceleratorslowlyandsmoothly. Beforebrakingremovefootfromtheacceleratorpedal.

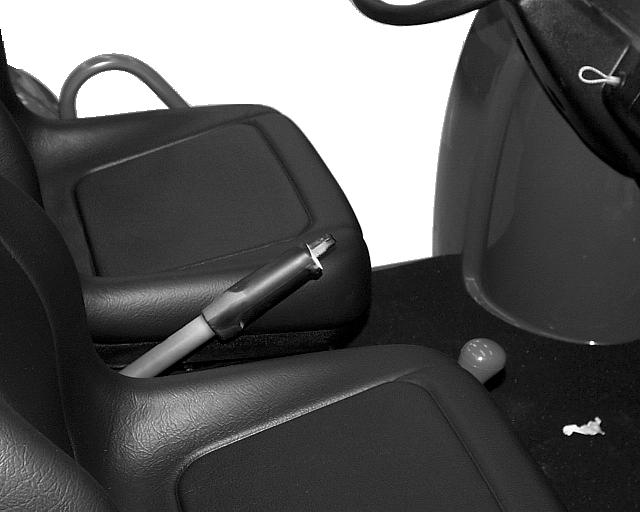

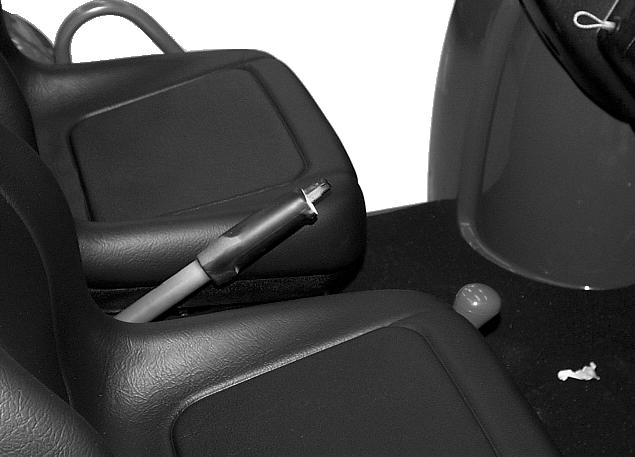

UsingParkBrake
NOTE:Applyingfootbrakepedalwhileengaging anddisengagingparkbrakedecreaseseffort requiredtopullorpushparkbrakelever.
ToENGAGEparkbrake:
• Pulluplever(A)andlatchintoposition.
ToDISENGAGEparkbrake:
• Pulluponlever(A).
• Depressbutton(B).
• Pushlever(A)down.
PictureNote:Decallocatedonconsolebelowparkbrake lever.
M97028
W02627

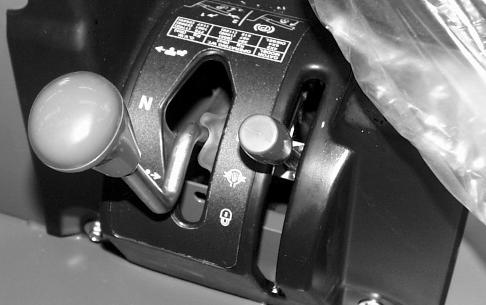

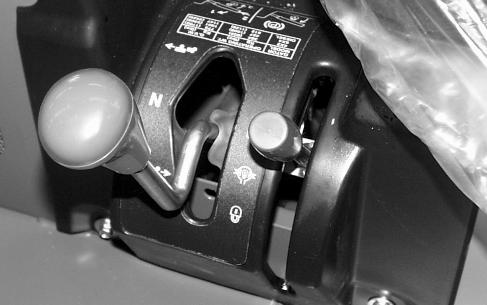

OperatingDifferentialLock
OPERATINGMACHINE
Thedifferentiallockisusedforbettertractionwhenrear wheelsstarttoslip.Engagingthedifferentiallockwill causeallrearwheelstoturntogetheratequalspeed.
CAUTION:Helppreventbodilyinjurydueto lossofsteeringcontrol.Donotoperateutility vehicleatspeedsinexcessof16km/h(10 mph)orattempttoturnwhendifferentiallock isengaged.
IMPORTANT:Avoidtransaxledamage.Donot attempttoengageordisengagedifferentiallockat highspeeds.Lockpinswillnotengage,and damagewilloccurtotransaxleand/orlinkage. Fordifferentiallocktoengage,theleftandright sidewheelsmustbeturningatslightlydifferent speeds.
Leverpositionsare,DISENGAGED(B)andENGAGED (A).
Toengagedifferentiallock:
IMPORTANT:Fordifferentiallocktoengage,the opposingwheel(s)mustbeturningslightlyfaster thanoppositewheel(s).
• Stoporslowutilityvehicleenginespeedto1/3throttle orless.
• Pushdownonlever(C),differentiallockwillremain engagedaslongasleverisdown.Functionindicator panellightondashwillcome “ON”
• Todisengagedifferentiallockraiselever(C).Function indicatorpanellightondashwillgo “OFF”.
NOTE:Panellightonlytellsyouwhenleverisin “ON”or“OFF”position.Toactuallydisengagethe differentiallock,equalizetorqueonbothaxles. Drivevehiclestraightaheadatconstantspeedor stopandreversemachine.Thisinformationis describedinthevideotapesuppliedwithmachine.
OPERATINGMACHINE
UsingTransaxleShiftLever
IMPORTANT:DONOTshiftgearswhenutility vehicleismovingorwithenginerunningabove lowidlespeed.Damagetotransaxlewilloccur. Avoidgrindingofgears.Alwaysengageshiftlever withafirmpositiveaction.
Avoidgrindinggears:
• Waituntiltheenginecomestolowidlespeedbefore shifting.
• Alwayscometoacompletestopbeforeshifting.
• DONOTraceengineinneutralandthenshiftvehicle intogear.
Shiftlever(A)islocatedonaconsoletotherightand belowtheoperatorseat.Therearethreepositions:
FORWARD:Pushshiftleverforward.
NEUTRAL:Movelevertomiddleposition.
REVERSE:Pullshiftlevertoright,thenpullrearward.
AdjustingSeats
1.Liftandtipvehicleseatforward.
NOTE:Thebackoftheseatwillhitthefrontofthe fender.Usecarewhenadjusting.

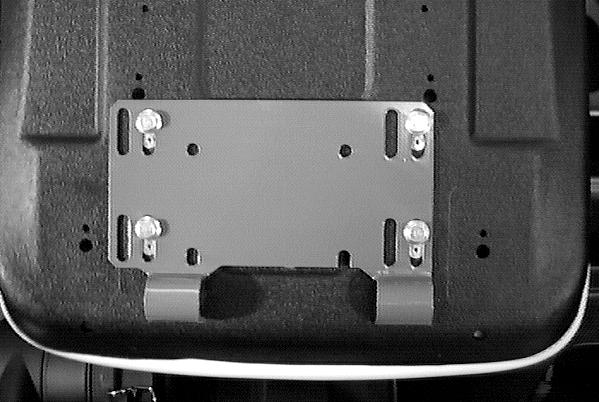

2.Loosenhardware(A).
3.Slideseatforwardorbackwardtodesiredposition.
NOTE:Leftrearboltpositiononpassengerseatis intentionallyleftopen,nobolt.
4.Tightenhardware.
NOTE:Lateralseatmovementcanbeaccomplished byremovingseathardwareandmovingseattothe otherslottedseatposition(B).
OPERATINGMACHINE
StartingtheEngine
CAUTION:Exhaustfumescancause sicknessordeath.Helppreventpersonal injuryordeath,ifitisnecessarytorunthe engineinanenclosedarea,removefumes withexhaustpipeextensionorpowered ventilationsystemdesignedforthispurpose. Ifanextensionisnotused,opendoorsto provideventilation.
1.Sitonvehicleoperator’sseat.DONOTstartengineat thistime.
2.Pushdownonacceleratorpedal(A)tocheckforfree movementofpedalassembly.Releasepedal.
3.Engageparkbrakeifvehicleisparkedonanincline.
NOTE:Yourutilityvehiclehasaneutralstartsafety switch.Enginewillnotstartunlesstransaxleshift leverisinN(Neutral)position.
4.MovegearshiftlevertoN(Neutral)position.
OPERATINGMACHINE
5.EngageparkingbrakebypullingUPonhandle(B).
CAUTION:Helppreventpossibleinjuryor death.Remainalerttootherpeopleandthe surroundingswhenchoosinganareafor vehicleoperation.
Whenacceleratorpedalisdepressed,vehicle willbegintomove.Directionoftravelwillbe determinedbythepositionofthetransaxle shiftlever.
DONOTstartenginebyshortingacross starterterminals.Vehiclewillstartingearif normalcircuitryisby-passed.
Neverstartenginewhilestandingonground. Startengineonlyfromoperator’sseat.
6.TurnignitionswitchtotheRUNposition(C).
ThefollowingindicatorlightswillbeON:
• Batterydischargeindicator(D).
• Oilpressureindicator(E).
• Coolanttemperatureindicator(F).
• Enginepreheatindicator(G);willcomeONforup to8seconds.LengthoftimeONvarieswithair temperature.
IMPORTANT:DONOToperatevehiclestarter
morethan5secondsatatimeordamagemay occur.Ifenginewillnotstart,wait10seconds beforetryingagain.Ifenginestartingproblems persist,refertotheTroubleshootingsection.
7.Assoonascoolanttemperatureandpreheat indicatorsgoout,turntheignitionswitchtoSTART position(H).
• Ifenginestarts,releaseswitchtotheRUNposition.
• Ifenginedoesnotstartwithin5seconds,turnthe ignitionswitchtoOFFandwait10secondsbefore tryingtostartagain.
• Inverycoldconditions,attemptstartingonlythree timesandthenwait5minutesbeforetryingtostart again.Thiswillallowtimeforstartertocooland preventdamagetostarter.
OPERATINGMACHINE
WarmingandIdlingtheEngine
IMPORTANT:Donotoperatetheengineatfull throttleorunderloaduntilenginehaswarmedup, orenginedamagecouldoccur.
WarmingEngine
Runengineathalfspeedfor2or3minutes.
IdlingEngine
1.Avoidunnecessaryslowidling.Instead,stopengine.
CAUTION:Tohelppreventinjurydueto entanglementinfan,stopenginebefore cleaningscreens.Fancanrunevenifengine isoff.
2.Keepenginecompartmentclean.Besureradiator screensremaininstalledandclean.Theengineinthe utilityvehicleneedslargevolumesofairtokeepcool.
3.Pullupradiatorscreen(A)foreasycleaning.
4.Removeoutsidescreens(B)toaccessfrontof radiatorforcompletecleaning.
W02204
M97029
W02205
OPERATINGMACHINE
StoppingEngine
IMPORTANT:Ifenginehasbeenrunninghardand ishot,DONOTstopengineimmediately.Remove loadfromengine.Runengineat1/3to1/2throttle forseveralminutestocoolengine.
1.Releaseacceleratorpedalandallowenginetoslow idle.
2.MovegearshiftlevertoN(Neutral)position.
3.Engageparkingbrake.
4.TurntheignitionswitchtotheSTOPposition(A).
RaisingandLoweringCargoBoxUsing PowerLift
1.TurntheignitionswitchtoRUNposition(A).
2.Raisecargoboxbypushinginontopofrockerswitch (B).
NOTE:Thenoisethatisheardwhenthepowerlift reachestheendofit’sstroke,orwhenliftcapacityis exceeded,istheactuator’sclutchslipping.Keep clutchsliptoaminimum.Donotoverloadvehicle capacity.
3.Lowercargoboxbypushinginonbottomofrocker switch(B).
4.TurntheignitionswitchtoSTOPposition(C).
DOWNLOAD SERVICE OPERATOR MANUAL
