Beneath the Pines

Rebuilding the natural image of Sudbury through alternative residential development strategies.

M. Arch Thesis

Skills

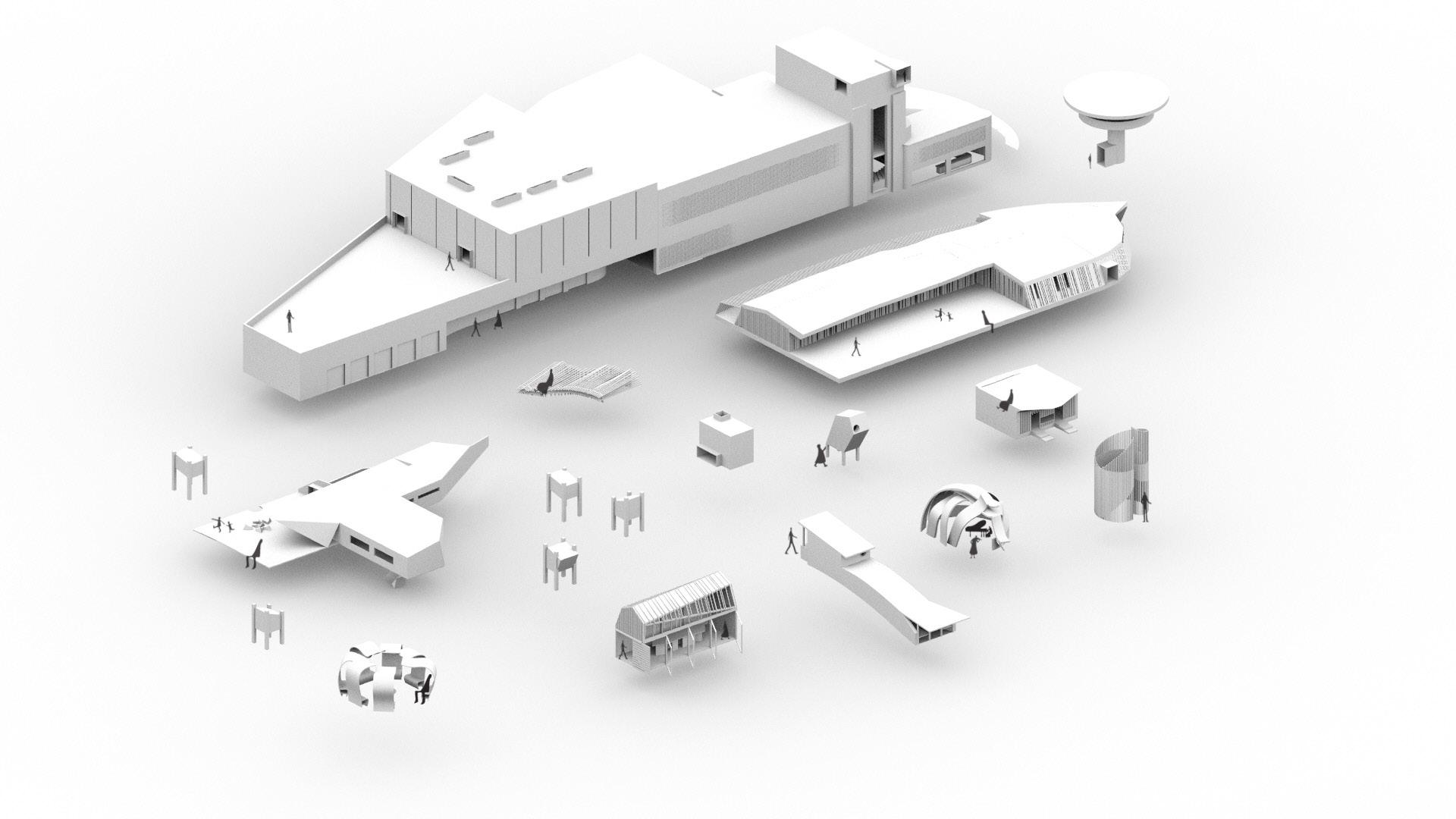

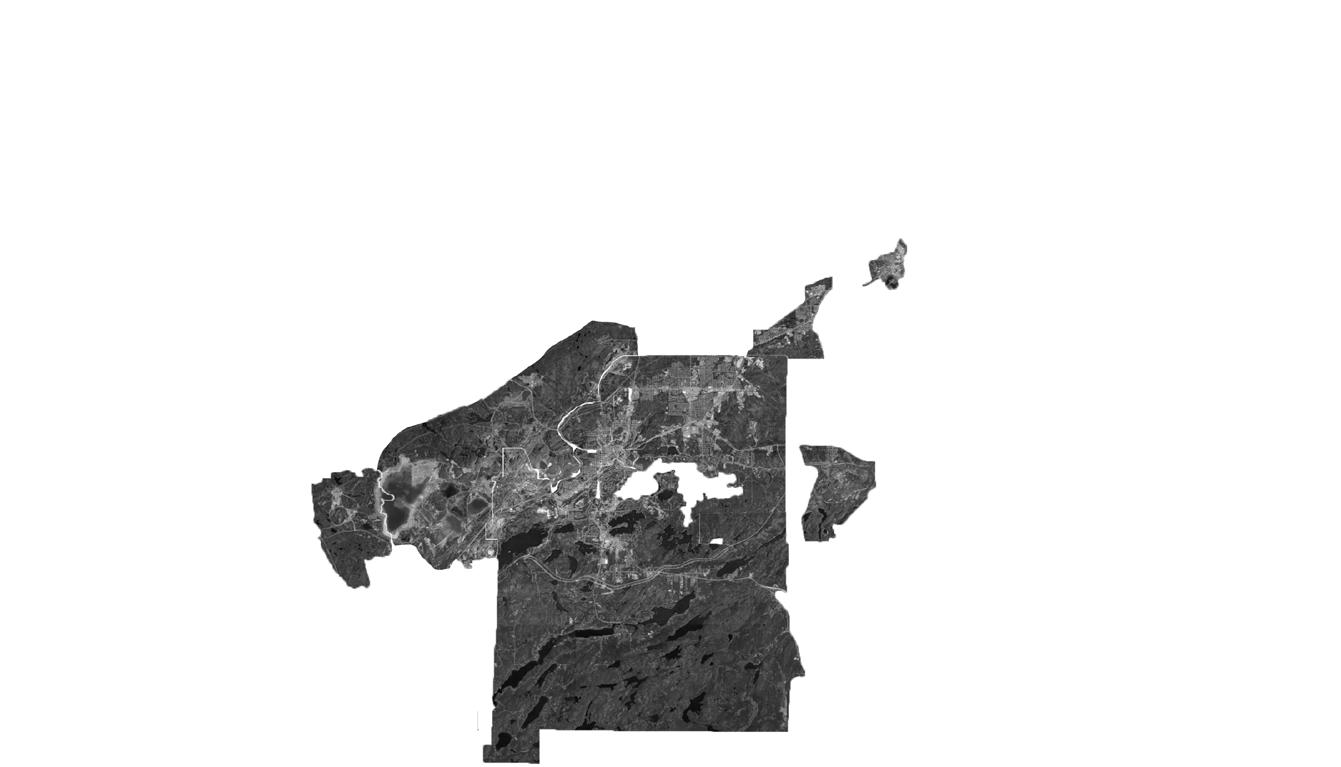

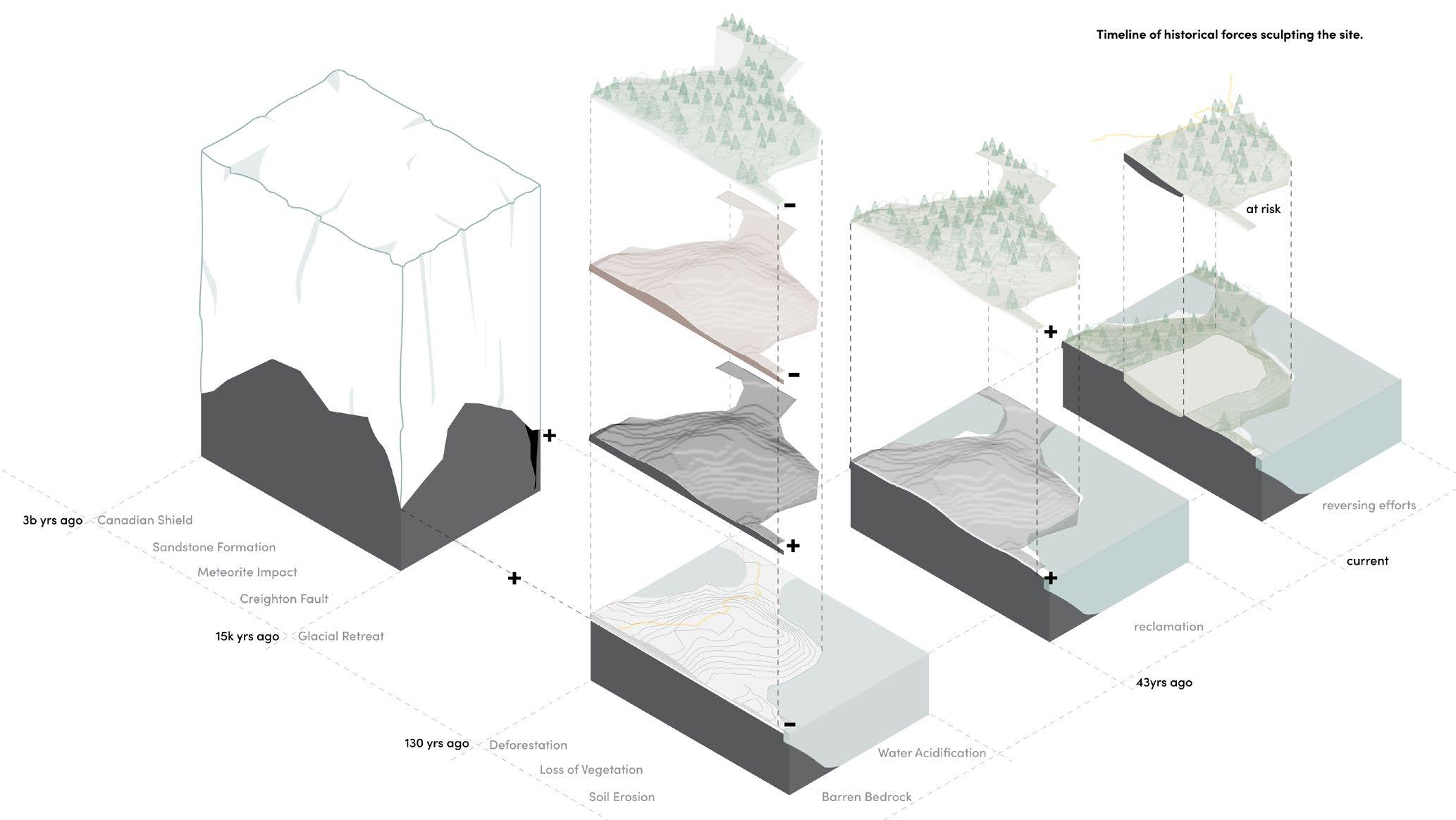

The story of Sudbury begins with the monumental meteorite impact that brought rich mineral deposits to what is now called the Sudbury Basin. This is where Sudbury started. Early Industrial Towns

Industrial Town Typology

Residences located adjacent to mining and industry infrastructure, density dependent on rugged natural landscape and size of workforce. Land controlled by industrial powers seized residential agency and landscape was seen as obstruction.

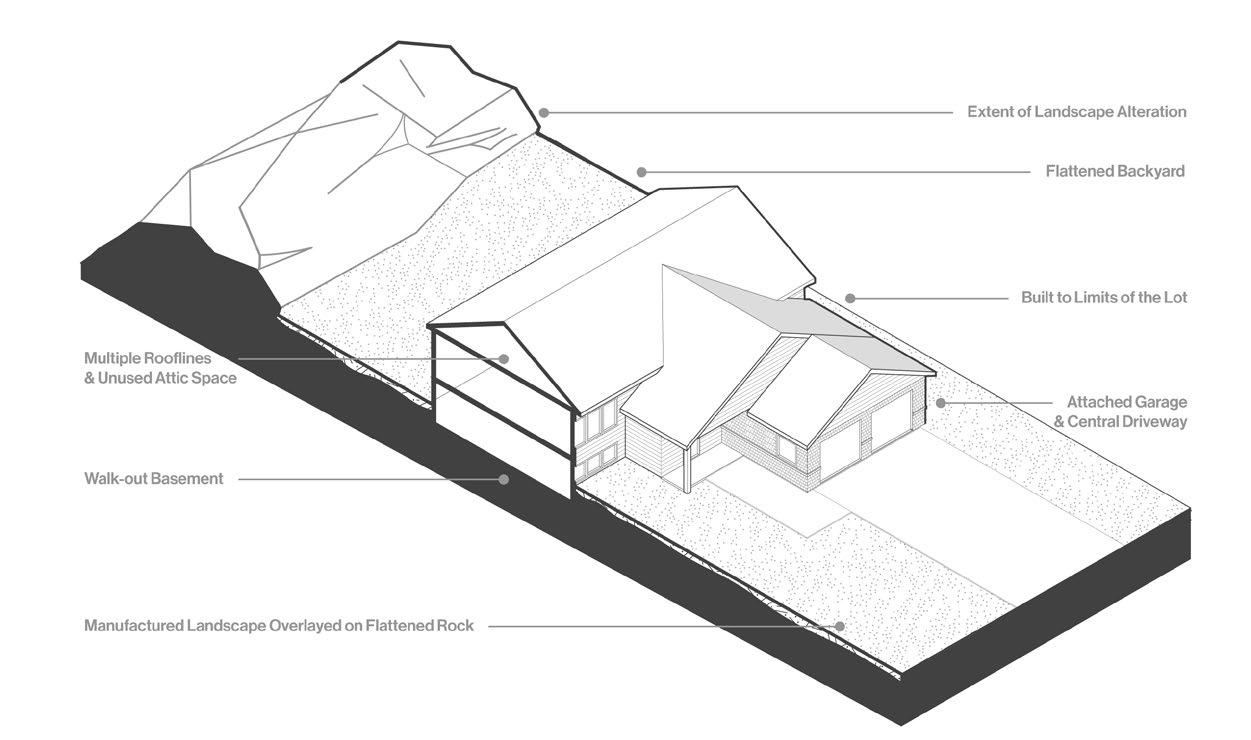

Suburban Typology

Developers and house builders collaborate on the unrolling of a blanket of sameness across our cities. Purchasing choice in trending house styles are marketed as architectural agency. Void of community building, vernacular practices, and enforcing large mortgages supports industrialization and alienation of residents.

Suburban Lakeside Typology

An imperative natural feature at the heart of the city is bound by a constricting barrier of private development towering atop the topographically rich shorelines. Producing an inequity to the city’s most valuable community building tool, fresh source of drinking water, and natural feature, the suburban practices represent a foreign growth within the city.

Understanding the emergent residential typologies that surrounded the industrial developments of early Sudbury.

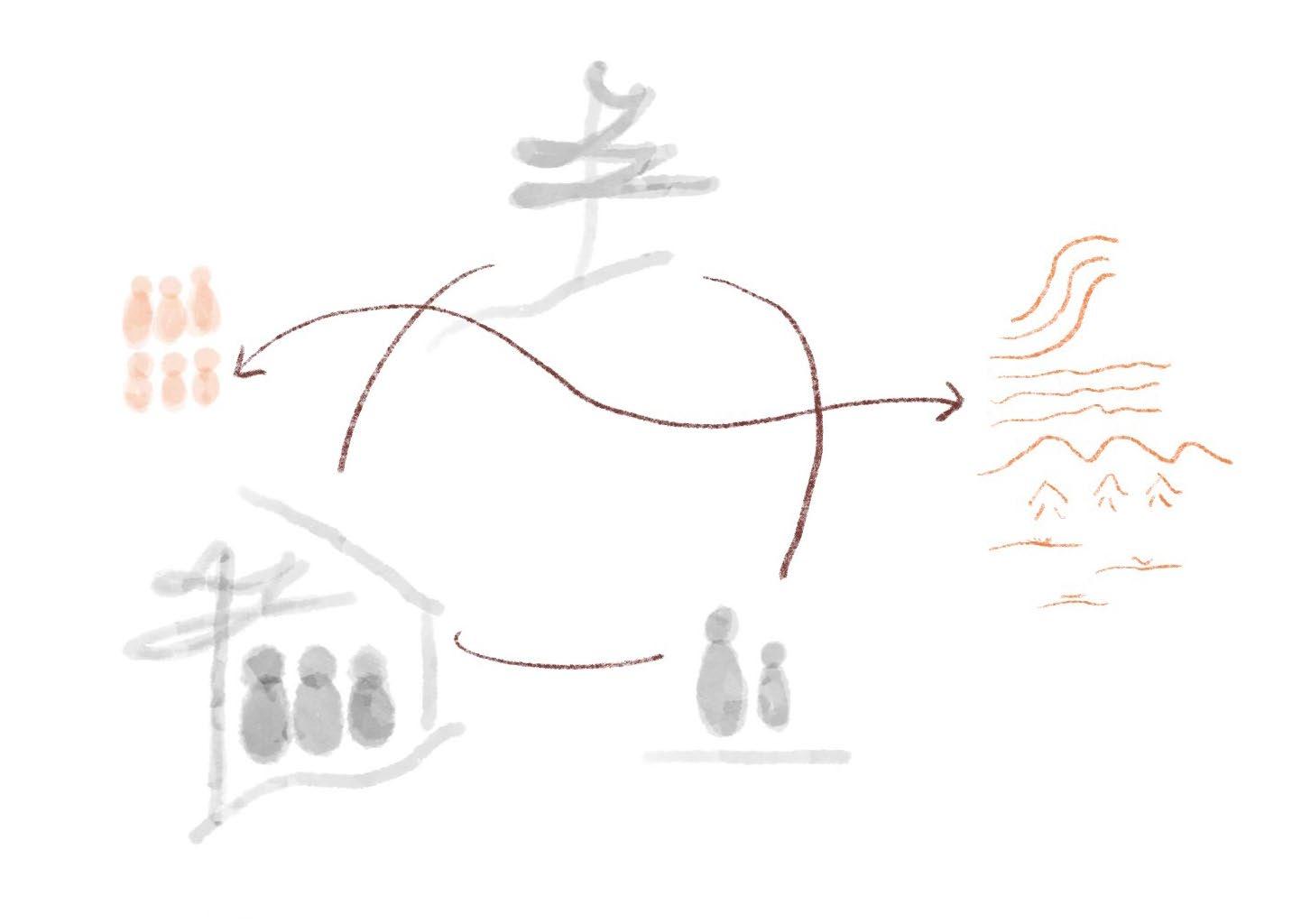

Issues

of agency, relationships to land and to the natural landscape arose informing continued research into the image of Sudbury and the main continubutors to this image over the history of the area.

Industrial Image of the City

Suburbanv Image of the City

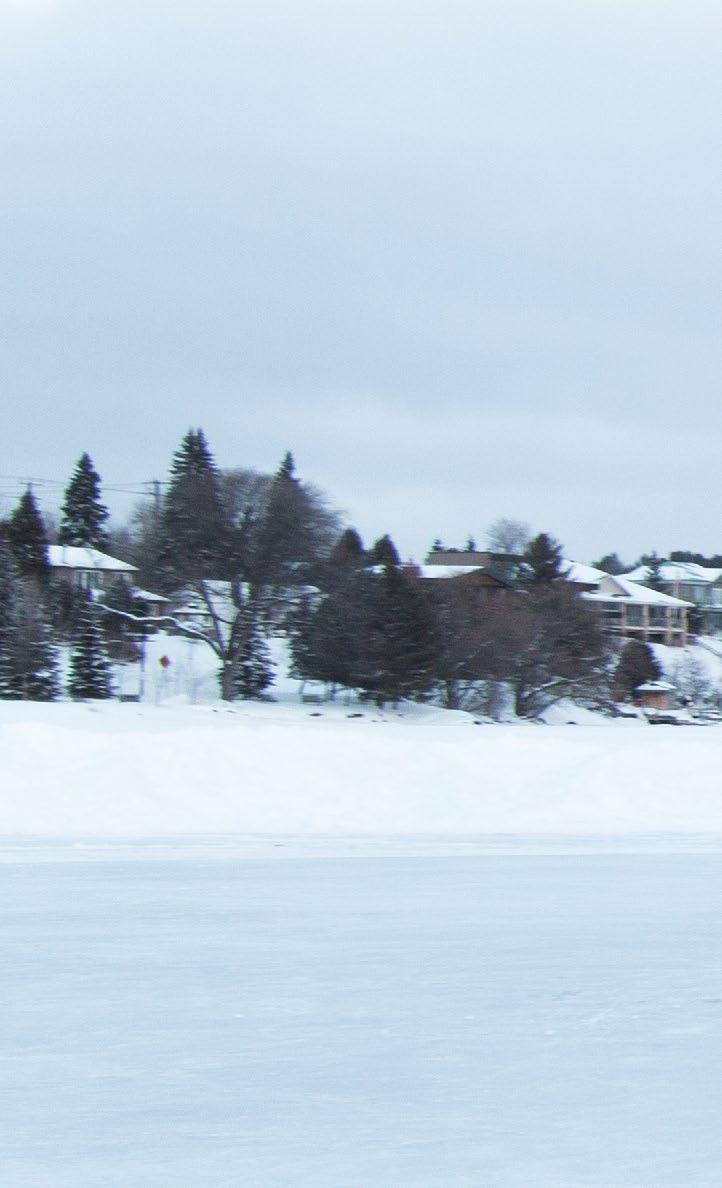

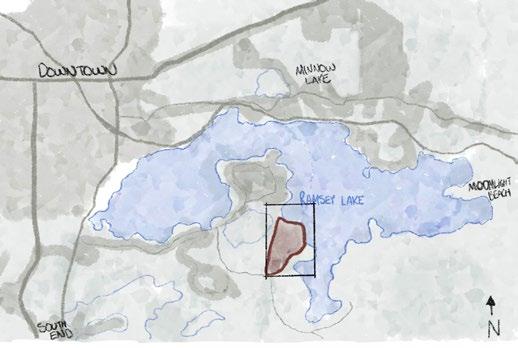

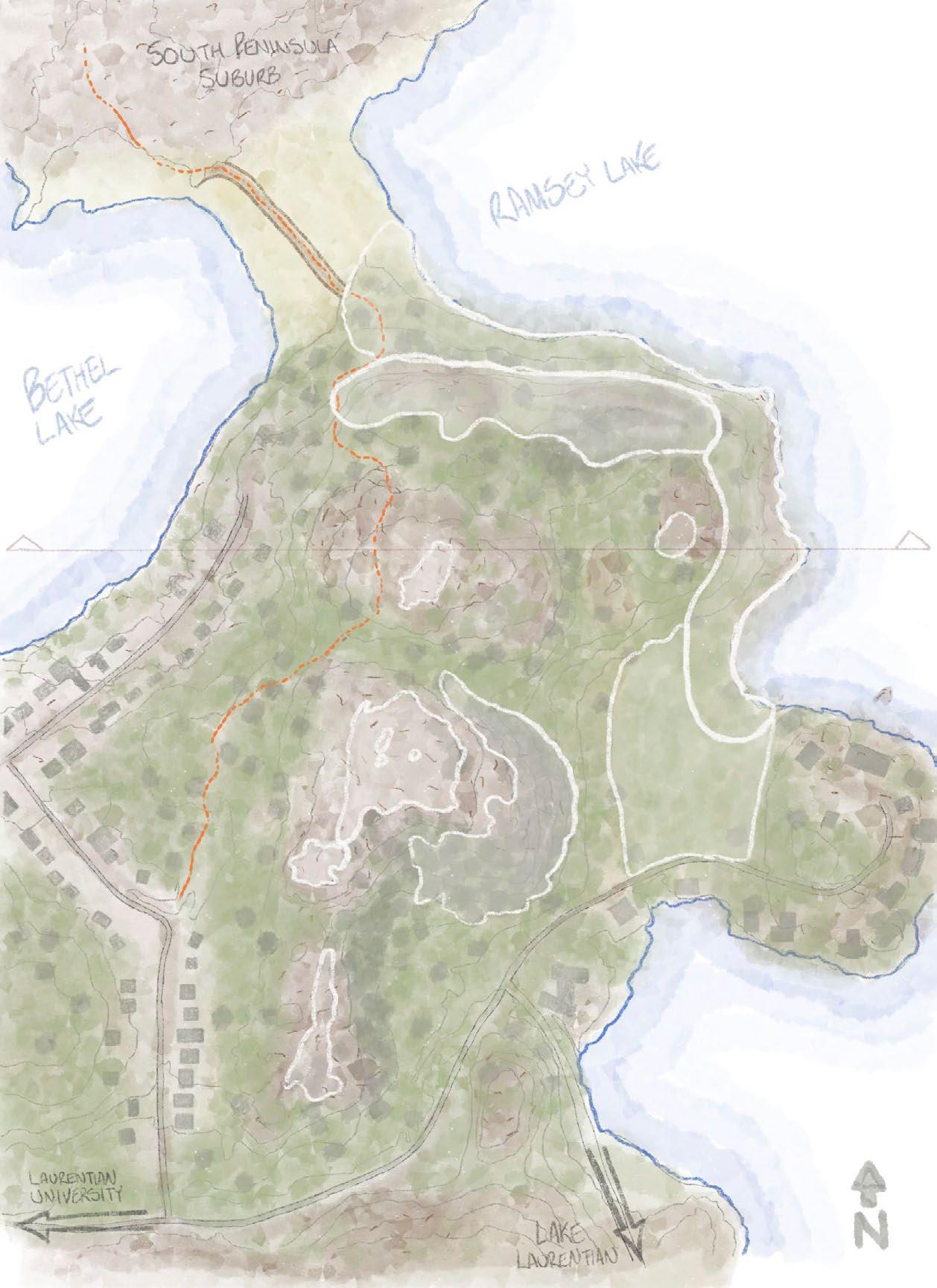

An area on the shoreline of Ramsey Lake, at the heart of the city, that is facing destruction due to proposed suburban development was chosen as the canvas for this experiment.

What can the future image of the city represent? What does a united image of the city comprising equitable contribution to the image through strong communities, architectural agency, and the unique natural landscape of the Sudbury area evoke?

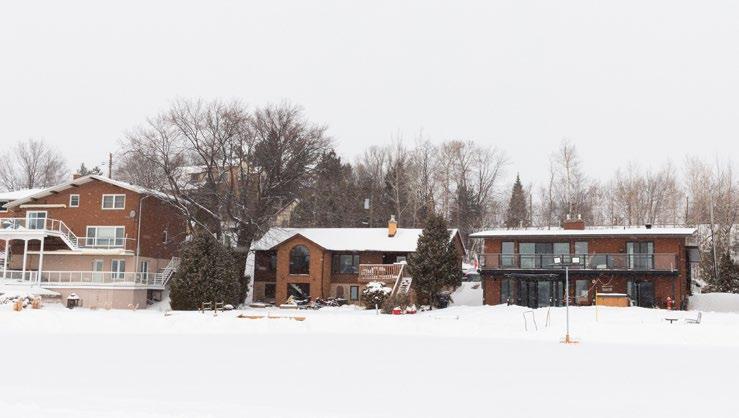

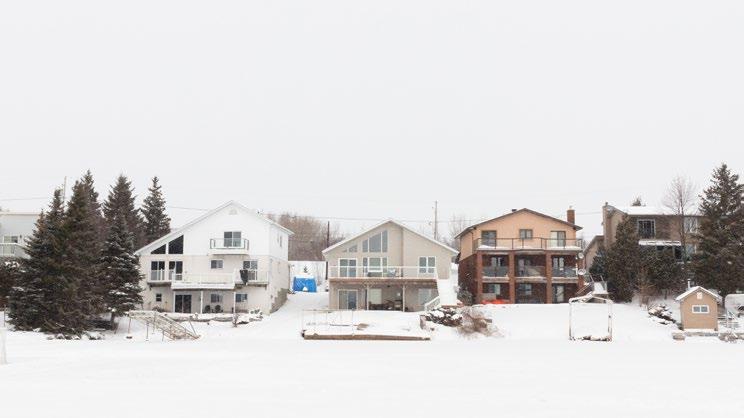

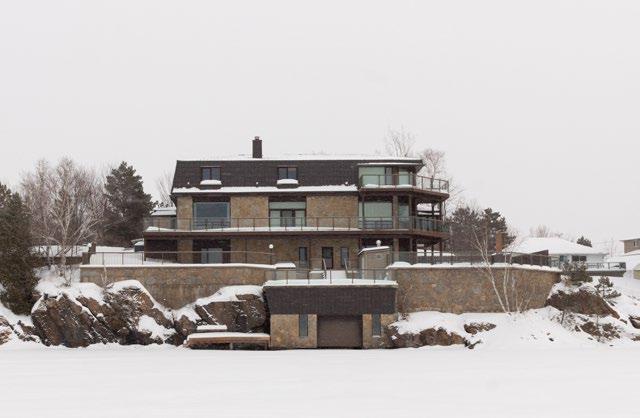

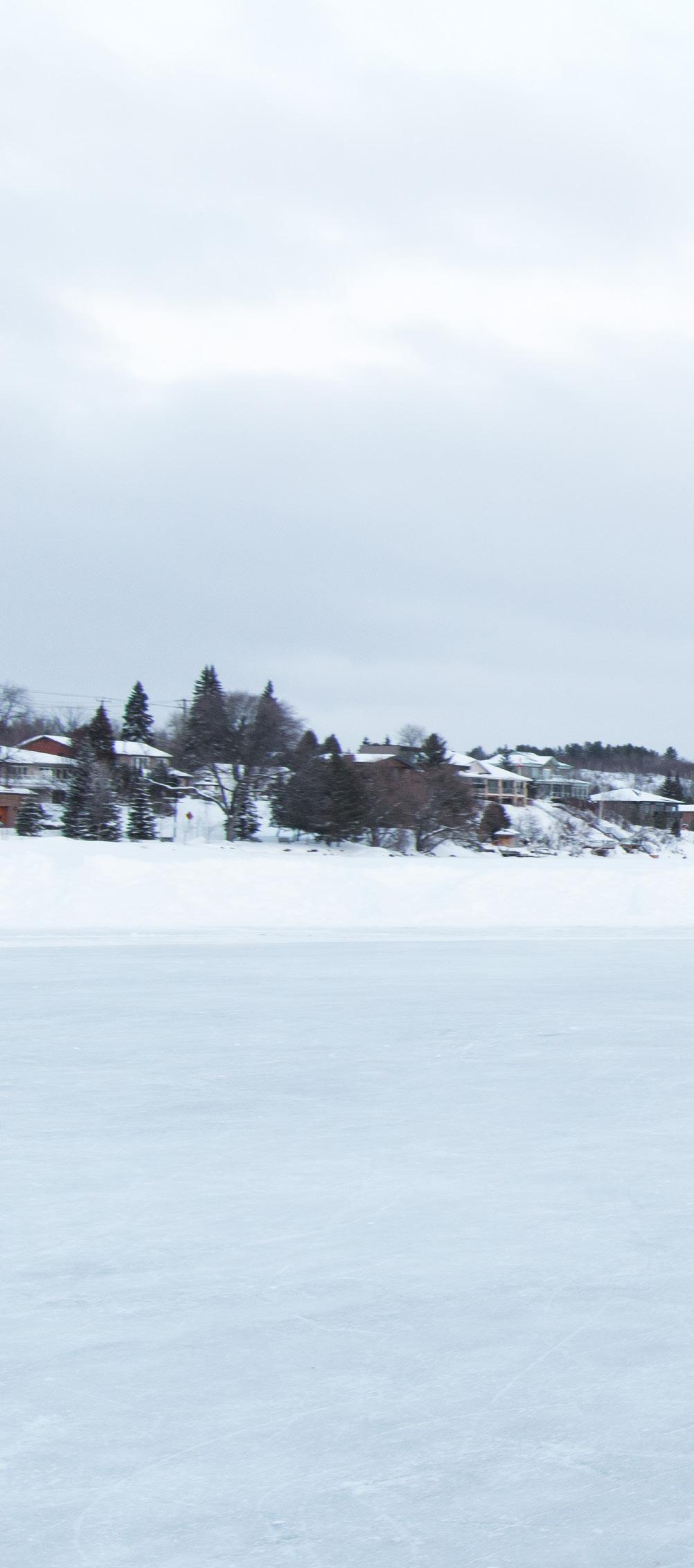

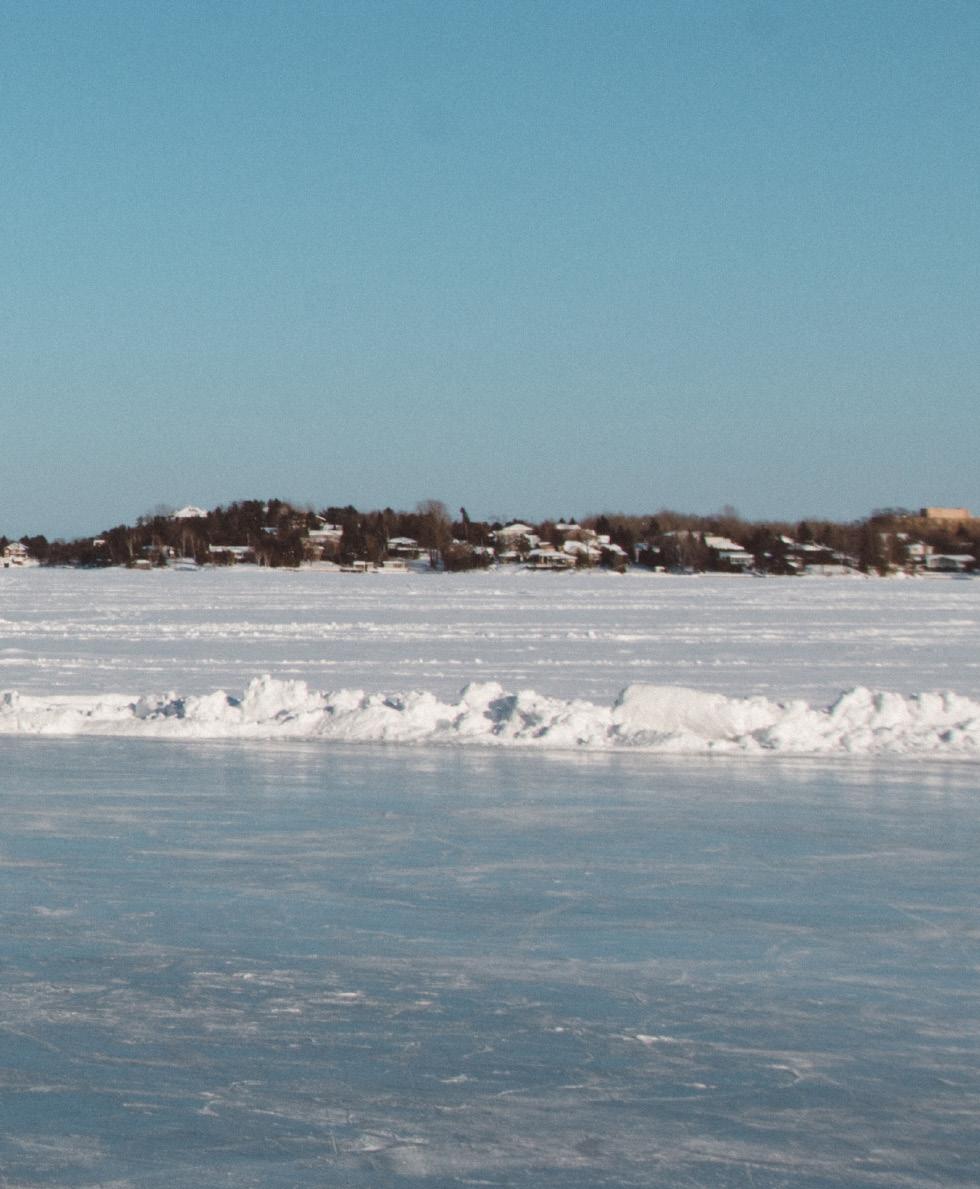

Documentation of the morphology of lakeside development on Ramsey Lake

uncovered issues due to the privitization of the city’s natural landscape. The barrier condition created by ill-suited suburban strategies, commodity housing, and the relationship to landscape informed the requirement for new residential development strategies.

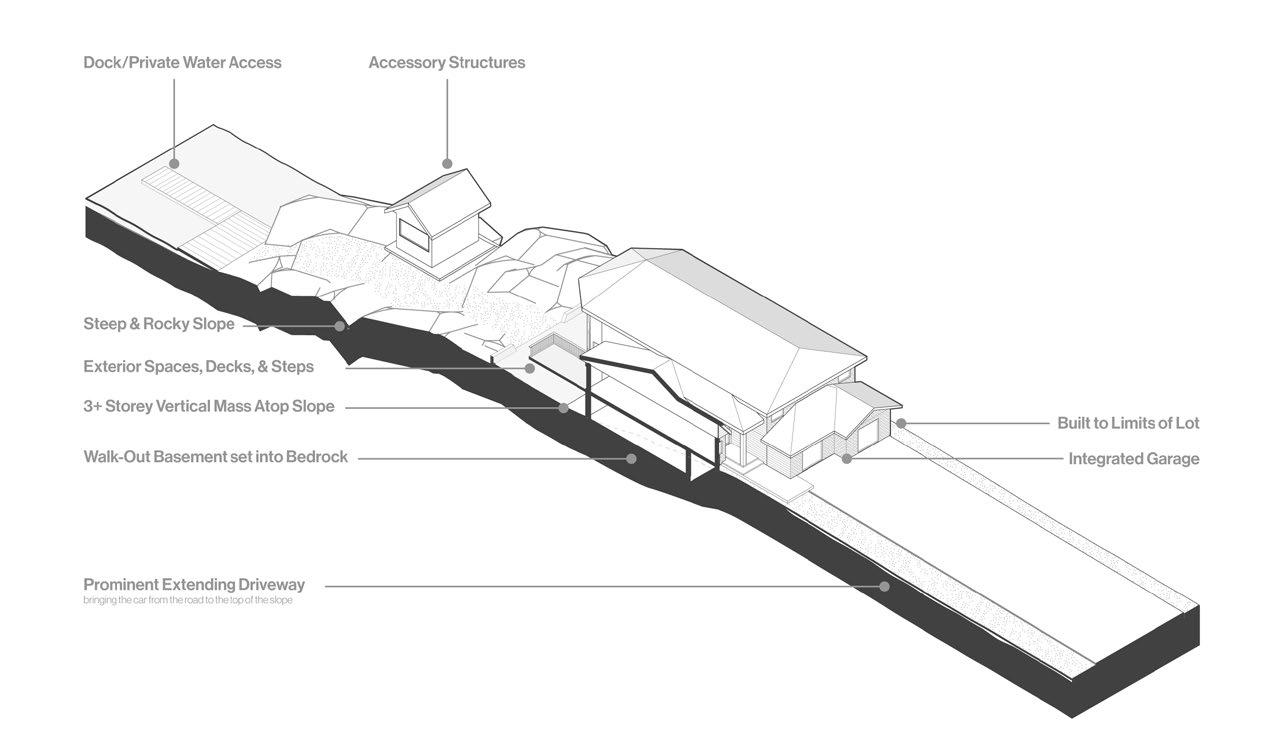

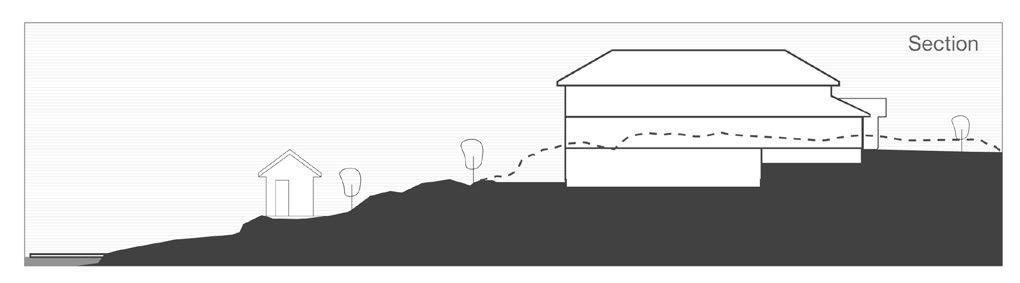

Massive developments atop the steep sloping shoreline creates a strong barrier limiting the impact of Sudbury’s most important natural feature, Ramsey Lake while also eroding the natural landscape of the shorelines.

The importance of a landscape-first approach became clear. The natural landscape of the area is imperative to the image of the city, therefore, residential development that prioritizes and celebrates the natural landscape is critical.

Faultline

Shoreline

Peaks

Pines

Marshland

An approach was developed that would preserve, provide access to, and celebrate the culturally and historically significant natural landscape features present on the site.

A Stewardship Collective was developed that would preserve, provide access to, and celebrate the culturally and historically significant natural landscape features present on the site through a united stewardship effort that ensured equitable access to the natural landscape for both public and private residents of the city.

Between two Lakes site Conservationists

The Stewarship Collective, acting as the owner and caretaker of the landscape, organizes the sale of building rights rather than the sale of land, ensuring the preservation of stewardship goals while also attracting residents who seek a new relationship to the landscape.

Stewardship Collective

A unifying ethos was developed as a set of guiding principles that inform the design process, ensuring elements imperative to the alternative approach are implemented. In the case of slowdevelopment, an ethos is an integral first step meant to guide the creation of pre-design strategies and to instill a collective vision for the alternative development.

Yes No

Natural Fields protecting natural growth of landscape

Dwelling type original to landscape and people

Additive strategies tailoring building to landscape

Equitable public transportation infrastructure

Private land ownership

Commodity housing

Blasting or flattening of the landscape

Individual car-based development strategies

Programing & trails encouraging public access

Modest houses set beneath the pines

Collective stewardship of the natural landscape

Support natural processes and animal habitat

Shared contribution to a natural image of the city

Slow-development of homes sculpted by landscape

Imaginative new strategies original to the landscape

Lifestyles forged by deep connection to nature

Barriers to shoreline and significant landscape

Towering homes dominating the landscape

Individual aspirations altering landscape

Interrupt the natural ecology and animal habitat

Private access to integral images of the city

Phased development destructive to environment

Repetive, ignorant, and place-less development

Disconnect from nature and the outdoors

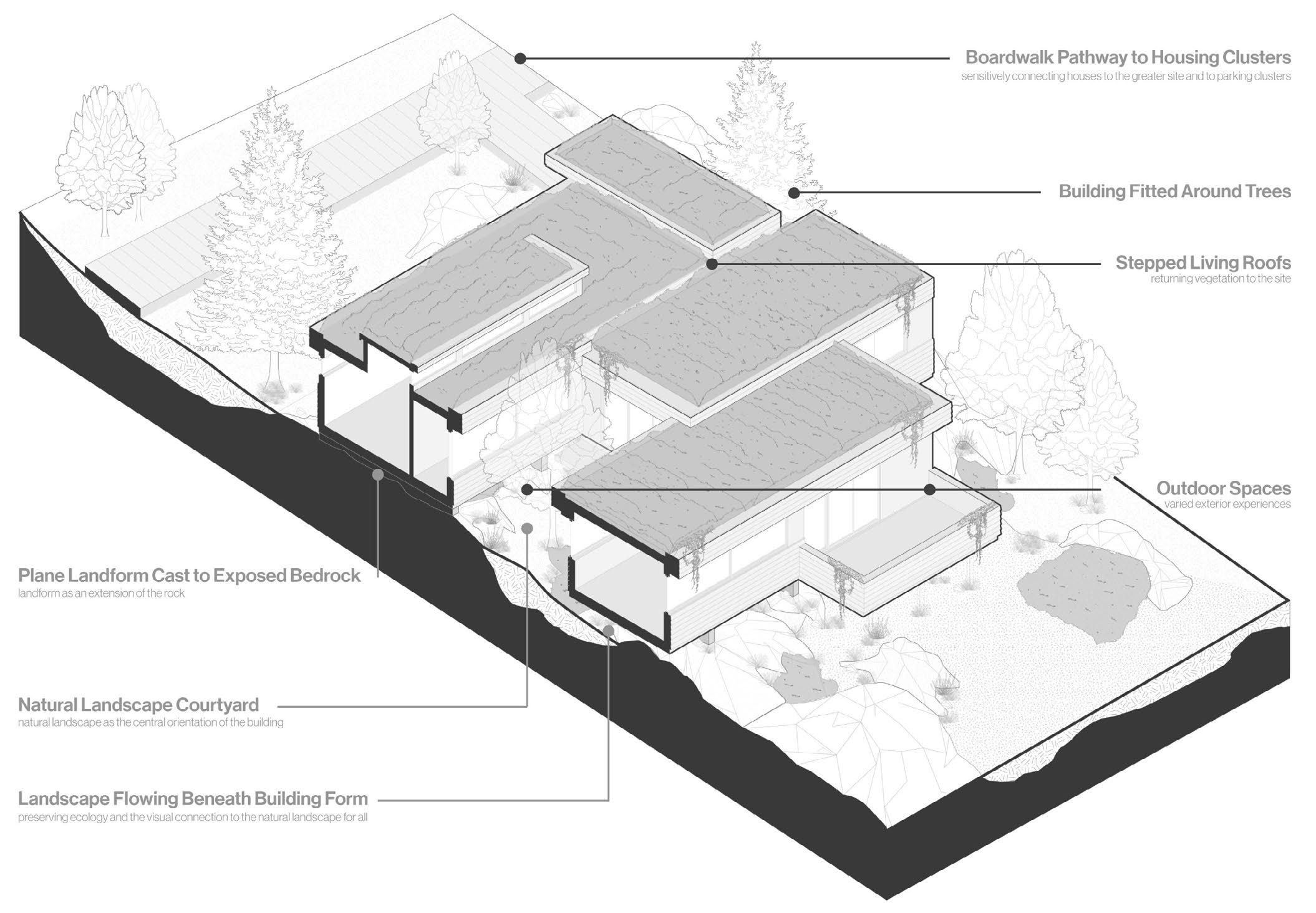

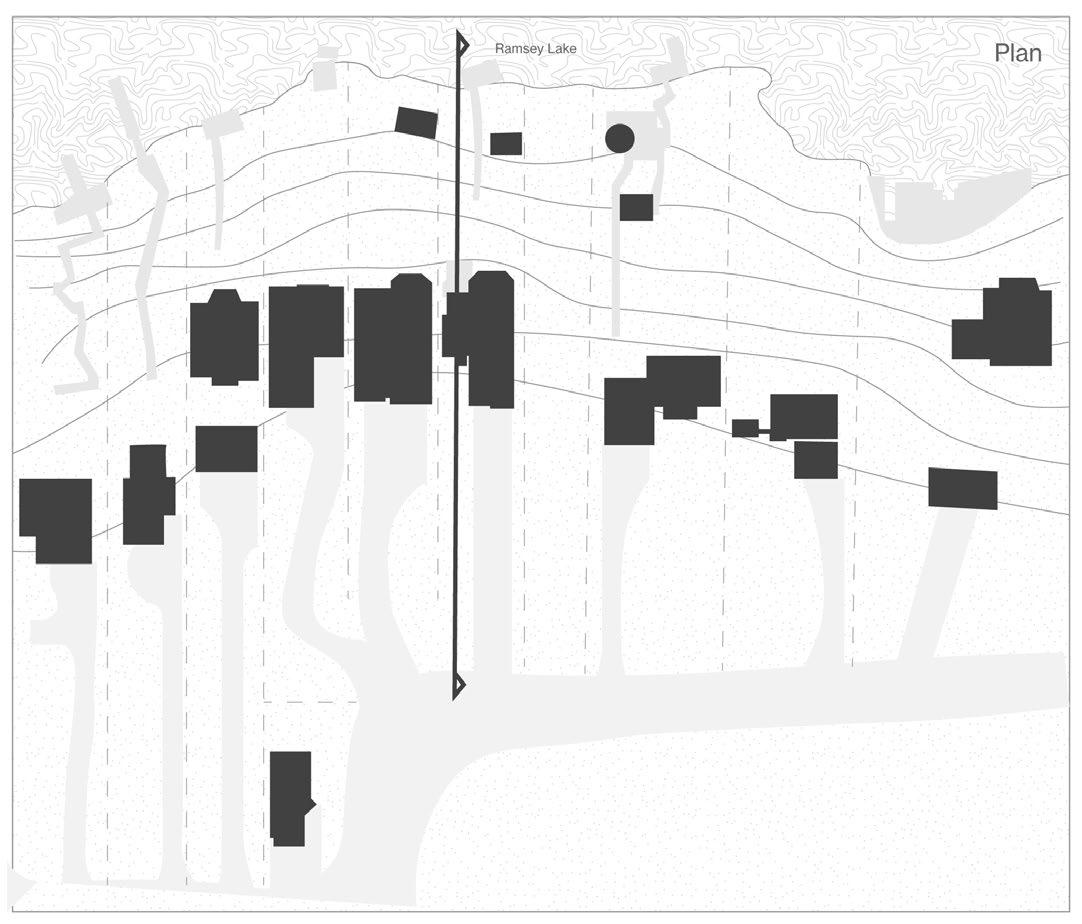

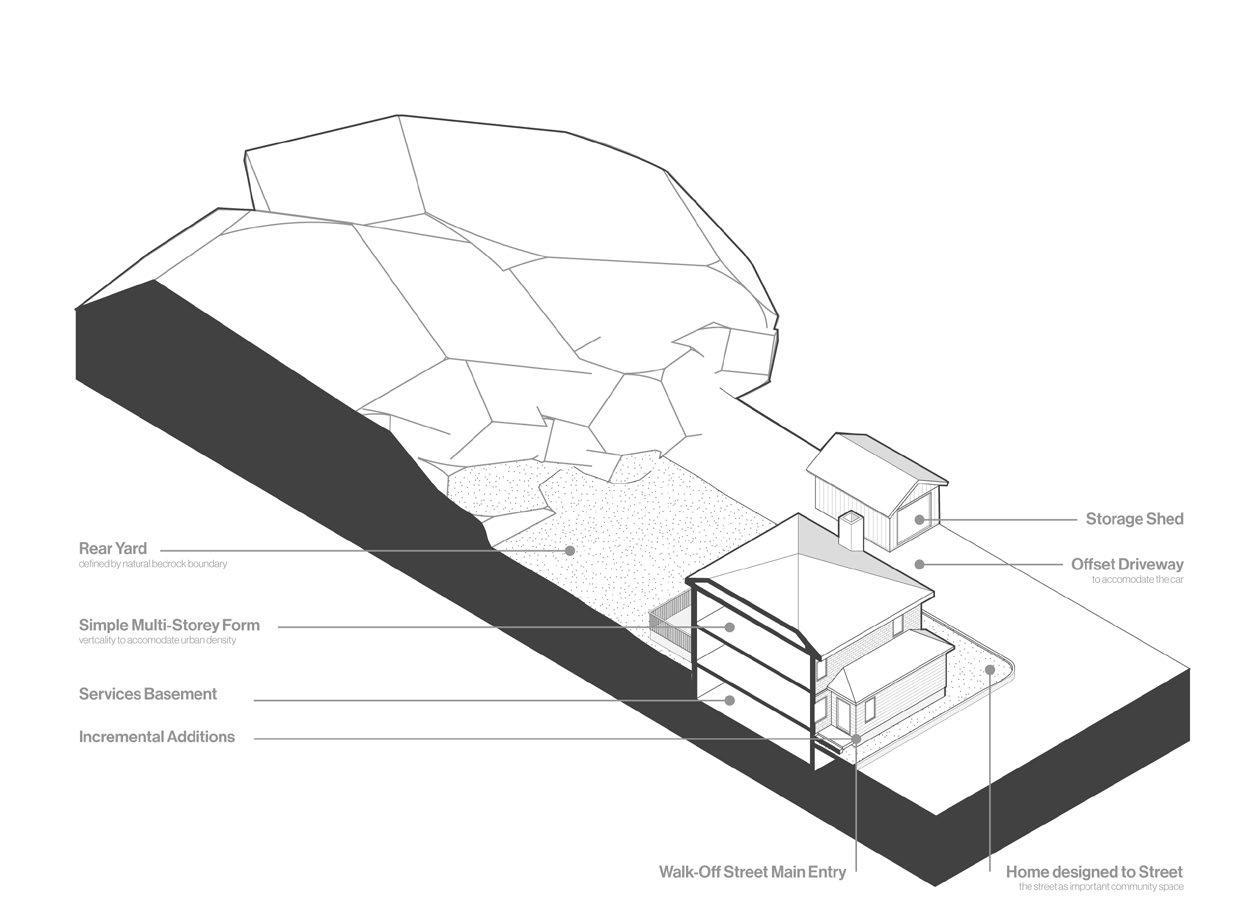

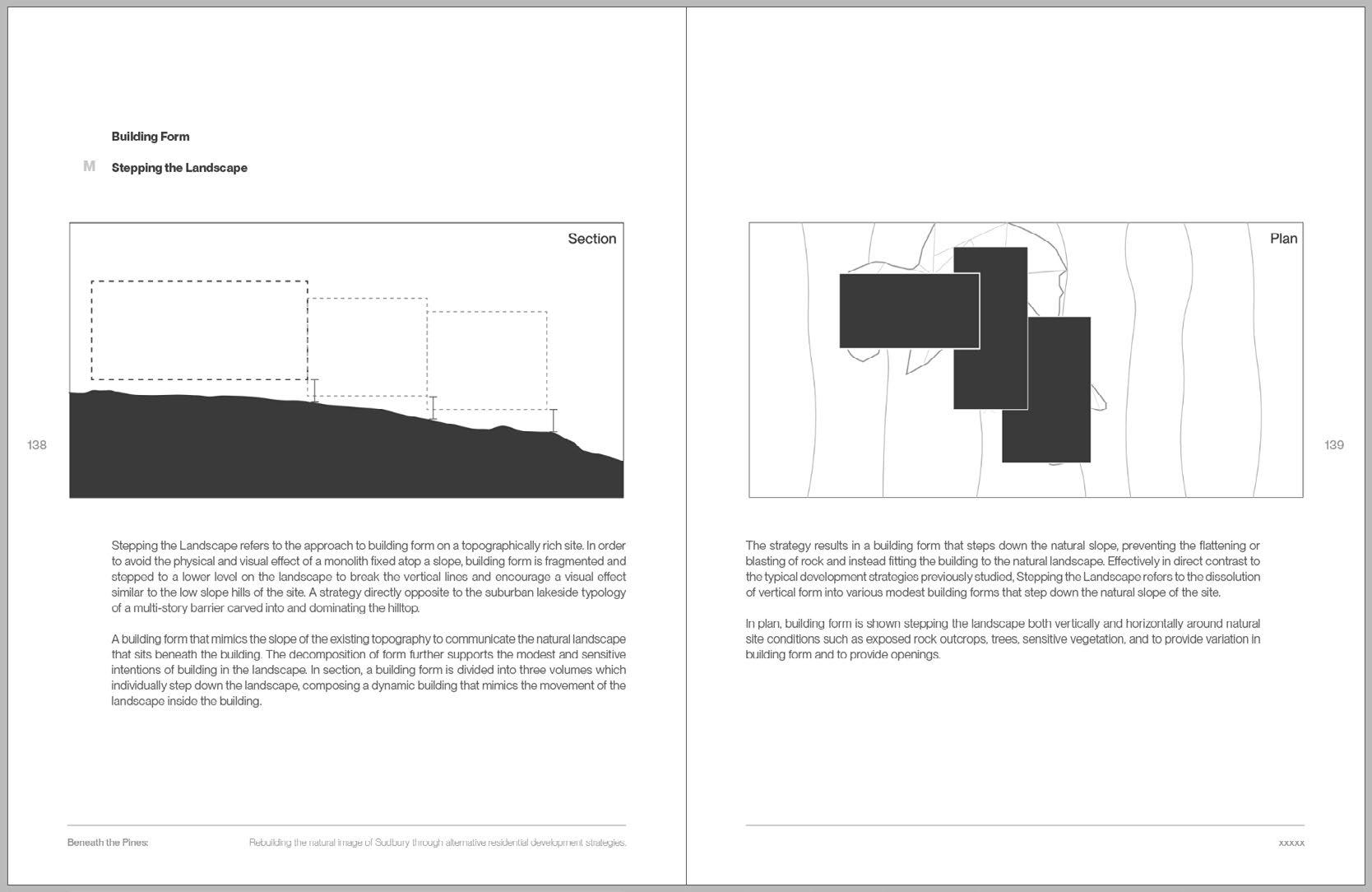

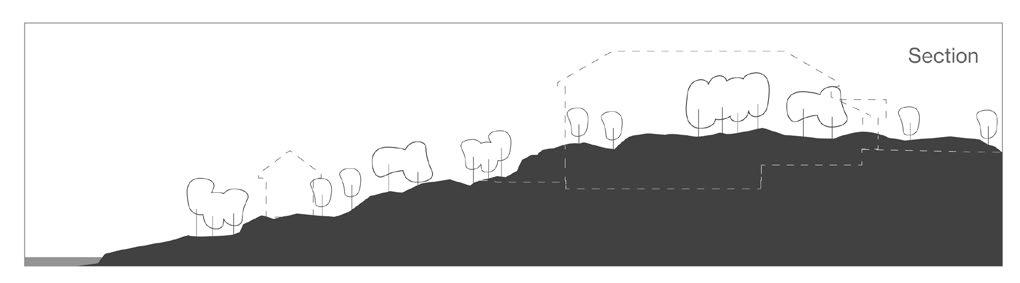

Design Guidelines utilize both plan and section drawings to better communicate the intended relationship between building and landscape. Designed to be flexible and adaptable to encourage creative interpretation.

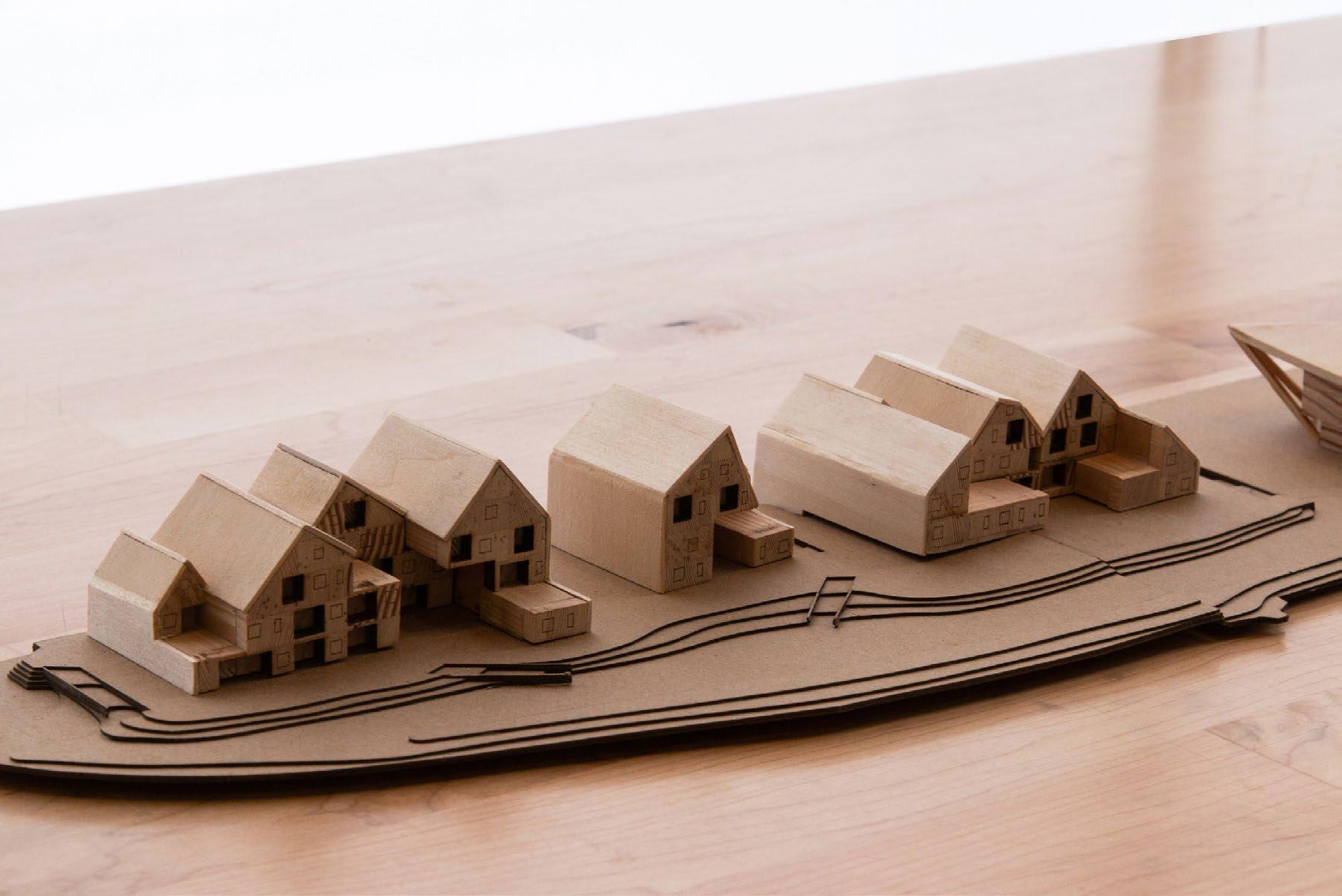

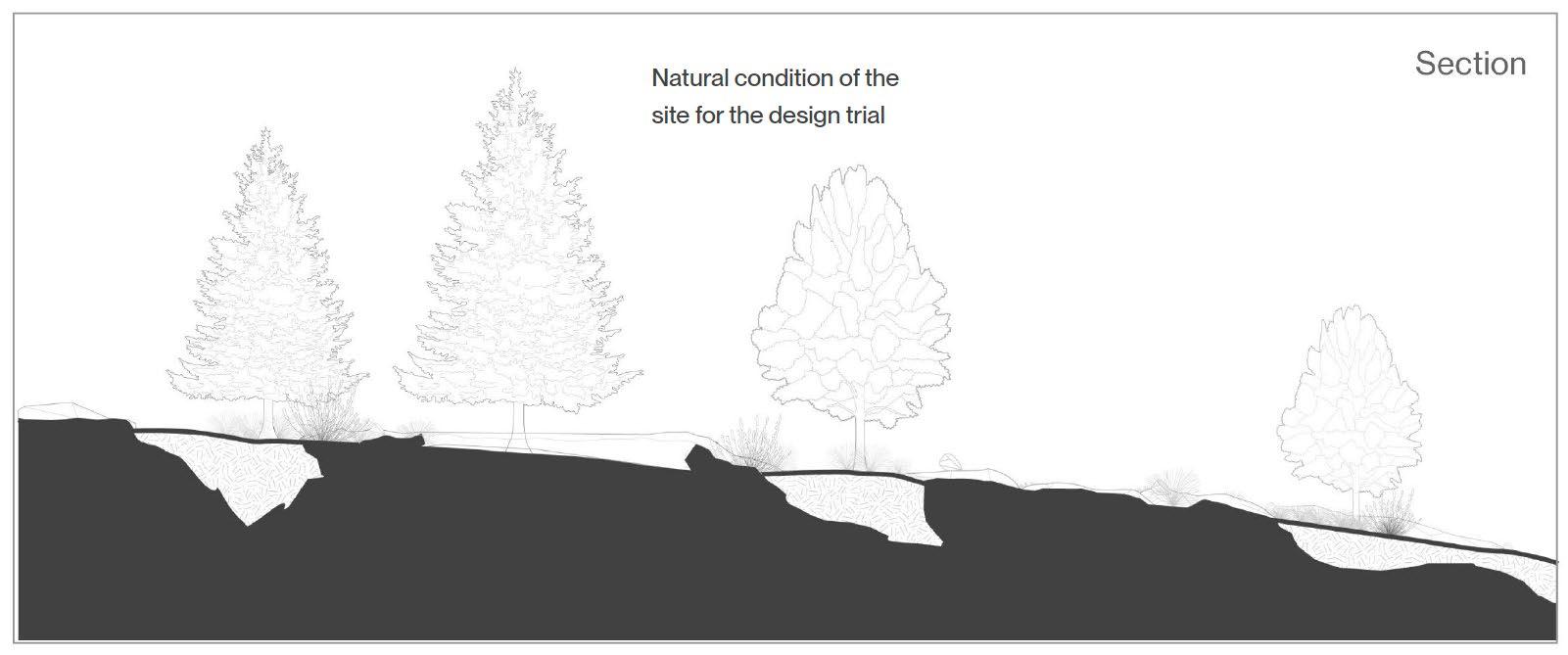

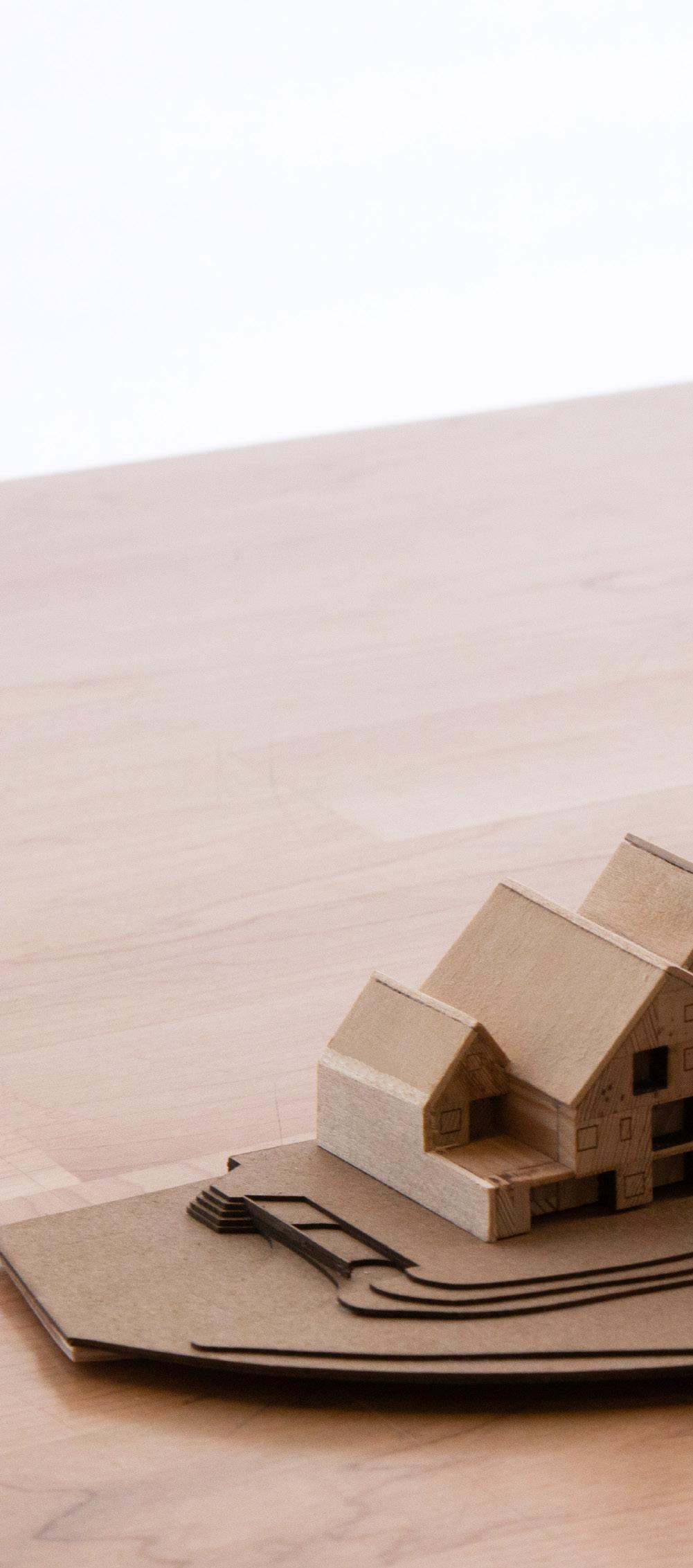

A Design Trial was completed using the Design Guidelines applied to a hypothetical site comprising challenging natural features found in the area. The trial was then analyzed to compare to earlier typological studies to examine the efficacy of the Design Guidelines in serving the ethos of the development.

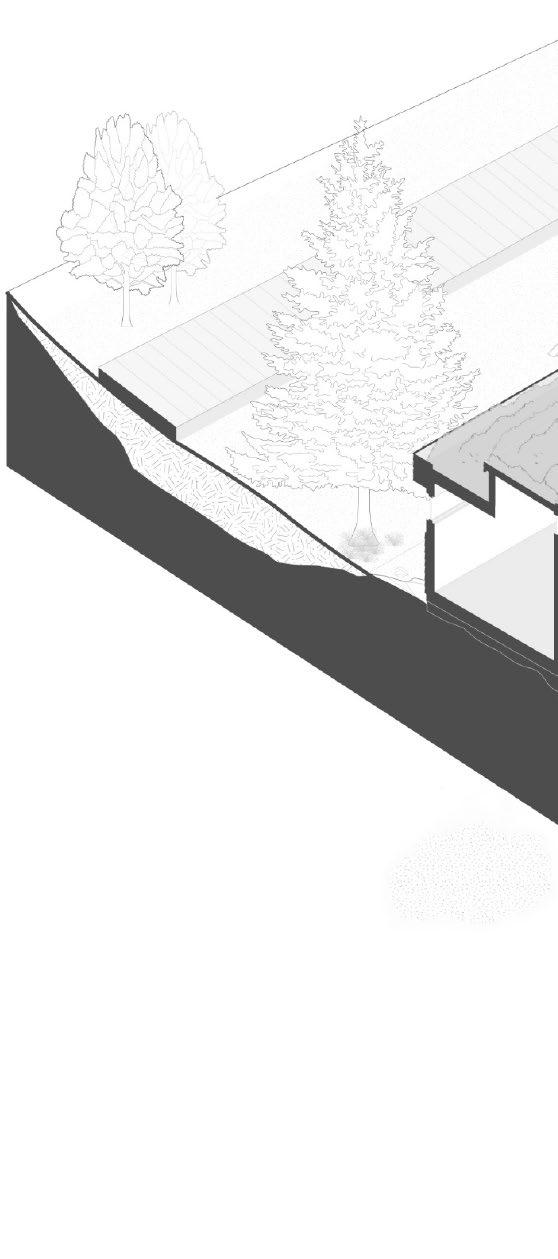

The sculpting of building form between natural landscape elements results in an architecture and a natural landscape that are mutually beneficial.

Utilizing the natural landscape as the primary reference for design ensures an architecture that reflects the uniqueness of the landscape.

The thesis has reinforced a continued passion for the design of thoughtful architecture that speaks to the people and the natural landscape unique to every place.

A Tempered Junction

A Tempered Junction

Mass Timber Mixed-Use Development at the heart of Downtown Sudbury. Year 4 Studio with Sarah Wetteskind

Skills

Mass Timber Mixed Use Development Studio Project w/ Sarah Wetteskind Year 4 Ai Lr Ps Skills

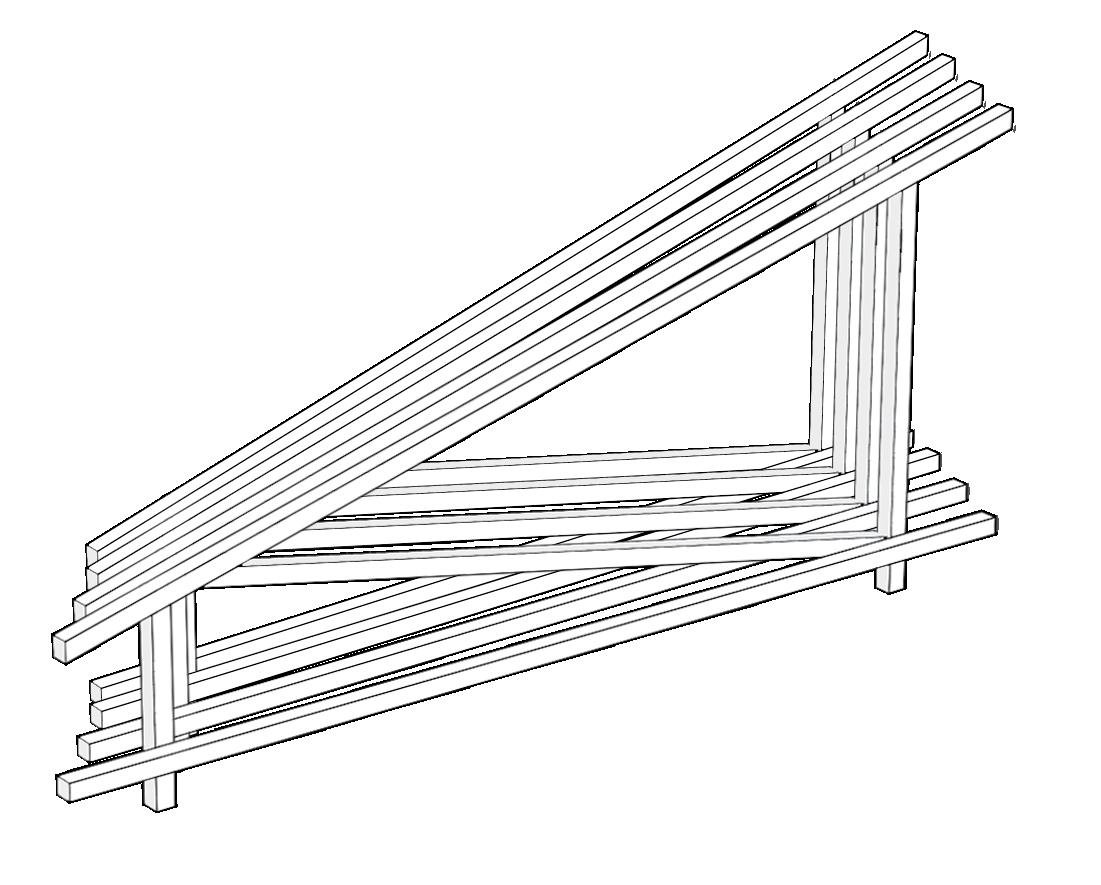

Exploded structural isometric drawing.

Exploded structural isometric drawing.

A tempered junction aims to return residential diversity to the downtown core by providing residential buildings designed for the contemporary family. The built interventions serves as a mediating threshold between an industrial railyard and the downtown core. The site, flanked by the prominent street and restrictive railway features a plan for an elgin greenway. The site design used the elgin greenway as an opporunity for raised “backayrds” providing scales of privacy to the residents, imperative to family living. The CPR station at the core of the site is bookended by a temporary market that also serves as an open-air sports facility and a sliding hill, encouraging public interaction with the site.

A tempered junction aims to return residential diversity to the downtown core of Sudbury by providing residential buildings designed for the contemporary family. The built interventions serves as a mediating threshold between an industrial railyard and the downtown core. The site, flanked by the prominent street and restrictive railway features a plan for an elgin greenway. The site design used the elgin greenway as an opporunity for raised “backyards” providing scales of privacy to the residents, imperative to family living. The CPR station at the core of the site is bookended by a temporary market that also serves as an open-air sports facility and a sliding hill, encouraging public interaction with the site.

residential // section

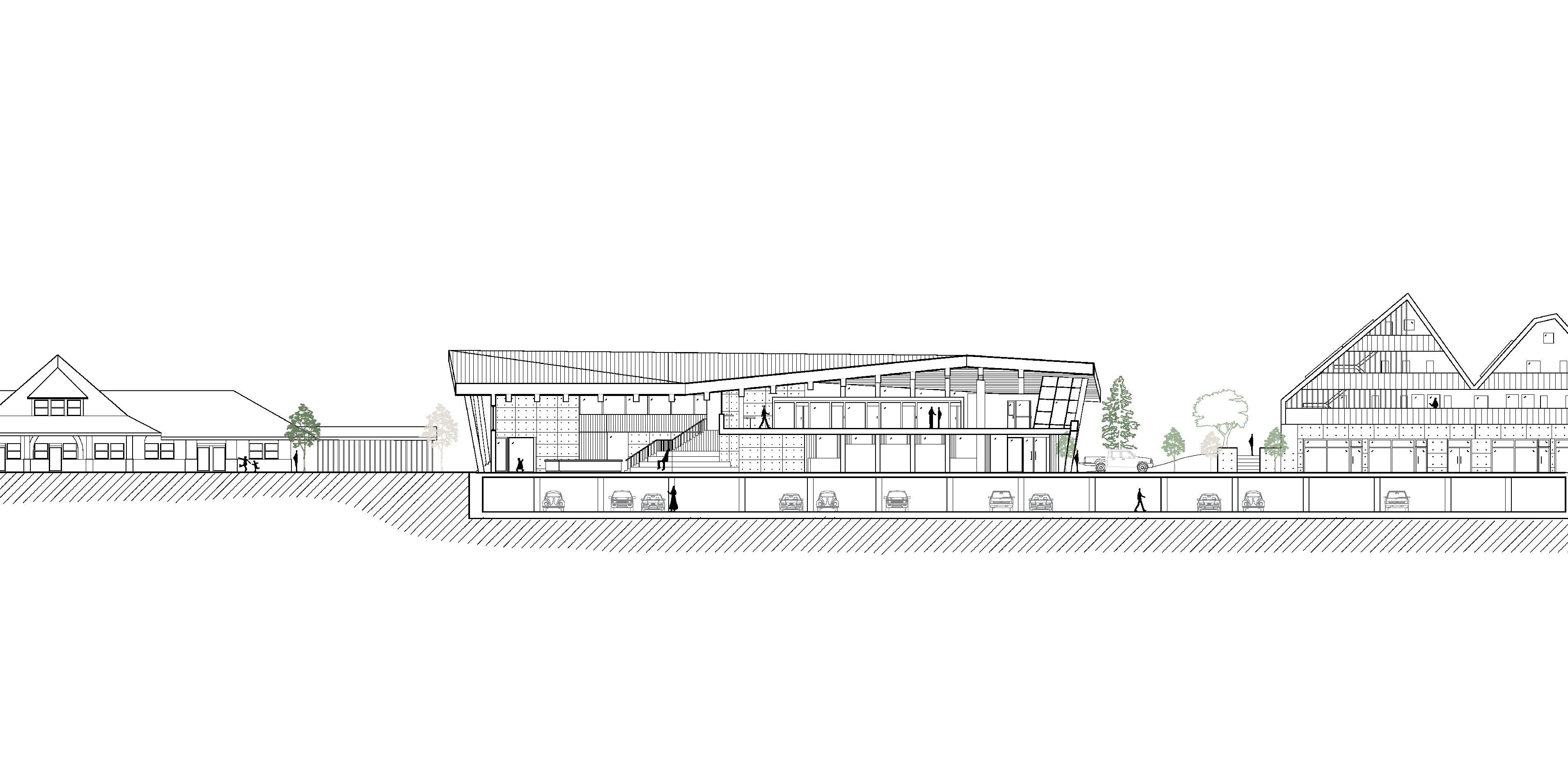

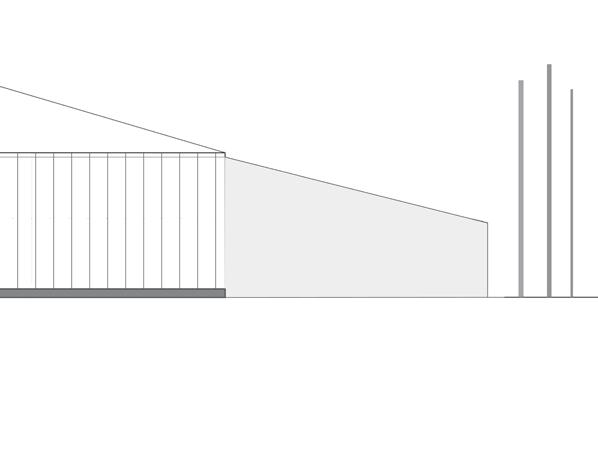

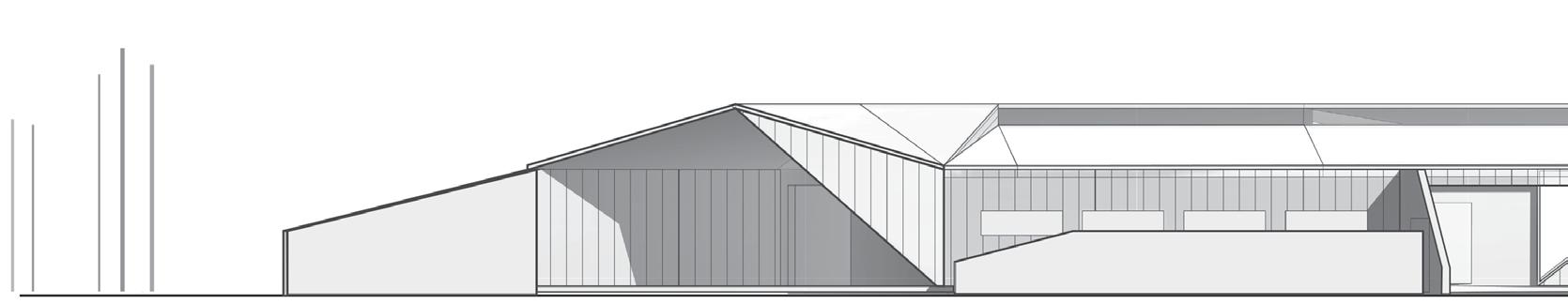

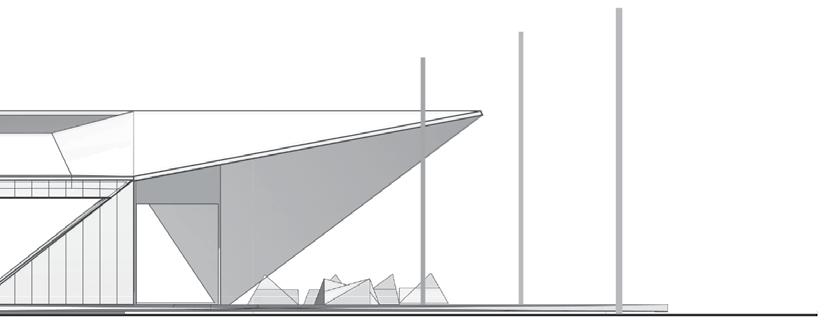

Top: south elevation of residential + market buildings.

Top: south elevation of residential and market buildings.

Middle: longitudinal market section + residential cross section.

Middle: longitudinal section of residential and market buildings.

Bottom: north elevation of market + residential buildings.

Bottom: North elevation of residential and market buildings.

Thoughtful passive design, and generous connections to nature paired with comfortable active systems ensure that each residence within the building speaks to a healthy community united with natural processes.

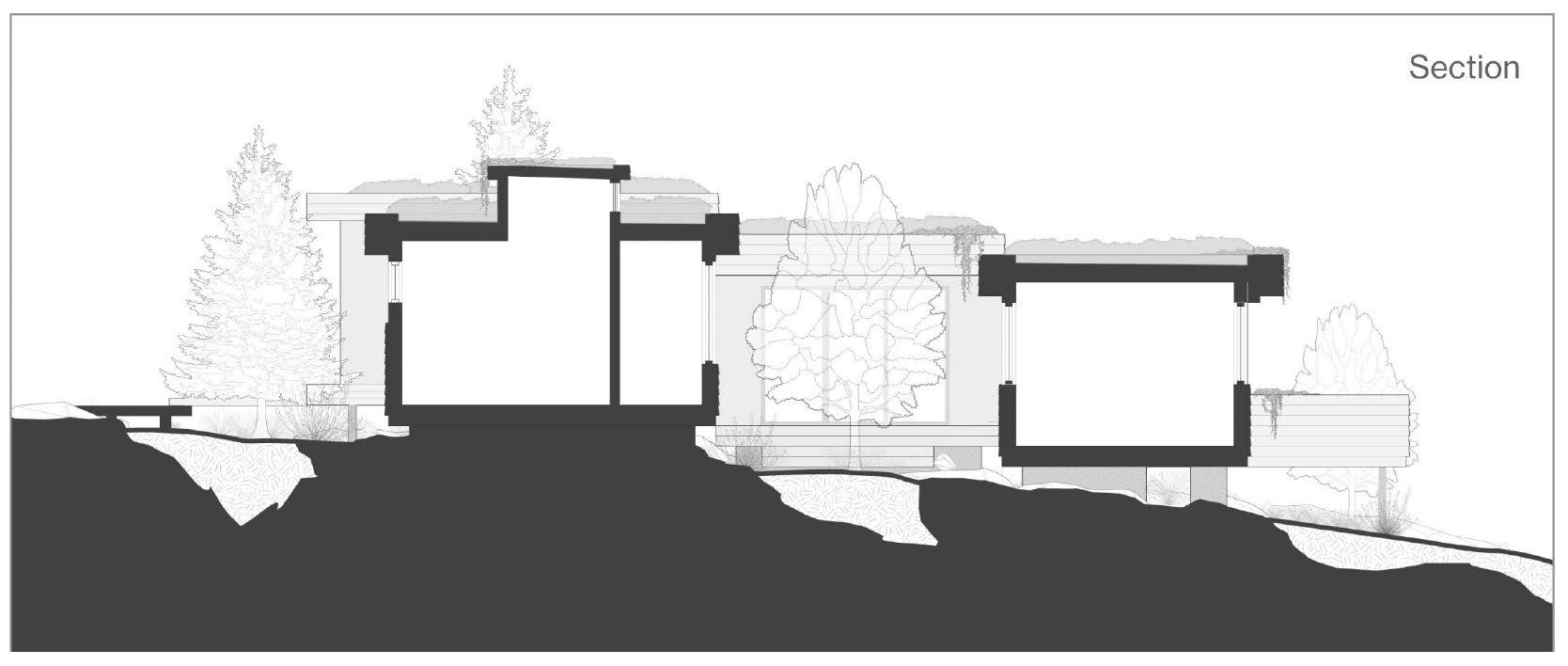

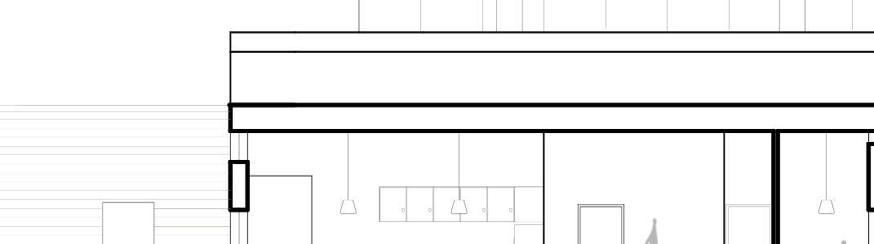

Detailed Cross Section of Residential Building

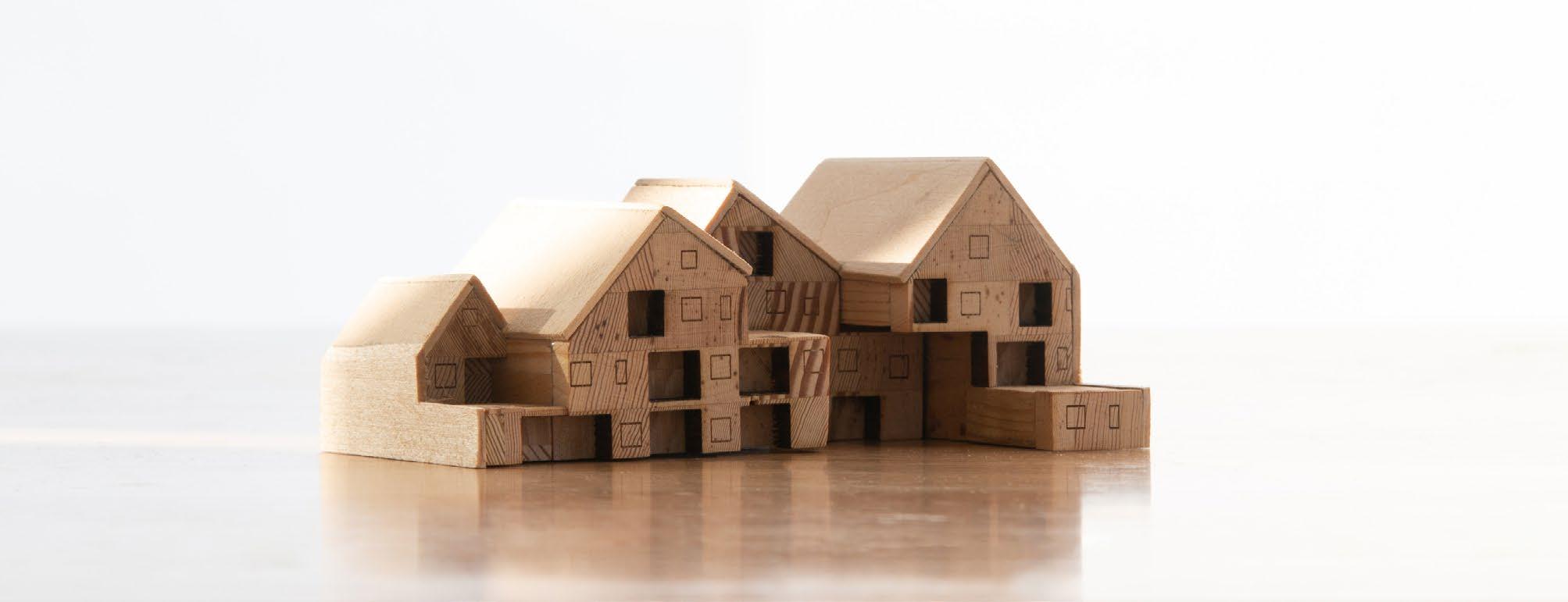

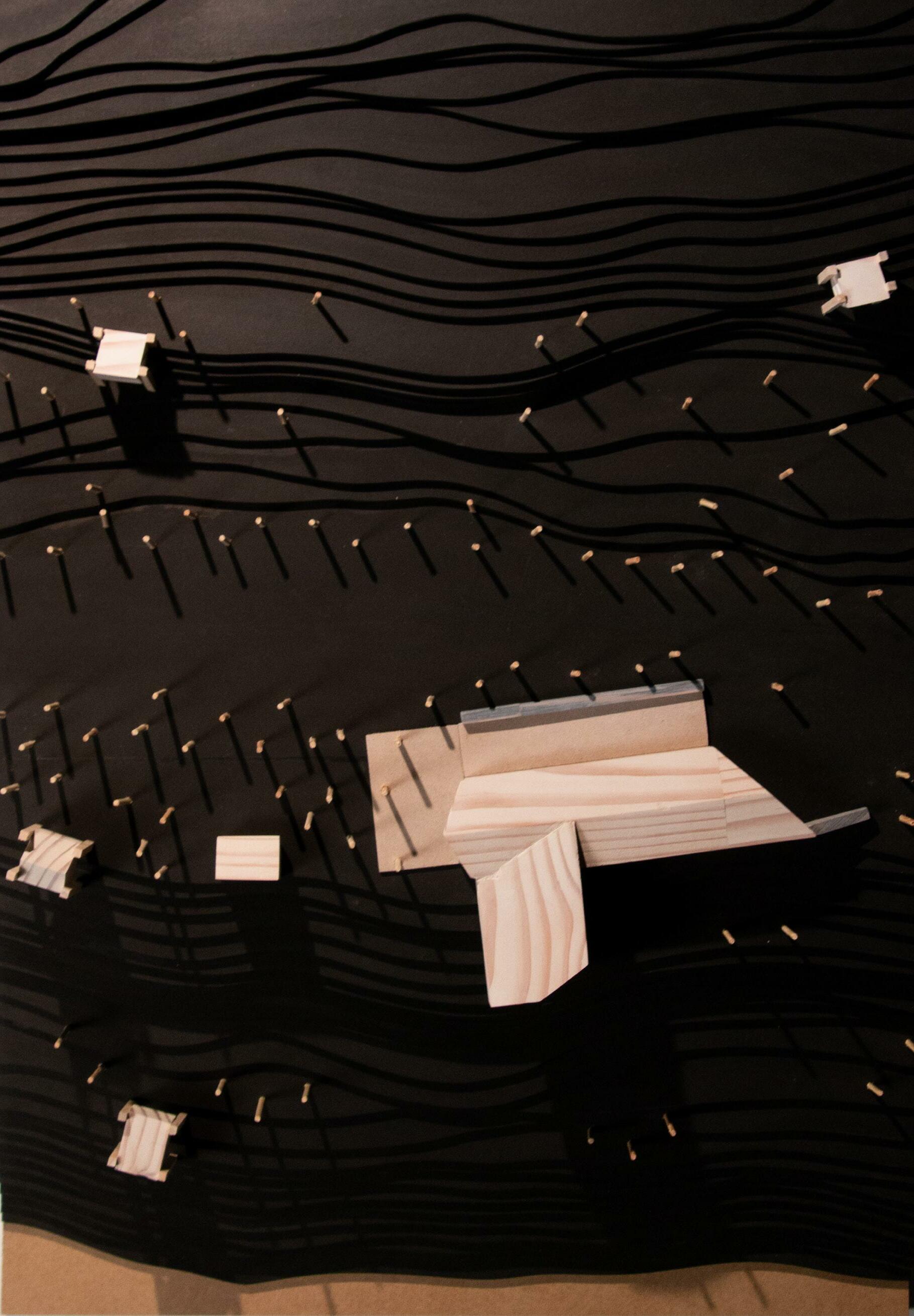

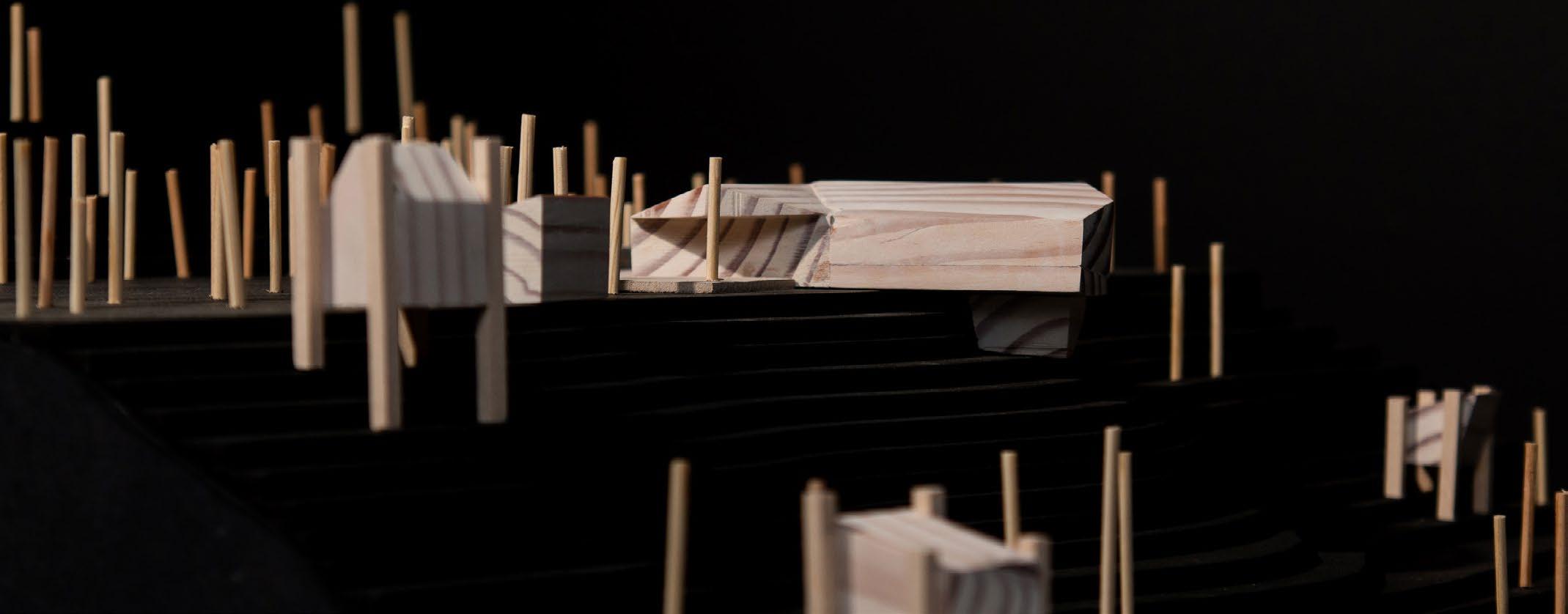

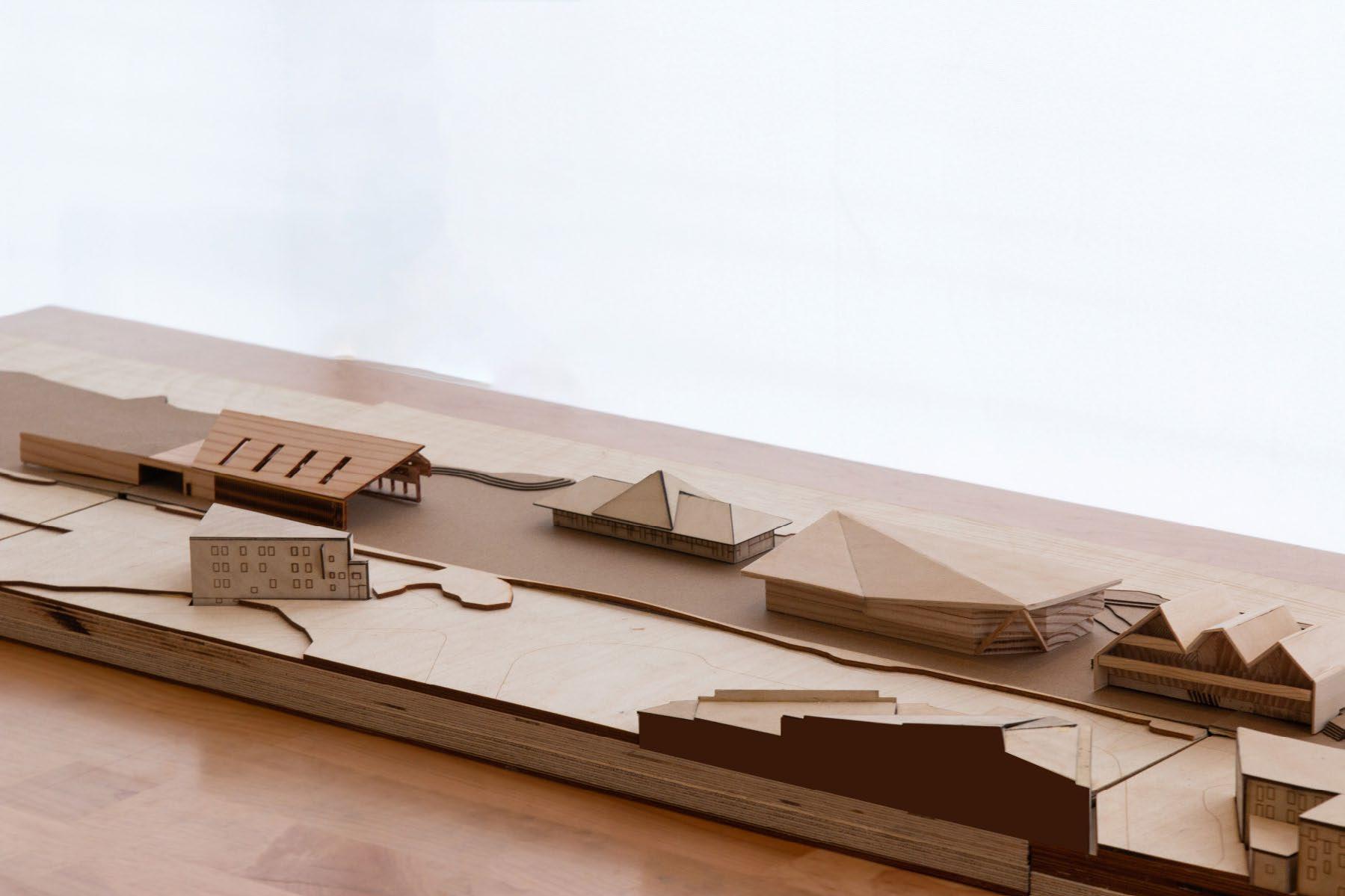

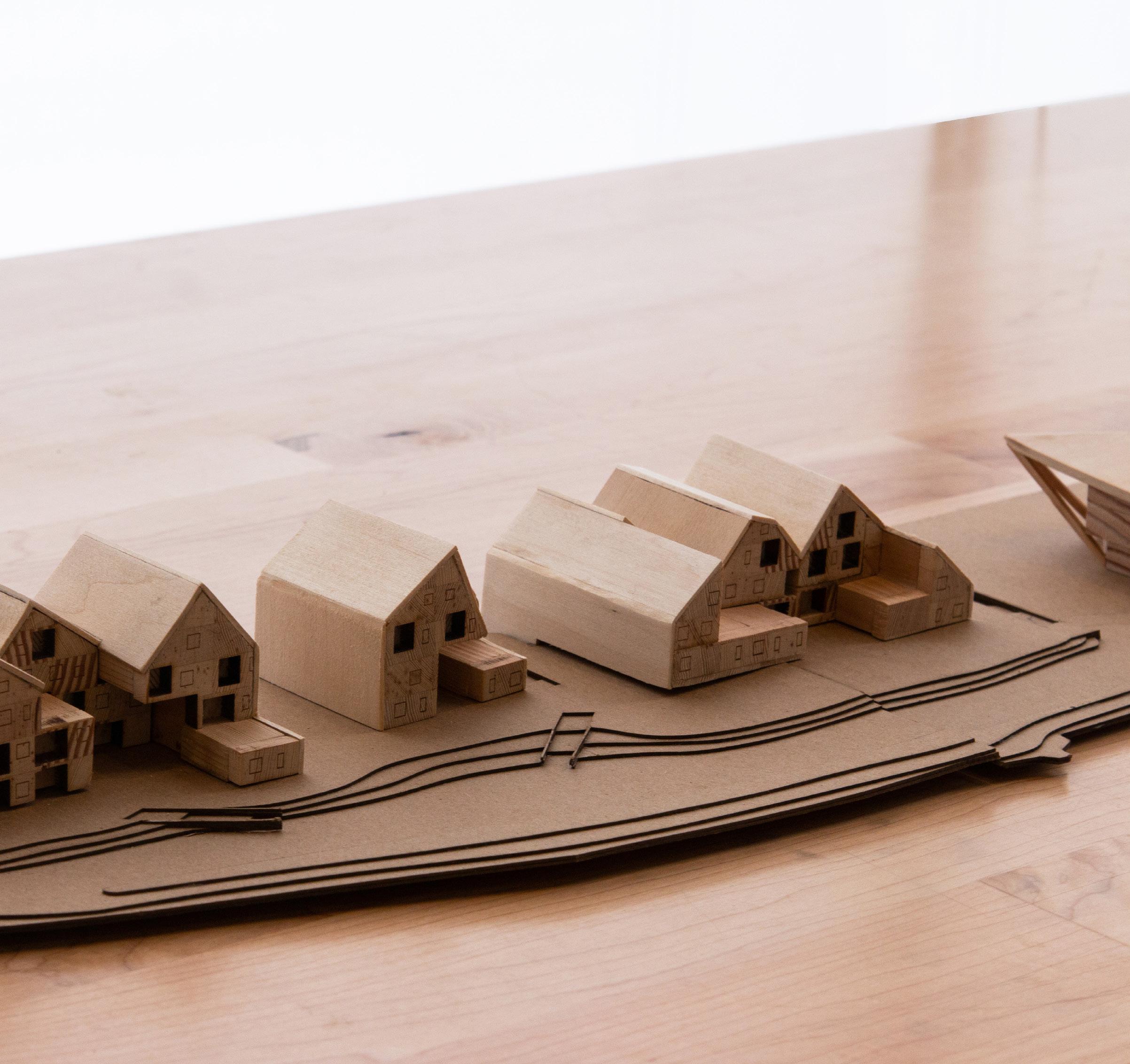

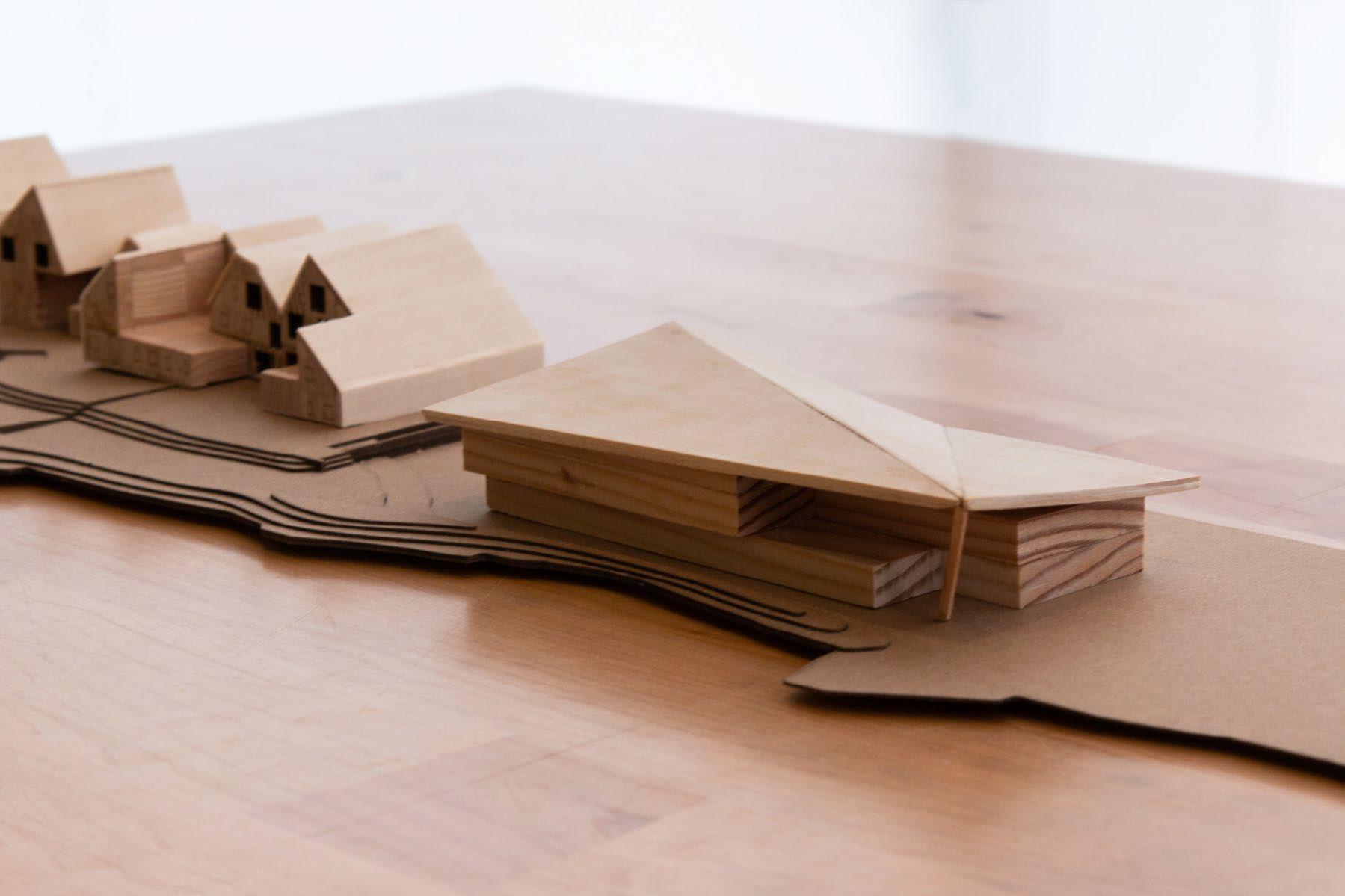

A series of detailed massing models were created at a scale of 1:300 that fit into the shared class site model. The models represent the five building interventions designed for the longitudinal site. The models were composed of hand-cut basswood, laser-cut end-grain douglas fir, and sculpted solid douglas fir. The residential buildings are unique in that a sheet of douglas fir was created so that the end-grain blocks would represent each suite within the building. The laser cutter was used to create the exterior openings for the residential buildings, adding depth and texture.

A series of detailed massing models were created at a scale of 1:300 that fit into the shared class site model. The models represent the five building interventions designed for the longitudinal site. The models were composed of hand-cut basswood, laser-cut end-grain douglas fir, and sculpted solid douglas fir. The residential buildings are unique in that a sheet of douglas fir was created so that the end-grain blocks would represent each suite within the building. The laser cutter was used to create the exterior openings for the residential buildings, adding depth and texture.

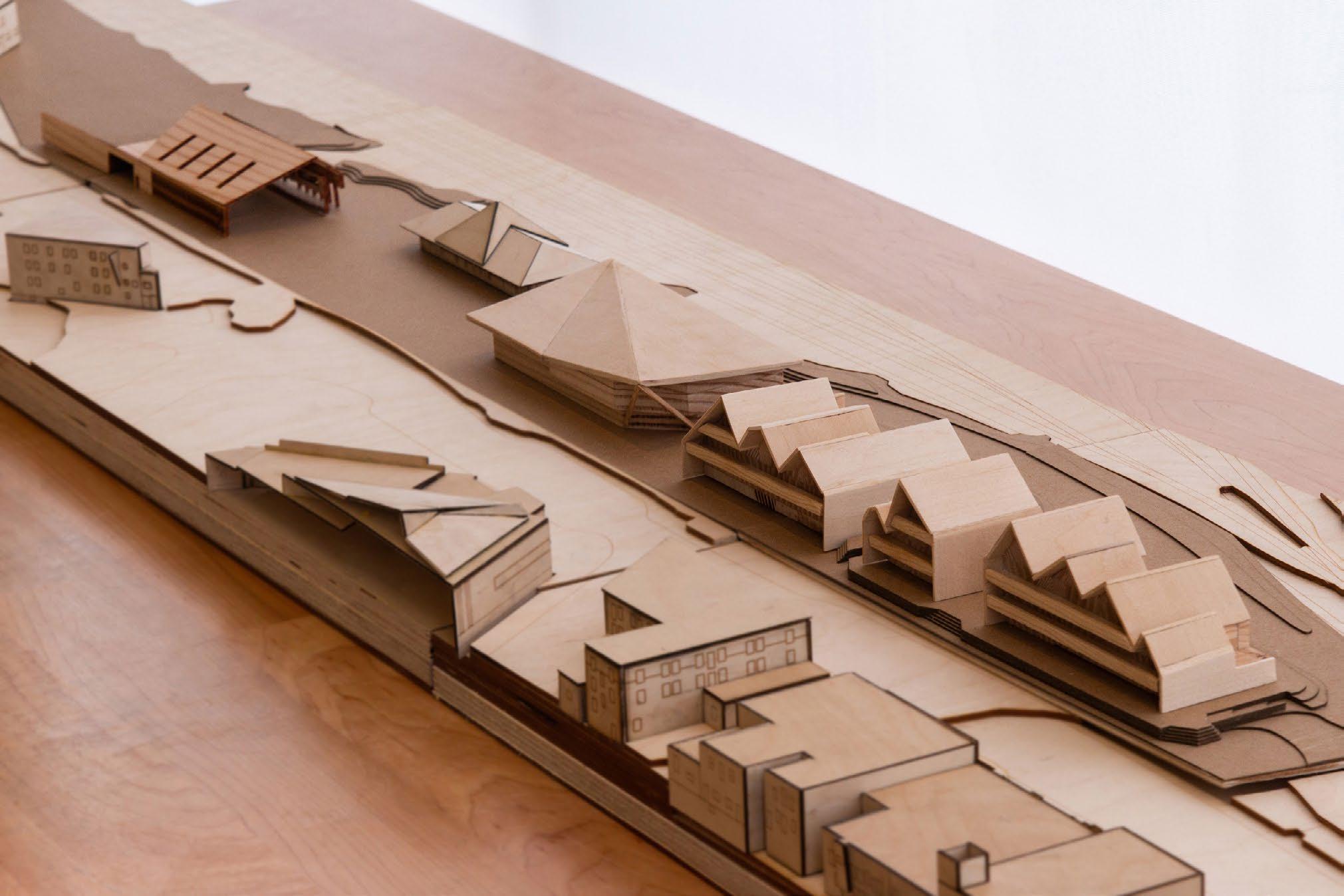

The entire site design model shown inserted into shared site model

Market Building Model

Residential Building Models

Facade views of phyiscal models

Perspective View of Site Model

Open-air Arena + Temporary Market Model

Brewery Art Gallery

Brewery Art Gallery

Adaptive reuse of an industrial brewery converted into a gallery for large-scale art.

Skills

Individual Studio Project Adaptive Reuse Year 3 Ai Lr Ps Skills

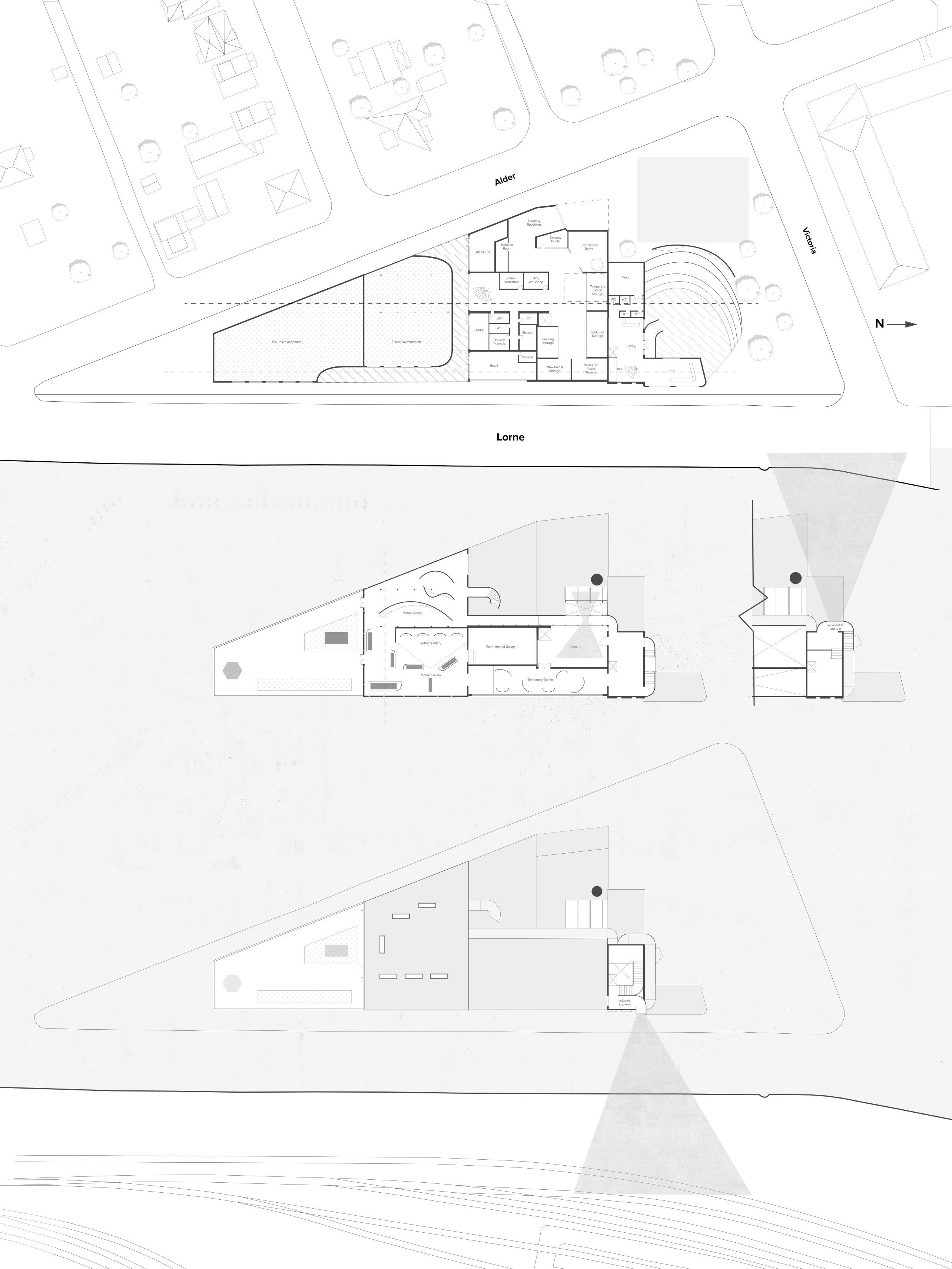

Right: floor plans with site features of the brewery art gallery.

Early 20th century breweries were designed based on the gravityfed process of brewing beer. As the brewing process evolved, so did the architecture, resulting in a composition of multiple smaller and specialized buildings. The concept for this project was to re-establish a circulation at the human scale and to take advantage of the breweries unique scale to display industrial-scale artworks. The brewery and its individual buildings would then be stitched together through one circulatory design gesture.

Early 20th century breweries were designed based on the gravity-fed process of brewing beer. As the brewing process evolved, so did the architecture, resulting in a composition of multiple smaller and specialized buildings. The concep for this project was to re-establish a circulation at the human scale and taking advantage of the breweries unique scale to display industrial-scale artworks. The brewery and its individual buildings would then be stitched together through one circulatory design gesture.

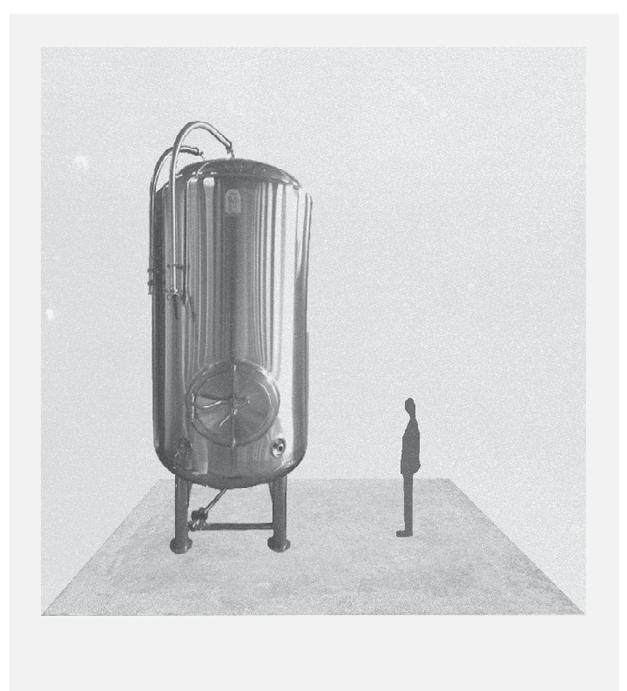

study of the human scale in industrial spaces

Section Revealing Circulation Facing West

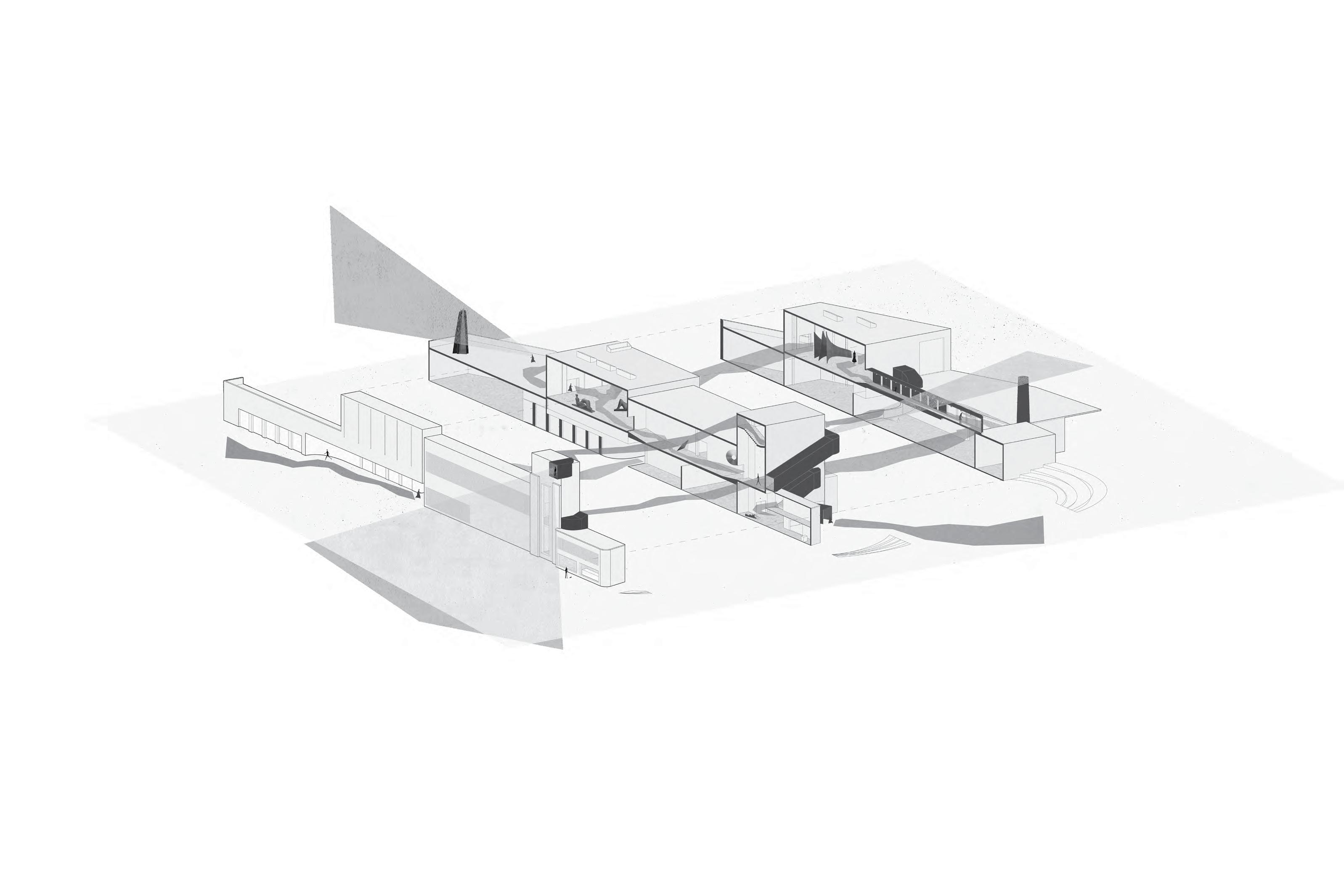

Exploded Isometric Double-Section + Facade

The drawing is exploded twice to expose the complexity and scale of the building. The dark ribbon represents the human circulation through the building that connects the unique perspectives offerred by the design.

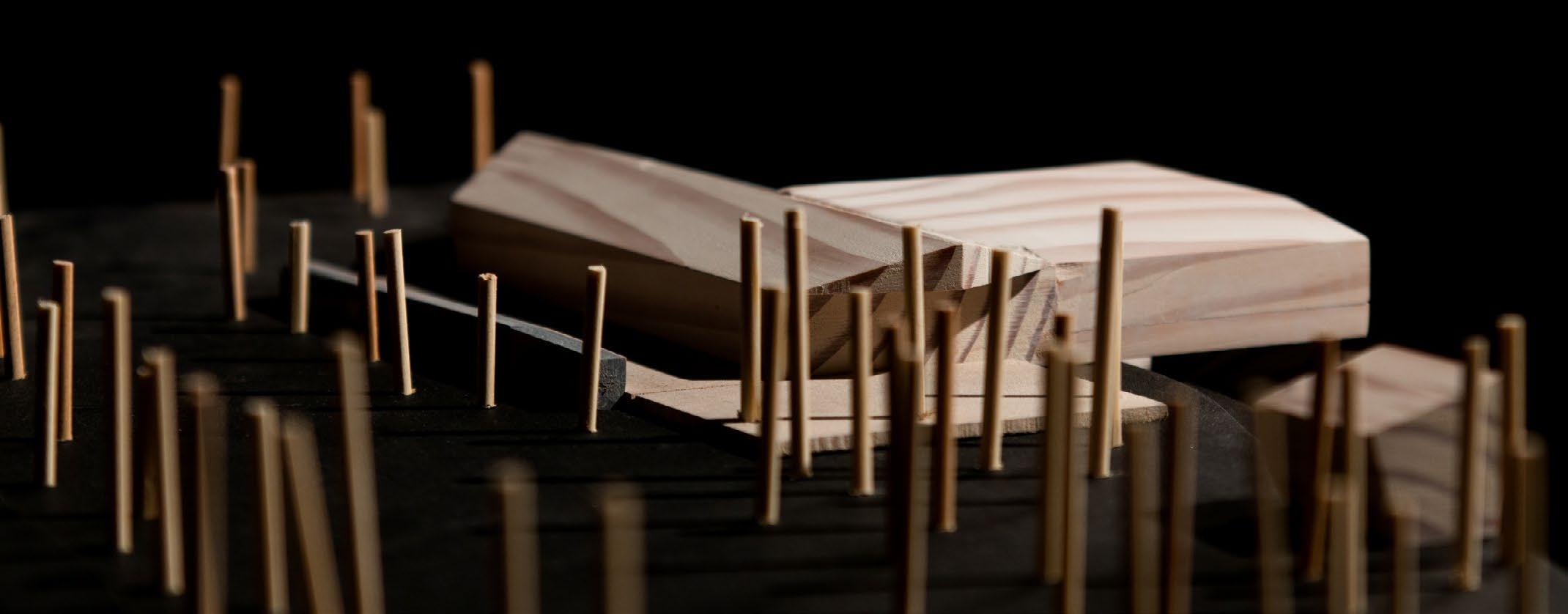

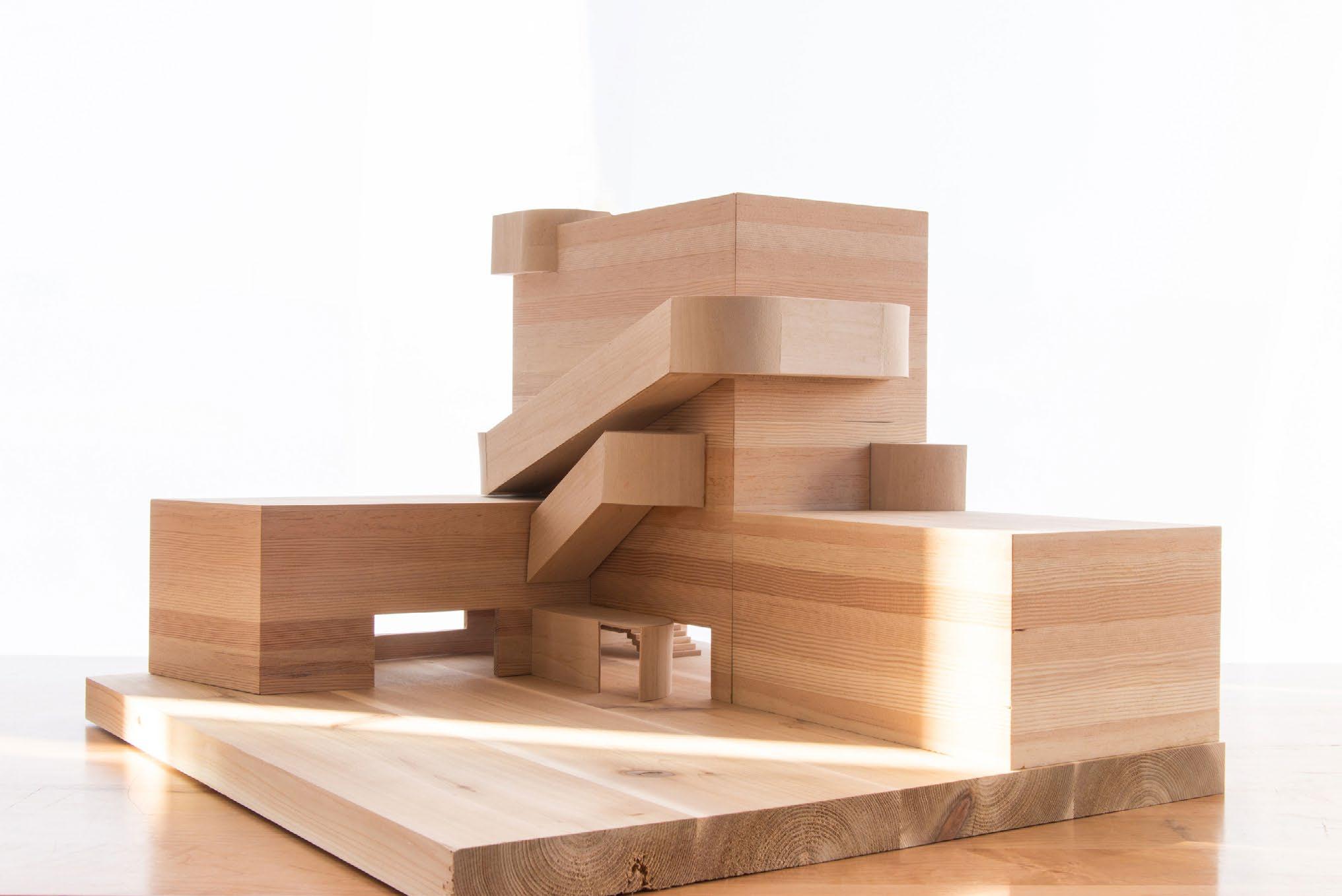

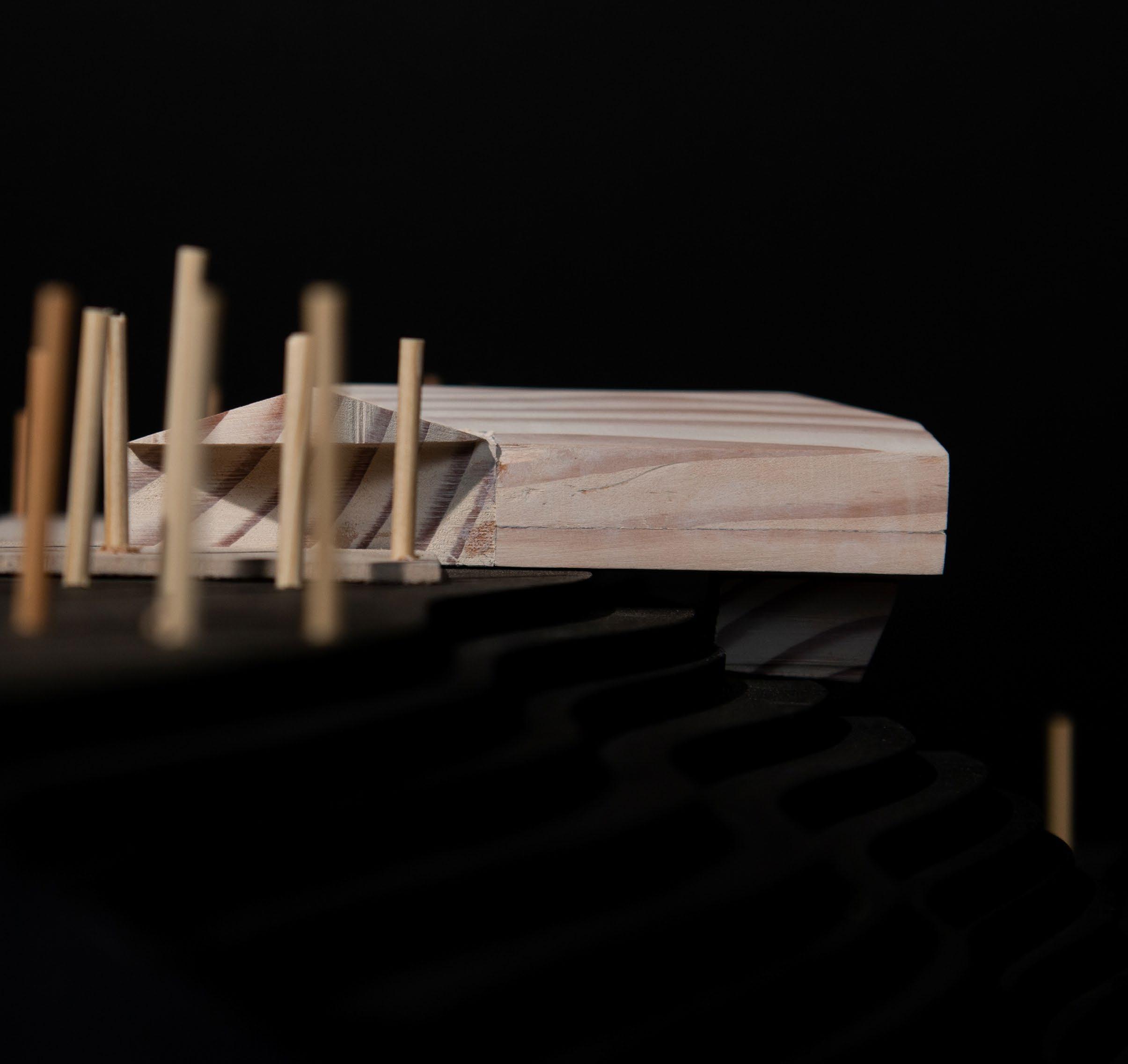

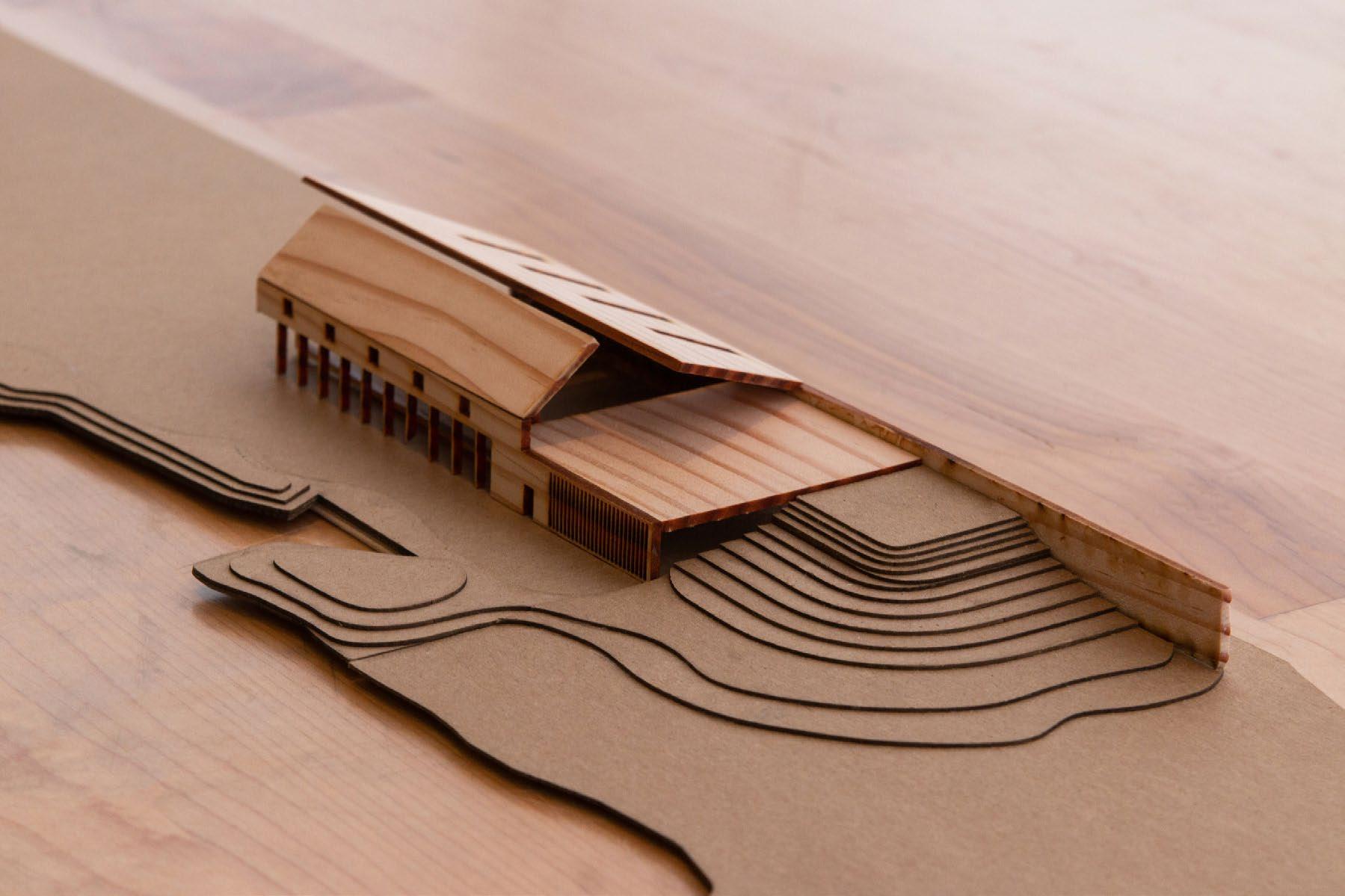

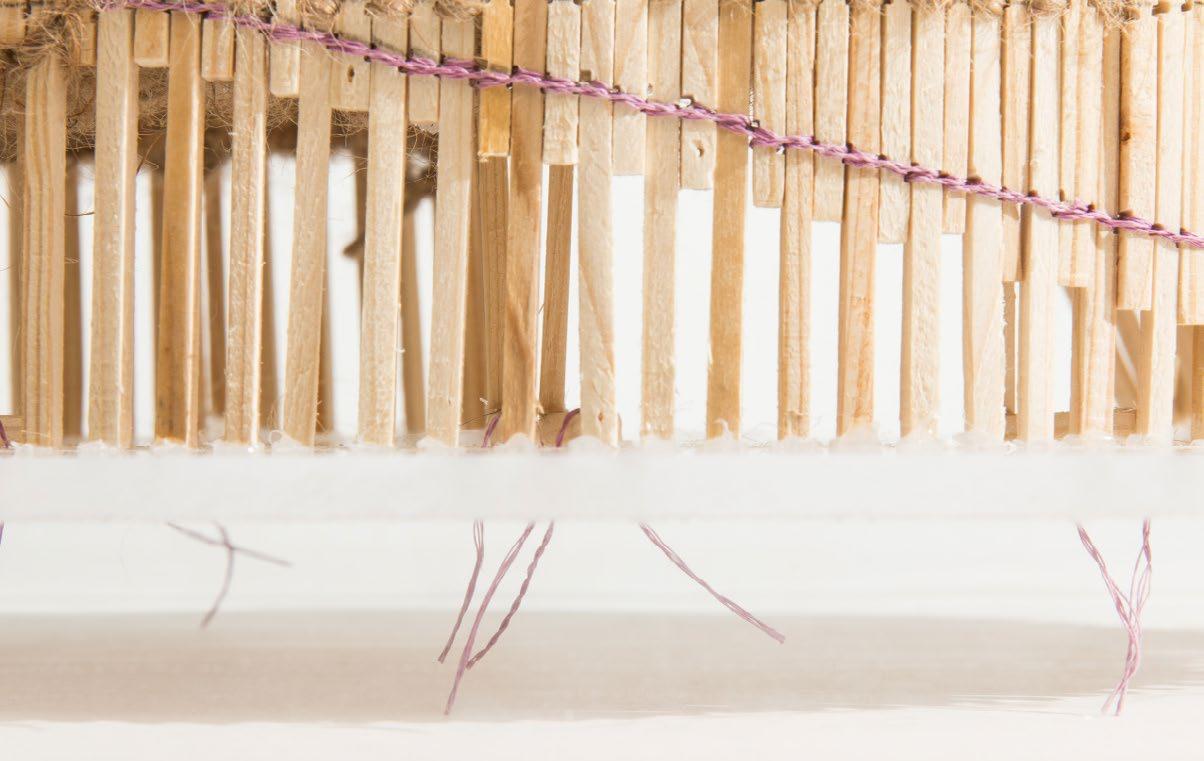

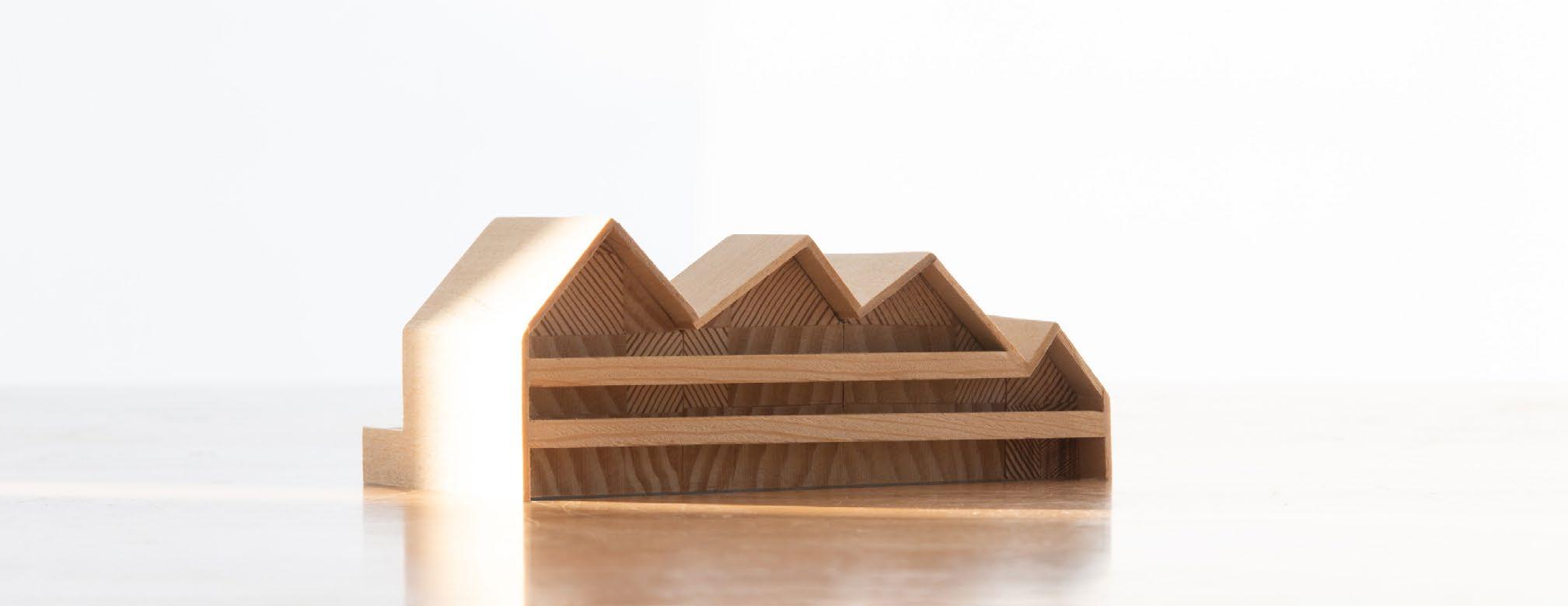

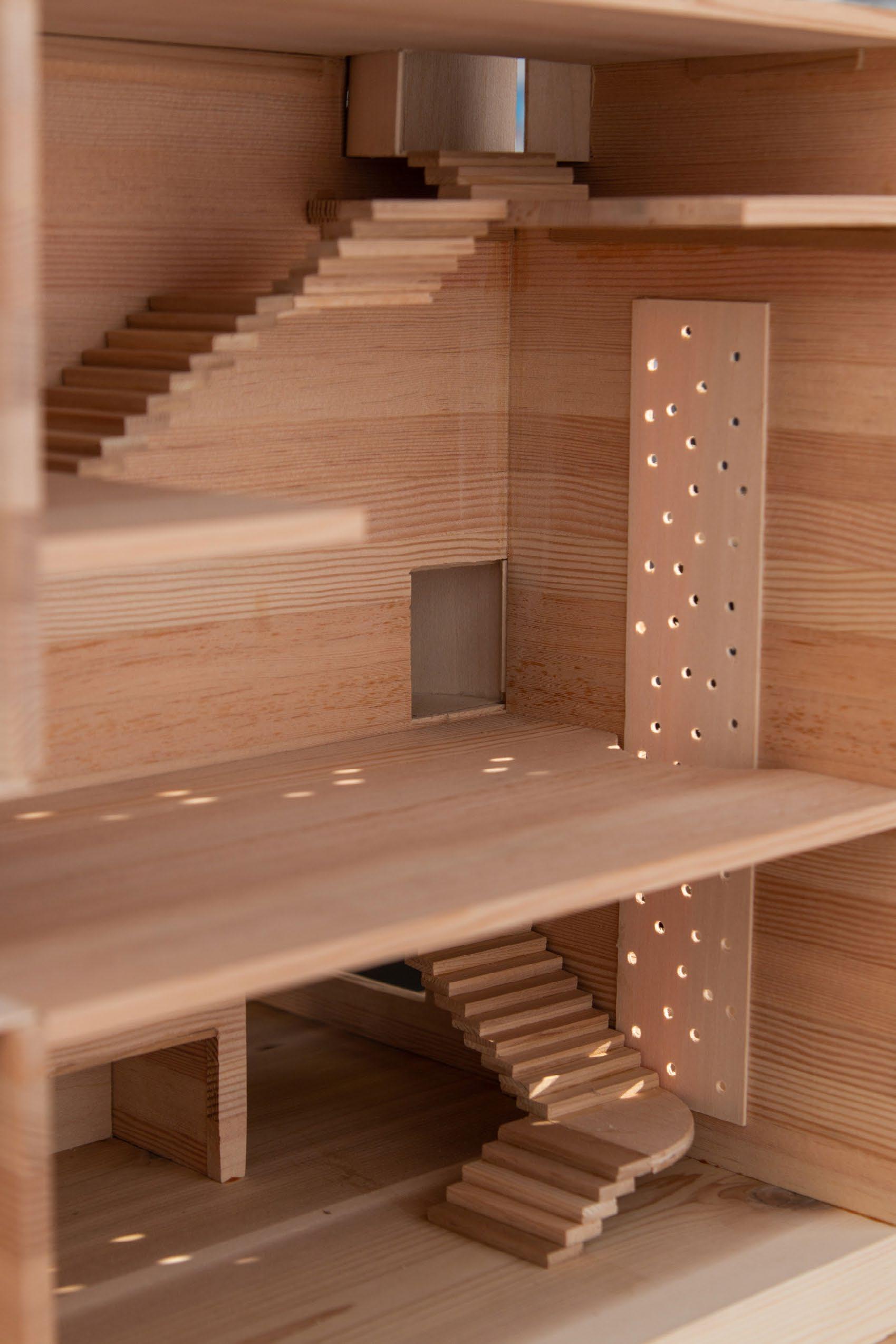

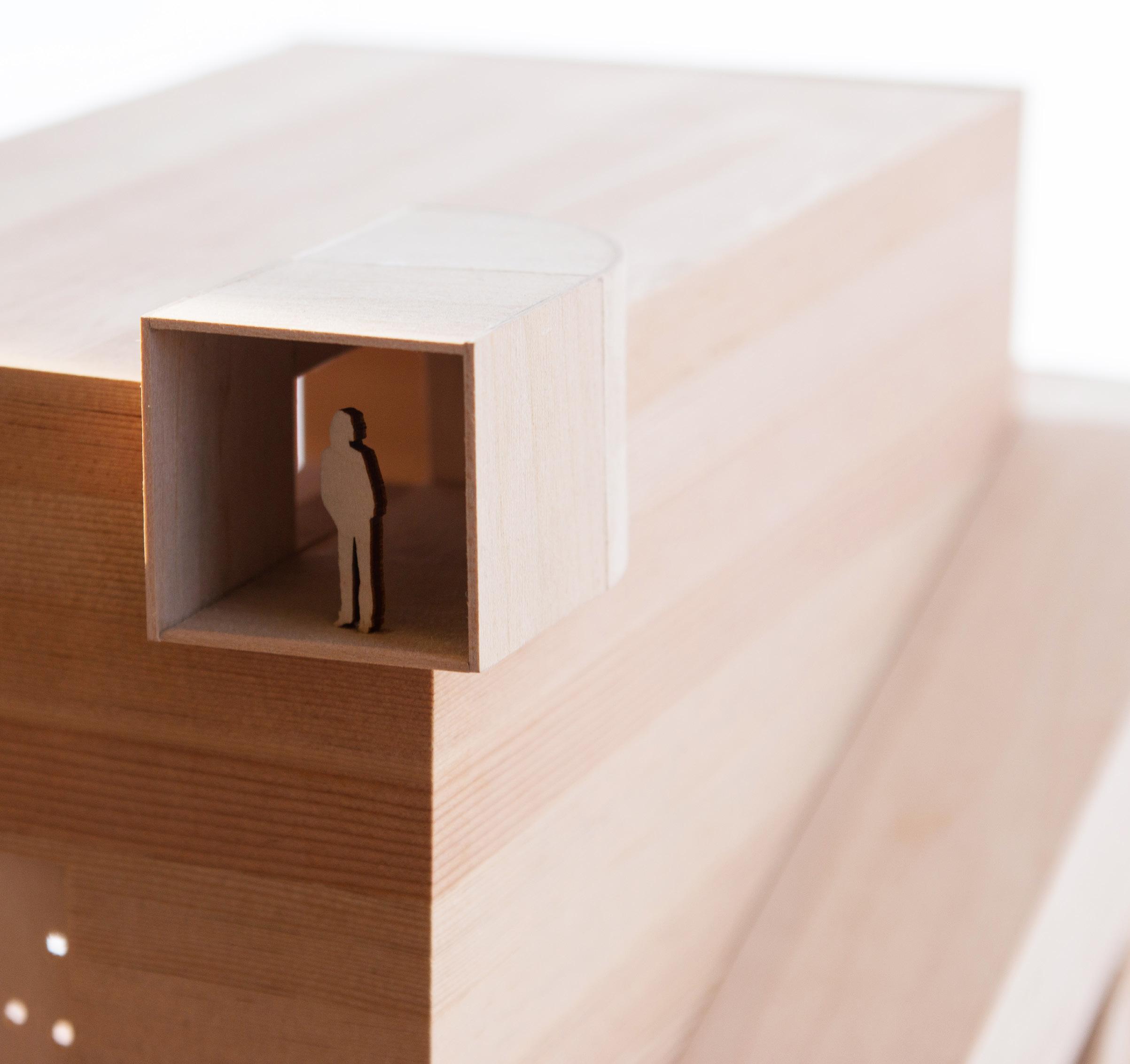

A 1:50 section model was prepared to represent the spatial qualities of one portion of the building. The main entrance and vertical circulation were represented to bring forth the importance of verticality to the brewery process and to express the added circulation which stitches the building together. A lookout is found protruding from the top of the building, providing a new perspective of the city. The model is made from continuous-grain douglas fir, steam-bent basswood, and fixed to a solid red cedar base.

Exterior Perspective of Sectional Model

Interior Perspective of Sectional Model

Nested Mountain Library

A library set into the hill complemented by a series of stilted reading rooms unite nature and literature.

Year 2 Studio

Skills

Nested Mountain Library Individual Studio Project Year 2 Skills Ai Lr Ps

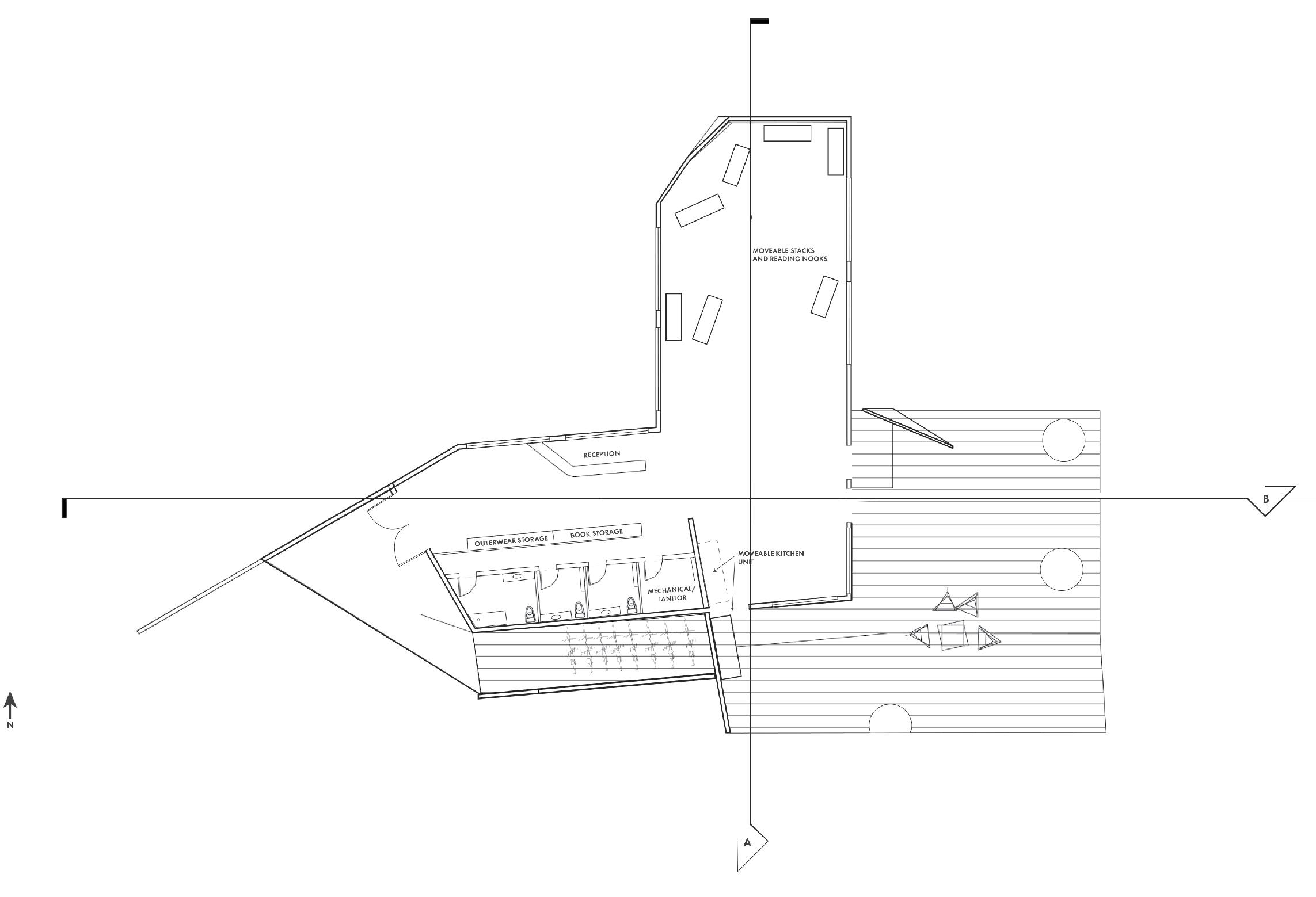

Below: Building floor plan drawn using Rhinoceros, Illustrator, and Photoshop.

Careful site analysis encouraged a fractured library approach to emphasize the site’s assets. The stilted library attracts users and provides an unseen view of the entire park while it’s stilted nests provide unprecedented reading rooms scattered around the site. Each nest was sculpted to provide a unique perspective of the sites features.

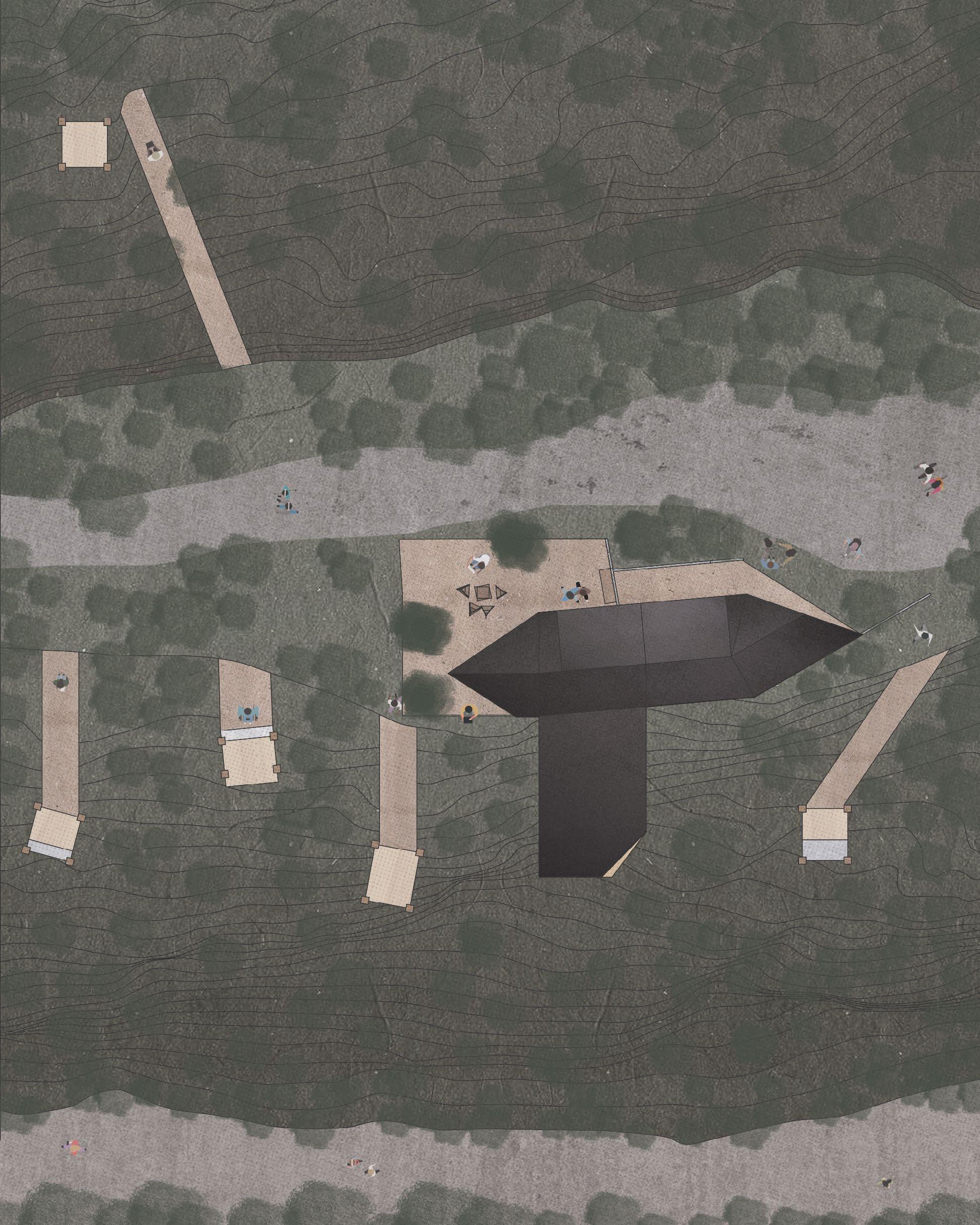

Careful site analysis of the Rotary Park site featuring the topographically rich landscape encouraged a fractured library approach; where the borrowing services would be housed in an achoring building set into the slope, and bespoke reading cabins would be stilted throughout the area to emphasize the site’s dynamic assets. The stilted library attracts users and provides an unseen view of the entire park while it’s stilted nests provide unprecedented reading rooms scattered around the site. Each nest was sculpted to provide a unique perspective of the sites features.

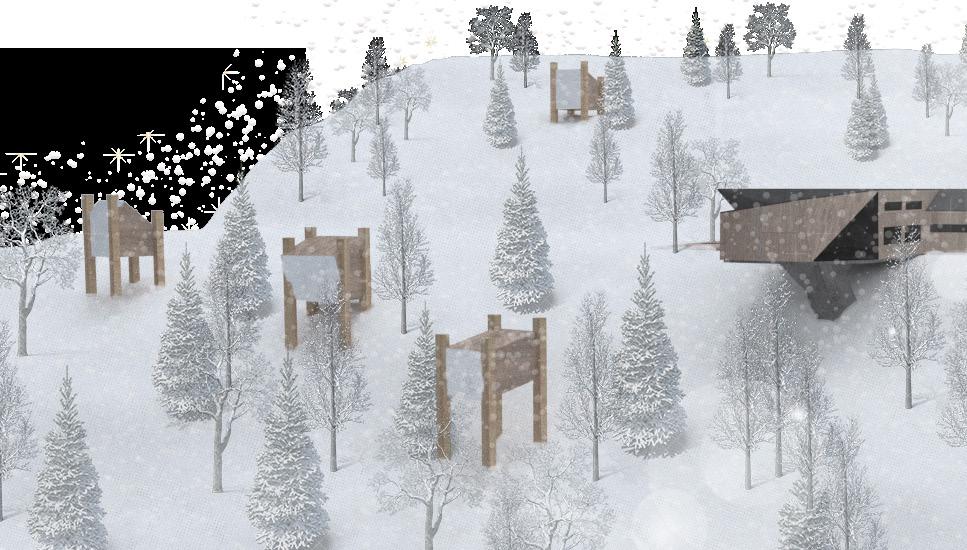

Left: Exterior perspective render, Communicating main library building and it’s relation to the scattered “reading nests” throughout the landscape. Drawn using Rhino, V-Ray, and Photoshop.

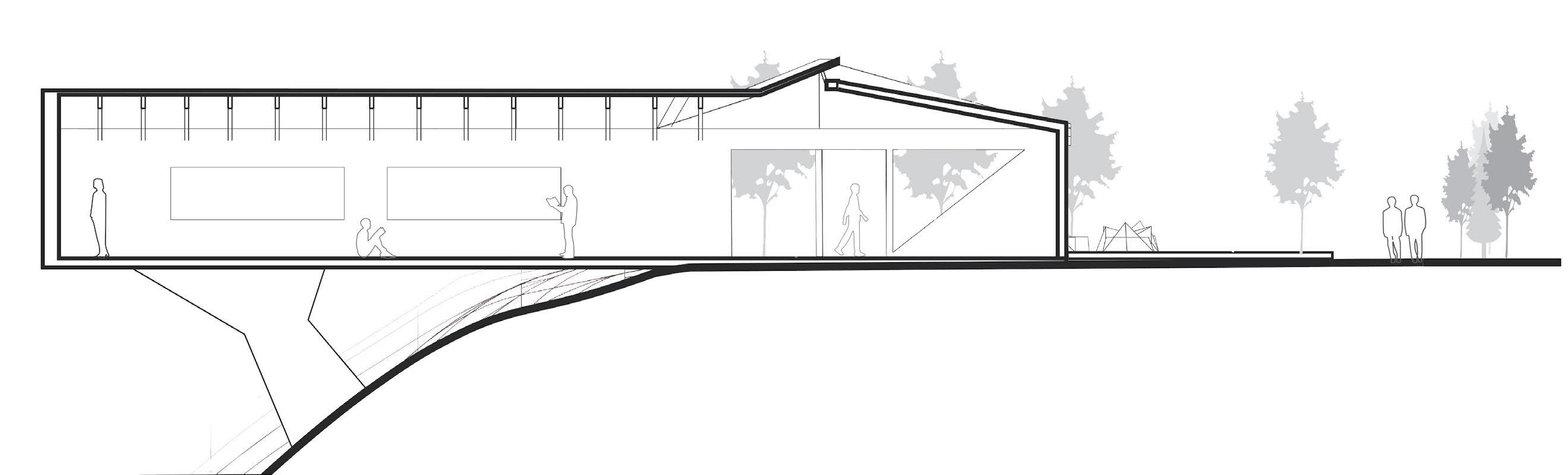

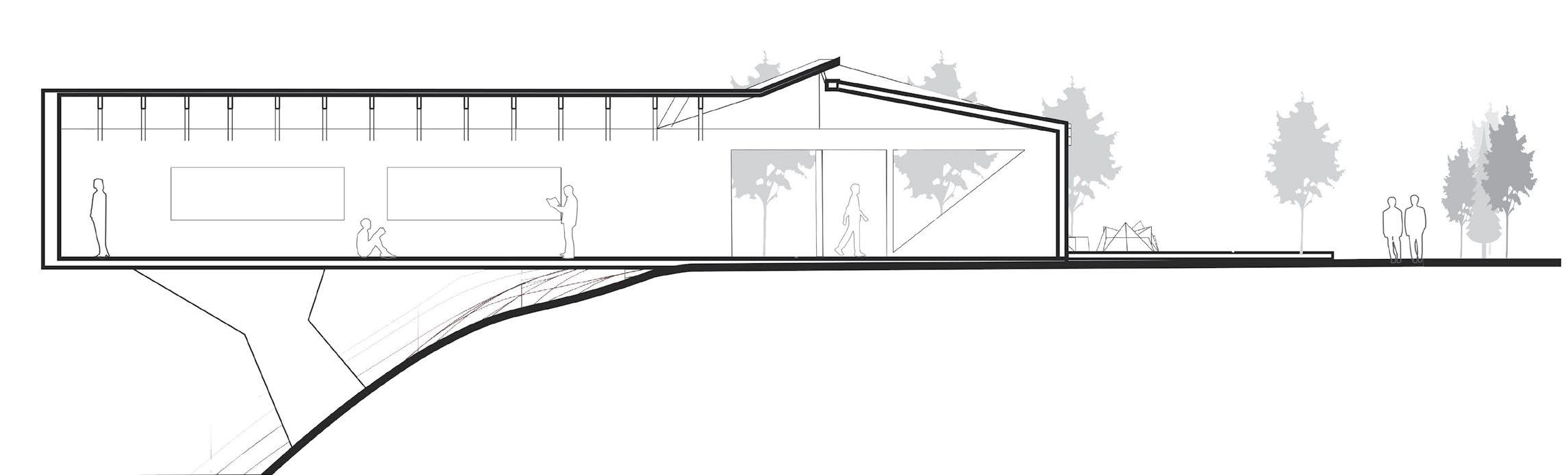

Below: Building cross-section with immediate site context drawn using Rhinoceros, Illustrator, and Photoshop.

From the trails at Rotary Park a building and it’s accompanying “nests” are seen emerging

Left: Exterior perspective render, Communicating main library building and it’s relation to the scattered “reading nests” throughout the landscape. Drawn using Rhino, V-Ray, and Photoshop.

Below: Building cross-section with immediate site context drawn using Rhinoceros, Illustrator, and Photoshop.

From the trails at Rotary Park a building and it’s accompanying “nests” are seen emerging from the mountainside. A stilted library acts as an intersection in the trails acting as the sole destination prolonging users stay in the park.

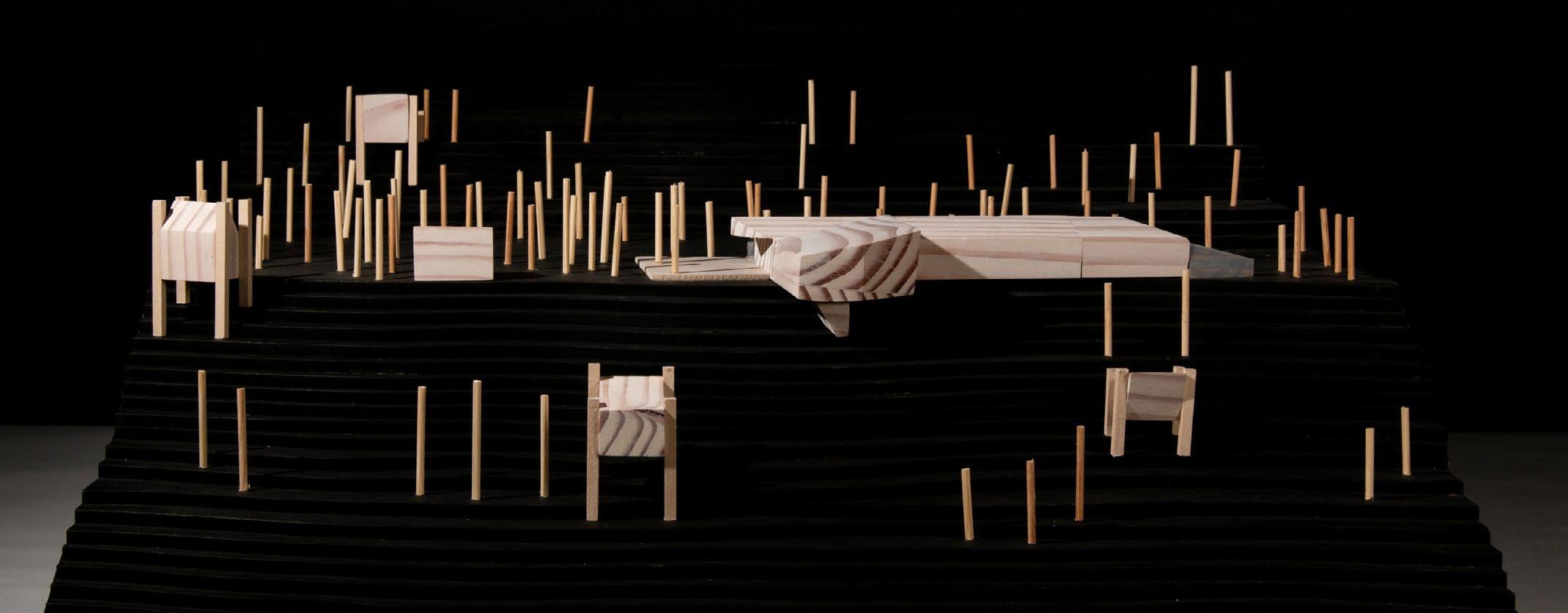

In order to convey the rich topography of the area, a site model was constructed. Layers of MDF cut using the contour lines were layered and stained black, speaking to the black bedrock of Sudbury. Douglas Fir offcuts were used to convey the massing of the architectural interventions.

Ramsey Lake Ice Station

Skills

Ramsey Lake Ice Station Group Design + Build Studio Year 1 Skills Lr Ps

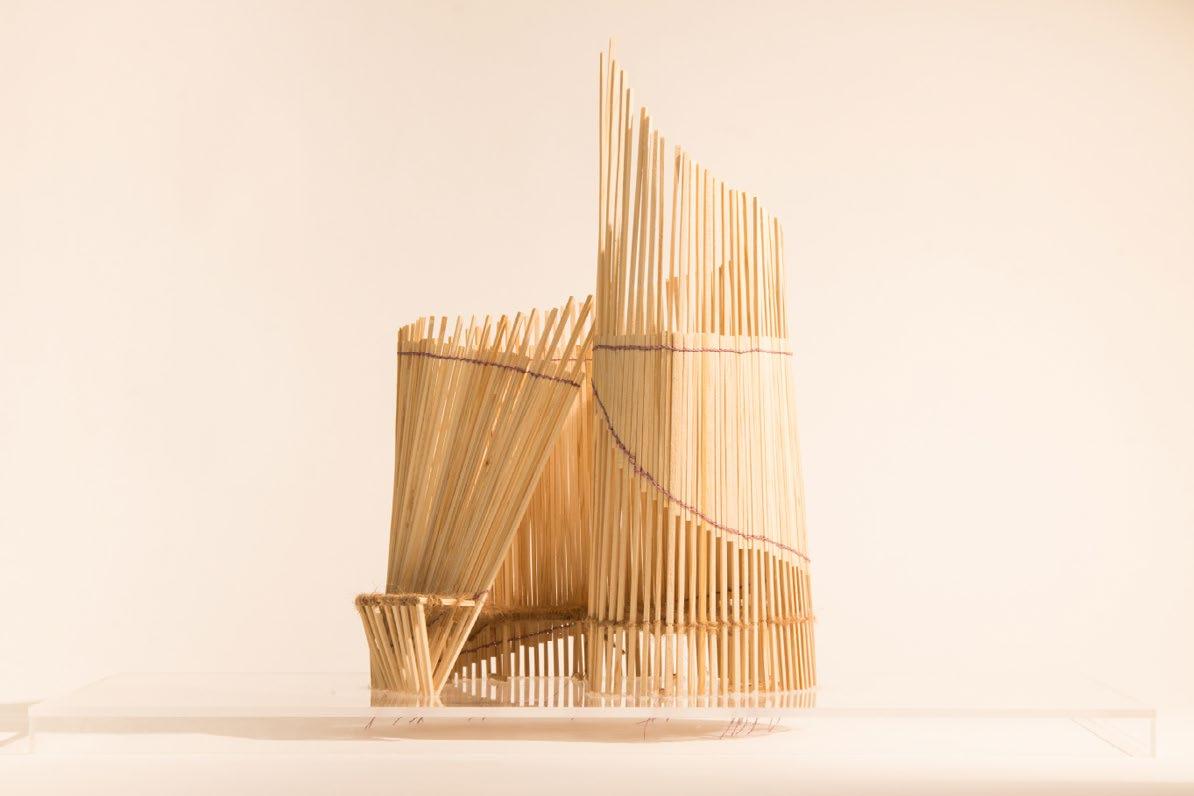

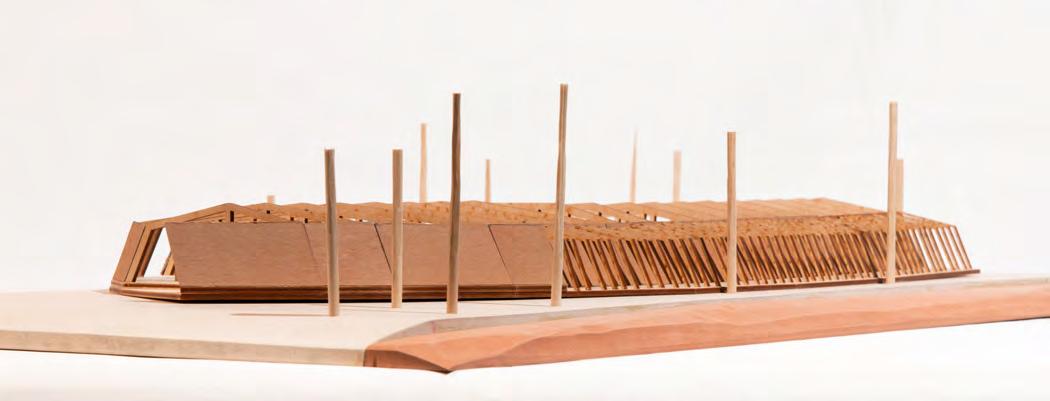

Photos of Physical Model

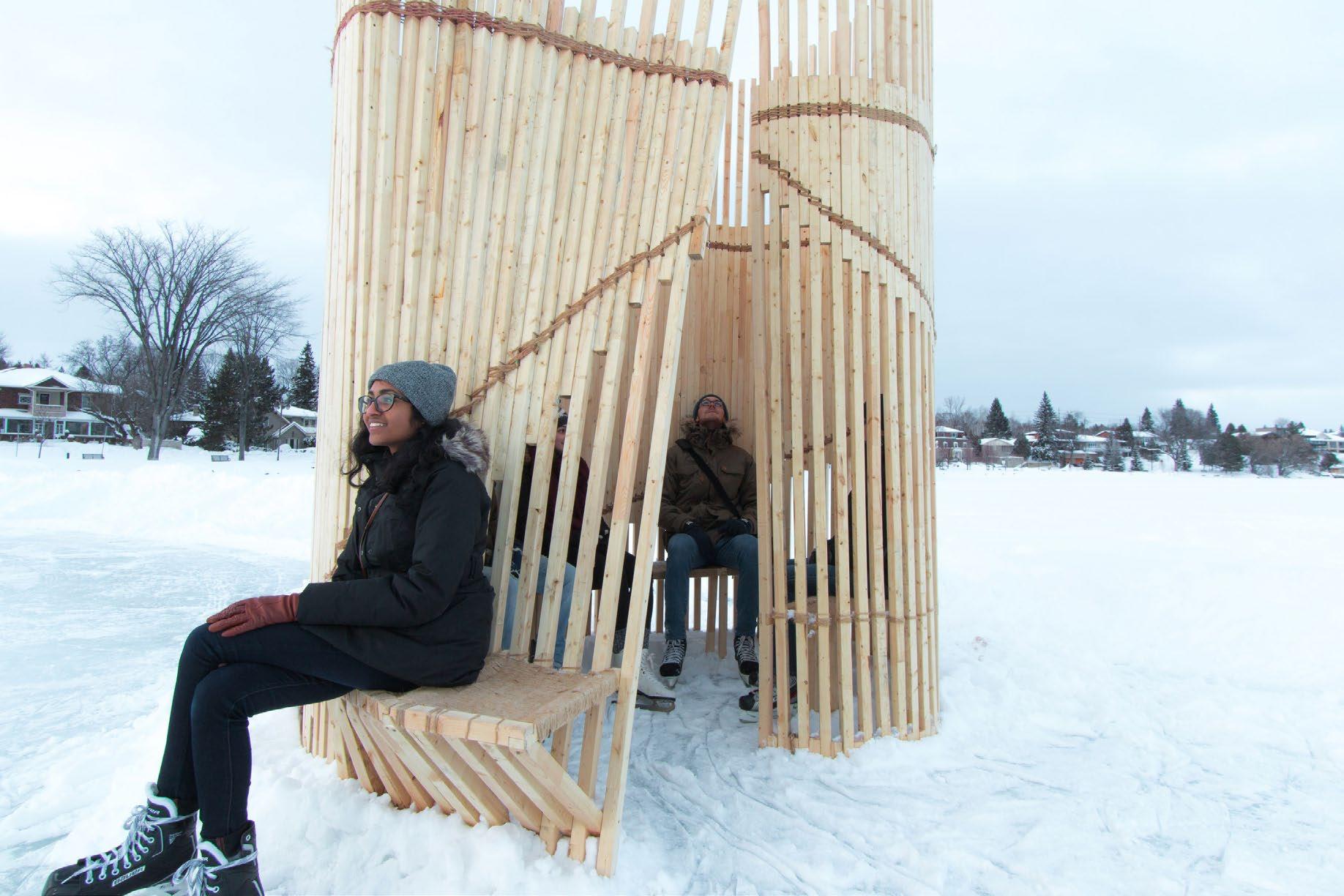

The ice stations design and scale allowed for new experiences as one approached the structure. From afar, the horizon is interrupted by a tall wooden ribbon, then on approach the fold invites one in to finally experience a moment of verticality through the oculus.

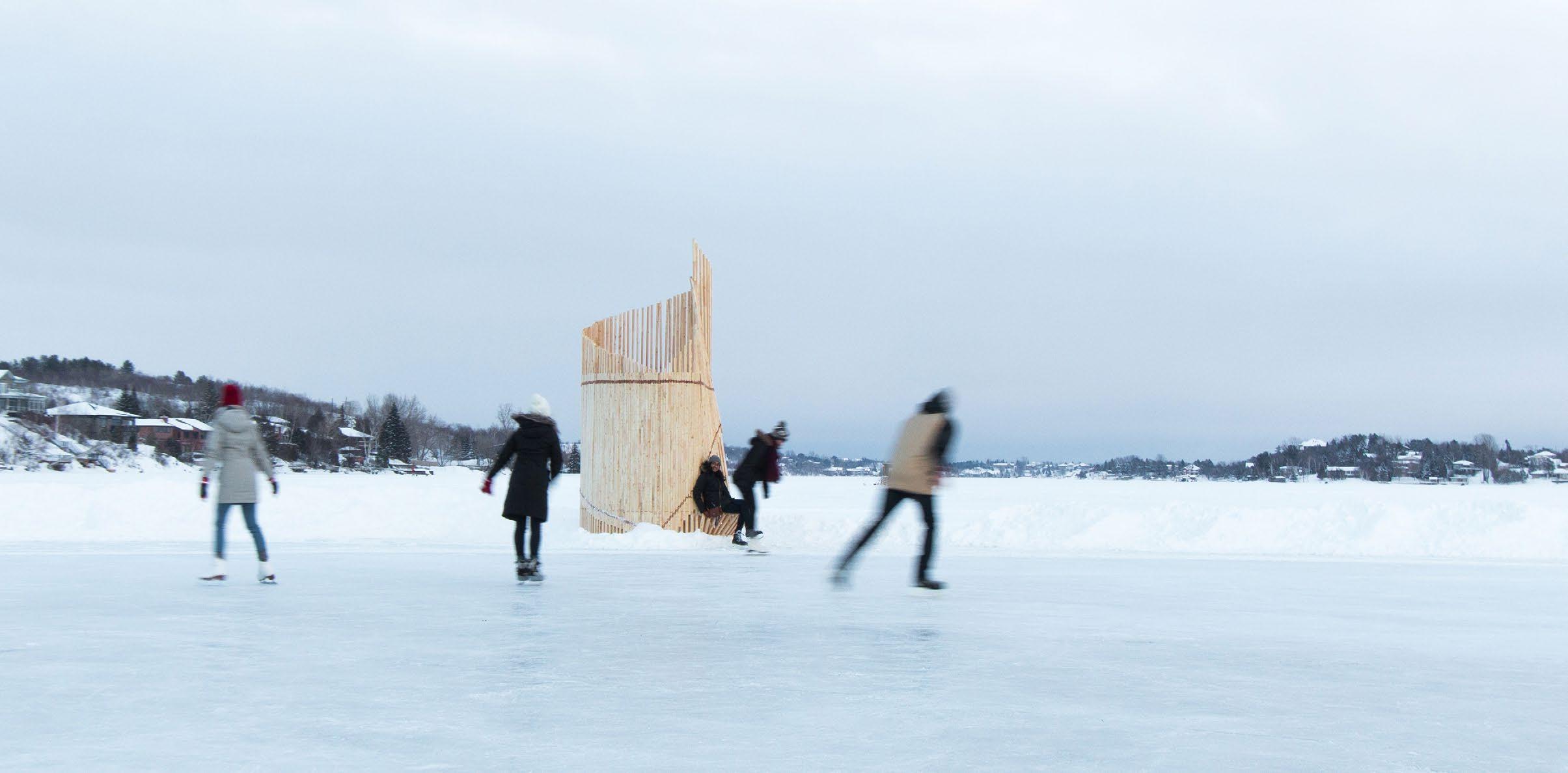

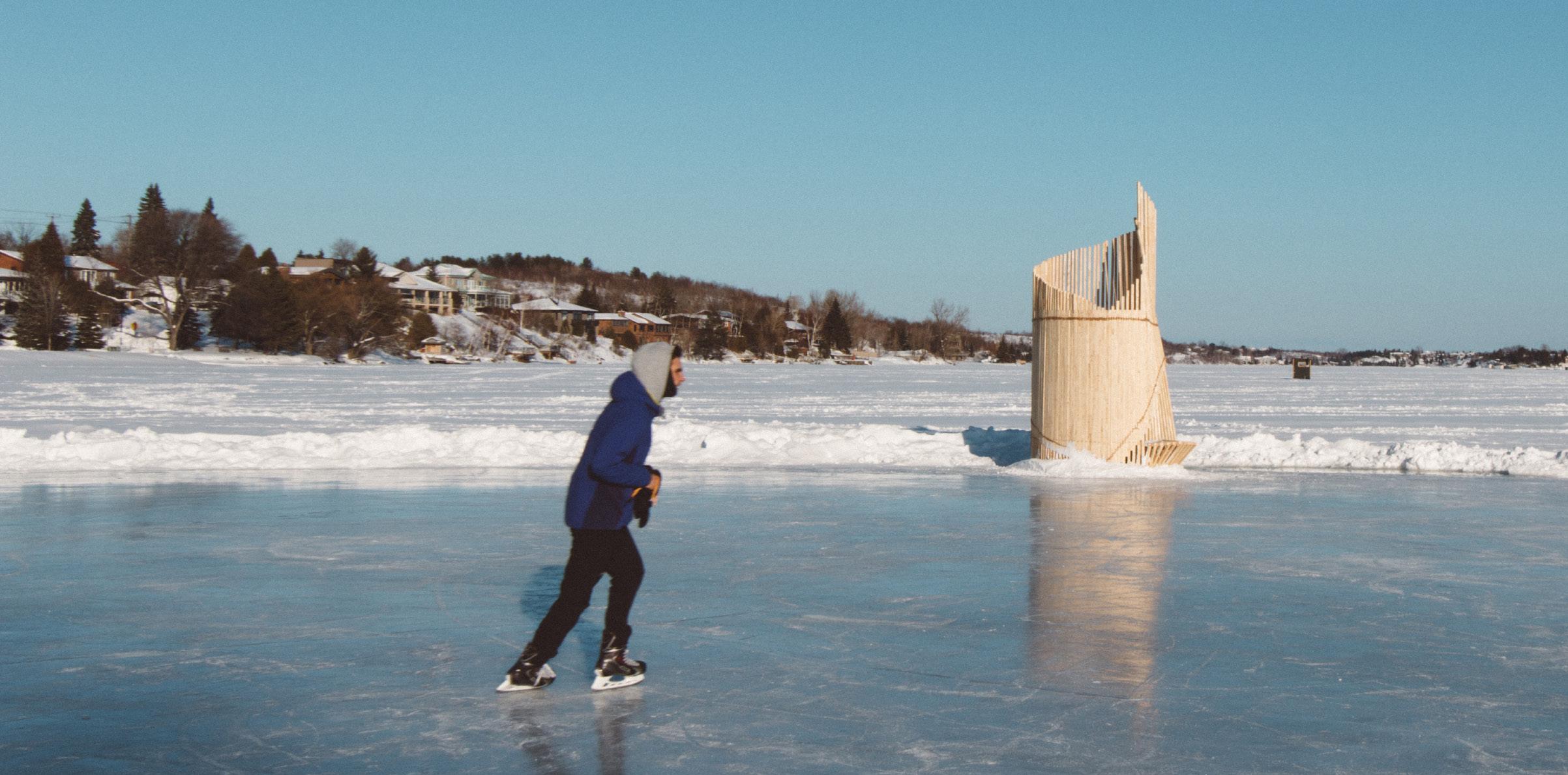

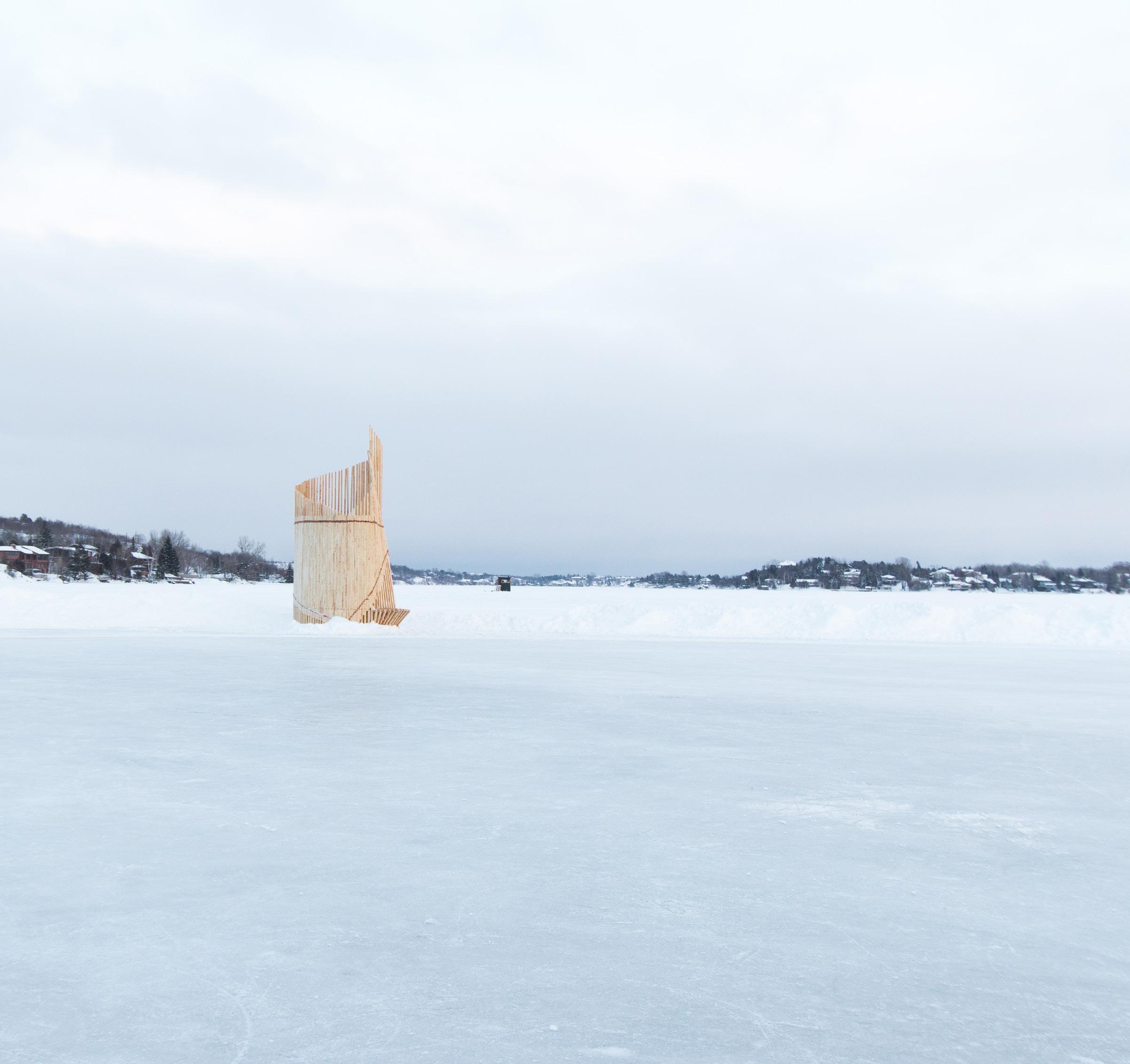

Photos of Built Structure

From this, the group decided to create a ribbon of wood curving in plan and folding in on itself to provide an opening. The 2x2 members were left 98% untouched and tied together using twine to allow for re-use.

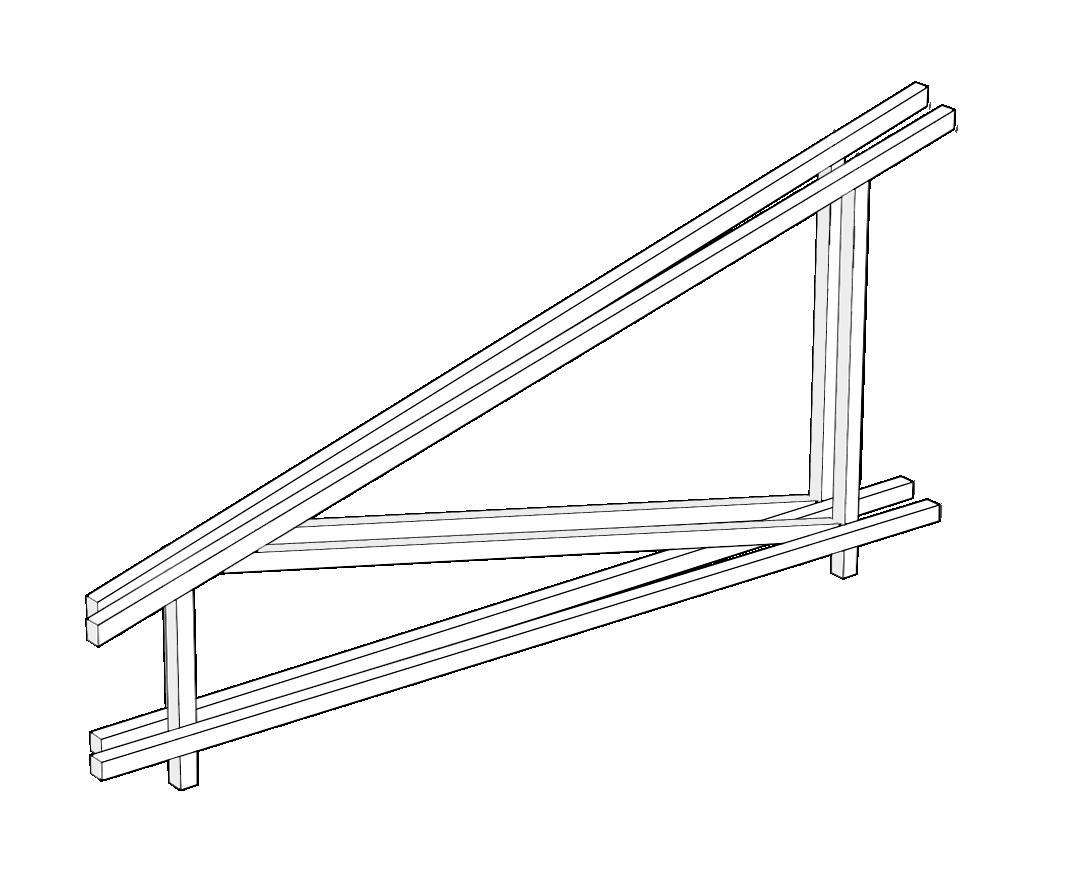

The design process began with the challenge of using only 2x2 lumber in a sustainable fashion. The site provided an incredible horizon, the group wanted to break that horizon line and encourage the skaters to look up into the sky.

Photos of Built Structure

Bergen Wood Festival

6 students in two groups invited to design and build a wood installation in Bergen Norway.

Skills

Group of 3 Design + Build International Competition Skills Lr Ps

Bergen Wood Festival Ai

2440mm

Left: Installation construction drawing with scale person drawn using Rhinoceros, Revit, Illustrator, and Photoshop for competition proposal.

200 450mm 2096mm

200mm

1590mm 200mm

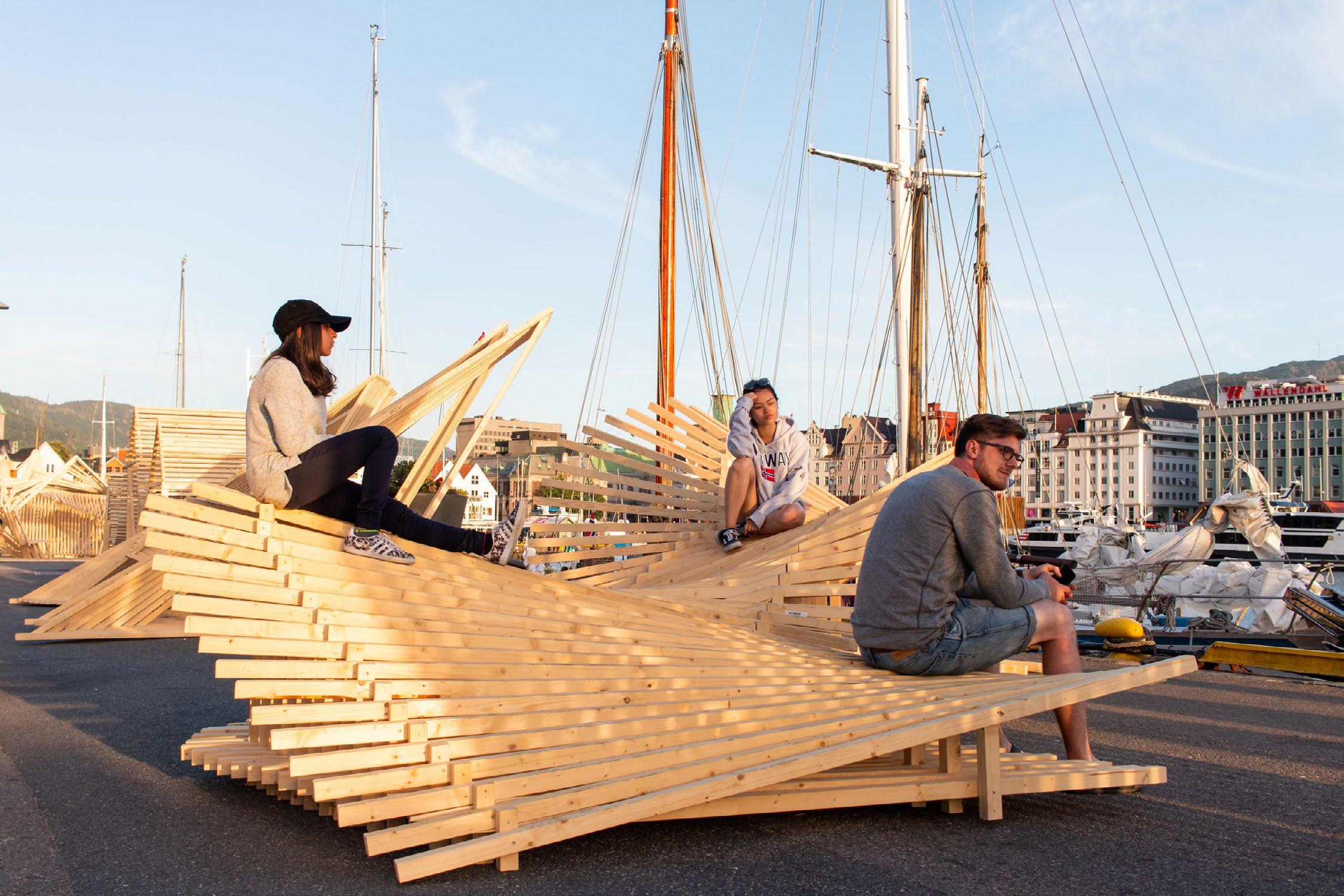

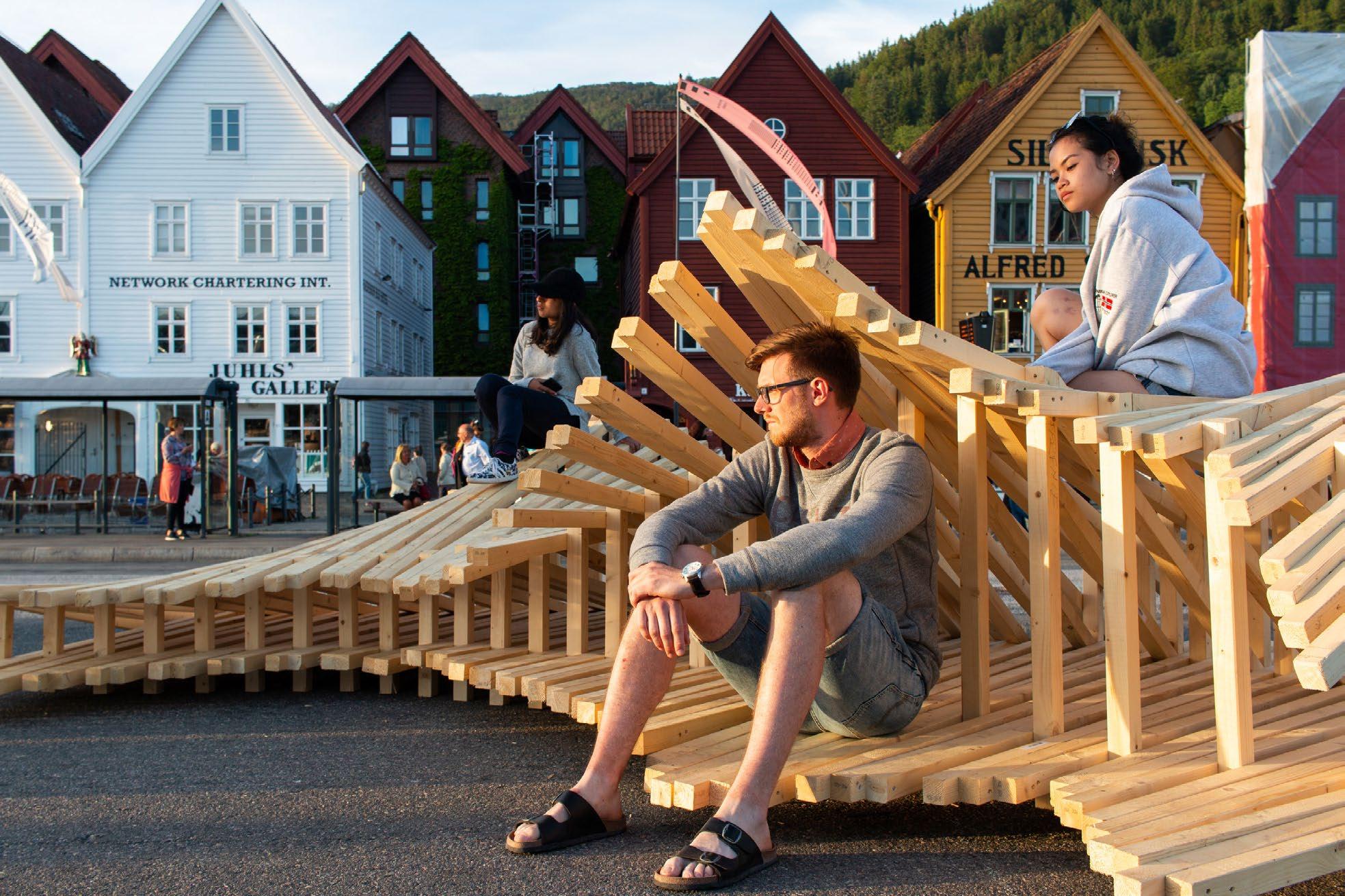

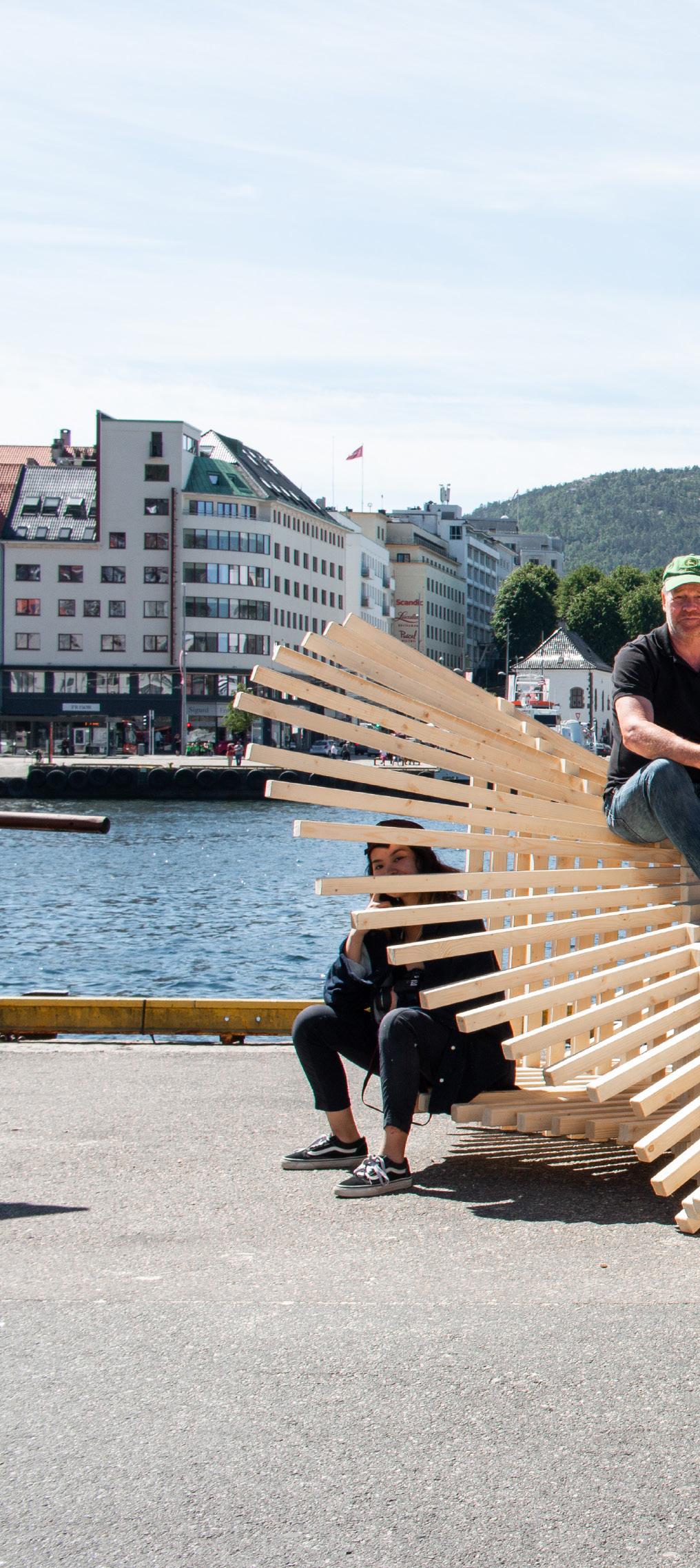

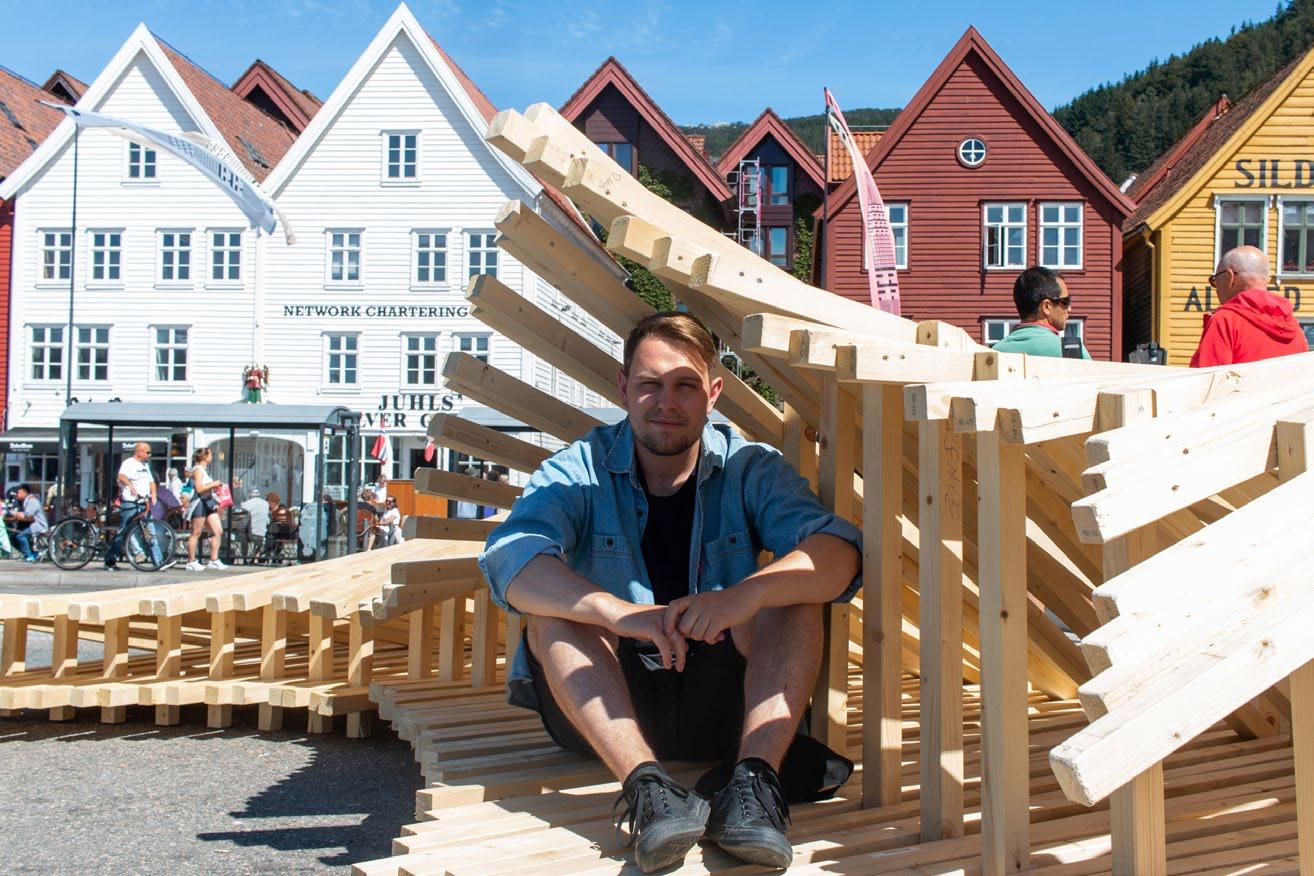

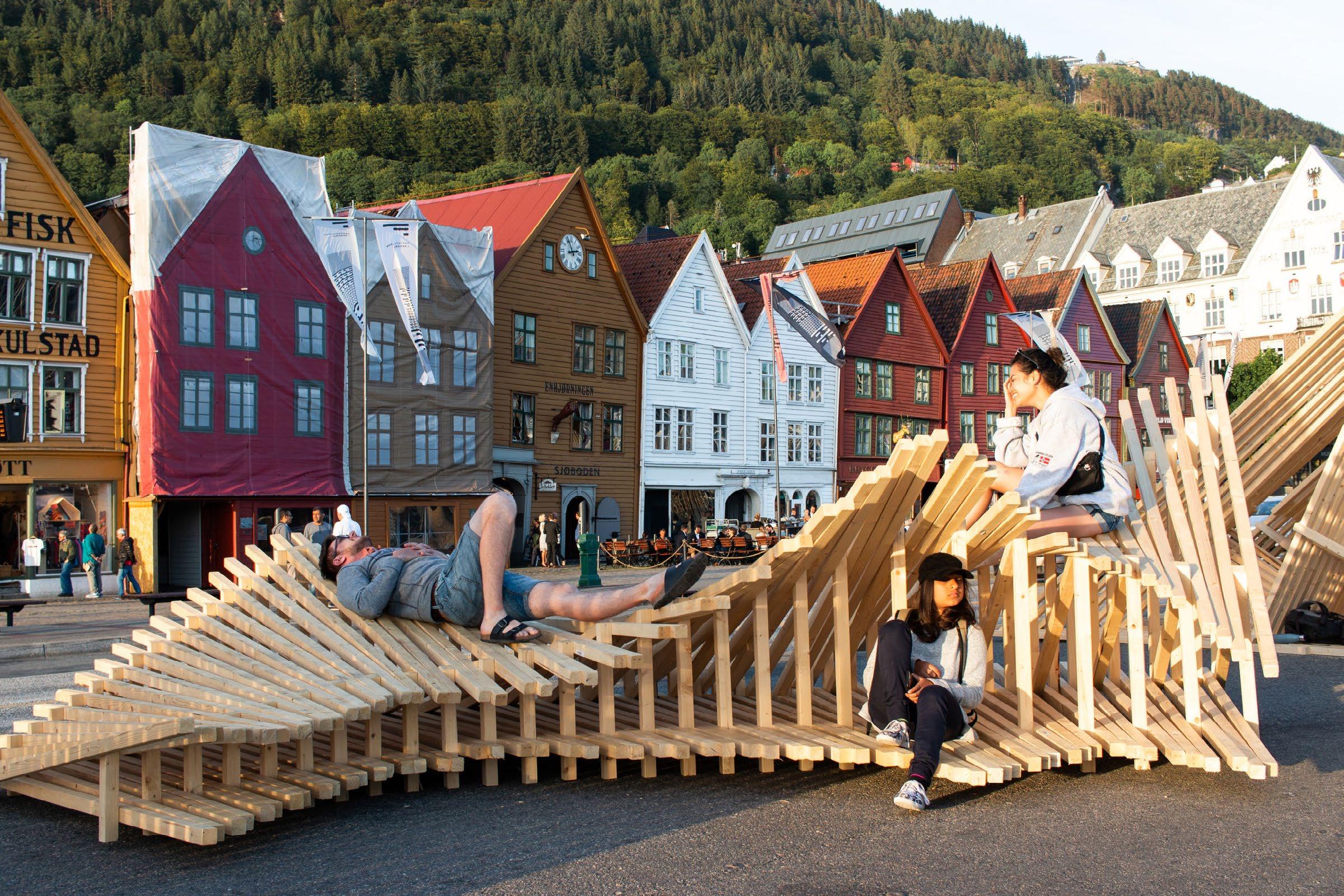

A group of 6 students were selected to represent the McEwen School of Architecture at the Bergen International Wood Festival in Norway. The 6 students broke into two groups to create two separate wood installations. The installation “Canopy” was designed using a simple system of repeating polygons which would then be increasingly altered to create a undulating ribbon of wood.

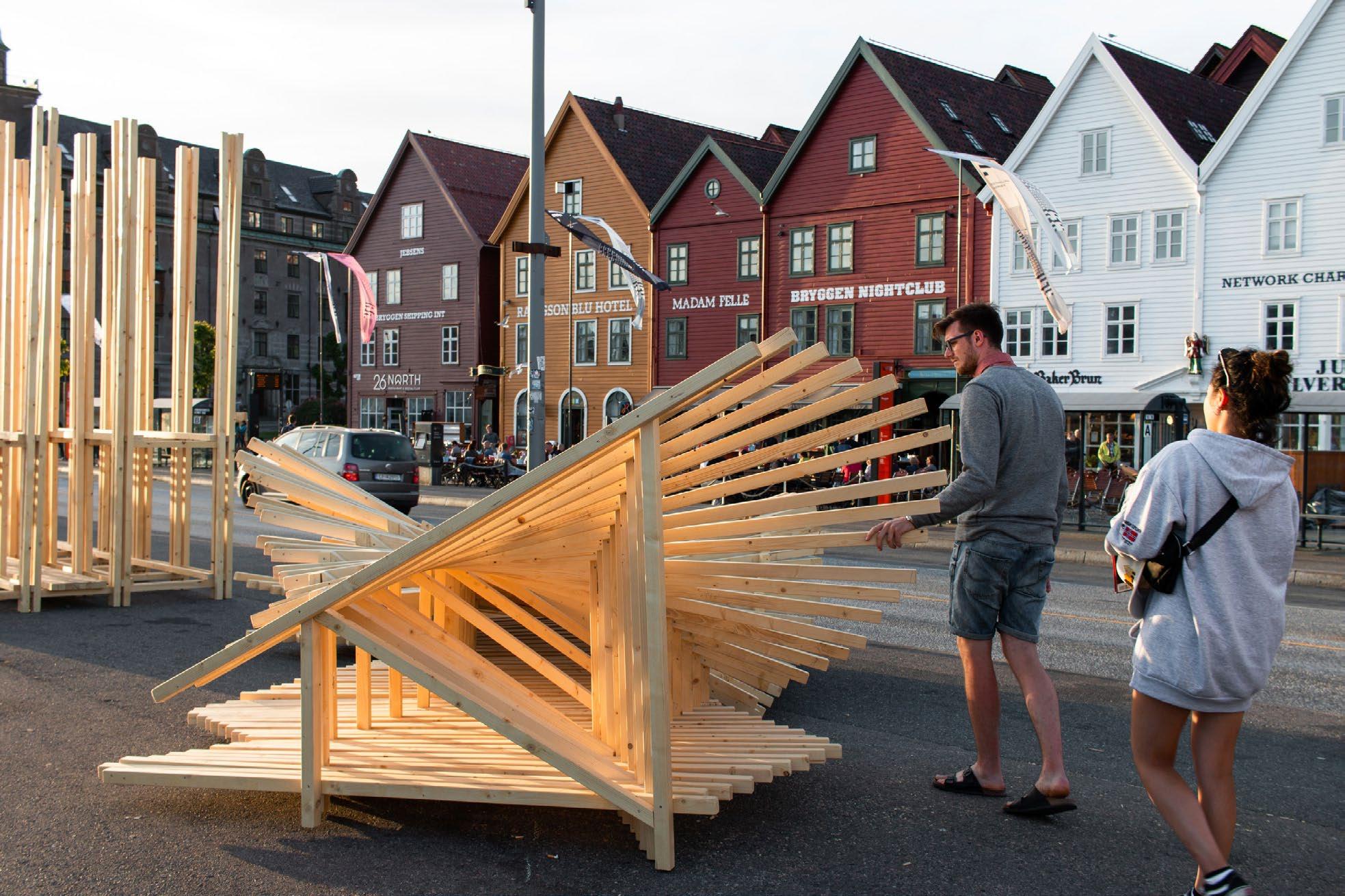

Photo of Built Installation

Photos

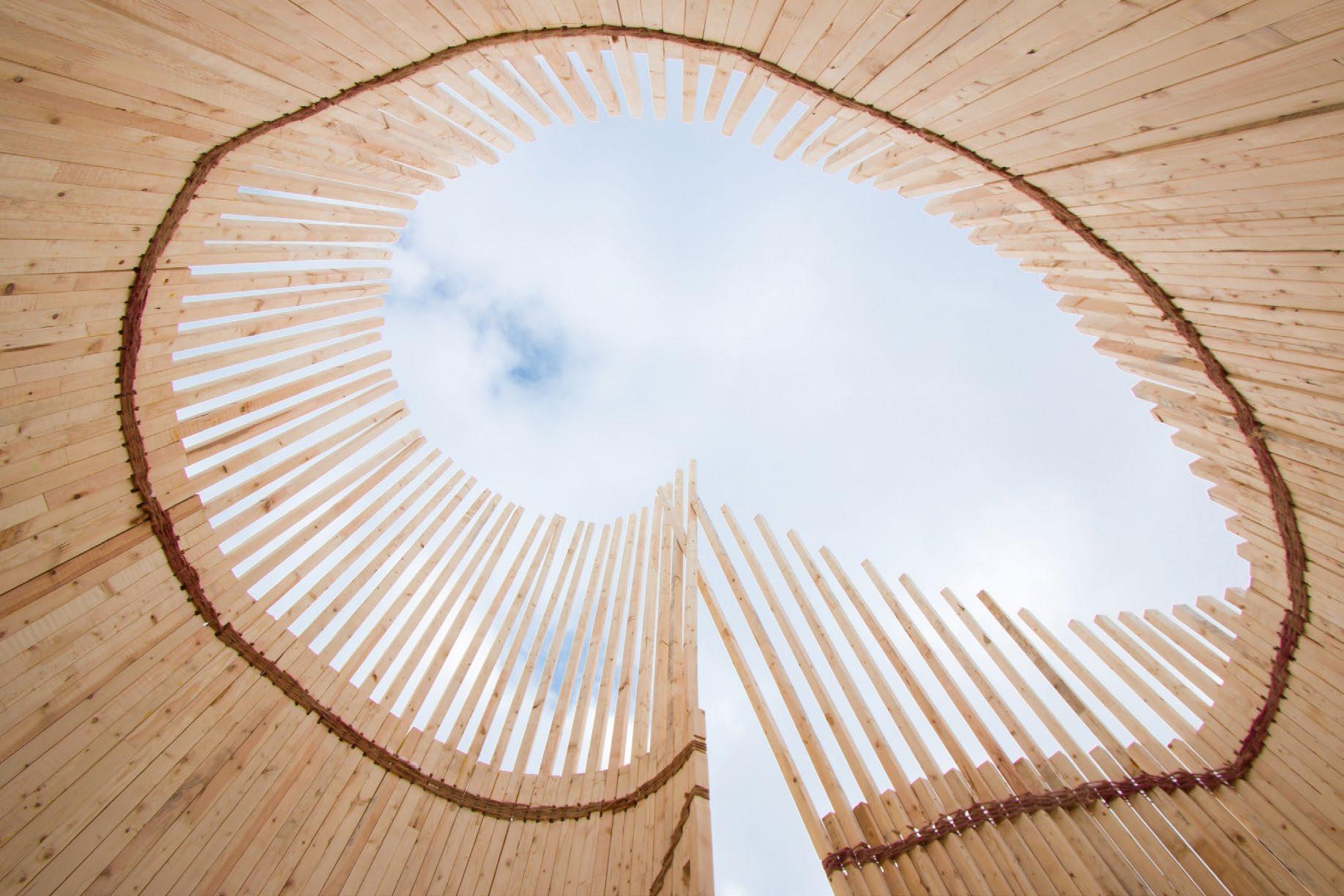

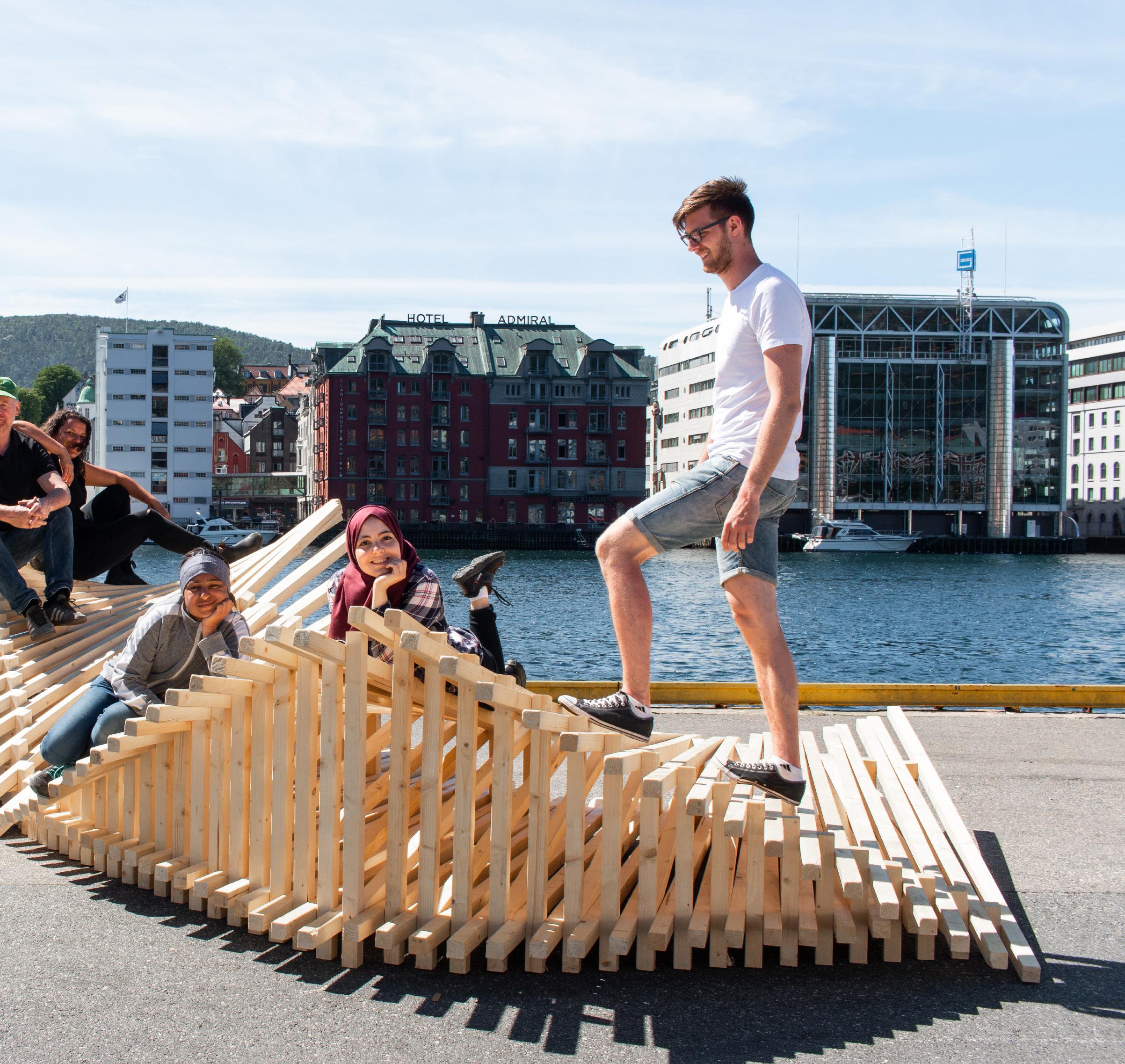

Limited to 2x2’s, the group created a curve in plan using simple techniques. Canopy flowed up from the ground providing a bench for sitting and laying. The undulating ribbon peaked and dipped to create nooks for sitting

Limited to 2x2’s, the group created a curve in plan using simple techniques. Canopy flowed up from the ground providing a bench for sitting and laying. The undulating ribbon peaked and dipped to create nooks for sitting

Jaajokki Light

Sculptures

Successful design build proposal for the McEwen School of Architecture Nuit Blanche.

Award: People’s Choice Award

Award: People’s Choice Award

Skills

Group of 3 | Design + Build Built Competition Proposal Skills Lr Ps

Jaajokki Light Sculptures Ai

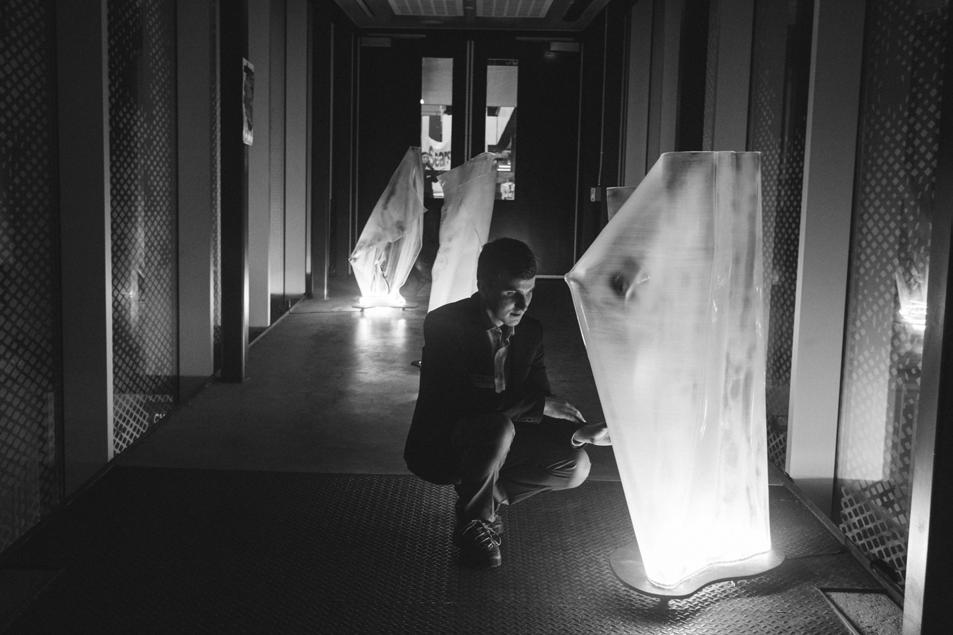

Proposed for the second annual Nuit Blanche at the McEwen School of Architecture, these light sculptures were designed to attract users to a normally dark area of the school. Textured acrylic sheets were exposed to heat and manually bent into shape creating a selfsupporting sculpture. Bends were made to create moments within the sculpture allowing for new discoveries as one explored the sculptures. The installation was named Jaajoki which means “frozen river” in Finnish, due to the sculptures resemblance to ice.

Photos

Bent Wood Studies

Bent Wood Studies

Independent Research Skills

Skills

Lr Ps

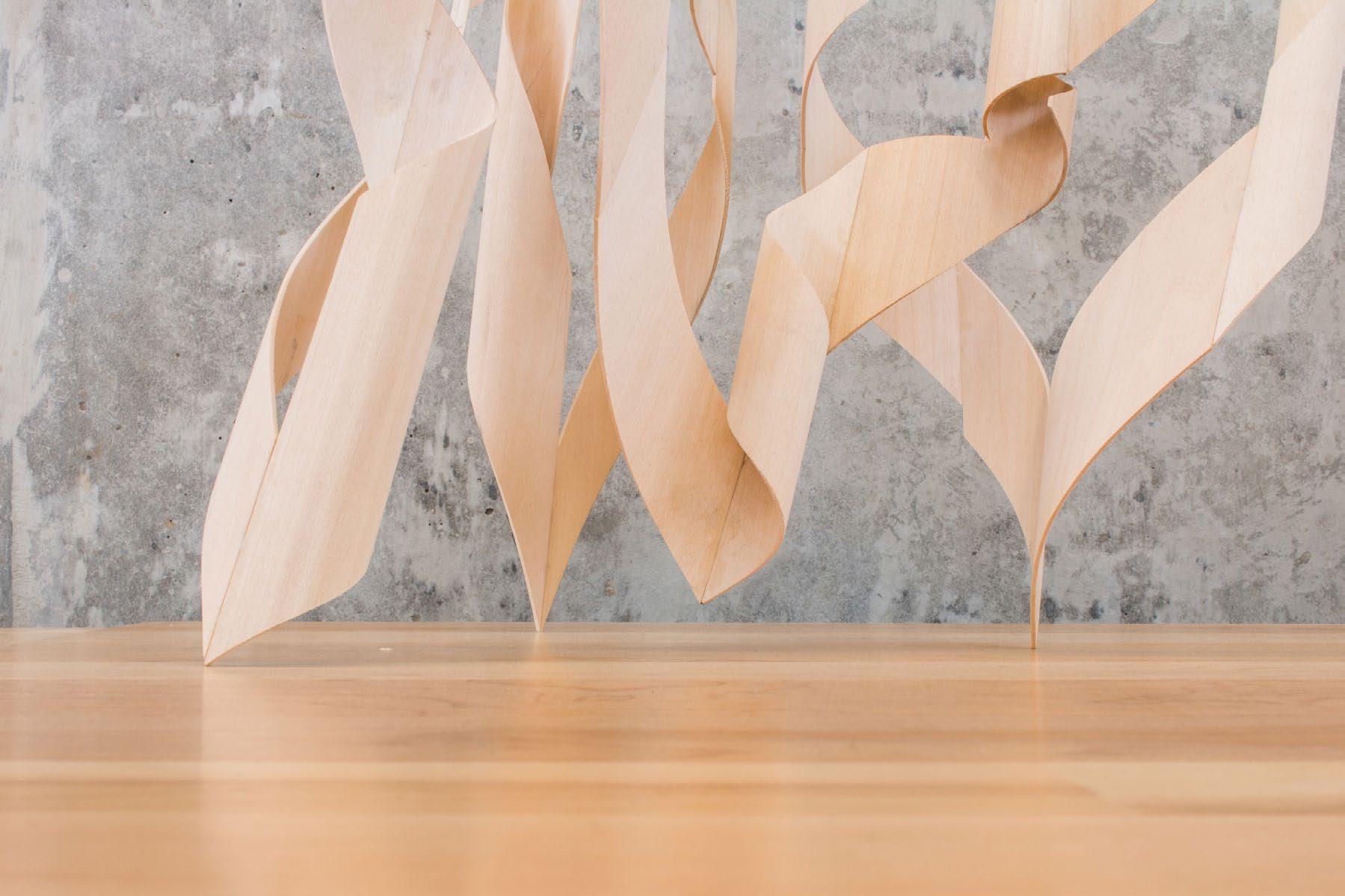

Aurora Borealis

First Year Studio Project

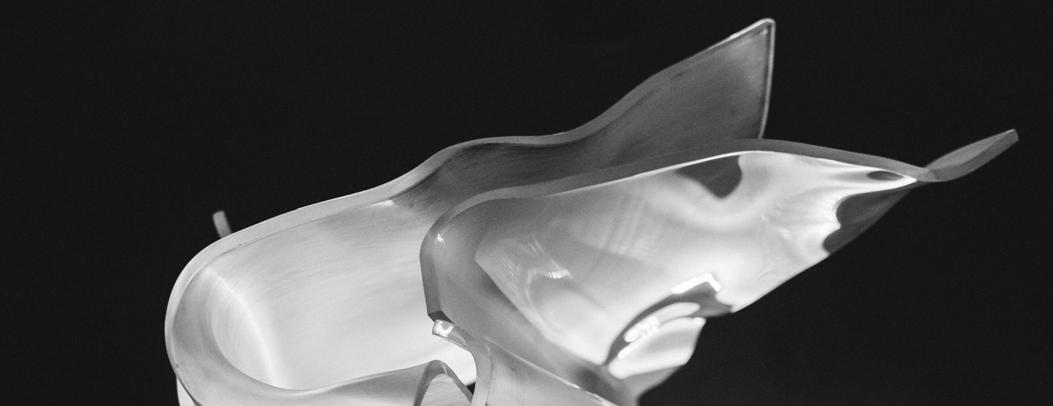

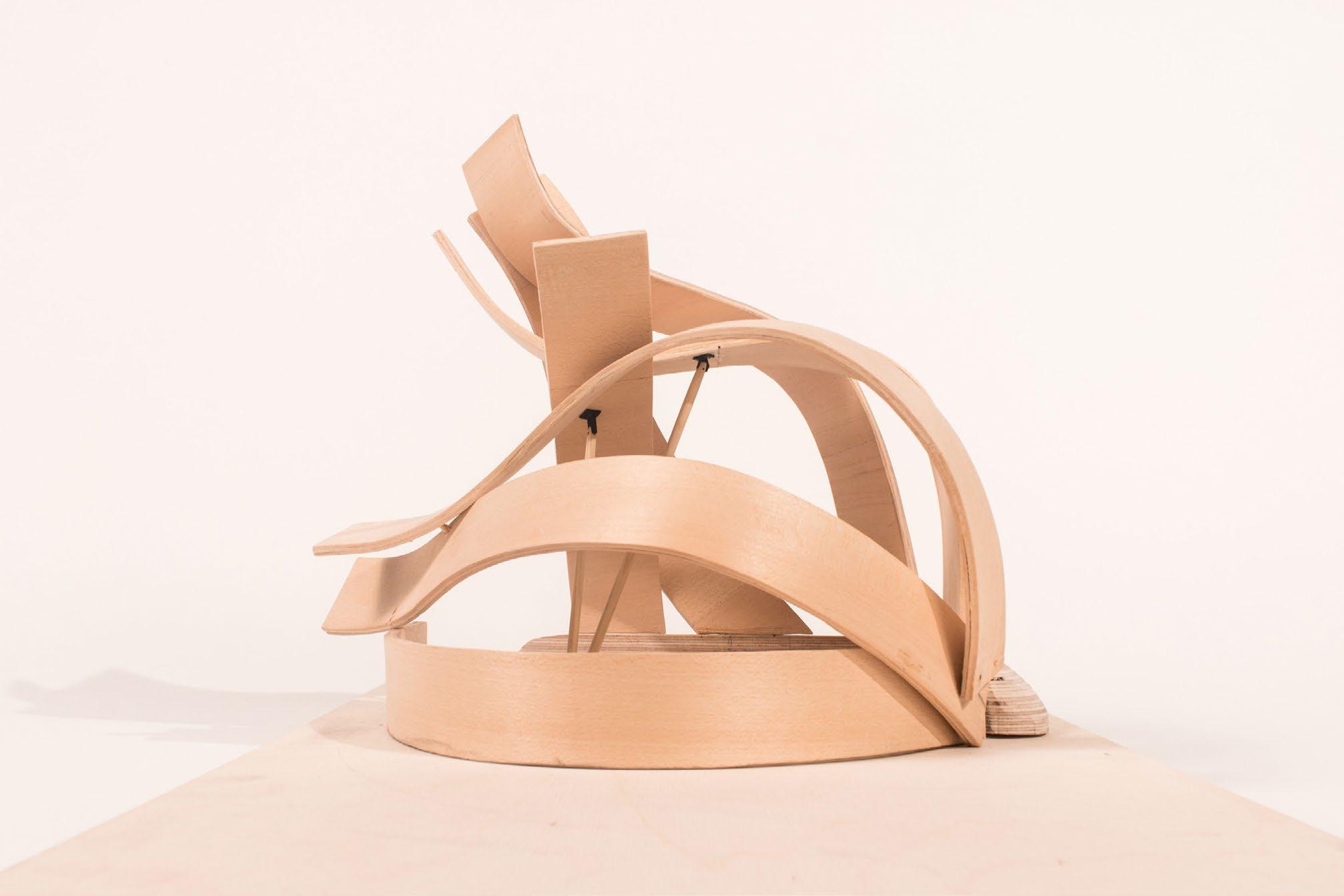

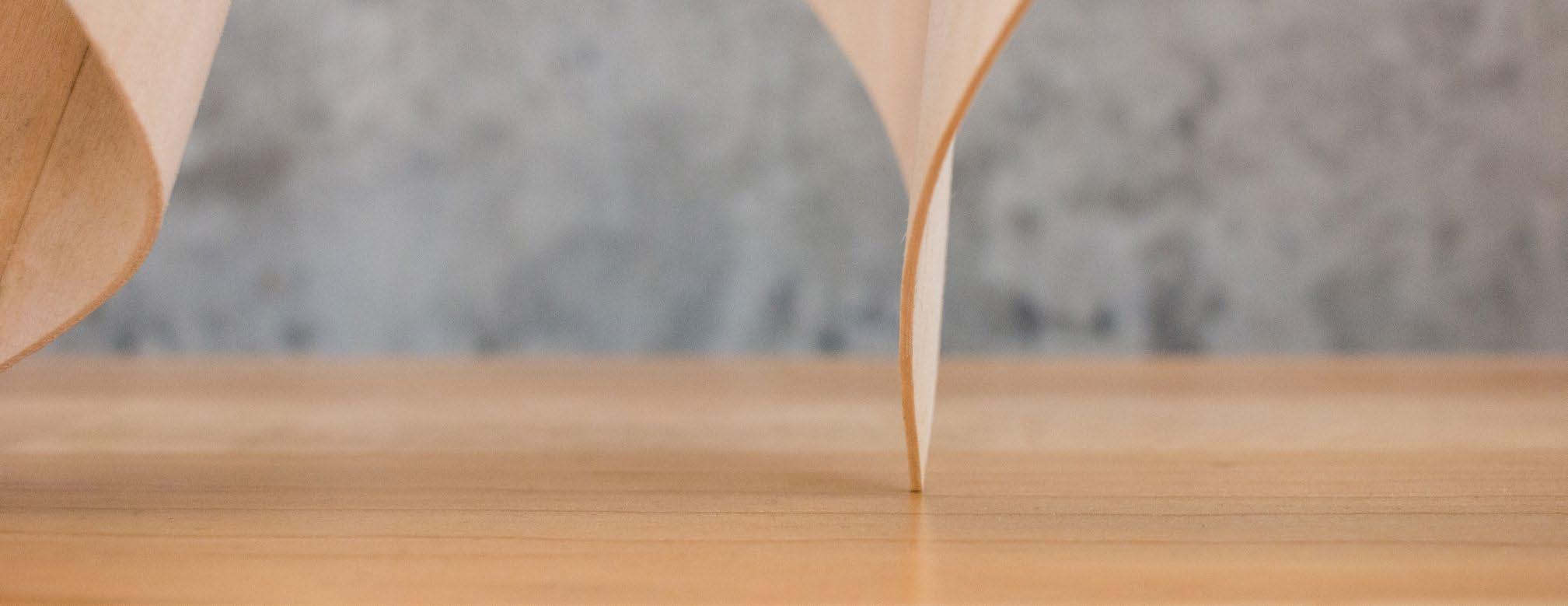

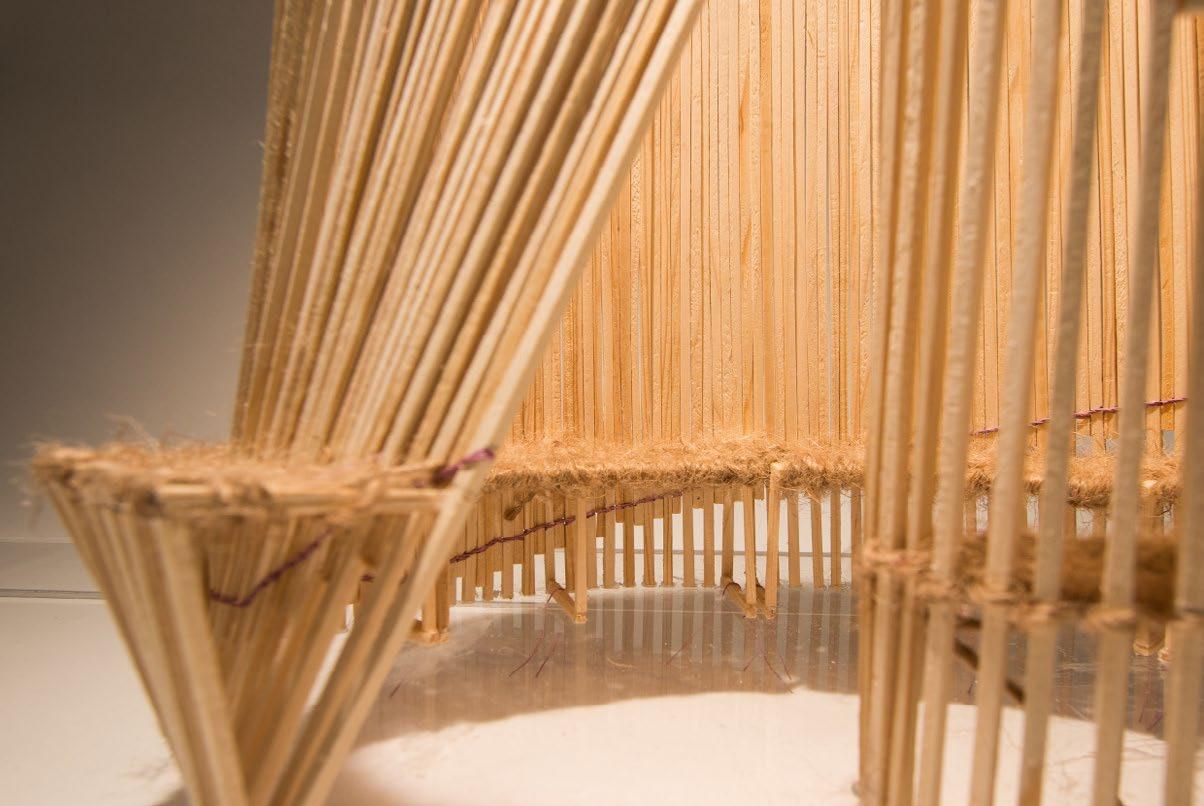

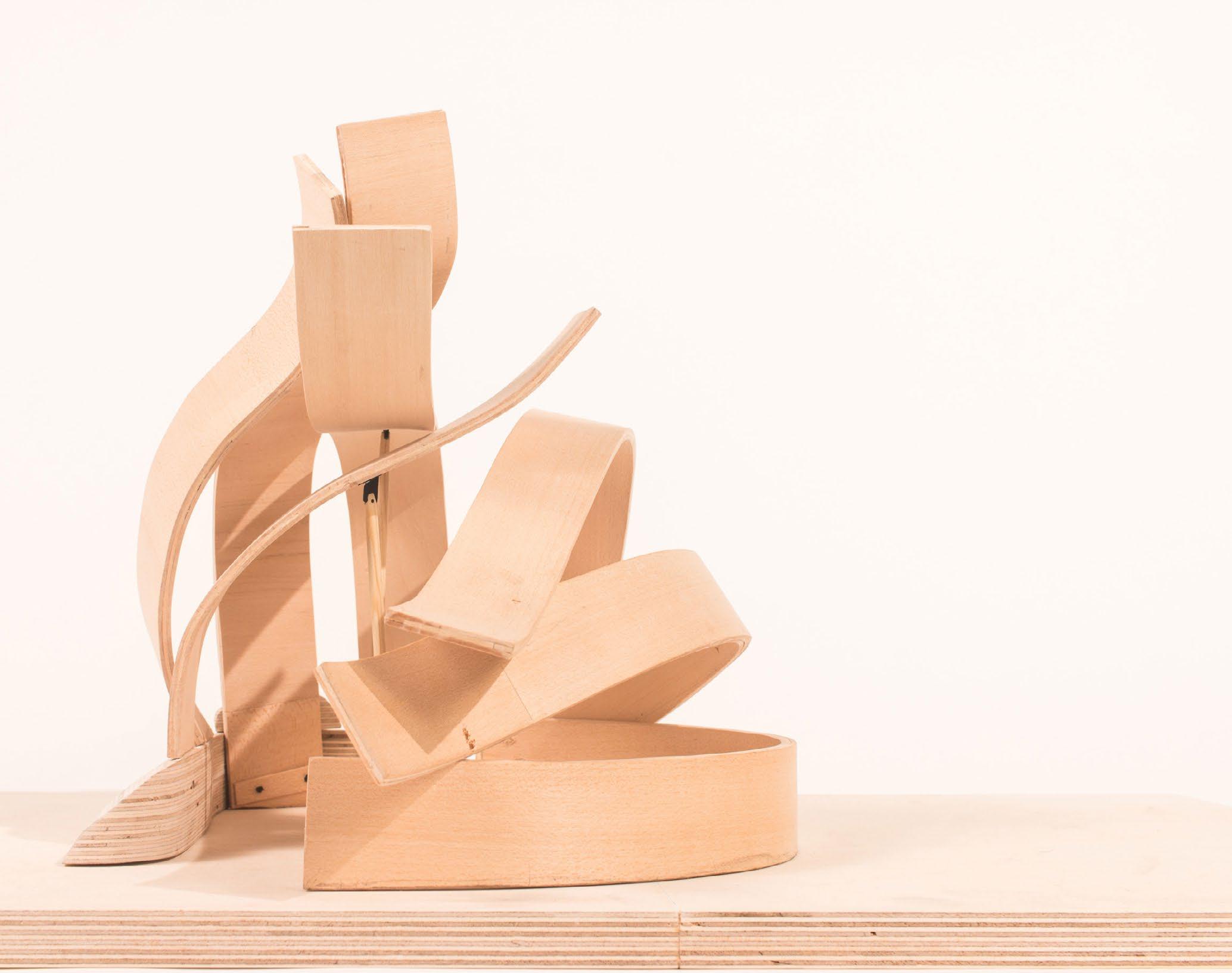

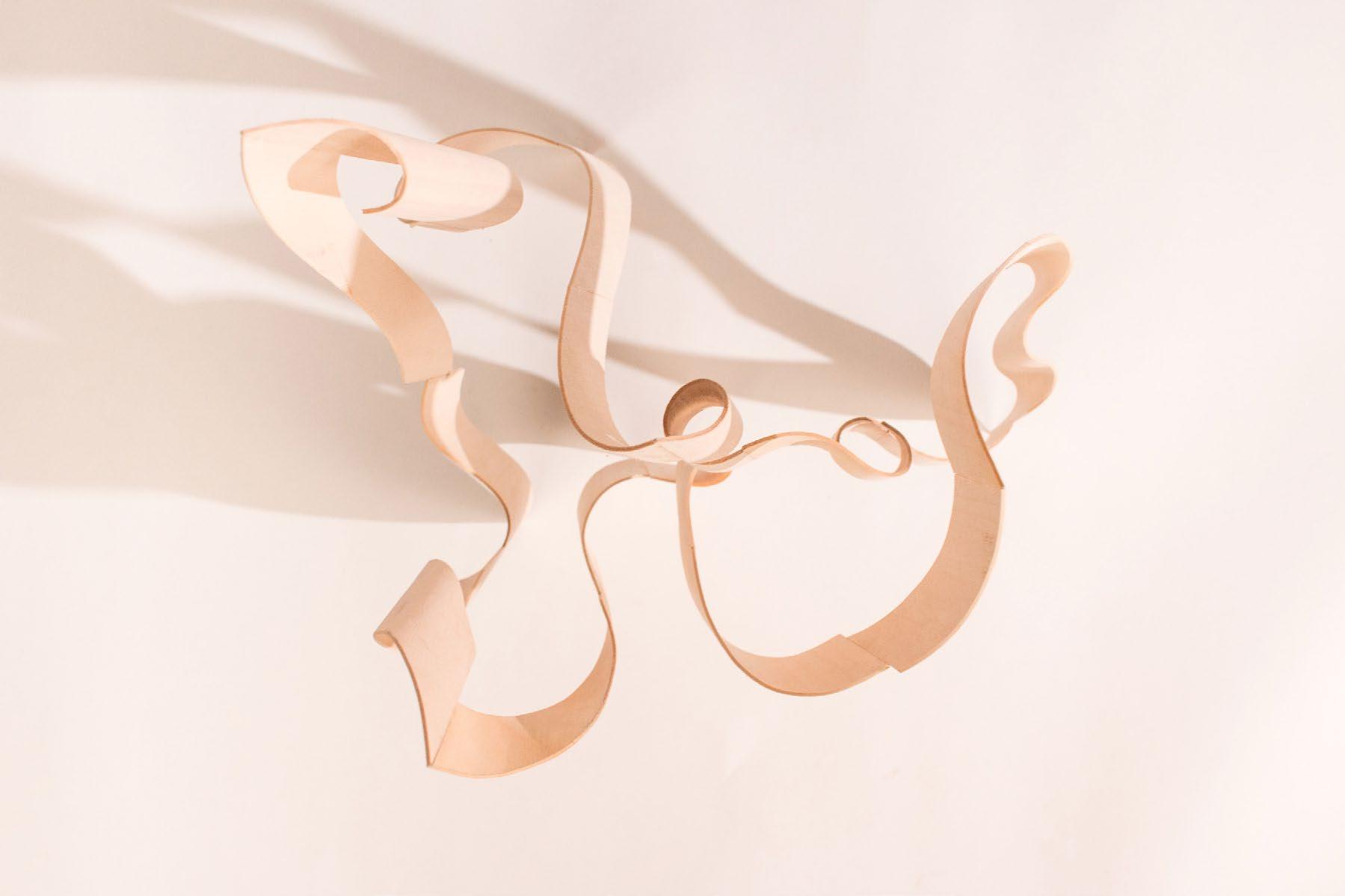

Interest in wood bending began during a first year studio project. The task was to take a mostly 2D object, and with a simple technique make it 3D, then create a spatial piece. Thin pieces of basswood were cut into parallelograms, then soaked in hot water and bent into unique curves. The curves were then fastened together with a thin bead of glue, creating a light and spatial ribbon of wood. The piece sat lightly, and with the lightest touch would begin to shake and “dance” as the piece reacted to the applied force, finally finding its balance and coming to a rest.

Bentwood Music Pavilion

First Year Studio Project

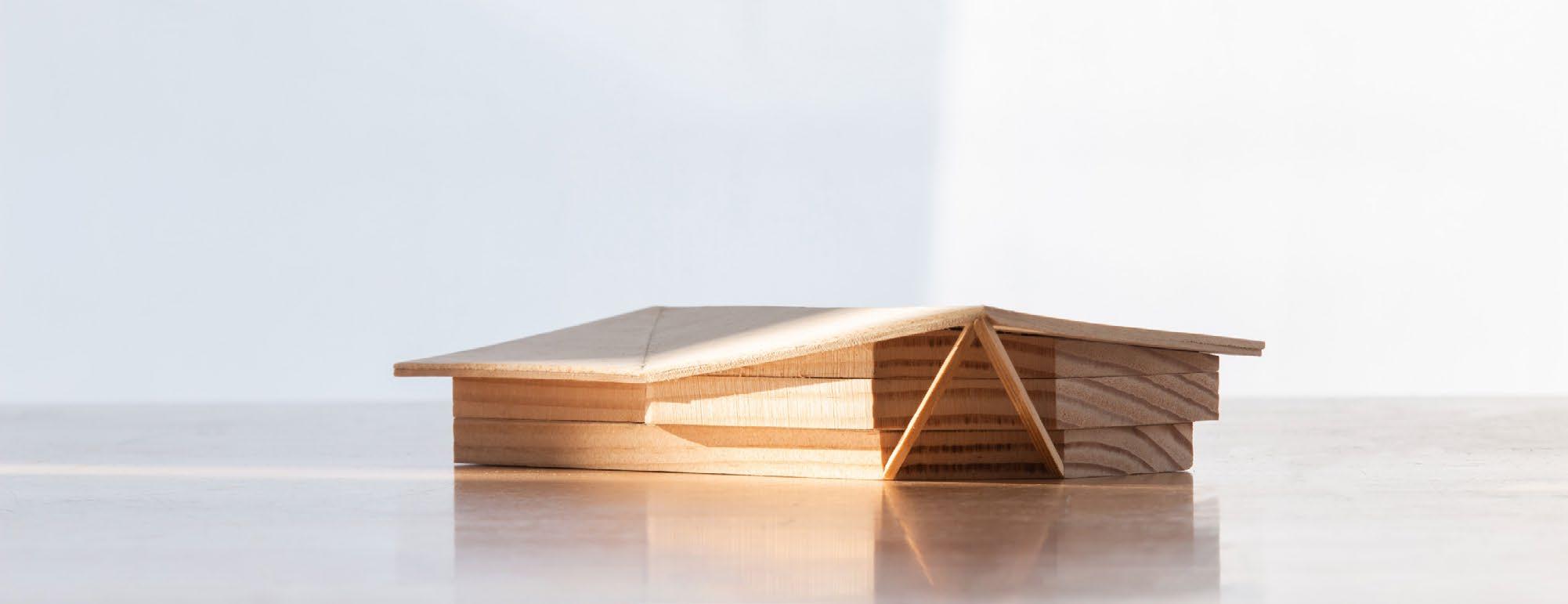

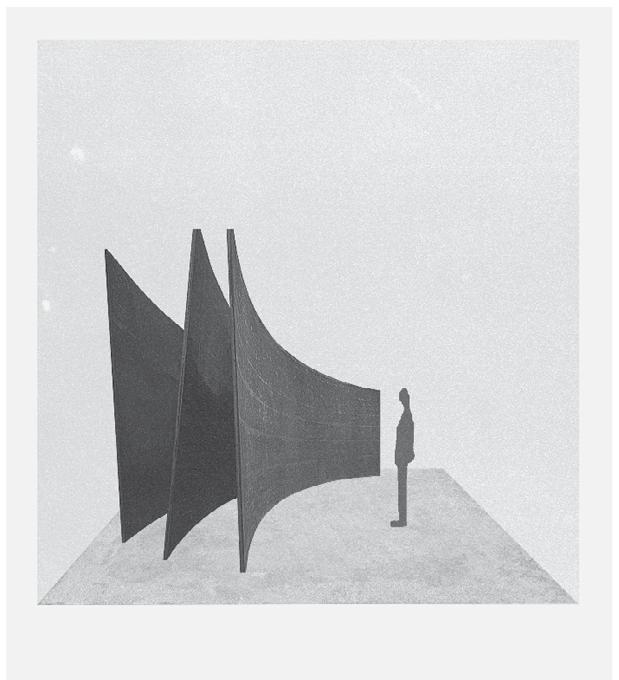

Sited on a greenway opposite to a proposed arts centre and the downtown core, curved panels emerge from the ground creating an expressionist space for music. The curved panels joining to form one space was inspired by music which is composed of multiple notes creating one song. The pavilions small maximum footprint encouraged one half of the structure to be opened up allowing for a new footprint to be determined by the reach of the music.

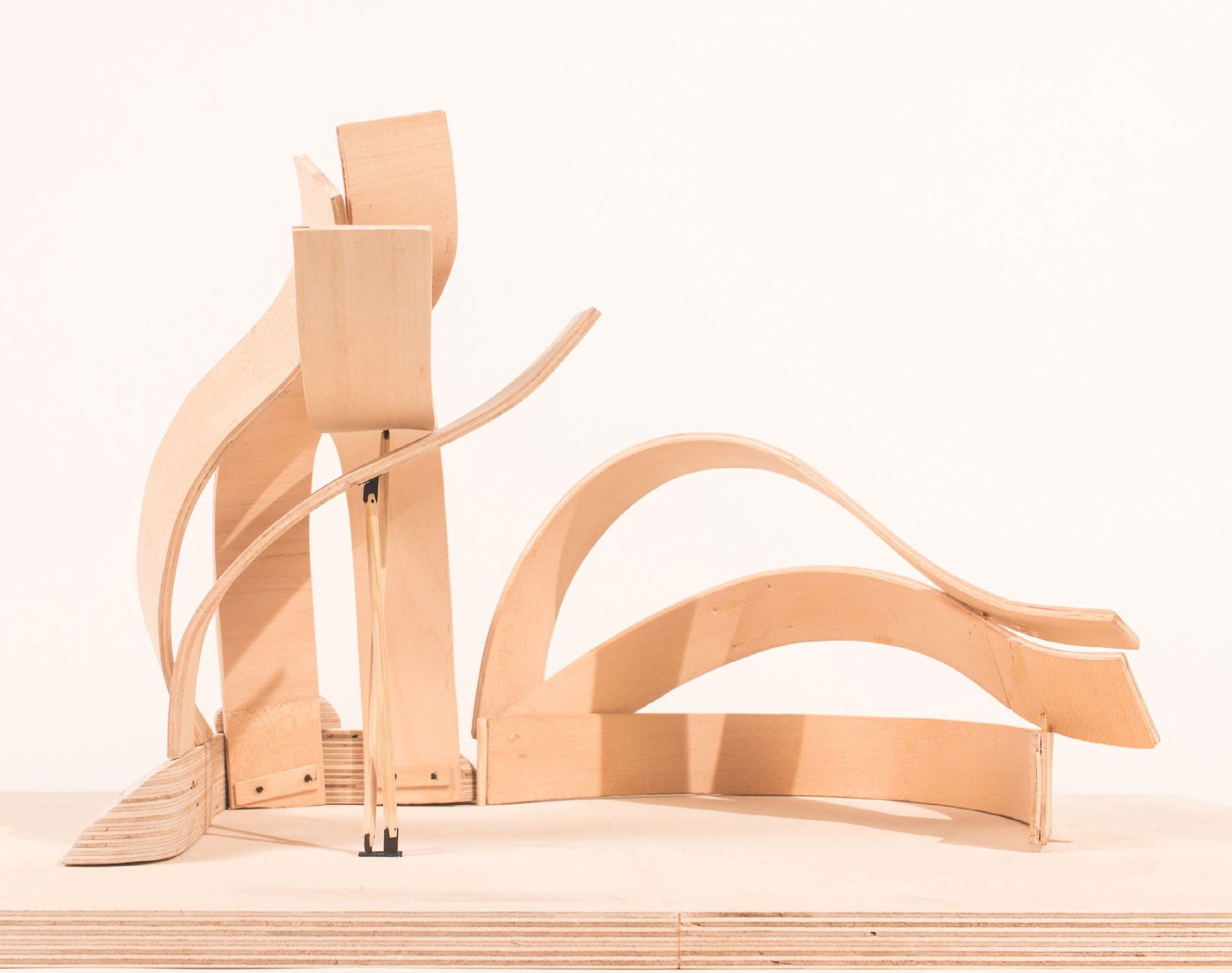

Left: model shown opening up.

Right: section drawing and exterior perspective of physical model.

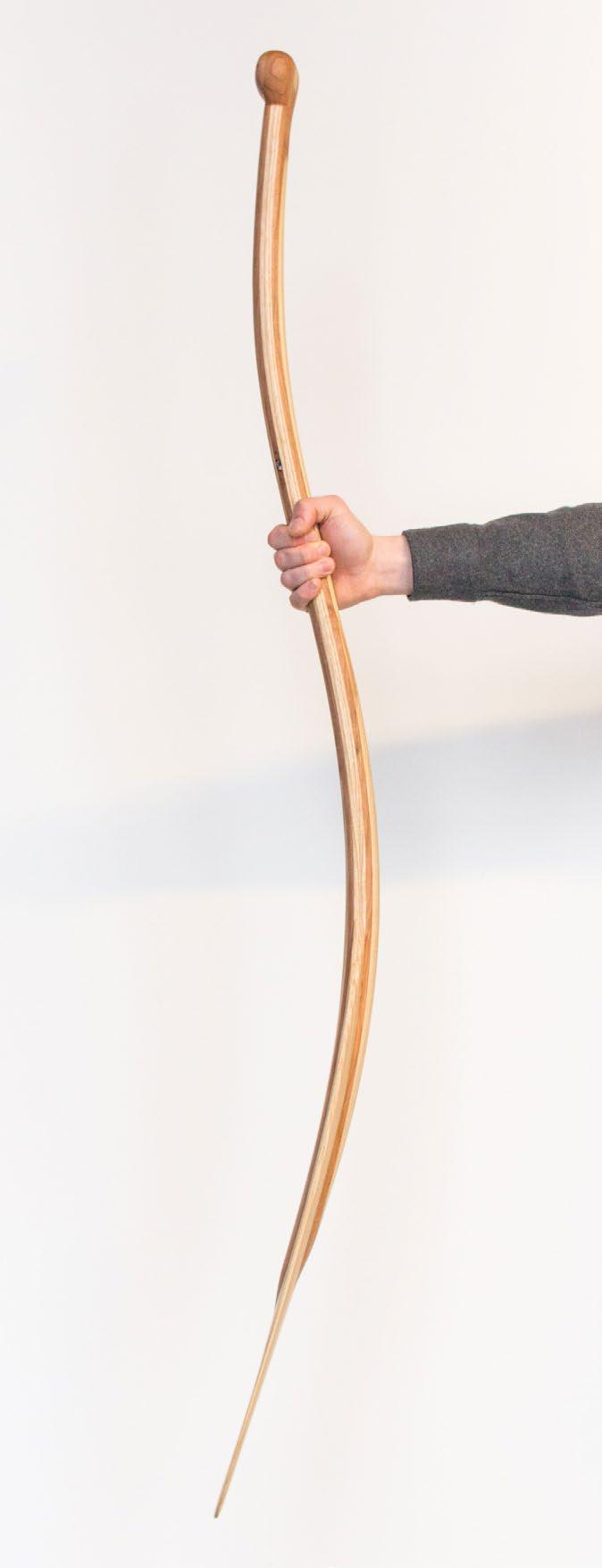

Double-Bent Canoe Paddle Second Year Studio Project

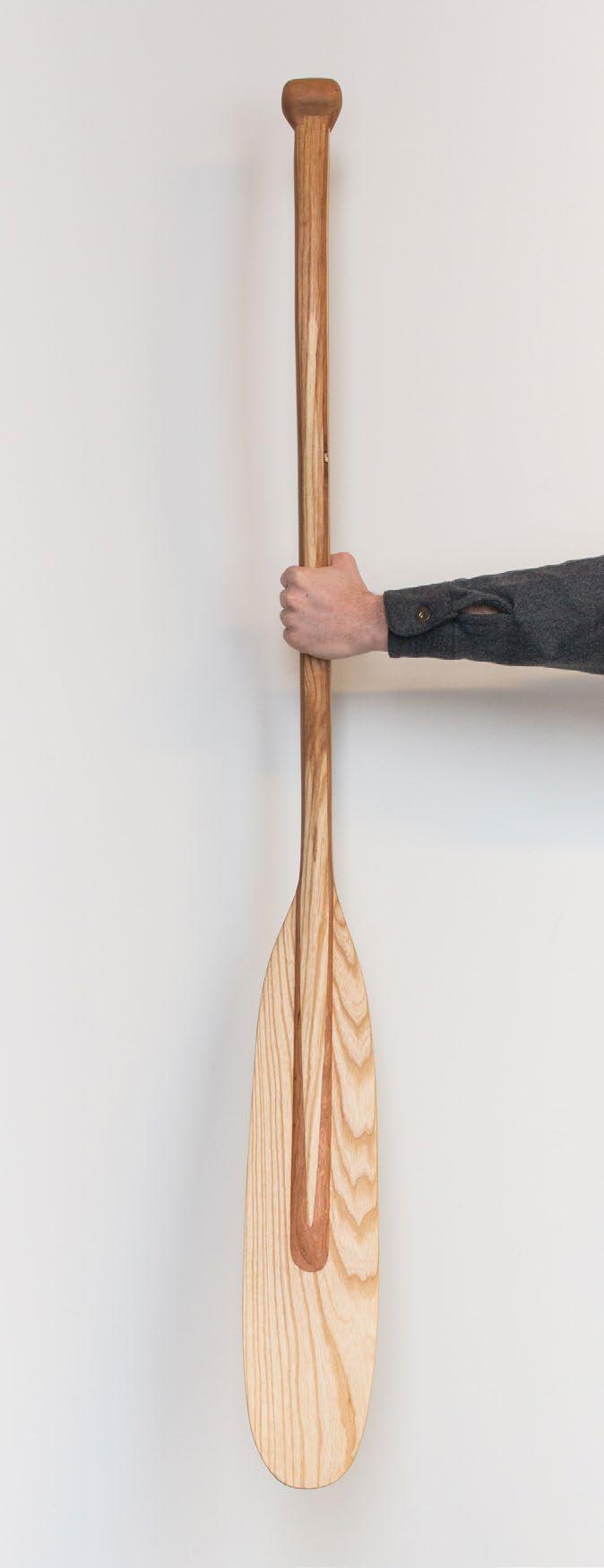

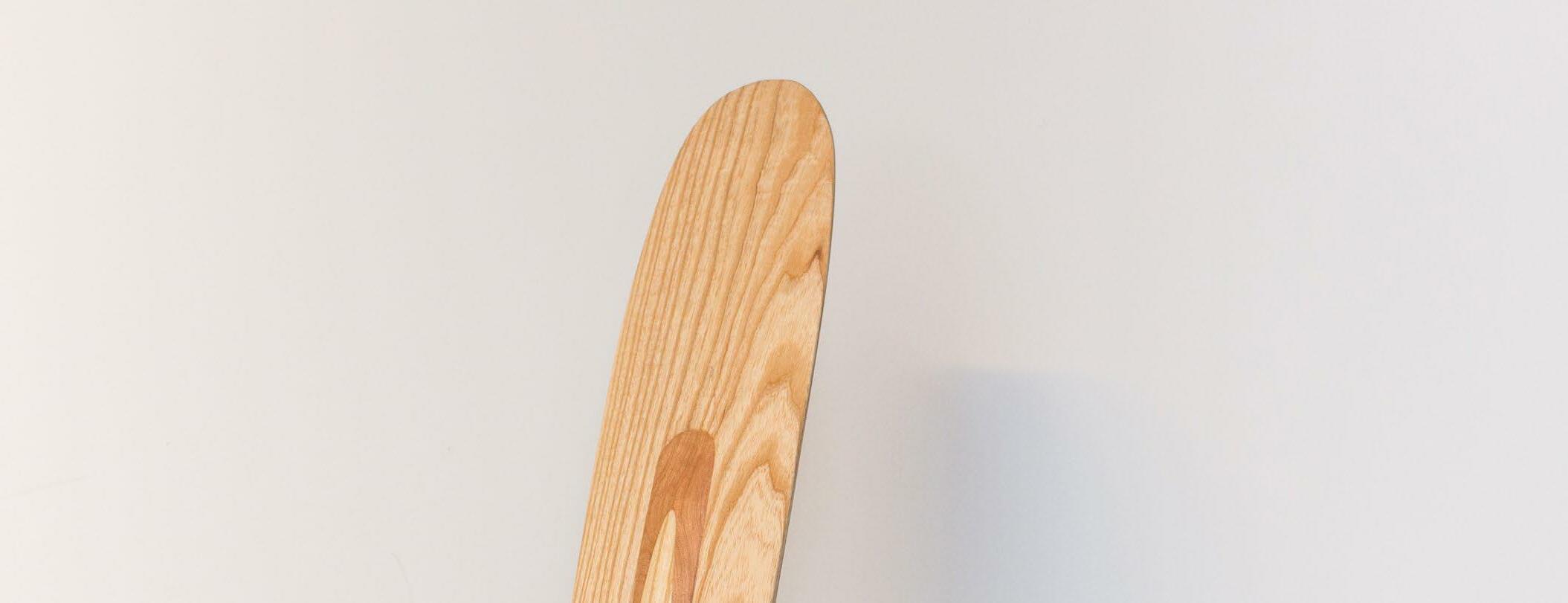

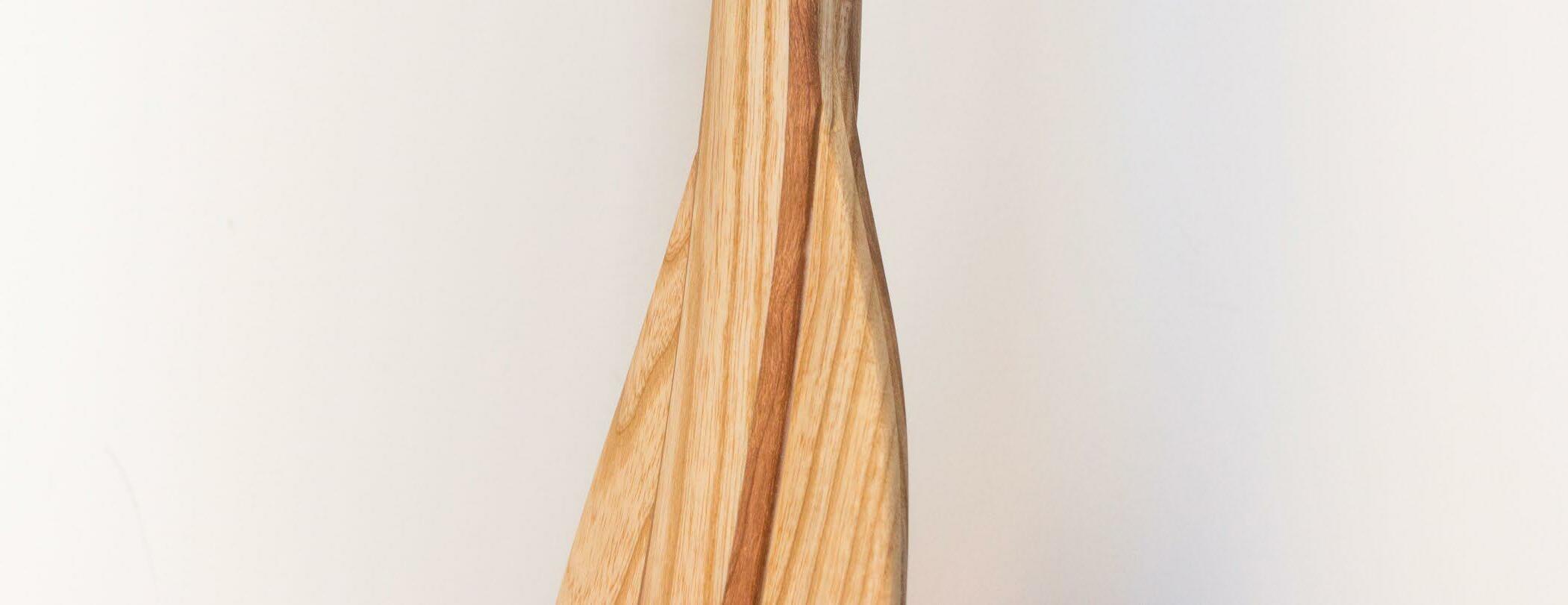

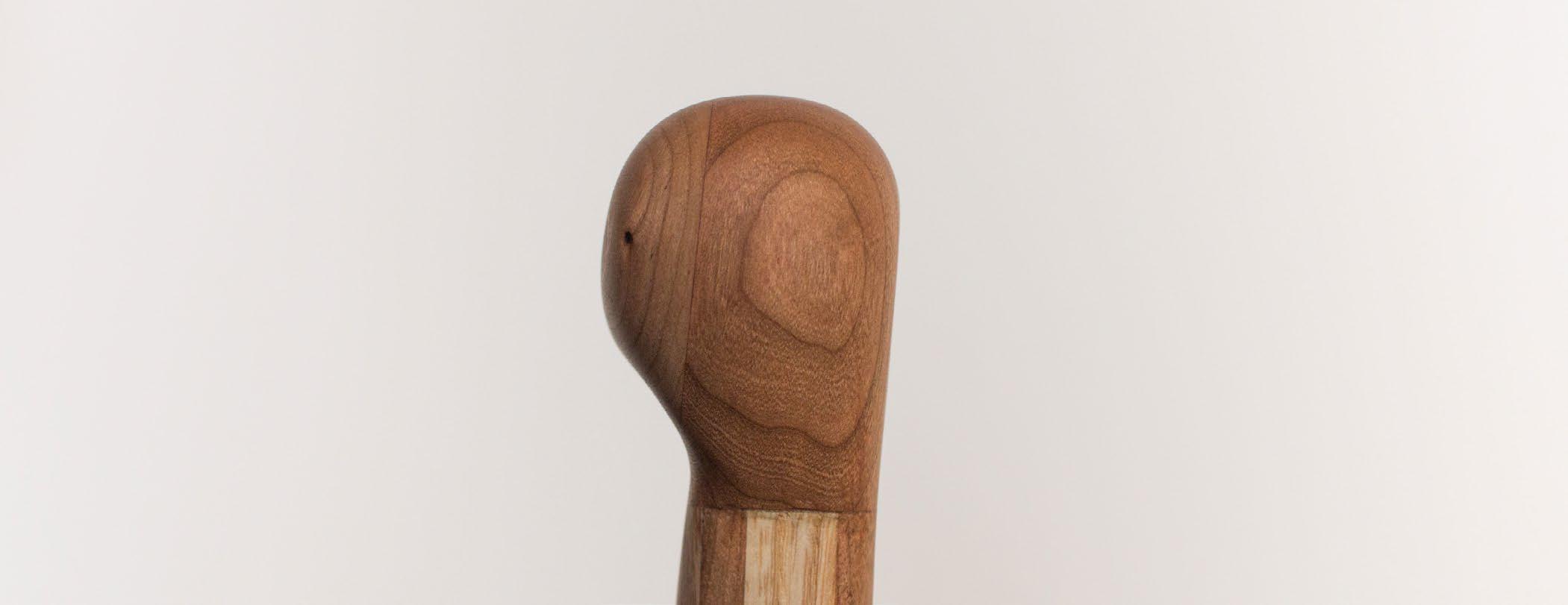

This canoe paddle was designed and fabricated in a second year studio course. The piece is made of layered thin pieces of black cherry and white ash hardwoods. Double-bent canoe paddles allow a more efficient paddle stroke. To achieve this paddle, a unique technique of full-length glue-lamination was employed, allowing the layers of the canoe paddle to reveal themselves as the shaft sculpted down into the blade.

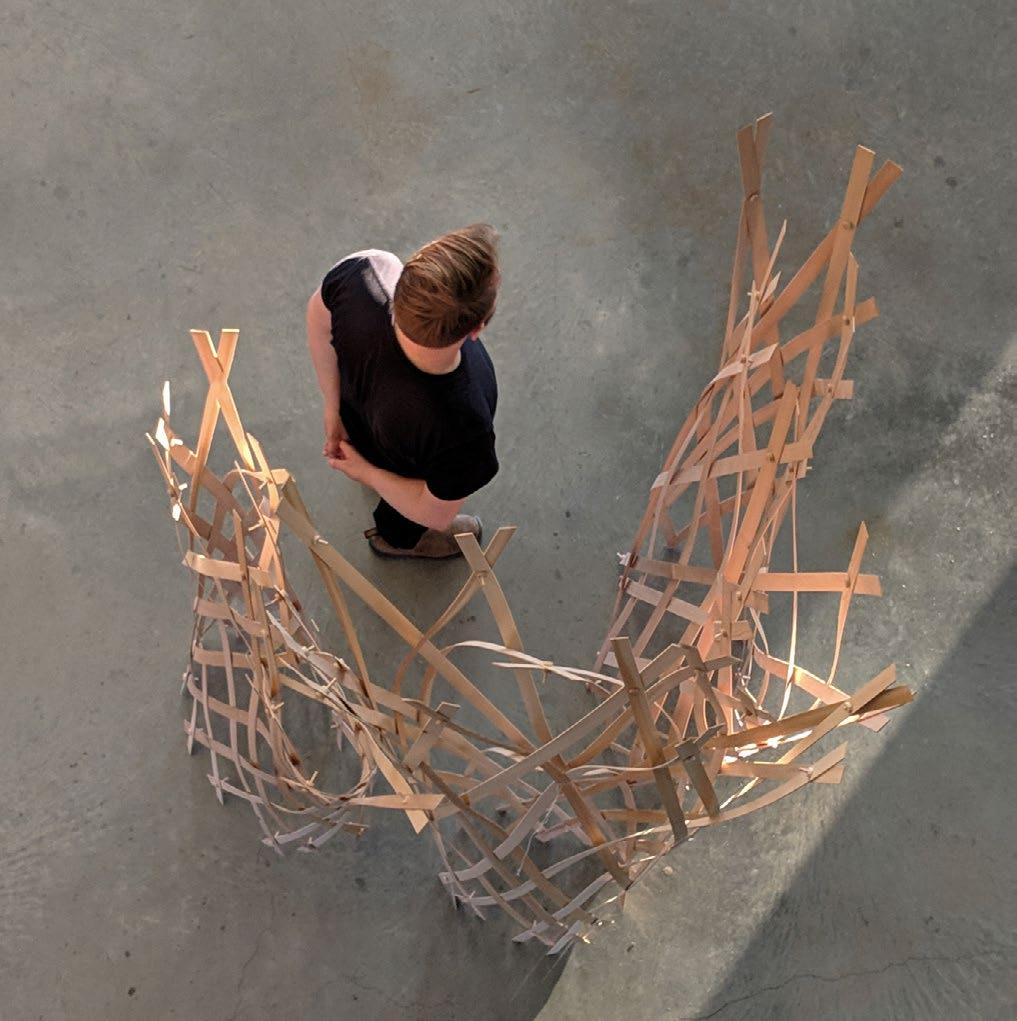

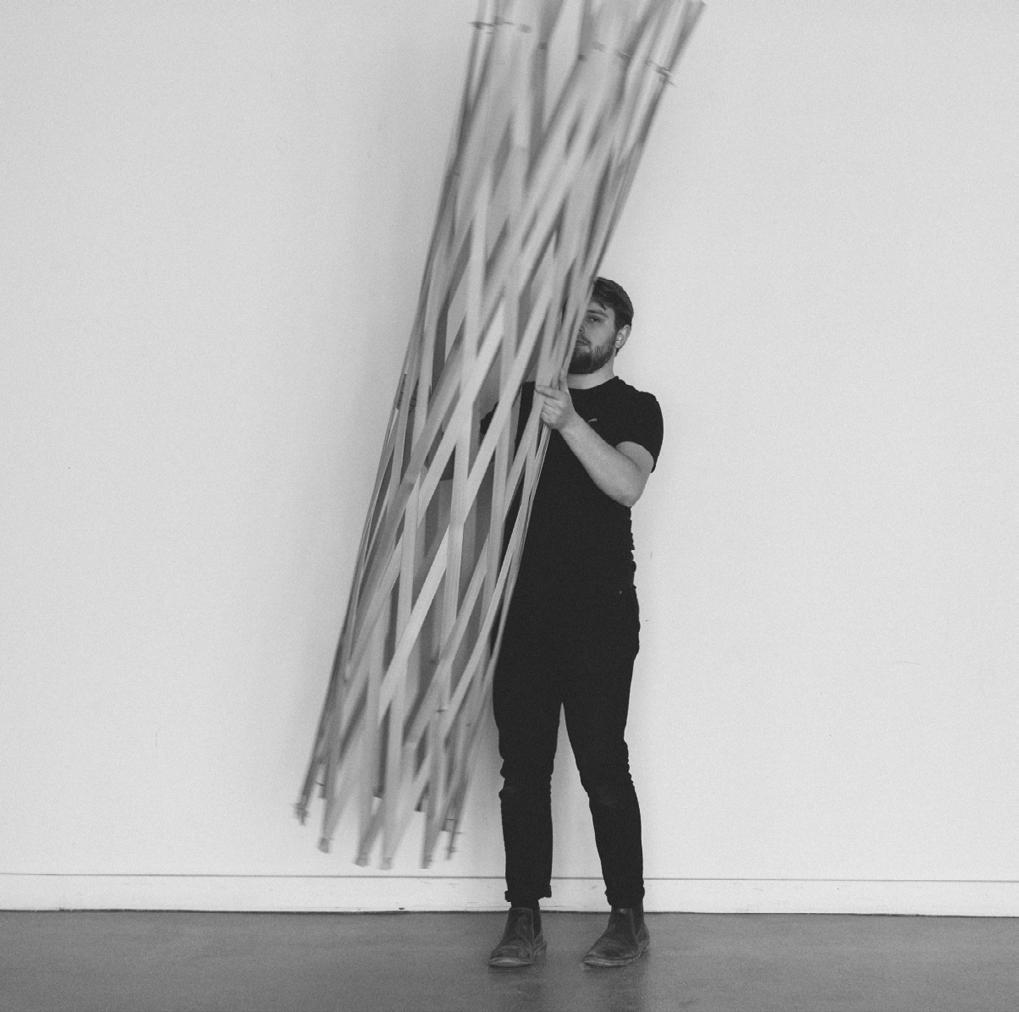

Diagrid Lattice Structure

Diagrid Lattice Structure

Diagrid Lattice Structure

Third Year

Third Year

Third Year

Surpervisor: Prof. Mark Baechler

Surpervisor: Prof. Mark Baechler

Surpervisor: Prof. Mark Baechler

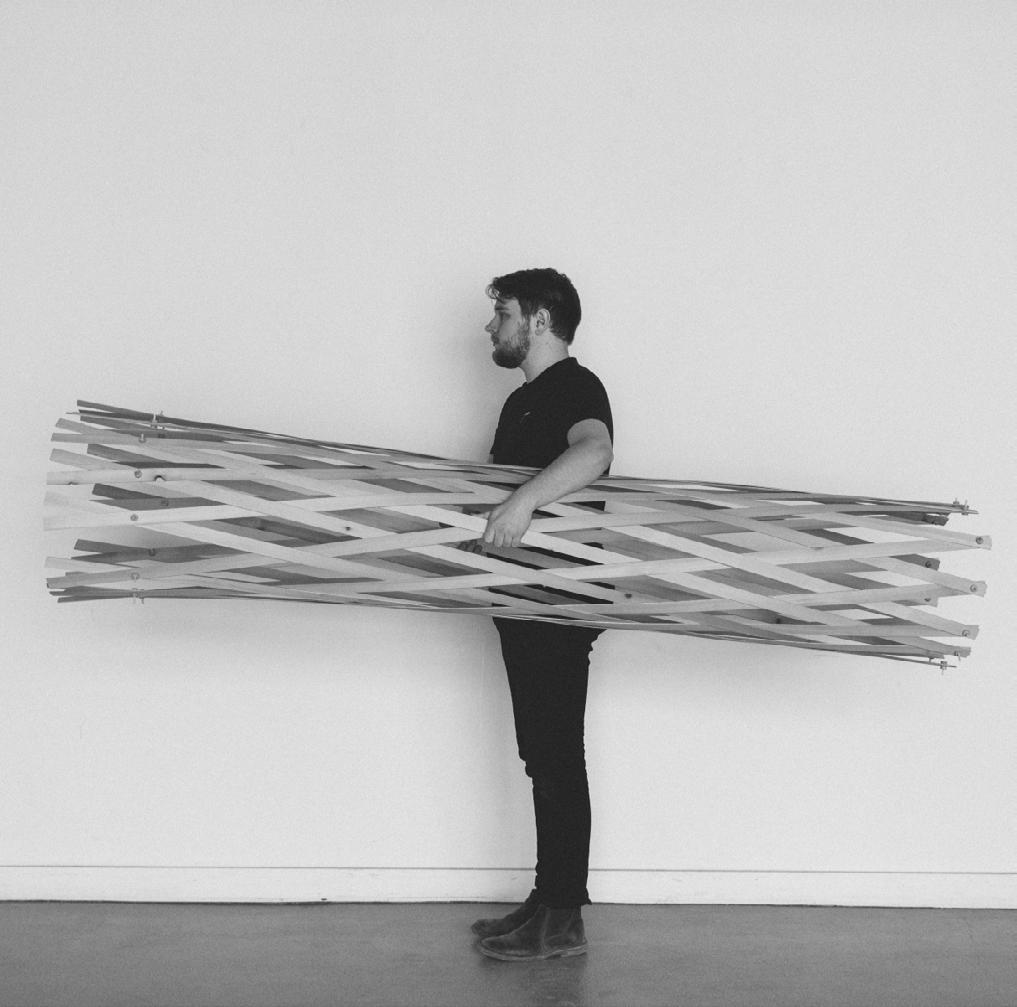

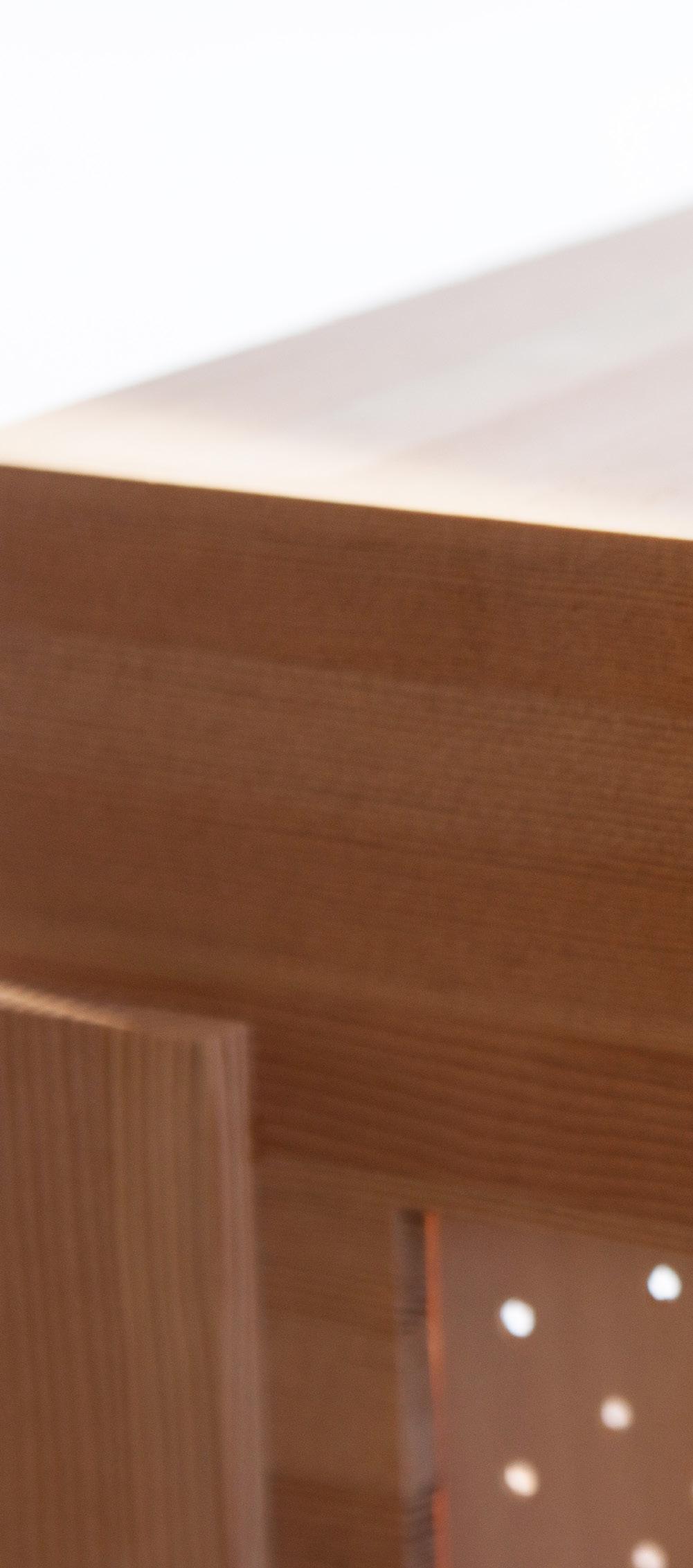

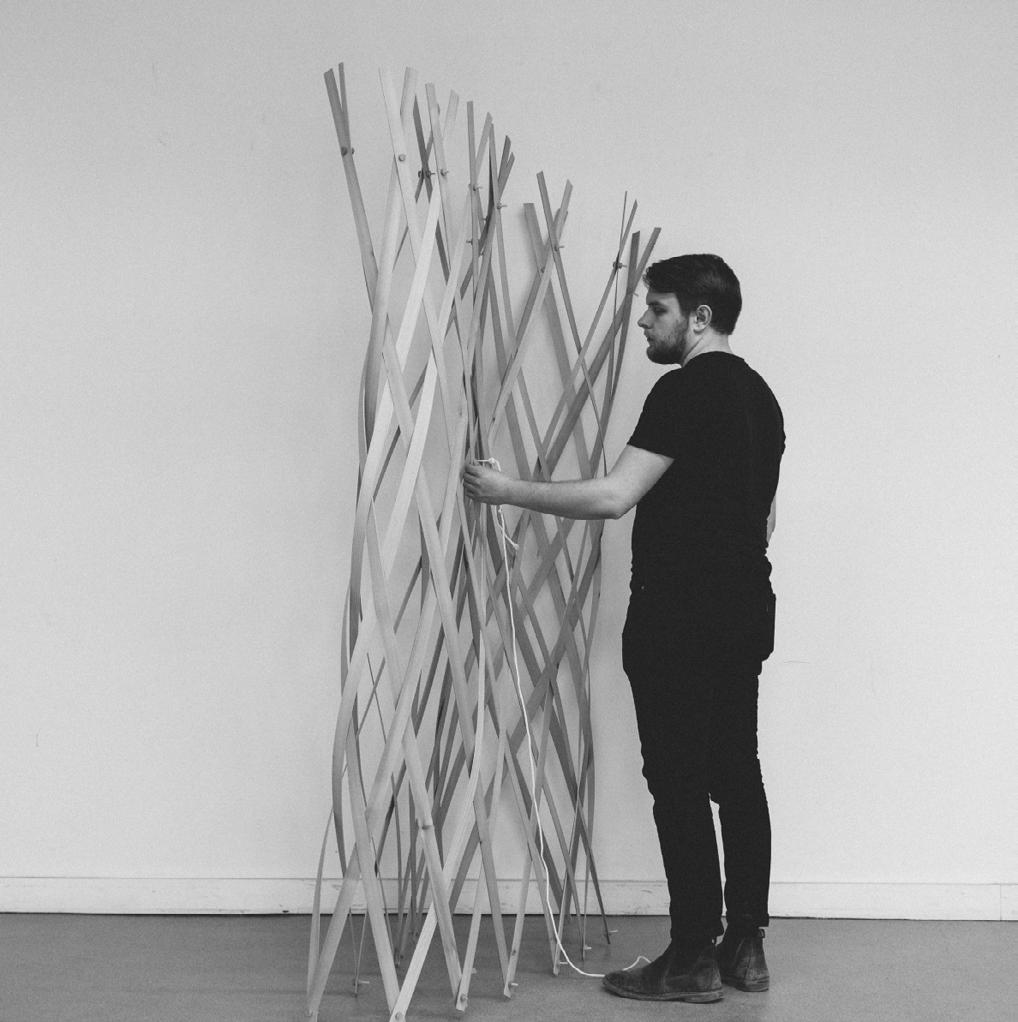

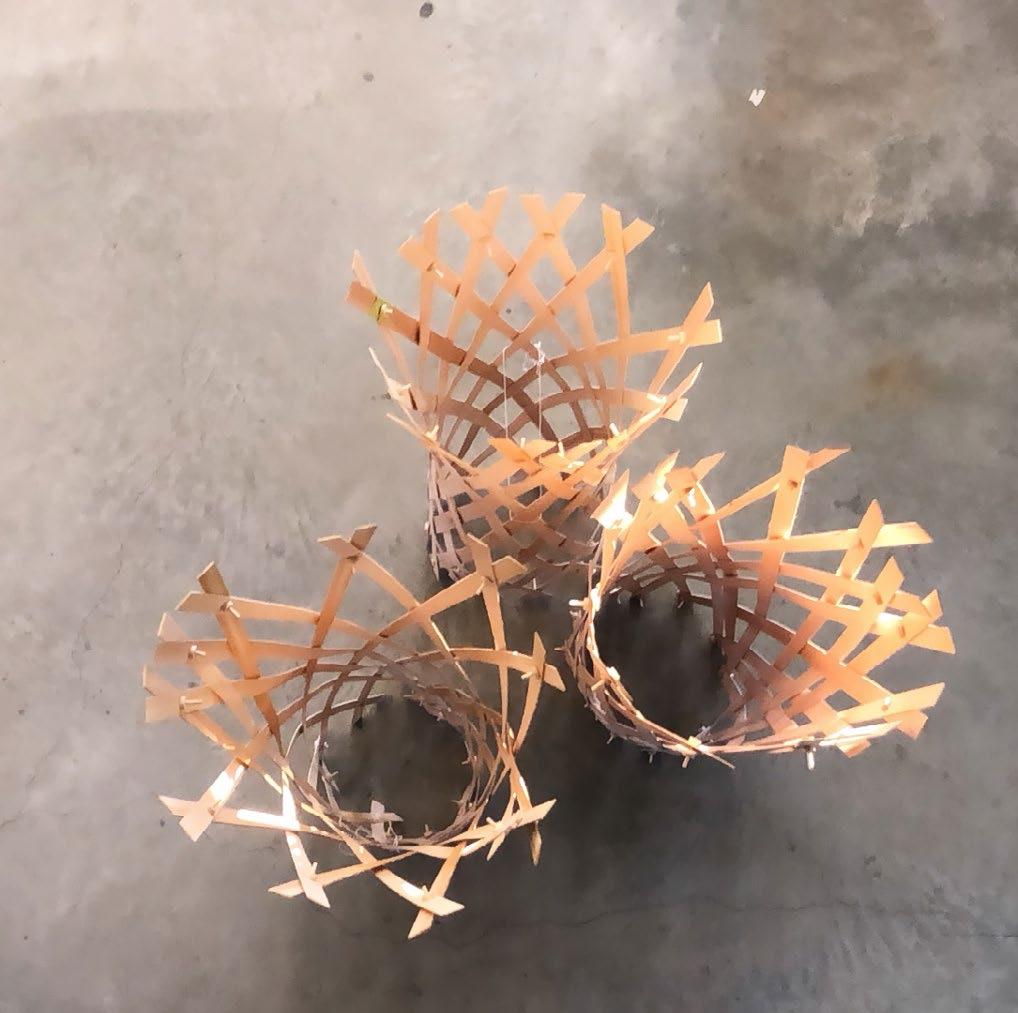

This independent study explores the material properties of cedar strips toward an understanding of the spatial potential of the material when applied to a bent lattice structure. A series of wooden strip offcuts were saved during the construction of a wood drying pavilion. Through the exploration of woods bending abilities, a series of three transportable units were constructed. The project represents the current state of this ongoing research project and offers a design for a lightweight diagrid structure that expands and contracts to enclose an architectural space.

Architectural Communication

Graphic Design and Photography have allowed me to contribute to the communication of architecture.

Freelance Work

Skills

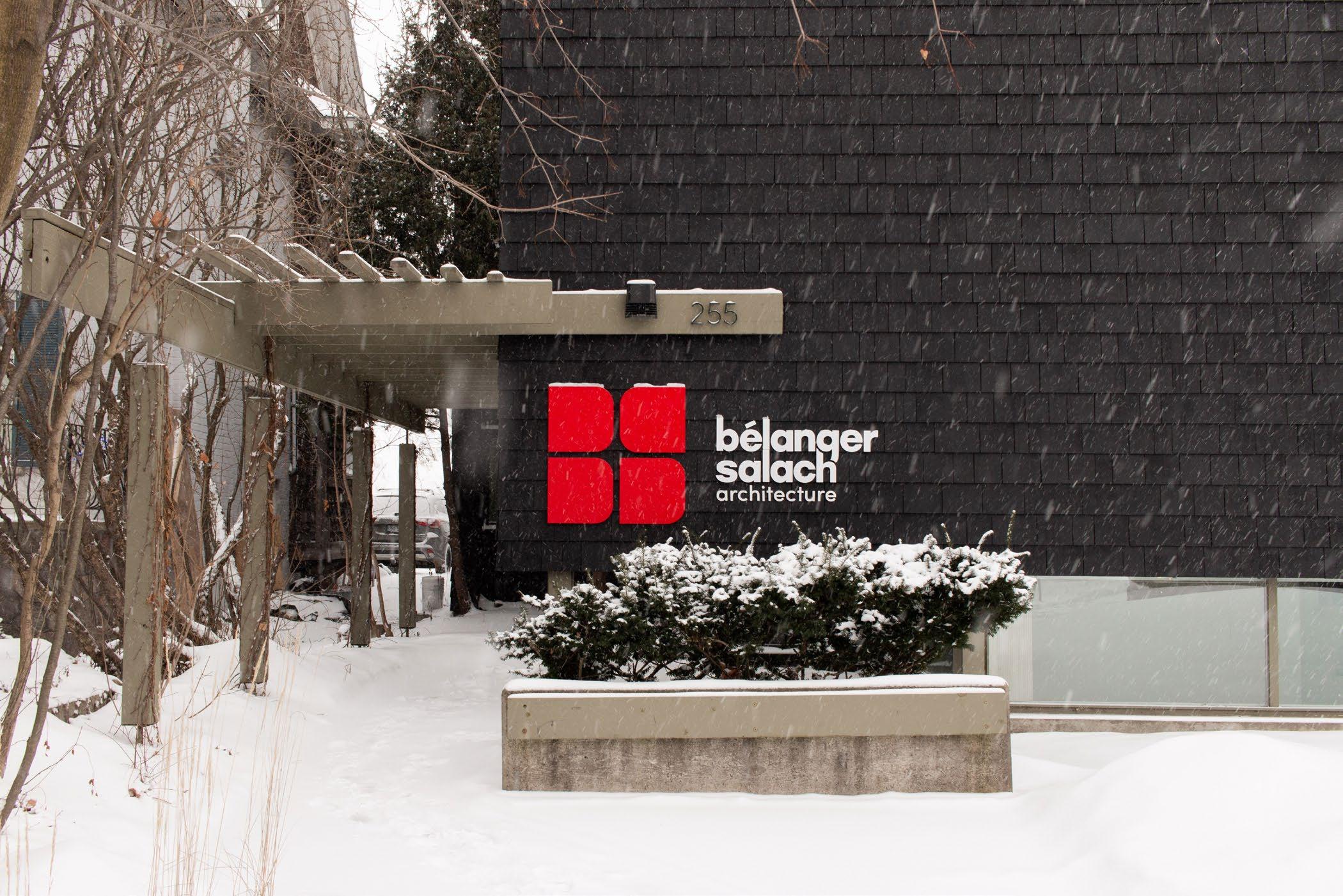

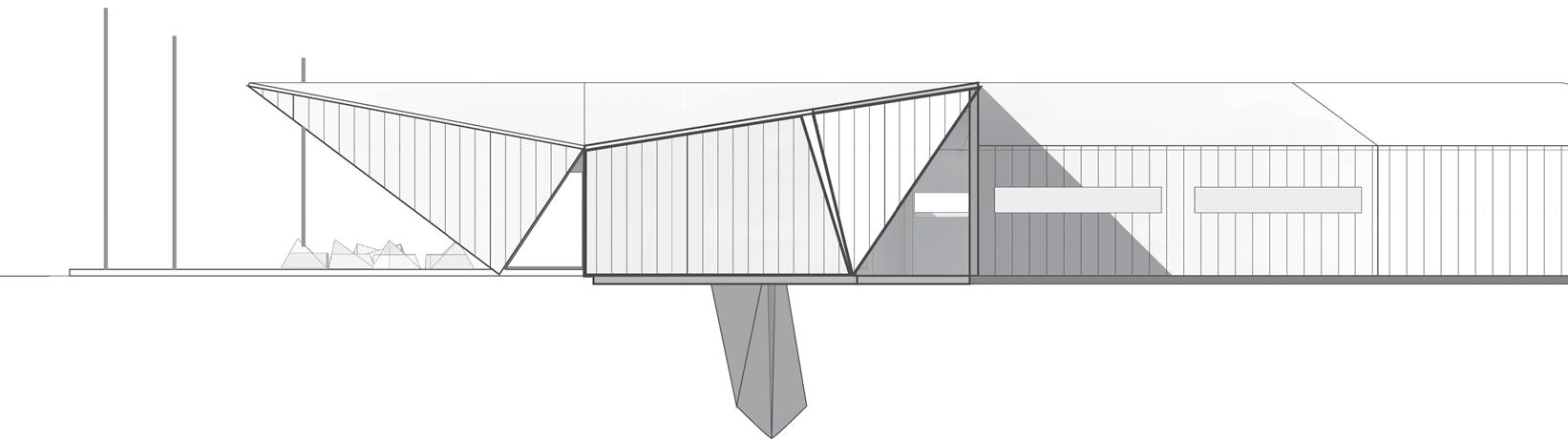

Belanger Salach Architecture
