Waterproofing building in facades

SECRETSTOLEAKPROOF BUILDINGFACADES

UNDERSTANDINGTHECHALLENGES

Facadeglazingandcladdingareexposedtovariousweatherconditions,makingthem susceptibletowateringress.Factorssuchaswind-drivenrain,temperature�luctuations,and buildingsettlementcancontributetopotentialvulnerabilities.Arobustwaterproo�ing strategybecomesimperativetopreventmoisture-relatedissues,includingmoldgrowth, materialdegradation,andcompromisedinsulation.Constructionqualityandtoleranceswill haveagreaterimpactonfacadessuchasopeningtolerances,qualityofopenings,etc,.

Waterproo�ingofBuildingfacadedetailsplaysapivotalroleinpreserving severalaspectssuchasStructuralintegrity,WeatherPerformances, Durability,andoveralllifeofthebuilding'sexteriorandinteriorspaces. Oftendesigners’poorattentionbydesignersleadstoseriousconsequences anddefects,hencemeticulousattentiontowaterproo�ingdetailsisessential. Thisarticletriestoexploresomekeyconsiderationsandbestpracticesfor effectivewaterproo�inginfacadesystems.

BASICSOFTYPICALDETAIL

Thoughtherearemany differentapplicationsand conditionsofdetailsmay bedifferent.Butthe principlewillremainthe same.Agooddetailwilltry toachievemin.2barrier sealsothatitdoesnotjust relyonexternalface sealing.Iftheexternalseal fails,theprimarysealwill functionasaweather barrier.Detailsare designedforthespeci�ic challengesnotjustadopted fromsomewhereelse. Sketchillustratedwitha typicalglazingdetail.

Notjusthigh-qualitymaterialsalonewillleadtolong-lastingfacades.Unresolvedorpoorlydetailed facadeinterfaceswithoutconsideringpracticalaspects,Detailsareadoptedwithoutconsideringthe applicationsandsiteconditionswillleadtofailures.Oftenproblemsarepassedontothesiteteam withoutresolveddesigndetails,hencetheimplementationsaredonebasedonanad-hocapproach. Theimpactofthesecasesisseverewhilethebuildingisinoperationsuchasleakingfacades, insecurepanels,disruptionstousers,etc.,

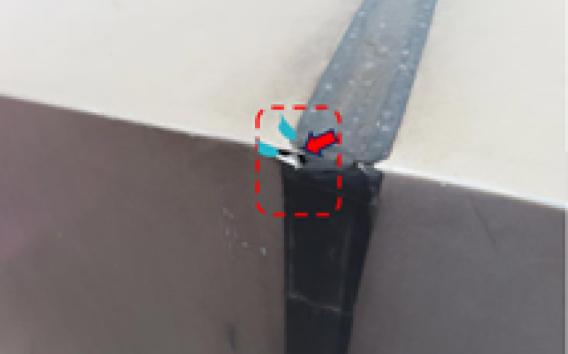

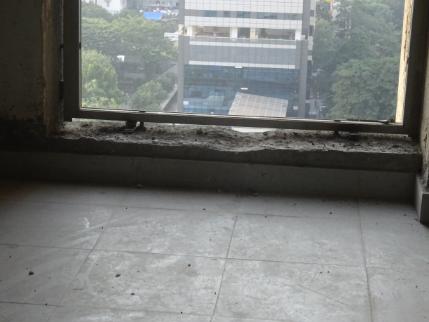

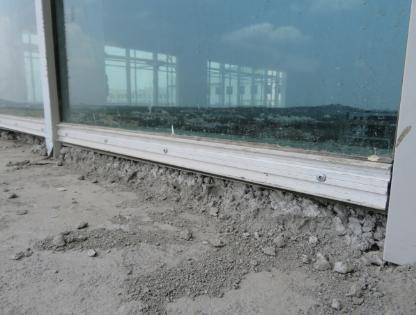

PoorConcreteOpening-Badtolerances Poorlyfinishedconcreteopening

Facadesystemsusevariousmaterialswhich requireagoodunderstandingofmaterial behaviors,properties,andlimitations.Whenever twoormoredifferentmaterialsareincontact, designersfocusoneachmaterial'scharacteristics andweathering.Severalmaterialshave limitationsonexposureconditions,suchasfew materialswillnotperformunderdirectexposure toharshweatherconditions(RainandSun). Hencedetailingmusttakecareoftheseaspects.

KeyComponentsofWaterproofedDetails:

Sealants

Longlastingand High-quality sealantsare fundamentalin sealingjointsand gapsinfacade systems.Silicone basedsealantsare commonlyusedfor their�lexibility, durability,and resistancetoUV radiationformost ofglazing,cladding systems.Proper application,good sealantjointsizing, ensuringa continuousand uniformseal,is criticalfor preventingwater penetration.

Followingsomeexperiencesareshared,leadto betterunderstandingofactualbuilding constructionwhichwillleadtobetterdetails towardsleakprooffacades.Gooddesignwilllead tomaintenancefreelonglastingfacadeworks

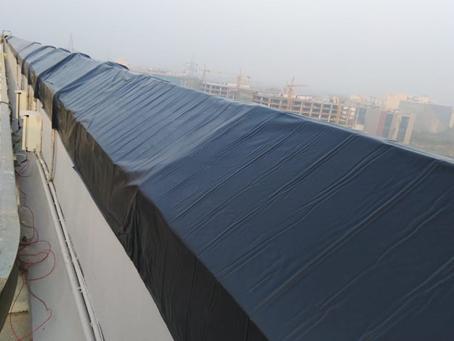

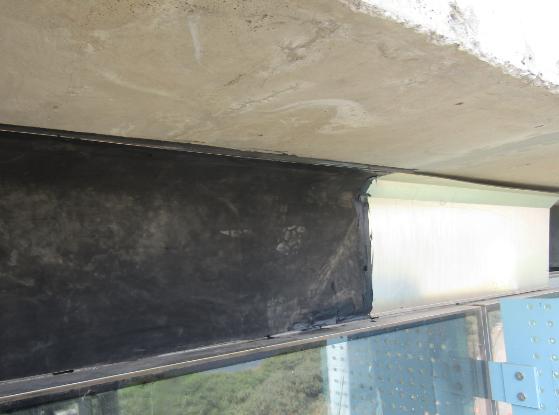

Waterproo�ing Membranes

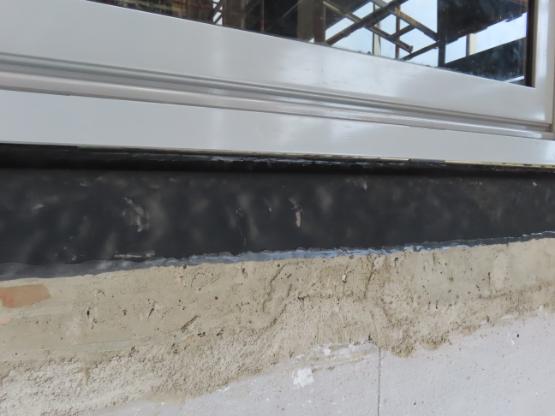

Waterproof membranesactasa protectivebarrier againstwater intrusion.Selecting the right membranedepends onfactorssuchas climate,building movement,and substrate compatibility. Commonlyused choicesare bituminous,EPDM, Butylbased membranes,each offeringunique advantagesin speci�ic applications.Not anyonematerial willworkforall typesofsubstrates.

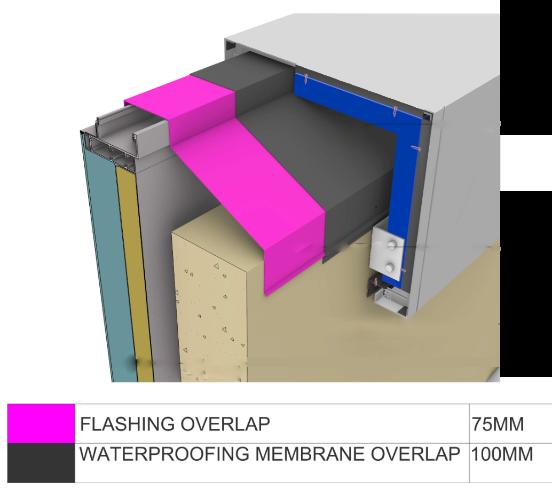

Thisisthinmetal sheetconnecting concrete/building openingtofacade systemsatthe perimeter. Aluminum, Galvanizedsheets aregenerallyused foralltypesof facadeendsealing. Proper�lashing installationis crucialin redirectingwater awayfrom vulnerableareas.

Flashingshouldbe strategicallyplaced attransitions, corners,and intersectionsto createacontinuous perimetersealat theinterfaces.

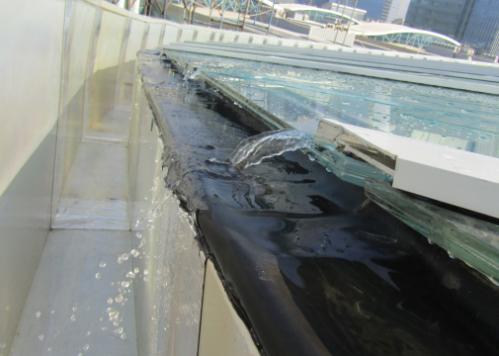

detailsinternal cavitiesmustbe abletodrainwith gravity.Always consideranywater seepsinsidethe detailsmustdrain out.

Fixedwithina�loorwithsurroundingwalls constructedusingbricks,blocks,orconcrete. Thefollowingarenotedaboutthequalityof buildingopeningsthatwillreceivewindows.

•Perimeter/windowopeningsizes, considerlargetolerancesifcivilworks

•Perimetersealdetails,checkifitworksas perthecivilworksopening.

•Forin-consistentandpoorly�inished openings,considerdetailwith�lashing

•Perimeter�inishedbeforewindow�ixing, recti�icationafterwindow�ixingnot

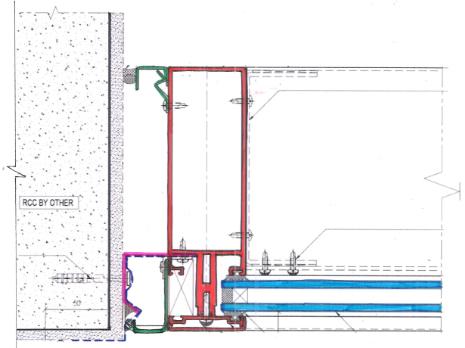

WindowSillDetails-DesignedforLarge Tolerances

CurtainwallSystems:

Fixedtotheedgeofthebuilding perimeterspansverticallyseveral�loors, commonlyusedforcommercialbuildings.

•Ifslaboutlinetolerances(in/out) aretoobigtheninterfacedetailsare tobedesignedtoaccommodate largetolerances.

•RCCwalls(Shearwalls),columns, brickwalls,etc,.qualityof constructioniscritical.Ifthesewalls areporousoftenwaterleakagesor seepagesfromthewallnotfromthe facadeinterfaces

•Terminationsorverticalendsof glazingabuttingtomainbuilding (Columnsorwalls),checkverticality andtolerances.Thiswillde�inethe endinterfacedetails.

Waterproo�ing Window

Achievinggoodweatherproo�ingneeds thinkingholistically,notjustfacadefocused butrathertakingcareofactualscenarios andarrivethebestpossiblesolutionswith experiences.

GoodDetailing:

Facadesinterfacingwiththe mainbuildingaresealedwith varioustypesofconstructions suchasbrick/blockwall, Concreteandotherformsof buildingconstruction.These junctionsarehotspotsof defects,leakages,andfailures.ifnot addressedproperly.Anexperienced designerwillpayspecial attentiontotheseareastodetail appropriatelywithanunderstanding oftheapplication.Designertoensure detailsarepractical,easyto implement,anddesignedforthe conditions.Forexample,detailsthat donotallowadequatetolerancesof themainbuilding(concreteopening) maynotbeimplementedcorrectlyand leadtoleakagesinthenearfuture.

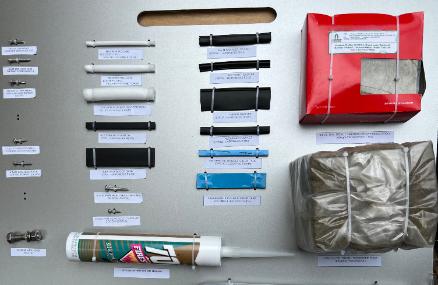

QualityMaterials:

Investinhigh-qualitysealants,waterproof membranes,and�lashingmaterials.Cost-cuttingon materialqualitymaycompromisetheeffectivenessof thewaterproo�ingsystemandmayleadtocostly repairsinthefuture.Oftenrepairingaredaunting taskandinsomecasesimpossibleduetolackof access,discomforttooccupants,etc.Hencea preventivesolutionwillbewiserthandealingwith post-completiondefects.

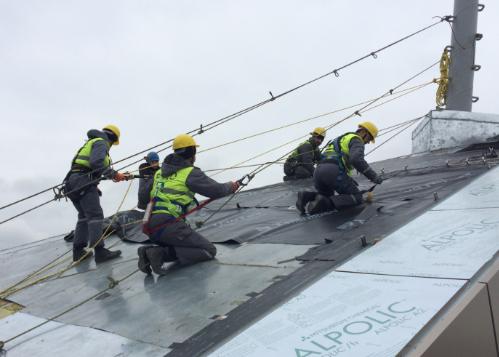

Entrusttheinstallationtoexperiencedprofessionalsfamiliar withfacadewaterproo�ing.Adequateskillsshouldbeinplaceat thesitewithgoodcheckingandmonitoringsystems.Conducta detailedinspectionofthefacadecomponentsbeforeinstallation toidentifypotentialweakpoints.Donotinstallfacadeworksand thentrytorectify,ratherrectifyconcreteopeningsbeforeinstall. Rectifyanysubstrateirregularitiesandensureacleananddry surfaceforoptimaladhesionofwaterproo�ingmaterials.

Asagoodpracticecarryoutsitetestsperiodicallytoverifyongoingworksareasperacceptablequality.Veri�icationsmustbe essentialqualitycontrolmeasurestovalidateimplementation quality.Developthetestingregimeastheworksprogress.

Implementaroutinemaintenancescheduletoinspectand addressanysignsofwear,damage,ordegradation.Regular cleaningandtimelyrepairscanpreventminorissuesfrom escalatingintomajorwater-relatedproblems.Well-maintained facadeswillleadtoextendedlifewithoutmajorrepairingworks.

CONCLUSION

Waterproo�ingofglazingandcladdingdetailsisacriticalaspectofbuildingdesignandconstruction. Interfacedesignsplayacriticalrole,thedetailsshouldre�lecttherealityofactualsiteconstructionand thetolerancesachievable.Byintegratinghigh-qualitymaterialswithgoodinstallationpracticeswill resultinlessmaintenanceandlong-termdurablebuildingenvelopes.Thisapproachwillsafeguard againstwater-relatedissuesandpreservetheoverallqualityofthebuilding.AHolisticapproachwill leadtogoodweather-proofedandlonglastingbuildingswithenhancedcommercialvalues.
