The Park By Bes Consultant

U L T R A H I G H R I S E R E S I D E N T I A L T O W E R S

DETAILS & CHALLENGES

Project Description

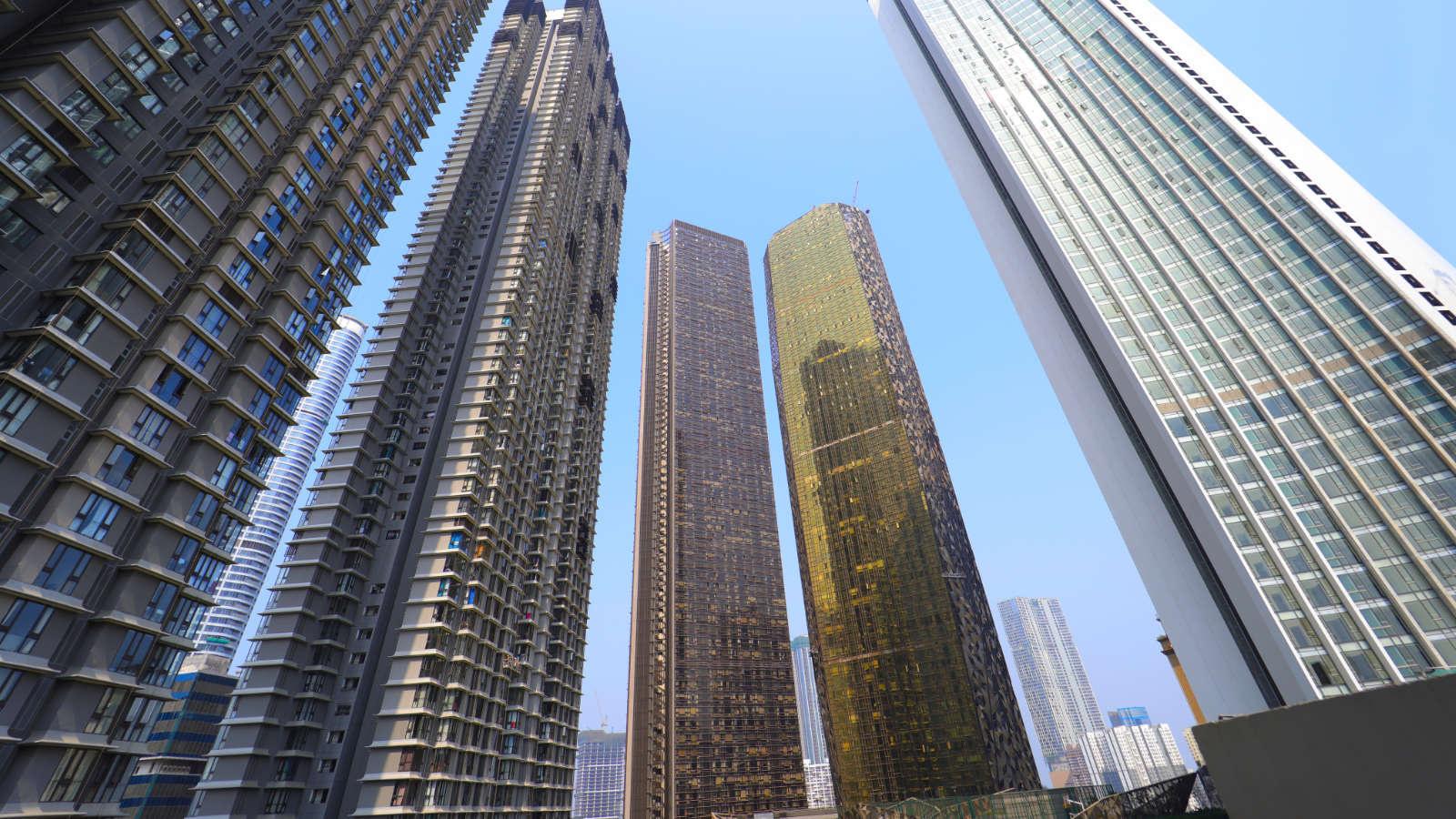

6 Towers of 77 Sty Tall luxury residential nearing completion at Worli, Mumbai inclusive of an Iconic Trump tower. BES has been appointed by the developer as the facade designers and consultants for scope covering concept to site completion including all towers, clubhouse, retail development. BES scope includes customised designing of bespoke facade systems for windows, fins, metal claddings.

Challenges

Challenging facade for the super tall building, exposed to heavy wind pressures having several towers closely spaced each other. Design challenges covering structural, weather performances, durability of finishes. Architectural design intent are different for each towers proposed with uniquely designed facades.

Very large facade works in terms of value and area, requires highly efficient, standardised and time tested designs

BEAUTY OF

Facades are designed by the architect to enjoy the beauty of Mumbai skyline. BES team has deeply focused on details, finishes, implementation quality to achieve high level of user satisfactions and functional requirements.

TALL CHALLENGES NEED ROBUST DESIGNS

Engineering Good Designs Verifications

Good understanding of Mumbai weather and wind loads has helped in optimised facades, BES has used CFD wind simulations to arrive highly optimised and best calculated wind pressures, results economical solution with lesser material consumptions, yet robust designs.

Designs are resolved in 3d, with practical aspects. BES has deeply involved in the fabrication and site works phase, helped implementation with ease. BES team has paid attention to methods and sequences of installation involving large sunshades

Verifications of BES

designs were demonstrated with performance tests and various site tests, this has proven design and engineering of facades. BES test spec has set stringent criteria for structural and weather test to meet challenging mumbai weather conditions

OUR APPROACH FOR PROJECT SUCCESS

Well resolved pre-construction designs

BES philosophy of having well resolved designs, makes positive impact on project implementations. Designs are resolved with 3d design workflow and well engineered, furthermore BES team detailed involved with fabrication checking and throughout site implementations

Good understanding of Mumbai weather and wind loads has helped in optimised facades, BES has used CFD wind simulations to arrive highly optimised and best judged wind pressures, results economical solution with lesser material consumptions, yet robust designs.

BES team strength covering wide spectrum of design, fabrication, verifications and implementations involving senior resources helped the project success.

Connecting Designs to Implemenations

Design

Implementation

Complex 3D Design Challenges

COMPLEX DESIGNS

DELIVERED WITH PRACTICAL SOLUTIONS

Club house facades involves featuring multi facetted planes requires to work in complex 3d forms. BES team has involved in details and produced construction designs which has helped the contractor to implement successfully. 3d models were built by BES for construction conveying architectural design intent in a most practical way. Good understanding of architectural steel works and ability to integrate glazing systems to suit the forms.

INNOVATIONS BY BES

Cuddapa Stone facades

Widely available from southern part of India, slate type stones with interesting textures and patterns. Generally not used on facades due to its limited engineering capabilities and unreliable sizes.

Understanding the strength and weakness of this stone type, BES team has developed robust fixing methods and successfully implemented

INNOVATIONS BY BES

Passive Vent - Product Designed by BES

Insipired by the European window features which uses trickle vents, BES team has inidgeniously developed this vent to enhance the indoor ventilations.

During monsoon season, users can't keep the windows opened against rains, in this conditions vents keeps the indoor comforable with good air flow. and

Stringent Quality

DEDICATION TO QUALITY

Stringent Quality Control by Dedicated BES team

BES Team -On Ground Support

Verification & Checking

Verification is an important process, to make sure designs are working. BES team dedicated quality time in checking the designs at shop floor.

Quality parameters and checking methods are communicated and trained by BES team to all the way to the downstream level BES team able to identify risk and failures before it happens, helps the contractor team to implement designs correctly.
