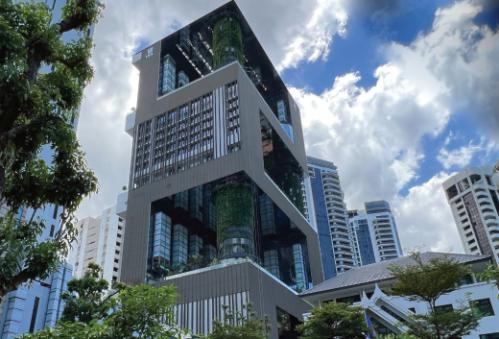

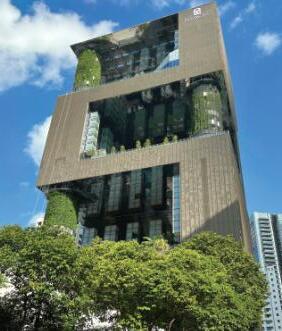

PanPacificHotel,OrchardRoad,Singapore
IconicArchitecturaldesignintent,BEShas beenappointedbythearchitectasFacade Consultantscoveringfullspectrumof facadedesignfromconceptstosite implementation.BEShasbeendeeply involvedwiththeprojectarchitect. Collaboratedandpreparedseveralbe-spoke facadesystems,addressedchallenging performancesandfunctionalrequirements. Overallbuildingfacadeisfeaturedwith threemajordesignsasperarchitectural theme.
BESScopeofServices
FacadeEngineering&Consultancy
ServicesfromdesigntoConstructionStage includingfacadesiteworksreviews, qualitycontrolandperiodicalinspections.
BESdeeplyinvolvedfromdesigntoconstructionofthisiconicproject
ProjectDetails:
Client:UOLClaymoreInvestmentPteLtd
Architect:WOHAArchitectsPteLtd
Status:CompletedYear2023

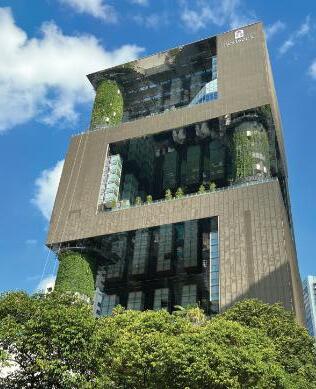

PanPacificHotel,OrchardRoad, Singapore
OurApproachtoDesignChallenges
Goodcoordinationandcollaboration withArchitect
BESteamhasworkedcloselywitharchitecttoresolvechallengingandcomplexdesign requirements.Extensiveworksanddesignresolutionswereachievedatconceptstage, followingwhichdetaileddesignhasbeenprogressed.
BEShasextensivelyused3ddesignwork�lowcomplementingarchitectural3dmodel, resultedfacadedetailswerewellintegratedwiththeBIMmodel.Variousdesignchanges duringDDstageswereeffortlesslymanagedbyBESdesignteam.Keychallengesaretypical guestroomwithvariousdesignscoveringdifferentzonesofthebuilding.

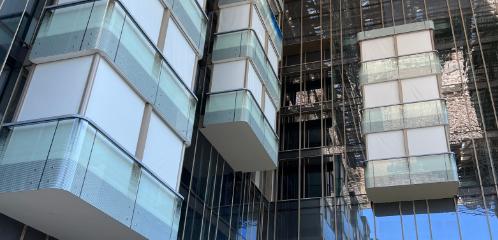

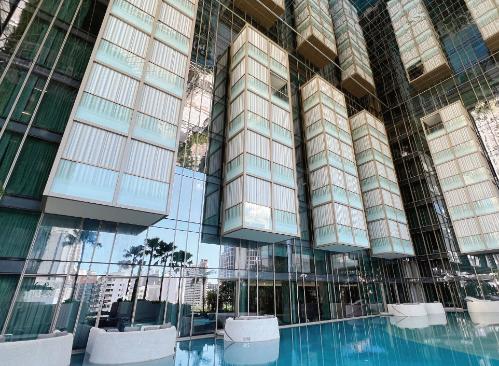

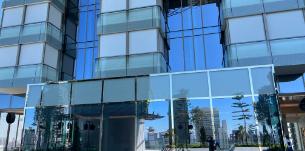

BespokeGuestroomfacadewithSlidingdoorintegratedUnitisedGlazing system.Achievedhigheracousticperformances,easeofoperationandhighly economicaldesignsolutions
PanPacificHotel,OrchardRoad, Singapore
WellResolvedDesignatPre-constructionstage
Unliketypicalprocessofposttenderdesignbyfacadecontractor,whichleadstoextensive designtimeandapprovalprocess.BESteamhaspreparedfullyresolvedpre-construction designs,helpedthefacadecontractortounderstandthedesignbetterandfasteratsite implementation.Goodcollaborationwitharchitectandallotherconsultants,resulted withwellresolvedtender.
Variousfacadesystemswereperformancetestedforstructural,weatherand functionalrequirements.BESteaminvolvedindetailsforthesetestings,witnessed resultsandwereabletoconcludetestresults.Thisprocesshashelpedthedesign andperformanceofsystems.Followingkeyprocessofdesignveri�iedatlaboratory.
•Mockups,Materialsamples
•PerformanceMock-ups(Structural&Weather)
•AcousticPerformancetest
PushingPerformancesof FacadeSystems
HighPerformancesAchieved
BESteamhashelpedinpushingdesign limitationsandhasachievedthefollowing highperformances.
•TypicalGuestroomglazinghas achieved50dBSTCrating,roomto roompartitions
•Guestroomwithslidingdoortested for2KPAstructuraland300Pa dynamicwatertest
•Slidingdooroperating(pushing)load 4kG,muchlowerthan7kGasper standards
•Ballroomglazinghasachievedmore than52dBSTCrating,withspecial jointsandinterfacesfornoise

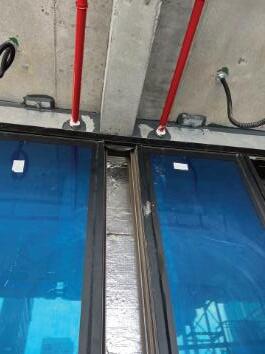

InvolvedatConstructionstage
Qualitycontrolinspectionshas beencarriedoutbyBESteamat criticalmilestonescovering factoryproductions,mockups, criticalsiteimplementationand interfaces.BESteamhasproactivelyinvolvedwithadedicated teamforquickresolutionsof facadesiteworksrequirements anddesignsolutions.Site inspectionswereperformedby BESteam,withfollow-upsfor closeouts.
