Riverine Park Masterplan

RIVERINE PARK MASTERPLAN Adopted 24 July 2024

Acknowledgement of Country Bayside Council acknowledges the traditional custodians: the Gadigal and Bidjigal people of the Eora Nation, and pays respect to Elders past, present and emerging. The people of the Eora nation, their spirits and ancestors will always remain with our waterways and the land, our Mother Earth.”

CONTENTS 1.

Introduction

3

Design Principles & Strategy

4

Background

5

2.1

Current Site Context

5

2.2

Historical Context

6

2.3

Historical Park Development

8

2.4 Existing Facilities and Character

11

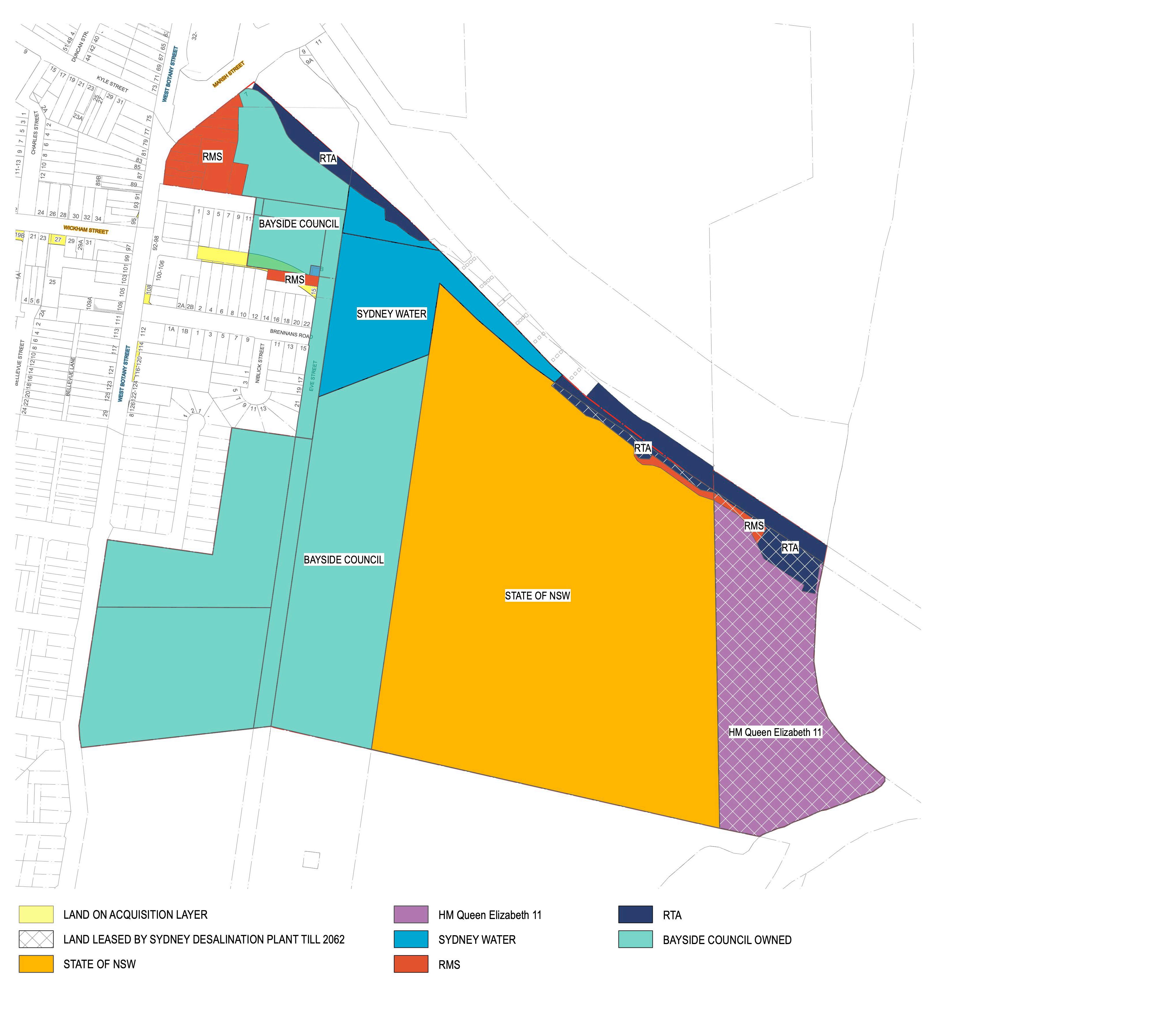

2.5

Land Ownership

17

2.6

Stakeholders

17

2.7

Adjacent Land Use

2.8 2.9

1.1 2.

3.6 Bayside West Precinct Plan 2018 & Arncliffe and Banksia Green Plan

34

3.7

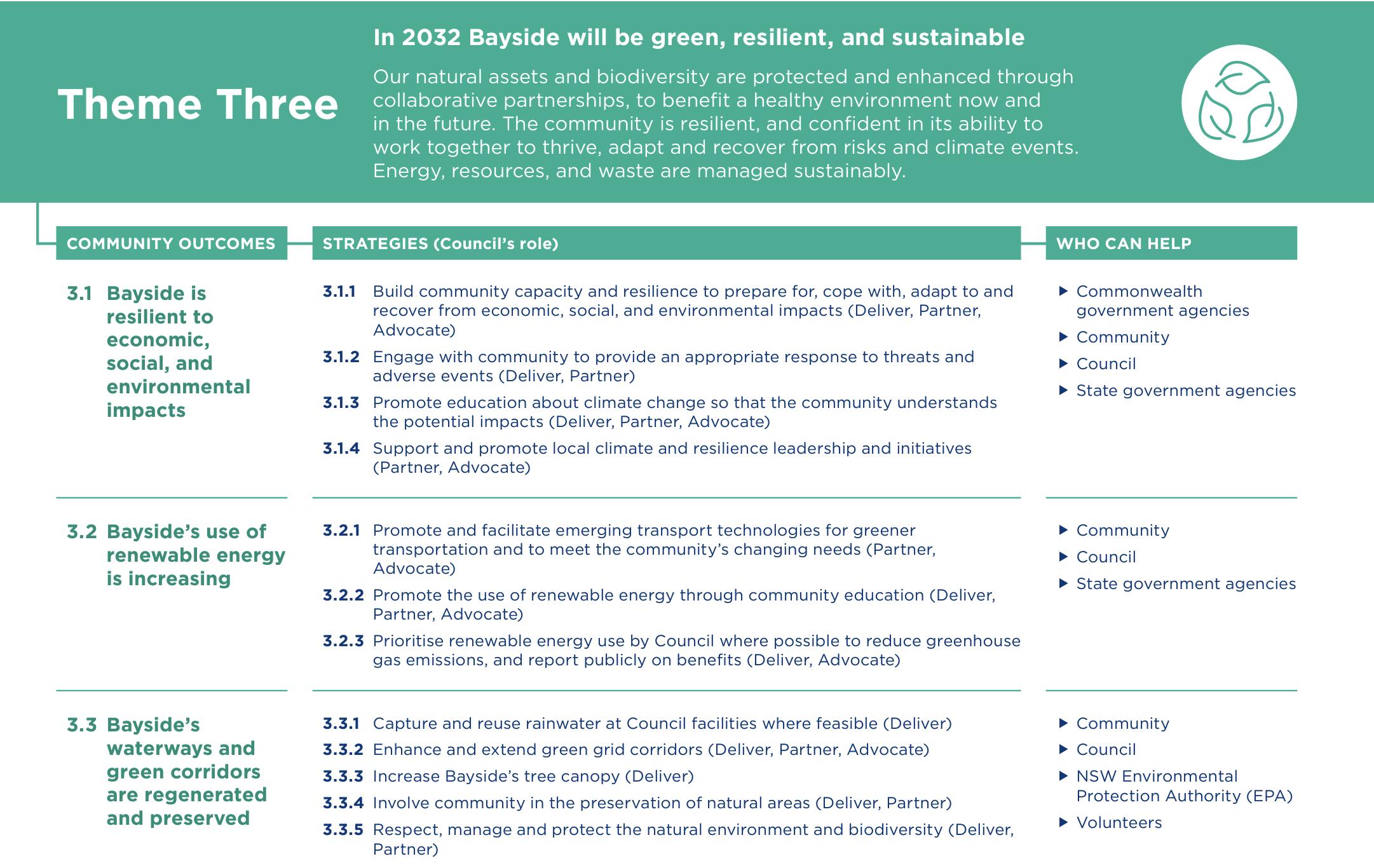

Bayside 2032 - Community Strategic Plan 2018 - 2032.

35

3.8

Active Transport Strategy

35

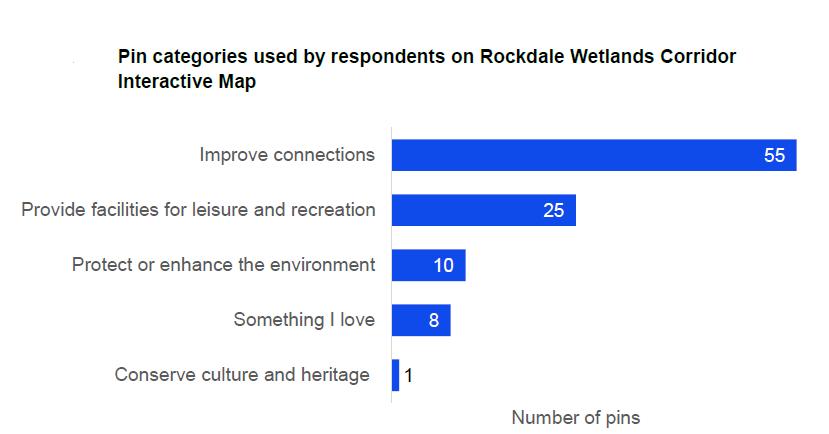

Previous Community Engagement & What We Heard

36

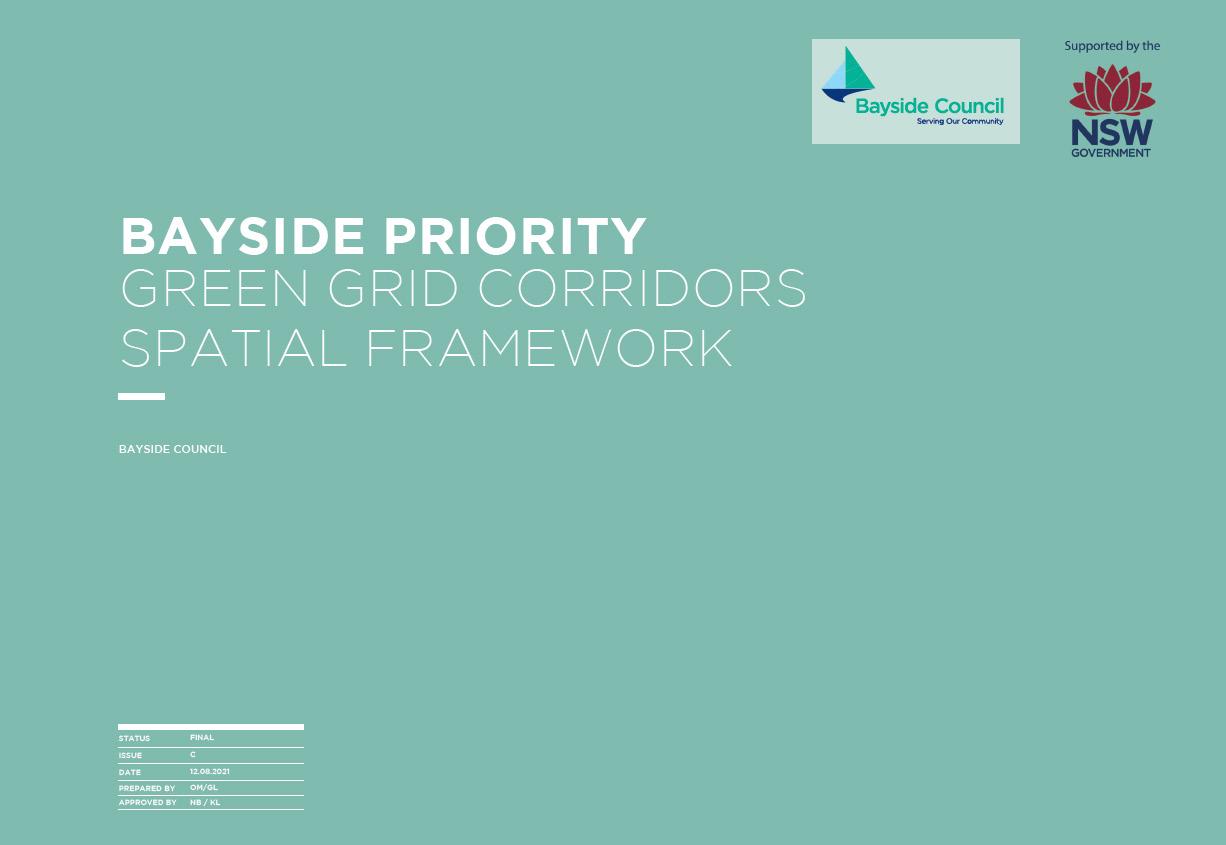

Engagement for Bayside priority green grid corridors spatial framework 2020

36

4.

4.1

4.2 Engagement for Barton Park Masterplan 2020

36

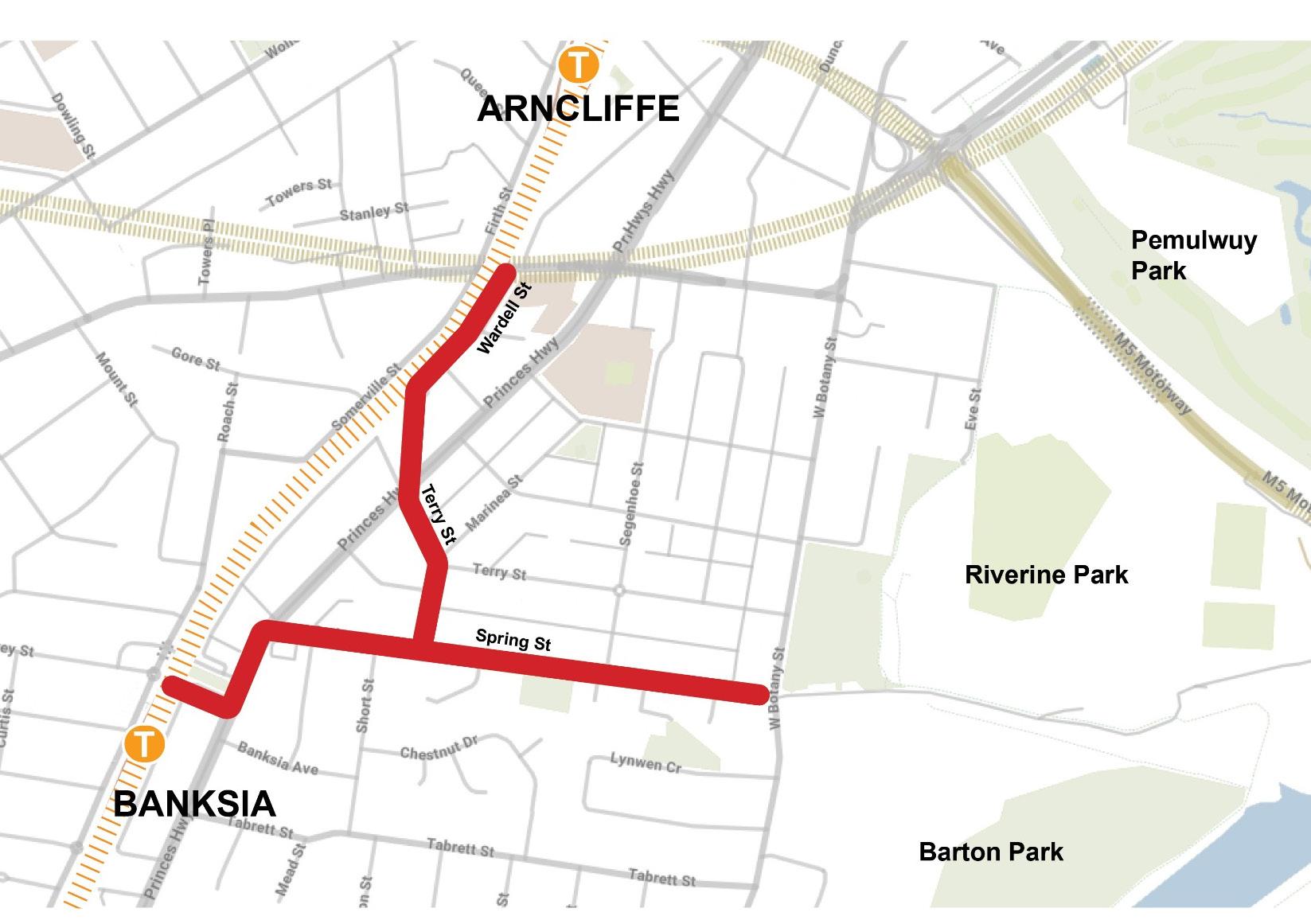

4.3 Engagement for Arncliffe and Banksia to Riverine Park Pedestrian and Cycle Links 2023 Site Analysis and Design Opportunities

37

5.1

Functional Zoning

37

18

5.2

Transport, Circulation & Access

38

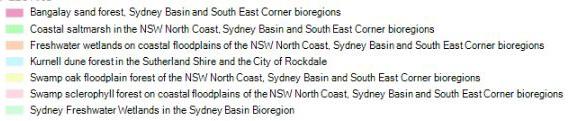

Biodiversity, Ecology

19

5.3

Biodiversity, Ecology and Tree Canopy

41

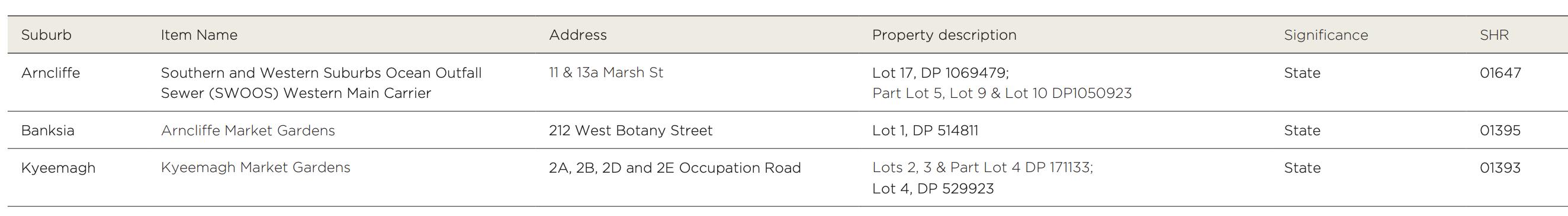

Heritage and Conservation Assets

22

5.4 Waterways

42

2.10 Historical landfill Site

22

5.5

Spring Creek Naturalisation and Wetlands Improvements

43

2.11 Climate Change

23

6.

Principles

44

2.12 Hydrology and Flooding

23

7.

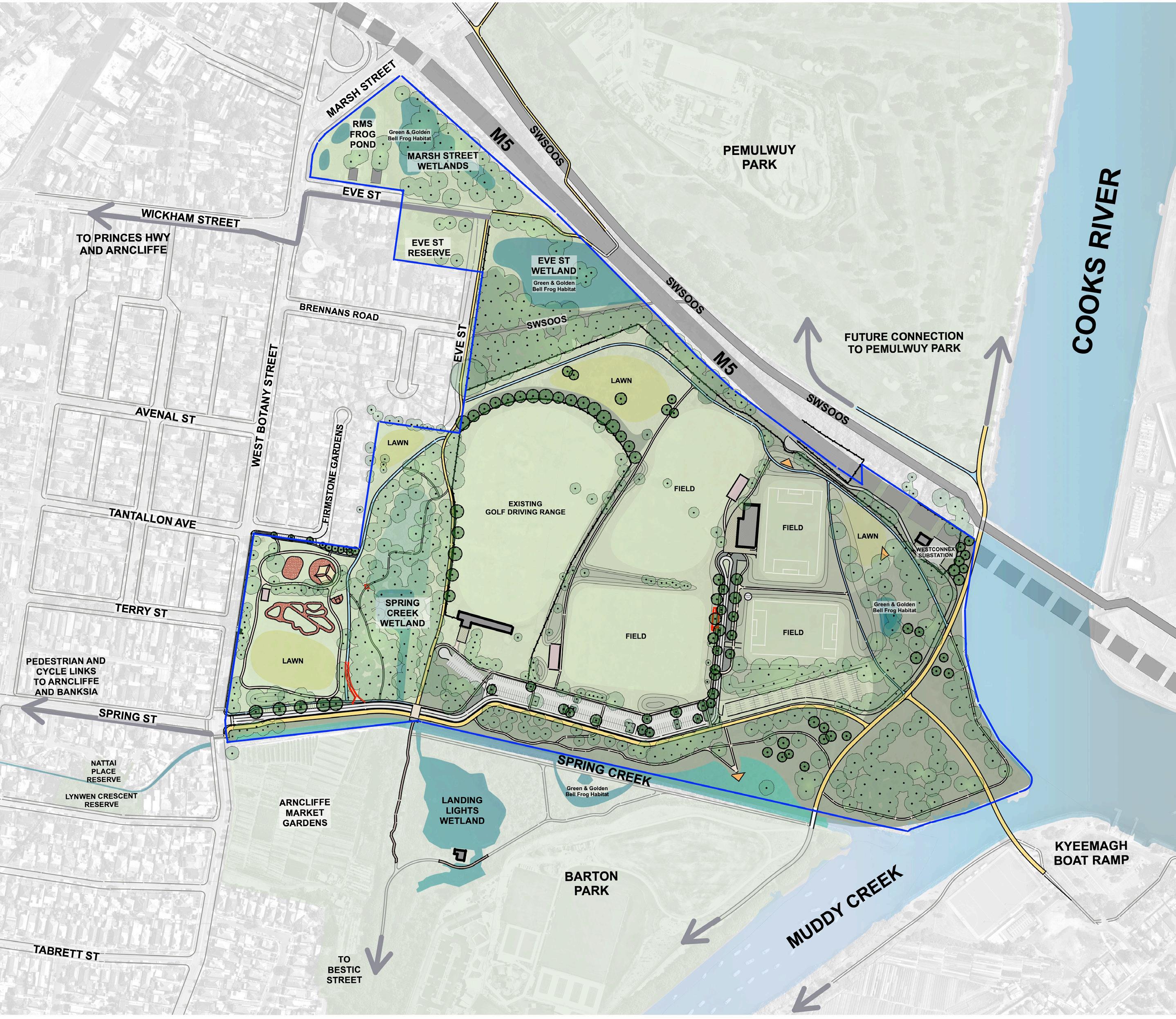

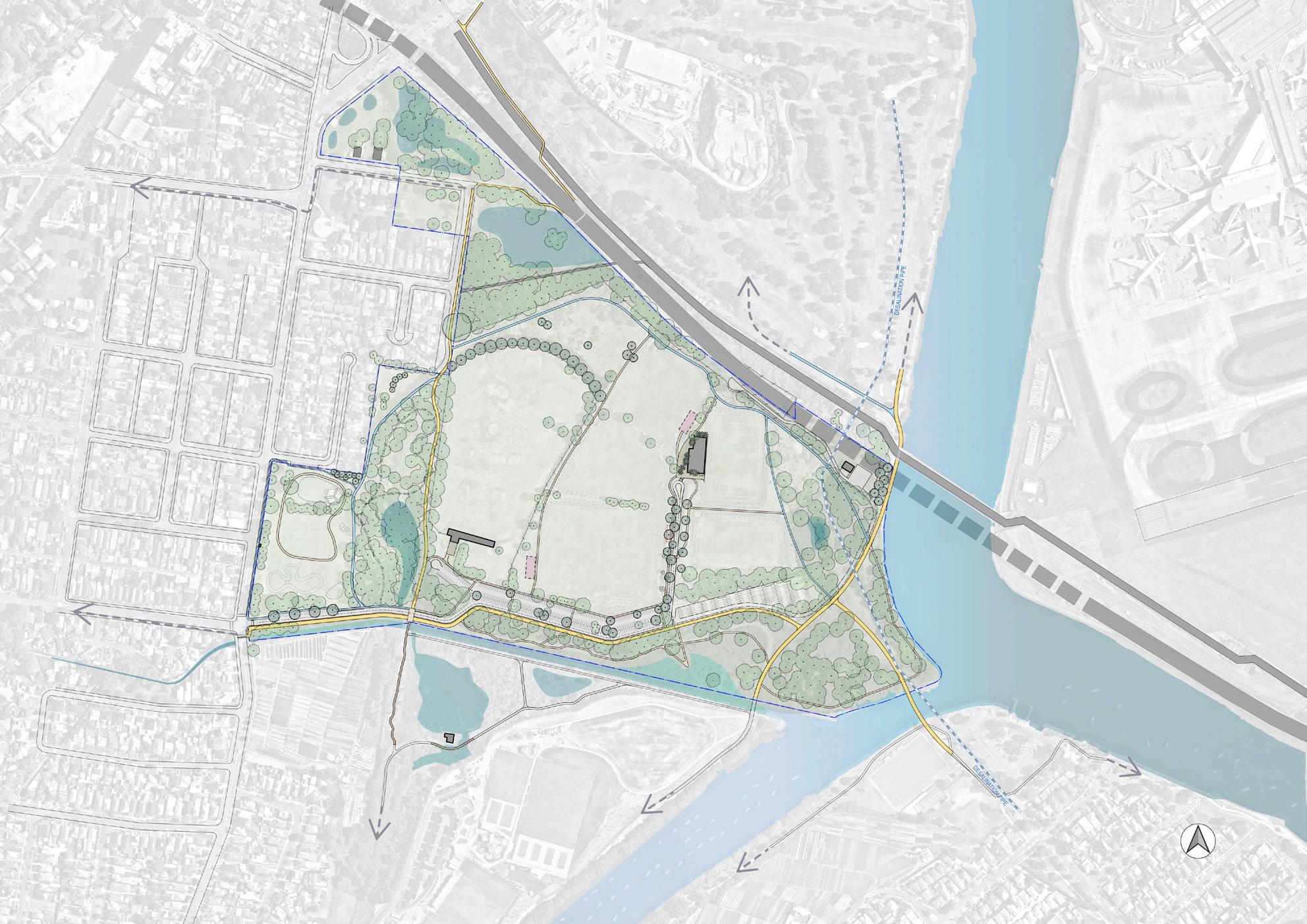

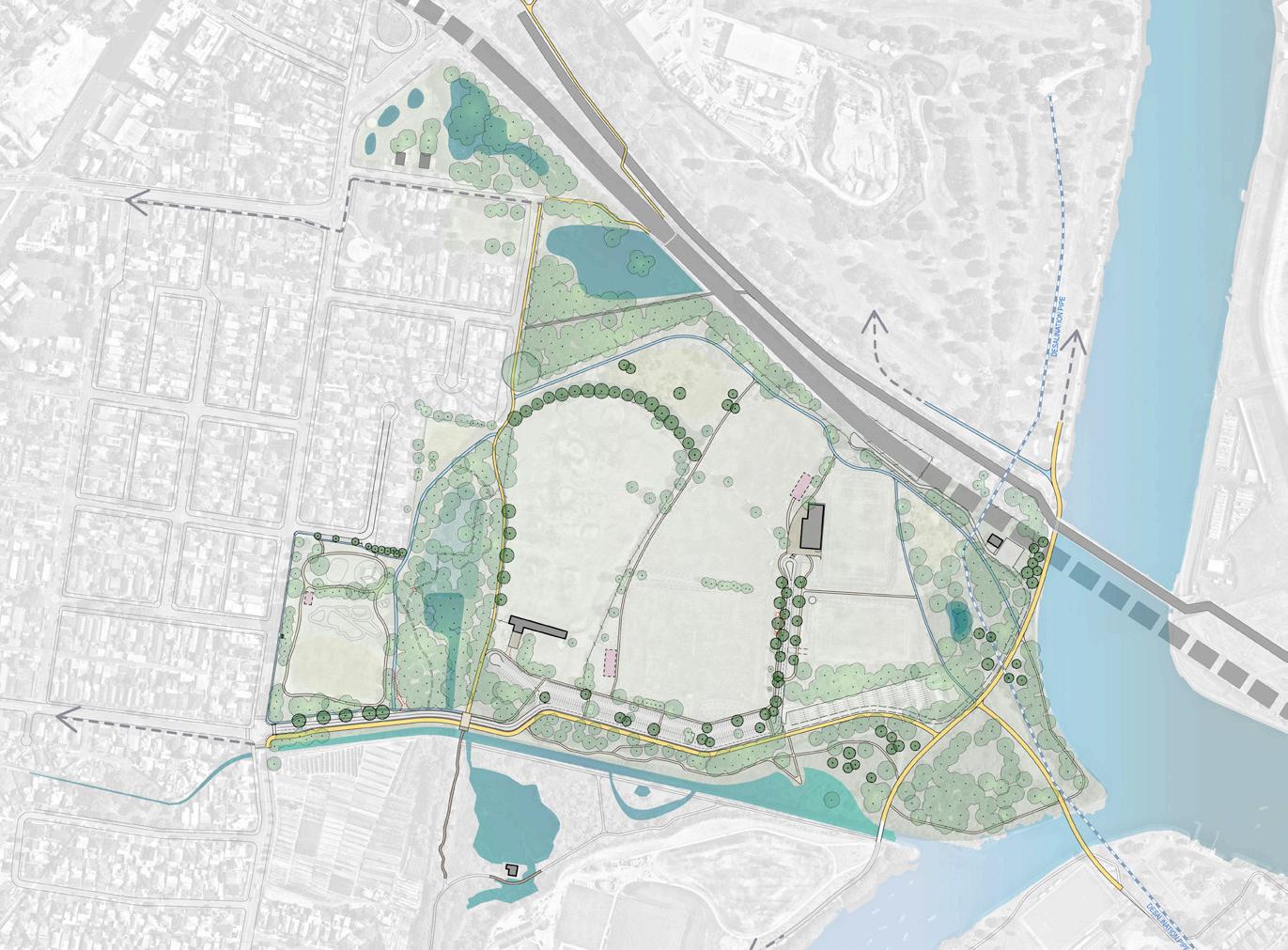

Masterplan

46

7.1

Sections

48

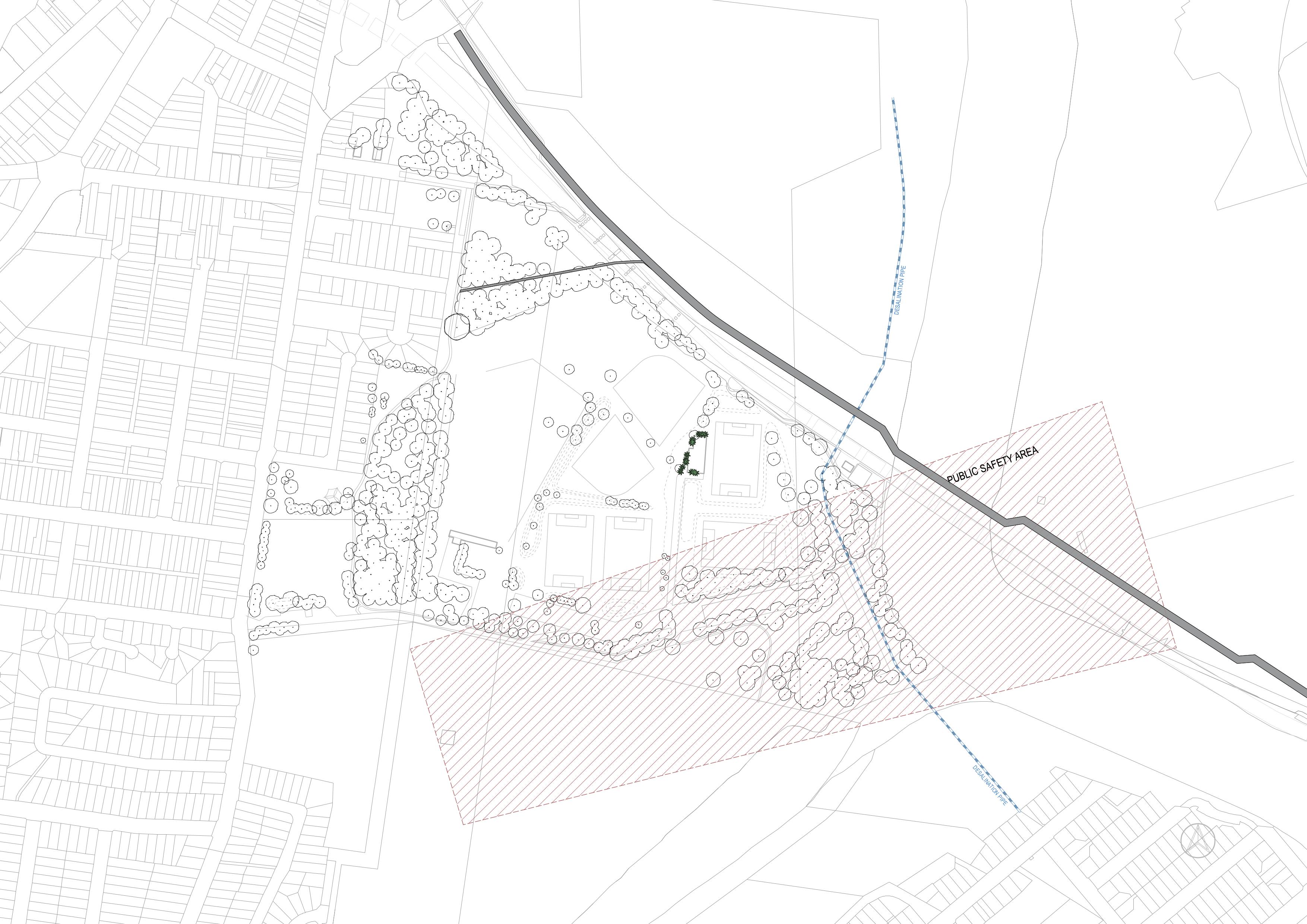

2.13 Aviation Safety

24 7.2

Functional Zoning Overview

50

2.14 Visual and Spatial Impact

27 7.3

Amenity Building Strategy

51

2.15 Management and Maintenance

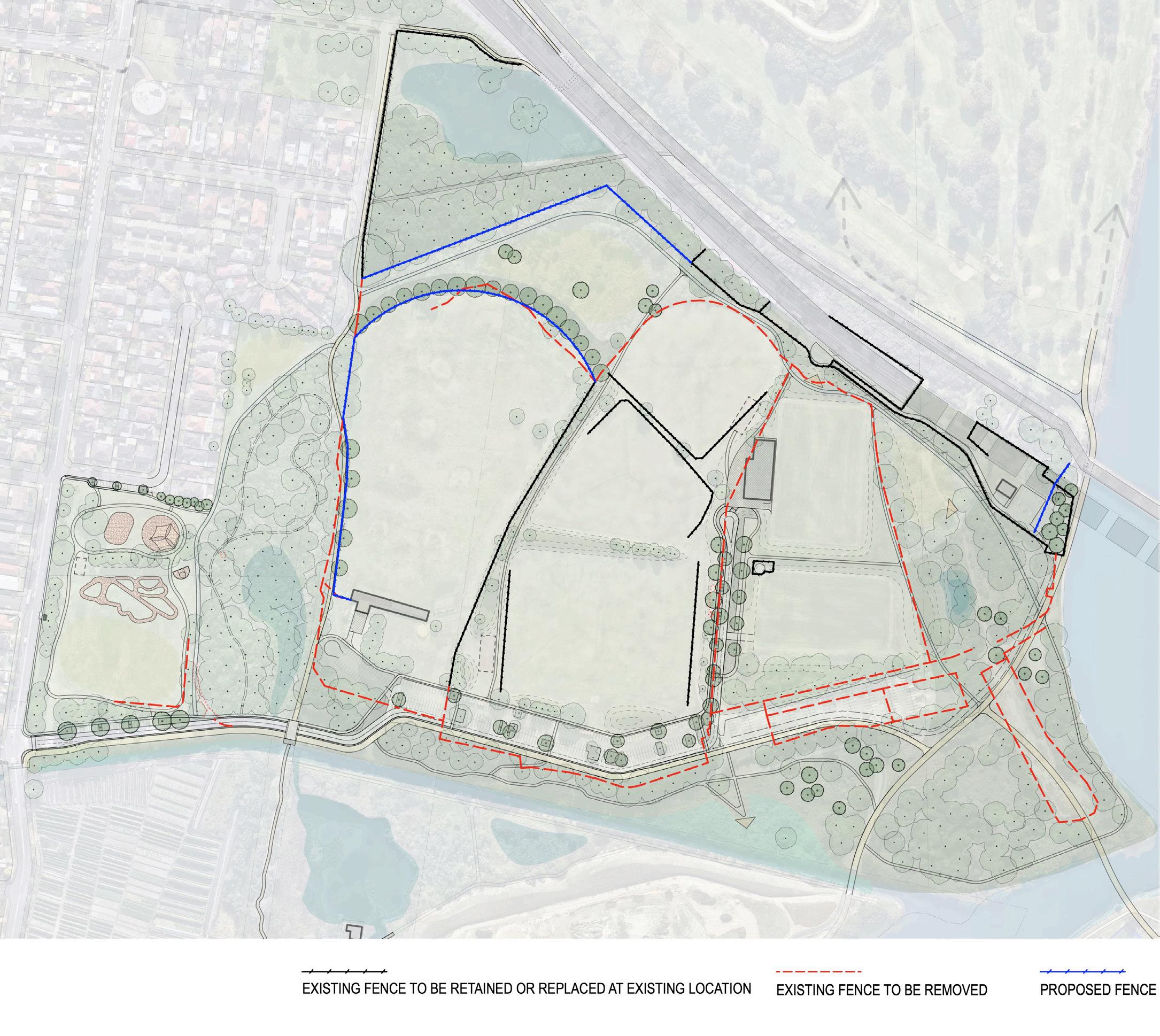

28 7.4 Fencing and Barrier Approach

52

7.5

The Cooks River Paddle Trail Access

53

7.6

Planting Strategy

54

8.

Staging and Funding Strategy

57

9.

Next steps

58

10.

References

59

3.

Planning Framework

29

3.1

A Metropolis of Three Cities; Eastern City District Plan & Green Grid

29

3.2

State Environmental Planning Policy (Precincts—Eastern Harbour City) 2021

30

3.3

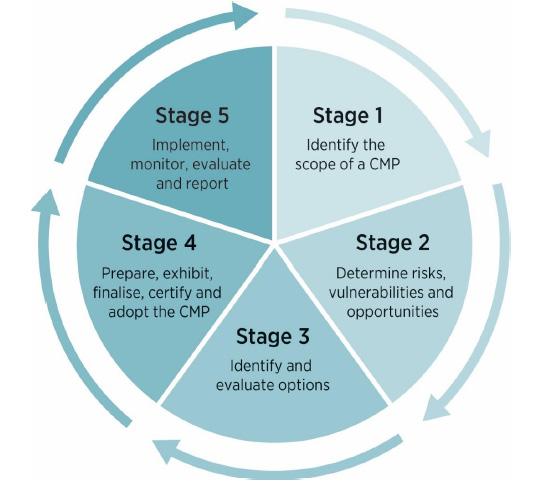

Coastal Management Act 2016 No 20

31

3.4 Biodiversity Conservation Act 2016

33

3.5

33

Fisheries Management Act 1994

5.

36

Riverine Park Masterplan | 1

Cahill Park

Arncliffe

treet

M6 Compound

S Marsh Wickham Str

eet Eve Street Wetland WSOOS

M5

Kogarah G

Mo

tor

wa

y

S

t

SW

e re

y

n ta

SOO

St

o

B st

e

W

Riverine Park

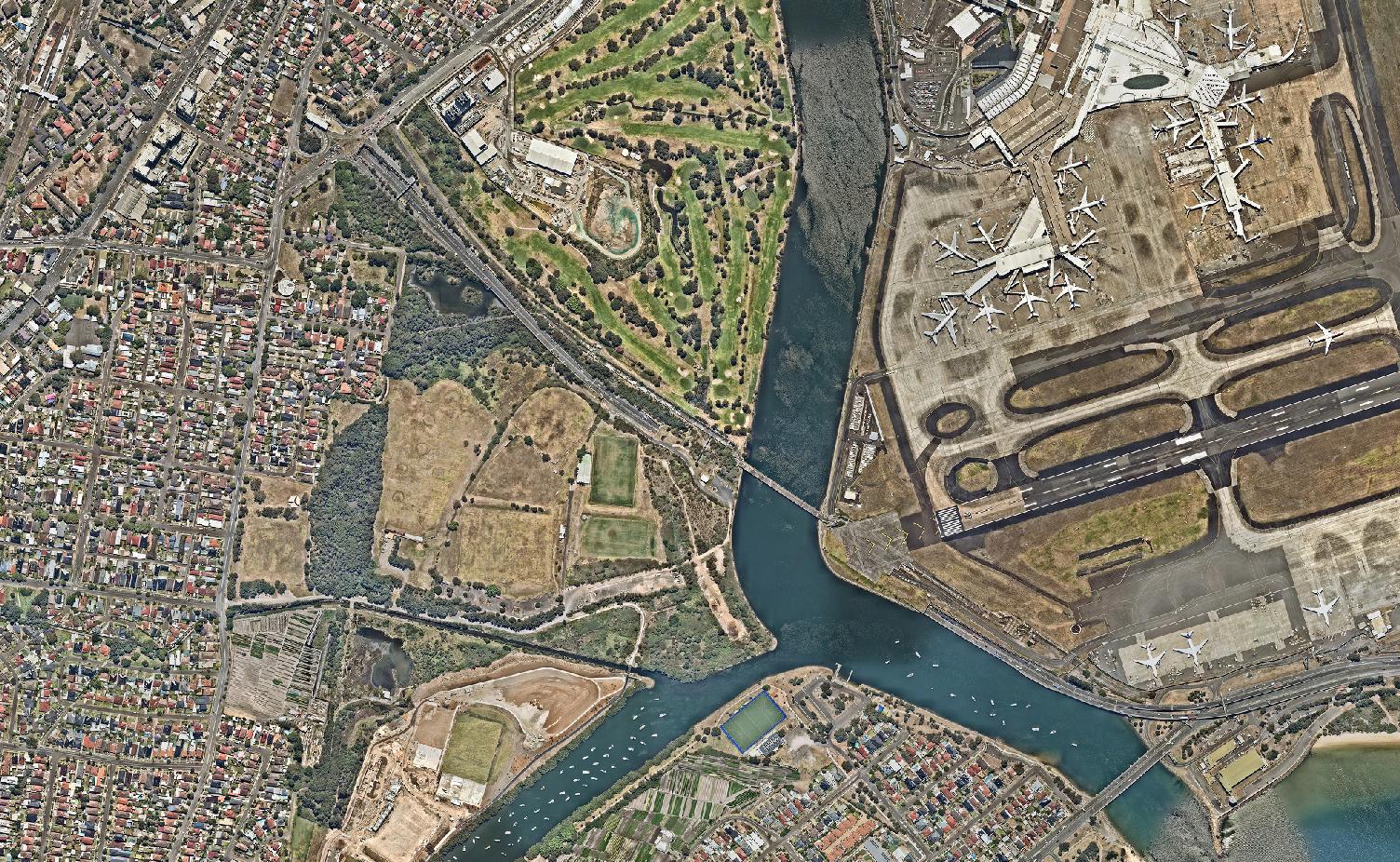

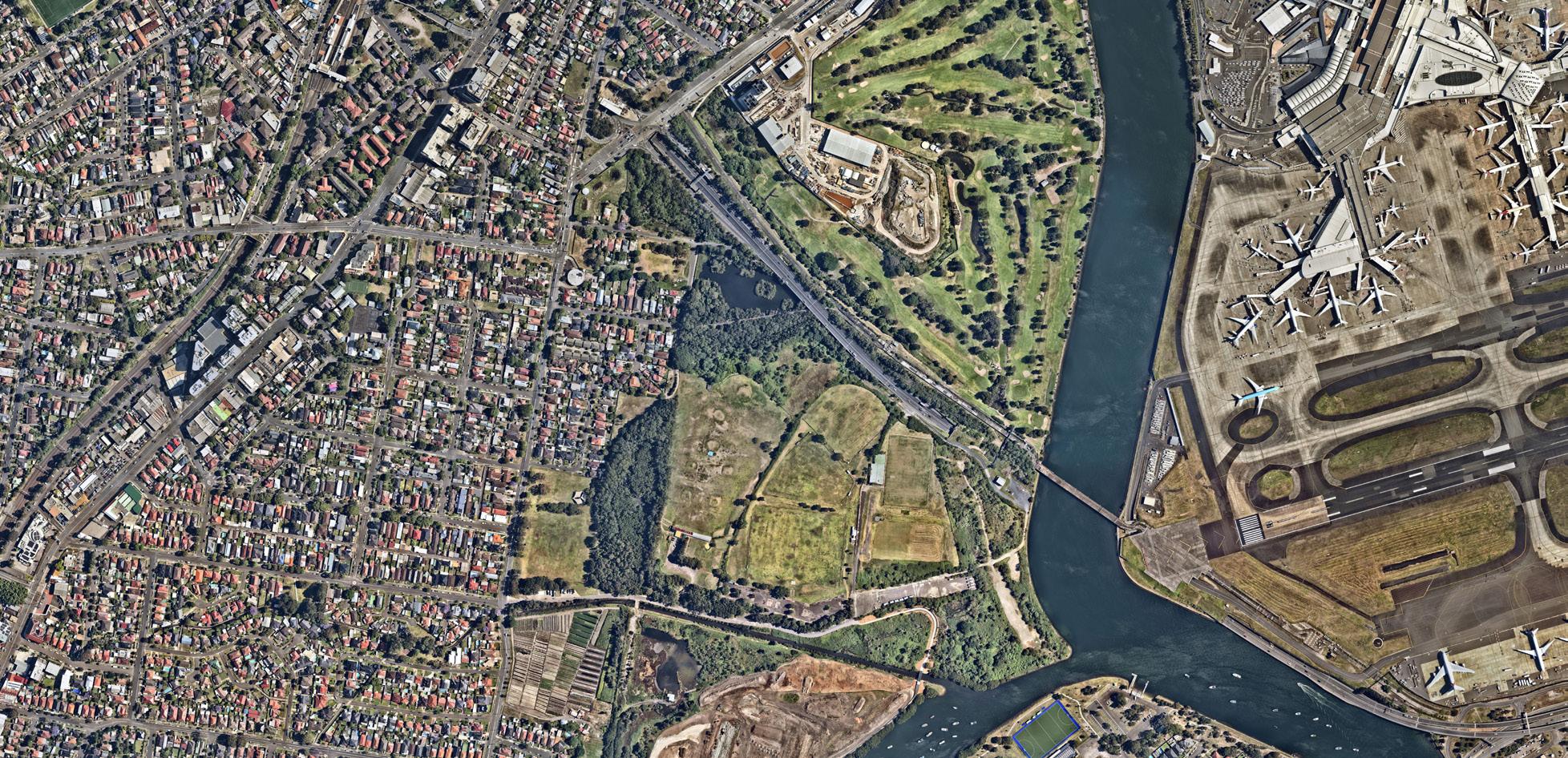

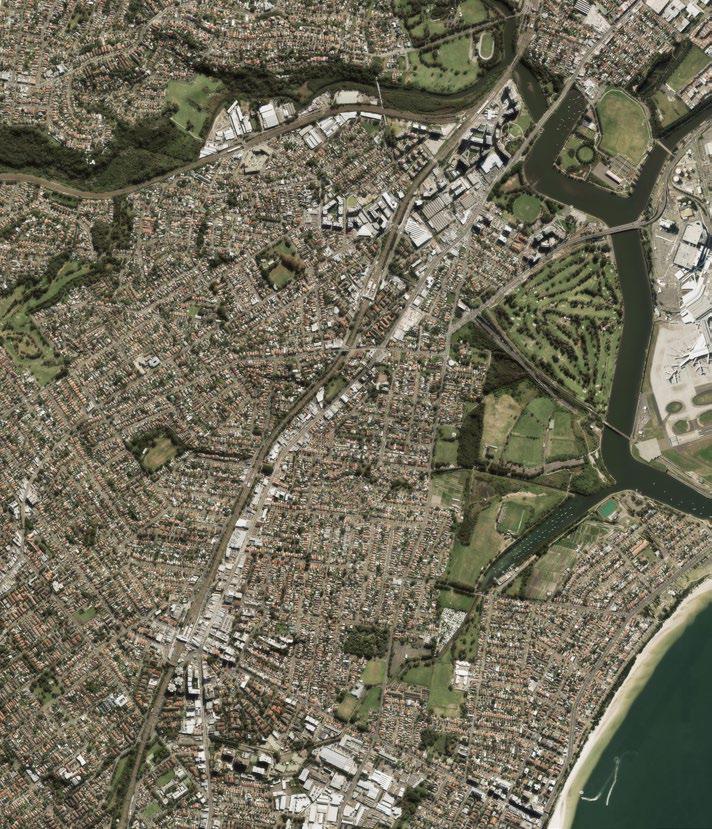

(Source: Google Map 26 November 2020)

Spring Creek Wetland

Spring Landing Lights Wetland

2 | Riverine Park Masterplan

Creek

S

1.

Introduction

Riverine Park is situated 400 metres from Sydney International Airport and adjacent to the Arncliffe and Banksia urban growth areas.

Airport

Golf Course

Positioned adjacent to key city infrastructure including the M5 and M8 motorways, Sydney Water desalination pipe, Southern and Western Suburbs Ocean Outfall Sewer (SWSOOS), the park has been heavily impacted by its infrastructure history and surroundings.

iver

Cooks R

The park’s landscape bears the imprint of its history, having been heavily modified by past land use including Sewage farms, sand mining and land-filling.

The Riverine Park Masterplan acknowledges the layers of history that have shaped this precinct and moreover, it identifies the opportunity for the precinct to improve and become an inviting public space with a prime foreshore presence. This masterplan builds upon the analysis, consultation , objectives and actions outlined in the Arncliffe and Banksia Green Plan , Central Sydney Green Grid and the Bayside Priority Green Grid Corridors and Spatial Framework.

Westconnex Substation

The masterplan envisions a future where Riverine Park and its periphery open space thrives as a symbol of progress and adaptability, transforming formerly neglected spaces into thriving, vibrant, beloved, activated environments.

Key design considerations informing the plan include:

• Legibility of access and circulation including universal access.

• Addressing conflicts that will arise as use increases between vehicles, pedestrians and cycle movements.

• Connectivity with its urban context and broader public realm.

• Recognition of site heritage and local values.

• Enhanced tree canopy and strategies to mitigate the urban heat island and climate change.

• Increase planting selection from the existing planting palette to improve biodiversity and botanical diversity.

• Enhancement of outdoor spaces and its programming.

• Provision of an all inclusive play space and amenities.

• Opportunity to create event spaces for a range of activities and programs.

• Upgraded park furniture, pavements, structures and park amenity.

• Improved signage and use necessary way-finding recognise First Nations language and culture..

• Consider opportunities for public art and potential for trails within and beyond the park.

• Improve views to better connect the open space to the Cooks River foreshore.

• Increase usage and flexibility of existing underutilised amenities, facilities and civil assets.

• Increase usage and upgrade sporting and recreation, facilities to meet the needs of the growing community.

ek

Mu

dd

re yC

Riverine Park Masterplan | 3

1.1

Design Principles & Strategy

Our vision is to craft a dynamic and welcoming landscape project that seamlessly integrates nature with recreational activities.

Emphasising water-sensitive urban design and native vegetation, our initiative celebrates the unique setting at the Cooks River mouth and aligns with the significant Green-Blue grid in the Bayside LGA. The park is designed to offer diverse recreational opportunities, catering to a wide array of community members, enhancing river connectivity, championing environmental sustainability, and encouraging active lifestyles for everyone.

The Riverine Park Masterplan is guided by the following design principles: - Respect Site Context

INTEGRATING

GREEN BLUE GRID

CONNECTING

- Coastal and Environmental Protection

RECREATION AND

UNIFICATION

COMMUNITY,

- Connectivity within and beyond

WATER-SENSITIVE

SUSTAINABILITY,

- Promote active lifestyles and recreation

DESIGN

AND ACTIVITY

- Safety for all - Sustainable infrastructure

These principles are elaborated in Chapter 5, supported by evidence-based Design Strategies that inform the comprehensive Riverine Park Masterplan and its implementation phases.

This report references numerous guidelines and studies that underpin the development of the Riverine Park Masterplan, ensuring a robust and well-informed approach.

4 | Riverine Park Masterplan

Develop a vibrant, inclusive riverside space that merges water-sensitive design with varied recreational offerings.

Enhance the park with native flora, sustainable water practices, and spaces for community and sports activities, aligning with the green-blue grid concept.

Foster a nature-integrated park that strengthens community-river ties, supports environmental sustainability, and promotes active living.

2.

2.1

Background Current Site Context

Riverine Park is located at 210 & 210B West Botany St, Arncliffe to the west of Sydney International (Kingsford Smith) Airport and 10km south of the Sydney CBD. It is bounded by Cooks River, Firmstone Gardens, West Botany Street, Barton Park and Muddy Creek.

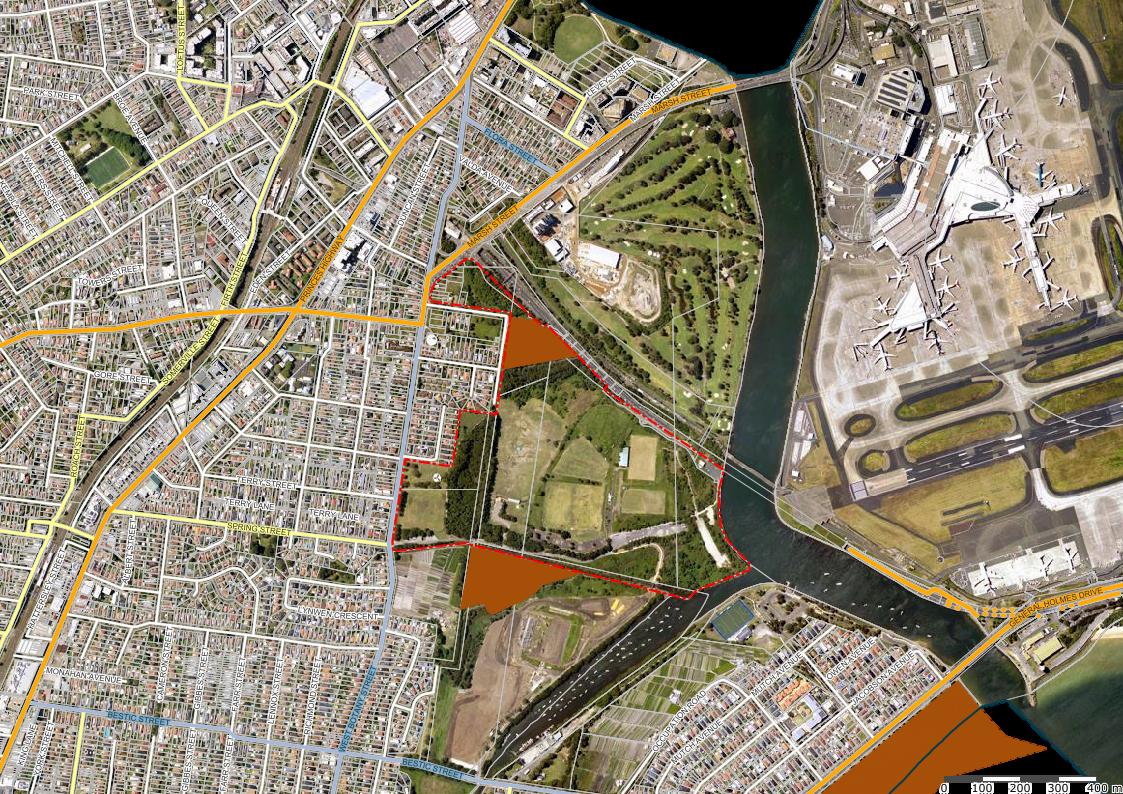

The overall site is approximately 39 ha in size (Figure 1 - Location Plan).

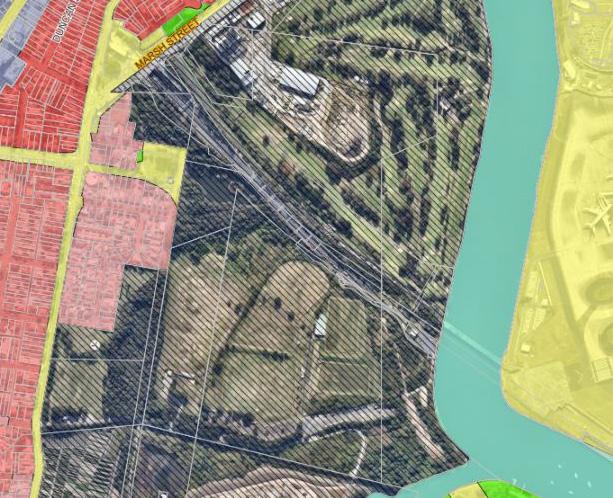

The site is covered by State Environmental Planning Policy (Precincts—Eastern Harbour City) 2021. The majority of the site is zoned for open space with a road reserve corridor through the centre of the site.

The Riverine Park site is entirely within the suburb of Arncliffe which is a residential area comprised of mostly low density dwellings and some unit development and is adjacent to the Bayside West Urban Growth precinct. The park is approximinate 1km from Arncliffe Train Station and town centre, 1 km to the Botany Bay foreshore, is within the Rockdale Wetlands Corridor identified as part of Sydney Green Grid recreational open space and wetlands. The Rockdale Town Centre and Brighton-Le Sands Town Centre are both approximately 1.5km away. The end of the east-west airport runway is only 400 metres away from the study area and part of this site is impacted by the airport public safety area (PSA).

The main access to Riverine Park is via West Botany Street which is a regional road.

Secondary access for pedestrian and cyclist is via Eve Street, Firmstone Gardens and a active transport link from the adjacent Barton Park connecting to the M6 Stage 1 Active Transport Corridor that terminates at Scarborough Park. Future stages of this active transport corridor are anticipated to continue along with the implementation of the M6 motorway.

In the past decades, the park has been underused. Mostly because the quality of the park infrastructure and amenity have declined and the uncertainty associated with the future road corridor limited the appetite for investment.

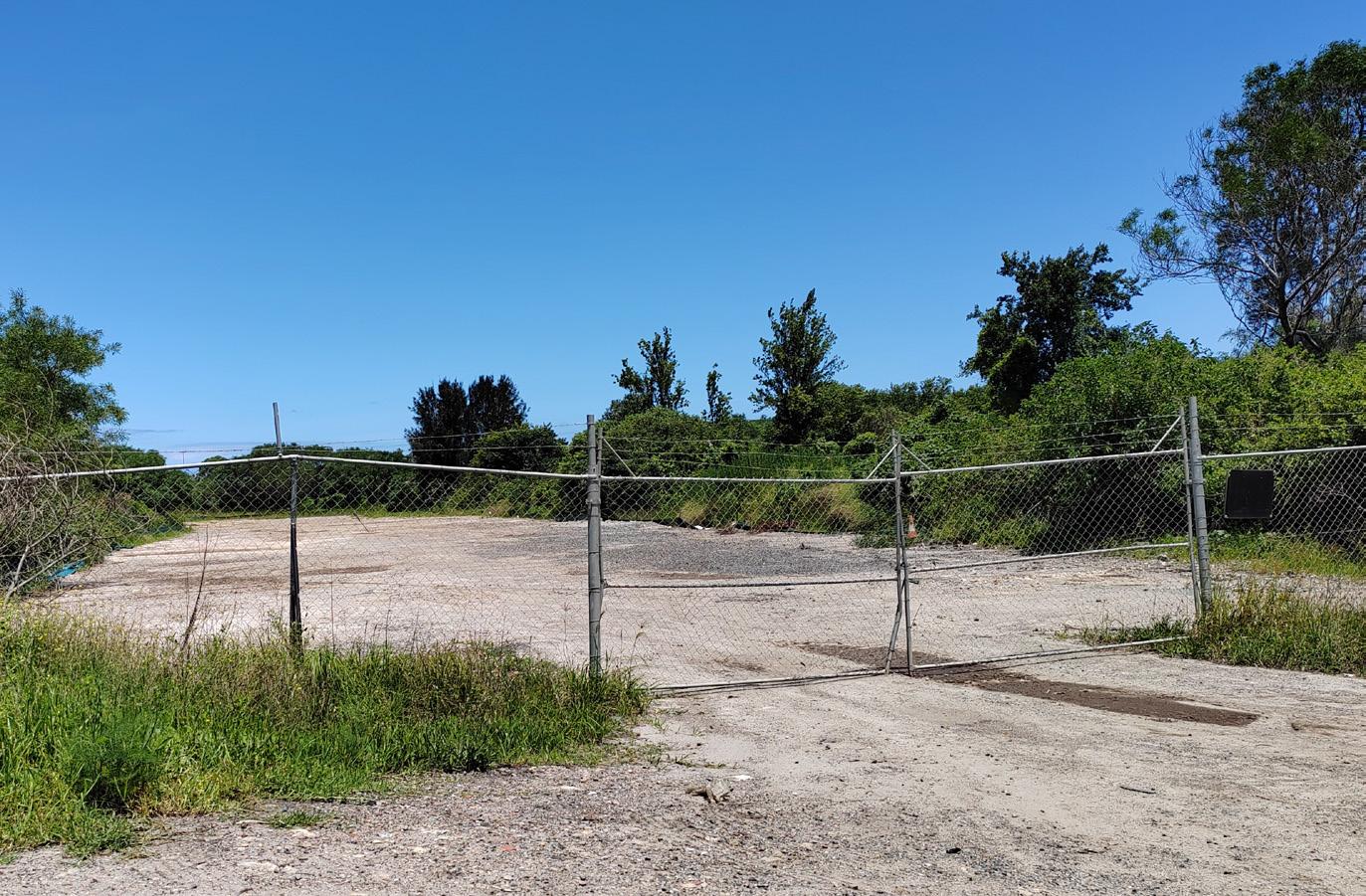

Consequently, the site has been temporarily used as a compound to support infrastructure such as construction of the M5, M6, M8, as well as desalination works and telstra cable installation. It has relatively limited recreational facilities that do not match its potential to serve the growing community of Bayside in a prime position along the foreshore of The Cooks River. The site history has left it vulnerable to misuse by opportunists such as vandals who frequent the site and inflict damage and further alienate the general public resulting in the perception that this park is unsafe. The nature of the site is also increasingly witnessing homelessness as well as parking for adjacent construction including heavy vehicles occupied by nearby businesses.

The completion of infrastructure work, such as the M5, M6 and M8 now allows this open space to return to an entirely public use. The Riverine Park Masterplan seeks to guide the reactivation of the park to create a vibrant and exciting place that caters for the Bayside Community.

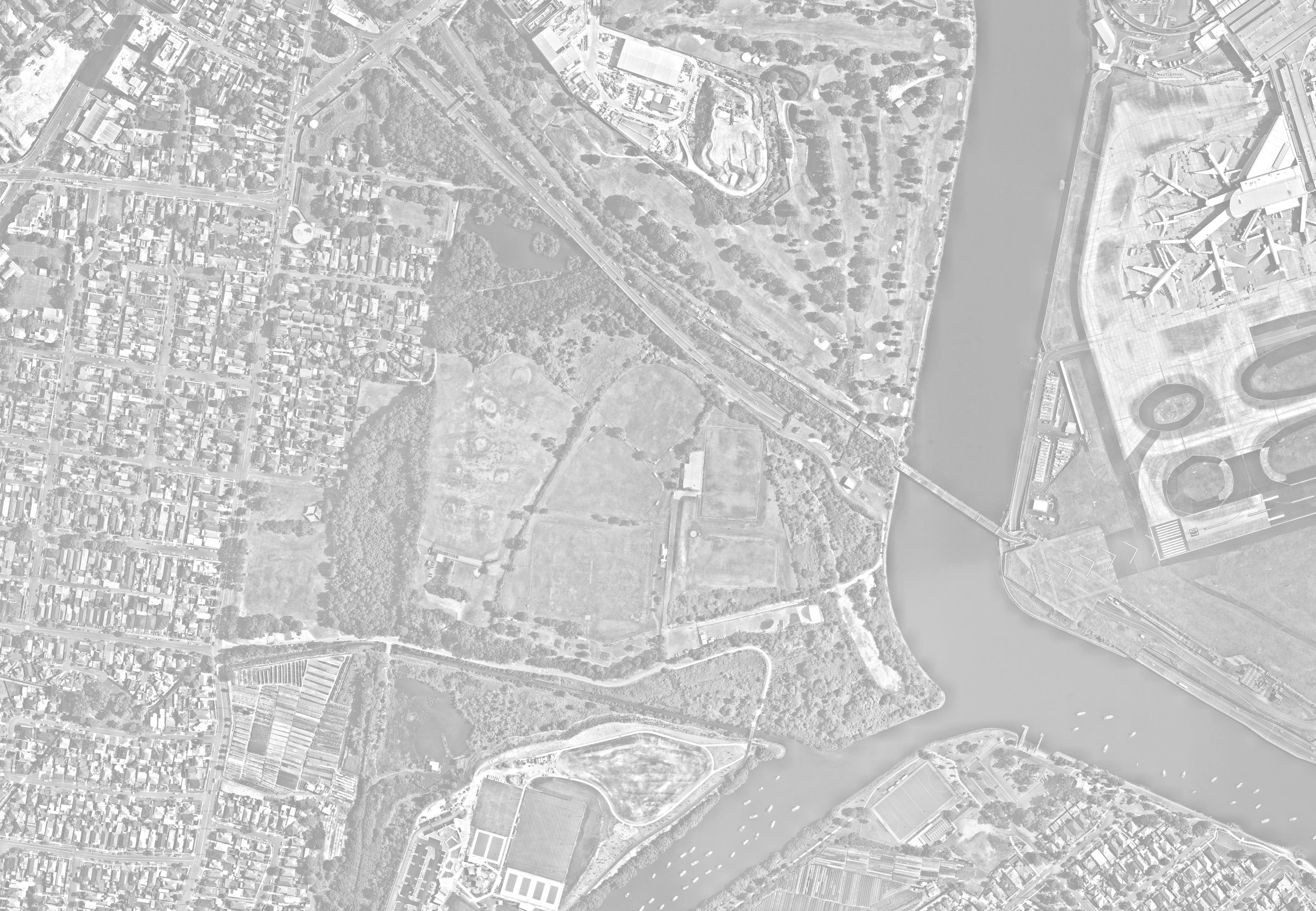

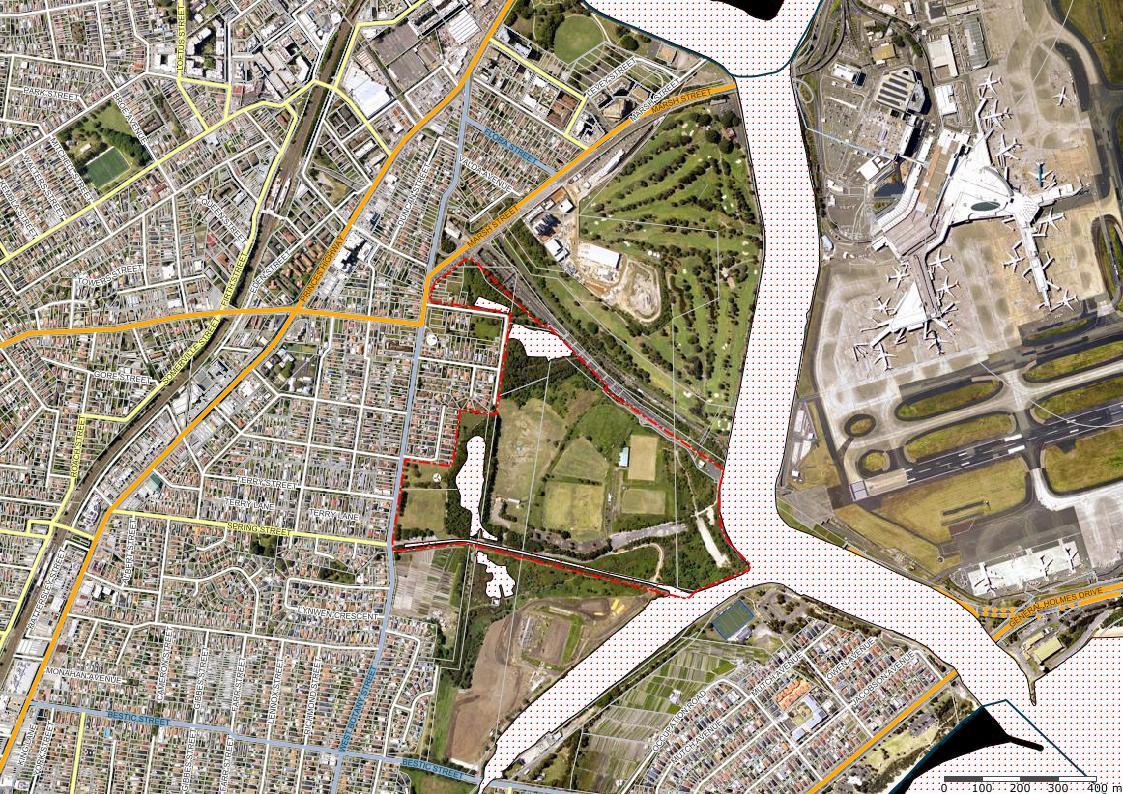

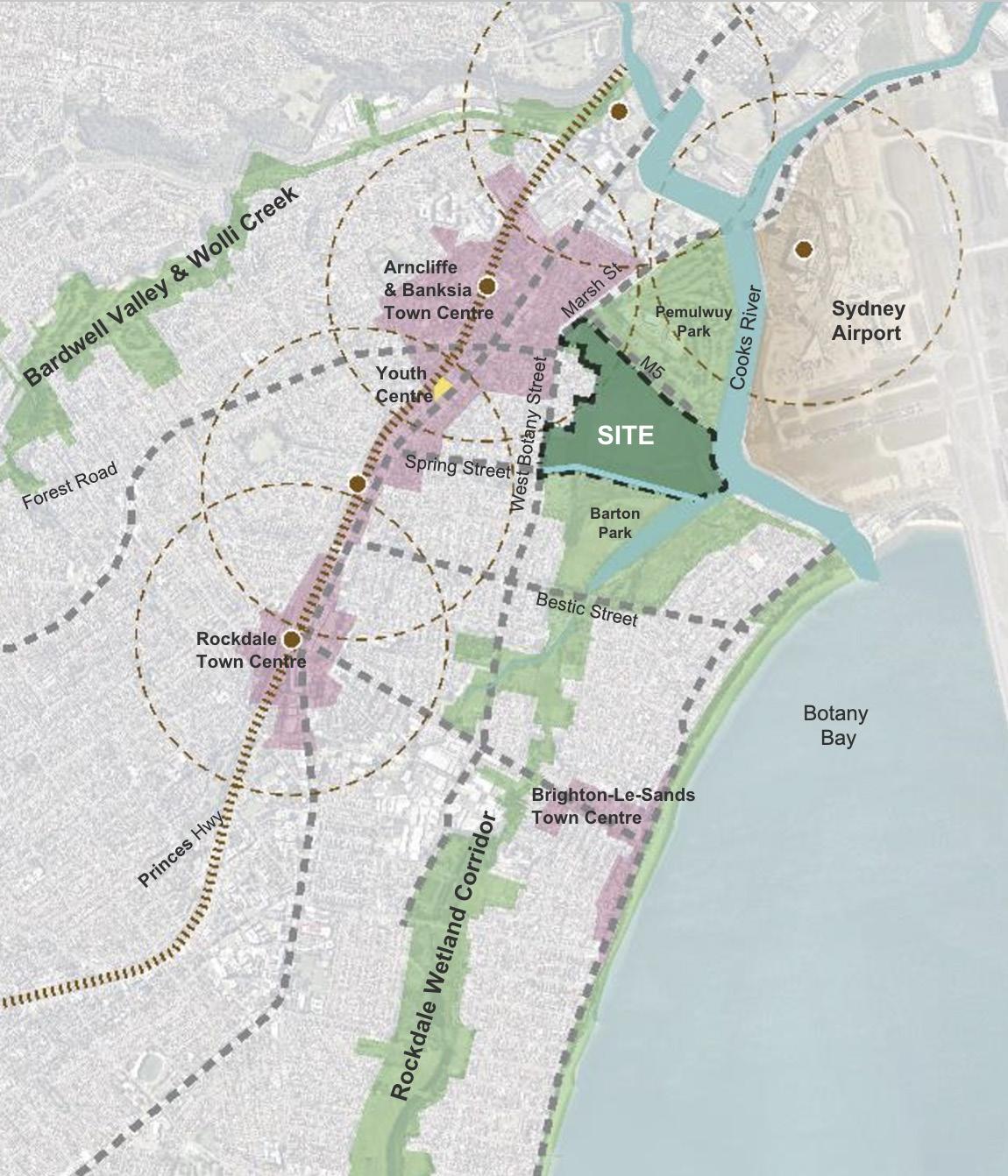

Figure 1 - Location Plan

Riverine Park Masterplan | 5

2.2 Historical Context The traditional owners of the area are the Aboriginal Peoples of the Eora Nation including the Gamaygal, Gwegal, Bidjigal and Gadigal Clans and collectively they are known as the “water people”.

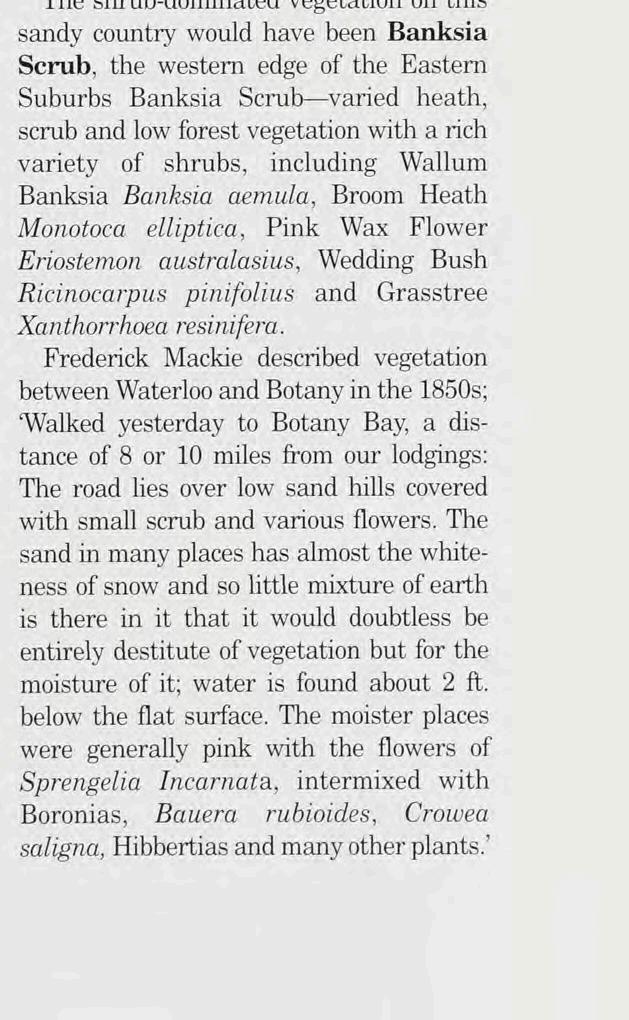

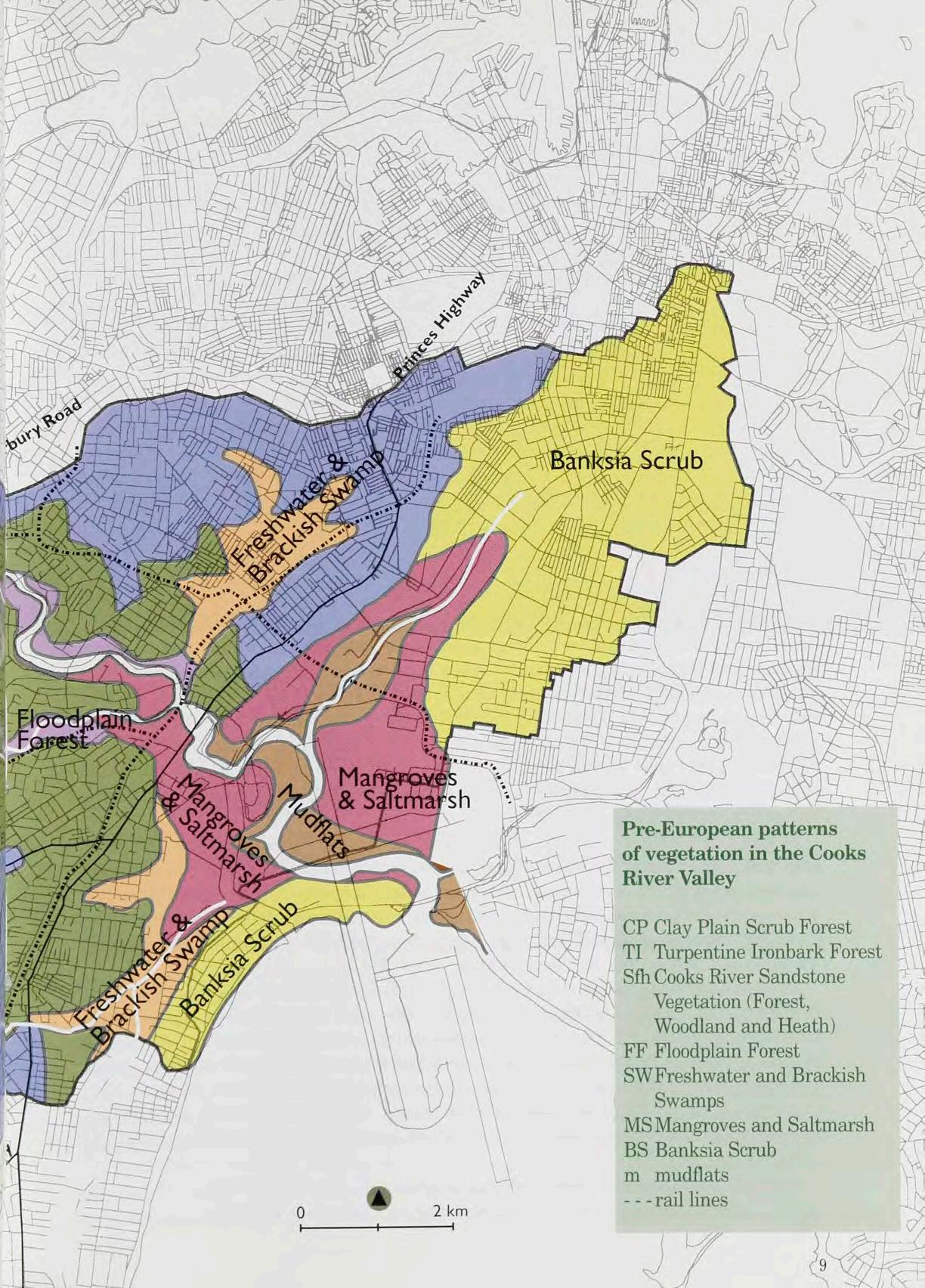

Prior to European settlement, the Bayside Local Government area was comprised of coastal, wetland, waterway and bushland environments that sustained the Eora Nation with plentiful resources to support a rich culture.

Arncliffe’s name comes from a small village called Arncliffe in North Yorkshire, England. The name appears in the Domesday Book of 1086, as ‘Arneclif’, meaning Eagle Cliff.

Between 1895 and 1899, The Southern and Western Suburbs

Ocean Outfall Sewer (SWSOOS) was constructed for the disposal of sewage from much of Southern Sydney. It stretched from Marrickville to Rockdale. The sewage from this system flowed to a sewage farm located at present-day Riverine Park and Barton Park. The extensive tract of open space including Barton Park, Firmstone Gardens, Riverine Park and Landing Lights Wetland is a significantly disturbed landscape with areas of it used for a Sewage Farm servicing Sydney for 30 years until 1916.

The sewage farm which was 200 acres in size was Sydney’s earliest attempt at purifying sewage in the hope of beating the major sanitary problems of the era. The system is of considerable historical and scientific significance as one of the early sewers to service the southern, western and Illawarra suburbs of Sydney. In the late 1890s, the Sewage Farm was extended to allow for the disposal of the sewage from the Western Suburbs.

The northern side of the river was mainly occupied by small market gardens. The secondary function of the Sewage Farm was to utilise the manure value of the sewage to produce muchneeded vegetables for household.

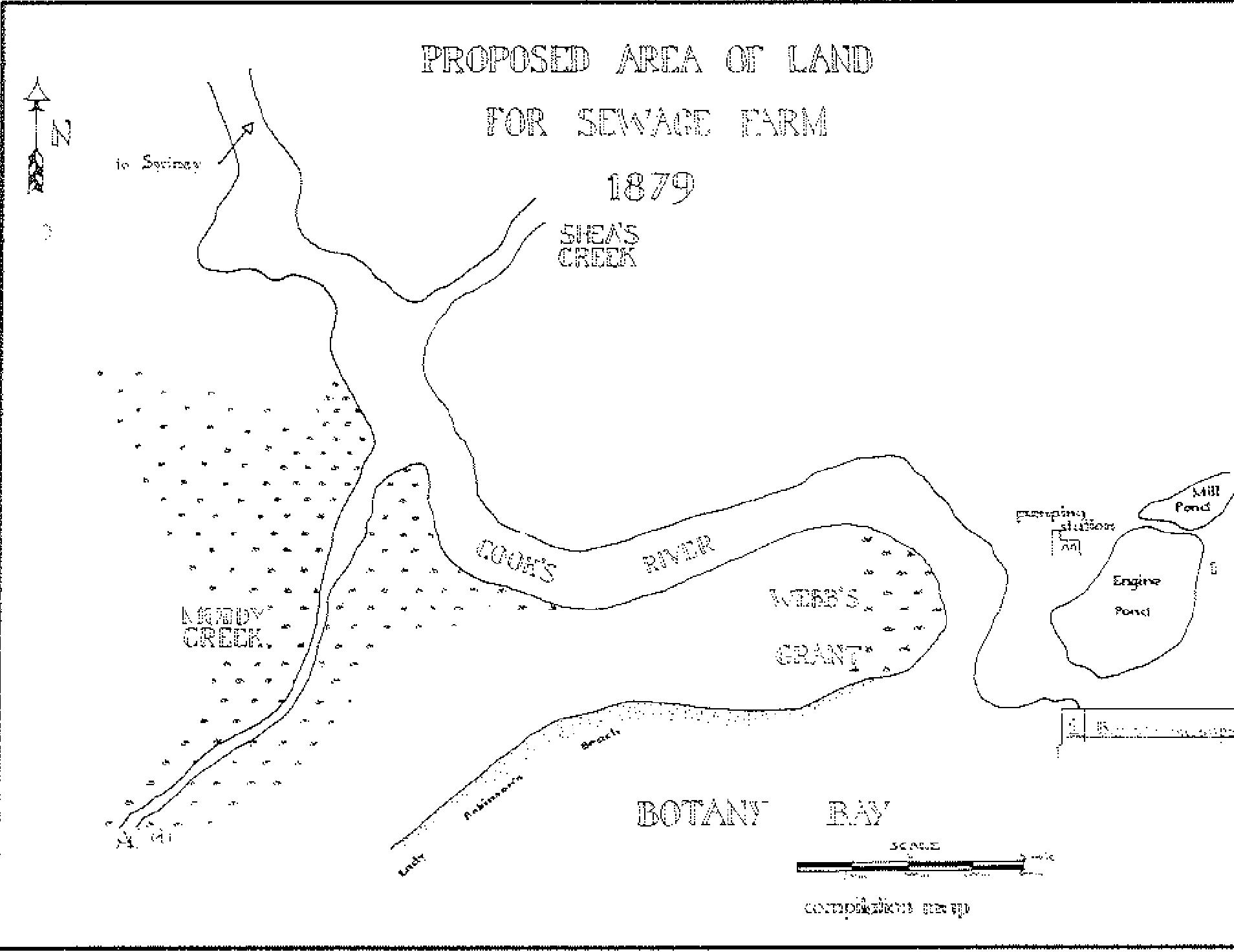

Figure 3 - The plan dated 1879 shows the Sewage Farm was proposed at the land on the southern side the mouth of Cook’s River (Source: Australasian historical archaeology, 8, 1990 )

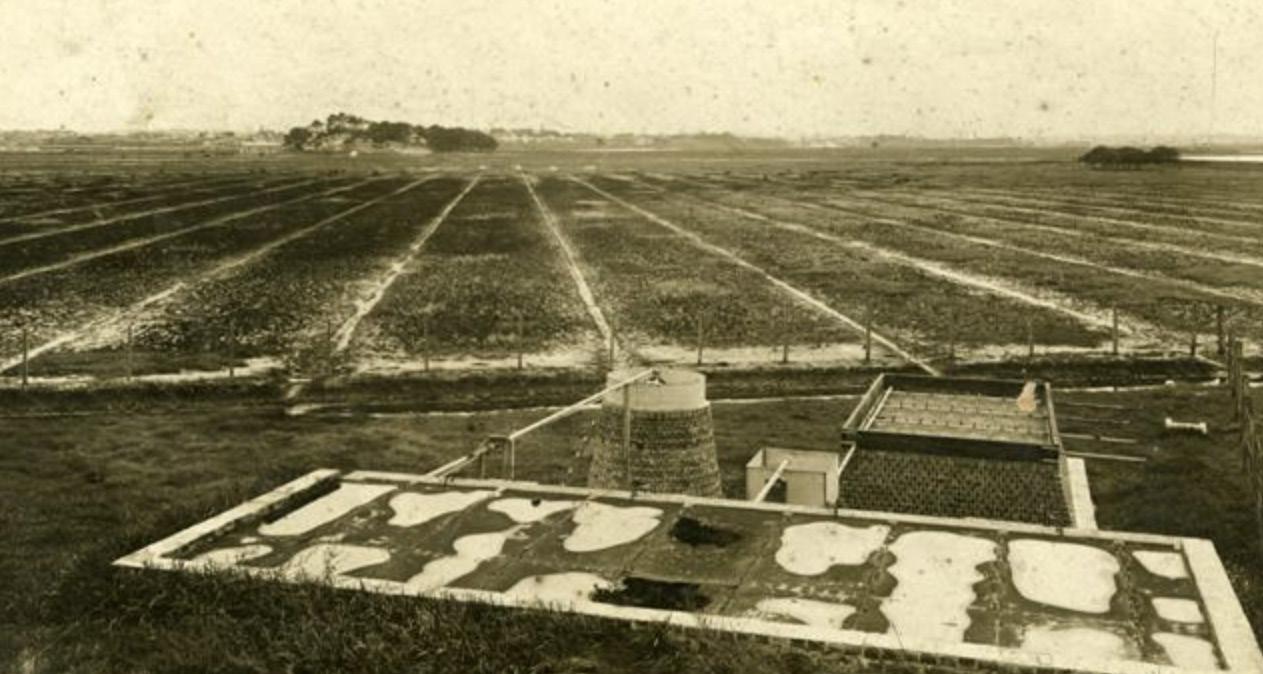

Figure 4 - The photo of the Sewage Farm (Source: Bayside Library)

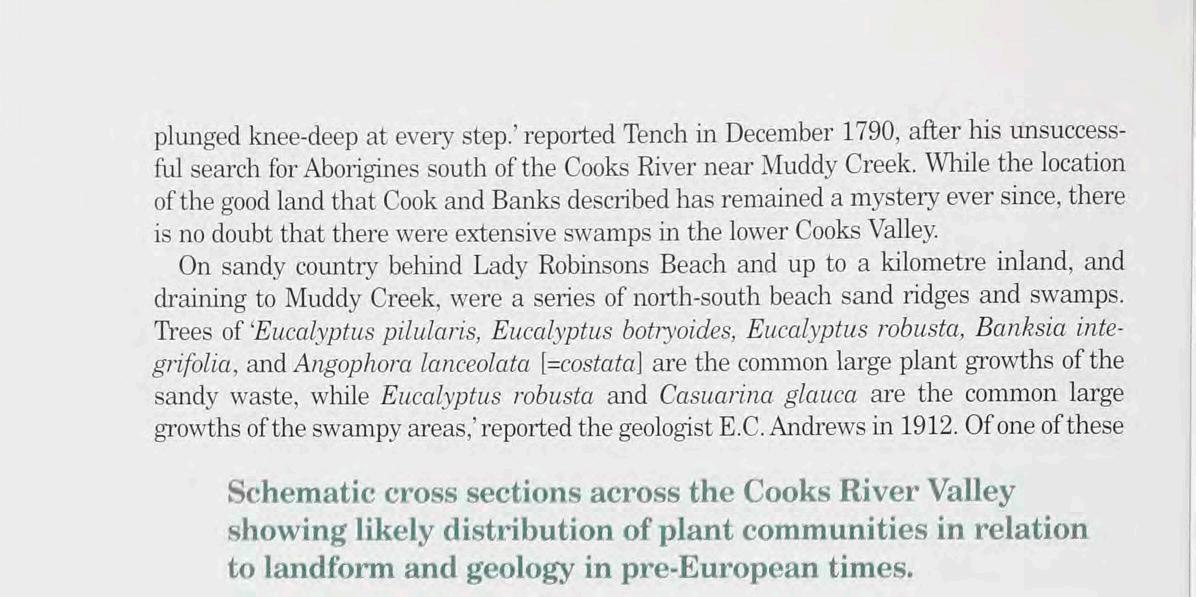

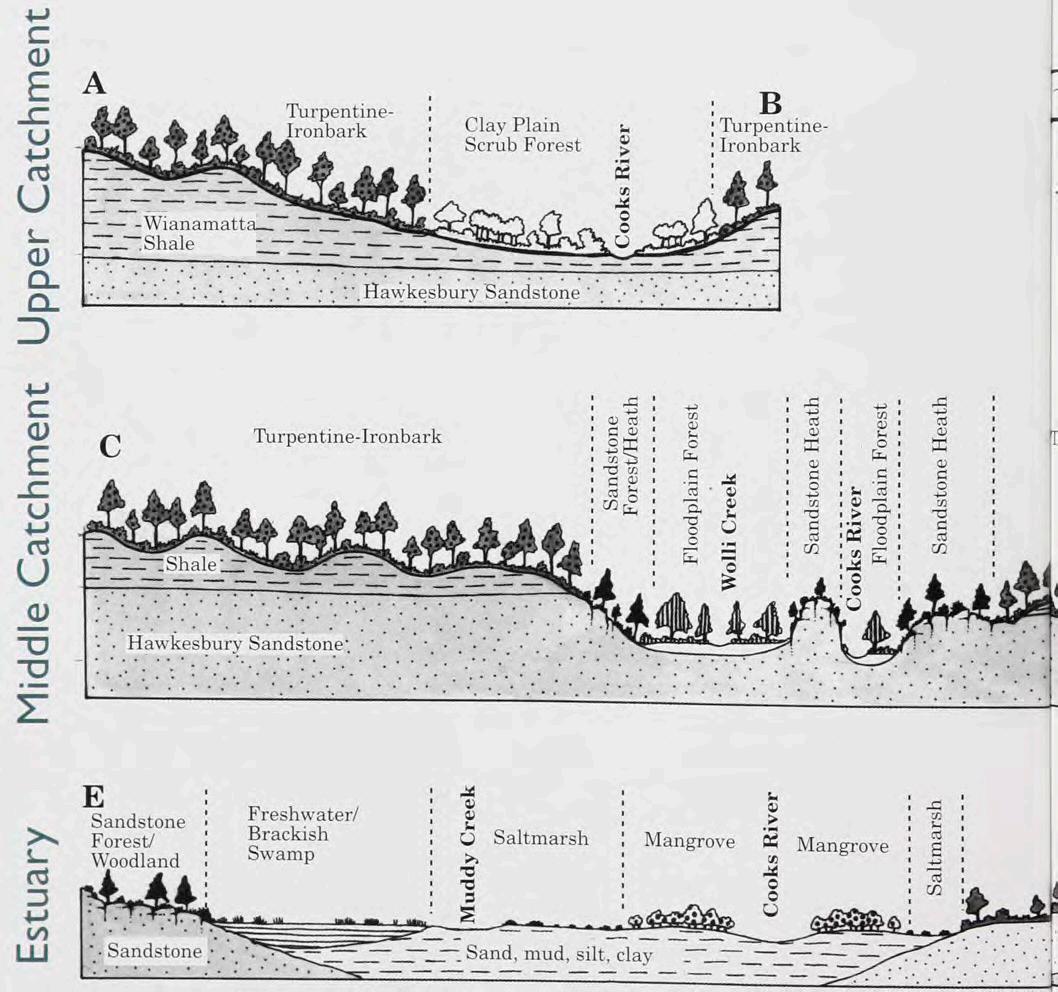

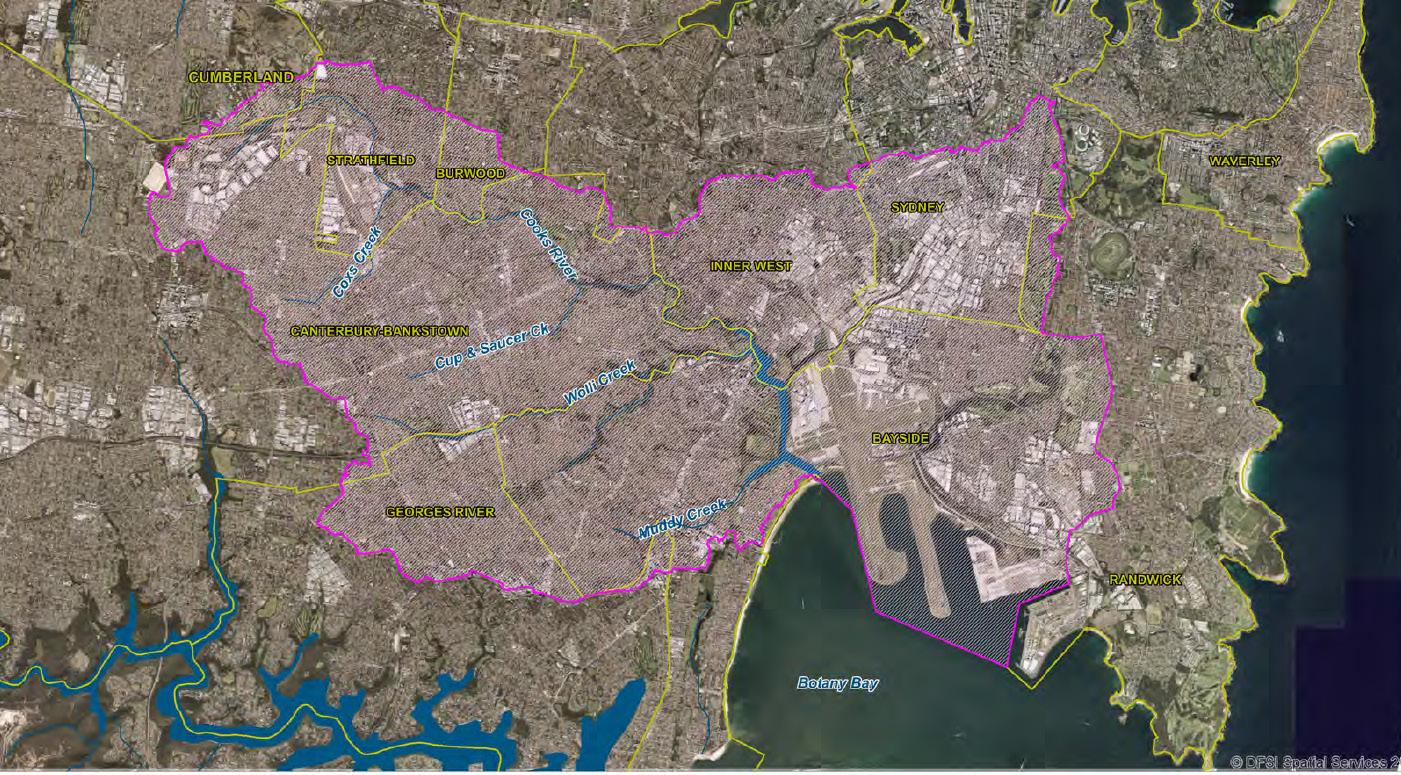

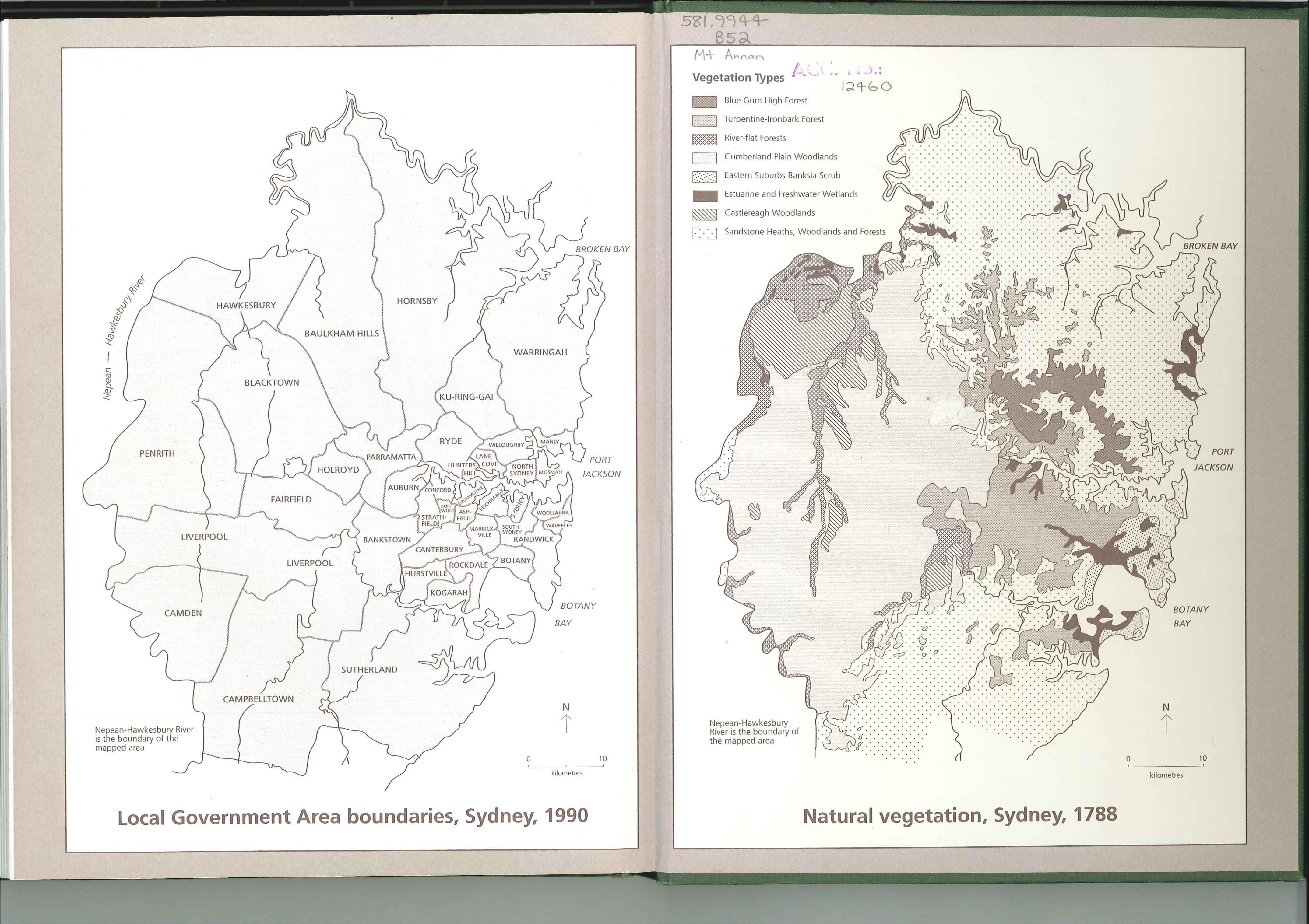

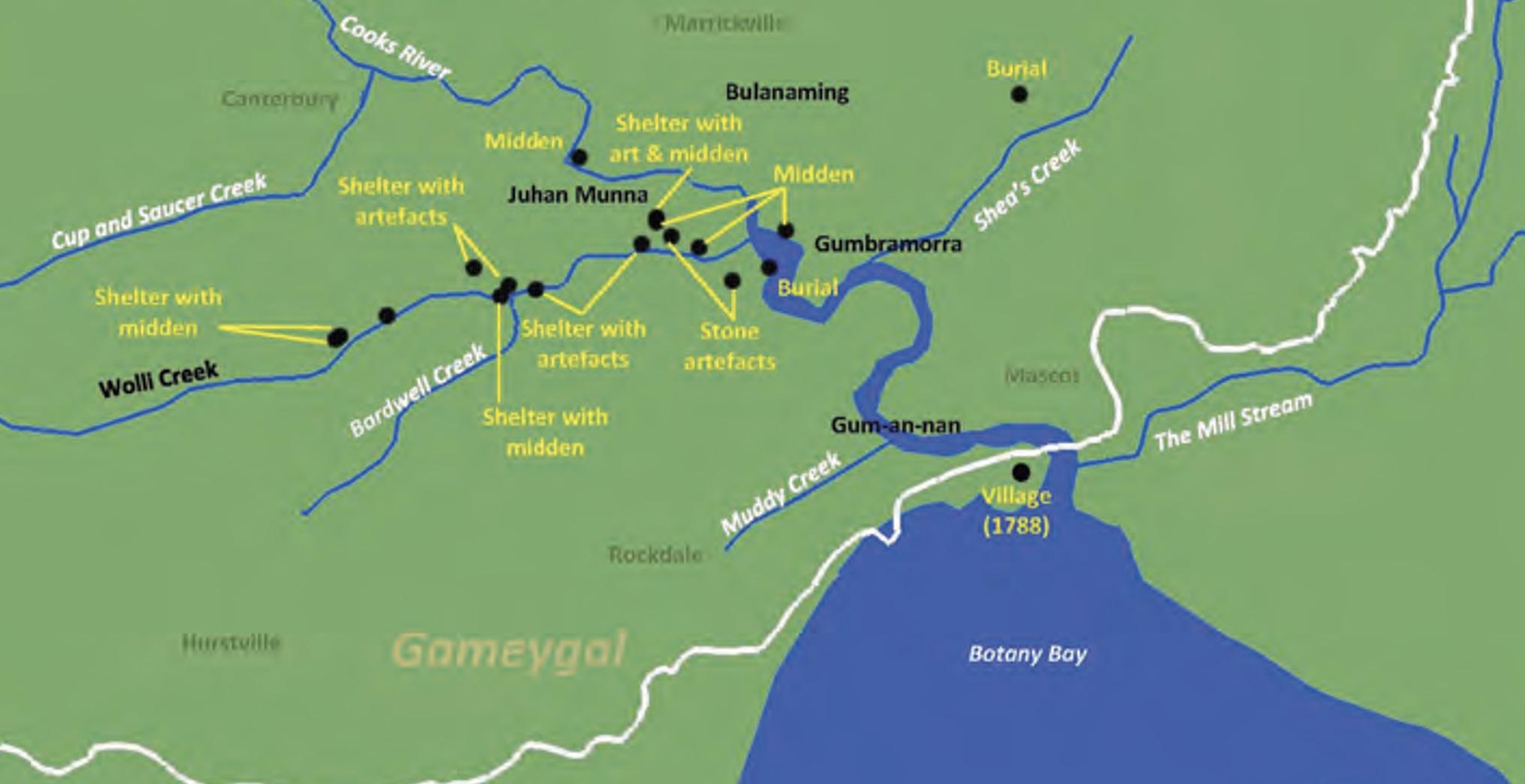

Figure 2 - Aboriginal uses of the Cooks River catchment before the arrival of Europeans. (Source: aboriginal history along the cooks river)

6 | Riverine Park Masterplan

By the turn of the century, the Sewage Farm was in crisis. There was too much sewage on too little land, and the establishment was unanimously disliked by Councils and residents. By then, government priorities were changing, and following parliamentary investigations between 1906 and 1908, the decision was made to transfer the sewage to a new ocean outfall at Long Bay.

In 1916 the SWSOOS was extended to Long Bay ocean outfall.

The whole of the sewage of Cooks River and Wolli Creek valleys now drains to this outfall. The three brick barrels, which are encased in concrete, are an excellent example of the oviform brick construction method of the time, which have provided continuous service for over 100 years. The Sewage Farm ceased operating in September 1916. Until 1939, almost all of the site of the Sewage Farm was alienated for sport or recreational facilities, once the Sewage Farm became historically expendable. Later, the SWSOOS No.2 was constructed in 1941 with both systems traversing the former Sewage Farm.

After the closure of the sewage farms, former Rockdale City Council created a large park at the site, by raising the level of the land and the swamp lands in the south-west corner no longer exists.

Figure 5 - News article about the Sewage Farm on The Daily Telegraph on Mon 11 Sep 1905

Between 1947-1956, Cook’s River was diverted south of its original mouth to a new outlet into Botany Bay, to allow for extensions to Kingsford Smith Airport. The former sewage farm land was resumed and was extensively sand mined for civil projects and later, as recently as the late 1970s, it was used as a council landfill site.

The history of the site is evident in its altered landform, disturbed and degraded vegetation and poorly developed infrastructure.

There is little remaining of former vegetation and no evidence of past use by traditional owners. Yet nature has opportunistically developed alternative habitats that thrive and are now highly valued in the Landing Lights Wetland and the enriched soils continue to support the adjoining heritage listed market gardens.

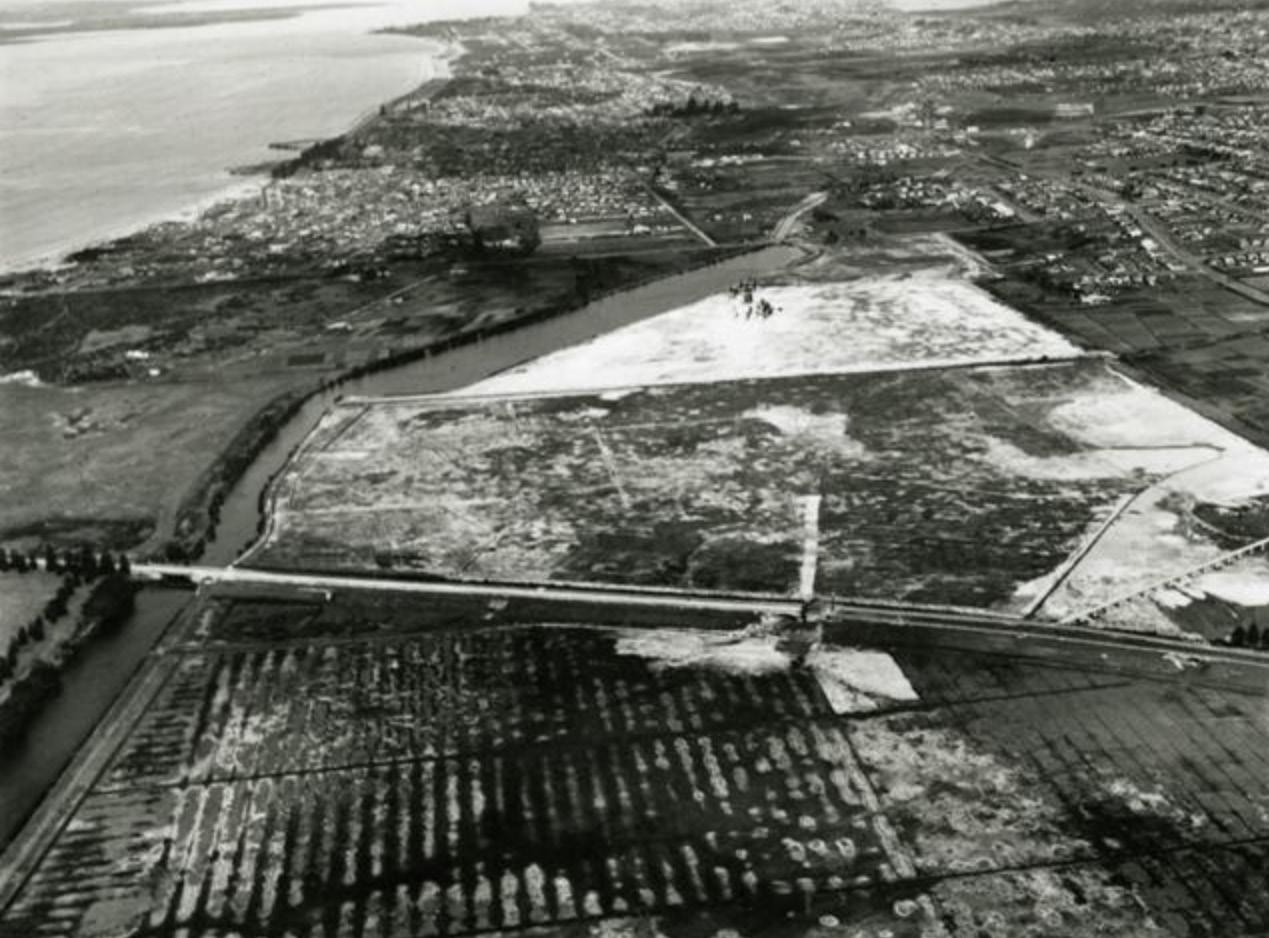

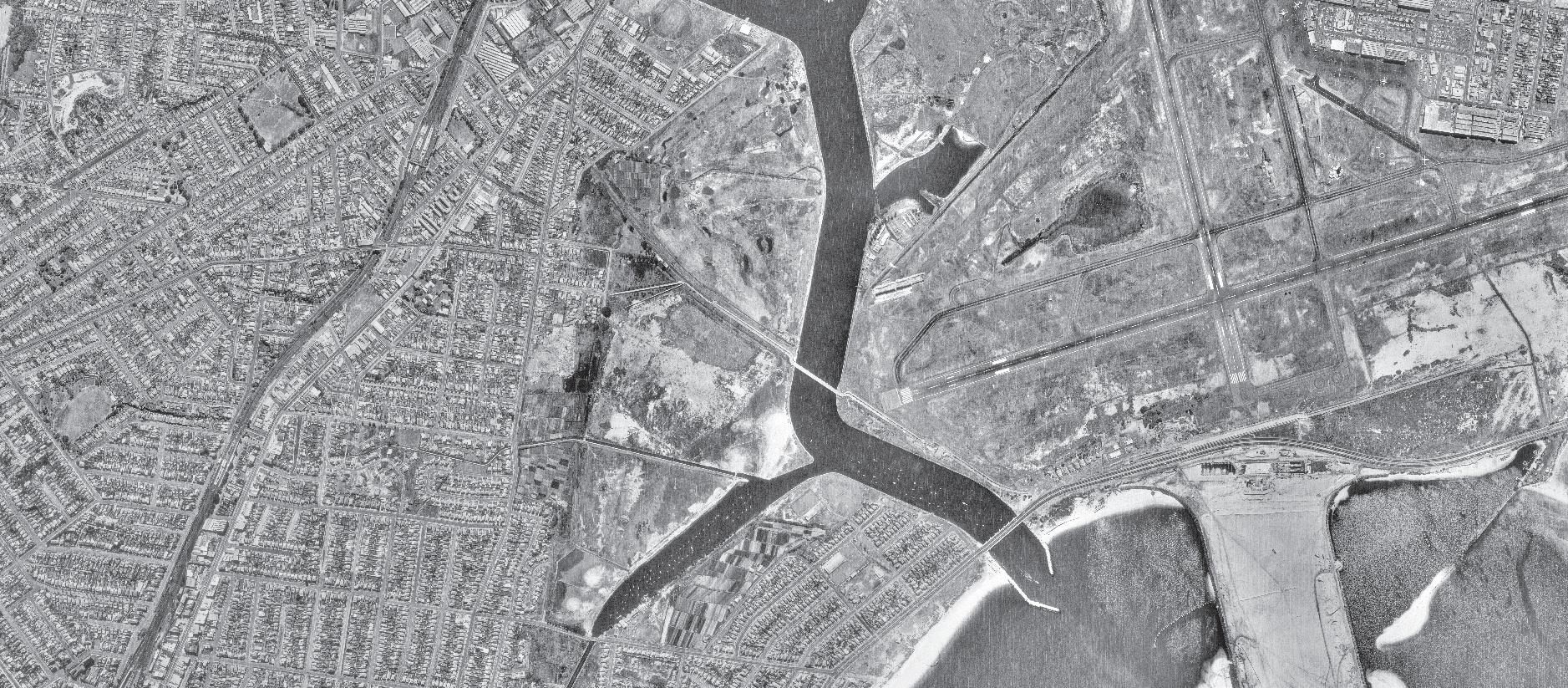

Figure 6 - Aerial view of the site and Muddy Creek before the diversion of the Cooks River, circa 1945 (Source: Bayside Library)

This area was know as Barton Park North until Riverine Park was gazetted on 25 January 1996 as a reserve and formerly named.

The name evolved from the waterways bordering the area. The name describes the planned theme of the park.

Riverine Park Masterplan | 7

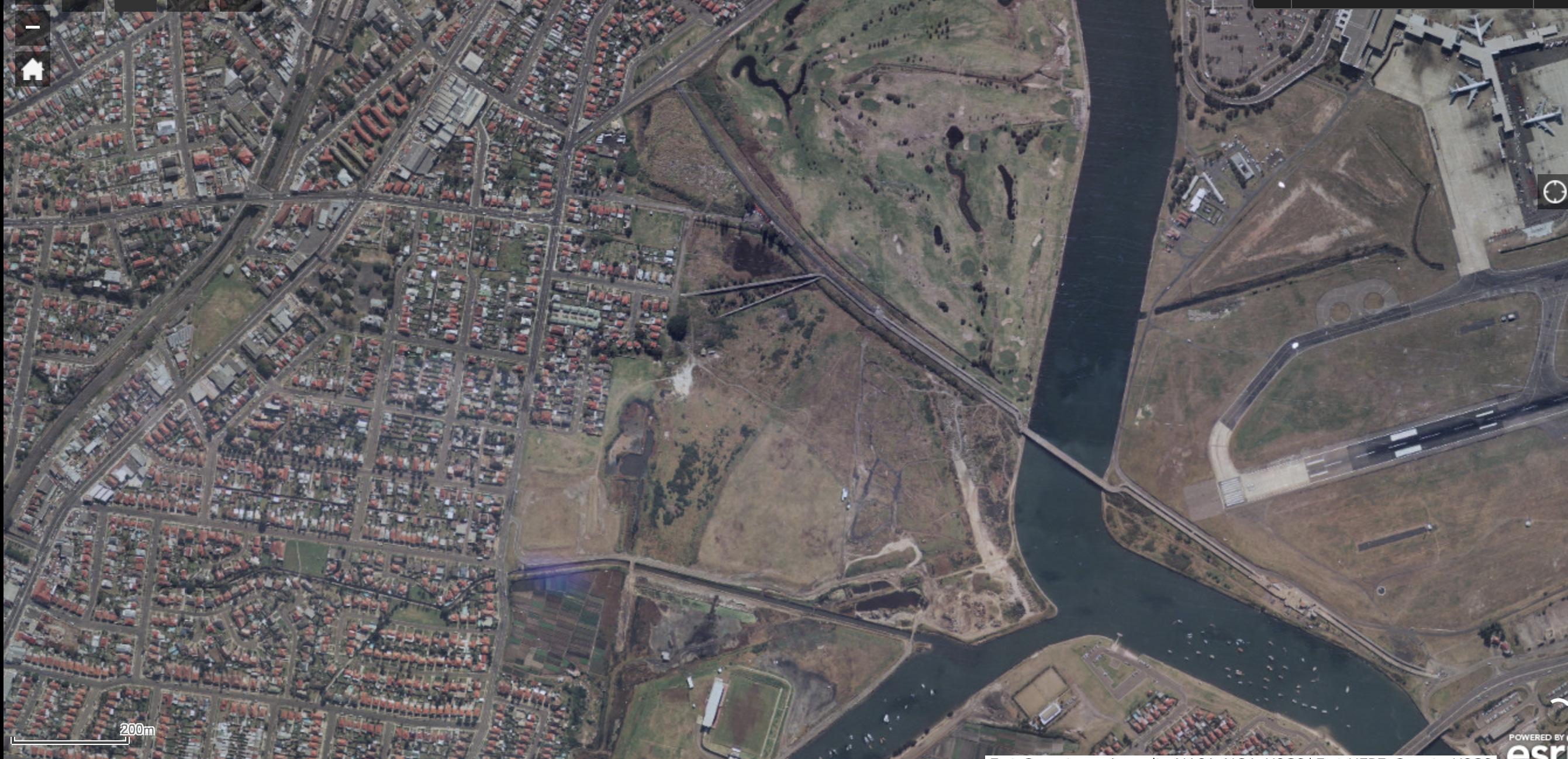

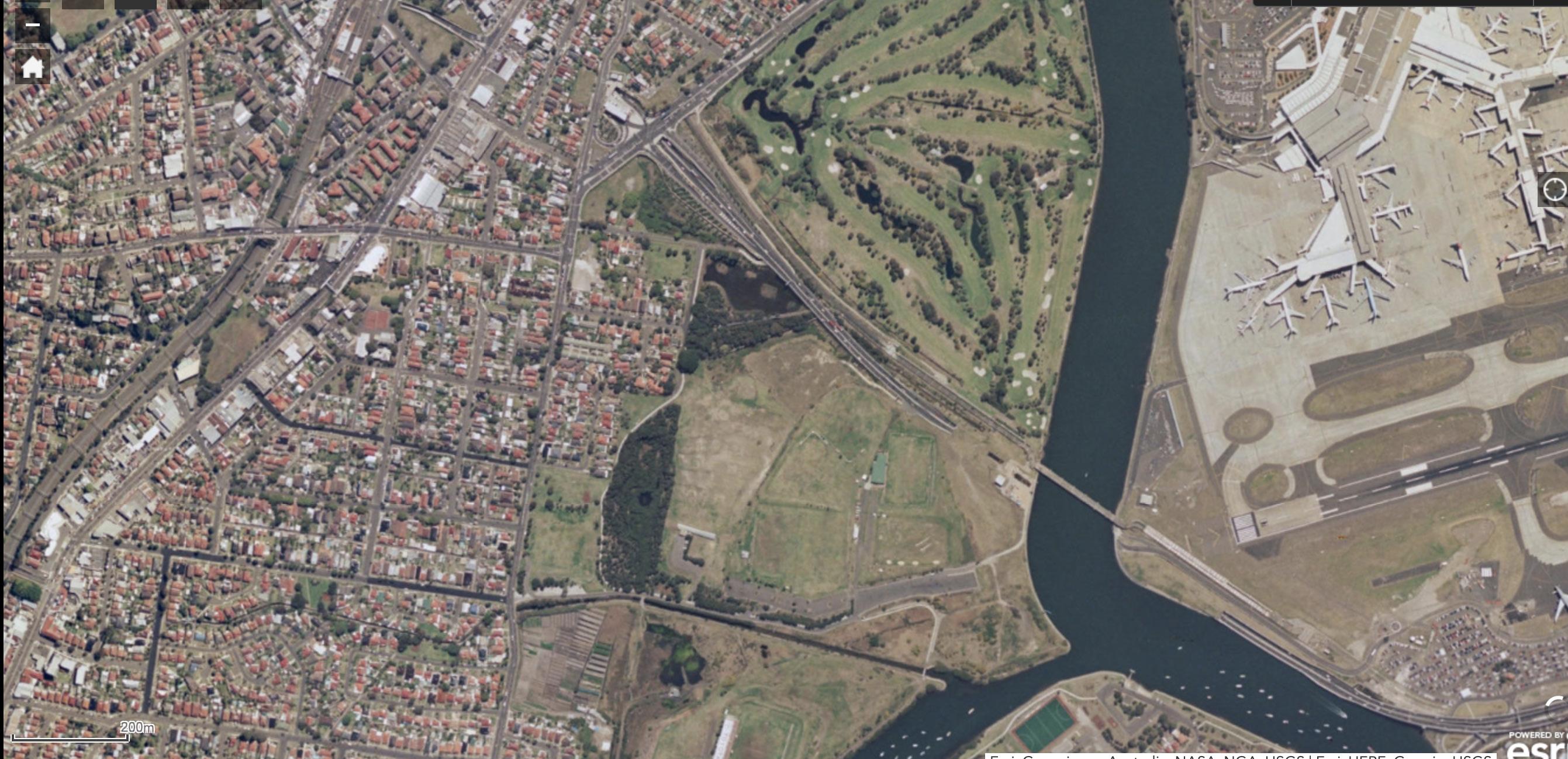

2.3 Historical Park Development The aerial maps in this section demonstrate the history of park development.

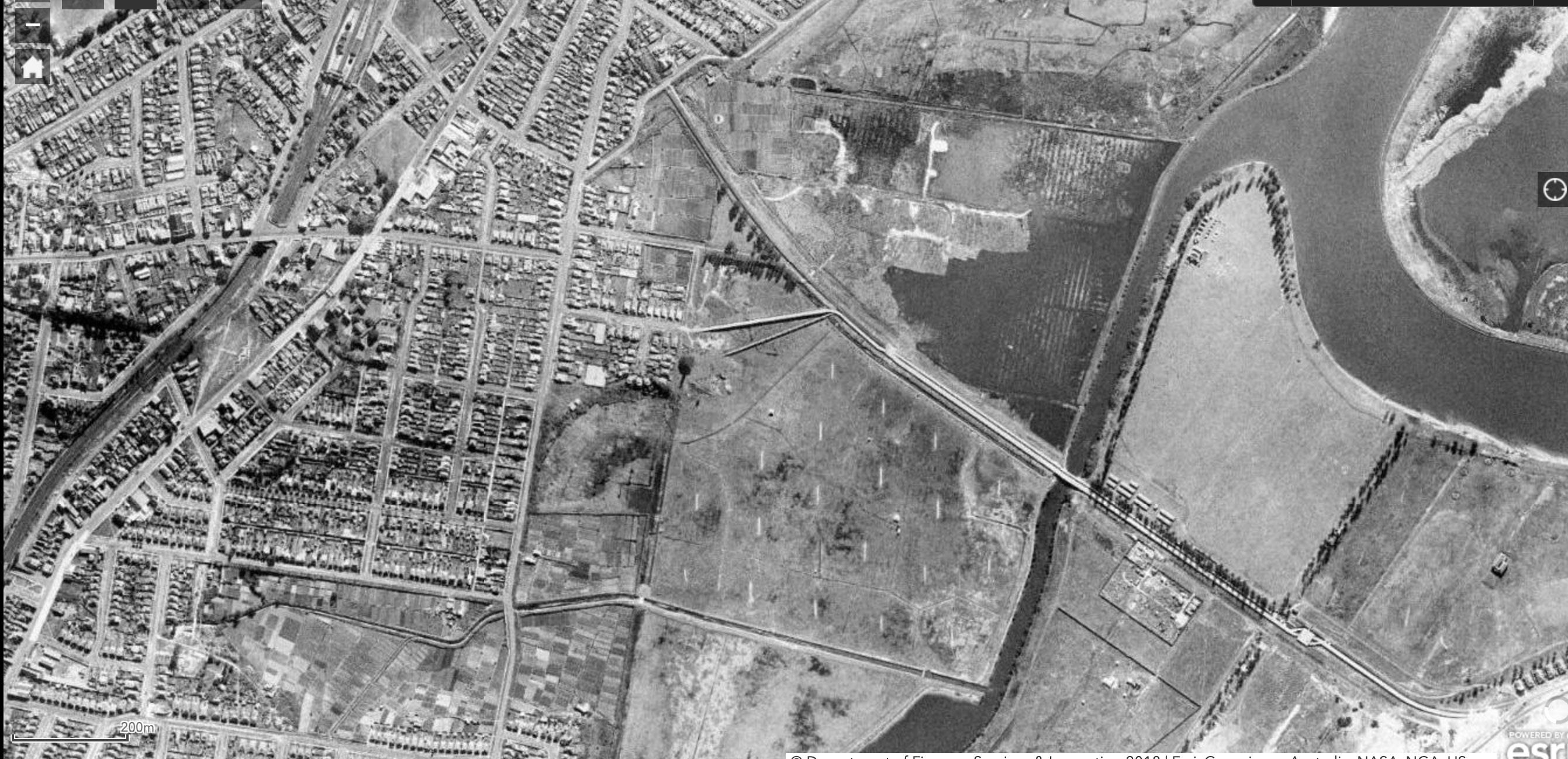

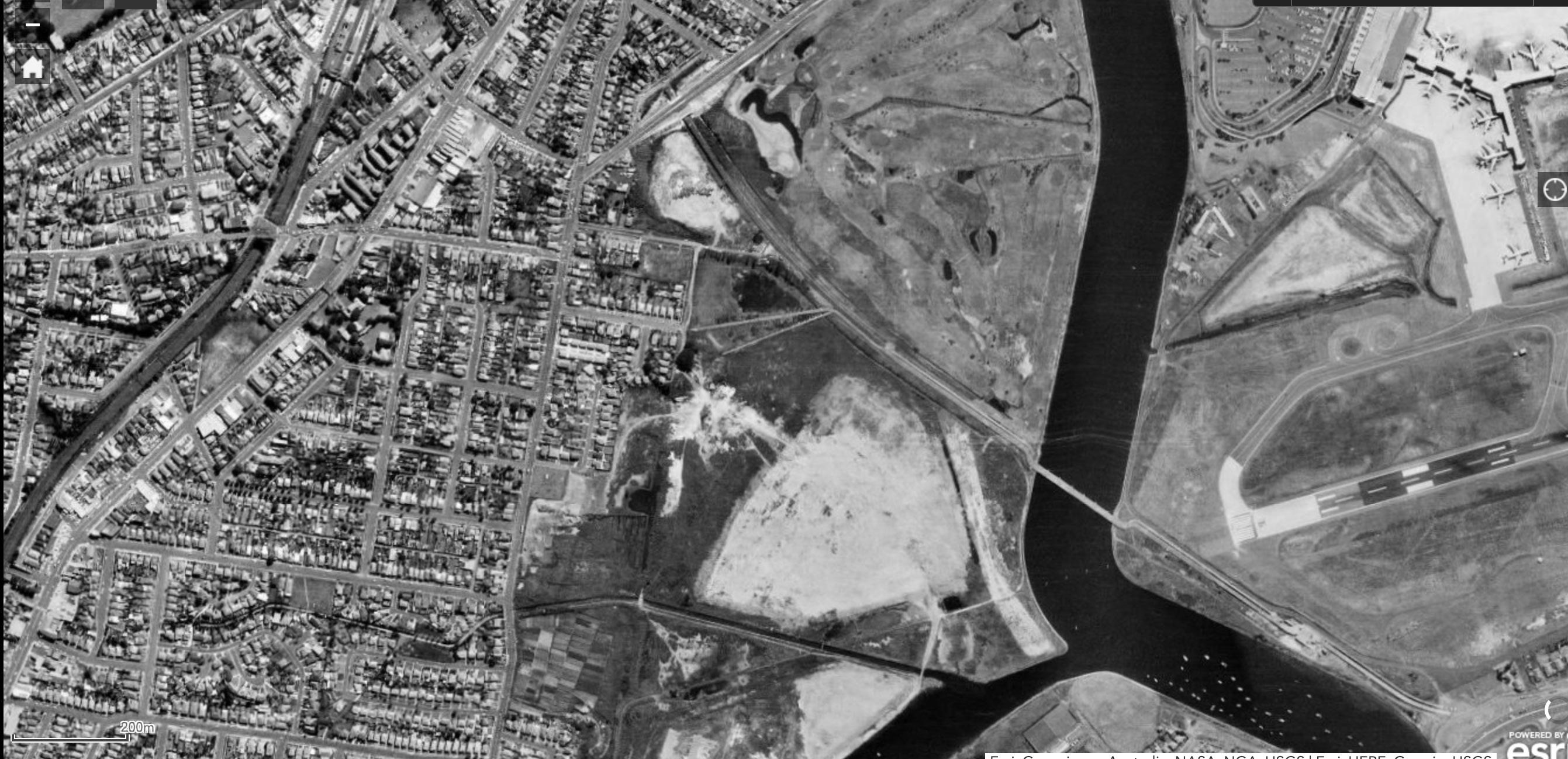

• YEAR 1943 The aerial photo taken in 1943 shows the landform before expansion of the airport and changes to the Cooks River and Muddy Creek.

The aerial map shows that the central area of the site was used as cricket fields after closure of sewer farm, while the west side facing West Botany Street and north-west corner are used as a Market Garden.

Evidence of the former sewage farm can be sighted at the adjacent Kogarah Golf Course site.

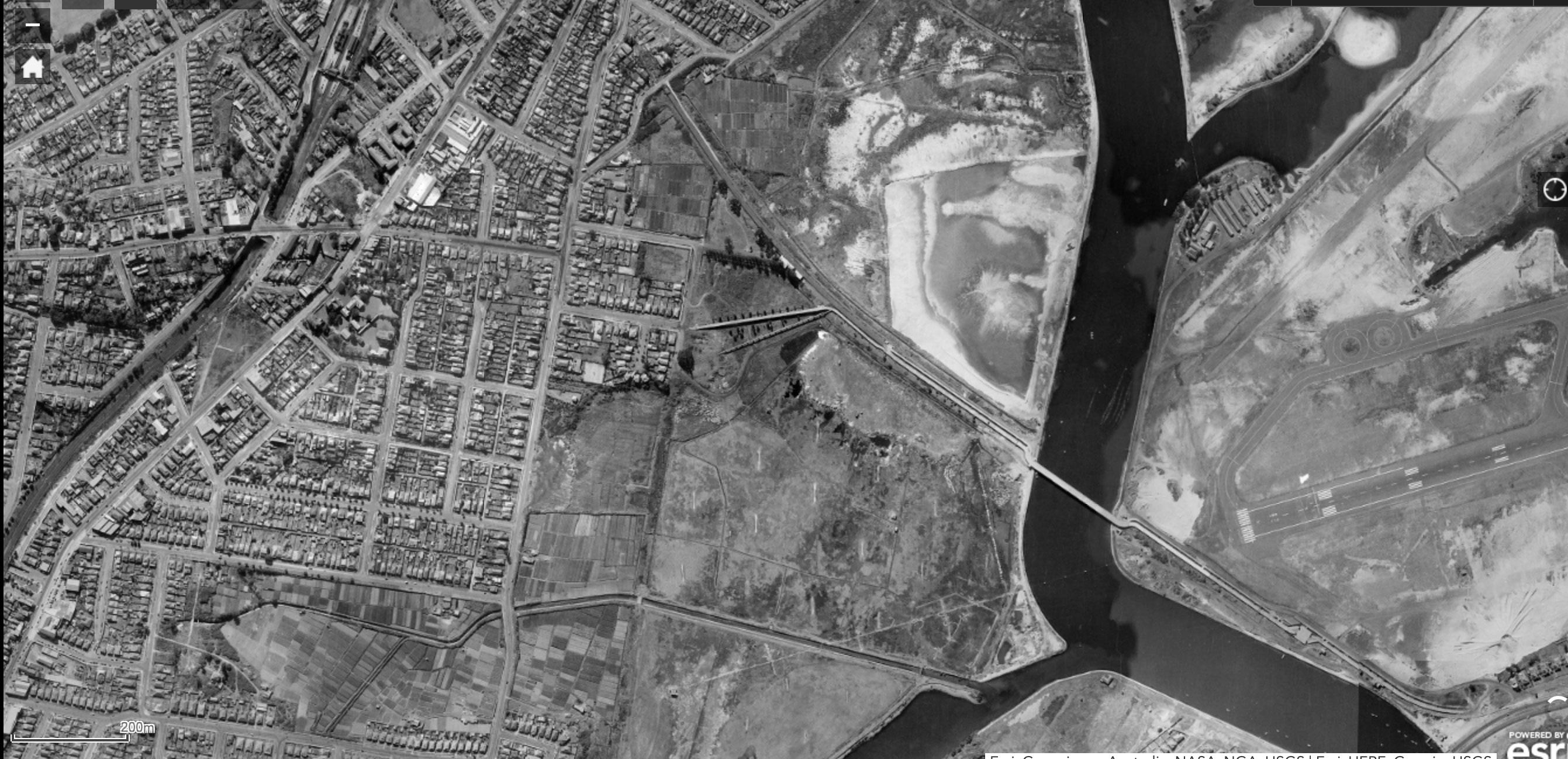

• YEAR 1955

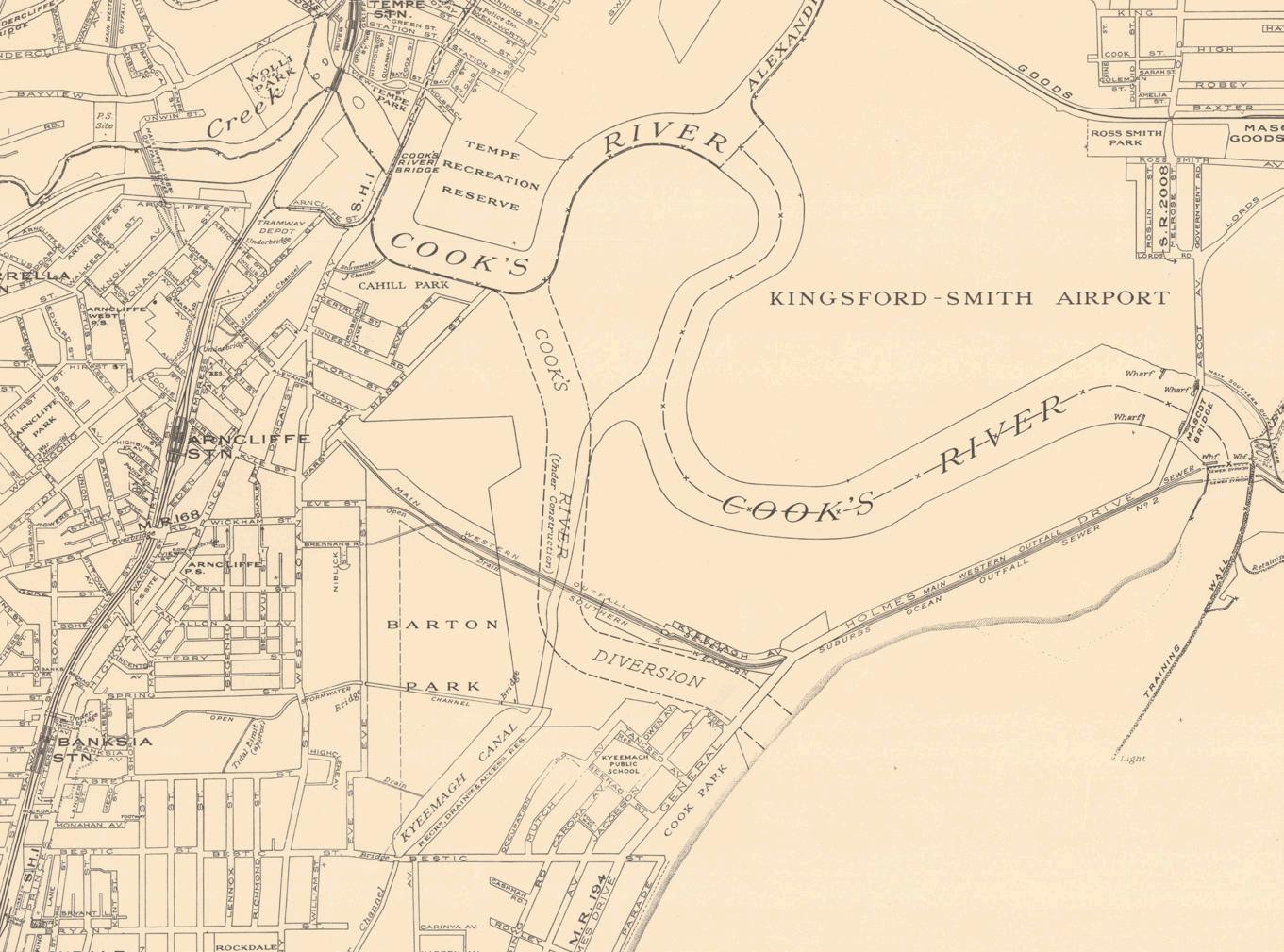

Figure 7 - The map shows the original Cooks River alignment and the realigned Cooks River. (Source: New South Wales. Department of Lands, cartographer & Central Mapping Authority of New South Wales. (1950). City of Sydney & environs.)

The aerial photo in the 1950s shows that the landform is already significantly disturbed. Muddy Creek and the mouth of the Cooks River have been substantially changed due to the expansion of the airport.

The northern corner of the site and adjacent areas north were excavated for sand mining. There is evidence of a golf course north of that area.

• YEAR 1965 This site and the adjacent future parklands north and south were continually use for sand mining and land fill during this period.

The expansion of Sydney Airport continues on the reclaimed land.

More residential developments appears in the area, replacing some of the market garden and paddock areas.

Figure 8 - Work underway on the building of the triple sewer at Kyeemagh after the reclamation and diversion of the Cooks River, late 1940s (Source: Bayside Library)

8 | Riverine Park Masterplan

• Year 1975 By this time, the site was operated as a landfill for council operations.

Ponds was extended in the lower areas of the site to become the Eve Street Wetland, Spring Creek Wetland and Landing Light Wetland later.

The adjacent land north is expanded as a golf course in areas formerly mined for sand.

More land was reclaimed by the airport.

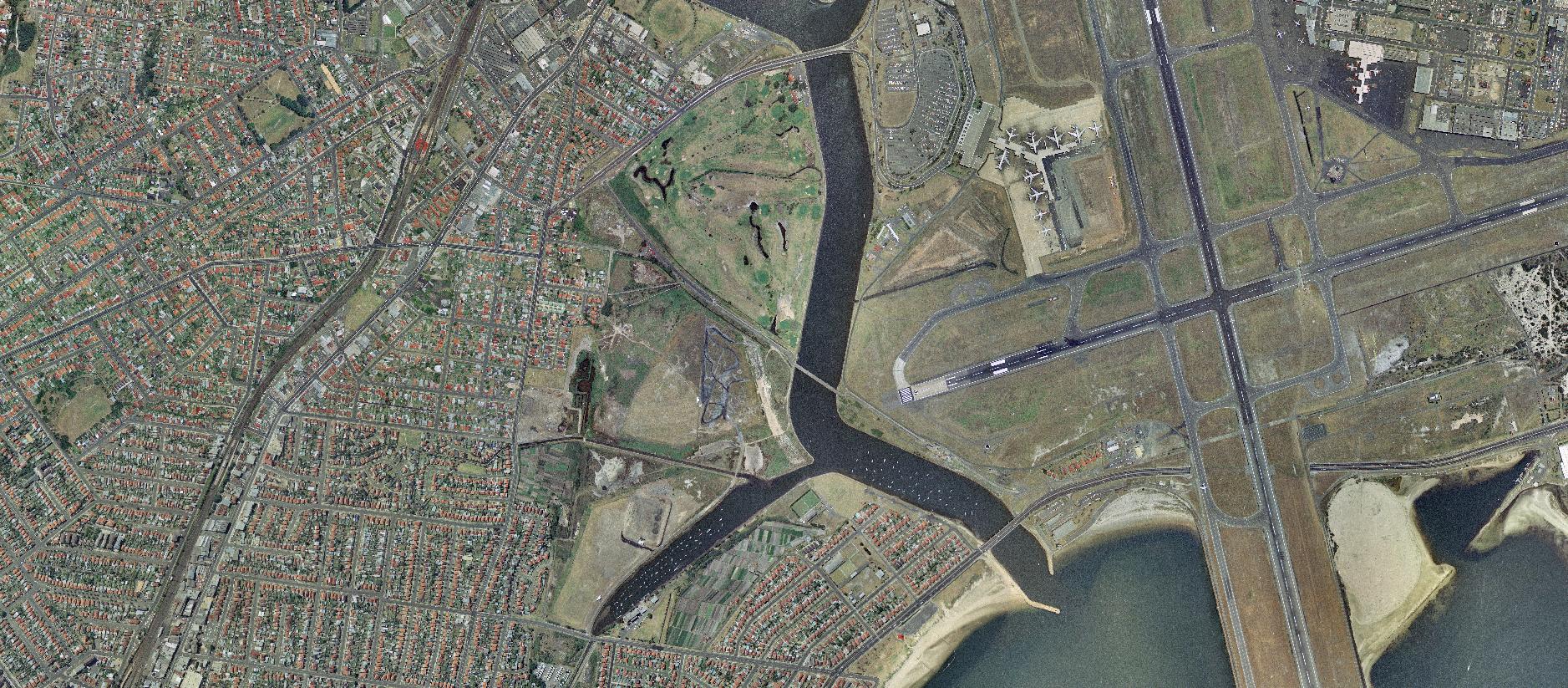

• YEAR 1977 Figure 9 - Aerial view of Cooks River Entrance and the Airport in 1973, Riverine Park is visible in the background (Source: National Archives of Australia)

The precinct was filled and levelled and started to be used for sports and recreation again.

Some bike tracks can be seen at the eastern side of the site. Meanwhile, a stadium was built at Barton Park (south) and opened to public in 1978.

More market gardens in the West Botany Road precinct are disappearing.

• YEAR 1982

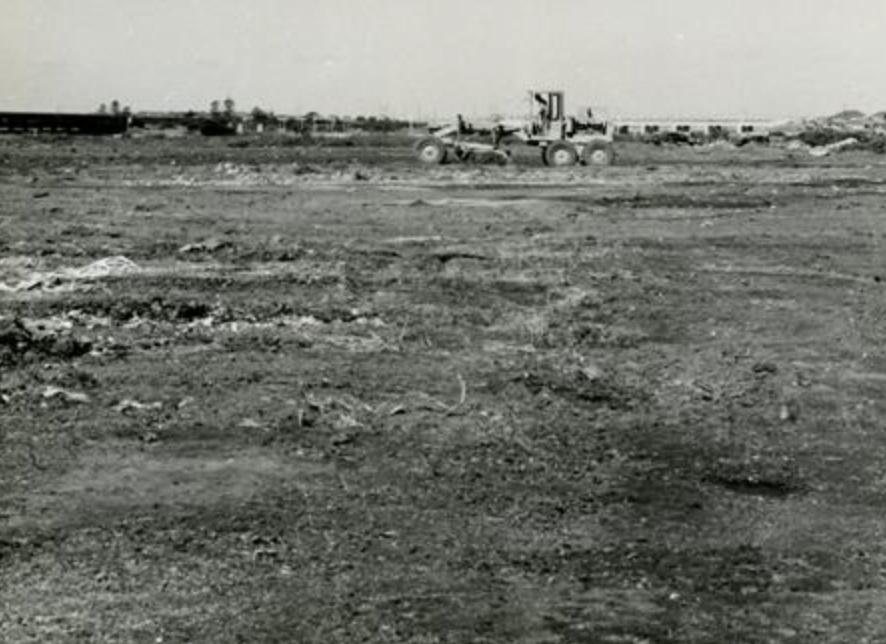

Figure 10 - Photo taken during development of park, after completion of garbage filling, levelling of land near the sewer carrier. September 1959 (Source: Bayside Library)

The aerial photo shows that the market garden within the site was completely removed by 1982. The site remains grass land with few canopy trees.

An asphalt vehicle road was built off West Botany Street to provide formal access to the site.

A small building is evident in the middle of the site.

Riverine Park Masterplan | 9

• YEAR 1994 The aerial shows the extensive grass cover across the site which is used for sport. Carparks, buildings and paths were created to serve the golf driving range and fields.

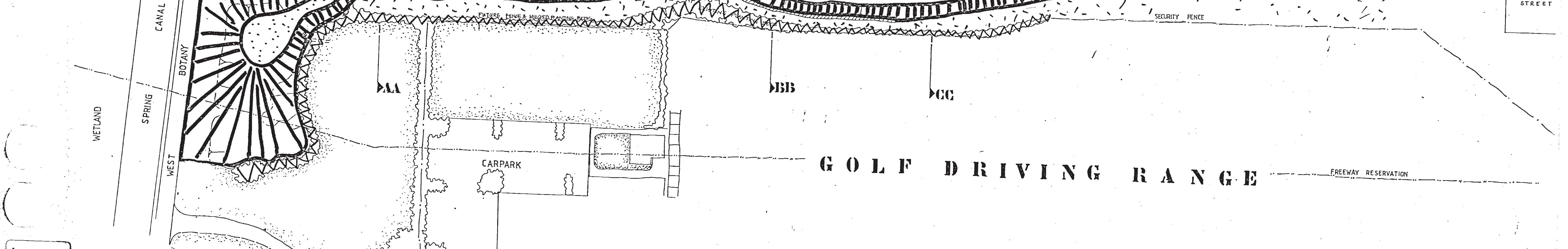

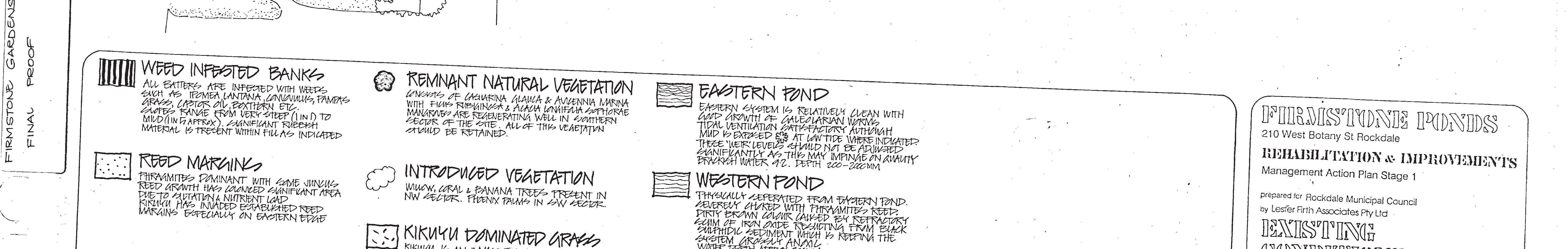

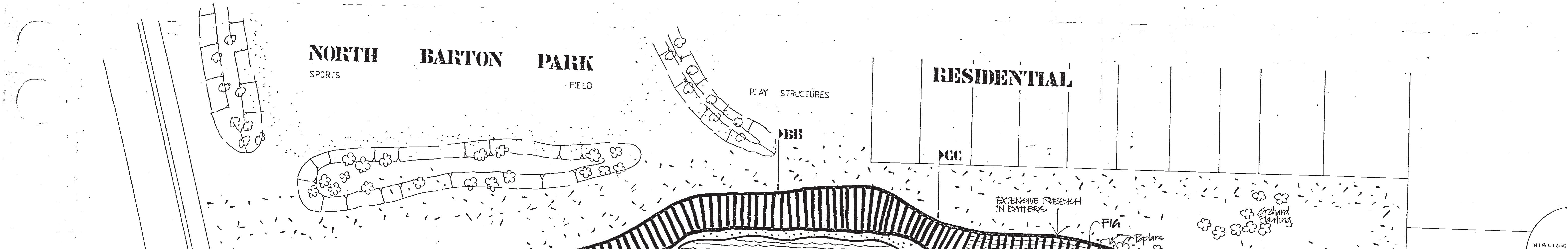

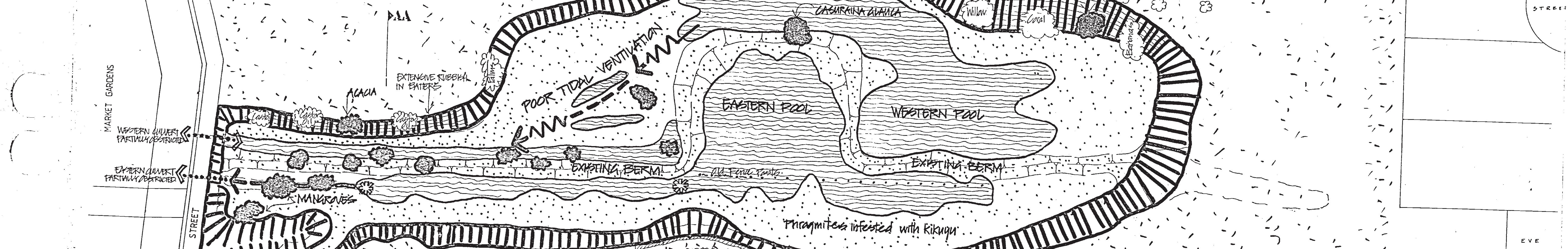

Figure 11 - The 1992 design of Spring Creek Wetland

In 1988, bicentennial funding was made available for various council projects including a large salt marsh project near the Spring Creek Canal. During 1992-1993, work was undertaken at the Spring Creek Wetland, and officially opened to public in February 1994.

• YEAR 2004 This site was known as Barton Park North until the name Riverine Park was first gazetted on 25 January 1996 as a reserve.

Between 1998 and 2001, the M5 Motorway East was constructed.

In the aerial map dated 2004, it emerges from the tunnel at Marsh Street, running parallel with the SWSOOS, along the northern boundary of Riverine Park crossing the Cooks River via an underground tunnel. A playground is evident at Firmstone Gardens.

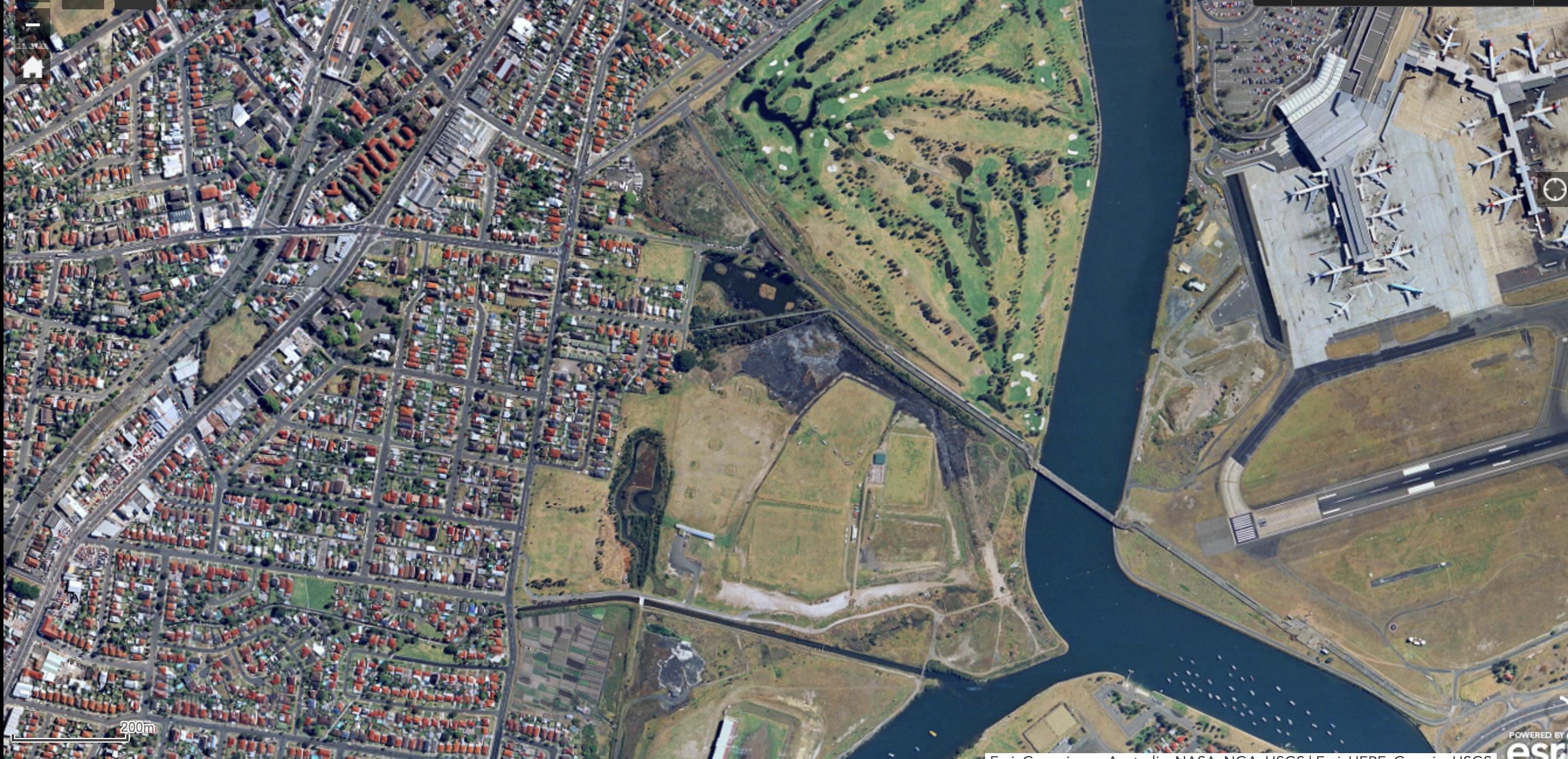

• Year 2022 The park is used for sports activities and the playground has received a shade structure.

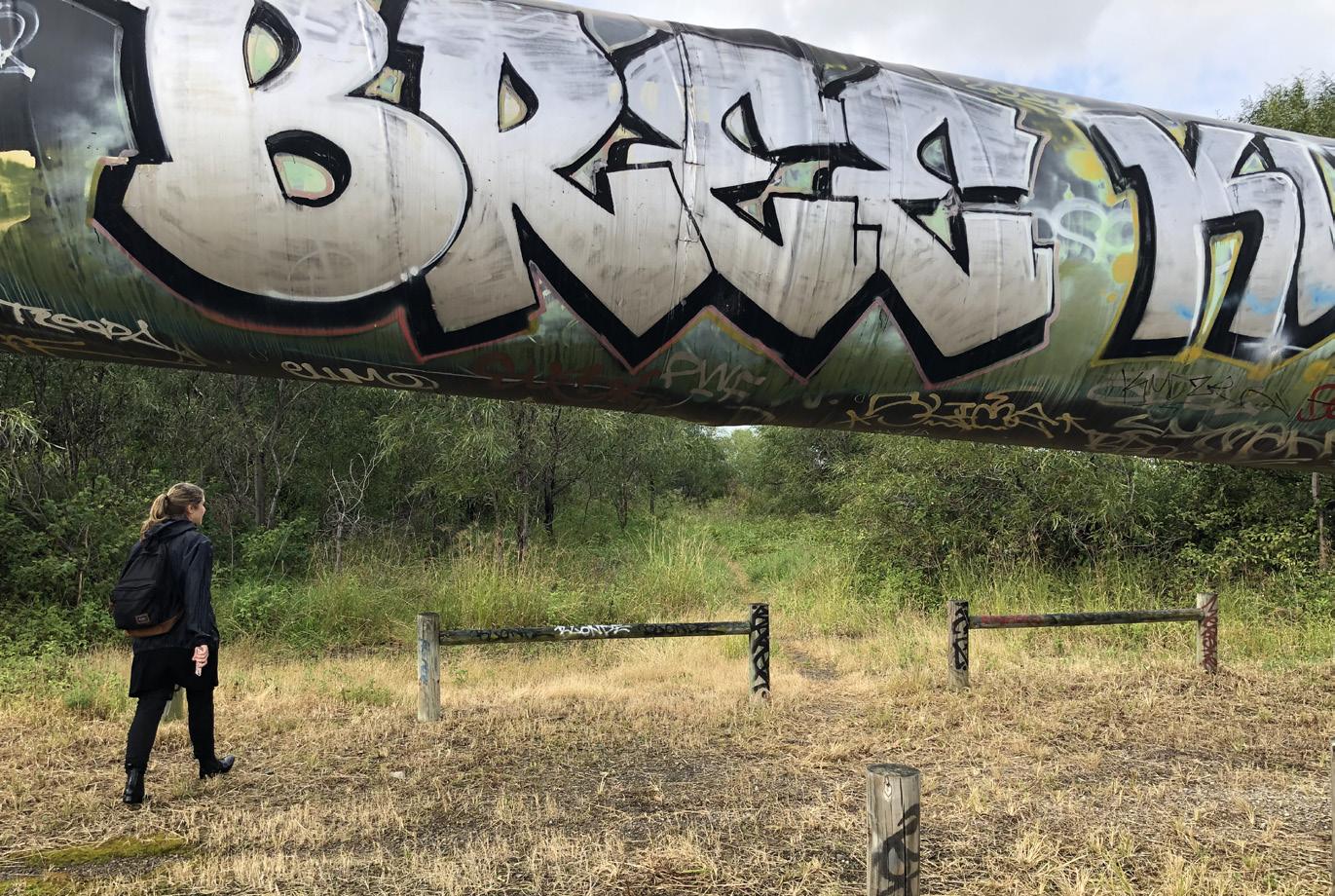

Around 2010, a desalination pipe was installation by Sydney Water to connect Kurnell desalination plant to Erskineville. The installation of the pipe removed existing vegetation near the eastern boundary of Riverine Park which can be seen in the aerial map. The pipe is not always underground and can be seen emerging or impacting landform along its route.

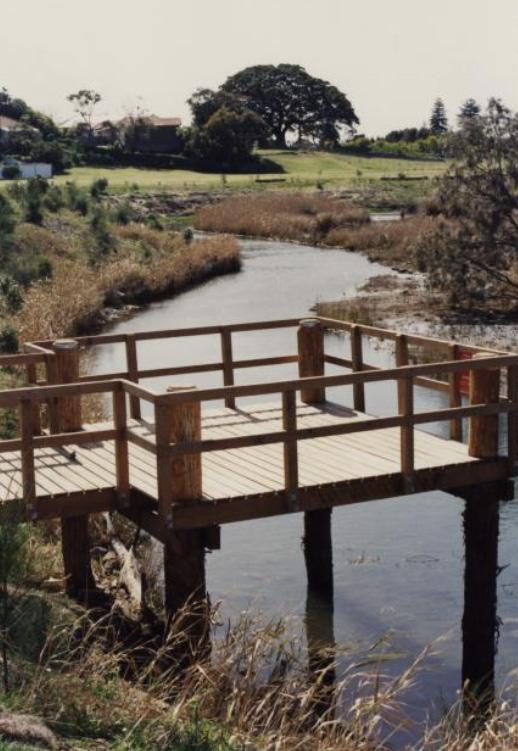

Figure 12 - A photo of Spring Creek Wetland, 1993 (Source: Bayside Library)

10 | Riverine Park Masterplan

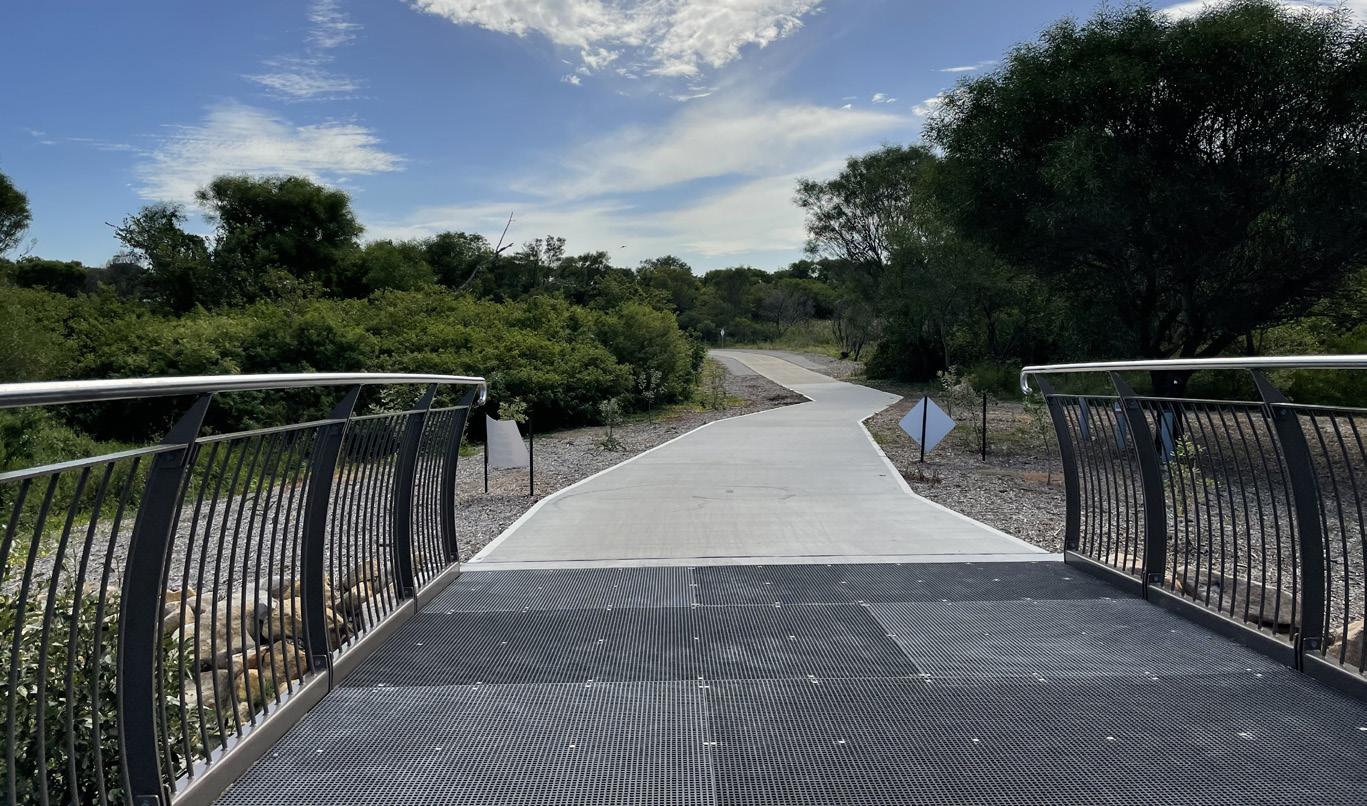

Recently, Council upgraded the pedestrian bridge at the mouth of the Spring Creek significantly improving user safety.

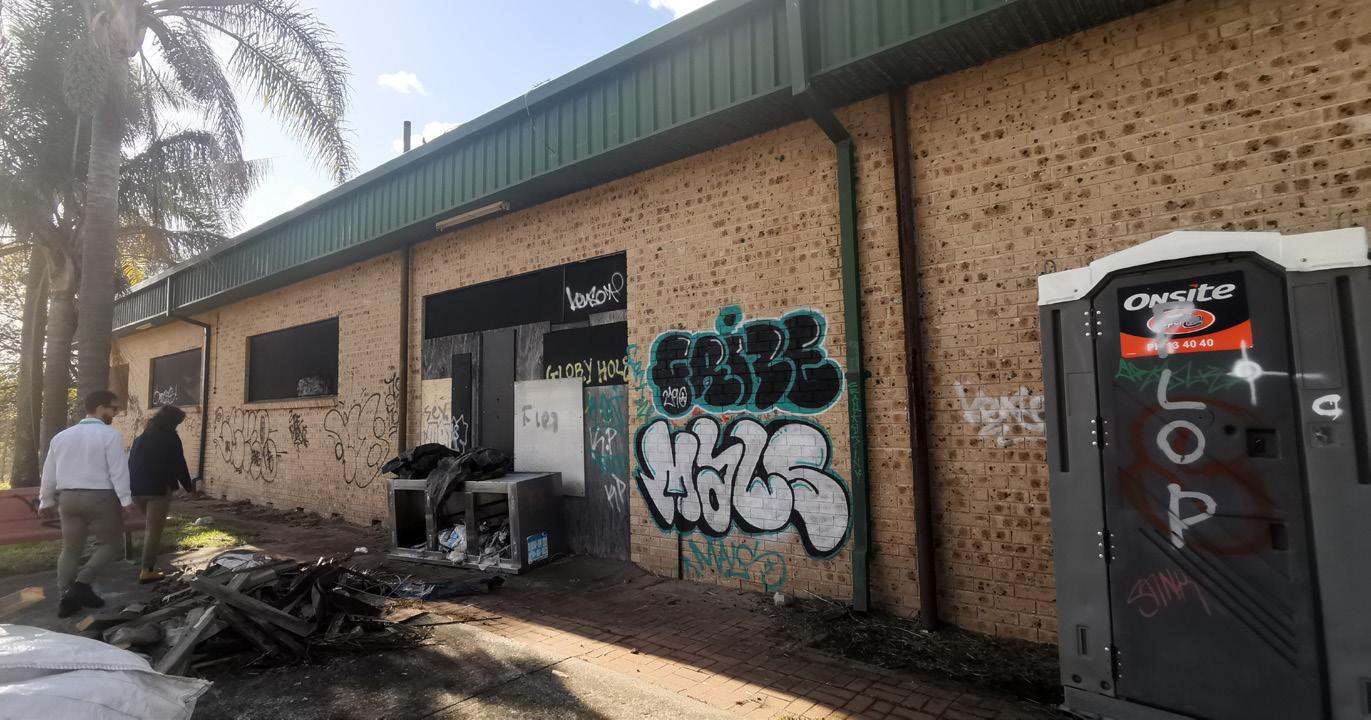

2.4 Existing Facilities and Character NOTE: site condition photos are on the following pages.

M6 Stage 1 Compound

KEY

11C

1. Main park entry from West Botany Street 2. Firmstone Garden Playground

11a

16

11b

Kogarah Golf Course 14

3. Spring Creek Wetland 4. Golf Driving Range 5. Eve Street shared path and Moreton Bay Fig 6. Sport fields 7. Dilapidated amenity building

5

8. Spring Creek 9. Car park 10. Active Transport Link and Barton Park Bridge

17

6b

11. Eve Street Wetland 7

2 6a

4

3

15

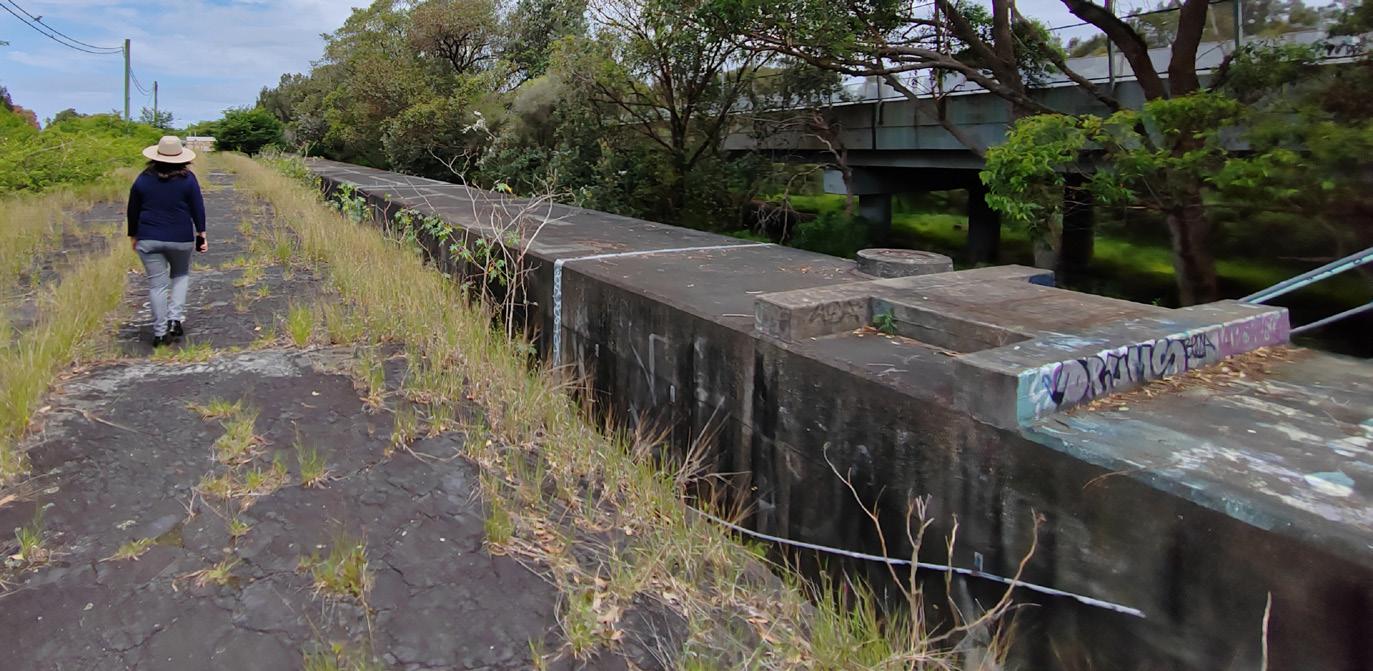

12. Landing Lights Wetland 13. Arncliffe Market Garden 14. Southern and Western Suburbs Ocean Outfall Sewer

7

(SWSOOS) 15. WestConnex Electrical Substation and associated compound 9

8

1

18

19

16. Eve St Reserve 17. Sydney water desalination pipe

13

12a

10a 12b 10b

18. Ausgrid temporary work compound 19. Temporary compound

Barton Park

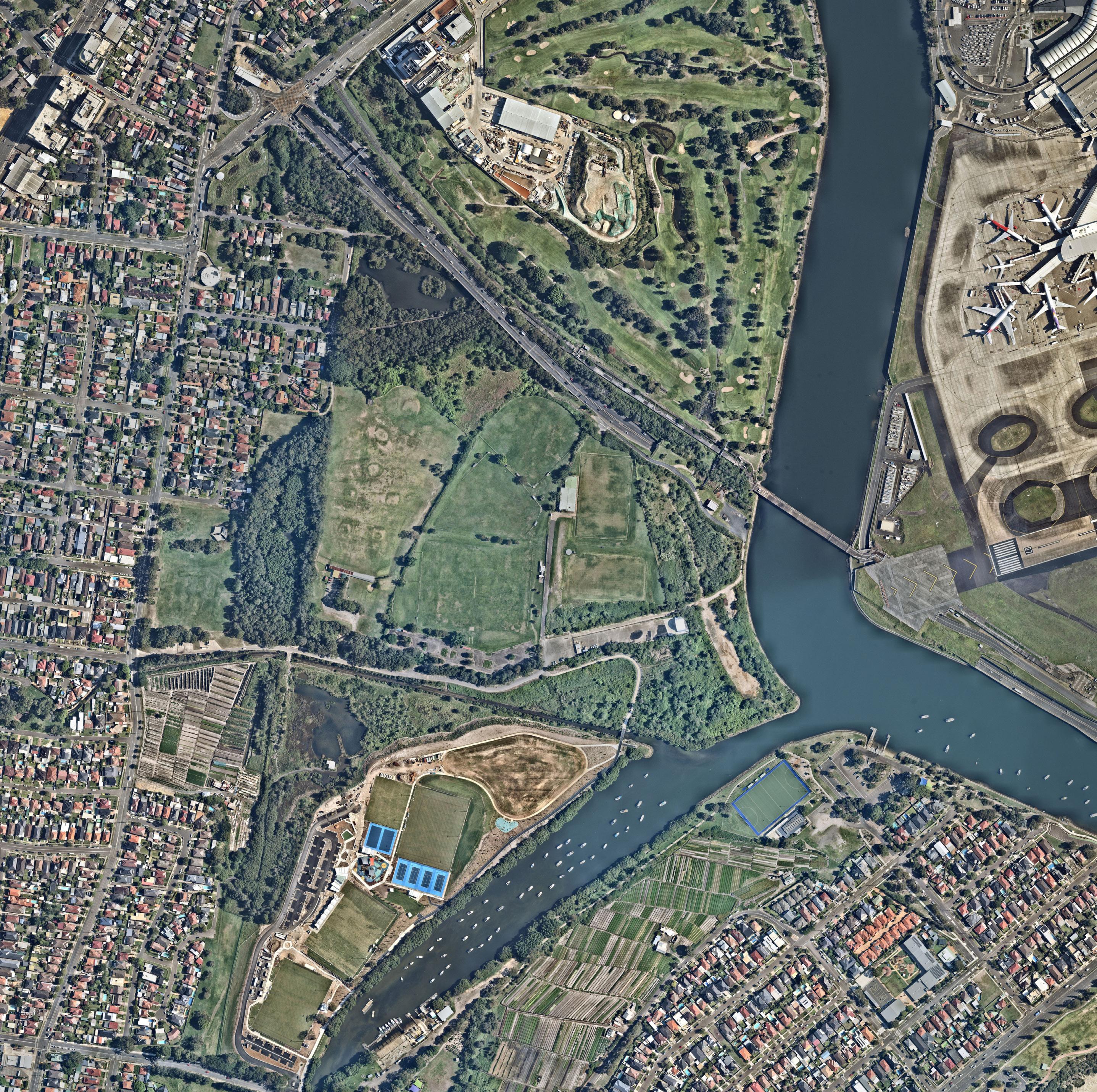

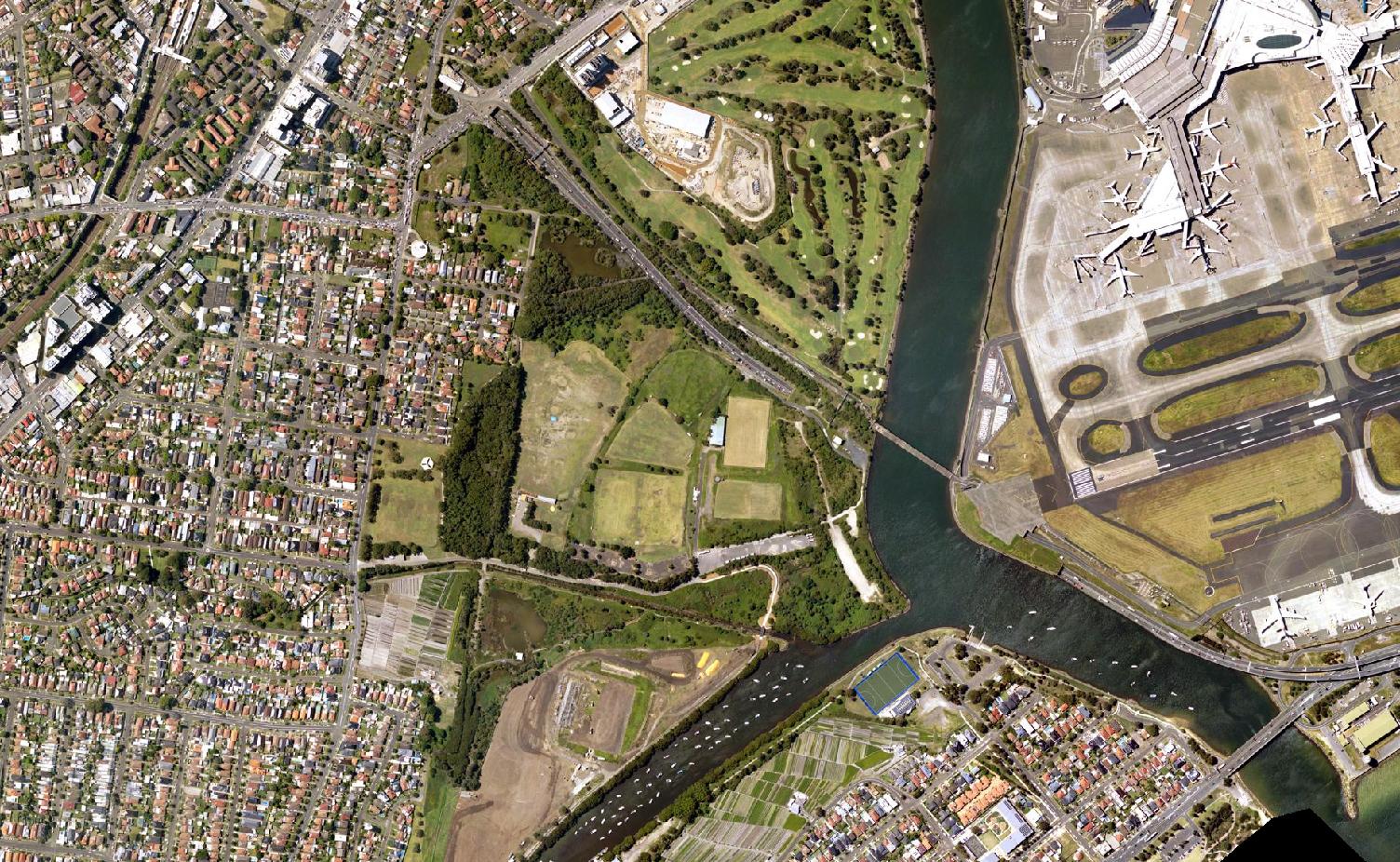

Figure 13 - Existing Site (Source from: 2024 Near Map)

Riverine Park Masterplan | 11

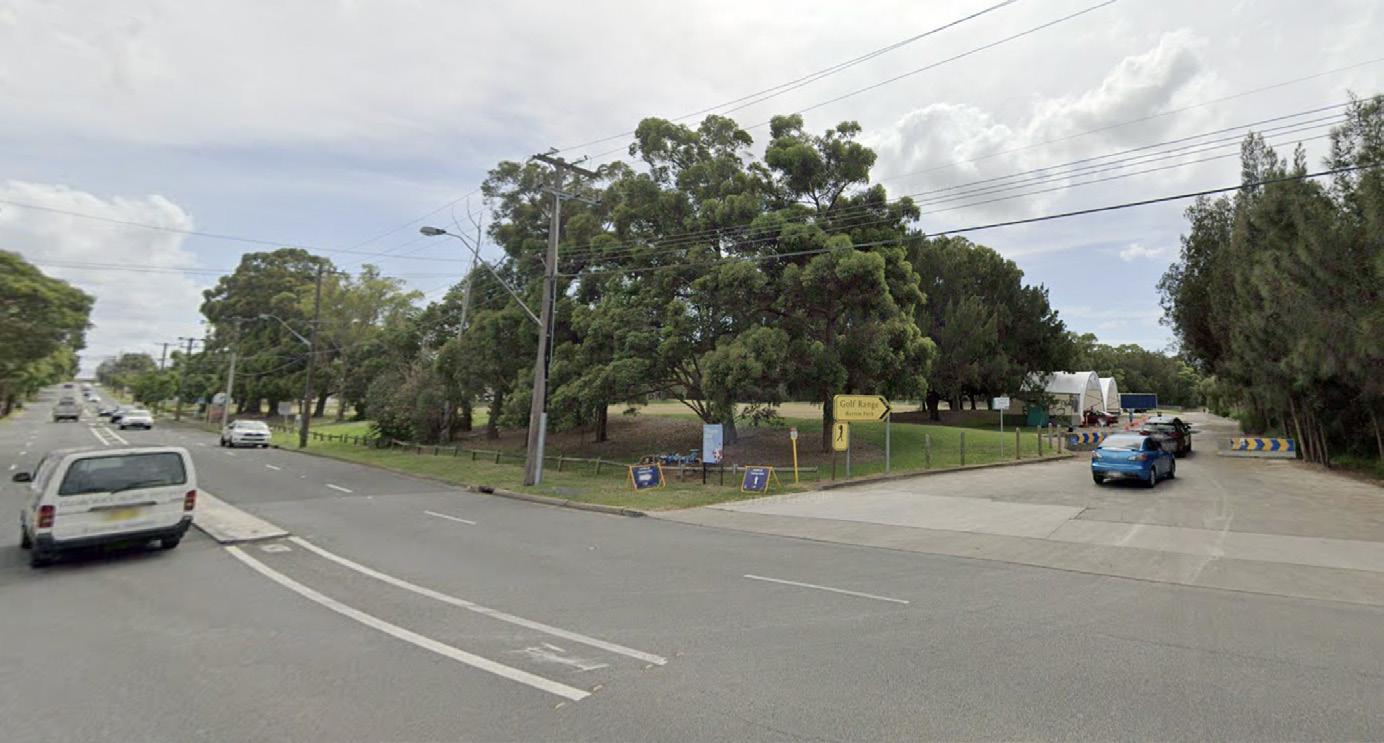

1. Main park entry from West Botany Street

3. Spring Creek Wetland

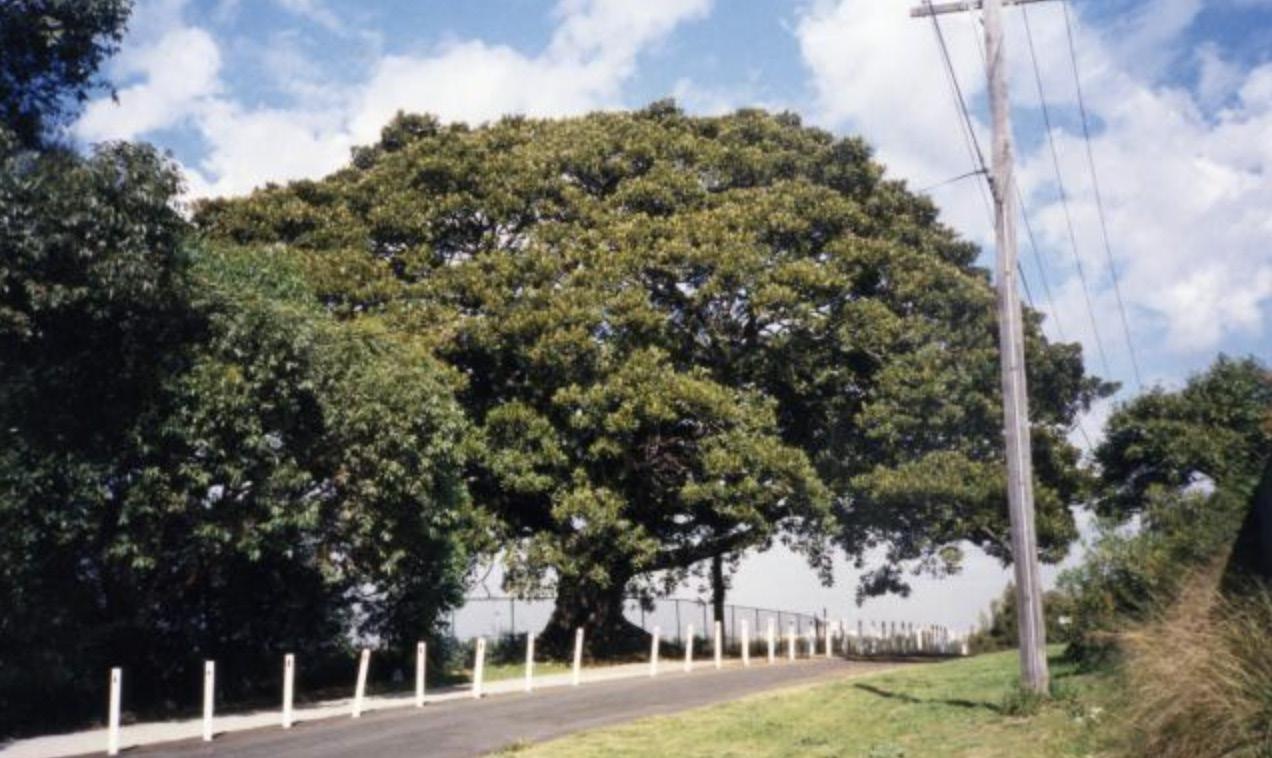

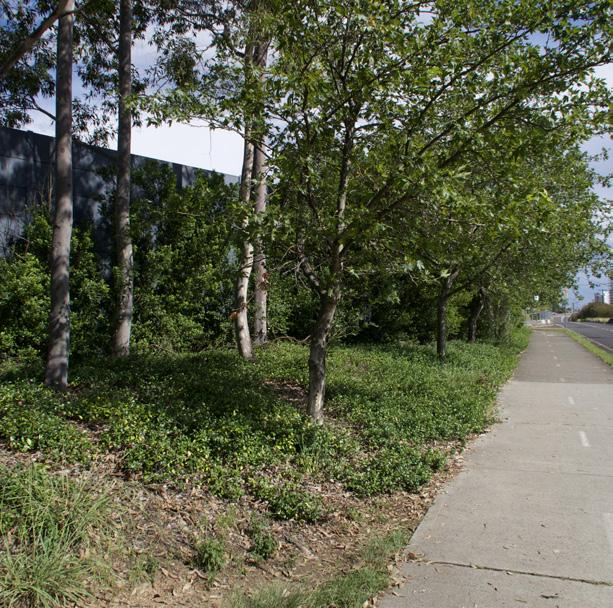

5. Eve Street shared path and Moreton Bay Fig

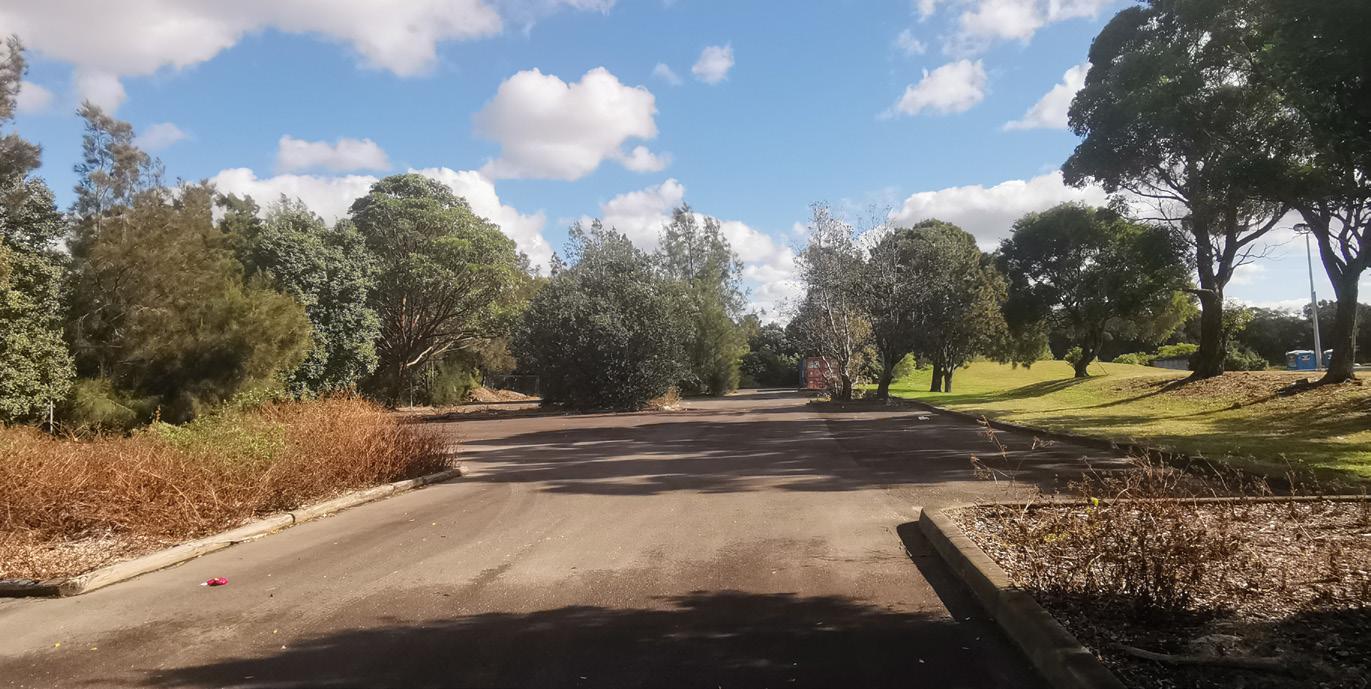

The main vehicle entrance to Riverine Park is accessed from West Botany Street. It’s a vehicle and pedestrian mixed environment.

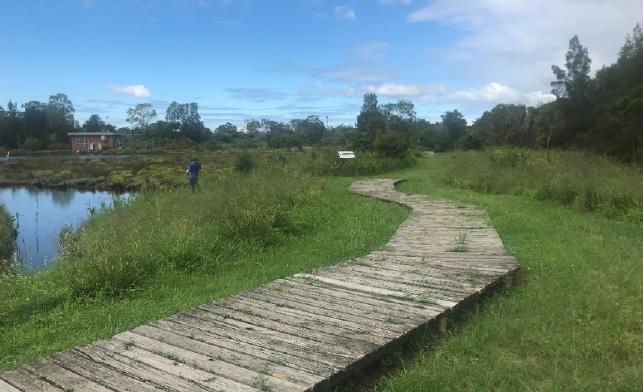

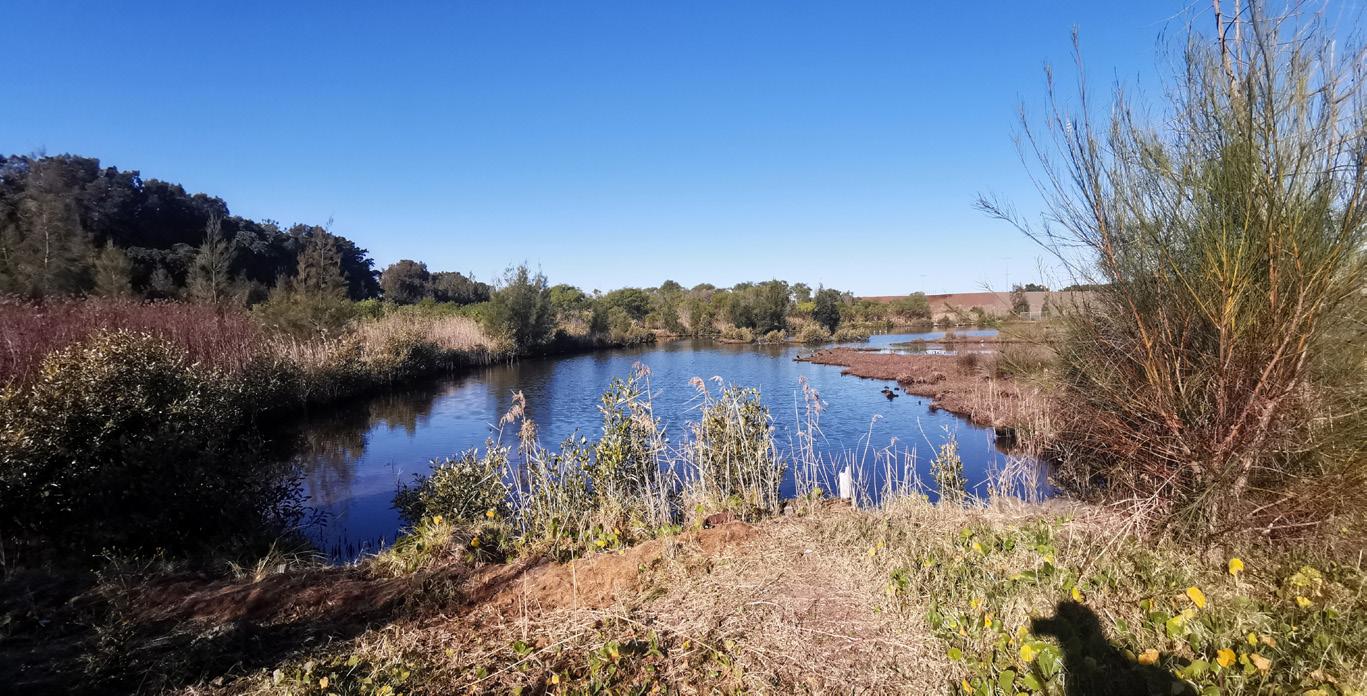

This rehabilitated wetland was constructed in 1994 but continues to suffer problems arising from poor design and construction. Its small catchment area leads to insufficient water levels, and the lack of maintenance has further degraded its condition.

Situated at the end of Eve Street, the notable Fig tree acts as a distinctive landmark and elegantly frames the entrance to Riverine Park. Aerial imagery from as early as 1943 confirms the tree’s long-standing presence. The tree provides substantial shade, supports local biodiversity and enhances the area’s comfort and aesthetic appeal.

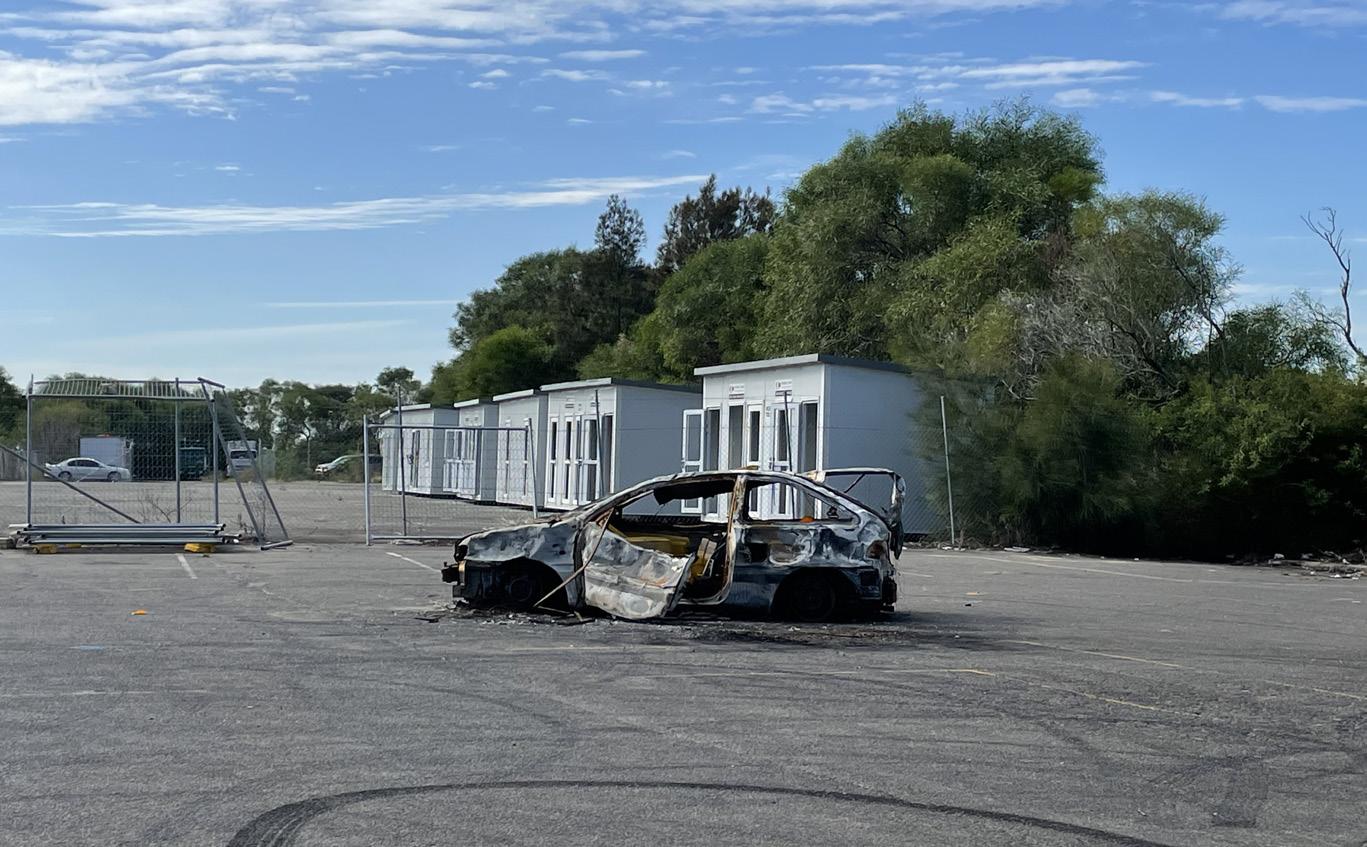

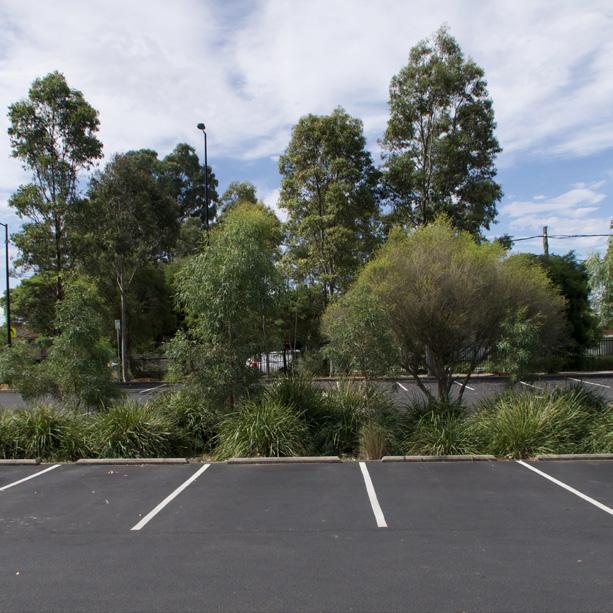

This small car park near the entry was used for a drive-through collection centre during the Covid pandemic.

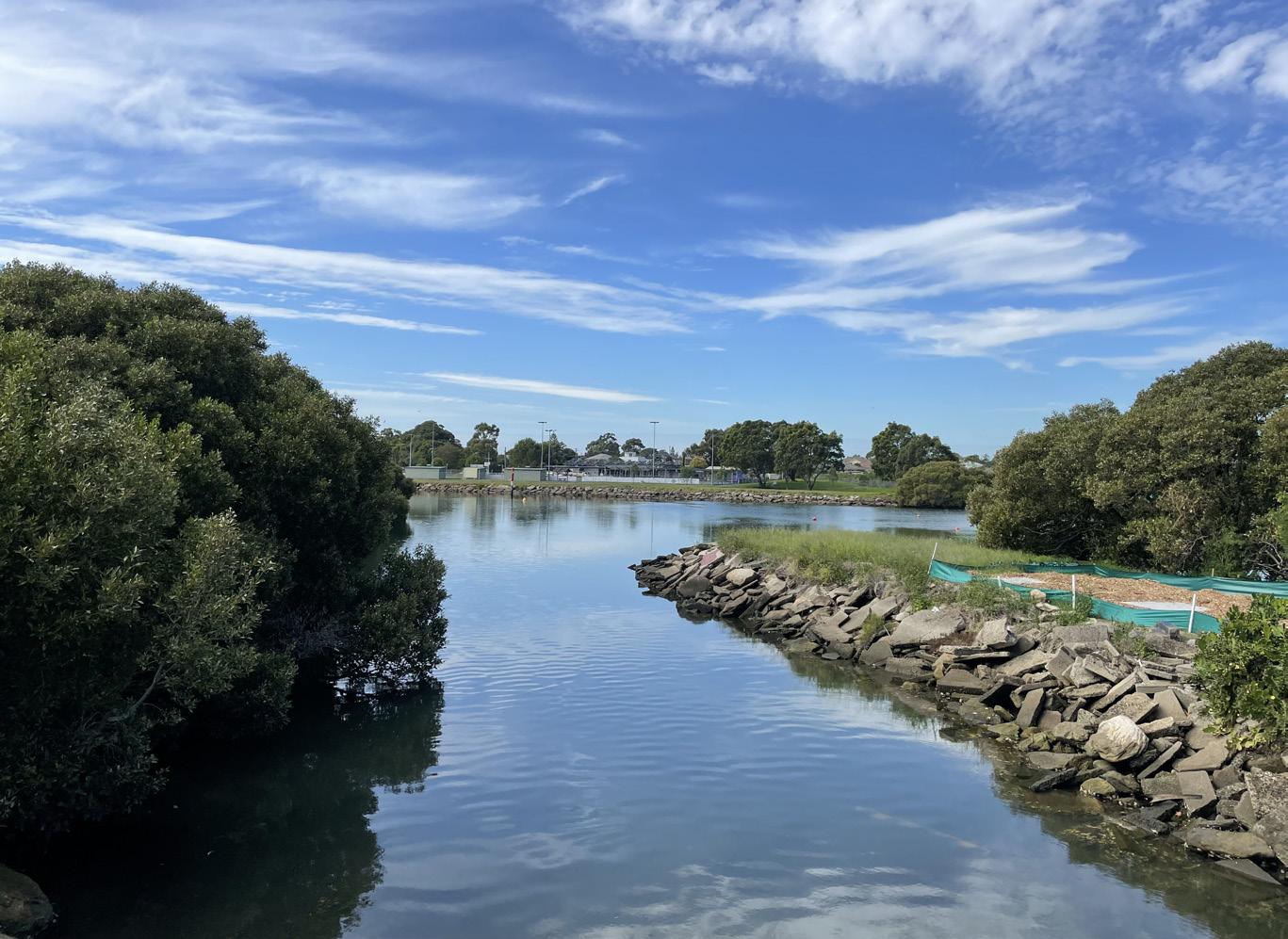

Originally, mangroves were planted at the mouth of the creek, but now dominate and overshadow the waterbody. The wetland suffers from insufficient water source, and stagnates resulting in poor water quality, mosquitoes and odours resulting in complaints from nearby residents.

1

5

4 3

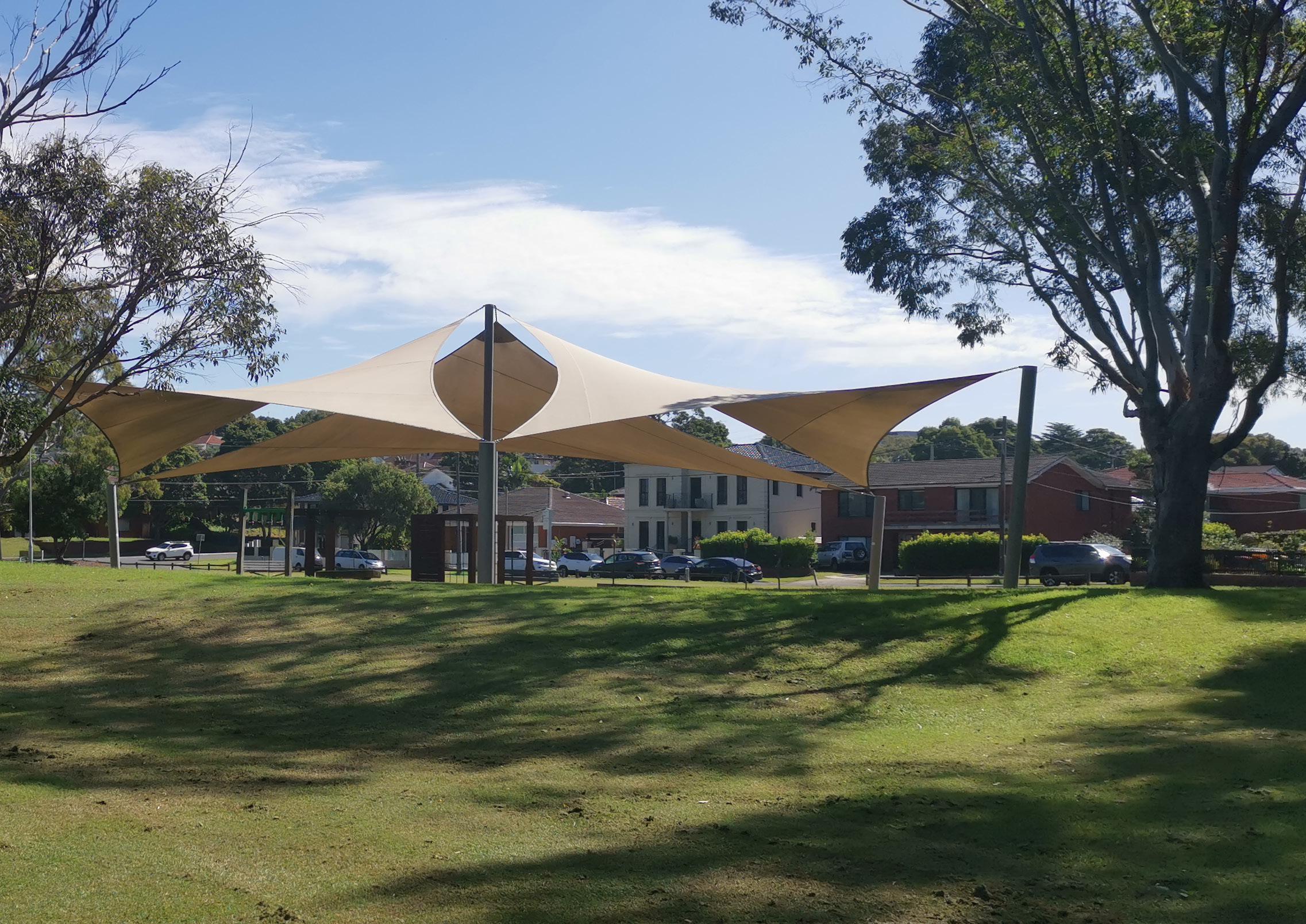

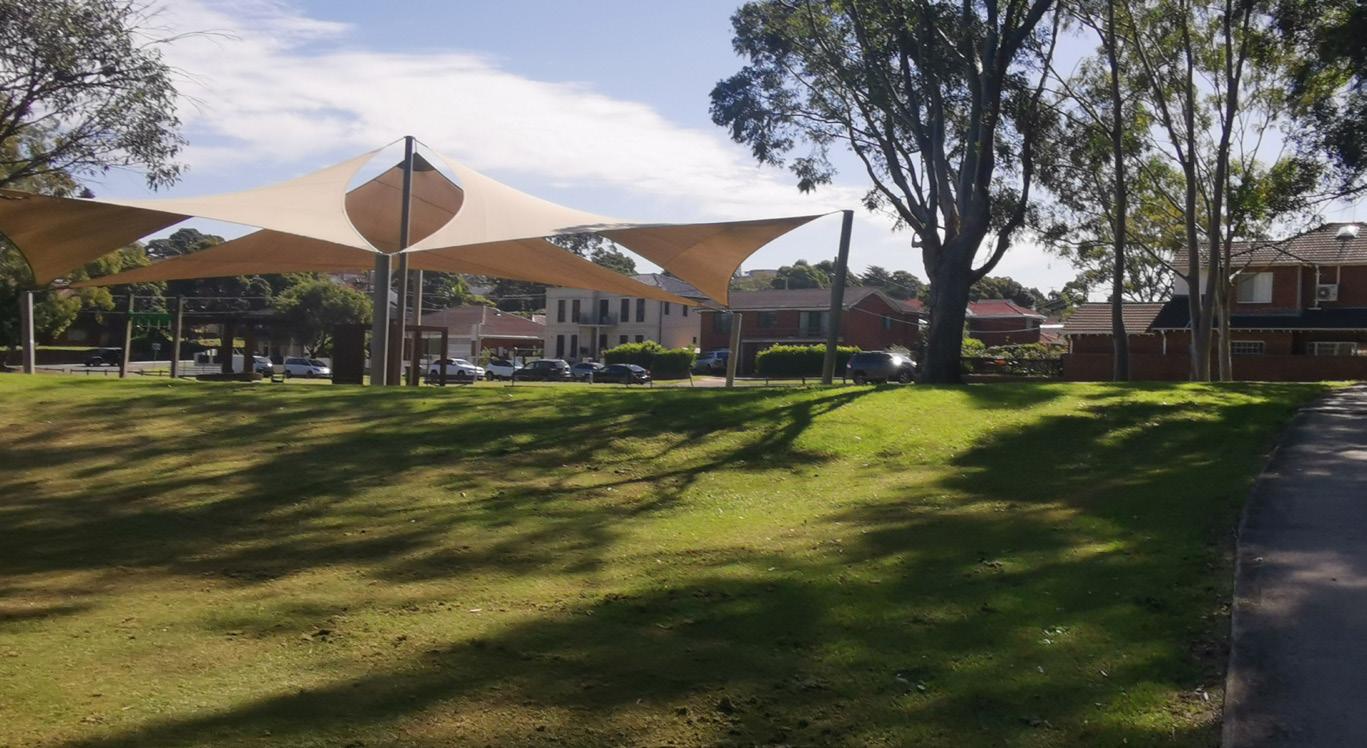

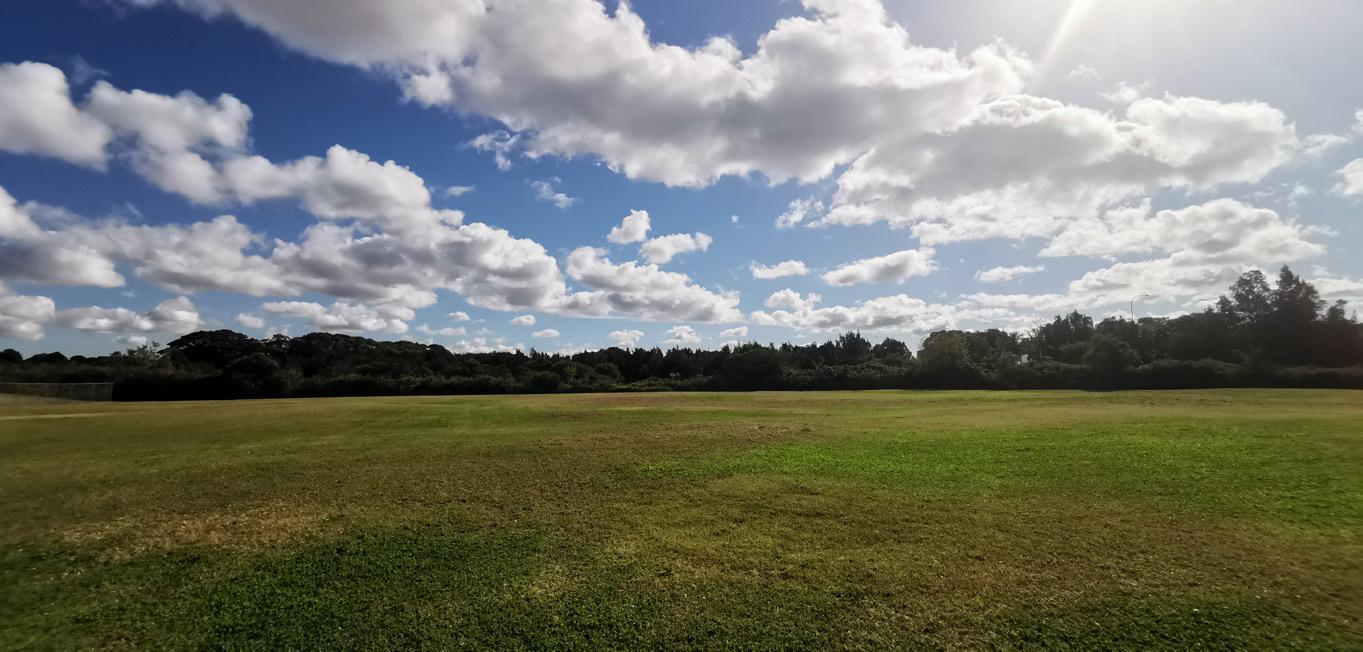

6. Sports Fields 2. Firmstone Garden Playground The playground equipment within mulch softfall was installed in 2006. This playground caters for a range of ages and is highly utilised. The condition of the equipment is nearing the end of its expected asset life of 20 years consisting of mostly timber and rope components. The playground is not supported with pathway connections or park facilities to support carer comfort or longer visitation. Renewal of this playground is planned as part of implementation of the Riverine Park Masterplan. The playground has an expansive shade canopy which provides a safe and comfortable play area for children in all seasons.

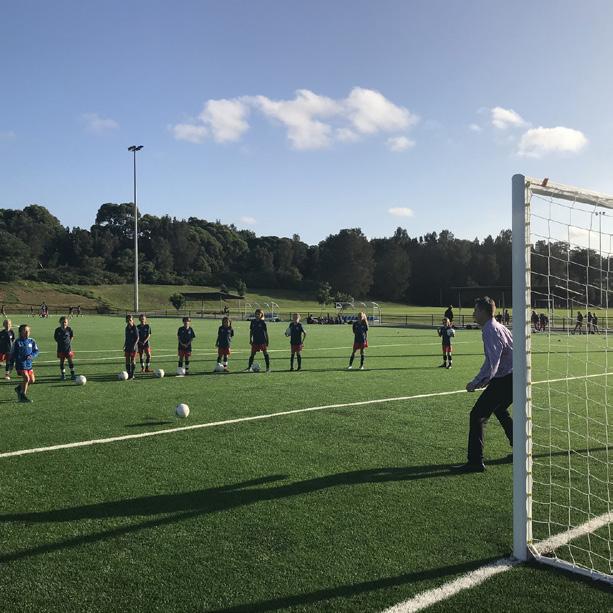

Several large sporting fields exist and were refurbished in 2022.

The perimeter includes lighting, shelters and spectator seating.

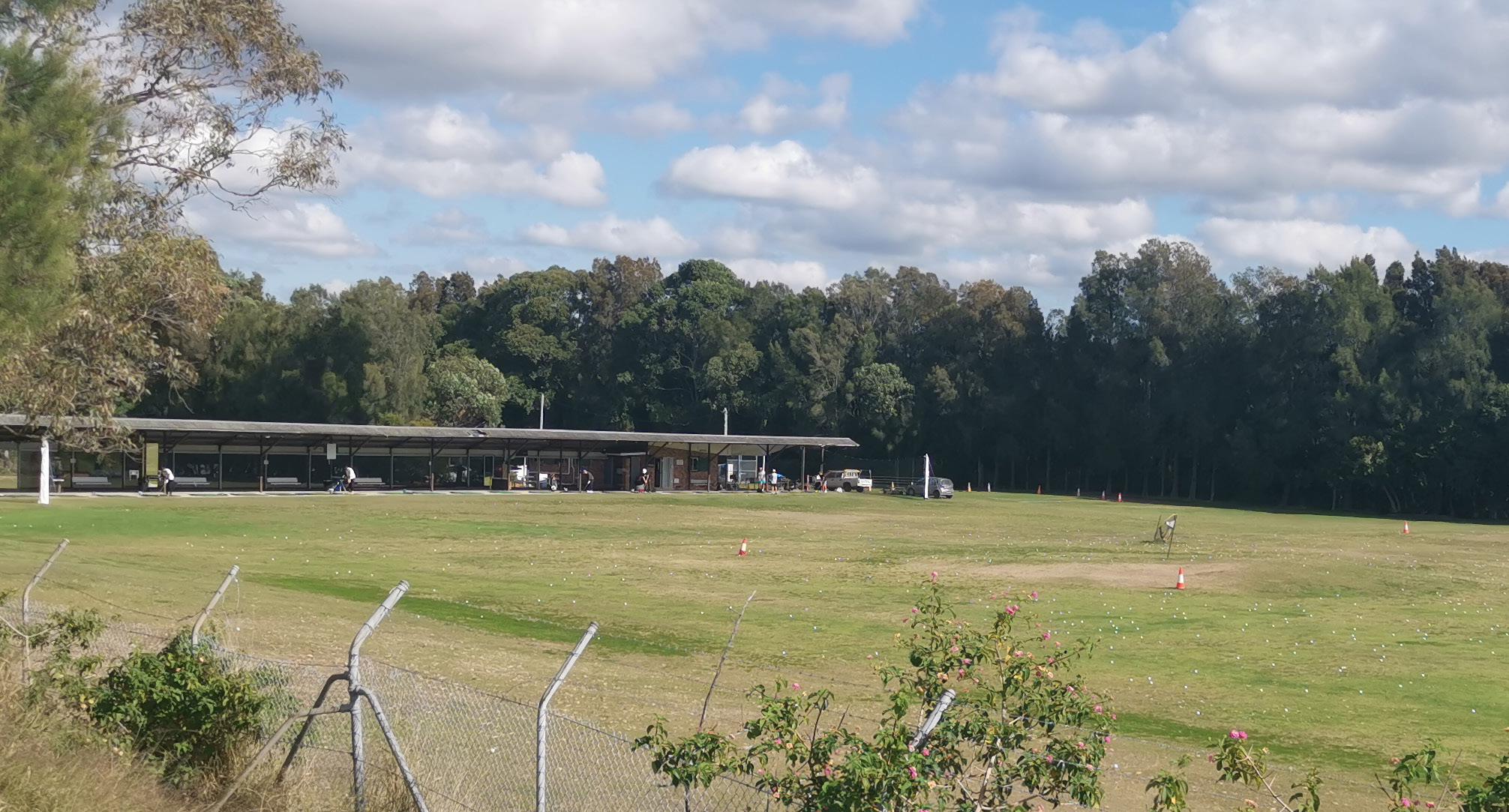

4. Golf Driving Range The central area of Riverine Park is occupied by a Golf Driving Range. There is an existing unmarked parking area containing approximately 60 parking spaces, which appears adequate for the usage generated. However, the driveway access and car park associated with the golf driving range are in poor condition.

6a

2

12 | Riverine Park Masterplan

4

6b

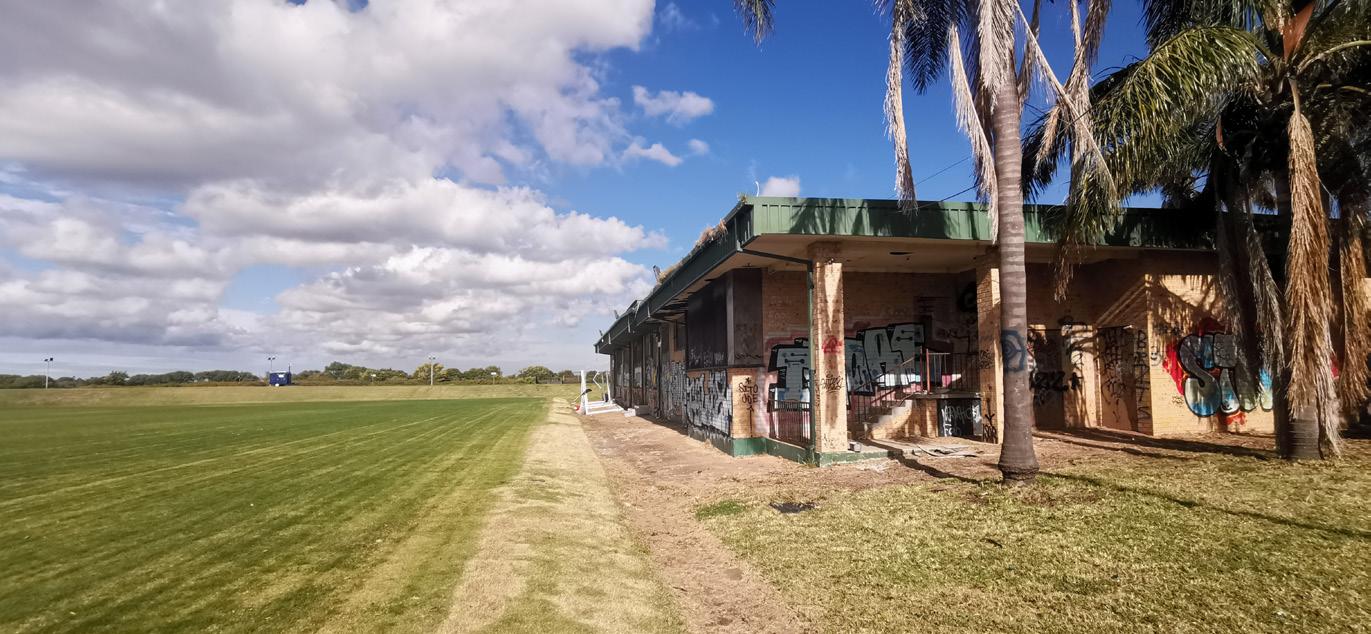

7. Dilapidated Amenity Building The amenity building, constructed in the late 1990s, has unfortunately been subject to vandalism and lack of use in recent years. Despite these challenges, the building’s structure remains sound and intact. Its central location, strategically positioned between the sports fields, provides significant advantages to spectators, and sporting groups.

Due to the complexity of the channel naturalisation, Alluvium Consulting have been engaged to undertake a study on environmental, ecology and hydrology for Spring Creek and the adjacent wetlands. The future rehabilitation of this waterway forms an important part of the Riverine Park Masterplan, and will be detailed further in a separate report.

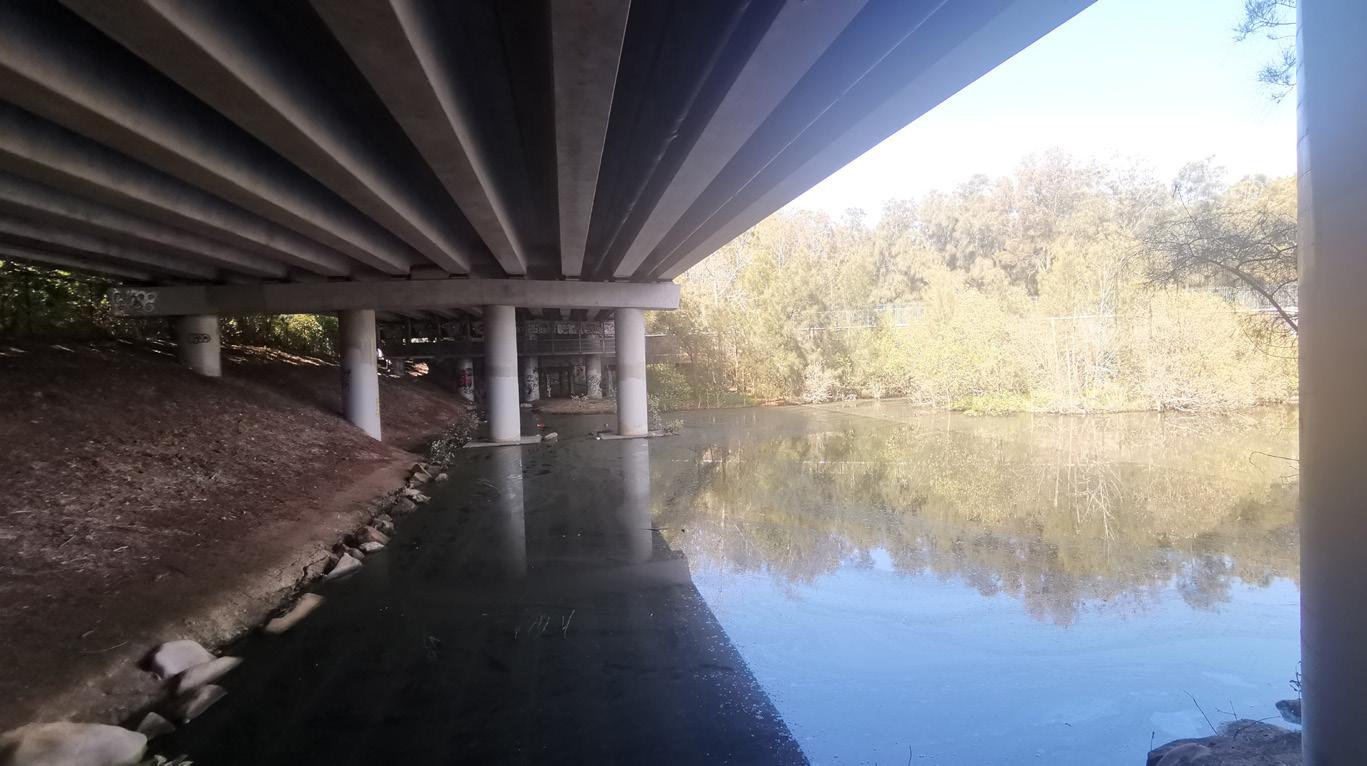

10. Active Transport Link and Barton Park Bridge A north-south shared path connects from Bestic Street in the south, through Barton Park and Riverine Park. This connection provides key active transport links to Wolli Creek, Sydney Airport and further to Sydney CBD. This shared path also branches off to form an east-west link along the Spring Creek through to Banksia train station and towards Arncliffe. This shared path relies on the existing vehicle access, and places users in conflict with vehicles.

The amenity building is directly accessible by vehicles via a sealed road, allowing for servicing, maintenance and deliveries. While the perimeter is paved, there is currently no formal pedestrian network, and pedestrians are required to use the service road.

These active transport links are subject to regular inundation due to the proximity to Muddy Creek and its tidal influence and flood prone location. The asphalt surface is uneven and is reaching the end of its serviceable life, but otherwise serves as an excellent link through open space in a prime location along the foreshore.

8

7

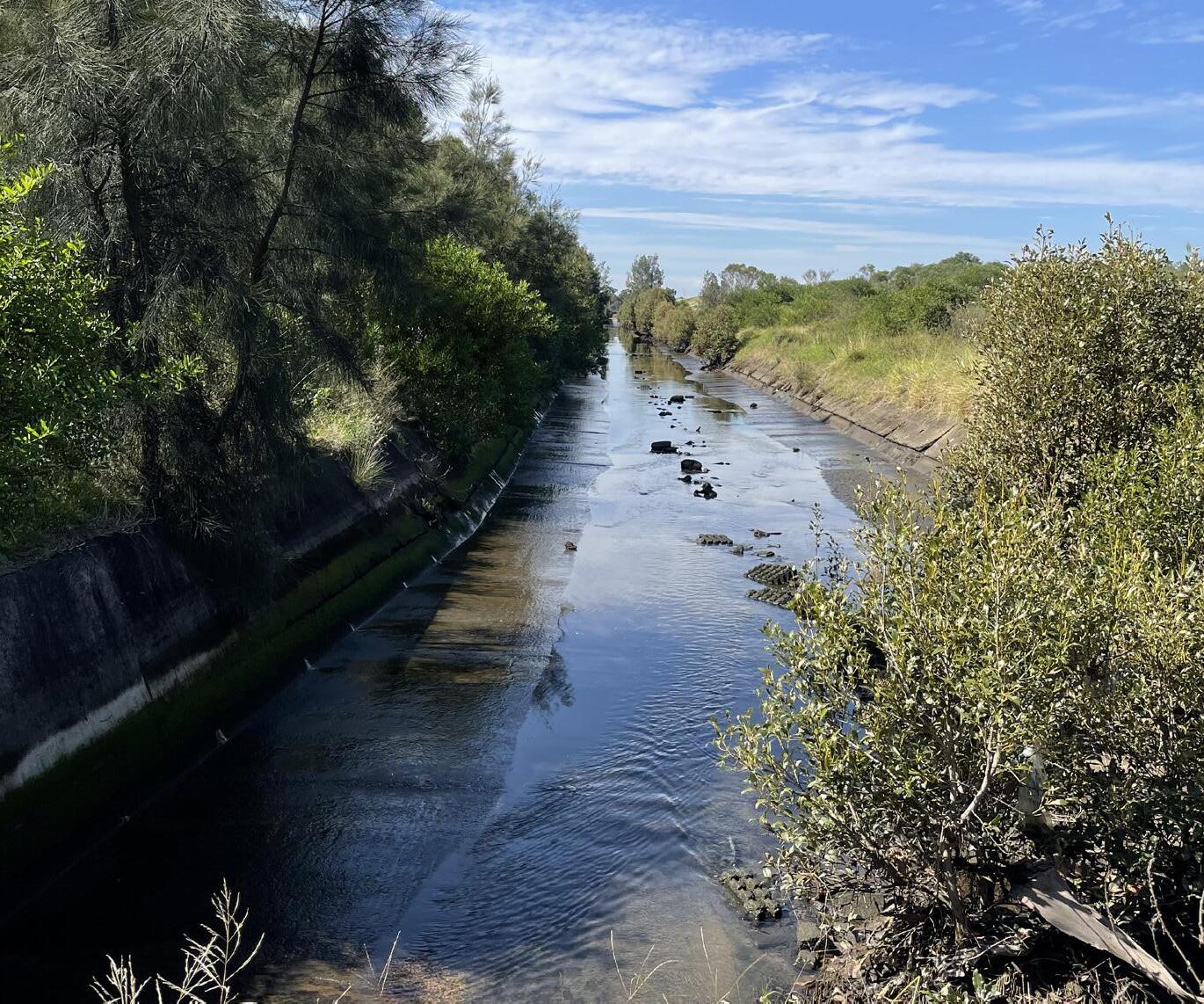

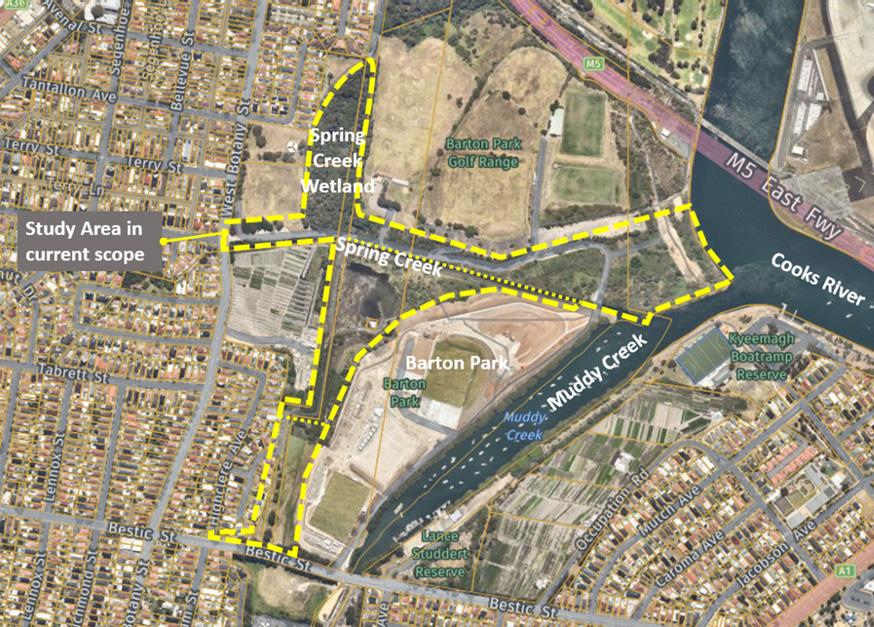

9. Car Park 8. Spring Creek The brick and concrete lined open stormwater channel was constructed in the 1930’s as part of a Public Works initiative to provide employment during the Depression. It conveys stormwater flows from a catchment approximately 2.7km2 from Forest Road and Wolli Creek Road to Muddy Creek, Cooks River and Botany Bay. The existing channel is in very poor condition due to concrete cancer, subsidence of the sub-base and cracking by plants and root invasion.

Riverine Park features a sizable sealed car park, designed to cater to the substantial influx of sports attendees. This car park is divided into two distinct sections. While the perimeter boasts adequate vegetation, there is a noticeable lack of tree canopy along the northern boundary and within the parking bays.

10a

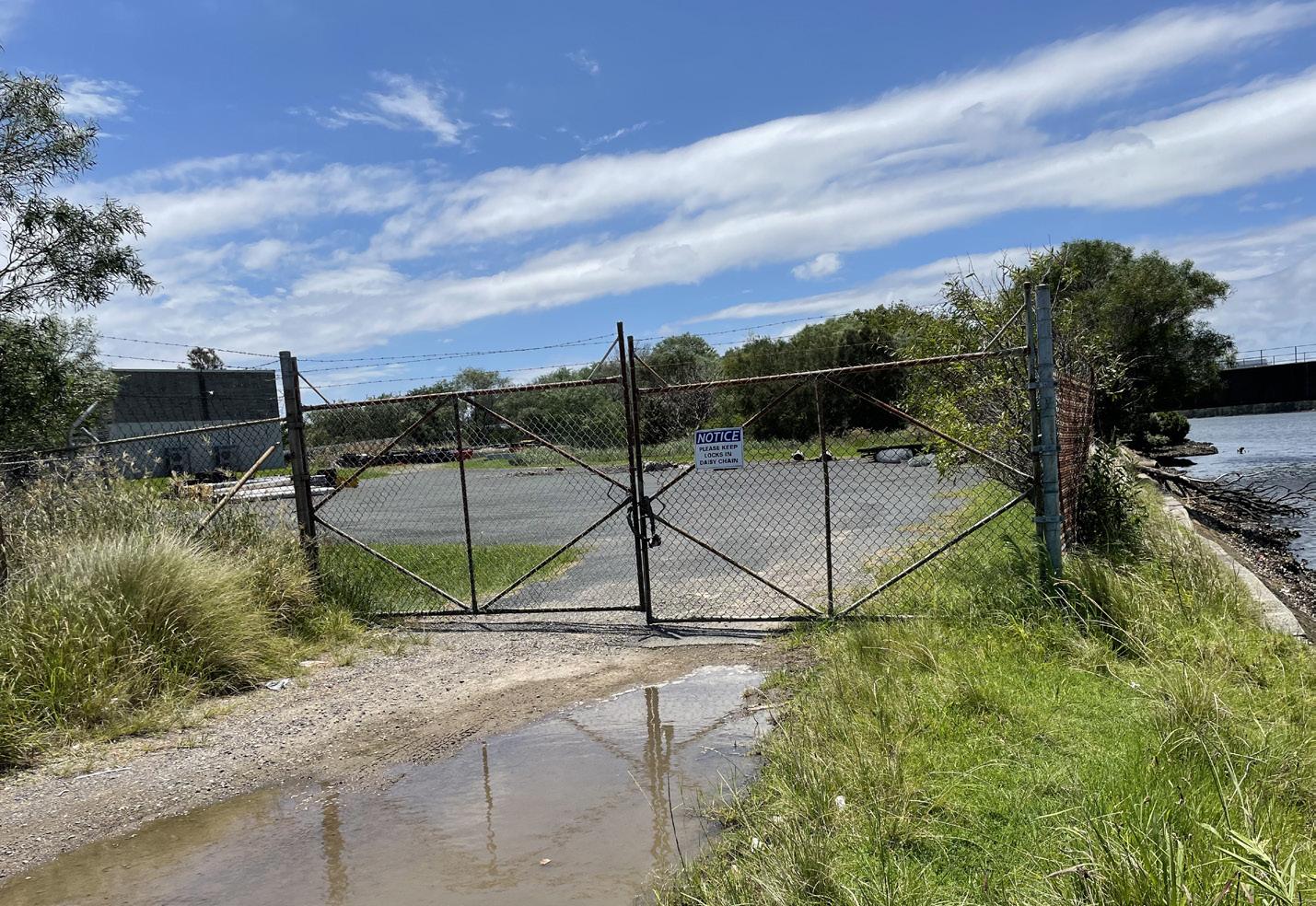

In recent years, the underutilised parking areas have been fenced off to prevent anti-social behaviour however the reduced activation encourages other unwanted behaviours as the carpark has poor visibility from other areas.

At its downstream end in Muddy Creek a silt basin has been designed to collect sediment that flows along this channel to prevent silting of Muddy Creek. In 1994, Council completed a project in Muddy Creek to dredge the creek (50,000m3) creates 2 attempts for later dredging. One of these sumps is approx 300m3 & is located at the mouth of the Spring Creek.

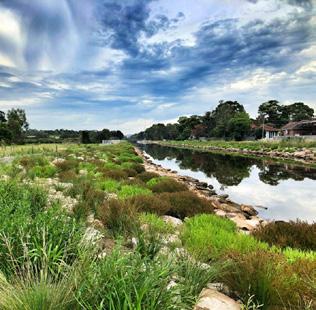

This channel is suitable for naturalisation potentially retaining the concrete channel floors and reconstructing the revetment walls with sandstone battered walls and environmentally friendly design suitable for increasing marine biodiversity.

9

10b

Riverine Park Masterplan | 13

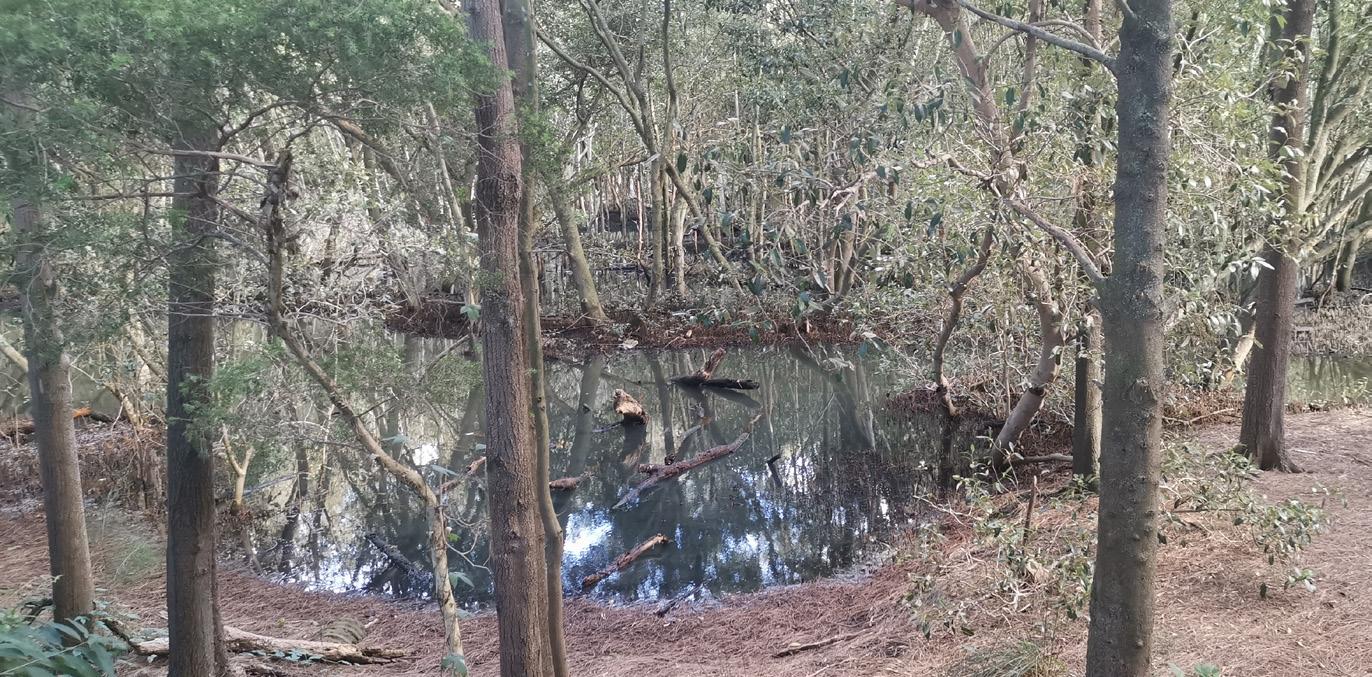

11. Eve Street Wetland The Eve Street Wetland was naturalised in the late 1990s, at the cumulation of three creeks prior to entering Muddy Creek. While predominantly a natural environment, offering habitat to a variety of wildlife, the M5 bounds the northern edge.

Native species diversity is generally low. However the local communities associated with estuarine environments typically show a low species diversity compared to other local nonestuarine communities. Estuarine areas in the locality are also potentially dynamic, sometimes making identification of depauperate estuarine vegetation difficult. Bushland condition declines around the edges of the reserve and downstream from the exotic species infestations adjacent to the stormwater outlets.

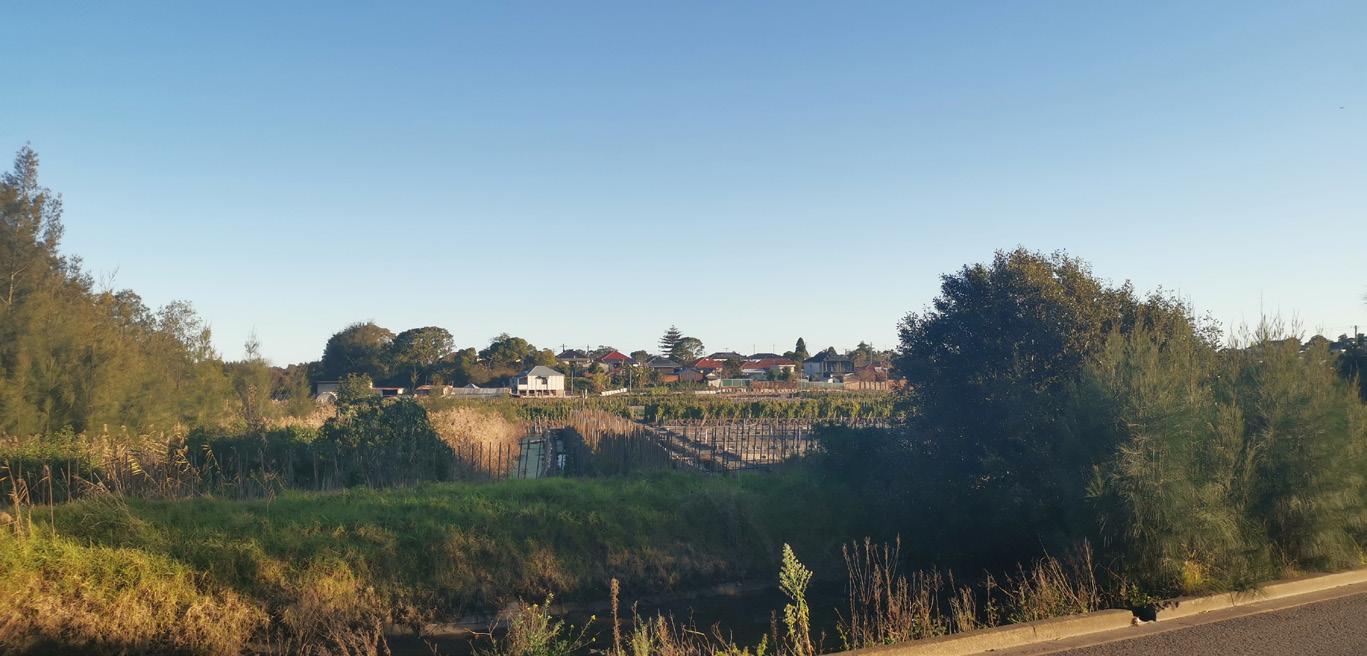

13. Arncliffe Market Garden The Arncliffe Market Gardens, established in 1892 and located at 212 West Botany Street, Banksia, New South Wales, is a heritagelisted site notable for its continuous use as a market garden since the late 19th century. It holds significant historical, social, and aesthetic value, especially for its association with early Chinese immigration and the vital role it played in local and regional food production, particularly during the Inter-War and Depression periods. Listed on the New South Wales State Heritage Register in 1999, the gardens are one of the few surviving examples of such market gardens in the Sydney region, showcasing early market gardening practices and providing rare insight into the cultural history of the area.

11a

12a

13

14. Southern and Western Suburbs Ocean Outfall Sewer (SWSOOS) 11b

12. Landing Lights Wetland Landing Lights Wetlands is 4.9ha (approx.) and incorporates a low lying area of heavily disturbed bushland with overgrown weed. Access to the area is available via a footpath bridge over Spring Creek and timber boardwalk, both of which are in a state of disrepair.

The reserve occurs within soil landscapes mapped as ‘Warriewood’ as well as ‘Disturbed’ (Chapman and Murphy 1989).

It is bounded to the north by a channelised tributary of Muddy Creek, just prior to Muddy Creek entering the Cooks River, known as the Spring Creek Drainage Channel. There is a swale running approximately north near the western boundary leading towards a standing body of saline water. Weeds occurring in the wetter lower lying areas are dominated by Juncus acutus. Weeds dominating higher areas are more varied and include Kikuyu, Green Cestrum, Lantana, Hydrocotyle bonariensis and Acacia saligna. Core bushland within the reserve is in poor to good condition.

14 | Riverine Park Masterplan

12b

The SWSOOS, aligned to the M5, and the ancillary sewer connection near Eve Street is a heritage-listed infrastructure built between 1895-98. Historically significant as one of Sydney’s oldest main sewers, it was designed to end sewage discharge into Sydney Harbour and originally served the Botany Sewage Farm. Listed on the New South Wales State Heritage Register on 15 November 2002, this section of the sewer is notable for its technical significance, featuring three brick barrels encased in concrete, exemplifying late 19th-century sewer construction methods and in continuous operation for over 100 years.

14

15. WestConnex Electrical Substation

17. Sydney Water Desalination Pipe

19. Temporary Compound

Used by the relevant roads authority, the small depot and electrical substation is generally accessed via the nearby M5 slip lane. Whilst this substation has direct access from the M5, TfNSW rely on access through Riverine Park for heavy vehicles when required. This compound prevents through access to the open space north of Riverine Park and foreshore access is desirable and a point of negotiation with TfNSW.

While typically underground, the desalination pipe is exposed where it crosses the M5 and SWSOOS. This large scale infrastructure is a unique civil asset which dominates the landscape.

This temporary compound were used by Ausgrid for nearby infrastructure works. And is fenced with sealed car park.

19 17

15

18. Ausgrid temporary work compounds 16. Eve Street Reserve Eve Street Reserve is a small corner parcel of open space that could better serve the local community. It is bound by residential properties to the west and south, which offer minimal passive surveillance. It serves predominantly as a passive recreation lawn area, with utility and maintenance services occurring in the south eastern corner.

16

In the vicinity of the desalination pipe, there remains evidence of a former compound utilised by Sydney Water during its construction and later it was used by as a temporary compound

by Ausgrid for nearby infrastructure works.

This former compound space has been cleared of vegetation and is fenced.

18

Riverine Park Masterplan | 15

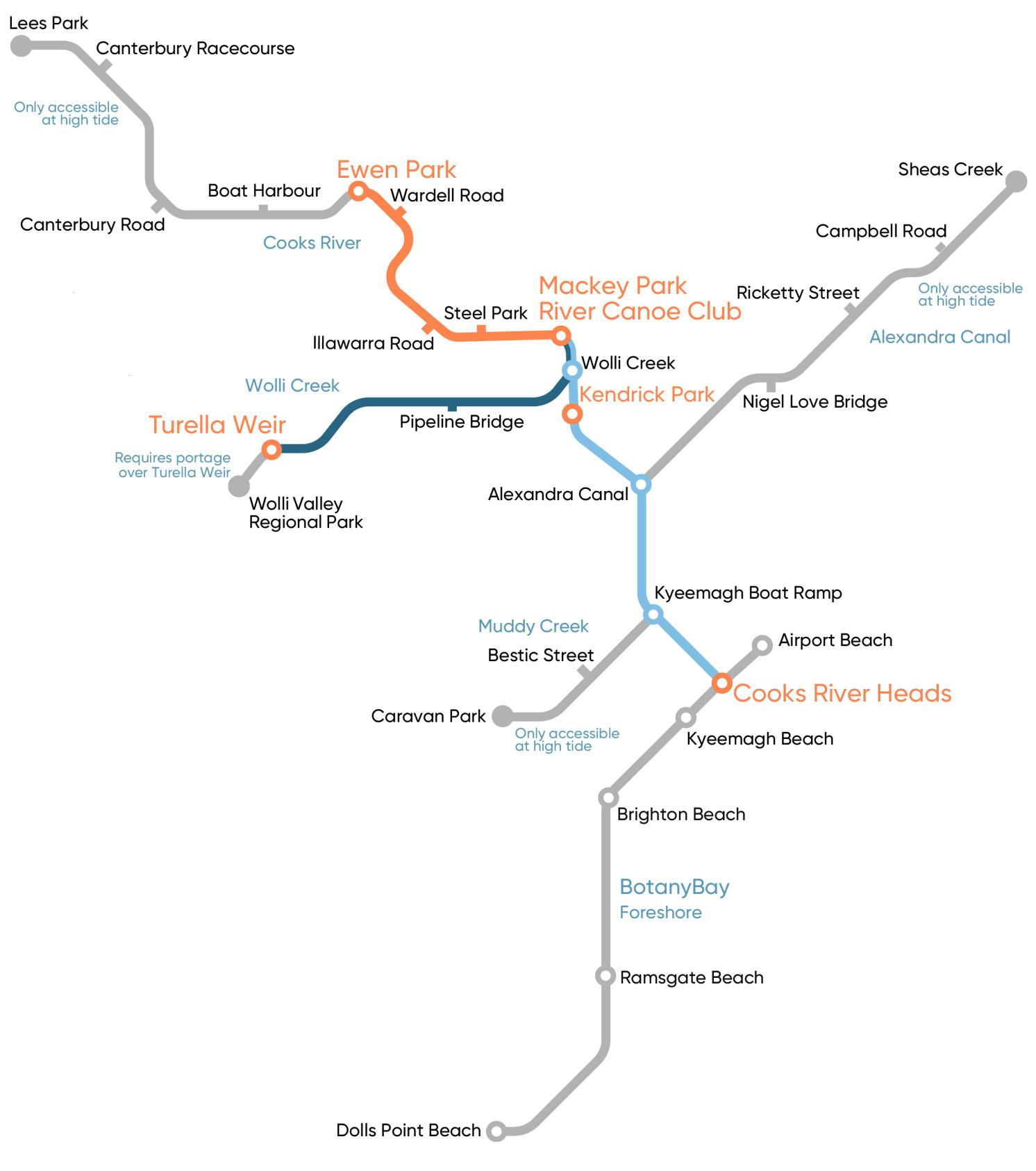

The Cooks River Paddle Trail The Cooks River Paddle Trail connects 25km network of waterways along the Cooks River, Wolli Creek and Botany Bay for leisurely water pursuits. This trail offers popular routes that people of all ages, skills and interests can participate in. Each route has an average time and length that can vary with tidal and weather influences. The website for this Trail offers safety information

and route planning suggestions and is supported with interactive maps. The website recommends starting the route at the River Canoe Club at Tempe which is in close proximity to public transport and car parking facilities. There are limited launching locations within the Bayside Local Government Area.

Figure 14 - Map of the Cooks River Paddle Trail (Source: https://cooksriverpaddletrail.au)

16 | Riverine Park Masterplan

2.5 Land Ownership The majority of the site is owned by Bayside Council. There are some linear parcels along the northern boundary, adjacent to M5 Highway which are owned by TfNSW and the park comprises Eve St Wetland is owned by Sydney Water.

2.6 Stakeholders The map (Figure 14 - Acquisition and Land Ownership Plan illustrates land ownership across the site.

Lot

DP / SP

1

665481

1

219126

PT 100

1133869

PT 1

576148

10

1275367

PT 52

1226091

101 / 102 / 103 / PT 100

1228008

11

1050923

20

1224233

18

1069479

2

1064841

A number of government and community groups serve as integral stakeholders, with investment in the use and future development of the Riverine Park area.

The M5 motorway borders the park’s northern edge, making TfNSW a significant stakeholder. They require access through Riverine Park for maintaining state infrastructure.

The map identifies land for future road acquisition which may no longer be required but is to be confirmed by TfNSW. The hatched parcels (shown in the Figure 14) along the foreshore are noted in the titles as being leased until 2062 to the Sydney Desalination Plant (SDP). This may impact Council’s ability to implement the north south connection, and is subject to negotiation.

The park’s proximity to the Airport brings specific land use restrictions. This includes compliance with the Obstacle Limitation Surface (OLS), Australian Noise Exposure Forecast (ANEF), and the Public Safety Area (PSA), all influencing the development opportunities within Riverine Park.

Sydney Water holds assets in the area, including the Southern and Western Sydney Ocean Outfall Sewer System (SWSOOS), Eve Street Wetland, Muddy Creek, and the Spring Creek, all form part of the Cooks River Catchment. Additionally, the Cooks River Alliance, a coalition of multiple councils and Sydney Water, collaborates to tackle the environmental challenges of the waterway.

Riverine Park hosts various tenancies, including the Barton Park Golf Range. Recently the Arncliffe Aurora Football Club were successful in being selected as sporting partners for two soccer fields and amenities building. Another Expression of Interest will be exhibited in concurrence with this masterplan to seek additional partners to utilise the remaining sports fields in the centre of the park. These relationships will share the maintenance and stewardship of the park in a manner that supports increased utilisation by the Bayside community.

Local residents are important stakeholders as are the growing communities in Banksia and Arncliffe who will provide the necessary activation and passive surveillance for this park to flourish and succeed as a important recreational hub for local people and beyond.

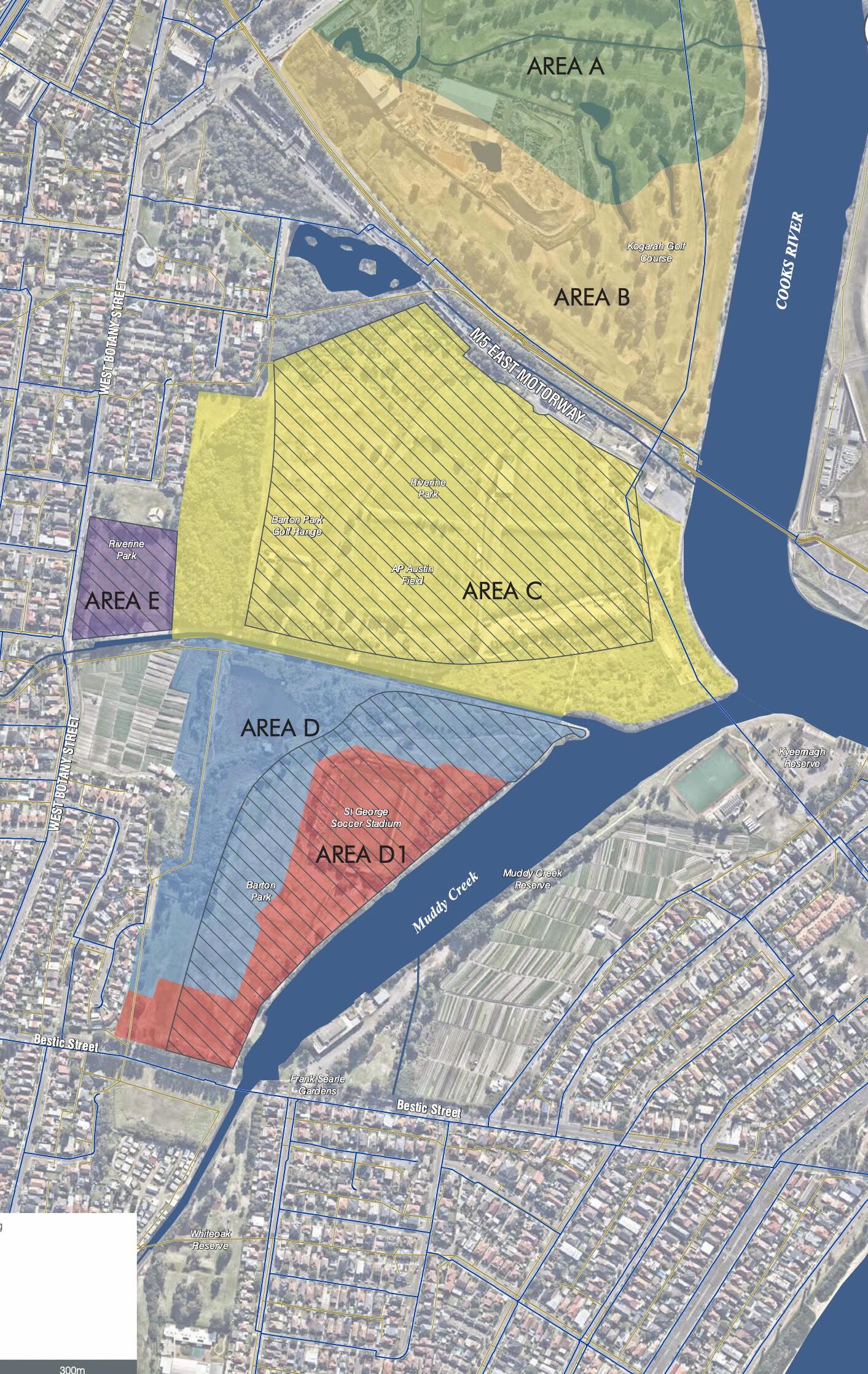

Figure 15 - Acquisition and Land Ownership Plan

Riverine Park Masterplan | 17

2.7 Adjacent Land Use

Adjacent public open space Barton Park is located on the southern banks of the Spring Creek and connects to Riverine park via a pedestrian and cyclist bridge near the mouth of the creek adjoining Muddy Creek. The access off Bestic Street allows vehicle access to the southern parking lot. Barton Park is complementary open space to Riverine Park and shares a similar history in terms of its development.

The Barton Park Recreational Precinct is currently undergoing redevelopment, and is scheduled for completion in April 2024.

There will be substantial improvements to its sport facilties, active transport path network and improved accessibility.

Arncliffe Market Gardens (also known as West Botany Street Market Gardens, Rockdale Market Gardens, Banksia Market Gardens and Chinese Market Gardens) – 212 West Botany Road, Banksia. The market gardens are located on Crown Land that is on the State Heritage Register.

The Statement of Significance states that the Arncliffe Chinese Market Gardens are of high significance for their association with the Chinese community and their demonstration of a continuous pattern of land usage since the late nineteenth century. They are one of only three such surviving market gardens in the Inner

Sydney region and one of few similar surviving examples in the Sydney Metropolitan Region.

The site demonstrates prolonged and continuous use as a market garden. The site was first occupied as market gardens in 1892

by Sung Kuong War, Lee How and Sin Hop Sing. A 1930 aerial photograph shows the site still occupied as a market garden.

Market gardens such as this played an important role in food production for the local and regional community, particularly during the Great Depression and Post and Inter-War periods.

Roads Riverine Park is accessed from West Botany Street. Smaller local roads bound the park, such as Eve Street and Firmstone Gardens.

While they do not allow access into the park, they do provide onstreet parking opportunities.

Residential Land Land zoned as residential (R2) adjoins Riverine Park on the western side. This small pocket of residential land is bound

by West Botany Street, and the market gardens to the south.

Unfortunately, while some of the residences face towards Riverine Park, their views are typically restricted by wetlands and overgrown vegetation.

Opposite West Botany Street, land zoned as residential (R3) indicates a higher population density. Direct access is limited due to the busy nature of West Botany Street.

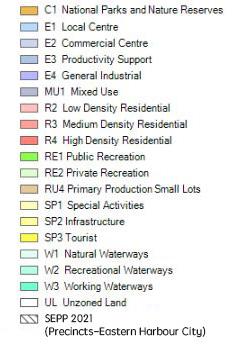

Figure 16 - Bayside LEP 2021

18 | Riverine Park Masterplan

2.8 Biodiversity, Ecology The sites contains some of the last remaining saline wetlands on the Cooks River and includes significant flora and Endangered Ecological Communities, such as: • • • • •

Bangalay sand forest Coastal saltmarsh Estuarine saltmarsh Swamp oak floodplain forest Mangrove forest

• Migratory birds (threatened species: the Terek Sandpiper, Broad-billed Sandpiper, Great Knot, Sanderling, Black-tailed Godwit and the Lesser Sand Plover) • The Green and Gold Bell frog (GGBF, listed as Endangered under the Threatened Species Conservation Act 1995).

Riverine Park is also potentially habitat for threatened fauna species, such as the Grey-Headed Flying Fox, Select Microbats and Powerful Owl.

The wetlands provide habitat to a number of threatened Australian coastal bird species and migratory birds from as far away as Siberia, who visit during the warmer months to feed and fatten up before returning to the Northern Hemisphere to breed. With the significant urban development that has occurred along the Australian coast, Riverine Park serves as one of the few suitable sites in Botany Bay that can provide this important habitat. Critical species are:

Spring Creek and Muddy Creek serve as important tributaries of the Cooks River with remnants of significant Mangrove (Avicennia marina) forest and riparian vegetation along the banks.

Any proposed works must be sensitive to the requirements of fauna, habitat and bird migrations in their design and location.

Disclaimer Note

This map remains the property of Bayside Council. Reproduction of any part without approval is prohibited. This map has been compiled from various sources and the publisher and/or contributors accept no responsibility for any injury, loss or damage arising from its use or errors or omissions therein.

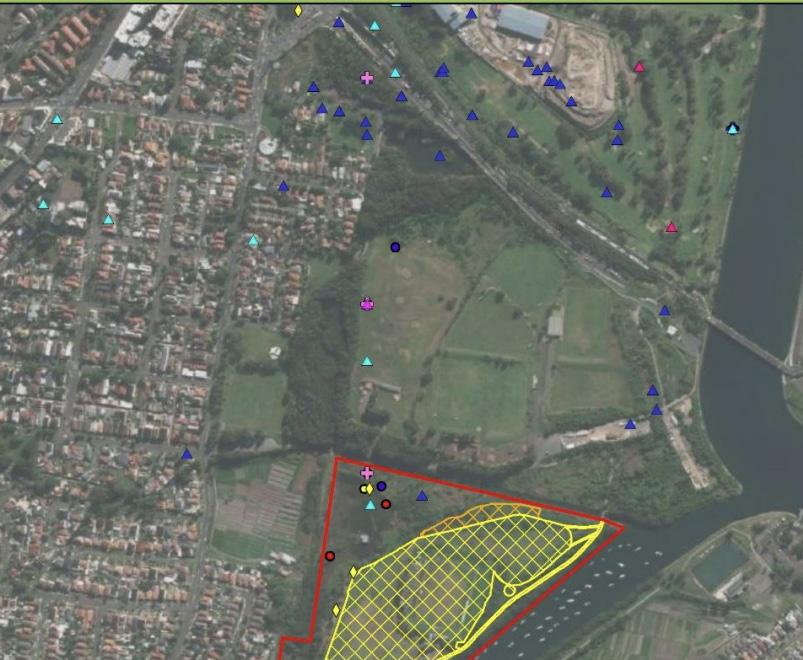

Figure 17 - Threatened Fauna and Flora Records

Figure 18 - Endangered Ecological Communities Map

EEC area

11/01/2024 1:6000

Prepared By: April Ye

Figure 19 - Shorebird Habitat Map

Riverine Park Masterplan | 19

Green and Golden Bell Frog (GGBF) The GGBF is an endangered species which needs careful management to ensure its survival. Riverine Park is a critical habitat for this species, providing a unique opportunity for conservation efforts through habitat enhancement and careful ecological planning, ensuring the park not only serves the community but also plays a vital role in the survival and thriving of this iconic amphibian.

Any proposed activation adjacent to GGBF habitiat should allow for passive recreation only to avoid excessive impacts to this species, including light spill.

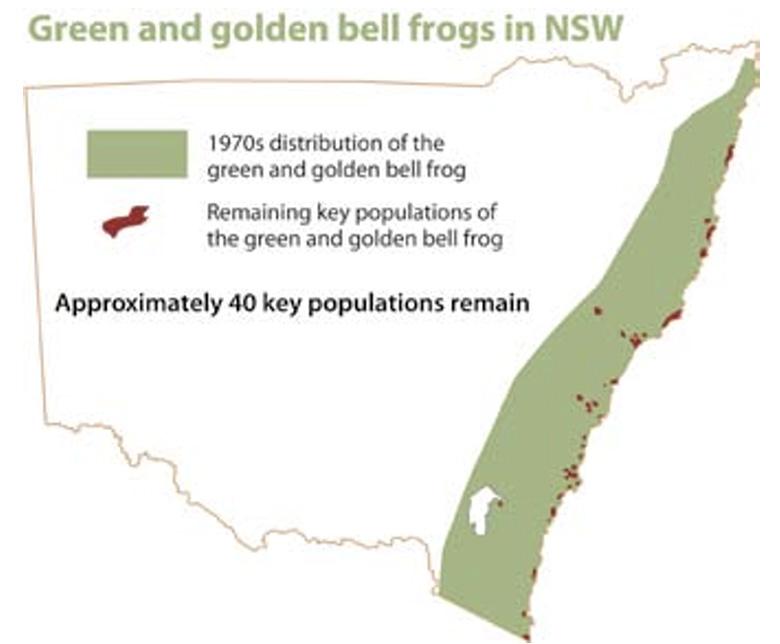

Figure 22 - Former and current distribution of green and golden bell frogs

20 | Riverine Park Masterplan

Council has previously engaged a specialist consultancy to undertake studies and provide advice on the ecologies in this area. Distribution can be separated into four typologies: • Breeding Habitat - Includes a wide variety of freshwater and estuarine water bodies, ranging from ponds through to large lakes. Constructed naturalised stormwater basins are known to have been used for successful breeding.

• Foraging Habitat - Preferred foraging areas include flowering plants, grasses and foliage. Foraging often occurs in tussock vegetation where it can provide shelter and is close by to breeding habitat

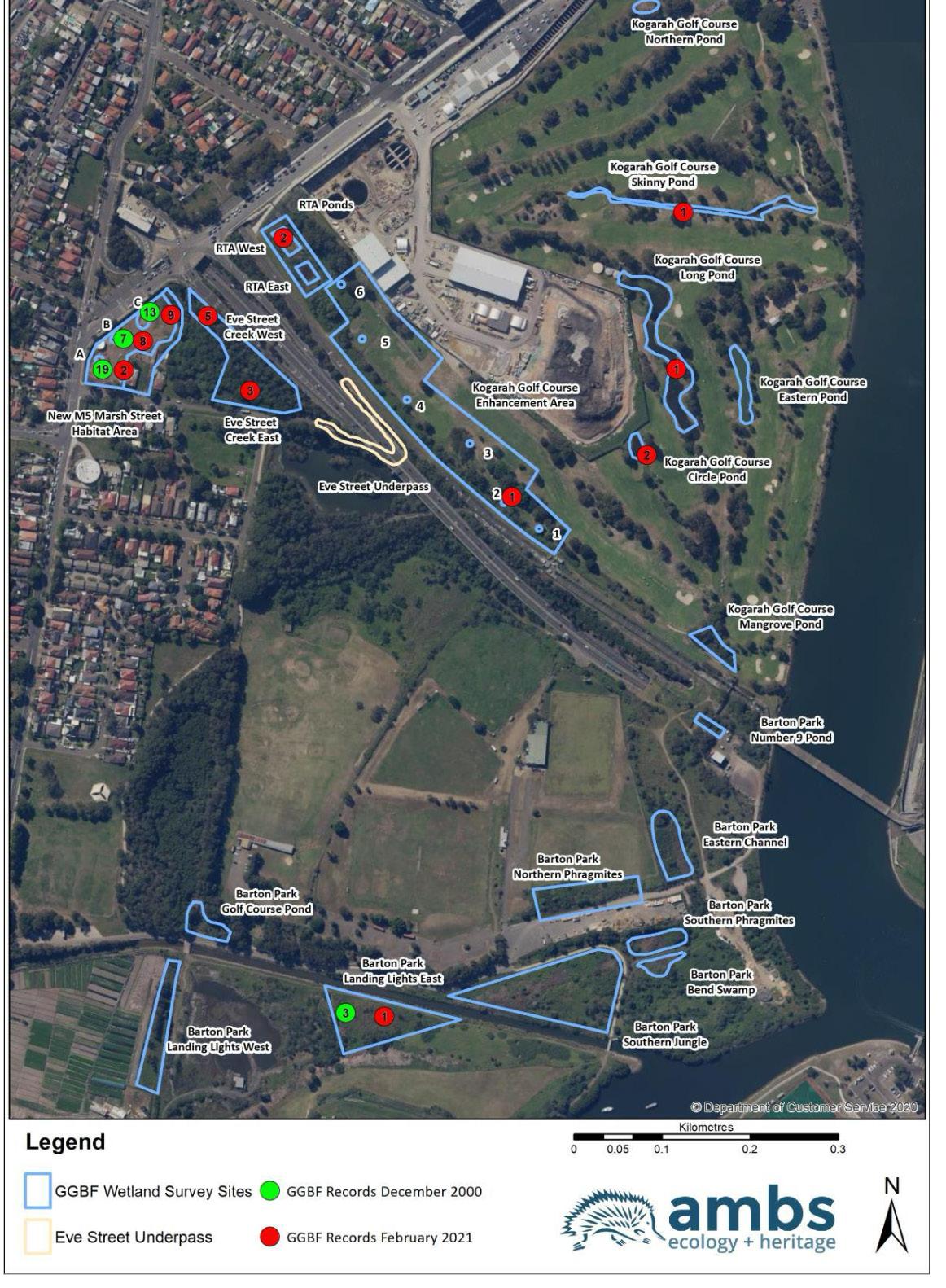

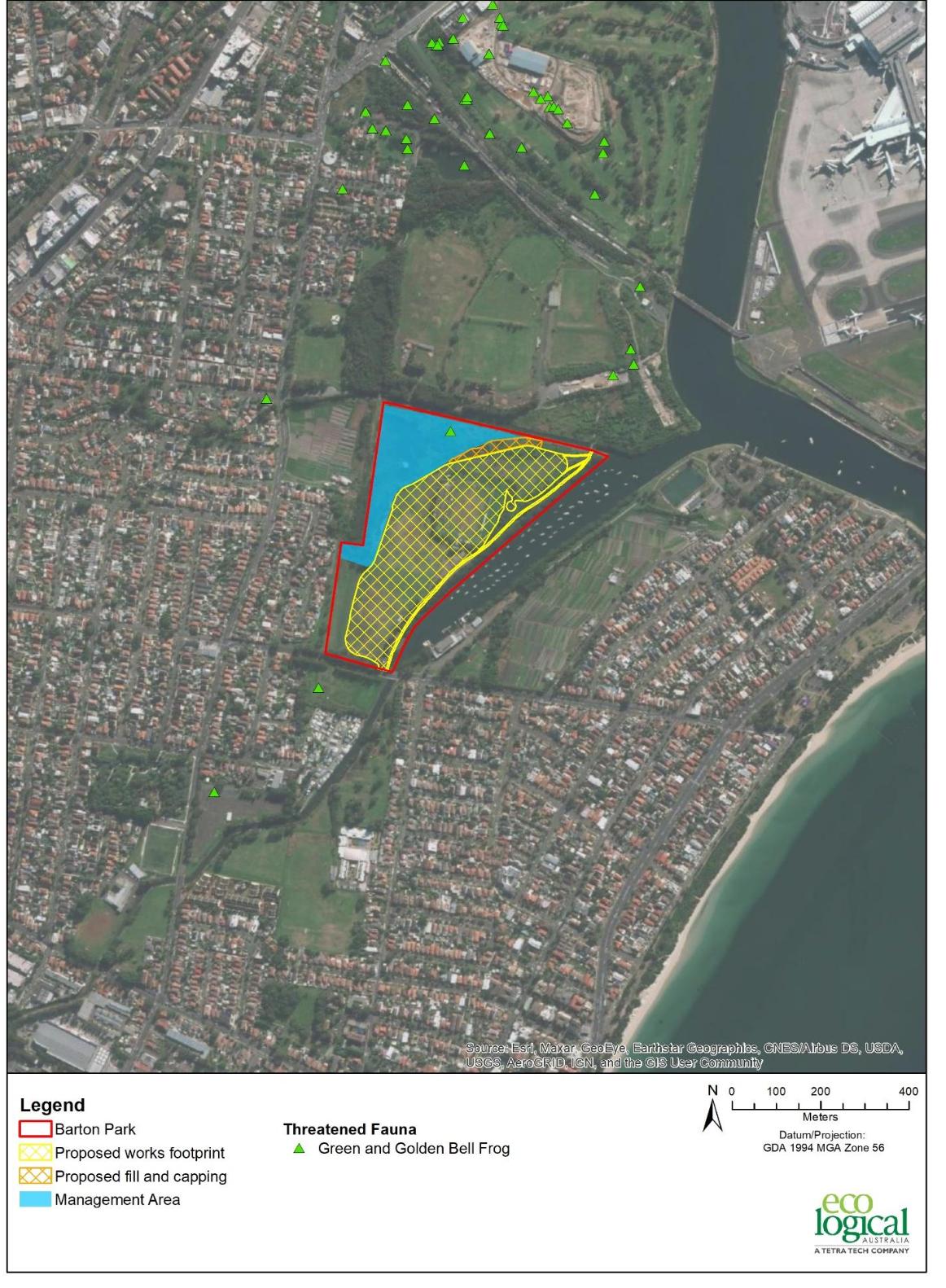

Figure 20 - Green and Golden Bell Frog records from surveys (AMBS Ecology & Heritage) 2021

• Refuge Habitat - Refers to spaces allowing GGBF to avoid danger and climatic extremes, such as hiding during inactive winter months. Stacked stones, rubble and felled logs are common examples.

• Connectivity Habitat - Connectivity habitat enables frogs to move between different areas of habitat at different times of the year. Drainage lines, swales, wetland banks and open lawn areas free of excessive human use are common examples.

Figure 21 - BioNet records for Green and Golden Bell Frog (DPIE 2021)

Remant Vegetation Pre-european patterns of vegetation along the Cooks River include Mangroves and Saltmarsh, Mudflats and Freshwater & Brackish Swamp. Changes to the landscape and vegetation brought about by European settlement began in the 1790’s with the developent of farmland.

Areas of mangroves and saltmarsh were likely reduced severely in the early 19th century, as mangrove wood was burnt in the manufacturing process of soap at a series of manufactories. The construction of dams to meet increasing development and water demand likely further impacted natural ecosystems. Freshwater and brackish swamps were typically deemed as useless land due to their limited agricultural potential. A number of wetlands, mudflats, mangroves and saltmarsh were filled, allowing for the development of market gardens along Muddy Creek.

Pre-European patterns of vegetation in the Cooks River Valley

While it is impossible to re-establish all of the natural vegetation which once framed the Cooks River, we can ensure that the pieces that still exist are looked after, maintained and protected.

Additionally, the redevelopment of Riverine Park serves as a momentus opportunity to enhance remnants - through buffer zone planting and creating connected corridors to improve habitat.

CP Clay Plain Scrub Forest TI Turpentine Ironbark Forest Sfh Cooks River Sandstone swamps, Pat Moore's or Patmore Swamp, 'a fairly heavy growth of bang alleys [Eucalyptus Vegetation (Forest, plunged knee-deep at every step.' reported Tench in December 1790, after his unsuccessbotryoides] and swamp mahogany trees [Eucalyptus robusta] abutted on the western side Woodland and Heath) ful search for Aborigines south of the Cooks River near Muddy Creek. While the location of this swamp—notable trees in every way, either in girth or foliage they were, and no FF Floodplain Forest of the good land that Cook and Banks described has remained a mystery ever since, there undergrowth, but a fine coating of native grasses of a meadow character,' was how a local SW Freshwater and Brackish is no doubt that there were extensive swamps in the lower Cooks Valley. resident recalled them as being in the 1870s (Carruthers 1925).

Swamps On sandy country behind Lady Robinsons Beach and up to a kilometre inland, and The extensive Pleistocene/Holocene sand sheets of the Eastern Suburbs extend into the MS Mangroves and Saltmarsh draining to Muddy Creek, were a series of north-south beach sand ridges and swamps.

Cooks River catchment between Surry Hills and Mascot and behind Lady Robinsons BS Banksia Scrub Trees of 'Eucalyptus pilularis, Eucalyptus botryoides, Eucalyptus robusta, Banksia inteBeach on the western side of Botany Bay. Joseph Banks appears to have landed herem mudflats grifolia, and Angophora lanceolata [=costata] are the common large plant growths of the abouts on 4th May 1770. 'Myself in the afternoon ashore on the NW side of the bay [Botany ---rail lines sandy waste, while Eucalyptus robusta and Casuarina glauca are the common large Bay], where we went a good way into the countrey which in this place is very sandy and growths of the swampy areas,' reported the geologist E.C. Andrews in 1912. Of one of these resembles something our Moors in England, as no trees grow upon it but every thing is coverd with a thin brush of plants about as high as the knees. The hills are low and rise FigureSchematic 24 - Pre-European vegetation (Source from: Missing Jigsaw Pieces - Bushplants of the Cooks River Valley) cross sections across the Cooks River Valley one above another a long way into the countrey by a very gradual ascent, appearing in showing likely distribution of plant communities in relation every respect like those we were upon.' to landform and geology in pre-European times.

The shrub-dominated vegetation on this sandy country would have been Banksia Scrub, the western edge of the Eastern Suburbs Banksia Scrub—varied heath, scrub and low forest vegetation with a rich variety of shrubs, including Wallum Banksia Banksia aemula, Broom Heath Monotoca elliptica, Pink Wax Flower Eriostemon australasius, Wedding Bush Ricinocarpus pinifolius and Grasstree Xanthorrhoea resinifera.

Frederick Mackie described vegetation between Waterloo and Botany in the 1850s; Walked yesterday to Botany Bay, a distance of 8 or 10 miles from our lodgings: The road lies over low sand hills covered with small scrub and various flowers. The sand in many places has almost the whiteness of snow and so little mixture of earth is there in it that it would doubtless be entirely destitute of vegetation but for the moisture of it; water is found about 2 ft. below the flat surface. The moister places were generally pink with the flowers of Sprengelia Incarnata, intermixed with Boronias, Bauera rubioides, Crowea saligna, Hibbertias and many other plants.'

18

Figure 23 - Natural vegetation Sydney 1788 (Source from: Taken for Granted)

19

Figure 25 - Vegetation cross sections (Source from: Missing Jigsaw Pieces - Bushplants of the Cooks River Valley)

Riverine Park Masterplan | 21

2.9 Heritage and Conservation Assets

2.10 Historical landfill Site

While there is no current evidence of remnants of Aboriginal sites in Riverine Park and its adjacent wetlands, the area’s location at the confluence of waterways suggests it may have held significant cultural importance for Aboriginal communities.

The use of the site as a sewage farm, sand mine and as an uncontrolled landfill site (including putrescible waste) means that the legacy of contamination must now be carefully monitored and managed.

There are no heritage listed items within Riverine Park. Two adjacent sites are listed in Schedule 5 Environmental Heritage of the Bayside Local Environmental Plan 2021 (Bayside LEP 2021).

A Long Term Site Environmental Management Plan (LTSMP) has been prepared for the site. This Plan provides guidance on:

• The Arncliffe Market Gardens. This item is also listed in the Heritage Schedule of the Bayside LEP 2021.

• The Southern & Western Suburbs Ocean Outfall Sewer (SWSOOS). This item is also on the State Heritage Register as having significance as one of Sydney’s earliest infrastructure NSW under the Heritage Act 1977 (NSW).

Riverine Park, along with its neighbouring park were originally utilised as a Sewage Farm in the late nineteenth century, later being mined for sands used in Council construction of roads and other civil assets before being operated as a land fill site for Council operations. In 1988 bicentennial funding was made available for various council projects including a large salt marsh project near Spring Creek.

While it is not in itself listed as a heritage item, it has a legacy of continued use as a public reserve since 1930 when according to Ron Rathbone Rockdale Council purchased 89 acres from the Water Board for 5 pounds per acre for the purpose of recreational purposes. This was in conjunction with other acquisitions from adjacent land owners and set about reclamation works in 1932 “to convert a low lying mosquito infested wasteland into the St George Sporting Complex”. Philip Geeves also describes the acquisition of 120 acres of the then disused North Brighton Sewage Farm.

• Contaminants at the site • Measures to reduce landfill leachate generation rates by improving site drainage • Measures to ensure appropriate soil cover is maintained • Measures to monitor and manage landfill gas • Responsibilities and obligations of relevant parties to administer the Long Term Site Management Plan • Robust processes for the management, maintenance and upgrade works at the site.

• Environmental monitoring requirements The NSW Environment Protection Authority (EPA) reviewed the LTSMP and concluded that the site does not require regulation, provided the LTSMP is implemented.

Any changes/works proposed, if not minor works as defined in the LTSMP, must be accompanied by a Remediation Action Plan (RAP). Depending on the scale of the works proposed, a Site Audit Statement (SAS) and revision of the LTMSP may also be required.

Due to the complexities and ongoing monitoring and management requirements of contaminated land, Council requires continued unrestricted access to the site, including all leased property, to undertake required monitoring and works.

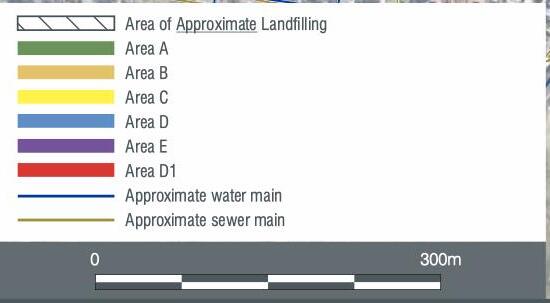

Figure 26 - Historical landfill area

22 | Riverine Park Masterplan

2.11 Climate Change

2.12 Hydrology and Flooding

The Report by BMT WBM “Botany Bay Western Foreshore Coastal Hazard Risk Assessment and Management Options Study” completed in 2013 provides a discussion of the geomorphology and coastal processes of Botany Bay and the surrounding study area followed by a risk based assessment of coastal hazard and their consequence. The study considered coastal inundation due to high water levels during storms resulting in inundation into rivers, creeks, drains connecting with the ocean and permanent inundation due to sea level rise. Sea level rise was calculated to increase 0.4m by 2050, and 0.9m by 2100 above 1900 mean sea level. That was widely accepted as competent scientific opinion based on reports by IPCC (2007) and CSIRO (2007) for NSW in the absence of other suitable recommendations although these figures are no longer prescribed by the NSW State Government.

Riverine Park is located in the Spring Creek and Muddy Creek sub-catchment.

The topography of the catchment is relatively flat with the upper reaches of the Muddy Creek catchment generally sloping in a south-easterly direction with the lower reaches draining north east towards the Cooks River. Muddy Creek is a small tributary of Cooks River.

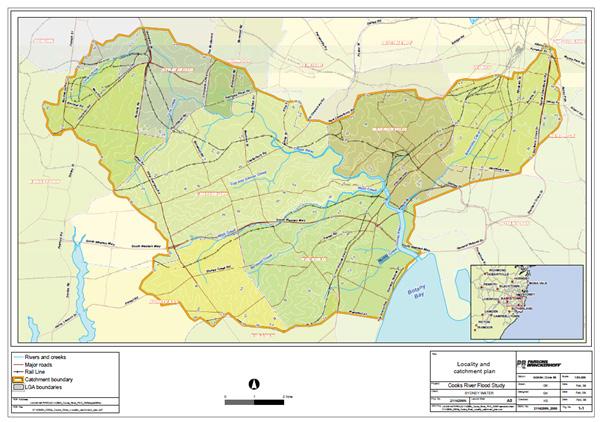

Figure 27 - Cooks River Catchment

The low lying areas within Riverine Park are subject to inundation as a consequence of sea level rise.

The topography of the former land fill site impedes natural drainage which acts as a barrier for natural water flows from the west and exacerbates the impact of tides and flood waters along the banks of Muddy Creek along the east.

The importance of protecting and regenerating coastal ecosystems Blue carbon refers to the carbon captured by the world’s coastal ecosystems, which are predominantly made up of seagrasses, mangroves and salt marshes. Blue carbon ecosystems play an important role in climate change mitigation as they store carbon dioxide up to 40 times faster than inland forests due to an ability to store large amounts of carbon in their soils and for far longer than terrestrial systems. It is estimated four times more carbon is sequestered in Australian soil beneath marine ecosystems over a given area than in other environments.

The Spring Creek has a peak elevation of 55.5m AHD with the catchment draining eastwards. The catchment is a highly modified landscape, comprising medium to high-density residential and commercial developments. It also includes major infrastructure assets which are raised above the natural ground level, restricting surface flows from west to east. In its current state, the creek overflows during 20% AEP events, resulting in ponding of up to 0.5m depth within Riverine Park and flooding of the access road.

In addition to the Muddy Creek and Spring Creek catchments, a small urbanised catchment feeds into the Eve Street Wetland.

There are two relevant flood studies for this area including:

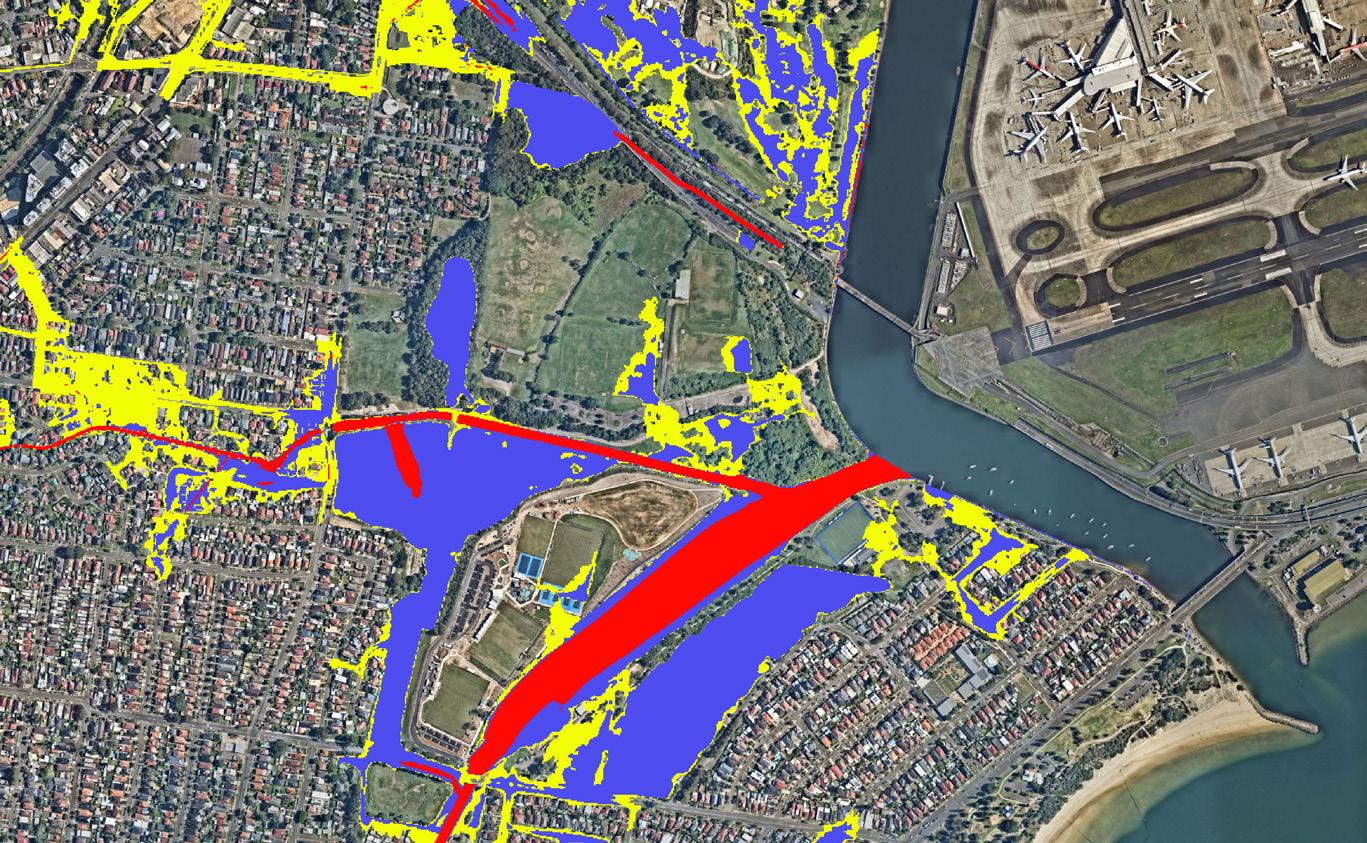

Figure 28 - Flood function mapping within Lower Muddy Creek

Other than storing large amounts of carbon, mangroves, tidal marshes and seagrasses are critical ecosystems, supporting coastal water quality, healthy fisheries, and coastal protection against floods and storms.

1. 1. Cooks River Flood Study, MWH and PB, 2009 Sydney Water commissioned this report to determine baseline conditions of the Cooks River Catchment to enable the design of naturalisation options to be considered as part of their ongoing asset renewal program.

2. Bayside West Floodplain Risk Management Study and Plan, May 2023, was commissioned to understand the existing flood behavior and to establish the basis for floodplain management activities.

However, large areas of blue carbon ecosystems have been lost due to land reclamation, clearing, pollution and severe weather events. Tidal salt marshes cover roughly 140 million hectares of Earth’s surface, this is roughly half of their historical area and this area is continuing to decrease at a rate of 1-2% per year.

Coastal ecosystems are big carbon sinks so when they are degraded or destroyed. They emit large amounts of carbon.

Experts estimate that as much as 1.02 billion tons of carbon dioxide is being released annually from degraded coastal ecosystems.

Figure 29 - 1% AEP Flood extent

Riverine Park Masterplan | 23

2.13 Aviation Safety 30m 20m

Close proximity to Sydney Airport impacts the height of structures, as well as the style and intensity of lighting that can be provided within the park, along with land-use constraints.

10m

H: Protecting Strategically Important Helicopter Landing Sites I: Managing the Risk in Public Safety Areas at the Ends of Runways AIRPORT

Se c tion A

The National Airport Safeguarding Framework (NASF) comprises ACTIVE RECREATION ENVIRONMENTAL CARPARK ACTIVE RECREATION ENVIRO COOKS RIVER SWOOS of 9 guidelines that apply to all airports in Australia and affects planning and development around airports including development Obstacle Limitation Surface (OLS) activity that might impact operational airspace and/or affect navigation of aircraft.

The OLS is defined by international specifications, as adopted

by CASA. It defines the airspace surrounding an airport that must be protected from obstacles to ensure aircraft flying in good weather during the initial and final stages of flight, or in the vicinity of the airport, can do so safely. Figure 2.19 Mapping of OLS (Gap analysis between OLS and AHD contours) identifies the constraints of the OLS as it impacts the heights of structures to under 20m in some sections of the park.

The 9 guidelines are: A: Managing Aircraft Noise B: Managing Building Generated Windshear and Turbulence C: Managing Wildlife Strike Risk

tion

Sec

B

D: Managing Wind Turbine Risk to Aircraft E: Managing Pilot Lighting Distraction Figure 30 - Airport Obstacle Limitation Surface OLS Map

F: Managing Protected Airspace Intrusion G: Communications, Navigation and Surveillance

40m 30m

30m 20m

KYEEMAGH

COOKS RIVER

20m

ENVIRONMENTAL

ACTIVE RECREATION

ACTIVE RECREATION

SWOOS

PEMULWUY PARK

Figure 31 BB - Section A aviation impact SECTION

E MARKET GARDENS

RESI

CARPARK

ARNCLIFEE MARKET GARDENS

ACTIVE RECREATION

ENVIRO

AIRPORT

30m 20m 10m

ENVIRONMENTAL

Figure 32 - Section B aviation impact

24 | Riverine Park Masterplan

CARPARK

ACTIVE RECREATION

ACTIVE RECREATION

ENVIRO

COOKS RIVER

SWOOS

AIRPORT

PSA

COMPATIBLE USES

INCOMPATIBLE USES/ACTIVITIES

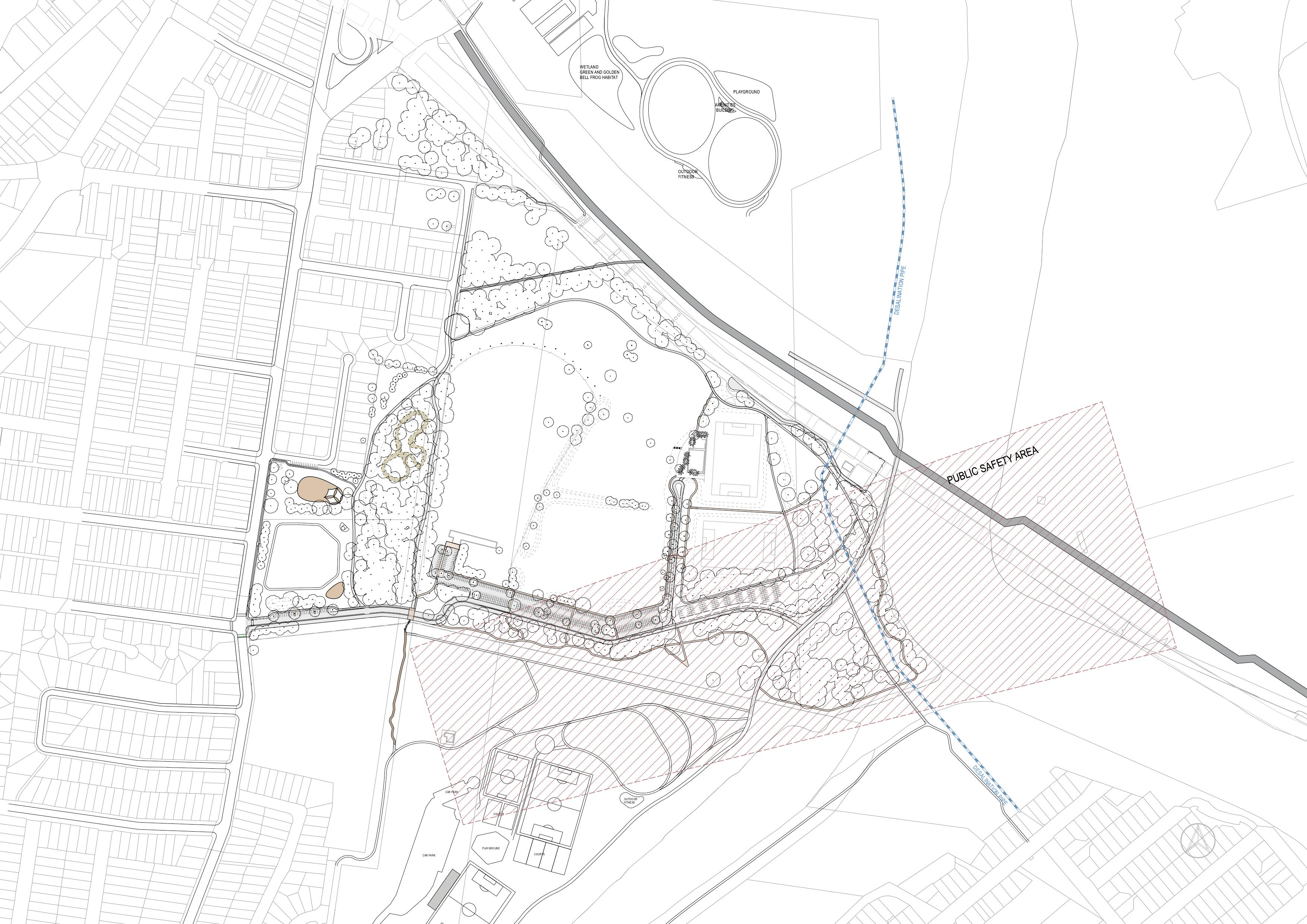

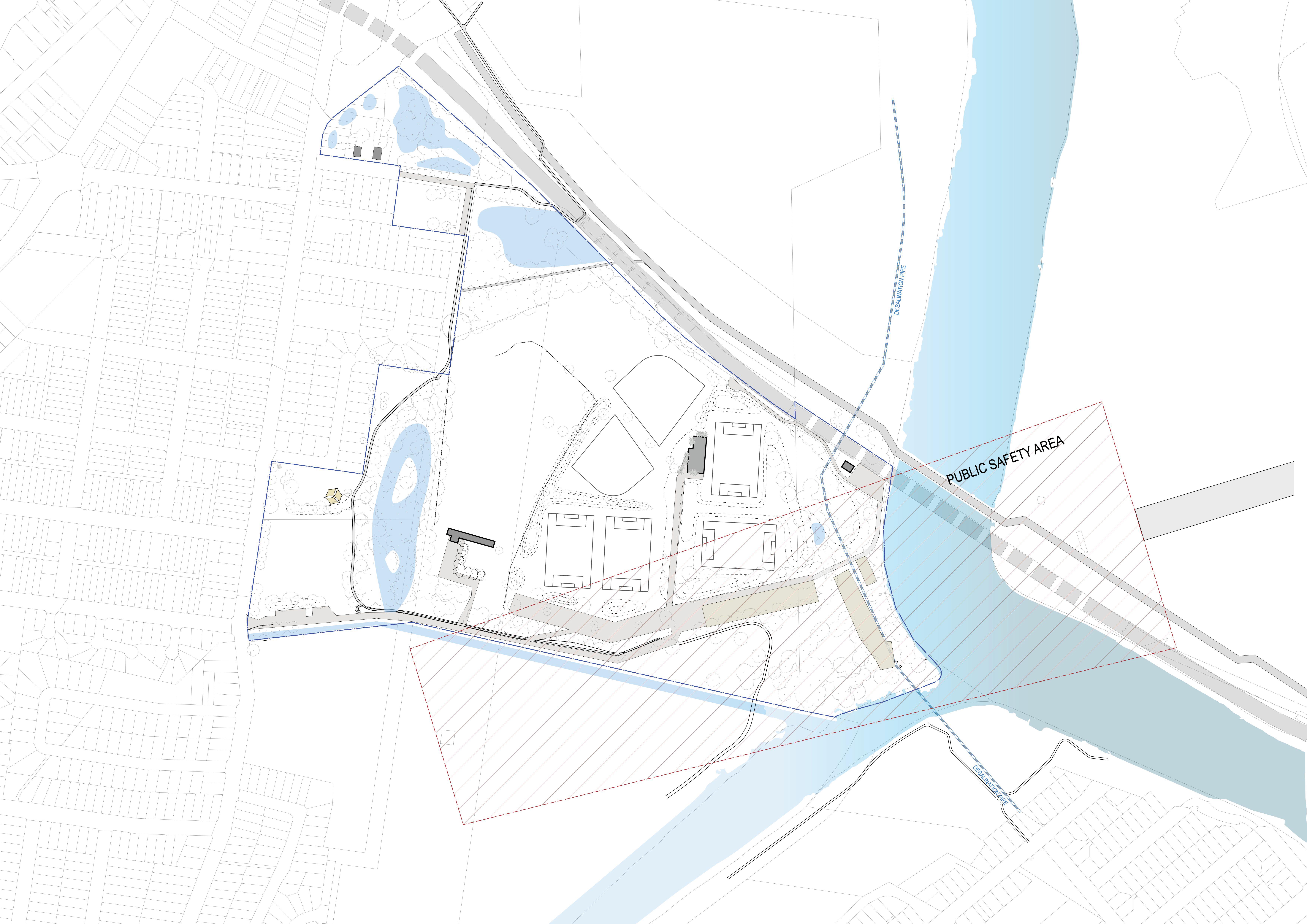

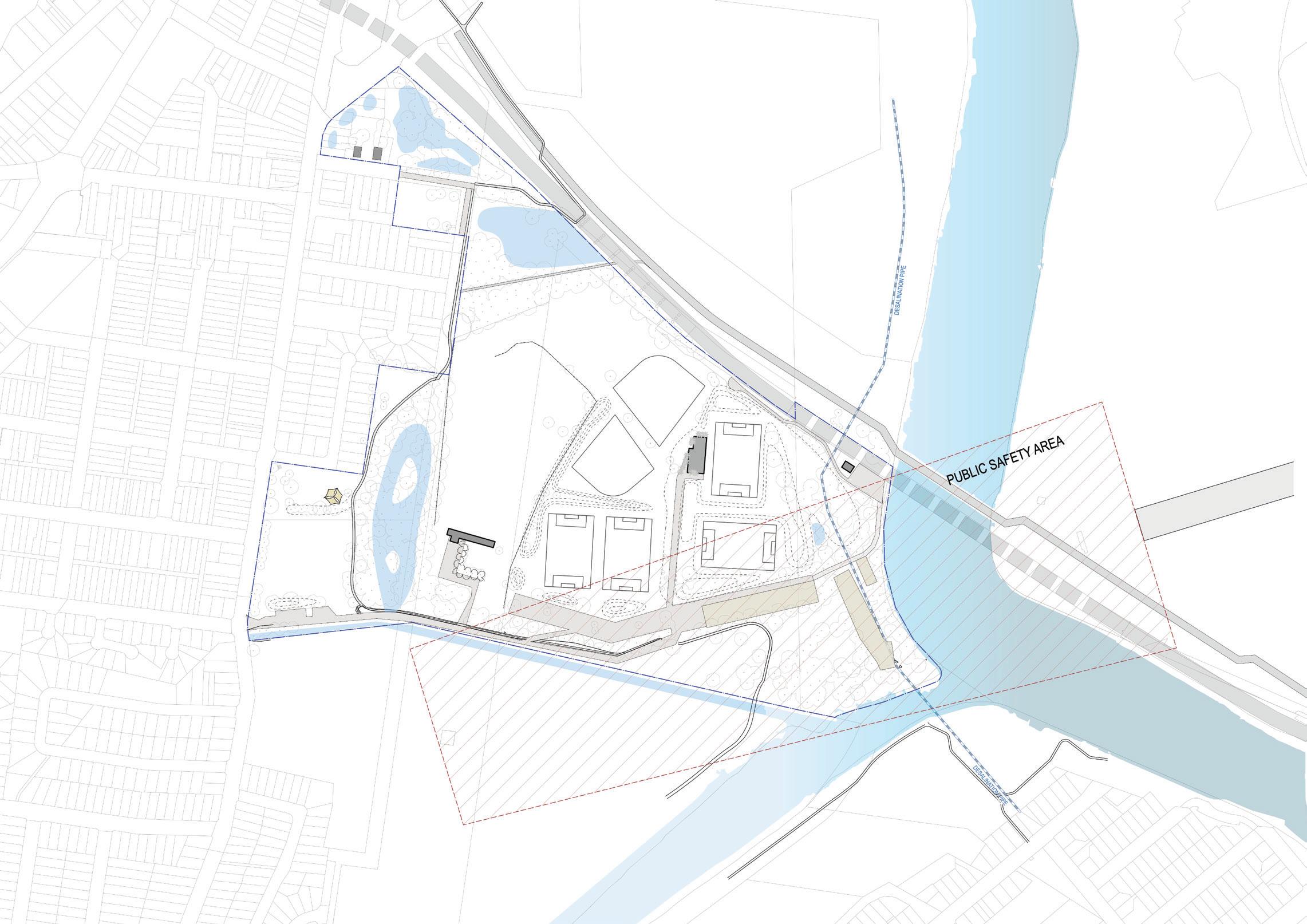

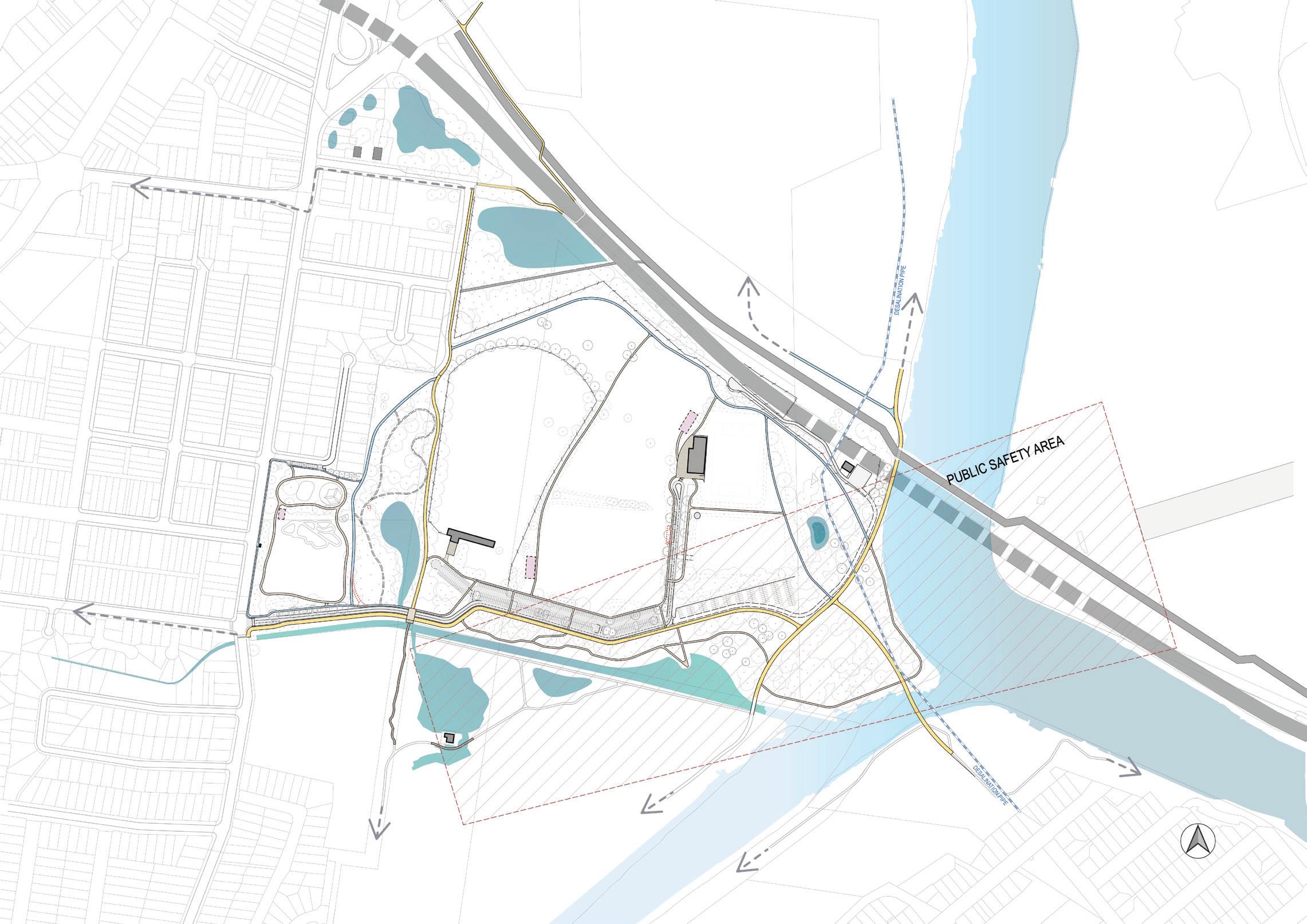

Public Safety Areas (PSA) Public Safety Areas are implemented at airports to protect the safety of the public from aviation activities and accidents. Riverine Park is within the affected zones of 1,000 metres before the runway on approach or within 500 metres beyond the runway on departure. These zones are generally accepted standards set by the International Civil Aviation Organisation (ICAO). Figures below shows the extent of the PSA which limits the level of activity and permissible uses.

Figure 33 - Sydney Airport Public Safety Area (source: Intramap)

OUTER AREA - 1 IN 100,000

• Long stay and employee car parking (where the minimum stay is expected to be in excess of six hours) • Shorter stay car parking (with a safety case – depends on intensity of use) • Built development for the purpose of housing plant or machinery and would require no people on site on a regular basis, such as electricity switching stations or installations associated with the supply or treatment of water • Golf courses, but not club houses (provided appropriate mitigation measures are in place to reduce wildlife attraction risk - see NASF Guideline C) • Open storage and types of warehouses with a very small number of people on site. The planning authority could consider imposing conditions to prevent future intensification of the use of the site and limit the number of people to be present on the site • Developments which require few or no people on site on a regular basis such as buildings housing plant or machinery • Low intensity public open space

• Accommodation activities: This includes dwelling houses, multiple dwellings, resort complexes, tourist park, hostels, retirement villages or other residential care buildings • Community activities: educational establishment, community centres, hospitals, theatres, child-care and playgrounds, detention facilities, place of worship • Recreation activities: This includes parks, outdoor recreation and sport, major sport and entertainment facilities • Entertainment and centre activities: Shopping centres, service stations, showrooms, markets, hotels, theatres, tourist attraction, garden centres • Industrial and commercial uses involving large numbers of workers or customers: Intensive uses such as high impact, medium and low impact industry, warehousing, services industry • Manufacture or bulk storage of flammable, explosive or noxious materials • Public passenger transport infrastructure: This includes bus, train and light rail stations

INNER AREA - 1 IN 10,000

• Long stay and employee car parking (where the minimum stay is expected to be in excess of six hours) • Built development for the purpose of housing plant or machinery and would require no people on site on a regular basis, such as electricity switching stations or installations associated with the supply or treatment of water • Golf courses, but not club houses (provided appropriate mitigation measures are in

• Accommodation activities: This includes dwelling houses, multiple dwellings, resort complexes, tourist park, hostels, retirement villages or other residential care buildings • Community activities: educational establishment, community centres, hospitals, theatres, child-care and playgrounds, detention facilities, place of worship • Recreation activities: This includes parks, outdoor recreation and sport, major sport and entertainment facilities • Entertainment and centre activities: Shopping centres, service stations, showrooms, markets, hotels, theatres, tourist attraction, garden centres • Industrial and commercial uses involving large numbers of workers or customers: Intensive uses such as high impact, medium and low impact industry, warehousing, services industry • Manufacture or bulk storage of flammable, explosive or noxious materials • Public passenger transport infrastructure: This includes bus, train and light rail stations

Figure 34 - General guidance for new/proposed developments on compatible and incompatible activities within PSA risk contours (source: NATIONAL AIRPORTS SAFEGUARDING FRAMEWORK)

Riverine Park Masterplan | 25

!T

!T

!

d oa lR

INNER WEST

Mascot T Station

ay

!

Pr in

r iv tD r o rp Ai

!T Wolli Creek Interchange Station

!

The intensity of reflected sunlight may also be considered under the regulatory regime.

h

!

M 5 st Ea

Fr

ee w

e

e

Joyce Dri ve

T2

T !

Wentw

T

COOKS RIVER

M

T Arncliffe Station

s ar

orth Avenu

s Drive

T3

eet Str

Road

ross rn C e h e ut S o Dr i v

T1

5 07 /2

WAY RUN

ay

BAYSIDE

eet

sD Gen er al

Ho lm e

o

Wes t Bo tany St r

sh

re

AY UNW 4R R 16 L/3

BOTANY BAY

AY UNW 4L R

Ba yS

e riv 16 R/3

BAYSIDE

Bo ta n

re Fo

Best ic Stre et

Ro ad

y

Ro a

d

tre et

e

Legend Land use zone

Sydney Airport Freehold Land

AD1 -

Aviation Activity and Aviation Support Facilities

t AvenuTerminal/Precinct Existing e Buildings

AD2 -

Airport Terminal and Support Services

Existing Runways

AD3 -

Airport Logistics and Support

Gra

T he

Preside n

nd

Par ad

Sydney Airport Boundary

Existing Taxiways/Aprons LGA Boundary Existing Road

Figure 35 - Sydney Airport – Utilities reservation (Note AD4 in Landing Lights Wetland) (source: Sydney Airport Master Plan 2039)

26 | Riverine Park Masterplan

Sydney Rail Network T Train Station !

AD4 - Utilities Reservation AD5 - Aviation Reservation BD1 - Business Development BD2 - Enviro-Business Park EC1 -

Environmental Conservation 0

0.5

1 km

181

G:\WTR\SpatialSys\Projects\2017\201712_Syd_Airport\Maps\Report Figures\20180420 Updates\Map5&31_Land Use Plan.mxd

CASA has the authority under the Civil Aviation Regulations 1988 to control ground lights where they have the potential to cause confusion or distraction from glare to pilots in the air. Design Guidelines have been prepared to assist lighting designers and installation contractors to determine the location and permitted intensities of ground lights within a six kilometre radius of an airport. Sports field lighting and street lighting require careful consideration.

ta Qan

ce s

CANTERBURYBANKSTOWN

Garden ers

!

ig hw

Tempe T Station

H

Lighting near the airport

tre et

SYDNEY na Ca

Marrickville Station

The Sydney Airport Masterplan 2039 (Figure 25) identifies a very small parcel of land as an “AD4 – Utilities Reservation Zone” within Barton Park south west of the M5 East Motorway. This is within the Landing Lights Wetland. This parcel accommodates special uses of the airport.

i w Un

T

i Br

AECOM GIS Printed Date: 20/04/2018

Sydney Airport – Utilities reservation

ns

N

rda nS

Sydenham Station

e dg

# ! «

ad Ro

O'R io

Illa wa rr a

Ro ad

Map 21: Land Use Plan

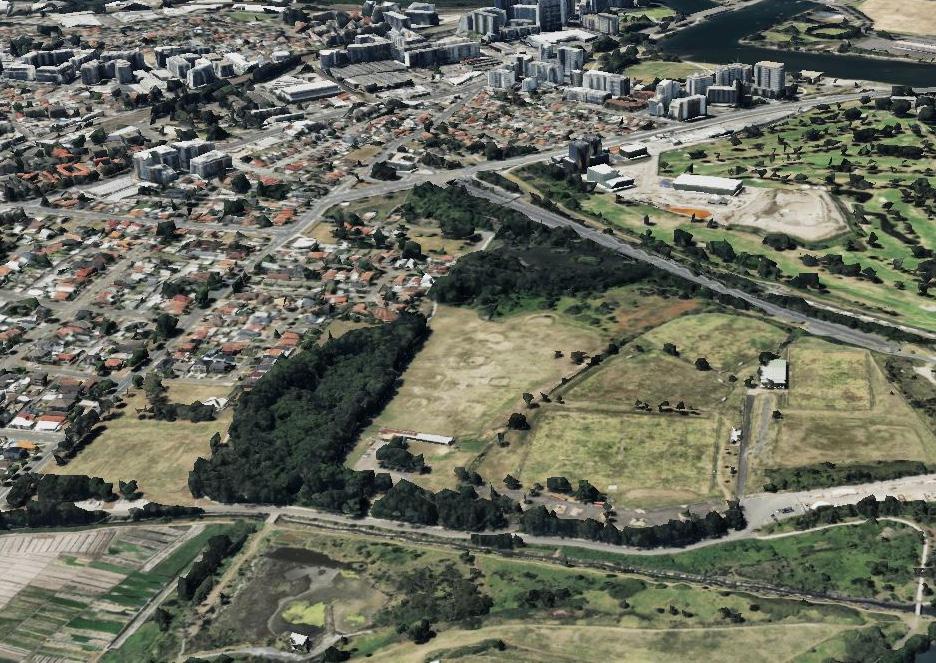

2.14 Visual and Spatial Impact Once considered a wasteland, the landscape of the area has undergone significant transformation since the mid-19th century.

It served as a Sewage Farm for Sydney for 30 years until 1916, followed by sand mining for council civil projects and later as a council landfill site. These activities have dramatically altered the topography, making the site’s history and its resultant landscape challenging to comprehend for those unaware of its industrial past. The now highly valued wetlands are a direct consequence of previous sand mining activities. Interestingly, the heritage-listed Market Gardens have thrived, benefiting from the enriched soil due to deposits from the Sewage Farm.

Visually enclosed area

Open Space

Exaggerated mounding mound

Densely vegetated area Poor quality main entry Long view along the canal

However, this history of industrial use has not been without its drawbacks. The tree canopy and vegetation quality have suffered, dominated by weeds - a result of prolonged poor land management practices. Similarly, the Mangrove Forest, a product of these neglected practices, now obstructs sightlines to the water, with only two openings along the adjacent cycleway.

The landscape shows little remaining evidence of former dune and woodland vegetation, and it’s unlikely that any traces of traditional owners’ past use remain.

Today, the site is characterised by vast grassland monocultures, necessary to contain the disturbed soils, with limited interruptions to the long views. These views are dominated by a three-tiered benched landscape with the highest point closest to the Cooks River and stepping downward towards West Botany Street.

From this altered elevation, there are sweeping views towards the airport and across the Landing Lights Wetlands, Market Gardens, Spring Creek, Muddy Creek, Cooks River, and the residential areas of Arncliffe and Banksia, providing a unique perspective on the area’s complex history and current form.

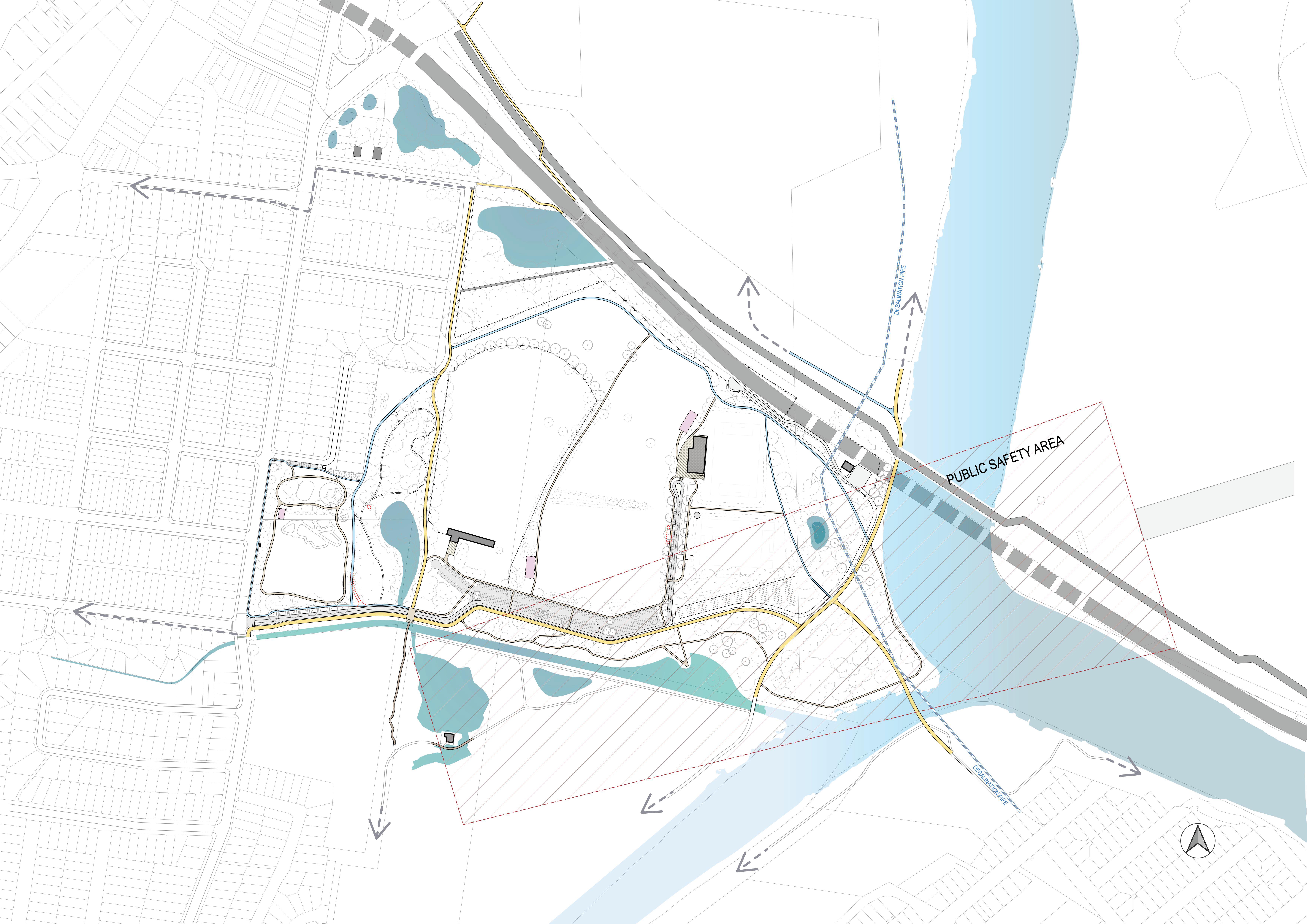

Figure 36 - Visual and Spatial Impact diagram

Riverine Park Masterplan | 27

2.15 Management and Maintenance Maintenance of Riverine Park is primarily undertaken by Bayside Council.

Routine Park Maintenance

Bush Regeneration

The parks staff undertake a range of routine park maintenance activities including mowing, litter collection, broad acre mowing of the outer fields and herbicide spraying.

To protect the Landing Lights Wetland site Council undertakes significant weed control and vegetation removal which has continued since 2016. These works have included the removal of Grey Mangroves (Avicennia marina), Casuarinas species and Acacia species within and adjacent to the main wetland. Removal has occurred to protect the existing salt-marsh from being invaded by trees and shrubs that should not exist in this area and to open up the site to ensure it continues to provide important habitat for threatened and migratory coastal birds.

Seasonal improvements are undertaken of the sports fields including • • • • • • •

Aerating Fertilising Top-dressing Turf repairs Filling uneven surfaces Turf weed control Line marking fields

wetland • Some parts of Riverine Park can continue to be conservatively managed with bush regeneration whilst in some heavily degraded areas a more target intervention effort will be required to restore suitable ecologies.

Works that have been completed include:

Council is seeking sporting partners who as part their tenure will be required to undertake maintenance of their lease areas. These arrangements are mutually beneficial as this gives autonomy to sporting partners to manage the spaces of interest to them as well as reducing maintenance burden for council. These groups function under a form of user pay. The expectation is that sporting partners keep open spaces available to the general public and work collaboratively with council on this ongoing arrangement for the benefit of the broader community and the sporting groups involved.

• Treatment of the weed species Juncus acutus along the boardwalk and within the saltmarsh area • Removal of mangroves within the wetland and Spring Creek • Removal of Casuarinas growing adjacent to Spring Creek • Treatment of woody weeds such as Mickey mouse plant (Ochna serrulata), Green Cestrum (Cestrum parquii) and Golden wattle (Acacia saligna) • Treatment of the fast-growing vines, Coastal Morning Glory/ Mile-a-minute (Ipomoea cairica), Turkey • Rhubarb (Acetosa sagittata) and highly invasive groundcover Hydrocotyle bonariensis • Replanting with native species using community volunteers along the boardwalk • Removal of rubbish that was blocking the pipe outlet of the

Figure 37 - Routine maintenance work

Figure 38 - Local community caring for shared public land

28 | Riverine Park Masterplan

Figure 39 - Bayside teams undertaking bushcare at Hawthorne

3.

Planning Framework 3.1

A Metropolis of Three Cities; Eastern City District Plan & Green Grid

The Sydney Green Grid is an integral part of the Greater Sydney Regional and District Plans. Green space is a key liveability factor in urban areas that is made up of a network of green space that connects town centres, public transport hubs and major residential areas. The Green Grid is the State Government’s green infrastructure policy that promotes sustainable development while maximising quality of life and well-being. Specifically the Green Grid promotes the linkages between open space within the wider public realm through enhancing creek corridors, transport routes, suburban streets, footpaths and cycleways.

The Sydney Green Grid document identifies 4 major zones in the Bayside Local Government Area.

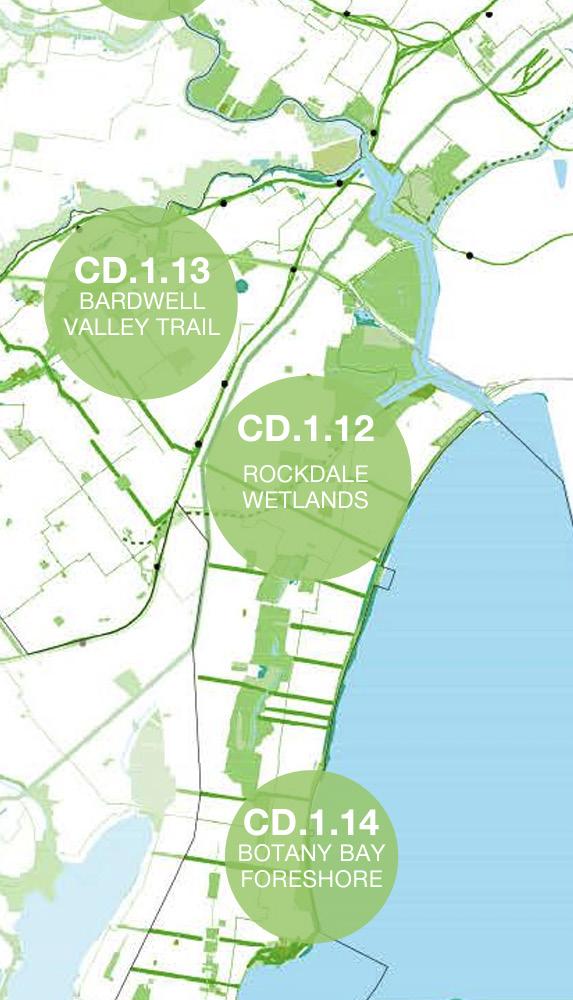

Riverine Park is within the group identified as CD.1.12 Rockdale Wetlands with the dominant grid layer identified as “ecological”.

This group of projects have a very high conservation value extending from the Cooks to the Georges River along Muddy Creek, through Eve Street Wetlands, Spring Creek Wetlands, Landing Light Wetland, Patmore Swamp, Scarborough Park Ponds and through to Sans Souci. Opportunities include wetland restoration, education, interpretation and an improved pedestrian and cyclist environment.

It is also described as a very important recreational corridor with a significant amount of active sports grounds and facilities, cycle and walking trails.

The Green Grid framework aims to protect and enhance this important hydrological and ecological asset and create a connected open space corridor for walking, cycling and urban greening along the M6 corridor from the airport to the Sans Souci and beyond the LGA to Sutherland.

Figure 40 - A Metropolis of Three Cities; Eastern City District Plan & Green Grid

Riverine Park Masterplan | 29

3.2 State Environmental Planning Policy (Precincts—Eastern Harbour City) 2021

IN N

ES D

FL

OR

Riverine Park is within State Environmental Planning Policy (Precincts—Eastern Harbour City) 2021, previously called Sydney Regional Environmental Plan No. 33 (Cooks Cove) (the SREP 33) and is zoned as ‘Open Space’ & ‘Special Use’ under that instrument.

A

ST R

EE T

ST RE ET

VA L

DA

AL E

ET

RE ST

ST RE ET

Objectives and principles have been setout for Cooks Cove princinct in the SEPP.

M

SH R AR IDO

RR CO T OR Lot 14�

Including : (a) to establish planning principles for the development of land that promote the ecologically sustainable use of the Cooks Cove site, and (b) to rezone land at Cooks Cove to encourage trade and technology uses, and to attract global-reach businesses which strengthen Sydney’s international competitiveness, and

SPDP 213314 AN R T Lot 1 DP 329283

70

63

66

1,

COOKS RIVER

Lot 11� DP 570900

Lot 1 DP 108492

345560

33082 1

(c) to capitalise on the physical proximity of the Cooks Cove site to Sydney International Airport and Port Botany to create trade-focussed development, and

Lot 1 DP 120449

Lot 2� 113178

ROAD

ST

NS

NIBLICK

BRENNA

(e) to identify appropriate development form and capacity for the Cooks Cove site, and

Pa

Part Lot 1 DP 184

SP

10357

(d) to facilitate master planning strategies that will promote the orderly development of public open space and trade and technology land uses, and

rt

EC

IA

Lo

t1

LU

,D

SE

P

17

38

S

2

GARDEN

Lot 1 DP 665481

(j) to establish vegetated riparian areas along the Cooks River and Muddy Creek foreshores, and

(d) to provide for facilities that are ancillary to the recreational use of public open space, and

30 | Riverine Park Masterplan

DY

E AV HC LE R AV

t6

Lo

M

CH UT

E AV

NU

E

LEGEND Special Uses

OC

Lot 1 DP 576148

Lot 2 AD DP 529923� RO N O TI Lot 3 DP 17133� CU PA

LEIG H

HI G

2,

KYEEMAGH RESERVE Lot 5, DP 31742�

2

21

2 44

Lot 4 DP 529923�

Lot 5

(e) to provide vegetated riparian areas to enhance biological connectivity along the Cooks River and Muddy Creek foreshores, (f) to protect and enhance the habitat of the Green and Golden Bell Frog established within Cooks Cove.

EK

E CR

D MU

OAK

(c) to protect significant wetland areas within the Cooks Cove site and along the Cooks River foreshores, and

Lot 1� DP 787029

COOKS RIVER

BARTON PARK� � CROWN LAND

The objectives for the Open Space Zone include:

(b) to provide public access along the Cooks River and Muddy Creek foreshores, and

Lot 4� DP 31742

Lot 1 DP 514811

(k) to provide vegetated riparian buffers around the Marsh Street, Eve Street, Spring Creek and Landing Lights wetlands.

(a) to provide for active sporting and recreational land uses and club facilities, and

BARTON PARK 554 Ms7979Sy

REET

Lot 1 DP 219126

EVE ST

(i) to protect environmentally significant wetlands and the habitat of the endangered Green and Golden Bell Frog, and

OTANY S TREET

(h) to enhance the Botany Bay to Homebush Bay regional cycleway and pedestrian/cycle network, and

231717

FIRMST ONE

WEST B

(g) to provide for good public access through the Cooks Cove site and along the Cooks River foreshores, and

S

(f) to provide open space for a range of recreational uses, and

BESTI

C S TR

Lot 4

Trade and Technology

EET

Figure 41 - Current zoning map of the Cooks Cove Precinct, under State Environmental Planning Policy (Precincts—Eastern Harbour City) Department file No. Planning Officer: Manager G.L.S. County: Parish: L.G.A. Locality: Catalogue No.

P01/00 ........................... ...........................

Cumberland St. George Rockdale Arncliff, Banksia, Kyeemagh

Open Space

NSW DEPARTMENT OF INFRASTRUCTURE, PLANNING AND NATURAL RESOURCES ENVIRONMENTAL PLANNING &ASSESSMENT ACT, 1979

SYDNEY REGIONAL ENVIRONMENTAL PLAN No. 33 COOKS COVE

3.3 Coastal Management Act 2016 No 20 State Environmental Planning Policy (Resilience and Hazards) 2021 The NSW Government established a new integrated coastal management framework in 2018 designed to better equip coastal communities to respond to existing and future coastal management challenges and opportunities.

The framework now comprises the following: •  Coastal Management Act 2016; •  State Environmental Planning Policy (Resilience and Hazards) 2021 – Chapter 2; •  NSW Coastal Management Manual; •  Coastal Management Programs; •  NSW Coastal Council; and •  Coastal and Estuary Grants Program.

Under the Coastal Management Act (CM Act) the Coastal Zone includes the open coast, estuaries, coastal rivers and the marine estate and is comprisesd of four Coastal Management Areas: 1. Coastal Wetlands and Littoral Rainforest Area .

2. Coastal Vulnerability Area.

3. Coastal Environment Area.

4. Coastal Use Area.

5.

Local councils have a central role in managing the coast and are required to manage maintenance, works and planning strategic directions in accordance with relevant state legislation, policies and plans, including the CM Act 2016 and Chapter 2 of the Resilience and Hazards SEPP. A certified Coastal Management Program (CMP) and the Coastal Management Manual applies to all public authorities that exercise functions in connection with the coastal zone (e.g. Sydney Water, NSW Ports).

SEPP Resilience and Hazards 2021 Coastal Wetlands Coastal Wetlands Proximity Area Coastal Environment Area Coastal Use Area Land Application

Figure 42 - StateDisclaimer Environmental Planning Policy (Resilience and Hazards) 2021 Note

This map remains the property of Bayside Council. Reproduction of any part without approval is prohibited. This map has been compiled from various sources and the publisher and/or contributors accept no responsibility for any injury, loss or damage arising from its use or errors or omissions therein.

coastal management plan

Coastal Management Program Councils are the organisations responsible for preparing Coastal Management Programs (CMPs) for management of the coastal zone in their LGA. The purpose of a CMP is to set the long-term strategy for the coordinated management of land within the coastal zone with a focus on achieving the objectives of the Coastal Management Act 2016. A CMP identifies coastal management issues in the scope area, the actions required to address these issues, how and when those actions will be implemented, and identifies the costs of the actions and viable funding mechanisms for delivery. These can include cost-sharing arrangements and grants.

The Coastal Management Manual 2018 outlines mandatory and non-mandatory requirements for a CMP. A CMP is prepared and implemented in five (5) stages as shown in Figure 2.

Once adopted by Council and certified by the Minister, Council can implement the actions in a CMP through its strategic management systems and land-use planning instruments.

The Department of Planning, Housing and Infrastructure (DPHI) help councils preparing a CMP with data and technical advice, provides oversight of the State’s coastal management program, and administers the Coastal and Estuary Grants Program that provides funding for councils to prepare and implement their CMPs.

16/01/2024 1:6000

Prepared By: April Ye

Riverine Park Masterplan | 31

Cooks River Catchment Coastal Management Program The Coastal Management Program (CMP) applicable to this site is the Cooks River Catchment Coastal Management Program. This is a catchment based CMP as catchment activities are considered to have a direct impact on parameters in the coastal zone, such as water quality and hydrology. The involvement of Bayside Council in this program has been supported by Council via the regional organisation, the Cooks River Alliance.

The Cooks River Catchment CMP covers the Cooks River and its catchment as well as the northern coastal area and catchment of Botany Bay within the Bayside LGA including Port Botany, Foreshore Beach and the Botany Freshwater Wetlands (Mapped as a Coastal Wetland Management Area – see Figure 3). It is managed by the Cooks River Alliance (CRA) Stage 1 of the CMP process outlined in Figure 2 has been

Figure 43 - Cooks River Catchment CMP study area (geographic scope).

32 | Riverine Park Masterplan

completed with production of the Cooks River Catchment CMP Scoping Study – Stage 1 Scoping Study in January 2020. A scoping study: • establishes the purpose, vision and objectives; • determines the key coastal management issues and the spatial extent of the management areas; • reviews current coastal management arrangements; • determines where action is required via a first pass risk assessment; • identifies knowledge gaps and information needs; • includes a preliminary business case; and • develops a forward program for subsequent stages of the CMP.

This CMP is now completing Stage 2 – Determine risks, vulnerabilities and opportunities, and is preparing to commence Stages 3 and 4.

Council is required to adopt a CMP before it can be submitted to the Minister for certification. Once it has been submitted Council can apply for implementation grants for the actions identified in a CMP. If a grant application is successful, then it will be activated once the Minister makes the decision to certify the applicable CMP associated with the grant.

It is important to note that Council will be ineligible to apply for grants under the NSW Coastal and Estuary Grants Program from 2024 if a CMP hasn’t been adopted and submitted to the Minister.

3.4 Biodiversity Conservation Act 2016 Under the Biodiversity Conservation Act 2016 ‘Coastal Wetlands’ are a category of land included in the Biodiversity Values Map. For any work involves the clearing of native vegetation in the Biodiversity Values map, a biodiversity development assessment report (BDAR) must be prepared.

3.5 Fisheries Management Act 1994 The NSW DPI administers the Fisheries Management Act 1994 which protects mangroves, seagrasses and seaweeds on public water land and foreshores.

• Develop and execute a comprehensive weed management strategy focused on the removal of invasive species like Juncus acutus and managing undesirable mangrove competition. This involves regular monitoring, physical removal, and potentially the use of environmentally sensitive herbicides where appropriate.

Under Part 7 of the Fisheries Management Act 1994, a permit is required for:

Rockdale Biodiversity Strategy

Rockdale Biodiversity Strategy 2014 This strategy provides high level goals and targets to guide the development of open spaces with an emphasis on restoration and protection and enhancement of natural areas, improvement of waterway quality and creation of linkages along corridors of open space. The strategy identifies the following priorities for the Wetlands Biodiversity Corridor: • Develop and implement habitat enhancement plans to increase the availability of foraging and roosting areas for migratory and non-migratory shorebirds, as well as small bush birds. This includes planting native vegetation known to support these species and creating or maintaining open water areas that serve as foraging sites.

• Conduct detailed habitat assessments to identify and map current habitats of the Green and Golden Bell Frog (GGBF) within the Marsh/Eve Street Wetlands. Develop protection strategies that may include habitat restoration, creation of breeding sites, and implementation of management actions to minimise disturbances.

• Collaborate with Sydney Airport authorities to develop and implement a bird management plan that minimises the risk of bird-aircraft strikes while supporting biodiversity.

This could involve habitat manipulation to discourage bird presence within flight paths and monitoring bird movements.

• Undertake restoration and enhancement projects to support threatened estuarine and freshwater vegetation assemblages and coastal saltmarsh. This includes removing invasive species, reintroducing native plants, and managing water quality and hydrology to support the health of these ecosystems.

• Improve the ecological connectivity between the Landing Lights Wetlands and the broader Wetlands Biodiversity Corridor. This may involve enhancing existing ecological links, creating new habitat corridors, and integrating landscape features that facilitate wildlife movement.

• Design and establish buffer zones around the wetlands to protect them from adjacent land uses such as market gardens and the impact of the M5. This could include physical barriers, vegetated buffers, and signage to manage access and minimise disturbances.

• • • •

Harming mangroves (i.e. damaging, destroying or removal) Dredging and reclamation work Temporarily or permanently obstructing fish passage Using explosives and other dangerous substances

Mangroves are protected in New South Wales (NSW) under the Fisheries Management Act 1994 due to their importance as habitat for fish and fish breeding environments. Mangroves also protect foreshore land by absorbing the energy of tidal currents and storm-driven wind and wave action, creating a natural breakwater that helps stop erosion.

The presence of mangroves is also indicative of Key Fish Habitat, and is noted as highly sensitive by Fisheries NSW. A buffer zone and conditions to development within the vicinity of Muddy Creek and the Spring Creek will apply.

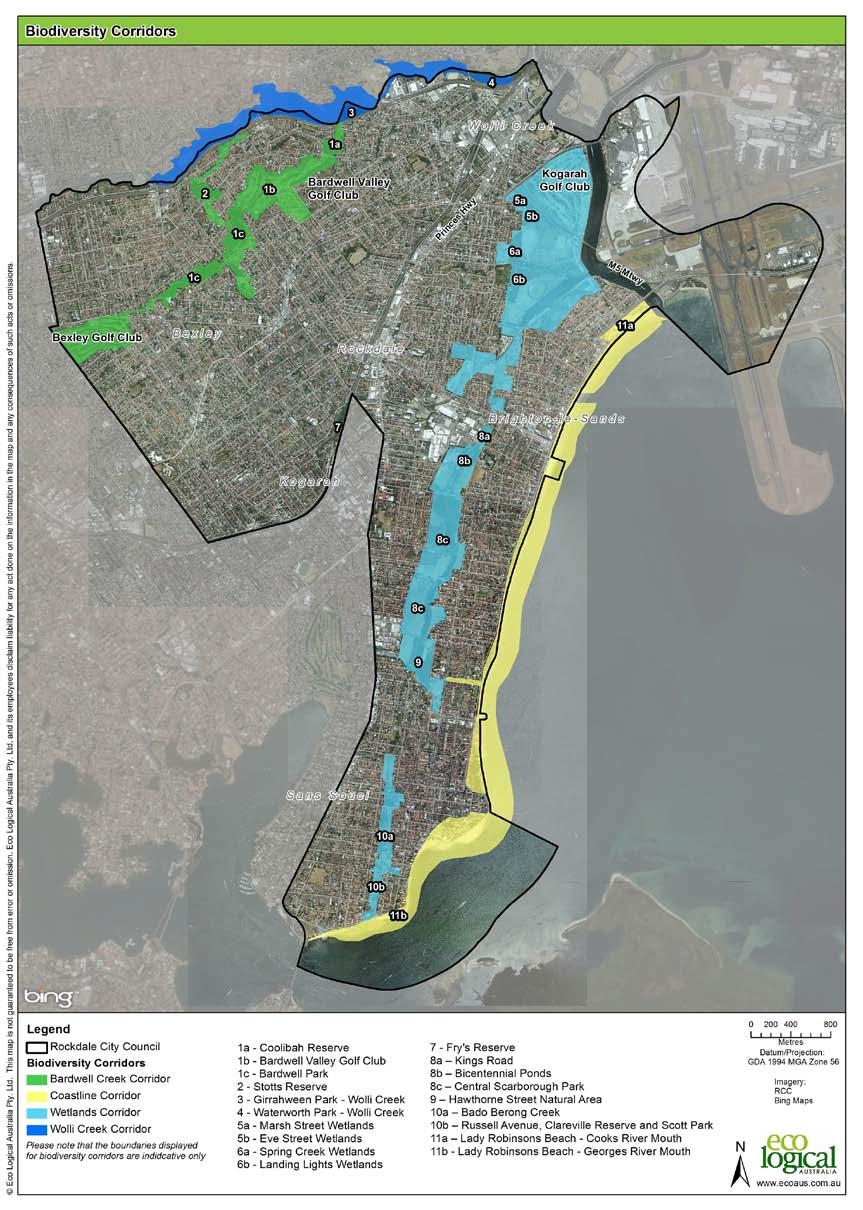

Figure 44 - Biodiversity Strategy, Biodiversity Corridors

Figure 6: Biodiversity corridors

29

Rockdale City Council Figure 6: Biodiversity corridors

Rockdale City Council

29

Figure 45 - Fish Habitat Map

Riverine Park Masterplan | 33

3.6 Bayside West Precinct Plan 2018 & Arncliffe and Banksia Green Plan The population of the Arncliffe and Banksia Planned Precinct Wolli Creek

is expected to significantly increase by 2036. This Plan sets out strategic land use and infrastructure planning to guide the future transformation of the Bayside West Precincts. The Plan will inform future changes to the planning controls to enable the rezoning of the Arncliffe and Banksia Precincts, through future amendments to the Bayside Local Environmental Plan 2021.

Creek T Wolli Station

y

t

St

d

Fo

This growth, combined with the introduction of new residential and mix used development, provides the opportunity to address the demands for open space and recreational activities.

tR re s

M

d

G ardiner

Spring S

Ave

t

T

Sydney Airport

r

gR

hS

s Rive

l Wo

lon

n go

s ar

Cook

M

Arncliffe Station T

In its current state, there is limited availability to aquire new land specfically for open space use. For this reason, redevelopment and expansion of existing open space assets, such as Riverine Park, Barton Park and elsewhere along Cooks River is essential.

The Green Plan provides a framework for the provision of the new open space, open space infrastructure, together with an integrated tree canopy network and green links will ensure these opportunities are met.

sS

es

Denison

The Bayside West Precinct identifies the importance of open space that is accessible, functional and adaptable to different stages of life for local residents and is reliant on provision to be provided by the large parks in Cooks Cove including Barton Park and to improve connections for pedestrians and cyclists.

f tu

nc

T

Lo

Hw

T

Pr i

Turrella Station

5

Ea

st

Fw

y

t

T Banksia Station

Legend

Existing Open Space Previously Proposed Open Space Open Space for Future Investigation Acquisition of Government Owned Land Green Roof Top Second Stage / Zoning Change Linear Park Open Space to Embellish

T

Muddy Creek

Regional Green and Blue Link Major Green and Blue Link New Crossing / Bridge

Existing Under Passage

Secondary Green and Blue Link Urban Link

Signalised Crossing Crossing to Be Signalised Boundary

0

200

400

1000m

1:20,000 on A4 Paper

Figure 11 open spaceGreen plan (Source: Figure 46 - Overview Arncliffe of and Banksia Plan AECOM, 2018)

T

34 | Riverine Park Masterplan

43

DARKINJUNG

Connections to Windsor

Box Hill

Riverstone

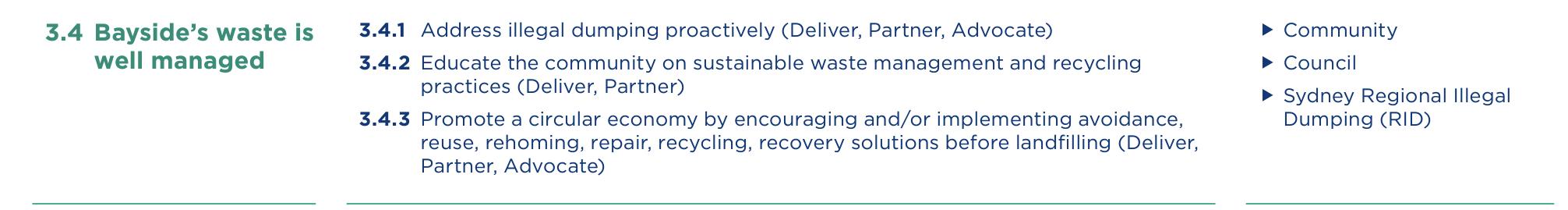

3.7 Bayside 2032 - Community Strategic Plan 2018 - 2032.

Connection towards Penrith

Connection towards Mona Vale and Palm Beach

The Ponds

Connection towards Windsor and Richmond Penrith Lakes

3.8 Active Transport Strategy

Schofields

The NSW Government wants cycling to be a preferred mode of transport for short trips and a viable safe and efficient option for longer trips. Safe and connected cycling networks across Narrabeen Greater Sydney will enable more people to ride their bikes as part of everyday travel. The Strategic Cycleway Corridors has been developed to provide the foundation for safe and convenient Thornleigh cycleways that better connect centres, precincts and places, while supporting councils’ local bike Pennant Hills networks.

Cherrybrook

Kellyville

Stanhope Gardens

Cranebrook Jordan Springs

Quakers Court

Plumpton

Glenwood Kings Langley

Woodcroft

Werrington

Kingswood

Beecroft Gordon

Nurragingy Reserve

Emu Plains

Bungarribee Park

WSU Penrith

Garigal The strategy highlights the importance of celebrating connections along our water fronts and National Pk Marsfield connecting the coast to Wolli Creek, the Airport and towards the CBD via Cooks River.

Winston Hills

Roseville Chase

Doonside

Seven Hills

Carlingford

South Penrith

Northmead

Toongabbie Glenmore Park

Orchard Hills

Prospect

St Clair Erskine Park

Eastwood Bayside Council is developing the North Bayside Bike Plan, which aims to expand upon the Strategic Ryde Telopea Balgowlah Cycleway Corridors toWest provide safe cycle infrastructure for our community. Riverine Park and Ryde North Rydalmere other opportunities along Cooks River and Muddy Creek present safe solutions for active Melrose Parramatta Ermington Willoughby Park Meadowbank transport free from vehicles and allowing interaction with open space, sports fields and the water’s Top Ryde Lane Cove edge connecting into the active transport corridor under construction as part of M6 Stage 1 to Camellia Scarborough Park.

Gladesville

Pendle Hill

Eastern Creek

Wentworthville Westmead Prospect Reservoir

Greystanes

Pemulwuy Luddenham Wetherill Park

Western Sydney Parklands

Merrylands

Auburn

Guildford

Fairfield Heights Greenfield Park Bonnyrigg Cecil Hills

Austral

Warwick Farm

Miller

Canley Vale Bass Hill

Strathfield

Balmain

Lilyfield

Rookwood

EORA

The Bays Pyrmont

Camperdown

Leichhardt Redfern Ashfield Petersham Newtown Dulwich Hill

Lakemba

Riverwood

Milperra Casula

Tempe

Roselands Beverly Hills

Taylor Square

Double Bay Bondi Beach

Moore Pk and Centennial Pk

Eastlakes

Coogee

Wolli Creek

Kingsgrove Rockdale

Peakhurst

Revesby

Surry Hills

Sydney Pk Sydenham

Punchbowl

Georges Hall / Airport

Rose Bay

Darlinghurst

Marrickville

Belmore

Chipping Norton

Rozelle

Callan Pk

Canada Bay Five Dock

Greenacre Yagoona

Moorebank

Carnes Hill

Regents Park Chullora

Chester Hill

Villawood

Cabramatta

Green Valley

Drummoyne Concord

North Strathfield Homebush

Wakeley Canley Heights

Neutral Bay

Lidcombe North

Homebush West

Duck River

Mosman

Wentworth Point Newington

TAFE Wetherill Park

Prairiewood

Edensor Park

Granville

Merrylands West

Smithfield

Manly Vale

Lane Cove National Park

Maroubra Beach

Padstow Panania Brighton Le Sands Edmondson Park

Glenfield

Macquarie Fields Emerald Hills

South Hurstville

Georges River National Park

Oatley

Ingleburn

Menai

Figure 47 - Bayside Community Strategic Plan 2018-2032 Eagle Vale

Elderslie

Aust.

Botanic

Minto

Jannali Bangor

Taren Point

Figure 48 - Strategic Cycleway Corridors Map (Source from TfNSW) Woolooware

Caringbah

Mount Annan Camden

Kurnell

Sylvania

Gregory Hills

Blair Athol WSU

La Perouse

Sans Souci

Oran Park

Harrington Park

Carrs Park

Connections to Wollongong and Otford

Cronulla

0

3

6

Riverine Park Masterplan | 35

9 KM

NTS

4.

4.1

Previous Community Engagement & What We Heard

Engagement for Bayside priority green grid corridors spatial framework 2020

Riverine park is a key component of Rockdale Wetland Corridor, which is one of the three Bayside Green Grids. A survey through the interactive mapping exercise was organised in 2021. The outcome for the Rockdale Wetlands Corridor indicate a heavy demand for connectivity improvements. (See figure below)

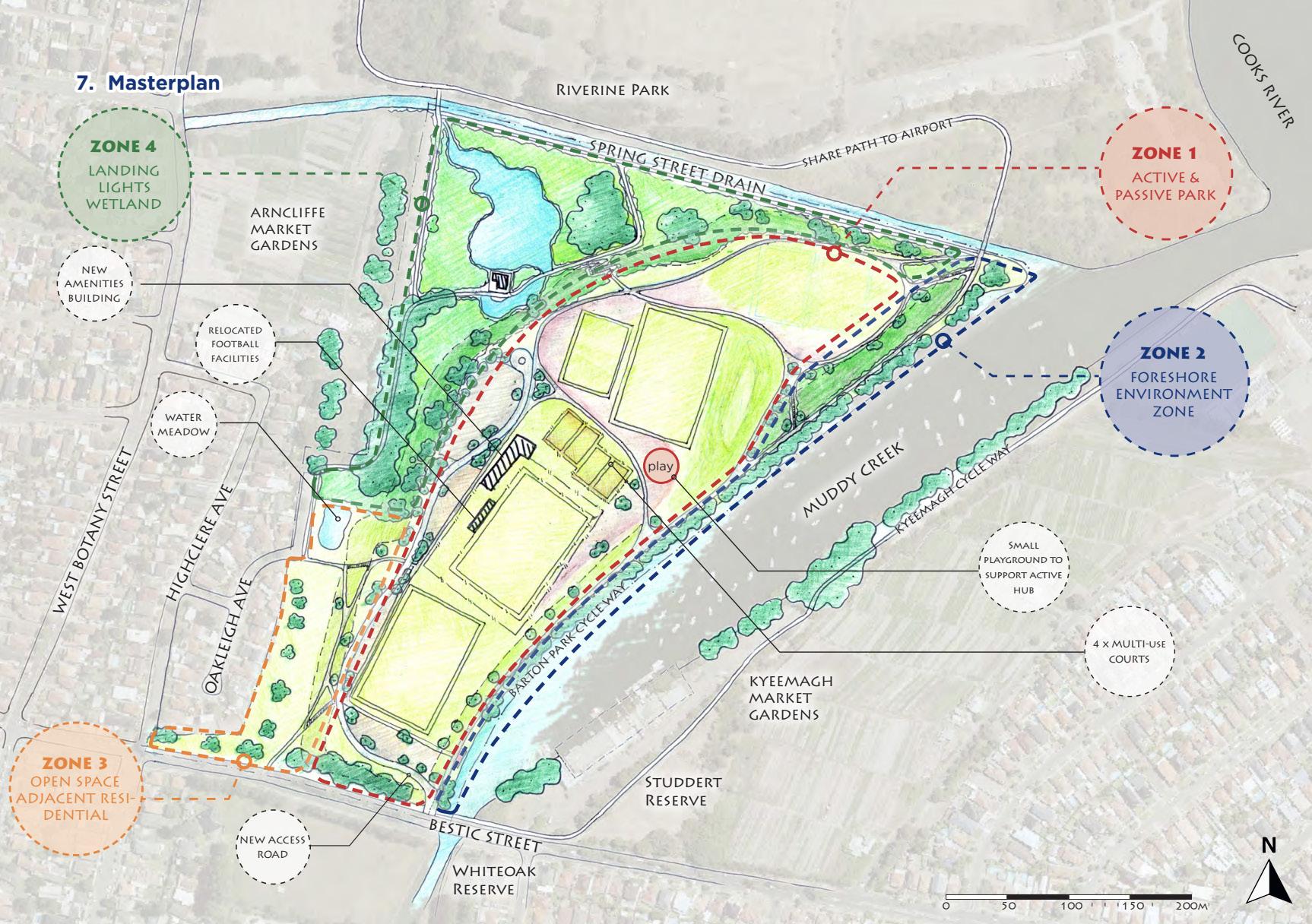

4.2 Engagement for Barton Park Masterplan 2020 Key feedback received during the Barton Park engagement activities that specific relevant to Riverine Park were: • Desire for holistic planning for the Rockdale Wetlands Corridor.

• High value is expressed for the wetlands and biodiversity of this area.

• Desire for Riverine Park and wetlands to be masterplanned.

4.3 Engagement for Arncliffe and Banksia to Riverine Park Pedestrian and Cycle Links 2023 In 2023, the Council consulted with the community regarding the proposed Arncliffe and Banksia to Riverine Park Pedestrian and Cycle Links. The project was well received, with an overwhelming 92% of participants expressing their support. Over 70% participants showed a keen interest in the proposed share path and the signalised crossing at the intersection of West Botany Street and Spring Street.

The feedback received from the community has been considered, with particular attention given to the West Botany Street and Spring Street intersection. A holistic review of this intersection has been conducted within its broader context, taking into account various factors such as traffic flow, pedestrian safety, land ownership and seamless connection to the Riverine Park.

The proposed design aims to enhance connectivity and safety within the area, and contributes positively to the overall quality of life in the region. More details of the design will be outlined in Chapter 7 of the report.

Discussions with Local First Nations Representatives were undertaken in May 2021 in developing the Bayside Priority Green Grid Spatial Framework.

Below is summary of the key discussions that apply to Rockdale Wetlands Corridor: • Promoting initiatives to improve water quality to make local food supply such as Mullet, rock oyster reefs and bluesummer crab edible and accessible to community • Wayfinding and Acknowledgement to Country • Graphic and potentially a digital songline that shares the story of the Mullet or other significant species and the importance of sensing and caring for Country.

• The creek bed with native species, grinding stones, sand pit patterns, sandstone creek bed and the kids being able to orientate themselves.

• Support any initiatives to expand Caring and regenerating Country and seeing more local residents plant endemic species in their gardens and Council in their public spaces.

36 | Riverine Park Masterplan

5.

5.1

Site Analysis and Design Opportunities Functional Zoning

Opportunities

The active recreation zone is to be retained as sports are popular and welcomed by the community. Appropriate management of the Active Recreation Zone is essential to the park’s success.

Although the implementation of appropriate barriers to manage vehicles and people in the vicinity of the golf driving range will still be required, the extent of the physical barriers and fences should be reduced for better accessibility and connectivity, also encouraging general community use outside of sports events. This would enhance the aesthetic appeal and ambiance of the space.

Consolidating the environmental land seeks to improve visibility, accessibility, and functionality to the park and to ensure management practices are appropriate and limit further incursions into valuable environmental buffers. Blurring the boundary between passive recreation and active recreation creates a large central zone suited to the use by a variety of patrons. Spring Creek, Landing Light Wetland, and Spring Creek Wetland as the key environmental zones can be improved to establish highquality wildlife habitat and promote low-impact human interaction where appropriate.

Existing conditions The existing functional zones are segmented. Passive recreation space is limited to the Eve Street Reserve and the open space adjacent to West Botany Street. The active recreation zones situated in the central area of the park are isolated and enclosed.

The environmental areas are under-maintained and are experiencing issues such as overgrown vegetation and weeds, poor water quality, and odorous smells. A considerable portion of the park has also become neglected. Overall, the existing park doesn’t offer sufficient passive recreation space and lacks connection between different zones, resulting in underutilization and poor passive surveillance.

In addition to active recreation and sports, the importance of creating unstructured passive recreation spaces for walkers, families, dog walkers, runners, and cyclists cannot be underestimated. By proving passive recreation opportunities, it will activate the park and vastly improve passive surveillance.

AIRPORT PUBLIC SAFETY AREA

KOGARAH GOLF COURSE

AIRPORT PUBLIC SAFETY AREA

KOGARAH GOLF COURSE

ACTIVE RECREATION

ENVIRONMENTAL WICKHAM

EVE ST RESERVE

ST

MARSH WETLAND

INFRASTRUCTURE

PEMULWUY PARK

INFRASTRUCTURE

T OTANY S WEST B

T OTANY S WEST B

R

VE

RI

SR

IVE

R

Y ST

OK

LANDING LIGHT WETLAND

EK

CO

KYEEMAGH BOAT RAMP

BOTA N

CO

ENVIRONMENTAL

G CRE

WEST

Y ST

SPRIN

BOTA N

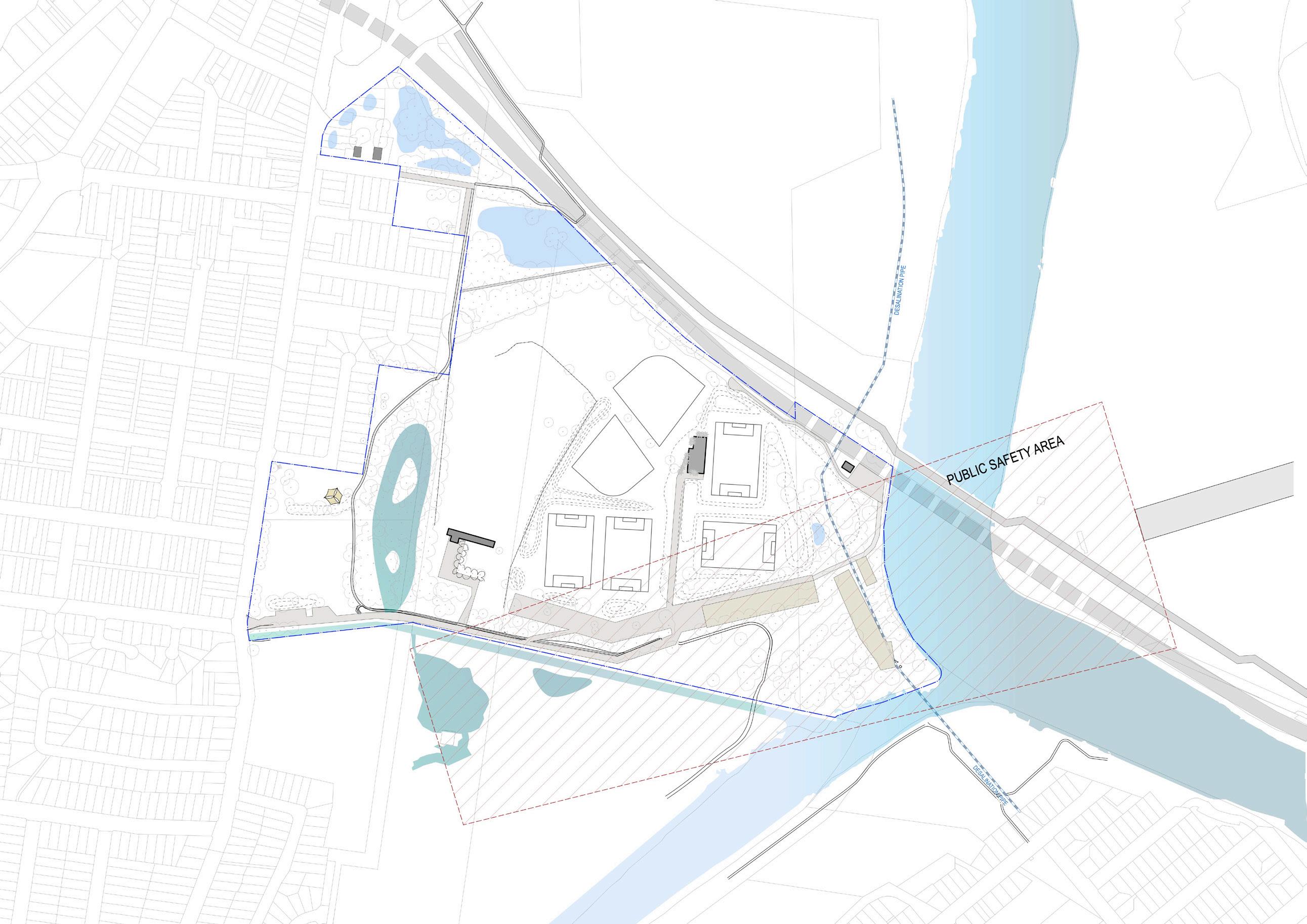

Figure 49 - Existing functional plan

ACTIVE RECREATION PRECINCT

ST

EK

WEST

BARTON PARK

SPRING

G CRE

DY

IVER

SPRIN

SUBSTATION

PASSIVE RECREATION

OUND

P

Y COM ORAR

TEMP

ST

LANDING LIGHT WETLAND

GOLF DRIVING RANGE

PLAYGROUND

ACTIVE RECREATION PRECINCT

KS R

SPRING

AIRPORT

SUBSTATION

SPRING CREEK WETLAND

5

5

PASSIVE RECREATION

PASSIVE RECREATION

M

M

PLAYGROUND

IVER

KS R

COO

EVE ST WETLAND

AIRPORT

GOLF DRIVING RANGE

ENVIRONMENTAL

EVE ST RESERVE

ST

COO

EVE ST WETLAND

5

PEMULWUY PARK

PASSIVE RECREATION

M

5

WICKHAM

PASSIVE RECREATION

M

MARSH WETLAND

ACTIVE RECREATION

UD

BARTON PARK

M

DY

OK

SR

R

VE

RI

UD

M

Figure 50 - Functional plan opportunity

Riverine Park Masterplan | 37

IVE

R

5.2 Transport, Circulation & Access District Active Transport Network State Environmental Planning Policy (Precincts—Eastern Harbour City) 2021 set the vision and principle for providing cycle and pedestrian link in the Cooks Cove site so that it contributes to the regional and district active transport network. The principles include: • Create a publicly accessible foreshore, linked to public areas within the Cooks Cove site • Enhance the Botany Bay to Homebush Bay regional cycleway and pedestrian/cycle network • Create links to nearby the public transport services, the Bay-to-Bay cycleway, the Cooks Cove site and the foreshore.

• Provide a high-quality pedestrian environment within the street system.

• Ensure accessibility is provided to places within the Cooks Cove site for all abilities The diagrams below demonstrate the existing and proposed public access paths through the site and along the foreshore. Improvements include links to the broader network to connect to local transport nodes such as Arncliffe Station and Wolli Creek Station, the Rockdale Wetland Corridor and the Barton Park Cycleway and further south along the M6 active transport corridor.

Existing Pedestrian and Cycle Links to be retained

Existing Pedestrian and Cycle Links to be retained

Tempe

Tempe

Wolli Creek

Wolli Creek

Existing Pedestrian and Cycle Links to be downgrade to pedestrian path Opportunity for enhanced Pedestrian and Cycle Links

Enhanced future connections

Arncliffe

International Airport

Arncliffe

International Airport

Future connection to Sydney Gateway active transport corridor

Public access paths through the site and along the foreshores

Banksia

Pedestrian bridge to provide connection to Kyeemagh and Botany Bay foresore

Banksia Arncliffe and Banksia to Riverine Park Pedestrian and Cycle Links

Rockdale

Figure 51 - Existing pedestrian/cycle link

38 | Riverine Park Masterplan

Connect to M6 Stage 1 active transport corridor

Rockdale

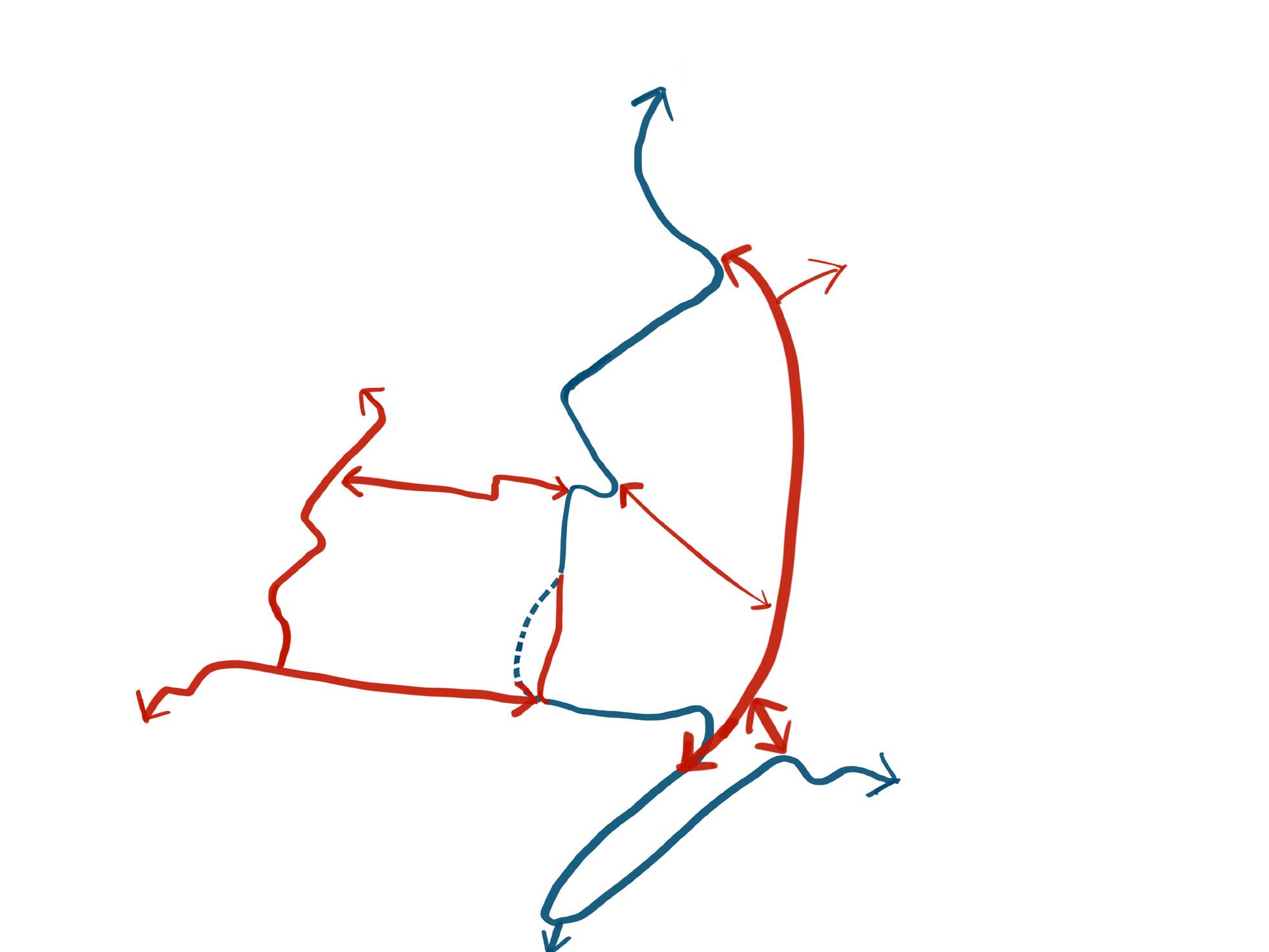

Figure 52 - Pedestrian/cycle link opportunities diagram

Connect to M6 Stage 1 active transport corridor

Existing Riverine Park Circulation Network

Opportunities

Overall, the existing Riverine Park suffers from limited and poorquality access and lack of internal circulation, particularly in terms of pedestrian access options. The main access from West Botany Street is inconspicuous, and the absence of dedicated pedestrian pathways has created a conflict-prone and unsafe mixed environment among vehicles, cyclists, and pedestrians.

1. Enhance the accessibility of the park by improving the existing West Botany Street entry and establishing new access points.

For example, install a signalised crossing at West Botany Street / Spring Street intersection; new pedestrian access point at Eve Street; provide on street car parking and pedestrian path at Filmstone Garden for playground and other park users; provide a footpath connection to the existing bus stop to encourage public transportation users; constructing a bridge over Muddy Creek to connect Kyeemagh; and establishing AIRPORT PUBLIC SAFETY AREA a shared path along the Cooks River foreshore. These interventions will enhance Riverine Park’s accessibility and ACTIVE RECREATION contribute to the completion of the regional active transport network. PASSIVE RECREATION 2. Create a hierarchy for movement to mitigate the conflicts ENVIRONMENTAL between vehicles, cyclists and pedestrians. This structured approach aims to provide a clearer movement framework INFRASTRUCTURE and to improve passive supervision and activation to increase

Furthermore, a section of the active transport link, which runs along the northern side of the main vehicle entrance, has resulted in a series of unsafe crossing points along the journey, necessitating improved visibility and management of conflicts.

The existing park lacks of internal circulation. Particularly evident in the northern section of Riverine Park and the waterfront areas along Spring Creek and Cooks River, which is almost inaccessible.

Consequently, this has resulted poor passive surveillance, and the recreation function has been compromised.

park safety. Additionally, prioritizing pedestrian-friendly infrastructure will contribute to the creation of a more walkable park environment.

3. Realign the access driveway to integrate with the car park to provide better passive surveillance and create an opportunity for separate shared path and pedestrian path to reduce conflicts between vehicles and active transport routes.

4. Develop a shared path circuit, prioritising direct routes to through Riverine Park while ensuring clear sightlines.

5. Provide a network of minor and secondary pedestrian links to interconnect the broader shared path circuit.

SAFETY AREA 6. Provide accessible parking bays, turning circle, AIRPORT and PUBLIC Emergency Vehicle access to serve the amenity building ACTIVE RECREATION 7. Provide walking tracks adjacent to waterbodies allowing for RECREATION slower movement and dwelling, separate from PASSIVE the faster movement shared path network.

ENVIRONMENTAL

INFRASTRUCTURE

NEGLECTED SAPCE

NEGLECTED SAPCE

DESALINATION PIPE

DESALINATION PIPE

VEHICLE ROUTE

VEHICLE ROUTE

MAINTENANCE ROUTE

MAINTENANCE ROUTE

CAR PARK

P

CAR PARK

P

ACTIVE TRANSPORT CORRIDOR / PRIMARY PATH

BUS

ACTIVE TRANSPORT CORRIDOR / PRIMARY PATH

BUS STOP

BUS

Pemulwuy Park

BUS STOP SECONDARY PATH

SW SO OS

SW SO OS

M5

ITIES

TIV W AC

(LO

Playground

P

Pump Track

D OUUNND MPPO OM RYY CCO ORRAAR MPPO TE TEM

P

M5

CO

SW SO OS

Kyeemagh Boat Ramp

OK

SR

IVE

R

SPRING ST REET

Passive Recreation

Active / Sports Precinct

D

MU

Figure 53 - Existing Riverine Park circulation diagram

ITIES

TIV W AC

(LO

E)

ZON

P P P

P

w)) low verfrflo (Ove PP(O

M5

P

Arncliffe Market Gardens

SW SO OS

CO Kyeemagh Boat Ramp

EK

RE

C DY

Sydney Airport

Substation

Wetland

BUS BUS

P P

Golf Driving Range

P

E)

ZON

BUS BUS

SPRING ST REET

M5

Open Space

Substation

Active / Sports Precinct

COOKS

COOKS R

IVER

RIVER

SECONDARY PATH

Barton Park

Y DD

OK

SR

IVE

R

K

EE

CR

MU

Figure 54 - Riverine Park circulation opportunity diagram

Riverine Park Masterplan | 39

NG STREE T

Park’s Entries and Access Route

• The existing carparks and facilities are disconnected and there is an opportunity to increase usability for park users especially at peak times.

• The main entry access from West Botany St is not very legible and lacks safe pedestrian and cyclist access.

• The existing bus stop at West Botany St is isolated and lacks a footpath connection to the rest of the park.

• The existing car park is isolated from vehicular and pedestrian movement, lacking passive surveillance.

• Conflicts exist at several locations between the shared path and vehicle access to the car park.

• Poor sightliness along the existing shared path pose safety risks.

Opportunities identified: 1. Create a hierarchy for movement to limit conflicts between vehicles, cyclists and pedestrians. To create a clearer movement framework and to improve passive supervision and activation to increase park safety.

2. Realign the access driveway to integrate with the car park to provide better passive surveillance and create an opportunity for separate shared path and pedestrian path to reduce conflicts between vehicles and active transport routes.

3. Realign the shared path to create a safer route with minimal conflicts with vehicle circulation and park users and better W sight Slines.

S

IVER

The main access to the park is via West Botany Street. However, the existing access and circulation network present several issues:

COOKS R

This section will zoom in the park entry to analysis the existing access condition and the improvement opportunities.

4. Some sections of the existing shared path to be downgraded to a pedestrian-only path where slower movement is desirable.

5. Provide a footpath connection to the existing bus stop at West Botany Street to encourage public transportation users.

Pemulwuy Park 6. Provide car parking at Spring Creek entry and Filmstone Garden for playground and park open space users.

7. Provide accessible parking bays, a turning circle, and Emergency Vehicle access to ensure safe and convenient operation for all park users..

8. Install a signalised crossing at the intersection of West Botany St and Spring St for a safer crossing and network connections.

OO S

SW SO OS

M5

Open Space

M5 Clash / Poor access 6

4

P

Substation Playground

Active / Sports Precinct

Golf Driving E) 3 N O Range Z S E I

7

Wetland

BUS BUS BUS BUS

P

5

P

SPRING ST MPPOOUUNNDD M EET OR Y CCO RY ORRAAR MPPO TTEEM

P

40 | Riverine Park Masterplan

MU

Y DD

C

2

6

8

K

E RE

w)) flo low Ovveerrf PP((O

P

Arncliffe Market Gardens

Figure 55 - Existing Riverine Park access diagram

P P

Pump Track P

Passive Recreation

Active / Sports Precinct

IT

TIV W AC

(LO

P

Sub

M5

CO

SW SO OS

Kyeemagh Boat Ramp

OK

SR

P

IVE

R

Figure 56 - Riverine Park access opportunity diagram

Barton Park

MU

Y DD

K

C

E RE

5.3 Biodiversity, Ecology and Tree Canopy

Existing Condition

Opportunities

Riverine Park, with its blend of established trees, wetlands, and mangrove species, plays a crucial role in supporting biodiversity and endemic species. However, large swathes of the park have suffered from inadequate long term maintenance, leading to an overgrowth of weeds that hinder water movement and suppress endemic species. Despite a tree canopy that covers about 30-35% of the site, the quality of this vegetation is highly variable. A significant portion comprises wood heathland and, worryingly, includes a mixture of weeds and invasive species that are not native to the area, further challenging the park’s ecological balance.

There is an opportunity to enhance Riverine Park’s ecological value by planting additional canopy and habitat in currently poorly maintained areas. However, this initiative must consider the constraints of the proximity of the airport Additionally, there is a chance to improve existing marine and riverine habitat areas, including mangroves and seasonal wetlands, further contributing to the park’s biodiversity and ecological health. Riverine Park provides an important opportunity to increase the canopy cover in Bayside with species that are endemic to the areas and that will increase park amenity and reduce urban heat.

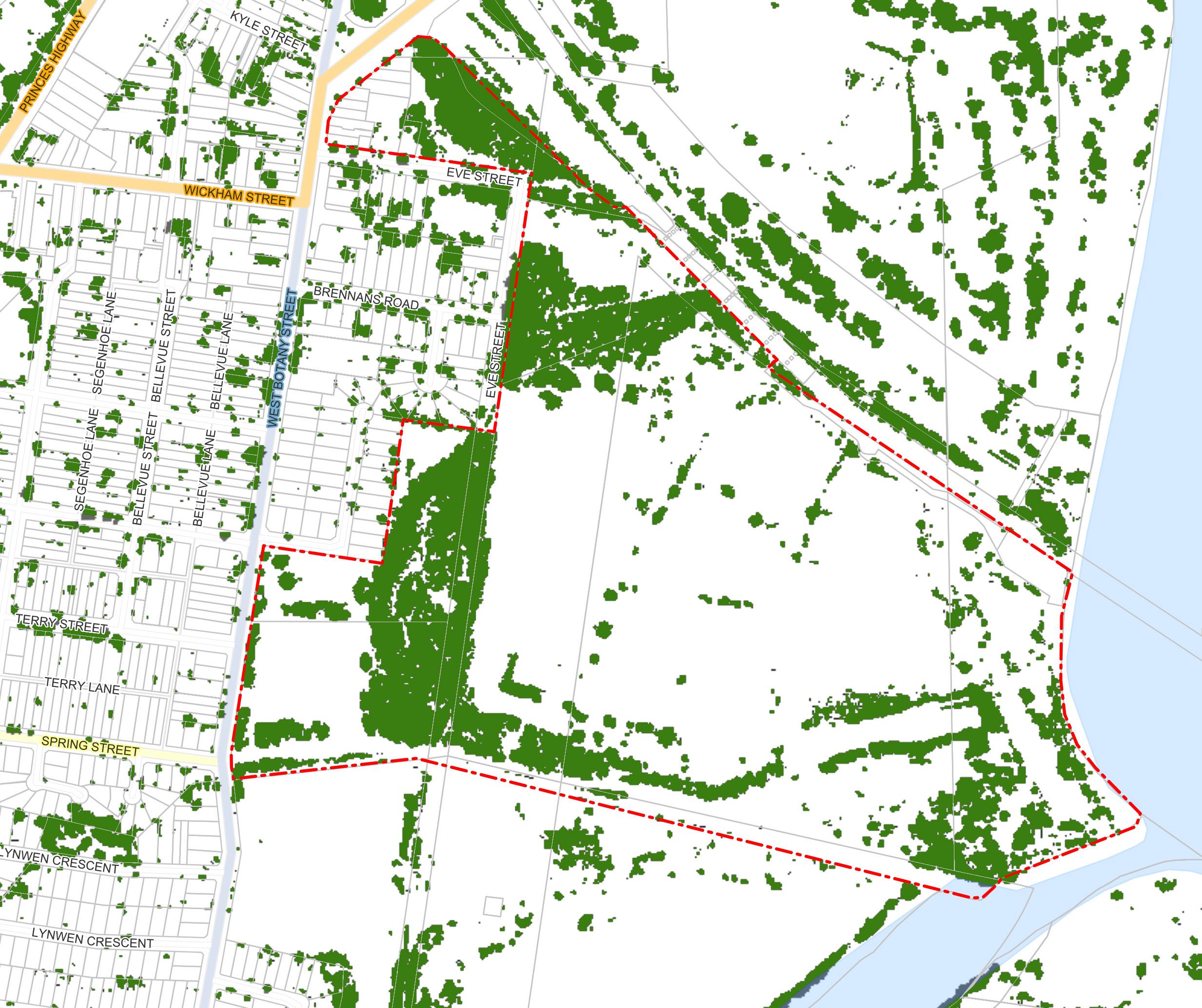

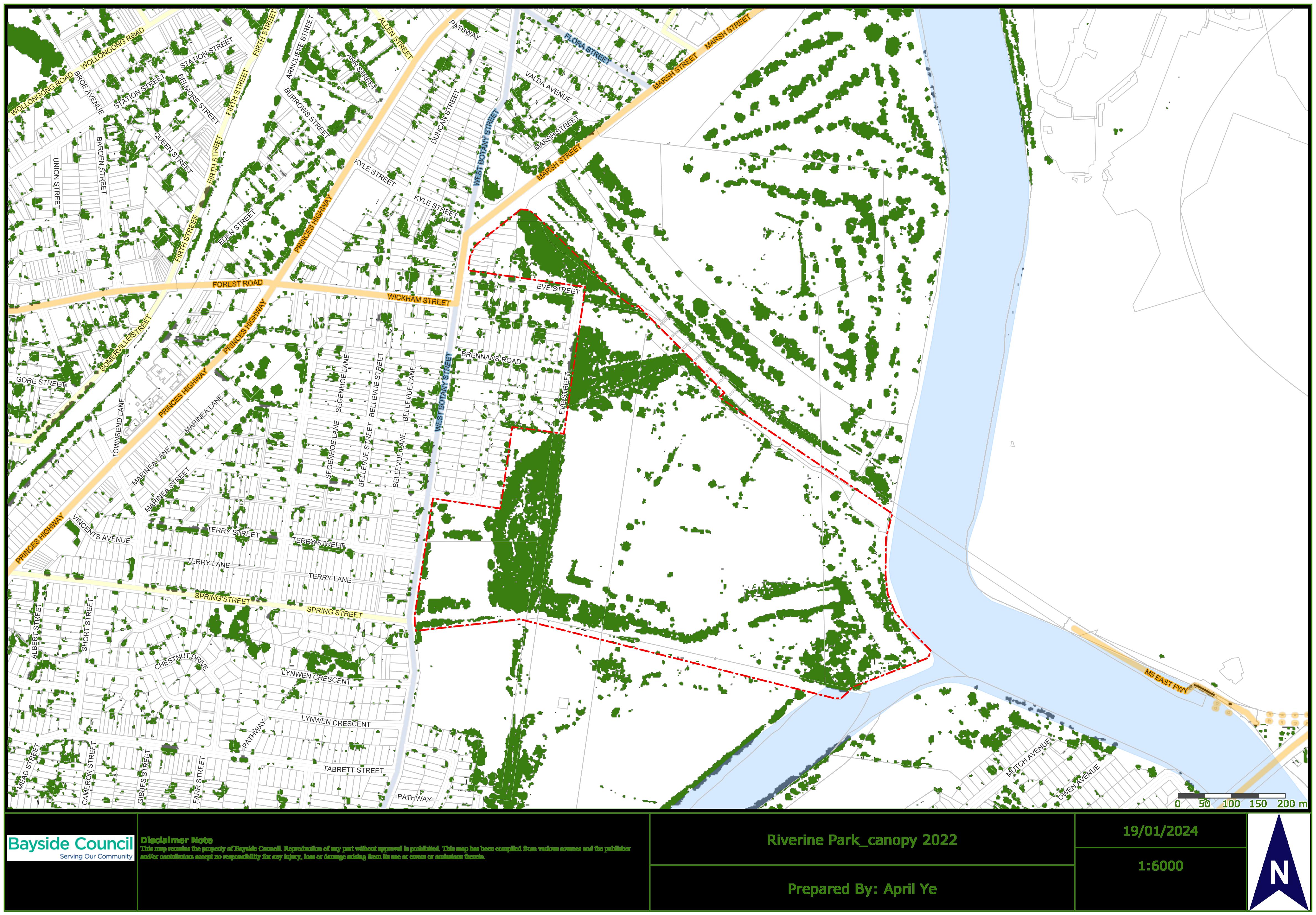

Figure 57 - Existing biodiversity, ecology, and tree canopy

Figure 58 - Opportunity for biodiversity, ecology, and tree canopy

Riverine Park Masterplan | 41

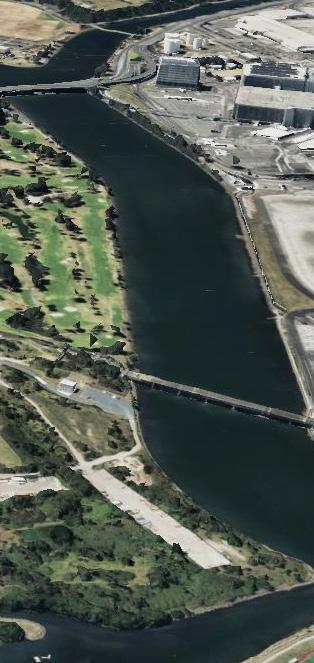

5.4 Waterways

Existing Condition

Opportunities

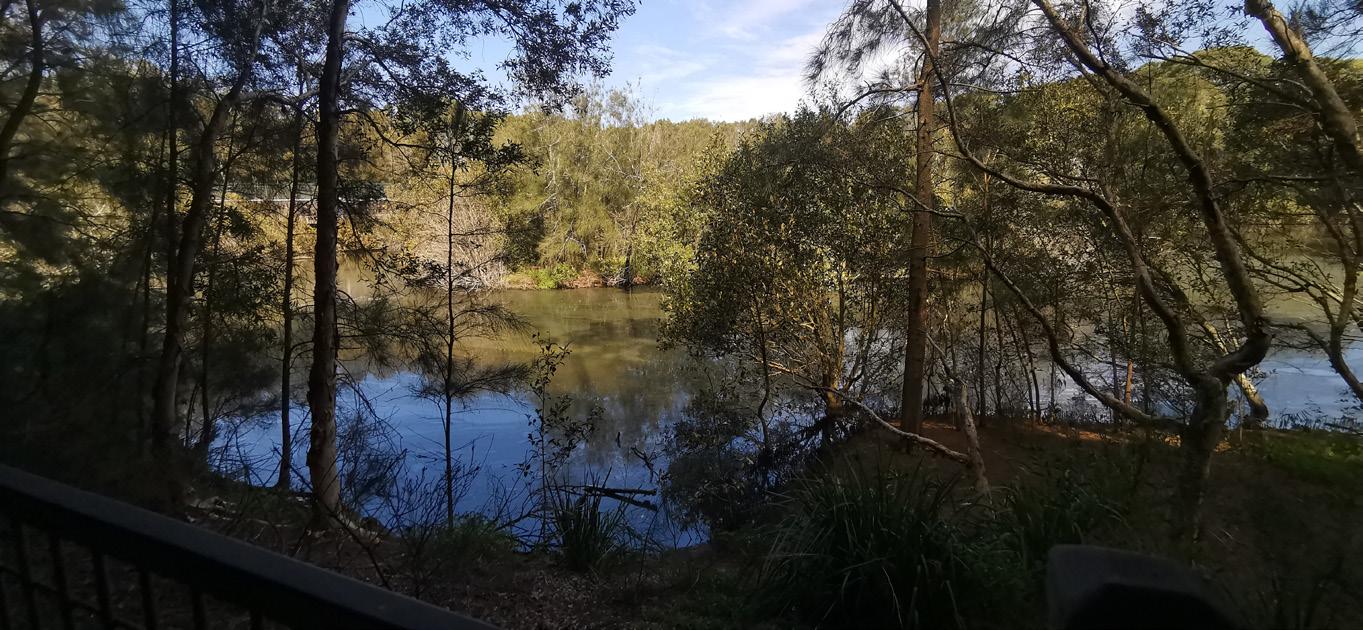

Situated on the edge of Botany Bay, Riverine Park’s prime attraction is its proximity to water, offering views of Cooks River, various estuary tributaries, and multiple wetlands. However, these natural features are currently underappreciated due to restricted access caused by a lack of accessible footpaths, overgrown vegetation, and fencing, limiting the potential enjoyment and engagement of visitors with these water-connected landscapes.

Maximising the potential of Riverine Park’s proximity to water is crucial. This involves improving water quality and aquatic habitats, creating opportunities for people to connect with the water, including direct access to the water’s edge, offering scenic views, and incorporating interpretative or educational elements.

Beyond enhancing visitor interaction with the waterways, these initiatives also present a vital chance to improve the health of the waterways, tackle stagnant water issues, and enhance sustainable passive irrigation and drainage systems.

Protect and enhance the wetland and habitat. Provide vegetation buffer around the wetland area

Key frog habitat RMS FROG WETLAND

RMS FROG WETLAND

PEMULWUY PARK

MARSH ST WETLAND

PEMULWUY PARK

MARSH ST WETLAND

Fish habitat Eve St Reserve

EVE STREET WETLAND

Seasonal water meadow, frogs have been observed Spring Creek Wetland built in 1990’s, is an unsuccessful rehabilitated wetland

COOK

Protect and enhance the existing fauna habitat

SYDNEY AIRPORT

M5

Open Space

Active / Sports Precinct Playground

S RIVE

S RIVE

SW SO OS

COOK

Shorebirds habitat

R

R

EVE STREET WETLAND

SYD

Active / Sports Precinct Improve water quality WAY RUN of Spring and function Creek Wetland

SPRING CREEK WETLAND

Fish habitat and mangroves

Playground Wetland

BUS

Open Space

WSUD design to the carpark

SPRING CREEK WETLAND

SPRING ST REET

Protect and enhance the wetland and habitat.

CO OK Provide vegetation S RI Vbuffer ER around the wetland area

Shorebirds and fish habitat ARNCLIFFE MARKET GARDENS

LANDING LIGHTS WETLAND

K EE

Key frog habitat BARTON PARK

DY UD

KYEEMAGH BOAT RAMP

M5

ARNCLIFFE MARKET GARDENS

42 | Riverine Park Masterplan

Esturarine Wetland

CO

OK

K EE

CR

BARTON PARK

M

Concrete lined drainage channel in poor condition, require asset renewal Figure 59 - Existing waterways

LANDING LIGHTS WETLAND

Figure 60 - Opportunity for waterways

DY UD

M

CR

Spring Creek Naturalisation and opportunity for flood plain terrace to increase biodiversity and provide recreation opportunities

KYEEMAGH BOAT RAMP

S

RI

VE

R

5.5 Spring Creek Naturalisation and Wetlands Improvements

The Spring Creek drainage channel was built some time prior to the 1940s. The drain’s function is to efficiently convey stormwater. Recent inspections of the asset have identified numerous failures in the concrete lining. The failures are predominantly on the drain banks, and at several locations, particularly on the southern bank of the drain, mangroves are growing through the banks. The mangroves are providing bank stability where the concrete banks no longer do but are impacting the capacity of the channel to pass flood flows. The channel base also shows signs of age but is still providing flood conveyance and is at less risk of continued failure given the relatively flat longitudinal gradient of the channel.

There are two wetlands adjacent to this portion of the Spring Street Drain - the Landing Lights Wetland to the south and the Spring Street Wetland to the north.

These wetlands are hydraulically connected to the drain with tidal and storm flows passing between the drain and each wetland.

Preliminary Investigation Several options have been investigated and developed based on the following rationale: • It is proposed that the northern bank of the concrete drain is removed entirely. The northern bank provides the most suitable opportunities for naturalisation. This would allow the low flow channel to be realigned to the left if desired.

• It is proposed that the majority of southern bank of the channel is left as is. This is because there are several constraints to the southern bank, such as the market gardens, Landing Lights Wetland and Barton Park. In addition, the mangroves that have established in the bank will be retained as they are providing bank stabilisation.

• Significant cost savings will be gained if the base of the concrete drain is retained. The reason for this is that the base of the drain is the most challenging location to work in and it is integrated with the southern bank and the protruding mangroves. Further, the base of the drain plays a major part in the channel’s flood conveyance function. Minor repairs to the base could be required to enable this. The base could also be replaced or realigned, so to achieve a fully ‘naturalised’ channel, or relined with a new lining material such as rock rip rap.

• Landscape treatments will need to incorporate habitat that is compatible with aviation safety framework requirements. As such the options present habitat types that focus on aquatic rather than ephemeral wetland habitats to limit the attraction of birds and risk of causing bird strikes • Works are designed on the assumption that negative impacts to flooding are not acceptable and flood mitigation is improved.

A set of objectives have been developed for its naturalisation. The project objectives are based around provision of a loved and revitalised Spring Creek waterway that is an enchanting destination, along with the interconnected wetland network, offering: • A restored, naturalistic form adding valuable blue-green infrastructure to the area.

• A thriving ecosystem that supports precious aquatic and riparian communities.

• Enhanced liveability that service the growing local population and visitors of the newly improved Barton Park and Riverine Park precincts.

• A cost-effective asset both in construction cost and for its operable life.

• Safe management of large flood events within the waterway corridor to mitigate upstream flooding and ensure resilience in the face of rising sea levels.

• Improved water quality to enhance the overall environmental and human well-being of the project area.

Figure 61 - Study area of Spring Creek Naturalisation

Riverine Park Masterplan | 43

6.

Principles

RESPECT SITE

COASTAL AND

CONNECTIVITY

PROMOTE ACTIVE

CONTEXT

ENVIRONMENTAL

WITHIN AND BEYOND

LIFESTYLES &

PROTECTION

SAFETY FOR ALL

SUSTAINABLE INFRASTRUCTURE

RECREATION

Design Strategies Acknowledge the traditional custodians - Gadigal/Bidjigal people of the Eora Nation.

Recognise the contribution to the early development of industrial Sydney.

Design responds to the modified environment including land management measures to limit impacts from past contamination.

Interpret the site history by creating a heritage, environmental and/or art trail Promote public awareness, education and understanding of coastal processes and park management actions.

Engage with local First Nations people to prepare wayfinding plan for precinct.

44 | Riverine Park Masterplan

Protect and enhance natural coastal processes and coastal environmental values including:

Connect to broader active transport network.

Provide opportunities for diverse recreational participation to cater for growing community demand.

• natural character • scenic value • biological diversity • ecosystem integrity • resilience Support the social and cultural values of the coastal zone.

A hierarchy of movement for cohesiveness and legibility to mitigate and manage user conflicts.

Provide recreation for a range of ages and abilities.

Mitigate current and future risks from coastal hazards.

Expand the ecological communities to enhance their viability and protection.

Manage use and limit dog access in vulnerable ecological areas.

An inclusive path system to provide opportunities for a range of users in terms of ages and abilities.

Reinforce safe access to the site by providing a sense of arrival and destination.

Create places of interest and delight that encourage use of outdoor spaces.

Promote health and fitness within the local area by creating circuits and destinations.

Work with sporting partners to provide opportunities for the local communities to create a multi-sports hub for the district.

Create special places for relaxation, viewing, contemplation, unstructured recreation and socialising.

Create enhanced livability for the growing local population and visitors by ensuring that the park is available to everyone.

Adopt Crime Prevention Through Environmental Design (CPTED) principles to ensure that users feel safe when in the park.

Improve public amenity and lighting of movement networks to meet compliance and best practice standards.

Encourage high levels of use to promote the sense of safety for users.

Improve site surveillance by creating good sight lines and avoid hidden areas.

Design areas for shelter in hot or inclement weather Maintain public access, amenity, use and safety near waterways.

Safe management of large flood events within the waterway corridor to mitigate upstream flooding and ensure resilience in the face of rising sea levels.

Create restored, naturalistic environments to add value to blue-green infrastructure to the area.

Recognise and respect operational requirements due to proximity to airport and M5.

Develop cost-effective assets both in construction cost and for its operable life.

This page was intentionally left blank

Riverine Park Masterplan | 45

7.

Masterplan Key elements EXISTING VEGETATION

A

Upgrade West Botany Street main entry

B

Eve Street entry

C

Cooks Cove entry

D

Pedestrian bridge over Muddy Creek

E

Pedestrian bridge over Spring Creek

F

Upgrade park facilities and playground renewal

G

Spring Creek naturalization and wetlands improvement

H

Walking trails

I

Realigned access road

J

Community garden

K

Environmental buffers

L

Foreshore and wetland activation

M

Refurbish existing amenity building

N

Drop-off, pick-up, and accessible parking

O

Overflow car park

P

Parking

Q

Plane spotting slope

R

Paddle and kayak access point

S

Dog off-leash area

ET

RE

SH

ST

PROPOSED TREE PLANTING

AR

M

O SO S

PEMULWUY PARK

K

EVE ST STREET

EVE ST RESERVE

EVE ST WETLAND

SW

Green & Golden Bell Frog Habitat

S

EVE ST

T STREE

FUTURE CONNECTION TO PEMULWUY PARK

OTANY

LAWN DOG OFF-LEASE AREA

K

GRAVEL TRACK OR TRAIL

SW

SO

FIRMST ONE GA RDENS

SYDNEY AIRPORT

B LAWN

FIELD EXISTING GOLF DRIVING RANGE

M

C

FIELD LAWN

F

N

SPRING CREEK WETLAND

TERRY S

T

WESTCONNEX SUBSTATION

Q

H EXISTING TANK

A

RUN

WAY

K

P SW

O ST

RT IR P O

FIELD

FIELD

LAWN

A

Green & Golden Bell Frog Habitat

G

SPRING

PROPOSED PATH (primary)

OS

P

PEDESTRIAN AND CYCLE LINKS TO ARNCLIFFE AND BANKSIA

PROPOSED ATC LINK

PROPOSED PATH (secondary)

S

WEST B ON AVE

OS SWSO

POTENTIAL BUILDING LOCATION AND ENVELOPE

5

TANTAL L

EXISTING BUILDING

M

ST

SO

O

BRENN ANS RO AD

PROPOSED LOOKOUT

COOKS

J

TO PRINCES HWY AND ARNCLIFFE

AVENA L

EXISTING MOUNT

R IV E R

5

MARSH STREET WETLANDS

WICKHAM

SW

Green & Golden Bell Frog Habitat

M

RMS FROG POND

P

I

E

SO

P

K

OS

M5

L L SPRI

NATTAI PLACE RESERVE LYNWEN CRESCENT RESERVE

G ARNCLIFFE MARKET GARDENS

LANDING LIGHTS WETLAND

NG C

Green & Golden Bell Frog Habitat

REEK

K

G

CO

K R

D KYEEMAGH BOAT RAMP

BARTON PARK

TABRETT

ST

MU

Y DD

C

E RE

46 | Riverine Park Masterplan

SR

K

IV E

R

TO FORESHORE

TO BESTIC STREET

0

Figure 62 - Proposed Riverine Park Masterplan

OK

50

100

150

200 m

Key elements summary A

Improve Riverine Park’s main entry at West Botany Street. Separate pedestrian circulation and vehicle circulation to create a safer environment, also make a smooth connection to the Spring Street pedestrian and cycle link. Provide traffic signal at the intersection.

B

Enhance legibility and sightlines at Eve Street entry by realigning the path and pruning the overgrown vegetation.

C

Formalize the trail under the concrete SWSOOS along Cooks River foreshore to create an active transport link that connects to Cooks Cove (future Pemulwuy Park) and Wolli Creek.

D

Pedestrian bridge over Muddy Creek to connect to Kyeemagh and Botany Bay foreshore.

E

Replace or upgrade the unsafe pedestrian bridge over Spring Creek.

F

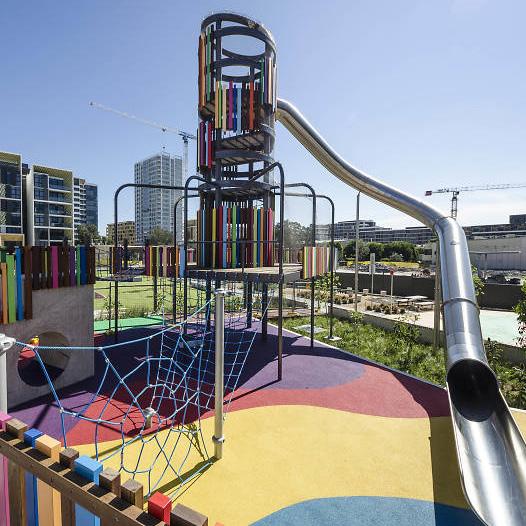

Upgrade park facilities, including renewing the existing playground, and expanding the activity zone to include additional facilities like pump track, outdoor fitness area and a 3-point basketball court, walking / learn to ride circuit

G

Spring Creek naturalization and improvement work to Landing Light Wetland and dysfunctional Spring Creek Wetland

H

Opportunities for walking trails through the former wetland, and remove the dilapidated viewing platform in the middle of the wetland

I

Divert the access road to the car park.

J

Provision for a future community garden at Eve Street Reserve.

K

Environmental buffers includes revegetation and restoration to support habitat restoration and biodiversity, including protect and enhance Green and Golden Bell Frog habitat

L

Improve access and amenity to the wetland and foreshore, incorporating low-impact recreational facilities such as boardwalks, viewing platforms, and interpretive signage to enhance visitor experiences while minimizing ecological disturbance.

M

Sporting Partners to Refurbish existing amenity buildings.

N

Provide drop-off, pick-up, and accessible parking along the access road, the configuration also considered the cul-de-sac turning head, accessible access and emergency vehicle access. Existing dilapidated building to be demolished.

O

The existing compound area is within airport PSA, not suitable for intensified use, will be turned into an overflow car park

P

Reconfigured and consolidated existing parking along the access road, incorporating WSUD principles and integrating additional tree planting. A small off-street timed parking area is proposed next to Firmstone Gardens for convenient access, providing an alternative park entry point.

Q

Utilising the existing topography to create a lookout for plane spotting

R

A paddle and kayak access point is indicated in the plan and will be welcome enhancements to the Cooks River Paddle Trail. Given its location under the PSA additional facilities such as seating, lighting and picnicking will not be possible. This site is not intended to be a full launching facility as it is too far from the car park. (The final location is subject to further investigation and detail design)

S

The designated dog off-leash area is to be fully fenced to eliminate conflicts with other park users and wildlife habitats.

In addition to the key items outlined above, the masterplan has configured the pathway circulation to respond to the planned regional active transport links, as well as providing a more legible, fluent, and safer internal pathway network that connects each landscape precinct.

In addition to the existing sport precinct in the centre area of the park, the masterplan also proposes a series of open lawns for unstructured recreation. They are linked by paths and offer a sequential landscape experience.

Riverine Park Masterplan | 47

Sections

PEMULWUY

SWSOOS

M5

SPORTS FIELDS

PEMULWUY

SWSOOS

M5

SPORTS FIELDS

Section

A

7.1

Section A Section

Figure 64 - Section A & functional zone (north south) note: imagery for precedent purposes only

B

Figure 63 - Section location plan

FIRMSTONE GARDENS

SPRING STREET WETLAND

GOLF DRIVING RANGE

FIRMSTONE GARDENS

SPRING STREET WETLAND

GOLF DRIVING RANGE

Section B Figure 65 - Section B & functional zone (east west) note: imagery for precedent purposes only

PEMULWUY

SWSOOS

M5

SPORTS FIELDS

SPORTS FIELDS

PEMULWUY

SWSOOS

M5

SPORTS FIELDS

SPORTS FIELDS

48 | Riverine Park Masterplan

SPORTS FIELDS

SPRING CREEK

BARTON PARK

SPORTS FIELDS

SPRING CREEK

BARTON PARK

SPORTS FIELDS

FROG HABITAT

COOKS RIVER

SPORTS FIELDS

FROG HABITAT

COOKS RIVER

SPRING CREEK

BARTON PARK

SPRING CREEK

BARTON PARK

Riverine Park Masterplan | 49

7.2 Functional Zoning Overview Environmental Zones Riverine Park is located within a rich ecological context. To the northern boundary there is a series of wetlands that are enclosed as part of Sydney Water and TfNSW infrastructure.

To the south lies the Landing Lights Wetland and associated wetlands and to the Muddy Creek Foreshore: • Renew the Spring Street drain and naturalise 700m section from West Botany Street to the confluence of Muddy Creek • Modify Spring Street wetland to improve ecological conditions, reduce odours and prevent stagnation.

Concentrate water into southern extent of wetland to produce flushing • Improve water quality in the hydraulically connected water courses • Enhance and create a series of wetlands to enhance marine diversity and frog habitat at Oakleigh Wetland (west of Barton Park), Frog Wetland and Estuary Wetland to enhance the aquatic and riparian habitat • Design adjoining park infrastructure to direct overland flow into wetland areas to increase water infiltration and water quality moving through the system.

• Improve the quality of vegetated areas. Remove extensive areas of weeds including woody and noxious species. The works to include reconstruction and regeneration of vegetation including the protection of large canopy trees.

• Remediate the heavily disturbed land with planting, especially canopy trees using endemic species • Enhance freshwater ponds to create detention for freshwater species such as the Green and Golden Bell Frog • Promotion of Rockdale Wetlands Corridor as a series of restored blue-green assets, including wetlands, open spaces, and nature reserve precinct

Active Recreation Riverine Park has been an under-utilised park with limited amenity for legitimate park users. Connectivity is poor and the low quality of the experience does not encourage users to explore this vast open space.

• Implement a clear hierarchy of movement to remove conflicts between vehicles and vulnerable users such as cyclists and pedestrians • Improve safety for increased usage by cyclists and pedestrians in a shared environment • Create better east/west connections and plan for connections to future open space to the north • Improve links to the broader network to connect to local transport nodes including Arncliffe station, Banksia Station, and Wolli Creek Station • Enhance north-south cycleway, which is part of the popular Bay-to Bay cycle network and beyond to the Rockdale Wetlands Corridor.

• Reconfigure existing walkways to provide relaxed

50 | Riverine Park Masterplan

walking areas alongside the waterways • Provide areas of parking located to service a range of recreation options including clear drop off, circulation and disabled parking spaces in the most suitable locations • Collaborate with sporting partners to support grass roots sporting activities to encourage local participation • Retention of existing sporting fields to create a high-quality multi-sports hub with improved lighting and drainage • Upgrade sporting facilities to meet the demands of increasing population in the catchments • New sporting facilities to be supported with amenities to the high standard provided in other parks to provide facilities for organised sport as well as casual users.

• Take advantage of the modified landform to provide mounds for spectator viewing and integrate shade trees.

• Investigate reconfiguration of the central active recreation area for a greater variety of sporting activities.

Zone 3: Passive Recreation

Zone 2: Active Recreation

Passive Recreation Vegetation management is essential to improve the quality and amenity of the parkland. This transformation will activate the eastern shoreline for airplane spotting and enhance accessibility and visibility of special areas such as the northern Fig Tree Lawn to create versatile spaces for picnicking, passive sports, and appreciation of nearby sports fields. The expansion of the western Firmstone Gardens Playground will introduce youth-oriented activities such as hoops, outdoor fitness, and a pump track, taking full advantage of the area’s mix of flat and undulating terrain.

Zone 1: Environmental Zone

Figure 66 - Proposed functional zoning plan

The integration of Eve Street Reserve with Riverine Park to the north identifies a suitable location for a community garden, enhancing the area’s appeal and utility especially for residents living in higher densities nearby.

• Creation of formal routes and wayfinding signage using standards developed for use in Bayside Council • Enhanced playground for children and families with nearby facilities for older children such as learn to ride circuit and broader riding circuit within parental view • Improved angles parking and fencing near playground adjacent Firmstone Gardens • Facilities for older children including urban pump track and 3-point basketball hoops and exercise hubs • Provision of facilities to serve casual users such as picnic tables, seating, and water supply • Provision of lighting throughout the park to create safe access and usage to support night-time use.

• Creation of a short and long walking and cycling circuits that include improved access to the foreshore and enhanced waterways • Parkland settings for viewing planes in safe locations • Improve pedestrian access and promote complementary activities such as the development of an educational route, art trail and/or heritage interpretation route • Provide spaces that encourage passive recreation focuses on bird watching and enjoyment of locations adjacent water bodies • Introduction of rocks/boulders in swale areas to encourage exploration and water play • Improve access and pedestrian access in the Landing Lights Wetland including boardwalks

Park Infrastructure Riverine Park is within a substantial infrastructure setting that supports the broader district. This infrastructure creates limitations for the future development of the park. The growth of this park will also need to be supported with suitable infrastructure to cater for increasing usage.

• A realigned access road improves access and visibility to sports fields, ensuring safe operation without conflicting with other park users.

• Overall increase of parking with improved circulation and overflow parking to support the corridor on busy days • Locate any additional buildings close to existing facilities to allow connection to nearby infrastructure and to limit the extension of existing roads for servicing. These locations options will be discussed with future sporting partners and are shown as potential building envelopes.

• Improve traffic management particularly when exiting by providing adequate lanes and a signalised intersection to clear crowds on large game days • Improved parking configuration to serve the whole park including improved circulation, tree planting, improved lines and signage and the reduction of oversized parking areas to limit anti-social behaviour in carparks.

• Provision for servicing of adjoining infrastructure with safety in mind for all park users.

7.3 Amenity Building Strategy Existing amenities buildings Potential building location and envelope

The provision of amenities must focus on convenience and accessibility to both passive and active users within the park area. Where new structures are necessary, the design of buildings must be oriented to reduce impacts to sightlines, be well lit, and situated in locations which will be well activated. All buildings must meet DDA and relevant accessibility standards.

Existing Built Form BE1 - The central amenities block - Recently licensed to Arncliffe Aurora and will undergo renovations, allowing it to support both the sporting needs as well as the needs of the general community BE2 - Golf driving range facilities - currently privately run and managed. There is an additional storage shed within the north section of the fenced golf driving range.

BE3 - A small building that requires demolition due to its poor structural condition poorly sited into a former landfill mound which must be reinstated.

BF2 BE1

BF3

BE2

BE3 BF1

Future Built Form BF1 and BF2 indicates potential locations and suitable building envelopes to support sports activities. The addition of new buildings will be carefully considered to protect sight lines, ensure feasible connections to services, and servicing from existing road network.

The introduction of new buildings is limited to avoid intrusions on public open space and crime prevention through environmental design (CPTED) to deter vandalism, ongoing maintenance and liability for council.

New buildings cannot be attached to existing structures and must be designed to meet current legislation guidelines and contemporary standards.

Ideally the upgrade of existing building facilities will cater to multiple user groups - such as summer and winter sports organisations, as well as provide public access to toilets and shelter.

BF3 is indicates potential location for a small amenity block of toilets and basins for the park users.

Figure 67 - Proposed amenity building strategy

Riverine Park Masterplan | 51

7.4 Fencing and Barrier Approach The masterplan seeks to maximise public access, passive surveillance, and expansive sightlines. Physical fences often detract from the quality of open space potentially alienating legitimate users. Fences and barriers contribute to the management of hazards and conflicts and assist the protection of property when properly designed.

Fencing and barriers wherever required, should maintain visual continuity, limit clutter and contribute positively to a high aesthetic quality that is legible and unobtrusive. The material selection must be robust and durable.

The diagram below illustrates the extensive use of high security fencing that has largely fallen into disrepair creating hazards in their current state. This heavy security approach is no longer appropriate for public open space that is intended to be highly utilised and inviting to the public. The past approach was necessary due to the isolated and neglected nature of the park until now.

Active Precinct Fencing and barriers in the multi-sport hub is required to protect the fields by managing the movement of vehicles as well as ensuring that balls are controlled to protect park users to reduce the risk of accidents. The multi-sport hub will remain open to users beyond the sporting partners and welcoming the general public.

The topography of the site offers a series of mounds which create some natural barriers that reduce the nature of ball hazards and will reduce the requirement for continuous fencing.

High fencing within the park is only acceptable surrounding the golf driving range and goal mouths to protect adjacent users.

Golf driving range fence to be moved 3-5m and replaced with higher fence with ball deflector.

In selecting material fencing may include modular components, removable sections, flexibility in design to allow for low-cost modifications. The public domain should remain transparent and pedestrian focused. Barriers such as bollards are useful where the public domain takes precedence where gating and movement control is required. Ensuring seamless public domain is essential to ensure appropriate access including universal access to the site.

Adjacent to M5 motorway Operational areas and areas adjacent to critical infrastructure require security fencing to remain for public safety reasons. Existing fences along M5 motorway is chain link fence, and in poor condition.

These areas may require anti-throw protection mesh-screens and will be referred to TFNSW to determine the standard required to protect their asset.

Adjacent to wetland There are several wetlands within the park or in its vicinity. These wetlands are important habitat to many wildlife including Green and Golden Bell Frogs. Exclusion fencing and sediment controls are appropriate in these areas. Any new barriers need to be designed to be wildlife-friendly solutions that allow for habitat connectivity, wildlife passage, and biodiversity conservation, as well as avoid disrupting natural drainage patterns, nesting sites, or wildlife corridors. Special barriers will be required during construction to manage risks to wildlife.

Open Spaces Physical fencing will be minimised in the public open space to ensure clear sightlines and uncluttered views. Lower boundary fences will be considered in some locations to reduce hazards in the vicinity of playgrounds and adjacent roads and to control vehicles. In some areas there will be a need for fencing/barriers to manage user conflicts such as where pedestrian and cycle movements may converge.

Adjacent Foreshore Waterside During the detail design stage, risk assessments will be undertaken as part of the design process to determine the extent of fencing and barriers along the edge of water bodies and adjacent steep slopes. Balustrade fencing could be creatively designed to enhance the park’s visual appeal, create interesting vistas, and provide opportunities for interpretation or art installations.

Gates Council manages parks with controlled gates to manage vehicle access after sunset. This will be considered in the context of legitimate user needs.

Figure 68 - Proposed fencing plan

52 | Riverine Park Masterplan

7.5 The Cooks River Paddle Trail Access

Paddle and kayak launching facilities will be welcome enhancements to the Cooks River Paddle Trail that connects 25km network of waterways along the Cooks River, Wolli Creek and Botany Bay for leisurely water pursuits. Bayside Council has received feedback from the community that there is a strong desire for additional paddling and kayaking facilities and has proactively tried to obtain funding for additional facilities via grants from State Government agencies that to date have not been successful.

Safe access to the water for paddlers is currently not available in the Muddy Creek Basin or Riverine Park precinct and will be positive for environmental and human health by allowing people to access the water without having to come into contact with the creek bed.

Any facility must be located east of the pedestrian bridge that connects Barton Park to Riverine Park. This is due to the low water levels within the Spring St drain being insufficient for launching water craft particularly during low tides. At high tides the water levels may be adequate however the low level of clearance available under the pedestrian bridge may only be suitable for kayaks as paddle boarders will not have adequate clearance.

Any additional access points are more suitable for hitching and waiting rather than launching as the distance from the nearest available carpark is 250m. Features may include ledges, with hand rails and securing points to help people lower themselves into their crafts safely. Given its location under the PSA additional facilities such as seating, lighting and picnicking will not be possible. Floating pontoons are less likely to be feasible and deter anglers as due to its location under the Airport Public Safety Zone such activities must be discouraged.

Riverine Park

Riverine Park Masterplan | 53

7.6 Planting Strategy

General Prioritise native plant species and promote biodiversity and habitat. Implement sustainable water mangement practices such as WSUD stormwater management to redirect overland flow into adjacent waterbodies via rain gardens to improve water quality by increasing water supply especially in drought periods. Support tree growth in hardscape areas with adequate soil volumes. Select species which suit current conditions and are resilient to future climate conditions.

Active Recreation Planting selection should promote quality canopy cover to protect spectators. Consider limiting the use of species which drop leaves, limbs or fruit close to sports fields. Ensure clear sightlines are maintained and vegetation does not conflict with active sports, cycleways and footpaths.

Botanical Name

Common Name

TREES Angophora costata

Sydney Red Gum

Cupaniopsis anacardioides

Tuckeroo

Corymbia gummifera

Red Bloodwood

Elaeocarpus reticulatus

Blueberry Ash

Eucalyptus robusta

Swamp Mahogany

Eucalyptus saligna

Sydney Blue Gum

Melaleuca linariifolia cv.

Snow in Summer

Melaleuca quinquenervia

Broad Leaved Paperbark

note - restrict tree species height to meet Airport PSA requirements

Ensure sightlines are maintained through existing and proposed planting areas. Ensure planting is positioned with mature form in mind to reduce obstruction of cycleways, footpaths and driveways. Proactively manage existing vegetation for improved passive surveillance, tree health and sight lines for active transport corridor.

Botanical Name

Common Name

SHRUBS Banksia spinulosa 'Birthday Candles'

Birthday candles

Callistemon 'Better John'

Better John

Callistemon 'White Anzac'

White Anzac

Westringia fruticosa 'Zena'

Zena

Botanical Name

Common Name

GROUND COVERS / GRASSES

54 | Riverine Park Masterplan

Crinum pedunculatum

Swamp lilly

Dianella caerulea

Flax lilly

Grevillea juniperina 'Gold Cluster'

Juniper grevillea

Grevillea lanigera 'Mt Tamboritha'

Mt Tamboritha

Grevillea rosmarinifolia

Rosemary grevillea

Hibbertia scandens

Snake Vine

Lomandra 'Lime Tuff'

Lime Tuff

Lomandra longifolia

Spiny-headed Mat-rush

Lomandra 'Verday'

Verday

Myoporum parvifolium

Creeping Boobialla

Poa labillardierei

Tussock grass

Passive Recreation

Botanical Name

Common Name

TREES

Planting selection to enhance public amenity, maximising existing mature tree canopy and expanding upon it with endemic species.

Groundcovers, shrubs and sedge species should be used to separate spaces and uses while maintaining clear sightlines.

Botanical Name

Common Name

SHRUBS

Acmena smithii

Lilly Pilly

Acacia longifolia

Sydney Golden Wattle

Allocasuarina distyla

Scrub She-Oak

Acacia longifolia var sophorae

Sydney Golden Wattle

Angophora costata

Smooth-barked Apple

Acacia redolens

Prostrate Acacia

Angophora floribunda

Rough-barked Apple

Acacia suaveolens

Sweet Wattle

Banksia integrifolia

Coast Banksia

Acacia terminalis

Sunshine Wattle

Banksia serrata

Old Man Banksia

Acacia ulicifolia

Prickly Moses

Casuarina cunninghamiana

River She-Oak

Adenanthos sericeus

Woolly Bush

Casuarina glauca

Swamp Oak

Banksia aemula

Wallum Banksia

Corymbia gummifera

Red Bloodwood

Banksia ericifolia

Heath-leaved Banksia

Corymbia maculata

Spotted Gum

Banksia integrifolia

Coastal Banksia

Elaeocarpus reticulatus

Blueberry Ash

Banksia oblongifolia

Fern-leaf Banksia

Eucalyptus robusta

Swamp Mahogany

Banksia spinulosa

Hairpin Banksia

Eucalyptus saligna

Sydney Blue Gum

Callistemon citrinus

Crimson Bottlebrush

Glochidion ferdinandi

Cheese Tree

Correa alba

White Correa

Hymenosporum flavum

Native Frangipani

Correa decumbens

Spreading Correa

Lophostemon confertus

Queensland Brushbox

Correa 'Dusky Bells'

Dusky Bells

Melaleuca linariifolia

Paperbark

Dodonaea triquetra

Common Hop Bush

Melaleuca styphelioides

Prickly-leaved Paperbark

Grevillea linearifolia

Linear Leaf Grevillea

Melaleuca quinquenervia

Broad -leaved Paperbark

Grevillea sericea

Spider-flower Grevillea

Hakea laurina

Pin-cushion Hakea

Hakea teretifolia

Dagger Hakea

Lambertia formosa

Mountain Devil

Leptospermum laevigatum

Coastal Tea-tree

Leptospermum polygalifolium

Tantoon

Leptospermum trinervium

Flaky-barked Tea Tree

Melaleuca nodosa

Grey Honey Myrtle

Melaleuca squamea

Swamp Honey Myrtle

Melaleuca thymifolia

Honey Myrtle

Persoonia nutans

Nodding Geebung

Pittosporum undulatum

Sweet Pittosporum

Rhagodia spinescens

Creeping Salt Bush

Viminaria juncea 'Golden Spray'

Golden Spray

Westringia fruticosa

Coastal Rosemary

note - restrict tree species height to meet Airport PSA requirements

Botanical Name

Common Name

GROUND COVERS / GRASSES Astroloma pinifolium

Pine Heath

Baeckea imbricata

Spindly Baeckea

Billardiera scandens

Apple Berry

Dianella caerulea

Blue Flax Lily

Dianella revoluta

Blueberry Lily

Dichondra repens

Kidney-Weed

Entolasia marginata

Bordered Panic

Ficinia nodosa

Knotted Club-rush

Gahnia clarkei

Tall Saw-sedge

Hardenbergia violacea

False Sarsaparilla

Hibbertia fasciculata

Golden Guinea Vine

Hibbertia scandens

Snake Vine

Hypolepis muelleri

Harsh Ground Fern

Imperata cylindrica

Blood Grass

Kennedia rubicunda

Dusky Coral Pea

Leucopogon ericoides

Pink Beard Heath

Lomandra longifolia

Spiny-Headed Mat Rush

Poa labillardierei 'Eskdale'

Tussock Grass

Scaevola 'Purple Fanfare'

Purple Fanfare

Themeda australis

Kangaroo Grass

Viola hederacea

Native Violet

Riverine Park Masterplan | 55

Environmental

Botanical Name

Common Name

TREES

Planting selection to promote the creation of habitat, stormwater filtration and supporting remnant vegetation communities. Careful positioning of plants to maintain passive surveillance and line of site is essential.

Botanical Name

Common Name

GROUND COVERS / GRASSES

Acmena smithii *

Lilly Pilly

Caustis pentandra

Thick Twist-rush

Allocasuarina littoralis

Black She-oak

Dianella revoluta

Blueberry Lily

Angophora costata *

Sydney Red Gum

Echinopogon caespitosus

Hedgehog Grass

Banksia integrifolia

Coastal Banksia

Epacris microphylla

Coral Heath

Banksia serrata *

Old Man Banksia

Hibbertia fasciculata

Bundled Guinea Flower

Casuarina glauca

Swamp she-oak

Hardenbergia violacea *

False sarsaparilla

Corymbia gummifera

Red Bloodwood

Hibbertia scandens *

Snake Vine

Elaeocarpus reticulatus *

Blueberry Ash

Imperata cylindrica *

Blood Grass

Eucalyptus saligna *

Sydney Blue Gum

Leptospermum laterale

Variable Sword-sedge

Lophostemon confertus *

Queensland Brushbox

Lomandra longifolia *

Spiny-headed Mat-rush

Melaleuca quinquenervia

Broad-leaved Paperbark

Microlaena stipoides *

Weeping Grass

Melaleuca quinquenervia

Broad-leaved Paperbark

Poa labillardierei 'Eskdale' *

Tussock Grass

Melaleuca ericifolia

Swamp Paperbark

Themeda australis *

Kangaroo Grass

Melaleuca linariifolia

Snow-in-Summer

* indicates suitability for Green and Gold Bell Frog habitat

note - restrict tree species height to meet Airport PSA requirements * indicates suitability for Green and Gold Bell Frog habitat Botanical Name

Common Name

SHRUBS Acacia elongata

Swamp Wattle

Banksia aemula *

Wallum Banksia

Banksia ericifolia *

Heath-leaved Banksia

Banksia integrifolia

Coastal Banksia

Botanical Name

Banksia oblongifolia *

Fern-leaf Banksia

LOWER BANKS / FREQUENTLY INUNDATED

Bauera rubioides

River Rose

Baumea articulata

Jointed Twig-rush

Callistemon citrinus *

Crimson Bottlebrush

Baumea juncea

Bare Twig rush

Correa alba *

White Correa

Bolboschoenus fluviatilis

River Bulrush

Showy Parrot Pea

Eleocharis acuta

Common Spikerush

Dodonaea triquetra *

Common Hop Bush

Juncus kraussii

Salt Marsh Rush

Eriostemon australasius *

Pink Wax Flower

Potamogeton tricarinatus

Floating Pondweed

Grevillea linearifolia *

Linear Leaf Grevillea

Schoenoplectus mucronatus

Bog Bulrush

Tick Bush

Schoenoplectus validus

Softstem Bulrush

Kunzea capitata *

Pink Kunzea

Triglochin procerum

Water Ribbons

Leptospermum laevigatum *

Coastal Tea Tree

Leptospermum polygalifolium *

Tantoon

Botanical Name

Common Name

Leptospermum trinervium *

Paperbark Tea Tree

UPPER BANKS / INFREQUENTLY INUNDATED

Leucopogon ericoides

Pink Beard-heath

Carex appressa

Tall Sedge

Melaleuca squamea

Swamp Honey-myrtle

Ficinia nodosa

Knobby Club Rush

Persoonia nutans *

Nodding Geebung

Lepidosperma laterale

Variable Sword-sedge

Ricinocarpos pinifolius *

Wedding Bush

Imperata cylindrica

Blady Grass

Westringia fruticosa *

Coastal Rosemary

Spinifex sericeus

Coastal Spinifex

Dillwynia sericea *

Kunzea ambigua

* indicates suitability for Green and Gold Bell Frog habitat

56 | Riverine Park Masterplan

Common Name

8.

Staging and Funding Strategy

Work Description Short-Term (0-3 years) Demolition (not including any buildings) - including removal of redundant fencing Soil and Water Management Earthworks Drainage Works under SWSOOS to connect to Pemulwuy Park Open Lawn - improvements to existing grass areas other than sports fields Passive Park Facilities incl. playground, 3 point basketball & outdoor fitness Share Path Circuit including lighting & sections of elevated boardwalks where required Improving Access and Amenity External Electrical Services Environmental Buffer - areas beyond Spring Creek Naturalisation Protection of Frog Habitat - provisional sum as part of construction activities Additional Sporting Amenity Buildings - subject to further investigation Active Recreation Area - improvements to existing fields, additional lights, seating etc Car Park & Road Works - realignment and upgrade including WSUD Overflow parking Plane Spotting Slope Revegetation, Landscaping and Furniture Demolition of abandoned building Medium-Term (3-6 years) Spring Creek Naturalisation & Wetlands - quantified separately based on option under development Pedestrian Bridge over Spring Creek Community Gardens - supporting facilities such as fencing, paths, seating and park shelter except planting beds New public amenities buildings Long-Term (6-10years) Bridge over Muddy Creek (connect to Kyeemagh) Restoration of sea wall along Cooks River embankment Signalised crossing at West Botany Street and Spring Street intersection & associated civil works

QS Valuation Potential Funding Source $1,498,585

SRV / Contributions / VPA or Grant

$319,044 $2,774,090 $213,300 $588,750 $134,141 $2,250,000 $6,405,297

SRV / Contributions / VPA or Grant SRV / Contributions / VPA or Grant SRV / Contributions / Stormwater Levy / VPA or Grant Contributions / VPA or Grant SRV / Contributions / VPA or Grant SRV / Contributions / VPA or Grant SRV / Contributions / VPA or Grant

$250,000 $62,500 $4,750,000 $315,000 Excl Excl

SRV / Contributions / VPA / Grant or Sporting Partners SRV / Contributions / VPA or Grant Grant / VPA Grant / VPA By others - Sporting Partners By others - Sporting Partners

$4,008,407 $190,008 $331,440 $548,583 TBC $24,639,145

SRV / Contributions / VPA or Grant SRV / Contributions / VPA / Grant or Sporting Partners SRV / Contributions / VPA or Grant SRV / Contributions / VPA or Grant SRV

$14,966,990

SRV / Contributions / Stormwater Levy / VPA or Grant

$1,030,625 $407,760

SRV Contributions / VPA or Grant

$1,500,000 $17,905,375

Contributions / VPA or Grant

$3,763,000 TBC TBC

SRV / Contributions / VPA or Grant TBC Contributions / VPA or Grant

There are a range of funding sources that could be considered to deliver this significant project.

The list below provides an indication of how the project could be funded.

An Infrastructure Levy is currently collected for the area covering Riverine Park. This funding is available to fund replacement of existing infrastructure.

Council collects contributions from developments that generate additional demand and growth of infrastructure such as recreational facilities. These funds are collected under Section 7.11 and S7.12 of Environmental Planning & Assessment Act, 1979 (EP&A Act).

Council collects a Community Safety Levy specifically for enhancing community safety.

Council charges a Stormwater Levy to undertake significant improvements to the stormwater system to provide a cleaner and safer environment for the benefit of owners, residents and visitors.

Council will pro-actively seek grants from other government agencies to help achieve the vision for Riverine Park. This can include: • Metropolitan Green Space Grants • Environmental Grants for interface with wetland areas eg. Lookouts, interpretation, bush regeneration etc • Sport and Recreation Grants • Water quality Grants • Coastal Grants • Active Transport Grants • Vegetation Management Grants • Art and Education Grants

$3,763,000

$46,307,520 Design and Professional Fees (8.5%) Contingency (10%) Project Management (3%) Ecologist during construction (18 months)

$4,374,788 $5,068,231 $1,389,226 $216,000

SRV / Contributions / VPA or Grant SRV / Contributions / VPA or Grant SRV / Contributions / VPA or Grant SRV / Contributions / VPA or Grant

Council is partnering with sporting organisations that will assist in funding certain components identified in this plan.

Riverine Park Masterplan | 57

9.

Next steps

The draft Riverine Park Masterplan was exhibited for 4 weeks between 13 May 2024 and 10 June 2024.

Council received considerable feedback with strong support for the masterplan. The results of the Have Your Say process and feedback received were reported to Council on 24 July 2024. (https://infoweb.bayside.nsw.gov.au/Open/2024/07/ CO_24072024_MIN_4476.PDF ) Community feedback informed the final masterplan with revisions that include a fenced dog offleash park and paddle and kayak access/hitching location.

Priorities as determined by Council will proceed to detail design stage and further community engagement in due course.

Council will submit grant applications for suitable programs.

Council is waiting to hear the results of the Urban Rivers and Catchment Program to find out if an application for $10 million was successful for the wetland and naturalisation project. An announcement is pending.

58 | Riverine Park Masterplan

10. References Bayside Council GIS mapping system Bayside West Precinct Plan planning.nsw.gov.au Bayside Priority Green Grid Spatial Framework bayside.nsw.gov.au

Long-Term Site Management Plan, Recreational/Open Space Land Use, Barton Park, New South Wales Prepared for Bayside Council by Edison Environmental and Engineering, 2020

Sydney Water Corporation Cooks River Flood Study, MWH and PB, 2009 ABORIGINAL HISTORY ALONG THE COOKS RIVER , Cooks River Alliance 2017

NSW State Register – Statement of Significance. Summary for Arncliffe Market Gardens / Chinese Market Gardens 212 West Botany Street, Arncliffe; hms.heritage. nsw.gov.au

Barton Park Masterplan Report (Endorsed by Council 24 June 2020)

Mosquito Risk Assessment Spring Street Wetlands, Feb 2014 Pathlogy West

https://www.bayside.nsw.gov.au/sites/default/files/2024-03/barton_park_ masterplan_report.PDF

NSW State Register – Statement of Significance. SWSOOS No1, Western Main Carrier, Kogarah Golf Course, Western Main Outfall Sewer; hms.heritage.nsw.gov. au

Benson, D, Ondinea, D and Bear, V “Missing Jigsaw Pieces - The bushplants of the Cooks River Valley”, Royal Botanic Gardens Sydney 1999

Pictorial Memories ST. GEORGE: Rockdale, Kogarah, Hurstville Joan Lawrence, Kingsclear Books, 1996, Published in Australia

Benson, D and Howel, J “Taken for Granted: The bushland of Sydney and its suburbs”, Royal Botanic Gardens Sydney 1990

Plan of Management for Community Land and Public Open Space 2015, Rockdale City Council bayside.nsw.gov.au

Biodiversity Strategy 2014 – A strategy for the Natural Assets of the City of Rockdale (Volume 1 & 2) bayside.nsw.gov.au

Pollon, F, “The Book of Sydney Suburbs” Angus & Robertson Publishers, 1990

Cooks River Catchment Flood Study - Stage 1, KBR Barton Park Precinct – Green and Golden Bell Frog Management Plan and Wetland Environmental Management Plan, ECO LOGICAL AUSTRALIA PTY LTD Barton Park Precinct - Wetlands Environmental Management Plan, ECO LOGICAL AUSTRALIA PTY LTD Long-Term Site Management Plan, Recreational/Open Space Land Use, Barton Park, New South Wales Prepared for Bayside Council by Edison Environmental and Engineering, 2020

Rathbone, R W “A village called Arncliffe” BMT WBM “Botany Bay Western Foreshore Coastal Hazard Risk Assessment and Management Options Study completed in 2013 Callaghan, C Removing the Stain: The Botany-Rockdale Sewage Farm, Sydney NSW Australian Historical Archaeology 8,1990.

Geeves, P and Jervis, J “Rockdale; its beginning and development” The Council of the Municipality of Rockdale

Rockdale Market Gardens Conservation Management Plan, on behalf of Planning NSW, written by Spackman and Mossop Pty Ltd; Tinslay Consulting Engineers and Patterson Britton & Associates, August 2002.

Rockdale – Its beginning and development (Revised Rathbone, 1986), Rockdale City Council

Acknolwedgements: Bayside council employees and staff subject matter experts for engaging in interviews Bayside Council Library staff for the provision of Historical Council Reports

Sydney Regional Environmental Plan No 33 - Cooks Cove legislation.nsw.gov.au DCCEEW “Best Practice Guidelines Green and Golden Bell Frog Habitat”, Dept.

Engineering and Climate Change NSW DCCEEW “Best Practice Guidelines for Coastal Saltmarsh”, Dept. Engineering and Climate Change NSW

Soil Landscapes of the Sydney 1:100,000 Sheet,1989 Sydney Australia Spring Street Drain, Muddy Creek and Scarborough Ponds Catchments 2D Flood Study Review, BMT WBM, 2017 BMT WBM Bayside West Flood Risk Management Study, May 2023 Sydney Airport Masterplan 2039; sydneyairport.com.au Sydney Green Grid, Government Architects Office; planning.nsw.gov.au

Riverine Park Masterplan | 59

Bayside Customer Service Centres Rockdale Library, 444-446 Princes Highway, Rockdale Westfield Eastgardens, 152 Bunnerong Road, Eastgardens Monday to Friday 8:30am – 4:30pm, Saturday 9am – 1pm

Phone 1300 581 299 | 9562 1666 Email council@bayside.nsw.gov.au Web www.bayside.nsw.gov.au
